Installing and Removing a Cisco 7600 Series Ethernet Services 20G Line Card
This chapter describes how to install or remove Cisco 7600 Series Ethernet Services 20G (ES20) line cards on the Cisco 7600 series routers. This chapter contains the following sections:
•
Handling Cisco 7600 Series Ethernet Services 20G Line Cards.
•
Handling Cisco 7600 Series Ethernet Services 20G Line Cards
Each Cisco 7600 ES20 line card circuit board is mounted to a metal carrier and is sensitive to electrostatic discharge (ESD) damage. Before you begin installation, read Chapter 4, "Preparing to Install a Cisco 7600 Series Ethernet Services 20G Line Card," for a list of parts and tools required for installation.
Caution
When a slot is not in use, a blank filler plate must be installed in the empty slot to allow the router or switch to conform to electromagnetic interference (EMI) emissions requirements and to allow proper airflow across the installed modules. If you plan to install a Cisco 7600 ES20 line card in a slot that is not in use, you must first remove the blank filler plate.

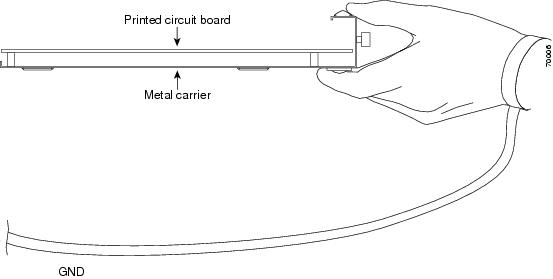

Figure 3-1 Handling a Cisco 7600 ES20 Line Card
Online Insertion and Removal
The Cisco 7600 series routers support online insertion and removal (OIR) of the Cisco 7600 ES20 line card, as well as OIR for the SFP or XFP modules. Therefore, you can remove a Cisco 7600 ES20 line card with its SFP or XFP modules still intact, or you can remove SFP or XFP modules independently from the Cisco 7600 ES20 line card, leaving the line card installed in the router.
This section includes the following topics on OIR support:
•
•
•
Preparing for Online Removal of a Cisco 7600 Series Ethernet Services 20G Line Card
The Cisco 7600 series routers support OIR of the Cisco 7600 ES20 line card. To do this, you can power down a Cisco 7600 ES20 line card (which automatically deactivates any installed SFP or XFP modules) and remove the Cisco 7600 ES20 line card with the SFP or XFP modules still intact.
Although graceful deactivation of a ES20 line card is preferred using the no power enable module command, the Cisco 7600 series routers do support removal of the ES20 line card without deactivating it first.
If you plan to remove a Cisco 7600 ES20 line card, you can deactivate the Cisco 7600 ES20 line card first, using the no power enable module global configuration command.
When you deactivate a Cisco 7600 ES20 line card using this command, it automatically deactivates each of the SFP or XFP modules that are installed in that Cisco 7600 ES20 line card. Therefore, it is not necessary to deactivate each of the SFP or XFP modules prior to deactivating the Cisco 7600 ES20 line card.
Deactivating a Cisco 7600 Series Ethernet Services 20G Line Card
To deactivate a ES20 Ethernet line card and its installed SFPs or XFPs prior to removal of the ES20 line card, use the following command in global configuration mode:
For more information about chassis slot numbering, refer to the Chapter 2, "Identifying Slots and Subslots for the Cisco 7600 Series Ethernet Services 20G Line Cards," section in this guide.
Reactivating a Cisco 7600 Series Ethernet Services 20G Line Card
Once you deactivate a Cisco 7600 ES20 line card, whether or not you have performed an OIR, you must use the power enable module global configuration command to reactivate the Cisco 7600 ES20 line card.
If you did not issue a command to deactivate the SFP or XFP modules installed in a Cisco 7600 ES20 line card, but you did deactivate the Cisco 7600 ES20 line card using the no power enable module command, then you do not need to reactivate the SFP or XFP modules after an OIR of the Cisco 7600 ES20 line card. The installed SFP or XFP modules automatically reactivate upon reactivation of the Cisco 7600 ES20 line card in the router.
For example, consider the case where you remove a Cisco 7600 ES20 line card from the router to replace it with another Cisco 7600 ES20 line card. You reinstall the same SFP or XFP modules into the new Cisco 7600 ES20 line card. When you enter the power enable module command on the router, the SFP or XFP modules will automatically reactivate with the new Cisco 7600 ES20 line card.
To activate a Cisco 7600 ES20 line card and its installed SFP or XFP modules after the Cisco 7600 ES20 line card has been deactivated, use the following command in global configuration mode:
For more information about chassis slot numbering, refer to the Identifying Slots and Subslots for the Cisco 7600 Series Ethernet Services 20G Line Cards, page 2-2 section in this guide.
Verifying Deactivation and Activation of a Cisco 7600 Series Ethernet Services 20G Line Card
To verify the deactivation of a ES20 line card, enter the show module command in privileged EXEC configuration mode. Observe the Status field associated with the ES20 line card that you want to verify.
The following example shows that the ES20 line cards located in slots 2 and 4 are deactivated. This is indicated by its "PwrDown" status.
Router# show moduleMod Ports Card Type Model Serial No.--- ----- -------------------------------------- ------------------ -----------2 0 ESM20G 7600-ES20-BASE JAB1030007C4 0 ESM20G 7600-ES20-BASE JAB102306875 1 1-subslot SPA Interface Processor-600 7600-SIP-600 JAB091604D26 2 Supervisor Engine 720 (Active) WS-SUP720-3BXL SAL1026SW03Mod MAC addresses Hw Fw Sw Status--- ---------------------------------- ------ ------------ ------------ -------2 00e0.aabb.cc00 to 00e0.aabb.cc00 1.0 12.2(2006032 12.2(2006110 PwrDown4 00e0.aabb.cc00 to 00e0.aabb.cc00 0.32 12.2(2006032 12.2(2006110 PwrDown5 0016.468f.554c to 0016.468f.558b 1.0 12.2(18r)SX4 12.2(2006110 Ok6 0014.a982.2684 to 0014.a982.2687 5.2 8.4(2) 12.2(2006110 OkMod Sub-Module Model Serial Hw Status---- --------------------------- ------------------ ----------- ------- -------2 ESM20G/PFC3C Distributed Fo 7600-ES20-D3C JAB1030008H 1.0 PwrDown4 ESM20G Distributed Forwardi 7600-ESM-DFC-3CXL JAB10230672 0.16 PwrDown5 SIP-600 Distributed Forward 7600-SIP-600-DC JAB091604DU 1.0 Ok5/0 1x10GE XFP SPA SPA-1XTENGE-XFP PRTA2104311 3.2 Ok6 Policy Feature Card 3 WS-F6K-PFC3BXL SAL1025SEF8 1.8 Ok6 MSFC3 Daughterboard WS-SUP720 SAL09253VH8 2.5 OkMod Online Diag Status---- -------------------2 Not Applicable4 Not Applicable5 Bypass5/0 Bypass6 BypassRouter#To verify activation and proper operation of a ES20 line card, enter the show module command and observe "Ok" in the Status field as shown in the following example:
Router# show moduleMod Ports Card Type Model Serial No.--- ----- -------------------------------------- ------------------ -----------2 20 ESM20G 7600-ES20-BASE JAB1030007C4 2 ESM20G 7600-ES20-BASE JAB102306875 1 1-subslot SPA Interface Processor-600 7600-SIP-600 JAB091604D26 2 Supervisor Engine 720 (Active) WS-SUP720-3BXL SAL1026SW03Mod MAC addresses Hw Fw Sw Status--- ---------------------------------- ------ ------------ ------------ -------2 00e0.aabb.cc00 to 00e0.aabb.cc00 1.0 12.2(2006032 12.2(2006110 Ok4 00e0.aabb.cc00 to 00e0.aabb.cc00 0.32 12.2(2006032 12.2(2006110 Ok5 0016.468f.554c to 0016.468f.558b 1.0 12.2(18r)SX4 12.2(2006110 Ok6 0014.a982.2684 to 0014.a982.2687 5.2 8.4(2) 12.2(2006110 OkMod Sub-Module Model Serial Hw Status---- --------------------------- ------------------ ----------- ------- -------2 ESM20G/PFC3C Distributed Fo 7600-ES20-D3C JAB1030008H 1.0 Ok2/0 10XGE Port 7600-ES20-20XGE JAB10350313 1.0 Ok2/1 10XGE Port 7600-ES20-20XGE JAB10350313 1.0 Ok4 ESM20G Distributed Forwardi 7600-ESM-DFC-3CXL JAB10230672 0.16 Ok4/0 1x10GE XFP Port ESM-2X10GE-LINK JAB1023069L 0.32 Ok4/1 1x10GE XFP Port ESM-2X10GE-LINK JAB1023069L 0.32 Ok5 SIP-600 Distributed Forward 7600-SIP-600-DC JAB091604DU 1.0 Ok5/0 1x10GE XFP SPA SPA-1XTENGE-XFP PRTA2104311 3.2 Ok6 Policy Feature Card 3 WS-F6K-PFC3BXL SAL1025SEF8 1.8 Ok6 MSFC3 Daughterboard WS-SUP720 SAL09253VH8 2.5 OkMod Online Diag Status---- -------------------2 Bypass2/0 Bypass2/1 Bypass4 Bypass4/0 Bypass4/1 Bypass5 Bypass5/0 Bypass6 BypassRouter#Preparing for Online Removal of a SFP or XFP Modules
The Cisco 7600 series routers support OIR of a SFP or XFP modules independently of removing the Cisco 7600 ES20 line card. This means that a Cisco 7600 ES20 line card can remain installed in the router with one XFP remaining active, while you remove another XFP from one of the line card ports. Or, that an Cisco 7600 ES20 line card can remain installed in the router with some number of SFP modules remaining active, while you remove other SFP modules from the line card ports.
The interface configuration is retained (recalled) if a Cisco 7600 ES20 line card or SFP or XFP is removed and then replaced with one of the same type.
If you are planning to remove a Cisco 7600 ES20 line card along with its SFP or XFP modules, then you do not need to follow the instructions in this section. To remove a Cisco 7600 ES20 line card, see the "Preparing for Online Removal of a Cisco 7600 Series Ethernet Services 20G Line Card" section.
SFP Module or XFP Module OIR
The SFP and XFP modules support online insertion and removal (OIR). However, if the line card is already installed in the router and the system is operational, we recommend that you administratively shut down the SFP or XFP module port before installing a new module.
