Route Switch Processors and Supervisor Engines
This chapter describes the route switch processors and supervisor engines supported on Cisco 7600 series routers and provides instructions for performing basic tasks on the modules. It contains the following sections:
•
RSP720 with 10GE Uplink Ports
•
Note
Overview
The supervisor engine or route switch processor (RSP) is a module that is installed in one of the card slots in the router. The supervisor engine or RSP provides switching and local and remote management for the router and also contains the uplink ports for the router. Both types of modules (supervisor engine and RSP) perform the same functions in the router.
Cisco 7600 series routers support the following types of RSPs and supervisor engines:
•
•
•
•
•
•
Although the router can operate with a single supervisor engine or RSP, you can also install a second redundant module (of the same type) in the chassis. Only one module is active at a time. The second module acts as a "standby," serving as a backup if the active module fails.
Note
The supervisor engine or RSP contains the following integrated daughter cards that perform forwarding and routing and provide the protocols supported on the router. Several configurations of daughter cards are supported (as shown in Table 2-1).
•
–
–
–
–
Note
•
–
–
Table 2-1 lists the RSP and supervisor engine configurations supported on Cisco 7600 series routers. Specific combinations of processors and modules may not be supported in your chassis. See the release notes for your software version for information about supported combinations.
Table 2-1 Route Switch Processor and Supervisor Engine Configurations
RSP720-3C-10GE
•
•
Note
•
•
–
–
•
•
•
•
RSP720-3CXL-10GE
•
•
Note
•
•
–
–
•
•
•
•
Note
RSP720-3C-GE
•
•
•
–
–
•
•
•
RSP720-3CXL-GE
•
•
•
–
–
•
•
•
WS-SUP720
•
•
•
•
•
•
Note
WS-SUP720-3B
•
•
•
•
•
•
Note
WS-SUP720-3BXL
•
•
•
•
•
•
Note
WS-SUP32-GE-3B
•
•
•
•
WS-SUP32-10GE-3B
•
•
•
•
Note
Note
WS-X6K-S2-MSFC2
•
•
•
•
WS-X6K-S2U-MSFC2
•
•
•
•
WS-X6K-S2-PFC2
•
•
•
WS-X6500-SFM2
•
Note
Supervisor Engine 2T
•
•
•
–
–
–
–
–
–
•
–
–
Note
•
–
–
–
Route Switch Processor 720
This section describes the Route Switch Processor 720 (RSP720). The Cisco 7600 RSP720 consists of a full-size board and two integrated daughter cards: the MSFC4 and a PFC3C or PFC3CXL. The RSP720 has an integrated switch fabric that interconnects all of the line cards in the Cisco 7600 router with point-to-point 20-Gbps full-duplex serial channels.
Note
The RSP720 is supported on all Cisco 7600 routers (including enhanced chassis) except the Cisco 7603 and the Cisco OSR-7609.•

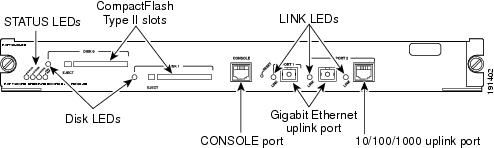

Figure 2-1 shows the RSP720-3C-GE front panel, which is the same as the RSP720-3CXL-GE front panel. See Table 2-8 and Table 2-9 for information about the front-panel controls and LEDs.
Figure 2-1 Route Switch Processor 720 (RSP720-3C-GE) Front Panel
RSP720 Features
The RSP720 provides several new features and enhancements, which are summarized here. For details, see the Cisco 7600 Series Router Cisco IOS Software Configuration Guide, Release 12.2SR.
•
•
•
•
•
Supported Chassis, Line Cards, and Modules
The RSP720 supports the following Cisco 7600 chassis, line cards and modules:
•
•
•
•
•
•
–
–
–
–
–
Unsupported Hardware and Features
The following hardware and features are not supported by the RSP720:
•
•
RSP720 with 10GE Uplink Ports
Cisco IOS Release 12.2SRC introduces a new RSP720 with 10 Gigabit Ethernet (GE) uplink ports (RSP720-10GE). The Cisco 7600 RSP720-10GE consists of a full-size board and two integrated daughter cards: an MSFC4 and a PFC. The RSP720-10GE has an integrated switch fabric that interconnects all of the line cards in the router with point-to-point 20-Gbps full-duplex serial channels.
Two versions of the RSP720-10GE module are available:
•
•
Because of physical differences between the RSP720 and RSP720-10GE (such as the CPU memory map and ASIC operation), there are several configuration guidelines and restrictions you should be aware of. See the "RSP720-10GE Usage Guidelines and Limitations" section for details.
Following are the total power requirements for the RSP720-10GE:
•
•

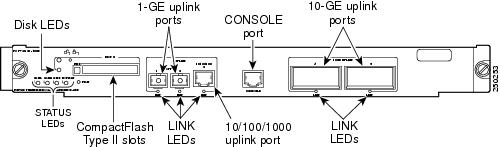

Figure 2-2 shows the RSP720-3C-10GE front panel. The RSP720-3CXL-10GE front panel is similar. See Table 2-8 and Table 2-9 for information about the front-panel controls and LEDs.
Figure 2-2 RSP720-3C-10GE Front Panel
Note
RSP720-10GE Features
The RSP720-10GE provides all of the features of the RSP720 and also provides the following benefits:
•
Note
•
–
–
–
When all five uplink ports are operational, the total bandwidth for uplink traffic is 20 Gbps (20 GE).
•
•
See the "RSP720-10GE Usage Guidelines and Limitations" section for information about things to consider when you use the RSP720-10GE.
Supported Chassis, Line Cards, and Modules
The RSP720-10GE supports the following chassis and modules:
•
Note
•
•
•
•
•
–
–
–
–
–
•
Note
Unsupported Chassis and Modules
The RSP720-10GE does not support the following chassis and modules:
•
•
Unsupported Features
In Cisco IOS Release 12.2SRC, the RSP720-10GE does not support the following features, which are supported on the RSP720:
•
Note
For complete syntax and usage information for the commands, refer to the Cisco IOS High Availability Command Reference at this URL: http://www.cisco.com/en/US/docs/ios/ha/command/reference/ha_book.html
•
•
•
•
•
RSP720-10GE Usage Guidelines and Limitations
Observe the following guidelines when using the RSP720-10GE:
•
•
•
–
–
•
QoS on the RSP720-10GE
The RSP720-10GE has both 10GE and 1GE uplink ports. You can configure the RSP720-10GE to run QoS features on all uplink ports (mixed mode) or on 10GE ports only. The number of queues available for QoS depends on which mode is used:
•
The QoS port architecture for 1GE port is (Rx/Tx): 2q8t/1p3q8t. The queue structure for 10GE ports in mixed mode is same as IGE ports : 2q8t/1p3q8t.
•
The QoS port architecture for 10GE only mode is (Rx/Tx): 8q8t/1p7q8t.
Note
For complete syntax and usage information for the command mls qos recirc untrust, refer to the Cisco QoS command reference at this URL: http://www.cisco.com/en/US/docs/ios/qos/command/reference/qos_book.html
QoS Configuration Guidelines
As you configure QoS on the RSP720-10GE, consider the following:
•
•
•
•
•
Configuring 10GE Only QoS
Cisco IOS Release 12.2SRC introduces a new command to enable QoS features on 10GE uplink ports only. By default, the router runs in mixed mode, which means that QoS is enabled on both the 10GE uplink ports and the 1GE uplink ports.
mls qos supervisor 10g-only
no mls qos supervisor 10g-only
Note
Supervisor Engine 2T
The Supervisor Engine 2T is the newest addition to the family of supervisor engines. The Supervisor Engine 2T is designed to deliver higher performance, better scalability, and enhanced hardware-enabled features. Supervisor Engine 2T integrates a high-performance 2-Terabit crossbar switch fabric that enables 80 Gbps switching capacity per slot on 7609-S chassis. The forwarding engine on Supervisor Engine 2T is capable of delivering high-performance forwarding for Layer 2 and Layer 3 services. Supervisor Engine 2T delivers many new hardware-enabled innovations in the areas of security, quality of service (QoS), virtualization, and manageability. The rich feature set of Supervisor Engine 2T enhances applications such as traditional IP forwarding, Layer 2 and Layer 3 Multiprotocol Label Switching (MPLS) VPNs, and VPLS.
This section describes the Supervisor Engine 2T (see Figure 2-3). Table 2-2 describes the controls and features on the front panel, and Table 2-3 describes the LEDs.

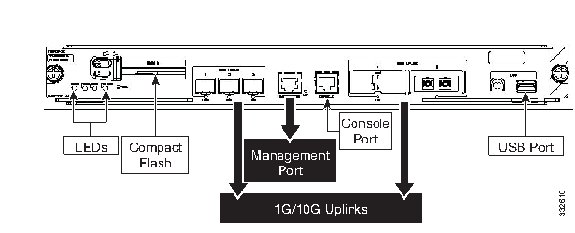

Figure 2-3 Supervisor Engine 2T Front Panel
Table 2-2 Supervisor Engine 2T Front-Panel Controls
Indicate the status of various functions on the module (see Table 2-9).
Restarts the router. Use a ballpoint pen tip or other small, pointed object to access the Reset button. Not all modules have a Reset button.
Disk SlotsOne slots for flash memory cards. Do not remove the card from the slot while the disk LED is on. See the "Using Flash Memory Cards" section for information about working with flash memory.
Provides access to the router. The port is an EIA/TIA-232 asynchronous, serial connection with hardware flow control and an RJ-45 connector. See the "Connecting to the Console Port" section for instructions on connecting to the console port.
Connects the router to other network devices. SUP-2T has two 10GE and three 1GE uplink ports. The two 10GE ports use X2 as transceiver, and the three 1GE ports use SFP. The uplink ports are configurable with SFP or X2 optics modules. See the "Connecting to the Uplink Ports" section for more information.
Each USB port can function as a console port.
Directly connects to the network and copies IOS router image using the TFTP server. You can also use this port to network boot the system using the image on the TFTP server from rommon.
Table 2-11 lists the LED functions on the Supervisor Engine 2T.
Table 2-3 Supervisor Engine 2T LEDs
Green
All diagnostics pass; the module is operational (normal initialization sequence).
Orange
The module is booting or running diagnostics (normal initialization sequence).
Yellow
Minor hardware problems.
Red
An overtemperature condition occurred. (A major threshold has been exceeded during environmental monitoring.)
Blue
The beacon LED on the module level. The LED in enable state will flash (half second blue and half second off). By default, this LED is diabled.
You can use hw-module slot slot-no led beacon command to configure the LED.
Green
All chassis environmental monitors are reporting OK.
Orange
The module is powering up or a minor hardware fault has occurred.
Red
Major hardware problem.
The temperature of the supervisor engine has exceeded the major temperature threshold.
Blinking Red
Continuous backplane stall.
Green
The supervisor engine is operational and active.
Orange
The supervisor engine is powering up or is in standby mode.
Green
Sufficient power is available for all modules installed in the router.
Orange
The supervisor engine is powering up or has minor hardware problems.
Red
Major hardware problem.
Green
The disk is active. Do not remove the disk while the light is on or the file may get corrupted.
Green
The port is operational.
Orange
The port is disabled.
Flashing orange
The port is bad.
Off
The supervisor engine is powering up or the port is enabled and there is no link.
1 The SYSTEM and PWR MGMT LEDs on a redundant supervisor engine are synchronized to the active module.
Primary Supervisor Engine 2T Components
Policy Feature Card 4
Supervisor Engine 2T features the integrated Policy Feature Card 4 (PFC4), which improves performance and scalability, and provides new and enhanced hardware features. The PFC4 is equipped with a high-performance ASIC complex that enables hardware acceleration for existing and new software features. The PFC4 supports Layer 2 and Layer 3 forwarding, QoS, Netflow and ACL and multicast packet replication and processes security policies such as access control lists (ACLs) operations all simultaneously enabled with no performance impact. The PFC4 supports all of these operations for both IPv4 and IPv6.
PFC4 also provides enhanced performance and scalability and supports many new innovations such as native VPLS, flexible NetFlow, egress NetFlow, Cisco TrustSec, distributed policers, control plane policing, and comprehensive IPv6 features.
Multilayer Switch Feature Card 5
Supervisor Engine 2T features the Multilayer Switch Feature Card 5 (MSFC5), providing high-performance, multilayer switching and routing intelligence. Equipped with a high-performance processor, the MSFC5 runs both Layer 2 protocols and Layer 3 protocols on the dual-core CPU complex. These include routing protocol support, Layer 2 protocols (for example, Spanning Tree Protocol and VLAN Trunking Protocol), and security services.
The MSFC5 builds the Cisco Express Forwarding information base (FIB) table in software and then downloads this table to the hardware application-specific-integrated circuits (ASICs) on the PFC4 and Distributed Forwarding Card 4 (DFC4), if present on a module, which make the forwarding decisions for IP unicast and multicast traffic.
Features and Benefits details
This section provides details of scalability and performance capabilities of Supervisor Engine 2T and functions supported.
Table 2-4 shows the scalability for Supervisor Engine 2T.
Table 2-4 Scalability
IPv4 routing
In hardware
Up to 720 Mpps**In hardware
Up to 720 Mpps**IPv6 routing
In hardware
Up to 390 Mpps**In hardware
Up to 390 Mpps**L2 bridging
In hardware
Up to 720 Mpps**In hardware
Up to 720 Mpps**MPLS
MPLS in hardware to enable use of Layer 3 VPNs and EoMPLS tunneling. Up to 8192 VRFs with a total of up to 256K1 forwarding entries per system.
MPLS in hardware to enable use of Layer 3 VPNs and EoMPLS tunneling. Up to 8192 VRFs with a total of up to 1024K forwarding entries per system.
VLAN
4K
4K
Bridge domains
16k
16k
VPLS
In hardware (Up to 390 Mpps**)
In hardware (Up to 390 Mpps**)
GRE
In hardware (Up to 390 Mpps**)
In hardware (Up to 390 Mpps**)
NAT
Hardware assisted
Hardware assisted
MAC entries
128k
128k
Routes
256K(IPv4)
128K (IPv6)
1024K (IPv4)
512K (IPv6)
Netflow entries
512K
1024K
Multicast routes
128K (IPv4)
128K (IPv6)128K (IPv4)
128K (IPv6)
1 1K=1024.
Table 2-5 shows the QoS features and scalability for Supervisor Engine 2T.
Table 2-5 QoS Features and Scalability
Table 2-6 shows security features and scalability for Supervisor Engine 2T.
Table 2-6 Security Features and Scalability
Table 2-7 shows the MPLS and virtualization features for Supervisor Engine 2T.
Table 2-7 MPLS and Virtualization Features
Supervisor Engine 720 and Supervisor Engine 32
The following figures (Figure 2-4, Figure 2-5, and Figure 2-6) show the front panel on the Supervisor Engine 720 (Sup720) and Supervisor Engine 32 (Sup32). The tables that follow describe the controls and LEDs on the RSP720, Sup720, and Sup32. For information on the Supervisor Engine 2 controls and LEDs, see the "Supervisor Engine 2T" section.

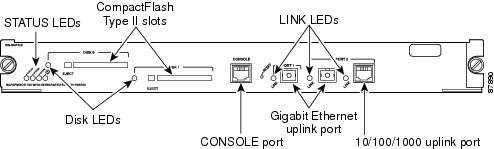

Figure 2-4 Supervisor Engine 720 (WS-SUP720) Front Panel

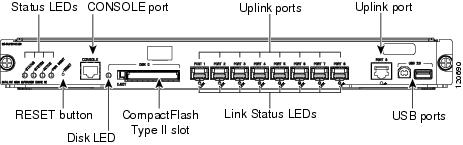

Figure 2-5 Supervisor Engine 32 (WS-SUP32-GE-3B) Front Panel

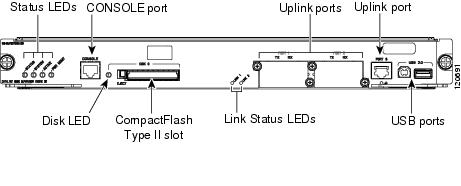

Figure 2-6 Supervisor Engine 32 (WS-SUP32-10GE-3B) Front Panel
Front-Panel Controls (RSP720, RSP720-10GE, Sup720, Sup32)
Table 2-8 describes the front-panel controls on the Route Switch Processor 720 and RSP720-10GE, the Supervisor Engine 720, and the Supervisor Engine 32.
Table 2-8 RSP720, RSP720-10GE, Sup720, and Sup32 Front-Panel Controls
Indicate the status of various functions on the module (see Table 2-9).
Restarts the router. Use a ballpoint pen tip or other small, pointed object to access the Reset button. Not all modules have a Reset button.
Disk SlotsOne or two slots for flash memory cards. Do not remove the card from the slot while the disk LED is on. See the "Using Flash Memory Cards" section for information about working with flash memory.
Provides access to the router. The port is an EIA/TIA-232 asynchronous, serial connection with hardware flow control and an RJ-45 connector. See the "Connecting to the Console Port" section for instructions on connecting to the console port.
On the RSP720, the console port allows you to access either the switch processor (SP) or the route processor (RP).
Used to connect the router to other network devices. The uplink ports are configurable with SFP, XENPAK, or X2 optics modules. See the "Connecting to the Uplink Ports" section for more information.
Each USB port can function as a console port or security key.
Front-Panel LEDs (RSP720, RSP720-10GE, Sup720, Sup32)
LEDs on the front panel of the supervisor engine or route switch processor show the status of the processor and other components installed in the router. Table 2-9 lists the LED functions on the Route Switch Processor 720 and RSP720-10GE, the Supervisor Engine 720, and the Supervisor Engine 32. See Table 2-11 for a list of LED functions on the Supervisor Engine 2.
Table 2-9 RSP720, Sup720, and Sup32 LEDs
Green
All diagnostics pass; the module is operational (normal initialization sequence).
Orange
The module is booting or running diagnostics (normal initialization sequence).
Yellow
Minor hardware problems.
Red
An overtemperature condition occurred. (A major threshold has been exceeded during environmental monitoring.)
Green
All chassis environmental monitors are reporting OK.
Orange
The module is powering up or a minor hardware fault has occurred.
Red
Major hardware problem.
The temperature of the supervisor engine or RSP has exceeded the major temperature threshold.
Blinking Red
Continuous backplane stall.
Green
The supervisor engine or RSP is operational and active.
Orange
The supervisor engine or RSP is powering up or is in standby mode.
Green
Sufficient power is available for all modules installed in the router.
Orange
The supervisor engine or RSP is powering up or has minor hardware problems.
Red
Major hardware problem.
Green
The disk is active. Do not remove the disk while the light is on or the file may be corrupted.
Green
The port is operational.
Orange
The port is disabled.
Flashing orange
The port is bad.
Off
The supervisor engine or RSP is powering up or the port is enabled and there is no link.
1 The SYSTEM and PWR MGMT LEDs on a redundant supervisor engine or RSP are synchronized to the active module.
Supervisor Engine 2
This section describes the Supervisor Engine 2 (see Figure 2-3), which has slightly different controls and features than the Supervisor Engine 720 and Supervisor Engine 32. Table 2-10 describes the controls and features on the front panel and Table 2-11 describes the LEDs.
Note

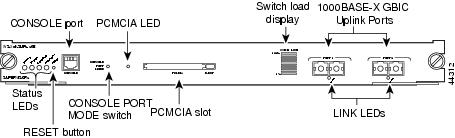

Figure 2-7 Supervisor Engine 2 Front Panel
Table 2-10 Supervisor Engine 2 Front-Panel Controls
Indicate the status of various functions on the module (see Table 2-11).
Restarts the router. Use a ballpoint pen tip or other small, pointed object to access the Reset button.
Provides access to the router either locally (with a console terminal) or remotely (with a modem). The port is an EIA/TIA-232 asynchronous, serial connection with hardware flow control and an RJ-45 connector. See the "Connecting to the Console Port" section for instructions on connecting to the console port.
Enables you to connect a terminal to the console port using either the cable and adapters provided with the router (switch in the in position, factory default) or a Catalyst 5000 Supervisor Engine III console cable and adapter, not provided (switch in the out position).
PCMCIA flash memory card slot. Do not remove the card from the slot while the disk LED is on. See the "Using Flash Memory Cards" section for information about working with flash memory.
A visual approximation of the current traffic load across the backplane.
Used to connect the router to another network device. Two dual-port Gigabit Ethernet uplink ports operate in full-duplex mode only. You can configure the ports with any combination of copper, short-wave (SX), long-wave/long-haul (LX/LH), extended-reach (ZX), and coarse wavelength division multiplexing (CWDM) 1000BASE-X Gigabit Interface Converters (GBICs). See the "Connecting to the Uplink Ports" section for more information.
Table 2-11 lists the LED functions on the Supervisor Engine 2.
Table 2-11 Supervisor Engine 2 LEDs
Green
All diagnostics pass; the module is operational (normal initialization sequence).
Orange
The module is booting or running diagnostics (normal initialization sequence).
An overtemperature condition has occurred. (A minor threshold has been exceeded during environmental monitoring.)
Red
Diagnostic test failed; the module is not operational. (The fault occurred during the initialization sequence.)
An overtemperature condition has occurred. (A major threshold has been exceeded during environmental monitoring.)
Green
All chassis environmental monitors are reporting OK.
Orange
The power supply or power supply fan failed.
Incompatible power supplies are installed.
The redundant clock failed.
One VTT2 module has failed or the VTT module temperature minor threshold has been exceeded.3
Red
Two VTT modules failed or the VTT module temperature major threshold has been exceeded.3
The temperature of the supervisor engine major threshold has been exceeded.
Green
The supervisor engine is operational and active.
Orange
The supervisor engine is in standby mode.
Green
Sufficient power is available for all modules.
Orange
Sufficient power is not available for all modules.
-
If the system is operational, the switch load meter indicates (as an approximate percentage) the current traffic load over the backplane.
-
The PCMCIA LED is lit when no PCMCIA card is in the slot and goes off when you insert a card.
Green
The port is operational.
Orange
The link has been disabled by software.
Flashing orange
The link is bad and has been disabled due to a hardware failure.
Off
No signal is detected.
1 The SYSTEM and PWR MGMT LED indications on a redundant supervisor engine are synchronized to the active engine.
2 VTT = voltage termination. The VTT module terminates signals on the system switching bus.
3 If no redundant supervisor engine is installed and there is a VTT module minor or major overtemperature condition, the system shuts down.
