Repacking the Cisco 7609 Internet Router

Repacking the Cisco 7609 Internet Router

---

---

Note This document describes the Cisco 7609 Internet Router (OSR-7609) and not the Cisco 7609 Internet Router (CISCO7609).

---

If you need to return or move the Cisco 7609 Internet Router (OSR-7609) chassis, follow these steps to repack the chassis using the original packaging material:

---

Step 1 Set the chassis in the bottom pallet. (See Figure C-1.)

Step 2 Place the packing bag over the chassis.

Step 3 Place the front-packing material and power supply packing material around the chassis.

Step 4 Place the power supplies in the spaces provided in the power supply packing material. (See Figure C-1.)

Step 5 Place the top-packing material over the top of the chassis and power supplies.

Step 6 Place the rack-mount kit and the accessories box on the top-packing material.

---

Note You must include the accessories box for the final packaging to fit properly.

---

Step 7 Place the outside carton over the entire package.

Step 8 Fold the outside carton down over the top and seal with packing tape.

Step 9 Wrap three packing straps tightly around the top and bottom of the package to hold the outside carton and the bottom pallet together. (See Figure C-2.)

---

Figure C-1 Packing Material

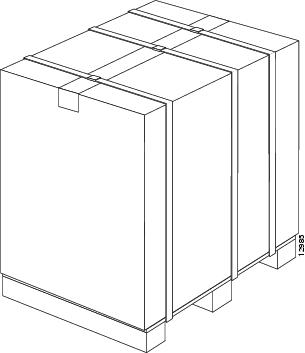

Figure C-2 Final Package

---

Note Do not use tape to hold the outside carton to the bottom pallet. Packing straps must be added to hold the entire package together and to add strength to the package.

---
