Installing Cisco VSPT

The Cisco Voice Services Provisioning Tool (VSPT) provides an easy-to-use graphical tool to provision the Cisco PGW 2200 Softswitch running the Cisco MGC software.

Note In the previous release the VSPT was known as the Cisco MGC Node Manager Provisioning Tool (MNM).

Individual releases of VSPT are designed to be used with specific releases of the Cisco MGC software. VSPT Release 2.6(1) is designed to be used with Cisco MGC Release 9.6(1). If you are using a different release of the Cisco MGC software, see the "Determine the Correct Provisioning Tool Release" section to identify the release of VSPT that you need.

•Installing VSPT Release 2.6(1)

–Planning and Setting Up for Backup and Restore

–Installing SSH on VSPT

•Installing an Earlier Version of VSPT

•Upgrading VSPT

•Uninstalling VSPT

Determine the Correct Provisioning Tool Release

You must install the provisioning tool release that is compatible with your Cisco MGC and BAMS software. Select the correct provisioning tool version by referring to Table 1-1. The following versions are included on the Cisco MGC Node Manager CD. Check the applicable Release Notes for possible later patches.

Table 1-1 VSPT & Cisco MGC Software Version Compatibility

Provisioning Tool Software Version
Cisco MGC Software Release
BAMS Software Release

Provisioning Tool (VSPT) 2.6(1)

Cisco MGC Release 9.6(1)

BAMS Phase 3(3.13)

Provisioning Tool (VSPT) 2.5(2)

Cisco MGC Release 9.5(1)

BAMS Phase 3 (3.13)

MNM-Provisioning Tool (MNM-PT) 2.4(1)

Cisco MGC Release 9.4(1)

BAMS Phase 3 (3.12 and 3.13)

Provisioning Tool (VSPT) 2.3(2)

Cisco MGC Release 9.3(2)

BAMs Phase 2, BAMS Phase 3 (3.10 and 3.12)

Provisioning Tool (VSPT) 2.2(2) and 2.2(2) patch 4

Cisco MGC Release 9.2(1.5-2)

BAMS Phase 2, BAMS Phase 3

Provisioning Tool (VSPT) 1.6(4) and 1.6(4) patch 3

Cisco MGC Release 7.4

BAMS Phase 1


Instructions for installing the Provisioning Tool are provided later in this chapter.

Installing VSPT Release 2.6(1)

Before installing VSPT Release 2.6(1), verify the following:

•You want to provision the Cisco PGW 2200 Softswitch running Cisco MGC software Release 9.6(1). If you are provisioning an earlier version, see the "Determine the Correct Provisioning Tool Release" section.

•You have met the workstation hardware and software requirements. See the "System Requirements" section of the associated release notes.

•You have established network connectivity between your workstation and the network elements.

•The network elements have the correct release of software installed.

•You have identified your desired installation configuration, one of the options described in the "Determine the Correct Provisioning Tool Release" section.

•You have decided if you are installing SSH for secure communications with SSH-enabled components.

Note VSPT installation must be carried out from the VSPT server or a machine with X Window capability. Make sure you have root access on your Sun workstation.

Before you begin provisioning, you should have a list of components you want to provision, including the component names, IP addresses, properties, and other parameters. To create this list, use the instructions provided in the Cisco Media Gateway Controller Software Release 9 Provisioning Guide at

http://www.cisco.com/en/US/docs/voice_ip_comm/pgw/9/provisioning/guide/prvgde.html

Tip In addition, descriptions of the properties and values contained in VSPT are included in Appendix A of the Cisco Media Gateway Controller Software Release 9 Provisioning Guide and Table 1-2 of this document. Review this information before you begin provisioning, and keep it available for reference during provisioning.

To install VSPT Release 2.6(1), follow this procedure:

Step 1 Verify that the requirements listed in the "Determine the Correct Provisioning Tool Release" section have been met.

Step 2 Open an X terminal window.

Step 3 If you are not already logged in as root, become the root user by entering the following command:

>su - root

Step 4 Ensure that the X Windows display is set as follows:

•In csh or tcsh: sentenv DISPLAY <hostname>:0

•In sh or ksh: DISPLAY=<hostname>:0 ; export $DISPLAY

Replace the value <hostname> with the hostname of your machine.

Step 5 Download the VSPT tar file into the directory of your choice. The tar file is available at the following location:
http://www.cisco.com/pcgi-bin/tablebuild.pl/vspt

A valid login to the Cisco website is required for you to download the VSPT tar file from the preceding URL.

Step 6 Navigate to the downloaded file.

Step 7 Untar the downloaded file by entering tar -xvf <filename>

Replace the value <filename> with the filename of the tar file.

Step 8 Enter ./setup to run the installation script.

The VSPT InstallShield Wizard opens, displaying the Welcome window.

Step 9 Click Next.

The ReadMe Information window displays.

Step 10 Click Next.

The License Agreement window displays.

Step 11 Accept the license agreement and click Next.

The Destination Folder window displays, indicating the default destination directory.

Step 12 Click Next to accept the default destination directory, or select Change to provide a different directory path. If you want to use a directory destination other than the default, enter the appropriate directory path and click Next.

The Query Backup User Panel window displays.

Step 13 Optional: Enter the Backup User ID (your backup server login ID), and click Next.

Note During installation you are asked to designate a Backup User ID. Only a user logged in with this ID can carry out backup and restore operations. See the "Specify a Backup User ID During Installation" section for more information. This is applicable only if you are conducting backup operations. All other features of VSPT function without the entering of a backup user ID.

The Ready to Install window displays.

Step 14 Click Install Now.

VSPT 2.6(1) installation take place and the Installation Summary window displays upon completion.

Step 15 Click Exit.

The VSPT InstallShield Wizard closes.

Step 16 If you are using the VSPT Backup and Restore feature, enable TFTP on the backup server. See the "Planning and Setting Up for Backup and Restore" section.

Step 17 If you are installing SSH for VSPT, see the "Installing SSH on VSPT" section.

Step 18 Go on to the "Starting VSPT" section.

Table 1-2 defines the default VSPT files and directories.

Table 1-2 Provisioning Tool Installation Files and Directories

File or Directory
Description

/opt/CSCOvsp26

vspt

Provisioning tool application script

/classes

Class and property files

/docs



/help

Online help files

/images

Images or logos used in VSPT

/jre/

Java Runtime Environment

/netscape

Netscape web browser files

/uninstall

Uninstall script directory

/utils

Utilities for VSPT

/version

Provisioning Tool version

/var/opt/CSCOvsp26 (home directory)

/data

Configuration files

/logs

Log files

/etc

XML files


Note The files and directories listed in Table 1-2 are for the most recent version of VSPT. Your directory structure may be different if you are using an older version.

Planning and Setting Up for Backup and Restore

You typically use VSPT Backup to back up the configuration on a supported component, such as a Cisco PGW 2200, onto a different server (the backup host). The configuration can then be restored if needed on the original machine.

For example, if you are backing up a Cisco PGW 2200 host, VSPT logs in to the Cisco PGW 2200 host, copies the configuration, and the Cisco PGW 2200 transfers it to the backup host using TFTP. The backup host must have TFTP enabled.

If you are going to use Backup and Restore, you should do the following:

•Specify a Backup User ID During Installation

•Select a Backup Host

•Enable TFTP on the Backup Host

Specify a Backup User ID During Installation

During VSPT installation, you are prompted for a Backup ID. The Backup ID is the UNIX ID of a user account authorized to use VSPT to perform configuration backups. Depending on your security policy, this might be the ID of a particular individual, or an ID created specifically for the purpose and usable by one or more individuals authorized to perform backups.

In order for a user to schedule backups or perform immediate backups, VSPT must be started from a UNIX shell with the backup ID, in either of two ways:

•If VSPT is launched from Cisco MGC Node Manager (Cisco MNM), the user must have started the Cisco EMF client with the Backup ID. If the user's normal ID is different from the backup ID, the user must start a new Cisco MNM session with the backup ID.

•From the command line in a UNIX shell opened with the backup ID.

If You Reinstall VSPT with a Different Backup ID

If you reinstall VSPT and select a different backup ID, you must manually delete two files that are not automatically removed in reinstallation. (This is because the files are read-only and owned by root.)

Step 1 Log in as root.

Step 2 Change to this directory:

/var/opt/CSCOvsp26/logs/

Step 3 Delete these two files:

now.log

testValidTFTP

Select a Backup Host

The backup host to which configurations are copied can be any of the following:

•The same machine where Cisco MGC Node Manager is installed (and typically Cisco VSPT is also installed), referred to as the network management host

•The same machine where Cisco VSPT is installed, if this is different from the Cisco MGC Node Manager machine, and if this is not a Cisco PGW 2200 host

•A separate machine used for backups

Note Using a Cisco PGW 2200 host as a backup host is not recommended and is specifically not supported if you are using SSH.

Enable TFTP on the Backup Host

VSPT uses Trivial File Transfer Protocol (TFTP) as the transfer utility to transfer configuration files from the Cisco PGW (or BAMS) to the backup host. Although UNIX systems include TFTP, by default it is not enabled. To be able to send configuration files to a backup host, you must first enable TFTP on that host.

Before you begin, be sure that you are using a Solaris or Solaris-like TFTP server. Unlike some TFTP servers, the Sun Solaris TFTP server allows a file to be written to the server using TFTP only if the file already exists on the system and is writable by the root user.

TFTP software that has the behavior of the Solaris TFTP software must be used (the file must exist and have write permissions by the root user before the TFTP transfer can be successful). This is because VSPT creates the file with root write permission before attempting to back up the file using TFTP. TFTP server implementations that require the file not to exist before the backup is attempted do not work.

To Enable TFTP

Step 1 In the file /etc/inetd.conf, uncomment this line:

# tftp dgram udp wait root /usr/sbin/in.tftpd in.tftpd -s /tftpboot

Thus:

tftp dgram udp wait root /usr/sbin/in.tftpd in.tftpd -s /tftpboot

Step 2 Create the tftp user home directory:

# mkdir /tftpboot

# chown root /tftpboot

# chmod 777 /tftpboot

Step 3 Restart inetd:

# ps -ef | grep inetd*

# kill -HUP <inetd-pid>

Step 4 Verify that TFTP is working:

# cp /etc/hosts /tftpboot/.

# cd /tmp

# tftp <machine-name>

tftp> get hosts

Installing SSH on VSPT

VSPT 2.6(1) can be installed on both Solaris 8 and Solaris 10.

If you are installing VSPT 2.6(1) on Solaris 10 platform on which SSH is available, check if you have SSH installed. If you already have SSH installed, modify the sshPath variable in the configuration file as follows and ignore this section.

/opt/CSCOvsp26/classes/com/cisco/transpath/dart/editor/configEditor.properties

sshPath=/usr/bin

Where /usr/bin is the default location where ssh and sftp are installed.

If you are installing VSPT 2.6(1) on Solaris 8, the SSH security package used for VSPT is the same CSCOk9000 package used on the Cisco PGW 2200, BAMS, and HSI server. To install this package on VSPT, use the same procedure as for those devices. In addition, you need to modify a variable if the base path of ssh and sftp is not the default.

Before you begin, VSPT should have software Release 2.6(1) installed.

Note We recommend installing SSH on VSPT (and Cisco MGC Node Manager) before you install it on the Cisco PGW, so that you can use the element managers to monitor the installation process on the PGW and other managed components.

Step 1 Download the security package, CSCOk9000. You must first secure authorization.

Note There are U.S. Government restrictions on the exporting of cryptographic technology. The Secure Shell (SSH) program falls under the umbrella of those restrictions. The security package (CSCOk9000) is registered and located in a restricted area from which only authorized customers can download.

Step 2 Stop VSPT.

If VSPT is a co-resident on the Cisco PGW server and CSCOk9000 is already installed, go on to Step 4. If not, go on to Step 3.

Step 3 Install the CSCOk9000 package on the VSPT server machine. For instructions, refer to the steps in Cisco PGW 2200 Security Enhancements, "Installing CSCOk9000 on the Cisco PGW 2200 Host."

http://www.cisco.com/en/US/docs/voice_ip_comm/pgw/9/installation/software/SW2/SecEnh.html

Step 4 If the base path of ssh and sftp is not the default /opt/ssh/bin, modify the sshPath variable in the configuration file:

/opt/CSCOvsp26/classes/com/cisco/transpath/dart/editor/configEditor.properties

sshPath=/usr/local/bin

Where /usr/local/bin is the location where ssh and sftp are installed.

After you install the CSCOk9000 package, both secure and nonsecure utilities are enabled. Users can use Telnet or ssh, FTP or sftp. If you want to disable nonsecure utilities, go on to Step 5.

Step 5 (Optional) To disable nonsecure utilities, use the following toggles:

Note The scripts toggle_telnet.sh and toggle_ftp.sh, are located in the /opt/sun_install directory.

•To disable FTP (making only sftp available):

/opt/sun_install/toggle_ftp disable

•To reenable FTP (making both FTP and sftp available):

/opt/sun_install/toggle_ftp enable

Uninstalling SSH on VSPT

•If you need to uninstall SSH, use the procedure described in Cisco PGW 2200 Security Enhancements, "Fallback Procedures" at

http://www.cisco.com/en/US/docs/voice_ip_comm/pgw/9/installation/software/SW2/SecEnh.html

This reenables FTP and Telnet and uninstalls the CSCOk9000 package.

Starting VSPT

You can start VSPT standalone from the operating system or you can start it from Cisco MGC Node Manager.

Note See the Cisco Media Gateway Controller Software Version 9 Installation and Configuration Guide for information on setting up user privileges and access rights.

Perform the following steps to start the VSPT:

Step 1 Do one of the following:

•Start VSPT standalone:

–Log in to the VSPT server or access it from a machine with X window capability.

–In a terminal window, change to the default directory, typically:

–>cd /opt/CSCOvsp26

–Enter the following command to start VSPT:

–>./vspt

•Start VSPT from Cisco MGC Node Manager:

–Before starting Cisco MGC Node Manager, log in as root.

–In the Map Viewer, choose Tools > Provisioning Tool.

The login screen shown in Figure 1-1 appears.

Figure 1-1 Login Window

Step 2 Enter your user name and password, and click OK.

The default user name is admin, and the password is also admin. The Welcome screen is displayed briefly during the login process, and the main window appears (see Figure 1-2).

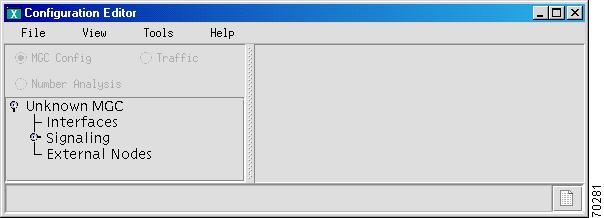

Figure 1-2 Main VSPT Window

Exiting the VSPT

You can exit the VSPT at any time by performing one of these actions:

•Click File > Exit. Click OK at the resulting prompt.

•Click the close box in the upper right of the VSPT window. Click OK at the prompt.

Installing an Earlier Version of VSPT

Follow the procedure described in "Installing VSPT Release 2.6(1)" by selecting the version you want to install. You must install the base version before installing a patch.

Upgrading VSPT

To upgrade VSPT, you install the new version as described in the "Installing VSPT Release 2.6(1)" section. Depending on the version you are upgrading from, you may need to take some steps beforehand:

•Because two versions of VSPT (such as VSPT 2.3(2) and 2.6(1)) can exist on the same system, when you are upgrading, the older version is not automatically removed. If you do not want to use both versions, you can manually uninstall the older version. See the "Uninstalling VSPT" section. (However, keeping the old version is harmless.) Uninstall removes the software, but not the configuration data files.

•If you want to use configuration files created in a previous version, you must copy them. Of course, the configuration will not include components new in the 9.6(1) release.

Uninstalling VSPT

If you upgrade to VSPT Release 2.6(1) and no longer need an earlier version, follow these procedures to uninstall an earlier version.

The uninstallation process removes the /var/opt/<CSCOvsp2x> directory (where 2x is the VSPT release, such as 26 for Release 2.6(1)) created by the installation process. If a directory contains a file that was not created during the installation process, it is not removed and is logged in the uninstall.log file. This might occur in the data and logs directories. All application data stored in the /var/opt/<CSCOvsp2x> directory is retained.

Note Since the uninstall directory and files are removed during uninstall, do not change to the /opt/CSCOvsp2x directory to run the uninstall script.

Step 1 Enter the following commands:

>su -root

>cd /

>/opt/CSCOvsp2x/uninstall/uninstall

Step 2 Proceed with the new VSPT software installation (see the "Installing VSPT Release 2.6(1)" section).

Note If your next installation specifies a different backup ID, you must manually delete certain files. See the "If You Reinstall VSPT with a Different Backup ID" section.
