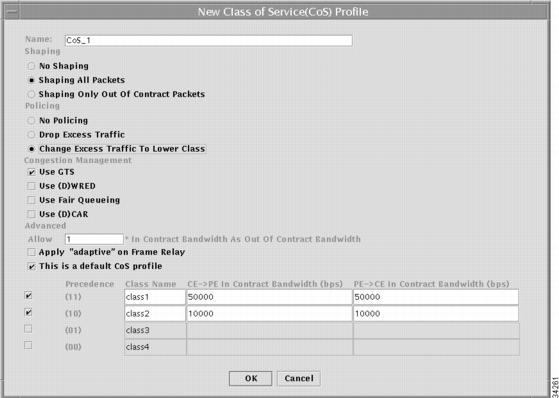

Defining a Class of Service Profile
Creating a VPN Customer Definition
Defining the VPN Customer Information
Adding the Customer Edge Routers to a Site
Editing VPN Customer Information
Editing Customer Site and Site CE Definitions
Editing or Viewing the Customer Edge Router Definition
Defining CE Routing Communities
Implementing the Management VPN Technique
About Provisioning PE-CE Links in the Management VPN
Getting Started with the MPLS VPN Solutions Center

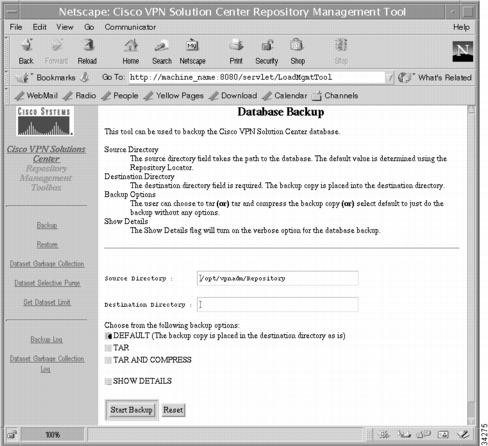

Cisco VPN Solutions Center: MPLS Solution is an MPLS VPN provisioning and auditing tool. The software focuses on the provider edge routers (PEs), customer edge routers (CEs), and the link between them. MPLS VPN Solution software integrates with Cisco IP Manager for element management tasks such as downloading configlets to target routers. Additional features include Class of Service (CoS) provisioning, VPN-aware NetFlow accounting, and Service Level Agreement (SLA) monitoring.
The MPLS VPN Solution product also provides external access to its provisioning, accounting, and SLA monitoring features through CORBA APIs.
Starting the MPLS VPN Solution Software
Before you start the MPLS VPN Solution software, complete these tasks:
Step 1
Log into the MPLS VPN host under your own login name.
Step 2
Step 3
xhost MPLS_VPN_hostname
The MPLS_VPN_hostname parameter is the name of the MPLS VPN workstation. This command configures your system so that the Orbix user (orbixadm) and the MPLS VPN user (vpnadm) can communicate with the client system.
Starting Orbix
Starting the MPLS VPN Solution software requires that you first start the Orbix process and then start the Watchdog process and the VPN Console as described below. To start the MPLS VPN software, follow these steps:
Step 1
Step 2
rlogin
computer_name-l orbixadmor
su - orbixadm
Step 3
cd /opt/orbixadm/orbix/Orbix3
Step 4
C-Shell: source setenvs.csh
K-Shell: . ./setenvs.sh
Step 5
orbixd &
Starting the Watchdog and the VPN Console
Step 1
Step 2
rlogin
computer_name-l vpnadmor
su - vpnadm
Step 3
cd /opt/vpnadm/vpn/
Step 4
C-Shell: source vpnenv.csh
K-Shell: . ./vpnenv.sh
Step 5
startwd
Note
The Watchdog log file resides at /opt/vpnadm/vpn/tmp/wdlog.
Step 6
wdclient status
Step 7
vpnconsole &

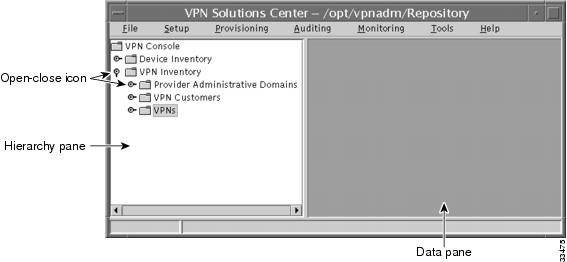

Figure 3-1 The VPN Console
Proceed to the "Setting Up the Network" section.
Shutting Down the MPLS VPN Solution Software
This section assumes that the MPLS VPN Solution software is running and that the software user names—vpnadm and orbixadm—are active. It also assumes that Orbix is running as a background process.
To shut down the MPLS VPN Solution software, execute these commands:
Step 1
Step 2
Step 3
stopwd -y
Step 4
Shutting down Orbix is optional. To shut down Orbix, follow these steps:
Step 5
killit NS
Step 6
ps -ef | grep orbixd
Step 7
kill
orbixd_process_IDStep 8
Setting Up the Network
To use MPLS VPN Solution to set up an MPLS VPN requires the following tasks:
1.
2.
3.
4.
This chapter describes each of these MPLS VPN Solution software procedures.
Defining the Network Elements
Every device that the MPLS VPN Solution software manages must be defined as a target. A target is any device from which the MPLS VPN Solution software can collect information (a router or Netflow Collector). In most cases, these targets are Cisco routers that function either as a provider edge router (PE) or a customer edge router (CE).
In this product, an MPLS VPN network is a unique group of targets; a target can be a member of only one network. Thus, an MPLS VPN network allows a provider to partition the working space into manageable segments that are unique and do not overlap other networks.
There are two methods for defining targets and organizing them into the appropriate networks (or target groups):
•
A quick way to define the MPLS VPN networks and the targets in them is to import your router configuration files into the MPLS VPN Solution software. This method lets you specify a directory of router configuration files and the network for these routers. The network and the targets in the network are created based on the imported configuration files.
When employing this method, note that not all the necessary information is present after you import the files. You must then proceed to define the additional target information, such as the IP addresses, passwords, and so forth (described later in this document).
•
You can define targets manually when you want to create, edit, or delete targets in a network. See the "Adding a New Router to the Network" section.
Importing Router Configuration Files
To import router configuration files, follow these steps:
Step 1
Device names within each directory must be unique.
Note
A typical set includes Provider and Customer edge routers (PEs and CEs).
Step 2
An informational window displays the following information:
This will create targets based on the router configuration files in a specified directory. A network will be created for the new targets.
You will be asked to enter the following information:
•
•
•
Specifying the domain name is necessary only if a fully domain-qualified hostname is needed to resolve the IP address of the target (router). For details, see the "On Specifying the Fully Domain-Qualified Hostname" section.
Step 3
The Create Targets From Router Configurations window displays.
Figure 3-2 Creating Targets From Router Configuration Files
Step 4
•
To browse for the directory path, click Select and choose the appropriate directory.
•
•
The MPLS VPN Solution software imports the router configuration files from the indicated directory. For every valid configuration file, the MPLS VPN Solution software creates a target, and defines the target's role as Cisco router. A valid configuration file is one in which the hostname statement is present in the file. If a configuration file does not contain the hostname statement, MPLS VPN Solution software regards the file as invalid and does not import the configuration file into the Repository.
Under the Networks folder in the hierarchy pane, the product software adds the network name you specified.
Step 5

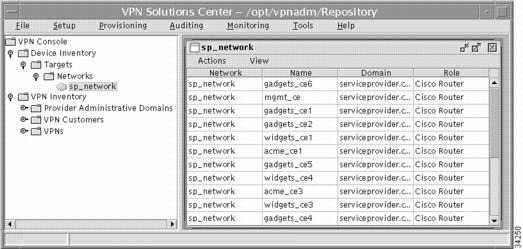

Figure 3-3 Network Window
Completing the Target Information for Multiple Targets
Now that you have imported the router configuration files and assigned them to an MPLS VPN network (sp_network in our example), you have completed the initial phase required to define the targets. Now you must enter the rest of the information the product software requires to implement the targets.
Step 1
Step 2
As shown in Figure 3-3, the Network window appears in the data pane on the right, displaying the name of each router in the selected network, along with its domain name and role (in this case, Cisco Router).
At this point, you have the option to enter information for a single target (router) or multiple targets. If the targets share some characteristics, such as the same login or enable passwords, you can define those parameters once for multiple routers, then return to the Network window to edit individual targets for those parameters that are unique for each router. This is the procedure described in the following steps.
Step 3
To select multiple targets from the list, hold down the Ctrl key while you click the desired targets.
Step 4
Figure 3-4 The Network Window's Action Menu
The General tab for the Edit Multiple Targets window appears.

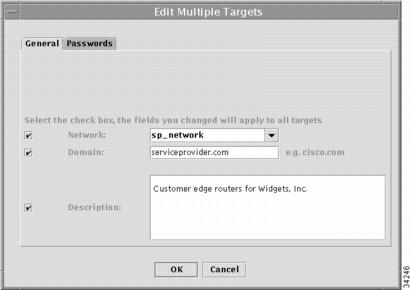

Figure 3-5 Entering General Information for Multiple Targets
Step 5
Step 6
Step 7
Entering information in the Description field is optional (but recommended).
Step 8

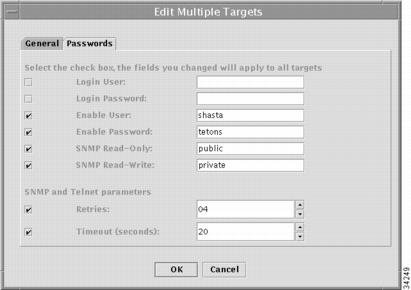

Figure 3-6 Entering Passwords and SNMP Community Strings for Multiple Targets
Step 9
In this example, we have not specified values for the Login User and Login Password fields, reserving those values for individual router configuration.
Step 10
a.
b.
c.
Note
d.
The recommended setting is three (3) retries.
e.
The recommended setting is 20 seconds.
When you click OK, you return to the Network window.
Completing the Target Information for Individual Targets
Now that you have defined the parameters that apply to all the selected targets, you can proceed to define the elements that must be defined for each target: user names and IP addresses.
Step 1
Step 2
The Edit Target window appears (see Figure 3-7).

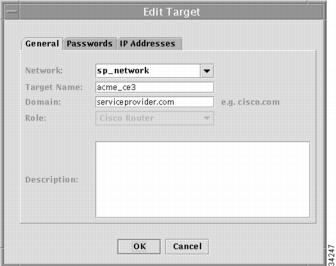

Figure 3-7 Edit Target Window
Defining the Passwords and SNMP Community Strings for Individual Targets
Step 3
Figure 3-8 Editing a Target's Password and SNMP Strings Information
As you can see in Figure 3-8, the fields you defined for multiple targets are displayed in the pertinent fields.
Step 4
Entering a Target's IP Address Information
Step 5
The Enter IP Address window displays.
Figure 3-9 Entering the IP Address
Step 6
You return to the IP Addresses tab, where the IP address you entered is now displayed.
Adding a New Router to the Network
In the event you need to add a new target (router) to an MPLS VPN network, follow these steps:
Step 1
The Network window appears, displaying the names of the devices in the selected network.
Step 2
The New Target window appears.

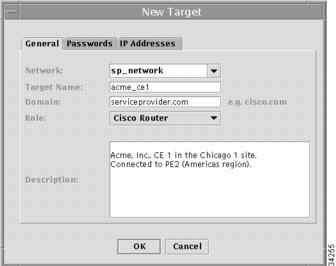

Figure 3-10 New Target Window for a Cisco Router
Step 3
Step 4
Adding a NetFlow Collector Device to the Network
When you install NetFlow on the NetFlow Collector (NFC) device, configure a local username and password. The username and password is used by MPLS VPN Solution software to communicate with the NFC.
In order to collect traffic statistics from NetFlow Collector devices, these devices must be configured as a target. To do so, follow these steps:
Step 1
The Network window appears, displaying the names of all the devices in the selected network.
Step 2
The New Target window appears.

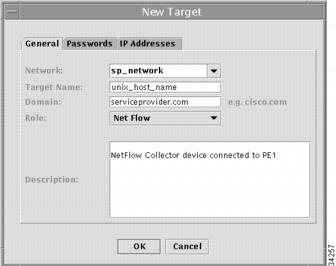

Figure 3-11 New Target Window for NetFlow Collector Device
Step 3
Step 4
Step 5
Note
Step 6

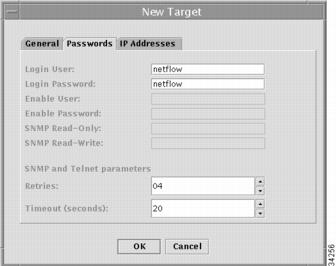

Figure 3-12 Passwords Tab for NetFlow Collector Device
Step 7
MPLS VPN Solution uses the username and password specified here to communicate with the NFC device.
Step 8
The recommended value for Retries is 4; the recommended value for Timeout is 20 seconds.
Step 9
The Enter IP Address window displays.
Figure 3-13 Add IP Address for the NetFlow Collector Device
Step 10
You return to the IP Addresses tab, where the IP address you entered is now displayed.
This completes the procedure for adding an NFC device to the network.
Viewing Devices in the Network by Their Role
You can view lists of the existing devices in a network by the role assigned to them as either Cisco routers or NetFlow Collector devices.
To view devices by their role, follow these steps:
Step 1
The Network window appears in the data pane. By default, all the routers in the selected network are listed in the Network window.
Step 2
As shown in Figure 3-14, a submenu appears with two options: Cisco Router and NetFlow.

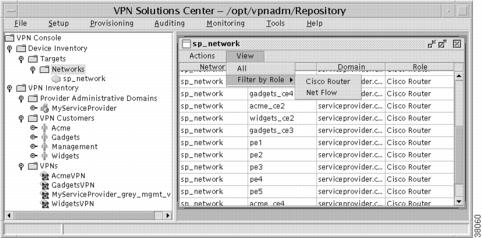

Figure 3-14 Network Window View Menu
•
•
•
When you choose NetFlow, a screen like that shown in Figure 3-15 appears.

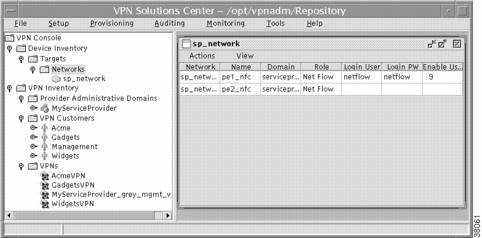

Figure 3-15 Viewing NetFlow Collector Devices in the Network
When you choose to filter the network members by either Cisco Router or NetFlow, additional information is presented, such as the login user name and login password for the NFC devices, as illustrated in Figure 3-15.
Defining Provider Administrative Domains
The MPLS VPN Solution software allows you to define as many Regions within a Provider Administrative Domain (PAD) as you need. PADs are divided into Regions in much the same way that customers are divided into sites. A Region can be considered to be a group of provider edge routers (PEs) within a single BGP autonomous system. The primary objective for defining Regions is to allow a provider to employ unique IP address pools in large Regions, such as Europe, Asia Pacific, and so forth.
Note that a provider can also assign PEs to these Regions, thereby simplifying the PE selection process (for example, only presenting PEs in the European Region when adding service to a European customer edge router).
Tips
Before you begin this procedure, have the following information at hand:
•
There is generally one BGP AS number per Provider Administrative Domain.
•
•
•
To define a new Provider Administrative Domain, follow these steps:
Step 1

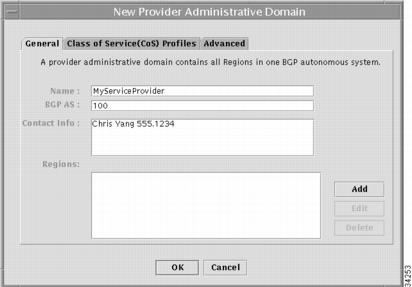

Figure 3-16 New Provider Administrative Domain Window
Step 2
Each autonomous system is assigned a unique 16-bit number by the same central authority that assigns IP network numbers.
The contact information is optional, but it is a good idea to provide it.
The Regions pane on the window shown in Figure 3-16 is where existing Region names are displayed. Regions must have a name, assigned PEs, and their corresponding IP address pools.
Defining a New Region in a PAD
A Region can be considered to be a group of provider edge routers (PEs) within a single BGP autonomous system.
Step 3
The Region window appears.

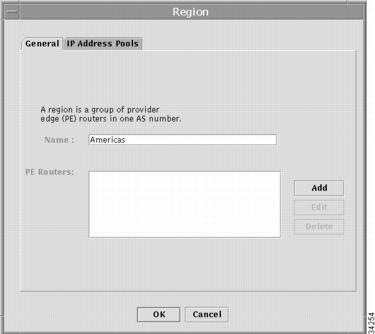

Figure 3-17 Defining a New Region
Step 4
The next step in creating a Region is to assign the provider edge routers that are in the Region.
Assigning the Provider Edge Routers to a Region
To assign the provider edge routers for the Region, follow these steps:
Step 1
When you select the Add button from the Region window, the Add Provider Edge Routers window appears.
Step 2
The names of the targets (routers) in the selected service provider network are displayed.

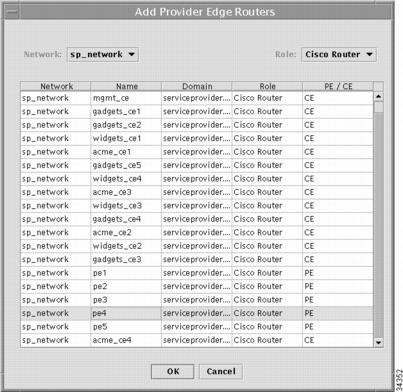

Figure 3-18 Assigning Provider Edge Routers
Step 3
You return to the Region window. The name of the router you selected is now displayed in the list of PE Routers.
Step 4
When all the provider edge routers for a Region are assigned, the next task is to assign the IP address pool for the Region (see the "Defining the IP Address Pools for a Region" section).
Adding Provider Edge Routers to a Region
You can add only PEs that are not already assigned to a Region. To add PEs to a Region, follow these steps:
Step 1
The Service Provider menu appears.
Figure 3-19 Service Provider Menu
Step 2
The Edit Provider Administrative Domain window appears.
Figure 3-20 Edit Provider Administrative Domain Window
Step 3
The Region window appears.
Step 4
The Add Provider Edge Routers window appears (as shown in Figure 3-18).
Step 5
Defining the IP Address Pools for a Region
The MPLS VPN Solution software uses IP address pools to automatically assign IP addresses to PEs and CEs. Each Region has an IP address pool to use for IP numbered addresses (point-to-point address pool) and a separate IP address pool for IP unnumbered address (loopback address pool).
Within a VPN or extranet, all IP addresses must be unique. Customer IP addresses must not overlap with the provider's IP addresses. Overlapping IP addresses are only possible when two devices cannot see each other—that is, when they are in isolated VPNs.
Caution
Step 1
Figure 3-21 Defining a Region's IP Address Pool
From this window, you can add IP address pool information for point-to-point (IP numbered) links or loopback (IP unnumbered) links.
Step 2
The New IP Address Pool window appears.
Figure 3-22 Entering a New IP Address Pool
Step 3
You return to the IP Address Pools window, where the new IP address pool information is displayed.
Step 4
You have now created a Region in the Provider Administrative Domain. You return to the New Provider Administrative Domain window, where the new Region name is displayed in the Regions field.
Adding a Region to an Existing Provider Administrative Domain
To add a Region to an existing Provider Administrative Domain, follow these steps:
Step 1
The list of Provider Administrative Domains are displayed.
Step 2
The Service Provider menu appears.

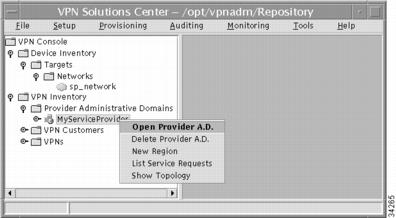

Figure 3-23 Accessing the Service Provider Menu
Step 3
The Region window appears, as shown in Figure 3-17.
Step 4
Deleting a Region
To delete a Region from a Provider Administrative Domain, follow these steps:
Step 1
Step 2
The list of Regions is displayed.
Step 3
Step 4
A confirmation window appears with the message, "Are you sure you want to delete this Region?"
Step 5
The Region is deleted and removed from the VPN Console display.
About Class of Service with MPLS VPN Solution Software
As part of their VPN services, service providers may wish to offer premium services defined by Service Level Agreements (SLAs) to expedite traffic from certain customers or applications. Quality of Service (QoS) and its implementation through Class of Service (CoS) mechanisms in IP networks gives devices the intelligence to preferentially handle traffic as dictated by network policy.
About QoS
Quality of Service (QoS) is typically used to describe a situation in which the network provides preferential treatment to certain types of traffic, but the term is not specific about exactly which mechanisms are used to provide these services.
QoS is not a device feature, it is an end-to-end system architecture. A robust QoS solution includes a variety of technologies that interoperate to deliver scalable, media-independent services throughout the network, with system-wide monitoring capabilities.
QoS is defined as those mechanisms that give network managers the ability to control the mix of bandwidth, delay, jitter, and packet loss in the network.
The actual deployment of QoS in a network requires a division of labor for greatest efficiency. Because QoS requires intensive processing, the Cisco model distributes CoS duties between edge and core devices. Edge devices, such as provider edge routers (PEs), do most of the processor-intensive work, performing application recognition to identify flows and classify packets according to unique customer policies. Edge devices also provide bandwidth management. Core devices expedite forwarding while enforcing CoS levels assigned at the edge.
About CoS
Class of Service (Cos) is distinguished by providing differentiated classes of service. Before you can provide a higher quality of service to a customer, application, or protocol, you must classify the traffic into classes, and then determine the way in which to handle the various traffic classes as traffic moves through the network.
When differentiation is performed, it is done to identify traffic by a unique criteria and classify incoming traffic into classes. Each of the traffic classes must be recognized by the classification mechanisms at the network ingress point, as well as farther along in the network topology.
CoS differentiation is usually performed as a method of identifying traffic as it enters the network or a method that ensures that traffic is classified appropriately so that it is forced to conform with the desired user-defined policy or service-level agreement (SLA).
MPLS VPN Solution software provisions Class of Service on the ingress PE interfaces and the egress CE interfaces. MPLS VPN Solution software can apply any or all of the following CoS methods:
MPLS VPN Solution offers the following features for Class of Service (CoS) provisioning between a CE and a PE:
•
Shaping is a method of mapping traffic into separate output queues to provide predictable network behavior. In MPLS VPNs, shaping is configured on either the CE's or PE's egress interfaces. For shaping, the product uses Generic Traffic Shaping (GTS) that includes an optional feature that handles Frame Relay Backward Explicit Congestion Notification (BECN) responses.
•
Takes place into a PE from a CE and configured on the CE's or PE's egress interfaces. The product uses Committed Access Rate (CAR) for policing.
•
Congestion management is a scheme that provides preferential treatment to certain classes of traffic when the network is congested. In the context of MPLS VPNs, congestion management is put in place to manage heavy traffic from a PE as it moves to a CE. The product employs both GTS and (D)WRED.
GTS for congestion management is not a full-featured technique because it cannot preferentially queue and drop packets based on precedence. However, the ideal solution—Class-Based Weighted Fair Queueing—is not currently available.
GTS still has the powerful property of protecting other customers' SLAs, which are supported on shared fabric between the PE and CE. That is, if one customer suddenly converges all his traffic towards one CE, GTS shapes this load so that the shared medium is not saturated, hence preventing failure on all SLAs in the vicinity.
The other choice, Distributed Weighted Random Early Detection ((D)WRED) is simple to configure, although not particularly precise. (D)WRED is configured on the PE's egress interfaces.
MPLS VPN Solution over-specifies the inputs for congestion management, even though the current configuration uses only the bandwidth total.
All three techniques rely on existing IP precedence values in all packets. Policing may change these values, but the values to differentiate the service classes must have already been set before exiting from the CE. The setting of initial IP precedence values is called painting or marking.
Defining a Class of Service Profile
A Class of Service (CoS) profile represents a set of CoS configurations offered by a provider to its customer. Each CoS profile consists of a set of CoS classes that record information on how traffic shaping and policing are configured.
The MPLS VPN Solution software requires that you create a Class of Service (CoS) Profile only if you want the product to provision CoS on the PE-CE link. You can add additional CoS profiles at any time. This procedure only defines the CoS Profile—until you invoke it when you activate a service request, the CoS Profile has no effect.
Class of Service Profiles are applied to the Provider Edge Router (PE), but the CoS definition is enforced across the PE-CE link on both the PE and CE.
To define a Class of Service Profile, follow these steps:
Step 1
The Service Provider menu appears.
Figure 3-24 Service Provider Menu
The Service Provider menu lets you open (that is, edit) the current settings for the administrative domain, define a new Region, list the service requests active for this administrative domain, and view the current topology for that domain.
Step 2
The Edit Provider Administrative Domain window appears.
Step 3
Figure 3-25 Defining a Class of Service Profile
Step 4
Valid input for the in-contract bandwidth is a range from 8,000 to 2,000,000,000 (in bits per second).
The PE can rate limit traffic to the subscribed bandwidth and mark the traffic that is within the specified bandwidth as in-contract, and mark traffic above the specified bandwidth as out-of-contract.
Marking a packet as in-contract or out-of-contract is done by setting the first bit of the precedence bits in the IP header. The appropriate class is indicated by the remaining two precedence bits (see Table 3-1). Traffic that exceeds any class is marked as out-of-contract, and this traffic can be dropped or mapped to a lower class of service. The out-of-contract bandwidth is initially set to the in-contract bandwidth, but you can set this to the values appropriate for the customer.
The customer can initially "paint" the packets that leave the customer edge router (the PE is the destination router), and MPLS VPN Solution allows policing or repainting of packets that enter the provider edge router.
For more information, see the "Quality of Service and Class of Service" section.
Creating a VPN Customer Definition
Creating a VPN Customer Definition includes the following tasks:
•
•
•
When you add a CE to a site, you can indicate whether the CE is enabled for the Service Assurance Agent (SA Agent).
Defining the VPN Customer Information
To define the VPN customer information, follow these steps:
Step 1
The New VPN Customer window appears.

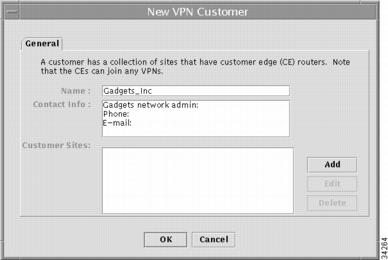

Figure 3-26 Entering the New VPN Customer Information
Step 2
Step 3
Though it is not required, entering the contact information is recommended.
For details on how to modify the VPN customer information, see the "Editing VPN Customer Information" section.
Defining the Customer Sites
A customer site is a collection of one or more customer edge routers (CEs).
Note
To define a customer site, follow these steps:
Step 1
The Customer Site window appears.
Figure 3-27 Entering the Customer Site Information
Step 2
For details on how to modify the customer site information, see the "Editing Customer Site and Site CE Definitions" section.
Adding the Customer Edge Routers to a Site
In addition to allowing you to assign specific CEs to a site, this procedure also lets you indicate the following:
•
The Service Assurance Agent (SA Agent) can gather performance information from CEs only when they are managed CEs.
•
MPLS VPN Solution software monitors performance through the service-level agreement (SLA) servers. MPLS VPN Solution monitors the service related performance criteria by provisioning and monitoring SLAs on routers that support the Service Assurance Agent (SA Agent) management information base (MIB).
•
For information on the role of the MCE, see the "The Network Management Subnet Implementation Techniques" section.
To assign CEs to a site, follow these steps:
Step 1
Step 2
Figure 3-28 Assigning CEs to a Site
Step 3
Defining the CE as Managed or Unmanaged
Step 4
MPLS VPN Solution provisions only managed CEs, thus the default is This customer edge router is managed by the provider. For more information about managed CEs and unmanaged CEs, see "Administering Customer Edge Routers."
Defining the CE's SA Agent Status
Note
Step 5
•
•
Note that a CE operating as an SA Agent device must also be a managed CE.
•
Note
Step 6
Step 7
You return to the Edit Customer Site window. Note that the CEs selected here are displayed in the Customer Edge Routers pane.
Step 8
You return to the VPN Console. Under the VPN Customers folder in the VPN Console hierarchy pane, you can view the customers defined, the sites for each customer, and the list of CEs in each site.

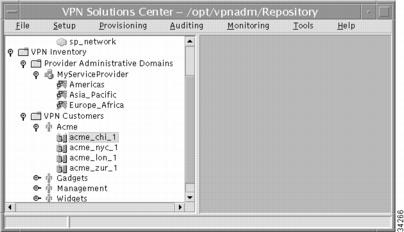

Figure 3-29 Viewing the Customer Definition in the VPN Console
Step 9
For information on how to modify the CE definition, see the "Editing or Viewing the Customer Edge Router Definition" section.
Editing VPN Customer Information
To edit (or view) the VPN Customer information, follow these steps:
Step 1
The list of VPN customers is displayed.
Step 2
Step 3
The Edit VPN Customer window appears.

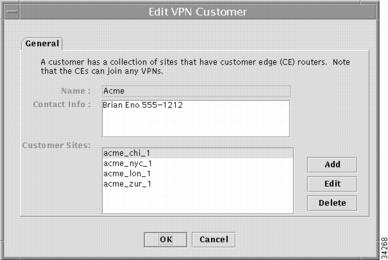

Figure 3-30 Edit VPN Customer Window
You can edit the contact information by changing the information in the Contact Info panel and clicking OK.
Editing Customer Site and Site CE Definitions
You can modify an existing CE definition and change whether the CE is managed or unmanaged, modify the CE's SA Agent status, indicate whether the CE is a Management CE (Management LAN option), and determine whether the MCE also provides SA Agent functionality.
To edit (or view) the customer site and site CE definition, follow these steps:
Step 1
The list of VPN customers is displayed.
Step 2
The list of sites for the selected customer is displayed.
Step 3
The Site menu appears, as shown in Figure 3-31.

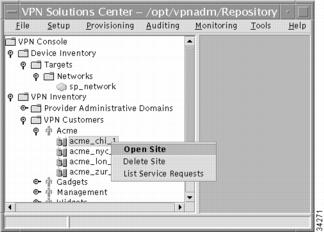

Figure 3-31 Site Menu
Step 4
The Edit Customer Site window appears.

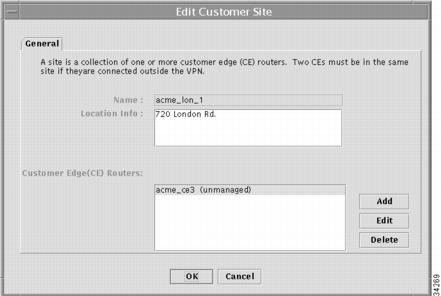

Figure 3-32 Edit Customer Site Window
Note
Step 5
Editing or Viewing the Customer Edge Router Definition
Tips
Step 1
The Edit Customer Edge Routers window appears.
Figure 3-33 Edit Customer Edge Routers Window
Step 2
Defining a VPN
You have defined the network elements, defined the Provider Administrative Domain, and created the VPN customer definition. The final stage of setting up is to define the VPN.
Note
To define the VPN, follow these steps:
Step 1
Figure 3-34 Selecting the PAD for a New VPN
Step 2
The New VPN Definition window appears.
Figure 3-35 Defining a New VPN
Step 3
You return to the VPN Console window, which now displays the new VPN name under the VPNs folder. This is all that is required to complete the VPN definition. However, you may want to define one or more CE Routing Communities for this VPN. If so, proceed to the next section.
Defining CE Routing Communities
Whenever you create a VPN, the MPLS VPN Solution software creates one default CE routing community (CERC) for you. This means that until you need advanced customer layout methods, you will not need to define new CERCs. Up to that point, consider a CERC as standing for the VPN itself—they are identical. If, for any reason, you need to override the software's choice of route target values, you can do this by editing the CERC definition since this is where these values are stored.
To define a new CE Routing Community (CERC) for a VPN, follow these steps:
Step 1
Figure 3-36 CERC for a VPN Definition
Step 2
The Add CE Routing Community window appears.
Figure 3-37 Add CE Routing Community Window
Note
Step 3
To build complex topologies, it is necessary to break down the required connectivity between CEs into groups, where each group is either fully meshed, or has a hub and spoke pattern. A CE can be in more than one group at a time, so long as each group has one of the two basic configuration patterns.
Each subgroup in the VPN needs its own CERC. Any CE that is only in one group just joins the corresponding CERC (as a spoke if necessary). If a CE is in more than one group, then you can use the Advanced Setup choice during provisioning to add the CE to all the relevant groups in one service request. Given this information, the provisioning software does the rest, assigning route target values and VRF tables to arrange exactly the connectivity the customer requires. You can use the Topology tool to double-check the CERC memberships and resultant VPN connection status.
For more information, see the "CE Routing Communities" section.
Implementing the Management VPN Technique
The Management VPN technique is the default method provisioned by MPLS VPN Solution. A key concept for this implementation technique is that all the CEs in the network are a member of the management VPN. The Management VPN is a VPN that belongs to the service provider so that the service provider can manage the VPNs that belong to the provider's customers. Figure 3-38 shows a typical topology for the Management VPN technique.
Figure 3-38 Example of Management VPN Topology
A Management VPN employs two PE devices called the Management CE (MCE) and the Management PE (MPE).
•
•
The MPE needs access to the following devices:
The MPE-MCE link uses a Management VPN (see the "Management VPN Technique" section) to connect to managed CEs. To connect to the PEs and NetFlow Connector, the MPE-MCE link uses a parallel IPv4 link.
Provisioning a Management VPN
This procedure assumes that routers that are to function as the MPE and MCE exist in the service provider network.
The first step is to create a VPN Customer specifically reserved as the Management VPN Customer. The Management VPN Customer should have a single site with a single CE—the router designated as the Management CE—assigned to the Management VPN Customer's site.
To provision a management VPN in MPLS VPN Solution software, follow these steps:
Step 1
You can also right-click the VPN Customers folder and choose New VPN Customer.
The New VPN Customer window appears.

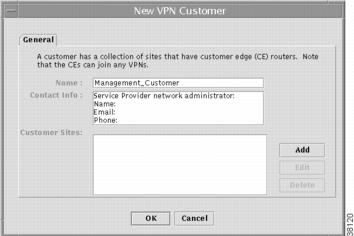

Figure 3-39 Creating the Management VPN Customer
Step 2
Step 3
Though it is not required, entering the contact information is recommended.
Step 4
The Add Customer Site window appears.

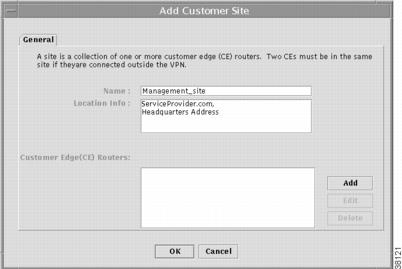

Figure 3-40 Adding the Management VPN Customer Site
Step 5
Step 6
The Add Customer Edge Routers window appears (see Figure 3-41).
Step 7

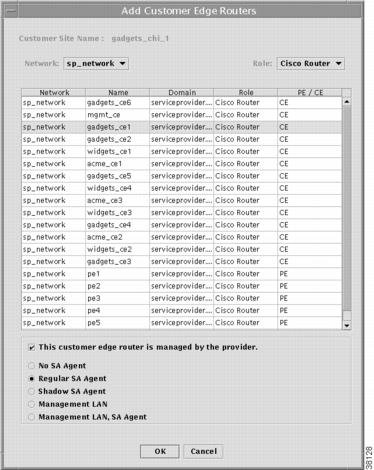

Figure 3-41 Adding the MCE to the Management Site
Step 8
Step 9
•
•
Selecting the Management LAN, SA Agent option defines the router as both an MCE and a CE with SA Agent enabled.
When you click OK, the selected router is designated as the MCE. The next step is to provision a service request between the MCE and a PE designated as the Management PE (MPE).
For detailed information on deploying service requests in the MPLS VPN Solution software, see "Defining and Deploying MPLS VPN Service Requests."
Step 10
The introductory panel in the Add VPN Service to CE wizard appears.
Step 11
When provisioning standard PE-CE links, the next window is used to select the CE in the PE-CE link. However, setting up a service request for the MCE is a special case, and so use this window to select the router designated as the MCE.

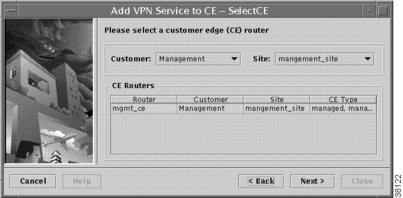

Figure 3-42 Selecting the MCE for the Service Request
Step 12
Step 13
As shown in Figure 3-42, the name of the router designated as the MCE appears in the CE Routers pane.
Step 14
When provisioning standard PE-CE links, the next window is used to select the PE in the PE-CE link. However, for this operation, use this window to select the router designated as the Management PE (MPE).

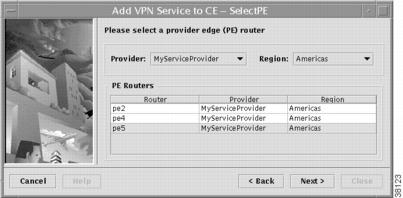

Figure 3-43 Selecting the MPE for the Service Request
Step 15

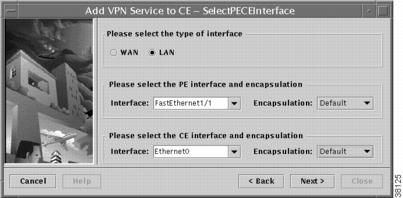

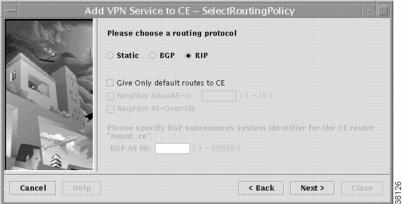

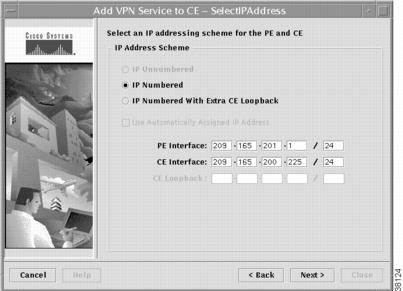

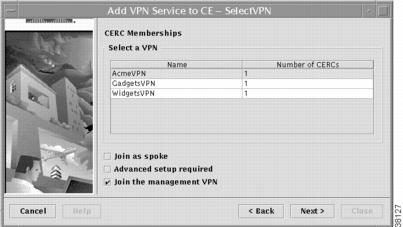

Step 16
Guest
