This appendix is intended as a reference for the objects and object attributes that are used by the Cisco NI-2 DSLAM Equipment Module.
The attribute tables in this section follow a convention that will help you easily identify important information such as derived values and mandatory attributes.

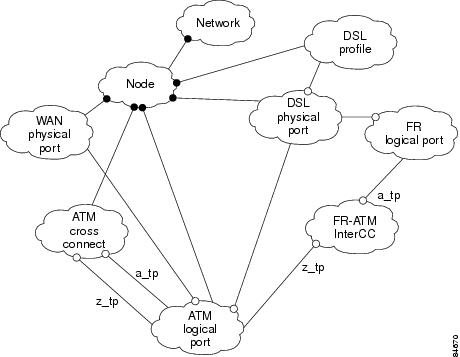

Figure A-1 shows the object model diagram for the Cisco NI-2 DSLAM Equipment Module.
Figure A-1 Object Model Diagram
Table Conventions
Table A-2 lists the types of tables provided for each object in this appendix.
Table A-2 Table Types
Table
Description
Object - Characteristics
The object characteristics table lists the class name, class label, superclass, and database tables for the object.
Object - Attributes
The object attributes table provides information about each attribute, including the GUI label, FTI name, description, range of acceptable values, and default values. For more information about this table type, see Table A-3.
Object - Aliases
The object aliases table provides information about attributes that are aliases for other attributes. Aliases are provided to allow either attribute of an AZ pair to be referenced by a single name regardless of whether it is at the A endpoint or at the Z endpoint. For more information about aliases, see "Attribute Description" in Table A-3.
Table A-3 describes the table conventions that are used in the object attribute tables. Within each object attribute table, attributes are sorted alphabetically by FTI name.
Table A-3 Conventions Used In Object Attribute Tables
Convention
Description
Attribute Name
The GUI label for each attribute (if applicable) is shown in double quotes. If the attribute does not have a GUI label, only the double quotes appear. The FTI name for each attribute appears in square brackets after the GUI label, in the format "GUI Label" [fti_name].
For example:
"Name" [srname]
Attribute Description
Defines the attribute. Some attributes contain restrictions or dependencies that are outside the scope of the table conventions. In this case, the restriction or dependency is included with the attribute description or within a footnote.
An attribute that is a pointer to another object is shown with the relation type and classname.
For example:
" " [sra_tp]
Relation of Type OPTIONAL, Relation Class Name = C4lpLport
For an attribute that has aliases, the FTI names for the aliases are included in the description, along with the FTI names of the attributes at the other endpoint.
For example:
"VCI" [raa_vci]
Alias: ralocalvci (other param: raz_vci)
Alias: raremotevci (other param: raz_vci)
means that ralocalvci and raremotevci can be used as an alias for either raa_vci or raz_vci.
In this case, the entry for the other endpoint is:
"VCI" [raz_vci]
Alias: ralocalvci (other param: raa_vci)
Alias: raremotevci (other param: raa_vci)
Attribute Flags
The attribute flags describe the attribute behaviour as follows:
Create: O
The attribute is optional upon creation.
Create: R
This attribute is required upon creation.
Create: P
This attribute is prohibited upon creation.
Modify: O
This attribute is optional upon modification.
Modify: R
This attribute is required upon modification.
Modify: P
This attribute is prohibited from modification.
Profiled
This attribute can be profiled.
Persistent
This attribute is stored in the database (rather than existing only in memory).
Acceptable Values
This column indicates the acceptable value(s) for each attribute.
Text (n)
This attribute requires a text string containing as many as n characters.
integer_1 - integer_2
This attribute requires a numerical value ranging from integer1 through integer2.
value_1 | value_2 | value_n
This attribute requires one of the enumerated values listed (value_1 or value_2 or value_n).
BOOLEAN
This attribute requires a value of true or false.
Default
This column indicates the default value (if applicable) for each attribute. Text default values are shown in double quotes. For a text attribute that does not have a default value, only the double quotes appear.
Network
Object Name: C2ntNetwork
OAF:C2ntNetwork.oaf
Network objects are classes of managed objects that are collections of interconnected telecommunications and management objects (logical and physical) capable of exchanging information. Networks can be nested within other (larger) networks.
A network object is created to represent an actual network in the Cisco Provisioning Center database. A network object is required to perform an upload of network elements.
This is the management domain name. It identifies a geographical or organizational scope for operator access control and corresponds to the MD tag within the Cisco Provisioning Center security procedure.
Create:O Modify:O Persistent Profiled
Text (16)
""
"Class" [srclass]
The Cisco Provisioning Center class name for the network object.
Create:P Modify:P Persistent Profiled
Text (4)
"C2nt"
"Transit Cost" [srcost]
The cost of crossing the sub-network. This attribute is used by the Threader to determine the lowest cost path when threading a service.
Create:O Modify:O Persistent Profiled
0 - 2147483647
500
"Locked against Deletion" [srlocked]
This attribute allows you to lock the network object. Setting this attribute to "true" protects the network from being deleted. Setting this attribute to block deletion does not protect any elements or services on the network (i.e.: if a network is locked, you can still delete nodes from the network).
Create:O Modify:O Persistent Profiled
BOOLEAN
false
"Name" [srname]
The network name.
Create:R Modify:P Persistent
Text (64)
""
"This Network is Opaque" [sropaque]
The threading strategy (opaque or transparent). If this attribute is set to FALSE, the standard ATM Threader is able to thread connections through subteneded configurations.
Create:O Modify:O Persistent Profiled
BOOLEAN
false
"Pre-provisioned" [srpreprov]
Indicates the pre-provisioning mode.
Create:O Modify:O Persistent Profiled
Full | Init | None
None
"Profile" [srprofile]
Relation of Type PROFILE, Relation Class Name = C2ntNetworkProf
Specify the profile used to create the network.
Create:O Modify:O
"Profile Name" [srprofile.sy_profname]
Specify the profile used to create the network.
Create:O Modify:O Persistent
Text (32)
"Default"
"Resource Map" [srrmmap]
This attribute is an integer used to carry a bit map of services supported by this Network.
Create:O Modify:P Persistent Profiled
0 - 2147483647
2066
" " [srsubnet]
Relation of Type OPTIONAL, Relation Class Name = SRntNetwork
The name of the network of which this network object is a subnet.
Create:O Modify:O
"Containing Network" [srsubnet.srname]
The name of the network of which this network object is a subnet.
Create:O Modify:O Persistent
Text (32)
""
"Use Backup EMS" [srusebackupems]
Specify whether or not to use a backup EMS. Disabled to use the primary EMS. Enabled to use the backup EMS.
Create:O Modify:O Persistent Profiled
BOOLEAN
false
"OBJECTID" [sy_objectid]
Relation of Type THIS, Relation Class Name =
The object identifier.
Create:P Modify:O
"Customer" [vpn]
Specify the customer name. The customer field, like the Domain field, is used for Cisco Provisioning Center security purposes. It identifies the Service object with a customer and is used as a tag to give operators access to this customer's Service object.
Create:O Modify:O Persistent Profiled
Text (16)
""
Node
Object Name: C2ndNode
OAF:C2ndNode.oaf
Node objects are classes of managed objects representing telecommunications equipment or TMN entities within the telecommunications network that perform managed element functions (i.e., they provide support and/or Services to the subscriber). Nodes communicate with the manager over one or more management interfaces for the purposes of being provisioned.
A node object is created to represent an actual Cisco 6260/6160/6130 DSLAM in the Cisco Provisioning Center database. This object is required to perform an upload of network elements.
Table A-6 Cisco NI-2 DSLAM Node - Characteristics
Class Name:
C2ndNode
Short Class Name:
nd
Class Label:
Cisco NI2 DSLAM Node
Superclass:
SRndNode
Persistence:
OWN
Table A-7 Cisco NI-2 DSLAM Node - Attributes
Attributes
Acceptable Values
Default Value
"Host name" [c2_hostname]
The system's network name.
Create:O Modify:O Persistent Profiled
Text (64)
""
"Subtend ID" [c2_subtendid]
The subtend ID should be unique within the subtend tree. Nodes connected to the trunk must have their subtend ID set to 0. A Subtend ID should be unique in a subtended tree.
Create:O Modify:O Persistent Profiled
0 - 2147483647
0
"Chassis type" [c2chassistype]
The DSLAM chassis type. Initially, you must set this attribute to "unknown". The upload process will set this attribute depending on the uploaded hardware.
Create:O Modify:O Persistent Profiled
C6260 | C6160 | C6130 | C6100 | C6015 | unknown
unknown
"Enable Password" [c2enablepswd]
The enable password used to access the DSLAM configuration.
Create:O Modify:O Persistent Profiled
Text (25)
""
"Access Password" [c2password]
Password for IOS access to the DSLAM.
Create:O Modify:O Persistent Profiled
Text (25)
""
"User Name" [c2user]
The user name used for IOS access to the DSLAM.
Create:O Modify:O Persistent Profiled
Text (64)
""
"Domain" [domain]
This is the management domain name. It identifies a geographical or organizational scope for operator access control and corresponds to the MD tag within the Cisco Provisioning Center security procedure. Refer to the CPC Administration Guide for details.
Create:O Modify:O Persistent Profiled
Text (16)
""
"Region" [srarea]
The name of the administrative area containing the node (a LATA, for example).
Create:O Modify:O Persistent Profiled
Text (32)
""
"Class" [srclass]
The Cisco Provisioning Center class name for the node object.
Create:P Modify:P Persistent Profiled
Text (4)
"C2nd"
"Transit Cost" [srcost]
The cost of crossing the sub-network. This attribute is used by the Threader to determine the lowest cost path when threading a service.
Create:O Modify:O Persistent Profiled
0 - 2147483647
1000
"Geographical Location" [srgeogloc]
The geographical location of the node (for example, a GPS reference).
Create:O Modify:O Persistent Profiled
Text (32)
""
"Locked against Deletion" [srlocked]
This attribute allows you to lock the node object. Setting this attribute to "true" protects the node from being deleted. Setting this attribute to block deletion does not protect any elements or services on the node (i.e.: if a node is locked, you can still delete logical ports from the node).
Create:O Modify:O Persistent Profiled
BOOLEAN
false
"Management Address" [srmgmtaddress]
The IP address or symbolic name for the primary system controller.
Create:R Modify:O Persistent
Text (32)
""
"Name" [srname]
Specify the name of the node.
Create:R Modify:O Persistent
Text (64)
""
" " [srnetwork]
Relation of Type PARENT, Relation Class Name = C2ntNetwork
The network that contains the node.
Create:O Modify:O
"Containing Network" [srnetwork.srname]
The network that contains the node.
Create:O Modify:O Persistent
Text (32)
""
"Organizational Location" [srorgloc]
The organizational location of the node (for example, a Cisco 6100 directory reference).
Create:O Modify:O Persistent Profiled
Text (64)
""
"Pre-provisioned" [srpreprov]
The pre-provisioning mode.
Create:O Modify:O Persistent Profiled
Full | Init | None
None
"Profile" [srprofile]
Relation of Type PROFILE, Relation Class Name = C2ndNodeProf
The profile used to create the node object.
Create:O Modify:O
"Profile Name" [srprofile.sy_profname]
The profile used to create the node object.
Create:O Modify:O Persistent
Text (32)
""
"Agent S/W Version" [srswversion]
The node software version.
Create:O Modify:O Persistent Profiled
Text (50)
""
"Node Type" [srtype]
This specifies the equipment type.
Create:P Modify:P Persistent Profiled
Text (24)
"DSLAM"
"Last Upload" [srurid]
Relation of Type OPTIONAL, Relation Class Name = ANYCLASS
The UR ID of the last upload.
Create:O Modify:O
"User Label" [sruserlabel]
This field can be used to specify a user label for this node.
Create:O Modify:O Persistent Profiled
Text (64)
""
"Upload Status" [srustate]
This attribute indicates when a site should be uploaded. Required indicates the site definitely needs uploading.Indeterminate indicates the site may need uploading. Not_Required means the site does not need uploading.
A successfully completed Upload will set the status to Not_Required. Cisco Provisioning Center will also set the upload status attribute to Required when it detects that a failed transaction cannot rollback.
Create:O Modify:O Persistent Profiled
Required | Not_Required | Indeterminate
Required
"Time Upload Status Last Changed" [srustime]
The time and date that the upload state was last modified.
Create:P Modify:P Persistent Profiled
Text (24)
""
"Time of Last Successful Upload" [srutime]
Specify the date and time of the last upload.
Create:P Modify:P Persistent Profiled
Text (24)
""
"Last Upload Type" [srutype]
Specify the last upload type.
Create:P Modify:P Persistent Profiled
Text (16)
""
"OBJECTID" [sy_objectid]
Relation of Type THIS, Relation Class Name =
The object identifier.
Create:P Modify:O
"Customer" [vpn]
Specify the customer name. The customer field, like the Domain field, is used for Cisco Provisioning Center security purposes. It identifies the Service object with a customer and is used as a tag to give operators access to this customer's Service object. Refer to the CPC Administration Guide for details.
Create:O Modify:O Persistent Profiled
Text (16)
""
DSL Template
Object Name: C2dsDSLTemplate
OAF: C2dsDSLTemplate.oaf
DSL templates are profiles that define attributes for DSL physical ports. The Cisco NI-2 DSLAM uses templates to configure DSL physical ports rather than configuring them directly (direct configuration of port parameters is not allowed). These templates are uploaded during fabric element upload and can be associated with more than one DSL physical port. When a profile is modified in the Cisco NI-2 DSLAM, the modification affects all ports using the profile.
This is the upstream/downstream interleaving delay (microseconds),
Create:O Modify:O Persistent Profiled
0 | 500 | 1000 | 2000 | 4000 | 8000 | 16000
16000
"Interleaved FEC Check (bytes)" [c2d_za_ilvfec]
This is the interleaved FEC check (redundancy), in bytes.
Create:O Modify:O Persistent Profiled
0 - 2147483647
16
"Signal-to-Noise Ratio margin (db)" [c2d_za_margin]
This is upstream/downstream signal-to-noise ration margin (dB),
Create:O Modify:O Persistent Profiled
0 - 15
6
"Maximum Fast Path Bit Rate (kb/s)" [c2d_za_maxfrate]
This is the upstream/downstream maximum fast path bit rate (kb/s), range:0~1024, 32increments
Create:O Modify:O Persistent Profiled
0 - 2147483647
Downstream range is 0-8064 (in increments of 32)
0
640 (downstream)
"Maximum Interleaved Path Bit Rate (kb/s)" [c2d_za_maxlrate]
This is the upstream/downstream maximum interleaved path bit rate (kb/s), range:0~8064, 32increments
Create:O Modify:O Persistent Profiled
0 - 2147483647
640
640 (downstream)
"Minimum Fast Path Bit Rate (kb/s)" [c2d_za_minfrate]
This is the upstream/downstream minimum fast path bit rate (kb/s) ), range:0~8064, 32 increments
Create:O Modify:O Persistent Profiled
0 - 2147483647
Downstream range is 0-8064 (in increments of 32)
0
"Minimum Interleaved Path Bit Rate (kb/s)" [c2d_za_minlrate]
This is the upstream/downstream minimum interleaved path bit rate (kb/s).
Create:O Modify:O Persistent Profiled
0 - 2147483647
0
"interface encapsulation type" [c2i_encap]
IDSL encapsulation type.
Create:O Modify:O Persistent Profiled
cisco-ppp | frame-relay | llc-ppp | mux-ppp
llc-ppp
"Default Bc" [c2i_fr_bc]
Default Bc (bytes).
Create:O Modify:O Persistent Profiled
0 - 32768
32768
"UPC to use on Soft-VCs/PVCs" [c2i_fr_upc]
Specify the UPC to Use on Soft-VCs/PVCs
Create:O Modify:O Persistent Profiled
drop | pass | tag
pass
"LMI error threshold" [c2i_frlmi_n392]
Specify the LMI error threshold.
Create:O Modify:O Persistent Profiled
0 - 10
2
"LMI monitored event count" [c2i_frlmi_n393]
Specify the LMI monitored event count.
Create:O Modify:O Persistent Profiled
0 - 10
2
"DCE polling verification timer" [c2i_frlmi_t392]
Specify the DCE polling verification timer.
Create:O Modify:O Persistent Profiled
5 - 30
15
"CISCO-ANSI-CCITT type LMI" [c2i_frlmi_type]
Specify the Cisco-ANSI-CCITT Type LMI
Create:O Modify:O Persistent Profiled
none | cisco | ansi | q933a
cisco
"bit rate" [c2i_maxbrate]
IDSL maximum bit rates (kbits/s)
Create:O Modify:O Persistent Profiled
128 | 144 | 56 | 64
128
"bit rate" [c2s_maxbrate]
SDSL maximum bit rates (kbits/s).
Create:O Modify:O Persistent Profiled
144 | 272 | 400 | 528 | 784 | 1040 | 1168
784
"Payload scrambling enabled" [c2scrambling]
Indicates if the payload scrambling feature is enabled.
Create:O Modify:O Persistent Profiled
BOOLEAN
true
"Domain" [domain]
This is the management domain name. It identifies a geographical or organizational scope for operator access control and corresponds to the MD tag within the Cisco Provisioning Center security procedure.
Create:O Modify:O Persistent Profiled
Text (16)
""
"DSL Template Name" [srname]
Profile name. This name must be unique within a node.
Create:O Modify:O Persistent Profiled
Text (24)
""
" " [srnetwork]
Relation of Type GRANDPARENT, Relation Class Name = C2ntNetwork
The containing network object.
Create:O Modify:O
"Network" [srnetwork.srname]
The containing network object.
Create:P Modify:P Persistent
Text (32)
""
" " [srnode]
Relation of Type PARENT, Relation Class Name = C2ndNode
The containing node object.
Create:O Modify:O
"Node" [srnode.srname]
The containing node object.
Create:O Modify:O Persistent
Text (32)
""
"Network" [srnode.srnetwork.srname]
The containing network object.
Create:O Modify:O Persistent
Text (32)
""
"Profile" [srprofile]
Relation of Type PROFILE, Relation Class Name = C2dsDSLTemplateProf
The profile the DSL Template is using.
Create:O Modify:O
"Profile Name" [srprofile.sy_profname]
The profile the DSL Template is using.
Create:O Modify:O Persistent
Text (32)
""
"OBJECTID" [sy_objectid]
Relation of Type THIS, Relation Class Name =
The object identifier.
Create:P Modify:O
"Customer" [vpn]
Specify the customer name. The customer field, like the Domain field, is used for Cisco Provisioning Center security purposes. It identifies the Service object with a customer and is used as a tag to give operators access to this customer's Service object.
Create:O Modify:O Persistent Profiled
Text (16)
""
DSL Physical Port
Object Name: C2dpDSLPhysicalPort
OAF: C2dpDSLPhysicalPort.oaf
The physical port object class represents a physical (i.e., layer 1) termination point where layer 1 trails and network connections terminate. Physical port objects can support layer 2 termination points (i.e., logical ports).
A DSL physical port represents a DSL port on a Cisco 6260/6160/6130 line card. This object class can represent any of the supported xDSL cards supported by the chassis.
The Slot Number attribute contains a text string that uniquely identifies the cards within the node.
Table A-10 Cisco NI-2 DSLAM DSL Physical Port - Characteristics
Class Name:
C2dpDSLPhysicalPort
Short Class Name:
dp
Class Label:
Cisco NI2 DSLAM DSL Physical Port
Superclass:
C2ppPhysicalPort
Persistence:
OWN
Table A-11 Cisco NI-2 DSLAM DSL Physical Port - Attributes
Attributes
Acceptable Values
Default Values
"Card Type" [c2cardtype]
Line card type. The value for this attribute is uploaded.
The Cisco NI-2 DSLAM DSL template that is being used.
Create:O Modify:O Persistent Profiled
Text (32)
"default"
"Card Exists" [c2exist]
Verify the existence of card in the physical hardware. The value for this attribute is uploaded.
Create:P Modify:P Persistent Profiled
BOOLEAN
false
"Node Subscriber Id" [c2subscriber]
Specify the subscriber ID.
Create:O Modify:O Persistent Profiled
Text (64)
""
"Domain" [domain]
This is the management domain name. It identifies a geographical or organizational scope for operator access control and corresponds to the MD tag within the Cisco Provisioning Center security procedure. Refer to the CPC Administration Guide for details.
Create:O Modify:O Persistent Profiled
Text (16)
""
"Max upstream signal-to-noise ratio margin (dB/10)" [rdaz_maxsnrmarg]
The maximum AZ signal-to-noise ratio margin. The higher this margin is set, the more protection there is against data corruption. Higher margins support lower data rates for a given loop.
Create:O Modify:O Persistent Profiled
0 - 310
60
"Min upstream signal-to-noise ratio margin (dB/10)" [rdaz_minsnrmarg]
The minimum AZ (rdaz)/ ZA (rdza) signal-to-noise ratio margin. The higher this margin is set, the more protection there is against data corruption. Higher margins support lower data rates for a given loop.
Create:O Modify:O Persistent Profiled
0 - 310
3
"Target upstream signal-to-noise ratio margin (dB/10)" [rdaz_targsnrmarg]
Specify the target upstream signal-to-noise ratio margin (dB/10).
"Max downstream signal-to-noise ratio margin (dB/10)" [rdza_maxsnrmarg]
The maximum ZA signal-to-noise ratio margin. The higher this margin is set, the more protection there is against data corruption. Higher margins support lower data rates for a given loop.
Create:O Modify:O Persistent Profiled
0 - 310
60
"Min downstream signal-to-noise ratio margin (dB/10)" [rdza_minsnrmarg]
The minimum AZ (rdaz)/ ZA (rdza) signal-to-noise ratio margin. The higher this margin is set, the more protection there is against data corruption. Higher margins support lower data rates for a given loop.
Create:O Modify:O Persistent Profiled
0 - 310
3
"Target downstream signal-to-noise ratio margin (dB/10)" [rdza_targsnrmarg]
Specify the target upstream signal-to-noise ratio margin (dB/10).
Create:O Modify:O Persistent Profiled
0 - 310
60
" " [rlbgroup]
Relation of Type OPTIONAL, Relation Class Name = ANYCLASS
A pointer to the LAN Bridge Group that this port belongs to (if any).
Create:O Modify:O
"Bridge Group" [rlbgroup.srname]
A pointer to the LAN Bridge Group that this port belongs to (if any).
Create:O Modify:O Persistent
Text (32)
""
"Admin Status" [sradminstatus]
Specify the administrative state.
Create:O Modify:O Persistent Profiled
Locked | Unlocked
Unlocked
"" [sraz_bandwidth]
The incoming (sraz)/ outgoing (srza) bandwidth for this physical port.
Create:P Modify:P Persistent Profiled
0 - 2147483647
0
"" [sraz_maxbandw]
The maximum incoming (AZ)/outgoing (ZA) bandwidth supported by this physical port. This value is auto-generated based on the physical port type.
Create:P Modify:P Persistent Profiled
0 - 2147483647
0
"" [srbandwidth]
This attribute is not used.
Create:O Modify:O Persistent Profiled
0 - 2147483647
0
" " [srcard]
Relation of Type OPTIONAL, Relation Class Name = SRcdCard
The card containing this port (when modelled).
Create:O Modify:O
"Card" [srcard.srname]
The card containing this port (when modelled).
Create:O Modify:O Persistent
Text (32)
""
"Slot Number" [srcardnumber]
The slot number for the card containing this port.
Create:O Modify:O Persistent Profiled
Text (16)
""
"Class" [srclass]
The Cisco Provisioning Center class name for this physical port object.
Create:P Modify:P Persistent Profiled
Text (4)
"C2dp"
"Port Name in EMS" [sremsname]
The physical port name known to the Element Management System.
Create:O Modify:O Persistent
Text (64)
""
"Equipment" [srequipment]
Relation of Type OPTIONAL, Relation Class Name = ANYCLASS
Specify the type of equipment. This attribute can be used by the Equipment Tracking service application or an OSS application.
Create:O Modify:O
"Port Reservation Lock" [srlock]
This attribute is used to mark an physical port for reservation.
Create:O Modify:O Persistent Profiled
Locked | Unlocked
Unlocked
"Locked against Deletion" [srlocked]
This attribute allows you to lock the physical port object. Setting this attribute to "true" protects the pport from being deleted.
Create:O Modify:O Persistent Profiled
BOOLEAN
false
"Maximum Channels" [srmaxchans]
This attribute is not used.
Create:P Modify:P Persistent Profiled
0 - 2147483647
0
"Max PDU Size (bytes)" [srmaxpdusize]
This attribute is not used.
Create:P Modify:P Persistent Profiled
0 - 2147483647
0
"MDF Attachment Point" [srmdfref]
This attribute is used to hold the shelf, pair and cable name on the Main Distribution Frame to which a physical port is attached.
Create:O Modify:O Persistent Profiled
Text (64)
""
" " [srmlink]
Relation of Type OPTIONAL, Relation Class Name = SRmtMtptLink
Multipoint Link. This attribute is not used.
Create:O Modify:O
"MtptLink" [srmlink.srname]
Multipoint Link. This attribute is not used.
Create:O Modify:O Persistent
Text (32)
""
"Name" [srname]
Specify the name of the physical port.
Create:O Modify:O Persistent
Text (64)
""
" " [srnetwork]
Relation of Type GRANDPARENT, Relation Class Name = C2ntNetwork
The containing network.
Create:O Modify:O
"Network" [srnetwork.srname]
This identifies the network that contains the physical port.
Create:P Modify:P Persistent
Text (32)
""
" " [srnode]
Relation of Type PARENT, Relation Class Name = C2ndNode
The containing node.
Create:O Modify:O
"Node" [srnode.srname]
This identifies the node that contains the physical port.
Create:O Modify:O Persistent
Text (32)
""
" " [srnode.srnetwork.srname]
This identifies the node that contains the physical port.
Create:P Modify:P Persistent
Text (32)
""
" " [srpeer]
Relation of Type OPTIONAL, Relation Class Name = SRppPhysicalPort
The peer physical port.
Create:O Modify:O
"Peer Logical Port" [srpeer.srname]
The peer physical port.
Create:P Modify:P Persistent
Text (32)
""
" " [srport]
Relation of Type OPTIONAL, Relation Class Name = SRppPhysicalPort
The lower layer pport (when modelled).
Create:O Modify:O
"Lower Layer PPort" [srport.srname]
The lower layer pport (when modelled).
Create:O Modify:O Persistent
Text (32)
""
"Port Number" [srportnumber]
The physical port number.
Create:O Modify:P Persistent
0 - 2147483647
0
"Port Type" [srporttype]
The DSL physical port type.
Create:O Modify:O Persistent
ADSL | IDSL | SHDSL | SDSL | unknown
unknown
"Profile" [srprofile]
Relation of Type PROFILE, Relation Class Name = C2dpDSLPhysicalPortProf
The profile used to create the physical port.
Create:O Modify:O
"Profile Name" [srprofile.sy_profname]
The profile used to create the physical port.
Create:O Modify:O Persistent
Text (32)
""
"Protocol" [srprotocol]
The protocol supported by this physical port.
Create:P Modify:P Persistent Profiled
DSL
DSL
"Line Sharing Usage" [srrezchanmap]
This attribute is not used.
Create:O Modify:O Persistent
Unknown | D | VD
Unknown
"Resource Model Specific Map" [srrmmap]
This attribute specifies the resource model specific map.
Create:O Modify:O Persistent Profiled
0 - 2147483647
0
"Service Map" [srservmap]
Map of supported service types.
Create:O Modify:O Persistent Profiled
Text (32)
"DDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDD"
"Shelf Number" [srshelfnumber]
The shelf for the card containing this port.
Create:O Modify:O Persistent Profiled
Text (16)
""
"Shelf and Slot Number" [srslotnumber]
The physical port shelf slot number.
Create:O Modify:P Persistent
Text (16)
""
"Owning Service" [srsoid]
Relation of Type OPTIONAL, Relation Class Name = ANYCLASS
The ID number of the Service object that owns this port.
Create:O Modify:O
"First Channel on this Pport" [srstartchan]
This attribute specifies the channel number of the first channel on this port.
Create:O Modify:O Persistent Profiled
0 - 2147483647
1
"Subscriber Id" [srsubscriberid]
The circuit identification number. This is mapped to the DSL circuit ID on the DSLAM.
Create:O Modify:O Persistent
Text (32)
""
"User Label" [sruserlabel]
Use this field to add user information.
Create:O Modify:O Persistent Profiled
Text (64)
""
"Outgoing bandwidth (kbits/s)" [srza_bandwidth]
The incoming (sraz)/ outgoing (srza) bandwidth for this physical port.
The maximum incoming (AZ)/outgoing (ZA) bandwidth supported by this physical port. This value is auto-generated based on the physical port type.
Create:P Modify:P Persistent Profiled
0 - 2147483647
0
"OBJECTID" [sy_objectid]
Relation of Type THIS, Relation Class Name =
The object identifier.
Create:P Modify:O
"Customer" [vpn]
Specify the customer name. The customer field, like the Domain field, is used for Cisco Provisioning Center security purposes. It identifies the Service object with a customer and is used as a tag to give operators access to this customer's Service object. Refer to the CPC Administration Guide for details.
Create:O Modify:O Persistent Profiled
Text (16)
""
WAN Physical Port
Object Name: C2wpWANPhysicalPort
OAF: C2wpWANPhysicalPort.oaf
The physical port object class represents a physical (i.e., layer 1) termination point where layer 1 trails and network connections terminate. Physical port objects can support layer 2 termination points (i.e., logical ports).
A WAN physical port represents a WAN port on a Cisco 6260/6160/6130 NI-2 network interface card. This object class can represent the supported WAN network interface cards supported by the chassis.
The slot number attribute contains a text string that uniquely identifies the cards within the node.
Port 0/0 is the internal port and is modelled as the CPU port. Port 0/1 is the trunk port. Port 0/2 is the subtending port and port 0/3 (if it exists) is the second subtending port.
Table A-12 Cisco NI-2 DSLAM WAN Physical Port - Characteristics
Class Name:
C2wpWANPhysicalPort
Short Class Name:
wp
Class Label:
Cisco NI2 DSLAM WAN Physical Port
Superclass:
C2ppPhysicalPort
Persistence:
OWN
Table A-13 Cisco NI-2 DSLAM WAN Physical Port - Attributes
Type or role of physical port. This attribute is uploaded.
Create:O Modify:O Persistent Profiled
trunk | subtend | cpu
subtend
"Domain" [domain]
This is the management domain name. It identifies a geographical or organizational scope for operator access control and corresponds to the MD tag within the Cisco Provisioning Center security procedure. Refer to the CPC Administration Guide for details.
Relation of Type OPTIONAL, Relation Class Name = SRcdCard
Specify the card containing the physical port.
Create:O Modify:O
"Card" [srcard.srname]
Specify the card containing the physical port.
Create:O Modify:O Persistent
Text (32)
""
"Slot Number" [srcardnumber]
The slot for the card containing this port.
Create:O Modify:O Persistent Profiled
Text (16)
""
"Class" [srclass]
The Cisco Provisioning Center class name for this physical port object.
Create:P Modify:P Persistent Profiled
Text (4)
"C2wp"
"Port Name in EMS" [sremsname]
This attribute can be used to hold a second name for an object to accommodate different names in Cisco Provisioning Center and in the EMS/NMS. This attribute holds the name of the object as stored in the EMS/NMS.
Create:O Modify:O Persistent
Text (64)
""
"Equipment" [srequipment]
Relation of Type OPTIONAL, Relation Class Name = ANYCLASS
Specify the type of equipment. This attribute can be used by the Equipment Tracking service application or an OSS application.
Create:O Modify:O
"Locked against Deletion" [srlocked]
This attribute allows you to lock the physical port object. Setting this attribute to "true" protects the pport from being deleted.
Create:O Modify:O Persistent Profiled
BOOLEAN
false
"Maximum Channels" [srmaxchans]
This attribute is not used.
Create:P Modify:P Persistent Profiled
0 - 2147483647
0
"Max PDU Size (bytes)" [srmaxpdusize]
The maximum protocol data unit size.
Create:P Modify:P Persistent Profiled
0 - 2147483647
53
" " [srmlink]
Relation of Type OPTIONAL, Relation Class Name = SRmtMtptLink
Multipoint Link. This attribute is not used.
Create:O Modify:O
"MtptLink" [srmlink.srname]
Multipoint Link. This attribute is not used.
Create:O Modify:O Persistent
Text (32)
""
"Name" [srname]
Specify the name of the physical port.
Create:O Modify:O Persistent
Text (64)
""
" " [srnetwork]
Relation of Type GRANDPARENT, Relation Class Name = C2ntNetwork
The containing network.
Create:O Modify:O
"Network" [srnetwork.srname]
This identifies the network that contains the physical port. This attribute is auto-generated based on the physical port's location.
Create:O Modify:O Persistent
Text (32)
""
" " [srnode]
Relation of Type PARENT, Relation Class Name = C2ndNode
This identifies the node that contains the physical port. This attribute is auto-generated based on the physical port's location.
Create:O Modify:O
"Node" [srnode.srname]
This identifies the node that contains the physical port. This attribute is auto-generated based on the physical port's location.
Create:O Modify:O Persistent
Text (32)
""
" " [srpeer]
Relation of Type OPTIONAL, Relation Class Name = SRppPhysicalPort
Specify a peer physical port, if applicable.
Create:O Modify:O
"Peer Physical Port" [srpeer.srname]
Specify a peer physical port, if applicable.
Create:P Modify:P Persistent
Text (32)
""
" " [srport]
Relation of Type OPTIONAL, Relation Class Name = SRppPhysicalPort
Specify the lower layer physical port that contains this port.
Create:O Modify:O
"Lower Layer PPort" [srport.srname]
Specify the lower layer physical port that contains this port.
Create:O Modify:O Persistent
Text (32)
""
"Port Number" [srportnumber]
The physical port number.
Create:O Modify:O Persistent
0 - 2147483647
0
"Port Type" [srporttype]
The WAN physical port type.
Create:O Modify:O Persistent
DS3 | E3 | OC3 | CPU
DS3
"Profile" [srprofile]
Relation of Type PROFILE, Relation Class Name = C2wpWANPhysicalPortProf
The profile used to create the physical port.
Create:O Modify:O
"Profile Name" [srprofile.sy_profname]
The profile used to create the physical port.
Create:O Modify:O Persistent
Text (32)
""
"Protocol" [srprotocol]
The protocol supported by this physical port.
Create:P Modify:P Persistent Profiled
None
None
"Reserved Channels" [srrezchanmap]
This attribute is not used.
Create:O Modify:O Persistent
Text (38)
""
"Resource Map" [srrmmap]
Specify a resource model specific map.
Create:O Modify:O Persistent Profiled
0 - 2147483647
0
"Service Map" [srservmap]
Create:O Modify:O Persistent Profiled
Text (32)
"DDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDD"
"Shelf Number" [srshelfnumber]
The shelf for the card containing this port.
Create:O Modify:O Persistent Profiled
Text (16)
""
"Shelf and Slot Number" [srslotnumber]
The physical port shelf slot number.
Create:O Modify:O Persistent
Text (16)
""
"Owning Service" [srsoid]
Relation of Type OPTIONAL, Relation Class Name = ANYCLASS
The ID number of the Service Object that owns this port.
Create:O Modify:O
"First Channel on this Pport" [srstartchan]
Specify the first channel on this physical port.
Create:O Modify:O Persistent Profiled
0 - 2147483647
1
"Subscriber Id" [srsubscriberid]
The subscriber identification number.
Create:O Modify:O Persistent
Text (32)
""
"User Label" [sruserlabel]
Use this field to add user information.
Create:O Modify:O Persistent Profiled
Text (64)
""
"OBJECTID" [sy_objectid]
Relation of Type THIS, Relation Class Name =
The object identifier.
Create:P Modify:O
"Customer" [vpn]
Specify the customer name. The customer field, like the Domain field, is used for Cisco Provisioning Center security purposes. It identifies the Service object with a customer and is used as a tag to give operators access to this customer's Service object. Refer to the CPC Administration Guide for details.
Create:O Modify:O Persistent Profiled
Text (16)
""
ATM Logical Port
Object Name: C2alATMLogicalPort
OAF:C2alATMLogicalPort.oaf
The logical port object class is a layer 2 termination point that represents a communication protocol associate with a physical port. Logical ports terminate layer 2 trails and network connections. Logical ports have an associated bandwidth that is allocated to the subnetwork connections that terminate at the logical port.
An ATM logical port object represents a logical port on a Cisco 6260/6160/6130 NI-2 network interface card or line card. Only line card logical ports can be provisioned by Cisco Provisioning Center. The set of attributes modelled is intended to allow ILMI to be enabled and configured for a PVC only environment (no SVCs).
Table A-14 Cisco NI-2 DSLAM ATM Logical Port - Characteristics
Class Name:
C2alATMLogicalPort
Short Class Name:
al
Class Label:
Cisco NI2 DSLAM ATM Logical Port
Superclass:
C2lpLogicalPort
Persistence:
OWN
Table A-15 Cisco NI-2 DSLAM ATM Logical Port - Attributes
Attributes
Acceptable Values
Default Value
"Inbound Access Control List" [c2_acl_in]
Access control list for inbound packets.
Create:O Modify:O Persistent Profiled
Text (16)
""
"Outbound Access Control List" [c2_acl_out]
Access control list for outbound packets.
Create:O Modify:O Persistent Profiled
Text (16)
""
"Description" [c2_description]
A description of the interface.
Create:O Modify:O Persistent Profiled
Text (80)
""
"IP Address" [c2_ipaddr]
ATM interface IP address.
Create:O Modify:O Persistent Profiled
Text (16)
""
"IP Mask" [c2_ipmask]
ATM interface IP mask.
Create:O Modify:O Persistent Profiled
Text (16)
""
"Logical Port Type" [c2_porttype]
The logical port type should comply with the DSL template associated with the containing DSL physical port or with the containing WAN port.
Create:O Modify:P Persistent Profiled
dmt | cap | shdsl | sdsl | trunk | subtend | cpu | unknown
unknown
"Unnumbered Interface" [c2_unnumbered]
The unnumbered interface.
Create:O Modify:O Persistent Profiled
Text (40)
""
"Domain" [domain]
This is the management domain name. It identifies a geographical or organizational scope for operator access control and corresponds to the MD tag within the Cisco Provisioning Center security procedure. Refer to the CPC Administration Guide for details.
Create:O Modify:O Persistent Profiled
Text (16)
""
"Channel Autoselection" [ds0select]
The ds0select is a computed attribute, used to auto select/de-select all DS0 channels on the logical port. It can take one of the following values:
Select All—Find the timeslots that are available in the associated physical port and assign all of them to the logical port. The channel map of the logical port (srchanmap) will be updated to reflect that the available physical port timeslots are assigned to this logical port. All of the timeslots in the physical port will be updated as "not available". Individual timeslots that are changed in the logical port within the same save operation will not be overwritten by this operation.
Deselect All—Find the timeslots that are assigned to the logical port and un-assign them. The channel map (srchanmap) of the logical port will be updated to reflect that all the timeslots are unassigned. The corresponding timeslots in the associated physical port of the logical port will be updated as available. Individual timeslots changed in the same logical port within the same save operation will not be overwritten by this operation.
None—No change will be made to the channel map of the logical port.
Create:O Modify:O
Text (32)
""
"channel 0-95" [ds0toggle0 - ds0toggle95]
Create:O Modify:O
Text (32)
""
"Default ATM Address" [raaddress]
This attribute is not used.
Create:O Modify:O Persistent Profiled
Text (64)
""
"Default ATM Address Type" [raaddresstype]
This attribute is not used.
Create:O Modify:O Persistent Profiled
AESA | E.164 | Private
Private
"ILMI N491 Error Threshold" [railmin491]
This attribute is not used.
Create:O Modify:O Persistent Profiled
0 - 10
0
"ILMI N492 Event Threshold" [railmin492]
This attribute is not used.
Create:O Modify:O Persistent Profiled
0 - 10
0
"ILMI T491 Polling Interval" [railmit491]
This attribute is not used.
Create:O Modify:O Persistent Profiled
0 - 60
0
"ILMI T493 Enquiry Interval" [railmit493]
This attribute is not used.
Create:O Modify:O Persistent Profiled
0 - 20
0
"ILMI VCI" [railmivci]
Specify the VCI ILMI ID. This attribute is not used.
Create:P Modify:P Persistent Profiled
0 - 2147483647
16
"ILMI VPI" [railmivpi]
Specify the VPI ILMI ID.This attribute is not used.
Create:P Modify:P Persistent Profiled
0 - 2147483647
10
"LMI N394 Status Enquiry Threshold" [ralmin394]
This attribute is not used.
Create:O Modify:O Persistent Profiled
0 - 10
0
"LMI N395 Update Status Threshold" [ralmin395]
This attribute is not used.
Create:O Modify:O Persistent Profiled
0 - 10
0
"LMI T393 Enquiry Timer" [ralmit393]
This attribute is not used.
Create:O Modify:O Persistent Profiled
0 - 30
0
"LMI T394 Update Status Interval" [ralmit394]
This attribute is not used.
Create:O Modify:O Persistent Profiled
0 - 30
0
"LMI T396 Poll Interval" [ralmit396]
This attribute is not used.
Create:O Modify:O Persistent Profiled
0 - 30
0
"VCI Size (bits)" [ramaxvcibits]
Specify the maximum size of the VCI attribute (in bits). This is the local value, not the peer value.
Create:O Modify:O Persistent Profiled
0 - 2147483647
14
"VPI Size (bits)" [ramaxvpibits]
Specify the maximum size of the VPI attribute (in bits). This is the local value, not the peer value.
Create:O Modify:O Persistent Profiled
0 - 2147483647
8
"Management Protocol" [ramgmtprotocol]
The logical port's management protocol.
Create:O Modify:O Persistent Profiled
None | ILMI
None
"Local Admin Status" [sradminstatus]
The administrative status of the logical port.
Create:O Modify:O Persistent Profiled
Locked | Unlocked
Unlocked
" " [sralloctype]
Create:O Modify:O Persistent Profiled
NORMAL | SERVICE | FABRIC | BOTH
NORMAL
"Maximum (kbits/s)" [sraz_bandwidth]
Specify the maximum bandwidth (incoming and outgoing).
Create:O Modify:O Persistent Profiled
0 - 2147483647
0
"Nominal Threshold (%)" [sraz_cbnt]
Specify the nominal threshold percentage (incoming and outgoing).
Create:O Modify:O Persistent Profiled
0 - 2147483647
100
"Provisionable (kbits/s)" [sraz_cbw]
Specify the committed bandwidth (incoming and outgoing).
Create:P Modify:P Persistent Profiled
0 - 2147483647
0
" " [srbackupport]
Relation of Type OPTIONAL, Relation Class Name = C2alATMLogicalPort
The logical port's backup port.
Create:O Modify:O
"Backup Logical Port" [srbackupport.srname]
The logical port's backup port.
Create:O Modify:O Persistent
Text (32)
""
" " [srchanmap]
This attribute is not used.
Create:O Modify:O Persistent Profiled
Text (38)
""
"Class" [srclass]
The Cisco Provisioning Center class name for this physical port object.
Create:P Modify:P Persistent Profiled
Text (4)
"C2al"
"Maximum Connections" [srconnections]
Maximum number of VC connections that can be supported on this port.
Create:O Modify:O Persistent Profiled
0 - 2147483647
0
"Multiple Fabric Ranges" [sremmultirange]
Specify whether or not to enable or disable multiple fabric ranges
Create:O Modify:O Persistent Profiled
BOOLEAN
false
"Port Name in EMS" [sremsname]
EMS name of the logical port.
Create:R Modify:P Persistent
Text (65)
""
"Group" [srgroup]
Specify the logical port group membership.
Create:O Modify:O Persistent Profiled
Text (32)
""
"Multiple Service Ranges" [srmultirange]
Specify whether or not to enable or disable multiple service ranges.
Create:O Modify:O Persistent Profiled
BOOLEAN
false
"Multiple Reserved Ranges" [srmultiresrange]
Specify whether or not to enable or disable multiple reserved ranges
Create:O Modify:O Persistent Profiled
BOOLEAN
false
"Name" [srname]
Specify the name of the logical port.
Create:O Modify:O Persistent
Text (32)
""
" " [srnetwork]
Relation of Type GRANDPARENT, Relation Class Name = C2ntNetwork
The containing network.
Create:O Modify:O
"Network" [srnetwork.srname]
This identifies the network that contains the logical port.
Create:O Modify:O Persistent
Text (32)
""
"NNI Enabled" [srnnienabled]
This attribute is not used.
Create:P Modify:P Persistent Profiled
BOOLEAN
false
" " [srnode]
Relation of Type PARENT, Relation Class Name = C2ndNode
This identifies the node that contains the logical port.
Create:O Modify:O
"Node" [srnode.srname]
This identifies the node that contains the logical port.
Create:O Modify:O Persistent
Text (32)
""
"Peer Logical Port" [srpeer]
Relation of Type OPTIONAL, Relation Class Name = SRlpLogicalPort
Pointer to the logical port joined to this logical port by a link.
Create:O Modify:O
" " [srport]
Relation of Type OPTIONAL, Relation Class Name = C2ppPhysicalPort
The physical port number.
Create:O Modify:O
"Card" [srport.srcard.srname]
The card that contains the logical port.
Create:P Modify:P Persistent
Text (32)
""
"Maximum Channels" [srport.srmaxchans]
The maximum number of channels on this port.
Create:P Modify:P Persistent
Text (32)
""
"Physical Port" [srport.srname]
The containing physical port.
Create:O Modify:O Persistent
Text (32)
""
"Port Number" [srport.srportnumber]
The physical port number.
Create:P Modify:P Persistent
Text (32)
""
"Shelf and Slot Number" [srport.srslotnumber]
The physical port shelf slot number.
Create:P Modify:P Persistent
Text (32)
""
"First Channel on this Pport" [srport.srstartchan]
The first channel on this port.
Create:P Modify:P Persistent
Text (32)
""
"IMux Physical Port Map" [srppaport]
IMA physical ports allocated to this logical port.
Create:O Modify:O Persistent
Text (10)
""
"Usage Priority" [srpriority]
The logical port usage priority.
Create:O Modify:O Persistent Profiled
0 - 2147483647
0
"Profile" [srprofile]
Relation of Type PROFILE, Relation Class Name = C2alATMLogicalPortProf
Specify the profile used to create the logical port.
Create:O Modify:O
"Profile Name" [srprofile.sy_profname]
Specify the profile used to create the logical port.
Create:O Modify:O Persistent
Text (32)
""
"Protocol" [srprotocol]
Protocol used for this logical port.
Create:P Modify:P Persistent Profiled
Text (10)
"ATM"
"Quality of Service" [srqos]
Quality of Service provisioned on this logical port.
Create:O Modify:O Persistent Profiled
Text (32)
""
"Resource Map" [srrmmap]
An integer used to carry a bit map of services supported by this port.
Create:O Modify:O Persistent Profiled
0 - 2147483647
2066
"Service Map" [srservmap]
Map of supported service types
Create:O Modify:O Persistent Profiled
Text (32)
"DDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDD"
"Signalling Role" [srsignallingrole]
This attribute is not used.
Create:P Modify:P Persistent Profiled
DTE | DCE
DCE
"Owning Service" [srsoid]
Relation of Type OPTIONAL, Relation Class Name = ANYCLASS
The Service object identification number that owns this port.
Create:O Modify:O
" " [srusage]
Relation of Type OPTIONAL, Relation Class Name = SRulLPortUsage
The logical port usage.
Create:O Modify:O
" " [srusage.sraz_bandwidth_a]
Incoming available bandwidth.
Create:P Modify:P Persistent
Text (10)
""
" " [srusage.sraz_bandwidth_t]
The total incoming bandwidth.
Create:P Modify:P Persistent
Text (10)
""
" " [srusage.srconnections_a]
The number of additional NCs this port could carry.
Create:P Modify:P Persistent
Text (10)
""
" " [srusage.srza_bandwidth_a]
Outgoing available bandwidth.
Create:P Modify:P Persistent
Text (10)
""
" " [srusage.srza_bandwidth_t]
The total outgoing bandwidth.
Create:P Modify:P Persistent
Text (10)
""
"User Label" [sruserlabel]
Use this field to add user information. This information is not interpreted by the EM.
Create:O Modify:O Persistent Profiled
Text (64)
""
"Maximum (kbits/sec)" [srza_bandwidth]
Specify the maximum bandwidth (incoming and outgoing).
Create:O Modify:O Persistent Profiled
0 - 2147483647
0
"Nominal Threshold (%)" [srza_cbnt]
Specify the nominal threshold percentage (incoming and outgoing).
Create:O Modify:O Persistent Profiled
0 - 2147483647
100
"Provisionable (kbits/sec)" [srza_cbw]
Specify the committed bandwidth (incoming and outgoing).
Create:P Modify:P Persistent Profiled
0 - 2147483647
0
"OBJECTID" [sy_objectid]
Relation of Type THIS, Relation Class Name =
The object identifier.
Create:P Modify:O
"Customer" [vpn]
Specify the customer name. The customer field, like the Domain field, is used for Cisco Provisioning Center security purposes. It identifies the Service object with a customer and is used as a tag to give operators access to this customer's Service object. Refer to the CPC Administration Guide for details.
Create:O Modify:O Persistent Profiled
Text (16)
""
FR Logical Port
Object Name: C2ilIDSLogicalPort
OAF:C2ilIDSLogicalPort.oaf
The logical port object class is a layer 2 termination point that represents a logical port on an IDSL line card. Logical ports terminate layer 2 trails and network connections. Logical ports have an associated bandwidth that is allocated to the subnetwork connections that terminate at the logical port.
Table A-16 Cisco NI-2 DSLAM FR Logical Port - Characteristics
Class Name:
C2ilIDSLogicalPort
Short Class Name:
il
Class Label:
Cisco NI2 DSLAM FR Logical Port
Superclass:
C2lpLogicalPort
Persistence:
OWN
Table A-17 Cisco NI-2 DSLAM FR Logical Port - Attributes
Attributes
Acceptable Values
Default Value
"Inbound Access Control List" [c2_acl_in]
Access control list for inbound packets.
Create:O Modify:O Persistent Profiled
0 - 2147483647
0
"Outbound Access Control List" [c2_acl_out]
Access control list for outbound packets.
Create:O Modify:O Persistent Profiled
0 - 2147483647
0
"Description" [c2_description]
A description of the interface.
Create:O Modify:O Persistent Profiled
Text (80)
""
"IP Address" [c2_ipaddr]
IDSL interface IP address.
Create:O Modify:O Persistent Profiled
Text (16)
""
"IP Mask" [c2_ipmask]
IDSL interface IP mask.
Create:O Modify:O Persistent Profiled
Text (16)
""
"Logical Port Type" [c2_porttype]
The logical port type should comply with the DSL template associated with the containing DSL physical port.
Create:P Modify:P Persistent Profiled
ppp | frame-relay
ppp
"Unnumbered Interface" [c2_unnumbered]
The unnumbered interface.
Create:O Modify:O Persistent Profiled
Text (40)
""
"Domain" [domain]
This is the management domain name. It identifies a geographical or organizational scope for operator access control and corresponds to the MD tag within the Cisco Provisioning Center security procedure. Refer to the CPC Administration Guide for details.
Create:O Modify:O Persistent Profiled
Text (16)
""
"Channel Autoselection" [ds0select]
The ds0select is a computed attribute, used to auto select/de-select all DS0 channels on the logical port. It can take one of the following values:
Select All—Find the timeslots that are available in the associated physical port and assign all of them to the logical port. The channel map of the logical port (srchanmap) will be updated to reflect that the available physical port timeslots are assigned to this logical port. All of the timeslots in the physical port will be updated as "not available". Individual timeslots that are changed in the logical port within the same save operation will not be overwritten by this operation.
Deselect All—Find the timeslots that are assigned to the logical port and un-assign them. The channel map (srchanmap) of the logical port will be updated to reflect that all the timeslots are unassigned. The corresponding timeslots in the associated physical port of the logical port will be updated as available. Individual timeslots changed in the same logical port within the same save operation will not be overwritten by this operation.
None—No change will be made to the channel map of the logical port.
Create:O Modify:O
Text (32)
""
"channel 0 - 95" [ds0toggle0 - ds0toggle95]
Create:O Modify:O
BOOLEAN
false
"Default Address" [rfaddress]
Default FR address for SPVCs.
Create:P Modify:P Persistent Profiled
Text (64)
""
"Address Length" [rfaddresslength]
The FR address length.
Create:P Modify:P Persistent Profiled
2Byte10 | 3Byte10 | 3Byte16 | 4Byte17 | 4Byte23
2Byte10
"Default Address Type" [rfaddresstype]
The default FR address type.
Create:P Modify:P Persistent Profiled
E.164 | E.164
E.164
"N392 DCE Error Threshold" [rfdceerrthreshld]
The periods required to declare a line down.
Create:P Modify:P Persistent Profiled
0 - 10
0
"N393 DCE Error Window" [rfdceerrwindow]
The periods monitored to declare a line up or down.
The periods monitored to declare a line up or down.
Create:P Modify:P Persistent Profiled
0 - 10
0
"N391 Full State Polling Counter" [rfdtefullenqintv]
The periods between DTE-initiated full status polls.
Create:P Modify:P Persistent Profiled
0 - 255
0
"T391 Link Integrity Timer (secs)" [rfdtepollintv]
The time between DTE-initiated status polls in seconds.
Create:P Modify:P Persistent Profiled
0 - 30
0
"Management Protocol" [rfmgmtprotocol]
The logical port's management protocol.
Create:P Modify:P Persistent Profiled
None | LMI | Annex A | Annex D
None
"Local Admin Status" [sradminstatus]
The administrative status of the logical port.
Create:O Modify:O Persistent Profiled
Locked | Unlocked
Unlocked
" " [sralloctype]
Create:O Modify:O Persistent Profiled
NORMAL | SERVICE | FABRIC | BOTH
NORMAL
"Maximum (kbits/s)" [sraz_bandwidth]
Specify the maximum bandwidth (incoming and outgoing).
Create:O Modify:O Persistent Profiled
0 - 2147483647
0
"Nominal Threshold (%)" [sraz_cbnt]
Specify the committed bandwidth nominal threshold percentage (incoming and outgoing).
Create:O Modify:O Persistent Profiled
0 - 2147483647
100
"Provisionable (kbits/s)" [sraz_cbw]
Specify the maximum committed bandwidth (incoming and outgoing).
Create:P Modify:P Persistent Profiled
0 - 2147483647
0
" " [srbackupport]
Relation of Type OPTIONAL, Relation Class Name = C2ilIDSLogicalPort
The logical port's backup port.
Create:O Modify:O
"Backup Logical Port" [srbackupport.srname]
The logical port's backup port.
Create:O Modify:O Persistent
Text (32)
""
" " [srchanmap]
This attribute is not used.
Create:O Modify:O Persistent Profiled
Text (38)
""
"Class" [srclass]
The Cisco Provisioning Center class name for this physical port object.
Create:P Modify:P Persistent Profiled
Text (4)
"C2il"
"Maximum Connections" [srconnections]
Maximum number of VC connections that can be supported on this port.
Create:O Modify:O Persistent Profiled
0 - 4
4
"Multiple Fabric Ranges" [sremmultirange]
Specify whether or not to enable or disable multiple fabric ranges
Create:O Modify:O Persistent Profiled
BOOLEAN
false
"Port Name in EMS" [sremsname]
EMS name of the logical port. The format is IDSL<slotnumber>/<portnumber>.
Create:O Modify:P Persistent
Text (65)
""
"Group" [srgroup]
Specify the logical port group membership.
Create:O Modify:O Persistent Profiled
Text (32)
""
"Multiple Service Ranges" [srmultirange]
Specify whether or not to enable or disable multiple service ranges.
Create:O Modify:O Persistent Profiled
BOOLEAN
false
"Multiple Reserved Ranges" [srmultiresrange]
Specify whether or not to enable or disable multiple reserved ranges
Create:O Modify:O Persistent Profiled
BOOLEAN
false
"Name" [srname]
Specify the name of the logical port.
Create:O Modify:O Persistent
Text (32)
""
" " [srnetwork]
Relation of Type GRANDPARENT, Relation Class Name = C2ntNetwork
The containing network.
Create:O Modify:O
"Network" [srnetwork.srname]
This identifies the network that contains the logical port.
Create:O Modify:O Persistent
Text (32)
""
"NNI Enabled" [srnnienabled]
This attribute is not used.
Create:P Modify:P Persistent Profiled
BOOLEAN
false
" " [srnode]
Relation of Type PARENT, Relation Class Name = C2ndNode
This identifies the node that contains the logical port.
Create:O Modify:O
"Node" [srnode.srname]
This identifies the node that contains the logical port.
Create:O Modify:O Persistent
Text (32)
""
"Peer Logical Port" [srpeer]
Relation of Type OPTIONAL, Relation Class Name = SRlpLogicalPort
Specify the logical port joined to this logical port by a link.
Create:O Modify:O
" " [srport]
Relation of Type OPTIONAL, Relation Class Name = C2ppPhysicalPort
The containing physical port.
Create:O Modify:O
"Card" [srport.srcard.srname]
The card containing the port.
Create:P Modify:P Persistent
Text (32)
""
"Maximum Channels" [srport.srmaxchans]
The maximum number of channels on this port.
Create:P Modify:P Persistent
Text (32)
""
"Physical Port" [srport.srname]
The containing physical port.
Create:O Modify:O Persistent
Text (32)
""
"Port Number" [srport.srportnumber]
The physical port number.
Create:P Modify:P Persistent
Text (32)
""
"Shelf and Slot Number" [srport.srslotnumber]
The physical port shelf slot number.
Create:P Modify:P Persistent
Text (32)
""
"First Channel on this Pport" [srport.srstartchan]
The first channel on this port.
Create:P Modify:P Persistent
Text (32)
""
"IMux Physical Port Map" [srppaport]
The IMux physical ports allocated to this port.
Create:O Modify:O Persistent
Text (10)
""
"Usage Priority" [srpriority]
The logical port usage priority.
Create:O Modify:O Persistent Profiled
0 - 2147483647
0
"Profile" [srprofile]
Relation of Type PROFILE, Relation Class Name = C2ilIDSLogicalPortProf
The logical port profile that the logical port is using.
Create:O Modify:O
"Profile Name" [srprofile.sy_profname]
The logical port profile that the logical port is using.
Create:O Modify:O Persistent
Text (32)
""
"Protocol" [srprotocol]
Protocol used for this logical port.
Create:P Modify:P Persistent Profiled
Text (10)
"FR"
"Quality of Service" [srqos]
Quality of Service provisioned on this logical port.
Create:O Modify:O Persistent Profiled
Text (32)
""
"Resource Map" [srrmmap]
An integer used to carry a bit map of services supported by this port.
Create:O Modify:O Persistent Profiled
0 - 2147483647
2066
"Service Map" [srservmap]
Map of supported service types.
Create:O Modify:O Persistent Profiled
Text (32)
"DDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDD"
"Signalling Role" [srsignallingrole]
This attribute is not used.
Create:P Modify:P Persistent Profiled
DTE | DCE
DCE
"Owning Service" [srsoid]
Relation of Type OPTIONAL, Relation Class Name = ANYCLASS
The ID number of the Service object that owns this port.
Create:O Modify:O
" " [srusage.sraz_bandwidth_a]
The total available incoming bandwidth.
Create:P Modify:P Persistent
Text (10)
""
" " [srusage.sraz_bandwidth_t]
The total incoming bandwidth.
Create:P Modify:P Persistent
Text (10)
""
" " [srusage.srconnections_a]
The number of additional NCs that this port could carry.
Create:P Modify:P Persistent
Text (10)
""
" " [srusage.srza_bandwidth_a]
The total available outgoing bandwidth.
Create:P Modify:P Persistent
Text (10)
""
" " [srusage.srza_bandwidth_t]
The total outgoing bandwidth.
Create:P Modify:P Persistent
Text (10)
""
"User Label" [sruserlabel]
Use this field to add user information. This information is not interpreted by the EM
Create:O Modify:O Persistent Profiled
Text (64)
""
"Maximum (kbits/sec)" [srza_bandwidth]
Specify the maximum bandwidth (incoming and outgoing).
Create:O Modify:O Persistent Profiled
0 - 2147483647
0
"Nominal Threshold (%)" [srza_cbnt]
Specify the committed bandwidth nominal threshold percentage (incoming and outgoing).
Create:O Modify:O Persistent Profiled
0 - 2147483647
100
"Provisionable (kbits/sec)" [srza_cbw]
Specify the maximum committed bandwidth (incoming and outgoing).
Create:P Modify:P Persistent Profiled
0 - 2147483647
0
"OBJECTID" [sy_objectid]
Relation of Type THIS, Relation Class Name =
The object identifier.
Create:P Modify:O
"Customer" [vpn]
Specify the customer name. The customer field, like the Domain field, is used for Cisco Provisioning Center security purposes. It identifies the Service object with a customer and is used as a tag to give operators access to this customer's Service object. Refer to the CPC Administration Guide for details.
Create:O Modify:O Persistent Profiled
Text (16)
""
ATM-ATM Traffic Table (ATM QoS)
Object Name: C2ttTraffTable
OAF:C2ttTraffTable.oaf
Nodes in the Cisco NI-2 DSLAM network contain traffic tables. Rows in the traffic table define traffic parameters for one direction of a PVC flow. Each PVC may refer to two traffic table rows, one for each direction. Traffic tables rows can also be referenced by more than one PVC, applying the same traffic parameters to each. Before creating an ATM-ATM PVC cross connection with specific traffic parameters, a traffic table index (with corresponding traffic parameters) must be present. Traffic table indices are created in the DSLAM and are uploaded.
Cell Delay Variation Tolerance establishes the time scale over which the PCR is policed. This is set to allow for jitter (CDV).
Create:O Modify:O Persistent Profiled
0 - 2147483647
0
"Domain" [domain]
This is the management domain name. It identifies a geographical or organizational scope for operator access control and corresponds to the MD tag within the Cisco Provisioning Center security procedure.
Create:O Modify:O Persistent Profiled
Text (16)
""
"index" [iosindex]
Index number of the set of traffic description from the traffic table in the DSLAM. If this attribute value is set to -1, the Equipment Module auto-generates an available index for this object.
Relation of Type GRANDPARENT, Relation Class Name = C2ntNetwork
The containing network.
Create:O Modify:O
"Network" [srnetwork.srname]
The containing network.
Create:P Modify:P Persistent
Text (32)
""
" " [srnode]
Relation of Type PARENT, Relation Class Name = C2ndNode
The traffic table's containing node.
Create:O Modify:O
"Node" [srnode.srname]
The traffic table's containing node.
Create:O Modify:O Persistent
Text (32)
""
"Network" [srnode.srnetwork.srname]
The containing network.
Create:O Modify:O Persistent
Text (32)
""
" " [srprofile]
Relation of Type PROFILE, Relation Class Name = C2ttTraffTableProf
The profile that the traffic table is using.
Create:O Modify:O
"Profile Name" [srprofile.sy_profname]
Specify the profile used to create the traffic table.
Create:O Modify:O Persistent
Text (32)
""
" " [srsfclass]
The class identifier.
Create:O Modify:O Persistent Profiled
Text (4)
"C2tt"
" " [srsoid]
Relation of Type OPTIONAL, Relation Class Name = C2ttTraffTable
The service object identifier.
Create:O Modify:O
"OBJECTID" [sy_objectid]
Relation of Type THIS, Relation Class Name =
The object identifier.
Create:P Modify:O
"Customer" [vpn]
Specify the customer name. The customer field, like the Domain field, is used for Cisco Provisioning Center security purposes. It identifies the Service object with a customer and is used as a tag to give operators access to this customer's Service object.
Create:O Modify:O Persistent Profiled
Text (16)
""
FR-ATM Traffic Table (FR QoS)
Object Name: C2ftFRTraffTable
OAF:C2ftFRTraffTable.oaf
Nodes in the Cisco NI-2 DSLAM network contain traffic tables. Rows in the traffic table define traffic parameters for one direction of a PVC flow. Each PVC may refer to two traffic table rows, one for each direction. Traffic tables rows can also be referenced by more than one PVC, applying the same traffic parameters to each. Before creating an ATM-FR Interworking cross connection with specific traffic parameters, a traffic table index (with corresponding traffic parameters) must be present. Traffic table indices are created in the DSLAM and are uploaded.
Specify the ATM Traffic Table Index. Entering a value of 0 results in no delivery of this attribute.
Create:O Modify:O Persistent Profiled
0 - 1073741823
0
"Committed Burst Size" [c2_bc]
This attribute must be specified, in bits per second, when creating a FR connection traffic table object.
Create:O Modify:O Persistent Profiled
0 - 32768
0
"Excess Burst Size" [c2_be]
Specify the excess burst size in bps. Entering a value of -1 results in no delivery of this attribute.
Create:O Modify:O Persistent Profiled
-1 - 32768
-1
"Committed Information Rate" [c2_cir]
This attribute must be specified, in bits per second, when creating a FR connection traffic table object.
Create:O Modify:O Persistent Profiled
0 - 2048000
0
"Peak Information Rate" [c2_pir]
The PIR should always be set to a value, in bits per second, equal to the IDSL interface (logical port) bit rate to ensure consistent allocation of ATM bandwidth in the Cisco DSLAM and throughout the ATM network. This attribute must be specified when creating a FR connection traffic table object.
Create:O Modify:O Persistent Profiled
0 - 2048000
0
"Quality of Service" [c2_qos]
Quality of service of the traffic index. This attribute must be specified when creating a FR connection traffic table object.
Create:O Modify:O Persistent Profiled
ubr | vbr-rt | vbr-nrt
ubr
"Domain" [domain]
This is the management domain name. It identifies a geographical or organizational scope for operator access control and corresponds to the MD tag within the Cisco Provisioning Center security procedure.
Create:O Modify:O Persistent Profiled
Text (16)
""
"FR Traffic Table Index" [iosindex]
Index number of the set of traffic description from the traffic table in the DSLAM. If this attribute value is set to -1, the Equipment Module auto-generates an available index for this object. If this attribute value is set to 0, the DSLAM auto-selects an available index for this object.
Create:O Modify:O Persistent Profiled
-1 - 1073741823
-1
" " [srnetwork]
Relation of Type GRANDPARENT, Relation Class Name = C2ntNetwork
The containing network.
Create:O Modify:O
"Network" [srnetwork.srname]
The containing network.
Create:P Modify:P Persistent
Text (32)
""
" " [srnode]
Relation of Type PARENT, Relation Class Name = C2ndNode
The traffic table's containing node.
Create:O Modify:O
"Node" [srnode.srname]
The traffic table's containing node.
Create:O Modify:O Persistent
Text (32)
""
"Network" [srnode.srnetwork.srname]
The containing network.
Create:O Modify:O Persistent
Text (32)
""
" " [srprofile]
Relation of Type PROFILE, Relation Class Name = C2ftFRTraffTableProf
Specify the profile used to create the traffic table.
Create:O Modify:O
"Profile Name" [srprofile.sy_profname]
Specify the profile used to create the traffic table.
Create:O Modify:O Persistent
Text (32)
""
" " [srsfclass]
The class identifier.
Create:O Modify:O Persistent Profiled
Text (4)
"C2ft"
" " [srsoid]
Relation of Type OPTIONAL, Relation Class Name = C2ftFRTraffTable
The object identifier.
Create:O Modify:O
"OBJECTID" [sy_objectid]
Relation of Type THIS, Relation Class Name =
The service object identifier.
Create:P Modify:O
"Customer" [vpn]
Specify the customer name. The customer field, like the Domain field, is used for Cisco Provisioning Center security purposes. It identifies the Service object with a customer and is used as a tag to give operators access to this customer's Service object.
Create:O Modify:O Persistent Profiled
Text (16)
""
ATM-ATM Cross Connection
Object Name: C2axATMCC
OAF:C2axATMCC.oaf
An ATM cross connect represents a VP or VC cross connect within an ATM switching node. When you create a PVC, if both endpoints of the PVC are in the same node then the Equipment Module is allowed to create either a PVC or a PVC cross connection. These two classes are treated interchangeably by Cisco Provisioning Center. The ATM cross connect object class models all the attributes necessary to provision a PVC.
Currently, ATM VP uploading and provisioning are not supported.
The A to Z, Z to A connection traffic table index. When the value of this attribute is 0, there is no delivery of A to Z, Z to A CTT attributes which define the PVC traffic and allow the DSLAM to create the PVC.
Create:O Modify:O Persistent Profiled
-1 - 2147483647
-1
" " [c2_az_trafftable]
Relation of Type OPTIONAL, Relation Class Name = C2ttTraffTable
The connection traffic table row index; an object pointer for AZ direction.
Create:O Modify:O
" " [c2_pvcid]
This attribute is not used.
Create:O Modify:O Persistent Profiled
Text (40)
""
"CTT Index" [c2_za_atmctt]
The A to Z, Z to A connection traffic table index. When the value of this attribute is 0, there is no delivery of A to Z, Z to A CTT attributes which define the PVC traffic and allow the DSLAM to create the PVC.
Create:O Modify:O Persistent Profiled
-1 - 2147483647
-1
" " [c2_za_trafftable]
Relation of Type OPTIONAL, Relation Class Name = C2ttTraffTable
The connection traffic table row index; an object pointer for ZA direction
Create:O Modify:O
"Cast Type" [c2az_cast]
Configures a filtering criteria based on the cast type of the rejected call.
Create:O Modify:O Persistent Profiled
p2mp-leaf | p2mp-root | p2p | none
none
"Usage Parameter Control" [c2az_upc]
The usage parameter control for the a-z and z-a directions. When set to "derived," the Equipment Module delivers a value of pass, tag, or drop based on the traffic descriptor type.
Create:O Modify:O Persistent Profiled
pass | tag | drop | none
none
"Cast Type" [c2za_cast]
Configures a filtering criteria based on the cast type of the rejected call.
Create:O Modify:O Persistent Profiled
p2mp-leaf | p2mp-root | p2p | none
none
"Usage Parameter Control" [c2za_upc]
The usage parameter control for the a-z and z-a directions. When set to "derived," the Equipment Module delivers a value of pass, tag, or drop based on the traffic descriptor type.
Create:O Modify:O Persistent Profiled
pass | tag | drop | none
none
"Domain" [domain]
This is the management domain name. It identifies a geographical or organizational scope for operator access control and corresponds to the MD tag within the Cisco Provisioning Center security procedure.
Create:O Modify:O Persistent Profiled
Text (16)
""
"Fixed Round-Trip Time" [ra_frtt]
This attribute is not used.
Create:P Modify:P Persistent Profiled
0 - 16700000
0
"Enable Frame Discard" [raa_frdisc]
Setting this attribute to TRUE causes the ATM Service Access Point to discard all cells containing the same SDU (frame) whenever any one of the cells is discarded. This is not applicable here, use the attribute Frame Discard [csframediscard].
Create:O Modify:O Persistent Profiled
BOOLEAN
false
"VCI" [raa_vci]
Alias: ralocalvci (other attribute: raz_vci)
Alias: raremotevci (other attribute: raz_vci)
Specify the VCI for the A-endpoint.
Create:O Modify:O Persistent
-3 - 16383
-1
"VPI" [raa_vpi]
Alias: ralocalvpi (other attribute: raz_vpi)
Alias: raremotevpi (other attribute: raz_vpi)
Specify the VPI for the A-endpoint.
Create:O Modify:O Persistent
-3 - 255
-1
"ADTF (millisecs)" [raaz_adtf]
This attribute is not used.
Create:O Modify:O Persistent Profiled
0 - 2147483647
0
"Cutoff Decrease Factor" [raaz_cdf]
This attribute is not used.
Create:O Modify:O Persistent Profiled
1/64 | 1/32 | 1/16 | 1/8 | 1/4 | 1/2 | 1 | 0
1/16
"Peak to Peak CDV (microsecs)" [raaz_cdv]
This attribute is not used.
Create:O Modify:O Persistent Profiled
0 - 2147483647
0
"CDV Tolerance (microsecs)" [raaz_cdvt]
Cell Delay Variation Tolerance establishes the time scale over which the PCR is policed. This is set to allow for jitter (CDV).
Create:O Modify:O Persistent Profiled
0 - 2147483647
100
"Cell Loss Ratio" [raaz_clr]
This attribute is not used.
Create:O Modify:O Persistent Profiled
0 - 2147483647
0
"Initial Cell Rate (cells/s)" [raaz_icr]
This attribute is not used.
Create:O Modify:O Persistent Profiled
0 - 2147483647
0
"Maximum Cell Transfer Delay" [raaz_maxctd]
This attribute is not used.
Create:O Modify:O Persistent Profiled
0 - 2147483647
0
"Maximum Burst Size (cells)" [raaz_mbs]
MBS is the maximum number of cells that can be received at the PCR. This allows a burst of cells to arrive at a rate higher than the SCR. If the burst is larger than anticipated, the additional cells are tagged or dropped. This parameter applies only to VBR traffic.
Create:O Modify:O Persistent Profiled
0 - 2147483647
0
"Minimum Cell Rate (cells/s)" [raaz_mcr]
MCR is the minimum cell rate, which is the minimum allocated bandwidth for a connection.
Create:O Modify:O Persistent Profiled
0 - 910533065
0
"NRM (cells)" [raaz_nrm]
This attribute is not used.
Create:O Modify:O Persistent Profiled
0 - 2147483647
0
"Peak Cell Rate (cells/s)" [raaz_pcr]
PCR is the maximum allowed cell transmission rate. It defines the shortest time period between cells and provides the highest guarantee that network performance objectives (based on cell loss ratio) will be met.
SCR is the maximum average cell transmission rate that is allowed over a given period of time on a given circuit. It allows the network to allocate sufficient resources for guaranteeing the network performance objectives are met.
Create:O Modify:O Persistent Profiled
0 - 910533065
0
"TBE (cells)" [raaz_tbe]
This attribute is not used.
Create:O Modify:O Persistent Profiled
0 - 2147483647
0
"Traffic Descriptor" [raaz_tdtype]
The traffic descriptor type which describes the specified traffic parameters for the service.
You can specify the class of service for traffic. The class of service determines which traffic descriptor you can select.
Create:O Modify:O Persistent Profiled
None | ABR | CBR | UBR | rt_VBR | nrt_VBR
CBR
"Circuit Type" [ratype]
The circuit type.
Create:O Modify:O Persistent Profiled
VC | VP
VC
"Enable Frame Discard" [raz_frdisc]
Setting this attribute to TRUE causes the ATM Service Access Point to discard all cells containing the same SDU (frame) whenever any one of the cells is discarded. This is not applicable here, use the attribute Frame Discard [csframediscard].
Create:O Modify:O Persistent Profiled
BOOLEAN
false
"VCI" [raz_vci]
Alias: ralocalvci (other attribute: raa_vci)
Alias: raremotevci (other attribute: raa_vci)
Specify the VCI for the Z-endpoint.
Create:O Modify:O Persistent
-1 - 16383
-1
"VPI" [raz_vpi]
Alias: ralocalvpi (other attribute: raa_vpi)
Alias: raremotevpi (other attribute: raa_vpi)
Specify the VPI for the Z-endpoint.
Create:O Modify:O Persistent
-1 - 255
-1
"ADTF (millisecs)" [raza_adtf]
This attribute is not used.
Create:O Modify:O Persistent Profiled
0 - 2147483647
0
"Cutoff Decrease Factor" [raza_cdf]
This attribute is not used.
Create:O Modify:O Persistent Profiled
1/64 | 1/32 | 1/16 | 1/8 | 1/4 | 1/2 | 1 | 0
1/16
"Peak to Peak CDV (microsecs)" [raza_cdv]
This attribute is not used.
Create:O Modify:O Persistent Profiled
0 - 2147483647
0
"CDV Tolerance (microsecs)" [raza_cdvt]
Cell Delay Variation Tolerance establishes the time scale over which the PCR is policed. This is set to allow for jitter (CDV).
Create:O Modify:O Persistent Profiled
0 - 2147483647
100
"Cell Loss Ratio" [raza_clr]
This attribute is not used.
Create:O Modify:O Persistent Profiled
0 - 2147483647
0
"Initial Cell Rate (cells/s)" [raza_icr]
This attribute is not used.
Create:O Modify:O Persistent Profiled
0 - 2147483647
0
"Maximum Cell Transfer Delay" [raza_maxctd]
This attribute is not used.
Create:O Modify:O Persistent Profiled
0 - 2147483647
0
"Maximum Burst Size (cells)" [raza_mbs]
MBS is the maximum number of cells that can be received at the PCR. This allows a burst of cells to arrive at a rate higher than the SCR. If the burst is larger than anticipated, the additional cells are tagged or dropped. This parameter applies only to VBR traffic.
Create:O Modify:O Persistent Profiled
0 - 2147483647
0
"Minimum Cell Rate (cells/s)" [raza_mcr]
MCR is the minimum cell rate, which is the minimum allocated bandwidth for a connection.
Create:O Modify:O Persistent Profiled
0 - 910533065
0
"NRM (cells)" [raza_nrm]
This attribute is not used.
Create:O Modify:O Persistent Profiled
0 - 2147483647
0
"Peak Cell Rate (cells/s)" [raza_pcr]
PCR is the maximum allowed cell transmission rate. It defines the shortest time period between cells and provides the highest guarantee that network performance objectives (based on cell loss ratio) will be met.
SCR is the maximum average cell transmission rate that is allowed over a given period of time on a given circuit. It allows the network to allocate sufficient resources for guaranteeing the network performance objectives are met.
Create:O Modify:O Persistent Profiled
0 - 910533065
0
"TBE (cells)" [raza_tbe]
This attribute is not used.
Create:O Modify:O Persistent Profiled
0 - 2147483647
0
"Traffic Descriptor" [raza_tdtype]
The traffic descriptor type which describes the specified traffic parameters for the service.
This attribute is not used. Primary A side termination point when this NC is using a backup UNI logical port.
Create:O Modify:O Persistent Profiled
Text (44)
""
" " [sra_tp]
Alias: srlocaltp (other attribute: srz_tp)
Alias: srremotetp (other attribute: srz_tp)
Relation of Type OPTIONAL, Relation Class Name = C2alATMLogicalPort
Specify the logical port containing the A-endpoint.
Create:O Modify:O
"Logical Port" [sra_tp.srname]
Specify the logical port containing the A-endpoint.
Create:O Modify:O Persistent
Text (32)
""
"Bandwidth (Kbits/s)" [sraz_bandwidth]
The bandwidth for the cross connection.
Create:P Modify:P Persistent Profiled
0 - 2147483647
0
"Backup Role" [srbackuprole]
Create:P Modify:P Persistent Profiled
Primary | Secondary | Basic
Basic
"Transit Cost" [srcost]
Create:O Modify:O Persistent
0 - 2147483647
0
"Provider Service Name" [srdestserv]
DSL Service Application Provider Service Definition Service object that created this cross connect (if applicable).
Create:O Modify:O Persistent Profiled
Text (32)
""
" " [srlocaltp.srname]
The attached logical port.
Create:P Modify:P Persistent
Text (32)
""
"Name" [srname]
The cross connect name.
Create:O Modify:O Persistent
Text (64)
""
" " [srnetwork]
Relation of Type GRANDPARENT, Relation Class Name = C2ntNetwork
The containing network.
Create:O Modify:O
"Network" [srnetwork.srname]
The cross connection's containing network.
Create:O Modify:O Persistent
Text (32)
""
" " [srnode]
Relation of Type PARENT, Relation Class Name = C2ndNode
The containing node.
Create:O Modify:O
"Node" [srnode.srname]
The cross connection's containing node.
Create:O Modify:O Persistent
Text (32)
""
"NNI Recovery Priority" [srpriority]
The recovery priority for NNI resiliency.
Create:O Modify:O Persistent Profiled
0 - 2147483647
0
"Profile" [srprofile]
Relation of Type PROFILE, Relation Class Name = C2axATMCCProf
The profile that this cross connection is using.
Create:O Modify:O
"Profile Name" [srprofile.sy_profname]
The profile that this cross connection is using.
Create:O Modify:O Persistent
Text (32)
""
" " [srremotetp.srname]
The attached logical port.
Create:P Modify:P Persistent
Text (32)
""
"Owning Service" [srsoid]
Relation of Type OPTIONAL, Relation Class Name = ANYCLASS
The ID number of the service object that owns the cross connect.
Create:O Modify:O
"UNI Recovery Priority" [srunipriority]
The recovery priority for UNI resiliency.
Create:O Modify:O Persistent Profiled
0 - 2147483647
0
"Primary Logical Port" [srz_primtp]
This attribute is not used.
Create:O Modify:O Persistent Profiled
Text (44)
""
" " [srz_tp]
Alias: srlocaltp (other attribute: sra_tp)
Alias: srremotetp (other attribute: sra_tp)
Relation of Type OPTIONAL, Relation Class Name = C2alATMLogicalPort
Specify the logical port containing the Z-endpoint.
Create:O Modify:O
"Logical Port" [srz_tp.srname]
Specify the logical port containing the Z-endpoint.
Create:O Modify:O Persistent
Text (32)
""
"Bandwidth (Kbits/s)" [srza_bandwidth]
The bandwidth for the cross connection.
Create:P Modify:P Persistent Profiled
0 - 2147483647
0
"OBJECTID" [sy_objectid]
Relation of Type THIS, Relation Class Name =
The service object identifier.
Create:P Modify:O
"Customer" [vpn]
Specify the customer name. The customer field, like the Domain field, is used for Cisco Provisioning Center security purposes. It identifies the Service object with a customer and is used as a tag to give operators access to this customer's Service object.
Create:O Modify:O Persistent Profiled
Text (16)
""
FR-ATM Interworking Cross Connection
Object Name: C2iaFRATMIWCC
OAF:C2iaFRATMIWCC.oaf
An ATM-FR interworking cross connect represents a VC cross connect within an ATM/FR switching node. When you create a PVC, if both endpoints of the PVC are in the same node, then the Equipment Module is allowed to create either a PVC or a PVC cross connection. These two classes are treated interchangeably by Cisco Provisioning Center. The ATM-FR cross connect object class models all the attributes necessary to provision a PVC.
ATM connection traffic table index in the FR to ATM direction.
Create:O Modify:O Persistent Profiled
-1 - 2147483647
-1
"A-Z FR CTT Index" [c2_az_frctt]
FR connection traffic table index in the FR to ATM direction. When the value of this attribute is 0, there is no delivery of A to Z, Z to A CTT attributes which define the PVC traffic and allow the DSLAM to create the PVC.
Create:O Modify:O Persistent Profiled
-1 - 2147483647
-1
" " [c2_az_rattable]
Relation of Type OPTIONAL, Relation Class Name = C2ttTraffTable
The ATM connection traffic table, uplink direction.
Create:O Modify:O
" " [c2_az_rfttable]
Relation of Type OPTIONAL, Relation Class Name = C2ftFRTraffTable
The FR connection traffic table, uplink direction.
Create:O Modify:O
"ATM Packet discard" [c2_pd]
Specify the ATM packet discard
Create:O Modify:O Persistent Profiled
on | off | none
none
"Usage Parameter Control" [c2_upc]
Specify the usage parameter control
Create:O Modify:O Persistent Profiled
drop | pass | tag | none
none
"Z-A ATM CTT Index" [c2_za_atmctt]
ATM connection traffic table index in the ATM to FR direction.
Create:O Modify:O Persistent Profiled
-1 - 2147483647
-1
"Z-A FR CTT Index" [c2_za_frctt]
FR connection traffic table index in the ATM to FR direction. When the value of this attribute is 0, there is no delivery of A to Z, Z to A CTT attributes which define the PVC traffic and allow the DSLAM to create the PVC.
Create:O Modify:O Persistent Profiled
-1 - 2147483647
-1
" " [c2_za_rattable]
Relation of Type OPTIONAL, Relation Class Name = C2ttTraffTable
The ATM connection traffic table, downlink direction
Create:O Modify:O
" " [c2_za_rfttable]
Relation of Type OPTIONAL, Relation Class Name = C2ftFRTraffTable
The FR connection traffic table, downlink direction.
Create:O Modify:O
"Domain" [domain]
This is the management domain name. It identifies a geographical or organizational scope for operator access control and corresponds to the MD tag within the Cisco Provisioning Center security procedure. Refer to the CPC Administration Guide for details.
Create:O Modify:O Persistent Profiled
Text (16)
""
"ADTF (millisecs)" [raaz_adtf]
This attribute is not used.
Create:O Modify:O Persistent Profiled
10 - 10230
500
"Cutoff Decrease Factor" [raaz_cdf]
This attribute is not used.
Create:O Modify:O Persistent Profiled
1/64 | 1/32 | 1/16 | 1/8 | 1/4 | 1/2 | 1 | 0
1/16
"Peak to Peak CDV (microsecs)" [raaz_cdv]
Specify the peak to peak delay variation.
Create:O Modify:O Persistent Profiled
0 - 2147483647
0
"CDV Tolerance (microsecs)" [raaz_cdvt]
Cell Delay Variation Tolerance establishes the time scale over which the PCR is policed. This is set to allow for jitter (CDV).
Create:O Modify:O Persistent Profiled
0 - 2147483647
0
"Cell Loss Ratio" [raaz_clr]
This attribute is not used.
Create:O Modify:O Persistent Profiled
0 - 2147483647
0
"Initial Cell Rate (cells/s)" [raaz_icr]
This attribute is not used.
Create:O Modify:O Persistent Profiled
0 - 2147483647
0
"Maximum Cell Transfer Delay" [raaz_maxctd]
This attribute is not used.
Create:O Modify:O Persistent Profiled
0 - 2147483647
0
"Maximum Burst Size (cells)" [raaz_mbs]
MBS is the maximum number of cells that can be received at the PCR. This allows a burst of cells to arrive at a rate higher than the SCR. If the burst is larger than anticipated, the additional cells are either tagged or dropped. This parameter applies only to VBR traffic.
Create:O Modify:O Persistent Profiled
0 - 2147483647
0
"Minimum Cell Rate (cells/s)" [raaz_mcr]
MCR is the minimum cell rate, which is the minimum allocated bandwidth for a connection.
Create:O Modify:O Persistent Profiled
0 - 2147483647
0
"NRM (cells)" [raaz_nrm]
This attribute is not used.
Create:O Modify:O Persistent Profiled
2 - 256
32
"Peak Cell Rate (cells/s)" [raaz_pcr]
PCR is the maximum allowed cell transmission rate. It defines the shortest time period between cells and provides the highest guarantee that network performance objectives (based on cell loss ratio) will be met.
SCR is the maximum average cell transmission rate that is allowed over a given period of time on a given circuit. It allows the network to allocate sufficient resources for guaranteeing the network performance objectives are met.
Create:O Modify:O Persistent Profiled
0 - 2147483647
0
"TBE (cells)" [raaz_tbe]
This attribute is not used.
Create:O Modify:O Persistent Profiled
0 - 16777215
16777215
"Traffic Descriptor" [raaz_tdtype]
This is the traffic descriptor type which describes the specified traffic parameters for the service.
You can specify the class of service for traffic. The class of service determines which traffic descriptor you can select.
Create:O Modify:O Persistent Profiled
nrt_VBR | rt_VBR | CBR | UBR
UBR
"VCI" [raz_vci]
Alias: ralocalvci (other attribute: n/a)
Alias: raremotevci (other attribute: n/a)
The ATM endpoint VCI.
Create:O Modify:O Persistent
-1 - 16383
-1
"VPI" [raz_vpi]
Alias: ralocalvpi (other attribute: n/a)
Alias: raremotevpi (other attribute: n/a)
The ATM endpoint VPI.
Create:O Modify:O Persistent
-1 - 255
-1
"ADTF (millisecs)" [raza_adtf]
This attribute is not used.
Create:O Modify:O Persistent Profiled
10 - 10230
500
"Cutoff Decrease Factor" [raza_cdf]
This attribute is not used.
Create:O Modify:O Persistent Profiled
1/64 | 1/32 | 1/16 | 1/8 | 1/4 | 1/2 | 1 | 0
1/16
"Peak to Peak CDV (microsecs)" [raza_cdv]
Create:O Modify:O Persistent Profiled
0 - 2147483647
0
"CDV Tolerance (microsecs)" [raza_cdvt]
Cell Delay Variation Tolerance establishes the time scale over which the PCR is policed. This is set to allow for jitter (CDV).
Create:O Modify:O Persistent Profiled
0 - 2147483647
0
"Cell Loss Ratio" [raza_clr]
This attribute is not used.
Create:O Modify:O Persistent Profiled
0 - 2147483647
0
"Initial Cell Rate (cells/s)" [raza_icr]
This attribute is not used.
Create:O Modify:O Persistent Profiled
0 - 2147483647
0
"Maximum Cell Transfer Delay" [raza_maxctd]
This attribute is not used.
Create:O Modify:O Persistent Profiled
0 - 2147483647
0
"Maximum Burst Size (cells)" [raza_mbs]
MBS is the maximum number of cells that can be received at the PCR. This allows a burst of cells to arrive at a rate higher than the SCR. If the burst is larger than anticipated, the additional cells are either tagged or dropped. This parameter applies only to VBR traffic.
Create:O Modify:O Persistent Profiled
0 - 2147483647
0
"Minimum Cell Rate (cells/s)" [raza_mcr]
MCR is the minimum cell rate, which is the minimum allocated bandwidth for a connection.
Create:O Modify:O Persistent Profiled
0 - 2147483647
0
"NRM (cells)" [raza_nrm]
This attribute is not used.
Create:O Modify:O Persistent Profiled
2 - 256
32
"Peak Cell Rate (cells/s)" [raza_pcr]
PCR is the maximum allowed cell transmission rate. It defines the shortest time period between cells and provides the highest guarantee that network performance objectives (based on cell loss ratio) will be met.
SCR is the maximum average cell transmission rate that is allowed over a given period of time on a given circuit. It allows the network to allocate sufficient resources for guaranteeing the network performance objectives are met.
Create:O Modify:O Persistent Profiled
0 - 2147483647
0
"TBE (cells)" [raza_tbe]
This attribute is not used.
Create:O Modify:O Persistent Profiled
0 - 16777215
16777215
"Traffic Descriptor" [raza_tdtype]
This is the traffic descriptor type which describes the specified traffic parameters for the service.
The DLCI at the Frame Relay endpoint. A value of -1 indicates autogeneration.
Create:O Modify:O Persistent
-1, 16 - 1007
-1
"Max Frame Size (bytes)" [rfa_maxfrmsize]
The maximum frame size at the Frame Relay endpoint.
Create:O Modify:O Persistent Profiled
0 - 2147483647
0
"ABR Fixed Round Trip Time" [rfatm_frtt]
ABR VS/VD fixed round trip time.
Create:O Modify:O Persistent Profiled
0 - 16700000
0
"DE Determination" [rfatmde]
This parameter allows you to set the mapping from the ATM CLP bit of 0 or 1 to the Frame Relay DE bit.
Create:O Modify:O Persistent Profiled
CLP | 0 | 1
CLP
"EFCI Determination" [rfatmefci]
This parameter allows you to set mapping from Frame Relay FECN (Forward Explicit Congestion Notification) bits to the ATM EFCI (Explicit Forward Congestion Indication) bit to 0.
Create:O Modify:O Persistent Profiled
FECN | 0
0
"Bc (Kbits/s)" [rfaz_bc]
Committed Burst Size.
Create:O Modify:O Persistent Profiled
0 - 2147483647
0
"Be (Kbits/s)" [rfaz_be]
Excess Burst Size.
Create:O Modify:O Persistent Profiled
0 - 2147483647
0
"CIR (Kbits/s)" [rfaz_cir]
Committed Information Rate.
Create:O Modify:O Persistent Profiled
0 - 2147483647
0
"CLP Determination" [rffrclp]
This parameter allows you to set mapping from the Frame Relay DE (Discard Eligible) bit to the ATM CLP (Cell loss priority) bit of 0 or 1. Cells with CLP = 0 are insured traffic, which is unlikely to be dropped. Cells with CLP = 1 are best-effort traffic.
Create:O Modify:O Persistent Profiled
DE | 0 | 1
DE
"Interworking Type" [rfinterworking]
Network interworking (N_IW) transports Frame Relay packets across an intermediate ATM network to another Frame Relay network. The frames are encapsulated into ATM cells.
Service interworking (S_IW) adapts Frame relay packets into ATM cells for transmission onto an ATM network. After the ATM cells enter the network, the network can send them to ATM-attached devices or Frame Relay devices.
Create:O Modify:O Persistent Profiled
N_IW | S_IW
N_IW
"Frame Relay Priority" [rfpriority]
Create:O Modify:O Persistent Profiled
High | Medium | Low
High
"Service Interworking Mode" [rfsiwproto]
For translated protocol mapping, the system determines the protocol type and remaps the Frame Relay protocol to the ATM protocol, and vice versa.
For transparent protocol mapping, the system does not determine the protocol type, it only removes the Frame Relay header and transfers the payload transparently between the Frame Relay and ATM networks.
Create:O Modify:O Persistent Profiled
Translated | Transparent | PPP
Translated
"Max Frame Size (bytes)" [rfz_maxfrmsize]
The maximum frame size at the ATM endpoint.
Create:O Modify:O Persistent Profiled
0 - 2147483647
0
"Bc (Kbits/s)" [rfza_bc]
Committed Burst Size.
Create:O Modify:O Persistent Profiled
0 - 2147483647
0
"Be (Kbits/s)" [rfza_be]
Excess Burst Size.
Create:O Modify:O Persistent Profiled
0 - 2147483647
0
"CIR (Kbits/s)" [rfza_cir]
Committed Information Rate.
Create:O Modify:O Persistent Profiled
0 - 2147483647
0
"Primary Logical Port" [sra_primtp]
This attribute is not used.
Create:P Modify:P Persistent Profiled
Text (44)
""
" " [sra_tp]
Alias: srlocaltp (other attribute: srz_tp)
Alias: srremotetp (other attribute: srz_tp)
Relation of Type OPTIONAL, Relation Class Name = C2ilIDSLogicalPort
The name of the logical port at the Frame Relay endpoint.
Create:O Modify:O
"Logical Port" [sra_tp.srname]
The name of the logical port at the Frame Relay endpoint.
Create:O Modify:O Persistent
Text (32)
""
"Bandwidth (Kbits/s)" [sraz_abandwidth]
Specify the bandwidth consumed by the IDSL port, FR to ATM direction.
Create:P Modify:P Persistent Profiled
0 - 2147483647
0
"Bandwidth (Kbits/s)" [sraz_zbandwidth]
Specify the available bandwidth consumed by the ATM port, FR to ATM direction.
Create:P Modify:P Persistent Profiled
0 - 2147483647
0
"Backup Role" [srbackuprole]
Create:P Modify:P Persistent Profiled
Primary | Secondary | Basic
Basic
"Transit Cost" [srcost]
Create:O Modify:O Persistent
0 - 2147483647
0
"Provider Service Name" [srdestserv]
DSL Service Application Provider Service Definition Service object that created this cross connect (if applicable).
Create:O Modify:O Persistent Profiled
Text (32)
""
"Name" [srname]
Specify the name of the cross connection.
Create:O Modify:O Persistent
Text (64)
""
" " [srnetwork]
Relation of Type GRANDPARENT, Relation Class Name = C2ntNetwork
The containing network.
Create:O Modify:O
"Network" [srnetwork.srname]
The cross connection's containing network.
Create:O Modify:O Persistent
Text (32)
""
" " [srnode]
Relation of Type PARENT, Relation Class Name = C2ndNode
The containing node.
Create:O Modify:O
"Node" [srnode.srname]
The cross connection's containing node.
Create:O Modify:O Persistent
Text (32)
""
"NNI Recovery Priority" [srpriority]
The recovery priority for NNI resiliency.
Create:O Modify:O Persistent Profiled
0 - 2147483647
0
"Profile" [srprofile]
Relation of Type PROFILE, Relation Class Name = C2iaFRATMIWCCProf
Specify the profile used to create the cross connection.
Create:O Modify:O
"Profile Name" [srprofile.sy_profname]
Specify the profile used to create the cross connection.
Create:O Modify:O Persistent
Text (32)
""
"Owning Service" [srsoid]
Relation of Type OPTIONAL, Relation Class Name = ANYCLASS
The service object Id for the cross connect.
Create:O Modify:O
"UNI Recovery Priority" [srunipriority]
The recovery priority for UNI resiliency.
Create:P Modify:P Persistent Profiled
0 - 2147483647
0
"Primary Logical Port" [srz_primtp]
This attribute is not used.
Create:P Modify:P Persistent Profiled
Text (44)
""
" " [srz_tp]
Alias: srlocaltp (other attribute: sra_tp)
Alias: srremotetp (other attribute: sra_tp)
Relation of Type OPTIONAL, Relation Class Name = C2alATMLogicalPort
The name of the logical port at the ATM endpoint.
Create:O Modify:O
"Logical Port" [srz_tp.srname]
The name of the logical port at the ATM endpoint.
Create:O Modify:O Persistent
Text (32)
""
"Bandwidth (Kbits/s)" [srza_abandwidth]
Specify the bandwidth consumed by the IDSL port, FR to ATM direction.
Create:P Modify:P Persistent Profiled
0 - 2147483647
0
"Bandwidth (Kbits/s)" [srza_zbandwidth]
Specify the bandwidth consumed by the ATM port, FR to ATM direction.
Create:P Modify:P Persistent Profiled
0 - 2147483647
0
"OBJECTID" [sy_objectid]
Relation of Type THIS, Relation Class Name =
The service object identifier.
Create:P Modify:O
"Customer" [vpn]
Specify the customer name. The customer field, like the Domain field, is used for Cisco Provisioning Center security purposes. It identifies the Service object with a customer and is used as a tag to give operators access to this customer's Service object. Refer to the CPC Administration Guide for details.
Feedback
