Report Samples for Monitor and Reports
This appendix provides sample Cisco PVM reports and detailed descriptions of report fields. The suites and individual reports shown here are available under both the Monitor and Report tabs in the Cisco PVM GUI.
This appendix includes the following sections:
•
Report Suites Overview
•Sample Reports by Suite
Report Suites Overview
Table B-1 describes the report suites available under both Monitor and Reports.
Table B-1 Report Suites
Suite
|
Description
|
Application
|
Provides the ability to see which applications are consuming network bandwidth, and reports on the number of packets and bytes for each application protocol.
|
Hosts
|
Provides an analysis of the traffic for each specific host. These reports display data on the host IP address, in/out packets, in/out bytes, and non-unicast, broadcast, and multicast packets collected.
|
Conversations
|
Displays data on the conversation traffic between various sources and destinations. Information displayed includes source IP address, destination IP address, packets and bytes.
|
DSCP Group
|
Displays data on specific encoded information related to how packets traverse the network. These reports display data on the Aggregation Group, in/out packets, in/out bytes, application protocols, and host IP addresses.
|
Switch/Router
|
Displays the port name, bytes, packets, broadcast packets, multicast packets, link utilization, and errors collected for switches and routers.
|
VLANs
|
Displays data on the VLAN ID, errors, packets, bytes, non-unicast packets, and non-unicast bytes collected.
|
General Report Formats
All reports contain hyperlinks, which allow drill-down to related reports. For example, the Applications Report contains protocol names as hyperlinks, which jump to the Application Details Report when clicked. Information about using drill-down links is available in both the Monitor and Reports chapters of this guide.
Additionally, tabular reports contain blue "T" and "R" hyperlinks in each table row. These links are used to open the Trend report and Real-Time Chart, respectively, for individual sources, such as protocols or hosts. Information about using Trend reports and Real-Time Charts is available in the Monitor and Reports chapters of this guide.
Finally, column header names in Cisco PVM reports contain sorting arrows that display a new window with data sorted in either ascending or descending order (see Figure B-1).
Figure B-1 Sorting Arrows
Sample Report Views
Report data can be viewed in different ways.
•Current Rates—Displays the statistics collected over the selected time period.
•Cumulative Rates—Displays the statistics collected for the selected report element since the collection was created or within the selected time period.
•TopN—Displays the data collected for the TopN selected report elements, such as Hosts, VLANs, or Hosts, over the selected time period.
The following figures show samples of the Cumulative Rates (Figure B-2), Current Rates (Figure B-3), and TopN (Figure B-4) report views for the Monitor - Applications report.
Note The value of N in TopN reports is configured, under Setup > Preferences, to values from 1—15. See Editing Preferences, page 2-50 for information on configuring the system-wide value of N for all TopN reports.

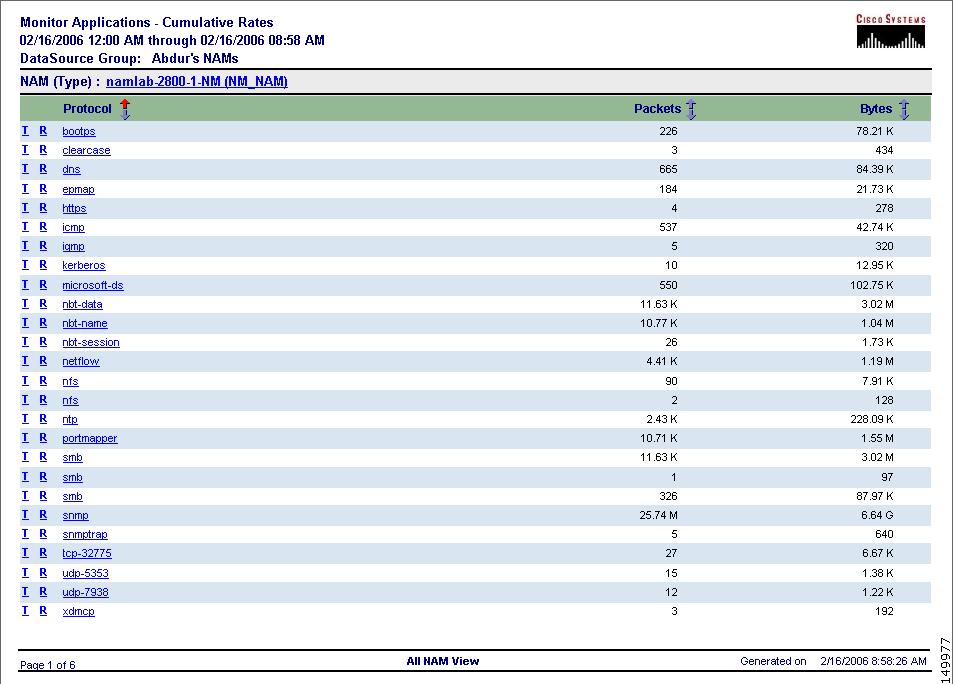

Figure B-2 Cumulative Rate Report View

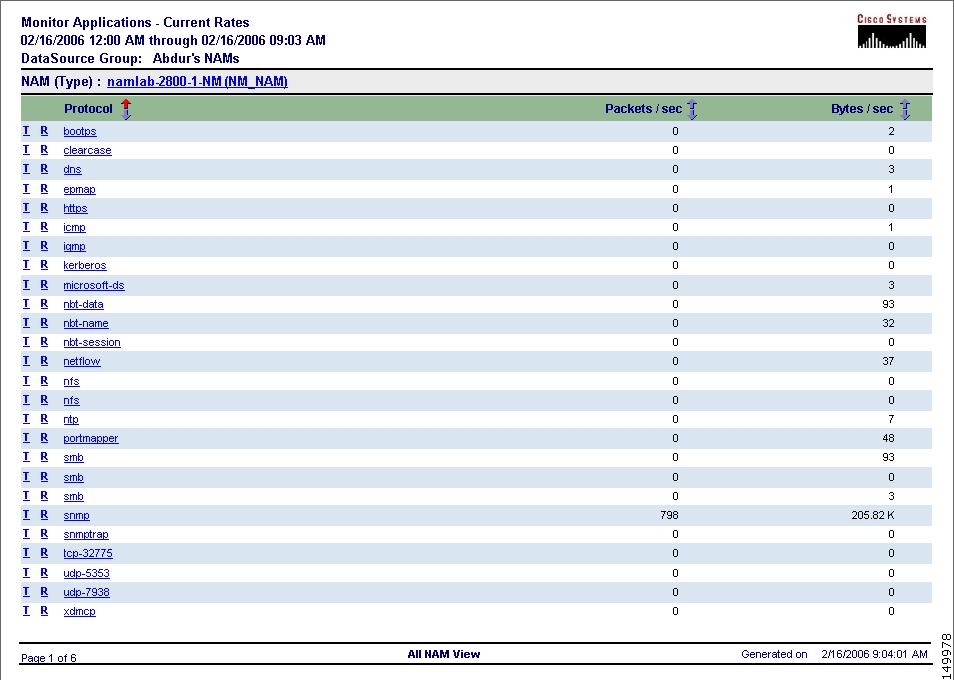

Figure B-3 Current Rate Report View

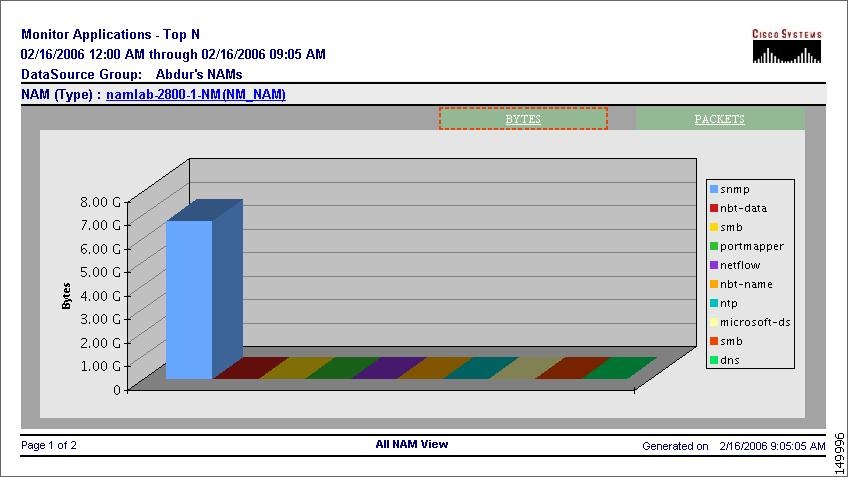

Figure B-4 TopN Report View
Note The report samples shown in the remainder of this appendix are Cumulative Rate views only.
Sample Reports by Suite
This section describes individual reports under each suite:
•Applications
•Hosts
•Conversations
•DSCP Group
•Switch/Router
•VLANs
Applications
These reports provide the ability to see which applications are consuming network bandwidth. The Applications suite contains the following reports:
•Applications Report
•Application Details Report
Applications Report
The Applications Report (Figure B-5) provides the number of packets and bytes collected for each application protocol.

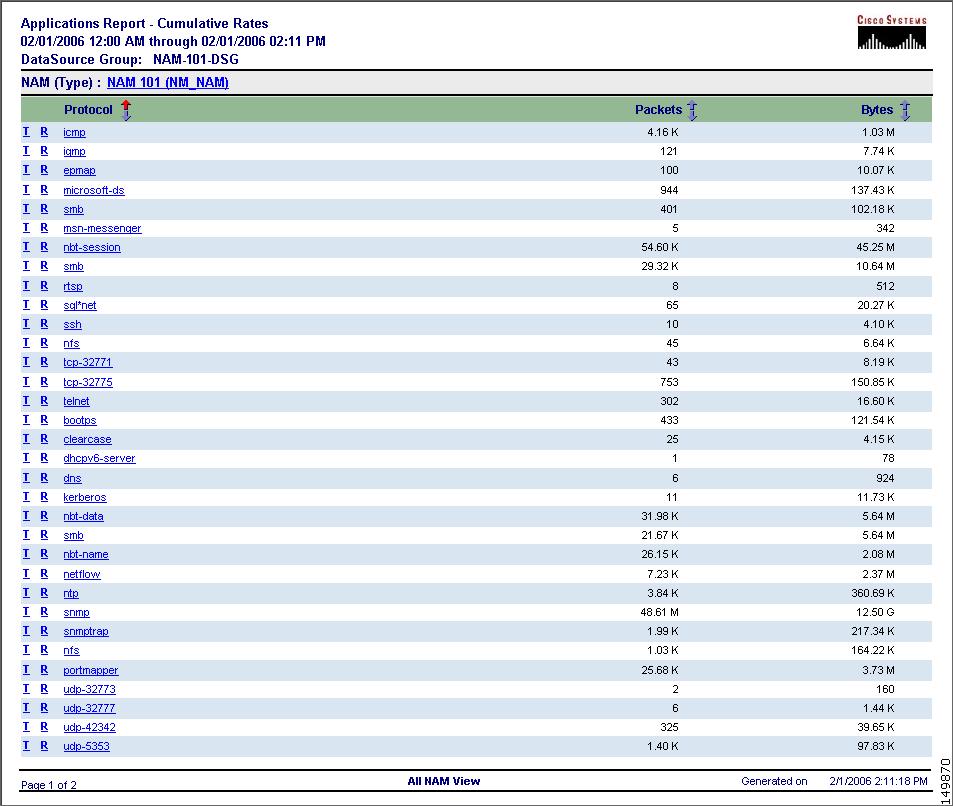

Figure B-5 Sample Applications Report
Table B-2 describes the fields in the Applications Report.
Table B-2 Applications Report Field Descriptions
Field
|
Description
|
Protocol
|
Name of the application protocol.
|
Packets
|
Number of packets collected.
|
Bytes
|
Number of bytes collected.
|
Application Details Report
The Application Details Report (Figure B-6) may be accessed via drill-down from the Applications Report or directly from the navigation menu. It lists, for a selected protocol, the host, in/out packets, and in/out bytes to provide a detailed view of the application traffic for each host.
Note The Application Details report is not available as a report selection in the Monitor GUI. However, you can drill down to this report from the Applications report

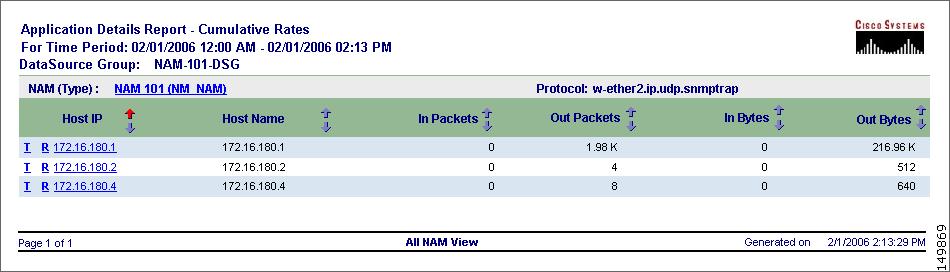

Figure B-6 Sample Application Details Report
Table B-3 describes the fields in the Application Details Report.
Table B-3 Application Details Report Field Descriptions
Field
|
Description
|
Host IP
|
IP address of each host using the selected protocol.
|
In Packets
|
Number of inbound packets collected.
|
Out Packets
|
Number of outbound packets collected.
|
In Bytes
|
Number of inbound bytes collected.
|
Out Bytes
|
Number of outbound bytes collected.
|
Hosts
Host reports provide an analysis of the traffic for each specific host, including host IP and MAC addresses. The Hosts suite contains the following reports:
•Hosts (IP) Report
•Hosts (MAC) Report
•Host Details Report
Hosts (IP) Report
The Hosts (IP) Report (Figure B-7) displays detailed traffic information by host IP address.

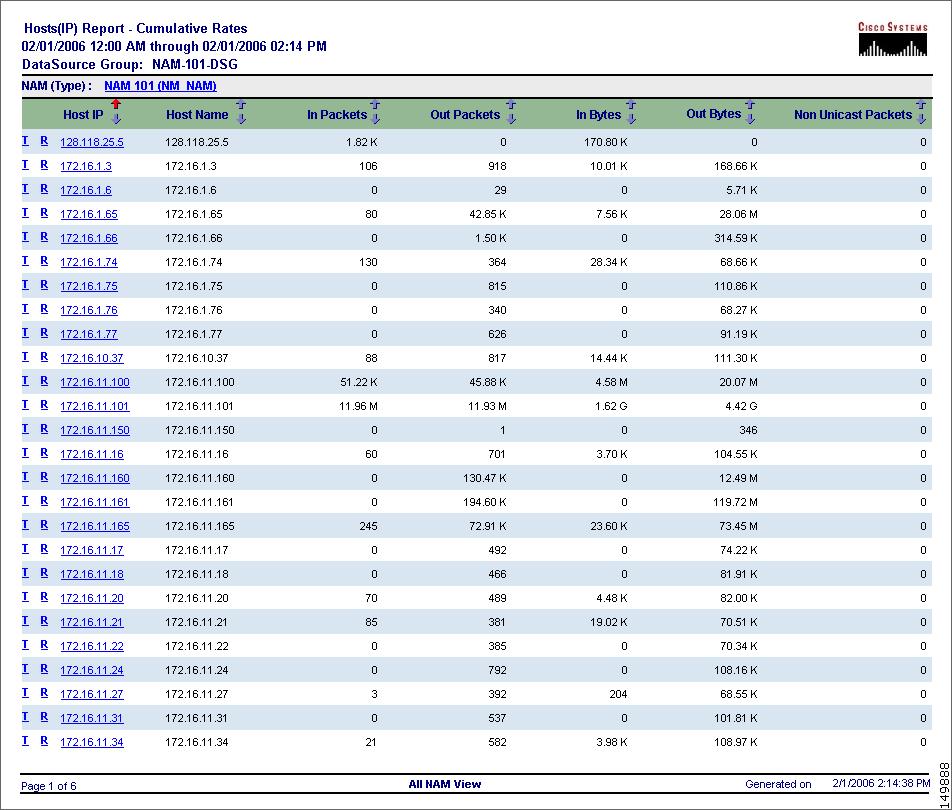

Figure B-7 Sample Hosts (IP) Report
Table B-4 describes the fields in the Hosts (IP) Report.
Table B-4 Hosts (IP) Report Field Descriptions
Field
|
Description
|
Host IP
|
Network address of the host.
|
Host Name
|
The name of the host at the corresponding IP address.
|
In Packets
|
Number of input packets collected.
|
Out Packets
|
Number of output packets collected.
|
In Bytes
|
Number of input bytes collected.
|
Out Bytes
|
Number of output bytes collected.
|
Non Unicast Packets
|
Number of non-unicast broadcast packets collected.
|
Hosts (MAC) Report
The Hosts (MAC) Report (Figure B-8) displays detailed information by host MAC address.

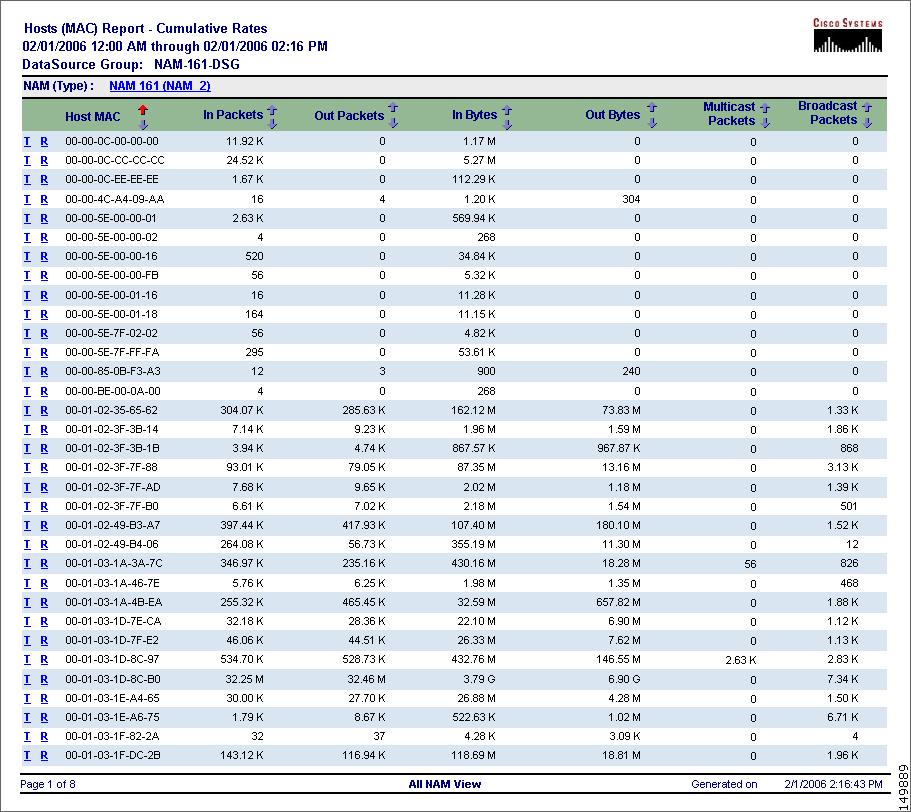

Figure B-8 Sample Hosts (MAC) Report
Table B-5 describes the fields in the Hosts (MAC) Report.
Table B-5 Hosts (MAC) Report Field Descriptions
Field
|
Description
|
Host MAC
|
Network address of the host.
|
In Packets
|
Number of input packets collected.
|
Out Packets
|
Number of output packets collected.
|
In Bytes
|
Number of input bytes collected.
|
Out Bytes
|
Number of output bytes collected.
|
Multicast Packets
|
Number of multicast packets collected.
|
Broadcast Packets
|
Number of broadcast packets collected.
|
Host Details Report
The Host Details Report (Figure B-9) displays detailed information on traffic by application.
Note The Host Details Report is not available as a report selection in the Monitor GUI. However, you can still drill down to this report from another Host report.

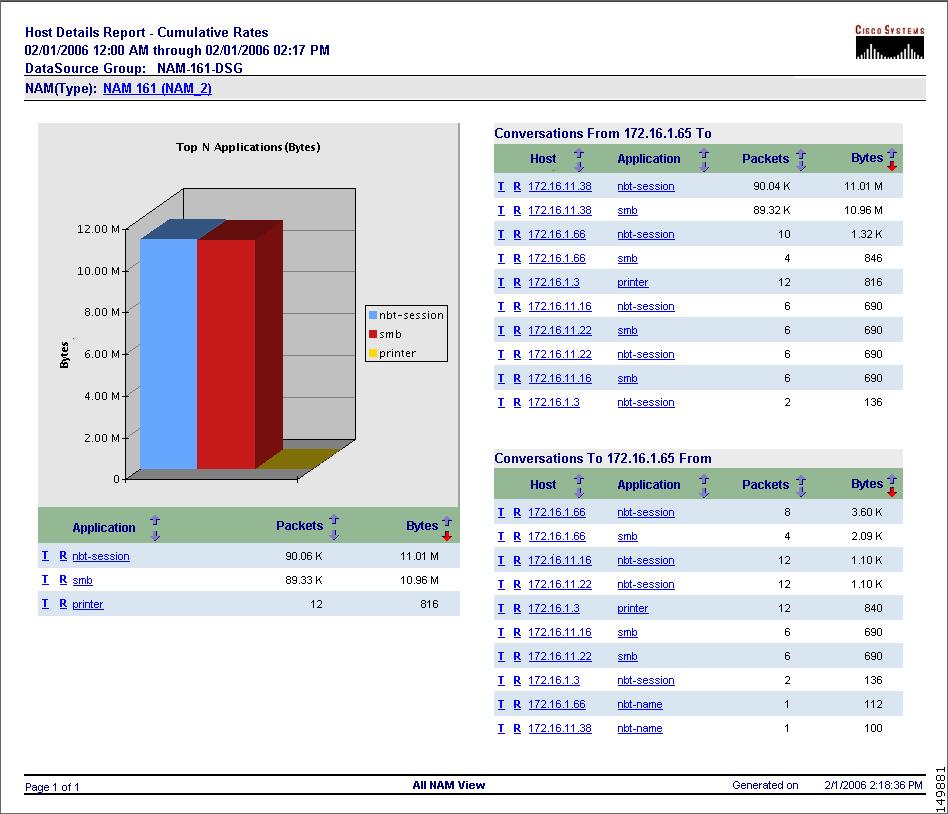

Figure B-9 Sample Host Details Report
Table B-6 describes the fields in the Host Details Report.
Table B-6 Host Details Report Field Descriptions
Field
|
Description
|
Host
|
Network address of the host.
|
Application
|
Name of the application protocol.
|
Packets
|
Number of packets collected.
|
Bytes
|
Number of bytes collected.
|
Conversations
The Conversations suite contains a single Conversation Report (Figure B-10) that displays data on the traffic between various sources and destinations.

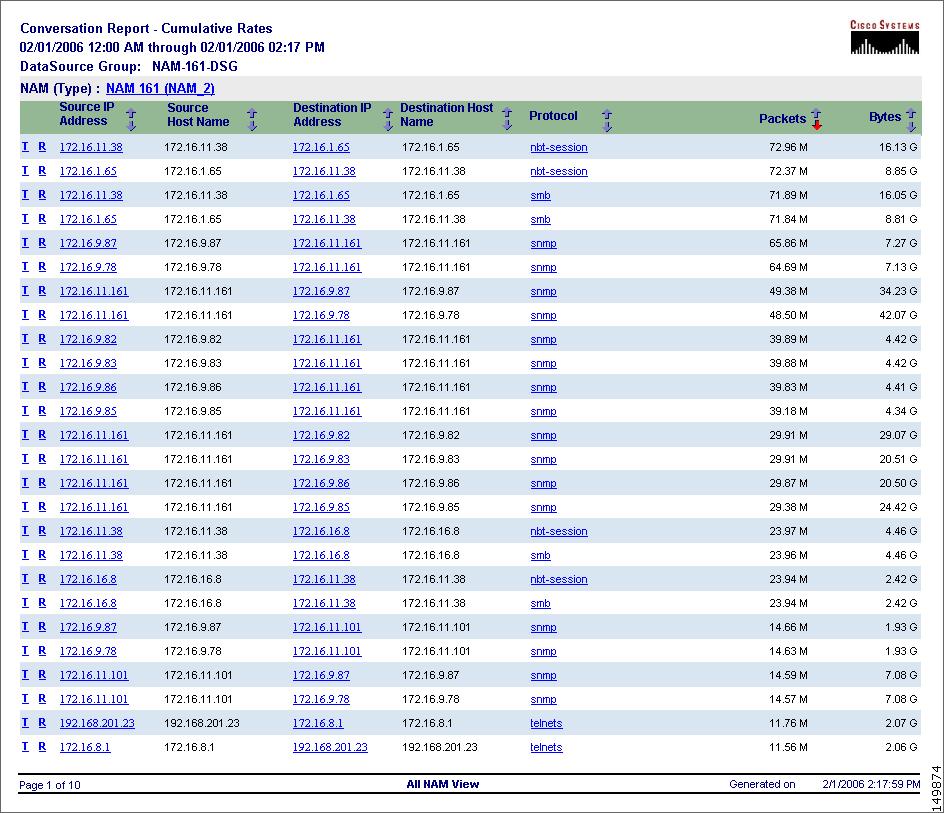

Figure B-10 Sample Conversation Report
Table B-7 describes the fields in the Conversation Report.
Table B-7 Conversation Report Field Descriptions
Field
|
Description
|
Source IP Address
|
Source IP address for the conversation.
|
Destination IP Address
|
Destination IP address for the conversation.
|
Packets
|
Number of packets collected for the conversation over the last interval.
|
Bytes
|
Number of bytes collected for the conversation over the last interval.
|
DSCP Group
The Differentiated Services Code Point (DSCP) suite reports on specific encoded information related to how a packet traverses the network. DSCP monitoring allows you to validate and fine-tune planning and Quality of Service (QoS) allocations.
DSCP reports are based on the data obtained from the DSMON MIB, which is an extension of RMON-2 that looks into the IP header of every packet to identify the code point that defines how that packet should be handled by DiffServ-enabled devices. DSMON MIB allows creation of DSCP counter aggregation profiles for up to 64 values that can be grouped for aggregation. Each DSCP value may be given a different treatment by a forwarding device, affecting which packets get dropped or delayed during periods of network congestion. The DSCP reports show traffic information for the various configured DSCP aggregation groups.
Aggregation Profiles
By monitoring DSCP bits, throughput for different services can be determined. The DSMON MIB allows different DSCP values to be aggregated into aggregation groups, and associates these groups with aggregation profiles for the following reasons:
•To reduce the number of DSCP counters to monitor.
•Some DSCP values may never be used in a network.
•Different DSCP values may have similar packet treatments.
•To reduce the network management station polling data.
Cisco PVM aggregates the DSCP statistics collected from multiple NAMs. For reporting purposes, Cisco PVM assigns each DSCP profile a unique ID in the database. The system distinguishes one profile from another by examining the definition of each profile. Cisco PVM treats profile definitions as follows:
•If two profiles have the same name but differing DSCP groups, the system will assign a new ID to one of the groups, the data will be aggregated separately, and the groups will appear as two different profiles in the reports.
•If two profiles have the same definition but differing names, the system ignores the name of the new profile and aggregates the newly collected data along with other data belonging to the previously existing profile.
In each case, the system sends an alert that Administrators can view under the Cisco PVM Alerts tab.
Note Aggregation profiles and groups are configured and named in the NAM Traffic Analyzer, external to Cisco PVM.
The DSCP Group suite contains the following reports:
•DSCP Report
•DSCP Applications Report
•DSCP Hosts Report
DSCP Report
The DSCP Report (Figure B-11) provides details on the Aggregation Index and traffic.

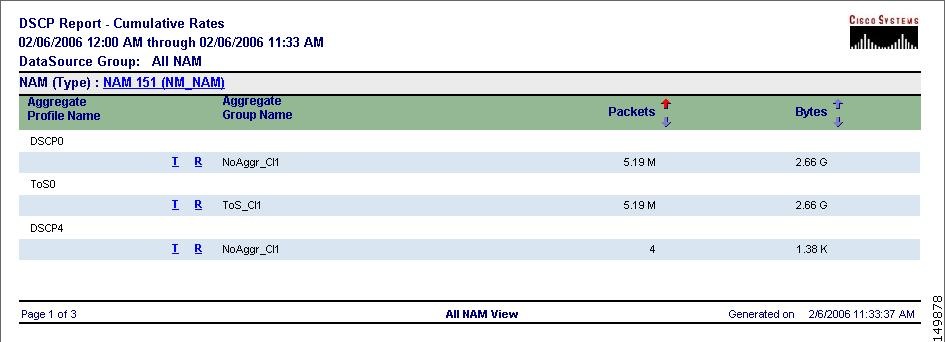

Figure B-11 Sample DSCP Report
Table B-8 describes the fields in the DSCP Report.
Table B-8 DSCP Report Field Descriptions
Field
|
Description
|
Aggregated Profile Name
|
Name of the aggregation profile.
|
Aggregated Group Name
|
Name of the aggregation group.
|
Packets
|
Total packets collected per second over the last interval.
|
Bytes
|
Total bytes collected per second over the last interval.
|
DSCP Applications Report
The DSCP Application Report (Figure B-12) displays details on the Aggregation Index, applications, and traffic.

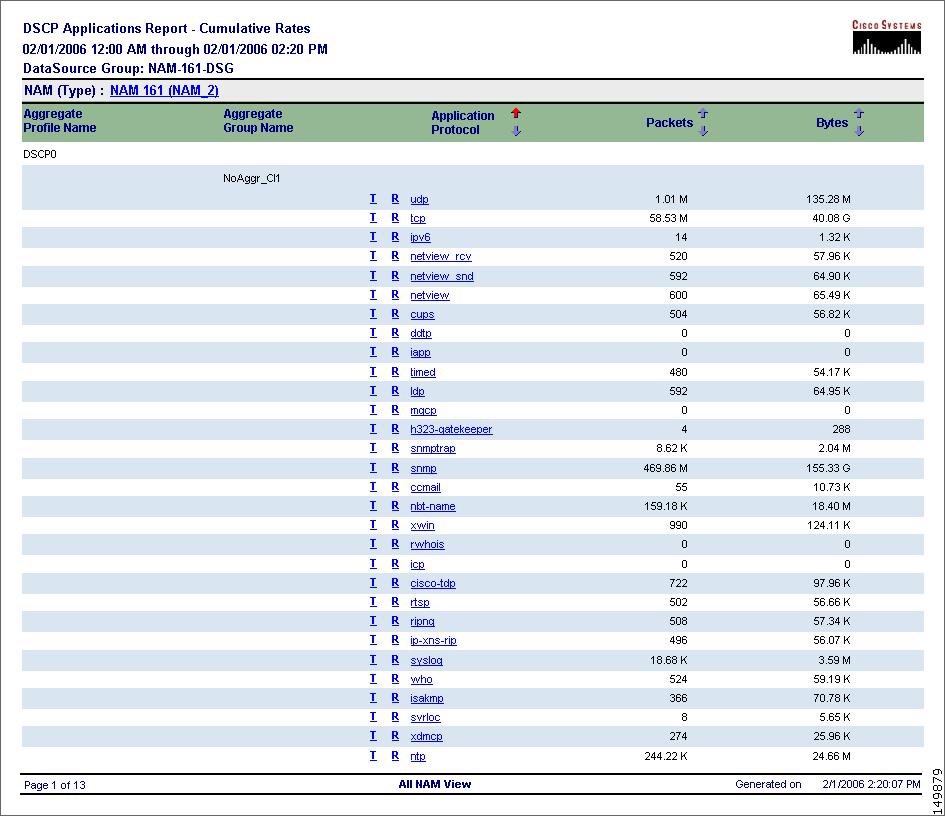

Figure B-12 Sample DSCP Applications Report
Table B-9 describes the fields in the DSCP Applications Report.
Table B-9 DSCP Applications Report Field Descriptions
Field
|
Description
|
Aggregated Profile Name
|
Name of the aggregation profile.
|
Aggregated Group Name
|
Name of the aggregation group.
|
Application Protocol
|
Name of the application protocol.
|
Packets
|
Total packets collected.
|
Bytes
|
Total bytes collected.
|
DSCP Hosts Report
The DSCP Hosts Report (Figure B-13) displays information on the Aggregation Index, host IP address, and traffic.

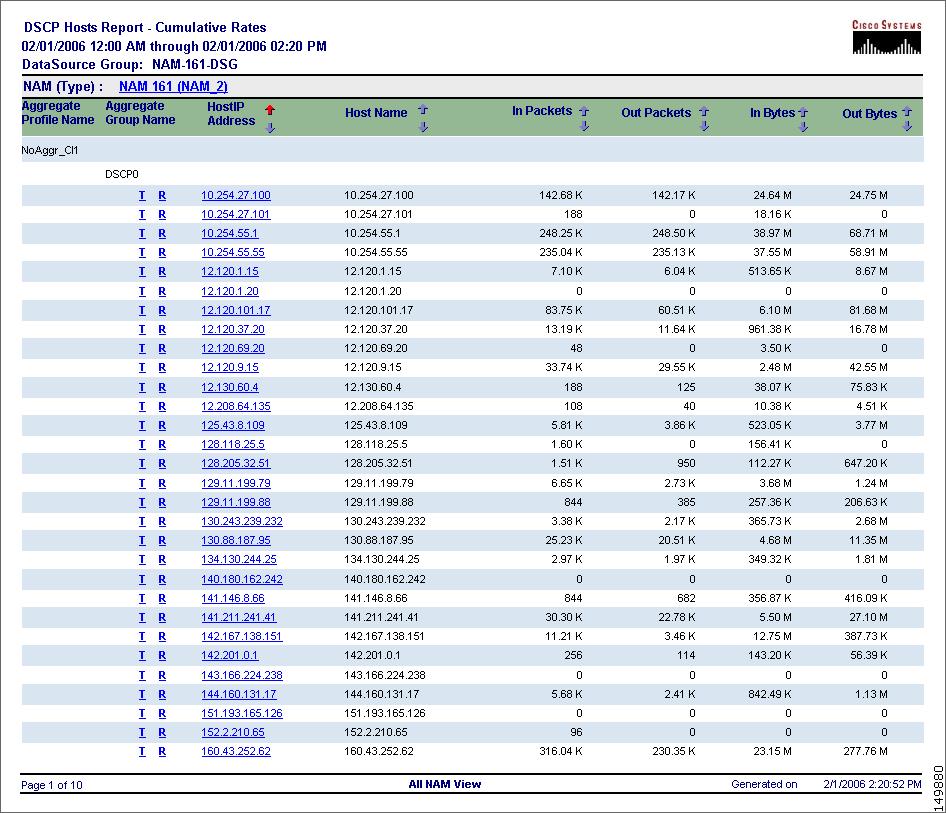

Figure B-13 Sample DSCP Hosts Report
Table B-10 describes the fields in the DSCP Hosts Report.
Table B-10 DSCP Hosts Report Field Descriptions
Field
|
Description
|
Aggregated Profile Name
|
Name of the aggregation profile.
|
Aggregated Group Name
|
Name of the aggregation group.
|
Host IP Address
|
IP address of each host.
|
Host Name
|
Name of the host at the corresponding IP address.
|
In Packets
|
Number of inbound packets collected.
|
Out Packets
|
Number of outbound packets collected.
|
In Bytes
|
Number of inbound bytes collected.
|
Out Bytes
|
Number of outbound bytes collected.
|
Switch/Router
This suite provides reports on metrics from switches and routers. Reports contain:
•Ethernet statistics if the switch/router supports the mini-RMON MIB.
•Interface statistics if the switch/router does not support the mini-RMON MIB.
Statistics displayed include:
•Interface—Reports on the Interface Name, In/Out Bytes, In/Out Packets, In/Out Non-unicast Packets, In/Out Discards, In/Out Errors, and In/Out Link Utilization percentages.
•Ethernet Traffic Statistics—Reports on the Port Name, Bytes, Packets, Broadcast Packets, Multicast Packets, and Errors collected.
•Ethernet Error Statistics—Reports on the Port Name, Dropped Events, CRC Align Errors, Undersize Packets, Oversize Packets, Fragments, Jabbers, and Collisions collected.
The Switch/Router suite contains the following reports:
•Interface Report
•Ethernet Traffic Report
•Ethernet Error Report
Interface Report
For switches and routers that do not support the mini-RMON MIB, the Interface Report (Figure B-14) displays in/out traffic, the amount of discarded traffic data, the number of errors, and the percent link utilization The interface data collection includes data for both edge and core routers and switches.

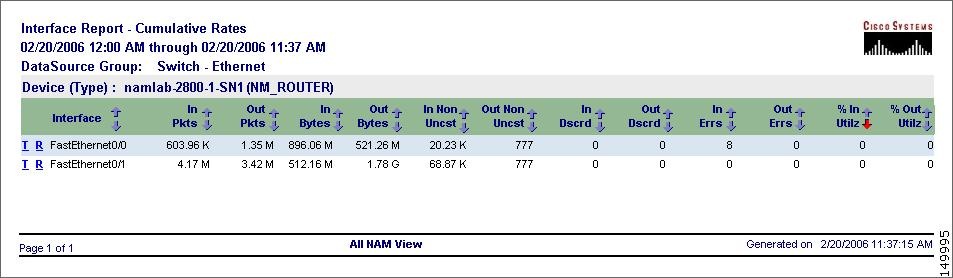

Figure B-14 Sample Interface Report
Table B-11 describes the fields in the Interface Statistics Report.
Table B-11 Interface Statistics Report Field Descriptions
Field
|
Description
|
Interface
|
Interface number.
|
In Packets
|
Number of incoming packets.
|
Out Packets
|
Number of outgoing packets.
|
In Bytes
|
Number of incoming bytes.
|
Out Bytes
|
Number of outgoing bytes.
|
In Non-Unicast
|
Number of incoming non-unicast bytes.
|
Out Non-Unicast
|
Number of outgoing non-unicast bytes.
|
In Discard
|
Number of discards for incoming traffic.
|
Out Discard
|
Number of discards for outgoing traffic.
|
In Errors
|
Number of errors for incoming traffic.
|
Out Errors
|
Number of errors for outgoing traffic.
|
% In Utilz
|
Percentage incoming link utilization.
|
% Out Utilz
|
Percentage outgoing link utilization.
|
Ethernet Traffic Report
For switches and routers that support the mini-RMON MIB, the Ethernet Traffic Report (Figure B-15) displays traffic by NAM and the Data Source Group assigned in Cisco PVM.

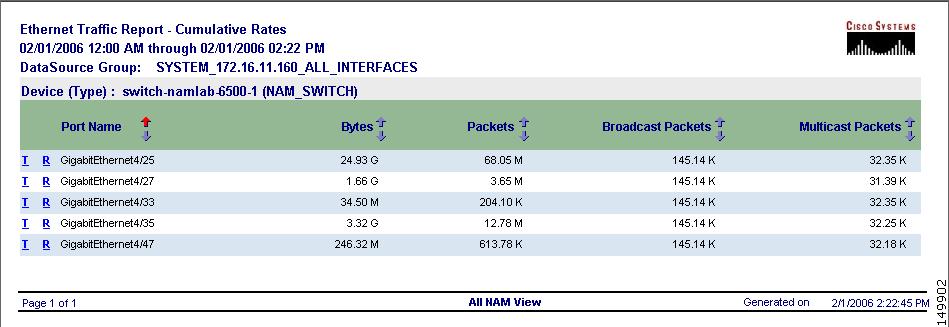

Figure B-15 Sample Ethernet Traffic Report
Table B-12 describes the fields in the Ethernet Traffic Statistics Report.
Table B-12 Ethernet Traffic Statistics Report Field Descriptions
Field
|
Description
|
Data Source Group Name
|
Name of the user-defined grouping of data sources.
|
NAM
|
Name of the related NAM.
|
Port Name
|
Port number.
|
Bytes
|
Number of bytes collected over the last time interval.
|
Packets
|
Number of packets collected over the last time interval.
|
Broadcast Packets
|
Number of broadcast packets collected over the last time interval.
|
Multicast Packets
|
Number of multicast packets collected over the last time interval.
|
Ethernet Error Report
For switches and routers that support the mini-RMON MIB, the Ethernet Error Report (Figure B-16) displays detailed errors by NAM and the Data Source Group assigned in Cisco PVM.

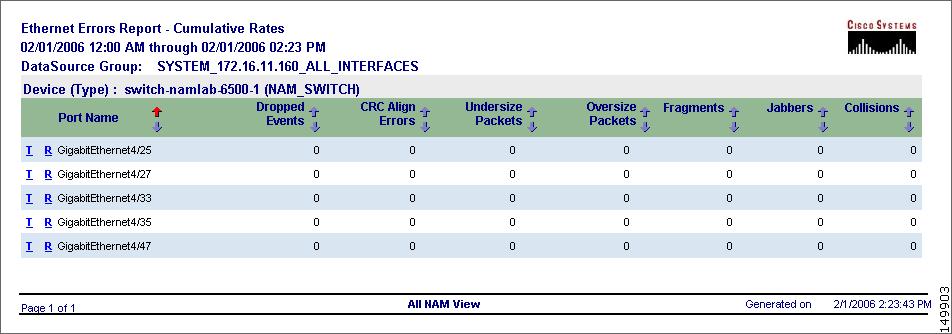

Figure B-16 Sample Ethernet Error Report
Table B-13 describes the fields in the Ethernet Error Report.
Table B-13 Ethernet Error Report Field Descriptions
Field
|
Description
|
Data Source Group Name
|
Name of the user-defined grouping of data sources.
|
NAM
|
Name of the related NAM.
|
Port Name
|
Port number.
|
Dropped Events
|
Number of dropped events.
|
CRC Align Errors
|
Number of CRC errors.
|
Undersize Packets
|
Number of undersize packets.
|
Oversize Packets
|
Number of oversize packets.
|
Fragments
|
Number of fragments.
|
Jabbers
|
Number of jabbers.
|
Collisions
|
Number of collisions.
|
VLANs
The VLANs suite displays detailed information on data collected for each VLAN ID and VLAN Priority. The VLANs suite contains the following reports:
•VLAN ID Report
•VLAN Priority Report
VLAN ID Report
The VLAN ID Report (Figure B-17) details traffic collected per second over the last time interval by VLAN identifier.

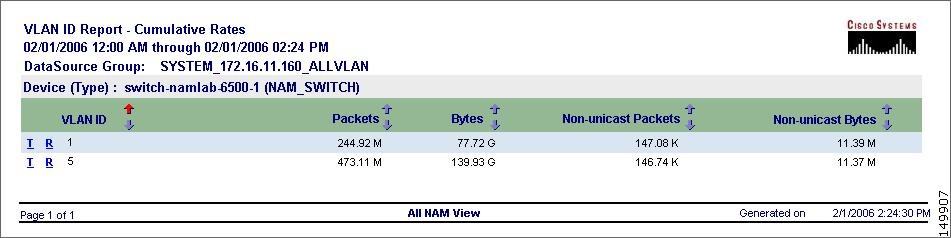

Figure B-17 Sample VLAN ID Report
Table B-14 describes the fields in the VLAN ID Report.
Table B-14 VLAN ID Report Field Descriptions
Field
|
Description
|
Packets
|
Number of packets collected per second over the last time interval.
|
Bytes
|
Number of bytes collected per second over the last time interval.
|
Non-Unicast Packets
|
Number of non-unicast packets collected per second over the last time interval
|
Non-Unicast Bytes
|
Number of non-unicast bytes collected per second over the last time interval
|
VLAN ID
|
VLAN identifier
|
VLAN Priority Report
The VLAN Priority Report (Figure B-18) displays detailed information on the traffic by VLAN Priority ID number.

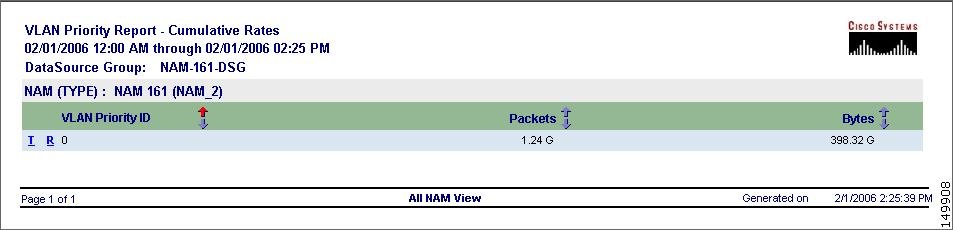

Figure B-18 Sample VLAN Priority Report
Table B-15 describes the fields in the VLAN Priority Report.
Table B-15 VLAN Priority Report Field Descriptions
Field
|
Description
|
VLAN Priority ID
|
VLAN Priority ID number.
|
Packets
|
Number of packets collected per second over the last time interval.
|
Bytes
|
Number of bytes collected per second over the last time interval.
|
