Reports

Cisco PVM provides a rich set of detailed, historical web-based reporting capabilities with comprehensive, pre-configured reports that provide a consistent and complete assessment of performance. You can run reports for specific resources configured by time period and scope, data view, and run time to give a snapshot of the status of network performance for historical and network management reporting purposes. These report parameters are easily managed from a single window.

The Cisco PVM Reports function allows you to generate information useful to various audiences, including IT staff, business managers, executives, and end users. The built-in report templates offer multiple views and drill-down capabilities displaying a variety of information with varying degrees of detail.

Under the Cisco PVM Reports tab, reports can be run immediately or scheduled to run at a later time, and can be viewed, printed, and saved as PDF, Microsoft Excel, and Rich Text Format files.

Note Reports run under the Cisco PVM Reports tab are archived; those run using the Monitor function are not.

This chapter contains the following topics:

•Report Features

•Reports Navigation

•Generating Reports

•Drill-Down Capabilities

•Real-Time Charts

•Trend Reports

For samples of individual reports and their field descriptions, see Appendix B, "Report Samples for Monitor and Reports."

Report Features

Cisco PVM reports allow you to take a snapshot of activity for a specified reporting period by providing:

•Pre-configured reports—Cisco PVM provides information useful to various audiences, including IT staff, business managers, executives, and end users. The reports offer multiple views and drill-down capabilities to display a variety of information with varying degrees of detail.

•Scheduling—You can run a selected report at a later date and time by selecting options available on the report parameters window. A list of scheduled reports is displayed under the My Reports link.

•Data visualization—Several data visualization modes are supported, including tabular text or graphics. Graphics include line and 3-D bar charts. Cisco PVM automatically chooses a pre-configured report template to display the appropriate charts, tables, and text that best serve the data being represented.

Reports Navigation

The Reports GUI provides access to current and historical reports. The interface allows browsing for archived reports by suite, and allows you to access information regarding scheduled and pending reports.

This section contains the following topics:

•Reports GUI

•Reports Navigation Menu

•Scheduled Reports

•Archived Reports

Reports GUI

Clicking the Reports tab on the Cisco PVM dashboard launches the Reports window shown in Figure 4-1.

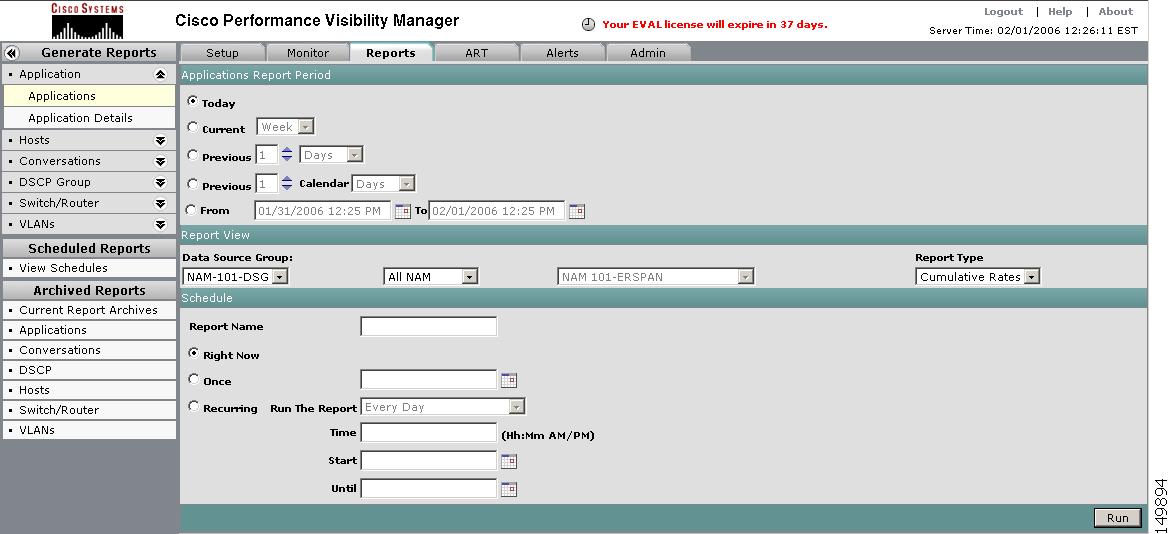

Figure 4-1 Reports GUI

The Reports GUI opens the default Applications report parameters pane. To view or set parameters for other reports, select a new report from the Generate Reports menu.

Reports Navigation Menu

The Cisco PVM Report Navigation menu categorizes reports into Report Suites, Scheduled Reports, and Archived Reports. The default Cisco PVM Reports navigation menu appears as shown in Figure 4-2.

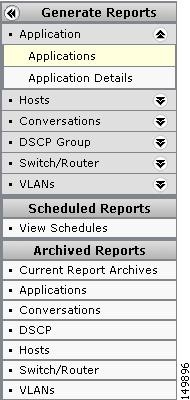

Figure 4-2 Reports Navigation Menu

Tip To expand the reports available under a suite, simply click the suite name. To collapse the list, click the suite name again. You can also use the expand/collapse icons available on the right side of the menu for each suite.

Report Suites

Cisco PVM report suites are described in Table 4-1.

Table 4-1 Report Suites

Suite
Available Reports
Description

Application

•Applications

•Application Details

Provides the ability to see which applications are consuming network bandwidth, and reports on the number of packets and bytes for each application protocol.

Hosts

•Hosts (IP)

•Hosts (MAC)

•Host Details

Provides an analysis of the traffic for each specific host. These reports display data on the host IP address, host name, in/out packets, in/out bytes, and non-unicast packets collected.

Conversations

Conversation

Displays data on the conversation traffic between various sources and destinations. Information displayed includes source IP address and name, destination IP address and name, protocol, packets, and bytes.

DSCP Group

•DSCP

•DSCP Application

•DSCP Host

Displays data on specific encoded information related to how packets traverse the network. These reports display data on the Aggregation Profile and Group Names, packets, bytes, protocols, and host IP addresses and names.

Switch/Router

•Interface

•Ethernet Traffic

•Ethernet Error

Displays the:

•Port name, in/out bytes, in/out packets, in/out Non-Unicast packets, in/out discards, in/out errors, and percentage in/out utilization.

•Bytes, packets, broadcast packets, and multicast packets.

•Dropped events, CRC align errors, under- and oversize packets, fragments, jabbers, and collisions.

VLANs

•VLAN ID

•VLAN Priority

Displays data on the VLAN ID, errors, packets, bytes, non-unicast packets, and non-unicast bytes collected.


Note For samples and descriptions of individual reports, see Appendix B, "Report Samples for Monitor and Reports."

Scheduled Reports

This folder contains a status of all scheduled reports (including Application Response Time reports). Scheduled Reports (Figure 4-3) has four tabs which display the processed reports.

•Schedules—Shows the scheduled reports that will be processed at a future date or time.

•Pending—Shows the scheduled reports that are currently in the process queue.

•Running—Shows the scheduled reports currently being processed.

•Completed—Shows the scheduled reports that have been processed (default tab).

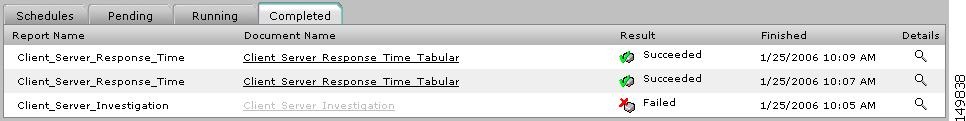

Figure 4-3 Scheduled Reports

Table 4-2 describes the fields in the View Schedules window.

Table 4-2 View Schedules Field Descriptions

Field
Type
Description

Report Name

Fixed Text

Displays the user-defined name of the report.

Document Name

Hyperlink

Displays the name and type of report run and provides a link that opens the report.

Note The report is only available for viewing if the Result field shows "Succeeded."

Result

Fixed Text

Displays the report result:

•Succeeded—No problems were encountered with the database and the data is still aggregated and available for viewing.

•Expired—The report ran, but the aggregated data is no longer available for viewing (such as a report scheduled to run only once).

•Failed—A problem was encountered aggregating data for the report, such as a deleted Data Source Group.

Finished

Fixed Text

Shows the date and time the report run was completed by the system.

Details

Icon

Displays the details of the job when clicked.

Note Clicking Open displays the report; clicking Delete Job removes the report from the system.


Note The remaining tabs in the Scheduled Reports window display on Report Name and Run Time fields, but allow easy deletion of reports that have not yet completed (Schedules, Pending, and Running tabs) by displaying a Delete icon.

Archived Reports

The Archived Reports menu provides quick navigation to the repository of all reports available in the archive database. The first menu item shows the archive for the report currently selected under the Generate Reports menu (such as Application Details or DSCP), as shown in Figure 4-4.

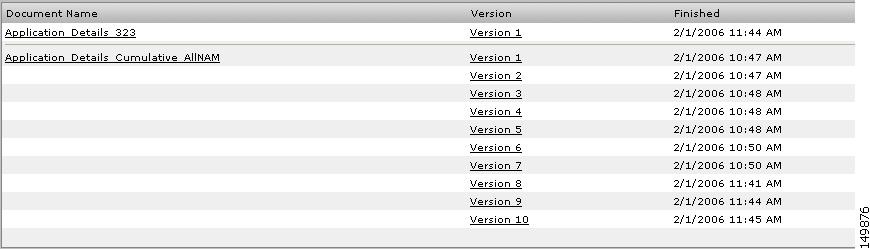

Figure 4-4 Current Report Archives—Applications Details Report

Table 4-3 describes the fields in the Current Report Archives window.

Table 4-3 Current Report Archives Field Descriptions

Field
Type
Description

Document Name

Hyperlink

Displays the report name, the name of the user who ran it, and the ART Group used report data aggregation. Clicking the hyperlink displays the latest (most recent) version of the report run by the listed user and ART Group.

Version

Hyperlink

Displays the version number of the report run at the date and time listed in the Finished column. Clicking the hyperlink displays the version of the report matching the specified date and time.

Finished

Fixed Text

Displays the date and time the report was run.


Individual Report Archives

The Report Archive (Figure 4-5) contains a repository of all archived reports for each report suite in the Reports GUI. Following is a sample Report Archive display for the Hosts suite; clicking a Version link opens the report.

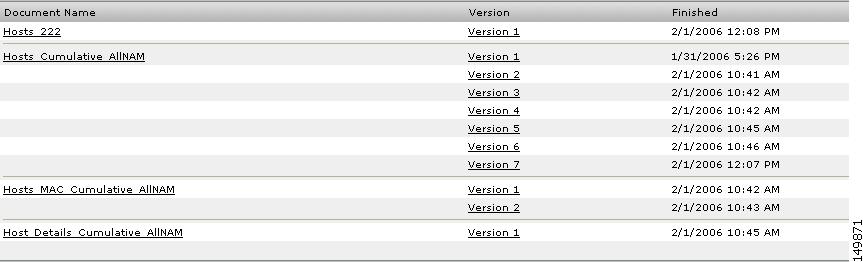

Figure 4-5 Archived Report—Hosts

Table 4-4 describes the fields available in the Current Report Archives window.

Table 4-4 Current Report Archives Field Descriptions

Field
Type
Description

Document Name

Hyperlink

Displays the report name and the ART Group used to aggregate the data or the Report Name assigned in the ART report parameters pane. Clicking the hyperlink displays the latest (most recent) version of the report run by the listed user and ART Group.

Version

Hyperlink

Displays the version number of the report run at the date and time listed in the Finished column. Clicking the hyperlink displays the version of the report matching the specified date and time.

Finished

Fixed Text

Displays the date and time the report was run.


Generating Reports

Report generation in Cisco PVM requires minimal intervention. This section contains the following topics:

•Report Generation Process

•Report Parameters Pane

•Running a Report

Report Generation Process

The following steps show the general process for generating a report:

1. Log in to Cisco PVM.

2. Click the Reports tab.

3. Select a report suite and type.

4. Enter the reporting period, view, detailed parameter (if applicable), and scheduling information (including the report name, if desired).

5. Click Run.

6. Save, download, or print the report.

Report Parameters Pane

Reports in Cisco PVM are generated with minimal input parameters. Each report in Cisco PVM uses the Report Parameters pane for specifying report variables and scheduling. Figure 4-6 shows the Cisco PVM Report Parameters pane.

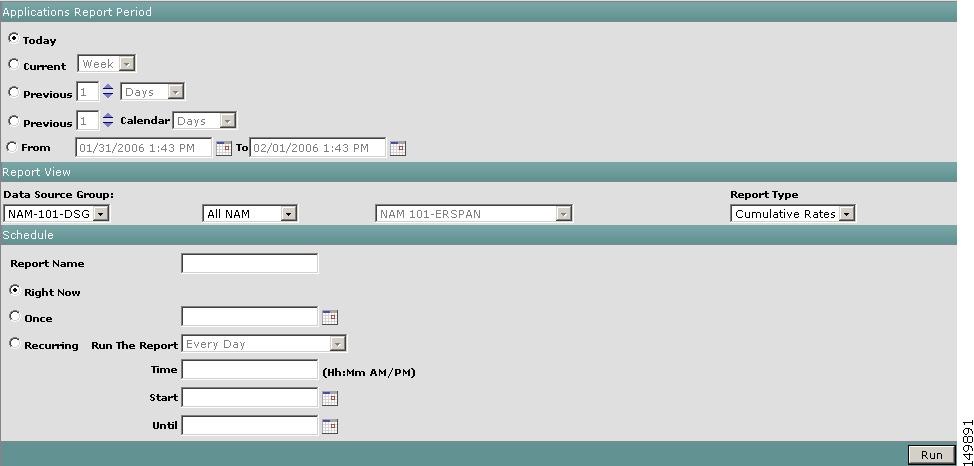

Figure 4-6 Report Parameters Pane

Table 4-5 describes the fields in the Report Parameters pane

.

Table 4-5 Report Parameters Pane Field Descriptions

Parameter
Description
Detailed Options

[Report Name] Period

A reporting period parameters window heading that displays the name of the report selected.

None

Report Period

Allows you to specify the time range used for analysis. The Previous n selections provide an easy way to select the date and time range without having to specify a date.

Today

•Today—The current day starting from 12:00 AM and ending with the current server local time.

Current

•Week—Starting at 12:00 AM Sunday of the current week and ending with the current server local time.

•Month—startIng at 12:00 AM of the first day of the current month and ending with the current server local time.

•Year—Starting at 12:00 AM on January 1 of the current year and ending with the current server local time.

Previous n—Starting from the n days, weeks, months, or years back from the current server local time and ending with the current server local time.

Previous n Calendar

•Calendar Days—starting at 12:00 AM of the previous nth day and ending at midnight yesterday.

•Calendar Weeks—starting on at 12:00 AM Sunday of the previous nth week and ending at midnight last Saturday.

•Calendar Months—starting at 12:00 AM on the first of the previous nth month and ending at midnight of the last day of last month.

•Calendar Years—starting at 12:00 AM on January 1 of the previous nth year and ending at midnight December 31 of last year.

From/To—Calendar date and time range selected using the calendar pop-up.

Report View

Allows you to select which data to view on the generated report.

Note The available Data Views and Report Types depend on the specific report selected. See Understanding Data Views, page 1-13 in Chapter 1 for more information.

Data Source Group—Populated from the groups that have been set up in Cisco PVM.

Data View [adjacent to Data Source Group]:

•Data Source—Specifies a single data source from the drop-down list.

•All NAM—Reports on all NAMs available in the selected Data Source Group.

•Aggregated—Provides collated data from multiple NAMs and Data Sources across the network.

Data Source [adjacent to Data View]—Provides a list of specific data sources only if Data Source is the selected data view.

Report Type:

•Cumulative Rates

•Current Rates

•TopN.

Report Parameters: Application Details

Allows you to select the host or application for detailed analysis.

Note This section appears only when you have selected the Application Details report.

Specific application—Selection of the specific protocol from the Applications drop-down list.

Note See Protocol Selection: Application Details Report for details on how to select the protocol.

Report Parameters:

Hosts (IP) and Host Details

Allows you to search for specific host IP addresses and select the desired host from the search results.

Note This section appears only when you have selected the Hosts (IP), Host Details, or DSCP Host reports.

•Search IP address—Selection from entire list of available hosts without searching.

•Selection from the Hosts list—Search of available hosts using partial or wildcard IP addresses.

Note See Filtering IP Addresses: Hosts (IP), Host Details, and DSCP Host Reports for a complete explanation of search criteria.

Report Parameters:

Hosts (MAC)

Allows you to enter a specific MAC address to see data for only a single address.

Note This section appears only when you have selected the Hosts (MAC) report.

Valid MAC address:

•Data generation for a single MAC address.

•Data generation for all MAC addresses in the selected Data Source Group.

Note See Filtering MAC Addresses: Hosts (MAC) Report for details on how to use this address block.

Report Parameters:

Conversation

Allows you to search for specific host and destination IP addresses and select the desired addresses from the search results.

Note This section appears only when you have selected the Conversation report.

•Search IP addresses for sources, destinations, or both—Selection from entire list of available hosts without searching.

•Selection from the Hosts list—Search of available hosts using partial or wildcard IP addresses.

Note See Filtering Source and Destination Addresses: Conversation Report for a complete explanation of search criteria.

Report Parameters:

DSCP Host

Allows you to search for specific host IP addresses and select the desired host from the search results.

Note This section appears only when you have selected the Hosts (IP), Host Details, or DSCP Host reports.

•Search IP address—Selection from entire list of available hosts without searching.

•Selection from the Hosts list—Search of available hosts using partial or wildcard IP addresses.

Note See Filtering IP Addresses: Hosts (IP), Host Details, and DSCP Host Reports for a complete explanation of search criteria.

Schedule

Allows you to specify the name of the report and when it will run.

•Report Name—Text entry of a user-specified name for the report.

•Right Now—Runs the report immediately.

•Once—Selection of a single calendar day.

•Recurring:

–Run the Report—the day on which to run the report.

–Time—the time to run the report on day selected in the Report Period.

–Start—the date when the report schedule starts.

–Until—the date when the report schedule ends.

Note If the end date is not specified, the report is not bound by an ending date.


Protocol Selection: Application Details Report

When running an Application Details report, you must select the specific protocol for which you want to see data. In this case, the report pane adds an extra section entitled Report Parameters (Figure 4-7).

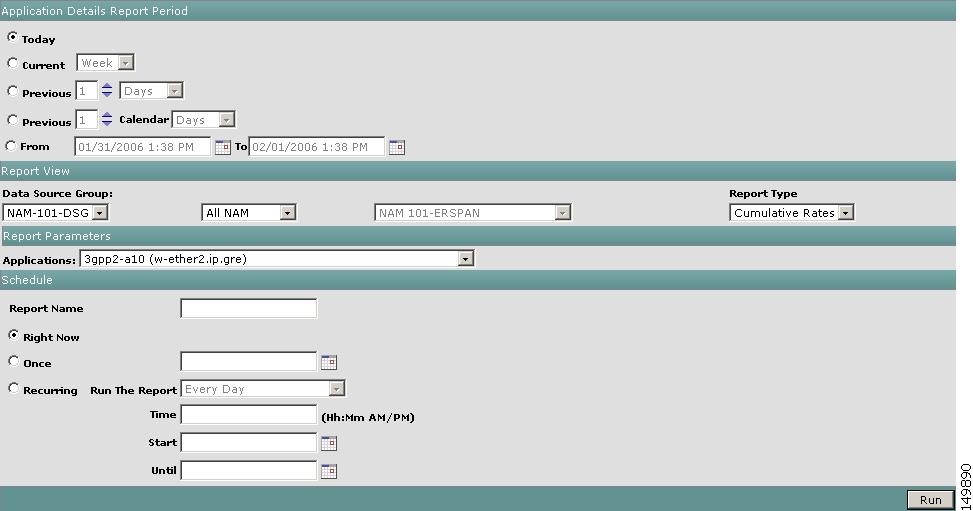

Figure 4-7 Application Details Report: Report Parameters Section

In this section, you must select a specific protocol from the Applications drop-down list.

Filtering IP Addresses: Hosts (IP), Host Details, and DSCP Host Reports

When running a Host Details report, you must select the specific host for which you want to see data; when running either a Hosts (IP) or DSCP Host report, this parameter is optional. In this case, the report pane adds an extra section entitled Report Parameters (Figure 4-8).

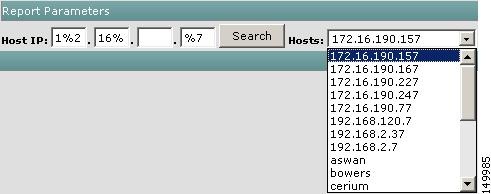

Figure 4-8 Hosts (IP), Host Details, and DSCP Host Reports: Report Parameters Section

In this section, you must either select a specific host from the Hosts drop-down list (Host Details report), or leave the default All selection to return data for all hosts in the Data Source Group (Hosts (IP) and DSCP Host reports). Table 4-6 describes the methods you can use, including wildcards, to search for a specific host. The descriptions include entries into the dotted quad, the four-group set of digits comprising the IP address.

Table 4-6 Hosts (IP), Host Details, and DSCP Host Reports—Filter Options for the List of Available Hosts

To search addresses by:
Enter...
Then...
Hosts List Result:

None (return all)

None (leave all blank)

N/A

All available hosts.

Dotted quad(s)

One or more dotted quads, such as:

Click Search.

All hosts containing the IP addresses matching the quad(s) entered, including:

•172.nnn.nnn.nnn

•172.16.8.nnn

•nnn.nnn.nnn.43

Wildcard entries in partial quad(s)

The wildcard character (%) as part of one or more dotted quads, such as:

Click Search.

All hosts containing the IP addresses containing the specific quad number(s) entered, such as:

•12.nnn.nnn.nnn

•172.nnn.nnn.nnn

•192.nnn.nnn.nnn


After you've clicked Search, then you must select the specific host from the Hosts drop-down list. The list displays both IP addresses and the names of hosts that match the IP address search results (see Figure 4-9.

Figure 4-9 Hosts Selection—Host Details Report

Filtering MAC Addresses: Hosts (MAC) Report

When running a Hosts (MAC) report, you must either run the report for all MAC addresses in a selected Data Source Group or specify a single address using the Host MAC address block in the Report Parameters section (see Figure 4-10).

Figure 4-10 Hosts (MAC) Report: Report Parameters Section

You can leave the Host MAC address block blank to return a list of all MAC addresses in the Data Source Group you selected, or you can enter a MAC address to see data for that address only.

Filtering Source and Destination Addresses: Conversation Report

When running a Conversation report, you must either run the report for all sources and destinations in the Data Source Group or select the specific hosts for which you want to see data in the Report Parameters section (Figure 4-11).

Figure 4-11 Conversation Report: Report Parameters Section

In this section, you can select:

•All sources and destinations (default)

•One source and all destinations

•All sources and one destination

•One source and one destination

Table 4-7 describes the methods you can use, including wildcards, to search for a specific host. The descriptions include entries into the dotted quad, the four-group set of digits comprising the IP address.

Table 4-7 Hosts (IP), Host Details, and DSCP Host Reports—Filter Options for the List of Available Hosts

To search addresses by:
Enter...
Then...
Hosts List Result:

None (return all)

None (leave all blank)

N/A

All available hosts.

Dotted quad(s)

One or more dotted quads, such as:

Click Search.

All hosts containing the IP addresses matching the quad(s) entered, including:

•172.nnn.nnn.nnn

•172.16.8.nnn

•nnn.nnn.nnn.43

Wildcard entries in partial quad(s)

The wildcard character (%) as part of one or more dotted quads, such as:

Click Search.

All hosts containing the IP addresses containing the specific quad number(s) entered, such as:

•12.nnn.nnn.nnn

•172.nnn.nnn.nnn

•192.nnn.nnn.nnn


After you've clicked Search, select the specific host(s) from the Hosts drop-down list(s).

Running a Report

The following procedure uses the Applications report as an example. For samples and descriptions of individual reports, see the Appendix B, "Report Samples for Monitor and Reports." appendix. For a complete explanation of available data views and report types, see Understanding Data Views, page 1-13 in Cisco PVM Overview.

Step 1 Log in to Cisco PVM.

Step 2 Click Reports.

The Report Parameters window appears, with Applications selected as the default report.

Step 3 Select a report to run from the navigation menu by clicking the report suite and the name of the report you want to run.

The Report Parameters pane for the selected report is displayed (see Figure 4-12).

Figure 4-12 Report Parameters Pane—Applications Default

Step 4 In the Report Period section, choose the time range to be used for analysis using the options shown in Table 4-8.

Table 4-8 Choosing a Report Period

To use the period for...
Choose...
Then...

Today only

Today.

N/A

The current week, month, or year

Current

Select the desired period from the drop-down list.

The previous n days, weeks, months, or years

Previous

a. Enter the value of n in the text box (or use the arrows to increment or decrement the value).

b. Select the period from the drop-down list.

The previous n calendar days, weeks, months, or years

Previous - Calendar

a. Enter the value of n in the text box (or use the arrows to increment or decrement the value).

b. Select the period from the drop-down list.

Start and end dates

From

a. Click the From calendar icon.

b. Choose the starting date and enter the time from the pop-up calendar, then click OK.

c. Click the To calendar icon.

d. Choose the ending date and enter the time from the pop-up calendar, then click OK.


Step 5 In the Report View section, select the specific data you want to view in the report:

a. Select the desired Data Source Group from the drop-down list.

Note The Data Source Groups are defined in Setup. Click Setup > Data Source Groups to view the list of groups and group details.

b. Select the data view from the drop-down list:

–All NAM

–Data Source (select the specific Data Source from the activated drop-down menu)

–Aggregated

c. Select the Report Type from the drop-down list:

–Cumulative Rates—the data displayed is the total collected since the collection was created or within the selected time period.

–Current Rates—the data displayed is the number collected per second over the selected time period.

–TopN—the information displayed represents the data collected per second over the selected time period for the 10 most active data streams for the selected Data Source Group.The value of N in TopN reports is configured, under Setup > Preferences, to values from 1—15. See Editing Preferences, page 2-50 for details on configuring the system-wide value of N for all TopN reports for details.

Step 6 Choose the desired application or host from the Report Parameters drop-down list, if available.

Note The Report Parameters section is displayed for Application Details and Host Details reports only. See Filtering IP Addresses: Hosts (IP), Host Details, and DSCP Host Reports for a complete explanation of using IP address search criteria.

Step 7 In the Schedule section, select when the report will be run using the options shown in Table 4-9.

Table 4-9 Scheduling a Report

To run the report...
Choose...
Then...

Immediately

Right Now

N/A

For a single date

Once

a. Click the calendar icon.

b. Choose the run date from the pop-up calendar.

Repeatedly at specific time points

Recurring

a. Select the day of recurrence from the Run the Report drop-down list:

b. Enter the time of recurrence in the Time text box using the 24-hour clock in hh:mm:ss format.

c. Click the Start calendar icon to choose the first date of the recurrence interval.

d. Click the Until calendar icon to choose the last date of the recurrence interval.


Step 8 Click Run. The report displays directly under the Reports tab, as shown in Figure 4-13.

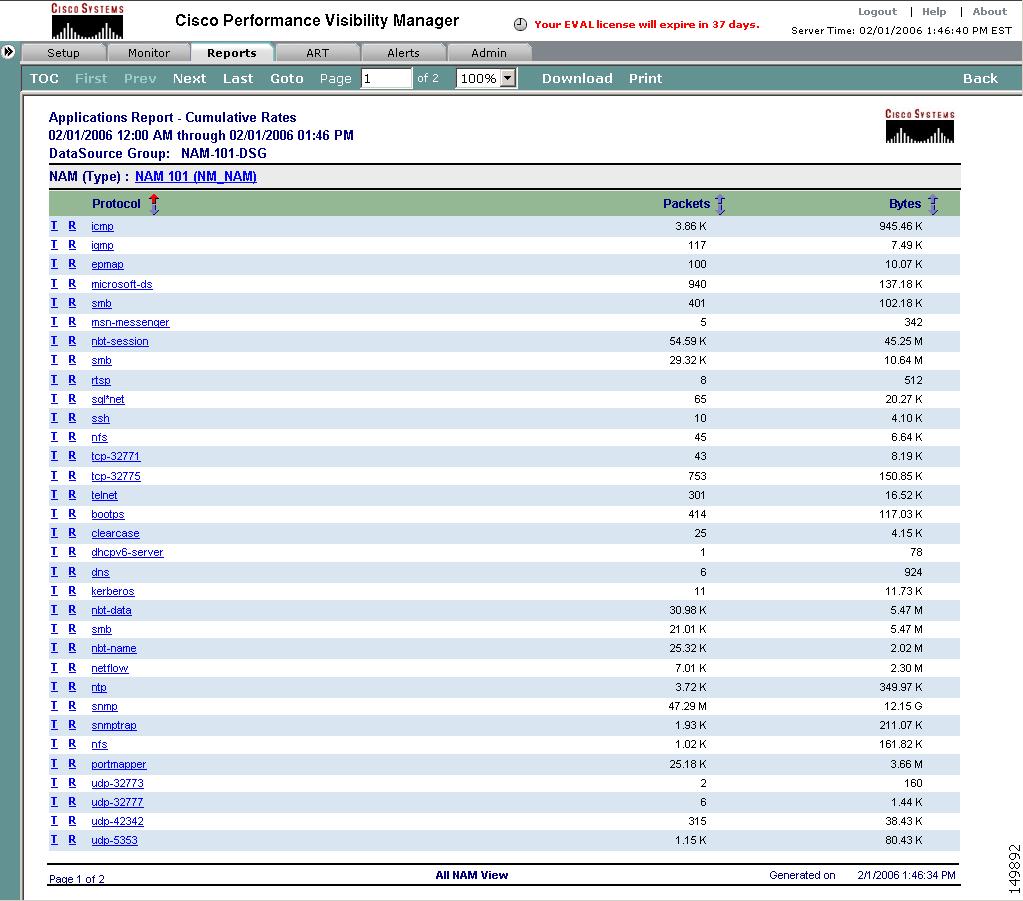

Figure 4-13 Report Result—Admin Version

Step 9 To run another report, display the parameters pane by performing one of the following:

•Clicking the Back link in the report window header.

•Expanding the Generate Reports menu and selecting the desired report from the navigation menu.

•Clicking the Reports tab.

Drill-Down Capabilities

Cisco PVM reports display hyperlinks for linking one report to another. For example, from the Applications Report that displays a list of protocols in table rows, you can click on a Protocol hyperlink to access the Application Details report for that protocol. This section describes drill-down rules and design.

General Rules

Cisco PVM reports adhere to the following rules for hyperlink access among reports:

•Host IP addresses—Each time you see a Host IP address, you can drill down to the host details.

•Application—Each application allows you to drill down to the application details.

•NAM name—Each time you see a NAM name, you can click on the name to open a new window for the individual NAM GUI and automatically sign in the individual.

•Real-time charting drill-down—Each time you see an "R" hyperlink, you can click on the "R" to open a new window to monitor this report row details graphed in real-time. Drill-down capability is available on both Data Source view and All NAM view, for all tabular reports.

•Trend Reports drill-down—Each time you see a "T" hyperlink, the you can click on the "T" to drill down to this report row details graphed against the selected time period. This drill-down capability is available on both Data Source view and All NAM view, for all tabular reports.

Table 4-10 shows the Cisco PVM reports and the reports you can access through the available drill-down hyperlinks.

Table 4-10 Reports Drill-Down Capability

Report Name
Drill-Down Reports Available

Applications

Application Details

Application Details

Host Details

Hosts (IP)

Host Details

Hosts (MAC)

N/A

Conversations

•Source Host Details

•Destination Host Details

DSCP

N/A

DSCP Application

Application Details

DSCP Host

Host Details

Switch/Router

N/A

VLAN ID

Applications

VLAN Priority

N/A


Drill-Down Link Formats

Figure 4-14 depicts the drill-down from a Hosts report to the Host Details report.

Figure 4-14 Sample Drill-Down Format - Hosts to Host Details

The host IP address for which the user wants to see details appears as a red hyperlink in the report shown on the left, and its respective Host Details report, shown on the right, opens when that hyperlink is clicked. In the Cisco PVM GUI, the second report replaces the initial report in the report display pane. You can click Back in the report header to see the initial report.

Using Report Drill-Down Links

Note The drill-down links are available in tabular reports only. Cisco PVM tabular reports include those run for cumulative and current rates; TopN reports do not display the drill-down links.

Step 1 Open a tabular report by running a new report or opening an archived report.

Step 2 In the table, find the linked resource about which you want more information, such as the Host ID or Protocol.

Tip You can use the sorting arrows in the column header to re-sort the resource or performance information, or use the pagination links in the report header to view different pages of the report.

Step 3 Click the desired resource name or application protocol hyperlink.

The drill-down report opens and replaces the display of the original report.

Step 4 Click additional resource name or application protocol hyperlinks available in the first drill-down report to display additional reports containing details for the desired resource or application.

Opening the NAM Traffic Analyzer

You can link directly to the Cisco NAM Traffic Analyzer for NAM configuration options from Cisco PVM reports. The traffic analyzer opens in a new window.

Note The traffic analyzer opens directly to a specific NAM only if that NAM has been set up in Cisco PVM with the correct user ID and password (see Setup > NAM in the Cisco PVM GUI) or if the current Cisco PVM user credentials match the NAM credentials. If the traffic analyzer does not open for the desired NAM, log in to the NAM using the traffic analyzer's login window, or contact the Cisco PVM administrator to obtain traffic analyzer login information.

Step 1 Open a report by running a new report or opening an archived report.

Step 2 Click the "NAM (Type)" hyperlink at the top of the report display window. The NAM Traffic Analyzer opens in a new browser window, signed on automatically to the correct NAM if that NAM logon information has been set up in Cisco PVM or if your user credentials allow you to access the NAM.

Figure 4-15 shows the NAM Traffic Analyzer window opened just beneath the "NAM (Type)" hyperlink.

Figure 4-15 NAM Traffic Analyzer Window

Step 3 Review or change NAM or switch/router parameters in the traffic analyzer window.

Note Changes you make using the traffic analyzer affect future data aggregation and reports only.

Step 4 Close the NAM Traffic Analyzer by clicking the close button in the upper right corner of the window.

Real-Time Charts

Cisco PVM provides access to real-time data through links available in tabular reports. Reports contain a link in each table row that opens a chart pop-up for the corresponding report element, such as a host or protocol.

The Real-Time Chart pop-up allows you to troubleshoot a specific data source by displaying a continuously refreshed plot of its current performance. Monitoring begins as soon as the window opens. The chart will automatically refresh every 30 seconds and additional data points will be plotted. At any time, you can change the selected variable and click Submit to restart monitoring.

Note If you are viewing an archived report, it is possible that you won't be able to view real-time data if the old data has been overwritten in the Cisco database. This can happen if you have a busy NAM generating large amounts of certain data types. In this case, clicking the "R" link in the report opens the Real-Time Chart window with a message indicating that no data is available for the specified parameters.

This section contains the following topics:

•Variables Available for Real-Time Monitoring

•Displaying a Real-Time Chart

Variables Available for Real-Time Monitoring

Variables are displayed for individual statistics as rates in units per second (such as PACKETS/SEC). This rate reflects the change in the selected variable value over time. Table 4-11 shows the real-time variables that you can monitor for the different statistics available in Cisco PVM tabular reports.

Table 4-11 Available Variables for Real-Time Charts

Statistic Type
Available Variables (units/sec)

Application Statistics

Packets

Bytes

Hosts (IP) Statistics

In Packets

In Bytes

Out Packets

Out Bytes

Non-Unicast Packets

Hosts (MAC) Statistics

In Packets

Out Packets

In Bytes

Out Bytes

Multicast Packets

Broadcast Packets

Conversation

Packets

Bytes

DSCP Statistics

Application Packets

Application Bytes

DSCP Application Statistics

Application Packets

Application Bytes

DSCP Host Statistics

In Packets

In Bytes

Out Packets

Out Bytes

Switch/Router: Interface Statistics

In Packets

In Bytes

Out Packets

Out Bytes

Incoming Non-Unicast Packets

Outgoing Non-Unicast Packets

Discarded Ins

Discarded Outs

In Errors

Switch/Router: Ethernet Traffic Statistics

Bytes

Packets

Broadcast Packets

Multicast Packets

Switch/Router: Ethernet Error Statistics

Drop Events

CRC Errors

Oversize Packets

Undersize Packets

Jabbers

Fragment Counts

Number of Collisions

VLAN ID Statistics

Packets

Bytes

Non-Unicast Packets

Non-Unicast Bytes

VLAN Priority Statistics

Packets

Bytes


Displaying a Real-Time Chart

To display a real-time chart, complete the following steps:

Step 1 Run a tabular report using either Data Source or All NAM views, and look at the hyperlinks available on the left side of the report pane.

Step 2 Click the R hyperlink, next to the report element whose real-time data you want to view, as shown in Figure 4-16.

Figure 4-16 Real-Time Chart Hyperlink

The Real-Time Chart pop-up opens and begins monitoring by displaying the Data Source and variable selected in the original report, as shown in Figure 4-17.

Figure 4-17 Real-Time Chart Sample

Table 4-12 describes the fields in a Real-Time Chart.

Table 4-12 Real-Time Chart Field Description

Element
Type
Description

Started

Fixed Text

Displays the date and time that the real-time display parameters were submitted for charting.

NAM

Fixed Text

Displays the name of the NAM whose data flow is being monitored.

Data Source

Drop-down List

Allows selection of the desired NAM Data Source for monitoring.

Note The chart automatically refreshes and begins collecting new data points whenever you select a new Data Source.

Variable

Drop-down List

Allows selection of the data type to monitor, such as packets or bytes.

Note The chart automatically refreshes and begins collecting new data points whenever you select a new Variable.

Chart Y-Axis

Fixed Text

Displays the variable selected within the chart for display, such as packets or bytes.

Chart X-Axis

Dynamic Data

Displays the current time of day in increments that continuously refresh as time passes.

Chart Body

Dynamic Data

Displays a line graph with demarcated points that continuously refresh as the time increments pass.

Close

Button

Closes the chart pop-up window.


Note The chart refreshes and displays new data points every 30 seconds.

Step 3 Change the data being monitored by:

a. Selecting a desired Data Source from the drop-down list.

b. Selecting a desired Variable from the drop-down list.

The chart refreshes automatically and begins to display a new set of data points based on the new Data Source or Variable selections.

Note Clicking Close terminates data refresh and closes the chart window.

Trend Reports

Cisco PVM provides dynamic performance reporting capability within the Reports GUI by displaying a link to a Trend Report on each report pane. The report displays raw data for the selected network component (such as protocol, host, or interface) with a superimposed line showing the data trend over time, offering a magnified view of the data flow for analysis of abnormal or problematic patterns. To see different statistics for the same report displayed as a Trend report, simply click a different metric within the report display (such as PACKETS or BYTES) and the chart automatically refreshes.

This section contains the following topics:

•Trend Statistics

•Displaying a Trend Report

Trend Statistics

Trend reports are available from tabular reports (those showing Current Rates or Cumulative Data) for the following statistics:

•Applications

•Interface

•Ethernet Traffic

•Ethernet Errors

•Conversations

•DSCP

•DSCP Application

•DSCP Host

•Hosts (IP)

•Hosts (MAC)

•VLAN ID and

•VLAN Priority.

The various metrics for each statistics are viewable through links directly in the Trend Report.

Drilling down from a tabular to a Trend Report depends on which Report View is currently displayed. The drill-down rules are summarized in Table 4-13.

Table 4-13 Trend Report Drill-Down Rules

Current Tabular Report View
Trend Report Values

Aggregated

The metric value will be aggregated across the Data Source Group.

All NAM

The metric value will be aggregated for those data sources that are both part of the selected Data Source Group and the specific NAM selected for drill-down.

Data Source

The metric value will display for the data source specified in the original report.


Displaying a Trend Report

To display a trend report, complete the following steps:

Step 1 Click the Reports tab on the Cisco PVM dashboard.

Step 2 Generate a tabular report using the Report Parameters pane.

Step 3 Click the T link next to the desired element in the report display, as shown in Figure 4-18.

Figure 4-18 Trend Report Hyperlink

The Trend Report displays in the Reports window, as shown in Figure 4-19.

Figure 4-19 Trend Report Sample

Table 4-14 describes the fields available in Trend reports.

Table 4-14 Trend Report Field Descriptions

Field
Description

Title

The report name from which the Trend Report was accessed (the original report accessed in Reports), with a label indicating that the display is a Trend Report.

Time Period

The time period selected to generate the original report.

NAM (TYPE)

The NAM supplying the data flow and the NAM type (NAM-1, NAM-2, or NM-NAM).

Data Entity Name

The name of the source being monitored, such as the VLAN ID name.

Chart Title

The Trend Report name and data variable being monitored (as selected in the original report).

Variable [link]

The variables (metrics) available for viewing in the Trend Report.

Y-Axis

The name and value of the data variable being monitored (such as packets or bytes).

X-Axis

The incremental timestamps for the trending interval being monitored.

Chart Body

The trending line with data labels indicating the raw data value for the selected metric over time and the trend line.


Tip You can change the data type being displayed by clicking one of the green hyperlink boxes at the top of the report display.
