Application Response Time

Cisco PVM enables you to troubleshoot performance problems by collecting Application Response Time (ART) data from NAMs and correlating the data to clients and servers. Administrators set up ART data collection definition using defined domains of NAM data sources that have little or no interaction with one another. ART Groups enable you to quickly find relevant NAMs and identify and troubleshoot performance problems.

All Cisco PVM users can generate the following ART reports:

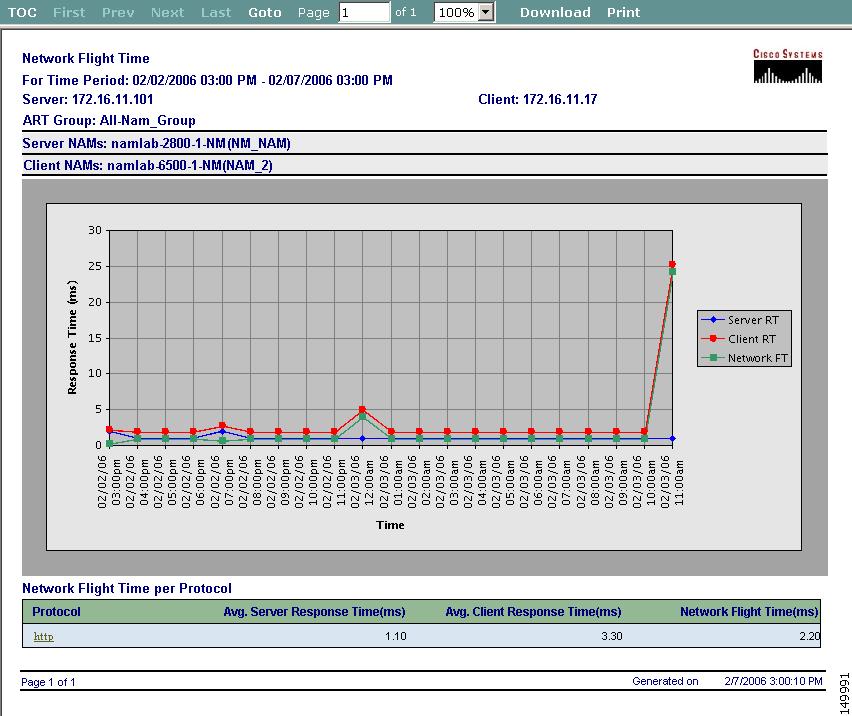

•Network Flight Time—enables you to find out whether the network or the server is the cause for delayed responses

•Server Response Time—shows the response times for each server in an ART Group

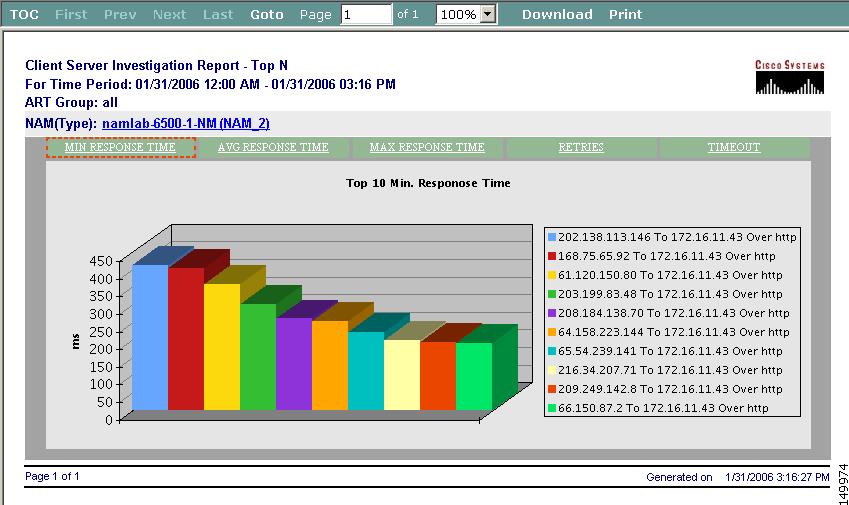

•Client/Server Investigation—shows the response times for each client/server pair of a data source in an ART group by client IP

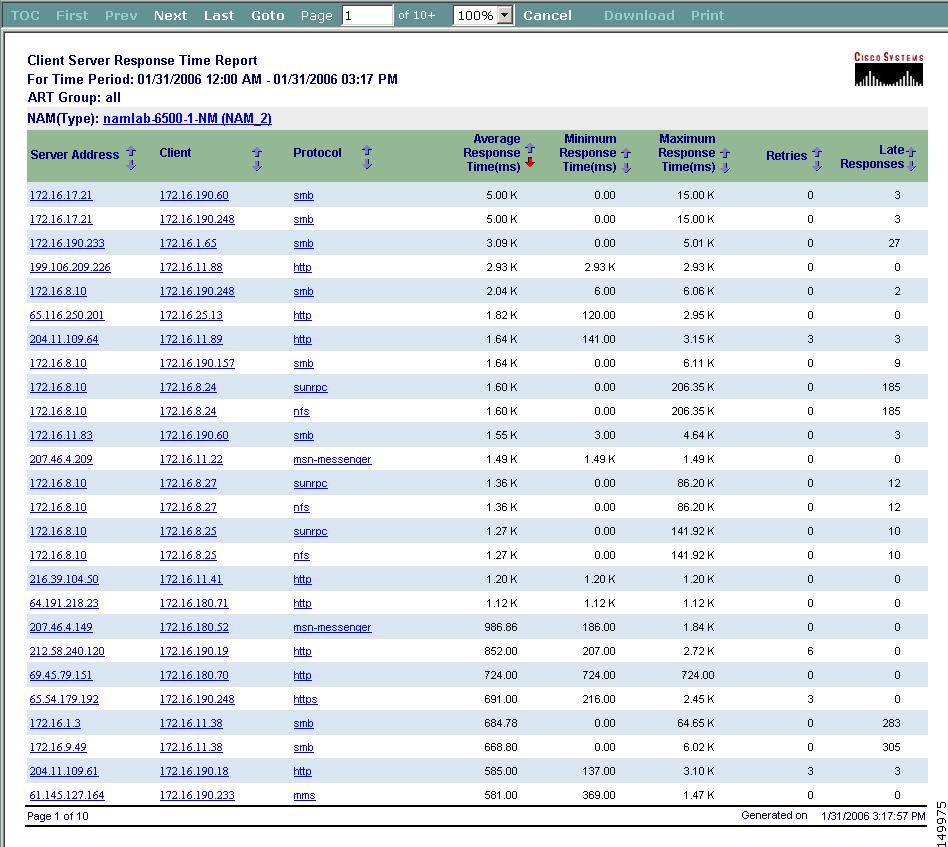

•Client/Server Response Time—enables you to check whether a response time problem exists between two sites by showing the response times for each client/server pair in an ART Group created specifically for client NAMs.

This chapter contains the following sections:

•The ART GUI

•Understanding ART Groups

•ART Reports

•Network Flight Time

•Server Response Time

•Client/Server Investigation

•Client/Server Response Time

The ART GUI

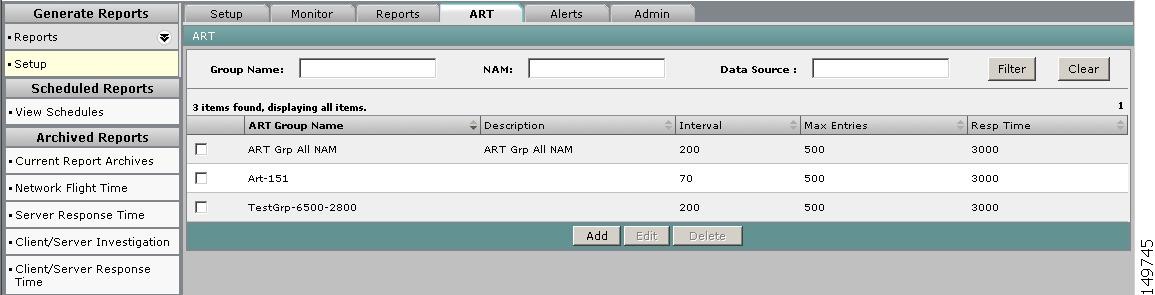

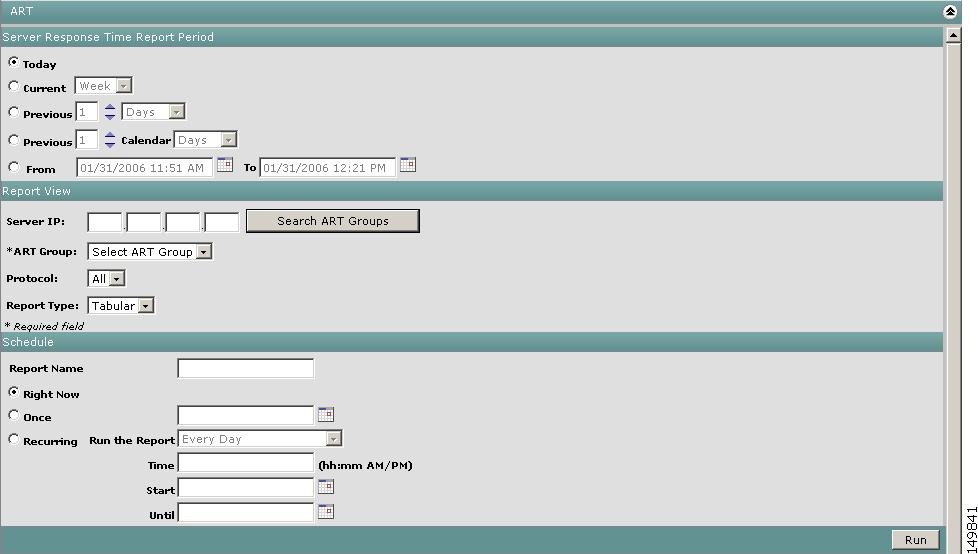

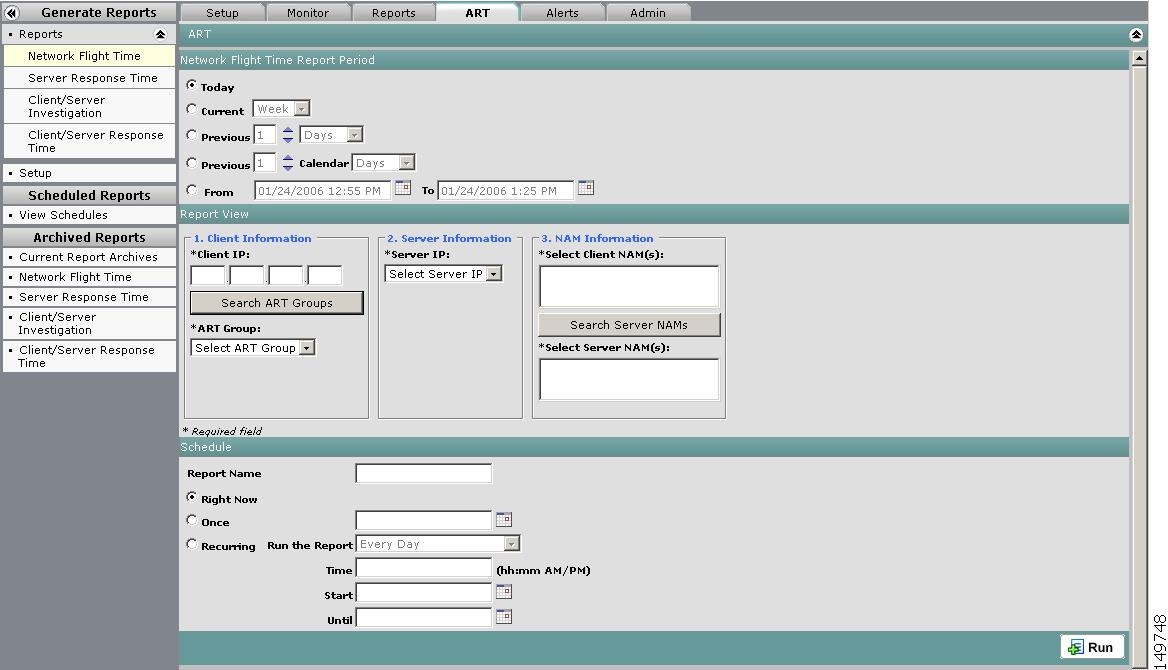

The ART GUI (Figure 5-1) allows all users to generate Server Response Time, Network Flight Time, Client/Server Investigation, and Client/Server Response Time reports based on ART Groups set up by Cisco PVM Administrators. You can also view report schedules and archives for each report type.

Administrators can set up ART Groups that define aggregation of ART data by data source.

Figure 5-1 ART GUI

Understanding ART Groups

An ART Group is defined as a set of data sources for one or more NAMs attached to client and server machines. All ART reports in Cisco PVM are run based on ART Groups created by Administrators.

Before creating an ART Group, you should decide:

•Which client, server, or client/server pair you want to monitor and

•The data source(s) from the NAMs closest to each client and server that you want to see in the reports.

Cisco PVM displays all ART Groups that have been defined in the system in tabular form on the ART > Setup window; groups can be added, edited, or deleted from this window.

ART data collection is functionally separate from all other statistics, where users create Data Source Groups to view data under Monitor and Reports. In the case of ART, you must create ART Groups if you want to view ART reports. Additionally, ART functionality includes only reporting capability and not monitoring; ART reports function as snapshots of response-time activity.

This section contains the following topics:

•Group Creation and Considerations

•ART Data Collection

•Viewing the List of ART Groups

•Adding an ART Group

•Editing an ART Group

•Deleting an ART Group

Note The functions discussed in this section apply to Cisco PVM Administrators only.

Group Creation and Considerations

Creating ART Groups allows Administrators the convenience of being able to quickly select client and server NAMs for monitoring and reporting by limiting the number of relevant NAMs available for selection. The ART Group creation process involves the following steps:

1. Enter a group name and description.

2. Select the NAM to populate the list of all available data sources.

3. Select the NAM data source(s) for which you want to collect ART data.

4. Repeat steps 2 and 3 to select more NAMs if desired.

5. Specify the Report Interval (in seconds), which specifies the ART-related polling interval for the NAM device.

6. Specify the Max Entries value, which represents the maximum number of data points the NAM device can store in that polling interval for ART-related data.

7. Specify the Maximum Response Time (in milliseconds).

Caution If the same data source is added to more than one ART Group, the three parameter values (Report Interval, Max Entries, and Maximum Response Time) must be the same as the other ART Group(s) containing the same data sources to maintain consistency. If you attempt to enter values for a data source that differ between the ART Groups in which it appears, the system will return an error message indicating that the new ART Group cannot be saved because the values you entered do not match those in the previously created ART Group.

Factors you should consider include the following:

•Unless you have a specific need to collect ART data over the long term, ART groups should normally be created for short-term monitoring and troubleshooting of problematic areas of the network to avoid storage of unnecessary or excessive data.

•ART report data will be more meaningful and easier to interpret if you limit the number of data source types you attach to each NAM within an ART Group.

•To generate Network Flight Time reports, it is necessary to include both server and client NAMs in a single ART Group.

•To ensure easier ART Group selection when generating reports, give careful consideration to the name you assign to each group; the drop-down group selection lists in report parameters shows only the group name and not the description.

Note Although Cisco PVM collects data from both server and client NAMs, the system cannot identify which NAM is closest to each server or client. Therefore, when you generate ART reports, the system lets you decide which NAMs you want to see. If you have a significant number of NAMs, remember that you can name individual NAMs to give them a more meaningful designation when they appear in Cisco PVM drop-down lists. See Editing NAMs, page 2-8 for more information on changing NAM names.

ART Data Collection

Cisco PVM automatically begins collecting traffic statistics for a NAM as soon as it is added to the system. However, collection of data into the ART database occurs only if ART Groups have been set up in Cisco PVM.

It is important to note that even if the NAM has been configured to collect ART statistics, you will not be able to view the data in ART reports until ART Groups have been set up in Cisco PVM. Cisco PVM is able to recognize whether ART data collection has been disabled for a specific data source, and will raise an alert since data collection has ceased. To restart collection in this case:

•Delete and re-apply the data source to an ART Group or,

•Check whether the data source's attached device needs to be enabled in Cisco PVM Setup or has another problem that requires troubleshooting.

If a data source is part of any ART Group, then PVM will enable data collection for that source. To disable data collection entirely in Cisco PVM, the data source must be removed from all ART Groups.

Note Historical ART information associated with a data source is maintained in the database even if the data source is removed from an ART Group.

Viewing the List of ART Groups

The ART setup GUI provides a list of all the ART Groups currently configured in the system, including names and descriptions. The list can be filtered by group name, as well as the NAMs and data sources included in the group.

Step 1 Click ART in the Cisco PVM dashboard or click Setup in the ART navigation menu if you are already in the ART GUI.

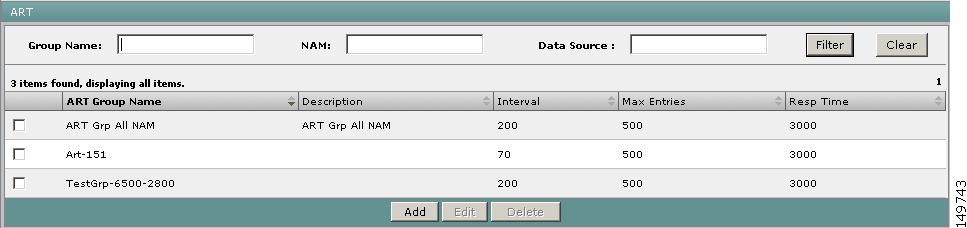

The list of ART groups displays in the ART Window (see Figure 5-2).

Figure 5-2 ART Window—List of ART Groups

Table 5-1 describes the fields in the ART window.

Table 5-1 ART Window Field Descriptions

Field

Type

Description

Group Name

Text box

Allows entry of ART Group names or character strings for filtering the list.

NAM

Text box

Allows entry of NAM names or character strings, including the wildcard character (%), for filtering the list.

Data Source

Text box

Allows entry of data source names or character strings for filtering the list.

Filter

Button

Filters the list using the entered criteria.

Clear

Button

Clears all of the fields in the filter area for performing a new filter operation.

ART Group Name

Column header

Displays the user-defined name of the ART Group with a check box next to each name to select an individual group for editing.

Description

Column header

Displays the user-defined description of the ART Group.

Interval

Column header

Displays the ART-related polling interval of the NAM device, in seconds.

Max Entries

Column header

Displays the value representing the maximum number of ART-related data points the NAM device can store in the assigned polling interval.

Resp Time

Column header

Displays the maximum time, in milliseconds, that the NAM will wait for a response between a client/server pair before tagging the data as timed out.

Add

Button

Opens the Create ART Group window for adding new groups.

Note Cisco PVM adds ART data to the database for a specific NAM data source only if that source has been added to an ART Group.

Edit

Button

Displays the Edit ART Group window for viewing group details and making changes.

Note This button is dimmed until you select a group from the table or if you select more than one group.

Delete

Button

Deletes selected ART Group(s) from the Cisco PVM database.

This button is dimmed until you select at least one group from the table.

Step 2 Review the list of ART Groups by:

•Clicking the column header names to sort the list or,

•Using the pagination links on the right side of the window header.

Filtering the ART Groups list

You can filter the list using any or all of the criteria at the top of the ART Groups list. You can use the wildcard symbols (%) or (*) in the text fields to broaden your search, or leave fields blank to return the list of all ART Groups.

Step 1 Open the ART Groups list by:

•Clicking the ART tab or,

•Clicking Setup in the navigation menu if you are already in the ART GUI.

The ART Groups list is displayed, showing the list of groups that have been set up in Cisco PVM.

Step 2 Enter the character string with which you want to filter the list in any or all of the following fields:

•Group Name

•NAM and

•Data Source.

Step 3 Click Filter.

The window refreshes to display the filtered list of ART Groups.

Tip To clear the filter fields and begin a new search, click Clear.

Adding an ART Group

Step 1 Click ART in the Cisco PVM dashboard or Setup in the ART navigation menu if you are already in the ART GUI.

The list of ART groups appears.

Step 2 Click Add.

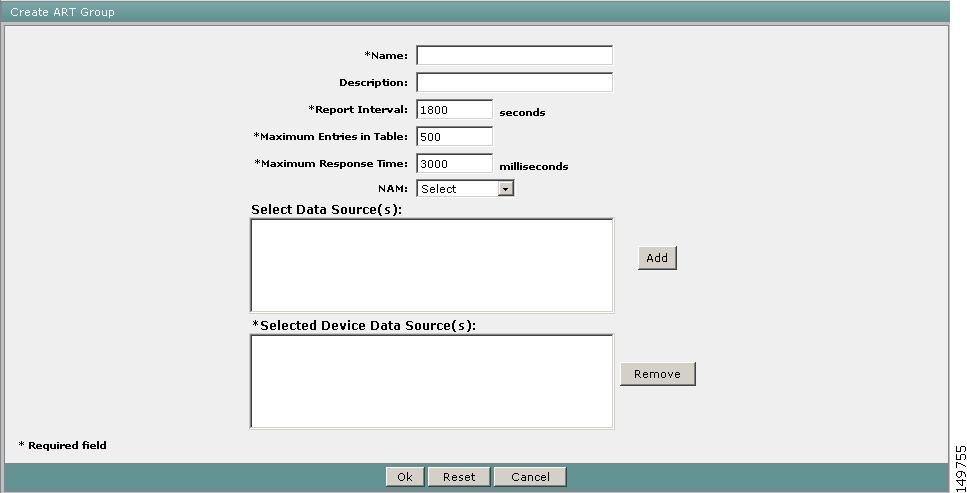

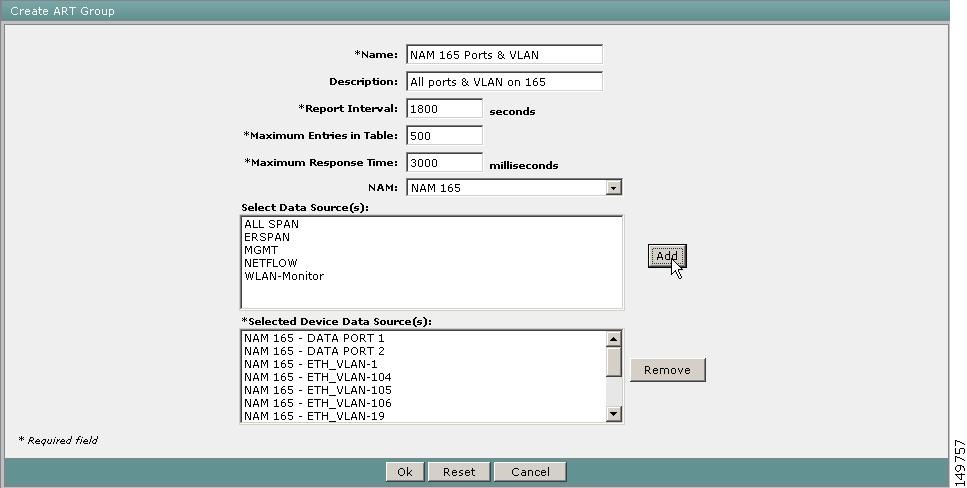

The Create ART Group window appears (see Figure 5-3).

Figure 5-3 Create ART Group Window

Table 5-2 describes the fields in the Create ART Group window.

Table 5-2 Create ART Group Field Descriptions

Field

Type

Description

Name

Text box

Entry of the ART Group name.

Note This name appears in the drop-down lists for ART Group selection in ART report parameters.

Description

Text box

Entry of the ART Group description.

Note This description appears on the ART Group list window only.

Report Interval

Text box

Entry of the ART-related data polling interval by the NAM device, in seconds. The default value is 1800 seconds (30 minutes).

Maximum Entries in Tables

Text box

Entry of the maximum number of data points the NAM device can store in the assigned polling interval for ART-related data. The default value is 500.

Maximum Response Time

Text box

Entry of the maximum time, in milliseconds, that the NAM will wait for a response between a client/server pair before tagging the data as timed out. The default value is 3000 milliseconds.

Note You can always re-adjust this parameter by editing the ART Group in Cisco PVM.

NAM

Drop-down list

Selection of any client or server NAM available in Cisco PVM.

Note You can select only one NAM at a time from the list. NAMs must have been added or imported into Cisco PVM from the NAM home window before they will appear in the NAM list.

Select Data Source(s)

List box

Selection of available data sources for the selected NAM.

Note Multiple data sources can be selected by pressing Ctrl or Shift while selecting, or by clicking and dragging over adjacent data sources.

Add

Button

Adds the selected data source(s) with their attached NAMs to the Selected Device Data Source(s) list box.

Selected Device Data Source(s)

List box

Displays all of the data sources selected in the Select Data Source(s) list box; individual data sources can be selected in this box for deletion if desired.

Note Multiple data sources can be selected for removal by pressing Ctrl or Shift while selecting, or by clicking and dragging over adjacent data sources.

Remove

Button

Removes any NAM data sources selected in the Selected Device Data Source(s) list box.

OK

Button

Saves the ART Group to the system.

Reset

Button

Clears all entries and selections in the Create ART Group window without aborting the add process.

Cancel

Button

Aborts the Create ART Group process and returns to the ART Group list without saving any changes.

Step 3 Enter the name you want to assign to the group in the Name field.

Step 4 Enter a description in the Description field.

Step 5 (Optional) Enter a new value in the Report Interval box if you want to specify a new ART-related polling interval by the NAM device.

Step 6 (Optional) Enter a new value in the Maximum Entries in Table box if you want to specify a new maximum number of data points the NAM device can store in the assigned ART-related polling interval.

Step 7 (Optional) Enter a new value in the Maximum Response Time box if you want to specify a new time, in milliseconds, that the NAM will wait for a response between a client/server pair before tagging the data as timed out.

Step 8 Select the first NAM whose data source(s) you want to include in the new group from the NAM drop-down list.

The Select Data Source(s) list box is populated with all of the data sources available for the selected NAM (see Figure 5-4).

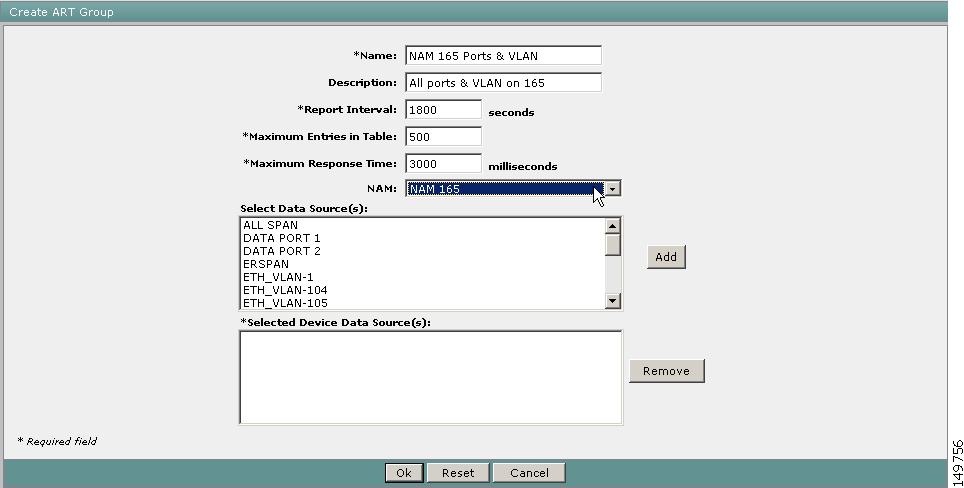

Figure 5-4 Create ART Group - Available NAM Data Sources

Step 9 Choose the data source(s) you want to include in the ART Group for this NAM from the Select Data Source(s) list box.

Step 10 Click Add.

The selected data source(s) are moved to the Selected Device Data Source(s) list box (see Figure 5-5).

Figure 5-5 Create ART Group - Selected Data Sources

Step 11 (Optional) Add an additional data source for the currently selected NAM by choosing from the Selected Data Source(s) list and clicking Add.

Step 12 Continue to add data sources from other NAMs by repeating Steps 5 through 8 of this procedure.

Step 13 Review the list in the Selected Device Data Source(s) and delete any unwanted data sources from the list by selecting the data sources and clicking Remove.

The window refreshes to display the Selected Device Data Source(s) list without the data source(s) you selected for removal (see Figure 5-6). The removed data source(s) reappear in the Select Data Source(s) list when that list is populated from the associated NAM selected in the NAM list.

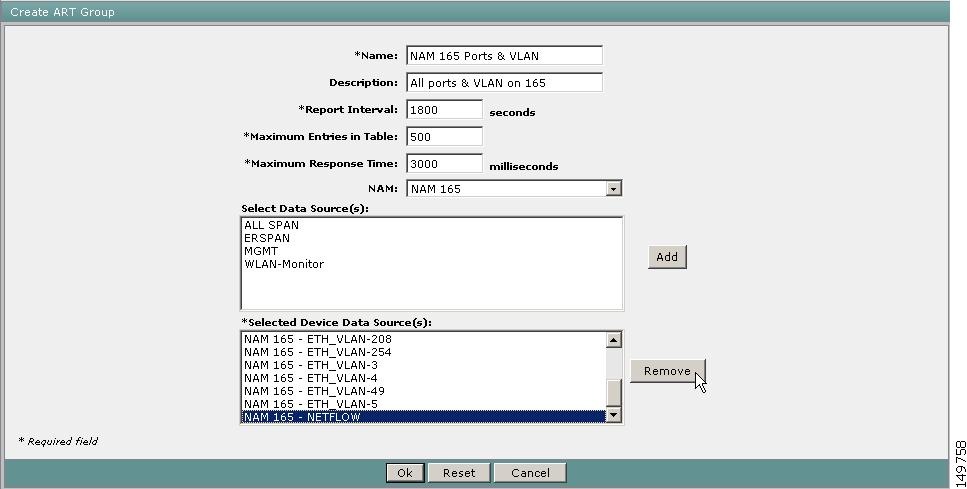

Figure 5-6 Create ART Group - Data Source Removal

Step 14 Click OK. Cisco PVM adds the new ART Group to the system and displays the ART Group list with the new group and the message, "[ART Group Name] was added" in the window header.

Note Clicking Cancel displays the ART Groups list without saving a new group. Clicking Reset clears all selection and entries in the Create ART Group window, except for the default values.

Editing an ART Group

To edit elements of an ART group, complete the following steps:

Step 1 Click ART on the Cisco PVM dashboard, or click Setup if you are already in the ART GUI. The ART window opens to display the list of ART Groups.

Step 2 Perform one of the following actions to find the ART Group you want to edit:

•Reviewing the displayed ART Groups list.

•Clicking column headers to sort the list.

•Filtering the list.

•Using the pagination links on the right side of the window header.

Step 3 Check the box next to the ART Group you want to edit.

The Edit button is enabled on the ART window.

Note The Edit button becomes dimmed if you select more than one ART Group on the ART window.

Step 4 Click Edit.

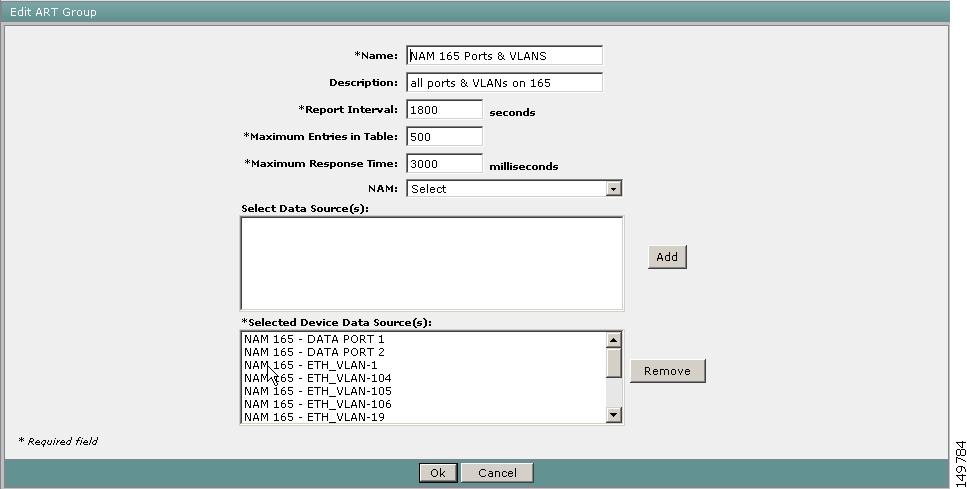

The Edit ART Group window appears, showing all of the NAM data sources that have been attached to the group (see Figure 5-7).

Figure 5-7 Edit ART Group Window

Note All of the fields on the Edit ART Group window are available for editing. See Table 5-2 for descriptions of these fields.

Step 5 Enter any desired changes to one or more of the following fields:

•Name

•Description

•Report Interval

•Maximum Entries in Table

•Maximum Response Time

Step 6 Review the Selected Device Data Source(s) list at the bottom of the window to decide which NAM data sources need to be removed or added to the ART Group.

Step 7 (Optional) If desired, remove Selected Device Data Source(s) by selecting items in the list at the bottom of the window and clicking Remove (see Figure 5-8).

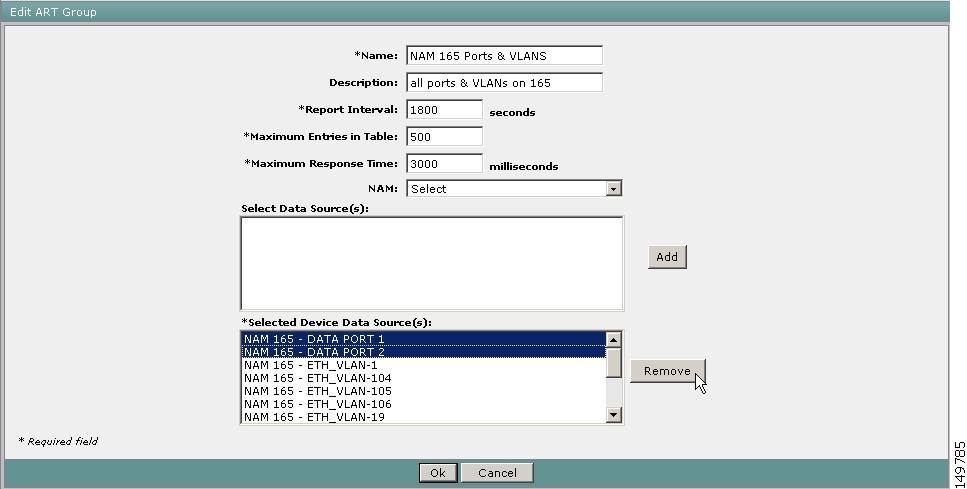

Figure 5-8 Edit ART Group—Select Data Sources for Removal

Note You can select multiple items in the list using Ctrl or Shift. The removed data sources will not reappear in the Select Data Source(s) list at this point.

The selected NAM data sources and associated devices are removed from the Selected Device Data Source(s) list, and therefore from the ART Group.

Step 8 (Optional) If desired, add data sources to the ART Group:

a. Select a NAM from the NAM drop-down list. The available data source groups for the selected NAM appear in the Select Data Source(s) list (see Figure 5-9).

b. Select one or more data sources from the Select Data Source(s) list.

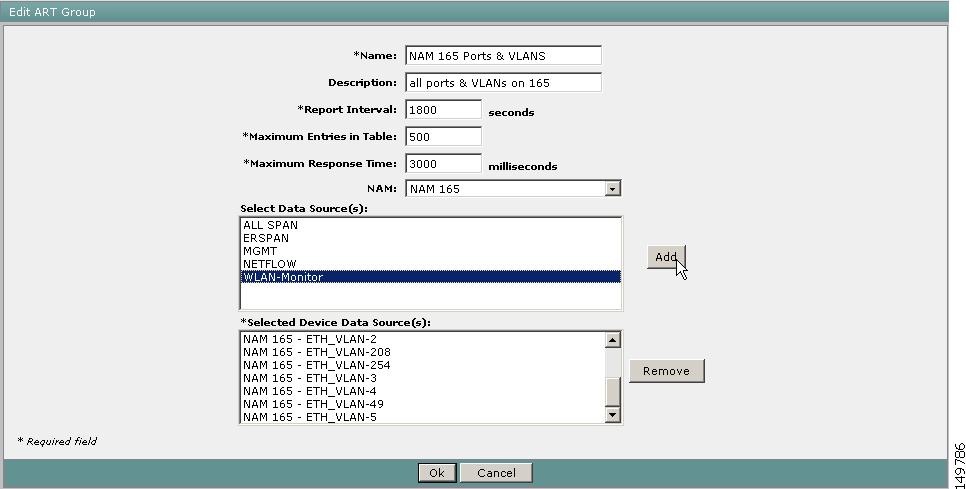

Figure 5-9 Edit ART Group—Add New Data Source

c. Click Add. The new data source appears at the bottom of the Selected Device Data Source(s) list.

d. (Optional) If desired, repeat steps (a) through (c) to add other data sources.

Step 9 Click OK.

The ART window appears with the message, "ART Group [name] was updated."

Note If a NAM device or NAM data source is deleted from the system, the Edit ART Group window will not display the deleted NAMs or data sources as part of an ART Group originally containing the deleted elements.

Deleting an ART Group

To delete multiple ART Groups at the same time from the ART Groups window, complete the following steps:

Step 1 Click ART on the Cisco PVM dashboard, or click Setup if you are already in the ART GUI.

The ART window appears the current list of ART Groups.

Step 2 Find the ART Group you want to edit by:

•Reviewing the displayed ART Groups list.

•Clicking column headers to sort the list.

•Filtering the list.

•Using the pagination links on the right side of the window header.

Step 3 Check the box(es) next to the ART Group(s) you want to delete.

The Delete button is enabled on the ART window.

Step 4 Click Delete. The system prompts you to confirm the deletion.

Step 5 Click OK in the confirmation dialog.

The ART window refreshes without the deleted group(s) and the message, "The selected ART Group was deleted."

ART Reports

Reports you generate under the Cisco PVM ART tab can display aggregated Application Response Time data from the last 24 hours, or from the previous days, weeks, months, or years, depending on when the NAM began collecting ART data.

Historical ART data associated with a data source is maintained in the database even if that data source is removed from an ART Group. Cisco PVM records the time the data source was removed, but maintains the original data source in ART report search criteria that belong to a time interval during which that data source still existed in the ART Group.

This section contains the following topics:

•Report Parameters

•Report Types

•Network Flight Time

•Server Response Time

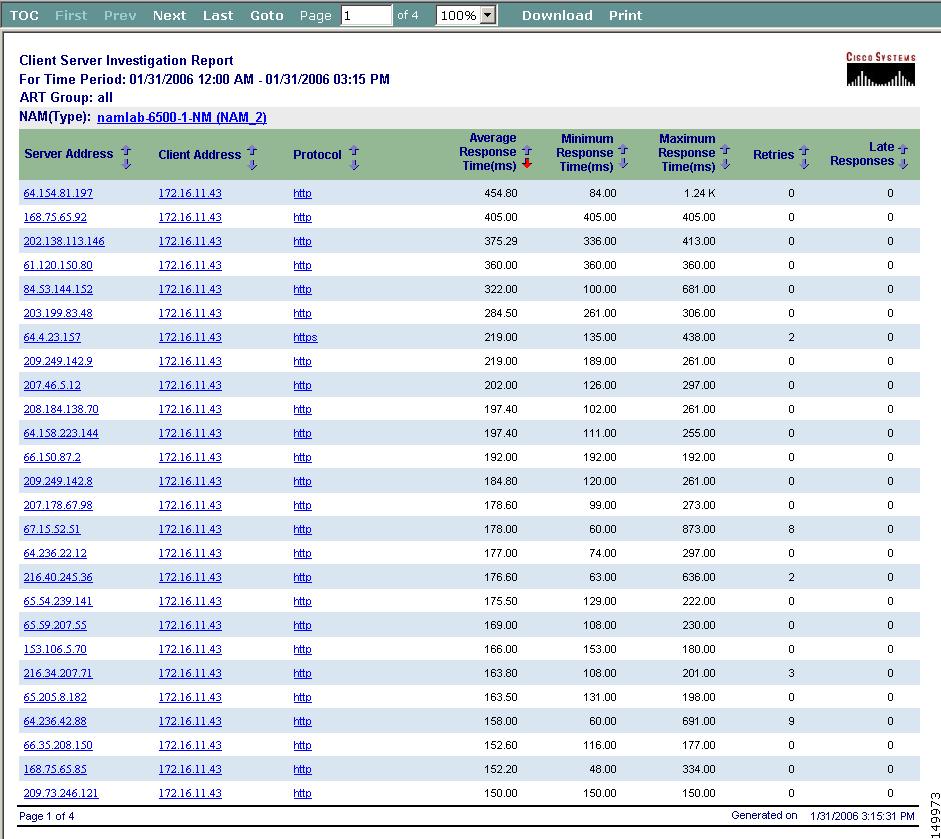

•Client/Server Investigation

•Client/Server Response Time

Report Parameters

The ART Reports GUI contains report parameter setup options that differ in certain respects from the Monitor and Reports functions in Cisco PVM. When you click Reports in the ART navigation menu, the ART window header appears with the report parameters pane defaulted to Network Flight Time (see Figure 5-10).

Figure 5-10 ART Reports GUI

Note Whenever you run an ART report the Generate Reports menu at the left automatically collapses. Additionally, whenever you click Reports in the Generate Reports menu, the list of available reports automatically expands.

Archived Reports

The ART GUI allows you to view archived reports for each of the ART report types. Figure 5-11 displays the Archived Reports menu.

Figure 5-11 ART Archived Reports Menu

If you do not currently have a report selected to run under the Generate Reports menu, you can view a list of archived reports by selecting any of the report names under the Archived Reports menu.

•Network Flight Time

•Server Response Time

•Client/Server Investigation or

•Client/Server Response Time

Figure 5-12 displays the list of Server Response Time Archived Reports.

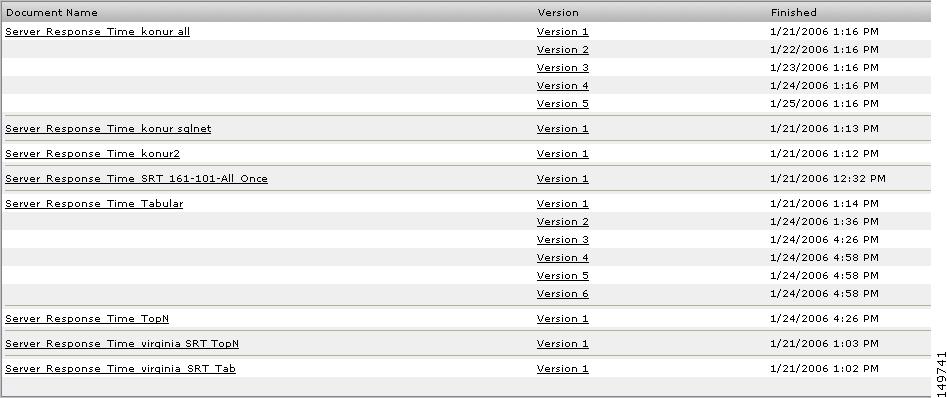

Figure 5-12 Archived Reports—Server Response Time Example

Table 5-3 describes the fields in the Archived Reports window.

Table 5-3 Archived Reports (SRT)—Field Descriptions

Field

Type

Description

Document Name

Hyperlink

Displays the archived document name, which includes the report name specified by the user who ran the report, and the ART Group used to report data aggregation. Clicking the hyperlink displays the latest (most recent) version of the report run by the listed user and ART Group.

Version

Hyperlink

Displays the version number of the report run at the date and time listed in the Finished column. Clicking the hyperlink displays the version of the report matching the specified date and time.

Finished

Fixed Text

Displays the date and time the report was run.

Current Report Archives

If you have a report already selected under the Generate Reports menu, clicking Current Report Archives menu item under Archived Reports generates the same list for the selected report as shown in Archived Reports. Figure 5-13 shows the Current Report Archives menu item.

Figure 5-13 Archived Reports—Current Report Archives

Note The list of archived reports that appears in the ART GUI display pane depends on the last ART report selected in the Generate Reports menu.

Scheduled Reports

The ART GUI allows you to view a list of reports that are scheduled to run, pending, currently running, or completed. Figure 5-14 shows the menu item for displaying the list of scheduled reports.

Figure 5-14 View Schedules Menu Item

Figure 5-15 shows the View Schedules display, containing tabs for each of the Schedules, Pending, Running, and Completed report tabs.

Figure 5-15 Scheduled Reports

Table 5-4 describes the fields in the View Schedules window.

Table 5-4 View Schedules—Field Descriptions

Field

Type

Description

Report Name

Fixed Text

Displays the name of the ART report entered by the user.

Document Name

Hyperlink

Displays the name and type of the scheduled ART report run and provides a link that opens the report.

Note The report is only available for viewing if the Result field shows "Succeeded."

Result

Fixed Text

Displays the ART report result:

•Succeeded—no problems were encountered with the database and the data is still aggregated and available for viewing.

•Expired—the report ran, but the aggregated data is no longer available for viewing.

•Failed—a problem was encountered aggregating data for the report, such as a deleted ART or Data Source Group.

Finished

Fixed Text

Shows the date and time the ART report run was completed by the system.

Details

Icon

Displays the details of the scheduled job when clicked.

Note Clicking Open displays the report; clicking Delete Job removes the report from the system.

Note The remaining tabs in the Scheduled Reports window display on Report Name and Run Time fields, but allow easy deletion of reports that have not yet completed (Schedules, Pending, and Running tabs) by displaying a Delete icon.

Report Types

The response time reports allow selection of the Report Type on the report parameters window, which allows you to choose the format of the data display:

•Tabular—Displays the number of packets and bytes collected for the specified report. The data displayed is the total number of packets and bytes collected since collection began, unless you select a specific time period.

•TopN—Displays the data collected for the top most active data streams for the selected ART Group in the report being generated. The data is displayed as a column-type chart, with green link boxes for the various metrics by which the TopN chart can be viewed. The value of N is configurable under Setup > Preferences.

Note This option is not available for Network Flight Time reports.

Network Flight Time

The Network Flight Time (NFT) report enables you to discover whether the network or the server is causing delayed response times. Network Flight Time is calculated as the difference of the response times on the NAM closer to the client versus the NAM closer to the server.

The response time collected by the NAM at the client location represents the total average round trip delay time of the request and response. The response time collected by the NAM at the server location represents the average server latency time. Cisco PVM can therefore calculate the average network flight time for the request between the client and the server:

Network Flight Time = Total Round Trip Time - Server Latency Time

Note You must be familiar enough with your network setup to be able to determine which NAMs reside closest to servers and clients.

To generate an NFT report, enter the following parameters:

•Reporting period—The number of previous days (defaulted to today), weeks, months, or years, or a specific date range that defaults to the previous 30 minutes

•Client IP—Required field with no set default value

•ART Group—Provides a list of available groups for selection upon search

•Server IP—Provides a list of available NAMs for selection upon search

•Client-side NAMs—Provides a list of NAMS based on the selected client IP, ART group, server IP, and reporting period upon search

•Server-side NAMs—Provides a list of NAMs for selection excluding those selected as client-side NAMs upon search

•Scheduling—Provides the option to run a report immediately, at a later time, or recurrently

This section contains the following topics:

•NFT Report Contents

•Generating an NFT Report

NFT Report Contents

The Network Flight Time report (Figure 5-16) contains the following information:

•Server Response Time—An average based on the ART information provided by the selected server-side NAMs.

•Client Response Time—An average based on the ART information provided by the selected client-side NAMs.

•Network Flight Time—The difference between the client and server response times.

•NFT per Protocol table—Shows average values for Server Response Time (SRT), Client Response Time (CRT), and NFT, and contains hyperlinks to the Network Flight Time per Protocol report. You can click on a protocol link to view a protocol-specific NFT report, where the values displayed are specific to the protocol rather than the average over all protocols.

Figure 5-16 Sample Network Flight Time Report

Table 5-5 describes the fields in the Network Flight Time report.

Table 5-5 Network Flight Time Report Field Descriptions

Field

Description

Server

The host address of the server.

Client

The host address of the client.

ART Group

The name of the ART Group selected to run the report.

Server NAMs

The NAM(s) closest to the server whose data source(s) are included in the selected ART Group.

Client NAMs

The NAM(s) closest to the client whose data source(s) are included in the selected ART Group.

Graphic

The response time in milliseconds versus the collection time point for all protocols, including:

•Client Response Time

•Server Response Time

•Network Flight Time

Network Flight Time per Protocol table

The average response times (in milliseconds) for each protocol associated with the data sources assigned to the selected ART Group, including:

•Protocol (the name of each protocol displayed as a hyperlink that opens the Network Flight Time per Protocol report)

•Server Response Time

•Client Response Time

•Network Flight Time

NFT Per Protocol Report Contents

The Network Flight Time per Protocol report displays an NFT graphic specific to individual protocols for a Client/Server NAM pair, rather than the average NFT for all protocols. This report is available only through the hyperlinks in the Network Flight Time per Protocol summary table at the bottom of the Network Flight Time report. Figure 5-17 shows a sample NFT per Protocol report.

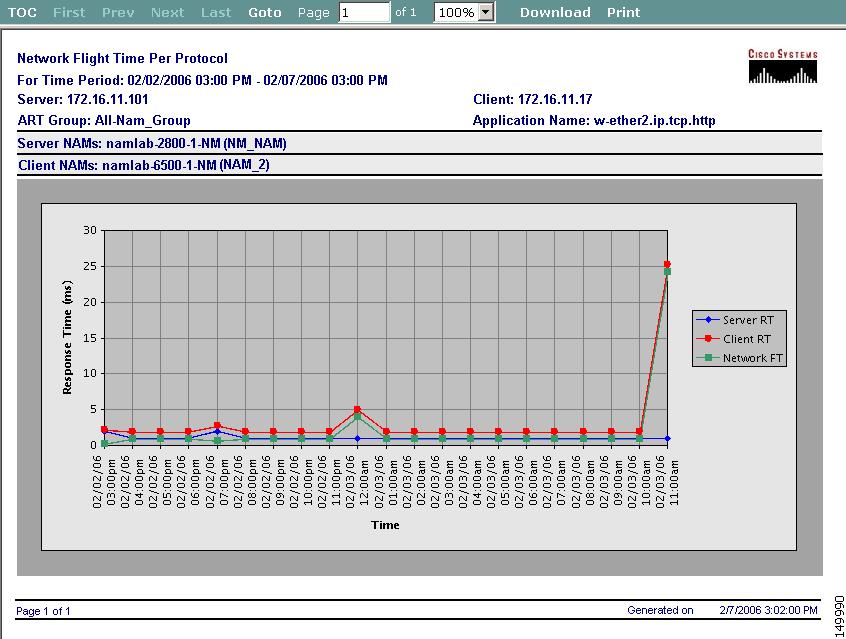

Figure 5-17 Sample Network Flight Time per Protocol Report

Table 5-6 describes the fields in the Network Flight Time per Protocol report.

Table 5-6 Network Flight Time per Protocol Report Field Descriptions

Field

Description

Server

The host address of the server.

Client

The host address of the client.

ART Group

The name of the ART Group selected to run the original Network Flight Time report.

Application Name

The name of the protocol selected from the Network Flight Time per protocol summary table.

Server NAMs

The NAM(s) closest to the server whose data source(s) are included in the selected ART Group.

Client NAMs

The NAM(s) closest to the client whose data source(s) are included in the selected ART Group.

Graphic

The response time in milliseconds versus the collection time point for the selected protocol, including:

•Client Response Time

•Server Response Time

•Network Flight Time.

Generating an NFT Report

To generate an NFT report, complete the following steps:

Step 1 Click ART on the Cisco PVM dashboard.

The display defaults to the ART Groups list under the ART Setup menu.

Step 2 Click Reports in the navigation menu.

The ART Reports window defaults to the Network Flight Time report parameters (see Figure 5-18).

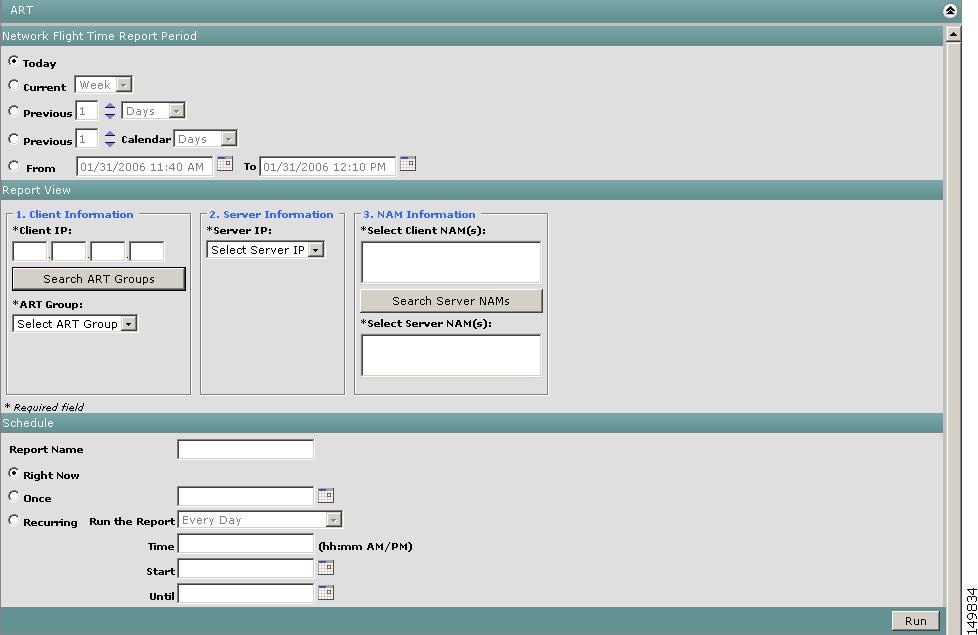

Figure 5-18 Network Flight Time Parameters Pane

Table 5-7 describes the fields in the Network Flight Time report parameters pane.

Table 5-7 Network Flight Time Parameters Pane Field Descriptions

Parameter

Description

Options

Report Period

Allows you to specify the time range used for analysis. The Previous n selections provide an easy way to select the date and time range without having to specify a date.

Today

•Today—The current day starting from 12:00 AM and ending with the current server local time.

Current

•Week—Starting at 12:00 AM Sunday of the current week and ending with the current server local time.

•Month—startIng at 12:00 AM of the first day of the current month and ending with the current server local time.

•Year—Starting at 12:00 AM on January 1 of the current year and ending with the current server local time.

Previous n—Starting from the n days, weeks, months, or years back from the current server local time and ending with the current server local time.

Previous n Calendar

•Calendar Days—starting at 12:00 AM of the previous nth day and ending at midnight yesterday.

•Calendar Weeks—starting on at 12:00 AM Sunday of the previous nth week and ending at midnight last Saturday.

•Calendar Months—starting at 12:00 AM on the first of the previous nth month and ending at midnight of the last day of last month.

•Calendar Years—starting at 12:00 AM on January 1 of the previous nth year and ending at midnight December 31 of last year.

From/To—Calendar date and time range selected using the calendar pop-up.

Report View

Allows you to select the specific client, server, and NAM information for the NFT report.

Note If no ART Groups exist for the client IP address you entered, the system displays the message, "No ART Groups were found for the client IP address." The Cisco PVM Administrator must create an ART Group for NAM data sources closer to the desired host address.

Client Information

•Client IP—accepts the numerical client host identifier for searching the available ART Groups on the desired client.

•Search ART Groups—searches the ART database for ART Groups containing the client NAM data sources that participated in ART data collection during the specified time interval, and populates the ART Group list.

•ART Group—allows selection of the ART Group and populates the Server IP drop-down list with the server addresses involved in ART data collection for the selected ART Group and client address during the specified time interval.

Server Information

Server IP—Allows selection of the desired server IP address and populates the Select Client NAM(s) list box with all the client NAMs that have ART information for the selected client and server host addresses during the specified time interval.

NAM Information

•Select Client NAM(s)—allows selection of the specific client NAMs on which to report NFT data.

•Search Server NAMs—populates the Select Server NAM(s) list box with all of the server NAMs that have ART information for the selected client and server host addresses during the specified time interval.

•Select Server NAM(s)—allows selection of the specific server NAMs on which to report NFT data.

Schedule

Allows you to specify the name of the report and when it will run.

•Report Name—Text entry of a user-specified name for the report.

•Right Now—Runs the report immediately.

•Once—Selection of a single calendar day.

•Recurring

–Run the Report—the day on which to run the report.

–Time—the time to run the report on day selected in the Report Period.

–Start—the date when the report schedule starts.

–Until—the date when the report schedule ends.

Note If the end date is not specified, the report is not bound by an ending date.

Step 3 In the Report Period section, choose the time range to be used for analysis using the options shown in Table 5-8.

Table 5-8 Choosing a Report Period

To use the period for...

Choose...

Then...

Today only

Today

N/A

The current week, month, or year

Current

Select the desired period from the drop-down list.

The previous n days, weeks, months, or years

Previous

a. Enter the value of n in the field (or use the arrows to increment or decrement the value).

b. Select the period from the drop-down list.

The previous n calendar days, weeks, months, or years

Previous - Calendar

a. Enter the value of n in the field (or use the arrows to increment or decrement the value).

b. Select the period from the drop-down list.

Start and end dates

From

a. Click the From calendar icon.

b. Choose the starting date and enter the time from the pop-up calendar, then click OK.

c. Click the To calendar icon.

d. Choose the ending date and enter the time from the pop-up calendar, then click OK.

Step 4 Find the ART Group containing the client and attached data sources on which you want to run the report:

a. Enter the desired client's IP address in the Client IP field and click Search ART Groups. The ART Group drop-down list is populated with ART Groups containing the client host address you entered (see Figure 5-19).

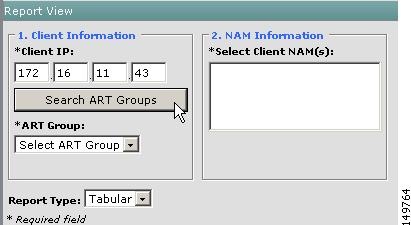

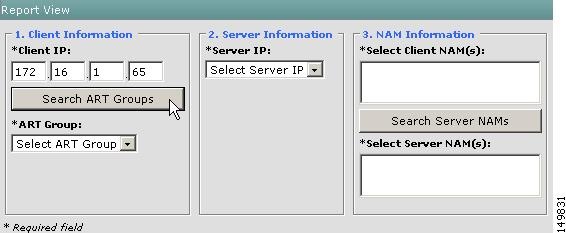

Figure 5-19 Network Flight Time—Search ART Groups

Note If no ART Groups are found, the system displays the message, "No ART Groups were found for the client IP address." If this happens, you can click the report name in the Generate Reports menu to clear the parameters pane and start over. Or, try changing the reporting period to catch the beginning of ART data collection for the desired IP address.

b. Select the correct ART Group from the ART Group drop-down list.

The Server IP list is populated with available server IP addresses (see Figure 5-20).

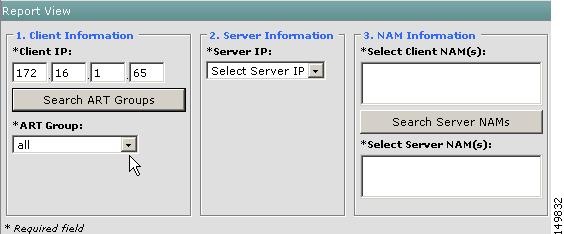

Figure 5-20 Network Flight Time—Select ART Group

Step 5 Select the server for which you want NFT data from the Server IP drop-down list.

The Select Client NAM(s) list is populated with available server NAMs (see Figure 5-21).

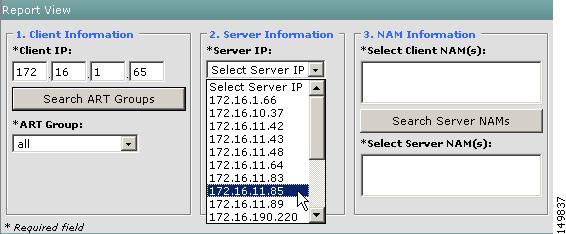

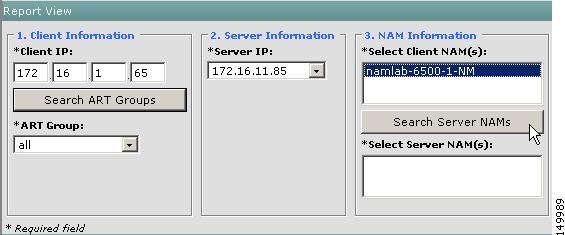

Figure 5-21 Network Flight Time—Select Server

Step 6 Select the desired client NAM(s) from the Select Client NAM(s) list.

Tip You can select multiple NAMs by holding down Ctrl or Shift while selecting.

Step 7 Click Search Server NAMs.

The Select Server NAM(s) list is populated with the server NAMs that have ART information specific to the selected client NAMs (see Figure 5-22).

Figure 5-22 Network Flight Time—Search Server NAMs

Step 8 Select the desired server NAM(s) from the Select Server NAM(s) list.

Step 9 In the Schedule section, select when the report will be run using the options shown in Table 5-9.

Table 5-9 Scheduling a Report

To run the report...

Choose...

Then...

Immediately

Right Now

N/A

For a single date

Once

a. Click the calendar icon.

b. Choose the run date from the pop-up calendar.

Repeatedly at specific time points

Recurring

a. Select the day of recurrence from the Run the Report drop-down list.

b. Click the Start calendar icon to choose the first date and time of the recurrence interval and click OK.

c. Click the Until calendar icon to choose the last date of the recurrence interval and click OK.

Step 10 Click Run.

The Network Flight Time report appears in the ART window.

Step 11 To run another report:

•Display the parameters pane with the last set of selected parameters by clicking the Expand icon in the upper right corner of the window or

•Display the Generate Reports menu by clicking the Expand icon at the upper left of the window, then select another report.

Accessing the NFT Per Protocol Report

The Network Flight Time per Protocol report is available as a drill-down from the Network Flight Time report only. Refer to the "Generating an NFT Report" section for specific NFT reporting steps or the Reports Navigation, page 1-16 for report navigation information.

Step 1 Generate the Network Flight Time report for the desired Client/Server NAM pair(s).

Step 2 Window through the report to find the correct NAM pair using the pagination links in the header of the NFT report.

Step 3 Scroll to the bottom of the NFT report window to view the Network Flight Time per Protocol summary table (see Figure 5-23).

Figure 5-23 Network Flight Time per Protocol Summary Table

Step 4 Click the name of the desired protocol beneath the Protocol column header. The ART reports window refreshes to display the Network Flight Time per Protocol report for the individual protocol on the selected Client/Server NAM pair.

Server Response Time

The Server Response Time (SRT) report shows the response times for each server associated with a data source in an ART Group. The SRT report can be used to analyze whether slow network response time is due to a particular server. To generate a report, you specify the following properties:

•Reporting period—The number of previous days (defaulted to today), weeks, months, or years, or a specific date range that defaults to the previous 30 minutes

•Server IP—optional

•ART Group—The system provides a list for selection based on the selected reporting period and optional server IP

•Protocol—Defaults all protocols available, but provides a list for selection based on the selected ART Group, reporting period, and optional server IP

•Report Type—Tabular or TopN chart display

•Scheduling—Immediately, at a later time, or recurrent

This section contains the following topics:

•SRT Report Contents

•Generating an SRT Report

SRT Report Contents

The Server Response Time report (Figure 5-24) displays the server response time for each server assigned to an ART Group, including:

•NAM name

•Server IP address with a drill-down link to the Host Details report

•Protocol with a drill-down link to the Application Details report

•the number of clients

•Average response time

•Minimum response time

•Maximum response time

•Number of retries

•Number of late responses

Note For further information regarding the Host and Application Details reports, see Appendix B, "Report Samples for Monitor and Reports."

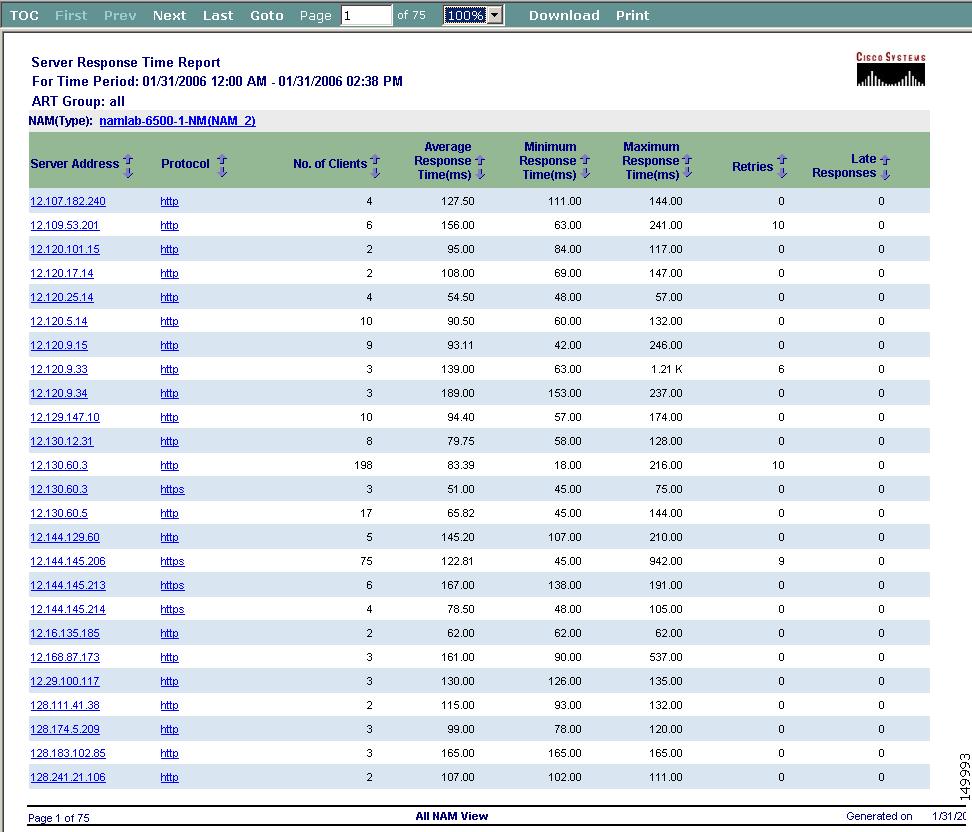

Figure 5-24 Sample Server Response Time Report—Tabular

Table 5-10 describes the fields available in the Server Response Time report.

Table 5-10 Server Response Time Report Field Descriptions

Field

Description

NAM

The name of the server NAM assigned to the ART Group.

Type

The type of NAM device attached to the server:

•NAM_1

•NAM_2

•NM_NAM

Server Address

The host address of the server to which the NAM is attached.

Note The server hyperlink opens the Host Details report.

Protocol

The name of each protocol running on the server whose data source is attached to the ART group selected to run the report.

Note The protocol hyperlink opens the Application Details report.

Clients

The number of clients with which the server has communicated in the selected time period using a specific protocol.

Avg Response

The average response time between the server and clients during the report interval.

Min Response

The minimum value of the individual response times during the report interval.

Max Response

The maximum value of the individual response time during the report interval.

Retries

The total number of application-layer client retries collected during the report interval.

Late Responses

The number of times the NAM has timed-out a client request while waiting for a server response.

Figure 5-25 shows the TopN view of the Server Response Time information. You can click the metric names inside the green boxes to view the different variables.

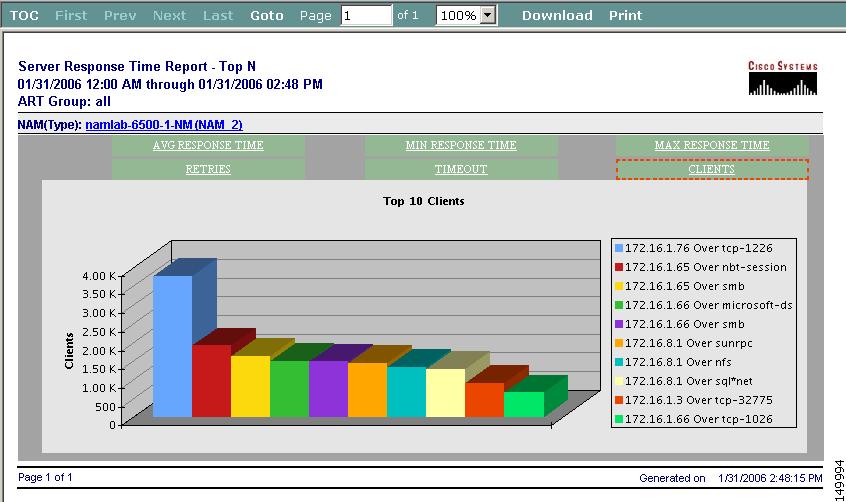

Figure 5-25 Server Response Time Report—TopN

Generating an SRT Report

To generate an SRT report, complete the following steps:

Step 1 Click ART on the Cisco PVM dashboard.

The display defaults to the ART Groups list under the ART Setup menu.

Step 2 Click Reports in the navigation menu.

The ART Reports window defaults to the Network Flight Time report parameters.

Step 3 Click Server Response Time from the Generate Reports menu.

The Server Response Time parameters pane is displayed (see Figure 5-26).

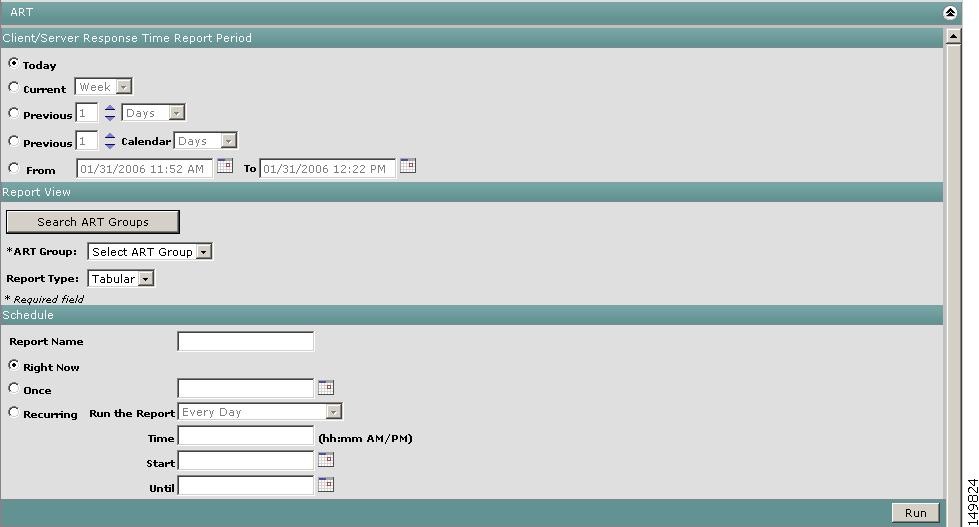

Figure 5-26 Server Response Time Parameters Pane

Table 5-11 describes the fields available in the SRT report parameters pane.

Table 5-11 Network Flight Time Parameters Pane Field Descriptions

Parameter

Description

Options

Report Period

Allows you to specify the time range used for analysis. The Previous n selections provide an easy way to select the date and time range without having to specify a date.

Today

•Today—The current day starting from 12:00 AM and ending with the current server local time.

Current

•Week—Starting at 12:00 AM Sunday of the current week and ending with the current server local time.

•Month—startIng at 12:00 AM of the first day of the current month and ending with the current server local time.

•Year—Starting at 12:00 AM on January 1 of the current year and ending with the current server local time.

Previous n—Starting from the n days, weeks, months, or years back from the current server local time and ending with the current server local time.

Previous n Calendar

•Calendar Days—starting at 12:00 AM of the previous nth day and ending at midnight yesterday.

•Calendar Weeks—starting on at 12:00 AM Sunday of the previous nth week and ending at midnight last Saturday.

•Calendar Months—starting at 12:00 AM on the first of the previous nth month and ending at midnight of the last day of last month.

•Calendar Years—starting at 12:00 AM on January 1 of the previous nth year and ending at midnight December 31 of last year.

From/To—Calendar date and time range selected using the calendar pop-up.

Report View

Allows you to select the specific client, server, and NAM information for the NFT report.

Note If no ART Groups exist for the client IP address you entered, the system displays the message, "No ART Groups were found for the client IP address." The Cisco PVM Administrator must create an ART Group for NAM data sources closer to the desired host address.

Server IP—Accepts the numeric server host identifier for searching the available ART Groups containing the ART data for the server.

Search ART Groups—Searches the ART database for ART Groups based on the NAM data sources providing the ART data, and populates the ART Group list. If the server IP is provided, the list is populated with only those data sources providing ART data for the desired server during the specified time interval.

ART Group—Allows selection of the ART Group either from the search results or from the list of groups available in the Cisco PVM ART database, and populates the protocol list.

Protocol—Allows selection of the communication protocol to be used in the report (defaults to All).

Report Type—Allows selection of the report view:

•Tabular (default)

•TopN

Schedule

Allows you to specify the name of the report and when it will run.

•Report Name—Text entry of a user-specified name for the report.

•Right Now—Runs the report immediately.

•Once—Selection of a single calendar day.

•Recurring

–Run the Report—the day on which to run the report.

–Time—the time to run the report on day selected in the Report Period.

–Start—the date when the report schedule starts.

–Until—the date when the report schedule ends.

Note If the end date is not specified, the report is not bound by an ending date.

Step 4 In the Report Period section, choose the time range to be used for analysis using the options shown in Table 5-12.

Table 5-12 Choosing a Report Period

To use the period for...

Choose...

Then...

Today only

Today

N/A

The current week, month, or year

Current

Select the desired period from the drop-down list.

The previous n days, weeks, months, or years

Previous

a. Enter the value of n in the field (or use the arrows to increment or decrement the value).

b. Select the period from the drop-down list.

The previous n calendar days, weeks, months, or years

Previous - Calendar

a. Enter the value of n in the field (or use the arrows to increment or decrement the value).

b. Select the period from the drop-down list.

Start and end dates

From

a. Click the From calendar icon.

b. Choose the starting date and enter the time from the pop-up calendar, then click OK.

c. Click the To calendar icon.

d. Choose the ending date and enter the time from the pop-up calendar, then click OK.

Step 5 Find the ART Group containing the servers and attached data sources on which you want to run the report:

a. Enter the desired server's IP address in the Server IP field and click Search ART Groups; leave the Server IP address blank to return a list of all ART Groups available in Cisco PVM for the specified time interval.

The ART Group drop-down list is populated with the ART Groups matching the search criteria (see Figure 5-27).

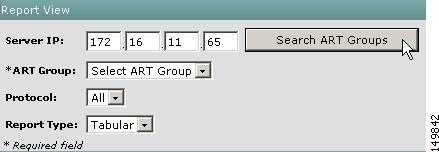

Figure 5-27 Server Response Time—Search ART Groups

Note If no ART Groups are found, the system displays the message, "No ART Groups were found for the specified report period and/or the server IP address." If this happens, you can click the report name in the Generate Reports menu to clear the parameters pane and start over. Or, try changing the reporting period to catch the beginning of ART data collection for the desired IP address.

b. Select the correct ART Group from the ART Group drop-down list. The Protocol list is populated with the protocols available from the selected ART Group during the time interval entered.

Step 6 Select the server protocol for which you want to see response time data from the Protocol drop-down list (see Figure 5-28).

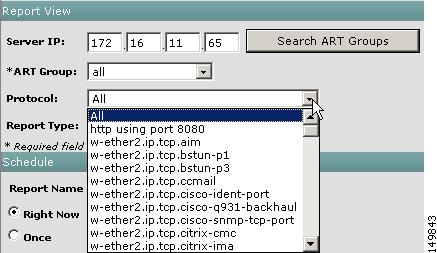

Figure 5-28 Server Response Time—Select Protocol

Step 7 Select the Report Type:

•Tabular or

•TopN.

Step 8 In the Schedule section, select when the report will be run using the options shown in Table 5-13.

Table 5-13 Scheduling a Report

To run the report...

Choose...

Then...

Immediately

Right Now

N/A

For a single date

Once

a. Click the calendar icon.

b. Choose the run date from the pop-up calendar.

Repeatedly at specific time points

Recurring

a. Select the day of recurrence from the Run the Report drop-down list:

b. Click the Start calendar icon to choose the first date and time of the recurrence interval and click OK.

c. Click the Until calendar icon to choose the last date of the recurrence interval and click OK.

Step 9 Click Run.

The Server Response Time report appears in the ART window.

Step 10 To run another report:

•Display the parameters pane with the last set of selected parameters by clicking the Expand icon in the upper right corner of the window or

•Display the Generate Reports menu by clicking the Expand icon at the upper left of the window, then select another report.

Client/Server Investigation

The Client/Server Investigation Report (CSIR) shows the response times for each Client/Server pair of the data source in a selected ART Group and client IP address.

Note You must be familiar enough with your network setup to be able to determine which NAMs reside closest to servers and clients.

CSIR Report Generation Process

To generate a CSIR report, enter the following parameters:

•Reporting period—The number of previous days (defaulted to today), weeks, months, or years, or a specific date range that defaults to the previous 30 minutes.

•Client IP—A required field with no set default value.

•ART Group—Provides a list of available groups for selection based on the entered client IP and selected reporting period.

•Client-side NAMs—Provides a list of NAMs based on the selected client IP, ART group, and reporting period.

•Scheduling—Immediately, at a later time, or recurrent.

This section contains the following topics:

•Client/Server Investigation Report Contents

•Generating a Client/Server Investigation Report

Client/Server Investigation Report Contents

Figure 5-29 displays an example of a Client/Server Investigation Report.

Figure 5-29 Sample Client/Server Investigation Report—Tabular

Table 5-14 describes the fields available in the Client/Server Investigation report.

Table 5-14 Client/Server Investigation Report Field Descriptions

Field

Description

ART Group Name

The name of the ART Group whose data sources were used to run the report.

NAM Name

The name of the NAM for which client and server protocol information is displayed.

Server Address

The host address of the server with drill-down to the Host Details report.

Client Address

The host address of the client with drill-down to the Host Details report.

Protocol

The protocol running between the displayed servers and clients, with drill-down to the Application Details report.

Average Response Time

The average response time, in milliseconds, between the client and server for the displayed protocol.

Minimum Response Time

The minimum response time, in milliseconds, between the client and server for the displayed protocol.

Maximum Response Time

The maximum response time, in milliseconds, between the client and server for the displayed protocol.

Retries

The number of retried responses between the displayed client and server for the specific protocol.

Late Responses

The number of late responses between the displayed client and server for the specific protocol.

Figure 5-30 shows the TopN view of the Client/Server Investigation Report. You can click the metric names inside the green boxes to view the different variables

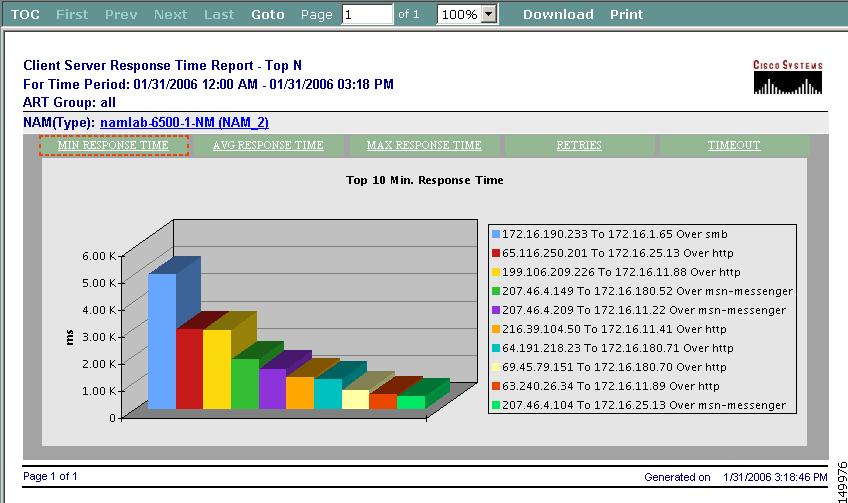

Figure 5-30 Client/Server Investigation Report—TopN

Generating a Client/Server Investigation Report

Step 1 Click ART on the Cisco PVM dashboard.

The display defaults to the ART Groups list under the ART Setup menu.Click Reports in the navigation menu. The ART Reports window defaults to the Network Flight Time report parameters.

Step 2 Click Client/Server Investigation from the Generate Reports menu.

The Client/Server Investigation Report parameters pane is displayed (see Figure 5-31).

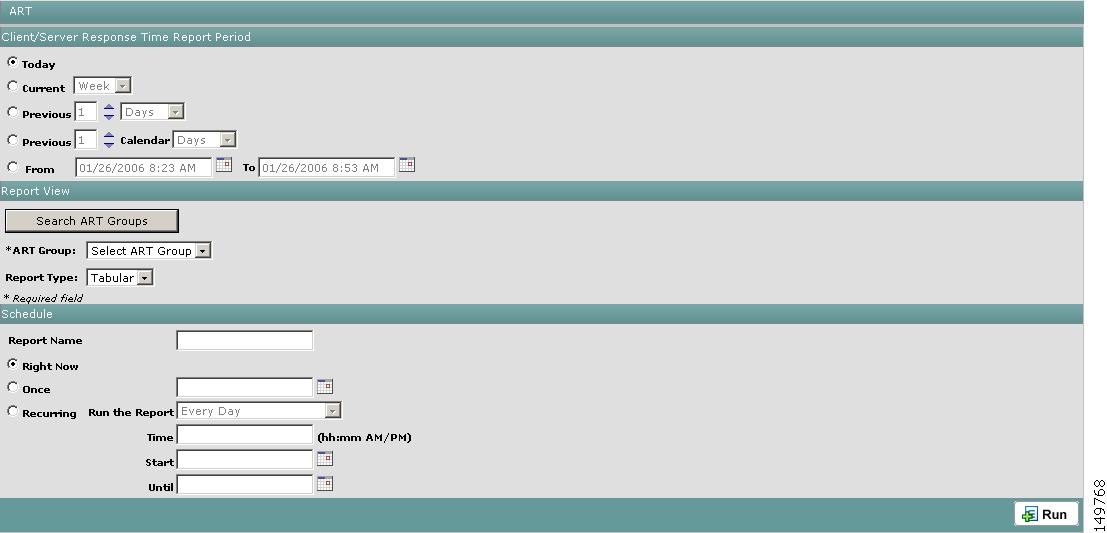

Figure 5-31 Client/Server Investigation Report Parameters Pane

Table 5-15 describes the fields available in the Client/Server Investigation report parameters pane.

Table 5-15 Client/Server Investigation Report Parameters Field Descriptions

Parameter

Description

Detailed Options

Report Period

Allows you to specify the time range used for analysis. The Previous n selections provide an easy way to select the date and time range without having to specify a date.

Today

•Today—The current day starting from 12:00 AM and ending with the current server local time.

Current

•Week—Starting at 12:00 AM Sunday of the current week and ending with the current server local time.

•Month—startIng at 12:00 AM of the first day of the current month and ending with the current server local time.

•Year—Starting at 12:00 AM on January 1 of the current year and ending with the current server local time.

Previous n—Starting from the n days, weeks, months, or years back from the current server local time and ending with the current server local time.

Previous n Calendar

•Calendar Days—starting at 12:00 AM of the previous nth day and ending at midnight yesterday.

•Calendar Weeks—starting on at 12:00 AM Sunday of the previous nth week and ending at midnight last Saturday.

•Calendar Months—starting at 12:00 AM on the first of the previous nth month and ending at midnight of the last day of last month.

•Calendar Years—starting at 12:00 AM on January 1 of the previous nth year and ending at midnight December 31 of last year.

From/To—Calendar date and time range selected using the calendar pop-up.

Report View

Allows you to select the client and NAM information, as well as the report type

Client Information

•Client IP—accepts the numerical client host identifier for searching the available ART Groups on the desired client.

•Search ART Groups—searches the ART database for ART Groups to which the client belongs, and populates the ART Group list.

•ART Group—allows selection of the ART Group containing the desired client, and populates the Server IP drop-down list with the server addresses available in the selected ART Group.

NAM Information—Allows selection of one or more client-side NAMs for which to view response time data.

Report Type—Allows selection of the report view:

•Tabular (default)

•TopN

Schedule

Allows you to specify the name of the report and when it will run.

•Report Name—Text entry of a user-specified name for the report.

•Right Now—Runs the report immediately.

•Once—Selection of a single calendar day.

•Recurring

–Run the Report—the day on which to run the report.

–Time—the time to run the report on day selected in the Report Period.

–Start—the date when the report schedule starts.

–Until—the date when the report schedule ends.

Note If the end date is not specified, the report is not bound by an ending date.

Step 3 In the Report Period section, choose the time range to be used for analysis using the options shown in Table 5-16.

Table 5-16 Choosing a Report Period

To use the period for...

Choose...

Then...

Today only

Today.

N/A

The current week, month, or year

Current

Select the desired period from the drop-down list.

The previous n days, weeks, months, or years

Previous

a. Enter the value of n in the field (or use the arrows to increment or decrement the value).

b. Select the period from the drop-down list.

The previous n calendar days, weeks, months, or years

Previous - Calendar

a. Enter the value of n in the field (or use the arrows to increment or decrement the value).

b. Select the period from the drop-down list.

Start and end dates

From

a. Click the From calendar icon.

b. Choose the starting date and enter the time from the pop-up calendar, then click OK.

c. Click the To calendar icon.

d. Choose the ending date and enter the time from the pop-up calendar, then click OK.

Step 4 Find the ART Group containing the client IP and attached data sources on which you want to run the report:

a. Enter the desired client IP address in the Client IP field and click Search ART Groups.

The ART Group drop-down list is populated with the ART Groups containing the client IP address you entered (see Figure 5-32).

Figure 5-32 Client/Server Investigation—Search ART Groups

Note If no ART Groups are found, the system displays the message, "No ART Groups were found for the specified report period and/or the server IP address." If this happens, you can click the report name in the Generate Reports menu to clear the parameters pane and start over. Or, try changing the reporting period to catch the beginning of ART data collection for the desired IP address.

b. Select the desired ART Group from the ART Group drop-down list.

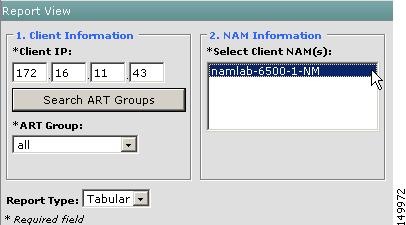

Step 5 Select one or more client NAMs from the Select Client NAM(s) list (see Figure 5-33).

Figure 5-33 Client/Server Investigation—Select Client NAM(s)

Step 6 Select the Report Type:

•Tabular or

•TopN.

Step 7 In the Schedule section, select when the report will be run using the options shown in Table 5-17.

Table 5-17 Scheduling a Report

To run the report...

Choose...

Then...

Immediately

Right Now

N/A

For a single date

Once

a. Click the calendar icon.

b. Choose the run date from the pop-up calendar.

Repeatedly at specific time points

Recurring

a. Select the day of recurrence from the Run the Report drop-down list.

b. Click the Start calendar icon to choose the first date and time of the recurrence interval and click OK.

c. Click the Until calendar icon to choose the last date of the recurrence interval and click OK.

Step 8 Click Run.

The Client/Server Investigation report appears in the ART window.

Step 9 To run another report:

•Display the parameters pane with the last set of selected parameters by clicking the Expand icon in the upper right corner of the window or

•Display the Generate Reports menu by clicking the Expand icon at the upper left of the window, then select another report

Client/Server Response Time

The Client/Server Response Time (CSRT) report displays the average round-trip delay times for all the Client/Server pairs that exist for the data sources in a selected ART Group.

CSRT Report Generation Process

To generate a CSRT report, enter the following parameters:

•Reporting period—The number of previous days (defaulted to today), weeks, months, or years, or a specific date range that defaults to the previous 30 minutes.

•ART Group—Provides a list of available groups for selection based on the selected reporting period.

•Report Type—Either tabular (default) or TopN.

•Scheduling—immediately, at a later time, or recurrent.

This section contains the following topics:

•Client/Server Response Time Report Contents

•Generating a Client/Server Response Time Report

Client/Server Response Time Report Contents

Figure 5-34 displays an example of a Client/Server Response Time Report.

Figure 5-34 Sample Client/Server Response Time Report—Tabular

Table 5-18 describes the fields available in the CSRT report.

Table 5-18 Client/Server Response Time Report Field Descriptions

Field

Description

ART Group Name

The ART Group whose data sources were used to run the report.

NAM Name

The name of the NAM for which client and server protocol information is displayed.

Server Address

The host address of the server with drill-down to the Host Details report.

Client Address

The host address of the client with drill-down to the Host Details report.

Protocol

The protocol running between the displayed servers and clients, with drill-down to the Application Details report.

Average Response Time

The average response time, in milliseconds, between the client and server for the displayed protocol.

Minimum Response Time

The minimum response time, in milliseconds, between the client and server for the displayed protocol.

Maximum Response Time

The maximum response time, in milliseconds, between the client and server for the displayed protocol.

Retries

The number of retried responses between the displayed client and server for the specific protocol.

Late Responses

The number of late responses between the displayed client and server for the specific protocol.

Figure 5-35 shows the TopN view of the CSRT report. You can click the metric names inside the green boxes to view the different variables.

Figure 5-35 Client/Server Response Time Report—TopN

Generating a Client/Server Response Time Report

Step 1 Click ART on the Cisco PVM dashboard.

The display defaults to the ART Groups list under the ART Setup menu.Click Reports in the navigation menu. The ART Reports window defaults to the Network Flight Time report parameters.

Step 2 Click Client/Server Response Time from the Generate Reports menu.

The Client/Server Response Time parameters pane is displayed (see Figure 5-36).

Figure 5-36 Client/Server Response Time Parameters Pane

Table 5-19 describes the fields in the SRT report parameters pane.

Table 5-19 Server Response Time Parameters Pane Field Descriptions

Parameter

Description

Options

Report Period

Allows you to specify the time range used for analysis. The Previous n selections provide an easy way to select the date and time range without having to specify a date.

Today

•Today—The current day starting from 12:00 AM and ending with the current server local time.

Current

•Week—Starting at 12:00 AM Sunday of the current week and ending with the current server local time.

•Month—startIng at 12:00 AM of the first day of the current month and ending with the current server local time.

•Year—Starting at 12:00 AM on January 1 of the current year and ending with the current server local time.

Previous n—Starting from the n days, weeks, months, or years back from the current server local time and ending with the current server local time.

Previous n Calendar

•Calendar Days—starting at 12:00 AM of the previous nth day and ending at midnight yesterday.

•Calendar Weeks—starting on at 12:00 AM Sunday of the previous nth week and ending at midnight last Saturday.

•Calendar Months—starting at 12:00 AM on the first of the previous nth month and ending at midnight of the last day of last month.

•Calendar Years—starting at 12:00 AM on January 1 of the previous nth year and ending at midnight December 31 of last year.

From/To—Calendar date and time range selected using the calendar pop-up.

Report View

Allows you to select a single ART Group for which to view response time data, as well as the report type

Search ART Groups—Searches the ART database for ART Groups and populates the ART Group list with all available ART Groups for the specified report interval.

ART Group—Allows selection of the ART Group from the list of groups available in the Cisco PVM ART database.

Report Type—Allows selection of the report view:

•Tabular (default)

•TopN

Schedule

Allows you to specify the name of the report and when it will run.

•Report Name—Text entry of a user-specified name for the report.

•Right Now—Runs the report immediately.

•Once—Selection of a single calendar day.

•Recurring

–Run the Report—the day on which to run the report.

–Time—the time to run the report on day selected in the Report Period.

–Start—the date when the report schedule starts.

–Until—the date when the report schedule ends.

Note If the end date is not specified, the report is not bound by an ending date.

Step 3 In the Report Period section, choose the time range to be used for analysis using the options shown in Table 5-20.

Table 5-20 Choosing a Report Period

To use the period for...

Choose...

Then...

Today only

Today

N/A

The current week, month, or year

Current

Select the desired period from the drop-down list.

The previous n days, weeks, months, or years

Previous

a. Enter the value of n in the field (or use the arrows to increment or decrement the value).

b. Select the period from the drop-down list.

The previous n calendar days, weeks, months, or years

Previous - Calendar

a. Enter the value of n in the field (or use the arrows to increment or decrement the value).

b. Select the period from the drop-down list.

Start and end dates

From

a. Click the From calendar icon.

b. Choose the starting date and enter the time from the pop-up calendar, then click OK.

c. Click the To calendar icon.

d. Choose the ending date and enter the time from the pop-up calendar, then click OK.

Step 4 Click Search ART Groups.

The ART Group drop-down list is populated with the ART Groups available in the Cisco PVM database (see Figure 5-37).

Figure 5-37 Client/Server Response Time—Search ART Groups

Note If no ART Groups are found, the system displays the message, "No ART Groups were found for the specified report period and/or the server IP address." If this happens, you can click the report name in the Generate Reports menu to clear the parameters pane and start over. Or, try changing the reporting period to catch the beginning of ART data collection for the desired IP address.

Step 5 Select the correct ART Group from the ART Group drop-down list.

Step 6 Select the Report Type:

•Tabular

•TopN.

Step 7 In the Schedule section, select when the report will be run using the options shown in Table 5-21.

Table 5-21 Scheduling a Report

To run the report...

Choose...

Then...

Immediately

Right Now

N/A

For a single date

Once

a. Click the calendar icon.

b. Choose the run date from the pop-up calendar.

Repeatedly at specific time points

Recurring

a. Select the day of recurrence from the Run the Report drop-down list.

b. Click the Start calendar icon to choose the first date and time of the recurrence interval and click OK.

c. Click the Until calendar icon to choose the last date of the recurrence interval and click OK.

Step 8 Click Run.

The Client/Server Response Time report appears in the ART window.

Step 9 To run another report, do one of the following:

•Display the parameters pane with the last set of selected parameters by clicking the Expand icon in the upper right corner of the window.

•Display the Generate Reports menu by clicking the Expand icon at the upper left of the window, then select another report.
