Getting Started With Home Agent Service Manager
This chapter explains how to get started with Home Agent Service Manager. The sections in this chapter are:
•
Accessing Home Agent Service Manager
•
Logging Into CiscoWorks
To access the CiscoWorks desktop:
Step 1
http://<server-name-or-ip-addr>:1741
where server-name-or-ip-addr is the name or IP address of the CiscoWorks server and 1741 is the default TCP port.
Common Services receives HTTP requests at port 1741. Ensure that you append :1741 to the end of your server name or IP address when accessing the server through your browser.
The CiscoWorks login window appears.
Step 2
Step 3

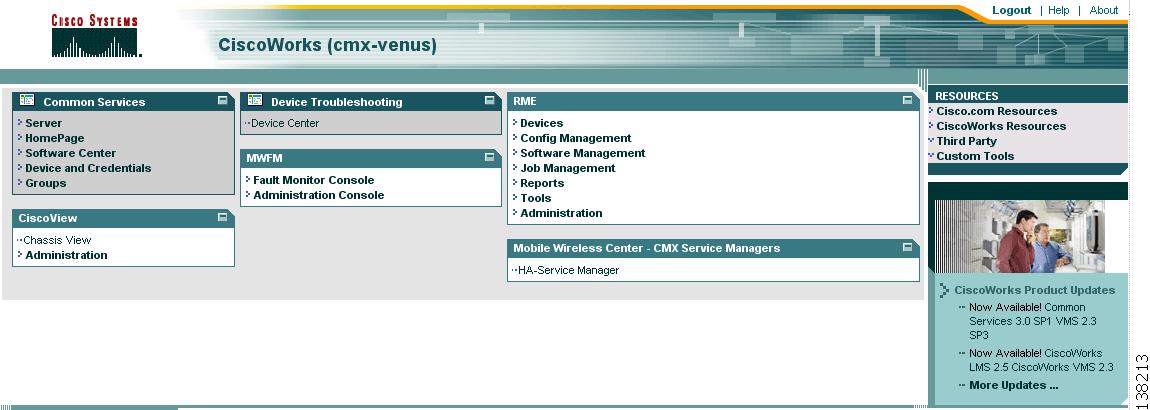

Figure 2-1 CiscoWorks Desktop (to be updated)
Accessing Home Agent Service Manager
To access the Home Agent Service Manager, choose Mobile Wireless Center-CMX Service Managers > HA Service Manager. The Group Selection window appears.
Before you enable service-activation, you must categorize device entities into a logical group . You can download the service-activation configurations to all the devices in the group only after you select an HA device group. For information on how to proceed with group selection, see Selecting an HA Device Group. If you have just installed HA SM and are logging in for the first time, you must create a new group. For information, see Creating an HA Device Group.
Note
Downloading Software Updates For HA Service Manager
You can select any update for HA Service Manager from the CiscoWorks Homepage. To do this, choose Common Services > Software Center > Software Updates. The Software Updates page appears.
See the Common Services Online Help, or User Guide for CiscoWorks Common Services 3.0.3, for more details.
Before Using HA Service Manager
Before you configure a Home Agent by using the HA SM:
•
•
•
•
•
•
•
•
•
In the Normal device state, the device has been successfully contacted by RME or the device has contacted RME at least once (polling, successful job completion, Syslog receipt, and so on.). This indicates that this is a real device in the network (at one point in time).
For more information on the RME inventory, see the "Adding and Troubleshooting Devices Using Device Management" section in the User Guide for Resource Manager Essentials 4.0.
About Operator Privileges
The CiscoWorks Common Services, set to default, uses CiscoWorks Server authentication (Non ACS), to authenticate users and authorize them to access CiscoWorks Common Services applications.
The CiscoWorks Server authentication scheme has five roles. You cannot change these roles, or the privileges assigned to those roles. The list of privileges is, sorted from least privileged to the most privileged:
•
•
•
•
•
Assigning Adhoc Task to Users
When you create a new user with the role of a Network Operator, the Network Administrator must assign NetConfig task access privileges to the new user. To perform service activation tasks through the HA SM, Network Operators must have the Adhoc task assigned to their usernames in the RME NetConfig window. To assign this task to the Network Operator:
Step 1
Step 2
Step 3
Step 4
Table 2-1 shows which operator types have privileges for various HA SM functions.
