From the Home window of Cisco IP Solution Center (ISC), which you receive upon logging in, click the Diagnostics tab and you receive a window as shown in Figure 8-1, "Diagnostics Selection."

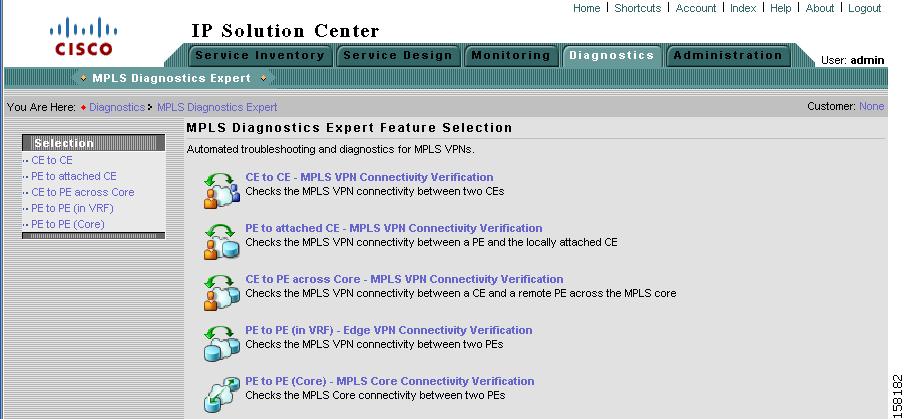

Figure 8-1 Diagnostics Selection
The Cisco MPLS Diagnostics Expert (MDE) application is an automated, workflow-based network management application that troubleshoots and diagnoses problems in Multiprotocol Label Switching (MPLS) VPNs. MDE offers users the capability to reduce the amount of time required to diagnose MPLS-related network outages—in many cases from hours to minutes. It performs diagnostics based on analysis of network failure scenarios, across MPLS access, edge, and core networks. It is equally applicable to both service provider and enterprise "self-deployed" MPLS VPN networks. Network operations center (NOC) support technicians as well as second-line and third-line support can benefit from this product. MDE optionally integrates with the provisioning features of the ISC MPLS VPN component. To diagnose MPLS VPN core problems, Cisco IOS or IOS XR software releases supporting MPLS operations and maintenance (OAM) features including label-switched path (LSP) ping and LSP traceroute are required.
