Basic Tunnel Management

This chapter describes the processes involved in creating primary and backup tunnels with TEM. To create a tunnel, certain steps must first be performed as described in previous chapters.

The highlighted box in Figure 4-1 shows where in TEM primary tunnel management occurs.

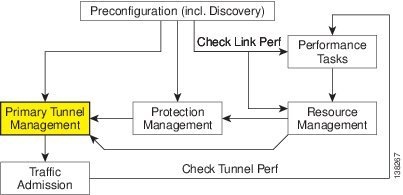

Figure 4-1 TEM Process Diagram - Primary Tunnel Management

This chapter includes the following sections:

•Overview

•Create TE Policy

•Create Explicit Path

•Primary Tunnel Operations

–Create Primary Tunnel

–Edit Primary Tunnel

–Delete Primary Tunnel

•Backup Tunnel Operations

–Create Backup Tunnel

–Edit Backup Tunnel

–Delete Backup Tunnel.

Overview

Primary tunnels are characterized by carrying traffic during normal operation. They have a prioritized list of possible paths, by which traffic can be routed. At any one time, the highest priority path available will be used to route traffic. If this fails, traffic will normally be re-routed via the next available path until a higher priority path becomes available again.

Prior to setting up the tunnel, a TE policy governing the traffic must be defined. An explicit path is created to establish the route and, in the case of a primary tunnel, it is created as either a managed or an unmanaged tunnel.

The purpose of a backup tunnel is to carry Fast Re-Route (FRR) protected traffic around a failed element until the routing in the network has reconverged. It is intended to protect traffic travelling along primary tunnels. There can be many backup tunnels protecting the same traffic through the use of load balancing.

If the network fails to reconverge, the backup tunnel will remain in place.

The difference between managed and unmanaged tunnels is described in Managed/Unmanaged Primary Tunnels, page F-2.

The concept of bandwidth pools from which tunnels reserve bandwidth is important to understand. This is described in Bandwidth Pools, page F-6.

Create TE Policy

To create a primary tunnel, each primary tunnel must be associated with a policy. A policy can be used by multiple tunnels.

For backup tunnels, this step is not necessary. In this case, proceed to Create Explicit Path.

For other TE policy management operations, see TE Policies, page 8-2.

The TE policy is a set of rules governing the TE network and defines the Class-of-Service (for example, gold, silver, bronze) for primary tunnel traffic.

TEM has a notion of Managed and Unmanaged policies. Managed policies have setup/hold priorities of 0/0 and can have additional routing constraints such as protection level and max delay. Tunnels with Unmanaged policies are provisioned by the system, but the system only tracks the deployment, not the operation of the tunnel. Unmanaged policies cannot have a setup/hold priority of zero.

For more information about managed and unmanaged primary tunnels, see Managed/Unmanaged Primary Tunnels, page F-2.

Policies are managed under Policies in Service Design. For a more detailed explanation of the Policies GUI, see TE Policies, page 8-2.

To create a TE policy, use the following steps:

Step 1 Choose Service Design > Policies.

The Policies window in Figure 4-2 appears.

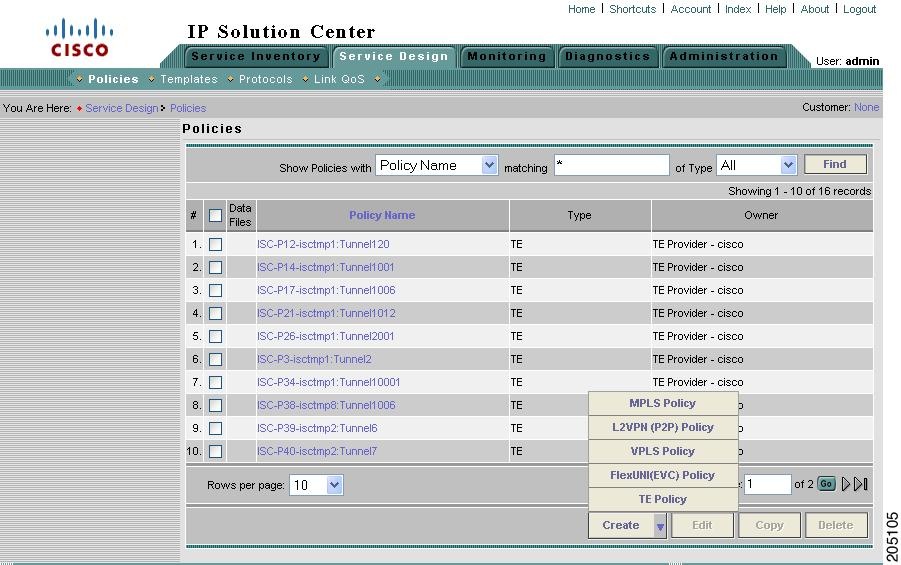

Figure 4-2 Policies Window

Step 2 Click Create and select TE Policy to set up a new TE policy.

To edit an existing policy, select the policy that you want to modify and click Edit. The TE Policy Editor window in Figure 8-3 appears.

Note A policy that is being used by a tunnel cannot be modified. However, the name and ownership of an in-use policy can be changed.

For an explanation of the various window elements, see TE Policies, page 8-2.

Step 3 Fill in the required fields marked with an asterisk (*) and any optional fields.

If you intend to use the TE policy for managed tunnels, make sure to check the Managed check box.

When setting up a policy for a managed tunnel, the Setup and Hold priorities are automatically set to zero (highest priority). In the case of a policy for an unmanaged tunnel, you can specify the desired Setup and Hold priority settings.

Step 4 Click Save.

Create Explicit Path

This section describes how to create a TE explicit path. For other TE explicit path operations, see TE Explicit Paths, page B-31.

Paths are defined between source and destination routers, possibly with one or more hops in between. Paths are used for primary and backup tunnels in the explicit path option(s).

If you intend to create an explicit path for managed tunnels, the path should not contain any non-TE enabled interfaces. Paths with non-TE enabled interfaces will be filtered out by the tunnel path chooser of the tunnel editor for managed tunnels and backup tunnels (not unmanaged tunnels).

To create or edit an explicit path, use the following steps:

Step 1 Choose Service Inventory > Inventory and Connection Manager > Traffic Engineering Management.

Step 2 Click TE Explicit Paths.

The TE Explicit Path List window appears. (see Figure 4-3)

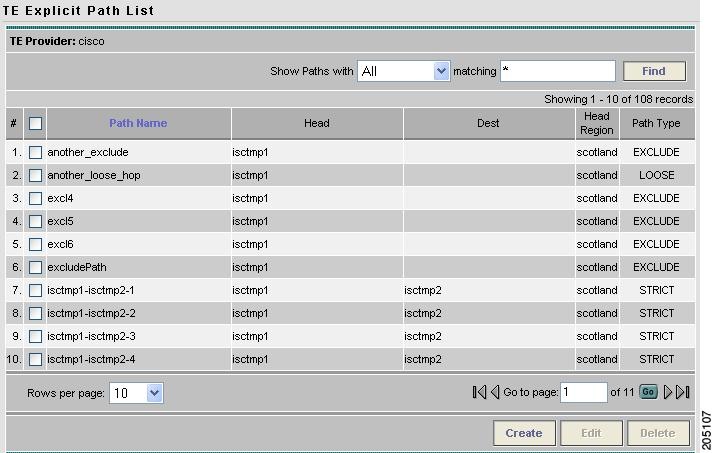

Figure 4-3 TE Explicit Path List

For an explanation of the various window elements, see Create/Edit Explicit Path, page B-32.

Step 3 To create an explicit path in the TE Explicit Path List, click Create.

The New TE Explicit Path window in Figure 4-4 appears.

To edit an explicit path in the explicit path list, select the explicit path that you want to modify and click Edit. This opens the TE Explicit Path Editor window. For an explanation of the various window elements, see Create/Edit Explicit Path, page B-32.

Note An explicit path that is being used by a tunnel cannot be modified. However, use Edit to view the path.

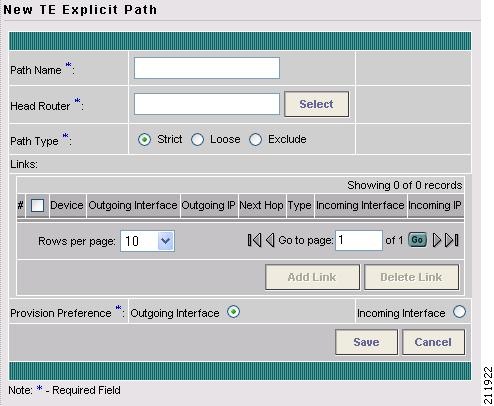

Figure 4-4 New TE Explicit Path

For an explanation of the various window elements, see Create/Edit Explicit Path, page B-32 and Edit TE SR (Primary or Backup), page B-50.

Note If a path is used by any tunnel, no modifications are possible. The Outgoing Interface and Incoming Interface links are not selectable and the Provision Preference line and the Add Link, Delete Link, and Save buttons disappear.

Step 4 Specify a pathname and select a head router.

Step 5 Select a path type:

•Strict: If Strict is chosen, use the current panel that lists the connected links one by one until destination is reached.

•Loose: If Loose is selected, a new hop is added by entering the IP address. If Strict is selected, you are allowed to select from TE Links list only.

Note For IOS XR, the Loose type is only available if the head device is running IOS XR 3.4 or later.

Note If Loose is chosen, a new panel that adds a loose hop definition one by one is listed. Because a combination of strict and loose hops is allowed for a loose explicit path definition, the flexibility of including strict hops is provided with a constraint of at least a loose hop presence in the path.

•Exclude—Exclude allows you to specify an exclude IP address. See Step 7.

Step 6 If Strict was selected, click the Add Link button to add a blank line to the hop list table.

If Loose or Exclude was selected, an Add Hop button appears, which when clicked opens a pop-up window where you specify an IP address.

Step 7 Now an interface must be selected for the head router.

Depending on the path type selection, you will see one of the following windows:

A. Strict path type:

Click the Add Link button, then click Add Interface. The Select Next Hop window in Figure 4-5 appears.

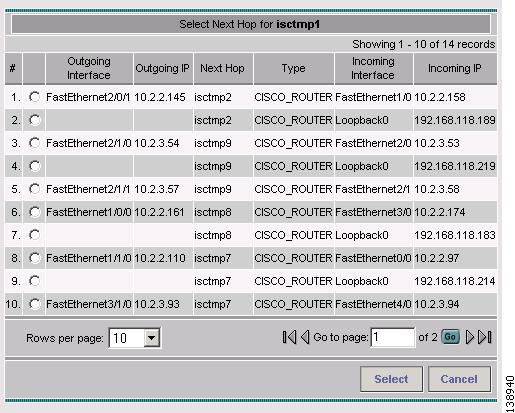

Figure 4-5 Select Next Hop

The next hop list contains all the possible next hops of the router, excluding the ones already included in the explicit paths (to avoid path loops).

The next hop list contains TE interfaces and at most one non-TE interface for each router (if the loopback interface is used as the MPLS TE ID of the device). For TE interfaces, the Outgoing Interface and Outgoing IP columns are populated by the application.

Note If a non-TE interface is selected, Provision Preference (Figure 4-4) is set to Incoming Interface. The provision preference cannot be set manually.

Select an interface and click Select. The corresponding link information is added to the new explicit path in the Links table.

In the New TE Explicit Path window, both the incoming and outgoing interface fields are populated.

B. Loose path type:

Click the Add Hop button. The Loose Hop Definition window appears.

In this window, specify an IP address for the desired loose hop and click OK. The Loose Hop Definition window closes.

The New TE Explicit Path window now displays the added loose hop. In Figure 4-6, a strict hop signifying a specific link has also been added.

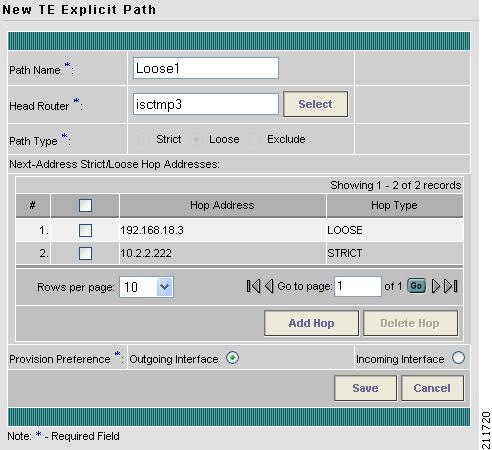

Figure 4-6 New TE Explicit Path with Loose and Strict Hops

C. Exclude path type:

Click the Add Hop button. The Exclude Hop Definition window appears.

In this window, specify an IP address for the desired exclude hop and click OK. The Exclude Hop Definition window closes.

The New TE Explicit Path window now displays the added exclude hop.

Step 8 To add another link, click either Add Link or Add Hop.

Step 9 For Strict hops, a Provision Preference can optionally be selected by clicking either the Outgoing Interface or the Incoming Interface radio button.

Note If you try to select the Provision Preference before adding a link when non-TE interfaces are present, the Add Link process overrides the Provision Preference and sets it to incoming.

Step 10 Click Save to keep the created TE explicit path or click Cancel to quit without saving.

Primary Tunnel Operations

TEM allows you to perform a number of primary tunnel operations, which are described in the following.

Create Primary Tunnel

After a TE Policy and an explicit path have been set up, a primary tunnel can be created. There are two types of primary tunnels:

•Managed Primary Tunnels

•Unmanaged Primary Tunnels

Below, the GUI flow is described for creating unmanaged primary tunnels. It is very similar for managed primary tunnels and the few differences that exist are described in Managed/Unmanaged Primary Tunnels, page F-2 and Create Unmanaged TE Tunnel, page B-57.

To create a managed or an unmanaged primary tunnel, use the following steps:

Step 1 Choose Service Inventory > Inventory and Connection Manager > Traffic Engineering Management.

Step 2 Click Create Managed TE Tunnel. The TE Managed Primary Tunnels SR window in Figure 4-7 appears.

or

Click Create Unmanaged TE Tunnel. The TE Unmanaged Primary Tunnels SR window in Figure 4-8 appears.

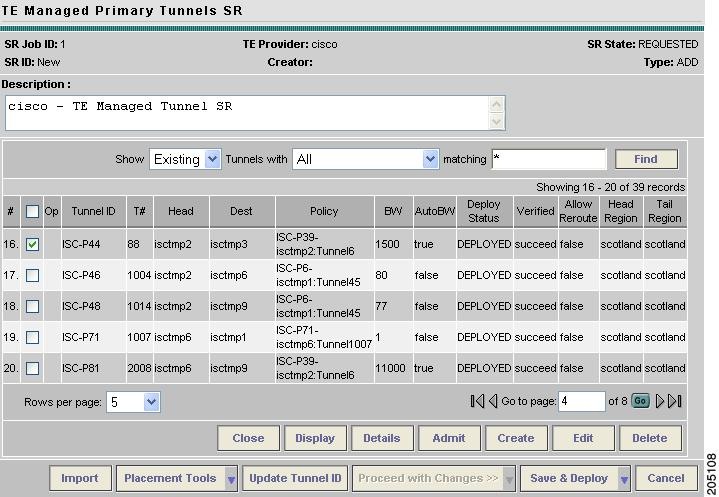

Figure 4-7 TE Managed Primary Tunnels SR

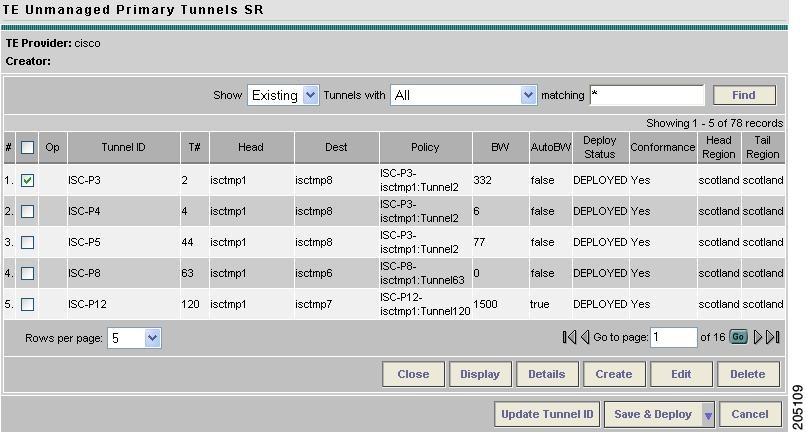

Figure 4-8 TE Unmanaged Primary Tunnels SR

For an explanation of the various window elements, see Create Managed TE Tunnel, page B-38.

Note that for the unmanaged tunnels list, the last two columns in the managed tunnels list in Figure 4-7 (Verified and Allow Reroute) are replaced by the Conformance column.

In the following example, an unmanaged tunnel is created.

Step 3 Click Create.

The Create TE Unmanaged Primary Tunnel window in Figure 4-9 appears.

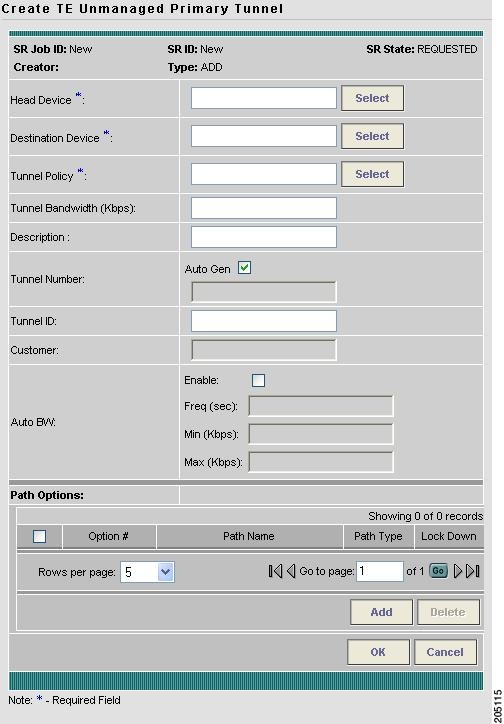

Figure 4-9 Create TE Unmanaged Primary Tunnel

For an explanation of the various window elements, see Create Managed TE Tunnel, page B-38 and Create Unmanaged TE Tunnel, page B-57.

Step 4 To select a Head Device in the Create TE Unmanaged Primary Tunnel window, click the corresponding Select button to open the Select Device for TE Head Router window shown in Figure B-38.

Step 5 Select a device name and click Select.

The Select Device for TE Head Router window closes and the prompt returns to the Create TE Unmanaged Primary Tunnel window.

Step 6 To select a Destination Device in the Create TE Unmanaged Primary Tunnel window, click the corresponding Select button to open the Select Device for TE Tail Router window.

Step 7 Select a device name and click Select.

The Select Device for TE Tail Router window closes and the prompt returns to the Create TE Unmanaged Primary Tunnel window.

Step 8 To select a Tunnel Policy in the Create TE Unmanaged Primary Tunnel window, click the corresponding Select button to open the Select Unmanaged TE Tunnel Policy window.

Note When creating a managed tunnel, make sure that one or more managed tunnel policies are available. If that is not the case, go to Policies (see Create TE Policy) and make sure to check the Managed check box.

For an explanation of the various window elements, see Create Managed TE Tunnel, page B-38 and Create Unmanaged TE Tunnel, page B-57.

Step 9 Select a policy and click the Select button.

This brings you back to the tunnel editor.

Step 10 Click Add to set up path options for the tunnel. The Select TE Explicit Path window in Figure B-40 appears.

The Path Options section provides two path types:

Explicit Path—A fixed path from a specific head to a specific destination device that includes three types of paths: Strict, Loose, and Exclude.

Dynamic Path—A dynamic path is provisioned by allowing the head router to find a path. The dynamic keyword is provisioned to the routers.

Step 11 Select the desired TE Explicit Path unless you prefer dynamic path only.

If none is available, you can set one up first. To do so, see Create Explicit Path.

Step 12 Click Select.

The selected path appears in the Path Options section of the create window as shown in Figure B-41.

For explicit paths (<head_device>-<destination_device>), you can click the pathname to open the non-editable Explicit Path Viewer as shown in Figure B-42.

For an explanation of the various window elements, see Create/Edit Explicit Path, page B-32.

Step 13 In the Create TE Unmanaged Tunnel window, click OK to accept the entered tunnel information or click Cancel to quit and return to the TE Unmanaged Primary Tunnels SR window.

The TE Unmanaged Primary Tunnel SR window appears with the newly created SR (Figure 4-10) with the Op field set to ADD.

Note The added tunnel can be reverted from the ADD state to its original state by selecting it and clicking Delete. The tunnel is removed from the tunnel list.

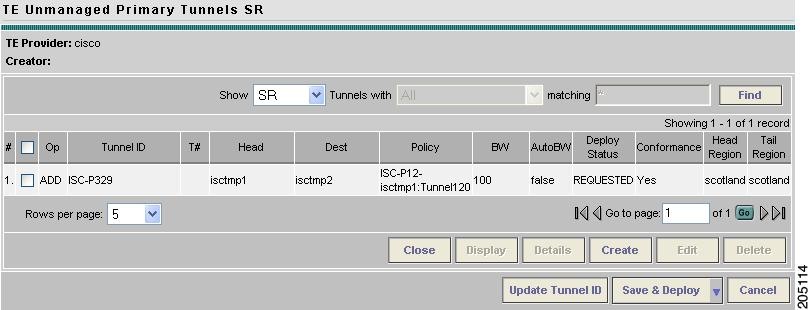

Figure 4-10 Service Requests - Unmanaged Tunnels

Step 14 In the TE Unmanaged Primary Tunnel window, click Save & Deploy (see Note on page 12) to either deploy the new tunnel SR to the network or force deploy all tunnels, or you can create or edit more primary tunnels and then save and deploy all changes.

When you click Save & Deploy, TEM locks the TE routers effected, which will block any subsequent SRs which use that TE Router until the SRs are finished. It is safe to try and deploy other SRs in the system. If there is any conflict with the SR currently being processed, TEM will simply ask you to wait until it is complete.

To see the state of deployment, go to the Service Requests window at Inventory and Connection Manager > Service Requests or open Monitoring > Task Manager.

For a further description of save and deploy options, see Create Managed TE Tunnel, page B-38.

Note You might see Elixir Warnings during TE Tunnel deployment. The deployment will be successful and the warning messages can safely be ignored.

Note For managed tunnels, you cannot deploy the service request until you have used the Proceed with Changes button to perform either Tunnel Placement, Tunnel Audit, or Tunnel Repair (see Chapter 5, "Advanced Primary Tunnel Management").

Note With the exception of TE Traffic Admission SRs, TE SRs are always deployed immediately from the specific TE SR window, not from Inventory and Connection Manager > Service Requests.

The Service Requests window (Service Inventory > Inventory and Connection Manager > Service Requests) appears (see Figure 4-11) and displays the state of the deployed SR (first REQUESTED, then PENDING, then DEPLOYED, if successful).

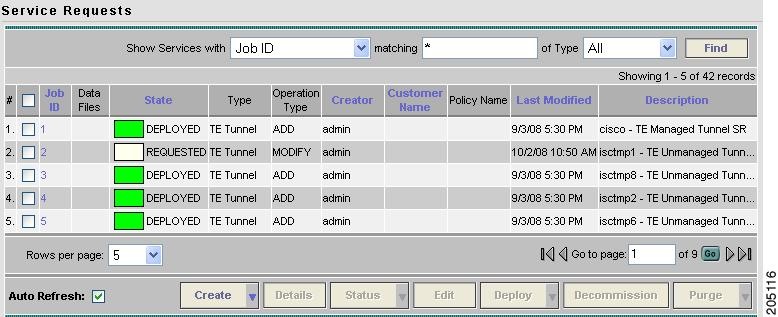

Figure 4-11 Service Requests - Unmanaged Tunnels

For more information on working with service requests, see Appendix C, "Managing Service Requests."

If the SR does not go to the Deployed state, go to the Task Logs window to see the deployment log (Monitoring > Task Manager > Logs) as described in SR Deployment Logs, page 9-1.

To edit the service request from the Service Requests window, go back to the TE Managed Primary Tunnels SR or the TE Unmanaged Primary Tunnels SR window as described in Edit Primary Tunnel.

Edit Primary Tunnel

Primary tunnel attributes can be modified in the primary tunnel editor.

There are two ways to access the primary tunnel editor:

•from the managed or unmanaged primary tunnels SR window or

•from the Service Requests window.

Access from Primary Tunnel SR Window

To access the primary tunnel editor from the primary tunnel SR window (TE Managed Primary Tunnels SR or TE Unmanaged Primary Tunnels SR window) and edit a managed or an unmanaged primary tunnel, use the following steps:

Step 1 Choose Service Inventory > Inventory and Connection Manager > Traffic Engineering Management.

Step 2 Click Create Managed TE Tunnel. The TE Managed Primary Tunnels SR window appears.

or

Click Create Unmanaged TE Tunnel. The TE Unmanaged Primary Tunnels SR window appears.

Step 3 To edit a tunnel SR, select the desired SR and click Edit. The Edit TE Managed Primary Tunnel or the Edit TE Unmanaged Primary Tunnel window appears.

The primary tunnel editor is identical to that of the create primary tunnel GUI. For an explanation of the various window elements, see Create Managed TE Tunnel, page B-38 and Create Unmanaged TE Tunnel, page B-57.

Step 4 Make the desired changes and click OK to accept, or Cancel to discard the changes.

In the TE Unmanaged Primary Tunnel SR window, the Op field changes to MODIFY.

Note The modified tunnel can be reverted to its original state by selecting it and clicking Delete. The MODIFY flag in the Op column disappears.

Step 5 Click Save & Deploy to either deploy the new tunnel SR to the network or force deploy all tunnels, or you can create or edit more primary tunnels and then save and deploy all changes.

The Service Requests window (Service Inventory > Inventory and Connection Manager > Service Requests) appears (see Figure 4-11) and displays the state of the deployed SR.

For more information on working with service requests, see Appendix C, "Managing Service Requests."

Access from Service Requests Window

To access the primary tunnel editor from the Service Requests window, assuming that the SR has been created, use the following steps:

Step 1 Choose Service Inventory > Inventory and Connection Manager > Service Requests.

Step 2 To edit the desired tunnel SR, select the SR in question and click Edit.

Depending on whether a managed or an unmanaged tunnel has been selected, the TE Managed Primary Tunnel SR or the TE Unmanaged Primary Tunnel SR window appears displaying the SR selected in the Service Requests window.
An example of the TE Unmanaged Primary Tunnel SR window is shown in Figure 4-8.

Step 3 Select the tunnel SR and click Edit.

The Edit TE Unmanaged Primary Tunnel window appears.

Go to Access from Primary Tunnel SR Window and continue the process from Step 4.

Delete Primary Tunnel

To delete a managed or an unmanaged primary tunnel from the primary tunnel SR window (TE Managed Primary Tunnels SR or TE Unmanaged Primary Tunnels SR window), use the following steps:

Step 1 Choose Service Inventory > Inventory and Connection Manager > Traffic Engineering Management.

Step 2 Click Create Managed TE Tunnel. The TE Managed Primary Tunnels SR window appears.

or

Click Create Unmanaged TE Tunnel. The TE Unmanaged Primary Tunnels SR window in Figure 4-8 appears.

Step 3 To delete a tunnel, select the desired tunnel(s) and click Delete. The Op field status changes to DELETE as shown in Figure 4-12.

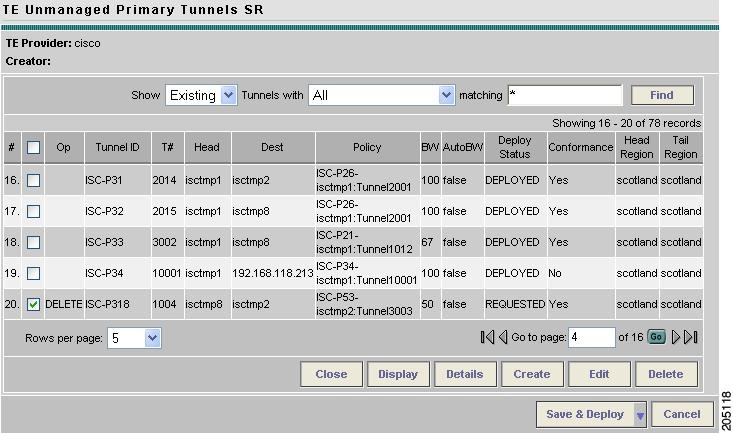

Figure 4-12 TE Unmanaged Primary Tunnels SR - Delete Requested

For an explanation of the various window elements, see Create Managed TE Tunnel, page B-38 and Create Unmanaged TE Tunnel, page B-57.

Note The deleted tunnel can be reverted to its original state by selecting it and clicking Delete. The DELETE flag in the Op column disappears.

Step 4 Click Save & Deploy to either deploy the new tunnel SR to the network or force deploy all tunnels, or you can create or edit more primary tunnels and then save and deploy all changes.

The Service Requests window (Service Inventory > Inventory and Connection Manager > Service Requests) appears (see Figure 4-11) and displays the state of the deployed SR.

For more information on working with service requests, see Appendix C, "Managing Service Requests."

Backup Tunnel Operations

TEM allows you to perform a number of backup tunnel operations, which are described in this section.

Appendix F contains a description of Connectivity Protection (CSPF) Backup Tunnels, page F-7, which is one of the techniques used to provide backup protection.

Create Backup Tunnel

Backup tunnels are created in much the same way as primary tunnels. In both cases, building an explicit path is not required when an existing path already traverses the desired routers. A path can be used for any number of tunnels within its bandwidth capacity.

A precondition for creating a backup tunnel is the presence of an explicit path. To create an explicit path, see Create Explicit Path.

To create a backup tunnel, use the following steps:

Step 1 Choose Service Inventory > Inventory and Connection Manager > Traffic Engineering Management.

Step 2 Click Create TE Backup Tunnel. The TE Protection SR window in Figure 4-13 appears.

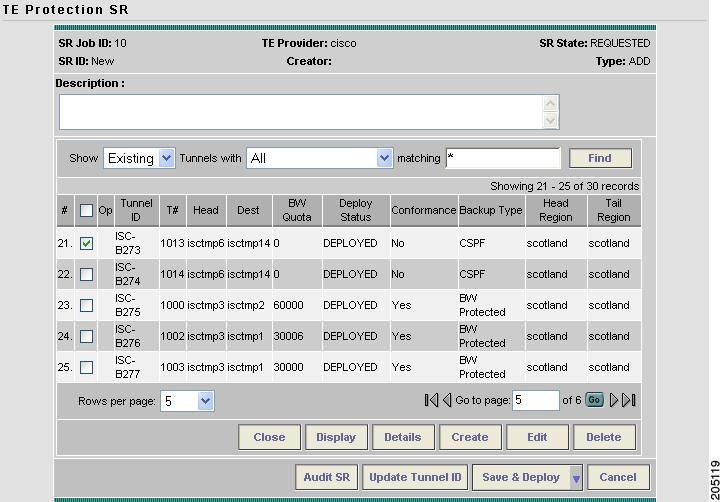

Figure 4-13 TE Protection SR

For an explanation of the various window elements, see Create TE Backup Tunnel, page B-57.

Step 3 Click Create. The Create TE Backup Tunnel window in Figure 4-14 appears.

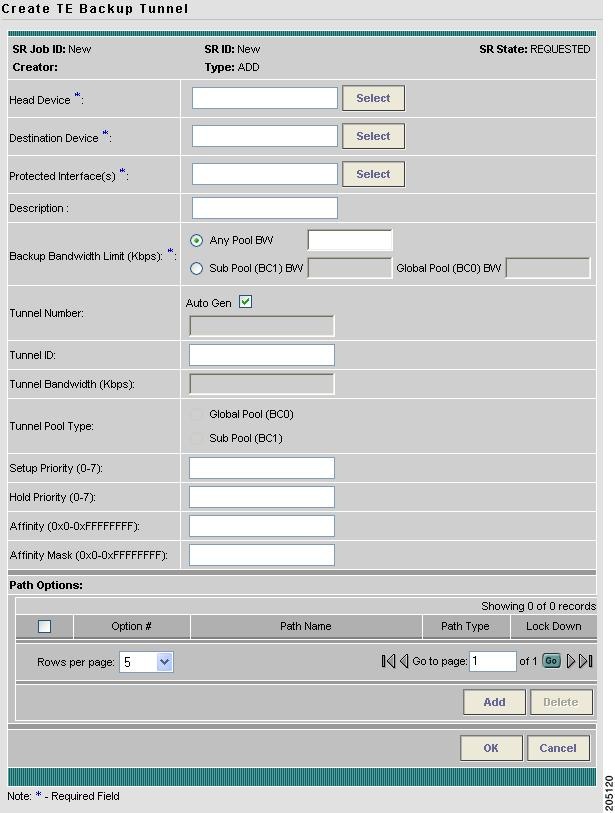

Figure 4-14 Create TE Backup Tunnel

For an explanation of the various window elements, see Create TE Backup Tunnel, page B-57.

Step 4 Select, at a minimum, a Head Device (Figure B-38), a Destination Device, and a Protected Interface (Figure B-51).

Also, specify a Backup Bandwidth Limit greater than zero. Add other tunnel information as desired.

For an explanation of the various window elements, see Select TE Protected Interface, page B-62.

Step 5 Click Add to add just one path.

The Select TE Explicit Path window in Figure B-40 appears.

Step 6 Select an explicit path.

It must match the head and destination of an existing path. If none is available, you first must set one up. To do so, see Create Explicit Path.

Step 7 Click Select.

The selected path appears in the Path Options section of the page as shown in the Select TE Explicit Path window in Figure B-41.

For explicit paths, you can click the pathname to open the Explicit Path Viewer as shown in Figure B-42.

Step 8 In the Create TE Backup Tunnel window, click OK to accept the entered tunnel information or click Cancel to quit the window without saving it.

In the TE Protection SR window, a new backup tunnel is added in the tunnel list with the Op field set to ADD.

Note The added tunnel can be reverted to its original state by selecting it and clicking Delete. The tunnel is removed from the tunnel list.

Step 9 Click Save & Deploy to either deploy the new tunnel SR to the network or force deploy all tunnels, or you can create or edit more backup tunnels and then save and deploy all changes.

The Save & Deploy button provides two options:

–SR Tunnels Only—Deploy all tunnel changes that does not impact tunnel placement, or if no changes were made to the SR, use this to redeploy the SR that was in Requested or Invalid state.

–Force Deploy All Tunnels—Force deployment of all tunnels in this SR. This could be useful when previous provisioning of the SR has failed, so that it is necessary to force through the deployment of all tunnels in the SR.

When you click Save & Deploy, TEM locks the TE routers effected, which will block any subsequent SRs which use that TE router until the SRs are finished. It is safe to try and deploy other SRs in the system. If there is any conflict with the SR currently being processed, TEM will simply ask you to wait until it is complete. To see the state of deployment, go to the Service Requests window under Inventory and Connection Manager or open the Task Manager under Monitoring.

Note You might see Elixir Warnings during TE Tunnel deployment. The deployment will be successful and the warning messages can safely be ignored.

Note With the exception of TE Traffic Admission SRs, TE SRs are always deployed immediately from the specific TE SR window, not from the Service Requests page in Inventory and Connection Manager.

The Service Requests window (Service Inventory > Inventory and Connection Manager > Service Requests) appears and displays the state of the deployed SR.

For more information on working with service requests, see Appendix C, "Managing Service Requests."

If the SR does not go to the Deployed state, go to the Task Logs window to see the deployment log (Monitoring > Task Manager > Logs) as described in SR Deployment Logs, page 9-1.

Edit Backup Tunnel

Backup tunnel attributes can be modified in the backup tunnel editor.

There are two ways to access the backup tunnel editor:

•from the Protection SR window or

•from the Service Requests window.

From the Protection SR Window

To access the Protection SR window to edit a backup tunnel, use the following steps:

Step 1 Choose Service Inventory > Inventory and Connection Manager > Traffic Engineering Management > Create TE Backup Tunnel. The TE Protection SR window appears.

Step 2 To edit a tunnel SR, select the desired SR and click Edit.

The Edit TE Backup Tunnel window appears. The backup tunnel editor is identical to that of the create backup tunnel GUI. For an explanation of the various window elements, see Create TE Backup Tunnel, page B-57.

Step 3 Make the desired changes and click OK.

Step 4 In the TE Protection window, the Op field changes to MODIFY.

Note The modified tunnel can be reverted to its original state by selecting it and clicking Delete. The MODIFY flag in the Op column disappears.

Step 5 In the TE Protection SR window, click Save & Deploy to either deploy the new tunnel SR to the network or force deploy all tunnels, or you can create or edit more backup tunnels and then save and deploy all changes.

The Save & Deploy button options are discussed in Create Managed TE Tunnel, page B-38.

The Service Requests window (Service Inventory > Inventory and Connection Manager > Service Requests) appears (see Figure 4-11) and displays the state of the deployed SR.

For more information on working with service requests, see Appendix C, "Managing Service Requests."

From the Service Requests Window

To edit a backup tunnel from the Service Requests window, assuming that the SR has been created use the following steps:

Step 1 Choose Service Inventory > Inventory and Connection Manager > Service Requests.

Step 2 To edit the desired tunnel SR, select the SR in question and click Edit.

The TE Protection SR window appears displaying the SR selected in the Service Requests window. An example of the TE Protection SR window is shown in Figure 4-13.

Step 3 Select the tunnel SR and click Edit.

The Edit TE Backup Tunnel window appears.

Go to Figure 4-13 and continue the process from Step 3.

Delete Backup Tunnel

To delete a backup tunnel from the TE Protection SR window, use the following steps:

Step 1 Choose Service Inventory > Inventory and Connection Manager > Traffic Engineering Management > Create TE Backup Tunnel.

The TE Protection SR window in Figure 4-13 appears.

Step 2 To delete a tunnel SR, select the desired SR and click Delete.

The Op field status changes to DELETE as shown in Figure 4-12 for unmanaged tunnels.

For an explanation of the various window elements, see Create TE Backup Tunnel, page B-57.

Note The deleted tunnel can be reverted to its original state by selecting it and clicking Delete. The DELETE flag in the Op column disappears.

Click Save & Deploy to either deploy the new tunnel SR to the network or force deploy all tunnels, or you can create or edit more primary tunnels and then save and deploy all changes.

The Service Requests window (Service Inventory > Inventory and Connection Manager > Service Requests) appears (see Figure 4-11) and displays the state of the deployed SR.

For more information on working with service requests, see Appendix C, "Managing Service Requests."

	Cisco IP Solution Center Traffic Engineering Management User Guide, 5.1
	Basic Tunnel Management
Cisco IP Solution Center Traffic Engineering Management User Guide, 5.1 Index About This Guide Getting Started TE Network Discovery TE Resource Management Basic Tunnel Management Advanced Primary Tunnel Management Protection Planning Traffic Admission Administration Task Monitoring TE Topology Sample Configlets Traffic Engineering Management GUI Managing Service Requests Warnings and Violations Document Type Definition (DTD) File Background and Concepts	Download this chapter Basic Tunnel Management Download the complete book Cisco IP Solution Center Traffic Engineering Management User Guide, 5.1 - Book-length PDF (PDF - 5 MB) Table Of Contents Basic Tunnel Management Overview Create TE Policy Create Explicit Path Primary Tunnel Operations Create Primary Tunnel Edit Primary Tunnel Access from Primary Tunnel SR Window Access from Service Requests Window Delete Primary Tunnel Backup Tunnel Operations Create Backup Tunnel Edit Backup Tunnel From the Protection SR Window From the Service Requests Window Delete Backup Tunnel Basic Tunnel Management This chapter describes the processes involved in creating primary and backup tunnels with TEM. To create a tunnel, certain steps must first be performed as described in previous chapters. The highlighted box in Figure 4-1 shows where in TEM primary tunnel management occurs. Figure 4-1 TEM Process Diagram - Primary Tunnel Management This chapter includes the following sections: •Overview •Create TE Policy •Create Explicit Path •Primary Tunnel Operations –Create Primary Tunnel –Edit Primary Tunnel –Delete Primary Tunnel •Backup Tunnel Operations –Create Backup Tunnel –Edit Backup Tunnel –Delete Backup Tunnel. Overview Primary tunnels are characterized by carrying traffic during normal operation. They have a prioritized list of possible paths, by which traffic can be routed. At any one time, the highest priority path available will be used to route traffic. If this fails, traffic will normally be re-routed via the next available path until a higher priority path becomes available again. Prior to setting up the tunnel, a TE policy governing the traffic must be defined. An explicit path is created to establish the route and, in the case of a primary tunnel, it is created as either a managed or an unmanaged tunnel. The purpose of a backup tunnel is to carry Fast Re-Route (FRR) protected traffic around a failed element until the routing in the network has reconverged. It is intended to protect traffic travelling along primary tunnels. There can be many backup tunnels protecting the same traffic through the use of load balancing. If the network fails to reconverge, the backup tunnel will remain in place. The difference between managed and unmanaged tunnels is described in Managed/Unmanaged Primary Tunnels, page F-2. The concept of bandwidth pools from which tunnels reserve bandwidth is important to understand. This is described in Bandwidth Pools, page F-6. Create TE Policy To create a primary tunnel, each primary tunnel must be associated with a policy. A policy can be used by multiple tunnels. For backup tunnels, this step is not necessary. In this case, proceed to Create Explicit Path. For other TE policy management operations, see TE Policies, page 8-2. The TE policy is a set of rules governing the TE network and defines the Class-of-Service (for example, gold, silver, bronze) for primary tunnel traffic. TEM has a notion of Managed and Unmanaged policies. Managed policies have setup/hold priorities of 0/0 and can have additional routing constraints such as protection level and max delay. Tunnels with Unmanaged policies are provisioned by the system, but the system only tracks the deployment, not the operation of the tunnel. Unmanaged policies cannot have a setup/hold priority of zero. For more information about managed and unmanaged primary tunnels, see Managed/Unmanaged Primary Tunnels, page F-2. Policies are managed under Policies in Service Design. For a more detailed explanation of the Policies GUI, see TE Policies, page 8-2. To create a TE policy, use the following steps: Step 1 Choose Service Design > Policies. The Policies window in Figure 4-2 appears. Figure 4-2 Policies Window Step 2 Click Create and select TE Policy to set up a new TE policy. To edit an existing policy, select the policy that you want to modify and click Edit. The TE Policy Editor window in Figure 8-3 appears. Note A policy that is being used by a tunnel cannot be modified. However, the name and ownership of an in-use policy can be changed. For an explanation of the various window elements, see TE Policies, page 8-2. Step 3 Fill in the required fields marked with an asterisk () and any optional fields. If you intend to use the TE policy for managed tunnels, make sure to check the Managed check box. When setting up a policy for a managed tunnel, the Setup and Hold priorities are automatically set to zero (highest priority). In the case of a policy for an unmanaged tunnel, you can specify the desired Setup and Hold priority settings. Step 4* Click Save. Create Explicit Path This section describes how to create a TE explicit path. For other TE explicit path operations, see TE Explicit Paths, page B-31. Paths are defined between source and destination routers, possibly with one or more hops in between. Paths are used for primary and backup tunnels in the explicit path option(s). If you intend to create an explicit path for managed tunnels, the path should not contain any non-TE enabled interfaces. Paths with non-TE enabled interfaces will be filtered out by the tunnel path chooser of the tunnel editor for managed tunnels and backup tunnels (not unmanaged tunnels). To create or edit an explicit path, use the following steps: Step 1 Choose Service Inventory > Inventory and Connection Manager > Traffic Engineering Management. Step 2 Click TE Explicit Paths. The TE Explicit Path List window appears. (see Figure 4-3) Figure 4-3 TE Explicit Path List For an explanation of the various window elements, see Create/Edit Explicit Path, page B-32. Step 3 To create an explicit path in the TE Explicit Path List, click Create. The New TE Explicit Path window in Figure 4-4 appears. To edit an explicit path in the explicit path list, select the explicit path that you want to modify and click Edit. This opens the TE Explicit Path Editor window. For an explanation of the various window elements, see Create/Edit Explicit Path, page B-32. Note An explicit path that is being used by a tunnel cannot be modified. However, use Edit to view the path. Figure 4-4 New TE Explicit Path For an explanation of the various window elements, see Create/Edit Explicit Path, page B-32 and Edit TE SR (Primary or Backup), page B-50. Note If a path is used by any tunnel, no modifications are possible. The Outgoing Interface and Incoming Interface links are not selectable and the Provision Preference line and the Add Link, Delete Link, and Save buttons disappear. Step 4 Specify a pathname and select a head router. Step 5 Select a path type: •Strict: If Strict is chosen, use the current panel that lists the connected links one by one until destination is reached. •Loose: If Loose is selected, a new hop is added by entering the IP address. If Strict is selected, you are allowed to select from TE Links list only. Note For IOS XR, the Loose type is only available if the head device is running IOS XR 3.4 or later. Note If Loose is chosen, a new panel that adds a loose hop definition one by one is listed. Because a combination of strict and loose hops is allowed for a loose explicit path definition, the flexibility of including strict hops is provided with a constraint of at least a loose hop presence in the path. •Exclude—Exclude allows you to specify an exclude IP address. See Step 7. Step 6 If Strict was selected, click the Add Link button to add a blank line to the hop list table. If Loose or Exclude was selected, an Add Hop button appears, which when clicked opens a pop-up window where you specify an IP address. Step 7 Now an interface must be selected for the head router. Depending on the path type selection, you will see one of the following windows: A. Strict path type: Click the Add Link button, then click Add Interface. The Select Next Hop window in Figure 4-5 appears. Figure 4-5 Select Next Hop The next hop list contains all the possible next hops of the router, excluding the ones already included in the explicit paths (to avoid path loops). The next hop list contains TE interfaces and at most one non-TE interface for each router (if the loopback interface is used as the MPLS TE ID of the device). For TE interfaces, the Outgoing Interface and Outgoing IP columns are populated by the application. Note If a non-TE interface is selected, Provision Preference (Figure 4-4) is set to Incoming Interface. The provision preference cannot be set manually. Select an interface and click Select. The corresponding link information is added to the new explicit path in the Links table. In the New TE Explicit Path window, both the incoming and outgoing interface fields are populated. B. Loose path type: Click the Add Hop button. The Loose Hop Definition window appears. In this window, specify an IP address for the desired loose hop and click OK. The Loose Hop Definition window closes. The New TE Explicit Path window now displays the added loose hop. In Figure 4-6, a strict hop signifying a specific link has also been added. Figure 4-6 New TE Explicit Path with Loose and Strict Hops C. Exclude path type: Click the Add Hop button. The Exclude Hop Definition window appears. In this window, specify an IP address for the desired exclude hop and click OK. The Exclude Hop Definition window closes. The New TE Explicit Path window now displays the added exclude hop. Step 8 To add another link, click either Add Link or Add Hop. Step 9 For Strict hops, a Provision Preference can optionally be selected by clicking either the Outgoing Interface or the Incoming Interface radio button. Note If you try to select the Provision Preference before adding a link when non-TE interfaces are present, the Add Link process overrides the Provision Preference and sets it to incoming. Step 10 Click Save to keep the created TE explicit path or click Cancel to quit without saving. Primary Tunnel Operations TEM allows you to perform a number of primary tunnel operations, which are described in the following. Create Primary Tunnel After a TE Policy and an explicit path have been set up, a primary tunnel can be created. There are two types of primary tunnels: •Managed Primary Tunnels •Unmanaged Primary Tunnels Below, the GUI flow is described for creating unmanaged primary tunnels. It is very similar for managed primary tunnels and the few differences that exist are described in Managed/Unmanaged Primary Tunnels, page F-2 and Create Unmanaged TE Tunnel, page B-57. To create a managed or an unmanaged primary tunnel, use the following steps: Step 1 Choose Service Inventory > Inventory and Connection Manager > Traffic Engineering Management. Step 2 Click Create Managed TE Tunnel. The TE Managed Primary Tunnels SR window in Figure 4-7 appears. or Click Create Unmanaged TE Tunnel. The TE Unmanaged Primary Tunnels SR window in Figure 4-8 appears. Figure 4-7 TE Managed Primary Tunnels SR Figure 4-8 TE Unmanaged Primary Tunnels SR For an explanation of the various window elements, see Create Managed TE Tunnel, page B-38. Note that for the unmanaged tunnels list, the last two columns in the managed tunnels list in Figure 4-7 (Verified and Allow Reroute) are replaced by the Conformance column. In the following example, an unmanaged tunnel is created. Step 3 Click Create. The Create TE Unmanaged Primary Tunnel window in Figure 4-9 appears. Figure 4-9 Create TE Unmanaged Primary Tunnel For an explanation of the various window elements, see Create Managed TE Tunnel, page B-38 and Create Unmanaged TE Tunnel, page B-57. Step 4 To select a Head Device in the Create TE Unmanaged Primary Tunnel window, click the corresponding Select button to open the Select Device for TE Head Router window shown in Figure B-38. Step 5 Select a device name and click Select. The Select Device for TE Head Router window closes and the prompt returns to the Create TE Unmanaged Primary Tunnel window. Step 6 To select a Destination Device in the Create TE Unmanaged Primary Tunnel window, click the corresponding Select button to open the Select Device for TE Tail Router window. Step 7 Select a device name and click Select. The Select Device for TE Tail Router window closes and the prompt returns to the Create TE Unmanaged Primary Tunnel window. Step 8 To select a Tunnel Policy in the Create TE Unmanaged Primary Tunnel window, click the corresponding Select button to open the Select Unmanaged TE Tunnel Policy window. Note When creating a managed tunnel, make sure that one or more managed tunnel policies are available. If that is not the case, go to Policies (see Create TE Policy) and make sure to check the Managed check box. For an explanation of the various window elements, see Create Managed TE Tunnel, page B-38 and Create Unmanaged TE Tunnel, page B-57. Step 9 Select a policy and click the Select button. This brings you back to the tunnel editor. Step 10 Click Add to set up path options for the tunnel. The Select TE Explicit Path window in Figure B-40 appears. The Path Options section provides two path types: Explicit Path—A fixed path from a specific head to a specific destination device that includes three types of paths: Strict, Loose, and Exclude. Dynamic Path—A dynamic path is provisioned by allowing the head router to find a path. The dynamic keyword is provisioned to the routers. Step 11 Select the desired TE Explicit Path unless you prefer dynamic path only. If none is available, you can set one up first. To do so, see Create Explicit Path. Step 12 Click Select. The selected path appears in the Path Options section of the create window as shown in Figure B-41. For explicit paths (<head_device>-<destination_device>), you can click the pathname to open the non-editable Explicit Path Viewer as shown in Figure B-42. For an explanation of the various window elements, see Create/Edit Explicit Path, page B-32. Step 13 In the Create TE Unmanaged Tunnel window, click OK to accept the entered tunnel information or click Cancel to quit and return to the TE Unmanaged Primary Tunnels SR window. The TE Unmanaged Primary Tunnel SR window appears with the newly created SR (Figure 4-10) with the Op field set to ADD. Note The added tunnel can be reverted from the ADD state to its original state by selecting it and clicking Delete. The tunnel is removed from the tunnel list. Figure 4-10 Service Requests - Unmanaged Tunnels Step 14 In the TE Unmanaged Primary Tunnel window, click Save & Deploy (see Note on page 12) to either deploy the new tunnel SR to the network or force deploy all tunnels, or you can create or edit more primary tunnels and then save and deploy all changes. When you click Save & Deploy, TEM locks the TE routers effected, which will block any subsequent SRs which use that TE Router until the SRs are finished. It is safe to try and deploy other SRs in the system. If there is any conflict with the SR currently being processed, TEM will simply ask you to wait until it is complete. To see the state of deployment, go to the Service Requests window at Inventory and Connection Manager > Service Requests or open Monitoring > Task Manager. For a further description of save and deploy options, see Create Managed TE Tunnel, page B-38. Note You might see Elixir Warnings during TE Tunnel deployment. The deployment will be successful and the warning messages can safely be ignored. Note For managed tunnels, you cannot deploy the service request until you have used the Proceed with Changes button to perform either Tunnel Placement, Tunnel Audit, or Tunnel Repair (see Chapter 5, "Advanced Primary Tunnel Management"). Note With the exception of TE Traffic Admission SRs, TE SRs are always deployed immediately from the specific TE SR window, not from Inventory and Connection Manager > Service Requests. The Service Requests window (Service Inventory > Inventory and Connection Manager > Service Requests) appears (see Figure 4-11) and displays the state of the deployed SR (first REQUESTED, then PENDING, then DEPLOYED, if successful). Figure 4-11 Service Requests - Unmanaged Tunnels For more information on working with service requests, see Appendix C, "Managing Service Requests." If the SR does not go to the Deployed state, go to the Task Logs window to see the deployment log (Monitoring > Task Manager > Logs) as described in SR Deployment Logs, page 9-1. To edit the service request from the Service Requests window, go back to the TE Managed Primary Tunnels SR or the TE Unmanaged Primary Tunnels SR window as described in Edit Primary Tunnel. Edit Primary Tunnel Primary tunnel attributes can be modified in the primary tunnel editor. There are two ways to access the primary tunnel editor: •from the managed or unmanaged primary tunnels SR window or •from the Service Requests window. Access from Primary Tunnel SR Window To access the primary tunnel editor from the primary tunnel SR window (TE Managed Primary Tunnels SR or TE Unmanaged Primary Tunnels SR window) and edit a managed or an unmanaged primary tunnel, use the following steps: Step 1 Choose Service Inventory > Inventory and Connection Manager > Traffic Engineering Management. Step 2 Click Create Managed TE Tunnel. The TE Managed Primary Tunnels SR window appears. or Click Create Unmanaged TE Tunnel. The TE Unmanaged Primary Tunnels SR window appears. Step 3 To edit a tunnel SR, select the desired SR and click Edit. The Edit TE Managed Primary Tunnel or the Edit TE Unmanaged Primary Tunnel window appears. The primary tunnel editor is identical to that of the create primary tunnel GUI. For an explanation of the various window elements, see Create Managed TE Tunnel, page B-38 and Create Unmanaged TE Tunnel, page B-57. Step 4 Make the desired changes and click OK to accept, or Cancel to discard the changes. In the TE Unmanaged Primary Tunnel SR window, the Op field changes to MODIFY. Note The modified tunnel can be reverted to its original state by selecting it and clicking Delete. The MODIFY flag in the Op column disappears. Step 5 Click Save & Deploy to either deploy the new tunnel SR to the network or force deploy all tunnels, or you can create or edit more primary tunnels and then save and deploy all changes. The Service Requests window (Service Inventory > Inventory and Connection Manager > Service Requests) appears (see Figure 4-11) and displays the state of the deployed SR. For more information on working with service requests, see Appendix C, "Managing Service Requests." Access from Service Requests Window To access the primary tunnel editor from the Service Requests window, assuming that the SR has been created, use the following steps: Step 1 Choose Service Inventory > Inventory and Connection Manager > Service Requests. Step 2 To edit the desired tunnel SR, select the SR in question and click Edit. Depending on whether a managed or an unmanaged tunnel has been selected, the TE Managed Primary Tunnel SR or the TE Unmanaged Primary Tunnel SR window appears displaying the SR selected in the Service Requests window. An example of the TE Unmanaged Primary Tunnel SR window is shown in Figure 4-8. Step 3 Select the tunnel SR and click Edit. The Edit TE Unmanaged Primary Tunnel window appears. Go to Access from Primary Tunnel SR Window and continue the process from Step 4. Delete Primary Tunnel To delete a managed or an unmanaged primary tunnel from the primary tunnel SR window (TE Managed Primary Tunnels SR or TE Unmanaged Primary Tunnels SR window), use the following steps: Step 1 Choose Service Inventory > Inventory and Connection Manager > Traffic Engineering Management. Step 2 Click Create Managed TE Tunnel. The TE Managed Primary Tunnels SR window appears. or Click Create Unmanaged TE Tunnel. The TE Unmanaged Primary Tunnels SR window in Figure 4-8 appears. Step 3 To delete a tunnel, select the desired tunnel(s) and click Delete. The Op field status changes to DELETE as shown in Figure 4-12. Figure 4-12 TE Unmanaged Primary Tunnels SR - Delete Requested For an explanation of the various window elements, see Create Managed TE Tunnel, page B-38 and Create Unmanaged TE Tunnel, page B-57. Note The deleted tunnel can be reverted to its original state by selecting it and clicking Delete. The DELETE flag in the Op column disappears. Step 4 Click Save & Deploy to either deploy the new tunnel SR to the network or force deploy all tunnels, or you can create or edit more primary tunnels and then save and deploy all changes. The Service Requests window (Service Inventory > Inventory and Connection Manager > Service Requests) appears (see Figure 4-11) and displays the state of the deployed SR. For more information on working with service requests, see Appendix C, "Managing Service Requests." Backup Tunnel Operations TEM allows you to perform a number of backup tunnel operations, which are described in this section. Appendix F contains a description of Connectivity Protection (CSPF) Backup Tunnels, page F-7, which is one of the techniques used to provide backup protection. Create Backup Tunnel Backup tunnels are created in much the same way as primary tunnels. In both cases, building an explicit path is not required when an existing path already traverses the desired routers. A path can be used for any number of tunnels within its bandwidth capacity. A precondition for creating a backup tunnel is the presence of an explicit path. To create an explicit path, see Create Explicit Path. To create a backup tunnel, use the following steps: Step 1 Choose Service Inventory > Inventory and Connection Manager > Traffic Engineering Management. Step 2 Click Create TE Backup Tunnel. The TE Protection SR window in Figure 4-13 appears. Figure 4-13 TE Protection SR For an explanation of the various window elements, see Create TE Backup Tunnel, page B-57. Step 3 Click Create. The Create TE Backup Tunnel window in Figure 4-14 appears. Figure 4-14 Create TE Backup Tunnel For an explanation of the various window elements, see Create TE Backup Tunnel, page B-57. Step 4 Select, at a minimum, a Head Device (Figure B-38), a Destination Device, and a Protected Interface (Figure B-51). Also, specify a Backup Bandwidth Limit greater than zero. Add other tunnel information as desired. For an explanation of the various window elements, see Select TE Protected Interface, page B-62. Step 5 Click Add to add just one path. The Select TE Explicit Path window in Figure B-40 appears. Step 6 Select an explicit path. It must match the head and destination of an existing path. If none is available, you first must set one up. To do so, see Create Explicit Path. Step 7 Click Select. The selected path appears in the Path Options section of the page as shown in the Select TE Explicit Path window in Figure B-41. For explicit paths, you can click the pathname to open the Explicit Path Viewer as shown in Figure B-42. Step 8 In the Create TE Backup Tunnel window, click OK to accept the entered tunnel information or click Cancel to quit the window without saving it. In the TE Protection SR window, a new backup tunnel is added in the tunnel list with the Op field set to ADD. Note The added tunnel can be reverted to its original state by selecting it and clicking Delete. The tunnel is removed from the tunnel list. Step 9 Click Save & Deploy to either deploy the new tunnel SR to the network or force deploy all tunnels, or you can create or edit more backup tunnels and then save and deploy all changes. The Save & Deploy button provides two options: –SR Tunnels Only—Deploy all tunnel changes that does not impact tunnel placement, or if no changes were made to the SR, use this to redeploy the SR that was in Requested or Invalid state. –Force Deploy All Tunnels—Force deployment of all tunnels in this SR. This could be useful when previous provisioning of the SR has failed, so that it is necessary to force through the deployment of all tunnels in the SR. When you click Save & Deploy, TEM locks the TE routers effected, which will block any subsequent SRs which use that TE router until the SRs are finished. It is safe to try and deploy other SRs in the system. If there is any conflict with the SR currently being processed, TEM will simply ask you to wait until it is complete. To see the state of deployment, go to the Service Requests window under Inventory and Connection Manager or open the Task Manager under Monitoring. Note You might see Elixir Warnings during TE Tunnel deployment. The deployment will be successful and the warning messages can safely be ignored. Note With the exception of TE Traffic Admission SRs, TE SRs are always deployed immediately from the specific TE SR window, not from the Service Requests page in Inventory and Connection Manager. The Service Requests window (Service Inventory > Inventory and Connection Manager > Service Requests) appears and displays the state of the deployed SR. For more information on working with service requests, see Appendix C, "Managing Service Requests." If the SR does not go to the Deployed state, go to the Task Logs window to see the deployment log (Monitoring > Task Manager > Logs) as described in SR Deployment Logs, page 9-1. Edit Backup Tunnel Backup tunnel attributes can be modified in the backup tunnel editor. There are two ways to access the backup tunnel editor: •from the Protection SR window or •from the Service Requests window. From the Protection SR Window To access the Protection SR window to edit a backup tunnel, use the following steps: Step 1 Choose Service Inventory > Inventory and Connection Manager > Traffic Engineering Management > Create TE Backup Tunnel. The TE Protection SR window appears. Step 2 To edit a tunnel SR, select the desired SR and click Edit. The Edit TE Backup Tunnel window appears. The backup tunnel editor is identical to that of the create backup tunnel GUI. For an explanation of the various window elements, see Create TE Backup Tunnel, page B-57. Step 3 Make the desired changes and click OK. Step 4 In the TE Protection window, the Op field changes to MODIFY. Note The modified tunnel can be reverted to its original state by selecting it and clicking Delete. The MODIFY flag in the Op column disappears. Step 5 In the TE Protection SR window, click Save & Deploy to either deploy the new tunnel SR to the network or force deploy all tunnels, or you can create or edit more backup tunnels and then save and deploy all changes. The Save & Deploy button options are discussed in Create Managed TE Tunnel, page B-38. The Service Requests window (Service Inventory > Inventory and Connection Manager > Service Requests) appears (see Figure 4-11) and displays the state of the deployed SR. For more information on working with service requests, see Appendix C, "Managing Service Requests." From the Service Requests Window To edit a backup tunnel from the Service Requests window, assuming that the SR has been created use the following steps: Step 1 Choose Service Inventory > Inventory and Connection Manager > Service Requests. Step 2 To edit the desired tunnel SR, select the SR in question and click Edit. The TE Protection SR window appears displaying the SR selected in the Service Requests window. An example of the TE Protection SR window is shown in Figure 4-13. Step 3 Select the tunnel SR and click Edit. The Edit TE Backup Tunnel window appears. Go to Figure 4-13 and continue the process from Step 3. Delete Backup Tunnel To delete a backup tunnel from the TE Protection SR window, use the following steps: Step 1 Choose Service Inventory > Inventory and Connection Manager > Traffic Engineering Management > Create TE Backup Tunnel. The TE Protection SR window in Figure 4-13 appears. Step 2 To delete a tunnel SR, select the desired SR and click Delete. The Op field status changes to DELETE as shown in Figure 4-12 for unmanaged tunnels. For an explanation of the various window elements, see Create TE Backup Tunnel, page B-57. Note The deleted tunnel can be reverted to its original state by selecting it and clicking Delete. The DELETE flag in the Op column disappears. Click Save & Deploy to either deploy the new tunnel SR to the network or force deploy all tunnels, or you can create or edit more primary tunnels and then save and deploy all changes. The Service Requests window (Service Inventory > Inventory and Connection Manager > Service Requests) appears (see Figure 4-11) and displays the state of the deployed SR. For more information on working with service requests, see Appendix C, "Managing Service Requests."
	© 1992-2009 Cisco Systems, Inc. All rights reserved. Terms & Conditions \| Privacy Statement \| Cookie Policy \| Trademarks of Cisco Systems, Inc.
