Provisioning Regular PE-CE Links

MPLS VPN PE-CE Link Overview

Network Topology

Prerequisite Tasks

Defining a VPN for the PE-CE Link

Creating MPLS VPN PE-CE Service Policies

PE-CE Service Policy Overview

Creating a PE-CE Service Policy

Creating a PE-NoCE Service Policy

Creating MPLS VPN PE-CE Service Requests

Creating PE-CE Service Requests

Creating PE-NoCE Service Requests

Provisioning Regular PE-CE Links

This chapter describes how to configure MPLS VPN PE-CE links in the IP Solution Center (ISC) provisioning process. It contains the following major sections:

•MPLS VPN PE-CE Link Overview

•Creating MPLS VPN PE-CE Service Policies

•Creating MPLS VPN PE-CE Service Requests

MPLS VPN PE-CE Link Overview

To provision an MPLS VPN service in ISC, you must first create an MPLS VPN Service Policy. In ISC, a Service Policy is a set of default configurations for creating and deploying a service request.

ISC supports two MPLS VPN Service Policy Types: Regular PE-CE and MVRFCE PE-CE. The following scenarios focus on the Regular PE-CE Policy Type.

The Regular PE-CE Policy Type is a normal PE to CE link between two devices. This Policy Type has two options:

•CE Present enabled (One PE with one CE; two devices)

•CE Present disabled (PE Only with no CE; one device)

Figure 7-1 shows an example of a normal PE to CE link between two devices.

Figure 7-1 PE to CE link with CE Present

In a PE to CE link with CE Present enabled, interfaces S3/1 and S1/0 are configured as an MPLS VPN link in the service request process.

Figure 7-2 shows an example of a PE Only link with no CE.

Figure 7-2 PE to CE link with No CE

In a PE to CE link with CE Present disabled, interface FE0/0 is configured as an MPLS VPN link in the service request process.

Network Topology

Figure 7-3 shows an overview of the network topology in which the MPLS VPN PE-CE links are created.

Figure 7-3 Network Topology for MPLS VPN PE-CE Scenarios.

The network topology in Figure 7-3 illustrates the lab environment of a service provider (Provider-X) and one customer (Cust-A). There is one Region (East-X) and one PE (mlpe3.cisco.com). Each customer device (one CE and one CLE) represents a Site (mlce11-Site and mlsw4-Site).

Prerequisite Tasks

Before you can create a Service Policy in ISC, you must complete the following Service Inventory tasks:

Step 1 Set up a Customer with a Site (see Creating Customers, Sites, and CPEs, page 2-7).

Step 2 Setup a Provider with a Region (seeCreating Providers, Regions, and PEs, page 2-9).

Step 3 Import, create, or discover Devices (see Creating Devices, page 2-2).

Step 4 Create CPE and PE (see Creating CPEs, page 2-8).

Step 5 Collect Configurations (see Collecting Configurations, page 2-4).

Step 6 Create Resource Pools (see Creating Resource Pools, page 2-15).

Step 7 Create CE routing communities (CERC) (see Creating CE Routing Communities, page 2-32).

Step 8 Define a MPLS VPN (see Creating an MPLS VPN, page 2-22).

Defining a VPN for the PE-CE Link

During service deployment, ISC generates the Cisco IOS commands to configure the logical VPN relationships. At the beginning of the provisioning process, before creating a Service Policy, a VPN must be defined within ISC.

To define a VPN, perform the following steps.

Step 1 Choose Service Inventory > Inventory and Connection Manager > VPNs.

The VPN window appears.

Step 2 Click Create to create a VPN. The Create VPN window appears.

Step 3 In the Name field, enter the VPN name.

It is recommended not to use special characters (' ` " < > ( ) [ ] { } / \ & ^ ! ? ~ * % = , . + |) in the VPN name, as this may cause misconfiguration of the VRF name for certain devices, if the VPN name is used to autogenerate a VRF name.

Step 4 In the Customer field, click Select.

The Select Customer window appears.

Step 5 Check to choose a Customer and click Select.

The VPNs window reappears where the new VPN Name is associated with a Customer in this new VPN definition.

Step 6 Click Save.

Creating MPLS VPN PE-CE Service Policies

This section contains the following sections:

•PE-CE Service Policy Overview

•Creating a PE-CE Service Policy

•Creating a PE-NoCE Service Policy

PE-CE Service Policy Overview

Figure 7-4 shows an example of the PE-CE link that is defined in the PE-CE Service Policy scenario.

Figure 7-4 PE-CE Topology

Creating a PE-CE Service Policy

To create a PE-CE service policy, perform the following steps.

Step 1 Choose Service Design > Policies.

The Policies window appears.

Step 2 From the Create drop-down list, choose MPLS Policy.

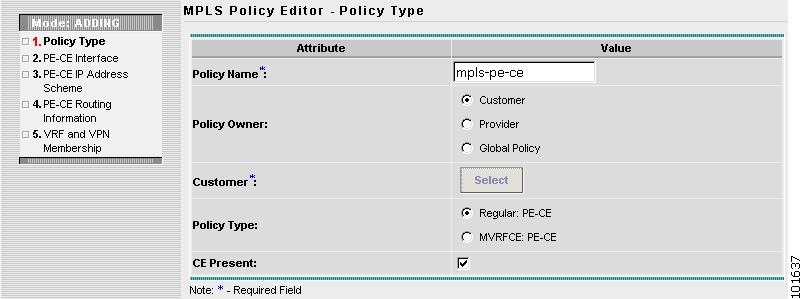

The MPLS Policy Editor - Policy Type window appears, as shown in Figure 7-5.

Figure 7-5 MPLS Policy Editor - Policy Type

Step 3 Edit the following attributes:

•Policy Name: Enter the policy name.

•Policy Owner: Choose the Policy Owner.

•Customer:

–Click Select to specify a Customer.

The Customer for MPLS Policy window appears.

–Check to choose a Customer and click Select.

•Policy Type: Choose the Policy Type. (Regular PE-CE)

Step 4 CE Present: Check to set CE as present.

Step 5 Click Next.

The MPLS Policy Editor - Interface window appears, as shown in Figure 7-6.

Figure 7-6 The MPLS Policy Editor - Interface

Step 6 Click Next to accept the defaults.

The MPLS Policy Editor - IP Address Scheme window appears.

Note Make sure the Editable check boxes are checked, so you can edit these attributes in the service request process.

Step 7 Edit all applicable attributes.

Note If you check Automatically Assign IP Address, the screen refreshes and adds a forth attribute: IP Address Pool.

Step 8 Click Next.

The MPLS Policy Editor - Routing Information window appears.

Step 9 Click Next to accept the defaults.

The MPLS Policy Editor - VRF and VPN Membership window appears.

Note For information about protocol types, see Specifying the Routing Protocol for a Service, page 5-11.

Note If you want to set the VRF and VPN attributes via a previously defined VRF object, check the Use VRF Object check box. For more information on this feature, see Chapter 3, "Independent VRF Management." That chapter describes how to use independent VRF objects in MPLS VPN service policies and service requests.

Step 10 To enable template association for the policy, click the Next button in MPLS Policy Editor - VRF and VPN Membership window.

The Template Association window appears. In this window, you can enable template support and, optionally, associate templates and data files with the policy. For instructions about associating templates with policies and how to use the features in this window, see Appendix B, "Working with Templates and Data Files." For additional information about using templates in ISC, also see the Cisco IP Solution Center Infrastructure Reference, 5.1. When you have completed setting up templates and data files for the policy per the instructions in the appendix, click Finish in the Template Association window to close it.

The Policies window appears.

Step 11 If you did not enable templates, click Finish in the MPLS Policy Editor - VRF and VPN window.

The Policies window reappears.

The MPLS VPN PE-CE Service Policy is complete.

Creating a PE-NoCE Service Policy

To create a PE-NoCE service policy, perform the following steps.

Step 1 Choose Service Design > Policies.

The Policies window appears.

Step 2 From the Create drop-down list, choose MPLS Policy.

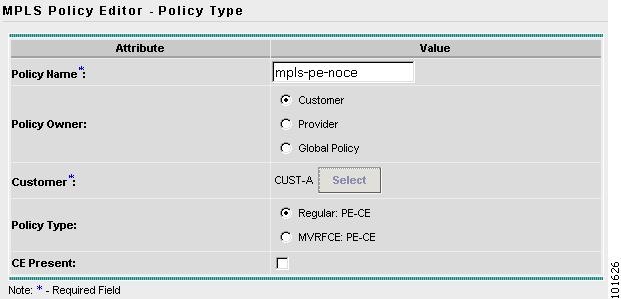

The MPLS Policy Editor - Policy Type window appears, as shown in Figure 7-7.

Figure 7-7 MPLS Policy Editor - Policy Type

Step 3 Edit the following attributes:

•Policy Name: Enter the policy name.

•Policy Owner: Choose the Policy Owner.

•Customer:

–Click Select to specify a Customer.

The Customer for MPLS Policy window appears.

–Choose a Customer and click Select.

•Policy Type: Choose the Policy Type. (Regular PE-CE)

•CE Present: Do not check to set CE as not present (NoCE).

Step 4 Click Next.

The MPLS Policy Editor - Interface window appears.

Step 5 Click Next to accept the defaults.

The MPLS Policy Editor - IP Address Scheme window appears.

Note Make sure the Editable check boxes are checked, so you can edit these attributes in the service request process.

The field values displayed in this dialog box reflect the values specified in the service policy associated with this service.

For details on the IP address scheme fields, see Specifying the IP Address Scheme, page 5-8.

Step 6 Edit all applicable attributes.

Note If you check Automatically Assign IP Address, the screen refreshes and adds a forth attribute: IP Address Pool.

Step 7 Click Next.

The MPLS Policy Editor - Routing Information window appears.

Step 8 Click Next to accept the defaults.

The MPLS Policy Editor - VRF and VPN Membership window appears.

Note For information about protocol types, see Specifying the Routing Protocol for a Service, page 5-11.

Note If you want to set the VRF and VPN attributes via a previously defined VRF object, check the Use VRF Object check box. For more information on this feature, see Chapter 3, "Independent VRF Management." That chapter describes how to use independent VRF objects in MPLS VPN service policies and service requests.

Step 9 To enable template association for the policy, click the Next button in MPLS Policy Editor - VRF and VPN Membership window.

The Template Association window appears. In this window, you can enable template support and, optionally, associate templates and data files with the policy. For instructions about associating templates with policies and how to use the features in this window, see Appendix B, "Working with Templates and Data Files." For additional information about using templates in ISC, also see the Cisco IP Solution Center Infrastructure Reference, 5.1. When you have completed setting up templates and data files for the policy per the instructions in the appendix, click Finish in the Template Association window to close it.

The Policies window appears.

Step 10 If you did not enable templates, click Finish in the MPLS Policy Editor - VRF and VPN window.

The Policies window reappears.

The MPLS VPN PE-NoCE Service Policy is complete.

Creating MPLS VPN PE-CE Service Requests

This section contains the following sections:

•Creating PE-CE Service Requests

•Creating PE-NoCE Service Requests

Creating PE-CE Service Requests

To create a PE-CE service request, perform the following steps.

Step 1 Choose Service Inventory > Inventory and Connection Manager > Service Requests.

The Service Requests window appears.

Step 2 From the Create drop-down list, choose MPLS VPN.

The Select MPLS Policy window appears.

Step 3 Choose an MPLS PE-CE type policy.

Step 4 Click OK.

The MPLS Service Request Editor window appears.

Step 5 Click Add Link.

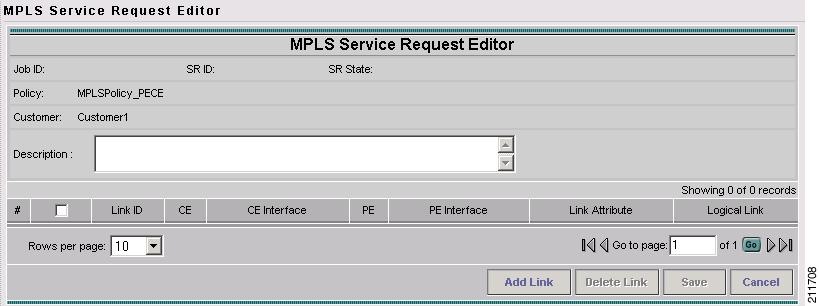

The MPLS Service Request Editor window appears, as shown in Figure 7-8.

Figure 7-8 MPLS Service Request Editor - Select CE

Step 6 Click Select CE.

The CPE for MPLS VPN Link window appears.

Step 7 Choose a CPE device and click Select.

The MPLS Service Request Editor window appears.

Step 8 Choose a CE Interface from the drop-down list.

The MPLS Service Request Editor window appears.

Step 9 Click Select PE.

The PE for MPLS VPN Link window appears.

Step 10 Choose a PE device and click Select.

The MPLS Service Request Editor window appears.

Step 11 Choose a PE Interface from the drop-down list.

The MPLS Service Request Editor window appears.

Step 12 Click Select PE.

The PE for MPLS VPN Link window reappears.

Step 13 In the Link Attribute cell, click Add.

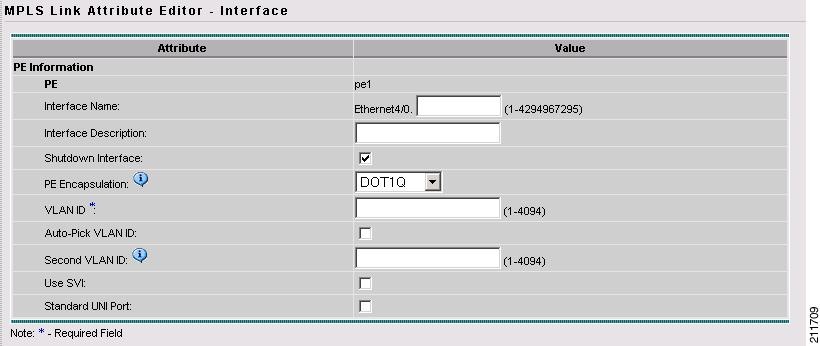

The MPLS Link Attribute Editor - Interface window appears, as shown in Figure 7-9.

Figure 7-9 MPLS Link Attribute Editor - Interface

PE Information

Step 14 Interface Name: Enter a value to identify the interface.

Step 15 Interface Description: Optionally, you can enter a description of the PE interface.

Step 16 Shutdown Interface: When you check this check box, the PE interface is configured in a shutdown state.

Step 17 Encapsulation: Choose the PE Encapsulation from the drop-down list.

The selections available in the drop-down list are determined by the interface type.

Step 18 VLAN ID: Enter the VLAN ID. The VLAN ID is shared between the PE and CE, so there is one VLAN ID for both.

Step 19 Auto-Pick VLAN ID: Check this check box if you would like ISC to autopick a VLAN ID from the VLAN pool.

If this box is checked, the VLAN ID field is not visible in the GUI.

Step 20 Second VLAN ID: The Second VLAN ID is an optional attribute that provides a method to match the Q-in-Q second VLAN tag of incoming frames on the PE interface.

For usage details about this attribute, see Notes on the VLAN ID and Second VLAN ID Attributes, page 6-10.

Step 21 Use SVI: Check this box to have ISC terminate VRF on SVI.

CE Information

Step 22 Interface Name: Enter a value from to identify the interface.

Step 23 Interface Description: Optionally, you can enter a description of the PE interface.

Step 24 Encapsulation: Choose the CE Encapsulation from the drop-down list.

The selections available in the drop-down list are determined by the interface type.

Step 25 Click Next.

The MPLS Link Attribute Editor - IP Address Scheme window appears.

Step 26 Accept the defaults and click Next.

The MPLS Link Attribute Editor - Routing Information window appears, as shown in Figure 7-10.

Figure 7-10 MPLS Link Attribute Editor - Routing Information

Step 27 Choose a Next Hop Option:

•USE_OUT_GOING_INTF_NAME

•USE_NEXT_HOP_IPADDR

Note If this interface is dual stacked (IPv4 and IPv6), you will be prompted to enter the routing information for both IPv4 and IPv6 independently. The fields in the IPv6 Routing Information window are slightly different from the IPv4 version. For information on setting up the routing information for IPv6, see Setting Static Routing Protocol Attributes (for IPv4 and IPv6), page 6-13.

Step 28 To continue, click Next.

The MPLS Link Attribute Editor - VRF and VPN window appears.

Note If you want to set the VRF and VPN attributes via a previously defined VRF object, check the Use VRF Object check box. For more information on this feature, see Chapter 3, "Independent VRF Management." That chapter describes how to use independent VRF objects in MPLS VPN service policies and service requests.

Step 29 Click Add to join a VPN.

The Select CERCs window appears.

Step 30 Choose a Customer from the drop-down list.

Step 31 Choose a VPN from the drop-down list.

Step 32 Check to choose a VPN from the list.

Step 33 Click Join As Hub or Join As Spoke.

Step 34 Click Done.

The MPLS Link Attribute Editor - VRF and VPN window reappears.

Step 35 Click the Next button to associate templates or data files to the service request.

Note This step assumes the policy on which the service request is based has template association enabled. If not, there will be no Next button visible in the GUI. In that case, click Finish and return to the MPLS Service Request Editor window and proceed with Step 37, below.

The MPLS Link Attribute Editor - Template Association window appears. In this window, you can associate templates and data files with a device by clicking the Add button in Template/Data File column for the device. When you click the Add button, the Add/Remove Templates window appears. For instructions about associating templates with service requests and how to use the features in this window, see Appendix B, "Working with Templates and Data Files."

Step 36 When you have completed setting up templates and data files for any device(s), click Finish in the Template Association window to close it and return to the MPLS Service Request Editor window.

You can define multiple links in this service request, following the instructions outlined in previous steps.

Step 37 To save your work, click Save.

The MPLS Service Requests window reappears showing that the MPLS VPN PE-CE service request is in the Requested state and ready to deploy.

Creating PE-NoCE Service Requests

To create a PE-NoCE service request, perform the following steps.

Step 1 Choose Service Inventory > Inventory and Connection Manager > Service Requests.

The Service Requests window appears.

Step 2 From the Create drop-down list, choose MPLS VPN.

The Select MPLS Policy window appears.

Step 3 Choose an MPLS PE-NoCE type policy.

Step 4 Click OK.

The MPLS Service Request Editor window appears.

Step 5 Click Add Link.

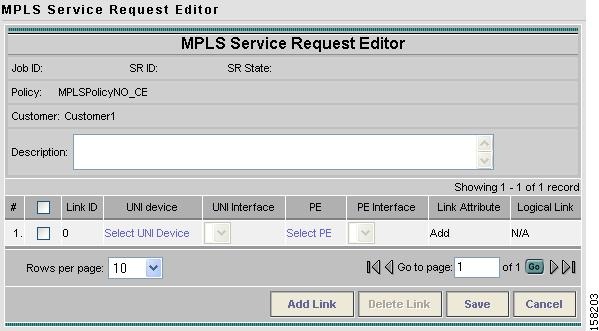

The MPLS Service Request Editor window appears, as shown in Figure 7-11.

Figure 7-11 MPLS Service Request Editor - Select CE

Step 6 Click Select PE.

The PE for MPLS VPN Link window appears.

Step 7 Choose a PE device and click Select.

The MPLS Service Request Editor window appears.

Step 8 Choose the PE Interface from the drop-down list.

The MPLS Service Request Editor window appears.

Step 9 In the Link Attribute cell, Click Add.

The MPLS Link Attribute Editor - Interface window appears, as shown in Figure 7-12.

Figure 7-12 MPLS Link Attribute Editor - Interface

Step 10 Interface Name: Enter a value to identify the interface.

Step 11 Interface Description: Optionally, you can enter a description of the PE interface.

Step 12 Shutdown Interface: When you check this check box, the PE interface is configured in a shutdown state.

Step 13 PE Encapsulation: Choose the PE Encapsulation from the drop-down list.

The selections available in the drop-down list are determined by the interface type. This field is needed for deciding PE/UNI encapsulation.

Step 14 VLAN ID: Enter the VLAN ID. The VLAN ID is shared between the PE and CE, so there is one VLAN ID for both.

Step 15 Auto-Pick VLAN ID: Check this check box if you would like ISC to autopick a VLAN ID from the VLAN pool.

If this box is checked, the VLAN ID field is not visible in the GUI.

Step 16 Second VLAN ID: The Second VLAN ID is an optional attribute that provides a method to match the Q-in-Q second VLAN tag of incoming frames on the PE interface.

For usage details about this attribute, see Notes on the VLAN ID and Second VLAN ID Attributes, page 6-10.

Step 17 Use SVI: Check this box to have ISC terminate VRF on SVI.

Step 18 Standard UNI Port: Check this box to access additional UNI security parameters.

Step 19 Choose the PE Encapsulation from the drop-down list.

Note This field is needed for deciding PE/UNI encapsulation.

Step 20 In the VLAN ID field, enter a valid value, or check Auto-Pick VLAN ID.

Step 21 Click Next.

The MPLS Link Attribute Editor - IP Address Scheme window appears.

Step 22 Accept the defaults and click Next.

Note If this interface is dual stacked (IPv4 and IPv6), you will be prompted to enter the routing information for both IPv4 and IPv6 independently.

The MPLS Link Attribute Editor - Routing Information window appears. In the Hop Option field, you have the following options:

•For a point-to-point interface you have two options:

–USE_OUT_GOING_INTF_NAME

–USE_NEXT_HOP_IPADDR

•For a broadcast interface, you have only the USE_NEXT_HOP_IPADDR option.

Note For the USE_NEXT_HOP_IPADDR option, a field appears in which you must enter the required IP address.

Step 23 To continue, click Next.

The MPLS Link Attribute Editor - VRF and VPN window appears.

Note If you want to set the VRF and VPN attributes via a previously defined VRF object, check the Use VRF Object check box. For more information on this feature, see Chapter 3, "Independent VRF Management." That chapter describes how to use independent VRF objects in MPLS VPN service policies and service requests.

Step 24 Click Add to join the VPN.

The Join VPN dialog box appears.

Step 25 Check to choose the VPN.

Step 26 Click Join as Hub or Join as Spoke.

Step 27 Click Done.

The MPLS Service Request Editor window reappears.

Step 28 Click the Next button to associate templates or data files to the service request.

Note This step assumes the policy on which the service request is based has template association enabled. If not, there will be no Next button visible in the GUI. In that case, click Finish and return to the MPLS Service Request Editor window and proceed with Step 30, below.

The MPLS Link Attribute Editor - Template Association window appears. In this window, you can associate templates and data files with a device by clicking the Add button in Template/Data File column for the device. When you click the Add button, the Add/Remove Templates window appears. For instructions about associating templates with service requests and how to use the features in this window, see Appendix B, "Working with Templates and Data Files."

Step 29 When you have completed setting up templates and data files for any device(s), click Finish in the Template Association window to close it and return to the MPLS Service Request Editor window.

You can define multiple links in this service request, following the instructions outlined in previous steps.

Step 30 To save your work, click Save.

The MPLS Service Requests window reappears showing that the MPLS VPN PE-NoCE Service Request is in the Requested state and ready to deploy.

	Cisco IP Solution Center MPLS VPN User Guide, 5.1
	Provisioning Regular PE-CE Links
Cisco IP Solution Center MPLS VPN User Guide, 5.1 Index About This Guide Getting Started with MPLS VPN Setting Up the ISC Services Independent VRF Management IPv6 and 6VPE Support in MPLS VPN MPLS VPN Service Policies MPLS VPN Service Requests Provisioning Regular PE-CE Links Provisioning Multi-VRF PE-CE Links Provisioning Management VPN Provisioning Cable Services Provisioning Carrier Supporting Carrier Provisioning Multiple Devices Spanning Multiple Autonomous Systems Generating MPLS Reports Sample Configlets Working with Templates and Data Files Troubleshooting MPLS VPNs Service Request Transition States MPLS VPN Concepts	Download this chapter Provisioning Regular PE-CE Links Download the complete book Cisco IP Solution Center MPLS User Guide, 5.1 - Entire Book in PDF (PDF - 6 MB) Table Of Contents Provisioning Regular PE-CE Links MPLS VPN PE-CE Link Overview Network Topology Prerequisite Tasks Defining a VPN for the PE-CE Link Creating MPLS VPN PE-CE Service Policies PE-CE Service Policy Overview Creating a PE-CE Service Policy Creating a PE-NoCE Service Policy Creating MPLS VPN PE-CE Service Requests Creating PE-CE Service Requests Creating PE-NoCE Service Requests Provisioning Regular PE-CE Links This chapter describes how to configure MPLS VPN PE-CE links in the IP Solution Center (ISC) provisioning process. It contains the following major sections: •MPLS VPN PE-CE Link Overview •Creating MPLS VPN PE-CE Service Policies •Creating MPLS VPN PE-CE Service Requests MPLS VPN PE-CE Link Overview To provision an MPLS VPN service in ISC, you must first create an MPLS VPN Service Policy. In ISC, a Service Policy is a set of default configurations for creating and deploying a service request. ISC supports two MPLS VPN Service Policy Types: Regular PE-CE and MVRFCE PE-CE. The following scenarios focus on the Regular PE-CE Policy Type. The Regular PE-CE Policy Type is a normal PE to CE link between two devices. This Policy Type has two options: •CE Present enabled (One PE with one CE; two devices) •CE Present disabled (PE Only with no CE; one device) Figure 7-1 shows an example of a normal PE to CE link between two devices. Figure 7-1 PE to CE link with CE Present In a PE to CE link with CE Present enabled, interfaces S3/1 and S1/0 are configured as an MPLS VPN link in the service request process. Figure 7-2 shows an example of a PE Only link with no CE. Figure 7-2 PE to CE link with No CE In a PE to CE link with CE Present disabled, interface FE0/0 is configured as an MPLS VPN link in the service request process. Network Topology Figure 7-3 shows an overview of the network topology in which the MPLS VPN PE-CE links are created. Figure 7-3 Network Topology for MPLS VPN PE-CE Scenarios. The network topology in Figure 7-3 illustrates the lab environment of a service provider (Provider-X) and one customer (Cust-A). There is one Region (East-X) and one PE (mlpe3.cisco.com). Each customer device (one CE and one CLE) represents a Site (mlce11-Site and mlsw4-Site). Prerequisite Tasks Before you can create a Service Policy in ISC, you must complete the following Service Inventory tasks: Step 1 Set up a Customer with a Site (see Creating Customers, Sites, and CPEs, page 2-7). Step 2 Setup a Provider with a Region (seeCreating Providers, Regions, and PEs, page 2-9). Step 3 Import, create, or discover Devices (see Creating Devices, page 2-2). Step 4 Create CPE and PE (see Creating CPEs, page 2-8). Step 5 Collect Configurations (see Collecting Configurations, page 2-4). Step 6 Create Resource Pools (see Creating Resource Pools, page 2-15). Step 7 Create CE routing communities (CERC) (see Creating CE Routing Communities, page 2-32). Step 8 Define a MPLS VPN (see Creating an MPLS VPN, page 2-22). Defining a VPN for the PE-CE Link During service deployment, ISC generates the Cisco IOS commands to configure the logical VPN relationships. At the beginning of the provisioning process, before creating a Service Policy, a VPN must be defined within ISC. To define a VPN, perform the following steps. Step 1 Choose Service Inventory > Inventory and Connection Manager > VPNs. The VPN window appears. Step 2 Click Create to create a VPN. The Create VPN window appears. Step 3 In the Name field, enter the VPN name. It is recommended not to use special characters (' ` " < > ( ) [ ] { } / \ & ^ ! ? ~ * % = , . + \|) in the VPN name, as this may cause misconfiguration of the VRF name for certain devices, if the VPN name is used to autogenerate a VRF name. Step 4 In the Customer field, click Select. The Select Customer window appears. Step 5 Check to choose a Customer and click Select. The VPNs window reappears where the new VPN Name is associated with a Customer in this new VPN definition. Step 6 Click Save. Creating MPLS VPN PE-CE Service Policies This section contains the following sections: •PE-CE Service Policy Overview •Creating a PE-CE Service Policy •Creating a PE-NoCE Service Policy PE-CE Service Policy Overview Figure 7-4 shows an example of the PE-CE link that is defined in the PE-CE Service Policy scenario. Figure 7-4 PE-CE Topology Creating a PE-CE Service Policy To create a PE-CE service policy, perform the following steps. Step 1 Choose Service Design > Policies. The Policies window appears. Step 2 From the Create drop-down list, choose MPLS Policy. The MPLS Policy Editor - Policy Type window appears, as shown in Figure 7-5. Figure 7-5 MPLS Policy Editor - Policy Type Step 3 Edit the following attributes: •Policy Name: Enter the policy name. •Policy Owner: Choose the Policy Owner. •Customer: –Click Select to specify a Customer. The Customer for MPLS Policy window appears. –Check to choose a Customer and click Select. •Policy Type: Choose the Policy Type. (Regular PE-CE) Step 4 CE Present: Check to set CE as present. Step 5 Click Next. The MPLS Policy Editor - Interface window appears, as shown in Figure 7-6. Figure 7-6 The MPLS Policy Editor - Interface Step 6 Click Next to accept the defaults. The MPLS Policy Editor - IP Address Scheme window appears. Note Make sure the Editable check boxes are checked, so you can edit these attributes in the service request process. Step 7 Edit all applicable attributes. Note If you check Automatically Assign IP Address, the screen refreshes and adds a forth attribute: IP Address Pool. Step 8 Click Next. The MPLS Policy Editor - Routing Information window appears. Step 9 Click Next to accept the defaults. The MPLS Policy Editor - VRF and VPN Membership window appears. Note For information about protocol types, see Specifying the Routing Protocol for a Service, page 5-11. Note If you want to set the VRF and VPN attributes via a previously defined VRF object, check the Use VRF Object check box. For more information on this feature, see Chapter 3, "Independent VRF Management." That chapter describes how to use independent VRF objects in MPLS VPN service policies and service requests. Step 10 To enable template association for the policy, click the Next button in MPLS Policy Editor - VRF and VPN Membership window. The Template Association window appears. In this window, you can enable template support and, optionally, associate templates and data files with the policy. For instructions about associating templates with policies and how to use the features in this window, see Appendix B, "Working with Templates and Data Files." For additional information about using templates in ISC, also see the Cisco IP Solution Center Infrastructure Reference, 5.1. When you have completed setting up templates and data files for the policy per the instructions in the appendix, click Finish in the Template Association window to close it. The Policies window appears. Step 11 If you did not enable templates, click Finish in the MPLS Policy Editor - VRF and VPN window. The Policies window reappears. The MPLS VPN PE-CE Service Policy is complete. Creating a PE-NoCE Service Policy To create a PE-NoCE service policy, perform the following steps. Step 1 Choose Service Design > Policies. The Policies window appears. Step 2 From the Create drop-down list, choose MPLS Policy. The MPLS Policy Editor - Policy Type window appears, as shown in Figure 7-7. Figure 7-7 MPLS Policy Editor - Policy Type Step 3 Edit the following attributes: •Policy Name: Enter the policy name. •Policy Owner: Choose the Policy Owner. •Customer: –Click Select to specify a Customer. The Customer for MPLS Policy window appears. –Choose a Customer and click Select. •Policy Type: Choose the Policy Type. (Regular PE-CE) •CE Present: Do not check to set CE as not present (NoCE). Step 4 Click Next. The MPLS Policy Editor - Interface window appears. Step 5 Click Next to accept the defaults. The MPLS Policy Editor - IP Address Scheme window appears. Note Make sure the Editable check boxes are checked, so you can edit these attributes in the service request process. The field values displayed in this dialog box reflect the values specified in the service policy associated with this service. For details on the IP address scheme fields, see Specifying the IP Address Scheme, page 5-8. Step 6 Edit all applicable attributes. Note If you check Automatically Assign IP Address, the screen refreshes and adds a forth attribute: IP Address Pool. Step 7 Click Next. The MPLS Policy Editor - Routing Information window appears. Step 8 Click Next to accept the defaults. The MPLS Policy Editor - VRF and VPN Membership window appears. Note For information about protocol types, see Specifying the Routing Protocol for a Service, page 5-11. Note If you want to set the VRF and VPN attributes via a previously defined VRF object, check the Use VRF Object check box. For more information on this feature, see Chapter 3, "Independent VRF Management." That chapter describes how to use independent VRF objects in MPLS VPN service policies and service requests. Step 9 To enable template association for the policy, click the Next button in MPLS Policy Editor - VRF and VPN Membership window. The Template Association window appears. In this window, you can enable template support and, optionally, associate templates and data files with the policy. For instructions about associating templates with policies and how to use the features in this window, see Appendix B, "Working with Templates and Data Files." For additional information about using templates in ISC, also see the Cisco IP Solution Center Infrastructure Reference, 5.1. When you have completed setting up templates and data files for the policy per the instructions in the appendix, click Finish in the Template Association window to close it. The Policies window appears. Step 10 If you did not enable templates, click Finish in the MPLS Policy Editor - VRF and VPN window. The Policies window reappears. The MPLS VPN PE-NoCE Service Policy is complete. Creating MPLS VPN PE-CE Service Requests This section contains the following sections: •Creating PE-CE Service Requests •Creating PE-NoCE Service Requests Creating PE-CE Service Requests To create a PE-CE service request, perform the following steps. Step 1 Choose Service Inventory > Inventory and Connection Manager > Service Requests. The Service Requests window appears. Step 2 From the Create drop-down list, choose MPLS VPN. The Select MPLS Policy window appears. Step 3 Choose an MPLS PE-CE type policy. Step 4 Click OK. The MPLS Service Request Editor window appears. Step 5 Click Add Link. The MPLS Service Request Editor window appears, as shown in Figure 7-8. Figure 7-8 MPLS Service Request Editor - Select CE Step 6 Click Select CE. The CPE for MPLS VPN Link window appears. Step 7 Choose a CPE device and click Select. The MPLS Service Request Editor window appears. Step 8 Choose a CE Interface from the drop-down list. The MPLS Service Request Editor window appears. Step 9 Click Select PE. The PE for MPLS VPN Link window appears. Step 10 Choose a PE device and click Select. The MPLS Service Request Editor window appears. Step 11 Choose a PE Interface from the drop-down list. The MPLS Service Request Editor window appears. Step 12 Click Select PE. The PE for MPLS VPN Link window reappears. Step 13 In the Link Attribute cell, click Add. The MPLS Link Attribute Editor - Interface window appears, as shown in Figure 7-9. Figure 7-9 MPLS Link Attribute Editor - Interface PE Information Step 14 Interface Name: Enter a value to identify the interface. Step 15 Interface Description: Optionally, you can enter a description of the PE interface. Step 16 Shutdown Interface: When you check this check box, the PE interface is configured in a shutdown state. Step 17 Encapsulation: Choose the PE Encapsulation from the drop-down list. The selections available in the drop-down list are determined by the interface type. Step 18 VLAN ID: Enter the VLAN ID. The VLAN ID is shared between the PE and CE, so there is one VLAN ID for both. Step 19 Auto-Pick VLAN ID: Check this check box if you would like ISC to autopick a VLAN ID from the VLAN pool. If this box is checked, the VLAN ID field is not visible in the GUI. Step 20 Second VLAN ID: The Second VLAN ID is an optional attribute that provides a method to match the Q-in-Q second VLAN tag of incoming frames on the PE interface. For usage details about this attribute, see Notes on the VLAN ID and Second VLAN ID Attributes, page 6-10. Step 21 Use SVI: Check this box to have ISC terminate VRF on SVI. CE Information Step 22 Interface Name: Enter a value from to identify the interface. Step 23 Interface Description: Optionally, you can enter a description of the PE interface. Step 24 Encapsulation: Choose the CE Encapsulation from the drop-down list. The selections available in the drop-down list are determined by the interface type. Step 25 Click Next. The MPLS Link Attribute Editor - IP Address Scheme window appears. Step 26 Accept the defaults and click Next. The MPLS Link Attribute Editor - Routing Information window appears, as shown in Figure 7-10. Figure 7-10 MPLS Link Attribute Editor - Routing Information Step 27 Choose a Next Hop Option: •USE_OUT_GOING_INTF_NAME •USE_NEXT_HOP_IPADDR Note If this interface is dual stacked (IPv4 and IPv6), you will be prompted to enter the routing information for both IPv4 and IPv6 independently. The fields in the IPv6 Routing Information window are slightly different from the IPv4 version. For information on setting up the routing information for IPv6, see Setting Static Routing Protocol Attributes (for IPv4 and IPv6), page 6-13. Step 28 To continue, click Next. The MPLS Link Attribute Editor - VRF and VPN window appears. Note If you want to set the VRF and VPN attributes via a previously defined VRF object, check the Use VRF Object check box. For more information on this feature, see Chapter 3, "Independent VRF Management." That chapter describes how to use independent VRF objects in MPLS VPN service policies and service requests. Step 29 Click Add to join a VPN. The Select CERCs window appears. Step 30 Choose a Customer from the drop-down list. Step 31 Choose a VPN from the drop-down list. Step 32 Check to choose a VPN from the list. Step 33 Click Join As Hub or Join As Spoke. Step 34 Click Done. The MPLS Link Attribute Editor - VRF and VPN window reappears. Step 35 Click the Next button to associate templates or data files to the service request. Note This step assumes the policy on which the service request is based has template association enabled. If not, there will be no Next button visible in the GUI. In that case, click Finish and return to the MPLS Service Request Editor window and proceed with Step 37, below. The MPLS Link Attribute Editor - Template Association window appears. In this window, you can associate templates and data files with a device by clicking the Add button in Template/Data File column for the device. When you click the Add button, the Add/Remove Templates window appears. For instructions about associating templates with service requests and how to use the features in this window, see Appendix B, "Working with Templates and Data Files." Step 36 When you have completed setting up templates and data files for any device(s), click Finish in the Template Association window to close it and return to the MPLS Service Request Editor window. You can define multiple links in this service request, following the instructions outlined in previous steps. Step 37 To save your work, click Save. The MPLS Service Requests window reappears showing that the MPLS VPN PE-CE service request is in the Requested state and ready to deploy. Creating PE-NoCE Service Requests To create a PE-NoCE service request, perform the following steps. Step 1 Choose Service Inventory > Inventory and Connection Manager > Service Requests. The Service Requests window appears. Step 2 From the Create drop-down list, choose MPLS VPN. The Select MPLS Policy window appears. Step 3 Choose an MPLS PE-NoCE type policy. Step 4 Click OK. The MPLS Service Request Editor window appears. Step 5 Click Add Link. The MPLS Service Request Editor window appears, as shown in Figure 7-11. Figure 7-11 MPLS Service Request Editor - Select CE Step 6 Click Select PE. The PE for MPLS VPN Link window appears. Step 7 Choose a PE device and click Select. The MPLS Service Request Editor window appears. Step 8 Choose the PE Interface from the drop-down list. The MPLS Service Request Editor window appears. Step 9 In the Link Attribute cell, Click Add. The MPLS Link Attribute Editor - Interface window appears, as shown in Figure 7-12. Figure 7-12 MPLS Link Attribute Editor - Interface Step 10 Interface Name: Enter a value to identify the interface. Step 11 Interface Description: Optionally, you can enter a description of the PE interface. Step 12 Shutdown Interface: When you check this check box, the PE interface is configured in a shutdown state. Step 13 PE Encapsulation: Choose the PE Encapsulation from the drop-down list. The selections available in the drop-down list are determined by the interface type. This field is needed for deciding PE/UNI encapsulation. Step 14 VLAN ID: Enter the VLAN ID. The VLAN ID is shared between the PE and CE, so there is one VLAN ID for both. Step 15 Auto-Pick VLAN ID: Check this check box if you would like ISC to autopick a VLAN ID from the VLAN pool. If this box is checked, the VLAN ID field is not visible in the GUI. Step 16 Second VLAN ID: The Second VLAN ID is an optional attribute that provides a method to match the Q-in-Q second VLAN tag of incoming frames on the PE interface. For usage details about this attribute, see Notes on the VLAN ID and Second VLAN ID Attributes, page 6-10. Step 17 Use SVI: Check this box to have ISC terminate VRF on SVI. Step 18 Standard UNI Port: Check this box to access additional UNI security parameters. Step 19 Choose the PE Encapsulation from the drop-down list. Note This field is needed for deciding PE/UNI encapsulation. Step 20 In the VLAN ID field, enter a valid value, or check Auto-Pick VLAN ID. Step 21 Click Next. The MPLS Link Attribute Editor - IP Address Scheme window appears. Step 22 Accept the defaults and click Next. Note If this interface is dual stacked (IPv4 and IPv6), you will be prompted to enter the routing information for both IPv4 and IPv6 independently. The MPLS Link Attribute Editor - Routing Information window appears. In the Hop Option field, you have the following options: •For a point-to-point interface you have two options: –USE_OUT_GOING_INTF_NAME –USE_NEXT_HOP_IPADDR •For a broadcast interface, you have only the USE_NEXT_HOP_IPADDR option. Note For the USE_NEXT_HOP_IPADDR option, a field appears in which you must enter the required IP address. Step 23 To continue, click Next. The MPLS Link Attribute Editor - VRF and VPN window appears. Note If you want to set the VRF and VPN attributes via a previously defined VRF object, check the Use VRF Object check box. For more information on this feature, see Chapter 3, "Independent VRF Management." That chapter describes how to use independent VRF objects in MPLS VPN service policies and service requests. Step 24 Click Add to join the VPN. The Join VPN dialog box appears. Step 25 Check to choose the VPN. Step 26 Click Join as Hub or Join as Spoke. Step 27 Click Done. The MPLS Service Request Editor window reappears. Step 28 Click the Next button to associate templates or data files to the service request. Note This step assumes the policy on which the service request is based has template association enabled. If not, there will be no Next button visible in the GUI. In that case, click Finish and return to the MPLS Service Request Editor window and proceed with Step 30, below. The MPLS Link Attribute Editor - Template Association window appears. In this window, you can associate templates and data files with a device by clicking the Add button in Template/Data File column for the device. When you click the Add button, the Add/Remove Templates window appears. For instructions about associating templates with service requests and how to use the features in this window, see Appendix B, "Working with Templates and Data Files." Step 29 When you have completed setting up templates and data files for any device(s), click Finish in the Template Association window to close it and return to the MPLS Service Request Editor window. You can define multiple links in this service request, following the instructions outlined in previous steps. Step 30 To save your work, click Save. The MPLS Service Requests window reappears showing that the MPLS VPN PE-NoCE Service Request is in the Requested state and ready to deploy.
	© 1992-2009 Cisco Systems, Inc. All rights reserved. Terms & Conditions \| Privacy Statement \| Cookie Policy \| Trademarks of Cisco Systems, Inc.
