Release Notes for Cisco IP Solution Center, 5.0.3
Cisco IP Solution Center (ISC) 5.0.3 is a follow-on maintenance release to ISC 5.0.2. This specific release concentrates on updates for Layer 2 VPN (L2VPN).
This release contains all the new functionality and problem fixes in ISC 5.0.2, see Release Notes for Cisco IP Solution Center, 5.0.2, and the new functionality and problem fixes specific to this ISC 5.0.3 release.
All documentation, including this Release Notes for Cisco IP Solution Center, 5.0.3 document and any or all of the parts of the ISC 5.0, ISC 5.0.1, ISC 5.0.2, and ISC 5.0.3 documentation sets, might be upgraded over time. Therefore, we recommend you access these documents at: http://www.cisco.com/en/US/products/sw/netmgtsw/ps4748/tsd_products_support_series_home.html You can also navigate to this documentation by clicking Help on the Home Page of the ISC product. The "Related Documentation" section gives the URL for the most current version of each document to be used with ISC 5.0.3.
The information in this Release Notes for Cisco IP Solution Center, 5.0.3 document gives you an overview of this release and helps you understand what has changed since ISC 5.0.2. Please read this document prior to reading any other manual for ISC.
The information in this document is organized into the following sections:
Cisco IP Solution Center (ISC) 5.0.3 has new functionality added since ISC 5.0.2 (see the "New and Changed Information Since ISC 5.0.2" section) and fixes to problems and enhancements found in ISC 5.0.x releases (see the "Problems Fixed in ISC 5.0.3" section). The system recommendations for ISC 5.0.3 (see the "System Recommendations" section) are based on those for ISC 5.0.1 and ISC 5.0.2 (see the Release Notes for Cisco IP Solution Center, 5.0.1 and the Release Notes for Cisco IP Solution Center, 5.0.2, respectively). The new devices and platforms supported in addition to those supported in ISC 5.0.2 are listed in the "New Device and Platform Support" section.
The new functionality in ISC 5.0.3 is for L2VPN users.
Steps for installing ISC 5.0.3 are found in the "Installation Notes" section, and other important information is found in the "Important Notes" section. For problems that were found and might still exist in ISC 5.0.3, see the URL in the "Known Caveats in Cisco IP Solution Center 5.0.3" section.
URLs for base information about ISC 5.0 and an overview and suggested reading order of these documents is given in the Cisco IP Solution Center Getting Started and Documentation Guide, 5.0 (http://www.cisco.com/en/US/docs/net_mgmt/ip_solution_center/5.0/roadmap/docguide.html). The ISC 5.0.3 documentation set includes ISC 5.0 documents, some updated information for ISC 5.0.1, Release Notes for Cisco IP Solution Center, 5.0.2, and these Release Notes for Cisco IP Solution Center, 5.0.3 indicated in the "Related Documentation" section.
The system recommendations and requirements listed in Chapter 1, "System Recommendations" of the Cisco IP Solution Center Installation Guide, 5.0
(http://www.cisco.com/en/US/docs/net_mgmt/ip_solution_center/5.0/installation/guide/install.html) are also applicable to ISC 5.0.3.
The recommendation is to thoroughly review all this information before even planning your installation, to be sure you have all the hardware and software needed for a successful installation.
Additionally, the new devices and platforms supported are explained in the Release Notes for Cisco IP Solution Center, 5.0.1, the Release Notes for Cisco IP Solution Center, 5.0.2, and in the section, New Device and Platform Support in this document.
New Device and Platform Support
ISC now supports IOS XR 3.6.1 on Cisco Carrier Routing System-1 (CRS-1) Series Routers for L2VPN.
New and Changed Information Since ISC 5.0.2
The ISC 5.0.2 functionality is included in this ISC 5.0.3 release. The new and changed information in ISC 5.0.2 was infrastructure updates: custom router login prompt and offline configuration collect mechanism; and MPLS Diagnostics Expert (MDE) 2.1.2 updates: MDE device selector GUI enhancement and MDE observations (CSCsi96376), which are all explained in detail in the Release Notes for Cisco IP Solution Center, 5.0.2.
In addition to the new IOS XR 3.6.1 support listed in the "New Device and Platform Support" section, ISC 5.0.3 has the following new and changed functionality that was added or updated since ISC 5.0.2:
L2VPN: Pseudowire Class Support for E-LINE Only
The Pseudowire class feature introduced in this release provides you with the capability to configure various attributes associated with a pseudowire that is deployed as part of an L2VPN service request on IOS XR capable devices. The pseudowire class feature supports configuration of the Encapsulation, Transport Mode, fallback options, and selection of a traffic engineering tunnel down which the pseudowire can be directed. For tunnel selection, you can select the tunnel using the ISC Traffic Engineering Management application if it is being used. Otherwise, you can specify the identifier of a tunnel that is already provisioned within the network.
You can use this functionality through:
This section explains the Graphical User Interface (GUI) support in the following subsections:
Pseudowire Class Creation
To use the GUI to create a pseudowire class, follow these steps:
Step 1 Navigate to Service Inventory > Inventory and Connection Manager > PseudoWireClass and you receive a window as shown in Figure 1.

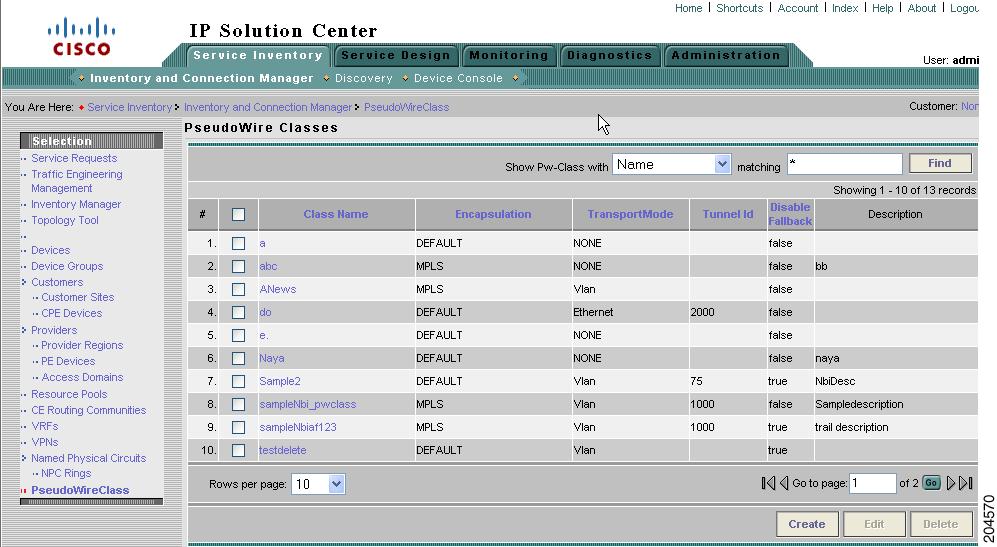

Figure 1 Pseudowire Classes

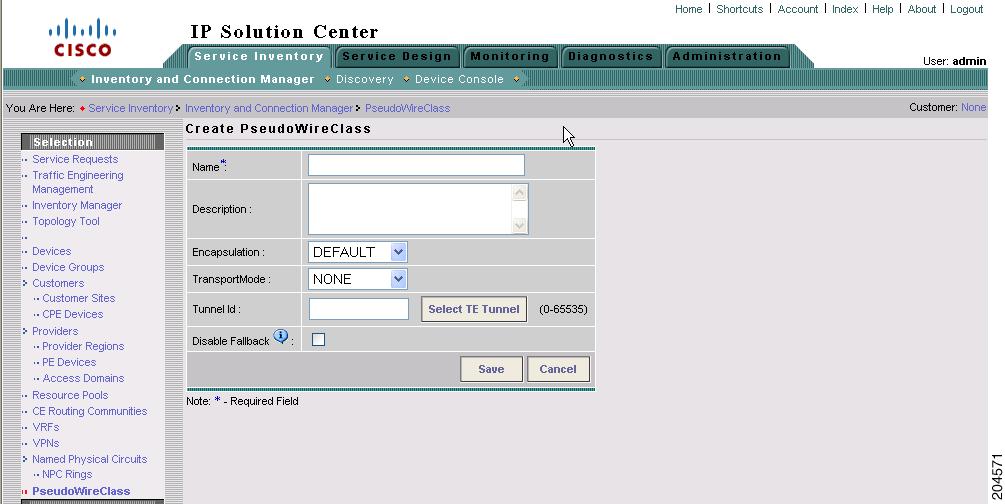

Figure 2 Selecting a Tunnel ID
Step 3 In Figure 2, specify the following:
•Name (required) - Enter a valid PseudoWireClass name of less than 32 characters.
•Description (optional) - Enter a meaningful description of less than 128 characters.
•Encapsulation - Both choices in the drop-down list, DEFAULT and MPLS, currently default to MPLS.
•TransportMode - From the drop-down list, you can choose Ethernet, Vlan, or NONE.
Note ISC GUI does not support Transport Mode VLAN. You must use a Dynamic Component Properties Library (DCPL) property as explained in the "L2VPN: Transport Mode VLAN with a DCPL Property" section.
•Tunnel Id (optional) - You can manually enter in this field the identifier of a TE tunnel that has already been provisioned by ISC or that has been manually provisioned on the device. Otherwise, you can click on Select TE Tunnel and from the pop-up window, you can automatically populate the field by selecting a TE tunnel that has already been provisioned by ISC.
•Disable Fallback (required for IOS XR 3.6.1; optional for IOS XR 3.7) - Choose this option, dependent on your version of IOS XR.
Pseudowire Class Association to an L2VPN Policy
To use the GUI to associate a pseudowire class to an L2VPN policy, follow these steps:
Step 1 Navigate to Service Design > Policies.
Step 2 Click the Create button and from the drop-down list choose L2VPN (P2P) Policy. You receive a window as shown in Figure 3.

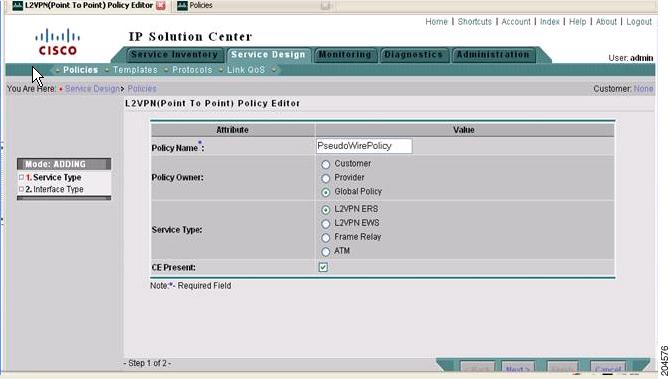

Figure 3 L2VPN (Point To Point) Policy Creation
Note The option L2VPN on IP(L2TPv3) core is not relevant in this release.

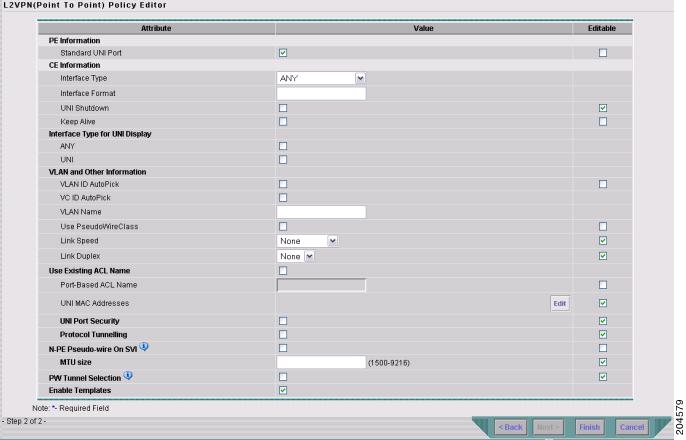

Figure 4 L2VPN (Point To Point) Policy Creation
Step 4 From the window in Figure 4, for the Service Type, choose one of the following:
Note The Frame Relay and the ATM options are not relevant for this release.

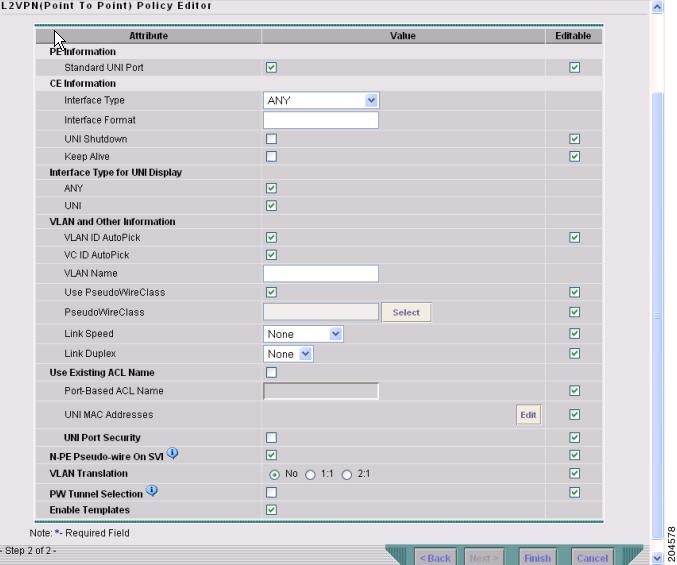

Figure 5 L2VPN (Point To Point) Policy Editor—Use PseudoWireClass Check Box for ERS
Figure 6 L2VPN (Point To Point) Policy Editor—PseudoWireClass Field for ERS
Step 7 In Figure 6, you can click the Select button for the PseudoWireClass field and from the pop-up window you can click the radio button for the PseudoWireClass of your choosing. Then click Select. Figure 6 is then updated with the chosen PseudoWireClass specified in that field.
Step 8 Click the Finish button in Figure 6 and you are finished.

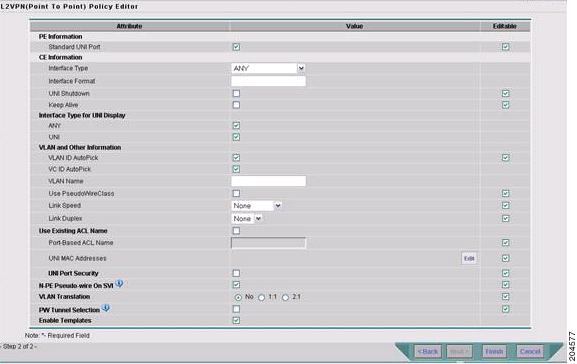

Figure 7 L2VPN (Point To Point) Policy Editor—Use PseudoWireClass Check Box for EWS
Figure 8 L2VPN (Point To Point) Policy Editor—PseudoWireClass Field for EWS
Step 11 In Figure 8, you can click the Select button for the PseudoWireClass field and from the pop-up window you can click the radio button for the PseudoWireClass of your choosing. Then click Select. Figure 8 is then updated with the chosen PseudoWireClass specified in that field.
Step 12 Click the Finish button in Figure 8 and you are finished.
Pseudowire Class Association to an L2VPN Service Request
If you did not associate a pseudowire class with the L2VPN policy or if you need to override the PseudoWireClass object that you selected in the "Pseudowire Class Association to an L2VPN Policy" section, follow these steps to use the GUI to associate a pseudowire class to an L2VPN Service Request:
Step 1 Navigate to Inventory > Inventory and Connection Manager > Service Requests to create a Service Request.
Step 2 Click on the link AC Attributes and you receive a window as shown in Figure 9, where you can change the PseudoWireClass name as explained in the "Pseudowire Class Association to an L2VPN Policy" section.

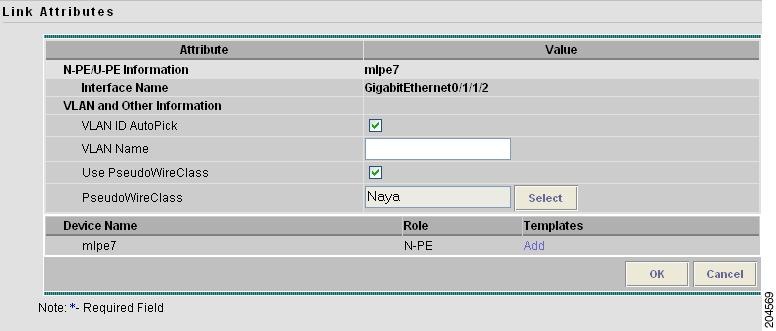

Figure 9 Override PseudoWireClass Object
Pseudowire Class Modification and How It Impacts L2VPN Service Requests
To use the GUI to modify a pseudowire class, follow these steps:
Step 1 Navigate to Service Inventory > Inventory and Connection Manager > PseudoWireClass.
Step 2 Select the pseudowire class you want to modify, as shown in Figure 1, and click Edit.
Step 3 Make your required changes and click Save.
Step 4 If the PseudoWireClass used in the L2VPN Service Request is modified with Transport Mode, Tunnel Id, and Disable Fallback values, a list of affected Service Requests appears as in Figure 10.

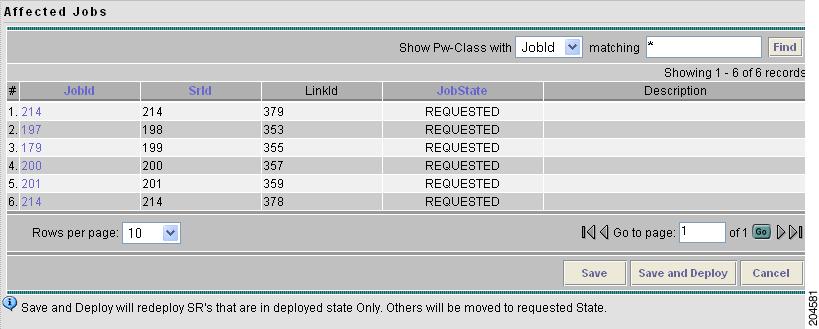

Figure 10 Affected Jobs
Step 5 In Figure 10, click:
•Save to update L2VPN Service Requests with the changed PseudoWireClass attributes.
•Save and Deploy to update L2VPN Service Requests with the changed PseudoWireClass attributes and deploy Service Requests that were previously in Deployed state.
To use the Application Programming Interface (API) for pseudowire class support, see the information in the following tables:
For API support for PseudoWireClass association to an L2VPN policy, use the API CreateL2VPNServiceDefn_EthernetEVCS_NO_CE.xml. For API support for PseudoWireClass association to an L2VPN service request, use the API CreateL2VPNServiceOrder_EVCS_NO_CE.xml. Both of these APIs can be found in the examples specified in the following note.
Note Examples of PseudoWireClass are available at: $<ISC_HOME>/resources/nbi/xml/examples/l2vpn. The applicable file names are CreatePWclass.xml, DeletePWClasss.xml, ModifyPWClass.xml, and ViewPWClass.xml.
L2VPN: Deletion of Traffic Engineering (TE) Tunnel Not Allowed if Used in PseudoWireClass
If a TE tunnel is chosen in Service Inventory > Inventory and Connection Manager > PseudoWireClass and you are trying to delete a selected TE tunnel from Service Inventory > Inventory and Connection Manager > Traffic Engineering Management, you receive the error message: Tunnel <ids> associated with Admission SR or Pseudowire cannot be deleted.
L2VPN: Transport Mode VLAN with a DCPL Property
When you want to configure a pseudowire transport mode to be VLAN, navigate to the Dynamic Component Properties Library (DCPL), Administration > Control Center > Hosts, check a check box for a specific host and click the Config button. Then navigate to the property Services\Common\pseudoWireVlanMode and set it to true. ISC then generates VLAN transport mode configuration for the pseudowire.
Note The transport-mode vlan is a deprecated command in IOS XR 3.6 and later. Thus, when a PseudoWireClass is selected for an IOS XR device and the DCPL property is also set to true, the transport-mode vlan command is not generated. PseudoWireClass and the transport-mode vlan command do not co-exist.
Note The value of the Services\Common\pseudoWireVlanMode DCPL property should not be changed during the life of a Service Request.
Problems Fixed in ISC 5.0.3
For problems fixed in ISC 5.0.1 see the Problems Fixed section of the Release Notes for Cisco IP Solution Center, 5.0.1.
No additional customer-found problems were fixed in this ISC 5.0.3 release.
This section contains the following information:
ISC 5.0.3 is a maintenance patch release that supports upgrading from ISC 3.2.2, 22.214.171.124, 126.96.36.199, 4.0, 4.0.1, 4.1, 4.1.1, 4.1.2, 4.2, 4.2.1, 4.2.2, 4.2.3, 4.2.4, 4.2.5, 5.0, 5.0.1, or 5.0.2.
Note To install the ISC 5.0.3 patch release, you must have ISC 5.0.1 installed.
If you are upgrading from a version of ISC prior to ISC 3.2.2, see Chapter 2 in the Cisco IP Solution Center Installation Guide, 5.0.
If you are upgrading from ISC 3.2.2, 188.8.131.52, 184.108.40.206, 4.0, 4.0.1, 4.1, 4.1.1, 4.1.2, 4.2, 4.2.1, 4.2.2, 4.2.3, 4.2.4, 4.2.5, or 5.0, you must install ISC 5.0.1 first, as explained in the Release Notes for Cisco IP Solution Center, 5.0.1. After upgrading to ISC 5.0.1, download and install the ISC 5.0.3 maintenance patch located at http://www.cisco.com/pcgi-bin/tablebuild.pl/isc on the same server. If you are upgrading from ISC 5.0.2, you have already installed ISC 5.0.1 and only need to install the ISC 5.0.3 maintenance patch.
Note If you are using an Oracle database prior to Oracle 10, you must upgrade your Oracle installation and your Oracle database. The Oracle database supported with this release is 10g Enterprise Edition Release 10.2.0.1.0 - 64bit Production with the Partitioning, OLAP, and Data Mining options.
Follow these steps:
Step 1 Before upgrading to this ISC 5.0.3 Maintenance Release, complete the discovery workflow. Otherwise, when you upgrade these previously initiated discovery workflows, the data discovered during that process might be lost.
Step 2 Before proceeding to install the ISC 5.0.3 Maintenance Release, be sure to back up your repository, as explained in Appendix C of the Cisco IP Solution Center Installation Guide, 5.0 (http://www.cisco.com/en/US/docs/net_mgmt/ip_solution_center/5.0/installation/guide/install.html).
Note If you need to revert to your prior version of ISC, this backed up repository is the one you need to point to after uninstalling ISC 5.0.3. When you uninstall ISC 5.0.3, you do not remove modifications made to the repository in Step 12. Any Service Requests provisioned under ISC 5.0.3 will then need to be reprovisioned.
Step 3 Go to http://www.cisco.com/pcgi-bin/tablebuild.pl/isc (where, in tablebuild.pl, the last character is the lower-case letter "l") to retrieve the ISC 5.0.3 Maintenance Release (isc-5.0.3-patch.tar.gz) and the database schema upgrade package (ISC503_UpgradeTool.tar.gz).
Note Patches that use ISC 5.0.3 as the base will also be located at http://www.cisco.com/pcgi-bin/tablebuild.pl/isc
Step 4 Prior to installing the ISC 5.0.3 Maintenance Release, verify that you have 100 MB of free space in the $ISC_HOME directory and that you are logged in with the same username as the owner of your supported version of ISC.
Step 5 Source the ISC environment file in the $ISC_HOME/bin directory:
For sh, ksh, and variant shells: . $ISC_HOME/bin/vpnenv.sh
For csh and variant shells: source $ISC_HOME/bin/vpnenv.csh
Step 6 Navigate to a directory other than $ISC_HOME.
Step 7 Use the following command to untar and unzip the isc-5.0.3-patch.tar.gz file:
gunzip -c isc-5.0.3-patch.tar.gz | tar xf -
Step 8 If ISC is running, use the following command to stop the database, name server, and WatchDog on the machine on which it is running:
Step 9 If you are running on ISC 3.2.2, 220.127.116.11, 18.104.22.168, 4.0, 4.0.1, 4.1, 4.1.1, 4.1.2, 4.2, 4.2.1, 4.2.2, 4.2.3, 4.2.4, 4.2.5, or 5.0, install ISC 5.0.1, as documented in the Release Notes for Cisco IP Solution Center, 5.0.1.
Note Prior to installing ISC 5.0.1, if you are moving a repository from one machine to another, the schema upgrade fails unless the repository has been initialized on the new machine. This requires that you successfully run initdb.sh on the repository to update the host entry.
Thus, when you are upgrading from an ISC version prior to ISC 5.0.3, you must have a running ISC installation on your new machine that is the same version as that on your old machine so that initdb.sh can be used to initialize your repository with the correct hostname.
Step 10 Use the following command to run the patch installation script:
b. To accept the default value for a prompt indicated in [ ], for example, [n] or [y], press Enter. To terminate the installer at any time, press Ctrl-C. Specifically, you are asked to enter a new path or press Enter for the default [<ISC_OWNER_HOME_DIR>/isc-5.0.1].
c. At the end of the installation, you receive a message that the patch installation is complete.
Step 11 Use the following command on the ISC server to untar and unzip the database schema upgrade package:
gunzip -c ISC503_UpgradeTool.tar.gz | tar xf -
The directory ISC503_UpgradeTool is created. Before you proceed, read the README file that is located in this directory.
Step 12 Use the following commands on the ISC server to use the upgrade tool:
./upgradeISCSchema.sh <full path of ISC_HOME>
The log messages are printed on the window and written in the log file contained in the log directory under the directory ISC503_UpgradeTool.
Step 13 Navigate to $ISC_HOME/bin.
Step 14 Enter the startwd command to restart ISC.
To uninstall the ISC 5.0.3 Maintenance Release that was successfully installed by following the steps in the "Upgrade Paths" section, follow these steps:
Step 1 Log in with the same username as the owner of ISC.
Step 2 If ISC 5.0.3 is running, navigate to the directory $ISC_HOME/patch/isc5.0.3-patch, where all the files replaced by the ISC 5.0.3 Maintenance Release were stored.
Step 3 Source the ISC environment file in the $ISC_HOME/bin directory:
For sh, ksh, and variant shells: . $ISC_HOME/bin/vpnenv.sh
For csh and variant shells: source $ISC_HOME/bin/vpnenv.csh
Step 4 Use the following command to stop the database, name server, and WatchDog on the machine on which it is running:
Step 5 Use the following command to run the patch script to uninstall:
b. To accept the default value for a prompt indicated in [ ], for example, [n] or [y], press Enter. To terminate the installer at any time, press Ctrl-C.
c. At the end of the uninstall, you receive a message that the patch rollback is complete.
Step 6 Navigate to $ISC_HOME/bin.
Step 7 Enter the startwd command to restart ISC.
1. All ISC patches are available at: http://www.cisco.com/pcgi-bin/tablebuild.pl/isc.
2. The supported Sybase and Oracle databases behave differently. All GUI queries are case-insensitive for Sybase and case-sensitive for Oracle.
3. ISC does not work with pop-up blockers in a web browser. If you have pop-up blockers installed, disable them.
4. When using an external Oracle database, the embedded Sybase database is still automatically launched for SLA support.
5. For all APIs, the service request name is unique and therefore, each Create Service Request API call needs to maintain this uniqueness.
Known Caveats in Cisco IP Solution Center 5.0.3
To find known caveats in Cisco IP Solution Center, use the following URL:
You must log in to Cisco.com.
You can search for specific bugs or search for a range by product name. This tool enables you to query for keywords, severity, range, or version.
The results display bug ID and title, found-in version, fixed-in version, and status. The bug ID is a hyperlink to detailed information for the bug ID's product, component, severity, first found-in, and release notes.
The results could be displayed in a feature matrix or spreadsheet.
The entire documentation set for Cisco IP Solution Center, 5.0.3 can be accessed at:
Tip To cut and paste a two-line URL into the address field of your browser, you must cut and paste each line separately to get the entire URL without a break.
The following documents comprise the ISC 5.0.3 documentation set.
General documentation (in suggested reading order)
Application and technology documentation (listed alphabetically)
Note All documentation might be upgraded over time. All upgraded documentation will be available at the same URLs specified in this document.
