Deployment Flow Manager

A service deployment typically involves multiple service features that in turn require service provisioning to work as a flow. The ISC Deployment Flow Manager enables you to provision several service requests into a single flow for deployment.

The Deployment Flow Manager deploys different types of pre-defined ISC services such as:

•MPLS

•IPsec

•L2VPN

•QoS

•Firewall

This section describes how you can create, manage, and monitor Deployment Flows and includes the following:

•Accessing the Deployment Flow Manager Window

•Creating and Executing a Deployment Flow

•Deployment Flow Usages

•Deleting Deployment Flows

Accessing the Deployment Flow Manager Window

The Deployment Flow Manager feature is used to create, manage, and monitor Deployment Flows.

To access the Deployment Flow Manager window, do the following:

Step 1 Navigate Service Inventory > Deployment Flow Manager to access the Deployment Flows window shown in Figure 5-2.

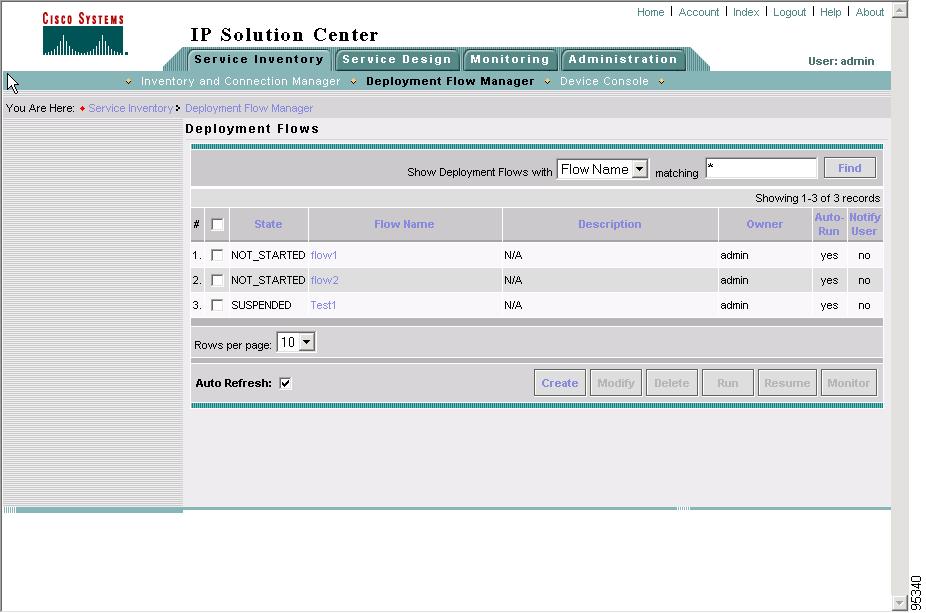

Figure 5-2 Deployment Flows Window

From the Deployment Flows window, you can create, modify, and manage deployment flows using the following buttons:

Create Click to create new deployment flow. Enabled only if no deployment flow is selected.

Modify Click to modify a selected deployment flow (select by clicking the corresponding box). Enabled only if one deployment flow is selected and the flow has not been started (NOT_STARTED).

Delete Click to delete selected deployment flow (select by clicking the corresponding boxes). Enabled only if the selected flows are not running (RUNNING).

Run Click to run a selected deployment flow (select by clicking the corresponding box). Enabled only if one deployment flow is selected.

Resume Click to resume a selected deployment flows (select by clicking the corresponding boxes). Enabled only if the selected deployment flows are suspended (SUSPENDED).

Monitor Click to monitor selected deployment flow (select by clicking the corresponding box). Enabled only if one deployment flow is selected. The flow can be in any state.

The Deployment Flows window displays the status of the flow. The Deployment Flow Manager supports the following flow states:

•notStarted The process instance has been created, but has not started yet

•running The process instance is executing

•suspended Deployment of the process instance is temporarily suspended

•completed Deployment of the process instance is completed

Creating and Executing a Deployment Flow

Deploying a flow involves two basic tasks: defining the steps in the flow, and executing the steps once they have been specified. From the Create Deployment Flow window, you can perform both tasks.

To create a deployment flow, do the following:

Step 1 Navigate Service Inventory > Deployment Flow Manager.

Step 2 Click the Create button.

The Create a Deployment Flow - Select Steps window appears, as shown in Figure 5-3.

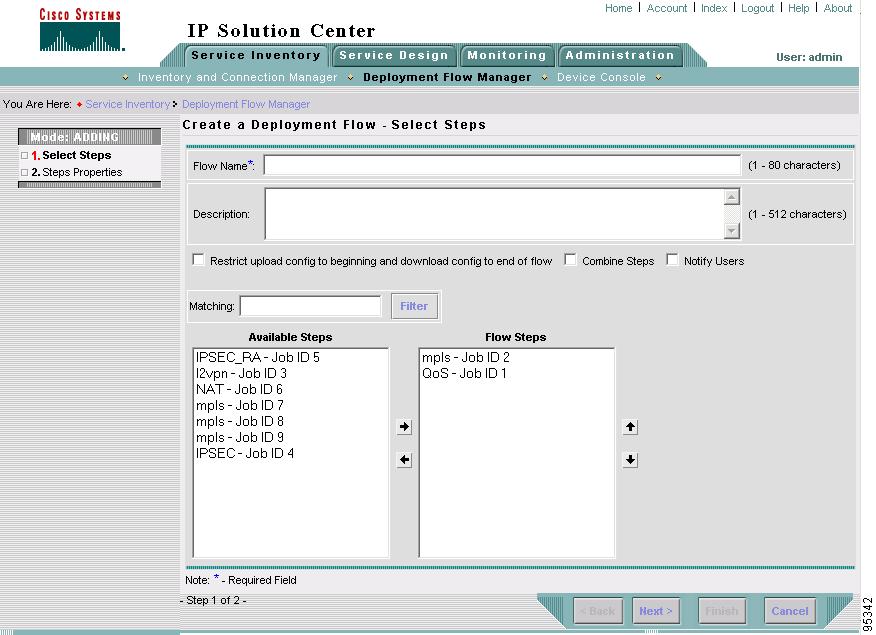

Figure 5-3 Create a Deployment Flow - Select Steps Window

The Create a Deployment Flow - Select Steps window contains the following fields:

Flow Name (required) Must begin with a letter, digit, or underscore followed by letters, digits, underscores, spaces, hyphens, or dots ending with a letter, digit, or underscore. Range: 1 to 80 characters.

Description (optional) Limited to 512 characters. May contain any pertinent information about the flow that may be helpful to service provider operators.

Restrict upload config to beginning and download config to end of flow (optional) Checkbox that determines usage. Default: unchecked. Refer to the section "Restrict Uploads and Downloads" for more information.

Combine Steps (optional) Checkbox that determines usage. Default: unchecked. Refer to the section "Combined Steps" for more information.

Notify Users (optional) Checkbox that determines if the User's Email Addresses field appears. Default: unchecked.

Matching/Filter (optional) Provides filtering of Available Steps based on information you enter in the Matching field.

Available Steps Lists the steps that are available from which you can select for deployment in flow. To select a step, click on it and then click on the right arrow.

Flow Steps Lists the steps that have been selected for deployment in the specified flow.

Step 3 Enter the required name of the flow, along with any description of other selections that you desire.

Step 4 You can filter the list of Available Steps by entering the characters you want in Matching and then clicking Filter.

Step 5 Select the steps from the Available Steps area for deployment in the flow that you are creating.

You must select at least one step.

Step 6 Specify usage, if desired. Refer to the following section, "Deployment Flow Usages" for information on the different usages.

Step 7 Click Next.

Depending on any usage that you specified, a Create a Deployment Flow - Step Properties window similar to the one shown in Figure 5-4 appears.

Figure 5-4 Create a Deployment Flow - Step Properties Window

Step 8 Review the information displayed. Do one of the following:

•If you wish to make changes to the information displayed, click Back. The Create a Deployment Flow - Select Steps window reappears and you can make the desired changes.

•If you wish to finalize the flow as specified, click Finish. The Deployment Flows window appears displaying a Status with a green check for Succeeded, as shown in Figure 5-5.

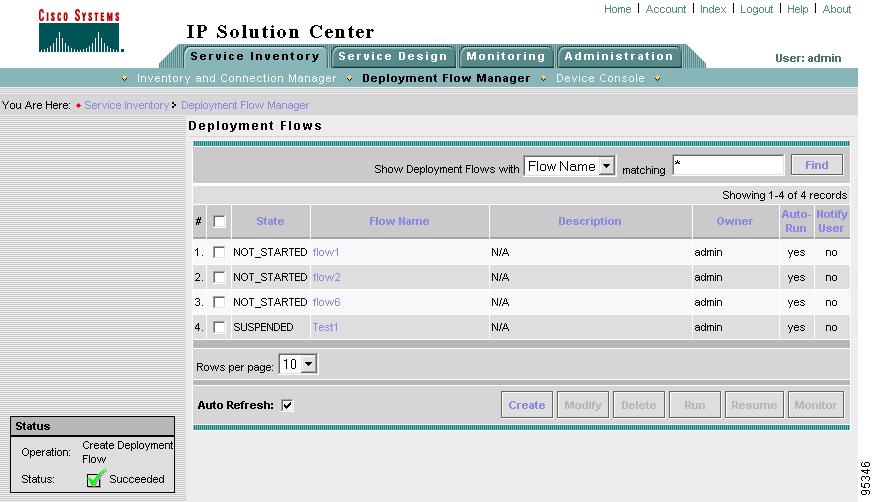

Figure 5-5 Deployment Flow Status Window

Step 9 To execute the flow, select the checkbox for the flow and click Run.

Deployment Flow Usages

Within the Deployment Flow Manager, you can deploy a flow with one of the following:

•Multiple uploads and downloads

•Restrict upload config to beginning and download config to end of flow

•Combined steps

Multiple Uploads and Downloads

If you do not specify a usage, the steps that you select are deployed one step at a time in the order specified. This results in multiple uploads and downloads of device configlets.

When you view the Create a Deployment Flow - Step Properties window with no usage specified, a window similar to Figure 5-6 appears.

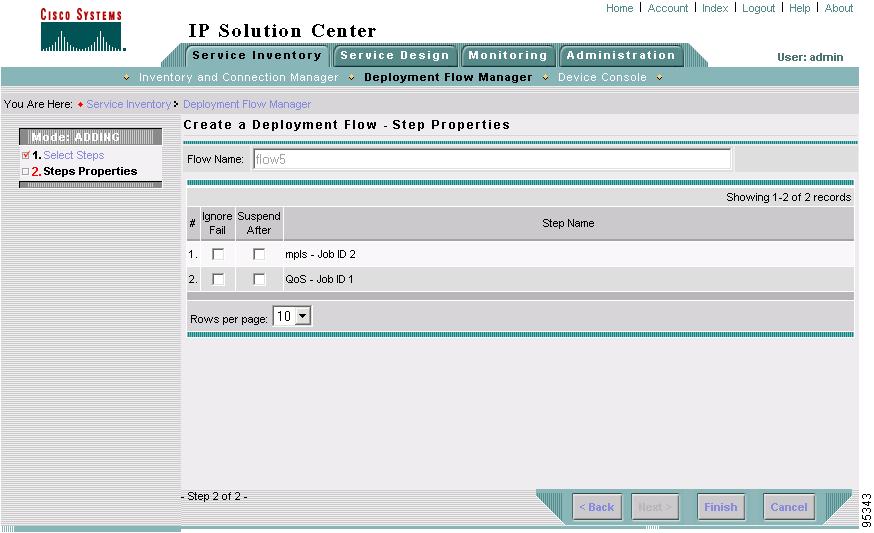

Figure 5-6 Create a Deployment Flow - Step Properties with No Usage Specified

Note that only the steps selected appear in the Step Names area.

Restrict Uploads and Downloads

If you click the Restrict upload config to beginning and download config to end of flow checkbox in the Create a Deployment Flow - Select Steps window, the steps selected are deployed one at a time. The upload of the device configlets occurs only at the beginning of the flow and the download of the device configlets occurs only at the end of the flow.

When you view the Create a Deployment Flow - Step Properties window with the restrict uploads and downloads usage specified, a window similar to Figure 5-7 appears.

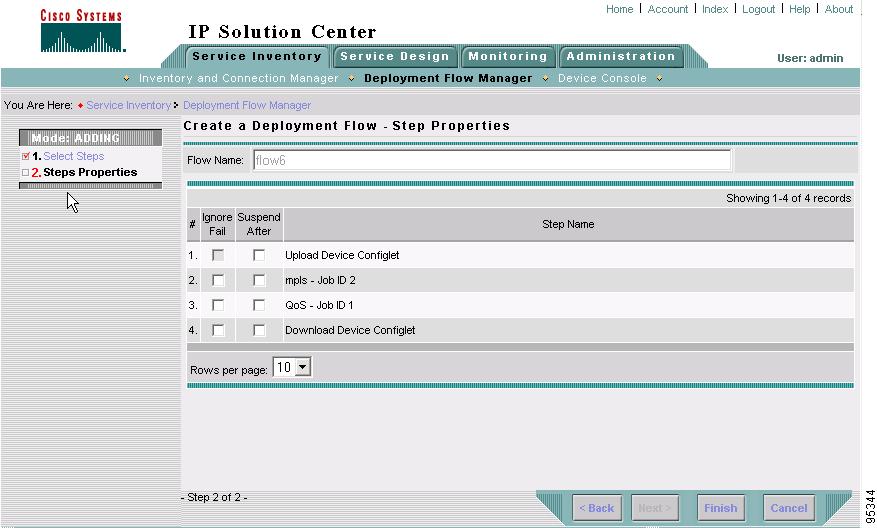

Figure 5-7 Create a Deployment Flow - Step Properties with Restrict Uploads and Downloads Specified

Note that the Step Names area now lists Upload Device Configlet, the selected steps, and Download Device Configlet. These steps are deployed in this order.

Combined Steps

If you click the Combine Steps checkbox in the Create a Deployment Flow - Select Steps window, all device configlets are uploaded at the beginning and downloaded at the end of the flow.

Note Using the Combined Steps usage, you can bundle several services together as a unit for service deployment.The services in the flow are executed as one unit.

When you view the Create a Deployment Flow - Step Properties window with Combined Steps usage specified, a window similar to Figure 5-8 appears.

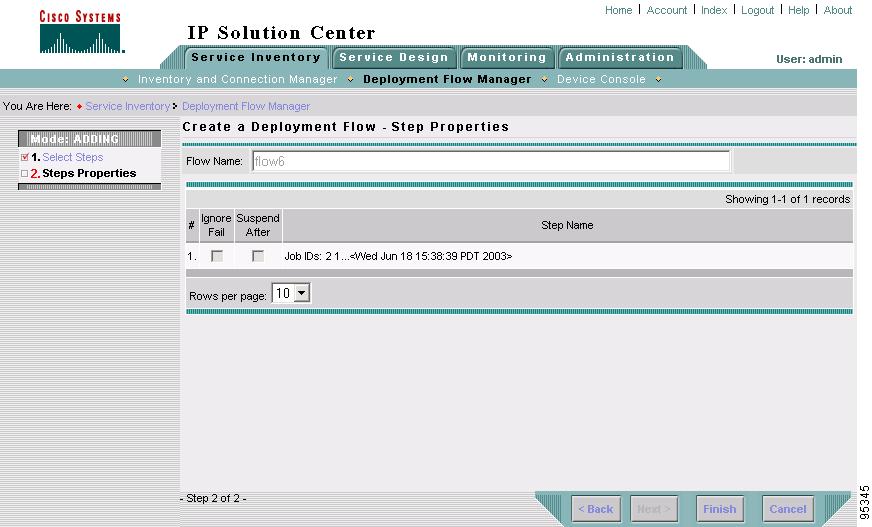

Figure 5-8 Create a Deployment Flow - Step Properties with Combined Usage Specified

Note that only one line appears in the Step Names area.

Deleting Deployment Flows

From the Deployment Flows window, you can remove selected flows from the database.

To delete flows, do the following:

Step 1 Navigate Service Inventory > Deployment Flow Manager.

Step 2 Select flow(s) to delete by checking the box(es) to the left of the Status/Flow Name.

Step 3 Click the Delete button. This button is only enabled if one or more flows are selected and the flows are not running.

The Confirm Deletion of Flow(s) window appears, as shown in Figure 5-9.

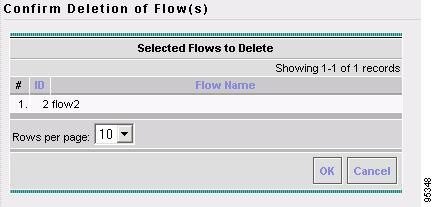

Figure 5-9 Confirm Deletion of Flow(s) Window

Step 4 Click OK to confirm that you want to delete the flows listed.

The Deployment Flows window reappears with the specified flows deleted.

Device Console

Device Console is the starting point for many operations. To navigate through Device Console, do the following:

Step 1 Navigate Service Inventory > Device Console and you receive a window as shown in Figure 5-10, "Device Console Selections."

Figure 5-10 Device Console Selections

Step 2 To select one of the operations, click the radio button for one of the following selections and then click the Next button.

Note All operations must be in live not ECHO mode.

•Download Commands Download configuration files, configlets, and router commands.

•Download Template Downloads template configlets to the specified devices.

•Device Configuration Manager Lists configuration file versions and lists the time stamps for when the versions of the configuration file were written to the repository.

•EXEC Commands Allows you to send to target devices any Cisco IOS commands that can be executed in enable mode.

•Reload Remotely reloads devices.

Download Commands

To download commands, do the following:

Step 1 Navigate Service Inventory > Device Console > Download Commands and click Next. A window as shown in Figure 5-11, "Device Console—Download Commands: Select Devices," appears.

Figure 5-11 Device Console—Download Commands: Select Devices

Step 2 Continue with Step 3 if you want to add devices; proceed to Step 7 to delete devices; or click Next to proceed to Step 9 for 3. Select Device Groups.

Step 3 Click Add, as shown in Figure 5-11, to 2. Select Devices.

Step 4 From the resulting window, as shown in Figure 5-12, "Device Selection," you can filter the choices: Device Name; Device Group; or Collection Zone from Show Devices with.

Figure 5-12 Device Selection

Step 5 From the devices listed, click the checkbox(es) for each device you want to select or click the checkbox in the header row to select all the devices. Then click Select.

Step 6 You return to Figure 5-11 with the added devices. You can repeat Step 3 to Step 5 to Add more devices, you can delete devices, as explained in Step 7, or you can proceed by going to Step 8.

Step 7 To delete devices, you can filter the list in Figure 5-11, by choosing a Category: Any, Name, or Group and entering the characters you want in Matching and then clicking Filter. From the resulting list, click the checkbox(es) for the devices you want to delete or click the checkbox in the header row to select all the devices and then click Delete. There is no chance to confirm this deletion.

Step 8 When you have all the devices you want, click Next. You proceed to 3. Select Device Groups, starting in Step 9.

Step 9 Continue with Step 10 if you want to add device groups; proceed to Step 14 to delete device groups; or click Next to proceed to Step 16 for 4. Enter Download Commands.

Step 10 Click Add, as shown in Figure 5-13, to 3. Select Device Groups.

Figure 5-13 Device Group Selection

Step 11 From the resulting window, as shown in Figure 5-14, "Group Association,"you can filter the choices: Device Group Name; or Description from Show Device Groups with.

Figure 5-14 Group Association

Step 12 From the device groups listed, click the checkbox(es) for each device group you want to select or click the checkbox in the header row to select all the device groups. Then click Select.

Step 13 You return to Figure 5-13 with the added device groups. You can repeat Step 10 to Step 12 to Add more device groups, you can delete device groups, as explained in Step 14, or you can proceed by going to Step 16.

Step 14 To delete device groups, you can filter the list in Figure 5-13, by entering the characters you want in Group name matching and then clicking Filter. From the resulting list, click the checkbox(es) for the devices you want to delete or click the checkbox in the header row to select all the devices and then click Delete. There is no chance to confirm this deletion.

Step 15 When you have all the device groups you want, click Next. You proceed to 4. Enter Download Commands, starting in Step 16.

Step 16 For 4. Enter Download Commands, the resulting window is shown in Figure 5-15, "Operation Commands."

Figure 5-15 Operation Commands

Step 17 In Figure 5-15, you can click the Browse button to input an existing file with Cisco IOS configuration commands. Then click the Load File button to put the file's information in the Commands field. Otherwise, you can enter the Cisco IOS configuration commands directly in the Commands field.

Step 18 Click Next and you proceed to 5. Download Commands Summary, as explained in Step 19.

Step 19 For 5. Download Commands Summary, a window as shown in Figure 5-16, "Download Commands Summary," appears.

Figure 5-16 Download Commands Summary

Step 20 In Figure 5-16, if you leave the Upload config after download checkbox unchecked, you do not upload the configuration file after the download. If you click the Upload config after download checkbox, you upload the new configuration file after you download the commands in Step 17.

Step 21 Click Back until you correct any information you want to change or click Finish to submit the download and you receive a window with the Download Commands Results and a Status with a green check for Succeeded. You can click Download or Done.

Step 22 When you click Download, you return to Step 16 to download additional commands on the selected devices.

Step 23 When you click Done, you return to Figure 5-10.

Download Template

To download a template, do the following:

Step 1 Navigate Service Inventory > Device Console > Download Template and click Next. A window as shown in Figure 5-17, "Device Console—Download Template: Select Devices," appears.

Figure 5-17 Device Console—Download Template: Select Devices

Step 2 Continue with Step 3 if you want to add devices; proceed to Step 9 to delete devices; or click Next to proceed to Step 11 for 3. Select Device Groups.

Step 3 Click Add, as shown in Figure 5-17, to 2. Select Devices.

Step 4 From the resulting window, as shown in Figure 5-18, "Device Selection," you can filter the choices: Device Name; Device Group; or Collection Zone from Show Devices with.

Figure 5-18 Device Selection

Step 5 From the devices listed, click the checkbox(es) for each device you want to select or click the checkbox in the header row to select all the devices. Then click Select.

Step 6 You return to Figure 5-17 with the added devices.

Step 7 For each device, you can click the added Clear button to clear the Upload to Customer/Site column to reflect none selected, or you can click the added Select button and a new window allows you to Create Customer, Create Site, Select, or Cancel. When you click Select in this new window, you return to Figure 5-17 with the added customer/site.

Step 8 You can repeat Step 3 to Step 7 to Add more devices, you can delete devices, as explained in Step 9, or you can proceed by going to Step 10.

Step 9 To delete devices, you can filter the list in Figure 5-17, by choosing a Category: Any, Name, or Group and entering the characters you want in Matching and then clicking Filter. From the resulting list, click the checkbox(es) for the devices you want to delete or click the checkbox in the header row to select all the devices and then click Delete. There is no chance to confirm this deletion.

Step 10 When you have all the devices you want, click Next. You proceed to 3. Select Device Groups, starting in Step 11.

Step 11 Continue with Step 12 if you want to add device groups; proceed to Step 16 to delete device groups; or click Next to proceed to Step 18 for 4. Enter Download Commands.

Step 12 Click Add, as shown in Figure 5-19, to 3. Select Device Groups. Adding Device Groups is not required.

Figure 5-19 Device Group Selection

Step 13 From the resulting window, as shown in Figure 5-20, "Group Association,"you can filter the choices: Device Group Name; or Description from Show Device Groups with.

Figure 5-20 Group Association

Step 14 From the device groups listed, click the checkbox(es) for each device group you want to select or click the checkbox in the header row to select all the device groups. Then click Select.

Step 15 You return to Figure 5-19 with the added device groups. You can repeat Step 12 to Step 14 to Add more device groups, you can delete device groups, as explained in Step 16, or you can proceed by going to Step 18.

Step 16 To delete device groups, you can filter the list in Figure 5-19, by entering the characters you want in Group name matching and then clicking Filter. From the resulting list, click the checkbox(es) for the devices you want to delete or click the checkbox in the header row to select all the devices and then click Delete. There is no chance to confirm this deletion.

Step 17 When you have all the device groups you want, click Next. You proceed to 4. Select Download Template, starting in Step 18.

Step 18 For 4. Select Download Template, the resulting window is shown in Figure 5-21, "Select Download Template."

Figure 5-21 Select Download Template

Step 19 In Figure 5-21, you can click the Select button.

Step 20 A window as shown in Figure 5-22, "Add/Remove Templates," appears. Click Add to add templates or Remove to remove templates. When you have the templates you want, click OK.

When you click Add you get a Template Datafile Chooser window with the template choices in the tree. Click + to open the folders and subfolders in the tree, until you get the property to you want to choose. Click on that property and it is added to your list. Repeat this until all the templates you want are in your list. In each added property, you can click View and you receive the configlet for that data file. To return, click OK. In Figure 5-22, click the checkbox(es) for the template(s) you want. In each template, click the Action drop-down menu and choose APPEND or PREPEND to add information after or before; click or unclick the Active button; and then click OK.

Figure 5-22 Add/Remove Templates

Step 21 You return to Figure 5-22 with the updated information.

Step 22 Click Next and you proceed to 5. Download Template Summary, as explained in Step 23.

Step 23 For 5. Download Commands Summary, a window as shown in Figure 5-23, "Download Template Summary," appears.

Figure 5-23 Download Template Summary

Step 24 In Figure 5-23, if you leave the Upload config after download checkbox unchecked, you do not upload the configuration file after the download. If you click the Upload config after download checkbox, you upload the new configuration file after you download the templates in Step 20.

Step 25 Click Back until you correct any information you want to change or click Finish to submit the download and you receive a window with the Download Template Results and a Status with a green check for Succeeded, as shown in Figure 5-24, "Download Template Results."

Figure 5-24 Download Template Results

Step 26 Click Done and you return to Figure 5-10.

Device Configuration Manager

To execute the device configuration manager, do the following:

Step 1 Navigate Service Inventory > Device Console > Device Configuration Manager and click Next. A window as shown in Figure 5-25, "Device Configuration Manager," appears.

Figure 5-25 Device Configuration Manager

Step 2 In the Device row, click Select and a window as shown in Figure 5-26, "Device Selection," appears.

Figure 5-26 Device Selection

Step 3 From the devices listed, click the radio button for the device you want to select. Then click Select.

Step 4 You return to Figure 5-25 with the added device. You can repeat Step 2 to Step 3 to change the device.

Step 5 When you have all the devices you want, go to the Configuration to Display row and click the Select a Version... drop-down menu. Click the version you want and then click Load to load that configuration file.

Step 6 The configuration file is displayed in the Displayed Configuration panel.

Step 7 Click one of the following radio buttons or keep the default:

•Display only The configuration file can only be viewed.

•Download to startup The configuration file is downloaded to the start up configuration of the selected router.

Note For Download to startup, the Device Access Protocol (defined in device creation) must be either ftp or tftp. If this is not the case, the Device Configuration Manager Results window appears and indicates that you must set up either ftp or tftp.

•Download to running The configuration file is downloaded to the router's running configuration file.

Note When the DCPL property copy-running-to-startup in the GTL/ios folder is set to the default of true, the router's running configuration file is also copied to the start up configuration.

Step 8 Click Finish. If in Step 7 you chose Display only, you automatically return to Figure 5-10. If in Step 7 you clicked Download to startup or Download to running, you get a Device Configuration Manager Results window. In the Status box, you get a green check mark for Succeeded or a red Failed status and you must click Done to return to Figure 5-10.

EXEC Commands

EXEC Commands allows you to send to target devices any Cisco IOS commands that can be executed in enable mode. You can only view the router information. You cannot edit or delete the information.

To execute EXEC Commands, do the following:

Step 1 Navigate Service Inventory > Device Console > EXEC Commands and click Next. A window as shown in Figure 5-27, "Device Console—EXEC Commands: Select Devices," appears.

Figure 5-27 Device Console—EXEC Commands: Select Devices

Step 2 Continue with Step 3 if you want to add devices; proceed to Step 7 to delete devices; or click Next to proceed to Step 9 for 3. Select Device Groups.

Step 3 Click Add, as shown in Figure 5-27, to 2. Select Devices.

Step 4 From the resulting window, as shown in Figure 5-28, "Device Selection," you can filter the choices: Device Name; Device Group; or Collection Zone from Show Devices with.

Figure 5-28 Device Selection

Step 5 From the devices listed, click the checkbox(es) for each device you want to select or click the checkbox in the header row to select all the devices. Then click Select.

Step 6 You return to Figure 5-27 with the added devices. You can repeat Step 3 to Step 5 to Add more devices, you can delete devices, as explained in Step 7, or you can proceed by going to Step 8.

Step 7 To delete devices, you can filter the list in Figure 5-27, by choosing a Category: Any, Name, or Group and entering the characters you want in Matching and then clicking Filter. From the resulting list, click the checkbox(es) for the devices you want to delete or click the checkbox in the header row to select all the devices and then click Delete. There is no chance to confirm this deletion.

Step 8 When you have all the devices you want, click Next. You proceed to 3. Select Device Groups, starting in Step 9.

Step 9 Continue with Step 10 if you want to add device groups; proceed to Step 14 to delete device groups; or click Next to proceed to Step 16 for 4. Enter EXEC Commands.

Step 10 Click Add, as shown in Figure 5-29, to 3. Select Device Groups.

Figure 5-29 Device Group Selection

Step 11 From the resulting window, as shown in Figure 5-30, "Group Association,"you can filter the choices: Device Group Name; or Description from Show Device Groups with.

Figure 5-30 Group Association

Step 12 From the device groups listed, click the checkbox(es) for each device group you want to select or click the checkbox in the header row to select all the device groups. Then click Select.

Step 13 You return to Figure 5-29 with the added device groups. You can repeat Step 10 to Step 12 to Add more device groups, you can delete device groups, as explained in Step 14, or you can proceed by going to Step 16.

Step 14 To delete device groups, you can filter the list in Figure 5-29, by entering the characters you want in Group name matching and then clicking Filter. From the resulting list, click the checkbox(es) for the devices you want to delete or click the checkbox in the header row to select all the devices and then click Delete. There is no chance to confirm this deletion.

Step 15 When you have all the device groups you want, click Next. You proceed to 4. Enter EXEC Commands, starting in Step 16.

Step 16 For 4. Enter EXEC Commands, the resulting window is shown in Figure 5-31, "Operation Commands."

Figure 5-31 Operation Commands

Step 17 In Figure 5-31, you can click the Browse button to input an existing file with Cisco IOS configuration commands. Then click the Load File button to put the file's information in the Commands field. Otherwise, you can enter the Cisco IOS configuration commands directly in the Commands field.

Step 18 Click Next and you proceed to 5. EXEC Commands Summary, as explained in Step 19.

Step 19 For 5. EXEC Commands Summary, a window as shown in Figure 5-32, "EXEC Commands Summary," appears.

Figure 5-32 EXEC Commands Summary

Step 20 Click Back until you correct any information you want to change or click Finish to retrieve the information from the router. You then receive a window with the EXEC Commands Results and a Status with a green check for Succeeded. You can click EXEC or Done.

Step 21 When you click EXEC, you return to Step 16 to enter additional commands on the selected devices.

Step 22 When you click Done, you return to Figure 5-10.

Reload

To reload, do the following:

Step 1 Navigate Service Inventory > Device Console > Reload. A window as shown in Figure 5-33, "Device Console—Reload: Select Devices," appears.

Figure 5-33 Device Console—Reload: Select Devices

Step 2 Continue with Step 3 if you want to add devices; proceed to Step 7 to delete devices; or click Next to proceed to Step 9 for 3. Select Device Groups.

Step 3 Click Add, as shown in Figure 5-33, to 2. Select Devices.

Step 4 From the resulting window, as shown in Figure 5-34, "Device Selection," you can filter the choices: Device Name; Device Group; or Collection Zone from Show Devices with.

Figure 5-34 Device Selection

Step 5 From the devices listed, click the checkbox(es) for each device you want to select or click the checkbox in the header row to select all the devices. Then click Select.

Step 6 You return to Figure 5-33 with the added devices. You can repeat Step 3 to Step 5 to Add more devices, you can delete devices, as explained in Step 7, or you can proceed by going to Step 8.

Step 7 To delete devices, you can filter the list in Figure 5-33, by choosing a Category: Any, Name, or Group and entering the characters you want in Matching and then clicking Filter. From the resulting list, click the checkbox(es) for the devices you want to delete or click the checkbox in the header row to select all the devices and then click Delete. There is no chance to confirm this deletion.

Step 8 When you have all the devices you want, click Next. You proceed to 3. Select Device Groups, starting in Step 9.

Step 9 Continue with Step 11 if you want to add device groups; proceed to Step 14 to delete device groups; or click Next to proceed to Step 16 for 4. Reload Devices Summary.

Step 10 Click Add, as shown in Figure 5-35, to 3. Select Device Groups.

Figure 5-35 Device Group Selection

Step 11 From the resulting window, as shown in Figure 5-36, "Group Association,"you can filter the choices: Device Group Name; or Description from Show Device Groups with.

Figure 5-36 Group Association

Step 12 From the device groups listed, click the checkbox(es) for each device group you want to select or click the checkbox in the header row to select all the device groups. Then click Select.

Step 13 You return to Figure 5-36 with the added device groups. You can repeat Step 10 to Step 12 to Add more device groups, you can delete device groups, as explained in Step 14, or you can proceed by going to Step 16.

Step 14 To delete device groups, you can filter the list in Figure 5-35, by entering the characters you want in Group name matching and then clicking Filter. From the resulting list, click the checkbox(es) for the devices you want to delete or click the checkbox in the header row to select all the devices and then click Delete. There is no chance to confirm this deletion.

Step 15 When you have all the device groups you want, click Next. You proceed to 4. Reload Device Groups, starting in Step 16.

Step 16 For 4. Reload Devices Summary, a window as shown in Figure 5-37, "Reload Summary," appears.

Figure 5-37 Reload Summary

Step 17 Click Back until you correct any information you want to change or click Finish to submit the reload and you receive a window with the Reload Results and a Status with a green check for Succeeded.

Step 18 Click Done and you return to Figure 5-10.

	Cisco IP Solution Center Infrastructure Reference, 3.0
	Service Inventory > Deployment Flow and Service Inventory > Device Console
Cisco IP Solution Center Infrastructure Reference, 3.0 Index About This Guide Getting Started WatchDog Commands Structural Overview Service Inventory > Inventory and Connection Manager Service Inventory > Deployment Flow and Service Inventory > Device Console Service Design Monitoring Administration Cisco CNS IE2100 Appliances Glossary	Download this chapter Service Inventory > Deployment Flow and Service Inventory > Device Console Download the complete book Cisco IP Solution Center Infrastructure Reference, 3.0 - Entire Book in PDF (PDF - 6 MB) Table Of Contents Service Inventory > Deployment Flow Manager and Service Inventory > Device Console Deployment Flow Manager Accessing the Deployment Flow Manager Window Creating and Executing a Deployment Flow Deployment Flow Usages Multiple Uploads and Downloads Restrict Uploads and Downloads Combined Steps Deleting Deployment Flows Device Console Download Commands Download Template Device Configuration Manager EXEC Commands Reload Service Inventory > Deployment Flow Manager and Service Inventory > Device Console From the Home window you receive upon logging in, click the Service Inventory tab or area in the data pane of the window, and you receive a window as shown in Figure 5-1, "Service Inventory Selections." Figure 5-1 Service Inventory Selections Click on Deployment Flow Manager and you proceed directly to create, manage, and monitor Deployment Flow, as shown in the Deployment Flow Manager. Click on Device Console and you proceed directly to download commands and configlets to devices and view device configuration, as shown in Device Console. Deployment Flow Manager A service deployment typically involves multiple service features that in turn require service provisioning to work as a flow. The ISC Deployment Flow Manager enables you to provision several service requests into a single flow for deployment. The Deployment Flow Manager deploys different types of pre-defined ISC services such as: •MPLS •IPsec •L2VPN •QoS •Firewall This section describes how you can create, manage, and monitor Deployment Flows and includes the following: •Accessing the Deployment Flow Manager Window •Creating and Executing a Deployment Flow •Deployment Flow Usages •Deleting Deployment Flows Accessing the Deployment Flow Manager Window The Deployment Flow Manager feature is used to create, manage, and monitor Deployment Flows. To access the Deployment Flow Manager window, do the following: Step 1 Navigate Service Inventory > Deployment Flow Manager to access the Deployment Flows window shown in Figure 5-2. Figure 5-2 Deployment Flows Window From the Deployment Flows window, you can create, modify, and manage deployment flows using the following buttons: Create Click to create new deployment flow. Enabled only if no deployment flow is selected. Modify Click to modify a selected deployment flow (select by clicking the corresponding box). Enabled only if one deployment flow is selected and the flow has not been started (NOT_STARTED). Delete Click to delete selected deployment flow (select by clicking the corresponding boxes). Enabled only if the selected flows are not running (RUNNING). Run Click to run a selected deployment flow (select by clicking the corresponding box). Enabled only if one deployment flow is selected. Resume Click to resume a selected deployment flows (select by clicking the corresponding boxes). Enabled only if the selected deployment flows are suspended (SUSPENDED). Monitor Click to monitor selected deployment flow (select by clicking the corresponding box). Enabled only if one deployment flow is selected. The flow can be in any state. The Deployment Flows window displays the status of the flow. The Deployment Flow Manager supports the following flow states: •notStarted The process instance has been created, but has not started yet •running The process instance is executing •suspended Deployment of the process instance is temporarily suspended •completed Deployment of the process instance is completed Creating and Executing a Deployment Flow Deploying a flow involves two basic tasks: defining the steps in the flow, and executing the steps once they have been specified. From the Create Deployment Flow window, you can perform both tasks. To create a deployment flow, do the following: Step 1 Navigate Service Inventory > Deployment Flow Manager. Step 2 Click the Create button. The Create a Deployment Flow - Select Steps window appears, as shown in Figure 5-3. Figure 5-3 Create a Deployment Flow - Select Steps Window The Create a Deployment Flow - Select Steps window contains the following fields: Flow Name (required) Must begin with a letter, digit, or underscore followed by letters, digits, underscores, spaces, hyphens, or dots ending with a letter, digit, or underscore. Range: 1 to 80 characters. Description (optional) Limited to 512 characters. May contain any pertinent information about the flow that may be helpful to service provider operators. Restrict upload config to beginning and download config to end of flow (optional) Checkbox that determines usage. Default: unchecked. Refer to the section "Restrict Uploads and Downloads" for more information. Combine Steps (optional) Checkbox that determines usage. Default: unchecked. Refer to the section "Combined Steps" for more information. Notify Users (optional) Checkbox that determines if the User's Email Addresses field appears. Default: unchecked. Matching/Filter (optional) Provides filtering of Available Steps based on information you enter in the Matching field. Available Steps Lists the steps that are available from which you can select for deployment in flow. To select a step, click on it and then click on the right arrow. Flow Steps Lists the steps that have been selected for deployment in the specified flow. Step 3 Enter the required name of the flow, along with any description of other selections that you desire. Step 4 You can filter the list of Available Steps by entering the characters you want in Matching and then clicking Filter. Step 5 Select the steps from the Available Steps area for deployment in the flow that you are creating. You must select at least one step. Step 6 Specify usage, if desired. Refer to the following section, "Deployment Flow Usages" for information on the different usages. Step 7 Click Next. Depending on any usage that you specified, a Create a Deployment Flow - Step Properties window similar to the one shown in Figure 5-4 appears. Figure 5-4 Create a Deployment Flow - Step Properties Window Step 8 Review the information displayed. Do one of the following: •If you wish to make changes to the information displayed, click Back. The Create a Deployment Flow - Select Steps window reappears and you can make the desired changes. •If you wish to finalize the flow as specified, click Finish. The Deployment Flows window appears displaying a Status with a green check for Succeeded, as shown in Figure 5-5. Figure 5-5 Deployment Flow Status Window Step 9 To execute the flow, select the checkbox for the flow and click Run. Deployment Flow Usages Within the Deployment Flow Manager, you can deploy a flow with one of the following: •Multiple uploads and downloads •Restrict upload config to beginning and download config to end of flow •Combined steps Multiple Uploads and Downloads If you do not specify a usage, the steps that you select are deployed one step at a time in the order specified. This results in multiple uploads and downloads of device configlets. When you view the Create a Deployment Flow - Step Properties window with no usage specified, a window similar to Figure 5-6 appears. Figure 5-6 Create a Deployment Flow - Step Properties with No Usage Specified Note that only the steps selected appear in the Step Names area. Restrict Uploads and Downloads If you click the Restrict upload config to beginning and download config to end of flow checkbox in the Create a Deployment Flow - Select Steps window, the steps selected are deployed one at a time. The upload of the device configlets occurs only at the beginning of the flow and the download of the device configlets occurs only at the end of the flow. When you view the Create a Deployment Flow - Step Properties window with the restrict uploads and downloads usage specified, a window similar to Figure 5-7 appears. Figure 5-7 Create a Deployment Flow - Step Properties with Restrict Uploads and Downloads Specified Note that the Step Names area now lists Upload Device Configlet, the selected steps, and Download Device Configlet. These steps are deployed in this order. Combined Steps If you click the Combine Steps checkbox in the Create a Deployment Flow - Select Steps window, all device configlets are uploaded at the beginning and downloaded at the end of the flow. Note Using the Combined Steps usage, you can bundle several services together as a unit for service deployment.The services in the flow are executed as one unit. When you view the Create a Deployment Flow - Step Properties window with Combined Steps usage specified, a window similar to Figure 5-8 appears. Figure 5-8 Create a Deployment Flow - Step Properties with Combined Usage Specified Note that only one line appears in the Step Names area. Deleting Deployment Flows From the Deployment Flows window, you can remove selected flows from the database. To delete flows, do the following: Step 1 Navigate Service Inventory > Deployment Flow Manager. Step 2 Select flow(s) to delete by checking the box(es) to the left of the Status/Flow Name. Step 3 Click the Delete button. This button is only enabled if one or more flows are selected and the flows are not running. The Confirm Deletion of Flow(s) window appears, as shown in Figure 5-9. Figure 5-9 Confirm Deletion of Flow(s) Window Step 4 Click OK to confirm that you want to delete the flows listed. The Deployment Flows window reappears with the specified flows deleted. Device Console Device Console is the starting point for many operations. To navigate through Device Console, do the following: Step 1 Navigate Service Inventory > Device Console and you receive a window as shown in Figure 5-10, "Device Console Selections." Figure 5-10 Device Console Selections Step 2 To select one of the operations, click the radio button for one of the following selections and then click the Next button. Note All operations must be in live not ECHO mode. •Download Commands Download configuration files, configlets, and router commands. •Download Template Downloads template configlets to the specified devices. •Device Configuration Manager Lists configuration file versions and lists the time stamps for when the versions of the configuration file were written to the repository. •EXEC Commands Allows you to send to target devices any Cisco IOS commands that can be executed in enable mode. •Reload Remotely reloads devices. Download Commands To download commands, do the following: Step 1 Navigate Service Inventory > Device Console > Download Commands and click Next. A window as shown in Figure 5-11, "Device Console—Download Commands: Select Devices," appears. Figure 5-11 Device Console—Download Commands: Select Devices Step 2 Continue with Step 3 if you want to add devices; proceed to Step 7 to delete devices; or click Next to proceed to Step 9 for 3. Select Device Groups. Step 3 Click Add, as shown in Figure 5-11, to 2. Select Devices. Step 4 From the resulting window, as shown in Figure 5-12, "Device Selection," you can filter the choices: Device Name; Device Group; or Collection Zone from Show Devices with. Figure 5-12 Device Selection Step 5 From the devices listed, click the checkbox(es) for each device you want to select or click the checkbox in the header row to select all the devices. Then click Select. Step 6 You return to Figure 5-11 with the added devices. You can repeat Step 3 to Step 5 to Add more devices, you can delete devices, as explained in Step 7, or you can proceed by going to Step 8. Step 7 To delete devices, you can filter the list in Figure 5-11, by choosing a Category: Any, Name, or Group and entering the characters you want in Matching and then clicking Filter. From the resulting list, click the checkbox(es) for the devices you want to delete or click the checkbox in the header row to select all the devices and then click Delete. There is no chance to confirm this deletion. Step 8 When you have all the devices you want, click Next. You proceed to 3. Select Device Groups, starting in Step 9. Step 9 Continue with Step 10 if you want to add device groups; proceed to Step 14 to delete device groups; or click Next to proceed to Step 16 for 4. Enter Download Commands. Step 10 Click Add, as shown in Figure 5-13, to 3. Select Device Groups. Figure 5-13 Device Group Selection Step 11 From the resulting window, as shown in Figure 5-14, "Group Association,"you can filter the choices: Device Group Name; or Description from Show Device Groups with. Figure 5-14 Group Association Step 12 From the device groups listed, click the checkbox(es) for each device group you want to select or click the checkbox in the header row to select all the device groups. Then click Select. Step 13 You return to Figure 5-13 with the added device groups. You can repeat Step 10 to Step 12 to Add more device groups, you can delete device groups, as explained in Step 14, or you can proceed by going to Step 16. Step 14 To delete device groups, you can filter the list in Figure 5-13, by entering the characters you want in Group name matching and then clicking Filter. From the resulting list, click the checkbox(es) for the devices you want to delete or click the checkbox in the header row to select all the devices and then click Delete. There is no chance to confirm this deletion. Step 15 When you have all the device groups you want, click Next. You proceed to 4. Enter Download Commands, starting in Step 16. Step 16 For 4. Enter Download Commands, the resulting window is shown in Figure 5-15, "Operation Commands." Figure 5-15 Operation Commands Step 17 In Figure 5-15, you can click the Browse button to input an existing file with Cisco IOS configuration commands. Then click the Load File button to put the file's information in the Commands field. Otherwise, you can enter the Cisco IOS configuration commands directly in the Commands field. Step 18 Click Next and you proceed to 5. Download Commands Summary, as explained in Step 19. Step 19 For 5. Download Commands Summary, a window as shown in Figure 5-16, "Download Commands Summary," appears. Figure 5-16 Download Commands Summary Step 20 In Figure 5-16, if you leave the Upload config after download checkbox unchecked, you do not upload the configuration file after the download. If you click the Upload config after download checkbox, you upload the new configuration file after you download the commands in Step 17. Step 21 Click Back until you correct any information you want to change or click Finish to submit the download and you receive a window with the Download Commands Results and a Status with a green check for Succeeded. You can click Download or Done. Step 22 When you click Download, you return to Step 16 to download additional commands on the selected devices. Step 23 When you click Done, you return to Figure 5-10. Download Template To download a template, do the following: Step 1 Navigate Service Inventory > Device Console > Download Template and click Next. A window as shown in Figure 5-17, "Device Console—Download Template: Select Devices," appears. Figure 5-17 Device Console—Download Template: Select Devices Step 2 Continue with Step 3 if you want to add devices; proceed to Step 9 to delete devices; or click Next to proceed to Step 11 for 3. Select Device Groups. Step 3 Click Add, as shown in Figure 5-17, to 2. Select Devices. Step 4 From the resulting window, as shown in Figure 5-18, "Device Selection," you can filter the choices: Device Name; Device Group; or Collection Zone from Show Devices with. Figure 5-18 Device Selection Step 5 From the devices listed, click the checkbox(es) for each device you want to select or click the checkbox in the header row to select all the devices. Then click Select. Step 6 You return to Figure 5-17 with the added devices. Step 7 For each device, you can click the added Clear button to clear the Upload to Customer/Site column to reflect none selected, or you can click the added Select button and a new window allows you to Create Customer, Create Site, Select, or Cancel. When you click Select in this new window, you return to Figure 5-17 with the added customer/site. Step 8 You can repeat Step 3 to Step 7 to Add more devices, you can delete devices, as explained in Step 9, or you can proceed by going to Step 10. Step 9 To delete devices, you can filter the list in Figure 5-17, by choosing a Category: Any, Name, or Group and entering the characters you want in Matching and then clicking Filter. From the resulting list, click the checkbox(es) for the devices you want to delete or click the checkbox in the header row to select all the devices and then click Delete. There is no chance to confirm this deletion. Step 10 When you have all the devices you want, click Next. You proceed to 3. Select Device Groups, starting in Step 11. Step 11 Continue with Step 12 if you want to add device groups; proceed to Step 16 to delete device groups; or click Next to proceed to Step 18 for 4. Enter Download Commands. Step 12 Click Add, as shown in Figure 5-19, to 3. Select Device Groups. Adding Device Groups is not required. Figure 5-19 Device Group Selection Step 13 From the resulting window, as shown in Figure 5-20, "Group Association,"you can filter the choices: Device Group Name; or Description from Show Device Groups with. Figure 5-20 Group Association Step 14 From the device groups listed, click the checkbox(es) for each device group you want to select or click the checkbox in the header row to select all the device groups. Then click Select. Step 15 You return to Figure 5-19 with the added device groups. You can repeat Step 12 to Step 14 to Add more device groups, you can delete device groups, as explained in Step 16, or you can proceed by going to Step 18. Step 16 To delete device groups, you can filter the list in Figure 5-19, by entering the characters you want in Group name matching and then clicking Filter. From the resulting list, click the checkbox(es) for the devices you want to delete or click the checkbox in the header row to select all the devices and then click Delete. There is no chance to confirm this deletion. Step 17 When you have all the device groups you want, click Next. You proceed to 4. Select Download Template, starting in Step 18. Step 18 For 4. Select Download Template, the resulting window is shown in Figure 5-21, "Select Download Template." Figure 5-21 Select Download Template Step 19 In Figure 5-21, you can click the Select button. Step 20 A window as shown in Figure 5-22, "Add/Remove Templates," appears. Click Add to add templates or Remove to remove templates. When you have the templates you want, click OK. When you click Add you get a Template Datafile Chooser window with the template choices in the tree. Click + to open the folders and subfolders in the tree, until you get the property to you want to choose. Click on that property and it is added to your list. Repeat this until all the templates you want are in your list. In each added property, you can click View and you receive the configlet for that data file. To return, click OK. In Figure 5-22, click the checkbox(es) for the template(s) you want. In each template, click the Action drop-down menu and choose APPEND or PREPEND to add information after or before; click or unclick the Active button; and then click OK. Figure 5-22 Add/Remove Templates Step 21 You return to Figure 5-22 with the updated information. Step 22 Click Next and you proceed to 5. Download Template Summary, as explained in Step 23. Step 23 For 5. Download Commands Summary, a window as shown in Figure 5-23, "Download Template Summary," appears. Figure 5-23 Download Template Summary Step 24 In Figure 5-23, if you leave the Upload config after download checkbox unchecked, you do not upload the configuration file after the download. If you click the Upload config after download checkbox, you upload the new configuration file after you download the templates in Step 20. Step 25 Click Back until you correct any information you want to change or click Finish to submit the download and you receive a window with the Download Template Results and a Status with a green check for Succeeded, as shown in Figure 5-24, "Download Template Results." Figure 5-24 Download Template Results Step 26 Click Done and you return to Figure 5-10. Device Configuration Manager To execute the device configuration manager, do the following: Step 1 Navigate Service Inventory > Device Console > Device Configuration Manager and click Next. A window as shown in Figure 5-25, "Device Configuration Manager," appears. Figure 5-25 Device Configuration Manager Step 2 In the Device row, click Select and a window as shown in Figure 5-26, "Device Selection," appears. Figure 5-26 Device Selection Step 3 From the devices listed, click the radio button for the device you want to select. Then click Select. Step 4 You return to Figure 5-25 with the added device. You can repeat Step 2 to Step 3 to change the device. Step 5 When you have all the devices you want, go to the Configuration to Display row and click the Select a Version... drop-down menu. Click the version you want and then click Load to load that configuration file. Step 6 The configuration file is displayed in the Displayed Configuration panel. Step 7 Click one of the following radio buttons or keep the default: •Display only The configuration file can only be viewed. •Download to startup The configuration file is downloaded to the start up configuration of the selected router. Note For Download to startup, the Device Access Protocol (defined in device creation) must be either ftp or tftp. If this is not the case, the Device Configuration Manager Results window appears and indicates that you must set up either ftp or tftp. •Download to running The configuration file is downloaded to the router's running configuration file. Note When the DCPL property copy-running-to-startup in the GTL/ios folder is set to the default of true, the router's running configuration file is also copied to the start up configuration. Step 8 Click Finish. If in Step 7 you chose Display only, you automatically return to Figure 5-10. If in Step 7 you clicked Download to startup or Download to running, you get a Device Configuration Manager Results window. In the Status box, you get a green check mark for Succeeded or a red Failed status and you must click Done to return to Figure 5-10. EXEC Commands EXEC Commands allows you to send to target devices any Cisco IOS commands that can be executed in enable mode. You can only view the router information. You cannot edit or delete the information. To execute EXEC Commands, do the following: Step 1 Navigate Service Inventory > Device Console > EXEC Commands and click Next. A window as shown in Figure 5-27, "Device Console—EXEC Commands: Select Devices," appears. Figure 5-27 Device Console—EXEC Commands: Select Devices Step 2 Continue with Step 3 if you want to add devices; proceed to Step 7 to delete devices; or click Next to proceed to Step 9 for 3. Select Device Groups. Step 3 Click Add, as shown in Figure 5-27, to 2. Select Devices. Step 4 From the resulting window, as shown in Figure 5-28, "Device Selection," you can filter the choices: Device Name; Device Group; or Collection Zone from Show Devices with. Figure 5-28 Device Selection Step 5 From the devices listed, click the checkbox(es) for each device you want to select or click the checkbox in the header row to select all the devices. Then click Select. Step 6 You return to Figure 5-27 with the added devices. You can repeat Step 3 to Step 5 to Add more devices, you can delete devices, as explained in Step 7, or you can proceed by going to Step 8. Step 7 To delete devices, you can filter the list in Figure 5-27, by choosing a Category: Any, Name, or Group and entering the characters you want in Matching and then clicking Filter. From the resulting list, click the checkbox(es) for the devices you want to delete or click the checkbox in the header row to select all the devices and then click Delete. There is no chance to confirm this deletion. Step 8 When you have all the devices you want, click Next. You proceed to 3. Select Device Groups, starting in Step 9. Step 9 Continue with Step 10 if you want to add device groups; proceed to Step 14 to delete device groups; or click Next to proceed to Step 16 for 4. Enter EXEC Commands. Step 10 Click Add, as shown in Figure 5-29, to 3. Select Device Groups. Figure 5-29 Device Group Selection Step 11 From the resulting window, as shown in Figure 5-30, "Group Association,"you can filter the choices: Device Group Name; or Description from Show Device Groups with. Figure 5-30 Group Association Step 12 From the device groups listed, click the checkbox(es) for each device group you want to select or click the checkbox in the header row to select all the device groups. Then click Select. Step 13 You return to Figure 5-29 with the added device groups. You can repeat Step 10 to Step 12 to Add more device groups, you can delete device groups, as explained in Step 14, or you can proceed by going to Step 16. Step 14 To delete device groups, you can filter the list in Figure 5-29, by entering the characters you want in Group name matching and then clicking Filter. From the resulting list, click the checkbox(es) for the devices you want to delete or click the checkbox in the header row to select all the devices and then click Delete. There is no chance to confirm this deletion. Step 15 When you have all the device groups you want, click Next. You proceed to 4. Enter EXEC Commands, starting in Step 16. Step 16 For 4. Enter EXEC Commands, the resulting window is shown in Figure 5-31, "Operation Commands." Figure 5-31 Operation Commands Step 17 In Figure 5-31, you can click the Browse button to input an existing file with Cisco IOS configuration commands. Then click the Load File button to put the file's information in the Commands field. Otherwise, you can enter the Cisco IOS configuration commands directly in the Commands field. Step 18 Click Next and you proceed to 5. EXEC Commands Summary, as explained in Step 19. Step 19 For 5. EXEC Commands Summary, a window as shown in Figure 5-32, "EXEC Commands Summary," appears. Figure 5-32 EXEC Commands Summary Step 20 Click Back until you correct any information you want to change or click Finish to retrieve the information from the router. You then receive a window with the EXEC Commands Results and a Status with a green check for Succeeded. You can click EXEC or Done. Step 21 When you click EXEC, you return to Step 16 to enter additional commands on the selected devices. Step 22 When you click Done, you return to Figure 5-10. Reload To reload, do the following: Step 1 Navigate Service Inventory > Device Console > Reload. A window as shown in Figure 5-33, "Device Console—Reload: Select Devices," appears. Figure 5-33 Device Console—Reload: Select Devices Step 2 Continue with Step 3 if you want to add devices; proceed to Step 7 to delete devices; or click Next to proceed to Step 9 for 3. Select Device Groups. Step 3 Click Add, as shown in Figure 5-33, to 2. Select Devices. Step 4 From the resulting window, as shown in Figure 5-34, "Device Selection," you can filter the choices: Device Name; Device Group; or Collection Zone from Show Devices with. Figure 5-34 Device Selection Step 5 From the devices listed, click the checkbox(es) for each device you want to select or click the checkbox in the header row to select all the devices. Then click Select. Step 6 You return to Figure 5-33 with the added devices. You can repeat Step 3 to Step 5 to Add more devices, you can delete devices, as explained in Step 7, or you can proceed by going to Step 8. Step 7 To delete devices, you can filter the list in Figure 5-33, by choosing a Category: Any, Name, or Group and entering the characters you want in Matching and then clicking Filter. From the resulting list, click the checkbox(es) for the devices you want to delete or click the checkbox in the header row to select all the devices and then click Delete. There is no chance to confirm this deletion. Step 8 When you have all the devices you want, click Next. You proceed to 3. Select Device Groups, starting in Step 9. Step 9 Continue with Step 11 if you want to add device groups; proceed to Step 14 to delete device groups; or click Next to proceed to Step 16 for 4. Reload Devices Summary. Step 10 Click Add, as shown in Figure 5-35, to 3. Select Device Groups. Figure 5-35 Device Group Selection Step 11 From the resulting window, as shown in Figure 5-36, "Group Association,"you can filter the choices: Device Group Name; or Description from Show Device Groups with. Figure 5-36 Group Association Step 12 From the device groups listed, click the checkbox(es) for each device group you want to select or click the checkbox in the header row to select all the device groups. Then click Select. Step 13 You return to Figure 5-36 with the added device groups. You can repeat Step 10 to Step 12 to Add more device groups, you can delete device groups, as explained in Step 14, or you can proceed by going to Step 16. Step 14 To delete device groups, you can filter the list in Figure 5-35, by entering the characters you want in Group name matching and then clicking Filter. From the resulting list, click the checkbox(es) for the devices you want to delete or click the checkbox in the header row to select all the devices and then click Delete. There is no chance to confirm this deletion. Step 15 When you have all the device groups you want, click Next. You proceed to 4. Reload Device Groups, starting in Step 16. Step 16 For 4. Reload Devices Summary, a window as shown in Figure 5-37, "Reload Summary," appears. Figure 5-37 Reload Summary Step 17 Click Back until you correct any information you want to change or click Finish to submit the reload and you receive a window with the Reload Results and a Status with a green check for Succeeded. Step 18 Click Done and you return to Figure 5-10.
	© 1992-2008 Cisco Systems, Inc. All rights reserved. Terms & Conditions \| Privacy Statement \| Cookie Policy \| Trademarks of Cisco Systems, Inc.
