Getting Started

---

Before you begin to define your QoS policies, you should set up your QoS policy system.

The following topics describe how to start working with QPM.

•Understanding the QPM Workflow

•Starting QPM

•Working with the QPM User Interface

•User Permissions

•Exiting QPM

Understanding the QPM Workflow

The QPM workflow is flexible and allows you to navigate between the QPM management applications. Figure 3-1 describes a common workflow for defining policies for data and IP telephony networks.

Figure 3-1 QPM Workflow

The main workflow tasks are:

•Installing QPM—QPM is installed over the CiscoWorks Common Services application. See the Installation Guides for QoS Policy Manager for details.

•Adding and importing devices—You add and import devices into the QPM device inventory. You can add devices manually, or you can import them directly from DCR. See Chapter 4, "Managing Devices" for information about adding and importing devices.

•Open or create a policy group—QPM QoS policies are defined within the framework of policy groups. When you begin working with QPM, a default policy group is automatically opened. You can create and manage multiple policy groups for phased deployment, or for testing what-if scenarios. See Chapter 5, "Provisioning: Working with Policy Groups" for more information.

•Create policies—Policies are constrained sets of QoS Properties and Traffic Rules. You must define the device constraints and QoS properties for your policy before you can begin to define traffic rules. See Chapter 8, "Provisioning: Working with Policies, Properties, and Traffic Rules" for information about defining policies. You can import the existing QoS configuration on your devices into policy groups. See Importing Device QoS Configurations to Policies, page 8-17.

•Define traffic rules—Traffic Rules contain filters and actions. The traffic rule filter defines the traffic to which the traffic rule actions will be applied. The actions can include marking, policing, queuing, and other traffic control techniques. (This step is optional, a policy's properties will be deployed to the devices, even when there are no traffic rules). See Chapter 8, "Provisioning: Working with Policies, Properties, and Traffic Rules" for information about defining traffic rules.

•Assign network elements to policy—You can assign network elements in the device inventory to a policy. On deployment, the policy's traffic rules will be downloaded to the assigned network elements. You can assign network elements to policies before or after defining traffic rules. See Chapter 8, "Provisioning: Working with Policies, Properties, and Traffic Rules" and Chapter 4, "Managing Devices" for information about assigning network elements to policies.

•Create voice policies for IP telephony networks—QPM provides an IP telephony wizard, which automatically creates the QoS policies required at each network point in your IP telephony network, according to the IP telephony network topology that you define. The QoS policies are defined using voice policy templates that follow the Cisco IP Telephony QoS Design Guide recommendations. See Chapter 7, "Provisioning: Configuring QoS for IP Telephony" for information about defining QoS for IP telephony networks.

•Deploy to network—After you have defined devices, policy groups, and policies, you can distribute the policies to devices in the network. See Chapter 9, "Provisioning: Deploying QoS Policies" for more information.

•Perform QoS Monitoring—After you have deployed your QoS configuration to the network, you can validate the effectiveness of your policies. Based on the monitoring results, you can refine your QoS policies to achieve optimum performance. See Chapter 10, "Monitoring: Using QoS Analysis" for more information.

---

Note You can use QoS monitoring as a starting point for defining QoS policies, to profile traffic by critical applications, or DiffServ classes.

---

Related Topics

•Starting QPM

Starting QPM

QoS Policy Manager is accessed from the CiscoWorks Homepage.

To launch QPM:

---

Step 1 In your web browser, start CiscoWorks. The default URL is http://QPMinstall:1741, where QPMinstall is the name of the computer with the QPM installation.

The CiscoWorks user login page is displayed.

The first time you start CiscoWorks on a CiscoWorks server or a client machine, the Java Runtime Environment is automatically installed.

Verify on the front page that Java, JavaScript, and cookies are enabled. If they are not enabled, change your browser preferences to enable them, then continue to the next step.

Step 2 Log into CiscoWorks with your user name and password.

The CiscoWorks Homepage appears.

Step 3 Click the QoS Policy Manager link in the QoS Policy Management panel.

QPM opens in a separate browser window.

---

Related Topics

•Working with the QPM User Interface

•User Permissions

•Exiting QPM

•Problems Starting QoS Policy Manager, page 12-4

Working with the QPM User Interface

The following topics familiarize you with the QPM user interface:

•Understanding the QPM User Interface

•Dashboard: Overview

•Using QPM Tables

•Using QPM Wizards

•Working with Multiple Users

Related Topics

•Starting QPM

•Exiting QPM

•Troubleshooting User Interface Problems, page 12-6

Understanding the QPM User Interface

All the pages in the web-based QPM user interface have a consistent look and feel.

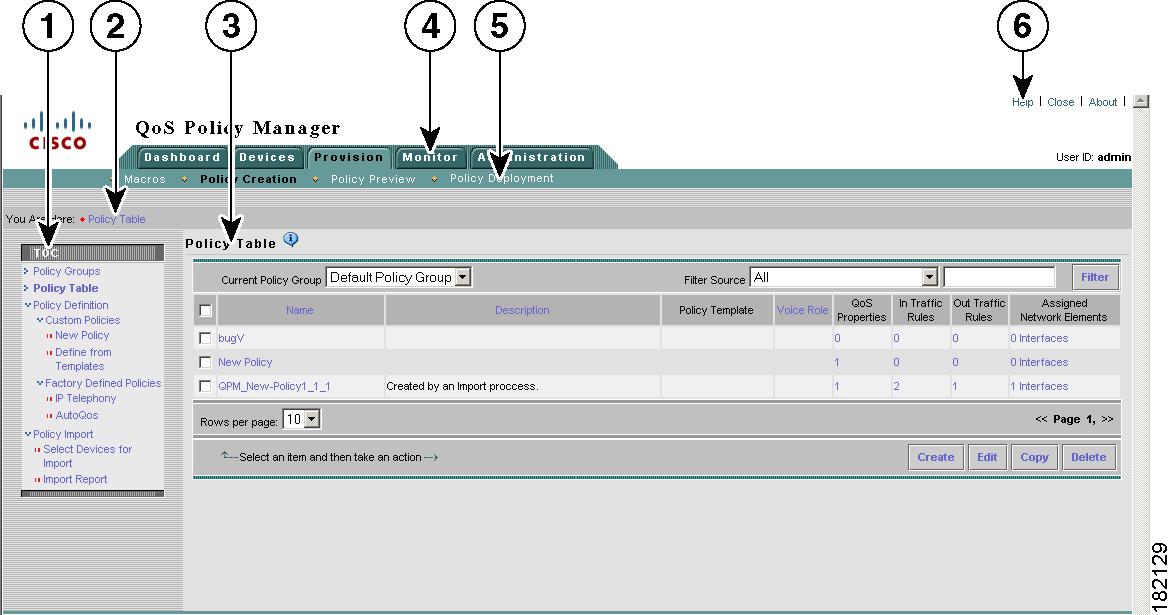

Figure 3-2 shows an example of a QPM page.

Figure 3-2 Example of a QPM Page

Table 3-1 describes the common elements in each page.

Table 3-1 Common GUI Elements in a QPM Page

Number	Area	Description
1	TOC	Provides up to two additional levels of navigation, if required: •A submenu for the selected option. •In a wizard context, this area displays the wizard steps.
2	Path bar	Provides a context for the displayed page. Indicates from which tab and option the current page is derived.
3	Content area	Displays the page in which you perform application tasks.
4	QPM tabs	Contains tabs that provide access to QPM functionality. Click a tab to access its options: •Dashboard—The Dashboard is the QPM homepage and provides a snapshot view of the commonly used QoS management operations. The Dashboard also provides launch points to these QoS management operations. See Dashboard: Overview for more details. •Devices—Contains options for managing devices and device groups in the QPM inventory. •Provision—Contains options for defining policy groups and policies, configuring QoS for IP telephony, and working with global library policy components. This tab also contains options for deploying QoS policies and for previewing the CLI configuration on the devices. You can view and restore previously deployed jobs through this tab. •Monitor—Provides access to QPM reports and to the Performance Analysis application. •Administration—Contains additional administration options.
5	Option bar	Displays the options available for the selected tab.
6	QPM banner	Contains the Help, Close, and About buttons: •Click Help to open a window that displays context-sensitive help for the currently displayed page. The Help page also contains help contents, so that you can use this button to access any online help topic. •Click Close to close the QPM window. •Click About to display details about the version of the application.

---

Note It is not recommended to use the browser Back button to navigate in QPM.

---

Related Topics

•Using QPM Tables

•Using QPM Wizards

•Working with Multiple Users

Dashboard: Overview

The Dashboard is the QPM homepage and provides a snapshot view of the commonly used QoS management operations.

To open the Dashboard page, from the CiscoWorks Homepage select QoS Policy Management > Qos Policy Manager.

The Dashboard allows you to navigate to QoS management tasks using the following tabs:

•Devices

Use device inventory information, and manage devices and device groups.

•Provision

Define QoS configuration, and manage and deploy QoS policies.

•Monitor

Monitor and threshold QoS.

•Administration

Administer and configure the application.

The Dashboard also provides the following launch points:

•Devices

You can use this feature to manage devices and device groups.

•Provision

You can use this feature to manage and deploy QoS policies.

•Event Browser

You can use this feature to set QoS thresholds and view violations.

•Reports

You can use this feature to view real time and historical monitoring reports.

•Administration

You can use this feature to perform administrative tasks, such as scheduling configuration backup, audit configuration, setting user roles and permissions, and managing product licenses.

QPM Modes

QPM is available in the following modes:

•Evaluation Mode:

All features of QPM (Monitoring, Provisioning and Device/OS Support Upgrade Package) will be available, but for a limited time duration (60-90 days). After the expiry of the evaluation period, the features will be automatically disabled.

•Monitoring Only Mode:

In this mode you may monitor (real-time and performance history) QoS activity, but may not use QPM for QoS configuration. In this mode, Provisioning functions will be greyed out.

•Restricted Mode:

This is a full-featured QPM 4.0 installation but is limited in terms of the number of devices that may be managed.

•Combined Mode without Device/OS Support Upgrade Package:

With this license, you have access to all QPM features except that device/OS upgrade packages will have to be purchased.

•Combined Mode with Device/OS Support Upgrade Package:

All features of QPM are available; the package includes a specified number of device/OS upgrade packages free of cost.

Using QPM Tables

In QPM, lists of items are displayed in tables. A table consists of a table header with filtering criteria, column headers with the column titles, a table footer with the table action buttons, and one or more table pages containing the table contents.

In general, you must select a table item before you click an action button. (Some actions do not require any item selection, for example, creating a new item.)

When an action can apply to more than one item, for example, deleting items, you can select multiple items in a single page, and then click the action button. You can select all items in a table by selecting the check box in the column header row.

---

Note If you select items in a table page, and then attempt to open another table page without clicking an action button, a warning message appears.

---

You can change the table display in the following ways:

•Change the number of rows you want to appear on a table page. Select the number of rows in the Rows per page list box in the table footer. Select All to display all table rows in a single page.

•Display a subset of items using the Filter Source list box in the table header. Choose a category in the Filter Source list box. Items in the selected category only are displayed.

•Display a subset of items using the filtering option in the table header:

–Choose the item by which you want to filter in the Filter Source list box.

–Enter the matching string in the field.

–Click Filter.

The filtering option operates on all pages in the table.

•Sort items in the entire table by clicking the column headers.

Related Topics

•Understanding the QPM User Interface

•Using QPM Wizards

•Working with Multiple Users

Using QPM Wizards

QPM wizards guide you through the steps required to complete configuration tasks in QPM.

Each step in a wizard can consist of one or more pages and dialog boxes. A step can also contain substeps. You can navigate through the wizard steps using either the Next and Back buttons, or the wizard navigation TOC in the left pane.

---

Note It is recommended not to use the browser Refresh button when working in a wizard. Using the browser Refresh button might result in loss of data.

---

When you open a wizard, some steps might be disabled depending on previous configurations you have made. As you progress through a wizard, some steps might become disabled depending on the choices you make in each step.

The configuration settings that you define in a wizard are saved only when you complete the wizard by clicking the Finish button. If you click the Cancel button in the wizard, or if you choose another QPM option while in the wizard, your wizard settings will not be saved.

---

Note In the IP Telephony wizard, new policy groups are saved when you complete each step.

---

Related Topics

•Understanding the QPM User Interface

•Using QPM Tables

•Working with Multiple Users

Working with Multiple Users

Multiple users can work with QPM at the same time. Whenever you save changes, for example, when you complete a wizard, or edit an item, QPM checks whether you are modifying the latest version of that item. An item might be a policy group, policy, global library item, and so on.

If you are not editing the latest version, meaning another user has saved changes to the item since you accessed it for editing, QPM displays a message informing you that you are not working with the latest version of the item, and will not let you save the changes. This mechanism prevents a user from unintentionally overwriting changes made by another user working at the same time.

Related Topics

•Understanding the QPM User Interface

•Using QPM Tables

•Using QPM Wizards

User Permissions

QPM can work with either Cisco Access Control Server (ACS) permissions or CiscoWorks permissions. QPM permissions for user authorization are mapped to CiscoWorks permission roles or ACS permissions as specified.

User permissions and authentications for QPM are handled by the Cisco Common Services application. Before you begin to work with QPM, you should ensure that you have the appropriate permissions. Verify your user permissions in the CiscoWorks Homepage (Server > Security), or in ACS (depending on the method you are using for user authentication).

To view the types of tasks allowed for each user type in QPM, select Administration > User Permissions Report. See User Permissions Report, page E-7, for detailed explanations of each user type.

See the Installation Guide for QoS Policy Manager for more information about user permissions.

Exiting QPM

When you finish working with QPM, you must log out of CiscoWorks to close the application.

To exit from QPM application:

---

Step 1 Click Close in any open QPM windows to close them.

Step 2 Click Logout in the CiscoWorks Homepage.

The CiscoWorks session ends.

---
