Rearranging Portlets in Your View

---

In CiscoWorks LMS Portal, you can arrange and organize portlets using the Layout and the Drag and Drop features.

This section has the following topics:

•Moving Portlets in Your View

•Removing a Portlet

Moving Portlets in Your View

You can move portlets to any location using the Drag and Drop feature. The number of portlets you can position in a single row depends on the layout you have chosen.

Using Drag and Drop

When you add a portlet to a view, it is displayed in the View page.

You can re-arrange the portlets in a view, as required, by using the drag and drop feature.

To drag and drop the portlet:

---

Step 1 Click on the blank space in the title bar of the portlet and drag it to the position you want.

Step 2 Drag the portlet into its new location

Step 3 Drop the portlet in this location.

Step 4 You should drop the portlet only when two arrows appear on its sides as shown Figure 8-1.

---

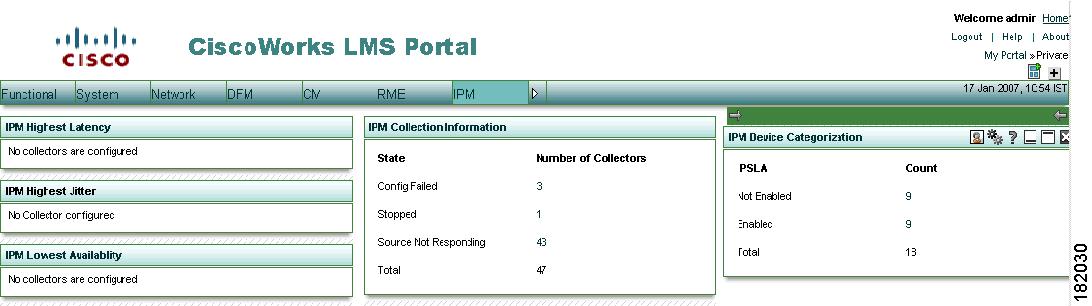

Figure 8-1 Drag and Drop

The number of portlets you can position in a single row depends on the layout you have chosen. The layout also determines the size or contents of a portlet.

You can also change the layout in which the portlets are organized in a view.

Removing a Portlet

You can remove the portlets from all views except the Functional View.

To remove a portlet:

---

Step 1 Go to CiscoWorks LMS Portal and click View.

The portlets appear.

Step 2 Move the mouse over the title bar of a portlet to view the icons.

Step 3 Click the Remove icon.

A message appears prompting you to confirm your decision.

Step 4 Click OK to confirm.

The portlet is removed from the View page.

---

---

Note You can also add a portlet after removing it.

---
