Migrating Data to CiscoWorks LAN Management Solution 3.2 on Windows

Migrating Data From LMS 2.6 or 2.6 SP1

Local Migration From LMS 2.6 or 2.6 SP1

Remote Migration From LMS 2.6 or 2.6 SP1

Migrating Data for CS, RME, CM, DFM, IPM and CV

Migrating Data From LMS 3.0 or LMS 3.0 December 2007 Update or LMS 3.1

Local Migration From LMS 3.0 or LMS 3.0 December 2007 Update or LMS 3.1

Remote Migration From LMS 3.0 or LMS 3.0 December 2007 Update or LMS 3.1

Migrating Data for CS, CiscoWorks Assistant, RME, CM, DFM, IPM, HUM, Portal and CV

Migrating Data to CiscoWorks LAN Management Solution 3.2 on Windows

This chapter describes how to migrate data to CiscoWorks LAN Management Solution (LMS) 3.2 on Windows.

This chapter has the following sections:

•Migrating Data From LMS 2.6 or 2.6 SP1

•Migrating Data From LMS 3.0 or LMS 3.0 December 2007 Update or LMS 3.1

Migrating Data From LMS 2.6 or 2.6 SP1

This section explains how to migrate data from LMS 2.6 or 2.6 SP1 to LMS 3.2

You can migrate to LMS 3.2 in two ways:

•Local Migration From LMS 2.6 or 2.6 SP1

•Remote Migration From LMS 2.6 or 2.6 SP1

Figure 2-1 shows the migration of data from LMS 2.6 to LMS 3.2.

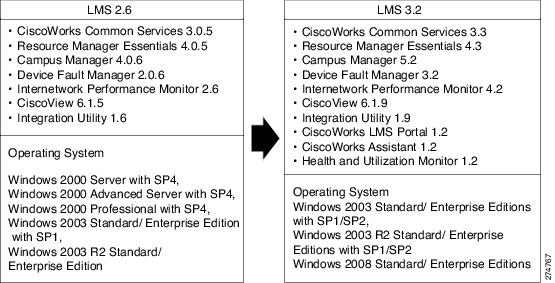

Figure 2-1 Migrating Data from LMS 2.6 to LMS 3.2

Figure 2-2 shows the migration of data from LMS 2.6 SP1 to LMS 3.2.

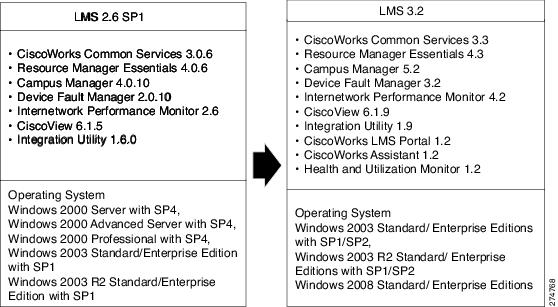

Figure 2-2 Migrating Data from LMS 2.6 SP1 to LMS 3.2

Local Migration From LMS 2.6 or 2.6 SP1

Install LMS 3.2 over LMS 2.6 or 2.6 SP1. The data for CS, RME, CM, DFM, and CV is automatically migrated during installation.

Note You must install LMS 3.2 without HUM 1.2. HUM 1.2 installation should be initiated only after LMS 3.2 installation and data migration are completed. This note is applicable only if HUM 1.2 is a part of LMS 3.2 installation.

For IPM, run the following command:

NMSROOT\bin\perl NMSROOT\bin\restorebackup.pl -d BKP [-t temporary_directory]

where BKP is the backup directory. It is created either by running the wrapper.pl or during inline upgrade.

You must enter the absolute path for BKP. For example, if BKP is under C:\, enter the path as NMSROOT\bin\perl NMSROOT\bin\restorebackup.pl -d C:\BKP.

Note We recommend you to stop the daemon manager, before you take the backup of LMS data.

Before upgrading LMS, make sure to upgrade to the supported version of the OS.

For details on Supported OS, see the Installing and Getting Started with CiscoWorks LAN Management Solution 3.2 Guide at this location:

http://www.cisco.com/en/US/products/sw/cscowork/ps2425/prod_installation_guides_list.html

Remote Migration From LMS 2.6 or 2.6 SP1

This section explains the procedure of Migrating Data for CS, RME, CM, DFM, IPM and CV to a remote machine.

In this section, the machine that has LMS 2.6 or 2.6 SP1 data is referred to as Machine A and the remote machine where you need to install LMS 3.2 and restore the data, is referred to as Machine B.

Note We recommend you to stop the daemon manager, before you take the backup of LMS data.

Migrating Data for CS, RME, CM, DFM, IPM and CV

To migrate data to a remote machine:

Step 1 Log in as administrator into Machine A.

Step 2 From LMS 3.2 DVD, locate the WindowsLMSBackup.tar file under disk 1/install directory.

For the LMS 3.2 evaluation image downloaded from CCO, the WindowsLMSBackup.tar file is available in a directory under the %temp% directory. The name of the %temp% directory will vary as it is randomly created for every installation.

For example, the randomly created directory name can be C:\DOCUME~1\pdandapa\LOCALS~1\Temp\{58D59C97-B4FA-4022-AA54-5191C2642C66.

To view the temp directory:

a. From the Taskbar, choose Start > Run and enter %temp%.

b. Click OK button.

c. Search for the WindowsLMSBackup.tar file in the above temp directory.

Step 3 Copy the file (WindowsLMSBackup.tar) to a directory (dir1) in the local server.

The tar file contains wrapper.pl and other required files.

Step 4 Untar the file to get wrapper.pl

Note If you are about to backup DFM 2.0.10, install DFM 2.0.11 before taking the backup. If not, the backup will fail.

Step 5 Back up CS, RME, CM, IPM, DFM, and CV data.

To do this using CLI, go to the location of wrapper.pl and enter the following command:

NMSROOT\bin\perl wrapper.pl BKP

where BKP is the backup directory.

For example, if BKP is under C:\, enter the path as NMSROOT\bin\perl wrapper.pl C:\BKP.

Step 6 Log in as administrator into Machine B.

Step 7 Install LMS 3.2.

Note You must install LMS 3.2 without HUM 1.2. HUM 1.2 installation should be initiated only after LMS 3.2 installation and data restoration are completed. This note is applicable only if HUM 1.2 is a part of LMS 3.2 installation.

Step 8 Copy the backup directory BKP that contains the CS, RME, CM, IPM, CV and DFM data from Machine A to any temporary location.

Step 9 Stop the daemon manager by entering:

net stop crmdmgtd

Step 10 Restore the backed up data by entering:

NMSROOT\bin\perl NMSROOT\bin\restorebackup.pl -d BKP [-t temporary_directory]

where BKP is the backup directory.

You must enter the absolute path for BKP. For example, if BKP is under C:\, enter the path as NMSROOT\bin\perl NMSROOT\bin\restorebackup.pl -d C:\BKP.

For more details, see Syntax and Usage for Restore Script.

The application list in the backed up data should exactly match the application list in the machine where it is restored except for CiscoWorks Assistant and Portal. If there is a difference then the behavior of the applications after upgrade will be unpredictable.

For more information, see Notes for Remote Migration.

Step 11 Examine the log files in the following location to verify that the data was restored.The files are:

NMSROOT\log\restorebackup.log

NMSROOT\log\migration.log

NMSROOT\log\rme_base.log

NMSROOT\log\ipm_base.log

Note The migration.log will be created only when either RME or IPM is migrated. However, the rme_base.log and ipm_base.log are created only when RME and IPM are migrated.

Step 12 Start the daemon manager by entering:

net start crmdmgtd

Migrating Data From LMS 3.0 or LMS 3.0 December 2007 Update or LMS 3.1

This section explains how to migrate data from LMS 3.0 or LMS 3.0 December 2007 Update or LMS 3.1 to LMS 3.2.

You can migrate to LMS 3.2 in two ways:

•Local Migration From LMS 3.0 or LMS 3.0 December 2007 Update or LMS 3.1

•Remote Migration From LMS 3.0 or LMS 3.0 December 2007 Update or LMS 3.1

Figure 2-3 shows the migration of data from LMS 3.0 to LMS 3.2.

Figure 2-3 Migrating Data from LMS 3.0 to 3.2

Figure 2-4 shows the migration of data from LMS 3.0 to LMS 3.2.

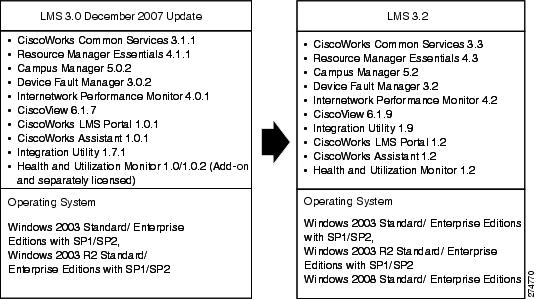

Figure 2-4 Migrating Data from LMS 3.0 December 2007 Update to LMS 3.2

Figure 2-5 shows the migration of data from LMS 3.1 to LMS 3.2.

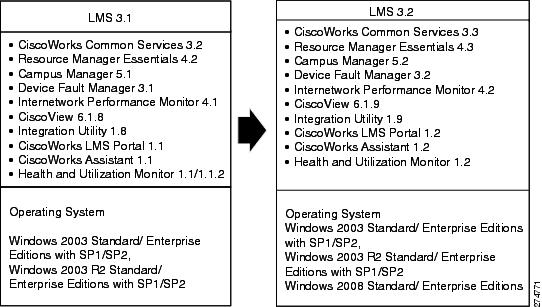

Figure 2-5 Migrating Data from LMS 3.1 to 3.2

Local Migration From LMS 3.0 or LMS 3.0 December 2007 Update or LMS 3.1

Install LMS 3.2 over LMS 3.0 or LMS 3.0 December 2007 Update or LMS 3.1. The data for CS, CiscoWorks Assistant, RME, CM, IPM, DFM, HUM, CV, and Portal are automatically migrated during installation. HUM is a add-on application and it is optional.

Note We recommend you to stop the daemon manager, before you take the backup of LMS data.

For details on Supported OS, see the Installing and Getting Started with CiscoWorks LAN Management Solution 3.2 Guide at this location:

http://www.cisco.com/en/US/products/sw/cscowork/ps2425/prod_installation_guides_list.html

Remote Migration From LMS 3.0 or LMS 3.0 December 2007 Update or LMS 3.1

This section explains the remote migration of data from LMS 3.0 or LMS 3.0 December 2007 Update or LMS 3.1.

This section explains the procedure of Migrating Data for CS, CiscoWorks Assistant, RME, CM, DFM, IPM, HUM, Portal and CV to a remote machine. HUM is a add-on application and it is optional.

In this section, the machine that has LMS 3.0 or LMS 3.0 December 2007 Update or LMS 3.1 data is referred to as Machine A and the remote machine where you need to install LMS 3.2 and restore the data, is referred to as Machine B.

Note We recommend you to stop the daemon manager, before you take the backup of LMS data.

Migrating Data for CS, CiscoWorks Assistant, RME, CM, DFM, IPM, HUM, Portal and CV

To migrate data to a remote machine:

Step 1 Log in as administrator into Machine A.

Step 2 Back up CS, CiscoWorks Assistant, RME, CM, DFM, IPM, HUM, Portal, and CV data.

To do this using CLI, enter the following command:

NMSROOT\bin\perl NMSROOT\bin\backup.pl BKP

where BKP is the backup directory.

You must enter the absolute path for BKP. For example, if BKP is under C:\, enter the path as NMSROOT\bin\perl NMSROOT\bin\backup.pl C:\BKP.

Step 3 Log in as administrator into Machine B.

Step 4 Install LMS 3.2.

Step 5 Copy the backup directory BKP that contains the CS, CiscoWorks Assistant, RME, CM, DFM, IPM, HUM, Portal and CV data from Machine A to any temporary location.

Step 6 Stop the daemon manager by entering:

net stop crmdmgtd

Step 7 Restore the backed up data by entering:

NMSROOT\bin\perl NMSROOT\bin\restorebackup.pl -d BKP [-t temporary_directory]

where BKP is the backup directory.

You must enter the absolute path for BKP. For example, if BKP is under C:\, enter the path as NMSROOT\bin\perl NMSROOT\bin\restorebackup.pl -d C:\BKP.

For more details, see Syntax and Usage for Restore Script.

The application list in the backed up data should exactly match the application list in the machine where it is restored. If there is a difference then the behavior of the applications after upgrade will be unpredictable.

For more information, see Notes for Remote Migration.

You can also restore data from CiscoWorks LMS 3.1 to the CiscoWorks LMS 3.2 server with Symantec Veritas implementation.

For details on High Availability (HA) implementation, see the Installing and Getting Started with CiscoWorks LAN Management Solution 3.2 at this location:

http://www.cisco.com/en/US/products/sw/cscowork/ps2425/prod_installation_guides_list.html

Note Ensure that the passwords, HTTPS port and SMTP server details are same in both LMS 3.1 server and LMS 3.2 server with Symantec Veritas implementation, while migrating data from non-HA to HA environment.

Step 8 Examine the log files in the following location to verify that the data was restored.The files are:

•NMSROOT\log\restorebackup.log

•NMSROOT\log\migration.log

•NMSROOT\log\rme_base.log

Note The migration.log and rme_base.log will be created only when RME is migrated.

Step 9 Start the daemon manager by entering:

net start crmdmgtd
