Using IP Phone Information Facility

---

---

Note IP Phone Information Facility might not be available on your IP Telephony Monitor (ITM) desktop; it is installed when Incremental Device Update (IDU) 2 or later is installed. For information about installing IDUs, see the "Device Support" section.

---

Through IP Phone Information Facility, IP Telephony Monitor (ITM) helps you monitor, track, and maintain IP phones in your network.

Unlike the conventional phone that has only a physical relationship with the PBX, an IP phone has relationships with more than one entity—the switch and the Cisco CallManager. In the PBX world, the conventional phone was entirely managed through the PBX. With IP Telephony (IPT), an IP phone has a physical relationship with a switch and a logical relationship with a Cisco CallManager.

Both the physical and logical relationships of an IP phone must be maintained for the IP phone to function. Using IP Phone Information Facility, ITM gives you a combined view of both of these relationships and makes it easy for you to track and solve IP phone problems.

These topics explain how to use IP Phone Information Facility:

•Getting Started with IP Phone Information Facility

•Working With IP Phone Information Facility Displays

•Finding IP Phones

•Displaying IP Phone Details

•Working with IP Phone Discovery

---

Note For ITM Multi-View users only: You might not receive accurate data if the Cisco CallManager and switch for an IP phone are in different partitions, or if either is in a partition other than the one in which the IP phone is grouped.

---

Getting Started with IP Phone Information Facility

IP Phone Information Facility appears when you select IP Telephony Monitor > IP Phone Information Facility.

With IP Phone Information Facility, you can do the following:

•Find the IP phones in your network. For details on finding phones, see the "Finding IP Phones" section.

•Display details on the IP phones in your network.

For details on each display, see the following sections:

–IP Phone Detail Display

–SRST Configuration Detail Display

–IPT Applications Detail Display

•Set the IP phone collection schedule. For details, see the "Scheduling Major Phone Discovery" section.

•View IP phone collection status. For details, see the "Viewing IP Phone Discovery Status" section.

Working With IP Phone Information Facility Displays

IP Phone Information Facility has two types of displays: those that result from a Find or Advanced Find operation, and various IP phone detail displays. Both types provide information beyond the initial display.

The following sections describe how to access and work with IP Phone Information Displays:

•Working With the Find and Advanced Find Displays

•Opening a Web Interface on an IP Phone

Working With the Find and Advanced Find Displays

The Find IP Phone Detail display and Advanced IP Phone Detail display appear in new browser windows, in printable format.

In all reports, the extension number, IP address, and MAC address are hyperlinks that open the IP phone web interface. This web interface provides device information, network configuration details, ports information, Ethernet information, and so on for the specified IP phone. For further details, see the "Opening a Web Interface on an IP Phone" section.

Refreshing the Data

To refresh the display with the latest data, close the display and generate it again. If you merely refresh your browser window, the time of display generation does not change. This indicates that the data in the display is not refreshed.

The IP Phone Audit Detail and IP Phone Move Detail displays obtain their data from IP Phone Movement Tracking (Minor Discovery), which runs every 5 minutes. Therefore, you can run these displays and obtain fresh data about once every 5 minutes.

Getting More Information About an IP Phone

To get more information about an IP phone, you can click the extension number, IP Address, or MAC Address, which are hyperlinks. These hyperlinks take you to the IP phone page that displays device information, network configuration details, ports information, Ethernet information, and so on for the specified IP phone. For details, see the "Opening a Web Interface on an IP Phone" section.

Opening a Web Interface on an IP Phone

The IP phone web interface provides detailed information about an IP phone. This interface opens through the URL located on the IP phone.

You can open this web interface using the hyperlinks (extension number, IP address, MAC address) in the various reports that you generate using IP Phone Information Facility. By launching this web interface, you get information directly from the IP phone.

Finding IP Phones

You can locate IP phones in your network using extension numbers, IP addresses, MAC addresses, and several other search criteria, such as Cisco CallManager addresses, switch addresses, Survivable Remote Site Telephony (SRST) router addresses, IP phone models, VLAN names, VLAN IDs, SRST status, and IP phone status (unregistered or registered with the Cisco CallManager).

These topics provide information on how to use the Find IP Phones facility:

•Finding IP Phones Using the Find Option

•Finding IP Phones Using the Advanced Find Option

Finding IP Phones Using the Find Option

Using the Find option, you can locate an IP phone in the network using any of these attributes:

•Extension number

•IP address

•MAC address

---

Step 1 Select IP Telephony Monitor > IP Phone Information Facility > Find IP Phones > Find. The Find IP Phone dialog box appears.

Step 2 In the Find phone by list, select one of these attributes:

•Extension number

•IP address

•MAC address

Step 3 After you have selected the attribute type, enter a value in the field, and click View.

For example, if you selected Extension, enter the extension number of the IP phone in the attribute field, and click View.

The IP Phone Details page appears in a new browser window, in printable format. The extension number, IP address, and MAC address are hyperlinks that open the IP phone web interface.

Use the print function of your browser to print out the report.

To see additional records that may exist for your specified attribute, click Next.

Figure 5-1 shows an example of the IP Phone Details page. Table 5-1 describes the information displayed on the IP Phone Details page.

---

---

Note There could be more than one record for the attribute that you entered. For example, there can be more than one phone with the same extension number when that extension has parallel phones.

---

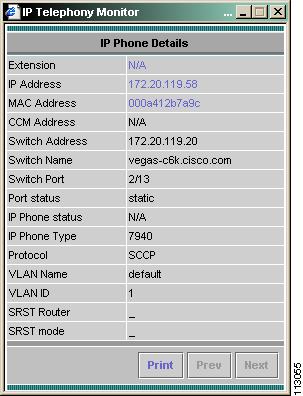

Figure 5-1 IP Phone Details Page

Table 5-1 IP Phone Details Page

Row	Description
Extension	Extension number of the IP phone; for example, 4000. Click the hyperlink to see more details of the IP phone (see the "Opening a Web Interface on an IP Phone" section).
IP Address	IP address of the IP phone; for example, 10.76.38.65. Click the hyperlink to see more details of the IP phone (see the "Opening a Web Interface on an IP Phone" section).
MAC Address	MAC address of the IP phone; for example, 003094c40454, or 00-30-94-c4-04-54. Click the hyperlink to see more details of the IP phone (see the "Opening a Web Interface on an IP Phone" section).
CCM Address	The address of the Cisco CallManager (CCM) with which the IP phone is registered; for example, 10.76.38.70.
Switch Address	IP address of the switch to which the IP phone is connected; for example, 10.76.29.162.
Switch Name	Name of the switch to which the IP phone is connected.
Switch Port	Switch port used by the IP phone; for example, Fa0/12
Port Status	Status of the port used by the IP phone; for example, static.
IP Phone Status	Cisco CallManager registration status of the IP phone. This field displays Yes if the IP phone is registered with a Cisco CallManager, and No if the IP phone is not registered with a Cisco CallManager.
IP Phone Type	Model number of the IP phone; for example, 7902, 7905, 7910, 7912, 7920, 7935, 7940, 7960, or 7970.
Protocol	Protocol the phone is using to communicate with Cisco CallManager. Note Only SCCP phones will be discovered. H.323 and MGCP protocols are not currently supported.
VLAN Name	Name of the VLAN in the switch (a user-defined name); for example, voice.
VLAN ID	ID of the VLAN in the switch to which the IP phone is connected; for example, 100.
SRST Router	IP address of the router that the phone is using for SRST.
SRST Mode	Can be one of the following: •yes—The phone is in SRST mode •no—The phone is not in SRST mode •?—The phone is suspected to be in SRST mode •- (dash)—The phone is not an SRST phone

Tips

•For the Cisco Wireless IP Phone 7920 to be monitored in ITM, its Aironet access point must also be monitored by ITM. Only the logical information from the Cisco CallManager will be displayed for this phone. All the switch information for the 7920 will appear as Not Available. In Cisco CallManager releases prior to 4.0, the 7920 appears as a 7960. Therefore, ITM also displays the 7920 as a 7960 for Cisco CallManager releases prior to 4.0. No other features (such as IP Phone Audit, IP Phone Move, or Unregistered Suspect Phone detail displays) are supported for the Cisco Wireless IP Phone 7920.

•If the search result for an IP phone is zero, see if any of the following situations exist:

–Either the switch or the Cisco CallManager (or both) with which the phone is associated is not monitored by ITM.

–If you have ITM Multi-View and the Cisco CallManager and switch for an IP phone are in different partitions, or the Cisco CallManager or switch for an IP phone are in a partition other than the one in which the IP phone is grouped.

If you have ITM Multi-View, make sure that the phone, its Cisco CallManagers, and its switches all are on the same partition. Check and make any necessary changes.

•If Cisco IP SoftPhone records do not appear, generate the IPT Applications Detail display. See the "IPT Applications Detail Display" section.

•If N/A appears in a field instead of data, it means either of the following:

–The switch or the Cisco CallManager is not monitored by ITM. To correct this condition, add the unmonitored switch or Cisco CallManager to ITM.

–ITM cannot get the information from the switch or the Cisco CallManager. To correct this condition, check the status of the switch or Cisco CallManager in the Alerts and Activities display. If the switch or Cisco CallManager is unreachable, make sure that the connectivity is restored.

•You may not be able to see the list of Cisco CallManagers or switches in the popup window that appears when you click the following icon:

This occurs when PIFServer is down. Do the following:

–Check the status of PIFServer by using the command pdshow PIFServer from the command line.

–If PIFServer is down, use the CiscoWorks start function. To do this:

1. Select Server Configuration > Administration > Process Management > Start Process.

2. Select the PIFserver process from the pull-down menu.

Alternatively, you can bring PIFServer up using the command pdexec PIFServer from the command line. Use this approach if, for example, the webserver is down.

Finding IP Phones Using the Advanced Find Option

In addition to the search criteria available with Find, you can locate IP phones in your network by:

•VLAN name

•VLAN ID

•IP phone status

•SRST

•IP phone type (model number)

•Cisco CallManager address or Cisco CallManager cluster name

•Switch address

•SRST router address

---

Step 1 Select IP Telephony Monitor > IP Phone Information Facility > Find IP Phones >  Advanced Find. The Find IP Phone page appears.

Step 2 Enter values in one or more fields. Figure 5-2 shows an example of the Find IP Phones page. Each field is described in Table 5-2.

Step 3 After specifying the required search criteria in the Find IP Phone dialog box, click View. The IP Phone Detail display appears.

Figure 5-3 shows an example of the IP Phone Detail display. Table 5-3 describes the information displayed in the IP Phone Detail display.

---

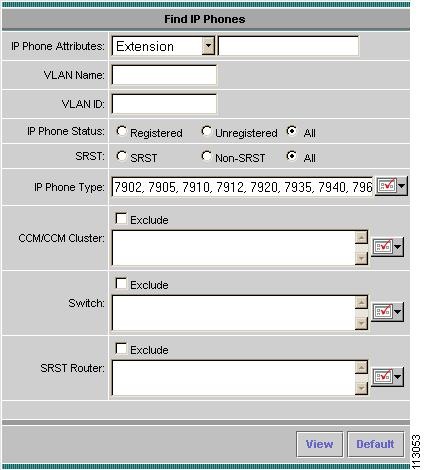

Figure 5-2 Find IP Phones Page

Table 5-2 Find IP Phones Page

Field	How to Enter Data in the Field
IP Phone Attributes	1. Select the required IP phone attribute (extension number, IP address, or MAC address) from the list box. 2. Enter the value of the attribute in the entry field next to the IP phone attribute.
VLAN Name	Enter the name of the VLAN.
VLAN ID	Enter the VLAN ID.
IP Phone Status	Select Registered, Unregistered, or All. If you select All, the report will contain the registered, unregistered, and unavailable phones.
SRST	Select SRST, Non-SRST, or All. If you select All, the report will contain both the phones that are configured to fall to an SRST router in case of a WAN link failure and those that are not.
IP Phone Type	To select one or more IP phone types: 1. Click the Registered, Unregistered, or All radio button to determine what status to display. The default is All. 2. In the IP Phone Type field, select the phone types for which you want to generate details. The default values in this field are 7902, 7905, 7910, 7912, 7920, 7935, 7940, 7960, and 7970. You can delete any phone type for which you do not want to generate details. If you have deleted one or more values that you want to add back to the list, you can reset all fields by clicking the Default button. To reenter one or more individual phone types: a. Click this icon: The Select IP Phone Types list appears. b. Select the desired IP phone type from the list. Use the Control key or the Shift key to select more than one IP phone type from the list. 3. Click OK.
CCM/CCM Cluster	To select one or more Cisco CallManager addresses or Cisco CallManager clusters: 1. Make sure the Exclude check box is deselected. Alternatively, you can exclude the selected Cisco CallManagers or Cisco CallManager clusters from the report by selecting this check box. 2. Click this icon: The Select CCM/CCM Cluster page appears. 3. In the CCM/CCM Cluster Selector, select the check box next each Cisco CallManager or Cisco CallManager Cluster that you want to add. 4. Click OK. The Find IP Phones screen displays your selection in the CCM/CCM Cluster field. To reset all fields, click Default. 5. Click OK. The IP Phone Information page appears, showing the IP phones associated with the Cisco CallManager or Cisco CallManager Cluster that you selected.
Switch	To select one or more switch addresses: 1. Make sure the Exclude check box is deselected. Alternatively, you can exclude the selected switches from the report by selecting this check box. 2. Click this icon: The Select Switch page appears. 3. In the Switch Selector, select the check box next to the switches that you want to add. 4. Click OK. The Find IP Phones page displays your selection in the Switch field. To reset all fields, click Default. 5. Click OK. The IP Phone Information page appears, showing the IP phones associated with the switch that you selected. 6. While viewing this display, you can select the Exclude check box to exclude selected switches from your search. If you do not select the Exclude check box, a search occurs based on the addresses that you selected.
SRST Router	To select one or more SRST routers: 1. Make sure the Exclude check box is deselected. Alternatively, you can exclude the selected SRST routers from the report by selecting this check box. 2. Click this icon: The Select SRST Router page appears. 3. In the SRST Router Selector, select the check box next to the SRST routers that you want to add. 4. Click OK. The Find IP Phones page displays your selection in the SRST Router field. To reset all fields, click Default. 5. Click OK. The IP Phone Information page appears, showing the IP phones associated with the SRST routers that you selected. 6. While viewing this display, you can select the Exclude check box to exclude selected SRST routers from your search. If you do not select the Exclude check box, a search occurs based on the addresses that you selected.

When you enter values in the various fields, ITM performs a search with an implicit "and" between the values of the different fields. If you enter more than one value within a field, the search is performed based on an implicit "or" between the values.

For example, if you enter an extension number, a phone type, a VLAN ID, and a VLAN name, the search is performed on all these criteria. However, if you enter two phone types within the Phone Type field, such as 7910 and 7935, ITM searches for either of these types.

The Find IP Phone Details page appears, displaying details corresponding to the search criteria that you entered. The display is in a new browser window and is in printable format.

The extension number, IP address, and MAC address are hyperlinks that open the IP phone web interface. For further details, see the "Opening a Web Interface on an IP Phone" section.

Use the print function of your browser to print out the report.

To see additional records that may exist for your specified attribute, click Next.

---

Note There could be more than one record for the attribute that you entered. For example, there can be more than one phone with the same extension number when that extension has parallel phones.

---

Tips

•If you are unable to see information about an IP phone, see if any of the following situations exist:

–Either the switch or the Cisco CallManager with which the phone is associated to, is not monitored by ITM.

–If you have ITM Multi-View and the Cisco CallManager and switch for an IP phone are in different partitions, or the Cisco CallManager or switch for an IP phone are in a partition other than the one in which the IP phone is grouped.

If you have ITM Multi-View, make sure that the phone, its Cisco CallManagers, and its switches all are on the same partition. Check and make any necessary changes.

•If Cisco IP SoftPhone records do not appear, generate the IPT Applications Details display. See the "IPT Applications Detail Display" section.

•If Not Available appears instead of data in a field, it means either of the following:

–The switch or the Cisco CallManager is not monitored by ITM. To correct this condition, add the unmonitored switch or Cisco CallManager to ITM.

–ITM is unable to get the information from the switch or the Cisco CallManager. To correct this condition, check the status of the switch or Cisco CallManager in the Alerts and Activity display. If the switch or Cisco CallManager is unreachable, ensure that the connectivity is restored.

Working With Advance Find Default Values

To display the details of all IP phones of type 7902, 7905, 7910, 7912, 7920, 7935, 7940, 7960, and 7970 in your managed network, accept the default criteria in the Find IP Phone dialog box and click View.

To display details for all the IP phones in your managed network, including phones that are shown as Not Available, delete the default values in the Find IP Phones dialog box, then click View.

To restore the default values in the Find IP Phone dialog box, click Default. The default values are:

•IP Phone Status set to All.

•SRST set to All.

•Phone Type with all the values (7902, 7905, 7910, 7912, 7920, 7935, 7940, 7960, 7970).

•CCM/Cluster Exclude check box deselected.

•Switch Exclude check box deselected.

•SRST Router Exclude check box deselected.

Displaying IP Phone Details

You can generate various displays to get the details of:

•All the IP phones in your network (see the "IP Phone Detail Display" section).

•SRST configuration (see the "SRST Configuration Detail Display" section).

•A list of all IP Telephony (IPT) applications that are registered with the Cisco CallManager in the managed network (see the "IPT Applications Detail Display" section).

---

Note You can also generate various IPT security displays. For more information about IPT Security displays, see "Displaying IPT Security Details."

---

IP Phone Detail Display

The IP Phone Detail display shows the details of all the IP phones in your network.

---

Note For ITM Multi-View users only:

ITM Multi-View displays information for phones in the active partition.

To determine whether or not a phone is in the active partition, ITM confirms that the Cisco CallManager with which the phone is associated is in the active partition. If the Cisco CallManager is not in the active partition, ITM checks to see whether the switch is in the active partition.

When the switch is in the active partition and the Cisco CallManager is not, the following describes what is displayed:

•If the switch is present in the active partition and the Cisco CallManager is in any other partition, the phone will not appear in the IP Phone Detail display.

•If the switch is present in the active partion and the Cisco CallManager is not in any other partition, the phone appears in the IP Phone Detail display, but the Cisco CallManager-related details will not be available.

---

---

Step 1 Select IP Telephony Monitor > IP Phone Information Facility > IP Phone Details. The IP Phone Detail Display dialog box appears.

Step 2 Select IP Phones from the list, and click View.

The IP Phone Detail display appears.

Figure 5-3 shows an example of the IP Phone Detail display. Table 5-3 describes the information displayed in the IP Phone Detail display.

---

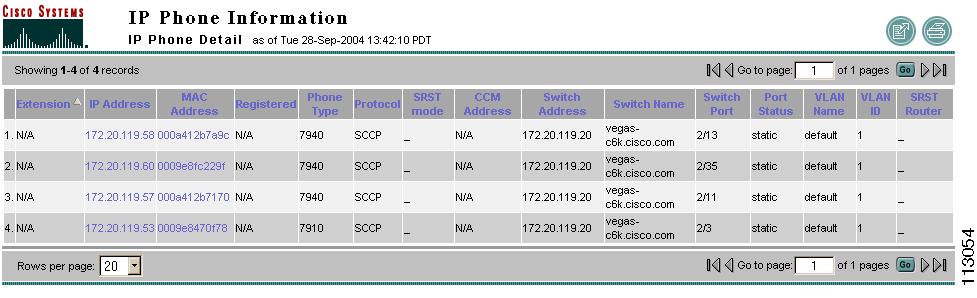

Figure 5-3 IP Phone Detail Display

Table 5-3 IP Phone Detail Display

Column	Description
Extension	Extension number of the IP phone; for example, 4000. Click the hyperlink to see more details of the IP phone (see the "Opening a Web Interface on an IP Phone" section).
IP Address	IP address of the IP phone; for example, 10.76.38.65. Click the hyperlink to see more details of the IP phone (see the "Opening a Web Interface on an IP Phone" section).
MAC Address	MAC address of the IP phone; for example, 003094c40454, or 00-30-94-c4-04-54. Click the hyperlink to see more details of the IP phone (see the "Opening a Web Interface on an IP Phone" section).
Registered	Cisco CallManager registration status of the IP phone. This field displays Yes if the IP phone is registered with a Cisco CallManager, and No if the IP phone is not registered with a Cisco CallManager.
Phone Type	Model number of the IP phone; for example, 7902, 7905, 7910, 7912, 7920, 7935, 7940, 7960, or 7970.
Protocol	Protocol the phone is using to communicate with Cisco CallManager. Note Only SCCP phones will be discovered. H.323 and MGCP protocols are not currently supported.
SRST Mode	Can be one of the following: •yes—The phone is in SRST mode •no—The phone is not in SRST mode •?—The phone is suspected to be in SRST mode •- (dash)—The phone is not an SRST phone
CCM Address	Address of the Cisco CallManager (CCM) with which the IP phone is registered; for example, 10.76.38.70.
Switch Address	IP address of the switch to which the IP phone is connected; for example, 10.76.29.162.
Switch Name	Name of the switch to which the IP phone is connected.
Switch Port	Switch port used by the IP phone; for example, Fa0/12.
Port Status	Status of the port used by the IP phone; for example, static.
VLAN Name	Name of the VLAN (user-defined name); for example, voice.
VLAN ID	ID of the VLAN for the IP phone; for example, 100.
SRST Router	IP address of the router that the phone is using for SRST.

Tips

•For the Cisco Wireless IP Phone 7920 to be monitored in ITM, its Aironet access point must also be monitored by ITM. Only the logical information from the Cisco CallManager will be displayed for this phone. All the switch information for the 7920 will appear as Not Available. In Cisco CallManager releases prior to 4.0, the 7920 appears as a 7960. Therefore, ITM also displays the 7920 as a 7960 for Cisco CallManager releases prior to 4.0. No other features (such as IP Phone Audit, IP Phone Move, or Unregistered Suspect Phone detail displays) are supported for the Cisco Wireless IP Phone 7920.

•If you are unable to see information about an IP phone, see if any of the following situations exist:

–Either the switch or the Cisco CallManager with which the phone is associated to, is not monitored by ITM.

–If you have ITM Multi-View and the Cisco CallManager and switch for an IP phone are in different partitions, or the Cisco CallManager or switch for an IP phone are in a partition other than the one in which the IP phone is grouped.

If you have ITM Multi-View, make sure that the phone, its Cisco CallManagers, and its switches all are on the same partition. Check and make any necessary changes.

•If Cisco IP SoftPhone records do not appear, generate the IPT Applications Details display. See the "IPT Applications Detail Display" section.

•IP phones configured for confidence tests do not appear in the IP Phone Detail display. Synthetic phones are not available for this display.

•If Not Available appears instead of data in a field, it means either of the following:

–The switch or the Cisco CallManager is not monitored by ITM. To correct this condition, add the unmonitored switch or Cisco CallManager to ITM.

–ITM is unable to get the information from the switch or the Cisco CallManager. To correct this condition, check the status of the switch or Cisco CallManager in the Alerts and Activity display. If the switch or Cisco CallManager is unreachable, ensure that the connectivity is restored.

SRST Configuration Detail Display

The SRST Configuration Detail display shows a list of all the phones that are configured for Survivable Remote Site Telephony (SRST). For information about configuring SRST tests, see "Using SRST Monitoring Management."

---

Step 1 Select IP Telephony Monitor > IP Phone Information Facility > IP Phone Details. The IP Phone Detail Display dialog box appears.

Step 2 Select SRST Configuration from the list, and click View.

The IP Phone Detail display appears, displaying information for the SRST configuration only.

Figure 5-3 shows an example of the IP Phone Detail display. Table 5-3 describes the information displayed in the IP Phone Detail display.

---

IPT Applications Detail Display

The IPT Applications Detail display shows a list of all the IP Telephony (IPT) applications that are registered with the Cisco CallManager.

Examples of IPT applications are SoftPhones, Cisco Personal Assistant, and Cisco Customer Response Applications. These applications register with the Cisco CallManager as Computer Telephony Interface (CTI) devices or CTI ports.

---

Note For ITM Multi-View users only: ITM considers a phone to be in the active partition when either the Cisco CallManager or the switch for that phone is in the active partition. ITM looks for information on the Cisco CallManager first.

---

---

Step 1 Select IP Telephony Monitor > IP Phone Information Facility > IP Phone Details. The IP Phone Detail Display dialog box appears.

Step 2 Select IPT Applications from the list, and click View.

The IPT Applications Detail display appears.

Table 5-4 describes the information displayed in the IPT Applications Detail display.

---

Table 5-4 IPT Applications Detail Display

Column	Description
Extension	Extension of the IPT Application (CTI Port/CTI Route Point).
App Info	The defined name of the IPT application, as reported by the Cisco CallManager. If the application is not registered in CTI (Cisco Telephony Interface), this field displays Not supported.
Registered	Whether or not the IPT Application is registered with the Cisco CallManager—Yes or No.
IP Address	•IP address of the IPT application (in case the application is a CTI port) •IP address of the CCM (in case of CTI Route Point)
CCM Address	Cisco CallManager address.
Device Type	Type of the device.
Device Desc	Description of the device.

Working with IP Phone Discovery

This section describes the following:

•Overview of IP Phone Discovery

•Scheduling Major Phone Discovery

•Viewing IP Phone Discovery Status

Overview of IP Phone Discovery

ITM does two types of phone discovery:

•Major—Discovers and collects information about all the IP phones in the network, correlating the information, and storing it in the database.

•Minor—Checks all the switches and Cisco CallManagers and identifies changes. IP Phone Movement Tracking (Minor Discovery) automatically runs every five minutes. This five-minute interval is not configurable. For more information, see the "IP Phone Movement Tracking (Minor Discovery)" section.

IP Phone Information Facility discovers only those IP phones connected to switches and Cisco CallManagers monitored by IP Telephony Monitor (ITM). It does not discover devices.

IP Phone Information Facility does not provide an interface through which to add devices. To discover any IP phones connected to devices not currently being discovered by IP Phone Information Facility, you must add those devices to ITM. For details on adding devices, see the "Adding a Device" section.

If you add a switch or a Cisco CallManager to ITM, IP Phone Information Facility will perform a major phone discovery. If you add an IP phone to an already monitored switch, that phone will be picked up in the next 5-minute cycle of IP Phone Movement Tracking.

To discover the IP phone data from the network, IP Phone Information Facility does the following:

1. Collects the module and port information for all access switches.

2. Collects the mapping between VLAN and port information.

3. Uses the CDP cache and Bridge table to determine the end hosts connected to the switch.

4. Gets the list of IP phones from the Cisco CallManager.

5. Associates the switch data with the data from the Cisco CallManager and stores it in the database.

---

Tip The following problems can occur during IP phone discovery:

•Discovery takes a long time. This could be because of the following:

–There are too many unreachable devices in the network.

–You have configured a large number of VLANs on the switches. These VLANs are not used.

Check and make any necessary changes.

•Discovery does not seem to be working properly. Discovery begins automatically when you restart PIFServer. If you find a problem with discovery, do the following:

1. Check the status of PIFServer using the command pdshow PIFServer from the command line.

If PIFServer is down, use the CiscoWorks start function:

Select Server Configuration > Administration > Process Management > Start Process, and select the PIFserver process from the pull-down menu.

Alternatively, you can start PIFServer by using the command pdexec PIFServer from the command line. (Use this approach if, for example, the webserver is down.)

2. Under NMSROOT\logs\itemLogs, check the pif.log file for errors. If the file shows no errors, check the pifapp.log file. For details on viewing log files, see the "Viewing and Maintaining Log Files" section.

---

Scheduling Major Phone Discovery

You should run a major phone discovery whenever there are network-wide changes, or when the VLAN settings are changed. To get the current information on the changes in your network, you should ideally configure major phone discovery to be run every six to eight hours in a normal network. If the network is stable, one discovery during nonbusy hours of the network should suffice. For details on scheduling resource intensive tasks, see the "Performing Scheduling Tasks" section.

For discovery to function correctly, you must enable Cisco Discovery Protocol (CDP) for devices in the network.

If one discovery takes longer than scheduled, the next discovery occurs at the next scheduled interval. For example, if you have scheduled discovery to take place every 10 minutes but for some reason it takes 12 minutes, then the next discovery will happen at the next scheduled interval; that is, after 8 minutes.

You can schedule a major discovery of IP phones in your network using the Collection Schedule option. However, when you start PIFServer for the first time, or restart it, major phone discovery takes place automatically.

---

Note There are six default schedules, and you are limited to a total of ten schedules. Any of the schedules can be edited or deleted.

---

Your login determines whether you can see the IP Phone Discovery Schedule page. For more details about user roles, see the "Understanding Your User Role" section.

Using the IP Phone Discovery Schedule page is described in the following sections:

•Creating an IP Phone Discovery Schedule

•Modifying an IP Phone Discovery Schedule

•Deleting an IP Phone Discovery Schedule

Creating an IP Phone Discovery Schedule

There are six default IP phone discovery scheduels, and you can add up to ten additional schedules.

---

Step 1 Select IP Telephony Monitor > IP Phone Information Facility > Collection Schedule.

The IP Phone Discovery Schedule page appears (see Figure 5-4).

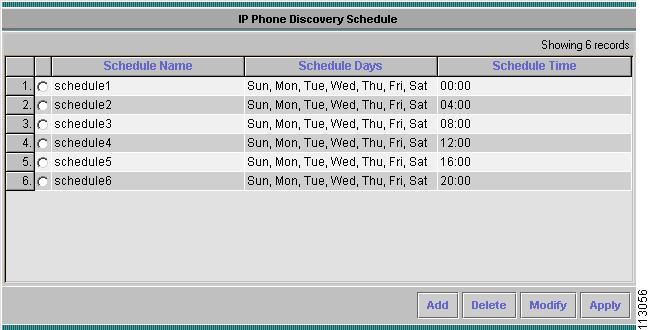

Figure 5-4 IP Phone Discovery Schedule Page

Step 2 Click Add. The Add Discovery Schedule dialog box opens.

Step 3 Enter the following:

•Schedule name

•The days that you want the discovery to occur on. Click the following icon:

and select the days.

•The hour and minute at which you want discovery to start. These enries apply to each day.

Step 4 Click OK. A new row appears at the bottom of the IP Phone Discovery Schedule page.

Step 5 On the IP Phone Discovery Schedule page, click Apply. If you do not click Apply, the new schedule will not be saved.

Step 6 In the confirmation box, click OK.

---

Note To find out the status of the discovery, see the "Viewing IP Phone Discovery Status" section.

---

---

Modifying an IP Phone Discovery Schedule

---

Step 1 Select IP Telephony Monitor > IP Phone Information Facility > Collection Schedule.

The IP Phone Discovery Schedule page appears. Figure 5-4 shows an example of the IP Phone Discovery Schedule page.

Step 2 Click the radio button next to the schedule that you want to modify.

Step 3 Click Modify. The Add Discovery Schedule dialog box opens.

Step 4 You can change any of the following:

•Schedule name

•The days that you want the discovery to occur on. Click the following icon:

and select the days.

•The hour and minute at which you the schedule to start. These entries apply to each day.

Step 5 Click OK.

Step 6 In the IP Phone Discovery Schedule page, click Apply. If you do not click Apply, your changes will not be saved.

Step 7 In the confirmation box, click OK.

---

Note If you change the time zone of the ITM system, you must restart the daemon manager for the change to take effect in the collection schedule.
To stop the daemon manager, enter net stop crmdmgtd.
To start the daemon manager, enter net start crmdmgtd.

---

---

Note To find out the status of the discovery, see the "Viewing IP Phone Discovery Status" section.

---

---

Deleting an IP Phone Discovery Schedule

---

Step 1 Select IP Telephony Monitor > IP Phone Information Facility > Collection Schedule.

The IP Phone Discovery Schedule page appears. Figure 5-4 shows an example of the IP Phone Discovery Schedule page.

Step 2 Click the radio button next to the schedule that you want to delete.

Step 3 Click Delete.

Step 4 In the confirmation box, click Yes.

Step 5 On the IP Phone Discovery Schedule page, click Apply. If you do not click Apply, the schedule will not be deleted.

Step 6 In the confirmation box, click OK.

---

Note To find out the status of the discovery, see the "Viewing IP Phone Discovery Status" section.

---

---

Viewing IP Phone Discovery Status

You can view the status of IP Phone Discovery using the Collection Status option.

---

Step 1 Select IP Telephony Monitor > IP Phone Information Facility > Collection Status.

The Collection Status page appears. Table 5-5 lists the information displayed on the Collection Status page.

To refresh this page with the latest information, click Refresh.

---

Note If you change the time zone of the ITM system, you must restart the daemon manager for the change to take effect in the collection status.
To stop the daemon manager, enter net stop crmdmgtd.
To start the daemon manager, enter net start crmdmgtd.

---

---

Table 5-5 Collection Status Page

Rows	Description
Collection Status	Displays the status of the discovery process. The status could be any one of the following: •In progress—When you start PIFServer for the first time or restart it, discovery takes place automatically and the status appears as In Progress. •Complete—The discovery process is complete. •Not available. Try after some time—Appears when you start PIFServer for the first time, or restart it, and the discovery process has not yet begun. To see the latest status, refresh the information in your browser by clicking the Refresh button.
Last Collection Start Time	This row displays the start time of the last discovery.
Last Collection End Time	This row displays the end time of the last discovery.
