IPM Reports and Graphs
This section explains how to generate minute reports and graphs, historical reports and graphs, audit reports, and system reports.
It contains the following topics:
•
Understanding IPM Reports and Graphs
•
Understanding IPM Reports and Graphs
This section explains the various reports and graphs that you generate in IPM:
•
System Reports
Automatically generates statistical reports for collectors based on the report types such as Availability, Latency, Jitter, HTTP, ICMP, PathEcho, and RTP. The system reports are generated on a daily, weekly, and monthly basis.
For more information, see Understanding System Reports.
Audit Reports
Tracks and reports the configuration changes on the IPM server performed by the LMS users.
For more information, see Audit Reports.
Real-time Graphs
Captures the statistics of a configured collector that polls in real time. This statistics appears in real time and is not stored in the IPM database. You can view the real-time graph for Collector types such as Historical/Statistical and Monitored/Real-Time.
However to do this, the collectors must be in Running status for both the collector types. You can monitor the statistics of more than one collector at a time.
For more information, see Monitoring a Collector.
Overlay Graphs
Compares the latency of the collectors based on the granularity. However, for comparing the graphs, the collectors you select must be in Running, Completed, Dormant, or Stopped status.
For more information, see Viewing Collector Graphs.
Classification of Statistical Reports and Graphs Based on Granularity
Based on the granularity specified, you can generate either Minute or Historical reports and graphs.
•
Generate statistical data for a single or a group of collectors on a minute basis. You can generate Minute reports and graphs for collectors only if you have set the polling interval time in minutes (such as 1, 5, 15, 30) while creating collectors. You cannot generate Minute reports and graphs if the polling interval is set to 60 minutes (Hourly collectors).
•
Generate statistical data for a single or group of collectors based on the granularity such as hourly, daily, monthly, or weekly. You can generate Historical reports and graphs irrespective of the polling interval specified while creating collectors.
For more information, see Working with Minute/Historical Reports and Graphs.
While migrating from IPM 2.6 to IPM 4.0, the database of IPM 2.6 also gets migrated. However, this database contains only the statistical data that are within the purge period specified.
Example: If the purge period for daily granularity was specified as six months, the database contains data for only six months. The data or the reports older than six months are not available. The older reports are backed up in the folder specified when Single backup script, shipped with LMS 3.0, was run before starting the IPM migration.
Working with Minute/Historical Reports and Graphs
This section explains how to generate minute or historical reports and graphs for the following report types based on the granularity such as minute, hourly, daily, weekly, and monthly.
•
•
•
•
Availability Reports and Graphs
This report displays the availability of all the operations such as Echo, Path Echo, ICMP Jitter, UDP Jitter, FTP, DHCP, HTTP, TCP Connect, RTP, DNS, UDP Echo, Gatekeeper Registration Delay, Call Setup Post Dial Delay, and DSLw on the target device.
You can view the availability data gathered by IPM from its collectors. You can generate Availability reports and graphs for the granularities such as hourly, daily, weekly, or monthly.
Note
You can generate the following Availability reports and graphs:
•
•
Availability Historical Report
This report provides information on the reachability of the target devices. You can also view this report in graphical format by clicking the Graph link on the Availability Report page.
See Table 8-1 for more information on the report.
Table 8-1 Availability Historical Reports
Summary
Total Number of Collectors
Number of collectors selected to generate the report.
Collectors with Report Data
Number of collectors with statistical data in the IPM database for the specified period.
Collectors without Report Data
Lists the collectors without any statistical data in the IPM database for the specified period.
Report Details
Start Time
Displays the time when the statistics were collected and stored in the database.
Availability%
Displays the availability percentage of the target device.
See Table 8-39 for more information on the formula.
Error%
Displays the error percentage.
See Table 8-39 for more information on the formula.
Errors
Disconnects
Number of times the target was disconnected from the source.
Timeouts
Number of RTT operations timed out.
Busies
Number of times an RTT operation was not initiated because of earlier incomplete RTT operations.
NoConnections
Number of times an RTT operation was not initiated. This occurs if the target connection is not established.
Drops
Number of times an RTT operation was not initiated because:
•
Or
•
SeqErrors
Number of RTT operation completions received with an unexpected sequence identifier.
VerifyErrors
Number of RTT operation completions data received that do not match the expected data.
Availability Historical Graph
To view the Availability Historical Report in the graphical format, click the Graph link on the Availability Report page. The Availability Graph page appears.

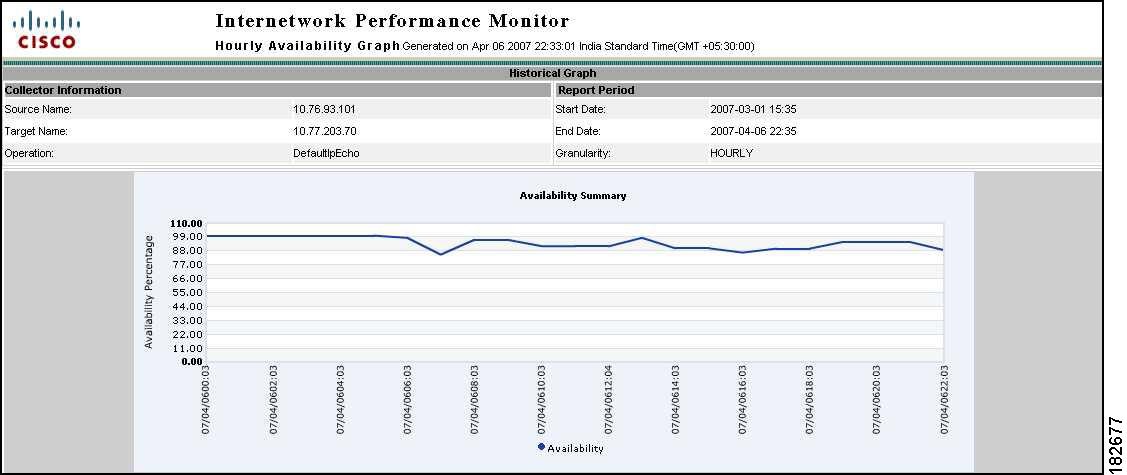

Figure 8-1 Availability Graph
See Table 8-2 for more information on the graph.
Table 8-2 Availability Graph
Collector Information
Source Name
Displays the source name.
Target Name
Displays the target name.
Operation
Displays the operation type.
Report Period
Start Date
Displays the start date of the report.
End Date
Displays the end date of the report.
Granularity
Displays the granularity specified while creating the report job.
Availability Summary
as shown in Figure 8-1.
You can view the availability of the target device for the various time period.
X-axis
Represents the time period of the report.
The time period refers to the start and end time of the report, specified while creating the report job.
Y-axis
Represents the availability percentage.
See Table 8-39 for more information on the formula.
Latency (Round-Trip Time) Reports and Graphs
This report displays the time taken for a packet to arrive from the source to target and back. You can view the latency data gathered by IPM from its collectors. While the time taken for an IP packet to reach the target from the source is called One Way latency, the time taken to return to the source through the target is called Round Trip Time (RTT).
This report provides latency information for all operations such as Echo, PathEcho, UDP Echo, TCP Connect, DHCP, DNS, DLSw, FTP, VoIP Gatekeeper Registration Delay, and VoIP Call Setup Post Dial Delay.
You can generate Latency reports and graphs for the granularity period such as minute, hourly, daily, weekly, and monthly.
You can generate the following Latency reports and graphs:
Latency Minute Report
This report provides information on the round-trip time taken by a packet at a specified time. You can also view this report in graphical format by clicking the Graph link on the Latest Latency Report page.
See Table 8-3 for more information on the report.
Latency Minute Graph
To view the Latency Minute Report in the graphical format, click the Graph link on the Latest Latency Report page. The Latency Summary graph appears.

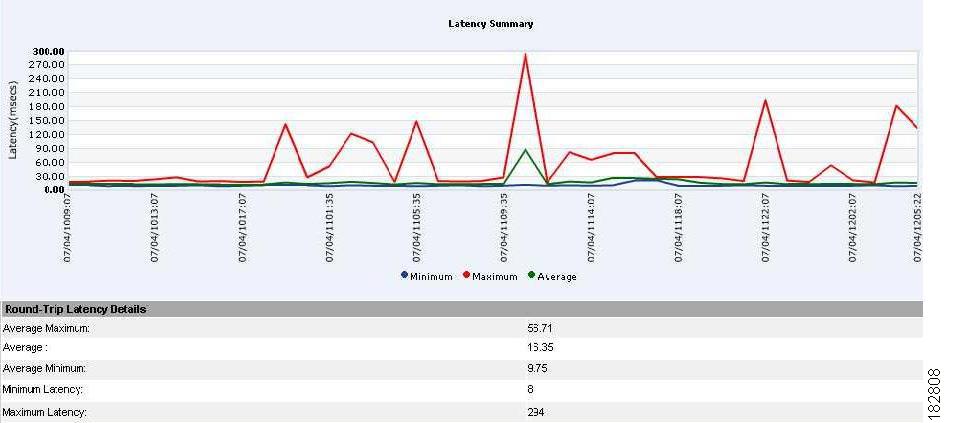

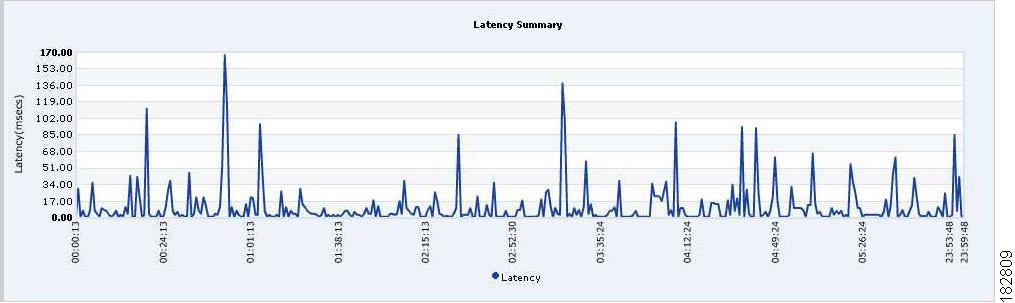

Figure 8-2 Latency Summary
See Table 8-4 for more information on the graph.
Table 8-4 Latency Graph
Collector Information
Source Name
Displays the source name.
Target Name
Displays the target name.
Operation
Displays the operation type.
Report Period
Start Date
Displays the start date of the report.
End Date
Displays the end date of the report.
Granularity
Displays the granularity specified while creating the report job.
Latency Summary
as shown in Figure 8-2
You can view the availability of the target device for various time period.
X-axis
Represents the time period of the report.
The time period refers to the start and end time of the report, specified while creating the report job.
Y-axis
Represents the availability percentage.
See Table 8-39 for more information on the formula.
Latency Historical Report
The latency historical report provides information on the RTT, Errors, Standard Deviation, Tries, Completions, and Over Threshold. You can also view the Latency Historical Report in graphical format by clicking the Graph link on the Latency Report page.
See Table 8-5 for more information on the report.
Table 8-5 Latency Historical Report
Summary
Total Number of Collectors
Number of collectors selected to generate the report.
Collectors with Report Data
Number of collectors with statistical data in the IPM database for the specified period.
Collectors without Report Data
Lists the collectors without any statistical data in the IPM database for the specified period.
Report Details
Start Time
Displays the time when the statistics were collected and stored in the database.
RTT
Min RTT
Minimum round-trip time taken to perform a RTT operation.
Max RTT
Maximum round-trip time taken to perform a RTT operation.
Avg RTT
Average round-trip time.
See Table 8-39 for more information on the formula.
Standard Deviation
See Table 8-39 for more information on the formula.
Tries
Number of RTT operations initiated.
To know how to calculate the Tries, see Table 8-39.
Completions
Number of RTT operations completed without an error or timeout.
See Table 8-39 for more information on the formula.
Over Threshold%
Number of RTT operations that violate threshold.
See Table 8-39 for more information on the formula.
Errors
Error%
See Table 8-39 for more information on the formula.
Disconnects
Number of times the target was disconnected from the source.
Timeouts
Number of RTT operations timed out.
Busies
Number of times an RTT operation was not initiated because of earlier incomplete RTT operations.
NoConnections
Number of times an RTT operation was not initiated. This occurs if the target connection is not established.
Drops
Number of times an RTT operation was not initiated because:
•
Or
•
SeqErrors
Number of RTT operation completions received with an unexpected sequence identifier.
VerifyErrors
Number of RTT operation completions data received that do not match with the expected data.
Latency Historical Graphs
To view the Latency Historical Report in the graphical format, click the Graph link on the Latency Report page. You can view the following graphs:
See Table 8-6 for more information on the graphs.
Table 8-6 Latency Historical Graphs
Collector Information
Source Name
Displays the source name.
Target Name
Displays the target name.
Operation
Displays the operation type.
Report Period
Start Date
Displays the start date of the report.
End Date
Displays the end date of the report.
Granularity
Displays the granularity specified while creating the report job.

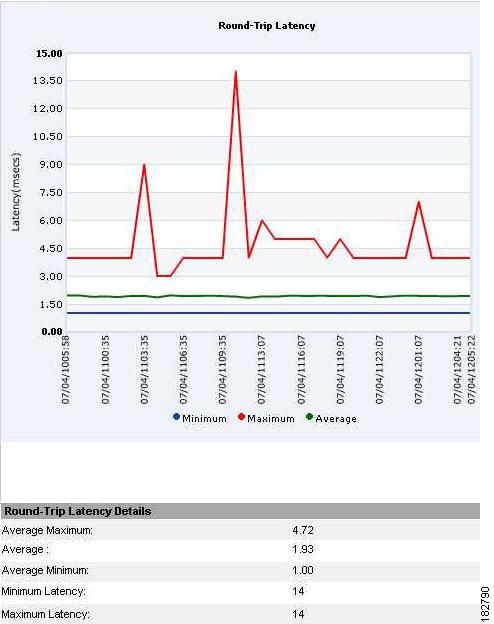

Latency Summary
as shown in Figure 8-3.
You can view the round-trip time details for:
•
•
•
•
•
X-axis
Represents the time period of the report.
The time period refers to the start and end time of the report, specified while creating the report job.
Y-axis
Represents the latency.
It displays the values for minimum, maximum, and average latency.

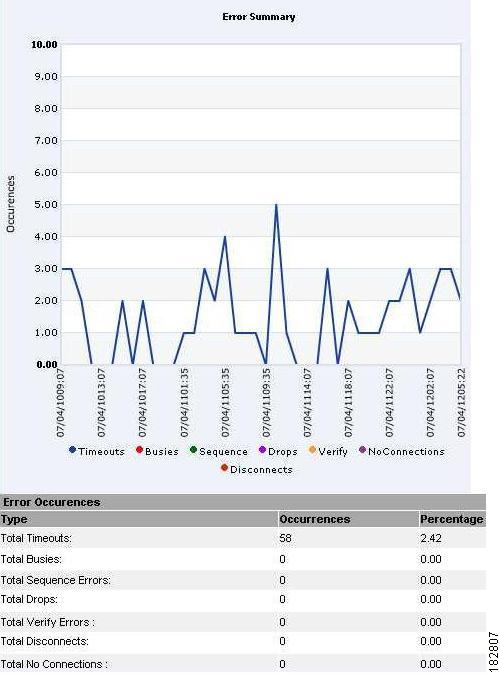

Error Summary
as shown in Figure 8-4.
You can view the error occurrences for:
•
•
•
•
•
•
•
X-axis
Represents the time period of the report.
The time period refers to the start and end time of the report, specified while creating the report job.
Y-axis
Represents the error occurrences.
It displays the error occurrence values for Timeout, Busies, Sequence, Drops, Verify, NoConnections, and Disconnects.

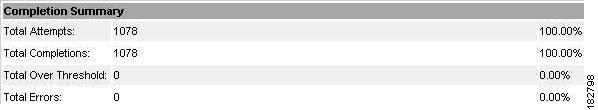

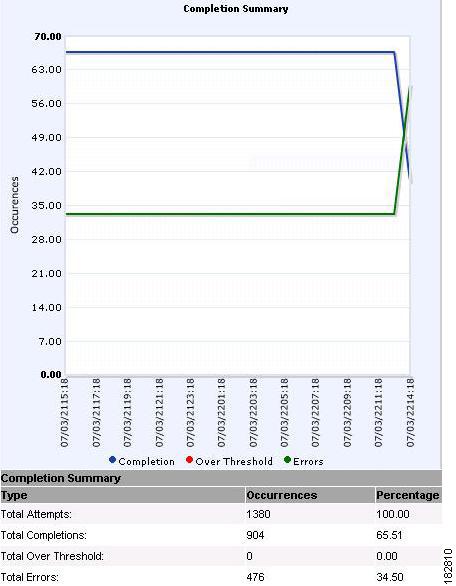

Completion Summary
as shown in Figure 8-5.
You can view the completion summary for the following:
•
•
•
•
X-axis
Represents the time period of the report.
The time period refers to the start and end time of the report, specified while creating the report job.
Y-axis
Represents the percentage of completion.
It displays the values for Completion, Over Threshold, and Errors.

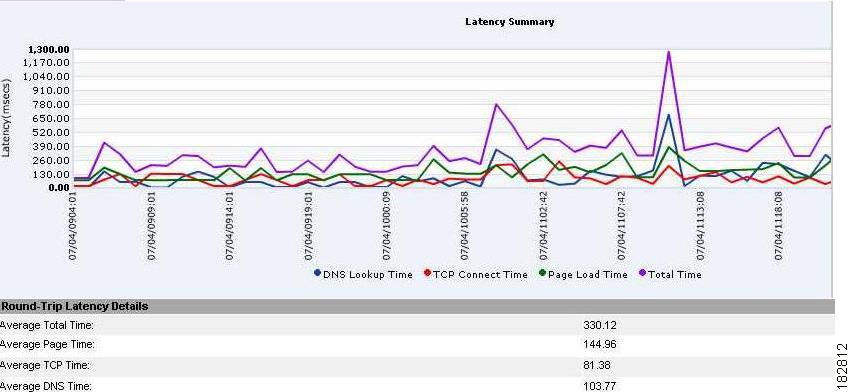

Figure 8-3 Historical Latency Summary
Figure 8-4 Historical Latency Error Summary
Figure 8-5 Historical Latency Completion Summary
UDP Jitter Reports and Graphs
You can view the jitter data gathered by IPM from its UDP Jitter collectors. It displays the delay between any two data packets or the interpacket delay between the source and the target device. The target device must have Responder capability.
You can generate UDP Jitter reports and graphs for the granularity period such as by the minute hourly, daily, weekly, and monthly.
You can generate the following UDP Jitter reports and graphs:
UDP Jitter Minute Report
This report provides information on jitter, latency, packet loss, errors, MOS, and ICPIF.
You can also view this report in graphical format by clicking the Graph link on the Latest Jitter Report page.
See Table 8-7 for more information on the report.
Table 8-7 UDP Jitter Minute Report
Summary
Total Number of Collectors
Number of collectors selected to generate the report.
Collectors with Report Data
Number of collectors with statistical data in the IPM database for the specified period.
Collectors without Report Data
Lists the collectors without any statistical data in the IPM database for the specified period.
Report Details
Start Time
Displays the time when the statistics were collected and stored in the database.
Round Trip Latency
Min (ms)
Minimum round-trip time taken to perform an UDP Jitter operation.
Avg (ms)
Average round-trip time.
See Table 8-39 for more information on the formula.
Max (ms)
Maximum round-trip time taken to perform an UDP Jitter operation.
Std Dev
Standard deviation of the round-trip time.
See Table 8-39 for more information on the formula.
Positive Source - Dest Jitter
Min (ms)
Minimum positive jitter at the destination.
Avg (ms)
Average positive jitter at the destination.
See Table 8-39 for more information on the formula.
Max (ms)
Maximum positive jitter at the destination.
Std Dev
Standard deviation of the positive jitter from source to destination.
See Table 8-39 for more information on the formula.
Negative Src - Dest Jitter
Min (ms)
Minimum negative jitter at the destination.
Avg (ms)
Average negative jitter at the destination.
See Table 8-39 for more information on the formula.
Max (ms)
Maximum negative jitter at the destination.
Std Dev
Standard deviation of the negative jitter from source to destination.
See Table 8-39 for more information on the formula.
Positive Dest - Source Jitter
Min (ms)
Minimum positive jitter at the source.
Avg (ms)
Average of minimum and maximum positive jitter.
See Table 8-39 for more information on the formula.
Max (ms)
Maximum positive jitter at the source.
Std Dev
Standard deviation of the positive jitter from destination to source.
See Table 8-39 for more information on the formula.
Negative Dest - Src Jitter
Min (ms)
Minimum negative jitter at the source.
Avg (ms)
Average negative jitter at the source.
See Table 8-39 for more information on the formula.
Max (ms)
Maximum negative jitter at the source.
Std Dev
Standard deviation of the negative jitter from destination to source.
See Table 8-39 for more information on the formula.
Packet Loss/Errors
Loss SD
Number of packets lost when sent from source to destination.
Loss DS
Number of packets lost when sent from destination to source.
Seq
Number of packets arrived out of sequence.
MIA
Number of packets lost for which we are unable to determine the direction.
Late
Number of packets arrived after the timeout.
MOS
Mean Opinion Score—a numerical measure of the voice quality in the network.
ICPIF
Calculated Planning Impairment Factor—ICPIF numbers represent predefined combinations of loss and delay.
UDP Jitter Minute Graphs
To view the UDP Jitter Minute Graphs, click the Graph link on the Latest Jitter Report page. The following graphs appear:
•
Note
See Table 8-8 for more information on the graphs.
Table 8-8 UDP Jitter Minute Graphs
Collector Information
Source Name
Displays the source name.
Target Name
Displays the target name.
Operation
Displays the operation type.
Report Period
Start Date
Displays the start date of the report.
End Date
Displays the end date of the report.
Granularity
Displays the granularity specified while creating the report job.

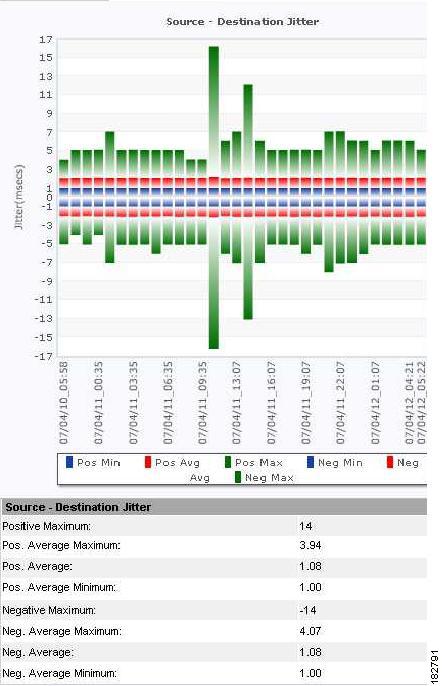

Source-Destination Jitter as shown in Figure 8-6.
You can view the following positive and negative jitter values from source to destination:
•
•
•
•
•
•
X-axis
Represents the time period of the report.
The time period refers to the start and end time of the report, specified while creating the report job.
Y-axis
Represents the jitter from source to destination.
It displays the source to destination jitter values for positive minimum, positive average, positive maximum, negative minimum, negative average, and negative maximum.
Destination-Source Jitter as shown in Figure 8-7.
You can view the following positive and negative jitter values from destination to source:
•
•
•
•
•
•
X-axis
Represents the time period of the report.
The time period refers to the start and end time of the report, specified while creating the report job.
Y-axis
Represents the jitter from destination to source.
It displays the destination to source jitter values for positive minimum, positive average, positive maximum, negative minimum, negative average, and negative maximum.
Round-Trip Latency
as shown in Figure 8-8.
You can view the round-trip time values for:
•
•
•
X-axis
Represents the time period of the report.
The time period refers to the start and end time of the report, specified while creating the report job.
Y-axis
Represents the latency.
It displays the latency values for minimum, maximum, and average.
Errors
as shown in Figure 8-9.
You can view the error occurrences for the following:
•
•
•
•
•
X-axis
Represents the time period of the report.
The time period refers to the start and end time of the report, specified while creating the report job.
Y-axis
Represents the error occurrences.
It displays the values for source-to-destination packet loss, destination-to-source packet loss, sequence, MIA, and late.

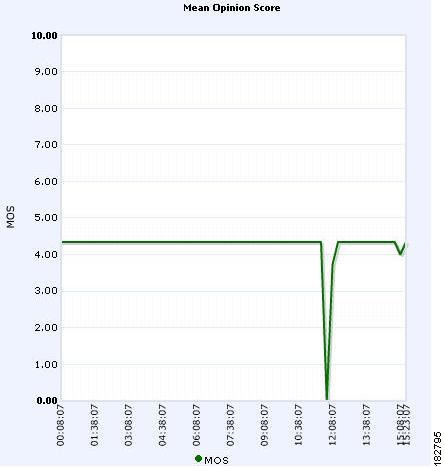

MOS
as shown in Figure 8-10.
Mean opinion score (MOS) measures for the voice quality in the network.
X-axis
Represents the time period of the report.
The time period refers to the start and end time of the report, specified while creating the report job.
Y-axis
Represents the MOS.
ICPIF
as shown in Figure 8-11.
Calculated planning impairment factor loss/delay busy out threshold. The ICPIF numbers represent predefined combinations of loss and delay.
X-axis
Represents the time period of the report.
The time period refers to the start and end time of the report, specified while creating the report job.
Y-axis
Represents the ICPIF.
Figure 8-6 Source to Destination UDP Jitter (Minute)

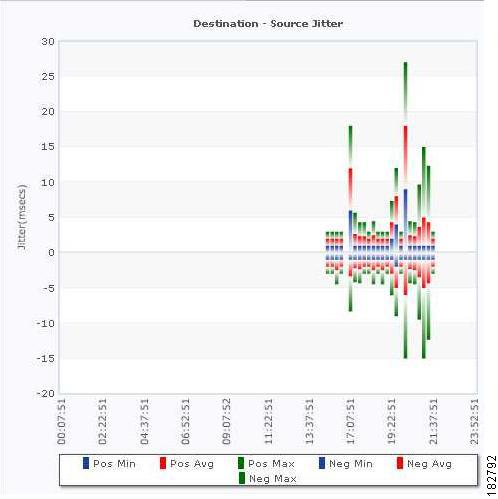

Figure 8-7 Destination to Source UDP Jitter (Minute)

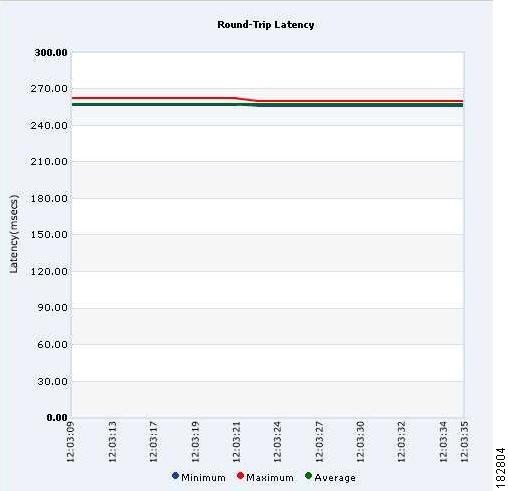

Figure 8-8 Round-Trip Latency - UDP Jitter (Minute)

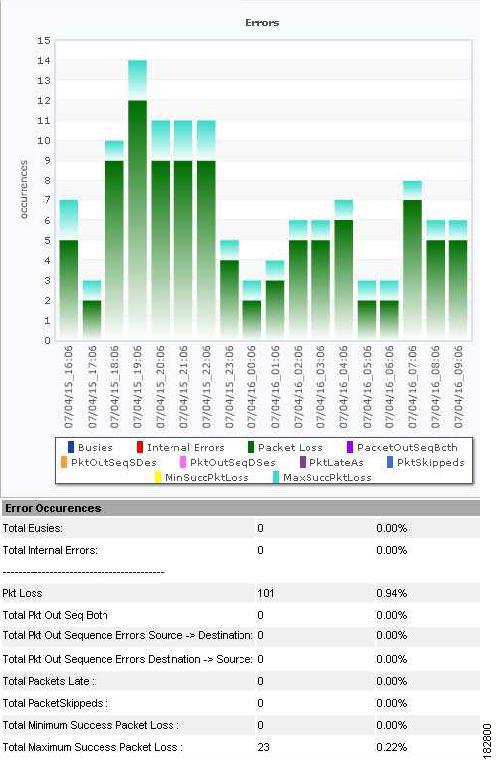

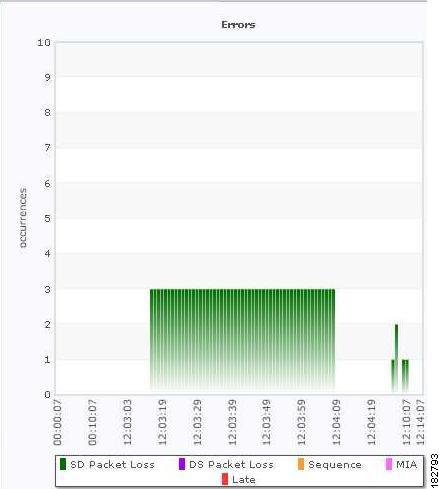

Figure 8-9 Errors - UDP Jitter (Minute)
Figure 8-10 MOS - UDP Jitter (Minute)
Figure 8-11 ICPIF - UDP Jitter (Minute)
UDP Jitter Historical Report
This report provides information on Round-Trip Latency, Positive SD Jitter, Negative SD Jitter, Positive DS Jitter, Negative DS Jitter, Completion Summary, End-to-End Errors, and Packet Loss and Errors. You can also view this report in graphical format by clicking the Graph link on the Jitter Report page.
See Table 8-9 for more information on the report.
Table 8-9 UDP Jitter Historical Report
Summary
Total Number of Collectors
Number of collectors selected for generating the report.
Collectors with Report Data
Number of collectors with statistical data in the IPM database for the specified period.
Collectors without Report Data
Lists the collectors without any statistical data in the IPM database for the specified period.
Report Details
Start Time
Displays the time when the statistics were collected and stored in the database.
Round Trip Latency
Min (ms)
Minimum round-trip time taken to perform an UDP Jitter operation.
Avg (ms)
Average round-trip time taken to perform an UDP Jitter operation.
See Table 8-39 for more information on the formula.
Max (ms)
Maximum round-trip time taken to perform an UDP Jitter operation.
Std Dev
Standard deviation of the round-trip time.
See Table 8-39 for more information on the formula.
Positive Source - Dest Jitter
Min (ms)
Minimum positive jitter at the destination.
Avg (ms)
Average positive jitter at the destination.
See Table 8-39 for more information on the formula.
Max (ms)
Maximum positive jitter at the destination.
Std Dev
Standard deviation of positive jitter from source to destination.
See Table 8-39 for more information on the formula.
Negative Src - Dest Jitter
Min (ms)
Minimum negative jitter at the destination.
Avg (ms)
Average negative jitter at the destination.
See Table 8-39 for more information on the formula.
Max (ms)
Maximum negative jitter at the destination.
Std Dev
Standard deviation of negative jitter from source to destination.
See Table 8-39 for more information on the formula.
Positive Dest - Source Jitter
Min (ms)
Minimum positive jitter at the source.
Avg (ms)
Average positive jitter at the source.
See Table 8-39 for more information on the formula.
Max (ms)
Maximum positive jitter at the source.
Std Dev
Standard deviation of positive jitter at the source.
See Table 8-39 for more information on the formula.
Negative Dest - Src Jitter
Min (ms)
Minimum negative jitter at the source.
Avg (ms)
Average negative jitter at the source.
See Table 8-39 for more information on the formula.
Max (ms)
Maximum negative jitter at the source.
Std Dev
Standard deviation of negative jitter at the source.
See Table 8-39 for information on the formula.
Completion Summary
Tries
Sum of all errors and numCompletions.
Over Threshold%
Number of jitter operations that violate threshold.
Error%
Displays the error percentage.
See Table 8-39 for more information on the formula.
End-to-End Errors
Internal Errors
Errors caused by internal problems in the router.
Busies
Number of times an RTT operation was not initiated because of prior incomplete RTT operations.
Packet Loss/Errors
Loss SD
Number of packets lost when sent from source to destination.
Loss DS
Number of packets lost when sent from destination to source.
Seq
Number of packets arrived out of sequence.
MIA
Number of packets lost for which you cannot determine the direction.
Late
Number of packets arrived after the timeout.
Packet Error%
Displays the packet error percentage.
See Table 8-39 for more information on the formula.
MinMOS
Minimum of all mean opinion score values.
MaxMOS
Maximum of all mean opinion score values.
MinICPIF
Minimum of all calculated planning impairment factor values.
MaxICPIF
Maximum of all calculated planning impairment factor values.
UDP Jitter Historical Graphs
To view the UDP Jitter Historical Graphs, click the Graph link on the Jitter Report page. The following graphs appear.
•
Note
See Table 8-10 for more information on the graphs.
Table 8-10 UDP Jitter Historical Graphs
Collector Information
Source Name
Displays the source name.
Target Name
Displays the target name.
Operation
Displays the operation type.
Report Period
Start Date
Displays the start date of the report.
End Date
Displays the end date of the report.
Granularity
Displays the granularity specified while creating the report job.

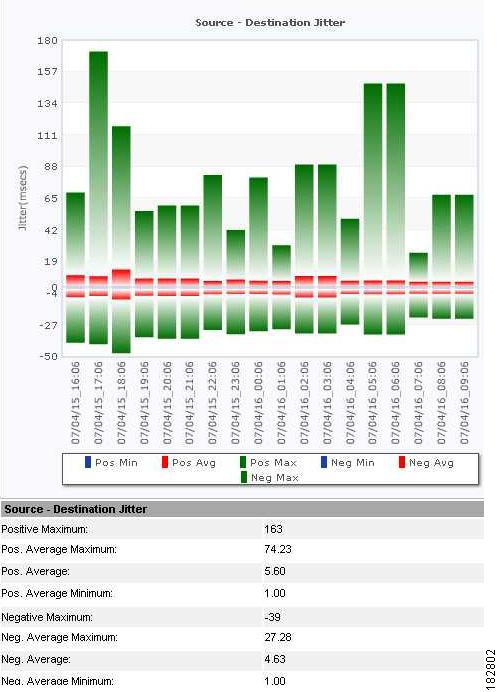

Source-Destination Jitter as shown in Figure 8-12.
You can view the following positive and negative jitter values from source to destination:
•
•
•
•
•
•
•
•
X-axis
Represents the time period of the report.
The time period refers to the start and end time of the report, specified while creating the report job.
Y-axis
Represents the jitter from source to destination.
It displays the source to destination jitter values for positive minimum, positive average, positive maximum, negative minimum, negative average, and negative maximum.

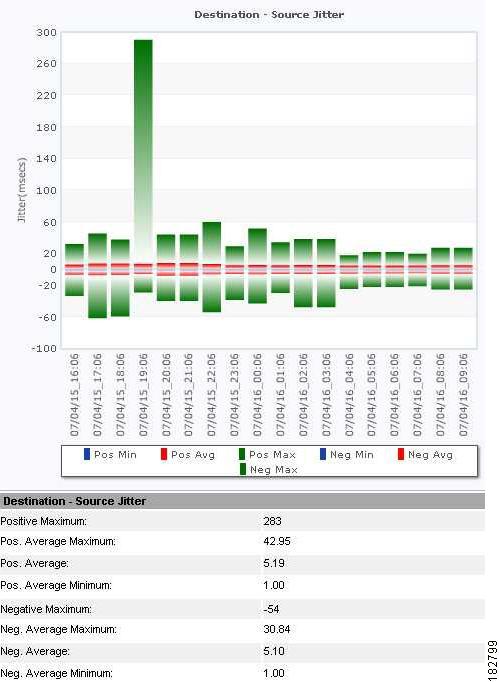

Destination-Source Jitter as shown in Figure 8-13.
You can view the following positive and negative jitter values from destination to source:
•
•
•
•
•
•
•
•
X-axis
Represents the time period of the report.
The time period refers to the start and end time of the report, specified while creating the report job.
Y-axis
Represents the jitter from destination to source.
It displays the destination to source jitter values for positive minimum, positive average, positive maximum, negative minimum, negative average, and negative maximum.
Round-Trip Latency
as shown in Figure 8-14.
You can view the round-trip time values for:
•
•
•
•
•
X-axis
Represents the time period of the report.
The time period refers to the start and end time of the report, specified while creating the report job.
Y-axis
Represents the latency.
It displays the values for minimum, maximum, and average latency.
Errors
as shown in Figure 8-15.
You can view the error occurrences for the following:
•
•
•
•
•
•
•
•
X-axis
Represents the time period of the report.
The time period refers to the start and end time of the report, specified while creating the report job.
Y-axis
Represents the error occurrences.
It displays the error occurrence values for busies, internal errors, SD packet loss, DS packet loss, sequence, MIA, and late.

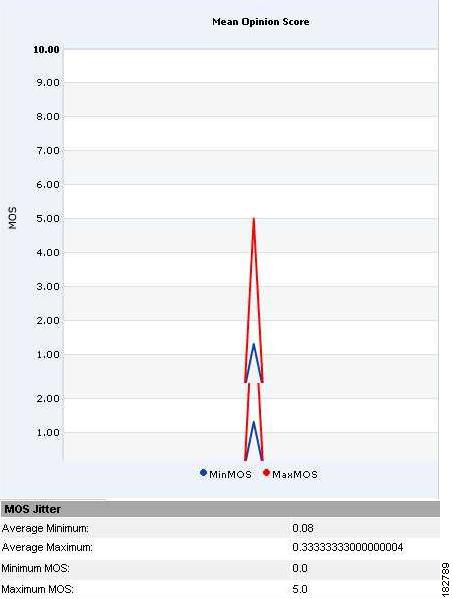

MOS
as shown in Figure 8-16.
You can view the MOS values for:
•
•
•
•
X-axis
Represents the Time Period of the report.
The time period refers to the start and end time of the report, specified while creating the report job.
Y-axis
Represents the MOS.
It displays values for minimum and maximum MOS.

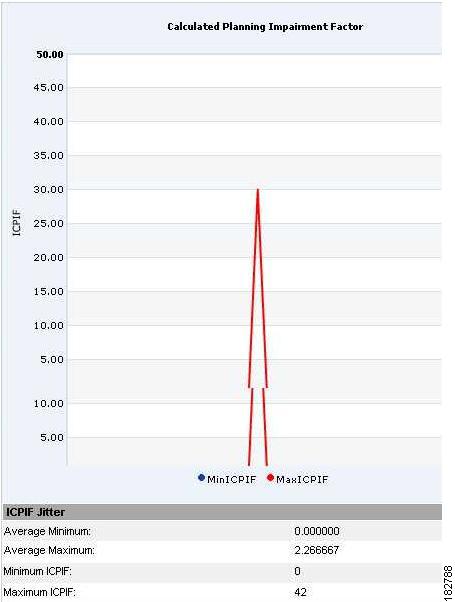

ICPIF
as shown in Figure 8-17.
You can view the ICPIF values for:
•
•
•
•
X-axis
Represents the Time Period of the report.
The time period refers to the start and end time of the report, specified while creating the report job.
Y-axis
Represents ICPIF.
It displays values for minimum and maximum ICPIF.
Completion Summary
as shown in Figure 8-18.
You can view the completion summary for:
•
•
•
•

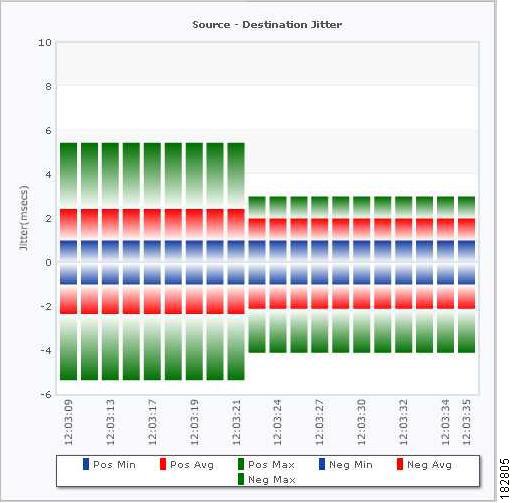

Figure 8-12 Source-Destination UDP Jitter (Historical)

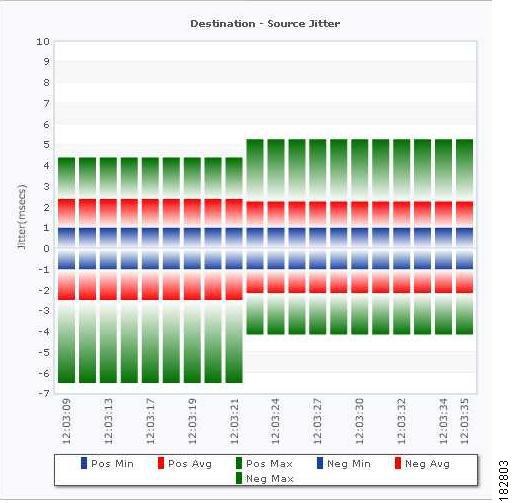

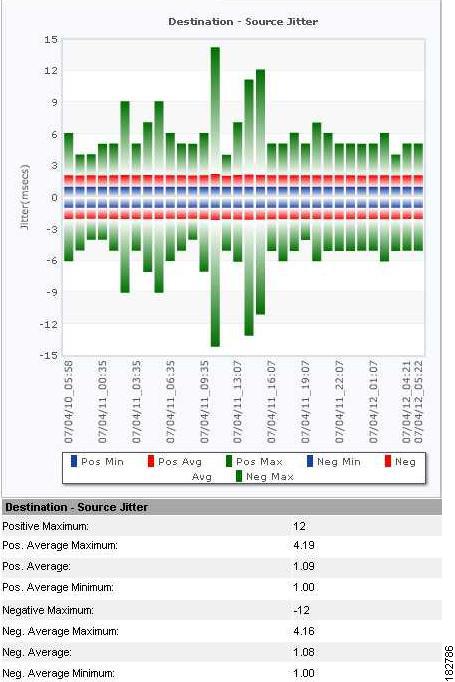

Figure 8-13 Destination-Source UDP Jitter (Historical)

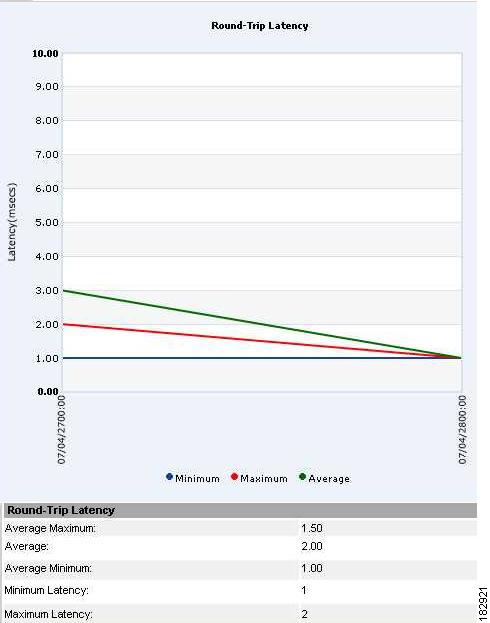

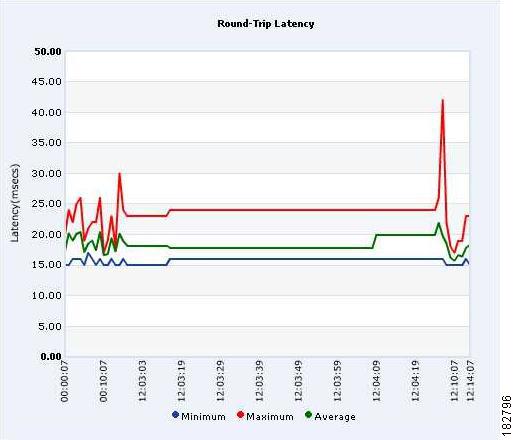

Figure 8-14 Round-Trip Latency - UDP Jitter (Historical)

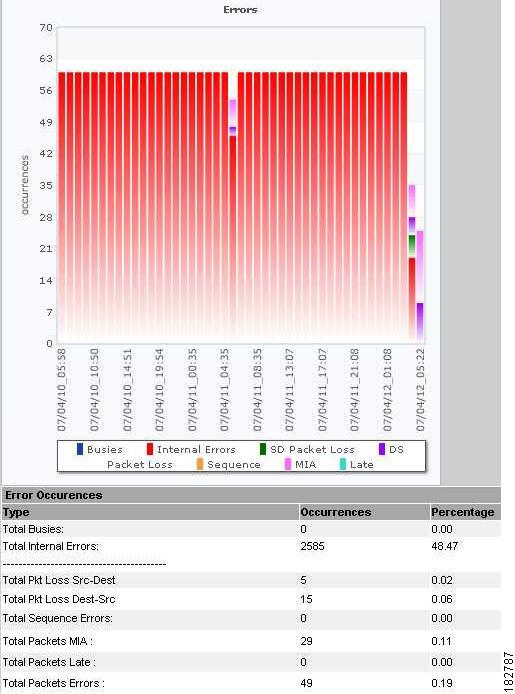

Figure 8-15 Errors - UDP Jitter (Historical)
Figure 8-16 MOS - UDP Jitter (Historical)

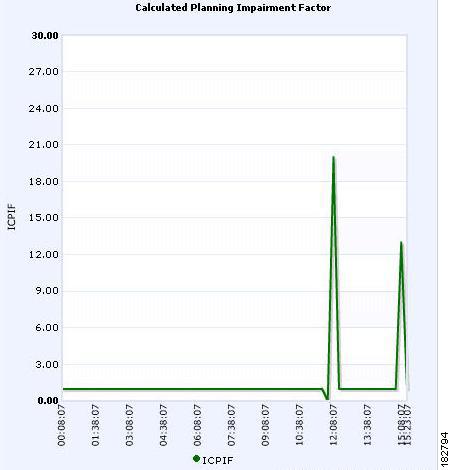

Figure 8-17 ICPIF - UDP Jitter (Historical)

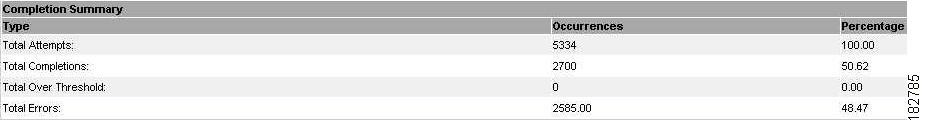

Figure 8-18 Completion Summary - UDP Jitter (Historical)
HTTP Reports and Graphs
You can view the HTTP data gathered by IPM from its HTTP collectors. The report displays the round-trip latency time required to connect to and access data from an HTTP server. HTTP server response time is measured for DNS Lookup, TCP Connect, and HTTP transaction time.
You can generate HTTP reports and graphs for the granularity period such as by the minute hourly, daily, weekly, and monthly.
You can generate the following HTTP reports and graphs:
HTTP Minute Report
This report provides information on RTT, DNS RTT, TCP Connect RTT, Transaction RTT, and Message Body Octets. You can also view the report in graphical format by clicking the Graph link on the Latest HTTP Report page.
See Table 8-11 for more information on the report.
HTTP Minute Graphs
To view the HTTP Minute Report in graphical format, click the Graph link on the Latest HTTP Report page. The Latency Summary graph appears.
Figure 8-19 HTTP Latency Summary (Minute)
See Table 8-11 for more information on the graph.
Table 8-12 HTTP Minute Graph
Collector Information
Source Name
Displays the source name.
Target Name
Displays the target name.
Operation
Displays the operation type.
Report Period
Start Date
Displays the start date of the report.
End Date
Displays the end date of the report.
Granularity
Displays the granularity specified while creating the report job.
Latency Summary
as shown in Figure 8-19.
You can view the latency summary for:
•
•
•
•
X-axis
Represents the time period of the report.
The time period refers to the start and end time of the report, specified while creating the report job.
Y-axis
Represents the latency.
It displays the latency values for DNS Lookup Time, TCP Connect Time, Page Load Time, and Total Time.
HTTP Historical Report
This report provides information on RTT, Standard Deviation, Average DNS RTT, Average TCP Connect RTT, Average Transaction RTT, Average Message Body Octets, and Errors. You can also view the HTTP Historical Report in graphical format by clicking the Graph link on the HTTP Report page.
See Table 8-13 for more information on the report.
Table 8-13 HTTP Historical Report
Summary
Total Number of Collectors
Number of collectors selected to generate the report.
Collectors with Report Data
Number of collectors with statistical data in the IPM DB for the specified period.
Collectors without Report Data
Lists the collectors without any statistical data in the IPM database for the specified period.
Report Details
Start Time
Displays the time when the statistics were collected and stored in the database.
RTT
Min RTT
Minimum round-trip time taken to perform a HTTP operation.
Max RTT
Maximum round-trip time taken to perform a HTTP operation.
Avg RTT
Average round-trip time.
See Table 8-39 for more information on the formula.
Standard Deviation
Standard deviation for latency.
See Table 8-39 for more information on the formula.
Avg DNS RTT
Displays the average DNS round-trip time.
See Table 8-39 for more information on the formula.
Avg TCP Connect RTT
Displays the average TCP Connect round-trip time.
See Table 8-39 for more information on the formula.
Avg Transaction RTT
Displays the average transaction round-trip time.
See Table 8-39 for more information on the formula.
Avg Message Body Octets
Displays the average message body octets.
See Table 8-39 for information on the formula.
Tries
Total number of HTTP operations tried from source to target.
Completion
Number of HTTP operations completed successfully.
Over Threshold%
Number of HTTP operations that violate threshold.
Errors%
Displays the error percentage.
See Table 8-39 for more information on the formula.
Errors
DNS Server Timeout
Number of requests that could not connect to DNS server.
TCP Connect Timeout
Number of requests that could not connect to HTTP server.
Transaction Timeout
Number of requests that timed out during HTTP transaction.
DNS Query Error
Number of requests with DNS Query errors.
HTTP Error
Number of requests with HTTP errors while downloading the base page.
Drops
Number of times a HTTP operation could not initiate because of an internal error.
Busies
Number of times an HTTP operation was not initiate because of an earlier incomplete HTTP operations.
HTTP Historical Graphs
To view the HTTP Historical Graphs, click the Graph link on the HTTP Report page. The following graphs appear:
See Table 8-14 for more information on the graphs.
Table 8-14 HTTP Historical Graphs
Collector Information
Source Name
Displays the source name.
Target Name
Displays the target name.
Operation
Displays the operation type.
Report Period
Start Date
Displays the start date of the report.
End Date
Displays the end date of the report.
Granularity
Displays the granularity specified while creating the report job.
Latency Summary
as shown in Figure 8-20.
You can view the latency summary for:
•
•
•
•
X-axis
Represents the time period of the report.
The time period refers to the start and end time of the report, specified while creating the report job.
Y-axis
Represents the latency.
It displays the latency values for DNS Lookup Time, TCP Connect Time, Page Load Time, and Total Time.
Error Summary
as shown in Figure 8-21.
You can view the error occurrences for:
•
•
•
•
•
•
•
X-axis
Represents the time period of the report.
The time period refers to the start and end time of the report, specified while creating the report job.
Y-axis
Represents the error occurrences.
It displays the error occurrence values for DNS Timeouts, TCP Timeouts, Page Timeouts, DNS Query Errors, HTTP Errors, Drops, and Busies.
Completion Summary
as shown in Figure 8-22.
You can view the completion summary for:
•
•
•
•
X-axis
Represents the time period of the report.
The time period refers to the start and end time of the report, specified while creating the report job.
Y-axis
Represents the percentage of completion.
It displays the completion summary for Completion, Over Threshold, and Errors.

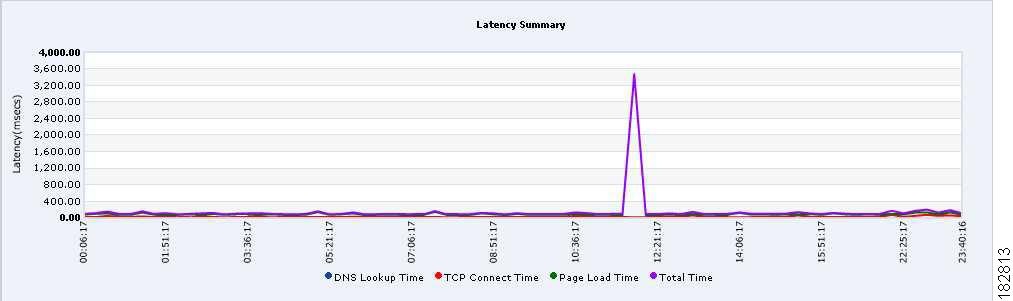

Figure 8-20 HTTP Latency Summary (Historical)

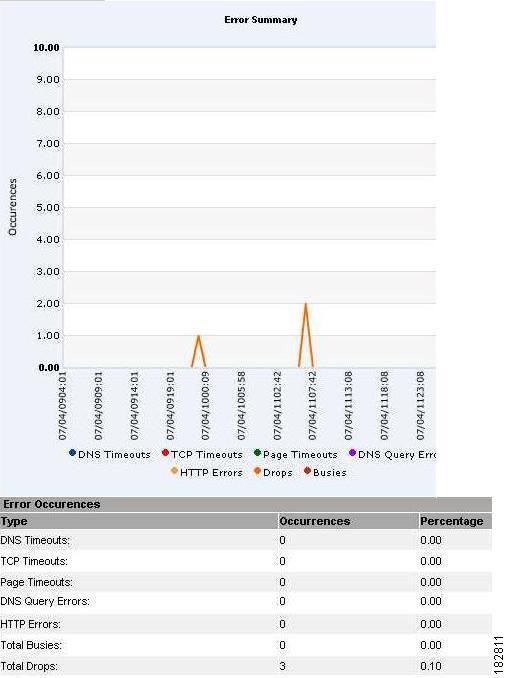

Figure 8-21 HTTP Error Summary (Historical)
Figure 8-22 HTTP - Completion Summary (Historical)
ICMP Jitter Reports and Graphs
You can view the ICMP Jitter data gathered by IPM from its ICMP Jitter collectors. It displays network performance-related statistics between a Cisco IOS device (source) and any other IP device (destination).
The destination device can be any network device that supports ICMP operation such as a server or workstation. ICMP collector does not require IP SLA responders to be configured on the destination devices.
You can generate ICMP Jitter reports and graphs for the granularity period such as by the minute hourly, daily, weekly, and monthly.
You can generate the following ICMP reports and graphs:
•
•
ICMP Jitter Minute Report
This report provides information on Round Trip Latency, Positive SD Jitter, Negative SD Jitter, Positive DS Jitter, Negative DS Jitter, and Packet Loss/Errors. You can also the ICMP Jitter Minute Report in graphical format by clicking the Graph link on the Latest ICMP Jitter Report page.
See Table 8-15 for more information on the report.
Table 8-15 ICMP Jitter Minute Report
Summary
Total Number of Collectors
Number of collectors selected to generate the report.
Collectors with Report Data
Number of collectors with statistical data in the IPM database for the specified period.
Collectors without Report Data
Lists the collectors without any statistical data in the IPM database for the specified period.
Report Details
Start Time
Displays the time when the statistics were collected and stored in the database.
Round Trip Latency
Measures the round-trip time taken to perform an ICMP operation.
Min (ms)
Minimum round-trip time taken for an ICMP operation.
Avg (ms)
Average round-trip time.
See Table 8-39 for more information on the formula.
Max (ms)
Maximum round-trip time taken for an ICMP operation.
Std Dev
Standard deviation for latency.
See Table 8-39 for more information on the formula.
Positive Source - Dest Jitter
Min (ms)
Minimum positive jitter at the destination.
Avg (ms)
Average positive jitter at the destination.
See Table 8-39 for more information on the formula.
Max (ms)
Maximum positive jitter at the destination.
Std Dev
Standard deviation of the positive jitter from source to destination.
See Table 8-39 for more information on the formula.
Negative Src - Dest Jitter
Min (ms)
Minimum negative jitter at the destination.
Avg (ms)
Average negative jitter at the destination.
See Table 8-39 for more information on the formula.
Max (ms)
Maximum negative jitter at the destination.
Std Dev
Standard deviation of the negative jitter from source to destination.
See Table 8-39 for more information on the formula.
Positive Dest - Source Jitter
Min (ms)
Minimum positive jitter at the source.
Avg (ms)
Average positive jitter at the source.
See Table 8-39 for more information on the formula.
Max (ms)
Maximum positive jitter at the source.
Std Dev
Standard deviation of the positive jitter from destination to source.
See Table 8-39 for more information on the formula.
Negative Dest - Src Jitter
Min (ms)
Minimum negative jitter at the source.
Avg (ms)
Average negative jitter at the source.
See Table 8-39 for more information on the formula.
Max (ms)
Maximum negative jitter at the source.
Std Dev
Standard deviation of the negative jitter from destination to source.
See Table 8-39 for more information on the formula.
Packet Loss/Errors
Packet Loss
Number of packets lost.
PktOutSeqBoth
Number of packets arrived out of sequence in both directions, source-to-destination and destination-to-source.
PktOutSeqSDes
Number of packets arrived out of sequence from source to destination.
PktOutSeqDSes
Number of packets arrived out of sequence from destination to source.
PktLateAs
Number of packets arrived after the timeout.
MinSuccPktLoss
Minimum number of packets that were dropped successively.
MaxSuccPktLoss
Maximum number of packets that were dropped successively.
PacketSkippeds
Number of packets skipped per operation as the router was unable to send the packet out.
ICMP Jitter Minute Graphs
To view the ICMP Jitter Minute Graphs, click the Graph link on the Latest ICMP Jitter Report page. The following graphs appear:
See Table 8-16 for more information on the graphs.
Table 8-16 ICMP Jitter Minute Graphs
Collector Information
Source Name
Displays the source name.
Target Name
Displays the target name.
Operation
Displays the operation type.
Report Period
Start Date
Displays the start date of the report.
End Date
Displays the end date of the report.
Granularity
Displays the granularity specified while creating the report job.
Source-Destination Jitter
as shown in Figure 8-23.
You can view the source to destination jitter details for:
•
•
•
•
•
•
X-axis
Represents the time period of the report.
The time period refers to the start and end time of the report, specified while creating the report job.
Y-axis
Represents the positive and negative jitter values from source to destination.
It displays the jitter values for positive minimum, positive average, positive maximum, negative minimum, negative average, and negative maximum.
Destination-Source Jitter as shown in Figure 8-24.
You can view the destination to source jitter details for:
•
•
•
•
•
•
X-axis
Represents the time period of the report.
The time period refers to the start and end time of the report, specified while creating the report job.
Y-axis
Represents the positive and negative jitter values from destination to source.
It displays the jitter values for positive minimum, positive average, positive maximum, negative minimum, negative average, and negative maximum.
Round-Trip Latency
as shown in Figure 8-25.
You can view the round-trip time details for:
•
•
•
X-axis
Represents the time period of the report.
The time period refers to the start and end time of the report, specified while creating the report job.
Y-axis
Represents the latency.
It displays the values for minimum, maximum, and average latency.
Errors
as shown in Figure 8-26.
You can view the error occurrences for:
•
•
•
•
•
•
•
•
X-axis
Represents the time period of the report.
The time period refers to the start and end time of the report, specified while creating the report job.
Y-axis
Represents the error occurrences.
It displays the error occurrence values for Packet Loss, PacketOutSeqBoth, PktOutSeqDes, PktOutSeqDSes, PktLateAs, PktSkippeds, MinSuccPktLoss, and MaxSuccPktLoss.
Figure 8-23 Source-Destination ICMP Jitter (Minute)
Figure 8-24 Destination-Source ICMP Jitter (Minute)
Figure 8-25 ICMP Jitter Round-Trip Time (Minute)

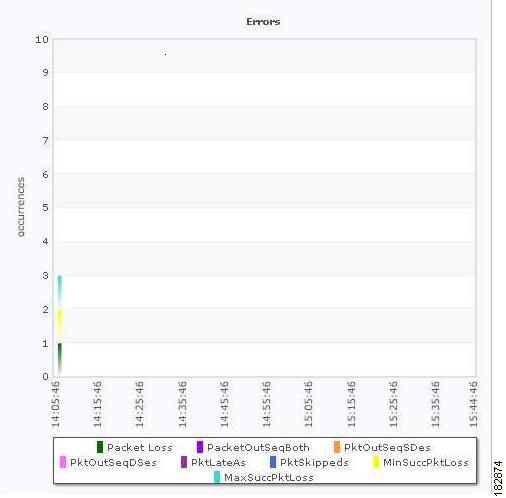

Figure 8-26 ICMP Jitter Errors (Minute)
ICMP Jitter Historical Report
This report provides information on Round Trip Latency, Positive SD Jitter, Negative SD Jitter, Positive DS Jitter, Negative DS Jitter, Completion Summary, End-to-End Errors, and Packet Loss/Errors. You can also view the ICMP Jitter Historical Report in graphical format by clicking the Graph link on ICMP Jitter Report page.
See Table 8-17 for more information on the report.
Table 8-17 ICMP Jitter Historical Report
Summary
Total Number of Collectors
Number of collectors selected to generate the report.
Collectors with Report Data
Number of collectors with statistical data in the IPM database for the specified period.
Collectors without Report Data
Lists the collectors without any statistical data in the IPM database for the specified period.
Report Details
Start Time
Displays the time when the statistics were collected and stored in database.
Round Trip Latency
Measures the round-trip time taken to perform an ICMP Jitter operation.
Min (ms)
Minimum round-trip time for an ICMP Jitter operation.
Avg (ms)
Average round-trip time.
See Table 8-39 for more information on the formula.
Max (ms)
Maximum round-trip time for an ICMP Jitter operation.
Std Dev
Standard deviation of the latency.
See Table 8-39 for more information on the formula.
Positive Source - Dest Jitter
Min (ms)
Minimum positive jitter at the destination.
Avg (ms)
Average positive jitter at the destination.
See Table 8-39 for more information on the formula.
Max (ms)
Maximum positive jitter at the destination.
Std Dev
Standard deviation of the positive jitter from source to destination.
See Table 8-39 for more information on the formula.
Negative Src - Dest Jitter
Min (ms)
Minimum negative jitter at the destination.
Avg (ms)
Average negative jitter at the destination.
See Table 8-39 for more information on the formula.
Max (ms)
Maximum negative jitter at the destination.
Std Dev
Standard deviation of the negative jitter from source to destination.
See Table 8-39 for more information on the formula.
Positive Dest - Src Jitter
Min (ms)
Minimum positive jitter at the source.
Avg (ms)
Average positive jitter at the source.
See Table 8-39 for more information on the formula.
Max (ms)
Maximum positive jitter at the source.
Std Dev
Standard deviation of the positive jitter from destination to source.
See Table 8-39 for more information on the formula.
Negative Dest - Src Jitter
Min (ms)
Minimum negative jitter at the source.
Avg (ms)
Average negative jitter at the source.
See Table 8-39 for more information on the formula.
Max (ms)
Maximum negative jitter at the source.
Std Dev
Standard deviation of the negative jitter from destination to source.
See Table 8-39 for more information on the formula.
Completion Summary
Tries
Number of RTT operations initiated.
See Table 8-39 for more information on the formula.
Over Threshold%
Number of jitter operations that violate threshold.
See Table 8-39 for more information on the formula.
Error%
See Table 8-39 for information on the Error% formula.
End-to-End Errors
Errors
Number of times an ICMP jitter operation could not initiate because of an internal error.
Busies
Number of times an ICMP jitter operation could not initiate because of an earlier incomplete ICMP jitter operation.
Packet Loss/Errors
Packet Loss
Number of packets lost.
PktOutSeqBoth
Number of packets arrived out of sequence in both source-to-destination and destination-to-source directions.
PktOutSeqSDes
Number of packets arrived out of sequence from source to destination.
PktOutSeqDSes
Number of packets arrived out of sequence from destination to source.
PktLateAs
Number of packets arrived after timeout.
MinSuccPktLoss
Minimum number of packets that are dropped successively.
MaxSuccPktLoss
Maximum number of packets that are dropped successively.
Packet Error%
See Table 8-39 for more information on the Packet Error% formula.
PacketSkippeds
Number of packets skipped per operation as the router could not send the packet out.
ICMP Jitter Historical Graphs
To view the ICMP Jitter Historical Graphs, click the Graph link on the ICMP Jitter Report page. The following graphs appear.
See Table 8-18 for more information on the graphs.
Table 8-18 ICMP Jitter Historical Graphs
Collector Information
Source Name
Displays the source name.
Target Name
Displays the target name.
Operation
Displays the operation type.
Report Period
Start Date
Displays the start date of the report.
End Date
Displays the end date of the report.
Granularity
Displays the granularity specified while creating the report job.
Source-Destination Jitter
as shown in Figure 8-27.
You can view the source to destination jitter details for:
•
•
•
•
•
•
•
•
X-axis
Represents the time period of the report.
The time period refers to the start and end time of the report, specified while creating the report job.
Y-axis
Represents the positive and negative jitter values from source to destination.
It displays jitter values for positive minimum, positive average, positive maximum, negative minimum, negative average, and negative maximum.
Destination-Source Jitter as shown in Figure 8-28.
You can view the destination to source jitter details for:
•
•
•
•
•
•
•
•
X-axis
Represents the time period of the report.
The time period refers to the start and end time of the report, specified while creating the report job.
Y-axis
Represents the positive and negative jitter values from destination to source.
It displays jitter values for positive minimum, positive average, positive maximum, negative minimum, negative average, and negative maximum.
Round-Trip Latency
as shown in Figure 8-29.
You can view the round-trip time details for:
•
•
•
•
•
X-axis
Represents the time period of the report.
The time period refers to the start and end time of the report, specified while creating the report job.
Y-axis
Represents the latency.
It displays the values for minimum, maximum, and average latency.
Errors
as shown in Figure 8-30.
You can view the error occurrences for:
•
•
•
•
•
•
•
•
•
X-axis
Represents the time period of the report.
The time period refers to the start and end time of the report, specified while creating the report job.
Y-axis
Represents the error occurrences.
It displays the error occurrence values for Busies, Internal Errors, Packet Loss, PacketOutSeqBoth, PktOutSeqSDes, PktOutSeqDSes, PktLateAs, PktSkippeds, MinSuccPktLoss, and MaxSuccPktLoss.
Completion Summary
as shown in Figure 8-31
You can view the completion summary for:
•
•
•
•
Figure 8-27 Source-Destination ICMP Jitter (Historical)
Figure 8-28 Destination-Source ICMP Jitter (Historical)
Figure 8-29 ICMP Jitter Round-Trip Latency (Historical)
Figure 8-30 ICMP Jitter Errors (Historical)
Figure 8-31 ICMP Jitter Completion Summary (Historical)
Path Echo Reports and Graphs
You can view the Path Echo data gathered by IPM from its Path Echo collectors. It displays hop-by-hop performance between the source router and target device on the network by discovering the path.
You can generate Path Echo reports and graphs for the granularity period such as by the hourly, daily, weekly, and monthly.
You can generate the following PathEcho reports and graphs:
Path Echo Historical Report
This report provides information on Path ID, Hop details, RTT, Standard Deviation, Tries, Completions, Over Threshold%, Error%, and Errors. You can also view this report in graphical format by clicking the Graph link on the Path Echo Report page.
See Table 8-19 for more information on the report.
Table 8-19 PathEcho Historical Report
Summary
Total Number of Collectors
Number of collectors selected to generate the report.
Collectors with Report Data
Number of collectors with statistical data in the IPM database for the specified period.
Collectors without Report Data
Lists the collectors without any statistical data in the IPM database for the specified period.
Report Details
Start Time
Displays the time when the statistics were collected and stored in the database.
PathID
A number that identifies the path.
HopID
A number that identifies the hop of the path.
Hop Address
Address of the intermediate devices from source to target.
RTT
Measures the round-trip time taken for a Path Echo operation.
Min RTT
Minimum round-trip time for a Path Echo operation.
Max RTT
Maximum round-trip time for a Path Echo operation.
Avg RTT
Average round-trip time.
See Table 8-39 for more information on the formula.
Standard Deviation
Standard deviation for latency.
See Table 8-39 for more information on the formula.
Tries
Number of RTT operations initiated.
See Table 8-39 for more information on the formula.
Completions
Number of RTT operations completed without an error or timeout.
Over Threshold%
Number of Path Echo operations that violate threshold.
See Table 8-39 for more information on the formula.
Error%
Displays the error percentage for the total error packets.
See Table 8-39 for more information on the formula.
Errors
Disconnects
Number of hops along the path were disconnected.
Timeouts
Number of RTT operations timed out.
Busies
Number of times an RTT operation was not initiated because of earlier incomplete RTT operations.
NoConnections
Number of times an RTT operation was not initiated. This occurs if the target connection is not established.
Drops
Number of times an RTT operation was not initiated because:
The necessary internal resource were not available
Or
Some unrecognized operations were completed.
SeqErrors
Number of RTT operation completions received with an unexpected sequence identifier.
VerifyErrors
Number of RTT operation completions data received that do not match with the expected data.
Path Echo Historical Graphs
To view the PathEcho Historical Report in graphical format, click the Graph link on the Path Echo Report page.
The PathEcho Historical Graphs have a tree structure as given below:
•
See Table 8-20 for more information.
•
See Table 8-21 for more information.
•
See Table 8-22 for more information.
RTP Reports and Graphs
You can view the RTP data gathered by IPM from its RTP collectors. You can generate RTP reports and graphs for the granularity period such as by the minute, hourly, daily, weekly, and monthly.
You can generate the following RTP reports and graphs:
RTP Minute Report
This report provides information on RTT, SD and DS Interarrival Jitter, RFactor, MOSCQ, and Total Packets, and Errors. You can also view the RTP Minute Reports in graphical format by clicking the Graph link on the Latest RTP Report page.
See Table 8-23 for more information on the report.
RTP Minute Graphs
To view the RTP Minute Graphs, click the Graph link on the Latest RTP Report page. The following graphs appear:
See Table 8-24 for more information on the graphs.
Table 8-24 RTP Minute Graphs
Collector Information
Source Name
Displays the source name.
Target Name
Displays the target name.
Operation
Displays the operation type.
Report Period
Start Date
Displays the start date of the report.
End Date
Displays the end date of the report.
Granularity
Displays the granularity specified while creating the report job.
Round-Trip Latency
as shown in Figure 8-32.
You can view the round-trip time details.
X-axis
Represents the time period of the report.
The time period refers to the start and end time of the report, specified while creating the report job.
Y-axis
Represents the round-trip time.

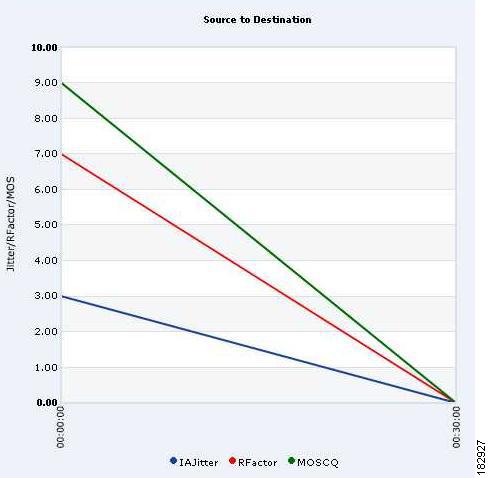

Source to Destination
as shown in Figure 8-33.
You can view the source to destination values for:
•
•
•
X-axis
Represents the time period of the report.
The time period refers to the start and end time of the report, specified while creating the report job.
Y-axis
Represents the Jitter, RFactor, and MOSCQ.
It displays values for IA jitter, R Factor, and MOSCQ from source to destination.

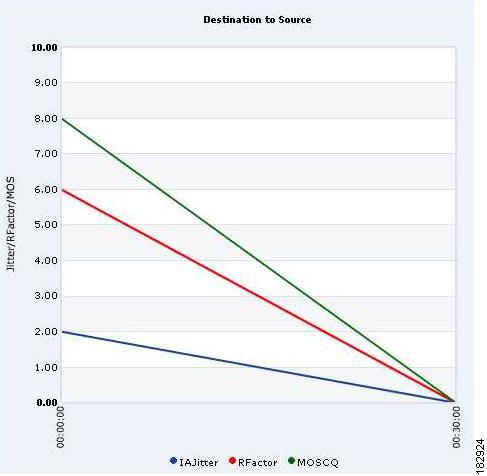

Destination to Source
as shown in Figure 8-34.
You can view the destination to source values for:
•
•
•
X-axis
Represents the time period of the report.
The time period refers to the start and end time of the report, specified while creating the report job.
Y-axis
Represents the Jitter, RFactor, and MOSCQ.
It displays values for IA jitter, R Factor, and MOSCQ from destination to source.
Errors
as shown in Figure 8-35.
You can view the values for the following error occurrences:
•
•
•
•
•
•
•
X-axis
Represents the time period of the report.
The time period refers to the start and end time of the report, specified while creating the report job.
Y-axis
Represents the error occurrences.
It displays the values of packet loss SD, packet loss DS, frame loss DS, MIA, out of sequence DS, early packets DS, late packets DS.
Figure 8-32 RTP Round-Trip Latency (Minute)
Figure 8-33 RTP Source to Destination (Minute)
Figure 8-34 RTP Destination to Source (Minute)
Figure 8-35 RTP Errors (Minute)
RTP Historical Report
This report provides information on Round Trip Latency, Interarrival SD Jitter, Interarrival DS Jitter, MOS-CQ SD Jitter, MOS-CQ DS Jitter, and Packet Loss/Errors. You can also view the RTP Historical Reports in graphical format by clicking the Graph link on the RTP Report page.
See Table 8-25 for more information on the report.

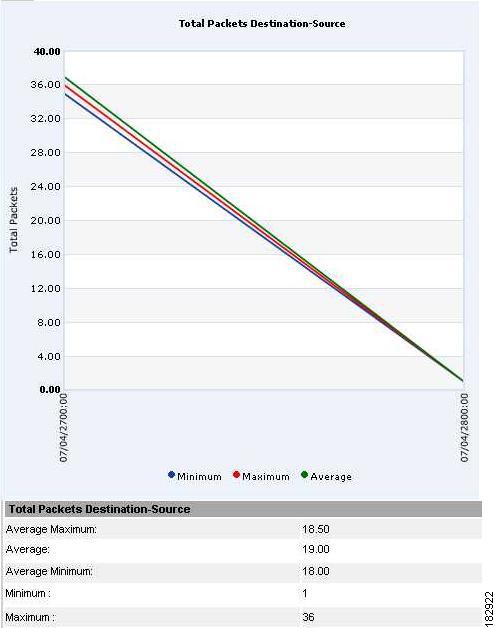

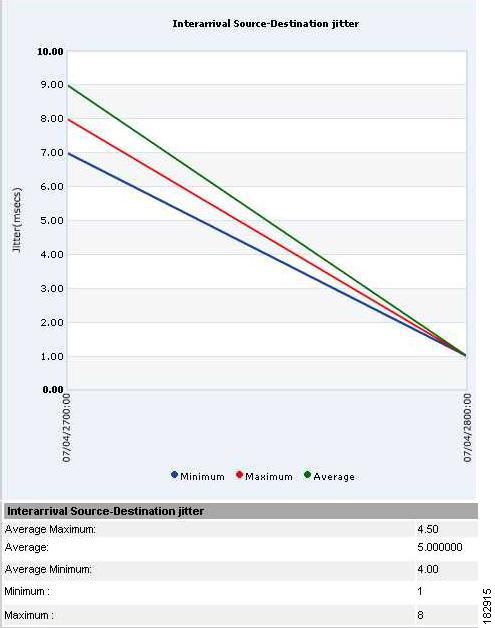

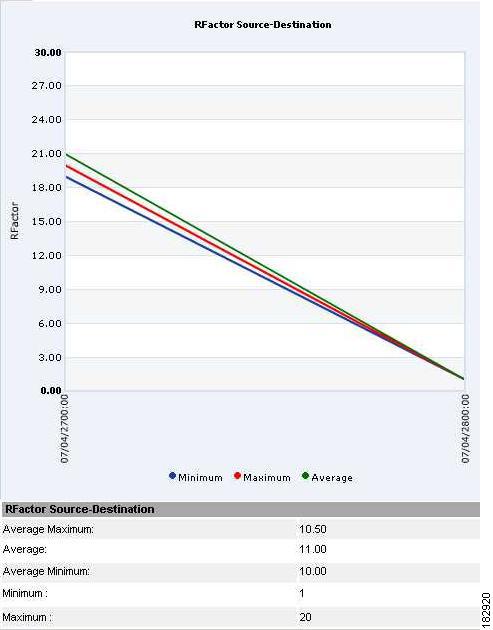

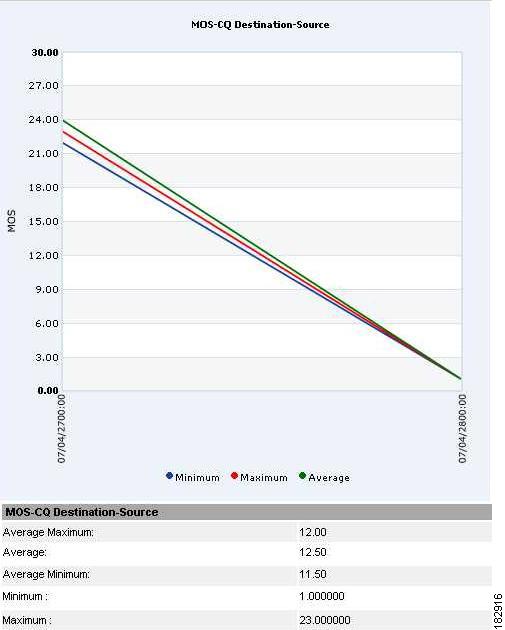

RTP Historical Graphs
To view the RTP Historical Graphs, click the Graph link on the RTP Report page. The following graphs appear:
•
•
•
•
See Table 8-26 for more information on the graphs.
Table 8-26 RTP Historical Graphs
Collector Information
Source Name
Displays the source name.
Target Name
Displays the target name.
Operation
Displays the operation type.
Report Period
Start Date
Displays the start date of the report.
End Date
Displays the end date of the report.
Granularity
Displays the granularity specified while creating the report job.
Round-Trip Latency
as shown in Figure 8-36.
You can view the values for the following round-trip time:
•
•
•
•
•
X-axis
Represents the time period of the report.
The time period refers to the start and end time of the report, specified while creating the report job.
Y-axis
Represents the latency.
It displays the values of minimum, maximum, and average latency.
Interarrival Source to Destination Jitter
as shown in Figure 8-37.
You can view the interarrival jitter values from source to destination for:
•
•
•
•
•
X-axis
Represents the time period of the report.
The time period refers to the start and end time of the report, specified while creating the report job.
Y-axis
Represents the interarrival jitter from source to destination.
It displays the interarrival jitter values for minimum, maximum, and average.
Interarrival Destination to Source Jitter
as shown in Figure 8-38.
You can view the interarrival jitter values from destination to source for:
•
•
•
•
•
X-axis
Represents the time period of the report.
The time period refers to the start and end time of the report, specified while creating the report job.
Y-axis
Represents the interarrival jitter from destination to source.
It displays the interarrival jitter values for minimum, maximum, and average.
RFactor Source- Destination Jitter
as shown in Figure 8-39.
You can view the RFactor values from source to destination for:
•
•
•
•
•
X-axis
Represents the time period of the report.
The time period refers to the start and end time of the report, specified while creating the report job.
Y-axis
Represents the RFactor from source to destination.
It displays the RFactor values for minimum, maximum, and average.
RFactor Destination-Source Jitter
as shown in Figure 8-40
You can view the RFactor values from destination to source for:
•
•
•
•
•
X-axis
Represents the time period of the report.
The time period refers to the start and end time of the report, specified while creating the report job.
Y-axis
Represents the RFactor from destination to source.
It displays the RFactor values for minimum, maximum, and average.
MOS-CQ Source-Destination Jitter
as shown in Figure 8-41.
You can view the MOS-CQ values from source to destination for:
•
•
•
•
•
X-axis
Represents the time period of the report.
The time period refers to the start and end time of the report, specified while creating the report job.
Y-axis
Represents the MOS.
It displays the MOS values for minimum, maximum, and average from source to destination.
MOS-CQ Destination-Source Jitter
as shown in Figure 8-42.
You can view the MOS-CQ values from destination to source for:
•
•
•
•
•
X-axis
Represents the time period of the report.
The time period refers to the start and end time of the report, specified while creating the report job.
Y-axis
Represents the MOS.
It displays the MOS values for minimum, maximum, and average from destination to source.
Total Packets Destination-Source
as shown in Figure 8-43.
You can view the values for the following total number of packets at the source:
•
•
•
•
•
X-axis
Represents the time period of the report.
The time period refers to the start and end time of the report, specified while creating the report job.
Y-axis
Represents the total number of packets at the source.
It displays the values for minimum, maximum, and average total packets at the source.
Total Packets Source-Destination
as shown in Figure 8-44.
You can view the values for the following total number of packets at the destination:
•
•
•
•
•
X-axis
Represents the time period of the report.
The time period refers to the start and end time of the report, specified while creating the report job.
Y-axis
Represents the total number of packets at the destination.
It displays the values for minimum, maximum, and average total packets at the destination.
Packet Loss Errors
as shown in Figure 8-45.
You can view the values for the following error occurrences:
•
•
•
•
•
•
•
X-axis
Represents the time period of the report.
The time period refers to the start and end time of the report, specified while creating the report job.
Y-axis
Represents the error occurrences.
It displays the error occurrence values for packet loss SD, packet loss DS, early packet DS, frame loss DS, MIA, sequence DS, and late DS.
Figure 8-36 RTP Round-Trip Latency (Historical)
Figure 8-37 RTP Interarrival Source-Destination Jitter (Historical)
Figure 8-38 RTP Interarrival Destination-Source Jitter (Historical)
Figure 8-39 RTP RFactor Source-Destination (Historical)
Figure 8-40 RTP RFactor Destination-Source (Historical)
Figure 8-41 RTP MOS-CQ Source-Destination (Historical)
Figure 8-42 RTP MOS-CQ Destination-Source (Historical)
Figure 8-43 RTP Total Packets Destination-Source (Historical)
Figure 8-44 RTP Total Packets Source-Destination (Historical)
Figure 8-45 RTP Packet Loss Errors (Historical)
Consolidation of Statistical Data
IPM consolidates the statistical data for all collectors based on the granularity such as Daily, Weekly, and Monthly.
•
•
•
Hourly to Daily Consolidation
The system consolidates the Daily statistical data everyday at 12:30 AM. At the end of every day, the statistical data collected every hour is consolidated and averaged for the day and stored in the Daily table.
For example, 1001.x, where:
•
•
Daily to Weekly Consolidation
The system consolidates the Weekly statistical data every Sunday at 1 AM. At the end of every week, the statistical data collected every day is consolidated and averaged for the week, and stored in the Weekly table.
For example, 1002.x, where:
•
•
Daily to Monthly Consolidation
The system consolidates the Monthly statistical data on the first day of every month at 2 AM. At the end of every month, the statistical data collected every day is consolidated and averaged for the month and stored in the Monthly table.
For example, 1003.x, where:
•
•
Note
Understanding System Reports
IPM generates system reports automatically for all collectors based on the report types and granularity after the consolidation of the statistical data. The system reports generated are in tabular format.
You can also generate system reports using the CLI command, ipm generatereports. For more information, see Generating System Reports.
Note
The system reports are generated for the following granularity:
•
For more information, see Viewing Daily System Reports.
•
For more information, see Viewing Weekly System Reports.
•
For more information, see Viewing Monthly System Reports.
For more information on Hourly to Daily, Daily to Weekly, and Daily to Monthly consolidation, see Consolidation of Statistical Data.
Viewing Daily System Reports
You can view the daily system report for each collector on the IPM server.
To view the daily system reports:
Step 1
The Daily System Report page appears by default.
For more information on this page, see Table 8-27.
Step 2
The Daily System Report page displays the details for the selected report type.
For more information on the report details, see the respective Historical Report:
•
•
Viewing Weekly System Reports
You can view the weekly system report for each collector on the IPM server.
To view the weekly reports:
Step 1
The Daily System Report page appears by default.
Step 2
The Weekly System Report page appears.
For more information on this page, see Table 8-28.
Step 3
The Weekly System Report page displays the details for the selected report type.
For more information on the report details, see the respective Historical Report:
•
•
Viewing Monthly System Reports
You can view the monthly summary for each collector on the IPM server.
To view monthly reports:
Step 1
The Daily System Report page appears by default.
Step 2
The Monthly System Report page appears.
For more information on this page, see Table 8-29.
Step 3
The Monthly System Report page displays the details for the selected report type.
For more information on the report details, see the respective Historical Report:
•
•
Audit Reports
Audit reports track all the configuration changes on IPM server performed by the LMS users.
You can also track the changes performed by the IPM server with the username IPM. As IPM server updates the IPM device space whenever a device gets added/edited/deleted in DCR if the Automatically Manage Devices from Credential Repository option is selected on the Application Settings page (Admin > Application Settings).
To view the list of IPM tasks that trigger an Audit report, see IPM Tasks With Audit Reports.
You can perform the following tasks on the audit reports:
You can track the changes that are performed on the IPM server.
You can purge the audit reports.
IPM Tasks With Audit Reports
An Audit report is triggered and logged when you perform the following IPM tasks:
Generating Audit Reports
You can generate audit reports on all Audit changes that occurred in the network during a specified time period.
Note
To generate Audit reports:
Step 1
The Audit Reports page appears.
Step 2
Step 3
The Audit Reports window appears. See Table 8-32 for more information.
Audit reports contain all change information provided by IPM modules based on your filter criteria. It contains the following fields.
Purging Audit Reports
You can set the purge period for audit reports on the Purge Settings page. After you set the purge period, the audit reports that are greater than the set purge period are purged. This frees disk space and maintains your audit reports at a manageable size.
Note
To purge the audit reports:
Step 1
The Purge Settings page appears.
Step 2
The audit reports older than the number of days you specify will be purged. The default purge period is 180 days.
Step 3
Using Report Archives
You can manage the archived reports and create report jobs on the Historical Reports page (Internetwork Performance Monitor > Reports > Report Archives).
See Table 8-33 for more information.
Using the Filter field on the Historical Reports page, you can filter the archived reports based on your requirement. You can filter the archived reports using one of the following filter criteria and clicking Filter:
•
•
Generating Statistical Reports and Graphs
IPM allows you to generate statistical reports and graphs based on the report types (such as Availability, Latency, Jitter, ICMP Jitter, HTTP, and PathEcho and the granularity (such as Minute, Hourly, Daily, Weekly, Monthly).
Based on the granularity specified, you can generate either Minute or Historical reports and graphs for each report types. However for the report types Availability and Path Echo you can only generate Historical reports and graphs.
For more information on the Minute and Historical reports and graphs, see Working with Minute/Historical Reports and Graphs.
You can generate the Minute or Historical reports and graphs either immediately or schedule them to run at a specified time.
For more information, see Immediate Reports and Graphs or Scheduled Reports and Graphs.
Immediate Reports and Graphs
The Immediate reports and graphs are generated instantly and are not stored in the Report Archives. You can set this option while creating the report jobs.
Note
To generate immediate reports and graphs:
Step 1
The Historical Reports page appears with the list of archived reports.
Step 2
The Generate Reports window appears.
Step 3
Step 4
Step 5
The report is generated.
To view the graph, click the Graph hyperlink in the table.
Scheduled Reports and Graphs
The Scheduled reports and graphs are scheduled to run at the time specified while creating the report jobs.
Using the Publish option, you can store the Scheduled reports in the file system at NMSROOT/files/ipm/jobs/report for future reference.
To generate scheduled reports and graphs:
Step 1
The Historical Reports page appears with the list of archived reports.
Step 2
The Generate Reports window appears.
Step 3
Step 4
Step 5
The report is scheduled. The scheduled report runs at the specified date and time. You can view the status of the scheduled report on the Report Job Browser page (Internetwork Performance Monitor > Reports > Report Jobs).
To view the graph, click the Graph hyperlink in the table.
Table 8-35 Generating Statistical Reports and Graphs
Report Details
Name
Enter the name of the report you want to customize.
Description
Enter the description of the report.
Report Type
Select Report Type
Select the report type from the drop-down list. The report types available are:
•
•
•
Granularity
Select the granularity for the report. The granularities available are:
•
•
•
•
•
The granularity for the Availability report type is hourly, daily, and monthly.
Report Period
From
Specify the start date and time of your report.
Select the date from the calendar icon and time from the drop-down list.
To
Specify the end date and time of your report.
Select the date from the calendar icon and time from the drop-down list.
Schedule
Schedule Type
Select the schedule type from the drop-down list. There are two schedule types:
•
•
Job Scheduled Date
Specify the date and time the job is scheduled at. The Job Schedule Date should be greater than the To date specified in the Report Period section.
This field is disabled if you have selected Immediate as the Schedule Type.
Report Publish Location
Report Publish Path
Use the Browse button to locate the place where you want to save the report for future reference. You should save the file in .html format.
The stored report is in the tabular format.
This field is disabled if you have selected Immediate as the Schedule Type.
Email Notification
Email Address
Enter e-mail addresses to which the job sends messages at the beginning and at the end of the job. You can enter multiple e-mail addresses, separated by commas.
Configure the SMTP server to send e-mails in the View / Edit System Preferences dialog box (Common Services > Server > Admin > System Preferences).
We recommend that you configure the CiscoWorks E-mail ID in the View / Edit System Preferences dialog box (Common Services > Server > Admin > System Preferences).
When the job starts or completes, an e-mail is sent with the CiscoWorks E-mail ID as the sender's address.
Note
Viewing Archived Reports
Using the View option, you can view the report output of a scheduled report that is stored in the report archives. The Report Archives lists only the reports that are successfully generated. The archive holds the report output even if the report job does not exist.
Alternatively, you can also view the archived report from the Report Job Browser page. For more information, see Viewing the Report Details.
To view the archived report:
Step 1
The Historical Reports page appears with the list of archived reports.
Step 2
The various report types are Availability, Latency, Jitter, HTTP, ICMP, PathEcho, and RTP.
Step 3
The summary of the selected report appears in a table.
Step 4
Deleting Archived Reports
You can delete archived reports from the Historical Reports page. The deleted archived reports are permanently removed from the file system. Hence, you cannot retrieve the deleted archived reports. A local copy of the deleted report is available in the published location, if you had stored.
To delete archived reports:
Step 1
The Historical Reports page appears with the list of archived reports.
Step 2
Step 3
A confirmation dialog box appears.
Step 4
Using Report Job Browser
The Reports Job Browser page allows you to manage the report jobs. You can perform the following tasks:
Note
The various report job statuses are:
To view the list of scheduled report jobs, go to Internetwork Performance Monitor > Reports > Report Jobs. The Report Job Browser page appears with the list of scheduled report jobs.
See Table 8-37 for more information.
Table 8-37 Report Job Browser Page
Job ID
Unique ID assigned to the job by the system, when the job is created. For periodic jobs such as Daily, Weekly, etc., the Job IDs are in the number.x format. The x represents the number of instances of the job.
For example, 1001.3 indicates that this is the third instance of the job ID 1001.
Report Type
Name of the report type. The report types available are Availability, Latency, Jitter, HTTP, ICMP, and PathEcho.
Status
Status of the scheduled job—Scheduled, Successful, Failed, Stopped, Running, and Missed Start.
Description
Description of the report job provided by the job creator. (Alphanumeric characters).
Owner
Username of the person who created the job.
Scheduled at
Date and time the job was scheduled at.
Completed at
Date and time the job was completed at.
Schedule Type
Specifies the type of schedule for the job:
•
•
•
•
•
View Report
Allows you to view the report details.
For more information, see Viewing the Report Details.
Stop
Allows you to stop the Running or Scheduled report jobs.
For more information, see Stopping the Report Jobs.
Delete
Allows you to delete the report jobs.
For more information, see Deleting Scheduled Jobs.
Allows you to refresh the report jobs.
Sort
Click one of the column titles to sort the table
Using the Filter field in the Report Job Browser page, you can filter the jobs displayed in the browser. You can filter the jobs using one of the following filter criteria and clicking Filter:
Viewing the Job Details
You can view the job details such as the collector name, report type, status of the published report, date/time when the report job was created, mail status, and report publish location on the Job Details window.
To view the job details:
Step 1
The Report Job Browser page appears with the list of scheduled report jobs.
Step 2
The Job Details window appear with the job summary.
Viewing the Report Details
You can view the output of the reports with Successful status using the View Report option. You can also view the report output from the Historical Reports page. See Viewing Archived Reports.
To view the report details:
Step 1
The Report Job Browser page appears with the list of scheduled report jobs.
Step 2
Step 3
The summary of the selected report job appears in a table.
Step 4
Stopping the Report Jobs
You can stop the Running or Scheduled user-defined report jobs. You cannot stop system-defined jobs.
To stop the report jobs:
Step 1
The Report Job Browser page appears with the list of scheduled report jobs.
Step 2
The report jobs with Successful, Failed, and Missed Start as their status are disabled.
Step 3
A confirmation dialog box appears.
Step 4
Deleting Scheduled Jobs
You can delete scheduled report jobs from the Report Job Browser page. However, you can retrieve the deleted jobs from the Report Archives.
You cannot delete system-defined jobs.
To delete the scheduled jobs:
Step 1
The Report Job Browser page appears with the list of scheduled report jobs.
Step 2
Step 3
A confirmation dialog box appears.
Step 4
Formulae Used in IPM Reports and Graphs
This section explains the various formulae used while generating Minute/Historical reports and graphs.
Table 8-39 Formulae Used in IPM Reports and Graphs
Availability%
Error%
(Errors / Number of Tries) *100
Latency
Errors=Disconnects+Timeouts+Busies+NoConnections+ Drops+ SeqErrors+VerifyErrors.
Availability
PathEcho
HTTP
Errors=DNS Server Timeout+TCP Connect Timeout+Transaction Timeout+DNS Query Error+HTTP Error+Drops+Busies.
UDP Jitter
Errors=Internal Errors+Busies.
ICMP Jitter
Standard Deviation formula for RTT
SQRT3 {(Number of Completions * sumSqrdRTT4 ) - (sumRTT5 * sumRTT)} / {Number of Completions * (Number of Completions -1)}
Standard Deviation formula for Jitter
SQRT{(numberofjitter * sumSqrdJitter6 ) - (sumjitter7 * sumjitterj) / numberofjitter * (numberofjitter - 1)}
OverThreshold%
Packet Error%
(Total packet errors / total packets10 ) * 100
UDP Jitter
TotalPacketErrors=LossSD+LossDS+Seq+MIA+Late.
ICMP Jitter
TotalPacketErrors=PacketLoss+PktOutSeqBoth+PktOutSeqDSes+PktOutSeqSDes+PktLateAS+PacketSkippds.
Average RTT
Sum of round-trip time / Number of Completions.
HTTP: Average DNS RTT
Sum of round-trip time for DNS query within the HTTP operation / Number of Completions.
HTTP: Average TCP Connect RTT
Sum of round-trip time for DNS query within the HTTP operation / Number of Completions.
HTTP: Average Transaction RTT
Sum of round-trip time taken to download the specified object by URL / Number of Completions.
Avg Message Body Octets
Sum of size of the message body received in response to HTTP request / Number of Completions.
1 Number of Completions: Number of RTT operations completed without an error or timeout.
2 Number of Tries: Sum of all errors and number of completions.
3 SQRT: Square root.
4 sumSqrdRTT: Sum of square of the round-trip time measured successfully.
5 sumRTT: Sum of the round-trip time measured successfully.
6 sumsqrdjitter: Sum of square of jitter.
7 sumjitter = sum of all jitter.
8 OverThresholds—Number of operations that violate threshold.
9 Tries—Sum of all errors (numDisconnects, numTimeouts, numBusies, numNoConnections, numDrops, numSeqErrors, and numVerifyErrors, and numCompletions)
10 total packets—Number of packets configured in operation * Number of completions.
