VLAN and VTP Management
(Switch > VLANs)
CVDM-C6500 provides comprehensive Virtual LAN (VLAN) configuration, VLAN port assignment, and VLAN Trunking Protocol (VTP) domain management.
VLANs are groups of devices on one or more LANs that are configured to communicate as if they were attached to the same wire, when in fact they are located on a number of different LAN segments.
VTP is a Layer 2 messaging protocol that manages the addition, deletion, and renaming of VLANs on a network-wide basis. When you configure a new VLAN on one VTP server, the VLAN is distributed through all switches in the domain, which reduces the need to configure the same VLAN everywhere.
For more information about configuring VLANs, see the relevant section in the Catalyst 6500 Family IOS Software Configuration Guide.
The following topics contain information about:
•
Configuring VLANs
•Configuring Layer 2 VLANs
•Configuring Layer 3 VLANs
•Viewing Service VLANs
•Configuring VTP Information
Configuring VLANs
You can view information about all VLANs on the device. Click Switch at the top of the window, click VLANs in the left-most pane, and select VLANs from the selector to display the VLANs page (see Figure 4-1).

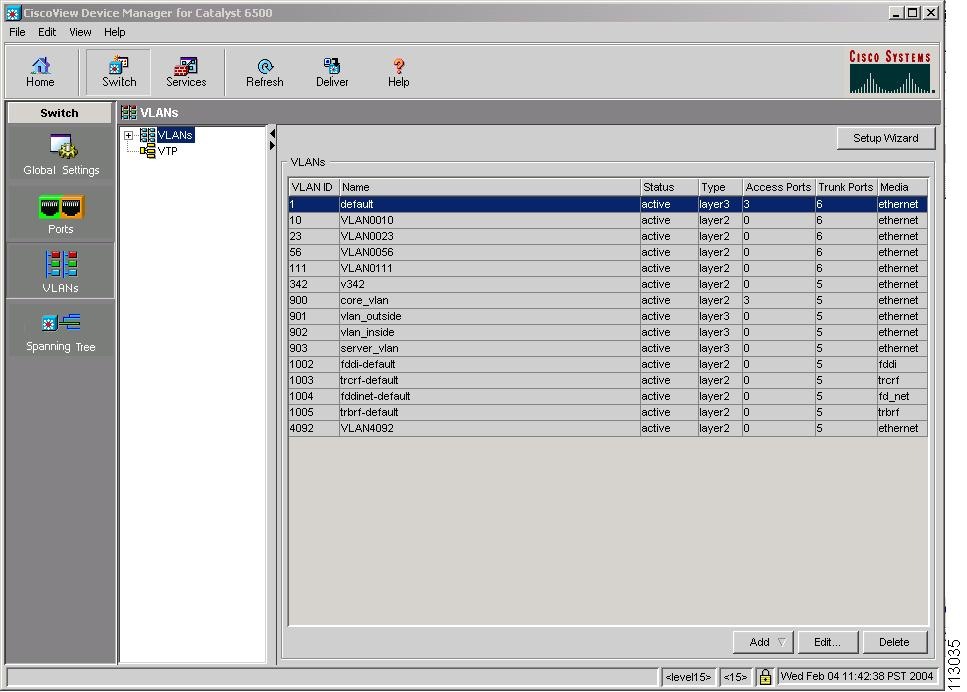

Figure 4-1 VLAN Page
This page provides a table displaying the following information:
Column
|
Description
|
VLAN ID
|
Number (ID) of the VLAN.
|
Name
|
Name of the VLAN.
|
Status
|
Status (active or suspend) of the VLAN.
|
Type
|
Type of VLAN (Layer 2 or Layer 3).
A Layer 3 VLAN is created when you configure an SVI on a VLAN for inter-VLAN routing.
|
Access Ports
|
Number of access ports assigned to the VLAN.
|
Trunk Ports
|
Number of trunk ports the VLAN is allowed on.
|
Media
|
Type of VLAN.
|
Note This page displays information for all VLANs; however, CVDM-C6500 supports only Ethernet and nonprivate VLANs.
From the main VLANs page, you can access functions to do the following:
•Create a new Ethernet VLAN or edit an existing VLAN from the VLAN Setup wizard. For more information, see the Creating and Configuring a VLAN Using the VLAN Wizard.
•Create a single Ethernet VLAN. For more information, see the Creating a Single Ethernet VLAN.
•Create multiple Ethernet VLANs. See the Creating Multiple Ethernet VLANs.
•Edit a single Ethernet VLAN. For more information, see the Editing Ethernet VLANs.
•Delete an Ethernet VLAN. From the table, select the VLAN you want to delete. To select multiple VLANs, press the Ctrl key as you select each VLAN you want to delete. The, click Delete.
Creating and Configuring a VLAN Using the VLAN Wizard
You can use the VLAN Setup wizard to create a new VLAN. The wizard will walk you through access and trunk port assignment, spanning tree configuration, and Switched Virtual Interface (SVI) creation for Layer 3 VLANs. The wizard shows appropriate default values based on Cisco recommended best practice configurations.
Step 1 Click Switch at the top of the window, click VLANs in the left-most pane, and select VLANs from the selector. The VLANs page appears.
Step 2 Click Setup Wizard.
Creating a VLAN
In Step 1 of the VLAN Setup wizard, you configure VLAN information, including SVI details and spanning tree information, for a new or existing VLAN by defining the following fields:
GUI Element
|
Action/Description
|
VLAN Creation pane
|
VLAN ID field
|
Specify the number (ID) of the VLAN.
Click  to open the Enter VLAN dialog box. For more information, see Enter VLAN Dialog Box.
|
VLAN Name field
|
Specify the name of the VLAN.
|
Status list
|
Select the state (active or suspend) of the VLAN.
|
Media Type field
|
Type (ethernet) of VLAN. You cannot edit this field.
|
SVI pane
|
SVI check box
|
Click this check box to create an SVI to create a Layer 3 VLAN for inter-VLAN routing.
|
Description field
|
Brief description of the SVI.
|
Admin status list
|
Select the admin status (up or down).
|
IP Address field
|
Enter the IP address of the SVI.
|
Mask list/field
|
Specify the subnet mask address of the SVI. You can select a value from the list or enter a value in the field.
|
Spanning Tree Configuration pane
|
State list
|
Select the state (enabled or disabled) of STP on the VLAN.
|
Configure this Switch as Root check list
|
Specify if you want to make this the root switch (yes or no).
|
Note To create a Layer 3 VLAN, configure an SVI for this VLAN; to create a Layer 2 VLAN, do not configure an SVI.
Enter VLAN Dialog Box
GUI Element
|
Action/Description
|
VLAN ID field
|
Enter the number (ID) of the VLAN.
|
Note You cannot create a new VLAN while VTP is in client mode. For more information on editing your VTP settings, see Editing VTP Information.
Assigning Access Ports to the VLAN
You can assign access ports to the VLAN in Step 2 of the VLAN Setup wizard. This page provides the Port Selector. See Port Selector for more information.
Note All ports selected from the Port Selector will become access ports.
Assigning Trunk Ports to the VLAN
You can specify trunk ports on which the VLAN is allowed in Step 3 of the VLAN Setup wizard. This page provides the Port Selector. For more information, see Port Selector.
Note All ports selected from the Port Selector will become trunk ports.
VLAN Summary
The VLAN summary page of the wizard shows you the information that you entered.
Click Finish to send the commands to the device. The Deliver Configuration to Switch/Module(s) dialog box appears if you have configured CVDM-C6500 to display the accumulated CLI commands after you have completed a wizard (for information on configuring this option, see Editing Preferences).
For more information on the Deliver Configuration to Switch/Module(s) dialog box, see Delivering CLI Commands to the Device.
Creating a Single Ethernet VLAN
Note You cannot create a new VLAN while VTP is in client mode. For more information on editing your VTP settings, see Editing VTP Information.
Step 1 Click Switch at the top of the window, click VLAN in the left-most pane, and select VLANs from the selector.
Step 2 Click the Add button, then select Single VLAN.... The Add VLAN dialog box appears.
Step 3 Edit the appropriate values.
GUI Element
|
Action/Description
|
VLAN ID field
|
Specify the number (ID) of the VLAN.
Click the button to open the Enter VLAN dialog box. For more information, see Enter VLAN Dialog Box.
|
VLAN Name field
|
Specify the name of the VLAN.
|
Status list
|
Select the status (active or suspend) of the VLAN.
|
Media Type field
|
Type (ethernet) of VLAN. You cannot edit this field.
|
Access Ports field
|
Specify the access ports assigned to this VLAN.
Click the button to open the Port Selector dialog box. For more information, see Port Selector.
Note All ports selected from the Port Selector will become access ports.
|
Trunk Ports field
|
Specify the trunk ports the VLAN is allowed on.
Click the button to open the Port Selector dialog box. For more information, see Port Selector.
Note All ports selected from the Port Selector will become Trunk Ports.
|
SVI pane
|
SVI check box
|
Click this check box to create an SVI to create a Layer 3 VLAN for inter-VLAN routing.
|
Description field
|
Enter a brief description of the SVI.
|
Admin Status list
|
Select the admin status (up or down) of the SVI.
|
IP Address field
|
Enter the IP address of the SVI.
|
Mask list/field
|
Specify the subnet mask address of the SVI. You can select a value from the list or enter a value in the field.
|
Note To create a Layer 3 VLAN, configure an SVI for this VLAN; to create a Layer 2 VLAN, do not configure an SVI.
Step 4 Click Deliver at the top of the window to send the commands to the device. For more information on delivering your accumulated CLI commands, see Delivering CLI Commands to the Device.
Creating Multiple Ethernet VLANs
Note You cannot create a new VLAN while VTP is in client mode. For more information on editing your VTP settings, see Editing VTP Information.
Step 1 Click Switch at the top of the window, click VLANs in the left-most pane, and select VLANs from the selector.
Step 2 Click the Add button, then select Multiple VLANs.... The Add Multiple VLANs dialog box appears.
Step 3 Edit the appropriate values.
GUI Element
|
Action/Description
|
VLANs field
|
Enter the range of values (VLAN numbers) of the VLANs to be created.
Click the button to open the Enter VLAN Range dialog box. For more information, see Enter VLAN Range Dialog Box.
|
Media Type field
|
Type (ethernet) of VLAN. You cannot edit this field.
|
Status list
|
Select the status (active or suspend) of the VLANs. The status is applied to all VLANs in the range you specified.
|
Assign Ports and Configure SVI table
|
VLAN ID column
|
Number (ID) of the VLAN. You cannot edit this field.
|
Name column
|
Double-click the entry in the Name column and enter the name of the VLAN.
|
Access Ports column
|
Displays the access ports assigned to this VLAN.
You can assign access ports to this VLAN. In the Access Ports column, click the button to open the Port Selector dialog box. For more information, see Port Selector.
Note All ports selected from the Port Selector will become access ports.
|
Allowed on column
|
Contains the following sub-columns:
•All Trunk Ports—A check mark  in this column indicates that the VLAN is allowed on all trunk ports.
To specify assigned trunk ports, click the Edit Trunk Ports button.
•Selected Trunk Ports—Specifies the trunk ports on which the VLAN is allowed if the VLAN is not allowed on all trunk ports.
If the VLAN is allowed on all trunk ports (if a check mark appears in the All Trunk Ports column), the Select Ports column is not populated with any data.
To specify assigned trunk ports to a VLAN, select the corresponding row in the table and click the Edit Trunk Ports button.
|
SVI Details column
|
Contains the following sub-columns:
•IP Address—Double-click the entry in the IP address sub-column and enter the IP address of the SVI.
•Mask—Double-click the entry in the Mask sub-column specify the subnet mask address of the SVI. You can select a value from the list or enter a value in the field.
The Admin Status is set to up for the SVI you create.
Note If you enter an IP address and subnet mask, an SVI is created to make this a Layer 3 VLAN. If you do not enter any values, an SVI is not created and the VLAN that is created is a Layer 2 VLAN.
|
Edit Trunk Ports button
|
Click to select the trunk ports the VLAN is allowed on.
Click the Edit Trunk Ports button to open the Port Selector dialog box. For more information, see Port Selector.
Note All ports selected from the Port Selector will become trunk ports.
|
\
Note To create Layer 3 VLANs, configure an SVI for these VLANs; to create Layer 2 VLANs, do not configure an SVI.
Step 4 Click Deliver at the top of the window. For more information on delivering accumulated CLI commands, see Delivering CLI Commands to the Device.
Enter VLAN Range Dialog Box
GUI Element
|
Action/Description
|
VLAN Range field
|
Enter the values (IDs) of VLANs. For example, to create VLAN 96, 100, 101, and 102, enter:
96, 100-102.
|
Editing Ethernet VLANs
Note You can edit only Ethernet VLANs.
Step 1 Click Switch at the top of the window, click VLANs in the left-most pane, and select VLANs from the selector.
Step 2 From the table, select the VLAN that you want to edit.
Step 3 Click the Edit... button or double-click the VLAN. The Edit VLAN dialog box appears.
Step 4 Edit the appropriate values.
GUI Element
|
Action/Description
|
VLAN ID field
|
Number (ID) of the VLAN. You cannot edit this field.
|
VLAN Name field
|
Enter the name of the VLAN.
|
Status list
|
Select the status (enable or suspend) of the VLAN.
|
Type list
|
Select the VLAN type (Layer 2 VLAN or Layer 3 VLAN).
If you change a Layer 2 VLAN to a Layer 3 VLAN, an SVI is created for the Layer 3 VLAN. If you change a Layer 3 VLAN to a Layer 2 VLAN, the SVI for the Layer 3 VLAN is removed.
|
Step 5 Click Deliver at the top of the window. For more information on delivering accumulated CLI commands, see Delivering CLI Commands to the Device.
Configuring Layer 2 VLANs
You can view information about your Layer 2 VLANs. Click Switch at the top of the window, click VLANs in the left-most pane, and select VLANs > Layer 2 VLANs from the selector. The Layer 2 VLANs page is displayed, providing a table that shows the following information:
Column
|
Description
|
VLAN ID
|
Number (ID) of the VLAN.
|
Name
|
Name of the VLAN.
|
Status
|
Status (active or suspend) of the VLAN.
|
Access Ports
|
Access ports assigned to the VLAN.
|
Trunk Ports
|
Trunk ports the VLAN is allowed on.
|
Note The Layer 2 VLANs page displays Ethernet and nonprivate VLANs.
From this page, you can access functions to do the following:
•Create a single Layer 2 Ethernet VLAN. See Creating a Single Layer 2 Ethernet VLAN for more information.
•Create multiple Layer 2 Ethernet VLANs. See Creating Multiple Layer 2 Ethernet VLANs for more information.
•Edit a single Layer 2 Ethernet VLAN. See Editing Layer 2 Ethernet VLANs fore more information.
•Delete a Layer 2 Ethernet VLAN. From the table, select the VLAN you want to delete. To select multiple VLANs, press the Ctrl key as you select each VLAN you want to delete. The, click Delete.
Creating a Single Layer 2 Ethernet VLAN
Step 1 Click Switch at the top of the window, click VLANs in the left-most pane, and select VLANs > Layer 2 VLANs from the selector.
Step 2 Click Add and select Single VLAN.... The Add Layer 2 VLAN dialog appears.
Step 3 Edit the appropriate values.
GUI Element
|
Action/Description
|
VLAN ID field
|
Specify the number (ID) of the VLAN.
Click the button to open the Enter VLAN dialog box. For more information, see Enter VLAN Dialog Box.
|
VLAN Name field
|
Specify the name of the VLAN.
|
Status list
|
Select the status (active or suspend) of the VLAN.
|
Media Type field
|
Type (ethernet) of VLAN. You cannot edit this field.
|
Access Ports field
|
Specify the access ports assigned to this VLAN.
Click the button to open the Port Selector dialog box. For more information, see Port Selector.
Note All ports selected from the Port Selector will become access ports.
|
Trunk Ports field
|
Specify the trunk ports the VLAN is allowed on.
Click the button to open the Port Selector dialog box. For more information, see Port Selector.
Note All ports selected from the Port Selector will become Trunk Ports.
|
Step 4 Click Deliver at the top of the window. For more information on delivering accumulated CLI commands, see Delivering CLI Commands to the Device.
Creating Multiple Layer 2 Ethernet VLANs
Step 1 Click Switch at the top of the window, click VLANs in the left-most pane, and select VLANs > Layer 2 VLANs from the selector.
Step 2 Click Add and select Multiple VLANs.... The Add Multiple Layer 2 VLANs dialog appears.
Step 3 Edit the appropriate values.
GUI Element
|
Action/Description
|
VLANs field
|
Enter the range of values (VLAN numbers) of the VLANs to be created.
Click the button to open the Enter VLAN Range dialog box. For more information, see Enter VLAN Range Dialog Box.
|
Media Type field
|
Type (ethernet) of VLAN. You cannot edit this field.
|
Status list
|
Select the status (active or suspend) of the VLANs. The status is applied to all VLANs in the range you specified.
|
Assign Ports table
|
VLAN ID column
|
Number (ID) of the VLAN. You cannot edit this field.
|
Name column
|
Double-click the entry in the Name column and enter the name of the VLAN.
|
Access Ports column
|
Specify the access ports assigned to this VLAN.
In the Access Ports column, click the button to open the Port Selector dialog box. For more information, see Port Selector.
Note All ports selected from the Port Selector will become access ports.
|
Allowed on column
|
Contains the following sub-columns:
•All Trunk Ports—A check mark in this column indicates that the VLAN is allowed on all trunk ports.
To specify assigned trunk ports, click the Edit Trunk Ports button.
•Selected Trunk Ports—Specifies the trunk ports on which the VLAN is allowed if the VLAN is not allowed on all trunk ports.
If the VLAN is allowed on all trunk ports (if a check mark appears in the All Trunk Ports column), the Select Ports column is not populated with any data.
To specify assigned trunk ports to a VLAN, select the corresponding row in the table and click the Edit Trunk Ports button.
|
Edit Trunk Ports button
|
Specify the trunk ports the VLAN is allowed on.
Click the Edit Trunk Ports button to open the Port Selector dialog box. For more information, see Port Selector.
Note All ports selected from the Port Selector will become trunk ports.
|
Step 4 Click Deliver at the top of the window. For more information on delivering accumulated CLI commands, see Delivering CLI Commands to the Device.
Editing Layer 2 Ethernet VLANs
Note You can edit only Ethernet VLANs.
Step 1 Click Switch at the top of the window, click VLANs in the left-most pane, and select VLANs > Layer 2 VLANs from the selector.
Step 2 From the table, select the Layer 2 VLAN you want to edit.
Step 3 Click the Edit... button or double-click the VLAN. The Edit Layer 2 VLAN dialog box appears.
Step 4 Edit the appropriate values.
GUI Element
|
Action/Description
|
VLAN ID field
|
Number (ID) of the VLAN. You cannot edit this field.
|
VLAN Name field
|
Enter the name of the VLAN.
|
Status list
|
Select the status (active or suspend) of the VLAN.
|
Media Type field
|
Type (ethernet) of VLAN. You cannot edit this field.
|
Access Ports field
|
Specify the access ports assigned to the Layer 2 VLAN.
Click the button to open the Port Selector dialog box. For more information, see Port Selector.
Note All ports selected from the Port Selector will become access ports.
|
Trunk Ports field
|
Specify the trunk ports the Layer 2 VLAN is allowed on.
Click the button to open the Port Selector dialog box. For more information, see Port Selector.
Note All ports selected from the Port Selector will become trunk ports.
|
Step 5 Click Deliver at the top of the window. For more information on delivering accumulated CLI commands, see Delivering CLI Commands to the Device.
Configuring Layer 3 VLANs
You can view information about your Layer 3 VLANs. Click Switch at the top of the window, click VLANs in the left-most pane, and select VLANs > Layer 3 VLANs from the selector. The Layer 3 VLANs page is displayed, providing a table that displays the following information:
GUI Element
|
Action/Description
|
VLAN ID
|
Number (ID) of the VLAN.
|
Name
|
Name of the VLAN.
|
Status
|
Status (active or suspend) of the VLAN.
|
Access Ports
|
Number of access ports assigned to the VLAN.
|
Trunk Ports
|
Number of trunk ports the VLAN is allowed on.
|
IP Address
|
IP address of the VLAN interface.
|
Mask
|
Subnet mask of the VLAN interface.
|
Note The Layer 3 VLANs page displays Ethernet and nonprivate VLANs and the IP address and subnet mask address of existing SVIs.
From this page, you can access functions to do the following:
•Create a single Layer 3 Ethernet VLAN. See Creating a Single Layer 3 Ethernet VLAN for more information.
•Create multiple Layer 3 Ethernet VLANs. See Creating Multiple Layer 3 Ethernet VLANs for more information.
•Edit a single Layer 3 Ethernet VLAN. See Editing Layer 3 Ethernet VLANs for more information.
•Delete a Layer 3 Ethernet VLAN. From the table, select the VLAN you want to delete. To select multiple VLANs, press the Ctrl key as you select each VLAN you want to edit. The, click Delete.
Creating a Single Layer 3 Ethernet VLAN
Step 1 Click Switch at the top of the window, click VLANs in the left-most pane, and select VLANs > Layer 3 VLANs from the selector.
Step 2 Click Add and select Single VLAN. The Add Layer 3 VLAN dialog appears.
Step 3 Edit the appropriate values.
GUI Element
|
Action/Description
|
VLAN ID field
|
Specify the number (ID) of the VLAN.
Click the button to open the Enter VLAN dialog box. For more information, see Enter VLAN Dialog Box.
|
VLAN Name field
|
Specify the name of the VLAN.
|
Status list
|
Select the status (active or suspend) of the VLAN.
|
Media Type field
|
Type (ethernet) of VLAN. You cannot edit this field.
|
Access Ports field
|
Specify the access ports assigned to this VLAN.
Click the button to open the Port Selector dialog box. For more information, see Port Selector.
Note All ports selected from the Port Selector will become access ports.
|
Trunk Ports field
|
Specify the trunk ports the VLAN is allowed on.
Click the button to open the Port Selector dialog box. For more information, see Port Selector.
Note All ports selected from the Port Selector will become Trunk Ports.
|
SVI pane
|
SVI check box
|
Click this check box to create an SVI to create a Layer 3 VLAN for inter-VLAN routing.
|
Description field
|
Enter a brief description of the SVI.
|
Admin Status list
|
Select the admin status (up or down) of the SVI.
|
IP Address field
|
Enter the IP address of the SVI.
|
Mask list/field
|
Specify the subnet mask address of the SVI. You can select a value from the list or enter a value in the field.
|
Step 4 Click Deliver at the top of the window. For more information on delivering accumulated CLI commands, see Delivering CLI Commands to the Device.
Creating Multiple Layer 3 Ethernet VLANs
Step 1 Click Switch at the top of the window, click VLANs in the left-most pane, and select VLANs > Layer 3 VLANs from the selector.
Step 2 Click Add and select Multiple VLANs.... The Add Multiple Layer 3 VLANs dialog appears.
Step 3 Edit the appropriate values.
GUI Element
|
Action/Description
|
VLANs field
|
Enter the range of values (VLAN numbers) of the VLANs to be created.
Click the button to open the Enter VLAN Range dialog box. For more information, see Enter VLAN Range Dialog Box.
|
Media Type field
|
Type (ethernet) of VLAN. You cannot edit this field.
|
Status list
|
Select the status (active or suspend) of the VLANs. The status is applied to all VLANs in the range you specified.
|
Assign Ports and Configure SVI table
|
VLAN ID column
|
Number (ID) of the VLAN. You cannot edit this field.
|
Name column
|
Double-click the entry in the Name column and enter the name of the VLAN.
|
Access Ports column
|
Specify the access ports assigned to this VLAN.
In the Access Ports column, click the button to open the Port Selector dialog box. For more information, see Port Selector.
Note All ports selected from the Port Selector will become access ports.
|
Allowed on column
|
Contains the following sub-columns:
•All Trunk Ports—A check mark in this column indicates that the VLAN is allowed on all trunk ports.
To specify assigned trunk ports, click the Edit Trunk Ports button.
•Selected Trunk Ports—Specifies the trunk ports on which the VLAN is allowed if the VLAN is not allowed on all trunk ports.
If the VLAN is allowed on all trunk ports (if a check mark appears in the All Trunk Ports column), the Select Ports column is not populated with any data.
To specify assigned trunk ports to a VLAN, select the corresponding row in the table and click the Edit Trunk Ports button.
|
SVI Details column
|
Contains the following sub-columns:
•IP Address—Double-click the entry in the IP address sub-column and enter the IP address of the SVI.
•Mask—Double-click the entry in the Mask sub-column and specify the subnet mask address of the SVI. Specify the subnet mask address of the SVI. You can select a value from the list or enter a value in the field.
The Admin Status is set to up for the SVI you create.
Note Even if you do not enter values for these sub-columns, an SVI is created to make all the VLANs in the specified range Layer 3 VLANs. If you specify the these values, an SVI is created with the IP address and subnet mask address you entered.
|
Edit Trunk Ports button
|
Specify the trunk ports the VLAN is allowed on.
Click the Edit Trunk Ports button to open the Port Selector dialog box. For more information, see Port Selector.
Note All ports selected from the Port Selector will become trunk ports.
|
Step 4 Click Deliver at the top of the window. For more information on delivering accumulated CLI commands, see Delivering CLI Commands to the Device.
Editing Layer 3 Ethernet VLANs
Step 1 Click Switch at the top of the window, click VLANs in the left-most pane, and select VLANs > Layer 3 VLANs from the selector.
Step 2 From the table, select the Layer 3 VLAN you want to edit.
Step 3 Click the Edit... button, or double-click the VLAN. The Edit Layer 3 VLAN dialog box appears.
Step 4 Edit the appropriate values.
GUI Element
|
Action/Description
|
VLAN ID field
|
Number (ID) of the VLAN. You cannot edit this field.
|
VLAN Name field
|
Enter the name of the VLAN.
|
Status list
|
Select the status (active or suspend) of the VLAN.
|
Media Type field
|
Type (ethernet) of VLAN. You cannot edit this field.
|
Access Ports field
|
Specify the access ports assigned to this Layer 3 VLAN.
Click the button to open the Port Selector dialog box. For more information, see Port Selector.
Note All ports selected from the Port Selector will become access ports.
|
Trunk Ports field
|
Specify the trunk ports the Layer 3 VLAN is allowed on.
Click the button to open the Port Selector dialog box. For more information, see Port Selector.
Note All ports selected from the Port Selector will become trunk ports.
|
SVI Details pane
|
Description field
|
Enter a brief description of the SVI.
|
Admin Status list
|
Select the admin status (up or down) of the SVI.
|
IP Address field
|
Enter the IP address of the SVI.
|
Mask field/list
|
Specify the subnet mask address of the SVI. You can select a value from the list or enter a value in the field.
|
Step 5 Click Deliver at the top of the window. For more information on delivering accumulated CLI commands, see Delivering CLI Commands to the Device.
Viewing Service VLANs
Service VLANs are VLANs assigned to service modules, such as CVDM-SSLSM and Firewall modules. You can view details about your service VLANs. Click Switch at the top of the window, click VLANs in the left-most pane, and select VLANs > Service VLANs from the selector. The Service VLANs page appears and displays a table with the following information:
Column
|
Description
|
VLAN ID
|
Number (ID) of the VLAN.
|
Name
|
Name of the VLAN.
|
Services
|
Service modules on which the VLAN is configured.
|
Configuring VTP Information
You can view details about your VTP. Click Switch at the top of the window, click VLANs in the left-most pane, and select VTP from the selector. The VLAN Trunking Protocol (VTP) page is displayed, providing the following information:
Field
|
Description
|
Mode
|
Mode in which the VTP is running (client, server, or transparent).
VTP client maintains a list of all VLANs but cannot add, delete, or rename VLANs. VTP server maintains a list of all VLANs and can add, delete, and rename VLANs.
|
Domain Name
|
Domain name of the VTP.
|
Password
|
Your VTP password.
|
V2 Mode
|
VTP version (V1 or V2). If you are using Token Ring VLANs, use V2 VTPs; otherwise, you can use V1 or V2 VTPs.
|
Pruning
|
When enabled, eliminates any unnecessary traffic created and broadcast by VTP.
|
From this page, you can edit your VTP information. See Editing VTP Information for more information.
For more information about configuring VTP, see the relevant section in the Catalyst 6500 Family IOS Software Configuration Guide.
Editing VTP Information
Step 1 Click Switch at the top of the window, click VLANs in the left-most pane, and select VTP from the selector.
Step 2 Click the Edit... button. The Edit VTP dialog box appears.
Step 3 Edit the appropriate values.
GUI Element
|
Action/Description
|
Mode list
|
Select the mode in which the VTP is running (client, server, or transparent).
VTP client maintains a list of all VLANs but cannot add, delete, or rename VLANs. VTP server maintains a list of all VLANs and can add, delete, and rename VLANs.
|
Domain Name field
|
Enter the VTP domain name.
|
Password field
|
Enter your VTP password.
|
V2 mode list
|
Select the status of VTP version 2 (enabled or disabled).
If you are using Token Ring VLANs, use V2 VTPs; otherwise, you can use V1 or V2 VTPs.
|
Pruning list
|
Select the pruning status (enabled or disabled) on VTP.
When enabled, pruning eliminates any unnecessary traffic created and broadcasted by VTP.
|
Step 4 Click Deliver at the top of the window. For more information on delivering accumulated CLI commands, see Delivering CLI Commands to the Device.
