Release Notes for CVDM-C6500

These release notes provide:

•Description

•Product Documentation

•Installing the Application

•Launching the Application

•Known Problems

•Obtaining Documentation

•Documentation Feedback

•Obtaining Technical Assistance

•Obtaining Additional Publications and Information

Description

CiscoView Device Manager for the Cisco Catalyst 6500 Series Switch (CVDM-C6500) resides in the switch and manages several Layer 2 and Layer 3 features for a single chassis. A task-based tool, CiscoView Device Manager eases the initial setup and deployment of end-to-end services across modules by offering configuration templates based on recommended practices. It provides a graphical representation of the VLAN, and a single launch point for multiple module managers. CVDM-C6500 has a small footprint that can be downloaded and installed in the supervisor engine Flash memory.

Product Documentation

Table 1 describes the product documentation that is available.

Table 1 Product Documentation

Document Title
Available Formats

User Guide for CiscoView Device Manager for the Cisco Catalyst 6500 Series Switch (CVDM-C6500) 1.0

This document is available on Cisco.com at this URL:
http://www.cisco.com/go/cvdm

ReadMe Document for CiscoView Device Manager for the Cisco Catalyst 6500 Series Switch (CVDM-C6500) 1.0

This document is available if you download CVDM-C6500 from the software download site. To reach the CVDM-C6500 download site, click the Software Center link from this URL:
http://www.cisco.com/go/cvdm

Note It is important that you read this document before downloading and installing CVDM-C6500 from the software download site.

Context-sensitive online help

Click the Help button from any dialog box within the application.


Installing the Application

You can download CVDM-C6500, any published patches, and their readme files from the Software Center site. You can reach the CVDM-C6500 download site by clicking the Software Center link from this URL:
http://www.cisco.com/go/cvdm

Refer to ReadMe Document for CVDM-C6500 for important hardware and software requirements, as well as installation instructions for CVDM-C6500.

Launching the Application

Step 1 Open a browser.

Step 2 In your browser, enter the IP address or DNS hostname of the device. The Enter Network Password dialog box appears.

Note If you are using a Cisco IOS 12.1.(13)E image, enter the following:

http://<ip-address>/flash/cv/applet.html?dynarchives=cvdm-c6500-1.0.sgz&
J-Xmx128m
or
http://<ip-address>/flash/cv/applet.html?dynarchives=cvdm-c6500-1.0_K9.sgz&J-Xmx128m
(if you installed Cisco IOS Cryptographic software)

where <ip-address> is the IP address of the switch. It might be useful to bookmark this URL for future use.

Step 3 Enter your username and password for level 15 access.

Note If enable password is used for HTTP authentication, use enable password only.

Step 4 Click OK. The device home page appears.

Step 5 Click the CiscoView Device Manager (CVDM-C6500) link. The CVDM splash screen is displayed, and the Password Needed - Networking dialog box appears (see Figure 1).

Note If you do not have Java Plug-in version 1.4.1_05, you will be prompted to install it. If you are not prompted, go to http://java.sun.com/products/archive/j2se/1.4.1_05/index.html
to install the Java plug-in.

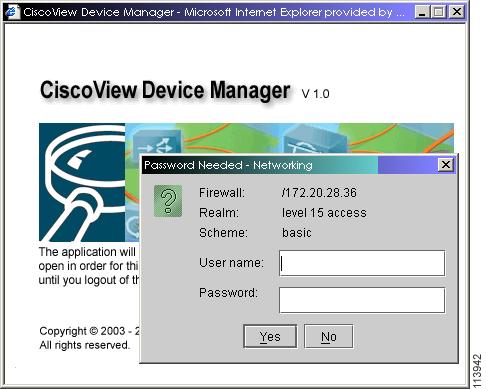

Figure 1 CVDM-C6500 Splash Screen and Password Needed-Networking Dialog Box

The CVDM splash screen must remain open for the application to function properly. Do not close this window until you log out. CVDM-C6500 will appear in a separate window.

Note It might take some time before CVDM-C6500 appears.

Step 6 Enter your username and password.

Note If enable password is used for HTTP authentication, use enable password only.

Step 7 Click Yes. The Warning - Security dialog box appears. To accept the security certificate and continue, click Yes.

Step 8 If you are using a Cisco IOS Cryptographic image, go to Step 9. If you are not using a Cisco IOS Cryptographic image, go to Step 12.

Step 9 If SSH is supported on the device but is not activated, the SSH Activation dialog box appears. Modify the appropriate values.

Step 10 Click OK. The Enter Credentials for <IP Address> dialog box appears.

Step 11 Enter your username, password, and enable password.

Step 12 If SSH is not available, a dialog box appears and asks if you want to authenticate using Telnet instead. To continue, click Yes.

Step 13 Click OK. If enable is configured, the Enter Credentials for <IPAddress> dialog box appears.

Step 14 Enter the device enable password.

Step 15 Click OK. The CVDM-C6500 home page appears.

Note The home page is the first screen that comes up when you start CVDM-C6500. It gives a quick overview of the services running on the device and a snapshot of the overall health of the system. It displays high-level system information; any service modules, ports, VLANs, and spanning trees CVDM-C6500 has discovered; and the status of each service module installed (see Figure 2).

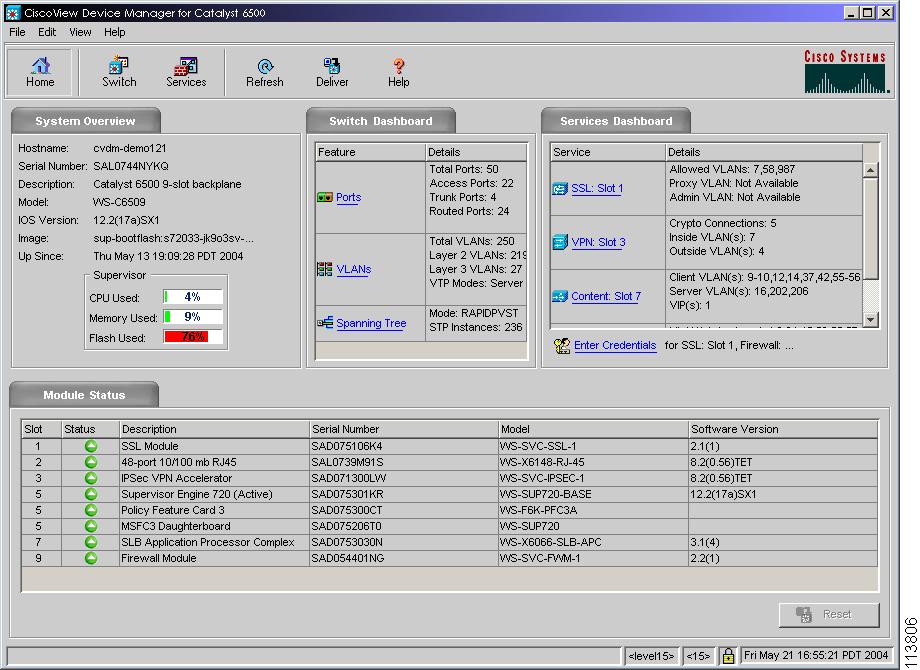

Figure 2 CVDM-C6500 Home Page

Known Problems

Installation and launching problems with CVDM-C6500 can occur because of known problems with:

•Lack of available vty lines

•Netscape installation support for Java plug-in

•Lack of SSH or Telnet access

•Lack of bootflash: space

•Previously installed versions of CVDM and CiscoView ADP

To avoid problems, please do the following:

•Ensure that at least three vty lines are available. CVDM-C6500 will not launch if all Telnet lines are being used. Instead, you will see a "Page cannot be displayed" error. See the "Preparing the Switch" section of the Readme Document for CVDM-C6500 for more information.

•Manually download the Java plug-in if you do not have Java Plug-in 1.4.1_05, or use Internet Explorer to download the Java plug-in automatically. Sometimes Netscape does not prompt you to download the Java plug-in.

•If there is not enough space in bootflash:, you can download CVDM-C6500 into one of the following filesystems:

–sup-bootflash:

–slot0:

–slot1:

–disk0:

–disk1:

Note Make sure CVDM-C6500 is downloaded into the root directory and not in any of the subdirectories.

Note If you also plan to install Embedded CiscoView or CVDM-CSM, do not install CVDM-C6500 on disk0: or disk1:. See CSCee75197 for more details.

•Problems can be caused by previously installed versions of CVDM and CiscoView ADP. To determine whether they are installed, use the following command:

show ciscoview

If the response to this command is empty, no CVDM or CiscoView ADP files are installed. Otherwise, you should delete all CVDM and CiscoView ADP files; see the "Uninstalling CVDM-C6500" section of the Readme Document for CVDM-C6500 for more information.

Table 2 describes problems known to exist in this release.

Note To obtain more information about known problems, access the Cisco Software Bug Toolkit at http://www.cisco.com/cgi-bin/Support/Bugtool/home.pl. (You will be prompted to log into Cisco.com.)

Table 2 Known Problems in CVDM-C6500

Bug ID
Summary
Explanation

CSCee48552

Some fields look compressed in Solaris 2.8.

When you use Netscape on a Solaris system, some of the dialog boxes might appear squeezed if the font is set to a small size.

To work around this problem, go to Tools > Desktop Controls > Font Style Manager. Increase the font size and restart the Workspace Manager. A medium-sized font should work in most cases.

CSCee57848

Sometimes, a new browser window is not displayed in the foreground when you use Netscape on Windows.

From a CVDM page, after you click a button or link that opens a new browser window, the window does not appear in the foreground.

To work around this problem, bring the new browser window to the foreground by clicking the window's title bar.

Note Netscape browser brings a new window to the foreground of all windows belonging to the browser process only, not to the foreground of the entire desktop. CVDM belongs to a separate process and remains in the foreground.

See CSCsa20728 also.

CSCee59386

CVDM-C6500 closes while delivering commands to the NAM service module.

CVDM will not populate detailed information about the NAM service module if the module has a prompt with more than 80 characters in it.

Note You might increase the length of the prompt beyond 80 characters if you try to configure the hostname and domain name for the NAM module.

To work around this problem, make sure the prompt is less than 80 characters long, or do not enter credentials for any NAM module that has such a prompt.

CSCee74098

Private VLAN ports and dot1qtunnel ports are displayed as Trunk Ports

Private VLAN ports (promiscuous and trunk) and dot1qtunnel ports are displayed in the Trunk Ports folder.

There is no workaround.

CSCee75197

You cannot launch Embedded CiscoView or CVDM-CSM from CVDM-C6500 if all three applications are installed on disk0: or disk1.

To work around this problem, install all three products (CVDM-C6500, Embedded CiscoView and CVDM-CSM) on another memory device such as slot0:, slot1:, sup-bootflash:, or bootflash:.

CSCsa09345

The CVDM link from the device home page does not work when you are using a Cisco IOS 12.1(13)E image.

If you are using a Cisco IOS 12.1.(13)E image, use the following URL:

http://<ip-address>/flash/cv/applet.html?dynarchives=cvdm-c6500-1.0.sgz&J-Xmx128m
or
http://<ip-address>/flash/cv/applet.html?dynarchives=cvdm-c6500-1.0_K9.sgz&J-Xmx128m
(if you installed Cisco IOS Cryptographic software)

where <ip-address> is the IP address of the switch. It might be useful to bookmark this URL for future use.

CSCsa11679

On Windows, Netscape 7.1 does not prompt you to install the supported Java plug-in version again if you cancelled the installation the first time.

To work around this problem, go to
http://java.sun.com/products/archive/j2se/1.4.1_05/index.html and download and install the JRE from J2SE v1.4.1_05.

CSCsa11565

CVDM-6500 icons are missing (they appear as red Xs on device home page).

Insufficient vty lines are available on the supervisor.

If you are using Netscape, and want to view all graphics, six vty lines should be free in the device. If you are using Internet Explorer, and want to view all graphics, nine vty lines should be free in the device.

Use the show users command on the device to verify the number of lines that are available.

Note You need only a minimum of three vty lines to launch CVDM-C6500.

CSCsa11904

Help does not work when a proxy is configured for the browser.

This problem occurs if you configured the browser to use an HTTP proxy.

To work around this problem, exclude 127.0.0.1 (localhost) from being proxied.

CSCsa12102

When TACACS+ command authorization is turned on in the device configuration, a NullPointerException is seen.

TACACS authorization is not supported. Turn off the TACACS+ command authorization for users who will be using CVDM-C6500.

CSCsa15820

Sometimes when you use Internet Explorer on a Windows system, you cannot launch CVDM after installing the Java plug-in.

To work around this problem, remove the proxy setting in the browser.

CSCsa15984

CVDM-C6500 is not launched if a nondefault password prompt is configured on a device.

CVDM-C6500 works on devices that have default prompts. If you change the default password prompt for a device using CLI commands, then CVDM-C6500 cannot be launched.

Similarly, in SSL module if user-prompt / password-prompt are changed to nondefault, CVDM is not able to log in to the module.

CSCsa16971

You cannot start a session into an SSL service module after entering correct credentials.

CVDM-C6500 uses session commands to connect to individual modules and retrieve detailed data specific to that module. However, the SSL service module does not allow sessions if Telnet is disabled.

To work around this problem, enable Telnet on the device using following commands:

# line vty 0 4
transport input telnet

CSCsa20610

If a port is converted from routed to access/trunk (or from access/trunk to routed) using any of the ports configuration dialogs, the configuration changes are not immediately seen in the STP Ports page.

To view configuration changes and current port status, click Deliver from the ports wizard or from the Ports page. CVDM-C6500 will then get the current status of ports from the device and show that information in the STP Ports page.

CSCsa20728

Sometimes a new window is not displayed in the foreground on Windows 2000 and Windows XP clients.

When a new window is opened, it does not appear in the foreground. However, the taskbar button that corresponds to the browser window flashes.

To work around this problem:

1. Set the following Windows registry entry to 0 (zero):

HKEY_CURRENT_USER\Control Panel\
Desktop\ForegroundLockTimeout

2. Reboot the machine.

Note If you use Netscape on Windows, see CSCee57848 also.

CSCsa22508

CVDM-C6500 crashes if a fault tolerant VLAN is configured as a CSM VLAN.

Currently, there is no workaround. Do not configure a fault tolerant VLAN as a CSM VLAN.
