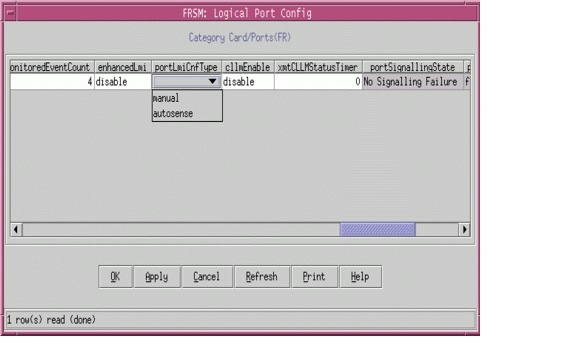

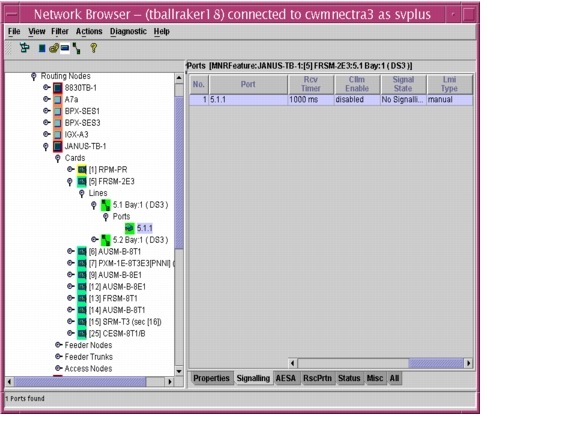

LMI AutoSense Feature
Limitations
Features Introduced in CWM 12.0.00
ConnProvAnalyzer
New Features and Enhancements in WANCV 4.20
Release 4.20 Changes
Release 4.19 Changes
Features Not Supported in WANCV 4.20
WANCV 4.20 Notes and Cautions
Performance
Features Not Supported and Known Feature Limitations in 12.0.00, Patch 1.1
Limitations
Ensuring the Creation of the svplus and/or wandest Username and Password
Connection Manager Limitations
HP OpenView Limitations
Issues with the CWM 12 Statistics Collection Manager
Limitations for CWM to CWM Communication
Topology Limitations
CWM 12 Notes and Cautions
Issues with Firewalls and CWM 12
Firewall on PC:
Firewall on LAN:
CWM 12.0.00 Server Installation or Upgrade to CWM 12.0.00
CWM 12.0.00 Patch 1.1 Installation
Installing the Informix UC7XH Patch
WANDEST 2.4, Patch 1
Evaluation Copy of CWM 12
Evaluation Copy Limitations
Important Configuration Notes
Naming Managed Nodes
Core File Management
C-Note/CWM Configuration
Node Numbering for Release 9.4 IGX Feeder Nodes
CWM Dedicated IP Ports
CWM Dedicated User IDs
Security Profiles
CWM Database
Connection Manager Configuration
Configuration Parameters for Connection Manager Daemon (cmgrd)
Setting up RPM Cards for Management by CiscoView from the Workstation
Configuring SNMP and SYSLOG
Configuring CiscoView for Large Networks
SNMP Service Agent Release Notes
CWM SNMP Agent Configuration Notes
Error Code Changes with Release 12
Caveats
Known Anomalies in CWM 12.0.00 Patch 1.1 Software
Anomalies Resolved in CWM 12.0.00 Patch 1.1 Software
Anomalies Resolved in CWM 12.0.00 Software
Anomaly Status Change from Previous Releases
Related Documentation
Obtaining Documentation
Cisco.com
Product Documentation DVD
Ordering Documentation
Documentation Feedback
Cisco Product Security Overview
Obtaining Technical Assistance
Cisco Technical Support & Documentation Website
Submitting a Service Request
Definitions of Service Request Severity
Obtaining Additional Publications and Information
Release Notes for Cisco WAN Manager 12.0.00, Patch 1.1
Rev. F0
May 2006
Cisco WAN Manager (CWM) 12.0.00, Patch 1.1 software supports the following Cisco products as of August 8, 2003:
•
Cisco MGX 8850 PXM45-based products running software releases 2.1.76 through 2.1.81, 3.0.10 through 3.0.23, or 4.0.00 through 4.0.10.
•Cisco MGX 8950 PXM45-based products running software releases 2.1.76 through 2.1.81, 3.0.10 through 3.0.23, or 4.0.00 through 4.0.10.
•Cisco MGX PXM1E-based products (8830 and 8850) running software releases 3.0.10 through 3.0.23, or 4.0.00 through 4.0.10.
•Cisco MGX PXM1-based products (8230, 8250 and 8850) running software releases 1.1.31 through 1.1.34, 1.1.40 through 1.1.42, 1.2.00 through 1.2.13, or 1.2.20 through 1.2.21.
•Cisco SES PNNI Controller running software releases 1.1.75 through 1.1.79, 3.0.10 through 3.0.23, or 4.0.00 through 4.0.10.
•Existing Cisco WAN switching products (including the Cisco IGX 8400 series and the Cisco BPX 8600 series) running switch software (SWSW) releases 9.2.33 through 9.2.43, 9.3.05 through 9.3.47, or 9.4.00 through 9.4.10.
•Existing Cisco MGX 8220 products running software releases 4.1.07 through 4.1.12, or 5.0.12 through 5.0.19.
Contents
•System Requirements
•CWM Software Packaging
•Supported Hardware
•New Features and Enhancements in CWM 12.0.00
•New Features and Enhancements in WANCV 4.20
•Features Not Supported in WANCV 4.20
•Features Not Supported and Known Feature Limitations in 12.0.00, Patch 1.1
•Limitations
•CWM 12 Notes and Cautions
•Important Configuration Notes
•Naming Managed Nodes
•Setting up RPM Cards for Management by CiscoView from the Workstation
•SNMP Service Agent Release Notes
•CWM SNMP Agent Configuration Notes
•Caveats
•Known Anomalies in CWM 12.0.00 Patch 1.1 Software
•Anomalies Resolved in CWM 12.0.00 Software
•Anomaly Status Change from Previous Releases
•Related Documentation
•Obtaining Documentation
•Documentation Feedback
•Cisco Product Security Overview
•Obtaining Technical Assistance
•Obtaining Additional Publications and Information
System Requirements
The following are additional notes for CWM platform requirements:
•CWM 12.0 is compatible with UltraSPARC II and UltraSPARC III. The Ultra 60, Enterprise 450 and Enterprise 4500 can still be used with CWM 12.0. These were previously certified with CWM 11. Problems reported by customers who choose a non Cisco-tested configuration may take more time to troubleshoot, etc., thus a longer turnaround time.
•Video is required when using the Java Client access to CWM. Video on the CWM Server is only required for user access or maintenance on the CWM Server. Video can be added to Sun Servers/Workstations. For Ultra and Enterprise this is via a video adapter.
•You may upgrade the standard configuration with more CPU speed, RAM size, and disk space for future expansion.
•The default disk size for the Informix raw database is 900 MB. However, we strongly recommend you provide 2 GB disk space for the statistics collection process. Note that if statistics collection is done using CWM then multiple 2GB partition chunks are required to be added to Informix Refer to the Cisco WAN Manager Installation for Solaris 8, OL-3837-01 for more information on disk partitioning.
•While CWM is running, if the remote display is stopped without properly shutting down the CWM Desktop, then reopening it remotely may not succeed.
CWM Server
Table 1 System Requirements - CWM Server
CWM
Platform
|
# CPU
|
Min. CPU Speed MHz
|
Min.
RAM GB
|
Min.
Swap
|
Min. Disk
|
Max # PVC/SPVC Connections or
Connection segments for XPVC
|
Max.
# PC
Clients
|
Max. # Nodes
|
UltraSPARC III Server used for network scale testing by Cisco
|
Low - Medium
|
1
|
900
|
2 GB
|
4 GB
|
1 x 36 GB
|
100K
|
10
|
100
|
Netra 20, Sun Fire 280R
|
Medium
|
2
|
900
|
4 GB
|
8 GB
|
1 x 36 GB
|
200K
|
20
|
500
|
Netra 20, Sun Fire 280R
|
High -
Carrier Grade
|
4
|
900
|
8 GB
|
16 GB
|
2 x 36 GB
|
1M
|
40
|
1000
|
Sun Fire V880
|
Carrier Grade
|
8
|
900
|
16 GB
|
32 GB
|
2 x 36 GB
|
2M
|
100
|
2000
|
Sun Fire V880
|
•Other UltraSPARC III Server models with equal or higher CPU speed and memory capacity can also be used.
•If UltraSPARC II Servers are used, refer to the System Requirement Guidelines in the CWM release notes for Release 11.0.10.
Java Client
Table 2 System Requirements - Java Client
CWM Java Client
|
Operating System
|
Web Browser
|
CPU
|
CPU Speed MHz
|
RAM
|
Swap
|
Disk
|
Monitor
|
PC
|
Windows 2000
Windows NT 4.0
|
Internet Explorer 6.0
Netscape 4.76
|
1
Pentium 3
|
750
|
256 MB
|
n/a
|
50 MB Free
|
y
|
SPARC10
|
Solaris 8
|
Netscape 4.76
|
1
450 Mhz
|
450
|
512 MB
|
1 GB
|
50 MB Free
|
y
|
Standalone Statistics Manager
Table 3 System Requirements - Standalone Statistics Collector or Manager
SSC Platform
|
# CPU
|
Min. CPU Speed MHz
|
Average Network Transfer Rate (KiloByte/Sec)
|
RAM
|
Swap
|
Disk
|
Max # of stats files (15 minute collection interval)
|
Server used in Cisco Testing
|
Low
|
2
|
450
|
170 KB/sec
|
512 MB
|
2 GB
|
2 x 18 GB
|
350
|
U60
|
Medium #1
|
2
|
450
|
3.5 MB/sec
|
512 MB
|
2 GB
|
2 x 18 GB
|
700
|
U60
|
Medium #2
|
1
|
900
|
1.7 MB/sec
|
1 GB
|
2 GB
|
1 x 36 GB
|
700
|
Netra 20 or Sun Fire 280R
|
High
|
2
|
900
|
3.5 MB/sec
|
4 GB
|
8 GB
|
1 x 36 GB
|
900
|
Netra 20 or Sun Fire 280R
|
•File size of 2M bytes (typically holds statistics with peak enabled for 20K endpoints).
•The number of files does not increase with smaller file size.
•Average Network Xfer Rate is the required TFTP/FTP throughput to collect of the Max #. Of files (combination of Server performance and network bandwidth/traffic).
•If you have enabled the Parser, add the Parser System Requirement
•The Standalone Statistics Collector (SSC) has the same system requirement (If you have enabled the Parser, add the Parser System Requirement to the SSC system requirements)
•A maximum of 12 Standalone Statistics Collectors can be controlled by 1 Standalone Statistics Manager.
Table 4 Additional System Requirements - Parser in CWM Server, Standalone Statistics Collector or Manager
SSM Platform
|
# CPU
|
Min. CPU Speed MHz
|
RAM GB
|
Swap
|
Min.
Disk
|
Monitor
|
Max # of Connection Segment Endpoints with Statistics Enabled
|
Server used for network scale testing by Cisco
|
Low
|
1
|
450
|
0.25
|
2GB
|
2 x 9 GB
|
y
|
40K
|
Ultra 10
|
Low - Medium
|
2
|
450
|
1 GB
|
2 GB
|
2 x 18 GB
|
y
|
300K
|
Ultra 60
|
Low - Medium
|
1
|
900
|
2 GB
|
4 GB
|
2 x 36 GB
|
y
|
750K
|
Netra 20, Sun Fire 280R
|
Medium
|
2
|
900
|
4 GB
|
8 GB
|
2 x 36 GB
|
y
|
2M
|
Netra 20, Sun Fire 280R
|
High - Carrier Grade
|
4
|
900
|
8 GB
|
16 GB
|
2 x 36 GB
|
y
|
4M
|
Sun Fire V880
|
Five statistics are collected from each connection segment endpoints and 15-minute file collection interval.
This system requirement should be added to the CWM Server requirements if the Parser Function is enabled.
4 Million endpoints with 5 Stats per endpoint requires 80 GB disk space per 24 hour. You'll need at least 3 x 36 GB Disk space.
Solaris Patch Requirements
After installing the Solaris 8 operating system, you must install the following patch cluster:
•108528-13
After you have installed the 108528-13 cluster install the following additional patches if they were not already installed as part of the cluster:
Required Patches
You can display which patches are already installed in the CWM workstation by entering the Solaris showrev -p command.
Patches can be obtained from SunService (if the user has a SunSpectrum contract) or from the SunSolve Recommended and Security Patches web site.
Patches are available to Sun Microsystems customers over the Web at
www.sunsolve.sun.COM/pub-cgi/show.pl?target=home
Use the search facility on the SunSolve site to search for these patches, entering only the six-digit patch ID number (do not include the two-digit patch version number). The version number can be later than the one referenced below.
•111626-01
•111327-02
•110945-02
•110934-01
•110898-02
•110700-01
•110670-01
•109326-05
•108827-19 (-17 is part of 108528-13 cluster, but you need to install -19 or higher)
•108652-35
•108528-13
Recommended Patches
•110951-01
•110662-02
•110615-01
•110286-02
•109324-02
•111085-02
You can get these patches from Sun Microsystems SunSolve online patch page at the following URL:
http://sunsolve.Sun.COM/pub-cgi/show.pl?target=patches/patch-access
Note Obtaining several of these patches may require that you have a service contract with Sun.
CWM Software Packaging
Following is the list of CDs for the CWM 12.0.00 release:
When you order the CWM package, you receive the following 3 disks:
•CWM CD 1 (Disk 1). This CD contains the following:
–CWM Server Software
–INFORMIX Server Software 9.21.UC5XAI
–CWM Java Client Software
•CWM CD 2 (Disk 2). This CD contains the following:
–CiscoView Engine 5.4.1
–WANCV 4.20
–Netscape Communicator 4.76
•CWM Documentation CD (Disk 3). This CD contains the following:
–Acrobat Reader 4.0
–gzip
–PDF copy of the CWM 12 documentation set
Note The documentation for WANDEST 2.4 is not included on the documentation CD. For information on WANDEST 2.4, refer to the Cisco WANDEST Installation and Reference, Release 2.4, OL-4122-01, available at this URL:
http://www.cisco.com/univercd/cc/td/doc/product/wanbu/svplus/12/index.htm.
The Service Agent software is provided on a separate CD. This CD is ordered separately from the CWM 12 release Client/Server package CD set.
•Service Agent CD. This CD contains the following
–CWM Service Agent Software
The Standalone Statistics Collection Manager software is also on a separate CD. This CD is ordered separately.
•Standalone Statistics Collection Manager CD. This CD contains the following:
–Standalone SCM Software with WANDEST Client Software incorporated
–INFORMIX Server Software 9.21.UC5XAI
The WANDEST 2.4 software is provided on two separate CDs. Each CD is ordered separately.
•WANDEST 2.4 Server CD
–WANDEST Server Software 2.4
•WANDEST 2.4 Client CD
–WANDEST Client Software 2.4
The Wingz 2.5.1 software is also on a separate CD. This CD is ordered separately.
•Wingz 2.5.1 CD
The Wingz version number is located on the license key (a separate piece of paper) that comes with Wingz. The version number can also be found in the HELP menu. When you click on the About box, the version number displayed is 2.5, however, clicking below the 2.5 line provides the license information followed by 1.1.7, which indicates Wingz version 2.5.1.17.
HP OpenView Requirements
The CWM 12.0.00 release works with HP OpenView 6.2 or 6.3 for Solaris 8. See "Third Party Product Limitations Notes" for HP OpenView patches required by CWM.
Note You must purchase HPOV 6.2 or 6.3 directly from Hewlett Packard.
For HP OpenView installation requirements and procedures, please refer to "HP OpenView Network Node Manager Products, Installation Guide" (part # J1136-90000 from HP).
HP OpenView 6.2 or 6.3 is not bundled with CWM CDs. You must order HP OpenView separately. HP OpenView is used for viewing the Event Log. It is not required for any other CWM procedures.
INFORMIX Requirements
The CWM 12.0.00 release uses Informix9.21.UC5XAI for database operations. The INFORMIX software is bundled with CWM software on disk 1 of the CWM CD package. The INFORMIX program is automatically installed during CWM installation. Patch 1.1 includes the upgrade to Informix9.21.UC7XH.
Wingz Requirements
The Report Application contained in the CWM 12 release uses Wingz 2.5.1. For the Ad-Hoc Report Application to work properly, the Wingz DataLink program must be installed along with Wingz software.
Supported Hardware
This section provides information about the hardware supported by the CWM 12 release.
Existing Hardware
Table 5 lists the existing hardware supported prior to CWM 12.0.00 patch 1.1.
Table 5 Supported Existing Hardware
Platform Series
|
Front Card
|
Back Card
|
Supported Release Version
|
IGX 8400
|
NPM
|
SCM
|
SWSW 9.2.33 through 9.2.43, 9.3.05 through 9.3.47, or 9.4.00 through 9.4.10
|
IGX 8400
|
NTM
|
BC-T1/E1/SR/Y1
|
SWSW 9.2.33 through 9.2.43, 9.3.05 through 9.3.47, or 9.4.00 through 9.4.10
|
IGX 8400
|
BTM
|
AIT-T3/E3/E2/HSS1/E1
|
SWSW 9.2.33 through 9.2.43, 9.3.05 through 9.3.47, or 9.4.00 through 9.4.10
|
IGX 8400
|
FRM
|
FRI-T1/E1/V.35/X.21
|
SWSW 9.2.33 through 9.2.43, 9.3.05 through 9.3.47, or 9.4.00 through 9.4.10
|
IGX 8400
|
FTM
|
FPC-V35/T1/E1/X.21
|
SWSW 9.2.33 through 9.2.43, 9.3.05 through 9.3.47, or 9.4.00 through 9.4.10
|
IGX 8400
|
HDM
|
V.35/RS-449/RS-232C/RS-232D
|
SWSW 9.2.33 through 9.2.43, 9.3.05 through 9.3.47, or 9.4.00 through 9.4.10
|
IGX 8400
|
LDM
|
RS-2324/RS-2328/RS-232D
|
SWSW 9.2.33 through 9.2.43, 9.3.05 through 9.3.47, or 9.4.00 through 9.4.10
|
IGX 8400
|
CVM
|
BC-T1/E1/J1/Y1/SR
|
SWSW 9.2.33 through 9.2.43, 9.3.05 through 9.3.47, or 9.4.00 through 9.4.10
|
IGX 8400
|
UVM
|
UVI-2T1EC/2E1EC
|
SWSW 9.2.33 through 9.2.43, 9.3.05 through 9.3.47, or 9.4.00 through 9.4.10
|
IGX 8400
|
UFM-C
|
UFI-8T1/8E1-DB15,UFI-8E1-BNC
|
SWSW 9.2.33 through 9.2.43, 9.3.05 through 9.3.47, or 9.4.00 through 9.4.10
|
IGX 8400
|
UFM-U
|
UFI-V35/X21/HSI
|
SWSW 9.2.33 through 9.2.43, 9.3.05 through 9.3.47, or 9.4.00 through 9.4.10
|
IGX 8400
|
ARM
|
ARI
|
SWSW 9.2.33 through 9.2.43, 9.3.05 through 9.3.47, or 9.4.00 through 9.4.10
|
IGX 8400
|
UXM
|
UAI-4OC3MMF/40C3SMF/2OC3SMF/6T3/6E3/3T3/3E3/8T1-IMA/8E1-IMADB15/8E1-IMABNC
|
SWSW 9.2.33 through 9.2.43, 9.3.05 through 9.3.47, or 9.4.00 through 9.4.10
|
BPX 8600
|
BCC
|
BCC-bc/3-bc
|
SWSW 9.2.33 through 9.2.43, 9.3.05 through 9.3.47, or 9.4.00 through 9.4.10
|
BPX 8600
|
ASM
|
LM-ASM
|
SWSW 9.2.33 through 9.2.43, 9.3.05 through 9.3.47, or 9.4.00 through 9.4.10
|
BPX 8600
|
BNI-T3
|
LM-3T3
|
SWSW 9.2.33 through 9.2.43, 9.3.05 through 9.3.47, or 9.4.00 through 9.4.10
|
BPX 8600
|
BNI-E3
|
LM-3E3
|
SWSW 9.2.33 through 9.2.43, 9.3.05 through 9.3.47, or 9.4.00 through 9.4.10
|
BPX 8600
|
BNI-155
|
LM-OC3-SMF/SMFLR/MMF
|
SWSW 9.2.33 through 9.2.43, 9.3.05 through 9.3.47, or 9.4.00 through 9.4.10
|
BPX 8600
|
ASI-1
|
LM-2T3/2E3
|
SWSW 9.2.33 through 9.2.43, 9.3.05 through 9.3.47, or 9.4.00 through 9.4.10
|
BPX 8600
|
ASI-155
|
LM-2OC3-SMF/SMFLR/MMF
|
SWSW 9.2.33 through 9.2.43, 9.3.05 through 9.3.47, or 9.4.00 through 9.4.10
|
BPX 8600
|
BXM-T3/E3
|
T3/E3-BC
|
SWSW 9.2.33 through 9.2.43, 9.3.05 through 9.3.47, or 9.4.00 through 9.4.10
|
BPX 8600
|
BXM-15 5
|
MMF/SMF/SMFLR-155
|
SWSW 9.2.33 through 9.2.43, 9.3.05 through 9.3.47, or 9.4.00 through 9.4.10
|
BPX 8600
|
BXM-622
|
MMF/SMF/SMFLR-622
|
SWSW 9.2.33 through 9.2.43, 9.3.05 through 9.3.47, or9.4.00 through 9.4.10
|
SES PNNI Controller
|
SES-PXM
|
T3/E3/OC3/OC12
|
1.1.75 through 1.1.79, 3.0.10 through 3.0.23, or 4.0.00
|
SES PNNI Controller
|
SES-PXM
|
PXM-UIA
|
1.1.75 through 1.1.79, 3.0.10 through 3.0.23, or 4.0.00 through 4.0.10
|
MGX 8220
|
FRSM-4P
|
DB-15-4T1/4E1, BNC-4E1
|
4.1.07 through 4.1.12, or 5.0.12 through 5.0.19
|
MGX 8220
|
CESM-4P
|
DB-15-4T1/4E1, BNC-4E1
|
4.1.07 through 4.1.12, or 5.0.12 through 5.0.19
|
MGX 8220
|
AUSM-4P
|
DB-15-4T1/4E1, BNC-4E1
|
4.1.07 through 4.1.12, or 5.0.12 through 5.0.19
|
MGX 8220
|
FRSM-8P
|
RJ48-8T1/8E1, SMB-8E1
|
4.1.07 through 4.1.12, or 5.0.12 through 5.0.19
|
MGX 8220
|
AUSM-8P
|
RJ48-8E1/8T1
|
4.1.07 through 4.1.12, or 5.0.12 through 5.0.19
|
MGX 8220
|
CESM-8P
|
RJ48-8T1/8E1, SMB-8E1
|
4.1.07 through 4.1.12, or 5.0.12 through 5.0.19
|
MGX 8220
|
IMATM-B
|
RJ48-T3T1/E3E1
SMB-E3E1
|
4.1.07 through 4.1.12, or 5.0.12 through 5.0.19
|
MGX 8220
|
FRSM-HS1
|
HSI-4X21/3HSSI
|
4.1.07 through 4.1.12, or 5.0.12 through 5.0.19
|
MGX 8220
|
BNM-T3/E3
|
T3E3-B/D
|
4.1.07 through 4.1.12, or 5.0.12 through 5.0.19
|
MGX 8220
|
BNM-155
|
155-SMF
|
4.1.07 through 4.1.12, or 5.0.12 through 5.0.19
|
MGX 8220
|
SRM
|
DB-15-T1/E1, LM-3T3
|
4.1.07 through 4.1.12, or 5.0.12 through 5.0.19
|
MGX 8220
|
ASC
|
ASC-LM
|
4.1.07 through 4.1.12, or 5.0.12 through 5.0.19
|
MGX 8220
|
FRSM-VHS
|
HS2
|
4.1.07 through 4.1.12, or 5.0.12 through 5.0.19
|
MGX 8220, MGX 8230, MGX 8250, MGX 8850 PXM1
|
AUSM Model B
|
8T1/E1
|
4.1.07 through 4.1.12, or 5.0.12 through 5.0.19, 1.1.31 through 1.1.34, 1.1.40 through 1.1.42, 1.2.00 through 1.2.13, or 1.2.20 through 1.2.21
|
MGX 8230, MGX 8250, MGX 8850 PXM1
|
PXM1
|
T3/E3/OC3/OC12
|
1.1.31 through 1.1.36, 1.1.40 through 1.1.42, 1.2.00 through 1.2.13, or 1.2.20 through 1.2.21
|
MGX 8230, MGX 8250, MGX 8850 PXM1
|
FRSM-VHS
|
HS2/T3/E3/2CT3/HS2B
|
1.1.40 through 1.1.42, 1.2.00 through 1.2.13, or 1.2.20 through 1.2.21
|
MGX 8230, MGX 8250, MGX 8850 PXM1
|
FRSM-8P
|
RJ48-8T1/8E1, SMB-8E1
|
1.1.40 through 1.1.42, 1.2.00 through 1.2.13, or 1.2.20 through 1.2.21
|
MGX 8230, MGX 8250, MGX 8850 PXM1
|
CESM-8P
|
RJ48-8T1/8E1, SMB-8E1,
RJ48-8T1-C/8E1-C, SMB-8E1-C
|
1.1.40 through 1.1.42, 1.2.00 through 1.2.13, or 1.2.20 through 1.2.21
|
MGX 8230, MGX 8250, MGX 8850 PXM1
|
CESM
|
T3/E3
|
1.1.40 through 1.1.42, 1.2.00 through 1.2.13, or 1.2.20 through 1.2.21
|
MGX 8230, MGX 8250, MGX 8850 PXM1
|
SRM
|
LM-3T3
|
1.1.40 through 1.1.42, 1.2.00 through 1.2.13, or 1.2.20 through 1.2.21
|
MGX 8230, MGX 8250, MGX 8850 PXM1
|
VISM-8T1
|
AX-RJ48-8T1
AX-R-RJ48-8T1
|
1.1.40 through 1.1.42, 1.2.00 through 1.2.13, or 1.2.20 through 1.2.21
|
MGX 8230, MGX 8250, MGX 8850 PXM1
|
VISM-8E1
|
AX-SMB-8E1
AX-RJ48-8E1
AX-R-SMB-8E1
AX-R-RJ48-8E1
|
1.1.40 through 1.1.42, 1.2.00 through 1.2.13, or 1.2.20 through 1.2.21
|
MGX 8230, MGX 8250, MGX 8850 PXM1
|
VISM-PR
|
RJ48-T1/E1 and SMB-E1
|
1.2.10 through 1.2.13, or 1.2.20 through 1.2.21
|
MGX 8950 (PXM45)
|
AXSM/B
|
T3/E3
|
2.1.76 through 2.1.81, 3.0.10 through 3.0.23, or 4.0.00 through 4.0.10
|
MGX 8950 (PXM45)
|
AXSM/B
|
OC3
|
2.1.76 through 2.1.81, 3.0.10 through 3.0.23, or 4.0.00 through 4.0.10
|
MGX 8950 (PXM45)
|
AXSM/B
|
OC12
|
2.1.76 through 2.1.81, 3.0.10 through 3.0.23, or 4.0.00 through 4.0.10
|
MGX 8950 (PXM45)
|
AXSM/B
|
OC48
|
2.1.76 through 2.1.81, 3.0.10 through 3.0.23, or 4.0.00 through 4.0.10
|
MGX 8950 (PXM45)
|
PXM45
|
PXM-HD, PXM-UI
|
2.1.76 through 2.1.81, 3.0.10 through 3.0.23, or 4.0.00 through 4.0.10
|
MGX 8950 (PXM45)
|
PXM45B
|
PXM-HD, PXM-UI
|
2.1.76 through 2.1.81, 3.0.10 through 3.0.23, or 4.0.00 through 4.0.10
|
MGX 8950 (PXM45)
|
RPM-PR
|
Ethernet, Fast Ethernet
|
3.0.10 through 3.0.23, or 4.0.00 through 4.0.10
|
MGX 8950 (PXM45)
|
RPM-XF
|
MGX-1GE and MGX-1OC12POS
|
3.0.10 through 3.0.23, or 4.0.00 through 4.0.10
|
MGX 8850 (PXM45)
|
AXSM/A
AXSM/B
|
T3/E3
|
2.1.76 through 2.1.81, 3.0.10 through 3.0.23, or 4.0.00 through 4.0.10
|
MGX 8850 (PXM45)
|
AXSM/A
AXSM/B
|
OC3
|
2.1.76 through 2.1.81, 3.0.10 through 3.0.23, or 4.0.00 through 4.0.10
|
MGX 8850 (PXM45)
|
AXSM/A
AXSM/B
|
OC12
|
2.1.76 through 2.1.81, 3.0.10 through 3.0.23, or 4.0.00 through 4.0.10
|
MGX 8850 (PXM45)
|
AXSM/A
AXSM/B
|
OC48
|
2.1.76 through 2.1.81, 3.0.10 through 3.0.23, or 4.0.00 through 4.0.10
|
MGX 8850 (PXM45)
|
AXSM-E
|
T3/E3
|
2.1.76 through 2.1.81, 3.0.10 through 3.0.23, or 4.0.00 through 4.0.10
|
MGX 8850 (PXM45)
|
AXSM-E
|
OC3
|
2.1.76 through 2.1.81, 3.0.10 through 3.0.23, or 4.0.00 through 4.0.10
|
MGX 8850 (PXM45)
|
AXSM-E
|
OC12
|
2.1.76 through 2.1.81, 3.0.10 through 3.0.23, or 4.0.00 through 4.0.10
|
MGX 8850 (PXM45)
|
AXSM-E
|
OC48
|
2.1.76 through 2.1.81, 3.0.10 through 3.0.23, or 4.0.00 through 4.0.10
|
MGX 8850 (PXM45)
|
PXM45
|
PXM-HD, PXM-UI
|
2.1.76 through 2.1.81, 3.0.10 through 3.0.23, or 4.0.00 through 4.0.10
|
MGX 8850 (PXM45)
|
PXM45B
|
PXM-HD, PXM-UI
|
2.1.76 through 2.1.81, 3.0.10 through 3.0.23, or 4.0.00 through 4.0.10
|
MGX 8850 (PXM45)
|
RPM-XF
|
MGX-1GE and MGX-1OC12POS
|
3.0.10 through 3.0.23, or 4.0.00 through 4.0.10
|
MGX 8850 (PXM45)
|
RPM-PR
|
Ethernet, Fast Ethernet
|
3.0.10 through 3.0.23, or 4.0.00 through 4.0.10
|
MGX 8850 (PXM45)
|
VISM-PR
|
RJ48-T1/E1 and SMB-E1
|
3.0.10 through 3.0.23, or 4.0.00 through 4.0.10
|
MGX 8850 (PXM1E)
|
PXM1E
|
8 Port 155
|
3.0.10 through 3.0.23, or 4.0.00 through 4.0.10
|
MGX 8850 (PXM1E)
|
PXM1E
|
8 Port T3/E3
|
3.0.10 through 3.0.23, or 4.0.00 through 4.0.10
|
MGX 8850 (PXM1E)
|
RPM-PR
|
Ethernet, Fast Ethernet
|
3.0.10 through 3.0.23, or 4.0.00 through 4.0.10
|
MGX 8850 (PXM1E)
|
VISM-PR
|
RJ48-T1/E1 and SMB-E1
|
3.0.10 through 3.0.23, or 4.0.00 through 4.0.10
|
MGX 8850 (PXM1E)
|
AUSM Model B
|
8T1/E1
|
3.0.10 through 3.0.23, or 4.0.00 through 4.0.10
|
MGX 8850 (PXM1E)
|
FRSM-8P
|
RJ48-8T1/8E1, SMB-8E1
|
3.0.10 through 3.0.23, or 4.0.00 through 4.0.10
|
MGX 8850 (PXM1E)
|
CESM-8P
|
RJ48-8T1/8E1, SMB-8E1, RJ48-8T1-C/8E1-C, SMB-8E1-C
|
3.0.10 through 3.0.23, or 4.0.00 through 4.0.10
|
MGX 8850 (PXM1E)
|
FRSM-HS2B
|
8 port 12in1, HSSI
|
3.0.10 through 3.0.23, or 4.0.00 through 4.0.10
|
MGX 8850 (PXM1E)
|
SRM/E
|
1 port OC3/STM1 (SMF-IR, SMF-LR, SMF-Electrical)
|
3.0.10 through 3.0.23, or 4.0.00 through 4.0.10
|
MGX 8230, MGX 8250, MGX 8850 (PXM1)
|
FRSM-HS2B
|
8 port 12in1, HSSI
|
1.2.00 through 1.2.13, or 1.2.20 through 1.2.21
|
MGX 8230, MGX 8250, MGX 8850 (PXM1)
|
SRM/E
|
1 port OC3/STM1 (SMF-IR, SMF-LR, SMF-Electrical)
|
1.2.00 through 1.2.13, or 1.2.20 through 1.2.21
|
MGX 8230, MGX 8250, MGX 8850 (PXM1)
|
RPM/B
|
Ethernet, Fast Ethernet
|
1.2.00 through 1.2.13, or 1.2.20 through 1.2.21
|
MGX 8230, MGX 8250, MGX 8850 (PXM1)
|
RPM-PR
|
Ethernet, Fast Ethernet
|
1.2.00 through 1.2.13, or 1.2.20 through 1.2.21
|
MGX 8230, MGX 8250, MGX 8850 (PXM1)
|
VISM-PR
|
RJ48-T1/E1 and SMB-E1
|
1.2.00 through 1.2.13, or 1.2.20 through 1.2.21
|
MGX 8950 (PXM45)
|
AXSM-XG
|
OC192
|
4.0.00 through 4.0.10
|
MGX 8950 (PXM45)
|
AXSM-XG
|
OC48
|
4.0.00 through 4.0.10
|
MGX 8950 (PXM45)
|
PXM45/C
|
PXM-HD, PXM-UI S3/B
|
4.0.00 through 4.0.10
|
MGX 8850 (PXM45)
|
PXM45/C
|
PXM-HD, PXM-UI S3/B
|
4.0.00 through 4.0.10
|
MGX 8850 (PXM45)
|
FRSM-8P
|
RJ48-8T1/8E1, SMB-8E1
|
4.0.00 through 4.0.10
|
MGX 8850 (PXM45)
|
CESM-8P
|
RJ48-8T1/8E1, SMB-8T1B
|
4.0.00 through 4.0.10
|
MGX 8850 (PXM45)
|
FRSM-VHS
|
2CT3
|
4.0.00 through 4.0.10
|
MGX 8850 (PXM45)
|
SRM/E
|
1 port OC3/STM1 (SMF-IR, SMF-LR, SMF-Electrical)
|
4.0.00 through 4.0.10
|
MGX 8830/8850 (PXM1E)
|
PXM1E
|
8 port OC3 STM1
|
4.0.00 through 4.0.10
|
MGX 8830/8850 (PXM1E)
|
FRSM-VHS
|
2CT3
|
4.0.00 through 4.0.10
|
New Hardware
Table 6 lists the new hardware supported in CWM 12.0.00 patch 1.1.
Table 6 Supported New Hardware
Platform Series
|
Front Card
|
Back Card
|
Supported Release Version
|
MGX 8850 (PXM45)
|
FRSM-HS2/B
|
8 port 12in1, HSSI
|
4.0.10
|
MGX 8850 (PXM45)
|
FRSM-VHS
|
2T3E3
|
4.0.10
|
Certified Releases
The following releases were tested with CWM release 12.0.00 patch 1.1:
•BPX Switch Software:
–Switch Software 9.4.10
–Switch Software 9.3.42
–Switch Software 9.3.36
–Switch Software 9.2.43
•MGX 8230/8250/8850 (PXM1) Switch
–MGX 1.2.21
–MGX 1.2.13
–MGX 1.1.42
–MGX 1.1.34
•MGX 8850/8950 (PXM45/PXM-1E) Switch
–MGX 4.0.10
–MGX 3.0.20
–MGX 2.1.81
•BPX SES Shelf
–SES 4.0.10
–SES 3.0.20
–SES 1.1.79
•MGX 8220 Shelf
–MGX 8220 5.0.19
–MGX 8220 4.1.12
•VISM
–VISM 3.1.10 (VISM-PR 3.1.2)
–VISM 2.2.10
–VISM 1.5.08
New Features and Enhancements in CWM 12.0.00
Features Introduced in CWM 12.0.00, Patch 1.1
This section describes the new features introduced in the CWM 12.0.00, Patch 1.1.
•MGX 8850, Release 4
–Support for FRSM-2T3E3
–Support for FRSM-HS2/B
–Support for the LMI AutoSense feature on the FRSM -8T1/E1 and FRSM -VHS cards on PXM1, PXM-45 and PXM-1E-based MGX families of switches.
•MGX 8950, Release 4
–Support for AXSM/B Feeder Nodes (MGX 8950 to PXM1-based MGX nodes)
•Release 1.2.21 (8850, 8250, 8230 with PXM1)
–Support for the LMI AutoSense feature on the FRSM -8T1/E1 and FRSM -VHS cards on PXM1, PXM-45 and PXM-1E-based MGX families of switches.
•MGX 8850 and 8830 Release 4 (PXM1E-based nodes)
–Support for the LMI AutoSense feature on the FRSM -8T1/E1 and FRSM -VHS cards on PXM1, PXM-45 and PXM-1E-based MGX families of switches.
•CWM-specific Enhancements
–Graphical User Interface Management of Multi Peer Groups
Refer to the Cisco WAN Manager User's Guide for Release 12 for information on the Multi Peer Group Graphical User Interface.
LMI AutoSense Feature
The LMI AutoSense feature on the Frame Relay service modules on MGX switches enables a frame relay port to detect the LMI type supported by frame relay customer premise equipment. This autosensing feature avoids the need to configure the LMI type on each frame relay port.The LMI AutoSense feature is supported on the FRSM-8T1/E1 and FRSM-VHS(2CT3, 2T3, 2E3, 2HS2, 2HS2B) service modules on PXM1/(PXM45A/B)/PXM1E platforms.
The LMI AutoSense feature is supported for Frame Relay and FUNI port types. It is not applicable for Frame Forwarding port types. The detected LMI types will be of the following UNI types:
•AnnexD-UNI
•AnnexA-UNI
•StrataLMI
Limitations
•The LMI AutoSense feature is not supported on NNI interfaces.
•The LMI AutoSense feature is configurable at a per port level.
The following sections describe the changes incorporated into CWM 12, patch 1.1 to support the LMI AutoSense feature.
Service Agent Component
The new svFrPortLmiCnfType mib object has been added to the svFrPortTable in the PortGroupService.mib.
svFrPortLmiCnfType OBJECT-TYPE
APPLICABLE TO : FRSM-8T1/E1, FRSM-VHS(2CT3, 2T3, 2E3, 2HS2, 2HS2B)
on PXM1/(PXM45 A/B)/PXM1E platforms. This object
enables/disables the port LMI signalling autosense.
Setting this object to 2 puts the port to autosense LMI
The Service Agent supports the following SNMP operations on the svFrPortLmiCnfType MIB object:
1. SNMP SET using the svFrPortLmiCnfType MIB object during addition of FRSM port.
2. SNMP SET using the svFrPortLmiCnfType MIB object during modification of FRSM port.
3. SNMP GET on the svFrPortLmiCnfType MIB object.
The Service Agent will not do any validation of the new svFrPortLmiCnfType MIB object. Multiple SET operations on this object are allowed.
Trap Support
No new traps are sent specific to this feature. A generic Config change trap (trap no 50600 for PXM1-based MGX switches, trap no 50315 for PXM1E or PXM45-based MGX switches) will be generated whenever there is a change in LMI type.
Database Support
In support of the LMI AutoSense feature, the following new field has been added to the FRP table in the Database Schema:
Table 7 New lmi_type Field in the frp Table
Field Name
|
Data Type
|
lmi_type
|
integer
|
Network Browser Support
The Network Browser displays the lmi_type parameter for FRSM ports. Figure 1 below displays the Network Browser with LMI Type for FRSM ports selected. The settings can be either manual (the default) or autosense.
Figure 1 LMI-AutoSense Feature in the Network Browser
Cisco View GUI
CiscoView supports the LMI AutoSense Feature (displays the new MIB object portLmiCnfType) for the following cards:
:
Table 8 FRSM Cards supporting LMI AutoSense Feature
Card
|
shelfFunctionModuleType
|
FRSM-8T1
|
frsm-8T1 (35)
|
FRSM-8E1
|
frsm-8E1 (36)
|
FRSM-2CT3
|
frsm-2ct3 (130)
|
FRSM-2T3
|
frsm-2t3 (131)
|
FRSM-2E3
|
frsm-2e3 (132)
|
FRSM-HS2
|
frsm-hs2 (133)
|
FRSM-HS2B-HSSI
|
frsm-hs2b-hssi (136)
|
The new object will be included as a read-write object in the existing "Ports" dialog category for the above mentioned cards at the Port Level. This object can be set after the creation of the row.
Navigation: Right Click on a Line and Choose "Configure" or Double Click on Line --> Logical Ports
Figure 2 Setting up LMI AutoSense in the Logical Port Configuration Window
Features Introduced in CWM 12.0.00
This section describes the new features introduced in the Cisco WAN Manager 12 release.
•MGX 8850, Release 4
–Support for PXM45/C (512MB memory, memory protection feature, and Ethernet Controller)
–Support for Cellbus-based Frame Relay and Circuit Emulation support on PXM45-based switches (CESM-8T1E1, CESM-8T1/B, FRSM-VHS 2CT3, FRSM-8T1E1)
–Support for the IMA UNI Port on the AXSM-E32T1E1 service module
•MGX 8950, Release 4
–Support for PXM45/C (512MB memory, memory protection feature, and Ethernet Controller)
–Support for AXSM-XG 4-Port Channelized OC-48 Service Module (Unchannelized and Channelized to OC-12/STM-4, OC-3/STM1 and T3/E3 logical ATM interfaces) and the AXSM-XG 1-Port OC-192 Service Module
•SES, Release 4
–Support for configuring PCR to burst to line rate on SPVC connections using the Connection Manager GUI
–Support for configuring PCR to burst to line rate on SPVC connections using the CWM Service Agent
•BPX 8600 and IGX 8400, Release 9.4.00 support
–Support for configuring and managing hybrid PNNI connections that allow the use of the IGX as a feeder node to the PNNI network (the IGX UXM can be connected to the BPX-SES, the PXM1E, or the AXSM-E)
•Release 1.2.20 (8850, 8250, 8230 with PXM1)
–Support for Configurable AUSM CAC. You can configure the AUSM card to use either PCR or SCR for CAC. The default is PCR.
•MGX 8850 and 8830 Release 4 (PXM1E-based nodes)
–Support for the provisioning and management of the PXM1E 8-Port OC-3 & STM-1 Service Module with the MCC - 8 - 155 back card and/or the 512M memory backcard
–Support for the provisioning and management of the CESM-8T1E1, CESM-8T1/B, FRSM-VHS 2CT3, FRSM-8T1E1 Service Modules
–Support for the IMA UNI Port on the PXM1E-T1E1
–Support for PXM1E on-line diagnostics traps through the Service Agent
–Support for Virtual Trunk and Virtual UNI on the PXM1E management through the Service Agent
•CWM-specific Enhancements
–Evaluation Copy of CWM 12
The 90-day evaluation copy of CWM gives you the opportunity to try CWM for a 90-day period.
–Enhanced Standalone Statistics Collection Management
The enhanced Standalone Statistics Collection Manager is now totally independent from the CWM server. You can perform maintenance on CWM without affecting the SCM operations and vice versa.
There are 2 supported configurations:
1. Standalone Statistics Manager (SSM)
The Standalone Statistics Manager (SSM) consists of the Standalone SCM with Control Server, Collection Server and Statistics Parser installed together on a workstation separate from the CWM server workstation The WANDEST server software must be installed and configured on the CWM server workstation and the WANDEST client software must be installed on the standalone SCM workstation.
SSM uses the WANDEST client to synchronize the network equipment data (node and card) from the CWM server workstation.
2. Standalone Statistics Collector (SSC)
Standalone SCM can be configured as a Standalone Statistics Collector (SSC) to work with SSM or CWM Server to further distribute the statistics collection function to a second separate workstation (separate from the SSM). In this configuration, the Statistics Collection Controller and, optionally, the Statistics Parser function will still reside on either the SSM or the CWM server.
–Enhanced SSC/SSM redundancy
–Point-to-multipoint SPVC Provisioning
–Single-end SPVC Provisioning
–SNMP Community String configuration using Secure Shell (SSH)
–Enhanced Audit Trail Log
The Audit Trail Logging feature now logs all Read-only and Read-Write operations performed by the Java-based CWM GUI and CiscoView.
–Network Topology now provides primary and secondary status of the ports configured for SONET Automatic Protection Switch.
–PNNI Multi-peer Group configuration via Service Agent
–Enhanced Network Events Monitoring
BPX related 20000 Series and 30000 Series traps are forwarded to port 162 for HP OpenView and to RTM for Service Agent. The Source IP address in the BPX 1000 series Traps reflects the IP address of the associated node instead of the CWM IP address. BPX 1000 series traps are only forwarded to port 162, not to RTM.
–PNNI Persistent Physical Topology
CWM 12 adds support for routing trunk persistency.
–Enhanced PNNI Statistics Collection
CWM Statistics Collection Manager now collects historical PNNI related statistics from PXM45/B, PXM45/C and PXM1E-based nodes.
–Enhanced Scalability for Large-Scale Network Management
–Support for WANDEST 2.4
–Support for AXSM-E Port Statistics
–Support for new PXM1 Port Statistics
–Support for additional AUSM Port Statistics
–Support for additional FRSM Connection and Port Statistics
–XPVC/XPVP Management Enhancement
XPVC connection data no longer needs the manual XPVC grooming tool during upgrade to CWM 12. XPVC connections are now discovered from the network by CWM.
–Preferred Route Provisioning
–Support for Closed User Groups
For information on WANDEST 2.4, refer to the Cisco WANDEST Installation and Reference, Release 2.4, OL-4122-01, available at this URL:
http://www.cisco.com/univercd/cc/td/doc/product/wanbu/svplus/12/index.htm.
ConnProvAnalyzer
This new tool analyzes connection provisioning delay and errors using available conn proxy log files and generates reports and creates a separate log file for errors. The off-line tool is located in ~svplus/tools/ConnProvAnalyzer.
The generated data can be used for plotting in Wingz or Microsoft Excel.
This tool extracts CNPA pattern entry from the ConnProxy log messages and will do analysis for successful requests then writes into .csv and .req files. The .csv data can be used for plotting graphs by using applications like Excel or Wingz.
In the .csv file, column-I indicates the connection & column-II indicates Provisioning time.
Xaxis: represents the Connection
Yaxis: represents the Provisioning Time
Plotting a Graph in Excel:
Step 1 Invoke Excel and open the .csv file.
Step 2 Select A, B columns for all rows (or for how many ever connection need to be plotted)
Step 3 Click on "Chart wizard"
Step 4 Select any type of graph and walk-through the steps.
Plotting a graph in Wingz:
Step 1 Invoke wingz and open the .csv file.
Step 2 Select Text Type "comma delimited".
Step 3 Click OK.
Step 4 Select Columns A,B columns
Step 5 Click on Tools->"graph icon (on the left side)". The cursor now changes to "+"
Step 6 Select the columns A,B (Graph will use only these selected rows to plot)
Step 7 Select Chart->Types->XY
New Features and Enhancements in WANCV 4.20
Release 4.20 Changes
Release 4.20 introduces support for the LMI AutoSense feature. Refer to the "LMI AutoSense Feature" section for more information on this feature.
Release 4.19 Changes
As part of Cisco WAN Manager Release 12, the CiscoView MSSBU device packages (WANCV) were upgraded to Release 4.19 to support CiscoView 5.4.1.
•Displays the correct connector to UAI-4E1-DB15 backcard (IGX)
•Displays the correct orientation for PXM-UI-S3 and MCC-8-OC3 back cards (BPX-SES)
•Cosmetic changes to the PNNI Summary Address dialog window Create button
•Support for MCC-8-OC3 backcard for PXM1E is added.
•Added rsrcPartiVsiBwOverbooking support for Rel 9.4.
•Performance improvement when RPM cards are present without back cards.
•On-Line Help support for PXM1E-based & PXM45-based MGX 8800-series/MGX 8950/VSC packages.
•Supports AXSM-XG with clear channel and channelized on the Cisco MGX 8950.
•Adds SCR based CAC support for AUSM and PXM Cards.
Bugs Fixed in 4.19:
Table 9 Bugs Fixed in 4.19
Bug ID
|
Description
|
CSCdz21732
|
AXSMXG ds3 Channelization:Xtm Clock source is not supported
|
CSCdz77336
|
PNNI Interface Configuration menu option missing for SES
|
CSCdz90328
|
CV missing mibs in VISM Rsvp dialog
|
CSCea01506
|
CV RSVP ip addr & port should be in decimal value
|
CSCea01530
|
CV spelling mistake for VISM ds0 config dialog
|
CSCea16488
|
CV fails to create PNNI controller on PXM1e-8OC3 card
|
Features Not Supported in WANCV 4.20
The following features are not supported in WANCV 4.20:
•The security feature is not supported in conjunction with CWM 12.
•Hot swap polling frequency is 100 seconds and is not user modifiable.
•The Telnet button will show an error if a path to "xterm" is not present in the user's PATH environment variable.
•The write community string should not be configured to "private" by the user.
•The RPM card's community string is not configurable, and has to be set to the default "POPEYE".
•The Cisco Support button will not result in Cisco TAC support.
•The CCO button will not connect a Web browser to Cisco Connection Online (CCO).
WANCV 4.20 Notes and Cautions
When there is a card mismatch go to the "card summary" display to see the indicator of "mismatchwithParent".
The LEDs displayed in the chassis screen only convey card status for the selected card and not alarm status in the node. The "node alarm status" is shown at the top of a PXM. The "port" LED's red or yellow colors actually represent an "alarm" state for a physical interface.
The VISM Ds0 Config screen shows parameters as configurable that are not applicable for the VISM line type (E1). In the vism Ds0 Config screen under the Line Config. screen, the "Insert Local CAS" and "Local CAS Pattern" parameters are not greyed out. When you have a E1 VISM card you are not allowed to modify the local CAS type (cwmVismDs0InsertLocalCas) or the local CAS bit pattern (cwmVismDs0LocalCasPattern). If you try to change these values the system displays an error.
Performance
The various timers and retry counter should be configured from the Preference menu. For a typical installation, Polling and Monitoring should be about 60 seconds and Timeout should be at least 15 seconds. Faster polling and monitoring values can be configured if conditions permit. One retry is the recommended configuration.
Note Performance is degraded when managing MGX devices with missing or failed service modules, or RPM modules that do not have SNMP enabled. Missing service modules are shown in CiscoView with a red alarm indicator, not as an empty slot.
Features Not Supported and Known Feature Limitations in 12.0.00, Patch 1.1
The following features are not supported in CWM 12.0.00:
•You cannot perform an image download (FW download) from the CWM GUI for the NPM, HDM and NTM cards of the IGX switch. If you try to perform an image download on these cards from the Image Download GUI, you will receive an error message, stating "Image download operation not supported for node with card type 0."
•XPVC support on the FRSM T3E3 in PXM45-based switches has not been not tested
•StandAlone Stats Parser and Standalone Stats Collector with Parser are no longer supported in CWM 12. This feature has been replaced by the re-architected Standalone Statistics Manager.
•The URM service module is not supported by CWM.
•The following features introduced in VISM 3.1 are not accessible from CWM:
–TGCP
–Dynamic Payload
–T.38 Fax Relay.
•The CWM database is not populated with the MPG configuration data. Instead, the Service Agent accesses the configuration directly from the switch.
•New preferred routes can be created using CLI or CWM Service Agent, but not with the CWM GUI.
•The preferred route indicator of a connection is not available in this release.
Limitations
1. CWM can manage up to 40 different disjoint AutoRoute networks, provided all the network elements have unique network IP addresses and unique names across all the networks managed by CWM. There is no limitation for the number of PNNI networks.
2. Pointing multiple CWM workstations at the same gateway node is not recommended unless Persistent Topology is enabled.
3. CWM must be started from a CDE environment.
4. CWM does not support use of the korn shell.
5. When /usr/users gets 100% full, orbix processes are not able to write to the disk and cannot continue operations.
Correct the problem by first freeing up some disk space in /usr/users, then restarting the orbix processes and CWM using the following procedure:
Step 1 Stop core, exit out of the CWM prompt
Step 2 Run stoporbix2000 script
Step 3 Type CWM, you should see 'Starting Orbix..." in ~svplus/log/.startStopOrbix.log file.
Step 4 Start core.
6. When the client machine cannot be pinged from the server the following message may be seen on the CWM workstation:
Exception raised while calling activateLease on
pseudoServer.IT_ATLI_IOP:CONNECTION_CREATION_TIMEOUT
The error message is printed when server tries to contact the client, but is not able to. The call is initiated by the GUI client for activating the lease plugin on the client to detect server crash.
The problem is with the client machine DNS setup. The client machine cannot be pinged from the server.
The DNS is setup so that the client can communicate with the server, but when server tries to contact client machine it fails.
The resolution is to make sure the client machine is pingable from the CWM workstation.
Possible reasons for the server not being able to ping the client are:
–There may be a firewall on the client PC that prevents it from being seen from outside.
–The network routing from the server to the client is not setup properly.
7. When SSM (standalone stats manager) is installed with SCMGateway setup, SCM GUI does not open when the Primary SSM and Secondary SSM are started simultaneously (or within a time gap of 30 seconds to a minute).
Avoid this problem by waiting 2-3 minutes after starting core in the Primary SSM before starting core in the Secondary SSM in Gateway.
8. When there is a shortage of shared memory, the Informix engine may generate an operating system error. The following example from the online.log shows this error:
shmat: [22]: operating system error
18:45:49 shmat: [22]: operating system error
18:45:57 Error writing '/tmp/shmem.1fd4555c.0' errno = 4
18:45:57 mt.c, line 10260, thread 7148, proc id 1008, errors occurred during mt_
When this error occurs, statsparser is not able to do any database related operation.
The error can be resolved temporarily by changing the /etc/system configuration as follows:
set shmsys:shminfo_shmmax=1073741824
set semsys:seminfo_semaem=16384
set semsys:seminfo_semmap=5000
set semsys:seminfo_semmni=8192
set semsys:seminfo_semmns=8192
set semsys:seminfo_semmnu=8192
set semsys:seminfo_semume=256
set semsys:seminfo_semvmx=50000
set shmsys:shminfo_shmmin=256
set shmsys:shminfo_shmmni=32000
set shmsys:shminfo_shmseg=256
set semsys:seminfo_semmsl=100
The long-term solution is to increase the amount of memory to support 2 million connections consistently.
9. When using inband management, only 50 K connections are supported on the BPX-SES. To manage 100 K connections on the BPX-SES, set up CWM for out-of-band management.
10. If an atm IP interface (also called In-band interface) is being used to manage the switch from the NMS, not all node-bringup traps may be received by the NMS. The ATM connections required for in-band management may take time to get routed on node-bringup and are hence not available for trap delivery at this initialization time. If this initialization time is an issue, the workaround is to set up CWM for out-of-band management.
11. CiscoView behavior after using the browser's refresh button is unpredictable. There is no reason to refresh the window, as CiscoView is refreshed automatically, based on the refresh/polling period.
The refresh/polling period can be set via the Preferences option.
If, after using the browser's refresh button, the browser hangs, close the browser and launch a new session.
12. Allow a 2-3 minutes period between enabling or disabling statistics operations on the same BPX or IGX node. Whenever enabling/disabling of statistics is done on a BPX or IGX node, and the switch is in the process of configuring statistics, doing a second enabling/disabling of statistics will fail.
13. If Start Collection on SCM GUI takes a long time, investigate whether collection was started with an IP address that was not reachable. Either in-band or out of band was not reachable. Start collection with a reachable IP address. If the in-band IP address is reachable then start collection with in-band IP address. If out of band is reachable, start collection with out of band.
14. The SSM statistics database can go out of sync with node_ids on CWM after a coldstart -F is executed on the server. Stop collection and disable collection before doing a coldstart -F to ensure that the node ids remain consistent. A Gateway setup is needed to ensure uninterrupted statistics collection.
15. When you have the persistent topology feature enabled, to decommission a node in the network and take it out of the topology you must delete the node from the persistent topology data using the switch CLI
16. To ensure all CWM servers have the same XPVC Preferred data, CWM-to-CWM gateway must be enabled; otherwise, you must manually propagate the data to all CWM servers.
17. On MGX PXM1-based feeders in the BPX network, VISM or VISM-PR terminated XPVC only connect to the AUSM service module. No such restriction exists for PXM1E-based or PXM45-based nodes.
Ensuring the Creation of the svplus and/or wandest Username and Password
When either the SSM, the SSC, or the WANDEST server or client is installed for the first time on your Solaris workstation, the svplus and/or wandest username and password may not be available. After installing any of these applications, log in as root and set the unix password(s) for the svplus and/or wandest user using either the admintool or the passwd command on the command line. Only the SSM requires resetting the svplus user unix password.
Connection Manager Limitations
The normal behavior of the CWM Connection Manager is that it automatically updates with all events received, however, if there are too many new events (if the event buffer fills up) the refresh button turns yellow. The yellow refresh button indicates that you should refresh the screen. Upon clicking the refresh button, it will pull information directly from the database.
When the connection modify dialog box is already open, another user can delete the connection using the CMGUI delete option.
The Connection Manager GUI for preferred route displays all available trunks without considering the traffic class. As a result, it is possible to set a preferred route for a CBR connection traversing trunks that do not support CBR traffic.
While adding connections originating and terminating on the same feeder nodes (MGX8220 only), CWM will treat these connections as three segment connections and will add three segments (two on the same feeder node, one on the routing node) to realize this connection.
RPM on PXM1-based MGX 8850/8230/8250 provisioning is done using telnet since the RPM does not support SNMP SETs. This should be transparent in daily operation. For more details, please refer to the specific RPM switch CLI release notes.
HP OpenView Limitations
All event messages are displayed in the HPOV Event Browser window. There is a limit of 2000 pending messages on the Event Browser. If there are more than 2000 messages to be processed and displayed by the Event Browser, it may exit.
The WAN network icon in the network node manager is no longer automatically created when running CWM 12. Use the Network Topology map instead.
Issues with the CWM 12 Statistics Collection Manager
In order to collect connection statistics, statistics should be enabled on individual connections. If the user only enables connections stats on SCM but does not set the stats enabled flag to true on the connection, the stats will not be collected, for that connection. Since there is no mechanism or warning to the user to have this enabled on the connections, CWM will not give appropriate error message.
When enabling statistics by selecting multiple nodes at a time in the SCM, enabling statistics on all the nodes will only work if all of the nodes have the same card types or cards of the same family.
In the PXM45 and PXM1E based MGX 8850 switches Summary Reports are only supported on the AXSM card.
Occasionally, when high connection counts are enabled on the SES, and statistics collection is enabled, the SES node is not getting synced up. The workaround is to disable statistics collection in the SES. Refer to CSCdw32076 for more information.
The statistics collection manager retrieves SPVC connection statistics data from BPX-SES nodes, however, only 15 minute collection buckets are supported on the SES.
The same limitation of only 15 minute collection buckets applies for MGX 8850 PXM45-based nodes with AXSM. There is no such limitation for AXSM-E.
Only 15 minute collection buckets are supported for PNNI statistics.
Peak statistics are not supported for PNNI statistics.
If the PXM45 release is less than 4.0(0.0) PNNI historical statistics can not be enabled.
The PXM45A card does not support PNNI statistics collection.
The BPX-SES does not support PNNI statistics collection.
The following statistics for SRM and SRM/E T3 lines.can be enabled on the switch, but are not supported by SCM:
•28 dsx3LCVCurrent
•29 dsx3LESCurrent
•30 dsx3LSESCurrent
•31 dsx3PCVCurrent
•32 dsx3PESCurrent
•33 dsx3PSESCurrent
•34 dsx3CCVCurrent
HP OpenView is supported on StandAlone Statistics Manager (SSM). SSM processes generate CWM traps.
Stats Parsing is only supported for the "statsdb" database on the SSM machine. Stats Parsing is not supported for the "stratacom" database on the SSM machine.
Wingz and Summary Reports are not supported on the SSM machine.
At least one CWM must be up and running, with the nodes synced up, for SSM to work normally. SSM uses the CWM server workstation to get traps while enabling statistics for cellbus-based service modules on MGX 8850 and PNNI statistics on BPX.
The WANDEST server must be up and running on the CWM server workstation. SSM gets the node, node_info, card, network, rsc_part, bis_object tables from the CWM server workstation using WANDEST.
If the statsmaster SSM/CWM is down or unreachable in a SCM Gateway setup, the statsmaster must be changed on the switch to a machine that is up. The statsmaster is needed for SCM statistics enabling/disabling.
In an SCM Gateway setup with statistics collection going on, after switchover the old statistics data is not moved to the new Primary CWM/SSM machine.
SSM does not receive traps on Node/Card Deletion, so statistics collection must be stopped and disabled before deleting a node/card on the network. Also SSM does not receive traps on Node/Card Add messages, so the WANDEST upload must be received before the node/card can be seen in SCM GUI on SSM.
In SSM, statistics collection must be stopped and restarted after changing the node name or changing the node FTP password.
Limitations for CWM to CWM Communication
The Secondary CWMs have to wait for the Primary CWM to finish syncing up with the network. Trap 28075 (svDatabaseInSync) is sent when the Primary CWM has finished syncing up with the network.
All the CWM workstations managing the same network must have seed nodes or gateway nodes that have IP addresses within the same network. All the CWM workstations should not all point to the same gateway node, but the gateway nodes they point to should be on the same network. The exception is that when using the Preferred Route feature, all the CWM workstations must all point to the same gateway node
The Configurator can be started on either the Primary CWM or the Secondary CWMs, but Add, Modify, or Delete operations using the Configurator can only be performed on the Primary CWM.
All the CWM to CWM Communication limitations listed above also apply to SCM Gateway.
Topology Limitations
In a single routing node PNNI network, the node is managed using the IP address specified in the network.conf file.
In the case of a PXM45-based MGX network, the PXM45-based MGX nodes are managed using the primary IP address. The primary IP address is specified using Option 8 in the cnfndparms CLI. Configure the trap IP with the primary IP. PXM1-based MGX nodes connected to PXM45-based MGX nodes are managed through the atm0 IP. If the atm0 is not set, then the LAN IP is used to manage the PXM1-based MGX nodes. Configure the trap IP accordingly.
In the /usr/users/svplus/config/CwmGs.conf file there is a flag named TOPO_SHOW_MAP. You can use this file to set up the flag to configure whether or not nodes and trunks are displayed in the topology display at CWM startup.
TOPO_SHOW_MAP 1 means when NWTopology opened, users can see nodes and trunks in the topology.
TOPO_SHOW_MAP 0 means when NWTopology opened, users cannot see nodes and trunks in the topology.
The CORBA callback functions between the server and GUI are one way asynchronous calls, sent with best-effort, no delivery-guaranteed. There is a possibility of dropping CORBA trunk status messages when the network is extremely busy.
Launching more than five client GUIs tied to the same CWM server managing a large network (seen with an 1800-node network) may result in a data overload condition that shuts down the sockets.between the client machines and the CWM server.
The workaround is to change the QOS parameter for the one way calls between the Topology application running on the CWM server and the client machines. You need to change the value of sync_scope_policy from SYNC_WITH_TRANSPORT to SYNC_WITHSERVER. To do this, BEFORE starting CWM core, while logged in as the "svplus" user, execute the following command:
itadmin variable modify -scope Cwm.Toposerver -type string -value SYNC_WITH_SERVER
policies:sync_scope_policy
This setting forces the caller to wait until the called resource has read the data, ensuring that the data is sent to the GUI and preventing flooding of the TCP layer.
CWM 12 Notes and Cautions
Due to the nature of asynchronous behavior of ILOG client and server interaction, CWM client requests may be sent before the CWM server is ready. In this case, the following error messages will be displayed on the workstation screen:
Ilb Error: Synchronous request to <unidentified actor failed by timeout>.
Note If the ILOG timeout situation persists for more than five minutes and the CWM workstation is not functioning normally, then a service call should be made.
Parameters displayed by the Network Browser that are not applicable to an element i.e.: a line or a trunk often contain the value -1. Treat this as the same as Not Applicable.
Issues with Firewalls and CWM 12
Firewalls set up on managed networks and PCs used as clients may affect the Desktop GUI. The following sections describe how to resolve these issues.
Firewall on PC:
Problem:
If a PC based firewall like BlackIce is used, the protection settings to enable incoming connections may need to be changed. In CWM 12.0.00, when running a client is running on a remote PC, the server opens new connections when sending node and network updates to the Desktop GUI. If the PC blocks all incoming calls, this will cause the topology map to not appear on the GUI.
Solutions:
Here are some suggested solutions to the problem. Please use any one of them.
Solution 1
Lower the protection level for incoming connections. In Black Ice, for example, the Protection Level should be set to "Cautious: block some unsolicited inbound traffic" instead of the more restrictive "Nervous: block most unsolicited inbound traffic".
Solution 2
If the firewall software allows, add CWM server machine as a trusted IP address and allow all traffic from the CWM host.
Solution 3
Limit ports used by CWM clients and servers for corba communication and open these ports on the firewall software. The following steps can be executed to set up the ports:
Step 1 Stop CWM core
Step 2 Stop Orbix processes using 'stoporbix2000' script
Step 3 Add the following line at the end of the /usr/users/svplus/orbix_domain/domains/cwm_<cwm-machine-name>_domain.cfg file on the CWM workstation:
policies:iiop:server_address_mode_policy:port_range = "5500:6000";
This will restrict the CWM processes to use ports between 5500 and 6000 for corba communication.
This range is enough for up to 20 clients connecting to the CWM simultaneously. If more than 20 clients will be connected CWM at one time, please increase the upper limit as follows:
30 simultaneous clients - 5500:6100
40 simultaneous clients - 5500:6200
50 simultaneous clients - 5500:6300
Step 4 Start CWM core.
Step 5 Configure the firewall to open the above ports in both directions (from CWM to the clients and vice versa). Other than these ports, the firewall also need to allow 3075 and 3094 ports for communication with the Orbix processes.
Note The above port range can start from any number as required, please note that the number of ports should remain the same as shown above. For example, the port range can be set to 9000:9500 for 20 clients and so on.
Firewall on LAN:
Problem:
If the network where CWM is located has a firewall configured to restrict traffic from both inside the LAN as well as from an outside PC the topology map will not show up in the Desktop GUI.
Solutions:
Here are some suggested solutions to the problem. Please use any one of them.
Solution 1
Use VPN tunneling for the remote PCs to connect to the CWM machines in the lab
Solution 2
Set up trusted IP addresses in the Firewall. Both CWM machines and the remote PC that are going to use CWM GUI need to be added as trusted IP addresses in the firewall configuration.
Solution 3
Limit ports used by CWM clients and servers for Orbix communication and open these ports on the firewall software. The following steps can be executed to setup the ports:
Step 1 Stop CWM core
Step 2 Stop Orbix processes using 'stoporbix2000' script
Step 3 Add the following line at the end of the /usr/users/svplus/orbix_domain/domains/cwm_<cwm-machine-name>_domain.cfg file on the CWM workstation:
policies:iiop:server_address_mode_policy:port_range = "5500:6000";
This will restrict the CWM processes to use ports between 5500 and 6000. This range is enough for up to 20 clients connecting to the CWM simultaneously. If more than 20 clients will be connected CWM at one time, please increase the upper limit as follows:
30 simultaneous clients - 5500:6100
40 simultaneous clients - 5500:6200
50 simultaneous clients - 5500:6300
Step 4 Start CWM core.
Step 5 Configure the firewall to open the above ports in both directions (from CWM to clients and vice versa). Other than these ports, the firewall also need to allow 3075 and 3094 ports for communication with the Orbix processes.
Note The above port range can start from any number as required, please note that the number of ports should remain the same as shown above. For example, the port range can be set to 9000:9500 for 20 clients and so on.
CWM 12.0.00 Server Installation or Upgrade to CWM 12.0.00
Note CWM software can be upgraded from 10.5.10 Patch 1, 10.5.10 Patch 3, 11.0.10 patch 1or 11.0.10 patch 2 (either Solaris 7 or Solaris 8)
The most current upgrade and installation information is found in the CWM Installation Guide for Solaris 8, Release 12 (OL-3837-01). A PDF copy of this document is on the CWM 12 Documentation CD. The following sections describe installation and upgrade procedures specific to CWM 12.0.00 patch 1.1.
CWM 12.0.00 Patch 1.1 Installation
Contents of this patch:
•CWM Server
12.0.00-P1a.tar.gz
12.0.00-P1b.tar.gz
InstallCWM12Patch1.csh
•Informix 9.21 UC7xh
ifxpatchuc7xh/informix921uc7xh.tar
ifxpatchuc7xh/InstallInformixPatch.csh
ifxpatchuc7xh/README
•CWM SNMP Agent
12.0.00-P1.agent.tar.gz
•CWM SSC (Standalone Statistics Collector)
12.0.00-P1.ssc.tar.gz
InstallSSC12Patch1.csh
•CWM SSM (Standalone Statistics Manager)
12.0.00-P1.ssm.tar.gz
InstallSSM12Patch1.csh
Installing the CWM Server Patch
Step 1 Login to the CWM workstation as user root
Step 2 Download or copy the compressed tar file and the installation script to the local directory, for example, /tmp
# cp 12.0.00-P1.agent.tar.gz /tmp
Step 3 Change to local directory that contains the compressed tar file and the installation script
Step 4 Decompress the compressed tar files
# gunzip 12.0.00-P1a.tar.gz
# gunzip 12.0.00-P1b.tar.gz
Step 5 Execute the InstallCWM12Patch1.csh script with both the 12.0.00-P1a.tar and 12.0.00-P1b.tar files as arguments to begin the install process by entering the following command:
# ./InstallCWM12Patch1.csh 12.0.00-P1a.tar 12.0.00-P1b.tar
Step 6 Exit from root
Installing the Informix UC7XH Patch
Note Informix Patch 921uc7xh should only be applied if the revision level of your Informix installation is lower than 9.21.UC7XH. You can check this by changing to the directory containing the installed Informix binaries and running the command "./onstat -V"
The process for upgrading to Informix Patch 921uc7xh consists of the following three operations:
•backing up the existing database
•installing the patch
•verifying and restoring your saved database after the informix patch installation in case of an Informix problem
Preparing to Install the Informix Patch (Backing Up the Existing Database)
Note It is advisable to do a backup of the database in case there is a problem with informix.
To do a backup of databases do the following:
Step 1 Find a location where there is enough space. Lets call it dbexport-location
Step 2 Do the following to export the databases
a. Log in as svplus
The system prompts you for the svplus password:
b. coldstart
c. Export stratacom database
# dbexport stratacom -o <dbexport-location>
d. Export scmdb database
# dbexport scmdb -o <dbexport-location>
e. Export statsdb database
# dbexport statsdb -o <dbexport-location>
Step 3 If you have a WANDEST server installed then export the WANDEST database:
# dbexport wandest -o <dbexport-location>
Step 4 Get the output of onstat -d
# onstat -d > <dbexport-location>/onstat.out
Installing the Informix Patch
Contents of the Informix UC7XH Patch
•Informix.patchUC7XH.Readme
•InstallInformixPatch.csh
• informix921uc7xh.tar
Step 1 Log in as svplus
The system prompts you for the svplus password:
After you enter the svplus password, the svplus (non-root) prompt displays:
If the CWM core is running, proceed with Step 2. If the core is already stopped, go to Step 5.
Step 2 Enter the CWM Main Menu by typing CWM at the prompt
Step 3 Stop the core by choosing Option 2.
Step 4 Type "X" to exit the CWM Main Menu.
Step 5 Download or copy the tar file and the InstallInformixPatch.csh script to a local directory.
For example, /tmp
Step 6 Change to the local directory that contains the tar file.
Step 7 Log in as root
The system prompts you for the root password:
After you enter the password, the root prompt displays:
Step 8 Execute the InstallInformixPatch.csh script. This script will untar the tar. Do not untar it separately.
# ./InstallInformixPatch.csh
Step 9 Exit from root
Verifying and Restoring Your Saved Database After the Informix Patch Installation
Do the following steps in case Informix did not come up online:
Note The output of onstat -d is in /usr/users/svplus/DBEports120/onstat.out for reference
Step 1 Become user root
Step 2 Go to the /usr/users/informix92/etc directory
# cd /usr/users/informix92/etc
Step 3 Do the following steps only if you have configured a separate raw partition for the Informix physical log
a. open onconfig file
b. Change the following line
to
c. Change the following line
to
d. Save the onconfig file and exit from the editor
Step 4 Go the /usr/users/svplus/scripts/Install directory
# cd /usr/users/svplus/scripts/Install
Step 5 Run the following commands in the order shown below:
Step 6 If you have the file AddPhyLog in /usr/users/svplus/scripts/Install then do the following steps:
Step 7 If you have the file dbaddchunk in /usr/users/svplus/scripts/Install then do the following steps:
Step 8 Exit from root
Step 9 Check if you have configured separate partition for datadbs using onstat -d command
Step 10 If there is a separate partition then do the following steps to import the database. If there is no separate partition for datadbs then go to step 11
a. # dbimport stratacom -d datadbs -i <dbexport-location>
b. # dbimport statsdb -d datadbs -i <dbexport-location>
c. # dbimport scmdb -d datadbs -i <dbexport-location>
Step 11 If there is no separate partition for datadbs then do the following:
a. # dbimport stratacom -i <dbexport-location>
b. # dbimport statsdb -i <dbexport-location>
c. # dbimport scmdb -i <dbexport-location>
Step 12 If you had WANDEST server before then
# dbimport wandest -i <dbexport-location>
Installing the CWM SNMP Agent (Service Agent) Patch:
Step 1 Login to the CWM workstation as user root
Step 2 Download or copy the compressed tar file and the installation script to the local directory, for example, /tmp
# cp 12.0.00-P1.agent.tar.gz /tmp
Step 3 Change to local directory that contains the compressed tar file and the installation script
Step 4 Decompress the compressed tar file by entering the following command:
# gunzip 12.0.00-P1.agent.tar.gz
Step 5 Untar the tar file from Step 4 by entering the following command:
# tar xvf 12.0.00-P1.agent.tar
Step 6 Exit from root.
Installing the SSC (Standalone Statistics Collector) Patch on the Standalone Statistics Collector Machine:
Note This patch installation is to be performed only if you are using the Standalone Statistics Collector machine and must be performed on that machine.
Step 1 Login to the SSC (Standalone Statistics Collector) workstation as user root
Step 2 Download or copy the compressed tar file and the installation script to the local directory, for example, /tmp
# cp 12.0.00-P1.ssc.tar.gz /tmp
Step 3 Change to local directory that contains the compressed tar file and the installation script
Step 4 Decompress the compressed tar file
# gunzip 12.0.00-P1.ssc.tar.gz
Step 5 Check for the file InstallSCC12Patch1.csh and begin the install process by entering the following command:
# ./InstallSSC12Patch1.csh 12.0.00-P1.ssc.tar
Step 6 Exit from root.
Installing the SSM (Standalone Statistics Manager) Patch on the Standalone Statistics Manager Machine:
Note This patch installation is to be performed only if you are using the Standalone Statistics Manager machine and must be performed on that machine.
Step 1 Login to the SSM (Standalone Statistics Manager) workstation as user root
Step 2 Download or copy the compressed tar file and the installation script to the local directory, for example, /tmp
# cp 12.0.00-P1.ssm.tar.gz /tmp
Step 3 Change to local directory that contains the compressed tar file and the installation script
Step 4 Decompress the compressed tar file
# gunzip 12.0.00-P1.ssm.tar.gz
Step 5 Check for the file InstallSCMSA11Patch1.csh and begin the install process by entering the following command:
# ./InstallSSM12Patch1.csh 12.0.00-P1.ssm.tar
Step 6 Exit from root.
WANDEST 2.4, Patch 1
If you have standalone WANDEST Server and Client workstations, follow the next sections to install the patches to your standalone workstations.
Contents of This Patch
•WANDEST Server
–wandest2.4-P1.wdserver.tar.gz
•WANDEST Client
–wandest2.4-P1.wdclient.tar.gz
Installing the WANDEST Server Patch:
Step 1 Login to the CWM workstation as user root
Step 2 Download or copy the compressed tar file and the InstallWDPatch1.csh file to a local directory, for example, /tmp
# cp wandest2.4-P1.wdserver.tar.gz /tmp
Step 3 Change to the local directory that contains the compressed tar file
Step 4 Decompress the compressed tar file by entering the following command:
# gunzip wandest2.4-P1.wdserver.tar.gz
Step 5 Execute the InstallWDPatch1.csh script with the tar file as argument by entering the following command:
# ./InstallWDPatch1.csh wandest2.4-P1.wdserver.tar
Step 6 Exit from root.
Installing the WANDEST Client Patch:
Step 1 Login to the WANDEST client workstation as user root
Step 2 Download or copy the compressed tar file to a local directory, for example, /tmp
# cp wandest2.4-P1.wdclient.tar.gz /tmp
Step 3 Change to the local directory that contains the compressed tar file
Step 4 Decompress the compressed tar file by entering the following command:
# gunzip wandest2.4-P1.wdclient.tar.gz
Step 5 Execute the InstallWDPatch1.csh script with the tar file as argument by entering the following command:
# tar xvf wandest2.4-P1.wdclient.tar
Step 6 Exit from root.
Evaluation Copy of CWM 12
The 90-day evaluation copy of CWM gives you the opportunity to try CWM for a 90-day period. It is not possible to upgrade an existing version of CWM with the evaluation version. You cannot apply patches downloaded from CCO to the 90-day evaluation copy of CWM. The evaluation version does not support Multiple Disk Configuration for Informix. The only other difference between the licensed version of CWM 12 and the 90-day evaluation version is the way the software is packaged. Here are the details for the 90-day evaluation package
The 90-day evaluation version of CWM comes with all the other applications like Service Agent, SCMSA, WANDEST Server and WANDEST Client
The 90-day evaluation version of CWM is packaged into the following four CDs:
•CWM Server on the first CD (no change from the licensed version of CWM 12)
•CWM Server Agent and SCMSA on the second CD (the directories are cdromAgent and cdromScmSa)
•CiscoView, WANDEST Server and WANDEST Client on the third CD (the directories are cdromCV, cdromWDServer, cdromWDClient)
•CWM documentation and Adobe Acrobat software on the fourth CD (no change from the licensed version of CWM 12)
All the packages have to be installed separately, just like the licensed version of CWM 12.
For the applications on the second and third CDs, you must change directory to a particular package directory and then follow the installation instructions for that particular package.
For example, the instructions for installing WANDEST are available in Chapter 5 of the WANDEST Installation and Reference, Release 2.4. The WANDEST Installation and Reference, Release 2.4 is available online at the following URL:
•http://www.cisco.com/univercd/cc/td/doc/product/wanbu/svplus/12/wandest/index.htm
In Step 3 of the WANDEST server installation process, change to the /cdrom/cdromWDserver directory before entering the ./installServer.sh command and then follow the remaining installation instructions in this section.
Evaluation Copy Limitations
You cannot apply patches downloaded from CCO to the 90-day evaluation copy of CWM.
It is not possible to upgrade an existing version of CWM with the evaluation version.
Note The 90-day evaluation period begins as soon as the evaluation copy is installed - not after the core is started. You can confirm how much time is left by choosing the About... option under the Help pulldown menu in the Topology GUI.
Important Configuration Notes
This section provides important information about configuration.
Naming Managed Nodes
Each node name of all the nodes managed by CWM must be unique.
Core File Management
Core files used to be created without unique names, and overwritten. Now core files are stored in the /usr/users/svplus/corefilesdir/ directory. Each is given a unique name in the format:
<process name>.<pid>.core.dump
C-Note/CWM Configuration
The CWM core must be started and core processes should be up before the Orbix cmldomain services for C-Note are started.
Add the IP address of the C-Note workstation to the /opt/ssng/config/CMLLogin/SnmpPublisher.xml file by entering the following command:
vi /opt/ssng/config/CMLLogin/SnmpPublisher.xml
The line you add should look like this:
<ipAddress>172.28.140.218</ipAddress>
You need to substitute the actual IP address of your C-Note workstation for the sample 172.28.140.218 address listed above).
Node Numbering for Release 9.4 IGX Feeder Nodes
When an IGX is added as a feeder to a SES/BPX or MGX node, it will have a default node number, this node number may not be unique within the network. If it is not unique then it needs to be modified to a unique node number by issuing the CLI command "rnmnd <x>" where x should be unique with respect to all other auto-route nodes. To find the other node numbers, use the CLI command "dspnds +n". Failing to do so, the CWM Databroker may have an incorrectly formed hybrid connection database, and the CWM GUI may show the connection as incomplete.
CWM Dedicated IP Ports
CWM 12 to Cisco WAN switch (outgoing): ports used in the switch
•udp: 161, snmp get/set
•udp: 2500, rtm
•udp: 69, tftp server
•tcp: 23, telnet
•tcp: 13, daytime
Cisco WAN switch to CWM 12 (incoming): ports used in CWM 12
•udp: 162, snmp trap
•tcp: 8888, HP OV topology daemon
•tcp: 9999, HP OV database daemon
Operations Support System (OSS) to CWM 12 (incoming): ports used in CWM 12
•udp: 8161, snmpAgent This port is configurable. Please refer to the Cisco WAN Manager SNMP Service Agent Guide for configuring this port to other than 8161
CWM12 (Internal) Process to Process Communication ports
•CWM processes' ports 9000 to 9011
•Web Services (Java Client) 1551
•CiscoView Web Server 1741
•Orbix ports 3075,3079,3094
CWM Dedicated User IDs
In order for CWM and the SSC and SSM applications to operate correctly, certain IDs must be available for use by the Informix database. The user IDs listed below should be reserved so that they are not taken by other (non-CWM) applications.
The following user IDs should be reserved for CWM installation:
• userids 271, 272
The following user IDs should be reserved for SSM installation:
• userids 270, 271, 272
The following user IDs should be reserved for SSC installation:
• userids 270, 271
The following user ID should be reserved for WANDEST client:
•userid 274
The impact when these userids are taken by other applications is that svplus/wandest/informix users will not get created and subsequent references to those userids will fail.
Security Profiles
The security profile and user profile are stored in the database as user_info and sec_profile tables. All CWM systems in the same domain will have the same data in the user_info and sec_profile table by ways of CWM to CWM communication.
The user_info and sec_profile tables will not get dropped when the coldstart command is executed during a cold start. These tables can only be dropped by executing the coldstart command with the "-F" option.
The Security Manager GUI can be started from NWTopology main window in the primary CWM system.
The CWM user to be added to the database has to be a valid UNIX user, when a user logs in to CWM desktop, user authentication against UNIX gets performed. The CWM user's password needs to match what's defined in the UNIX system.
CWM Database
After performing the creation of a new database by executing the coldstart script, if CWM is restarted (stop core and start core) before it is synchronized with the network, it will result in a database inconsistency. In this case, rerun the coldstart script to avoid database inconsistencies.
Note Do not use the SV+CreateDb tool for the above purpose.
When a Gateway node is upgraded or rebuilt, before CWM has synchronized up with the network, CWM must be cold-started (create CWM database and restart CWM). This is required to ensure CWM database consistency.
The user supplied network name can be up to 10 characters in length and should be alphanumeric characters only (no periods).
The asi_line table is populated with the 1-based port number and not the 0-based port number for IGX ports.
Ocassionally, a triggered resync (the automated running of the restoreallcnf command) may result in the CWM connection data being inconsistent with that on the switch. In this case, run a manual node resync to ensure that there are no inconsistancies between CWM connection data and the connection data on the switch.
Connection Manager Configuration
Configuration Parameters for Connection Manager Daemon (cmgrd)
•The file used is /usr/users/svplus/config/cmgrd.conf
•Any configuration parameter that is changed is in effect only if either the cmgrd process is killed or if not a kill -USR1 signal is sent to it. kill -USR1 signal will make cmgrd re-read the config file, it will not terminate the process and is the recommended way to make the configuration in effect.
The configuration parameters in this file are listed below:
•ATM_FR_OVERHEAD_FLAG: This can be set to ENABLE or DISABLE. The default is ENABLE. If Enabled, the frame relay bits per second to atm cells per second conversion will use a overhead factor of 1.44. This flag controls the conversion from frame relay to atm when the frame relay endpoint is one of the FRSM cards on Auto Route Feeder nodes. If enabled, the conversion is cells_ per_second = (bits_per_second +383 / 384) * 1.44.
If disabled, the conversion is cells_per_second = (bits_per_second + 383 / 384). The number 384 comes from 48 bytes in a cell multiplied by 8 bits in a byte.
•THROTTLE_NODE_LOCK_RETRY: Default is 1. This number configures the number of times cmgrd will retry in case of a SNMPCOMM Throttle error or a Database Lock error from switches. If no retry is needed this should be changed to 0.
•TIME_BETN_RETRY: Default is 3 seconds. This number in seconds is used only if THROTTLE_NODE_LOCK_RETRY is >= 1. This is the time that cmgrd waits internally before issuing the retry.
•SET_TIMEOUT: Default is 30000000 microseconds which is 30 seconds. This number in microseconds configures the time that snmpcomm waits for a SET response to a SET request from cmgrd to any Auto Route switch before it declares timeout.
•PNNI_SET_TIMEOUT: Default is 60000000 microseconds which is 60 seconds. This number in microseconds configures the time that snmpcomm waits for a SET response to a SET request from cmgrd to any PNNI switch before it declares timeout.
•MAX_REQUEST_TIME: Default is 300 seconds. This number in seconds specifies the time that cmgrd internally waits for a provisioning request to complete. If the provisioning request is not completed within that time and the user retries the request, the retried request will go through without giving the error "Outstanding request already exists".
•EGRESS_AUSM_MAPPING: This can be set to ENABLE or DISABLE. The default is ENABLE. If enabled, cmgrd will always map the following variables for AUSM on all platforms:
–Egress Service Rate from minimum of other end PCR and Local Port speed for non ABR connections; from minimum of other end MCR and Local Port speed for ABR connections.
–Egress PercentUtil from other end Percent Util.
If disabled, cmgrd will set the Egress Service Rate for AUSM on all platforms from the user specified value for Egress Service Rate. If the user does not specify it, the mapping as above will be done. Egress Percent Util will also follow the same rules except in case of AUSM on PXM1E-based MGX 8850/8830 where the Egress Percent Util will always be mapped irrespective of the flag value.
•PNNI_PER_UTIL_FLAG: This can be set to ENABLE or DISABLE. Default is ENABLE. If enabled, cmgrd will set PercentUtil on all PNNI endpoints as set by user.
If disabled, cmgrd will not set PercentUtil on any PNNI endpoint hence will be defaulted by the switch to 100%.
•AUSM_DISCARD_OPTION: This can be set to ENABLE or DISABLE. Default is DISABLE. If enabled, cmgrd will internally set ingressQDiscardOption for AUSM cards on all platforms to `frameDiscard' if FGCRA is enabled on the card and will set it to `clpHysterisis' if FGCRA is disabled on the card.
If disabled, cmgrd will not set ingressQDiscardOption parameter at all on the switch hence defaulted by switch always to `clpHysterisis'.
Setting up RPM Cards for Management by CiscoView from the Workstation
By default, the SNMP agent of an RPM is not enabled. To manage a device that contains an RPM, first ensure that the SNMP agent is enabled.
Useful commands are:
•Router# show snmp
•Router# config terminal
•Router(config) snmp-server community community string
•Router(config) exit
•Router# write memory
RPM cards must have SNMP configured to enable CiscoView to view configuration parameters, performance statistics, and events.
Configuring SNMP and SYSLOG
Each RPM card to be managed must have SNMP and SYSLOG configured or the management software cannot communicate with the node containing the RPM card.
Table 10 shows SNMP and SYSLOG router configuration commands. In this example, the network management system has an IP address of 10.1.1.1.
Table 10 SNMP and SYSLOG Router Configuration Commands
RPM Configuration Command Line
|
Description
|
logging 10.1.1.1
|
Enable SYSLOG messages to be sent to the network management system with IP address 10.1.1.1.
|
snmp-server community public RO
|
Enable SNMP; allow read-only SNMP access with community string public. On a PXM45/PXM1E-based MGX switch, you can set this string to any value, but it should agree with whatever's set on the PXM45. On a PXM1-based MGX switch, the RPM card's community string is not configurable, and has to be set to the default "POPEYE".
|
snmp-server community private RW
|
Allow read-write SNMP access with community string private. On a PXM45/PXM1E-based MGX switch, you can set this string to any value, but it should agree with whatever's set on the PXM45. On a PXM1-based MGX switch, the RPM card's community string is not configurable, and has to be set to the default "POPEYE".
|
snmp-server trap-source Channel0/2
|
Configure SNMP traps to be sent from the router with the IP address configured on interface Channel0/2. You should set this configuration parameter to the interface that is used by clients to connect to the RPM. The IP address associated with this interface will be used by the network management system for management.
|
snmp-server location RTP, NC
|
Set a textual description of the location of the router. This value is for informational purposes only.
|
snmp-server contact Network Administrator
|
Set a textual description of the contact for the router. This value is for informational purposes only.
|
snmp-server enable traps
|
Enable all SNMP traps. You can restrict which traps are enabled. See the Cisco IOS command reference for the snmp-server command for a complete list of traps that can be selectively enabled.
|
snmp-server host 10.1.1.1 public
|
Specify that all SNMP traps are to be sent to the network management system with IP address 10.1.1.1.
|
Note The SNMP and SYSLOG configuration process is extensively discussed in the command reference documentation for each release of the Cisco IOS software.
Configuring CiscoView for Large Networks
To improve CiscoView performance in managing large networks, change the value of "session.maxresidents" from 1024 to 3072 in the /opt/CSCOpx/objects/jrun/jsm-cw2000/server/jse/properties/session.properties file and change the value of "MaxClients" from 150 to 200 in the /opt/CSCOpx/objects/web/conf/http.conf file.
SNMP Service Agent Release Notes
This section provides release note information about the SNMP Service Agent.
Caution When you delete a port on the BXM using the port proxy, the BXM line is also deleted.
CWM SNMP Agent Configuration Notes
The snmpd.cnf configuration file for the MasterAgent is located in the /usr/users/svplus/config directory. This file can be viewed or modified only by root.
CWM SNMPV1 module uses community strings for authentication. The CWM SNMP module uses the community strings defined in the snmpd.cnf config file. By default, the snmpget community string is public, and the snmpset community string is configured as private.
The user can modify the community strings by modifying the third column in the following lines from snmpd.cnf config file:
Syntax:
snmpCommunityEntry t0000000 private private localSnmpID - - nonVolatile
snmpCommunityEntry t0000001 public public localSnmpID - - nonVolatile
Modifying the trap_filter.conf file allows the customer to remove the traps they are not interested in. In order to ensure that the trap_filter.conf is recognized correctly, when registering the SNMP Manager with the CWM SNMP Agent, the customer must explicitly set the bit-mask to a value that is NOT the default, but still specifies all the used groups today. Group 28 is unused. Set the bit-mask to FFFFFFFFEFFFFFFF instead of accepting the default.
Error Code Changes with Release 12
A new error table called cwmErrorTable has been introduced in CWM 12.0.00. This table replaces the following CWM 11 error tables:
•svCmpaErrorTable
•psaErrorTable
•cwmLineErrTable
•cardPaErrorTable
The Proxy ErrorTable error codes have been changed from CWM 11 to CWM 12. If you have been using are using compiler generated Macros, these error code changes do not affect operations. If you have been using hard coded values for error codes, refer to Table
Table 11 Release 11 to 12 Error Code Mapping
Release 11 Error Codes
|
Release 12 Error Codes
|
MIB objects:psaErrorEcode, psaErrorLastEcode
|
|
{
|
|
invalid-network(1)
|
No Change
|
invalid-node(2)
|
No Change
|
invalid-shelf(3)
|
No Change
|
invalid-release(4)
|
No Change
|
node-timeout(5)
|
No Change
|
node-busy(6)
|
No Change
|
no-snmpcomm(7)
|
No Change
|
snmpcomm-error(8)
|
No Change
|
node-error(9)
|
No Change
|
bad-value(10)
|
No Change
|
port-not-found(11)
|
No Change
|
slot-is-full(12)
|
No Change
|
no-emd(13)
|
No Change
|
emd-error(14)
|
No Change
|
rowstatus-missing(100)
|
(28)
|
port-exists(101)
|
(1101)
|
invalid-slot(102)
|
(15)
|
invalid-line(103)
|
(23)
|
line-is-full(104)
|
(1104)
|
multiple-ports(105)
|
(1105)
|
port-reserved(106)
|
(1106)
|
na-frsm(107)
|
(1107)
|
na-frp(108)
|
(1108)
|
no-up-down-frsm(109)
|
(1109)
|
invalid-set(110)
|
(165)
|
illegal-set(111)
|
(18)
|
partial-add(112)
|
(117)
|
na-ausm(113)
|
(1113)
|
na-iam(114)
|
(1114)
|
na-atm(115)
|
(1115)
|
na-bxm(116)
|
(1116)
|
na-hs1(117)
|
(1117)
|
na-cesm(118)
|
(1118)
|
invalid-port-index(119)
|
(1119)
|
unsupported-card(120)
|
(25)
|
lmi-var(121)
|
(1121)
|
na-ufm(122)
|
(1122)
|
na-frm(123)
|
(1123)
|
na-asi(124)
|
(1124)
|
na-card(125)
|
(26)
|
missing-mandatory(127)
|
(19)
|
na-frsm-hs1(128)
|
(1128)
|
invalid-line-number(129)
|
(24)
|
na-ufmU(130)
|
(1130)
|
protocol-group-not-found(131)
|
(1131)
|
na-frasm(132)
|
(1132)
|
na-uxm(133)
|
(1133)
|
link-station-not-found(134)
|
(1134)
|
channel-route-not-found(135)
|
(1135)
|
channel-not-found(136)
|
(1136)
|
card-not-found(137)
|
(27)
|
invalid-grp-type-index(138)
|
(1138)
|
invalid-grp-number-index(139)
|
(1139)
|
invalid-station-addr-index(140)
|
(1140)
|
db-access-error(141)
|
(207)
|
internal-error(142)
|
(208)
|
link-station-exists(143)
|
(1143)
|
max-link-station-count-reached(144)
|
(1144)
|
na-port-type(145)
|
(1145)
|
invalid-channel-dlci-index(146)
|
(1146)
|
channel-route-exists(147)
|
(1147)
|
max-channel-route-count-reached(148)
|
(1148)
|
protocol-group-exists(149)
|
(1149)
|
max-protocol-group-count-reached(150)
|
(1150)
|
invalid-config-type(151)
|
(1151)
|
invalid-card(152)
|
(1152)
|
na-bme(153)
|
(1153)
|
plcp-not-found(154)
|
(1154)
|
port-queue-not-found(155)
|
(1155)
|
na-vism(156)
|
(1156)
|
mgcres-already-exists (157)
|
(1157)
|
mgcres-not-found(158)
|
(1158)
|
mgcres-bad-value (159)
|
(1159)
|
mgc-already-exists (160)
|
(1160)
|
mgc-not-found (161)
|
(1161)
|
mgc-not-exist (162)
|
(1162)
|
mg-cntlr-not-found(163)
|
(1163)
|
mgc-bad-value (164)
|
(1164)
|
xgcp-peer-not-found(165)
|
(1165)
|
srcp-peer-not-found (166)
|
(1166)
|
mgc-protocol-not-found (167)
|
(1167)
|
mgcp-not-exist (168)
|
(1168)
|
mgcp-already-exists(169)
|
(1169)
|
mg-sup-prtcl-not-found (170)
|
(1170)
|
mgc-endpt-exists (171)
|
(1171)
|
vism-endpt-exists (172)
|
(1172)
|
vism-endpt-not-found(173)
|
(1173)
|
vism-endpt-not-exist(174)
|
(1174)
|
vism-crossconnect-exists (175)
|
(1175)
|
vism-lapd-not-found(176)
|
(1176)
|
vism-lapd-exists(177)
|
(1177)
|
line-not-enabled(178)
|
(1178)
|
ds0-already-used(179)
|
(1179)
|
rudp-session-not-found(180)
|
(1180)
|
pnni-nodeId-not-found(181)
|
(1185)
|
no-error-entry(500)
|
(97)
|
not-applicable(501)
|
(98)
|
invalid-flushall(502)
|
(99)
|
invalid-ipaddress(503)
|
(1181)
|
invalid-subnetmask(504)
|
(1182)
|
}
|
|
MIB objects:cwmLineErrEcode, cwmLineErrLastErrCode
|
|
{
|
|
invalid-network(1)
|
No Change
|
invalid-node(2)
|
No Change
|
invalid-shelf(3)
|
No Change
|
invalid-release(4)
|
No Change
|
node-timeout(5)
|
No Change
|
node-busy(6)
|
No Change
|
no-snmpcomm(7)
|
No Change
|
snmpcomm-error(8)
|
No Change
|
node-error(9)
|
No Change
|
bad-value(10)
|
No Change
|
port-not-found(11)
|
No Change
|
slot-is-full(12)
|
No Change
|
no-emd(13)
|
No Change
|
emd-error(14)
|
No Change
|
rowstatus-missing(100)
|
(28)
|
port-exists(101)
|
(1101)
|
invalid-slot(102)
|
(15)
|
invalid-line(103)
|
(23)
|
line-is-full(104)
|
(1104)
|
multiple-ports(105)
|
(1105)
|
port-reserved(106)
|
(1106)
|
na-frsm(107)
|
(1107)
|
na-frp(108)
|
(1108)
|
no-up-down-frsm(109)
|
(1109)
|
invalid-set(110)
|
(165)
|
illegal-set(111)
|
(18)
|
partial-add(112)
|
(117)
|
na-ausm(113)
|
(1113)
|
na-iam(114)
|
(1114)
|
na-atm(115)
|
(1115)
|
na-bxm(116)
|
(1116)
|
na-hs1(117)
|
(1117)
|
na-cesm(118)
|
(1118)
|
invalid-port-index(119)
|
(1119)
|
unsupported-card(120)
|
(25)
|
lmi-var(121)
|
(1121)
|
na-ufm(122)
|
(1122)
|
na-frm(123)
|
(1123)
|
na-asi(124)
|
(1124)
|
na-card(125)
|
(26)
|
missing-mandatory(127)
|
(19)
|
na-frsm-hs1(128)
|
(1128)
|
invalid-line-number(129)
|
(24)
|
na-ufmU(130)
|
(1130)
|
protocol-group-not-found(131)
|
(1131)
|
na-frasm(132)
|
(1132)
|
na-uxm(133)
|
(1133)
|
link-station-not-found(134)
|
(1134)
|
channel-route-not-found(135)
|
(1135)
|
channel-not-found(136)
|
(1136)
|
card-not-found(137)
|
(27)
|
invalid-grp-type-index(138)
|
(1138)
|
invalid-grp-number-index(139)
|
(1139)
|
invalid-station-addr-index(140)
|
(1140)
|
db-access-error(141)
|
(207)
|
internal-error(142)
|
(208)
|
link-station-exists(143)
|
(1143)
|
max-link-station-count-reached(144)
|
(1144)
|
na-port-type(145)
|
(1145)
|
invalid-channel-dlci-index(146)
|
(1146)
|
channel-route-exists(147)
|
(1147)
|
max-channel-route-count-reached(148)
|
(1148)
|
protocol-group-exists(149)
|
(1149)
|
max-protocol-group-count-reached(150)
|
(1150)
|
invalid-config-type(151)
|
(1151)
|
invalid-card(152)
|
(1152)
|
na-bme(153)
|
(1153)
|
plcp-not-found(154)
|
(1154)
|
port-queue-not-found(155)
|
(1155)
|
na-vism(156)
|
(1156)
|
mgcres-already-exists (157)
|
(1157)
|
mgcres-not-found(158)
|
(1158)
|
mgcres-bad-value (159)
|
(1159)
|
mgc-already-exists (160)
|
(1160)
|
mgc-not-found (161)
|
(1161)
|
mgc-not-exist (162)
|
(1162)
|
mg-cntlr-not-found(163)
|
(1163)
|
mgc-bad-value (164)
|
(1164)
|
xgcp-peer-not-found(165)
|
(1165)
|
srcp-peer-not-found (166)
|
(1166)
|
mgc-protocol-not-found (167)
|
(1167)
|
mgcp-not-exist (168)
|
(1168)
|
mgcp-already-exists(169)
|
(1169)
|
mg-sup-prtcl-not-found (170)
|
(1170)
|
mgc-endpt-exists (171)
|
(1171)
|
vism-endpt-exists (172)
|
(1172)
|
vism-endpt-not-found(173)
|
(1173)
|
vism-endpt-not-exist(174)
|
(1174)
|
vism-crossconnect-exists (175)
|
(1175)
|
vism-lapd-not-found(176)
|
(1176)
|
vism-lapd-exists(177)
|
(1177)
|
line-not-enabled(178)
|
(1178)
|
ds0-already-used(179)
|
(1179)
|
rudp-session-not-found(180)
|
(1180)
|
no-error-entry(500)
|
(97)
|
not-applicable(501)
|
(98)
|
invalid-flushall(502)
|
(99)
|
invalid-ipaddress(503)
|
(1181)
|
invalid-subnetmask(504)
|
(1182)
|
invalid-ima-group(505)
|
(1183)
|
invalid-ima-link(506)
|
(1184)
|
}
|
|
MIB objects:cardPaErrorEcode, cardPaErrorLastEcode
|
|
{
|
|
invalid-network(1)
|
No Change
|
invalid-node(2)
|
No Change
|
invalid-shelf(3)
|
No Change
|
invalid-release(4)
|
No Change
|
node-timeout(5)
|
No Change
|
node-busy(6)
|
No Change
|
no-snmpcomm(7)
|
No Change
|
snmpcomm-error(8)
|
No Change
|
node-error(9)
|
No Change
|
bad-value(10)
|
No Change
|
port-not-found(11)
|
No Change
|
slot-is-full(12)
|
No Change
|
slot-not-found(13)
|
(20)
|
invalid-slot(14)
|
(15)
|
no-error-entry(15)
|
(97)
|
not-applicable(16)
|
(98)
|
invalid-flushall(17)
|
(99)
|
illegal-set(18)
|
No Change
|
missing-mandatory(19)
|
No Change
|
mandatory-param(20)
|
(164)
|
db-access-error(21)
|
(207)
|
internal-error(22)
|
(208)
|
invalid-line(23)
|
No Change
|
invalid-line-number(24)
|
No Change
|
unsupported-card(25)
|
No Change
|
na-card(26)
|
No Change
|
card-not-found(27)
|
No Change
|
rowstatus-missing(28)
|
No Change
|
partial-add(29)
|
(117)
|
invalid-set(30)
|
(165)
|
na-vism(3001)
|
(1156)
|
mgcres-already-exists (3002)
|
(1157)
|
mgcres-not-found(3003)
|
(1158)
|
mgcres-bad-value (3004)
|
(1159)
|
mgc-already-exists (3005)
|
(1160)
|
mgc-not-found (3006)
|
(1161)
|
mgc-not-exist (3007)
|
(1162)
|
mg-cntlr-not-found(3008)
|
(1163)
|
mgc-bad-value (3009)
|
(1164)
|
xgcp-peer-not-found(3010)
|
(1165)
|
srcp-peer-not-found (3011)
|
(1166)
|
mgc-protocol-not-found (3012)
|
(1167)
|
mgcp-not-exist (3013)
|
(1168)
|
mgcp-already-exists(3014)
|
(1169)
|
mg-sup-prtcl-not-found (3015)
|
(1170)
|
mgc-endpt-exists (3016)
|
(1171)
|
vism-endpt-exists (3017)
|
(1172)
|
vism-endpt-not-found(3018)
|
(1173)
|
vism-endpt-not-exist(3019)
|
(1174)
|
vism-crossconnect-exists (3020)
|
(1175)
|
Caveats
This section lists known and resolved anomalies in the Cisco WAN Manager 12.0.00 software and other associated software. The resolved anomalies include all anomalies resolved in CWM 11.0.10 Patch 2 and below, with the exception of CSCea53665, which is listed in the Known Anomalies section below.
Known Anomalies in CWM 12.0.00 Patch 1.1 Software
This section lists known anomalies in CWM Release 12.0.00 patch 1.1 software as of 08/08/03.
Table 12 Known Anomalies in CWM 12.0.00, Patch 1.1 Software
Bug ID
|
Description
|
CSCdz55698
|
Headline:
Topology - Display Trunk shows PNNI Protocol instead of Feeder
Symptom:
In the Network Topology GUI, when you right click on a feeder trunk connected to a PNNI Routing node and choose Display Trunk, the protocol field shows PNNI instead of LMI.
Conditions:
Protocol will always show as PNNI instead of LMI.
Workaround:
Unknown
|
CSCea53665
|
Symptom:
Node resync is not clearing out the port aggregate status when line is not in alarm
Conditions:
Always
Workaround:
None
|
CSCea62490
|
Headline:
CWM shows 4294967295 for Max Cost parameter but -1 is on switch
Symptom:
Large number 4294967295 (4 Gig) showed in CMGUI for SPVC ATM-ATM Max Cost but switch CLI shows -1.
Conditions:
When CMGUI is used for viewing connection for SPVC or Hybrid.
Workaround:
Use Connection Proxy.
|
CSCea71339
|
Headline:
Swap space problem on machine, creates process reinitialization
Symptom:
All swap space and memory is used severely affecting the CWM processes
Conditions:
Less swap space on the machine.
Workaround:
Either add more swap to the machine.
or
Reduce the number of BUFFERS in onconfig for Informix and restart Informix and CWM. This will slow down the database performance but CWM processes will not re initialize.
|
CSCeb05223
|
Headline:
GUI connection was lost: corba disconnected
Symptom:
Topo GUI disconnected. The GUI showed the exit confirmation dialog that is normally shown when core is stopped. However, core was not stopped.
Conditions:
The GUI and server have a lease mechanism that is used to determine if there has been a disconnect. This lease mechanism does periodic pings to ensure the other side is still alive. When systems/networks get very busy, this lease mechanism can expire, even though the other side is still alive. To prevent false disconnects, the GUI will retry 5 times, waiting 5 seconds between each try before it gives up and determines the server really is dead. Since there are several corba servers that are monitored with this lease mechanism (CwmGs, cmsvr, scmcontrol, watchdog, toposerver, etc), is likely that lease expired and the client was unable to rebind in 5 retries.
Workaround:
There are no side effects of a GUI exiting this way. The user/application count in Admin GUI will still be correct. The workaround is just to restart the GUI that was exited.
|
CSCeb28413
|
Headline:
Cannot use the SNMP agent to create ABR.FS PVC on UXM-T3 with policing on and PCR < 50.
Symptom:
Cannot use the SNMP agent to create ABR.FS PVC on UXM-T3 with Policing ON and PCR < 50
Conditions:
Unknown
Workaround:
Use CM GUI to add the connection
|
CSCeb28448
|
Headline:
EFCI value not set properly during creation of ATM PVC on BXM,AUSM.
Symptom:
EFCI value not set properly during creation of ATM PVC on BXM and AUSM
Conditions:
BXM T3 card
AUSM 8E1 card on MGX 8220
Workaround:
n/a
Further Problem Description:
CWM Service MIB is normalized across all platforms. BPX/IGX accepts EFCI Queue size in percentage (atmEndptEfciQSize), whereas AUSM accepts EFCI Queue size as absolute value (ingrQEfciThresh, as well as ingrQDepth). This is the reason cmgrd applies CONVERT_PERCENTAGE_TO_ABS while setting this value to non BPX/IGX switches and EM applies CONVERT_ABS_TO_PERCENTAGE while entering this value in CWM DB.
For e.g, if the user sets values as follows for an AXIS AUSM card, ingrQEfciThresh: 1 ingrQDepth: 1 the absolute value set on the switch will be 0 for ingrQEfciThresh
per - ingrQEfciThresh in percentage value base - ingrQDepth in cells abs - ingrQEfciThresh in absolute units (cells) (as set in switch)
CONVERT_PERCENTAGE_TO_ABS(per, base) (((per * base * 1.0) / 100.0) + 0.5) CONVERT_ABS_TO_PERCENTAGE(abs, base) ((((abs * 1.0) / (base * 1.0)) * 100.0) + 0.5)
|
CSCeb28467
|
Headline:
Invalid checking of ADTF value on AUSM of ABR.FS connection
Symptom:
Invalid checking of ADTF value on AUSM of ABR.FS connection
Conditions:
•BXM T3 card
•AUSM 8E1 card on MGX 8220
Workaround:
n/a
|
CSCeb28733
|
Headline:
Deletion of CE-CE fails.
Symptom:
CE-CE connection deletion fails with msg, when CE endpoints are on MGX 8220 node [Wrong cesmChanNum value]
Conditions:
CE-CE Connection deletion on MGX 8220 platform
Workaround:
Delete the connection using switch CLI
Further Problem Description:
l_subchnl_2 and r_subchnl_2 populated in the user_connection table should be the channel numbers of the connection in switch CLI, which is the l_vci value populated in the cesm_connection table. In this case the l_subchnl_2 and r_subchnl_2 are populated incorrectly resulting in connection query from DB to fail and ultimately connection deletion to fail.
|
CSCeb29621
|
Headline:
Channel Trap Upload sets incorrect Valid Flag for cwaChanSCR for CBR
Symptom:
SNMP GET for atmEndPointSCRZeroPlus1 is 0 for non-applicable conn subtypes
Conditions:
MGX8850 rel 4.0 switches
Workaround:
Unknown
|
CSCeb45240
|
Headline:
Core will not come up if watchdog is in the process table
Symptom:
Core won't come up if watchdog in process table
Conditions:
Any watchdog process activities present prior to starting core on SCM
Workaround:
Kill non-core watchdog processes. Stop or kill all processes tailing/vi'ing/etc anything with watchdog in it.
|
CSCeb55958
|
Headline:
Statistics can not be enabled using SCM Proxy if redundancy is setup
Symptom:
Can not enable statistics using SCM Proxy
Conditions:
Enabling statistics using the SCM Proxy while the logical slot is not active if redundancy is setup.
Workaround:
Enable the statistics through the SCM GUI.
|
CSCeb57258
|
Headline:
duplicate node ip addresses cause duplicate node_info entries
Symptom:
Nodes with duplicate IP addresses cause duplicate entries in the node_info table and also cause some nodes not to get discovered.
Conditions:
This can happen if the network has nodes with duplicate lan or atm ip addresses.
Workaround:
Configure unique ip addresses for all the nodes in the network. If the lan interface for a node is not used then configure the ip as 0.0.0.0
|
CSCeb61691
|
Headline:
TFTP Timeouts enabling statistics on BPX/IGX nodes.
Symptom:
TFTP exception [%TftpException-3-RECVFROM_Failed: <recvfrom>Failed.] caught in [ScmStatEnabler_idl::enableStat] when enabling a large amount of stats on a BPX/IGX node.
Conditions:
When enabling on a node where TFTPing the file manually takes a long time (more than 120 seconds).
Workaround:
None.
|
CSCeb63246
|
Headline:
HPOV trap severities need to be in sync with the switch trap severities
Symptom:
For some of the MGX2/MGX1 traps, the severities shown in HPOV event browser are not the same as that sent by the switch.
Conditions:
None
Workaround:
Modify the /usr/users/svplus/OV/conf/C/StrataCom_trapd.conf file to have the desired severity.
|
CSCeb64098
|
Headline:
topod core dumped
Symptom:
Topod re initialized.
Conditions:
This may happen when nodes are added/deleted multiple times from the configurator,
Workaround:
None
Further Problem Description:
Topod gets respawned by watchdog. It recovers all the data from the other processes.
|
CSCeb64787
|
Headline:
7 more stats id need to be supported for SRME/B
Symptom:
The following 7 Stat Id's are not shown in SCM GUI for SRM card types:
B3ZS Line Code Violations 28
Line Severely Errored Seconds 30
P-bit Line Parity Errors 31
Errored Seconds - Parity 32
Severely Errored Seconds - Parity 33
C-bit Parity Code Violations 34
Conditions:
When using SCM for enabling all SRM card type. There are 7 stats IDs missing from the GUI.
Workaround:
Enable the missing 7 stats on the CESM or FRSM. The stats are applied for the DS3 line sub-object across all of the CESM/FRSM and SRM cards in the node. The stat file will contain the 7 stats and the SCM Parser will insert these into the Database.
|
CSCeb65351
|
Headline:
Incorrect pnport shown in display trunks for a routing node with IGX feeder
Symptom:
The display trunks dialog box in the NETopology GUI, shows incorrect trunk information for the feeder trunk between an IGX feeder node and an MGX8830 routing node
Conditions:
This might happen if the network has a large number of PNNI nodes and very few auto route nodes and the /usr/users/svplus/config/network.conf file has an auto route gateway specified for this network.
Workaround:
None
|
CSCeb66471
|
Headline:
Some MGX2 nodes did not syncup after coldstart
Symptom:
Some MGX2 nodes were in mode 4
Condition:
The bandwidth available between CWM station and the network was not enough. This results in large number of errors on the network (collisions etc) and as a result FTPs become extremely slow.
Workaround:
Increase bandwidth between CWM and network. Also manual resync can be done on these nodes to get them in sync.
|
CSCeb67281
|
Headline:
updateftpinfo does not update timestamp in cwm_info table
Symptom:
The updateftpinfo script does not update timestamp in DB cwm_info table
Conditions:
Noticed after running updateftpinfo script after code updates
Workaround:
unknown
|
CSCeb68381
|
Headline:
Upper level alarm in atm-conn table for axsm-xg conns
Symptom:
ok connection shown as failed
Conditions:
upper level alarm is present on one end point in atm_connection table for axsm-xg
Workaround:
resync
|
CSCeb68663
|
Headline:
SSM doesn't have primary CWM as host after core is started
Symptom:
CWM host name is not updated on SSM after the core was started on SSM.
Conditions:
CWM Gateway switchover happened on CWM machines during the time when SSM core was down.
Workaround:
Update the host name manually using the command updatescminfo <cwm-host-name>
|
CSCeb69457
|
Headline:
SCM GUI grays out when tried to click on a SSC/Ctrlr in monitoring view
Symptom:
SCM GUI grays out when tried to click on a SSC/Ctrlr in monitoring view. The GUI shows up after a few minutes (5 to 15 mins).
Conditions:
When LAN cable is pulled out in the other SSC. When one of the SSC LAN connection is pulled and the user clicks on the SCM GUI to perform operations on the other SSCs.
Workaround:
The workaround is to either wait for the GUI to display (5 to 15 mins)
or
Plug the LAN cable back into the SSC that was plugged out.
|
CSCeb70993
|
Headline:
linktopoc core dump
Symptom:
linktopoc core dump
Conditions:
This may happen if the network being managed contains 3810/3600 routers connected to BPX/IGX nodes using LMI protocol and SNMP times out with the node(s).
Workaround:
None
|
CSCeb71268
|
Headline:
ooemc core dump after resetcd
Symptom:
ooemc core dump
Conditions:
When XM_60 card is removed and inserted back with in 5 minute but card becomes active after 5 minutes of removal.
Workaround:
None
|
CSCeb73034
|
Headline:
failed to update status in cesm_connection table for line fail traps
Symptom:
When line failure trap received on CESM card, all the conns still in active state from CWM GUI.
Conditions:
On MGX1 node, and CESM card. When line status changed either from no alarm to alarm, or from alarm to no alarm.
Workaround:
None.
|
CSCeb74413
|
Headline:
Multiple webserver core dumps
Symptom:
Multiple webserver core dumps
Conditions:
unknown
Workaround:
unknown
|
CSCeb75307
|
Headline:
scm/ssm versions in GUI help and ~svplus/etc are not updated
Symptom:
ssm.version and date files not updated and SCM GUI help brings up CWM version
Conditions:
Running SCM 12.0.00-P1 version.
Workaround:
N/A.
|
CSCeb75495
|
Headline:
Connections display as ok when card is removed.
Symptom:
Configuration is not being removed from DB when card is pulled out
Conditions:
Card is removed and switchcc or resetsys was done more than once.
Workaround:
None.
|
CSCeb76329
|
Headline:
Some MGX8850R2 nodes are in mode -1 for a long time after starting core
Symptom:
Some MGX8850R2 nodes remain in mode -1
Conditions:
This defect occurs when several frequent SNMP timeouts delay the discovery process in a large network (~30 MGX 8850 routing nodes).
Workaround:
None.
|
CSCeb77442
|
Headline:
remote %util from AR segment not set correctly
Symptom:
AR segment %util is not set correctly
Conditions:
Problem seen in user_connection table perc_util after going to 12.0.00-P1. This problem was only seen once and resolved itself after a day.
Workaround:
Unknown.
Further Problem Description:
Coldstart could be used to recover if waiting is unacceptable. Warmstart will have no effect.
|
CSCeb77518
|
Headline:
emd, emc & ooemc processes did not spawn for 30mins after starting core
Symptom:
emd, emc & ooemc processes did not spawn for 30 mins. after starting core
Condition:
start CWM core
Workaround:
Unknown.
|
CSCeb77950
|
Headline:
2 segment ATM-ATM hybrid connection in ERROR state
Symptom:
2 segment ATM-ATM hybrid connection in "ERROR" state
Conditions:
Immediately after adding connection
Workaround:
Unknown.
|
CSCeb79573
|
Headline:
Conn -trace is failing from CESM endpoints to other MGX endpoints
Symptom:
Connection Trace is failing for CESM: MGX 8950 node to other endpoints
Condition:
When the CESM ports are structured ports and there is more than 1 structured port on a line, the Connection Trace will not succeed.
Workaround:
None.
|
CSCeb80267
|
Headline:
EMC re initializes after port status trap with line=0
Symptom:
EMC re initializes intermittently
Conditions:
When portstatus traps received from MGX 8220 with line number=0
Workaround:
EMC is respawned by watchdog on CWM
|
CSCeb80899
|
Headline:
Parser puts incorrect values for 64-bit counters in some cases.
Symptom:
Stat counter values are incorrect for non-zero 64-bit counter values when reading using the statsreader tool or in the database
Conditions:
This is for 64-bit counters (AXSM-XG) and if the counter value exceeds 4 bytes (i.e.) more than half.
Workaround:
None.
|
CSCeb81526
|
Headline:
ooemc coredump when card removed/inserted multiple times
Symptom:
ooemc core dump
Conditions:
When multiple resetcd commands are done on card and it takes more than 5 minutes for the card to become active
Workaround:
None
|
CSCeb81600
|
Headline:
Connections deleted on one CWM is shown as incomplete in another CWM
Symptom:
Connections deleted on one CWM is shown as incomplete in another CWM.
Condition:
Deleted 524 connections on AXSM-XG-OC48 card in MGX8950 node through proxy
Workaround:
Unknown.
|
CSCeb85322
|
Headline:
process.conf is incorrect on SSC machine
Symptom:
1. If you have SCMGateway setup between 2 SSM machines (SSM1 as P, SSM2 as S), and you have at least 1 SSC machine connected switchover happened between the SSM machines (so now SSM1 is S and SSM2 is P), then forwarding of files does not happen to the new primary (SSM2) but still to the old primary(SSM1)
2. If you have SCMGateway setup between 2 SSM machines (SSM1 as Primary, SSM2 as Secondary), and you are using at least 1 SSC machine started collection with SSM1 as Primary Collector and SSC machine (or machines) as Secondary Collector (and Tertiary Collector), when switchover happened between the SSM machines (so now SSM1 is Secondary and SSM2 is Primary) then you could end up with duplicate collection
Conditions:
Please see the 2 examples in the Symptom description above.
Workaround:
Stop core on the SSC machines and replace the process.conf with the following
snmpcomm on off . snmpcomm -s
scmcollsvr on on . scmcollsvr -s
Further Problem Description:
This is because the process.conf file on the SSC machine is not correct in the patch.
|
CSCin50334
|
Headline:
NWBrowser: Didn't get updated with newly added AUSM line/port on 8250.
Symptom:
NWBrowser doesn't show newly added AUSM line and port on 8250.
Conditions:
Added through CLI -> Did Node Resync --> Database got updated properly.
Workaround:
Unknown.
|
CSCin51142
|
Headline:
PCR value in CM GUI not ok for AXSM-XG-OC192 SPVC conns with high PCR
Symptom:
PCR value is incorrect for AXSM-XG OC192 SPVC connections with high PCR value.
Condition:
Add SPVC connection between AXSM-XG OC192 ports with 8 digit PCR value, the value in the database as well as what is displayed by the Connection Mgmt. GUI is incorrect.
Workaround:
Unknown.
|
Anomalies Resolved in CWM 12.0.00 Patch 1.1 Software
Table 13 lists internally found Severity 1 through 2 anomalies and externally found Severity 1 through 3 anomalies as of 08/08/03 that were resolved in CWM 12.0.00, Patch 1.1 software.
Table 13 Anomalies Resolved in 12.0.00, Patch 1.1
Bug ID
|
Description
|
CSCdt68502
|
Nodal community strings not working for svNodeEntry objects
|
CSCdx86279
|
Service affecting alarm creation traps not displayed
|
CSCdy86632
|
Network Browser GUI does not startup after installing a new patch
|
CSCdz76898
|
Node Delete using Configurator PER 7144
|
CSCea03375
|
XCNFILMI trap id 50915 is missing from trapd.conf file on MGX 8220
|
CSCea05999
|
Connections are ok on the switches failed on CM
|
CSCea14193
|
Incorrect display of link info for AXSM-XG in NW Topo
|
CSCea20044
|
scmcollection server coredumped - SSC registration to SSM
|
CSCea26062
|
dual node entries for mgx 8850
|
CSCea40817
|
Incorrect resulting PVC numbers in Summary Report
|
CSCea45757
|
CWM needs to set ICR irrespective of VSVD; ICR can be asymmetric for DAX conns
|
CSCea46616
|
scmctrlrsvr is restarted by watchdog
|
CSCea57681
|
Wandest client doesnt work in ksh environment
|
CSCea59868
|
After clrsrmcnf lines are missing from DB, card resync in not happening
|
CSCea59886
|
StatsAger is not able to keep up, when DB insertion rate is high
|
CSCea62404
|
SecMgr: Reset followed by Create failed when creating new profile
|
CSCea62496
|
SNMP GET of scAtmPortTable.svAtmPortOperState fails for UXM ports.
|
CSCea62611
|
need process to remove old ~svplus/tmp config files
|
CSCea63071
|
ooemc cores filling disk, MGX 8850 fail sync
|
CSCea63828
|
MGX 8230 feeders stays in mode -1 after Delete then add feeder again
|
CSCea64528
|
unreachable feeder shown as reachable
|
CSCea65131
|
SCT declares complete sync up without syncing up with some nodes
|
CSCea65793
|
User information not shown until hit Enter with MGX8220
|
CSCea66889
|
one MGX8850R2 node is in mode 4- config file got corrupted
|
CSCea67257
|
connection is shown as Ok on one machine fail on other and switch
|
CSCea68557
|
Corba ping_server utility on wandest client box
|
CSCea68830
|
FeederTrunk doesnt reflect alarm when AXSM card is pulled/reset
|
CSCea70661
|
SCR for middle-segment not set correctly for foresight conns
|
CSCea70852
|
CWMGateway cant connect to other machines in domain
|
CSCea71081
|
xdbroker re initializes
|
CSCea72297
|
emc core dump on PLCP processing
|
CSCea73714
|
CWM should return a consistent unit of measurement for svConnTestResult
|
CSCea75459
|
Bundled MIBs should be removed, reviewed
|
CSCea77654
|
ooemc cores on machine, ooemc PID taking large CPU time
|
CSCea78724
|
java re initializes on CWM machines
|
CSCea79990
|
IGX Feeder Trunk alarm shows as unreachable intermittently
|
CSCea80031
|
nodeinfocfg coredump
|
CSCea80228
|
XLMI link is not getting deleted when delport is done on BPX
|
CSCea80549
|
swap space problem on machine, creates process reinitialization
|
CSCea80629
|
Bulk deletion and readdition of traps not handled
|
CSCea80781
|
Stats files collected with null dimension from MGX and core dumped
|
CSCea82069
|
XLMI link is not discovered once it is deleted an re-added on AXSM
|
CSCea82091
|
scmcollsvr coredump - getservbyname failure
|
CSCea83896
|
Return null string for N/A svConnPrefRouteDesc
|
CSCea84134
|
Database error on SSM console
|
CSCea85646
|
Unknown Service Type Enum error in CMGUI XPVC mod attempt
|
CSCea85711
|
Incorrect connsubtype in userconn table for PVC VBR3NRT Connection
|
CSCea85749
|
SNMP walk on cwmPrefRouteSrcNode fails to fetch all pref routes on node
|
CSCea85897
|
conn descriptor is not shown if added for non atm as local end point
|
CSCea86967
|
ILMITopoc coredumped.
|
CSCea87005
|
Cant login after incorrect login
|
CSCea87012
|
ooemc created duplicate 0 byte config file
|
CSCea87848
|
Pref Route Modification Req produces out of range errors
|
CSCea88408
|
ooemc not processing traps
|
CSCea88616
|
orbix problems upon start core
|
CSCea89605
|
CWM Client not able to resolve to CWM server in a NAT Environment
|
CSCea90619
|
Emc doesnt handle fc_type change properly in config file parsing
|
CSCea91057
|
ooemc is not handling ima ports
|
CSCea92900
|
Stats are not deleted after a feeder node is deleted via runConfigurator
|
CSCea93846
|
ooemc core dumped when upgrading MGX8850 PXM45 switches
|
CSCeb00763
|
incorrect 50601 trap from FRSM slot
|
CSCeb00888
|
FR port addition created a new port entry with wrong port_type
|
CSCeb01052
|
FR port added on a failed line does not show proper status in frp entry
|
CSCeb02227
|
Trap Lost Trap (60900) Physical Slot to Logical slot change
|
CSCeb02272
|
removing the subtrap timer before card resync
|
CSCeb03364
|
SNMP Query to svConnSubType returns incorrect value
|
CSCeb04761
|
wrong sonet line class design causing pxm.cf file not parsed
|
CSCeb04804
|
TFTP failure on PXM slot does not get retried.
|
CSCeb05160
|
when card file parsing fails, ooemc process in loop
|
CSCeb05223
|
GUI connection was lost: corba disconnected
|
CSCeb06122
|
ConnProxy needs to derive end2endtype based on network ids for xpvc
|
CSCeb07133
|
SCM stat descs in GUI, doc incorrect and don't match CLI
|
CSCeb08301
|
ooemc core dump
|
CSCeb09131
|
Newly added XPVC connection in OK state when xpvc_segments show FAIL
|
CSCeb10544
|
Memory leaks in OOEMC found in purify reports during em-hardening
|
CSCeb10772
|
tftp and error messages on console
|
CSCeb11480
|
wrong mapping for 60905
|
CSCeb11788
|
SNMP GET on VISM 1.5.08 card objects fail
|
CSCeb12040
|
upper level alarm did not set in NotifyDataBrokerResync()
|
CSCeb12163
|
emc could lose signal to increment timers ticks
|
CSCeb13077
|
grayed out window when three groups were opened in PNNIView
|
CSCeb13100
|
multiple statsager coredumps
|
CSCeb13201
|
UPD buffer is full and NTS drops the traps
|
CSCeb13281
|
Memory leaks in emc found in purify during em-hardening
|
CSCeb13630
|
memory leak when inserting to nodal_ig table
|
CSCeb14163
|
ooemd coredump - activity unknown
|
CSCeb14595
|
ooemc reinitialized on cwm machine
|
CSCeb14776
|
when core was stopped watchdog was still up
|
CSCeb14871
|
port status wrong for port created on a failed(in alarm) line.
|
CSCeb14967
|
New traps in CWM 11.0.10 patch 2 have ipaddress in wrong format
|
CSCeb18173
|
Incorrect values for mir,qir and pcr populated in database for abr1 2 seg hybrid conn
|
CSCeb19056
|
Del followed by deactivate for SA node doesnt del node from Topo GUI
|
CSCeb19116
|
Fully operational trigger for xpvc_segment table is replaced with no-op trigger
|
CSCeb20269
|
CWM Admin GUI: GUIs don't disconnect
|
CSCeb20331
|
node in mode 2 after auto resync
|
CSCeb20408
|
scdDaemon continuously coredumps in gateway setup
|
CSCeb20943
|
when secondary become active, pri card should not be updated with sec card
|
CSCeb21091
|
Node moved to a different group but drag optimizer stays
|
CSCeb22787
|
ILMITopoc continuously coredumps during dynamic addition of PNNI/XLMI links
|
CSCeb22793
|
AR discovery can fail if IGX feeders to MGX are unreachable
|
CSCeb23552
|
Bringing down oper status of a PGL deletes the peer group from tree view
|
CSCeb24029
|
IGX Fdr trk alarm is not updated for resetcd/resetsys on MGX 8850(PXM45)
|
CSCeb24087
|
PNNI View does not update aggregation token and new links in few desktops
|
CSCeb24195
|
Wandest & StatusView - sequencing issues with connection & desc table uploads
|
CSCeb24218
|
nts does not send unregistered notification to its clients
|
CSCeb24608
|
cant set PrefRoute for 2seg xpvc, db conn seg missing
|
CSCeb25345
|
SES-SES link is not re-discovered and stayed grey
|
CSCeb25815
|
Cannot set PCR/SCR to 0 on the ASI side for ATM-ATM conn. between ASI-AUSM
|
CSCeb26642
|
Stats data from few tables doesnt get deleted for de-commissioned node
|
CSCeb26689
|
CESM connections become incomplete after manual resync
|
CSCeb26913
|
failed connections showing as down due to databroker problem
|
CSCeb27597
|
CWM database does not show alarm info for MGX1 DAX connection
|
CSCeb28199
|
Incorrect processing of 60903 trap for Shelf Generic file on PXM1E
|
CSCeb28738
|
ooemc coredumped while removing time event from time event queue
|
CSCeb29390
|
persistent topology nodes are not discovered when gateway is enabled
|
CSCeb29416
|
Stats for deleted node doesnt get deleted from Secondary CWM
|
CSCeb29522
|
scmcollsvr coredumped on SSC and CWM server
|
CSCeb29718
|
PNNI nodes stuck in mode 5, UDP buffer is full
|
CSCeb29804
|
Toposvr core dumped
|
CSCeb29907
|
Peer groups with single unreachable node not deleted after warmstart
|
CSCeb30096
|
statsreader gives meaningless obj/subobj
|
CSCeb30599
|
Inconsistency in FRSM-VHS connStatus between CLI and CWM database/GUI
|
CSCeb30719
|
Sdb shared memory overflow splits routing and feeder msgs
|
CSCeb30757
|
SSM does not switch over to New primary CWM, when both were down.
|
CSCeb30770
|
Virtual link is shown as unreachable Virtual Link
|
CSCeb31194
|
MGX8220 and MGX8850R1 didn't sync up
|
CSCeb31287
|
unreachable node in pnni view on two levels
|
CSCeb31717
|
svAtmPortAssociatedLines returns incorrect ima port vals
|
CSCeb31854
|
Nodes didn't get discovered properly on ent6800 m/c
|
CSCeb32275
|
NTS clients cannot digests the traps at the same rate as NTS send it to them
|
CSCeb32351
|
mpgd does not send operstatus change message to toposerver
|
CSCeb32531
|
frsm_hs2b alarm_state in database don match node CLI after cable remove
|
CSCeb34474
|
ooemc core dump
|
CSCeb34791
|
enable field in line table is not set when AXSMXG OC48 line is enabled
|
CSCeb34840
|
Deleted logical node shown in PNNI View
|
CSCeb34889
|
unable to save/restore config
|
CSCeb36429
|
snmpget on LocOSpaceCells fails for 2/3 seg PVC connections
|
CSCeb37664
|
axsm-xg line changes in stats parser to enable successful parsing
|
CSCeb37739
|
Scm Control Server hangs if there is a LAN disconnect with SSC
|
CSCeb38529
|
PXM45 node stuck in mode 2.
|
CSCeb38921
|
Mod path width (60135,60139) and Up/Dn STS1path (60137) are not defined
|
CSCeb38925
|
Cant modify fr-fr XPVC if local fr endpt is at PXM45-8850
|
CSCeb39200
|
Numerous hybrid cons in false fail state after script AddConn
|
CSCeb39365
|
cwmftpd core dump
|
CSCeb39752
|
ILMITopoc re initializes
|
CSCeb39759
|
topod re initializes
|
CSCeb40183
|
emsc coredump after starting the core
|
CSCeb40527
|
ooemc core dump
|
CSCeb41209
|
Timeout required for collector to collector CORBA calls
|
CSCeb41690
|
no permission config restore returns pass
|
CSCeb42210
|
MBS out of range error during XPVC provision
|
CSCeb42262
|
path in alarm (LowLayerDn) is shown OperStatus = CLEAR (if not first path)
|
CSCeb42384
|
emc coredumped after starting the core
|
CSCeb42811
|
Port in alarm (LowLayerDn) is shown CLEAR
|
CSCeb43982
|
After processing the TrapTimerEvents, they are not reset properly
|
CSCeb44789
|
scmctrlsvr coredumps
|
CSCeb44798
|
CWM fails to sync-up with MGX nodes
|
CSCeb44946
|
node outside of PG
|
CSCeb45003
|
TopoServer coredumped
|
CSCeb45048
|
PGL update got delayed
|
CSCeb45066
|
pnni 2nd level node is up in cwm, down on the switch
|
CSCeb45491
|
snmpcomm core dumped
|
CSCeb45843
|
CWM Cannot Sync Up with MGX 8220
|
CSCeb46122
|
VPI number for VNNI/VUNI is always set to 0 in DB (AXSMXG)
|
CSCeb46405
|
need to handle new 70509 trap with additional varbind
|
CSCeb46762
|
cant add VISM-BXM hybrid connection
|
CSCeb46937
|
IMA physical trunk showing 255 as suffix on trunk display
|
CSCeb47540
|
vism connections have improper nsap address in db
|
CSCeb47637
|
incorrect trunk end point in TOPO GUI
|
CSCeb47671
|
PNNI view tree not updated in some cases
|
CSCeb47883
|
trunk not shown in topo gui/db
|
CSCeb48024
|
Secondary Card is not recognized correctly after putting back card
|
CSCeb48880
|
Object-finder shows line unreachable when it is in Mod state
|
CSCeb48987
|
linktopoc and filetopoc exit after the core is started due to ILOG errors.
|
CSCeb49466
|
CWM Gateway communication failure
|
CSCeb49515
|
unreachable node as reachable in node table
|
CSCeb49536
|
connections in AIS not the same on two CWMs
|
CSCeb50204
|
ConnProxy cores, times out on snmpget of primary and secondary XLMI link MIBs
|
CSCeb51290
|
ooemc coredumps in svpluscwm1 due to mem allocation
|
CSCeb51914
|
ooemc core dump
|
CSCeb52412
|
sdbroker coredumps while provisioning with 9 conn proxies
|
CSCeb53024
|
xpvc add fails MCR <= ICR <= PCR evaluates False for AR BXM endpts
|
CSCeb54036
|
incorrect lslot status for stdby cards
|
CSCeb54250
|
P2MPJ:DB not updated after receiving party update traps (add,del,alarm msg)
|
CSCeb54318
|
For an MGX1 connected to MGX8950 node, bis_object has -1 as parend nodeid
|
CSCeb55123
|
Unable to add connections using Connproxy
|
CSCeb55127
|
cmgrd coredump while provisioning with 9 proxies (add/mod/del/trace)
|
CSCeb55418
|
node sync up failed, mpgd deadlock
|
CSCeb56088
|
sdbroker re initializes
|
CSCeb56231
|
FMM memory error while processing PreferredRouteTraps
|
CSCeb56305
|
CwmGs coredump
|
CSCeb58444
|
multiple ILMITopoc coredumps after starting the core
|
CSCeb58700
|
CWMGateway core dumped as soon as core was started
|
CSCeb59691
|
linktopoc core dumped and AR discovery did not happen
|
CSCeb60035
|
multiple ILMITopoc coredumps after starting core
|
CSCeb60070
|
failed to create database, informix not online
|
CSCeb62275
|
P2MP: Party on VP con is not being deleted from CWM DB
|
CSCeb62277
|
LSNT: Install script did not stop and restart ORBIX
|
CSCeb62301
|
sdbroker corrupts cache while reading E3E6 incomplete connection in warmstart
|
CSCeb62650
|
mpgd coredumped.
|
CSCeb63692
|
emc core dumped after starting core
|
CSCeb63966
|
FMM memory corruption in emd while sending messages to children
|
CSCeb63993
|
mpgd node resync triggered by -2 trap leads to unknown nodes
|
CSCeb64139
|
CESM conn status inconsistent with switch after coldstart
|
CSCeb66056
|
feeders stuck in mode=1, need tftpmgr conf changes
|
CSCeb66470
|
ILMITopoc coredump caused by mem.corruption
|
CSCeb66576
|
wandest uninstall script changes the permission of .cshrc
|
CSCeb69428
|
Secondary SSC failed to start collection after LAN cable pulled out in Primary
|
CSCeb69949
|
re-applying unmodified %Util not propagated to PNNI nodes
|
CSCeb70128
|
Unable to launch 40 desktops using PC Client - GUI grey out. Due to Orbix comm
|
CSCeb70351
|
Most POP2 and PXM1 nodes in mode 2 or 5
|
CSCeb71194
|
CWM Patch1 installation has failed
|
CSCeb74259
|
connection inconsistencies between segment table and user_connection
|
CSCeb76101
|
sdbroker cache rebuilds, affect syncup, provisioning
|
CSCeb76846
|
Stats enabling takes long time for a large network
|
CSCin15035
|
Do not purge Option in stats DB host Configuration Dialog is not working.
|
CSCin15276
|
DB wrongly populated for target_line_frm in line distribution table
|
CSCin33451
|
SMs on AXIS not shown in CWM after being active after clrallcnf
|
CSCin35313
|
Delete Button not enabled after selecting a newly added connection
|
CSCin36977
|
FTP username and password tab in Configurator has wrong info for IGX
|
CSCin38986
|
Node name change on standalone -8250 is not getting updated.
|
CSCin40717
|
Can not launch desktop on disconnected Secondary CWM.
|
CSCin42863
|
MGX8850R2 node disappeared from topology on Feeder node deletion.
|
CSCin43676
|
IGX Feeder attached to MGX8850R2 not discovered in hybrid-AR discovery
|
CSCin43976
|
Deletion of Standalone from Runconfigurator is not working.
|
CSCin44201
|
nts coredumps on deletion of node from NW Configurator.
|
CSCin44489
|
Topod process coredumped
|
CSCin44544
|
Reachable SES shown as Unreachable and mode 1
|
CSCin44602
|
Topod coredumped after dellmi & addlmi on AXSM
|
CSCin44670
|
Incorrect FRM card details shown for IGX feeders
|
CSCin44705
|
ooemc coredumped
|
CSCin44948
|
Topology & node table has duplicate entry for same standalone node
|
CSCin45006
|
AR Network is not discovered with PNNI-Hybrid Discovery.
|
CSCin45109
|
Feeder trunk between IGX & 8850R2 didn't get discovered after warmstart.
|
CSCin45140
|
Line Length & OOF criteria params not updated in db for AXSM-T3E3 on 8850
|
CSCin45178
|
Medium type param not updated in n/w browser for AXSM-OC3 on 8850
|
CSCin45356
|
IMAGE Download fails if node name changed for 8850R2 while downloading.
|
CSCin45371
|
Wrong TRAP shown in HPOV for XPVC connection down/failure.
|
CSCin45504
|
Complete XPVC connections shown as incomplete after XLMI link addition.
|
CSCin45564
|
Gateway BPX node shown unreachable after discovery.
|
CSCin45860
|
EMD coredumped while CWM is syncing up.
|
CSCin46107
|
Line params not updated in db for PXM1E-T3E3 lines
|
CSCin46649
|
PNNI N/W discovery failed with AR-HYBRID Discovery (Has only XLMI bet N/ws)
|
CSCin46735
|
Network collapse should not be allowed if pref. route animation is running
|
CSCin46850
|
After SCT Daemon restart, can not download SCT templates to nodes.
|
CSCin47388
|
Java exception thrown if i click on Paths for AXSM-OC48-CHAN-XG (8950)
|
CSCin47820
|
SES nodes are stuck in mode 2 and not synced up with CWM.
|
CSCin48292
|
Failed PVCs shown as OK on 8250
|
CSCin48304
|
voice_conn table not updated for AUSM-VISM XPVC modification.
|
CSCin48314
|
Del. of NW element(!= SRC || DES) fails from proxy
|
CSCin48330
|
Pref. route Stop GUI shows incorrect rows
|
CSCin48395
|
Cannot modify/delete VISM-<any> PVC/hybrid conn. after VISM card reset.
|
CSCin48487
|
WD_SRV_ERROR on START of WANDEST client: Unknown key[]found
|
CSCin48931
|
Hybrid Connection on 8420 fdr shown as incomplete in primary CWM
|
CSCin49093
|
Cant add CUG on e164 address for uni30-uni40 port from gui if no CUG present
|
CSCin49112
|
Nodes with diff name are not removed from db on delete from runconfigurator
|
CSCin49713
|
Toposerver coredumped
|
CSCin49956
|
SCT-GUI: Show SCT is not working properly.
|
CSCin50074
|
Cant delete connections due to snmpcomm not running returned by cmgrd.
|
CSCin50788
|
README FILE needs to be updated for Evaluation version
|
CSCin51032
|
CwmGs coredumped 5 times on disconnecting-reconnecting LAN cable.
|
CSCin51119
|
Cannot add nrt-vbr1 and nrt-vbr2 conn with high PCR between AXSMXG ports.
|
Anomalies Resolved in CWM 12.0.00 Software
All anomalies resolved in CWM 11 and CWM 10 as of May 2, 2003, that apply to CWM 12.0.00 are included in CWM 12.0.00. Table 14 lists externally found anomalies from CWM 11 and CWM 10 as of May 2, 2003, that were only resolved in the CWM 12.0.00 software.
Table 14 Anomalies Resolved in 12.0.00
Bug ID
|
Headline:
|
CSCdx31087
|
SCT VC and CosB show wrong vals
|
CSCdx86816
|
Stata objectID:3/10:type 11,7&6 not being collected.
|
CSCdy19807
|
Wrong alarm on collapsed trunks
|
CSCdy26355
|
VSI-SIG parameters mismatch SCT GUI and CLI
|
CSCdy33589
|
CLR values displayed for PXM1E does not match with switch default values
|
CSCdy59622
|
.rhosts file overwritten during upgrade process
|
CSCdy62201
|
webServer did not start on upgraded m/c
|
CSCdy71243
|
MGX45 nodes failed to resynch because of snmp timeout (emulator related)
|
CSCdy82218
|
SNMP Module: Nodes failed to resync
|
CSCdy83851
|
DiagServer coredumped on a CWM machine
|
CSCdy84495
|
Topology shows trunk as clear after doing down & up lmi/ilmi on downed port
|
CSCdy84607
|
few AutoRoute trunks are not shown in Network Browser
|
CSCdy85868
|
CWM installation hangs at CV install if cronjob leaves a /tmp/crout* file
|
CSCdy87250
|
BPX node discovered as foreign node and got deleted from database
|
CSCdz01188
|
On sunrise install, install does not complete (i
|
CSCdz04403
|
Some CiscoView subdirectories are world-writable
|
CSCdz14857
|
CWM bug in install script
|
CSCdz19026
|
SCT manager Cosb tab screen not clearing setting after changes
|
CSCdz24906
|
Gui does not refresh when trunks is deleted
|
CSCdz68842
|
CM GUI - usability requirements from customers
|
CSCdz77588
|
BXM-T3 card type 250,251 BXME not recognized by SCM
|
CSCdz84213
|
trapd logs enhancements for debugging
|
CSCea16325
|
EMD deadlock MGX 8850 and 8220 will not sync
|
CSCea49075
|
PortProxy error misleading
|
CSCea49140
|
corba exceptions after install, start core
|
CSCea57681
|
Wandest client doesnt work in ksh environment
|
CSCea63117
|
ausm_port missing from DB, proxy query fails
|
CSCea64393
|
Overhead factor not applied for PXM1E AXSM-E to FRSM VBR conn
|
CSCea66013
|
Unable to add connections where VISM is the remote end. GUI and SA
|
CSCea68557
|
Corba ping_server utility on wandest client box
|
CSCea69561
|
Wandest install error msg is not proper
|
CSCea69616
|
Wandest encrypted pwd generation during install is set to default
|
CSCea72116
|
SNMP Get on cwmPrefRouteNECount returns incorrect value
|
CSCea76611
|
ooemc did not resync with RPM after missed trap
|
CSCea80554
|
swap space problem on machine, creates process reinitialization
|
CSCin36910
|
SES 1.1(79.102) returns NO SUCH NAME for mib obj cwaChanOamSegEpEnable
|
Anomaly Status Change from Previous Releases
The following table lists the anomalies that changed status as a result of the release of CWM 12.0.00 Patch 1.1.
Table 15 Anomaly Status Change from Previous Releases
Bug ID
|
Description
|
CSCea46440
|
Symptom:
Virtual link is displayed twice: as virtual and physical
Conditions:
This is a timing issue. This might happen when you have virtual trunk between two PNNI nodes and you have persistent topology enabled.
Workaround:
Cold Start CWM
Status Change:
This anomaly has been closed out as being unreproducible.
|
Related Documentation
The following technical documents comprise the CWM 12 documentation set:
•Cisco WAN Manager Installation for Solaris 8, OL-3837-01
•Cisco WAN Manager User's Guide, OL-3838-01
•Cisco WAN Manager SNMP Service Agent, OL-3840-01
•Cisco WAN Manager Database Interface, OL-3839-01
•Cisco WANDEST Installation and Reference, Release 2.4, OL-4122-01
•Release Notes for Cisco WAN Manager for Solaris 8, Release 12.0.00, OL-3188-01
PDF copies of the first four items in the CWM 12 documentation set are provided on the third CWM 12 CD along with a copy of Adobe Acrobat and Netscape Communicator 4.76 for use in reading the files.
Use the included gzip utility to decompress the .gz files. The command is gzip -d.
The Cisco WANDEST Installation and Reference, Release 2.4 and these release notes are not available on the third CWM 12 CD. They are available on-line at the following URL:
http://www.cisco.com/univercd/cc/td/doc/product/wanbu/svplus/12/index.htm
Obtaining Documentation
Cisco documentation and additional literature are available on Cisco.com. Cisco also provides several ways to obtain technical assistance and other technical resources. These sections explain how to obtain technical information from Cisco Systems.
Cisco.com
You can access the most current Cisco documentation at this URL:
http://www.cisco.com/techsupport
You can access the Cisco website at this URL:
http://www.cisco.com
You can access international Cisco websites at this URL:
http://www.cisco.com/public/countries_languages.shtml
Product Documentation DVD
The Product Documentation DVD is a comprehensive library of technical product documentation on a portable medium. The DVD enables you to access multiple versions of installation, configuration, and command guides for Cisco hardware and software products. With the DVD, you have access to the same HTML documentation that is found on the Cisco website without being connected to the Internet. Certain products also have PDF versions of the documentation available.
The Product Documentation DVD is available as a single unit or as a subscription. Registered Cisco.com users (Cisco direct customers) can order a Product Documentation DVD (product number DOC-DOCDVD= or DOC-DOCDVD=SUB) from Cisco Marketplace at this URL:
http://www.cisco.com/go/marketplace/
Ordering Documentation
Registered Cisco.com users may order Cisco documentation at the Product Documentation Store in the Cisco Marketplace at this URL:
http://www.cisco.com/go/marketplace/
Nonregistered Cisco.com users can order technical documentation from 8:00 a.m. to 5:00 p.m. (0800 to 1700) PDT by calling 1 866 463-3487 in the United States and Canada, or elsewhere by calling 011 408 519-5055. You can also order documentation by e-mail at tech-doc-store-mkpl@external.cisco.com or by fax at 1 408 519-5001 in the United States and Canada, or elsewhere at 011 408 519-5001.
Documentation Feedback
You can rate and provide feedback about Cisco technical documents by completing the online feedback form that appears with the technical documents on Cisco.com.
You can submit comments about Cisco documentation by using the response card (if present) behind the front cover of your document or by writing to the following address:
Cisco Systems
Attn: Customer Document Ordering
170 West Tasman Drive
San Jose, CA 95134-9883
We appreciate your comments.
Cisco Product Security Overview
Cisco provides a free online Security Vulnerability Policy portal at this URL:
http://www.cisco.com/en/US/products/products_security_vulnerability_policy.html
From this site, you will find information about how to:
•Report security vulnerabilities in Cisco products.
•Obtain assistance with security incidents that involve Cisco products.
•Register to receive security information from Cisco.
A current list of security advisories, security notices, and security responses for Cisco products is available at this URL:
http://www.cisco.com/go/psirt
To see security advisories, security notices, and security responses as they are updated in real time, you can subscribe to the Product Security Incident Response Team Really Simple Syndication (PSIRT RSS) feed. Information about how to subscribe to the PSIRT RSS feed is found at this URL:
http://www.cisco.com/en/US/products/products_psirt_rss_feed.html
Reporting Security Problems in Cisco Products
Cisco is committed to delivering secure products. We test our products internally before we release them, and we strive to correct all vulnerabilities quickly. If you think that you have identified a vulnerability in a Cisco product, contact PSIRT:
•For Emergencies only — security-alert@cisco.com
An emergency is either a condition in which a system is under active attack or a condition for which a severe and urgent security vulnerability should be reported. All other conditions are considered nonemergencies.
•For Nonemergencies — psirt@cisco.com
In an emergency, you can also reach PSIRT by telephone:
•1 877 228-7302
•1 408 525-6532
Tip We encourage you to use Pretty Good Privacy (PGP) or a compatible product (for example, GnuPG) to encrypt any sensitive information that you send to Cisco. PSIRT can work with information that has been encrypted with PGP versions 2.x through 9.x.
Never use a revoked or an expired encryption key. The correct public key to use in your correspondence with PSIRT is the one linked in the Contact Summary section of the Security Vulnerability Policy page at this URL:
http://www.cisco.com/en/US/products/products_security_vulnerability_policy.html
The link on this page has the current PGP key ID in use.
If you do not have or use PGP, contact PSIRT at the aforementioned e-mail addresses or phone numbers before sending any sensitive material to find other means of encrypting the data.
Obtaining Technical Assistance
Cisco Technical Support provides 24-hour-a-day award-winning technical assistance. The Cisco Technical Support & Documentation website on Cisco.com features extensive online support resources. In addition, if you have a valid Cisco service contract, Cisco Technical Assistance Center (TAC) engineers provide telephone support. If you do not have a valid Cisco service contract, contact your reseller.
Cisco Technical Support & Documentation Website
The Cisco Technical Support & Documentation website provides online documents and tools for troubleshooting and resolving technical issues with Cisco products and technologies. The website is available 24 hours a day, at this URL:
http://www.cisco.com/techsupport
Access to all tools on the Cisco Technical Support & Documentation website requires a Cisco.com user ID and password. If you have a valid service contract but do not have a user ID or password, you can register at this URL:
http://tools.cisco.com/RPF/register/register.do
Note Use the Cisco Product Identification (CPI) tool to locate your product serial number before submitting a web or phone request for service. You can access the CPI tool from the Cisco Technical Support & Documentation website by clicking the Tools & Resources link under Documentation & Tools. Choose Cisco Product Identification Tool from the Alphabetical Index drop-down list, or click the Cisco Product Identification Tool link under Alerts & RMAs. The CPI tool offers three search options: by product ID or model name; by tree view; or for certain products, by copying and pasting show command output. Search results show an illustration of your product with the serial number label location highlighted. Locate the serial number label on your product and record the information before placing a service call.
Submitting a Service Request
Using the online TAC Service Request Tool is the fastest way to open S3 and S4 service requests. (S3 and S4 service requests are those in which your network is minimally impaired or for which you require product information.) After you describe your situation, the TAC Service Request Tool provides recommended solutions. If your issue is not resolved using the recommended resources, your service request is assigned to a Cisco engineer. The TAC Service Request Tool is located at this URL:
http://www.cisco.com/techsupport/servicerequest
For S1 or S2 service requests, or if you do not have Internet access, contact the Cisco TAC by telephone. (S1 or S2 service requests are those in which your production network is down or severely degraded.) Cisco engineers are assigned immediately to S1 and S2 service requests to help keep your business operations running smoothly.
To open a service request by telephone, use one of the following numbers:
Asia-Pacific: +61 2 8446 7411 (Australia: 1 800 805 227)
EMEA: +32 2 704 55 55
USA: 1 800 553-2447
For a complete list of Cisco TAC contacts, go to this URL:
http://www.cisco.com/techsupport/contacts
Definitions of Service Request Severity
To ensure that all service requests are reported in a standard format, Cisco has established these severity definitions:
Severity 1 (S1)—An existing network is down, or there is a critical impact to your business operations. You and Cisco will commit all necessary resources around the clock to resolve the situation.
Severity 2 (S2)—Operation of an existing network is severely degraded, or significant aspects of your business operations are negatively affected by inadequate performance of Cisco products. You and Cisco will commit full-time resources during normal business hours to resolve the situation.
Severity 3 (S3)—Operational performance of the network is impaired, while most business operations remain functional. You and Cisco will commit resources during normal business hours to restore service to satisfactory levels.
Severity 4 (S4)—You require information or assistance with Cisco product capabilities, installation, or configuration. There is little or no effect on your business operations.
Obtaining Additional Publications and Information
Information about Cisco products, technologies, and network solutions is available from various online and printed sources.
•The Cisco Product Quick Reference Guide is a handy, compact reference tool that includes brief product overviews, key features, sample part numbers, and abbreviated technical specifications for many Cisco products that are sold through channel partners. It is updated twice a year and includes the latest Cisco offerings. To order and find out more about the Cisco Product Quick Reference Guide, go to this URL:
http://www.cisco.com/go/guide
•Cisco Marketplace provides a variety of Cisco books, reference guides, documentation, and logo merchandise. Visit Cisco Marketplace, the company store, at this URL:
http://www.cisco.com/go/marketplace/
•Cisco Press publishes a wide range of general networking, training and certification titles. Both new and experienced users will benefit from these publications. For current Cisco Press titles and other information, go to Cisco Press at this URL:
http://www.ciscopress.com
•Packet magazine is the Cisco Systems technical user magazine for maximizing Internet and networking investments. Each quarter, Packet delivers coverage of the latest industry trends, technology breakthroughs, and Cisco products and solutions, as well as network deployment and troubleshooting tips, configuration examples, customer case studies, certification and training information, and links to scores of in-depth online resources. You can access Packet magazine at this URL:
http://www.cisco.com/packet
•iQ Magazine is the quarterly publication from Cisco Systems designed to help growing companies learn how they can use technology to increase revenue, streamline their business, and expand services. The publication identifies the challenges facing these companies and the technologies to help solve them, using real-world case studies and business strategies to help readers make sound technology investment decisions. You can access iQ Magazine at this URL:
http://www.cisco.com/go/iqmagazine
or view the digital edition at this URL:
http://ciscoiq.texterity.com/ciscoiq/sample/
•Internet Protocol Journal is a quarterly journal published by Cisco Systems for engineering professionals involved in designing, developing, and operating public and private internets and intranets. You can access the Internet Protocol Journal at this URL:
http://www.cisco.com/ipj
•Networking products offered by Cisco Systems, as well as customer support services, can be obtained at this URL:
http://www.cisco.com/en/US/products/index.html
•Networking Professionals Connection is an interactive website for networking professionals to share questions, suggestions, and information about networking products and technologies with Cisco experts and other networking professionals. Join a discussion at this URL:
http://www.cisco.com/discuss/networking
•World-class networking training is available from Cisco. You can view current offerings at this URL:
http://www.cisco.com/en/US/learning/index.html
Copyright © 2003-2006 Cisco Systems, Inc.
All rights reserved.
Feedback
