Installing Standalone Statistics Collection Manager Software
This chapter provides step-by-step procedures to install the CWM Release 11 Statistics Collection Manager software on a standalone workstation. The CWM Release 11 Statistics Collection Manager Standalone (SCMSA) software installation uses InstallShield to simplify the process.
Three types of machines are supported for CWM Release 11 SCMSA software as standalone platforms. They are low-end, mid-range, and high-end platforms. Table 8-1 describes the configuration for each platform.
Note The minimum CPU speed requirement for all platforms is 300 MHz. The newer versions of the Sun Ultra 10 have a 450 MHz processor. All platforms require a 24-bit graphics card.
The maximum number of nodes supported by a given machine configuration is affected by the number of connection being supported by SCMSA. If the number of connections is high, the number of nodes specified in Table 8-1 may not be achieved
Before installing the CWM Release 11 SCMSA software on a standalone SCM workstation, the following software should have already been installed.
•Solaris 2.7 Operating System
Install Solaris 2.7 according to the procedure described in Chapter 2.
Installing CWM Statistics Collection Manager Standalone
Installing the Statistics Collection Manager Standalone (SCMSA) software automatically creates a user with the name "svplus".
Note The windows in this section reflect a single disk install. Areas where choices differ for a multi-disk install are called out in the procedure.
To install the CWM Release 11 SCMSA software, complete the following steps:
Step 1 Log in to the workstation as user root.
Step 2 Insert the Cisco WAN Manager Release 11 SCMSA CD-ROM into the CD-ROM drive.
Step 3 Enter the following commands:# cd /cdrom/cdrom0# ls
Step 4 Check for the file InstallSCMSA.sh and begin the install process by entering the following command:# ./InstallSCMSA.sh
The SCMSA Installation Welcome window is displayed, as shown in Figure 8-1.
Figure 8-1 SCMSA Installation Welcome Window
Step 5 Click Next on the Welcome window to continue.
The Install Standalone Collection Server or Parser window, Figure 8-2, is displayed.
Figure 8-2 Install Standalone Collection Server or Parser Window
Step 6 Select one of the three options displayed in the window and click Next. The user can select to have the Standalone Collection Server, the Standalone Parser, or both installed. When upgrading from a previous release of SCMSA, the user must select either option 1 or option 3.
Note See Appendix A for more details on the SCM server options.
Step 7 After selecting an option, click Next. The Meta Devices window is displayed as shown in Figure 8-3.

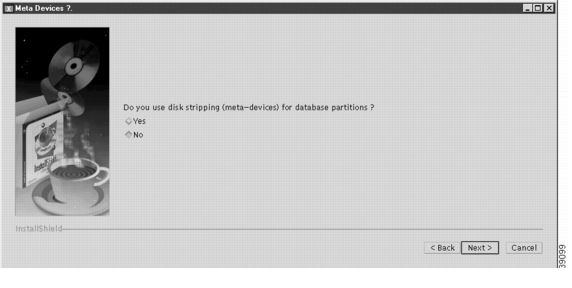

Figure 8-3 Meta Devices Window
Step 8 If you have no meta devices, accept the default No and click Next.
Note A meta device is a virtual device created by concatenating or striping disk partitions (usually to improve performance).
The Multiple Disk Configuration for Informix window is displayed, as shown in Figure 8-4.
Figure 8-4 Multiple Disk Configuration for Informix Window
Step 9 At the Multiple Disk Configuration for Informix window, if you have one disk accept the default No and click Next. If you have two disks, click on the Yes radio button and then click Next to continue.
The Select the Raw Partition for SCMSA Database window is displayed, as shown in Figure 8-5.
Figure 8-5 Select the Raw Partition for SCMSA Database Window
Step 10 At the Select the Raw Partition for SCMSA Database window If multiple partitions are displayed, select any partition under 1995 MB in size, then click Next.
Note If you have multiple hard disks configured, more partitions will be displayed than those shown in Figure 8-5.
The SCM Control Server window is displayed, as shown in Figure 8-6.
Figure 8-6 SCM Control Server Window
Step 11 At the SCM Control Server window, enter the name of the CWM workstation where the SCM server application resides. Click Next.
The Install Orbix window is displayed, as shown in Figure 8-7.
Figure 8-7 Install Orbix Window
Orbix is the software component that provides the communication capability between CWM gateways.
Step 12 At the Install Orbix window, accept the default Yes and click Next.
The Enter the Domain Name window is displayed, as shown in Figure 8-8.

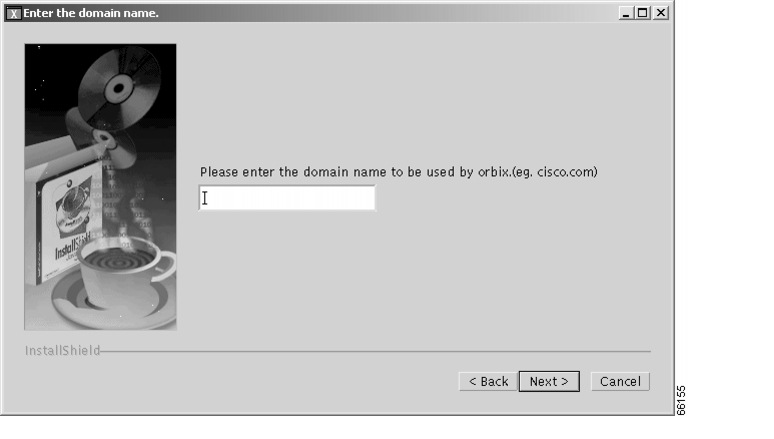

Figure 8-8 Enter the Domain Name Window
Step 13 At the Enter the Domain Name window, enter the domain name configured for the server workstation. This name allows the SCM application workstation access to the database.
Enter ping to ensure that the workstation and the domain is reachable.
Step 14 Click Next to display the SCMSA Choose Destination Directory window as shown in Figure 8-9.
Figure 8-9 Choose Destination Directory Window
In this release only the default directory (/usr/users/svplus) is be used.
Step 15 Click Next to display the Information about the SCMSA Upgrading procedure Window as shown in Figure 8-10.
The upgrade window is displayed only if option 1 or 3 was selected in the Install Standalone Collection Server and Parser window (see Figure 8-2), otherwise the next window to be displayed is the Installation Progress window (see Figure 8-11).
Figure 8-10 Information about the SCMSA Upgrading Procedure Window
Step 16 Select No (for installing), click Install.
The software installation process begins. This process will take from 30 to 60 minutes depending on the speed and resources of the workstation you are installing the standalone SCM application on. The installation window shows a dynamic indicator bar, which moves across the window, indicating the progress of the installation process, as shown in Figure 8-11.

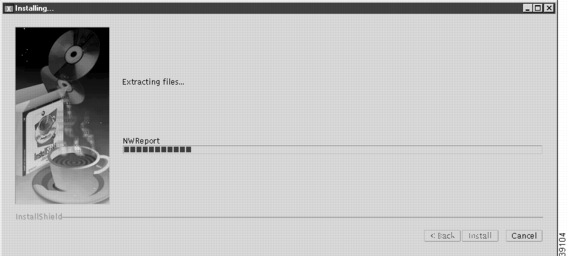

Figure 8-11 Installation Progress Indicator (extracting files)
After extracting the necessary SCM program files, the window refreshes, and the installation process begins creating and configuring the database. The installation window shows a dynamic indicator bar, which moves across the window, indicating the progress of the database creation process, as shown in Figure 8-12.

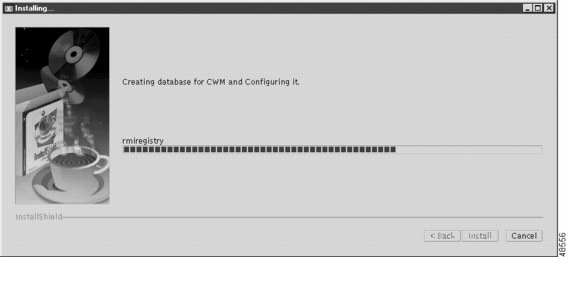

Figure 8-12 Installation Progress Indicator (database creation)
A dialog box displays informing you that the installation is complete, as shown in Figure 8-13.
Figure 8-13 Installation Complete Window
Step 17 Click Finish on the dialog box.
Doing so ends the software installation process, and the Install Shield window closes.
The first time (and only the first time) that SCMSA is installed, the system displays a message at this point stating that the kernel has been changed.
Step 18 Click OK to reboot the system.
The reboot sequence aligns the cylinders of your hard disks and gracefully shuts down the Solaris operating system.
The OK prompt is displayed.
Step 19 Push the CDROM eject button on the CDROM drive to eject the CWM Release 11 SCMSA software CD.
First Time Login as User svplus
After completing the CWM Release 11 Statistics Collection Manager, Stand Alone software installation, perform the following steps.
Step 1 Check that the SCMSA CD-ROM has been removed from the CD drive. If not, type eject in the terminal window.
Step 2 Log in to the workstation as user svplus using the Solaris Login interface.
Step 3 Select CDE.
Step 4 Close the File Manager and Help windows, leaving only the CDE menu bar.
Step 5 Right-click on blank screen, select Tools, select Terminal.
Move this terminal window to the upper right corner of the screen.
Step 6 Right-click on blank screen highlight Hosts, then Terminal Console.
Lower the height to display four lines and move this window so that it rests above the CDE menu bar. This window provides a display of workstation system messages.
Step 7 Left-click the CDE icon labeled TTT.
The Style Manager window is displayed.
Step 8 Left-click on Screen, click screen saver on and screen lock off. Click OK.
If you prefer to use the screen saver, highlight choice(s) and start the screen saver at 29 minutes. Start the screen lock at 30 minutes, click OK
Step 9 Click on Backdrop and select GrayDk. Click Apply.
Do the same to all four screens, labeled One, Two, Three and Four in the CDE icon bar. In screen Four, click OK and return to screen One. This helps to conserve workstation resources.
Step 10 Click on the CDE icon labeled TTT, then click on Startup in the Style Manager. Click on Set Home Session. Click OK.
The next login session will come up using this same screen configuration. Click OK and close the Style Manager.
Step 11 Place the cursor in the terminal window, and enter the SCM command to start a stand alone SCM session.% SCM
The first time that SCMSA is run, the database is create. The following messages are displayed.# SCMRunning SCM for the very first time. Creating the database for use by SCM[orbixd:Server "IT_daemon" is now available to the network ][ Configuration TCP/1570/Orbix-XDR ]creating database :<scmdb>creating scm tables in database :<scmdb>dropping table collmethodcreating table collmethoddropping table collmethoddefcreating table collmethoddefdropping table node_infocreating table node_infodropping table collsvr_infocreating table collsvr_infodropping table statsdb_infocreating table statsdb_infodropping table coll_infocreating table coll_infodropping table sync_infocreating table sync_infodropping table sync_listcreating table sync_listdropping table coll_summ_listcreating table coll_summ_listdropping table file_infocreating table file_infodropping table pend_file_listcreating table pend_file_listdropping table comp_file_listcreating table comp_file_listdropping table collsvr_err_logcreating table collsvr_err_logdropping table coll_err_logcreating table coll_err_logdropping table file_queue_logcreating table file_queue_logdropping table file_transfer_logcreating table file_transfer_logdropping table file_err_logcreating table file_err_logload from collmethod.unl into table collmethod
When the database is created, SCM displays its main menu as follows.Welcome to Statistics Collection Manager [Collection Server] Release 10.5.10AP.SOL Thu Nov 8 22:00:18 PST 2001Statistics Collection Manager is being run from the workstation, "aruna" . by svplusMAIN MENU---------1) Start SCM core2) Stop SCM corex) Exitenter number or x to exit:x
Step 12 Ensure that the SCM Control Server Process in the CWM Server workstation is running.
Step 13 Start the SCM core by selecting Option 1.
For information on configuring statistics collection using Stand Alone SCM, refer to the Cisco WAN Manager User's Guide, Release 11, Chapter 8, "Statistics Collection Manager Stand Alone".
