Release Notes for Cisco Video Assurance Management Solution 2.0
Revised: April 16, 2010, OL-16499-02Contents
Note
Visit http://www.cisco.com/en/US/products/ps9518/prod_release_notes_list.html to view the latest copy of these release notes.
Introduction
Cisco VAMS 2.0 delivers to service providers real-time, centralized monitoring of headend, backbone, regional, and aggregation networks for broadcast video transport. Cisco VAMS 2.0 provides the framework for a flexible end-to-end assurance platform for video. See the "Solution Requirements" section for descriptions of the solution components and required software versions.
Cisco VAMS 2.0 uses Cisco Multicast Manager (CMM 2.5) with patch 2.5.4 for multicast monitoring and troubleshooting functions and the Cisco ROSA Copernicus Network Management System (NMS) for monitoring of video headend events. Additionally, the Cisco VAMS 2.0 system architecture includes an interface between the Cisco Info Center product suite1 and CMM. Cisco has bundled this interface with the Object Server (central DB) and Webtop (web GUI for event list viewing) from the Cisco Info Center product suite.
The Cisco Info Center product suite includes two additional product components from the IBM Tivoli product suite:
•
•
This combination of Cisco Info Center and Netcool functionality accomplishes two key objectives for Cisco VAMS 2.0. It provides:
•
•
Cisco Info Center contains rules files that specify the rules that define multicast alerts from various sources, such as probes, routers, Digital Content Managers (DCMs), and other network management systems. The rules file contains code that extracts the multicast group and source information from these alerts and provides the operator with a Launch CMM Multicast Trace option.
By integrating CMM and the Cisco ROSA NMS with Cisco Info Center you can view all the alarm conditions and data for service level correlation and analysis. Additionally, for CMM events, you can launch troubleshooting and diagnostic analysis directly from Cisco Info Center.
Cisco VAMS 2.0 supports several third-party probes, including the Bridge Technologies, IneoQuest, Mixed Signals, PixelMetrix, and Tektronix video probes. You can add these video quality monitoring probes to key points in the transport network. Functionally, these probes detect impairments and validate the integrity of the Moving Pictures Expert Group (MPEG) transport stream, which carries video.
The video probes communicate with the Cisco VAMS components as follows:
•
•
Cisco VAMS 2.0 uses Cisco ANA 3.6 Service Pack 3 to build an abstracted network model through a set of virtual network elements (VNEs). Each VNE represents an element in the managed network. Cisco VAMS 2.0 extends the base functions of the Cisco ANA 3.6.3 VNEs for Cisco 7600 Series routers, Cisco Carrier Routing System (CRS-1) devices, Cisco 12000 series routers, and Cisco Catalyst 4948 Series switches. These VNE extensions address the specific requirements of video delivery across the IP network.
Finally, Cisco VAMS 2.0 includes generic VNEs supporting specific video probes; this release includes VNEs for IneoQuest, Mixed Signals, and Tektronix video probes.
See Figure 1 and Figure 2 for an overview of the Cisco VAMS components (the topology shown in the figures are examples). Figure 1 shows Cisco VAMS in the video headend network, and Figure 2 shows Cisco VAMS in a video transport network.
Figure 1 Cisco Video Assurance Management Solution 2.0 Components for Video Headend Monitoring
The ROSA Copernicus NMS receives events either directly from the DCM, or, if the ROSA EMS is deployed in the headend network, from the ROSA EMS by way of the ROSA NMS server.

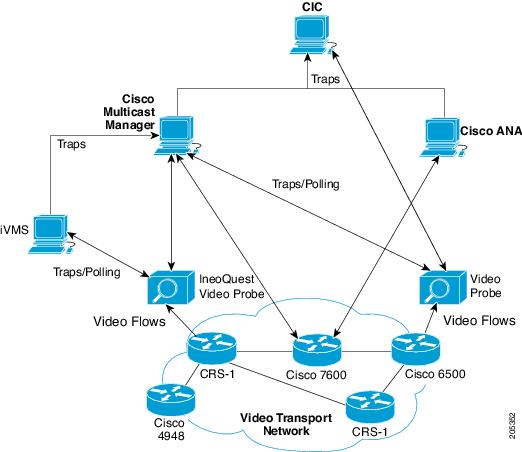

Figure 2 Cisco Video Assurance Management Solution 2.0 Components
Solution Requirements
Table 1 lists the requirements for Cisco VAMS.
Table 1 Solution Requirements
Cisco VAMS
2.0
Installation script (delivered on DVD)
Active Network Abstraction (ANA)
3.6.3
ANA Gateway—Sun Fire V490, Solaris 101
ANA Unit—Sun Fire V480, Solaris 101
ANA Client—IBM or PC compatible work station, Windows 2000 or Windows XP1
Cisco Multicast Manager
2.5.4
Sun Fire V440—Solaris 8, 9, or 10
Linux—Red Hat Enterprise Linux 3 or 4
ROSA Copernicus Element Management System
3.03.10
The ROSA EMS is supported on the following operating systems:
•
•
•
•
ROSA Copernicus NMS
3.0.63
—
Digital Content Manager
DCM software V06.05.02
Model D9900 and D9901 with GbE interface card
Cisco 7600 Series router
12.2(33)SRB2, 12.2(33)SRB3, or 12.2(33)SRD1
Supervisor card: 7600-SUP720-3BXL with redundant SUP720-3BXL
Line cards include WS-X6704-10GE, WS-X6708-10GE, WS-X6748-SFP, WS-X6748-GE-TX, WS-X6724-SFP, RSP720-3CXL, 7600-ES20-10G3CXL, 7600-SIP-400, 7600-SIP-600, SPA-1XTENGE-XFP, SPA-2X1GE, and optional WS-F6700-DFC3BXL
Cisco 12000 series routers
IOS XR 3.7.1
—
Cisco Catalyst 6500 switch
12.2(33)SXI
—
Cisco Carrier Routing System-1 (CRS-1)
IOS-XR 3.7.1
Line cards include CRS-MSC, CRS1-SIP-800 (with SPA-8X1GE), 8-10GE
Cisco Catalyst 4948 switch (CAT4948-10GE)
12.2(25)EWA6 or 12.2(31)SGA1
—
Cisco Info Center
—
Cisco Info Center includes the following OEM IBM Tivoli Netcool products
•
•
•
•
Bridge Technologies
VB Series
Version: 3.1.0-26
IneoQuest
Singulus G1-T
Cricket
Singulus G1-T Media Analyzer
Firmware Version: TB-2.5s-060608Singulus G10
Firmware Version: Denali-1.3a-021808iVMS
3.00.00 with Patch 24IQ Cricket
Firmware Version: Cricket-1.0a-092607Mixed Signals
Sentry Digital Content Monitor
Sentry 136 Digital Content Monitor2
Sentry Engine Version: PDM (build 1460.84)
Sentry Database Version: 3.0.31
Sentry Configuration: TRANSPORTPixelMetrix
DVStation
Version: 4.17.0
Tektronix
MTM400
Application Firmware Version: 3.1.061.000
FPGA Logic Firmware Version: 4
BIOS Version: 2.0.7
SNMP Interface Version: 2.6.0
Hardware Version: 5
QA Build: Alpha 01
Build Timestamp: Dec 19 2007 22:22:42
1 See the User Guide for Cisco Video Assurance Management Solution 2.0 at http://www.cisco.com/en/US/docs/net_mgmt/cisco_video_assurance_mgt_solution/2.0/user/guide/vams_20_user.html for detailed specifications.
2 Cisco VAMS 2.0 does not support carousel-related traps for Mixed Signals Sentry 136.
Table 2 indicates the requirements for the computer used to run the ROSA NMS client.
Installation Notes
Installation of the Cisco VAMS involves installation of its key components:
Hardware Installation
•
–
–
–
–
–
•
•
•
•
•
–
–
–
–
–
•
Software Installation
•
–
–
–
–
–
•
•
•
–
–
–
–
For complete details of the installation workflow, including procedures and references to installation documents, see the User Guide for the Cisco Video Assurance Management Solution 2.0 at http://www.cisco.com/en/US/docs/net_mgmt/cisco_video_assurance_mgt_solution/2.0/user/guide/vams_20_user.html .
Uninstall
You uninstall the Cisco VAMS 2.0 by running the uninstall script. This action removes the IPTV extensions that enable Cisco devices to monitor video conditions in the transport network. The uninstallation procedure is contained in the User Guide for the Cisco Video Assurance Management Solution 2.0.
Important Notes
This section includes the following topics:
•
Nonclearing Events in Cisco Info Center When Repetitive Alarm Suppression Rule Is Enabled in the ROSA NMS
When a ROSA NMS has the Repetitive Alarm Suppression Rule enabled, events might not clear automatically in Cisco Info Center because this ROSA rule causes the ROSA NMS to generate Summary messages in place of individual alarm messages. These Summary messages use incremented trpMsgID values, so Cisco Info Center cannot associate them with the initial alarm event.
The ROSA Repetitive Alarm Suppression Rule is disabled by default.
The workaround for this issue is to:
•
•
For information on these tasks, see "Ensuring that the Alarm Suppression Rule is Disabled" and "Configuring End Debouncing Timers on the DCM" in chapter 5 of the User Guide for Cisco Video Assurance Management System, 2.0, "Configuring the Components of Cisco Video Management Solution 2.0." The User Guide for Cisco Video Assurance Management System, 2.0 is available online at this location:
http://www.cisco.com/en/US/products/ps9518/products_user_guide_list.html
Incorrect Generation of S, G Threshold High Events in CMM with CLI Polling of Cisco 7600
CMM might incorrectly generate S,G Threshold High events from CLI polling of Cisco 7600 devices following a reconvergence event. This is due to the condition described in CSCsy82569—"Show ip mroute count reports negative pps or > 10 x pps for CBR flows." There is no workaround for this issue; however, the false event will clear when the 7600 internal counters are corrected at the next counter interval.
Limitations and Restrictions
This section contains these topics:
•
•
Java Version for Cisco Info Center Browsers
The IBM TBSM browser must run on JRE 1.4.2 or JRE 1.5. Java versions higher than 1.5 in client web browsers might result in a failure of the Service Viewer and Service Details in the TBSM window.
Cisco Multicast Manager Limitation with Naming Services
Disable any naming service such as Network Information Service (NIS) or NIS+ before running CMM 2.5.4.
Cisco Multicast Manager Trap Limitations
The following Cisco Multicast Manager Normalized traps do not clear their corresponding Threshold Exceeded traps:
'High L2 Port Threshold Exceeded','Low L2 Port Threshold Exceeded','L2 Threshold Normailzed',---'SG Delta Threshold Exceeded','SG Threshold Normalized',---'Multicast Bandwidth Percent High Threshold Exceeded','Multicast Bandwidth Percent Low Threshold Exceeded','Multicast Bandwidth Percent Threshold Normalized',---'High BPS Threshold Exceeded','Low BPS Threshold Exceeded','BPS Threshold Normalized',Cisco ANA processes all Cisco Multicast Manager traps, but currently lacks the capability to correlate threshold normalized traps to their corresponding threshold exceeded traps.
In addition, the following Cisco Multicast Manager traps do not have corresponding clears.
'RP Group Threshold Exceeded',---'RPF Failure Threshold Exceeded',---'High Threshold Exceeded PPS','Low Threshold Exceeded PPS',Open Caveats
Table 3 indicates the open caveats for Cisco VAMS 2.0.
Related Documentation
Refer to the following sections for information on related documentation:
•
Cisco VAMS 2.0 Documentation
In addition to the User Guide for Cisco Video Management Solution, 2.0, the Cisco VAMS documentation set comprises:
•
Provides an overview of the solution features and architecture, installation and configuration instructions, and information on using the TBSM and Webtop interfaces to view events and troubleshoot events in the video network. This document is viewable online at:
http://www.cisco.com/en/US/products/ps9518/products_user_guide_list.html
•
Provides links to the documentation for the Cisco VAMS 2.0 component products and for related products. This document is available online at:
Documentation for VAMS Components
For links to the documentation for the VAMS product components, see the Documentation Guide for Cisco Video Management Solution, 2.0, viewable online at:
Obtaining Documentation and Submitting a Service Request
For information on obtaining documentation, submitting a service request, and gathering additional information, see the monthly What's New in Cisco Product Documentation, which also lists all new and revised Cisco technical documentation, at:
http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html
Subscribe to the What's New in Cisco Product Documentation as a Really Simple Syndication (RSS) feed and set content to be delivered directly to your desktop using a reader application. The RSS feeds are a free service and Cisco currently supports RSS version 2.0.
