Getting Started with Service Monitor

Cisco Unified Service Monitor (Service Monitor) is a product from the Cisco Unified Communications Management Suite that receives and analyzes Mean Opinion Scores (MOSs) from Cisco Unified CallManager clusters and Cisco 1040 Sensors (sensors), sending traps when violations occur.

The following topics are included:

•Overview

•Service Monitor Home Page

Note For information on initially configuring Service Monitor, see Configuration Checklists and Tips, page A-1.

Overview

Service Monitor receives and analyzes MOS from Cisco Unified CallManager clusters and Cisco 1040 Sensors. Service Monitor supports sensors or clusters or both. For more information, see Data Collection and Analysis.

Service Monitor analyzes the data that it receives and sends traps when MOS falls below a threshold. Service Monitor provides a set of default global thresholds, one per supported codec. Service Monitor enables you to change the default global thresholds and to override them by creating threshold groups: sensor threshold groups and cluster threshold groups. For more information, see Thresholds and Traps and Trap Receivers.

Service Monitor diagnostic reports display data for calls that occurred during the previous 30 days. You can run reports for cluster-reported data and sensor-reported data. You can also run reports for the endpoints with the greatest number of violations in a 24-hour or 7-day period. For more information, see Using Reports, page 2-1.

Data Collection and Analysis

Service Monitor receives and analyzes MOS from these sources when they are installed in your voice network and configured properly:

•Sensors—Cisco 1040 Sensors compute MOS for each Real-Time Transport Protocol (RTP) stream and send syslog messages to Service Monitor every 60 seconds.

•CVTQ—Cisco Unified CallManager collects data from Cisco voice gateways and Cisco IP phones; MOS is calculated on the gateways and phones using the Cisco Voice Transmission Quality (CVTQ) algorithm. At the termination of a call, Cisco Unified CallManager stores the data in Call Detail Records (CDRs) and Call Management Records (CMRs).

Note For Cisco Unified CallManager versions that Service Monitor supports, see Release Notes for Cisco Unified Service Monitor 2.0.

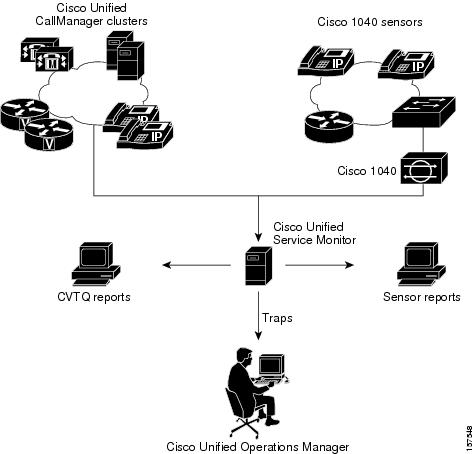

Figure 1-1 shows Service Monitor receiving data, creating reports, and sending traps.

Figure 1-1 Service Monitor Overview

For more information, see these topics:

•Configuring Service Monitor, page 3-1

•Managing Sensors, page 4-1

Thresholds and Traps

Service Monitor examines the data it receives and compares MOS against the applicable threshold from user-defined threshold group settings or global threshold settings. When MOS drops below the threshold, Service Monitor generates SNMP traps and sends them to up to four trap receivers.

You can set thresholds for the following:

•Sensor Groups—Select sensors and endpoints and set a MOS threshold value for one or more supported codecs.

•CVTQ Groups—Select Cisco Unified CallManager clusters and endpoints and set a MOS threshold value for one or more supported codecs.

•Global Settings—Update default thresholds for one or more supported codecs. Global threshold settings are used when no other thresholds are applicable.

Trap Receivers

Service Monitor examines the data it receives, comparing MOS against a default or user-specified threshold value for the codec. When MOS drops below the threshold, Service Monitor generates SNMP traps and sends them to up to four trap receivers. Service Monitor also stores the call metrics it receives; when receiving data from:

•Clusters—Service Monitor stores information in the database for up to 30 days.

•Cisco 1040 Sensors—Service Monitor stores information in the database for up to 30 days. Optionally, Service Monitor stores the call metrics it receives from Cisco 1040s to disk files.

You can configure Cisco Unified Operations Manager (Operations Manager) as a trap receiver for Service Monitor. Operations Manager can further analyze, display, and act on Service Monitor data. Operations Manager can:

•Generate events for Service Monitor traps

•Display the events on the Service Quality Alerts dashboard

•Store event history for up to 30 days

For more information, see User Guide for Cisco Unified Operations Manager.

Service Monitor Home Page

The Reports tab is the home page for Service Monitor, appearing after you log in. From the home page, you can generate reports that provide you with MOS statistics for up to the last 30 days.

•Using Sensor Reports, page 2-4

•Using CVTQ Reports, page 2-7

•Using Most-Impacted Endpoints Reports, page 2-10

Starting Service Monitor

Step 1 Enter http://server_name:1741 in your browser, where server_name is the DNS name or the IP address of the server where Service Monitor is installed. A login page is displayed.

Step 2 Enter a username and password. If you do not have a username, you can use the following:

•Enter admin for the user ID.

•Enter the password that you entered for the admin user during installation and press Enter.

The Service Monitor home page appears.

For more information, see the following topic:

•Configuring Users (ACS and Non-ACS), page 6-5
