Monitoring Alerts and Events
These topics describe monitoring Alerts and Events:
•
How to Use the Alerts and Events Display
•
Getting Alert Details Using the Alerts and Events Display
•
Getting Alert and Event Details
•
Getting Device Information
•
Suspending Device Monitoring
•
Responding to Alerts
How to Use the Alerts and Events Display
The Alerts and Events display provides real-time information about the operational status of your network. The displays are designed so that you can set them up and leave them running, providing an ongoing monitoring tool that signals you when something needs attention. When a fault occurs in your network, Cisco Unified Operations Manager (Operations Manager) generates an event or events that are rolled up into an alert. If the alert occurs on an element in your active view (a logical grouping of device groups), it is shown on your Alerts and Events display.
After setting up a view, you can customize your Alerts and Events display by selecting specific views and using filters:
•
Views control the events for device groups that appear on the Alerts and Events display. See Selecting Views for Alerts and Events.
•
Filters control the specific device types you monitor, along with alert severities and their status. See Filtering Alerts and Events.
You can also change the names of Operations Manager events to names that are more meaningful to you. These customized names are reflected in both the Alerts and Events display and any Alert History reports you generate. Alert History and Alerts and Events displays reflect customized names. For information on changing Operations Manager event names using Notification Customization, see Customizing Events, page 15-23.
You can monitor all devices that Operations Manager supports, once you have added those devices using Device Management and ensured that the devices are in your view.
Note
All Alert History reports generated from within the Alerts and Events display provide information from the past 24 hours. To generate an Alert History report on time spans beyond the last 24 hours, use Alert History from the Reports tab by selecting Reports > Alerts and Event History. For more information, see 24-Hour Context-Based Alert and Event History Reports, page 12-3.
Selecting Views for Alerts and Events
When you select Monitoring Dashboard > Alerts and Events to open the Alerts and Events display, all available views are listed in the view pane on the left side of the display. If the views shown do not meet your needs, you can create a new view as described in Managing Views, page 6-1.
The view pane is updated every two minutes. You can have up to 18 views in the view pane in a single Alerts and Events display. See Activating and Deactivating a View, page 6-2.
Filtering Alerts and Events
Filters allow you to manipulate the Alerts and Events display to show alerts based on their severity, status, and originating device.
Note
Once you use an alert filter, the filter is applied to all of your views until you change the filter; other clients are not affected. When you close the Alerts and Events display, your filters are lost. Filters do not affect severity icons in the view pane.
Step 1
Select Monitoring Dashboard > Alerts and Events. The Alerts and Events display opens.
Step 2
Click the filtering button in the tool button area at the top-right of the Alerts and Events display.
Figure 3-1 shows the Alert Filters page. You can populate the Device Type box by selecting device types from the button to the right of the Device Type box. By default, all device types are selected.
Figure 3-1 Alerts and Events—Alert Filters Dialog Box
Step 3
To see all device types that you can filter, click the button to the right of the Device Type box. A Device Types popup window opens, as shown in Figure 3-2.
Figure 3-2 Alerts and Events—Device Types Dialog Box
Step 4
Verify that only the filtering criteria you want to use are selected.
Step 5
Click OK.
Resetting Filters on the Alerts and Events Display
From the Alerts and Events display, you can clear any filters that you have set. As a result, all alerts in the currently selected view are displayed.
Step 1
On the Alerts and Events display, click Reset Filter. A confirmation dialog box appears.
Step 2
Click Yes. The Alerts and Events display refreshes, displaying all alerts in the view.
Starting the Alerts and Events Display
To start the Alerts and Events display, select Monitoring Dashboard > Alerts and Events. Figure 3-3 shows an example of an Alerts and Events display.
Tip
After you become familiar with the Alerts and Events display, you can edit the information it provides as described in Selecting Views for Alerts and Events and Filtering Alerts and Events.
Figure 3-3 Alerts and Events Display
Understanding the Layout of the Alerts and Events Display
These topics provide details about the information in the Alerts and Events display.
View Pane
The view pane lists the currently available views. Views must be created and activated before they are shown in the Alerts and Events display. By default, two views—All Alerts and Suspended Devices—are always shown, and cannot be deleted from your Alerts and Events display. (To create and activate a view or remove an unwanted view from your display, see Managing Views, page 6-1.)
The current view is highlighted in the view pane. The contents of the current view are shown in the tabular display pane to the right of the view pane. To select another view, simply click the view name in the view pane.
Figure 3-4 shows four active views; the current view is All Alerts. Icons next to the views indicate the severity of the alerts received from devices in those views, signaling you that the devices may need attention.
Figure 3-4 Alerts and Events Display—View Pane and Severity Icons
For the current view, All Alerts, severity icons also appear next to the alerts in the tabular display, as shown in Figure 3-4, to help you quickly locate a specific alert.
The view pane is updated every two minutes. You can have up to 18 views in the view pane in a single Alerts and Events display.
Launch Information and View Status Bar Area
The launch information area shows the current time on the server when the Alerts and Events display is being viewed.
The view status bar lists the selected view, which is shown in the tabular display pane, and the number of alerts in that view.
Tabular Display Pane
The tabular display pane is the core of the Alerts and Events display. It contains a list of all alerts that are occurring on the devices in your current view. This pane is refreshed every 30 seconds. For an explanation of all of the items in the tabular display, see Getting Alert Details Using the Alerts and Events Display.
Icons alert you to what needs attention; for example:
•
The severity icons indicate which views and alerts require attention.
•
The diamond symbols in the Latest Event Time column indicate which alerts have experienced recent activity. When no diamonds appear in the Latest Event Time column, it indicates that the alert is older than 45 minutes. The presence of three stars indicates that the alert is older than 15 minutes; two stars that it is older than 30 minutes; and one star that it is older than one minute.
The tabular display pane is scrollable and can store up to 1,000 records.
Window Tools Area
The top-right corner of the Alerts and Events display contains available tools buttons. All buttons are described in Table 3-1.
Command Button Area
The command buttons on the Alerts and Events display provides you ways to respond to alerts and reset filters.
Getting Alert Details Using the Alerts and Events Display
Use the tabular display in the Alerts and Events display to obtain more information about the alerts that are occurring in your current view. In the tabular display, as shown in Figure 3-3, alerts are grouped by their severity: critical, warning, or informational. Within these severity groupings, or buckets, alerts with the latest change are listed first.
When an alert is generated, it remains in the Alerts and Events display until it cleared. While the alert is in the display, if any events occur or get updated, the alert is updated. If a cleared event recurs, a new event with a new event ID is shown.
Note
When using the Alerts and Events display, remember the following:
•
If a monitored device is removed from the network, it will continue to be in the Monitored state until the next inventory collection occurs, even though the device is unreachable. The only way that you will know that this device is unreachable, is when an unreachable alert appears for this device in the Alerts and Events display.
•
When a device becomes unresponsive, all existing events for that device become cleared and one unresponsive event is generated for the device.
Table 3-4 defines the Alerts and Events tabular display elements. All elements are updated every 30 seconds.
Tip
You can generate a 24-hour Alert History report on all alerts that occurred on devices in your view by opening Alert History from the window tools area of the Alerts and Events display.
Table 3-4 Alerts and Events Tabular Display—Contents
Heading
|
Description
|
|
Severity of alert
|
|
Critical
|
|
Warning
|
|
Informational/Unidentified Trap Alert
|
ID
|
Alert identifier number. Clicking this link opens an Alert Details page (see Starting the Alert Details Page).
|
Device Type
|
Type of device. Inventory Collection in Progress indicates that Operations Manager was discovering the device when the alert occurred. The actual device type is reflected when new events occur. The device type is displayed as N/A during inventory collection. For more information, see Using Device Management, page 16-1.
|
Device Name
|
Device name or IP address. Clicking this link opens the Detailed Device View (see Viewing Device Elements in Detail).
|
Alert Age
|
Time span since alert creation, depending upon alert status.
|
Latest Event Time
|
Date and time alert last occurred or was changed. Diamonds indicate alert activity, such as a new event, alert acknowledgement, new user annotation, and so forth; no diamonds indicates that the alert is stale. Alerts are grouped by severity, and within severities, alerts with the latest change are listed first.
|
|
Alert was updated within last 15 minutes.
|
|
Alert was updated within last 16-30 minutes.
|
|
Alert was updated within last 31-45 minutes.
|
No diamonds
|
Alert was updated 46 or more minutes ago.
|
Latest Event Category
|
Event category, one of the following: Application, Connectivity, Environment, Interface, Other, Reachability, and System Hardware. For alerts containing multiple events, the tabular display shows the category of the event with the most recent change.
|
Status
|
Alert status, based on last polling.
|
Active
|
Alert is live. (Note that alerts on suspended devices remain active; see Sending E-Mail in Response to an Alert.)
|
Cleared
|
Alert is no longer live.
|
Acknowledged
|
Alert was manually acknowledged by a user (from Alert Details page).
|
| |
User Cleared
|
Alert was manually cleared by a user.
|
Getting Alert and Event Details
These topics address how to start and use the Alert Details page to get detail information on events:
•
Starting the Alert Details Page
•
Understanding the Layout of the Alert Details Page
•
Viewing Events Associated with an Alert
•
Viewing Event Details
Starting the Alert Details Page
The Alert Details page provides information about all of the events that were rolled up into a specific alert.
Note
The Alert Details page can also be opened from the Service Level View. See Viewing Alert Information, page 2-22.
Step 1
Select Monitoring Dashboard > Alerts and Events. The Alerts and Events display opens.
Step 2
Locate the alert you want to investigate and click the alert ID. The Alert Details page opens.
Figure 3-5 Alert Details Page
Event Processing for the Alerts and Events Display During High CPU Utilization
During periods of high CPU utilization and alert buildup, Operations Manager stops processing events. You will know when this is occurring by the message that appears in the view status bar of the Alerts and Events display. The message states that alert processing is being controlled, and not every alert is being displayed. The excess Alerts and Events display events are written to the NMSROOT\logs\itemlogs\EPM\EPMDroppedEvents.log file, and these events:
•
Do not appear on the Alerts and Events display.
•
Are not stored in the Alerts and Events history database.
•
Are not sent out as notifications.
Note
NMSROOT is the directory where Operations Manager is installed on your system. If you selected the default directory during installation, it can be entered as "C:\Program Files\CSCOpx" or C:\PROGRA~1\CSCOpx.
Understanding the Layout of the Alert Details Page
These topics provide details about the information on the Alert Details page. These panes are illustrated in Figure 3-5.
Alert Status Bar
The alert status bar lists details about the alert with which the listed events are associated. Table 3-5 explains the contents of the alert status bar area.
Table 3-5 Alert Details Page—Alert Status Bar Contents
Field
|
Description
|
Device Name
|
Device name or IP address.
|
Device
|
Device type.
|
Status
|
Alert status, based on last polling.
|
Active
|
Alert is live. (Note that alerts on suspended devices remain active; see Sending E-Mail in Response to an Alert.)
|
Cleared
|
Alert is no longer live.
|
Acknowledged
|
Alert was manually acknowledged by a user (from the Alert Details page).
|
Alert ID
|
Alert identifier number
|
Alert Age
|
Time span since alert creation, depending upon alert status:
|
Active or Acknowledged
|
Time span between alert creation and current server time.
|
Cleared
|
Time span between alert creation and Last Change time (the Last Change time may also represent when the alert was cleared).
|
Last Change
|
Time and date of last alert update (indicates activity, such as an event recurrence, alert acknowledgement, the addition of an annotation, and so forth). Alerts are grouped by severity, and within severities, alerts with the latest change are listed first.
|
Launch Tools
|
You can launch Operations Manager tools and external applications.
• Alert Details—Opens the Alert Details page (see Starting the Alert Details Page).
• Alert History—Opens an Alert History report (see Understanding the Alert History Report, page 12-10).
• Associated Phones—Opens an Associated Phones report (see Viewing Associated Phones, page 2-23).
• Detailed Device View—Opens a Detailed Device View for the device (see Starting the Detailed Device View).
• Performance—Shows performance monitoring (see How to Use Performance Graphs, page 7-1).
• Name of Synthetic Test—Opens the Create Synthetic Test page (see Creating Synthetic Tests, page 9-6). The options that appear depend on the device. For synthetic test details, see Getting Started with Synthetic Tests, page 9-1.
• Node-To-Node Test—Opens the Node-To-Node Test Configuration page (see Creating a Single Node-To-Node Test, page 11-2).
• SRST Test—Opens the SRST Test Configuration page (see Configuring a Single SRST Test as Needed, page 18-9).
• Polling Parameters—Opens the Polling Parameters: Edit page (see Editing Polling Parameters, page 19-13).
• Threshold Parameters—Opens the Managing Thresholds: Edit page (see Editing Operations Manager Thresholds, page 19-27).
• Administrative Pages—Opens the administrative page of the device. The options that appear depend on the device; some examples are Gateway Administration, Unity Administration, Cisco Unified Communications Manager Serviceability, or Cisco Unified Communications Manager Trace Configuration.
• Connectivity Details—Opens the Connectivity Detail View (see Working with the Connectivity Detail View, page 2-10).
• Path Analysis Tool—Opens the Path Analysis Tool (see Launching the Path Analysis Tool, page 2-24).
• Operations Manager Device Center—Opens the Device Center page of the Operations Manager Server (see Using Device Management, page 16-1).
|
Launch Information Area
The launch information area shows the current time on the server when the Alerts and Events display is being viewed.
Tabular Display Pane
On the Alert Details page, the tabular display pane contains a table that lists details about events. These events are associated with the alert listed in the alert status bar. You can refresh the display by clicking Refresh at the bottom of the pane. For an explanation of all of the items in the table, see Getting Alert and Event Details.
The tabular display is scrollable and can store up to 1,000 records. See Viewing Events Associated with an Alert for actions you can perform from this page.
Window Tools Area
The top-right corner of the Alert Details page contains a printer tool button and an Operations Manager Tools button, as described in Table 3-6.
Tools Column
The tools column includes Alert History. Selecting Event History opens a 24-hour Event History report on the component. See 24-Hour Context-Based Alert and Event History Reports, page 12-3.
Notes Pane
The notes pane lists any alert annotations that users have entered. The notes pane is a convenient tool for making sure that all users see alert information. You can add an annotation by clicking the Annotate button. Adding an annotation is described in Annotating an Alert.
Command Button Area
In addition to the Annotate button in the notes pane, the command button area provides other ways to respond to alerts.
Viewing Events Associated with an Alert
Use the tabular display in the Alert Details page to obtain more information about all of the events associated with a specific alert. In the tabular display, as shown in Figure 3-6, events with the latest change are listed first.
Events remain on the Alert Details page until the parent alert expires.
Note
If you suspend a device, the events remain in the Active state.
If an event recurs, the existing event is not updated. Instead, the recurrence is shown as a new event with a new event ID.
Figure 3-6 provides an example of an Alert Details table. This table is refreshed every 30 seconds.
Figure 3-6 Alert Details Page—Tabular Display
Table 3-8 defines the table elements. Click Refresh at the bottom of the pane to refresh the table contents.
Tip
Remember that you can generate a 24-hour Alert History report on all events that occurred on a selected component by opening Alert History from the window tools area of the Alerts and Events display.
Viewing Event Details
The Event Details page provides additional details about the event, such as the values of MIB attributes at the time of the event, polling and threshold information, and utilization information. The Event Details page also provides ways to respond to events.
Step 1
Select Monitoring Dashboard > Alerts and Events. The Alerts and Events display opens (see Figure 3-7).
Step 2
Locate the alert you want to investigate and click the alert ID. The Alert Details page appears.
Step 3
Locate the event you want to investigate, and click the event ID. The Event Details page appears.
Figure 3-7 shows a typical Event Details page.
Figure 3-7 Event Details Page
The information that is shown in the Event Details page depends on the event description. Table 3-9 describes the Event Details page command buttons.
Understanding the Service Impact Report
Service Impact reports provide you with a single report that describes how a particular failure impacts the rest of your IP telephony deployment. The report answers the following:
•
How does this failure affect the users?
•
Which services are unavailable because of this failure?
•
What is the possible cause and location of the failure?
Viewing a Service Impact Report
Step 1
Select Monitoring Dashboard > Alerts and Events. The Alerts and Events display opens.
Step 2
Locate the alert you want to investigate and click the alert ID. The Alert Details page opens.
Step 3
Look in the Impact column. If there is a Service Impact report available, High or Moderate is displayed in the Impact column. If None is displayed, a Service Impact report is not available.
Step 4
Click High or Moderate. A Service Impact report appears. Figure 3-8 shows an example of a Service Impact report.
Figure 3-8 Service Impact Report

Table 3-10 Service Impact Report Column Descriptions
Column
|
Description
|
Alerts
|
Severity
|
Alert severity.
|
Alert ID
|
Alert identification number.
|
Device Name
|
Device name or IP address.
|
Device Type
|
Device type.
|
Status
|
Alert status based on last polling.
|
Associated Events
|
Alert ID
|
Alert identification number for which the event is associated.
|
Event ID
|
Event identification number.
|
Description
|
Operations Manager event name (as described in Events Processed, page E-1). You can also change the names of Operations Manager events to names that are more meaningful to you. For information on changing Operations Manager event names using Notification Customization, see Customizing Events, page 15-23.
|
Component
|
Device element on which the event occurred.
|
Status
|
Event status, based on last polling.
|
Active
|
Event is live.
|
Cleared
|
Event is no longer live.
|
Suspended
|
Device is suspended.
|
Resumed
|
Device is being resumed.
|
Deleted
|
Device has been deleted.
|
Overall Impact Summary
|
Provides an explanation of the impact that this failure will have on the rest of your IP telephony deployment.
|
Getting Device Information
The Detailed Device View provides extensive information on the devices and device components listed in Starting the Detailed Device View. You can view information on devices that Operations Manager is currently monitoring, as well as devices whose monitoring you have suspended.
In the Detailed Device View, you can do the following:
•
View hardware and software information on system, environment, connectivity, and interface components
•
View hardware and software information on subcomponents of aggregate devices
•
View application status for Cisco Unified Communications Manager, Voice Services, Work Flow, and Synthetic Tests.
•
Suspend or resume management of a device or a device component so the device is no longer polled, or polling is resumed
•
Launch other Operations Manager tools
Starting the Detailed Device View
You can start the Detailed Device View from within the Alerts and Events display, either by clicking a device link, or by starting the Alert Details page and selecting Detailed Device View from the Launch Tools pull-down list.
Note
The Detailed Device View page can also be opened from the Service Level View (see Viewing Device Information, page 2-23), as well as from several other locations in Operations Manager. In many reports or pages in Operations Manager, clicking a device name (that is blue) opens a Detailed Device View for the device.
Note
You cannot display a Detailed Device View for unidentified trap devices. For more information on unidentified traps, refer to Processed and Pass-Through Traps, page C-1.
Step 1
From the Alerts and Events display, click a device in the Device Name column. The Detailed Device View opens. (See Figure 3-9 for an example.)
Step 2
In the component categories pane, select an item from the device tree. The system information pane is populated with information about the selected item.
If the item you select is the subdevice of an aggregated device, the Detailed Device View displays the subdevice's managed state and device capability. To display a complete Detailed Device View of the subcomponent, click the Launch New DDV for This Device button.
Step 3
If you want to suspend a managed device so it is no longer polled and its traps are no longer processed (or if you want to resume a suspended device):
•
Click Suspend to change the device's managed state to Suspended. Operations Manager no longer polls any device components, nor does it process any traps. All events and alerts remain in the Active state. The device is moved to the Suspended Devices view. Subsequent events (including traps) are ignored and no longer processed.
•
Click Resume to change the device's managed state to Active. Operations Manager resumes polling and trap processing on the device, and the device is moved out of the Suspended Devices view and back into its previous view.

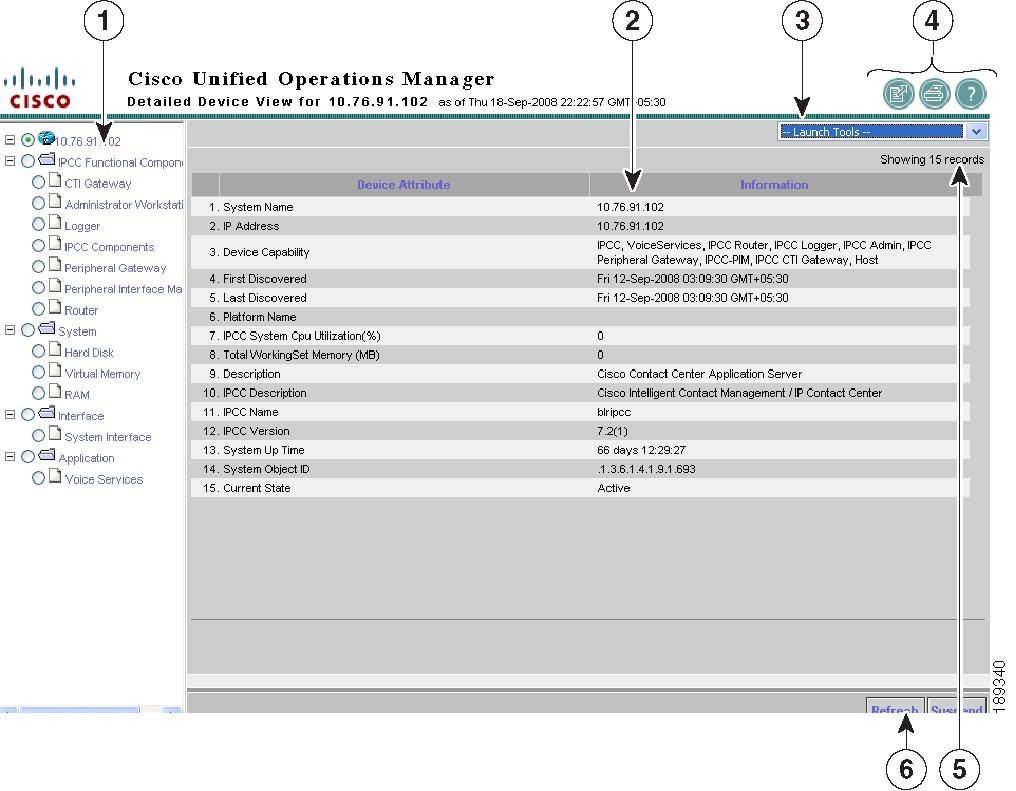

Figure 3-9 provides an example of a Detailed Device View.
Figure 3-9 Detailed Device View
Understanding the Layout of the Detailed Device View
These topics provide details about the information in the Detailed Device View.
Component Categories Pane
The component categories pane lists the components of the device or cluster. Selecting a component allows you to view detailed information pertaining to that component, such as CPU usage for a processor, TotalUsedMemory for memory, and so forth.
If the device you are viewing is an aggregate device, the subdevice also appears in the component categories pane. To display a complete Detailed Device View of the subcomponent, click the Launch New DDV for This Device button. This button appears after you select the subdevice from the device tree.
System Information Pane
The system information pane provides information such as the system name, IP address, SysUnified Communications ID, system contact, and so forth. Table 3-13 lists the Detailed Device View information you will see for each device type. See Viewing Device Elements in Detail.
If the system information pane lists an attribute with no value, it is because of one of the following reasons:
•
The attribute is not populated.
•
The attribute is not configured correctly.
•
The attribute does not apply to the device.
You can suspend or resume device or component monitoring by clicking the Suspend or Resume button (the button shown depends on the component's current managed state). These functions are described in these sections:
•
Suspending/Resuming Devices
•
Suspending/Resuming a Device Component
Launch Tools
The Launch Tools pull-down list enables you to launch other Operations Manager tools as well as external applications from the Detailed Device View. The tools that are available to you may vary depending on the device type and its configuration.
The following options can be seen in the Launch Tools menu:
•
Alert Details—Opens the Alert Details page (see Starting the Alert Details Page).
•
Alert History—Opens an Alert History report (see Understanding the Alert History Report, page 12-10).
•
Performance—Shows performance monitoring (see How to Use Performance Graphs, page 7-1).
•
Name of Synthetic Test—Opens the Create Synthetic Test page (see Creating Synthetic Tests, page 9-6). The options that appear depend on the device. For synthetic test details, see Getting Started with Synthetic Tests, page 9-1.
•
Node-To-Node Test—Opens the Node-To-Node Test Configuration page (see Creating a Single Node-To-Node Test, page 11-2).
•
SRST Test—Opens the SRST Test Configuration page (see Configuring a Single SRST Test as Needed, page 18-9).
•
Polling Parameters—Opens the Polling Parameters: Edit page (see Editing Polling Parameters, page 19-13).
•
Threshold Parameters—Opens the Managing Thresholds: Edit page (see Editing Operations Manager Thresholds, page 19-27).
•
Administrative Pages—Opens the administrative page of the device. The options that appear depend on the device; some examples are Gateway Administration, Unity Administration, or Communications Manager Serviceability.
•
Connectivity Details—Opens the Connectivity Detail View (see Working with the Connectivity Detail View, page 2-10).
•
Path Analysis Tool—Opens the Path Analysis Tool (see Launching the Path Analysis Tool, page 2-24).
•
Operations Manager Device Center—Opens the Device Center page of the Operations Manager Server (see Using Device Management, page 16-1).
Window Tools Area
The top-right corner of the Detailed Device View contains available tools buttons. All buttons are described in Table 3-11.
Record Count
The record count lists the number of information types available on the device.
Command Buttons Area
In addition to the Suspend and Resume button in the system information pane, the command button area provides other ways to respond to alerts.
Table 3-12 Detailed Device View—Command Buttons
Button
|
Action
|
Suspend or Resume
|
Either activates or deactivates monitoring of the device. Only one option is available at a time, depending on the state of the device. See Suspending Device Monitoring.
|
Refresh
|
Refreshes the Detailed Device View page. (The Detailed Device View is not automatically refreshed; you must do so manually.)
|
Launch Information
The launch information shows the current time on the server when the Detailed Device View display is being viewed. If you refresh the page, the time is updated.
Viewing Device Elements in Detail
This topic explains what the Detailed Device View displays for different device classes.
Information Shown in the Detailed Device View
Note
Unity Connection 2.1 ports are not monitored by Operations Manager. In the Detailed Device View the following Unity Connection port details are displayed as Not Available (N/A):
•
Total # of unity connection ports.
•
# of ports currently active.
•
# inbound ports.
•
# outbound ports.
•
# inbound ports currently active.
•
# outbound ports currently active.
Also, the left pane of the Detailed Device View does not display a Unity Connection Ports option.
Table 3-13 shows the types of device information displayed for the various device types that Operations Manager supports.
Table 3-13 Device Information Provided by the Detailed Device View
Device Type
|
Status Reported by Detailed Device View
|
Device-Specific Components Reported by Detailed Device View
|
Subcomponents Reported by Detailed Device View 1
|
Environment
|
System
|
Interface
|
Connectivity
|
|
Content Networking
|
|
X
|
X
|
|
|
|
|
Digital Voice Gateway
|
|
|
X
|
X
|
|
|
|
Gatekeeper
|
X
|
X
|
X
|
X
|
|
|
|
IPSLA
|
X
|
X
|
X
|
|
|
|
|
MRP
|
|
X
|
X
|
X
|
|
|
|
Personal Assistant
|
|
|
|
|
X
|
|
|
Media Server
|
X
|
X
|
X
|
|
X
|
Cisco Unified Communications Manager
Performance Counters3
|
|
Phone Access Switch
|
X
|
X
|
X
|
|
|
|
|
Probe
|
X
|
X
|
X
|
|
|
|
|
Routers
|
X
|
X
|
X
|
|
|
|
RSM, MSM, MSFC
|
SPE
|
|
X
|
|
|
X
|
|
|
SSP
|
|
X
|
X
|
|
|
|
|
Switch
|
X
|
X
|
X
|
|
|
|
RSM, MSM, MSFC
|
Unified Communications Manager or Cluster
|
|
|
|
|
|
|
Media Servers, Digital Voice Gateways, Voice Gateways, VoiceMail Gateways
|
Unified Contact Center Enterprise (formerly IPCC)
|
X
|
X
|
X
|
|
X
|
Functional components:
• CTI Gateway
• CTI Unified Communications Server
• Administrator Workstation
• Logger
• NIC
• Unified CCE Components
• Peripheral Gateway
• Peripheral Interface Manager
• Router
Performance Counters3
|
|
Unity
|
X
|
X
|
X
|
|
X
|
|
|
Unity Express
|
|
X
|
X
|
|
X
|
Performance Counters3
|
|
Voice Gateway
|
X
|
X
|
X
|
X
|
X
|
Cisco Unified Communications Manager Express, SRST-enabled Cisco Unity Connection
IOS GW Performance Counters3
|
RSM, MSM, MSFC
|
VoiceMail Gateway
|
|
X
|
X
|
X
|
|
|
|
The status categories—Environment, System, Interface, and so forth—list different entries depending upon the device class. The following are some examples of what you may see under the status categories:
•
Environment: Temperature, fan, power supply, voltage information
Note
See the
•
System: Hard disk, RAM, processor, virtual memory information
•
Interface: Card, interface, port, voice port information
Note
The Voice Port entry displays information for T1, E1, FXS, and FXO ports, as well as Ethernet and Gigabit Ethernet ports that have IP phones connected to them. When new Ethernet ports with phones connected to them are discovered, the Voice Port information is updated after a manual refresh of the Detailed Device View.
•
Connectivity: Cluster connectivity information such as cluster name, Cisco Unified Communications Manager status, Cisco Unified Communications Manager list, Active Cisco Unified Communications Manager
•
Application: Voice Services, Cisco Unified Communications Manager information
Suspending Device Monitoring
You can stop monitoring a device by selecting it and clicking the Suspend button in the Detailed Device View. Conversely, you can resume monitoring by clicking the Resume button. These actions are also available for suspending and resuming specific components. See these topics for more information:
•
Suspending/Resuming Devices
•
Suspending/Resuming a Device Component
Suspending/Resuming Devices
When you stop monitoring a device—changing its monitored state to false—Operations Manager no longer polls that device for information. Subsequent events (including traps) are ignored and no longer processed.
When you suspend a device, the active alerts and events on the device remain in the Active state. Also, a Suspended event occurs on the device, which you can view in the device's Alert Details page. This happens to ensure that:
•
You cannot mistakenly remove important information from the display when you suspend a device (when alerts are cleared, they are removed from the Alerts and Events display).
•
You can easily resume the device.
Step 1
From the Alerts and Events display, start the view that contains your device. (Devices not managed are in the Suspended Devices view.)
Step 2
Click a device in the Device Name column. The Detailed Device View opens. Depending upon the managed state of the device, either the Suspend or the Resume button is shown.
Step 3
Do one of the following:
•
Click Suspend to change the device's current managed state to Suspended. Operations Manager no longer polls any device components, nor does it process any traps. The device is moved to the Suspended Devices view. Subsequent events (including traps) are ignored and no longer processed.
•
Click Resume to change the device's current managed state to Active. Operations Manager resumes polling and trap processing on the device, and the device is moved out of the Suspended Devices view and back into its previous view.
Note
When you resume a device, you must also perform the apply changes action in Polling and Thresholds (see Applying Changes, page 19-60).
•
Click Refresh to redisplay the page.
Figure 3-10 provides an example of the Detailed Device View for a suspended device. Note the Resume button at the bottom of the window.
Figure 3-10 Detailed Device View—Suspended Device
Suspending/Resuming a Device Component
You can unmanage or remanage device components using the Detailed Device View. When you unmanage a component—changing its managed state to false—Operations Manager no longer polls that component for information. Subsequent events (including traps) are ignored and no longer processed.
Note
You cannot resume a device component if the parent device is suspended. You must resume the parent device first.
Step 1
From the Alerts and Events display, click a device in the Device Name column. The Detailed Device View opens.
Step 2
Select the component with the instance you want to unmanage.
Step 3
Locate the instance you want to unmanage, and make your change using the list in the Managed State column.
Step 4
Click Submit.
Figure 3-11 shows the location of the Managed State column for a managed application (Voice Services).
Figure 3-11 Editing the Managed State of a Device Component
Responding to Alerts
You can respond to alerts from either the Alerts and Events display or the Alert Details page.
•
From the Alerts and Events display you can clear or acknowledge an alert (see Responding to Alerts Using the Alerts and Events Display).
•
From the Alert Details page you can clear, acknowledge, or annotate an alert. Also, you can send an e-mail in response to an alert (see Responding to Alerts Using the Alert Details Page).
Responding to Alerts Using the Alerts and Events Display
The Alerts and Events Display provides command buttons in the bottom-right corner of the page for you to take action on alerts.
You can perform the following actions:
•
Clear an alert (see Clearing an Alert—Using the Alerts and Events Display).
•
Acknowledge an alert (see Acknowledging an Alert—Using the Alerts and Events Display).
Clearing an Alert—Using the Alerts and Events Display
Clearing an alert moves the alert to the Cleared state and all the events under it to the user cleared state. Cleared alerts are displayed minimum for 30 minutes and maximum for 60 minutes in the Alerts and Events display.
The alert is purged from database if there are no user cleared events present in the database. As a result, when the next event is raised for the same device, the alert ID remains the same. If all the events are in the cleared state then the alert is purged from the database. As a result, when the next event is raised for the same device, a new alert ID is generated.
When you clear an alert, this status change is populated to all Alerts and Events displays. Once an alert is cleared, the status cannot be changed back. To get the existing state of the events for that device, you must manually delete and re-add the device to Operations Manager. If any new event on the alert recurs, the status reverts to active.
Note
The cleared alert is removed from the Alerts and Events display after Operations Manager performs its normal polling and determines that the alarm has been in the cleared state for 30 minutes or longer (from the time of polling). The maximum time that a cleared alert can be seen in the Alerts and Events display is 60 minutes.
Use this procedure to clear one or more alerts from the Alerts and Events display.
Step 1
From the Alerts and Events display, select one or more alerts by selecting check boxes for them.
Step 2
Click Clear. A confirmation dialog box appears.
Step 3
Enter your initials.
Step 4
Click OK. Operations Manager clears the selected alerts and refreshes the Alerts and Events display.
Acknowledging an Alert—Using the Alerts and Events Display
Acknowledging an active alert signals other users that you are aware of the alert. When you acknowledge an alert, this status change is populated to all Alerts and Events displays.
Use this procedure to acknowledge one or more alerts from the Alerts and Events display.
Step 1
From the Alerts and Events display, select one or more alerts by selecting check boxes for them.
Step 2
Click Acknowledge. A confirmation dialog box appears.
Step 3
Enter your initials.
Step 4
Click OK. The Alerts and Events display refreshes and the Status column displays acknowledged for the selected devices.
Responding to Alerts Using the Alert Details Page
The Alert Details page provides command buttons in the bottom-right corner of the page (see Figure 3-5). The Suspend button is discussed in Suspending Device Monitoring. This topic explains how you can perform the following actions:
•
Acknowledge an alert (see Acknowledging an Alert—Using the Alert Details Page).
•
Clear an alert (see Clearing an Alert—Using the Alert Details Page).
•
Annotate an alert (see Annotating an Alert).
•
Send e-mail in response to an alert (see Sending E-Mail in Response to an Alert).
Acknowledging an Alert—Using the Alert Details Page
Acknowledging an active alert signals other users that you are aware of the alert. When you click the Acknowledge button on the Alert Details page, the alert is acknowledged. To acknowledge all of the events, open the alert, check the Select All check box, and click Acknowledge.
If an event on the alert recurs, the alert status reverts to active.
Step 1
From the Alert Details page, select one or more alerts by selecting check boxes for them.
Step 2
Click Acknowledge. A confirmation window opens.
Step 3
Click OK. In the Alerts and Events display the Status column displays acknowledged for the selected devices.
Clearing an Alert—Using the Alert Details Page
Clearing all active events under an alert changes the alert state in the Alerts and Events display to cleared. You may want to clear an alert when you are receiving erroneous events or are no longer interested in receiving that event. Cleared alerts are displayed minimum for 30 minutes and maximum for 60 minutes in the Alerts and Events display.
The alert is purged from database if there are no user cleared events present in the database. As a result, when the next event is raised for the same device, the alert ID remains the same. If all the events are in the cleared state then the alert is purged from the database. As a result, when the next event is raised for the same device, a new alert ID is generated.
When you click the Clear button after selecting all the events in Alert Details page, the status change is populated to all Alerts and Events displays. The alert status moves into the Cleared state, and the events move into the user cleared state. Once an alert is cleared, the status cannot be changed back. To get the existing state of the device, you must manually delete and re-add the device to Operations Manager.
Note
The cleared alert is removed from the Alerts and Events display after Operations Manager performs its normal polling and determines that the alarm has been in the Cleared state for 30 minutes or longer (from the time of polling).
If an event on the alert recurs, the status reverts to Active.
Step 1
From the Alert Details page, select one or more alerts by selecting check boxes for them.
Step 2
Click Clear. A confirmation window opens.
Step 3
Click OK.
Annotating an Alert
You can annotate an alert by clicking the Annotate button. An editable Annotation dialog box opens; in the dialog box, you can enter up to 255 characters. Any number of annotations can be entered. An annotation is shown whenever other users view the alert from an Alert or Event Details page.
Step 1
From either the Alert or Event Details page or the Event Details page, make a selection on what to annotate and click Annotate. The Annotation dialog box opens.
Step 2
Enter your text. Text that exceeds 255 characters is truncated without warning. (If this happens, you can add another annotation.)
Step 3
Click OK. The annotated text is displayed in the Notes box.
Sending E-Mail in Response to an Alert
When you click the Notify button in an alert details page (for an alert on a device), Operations Manager opens a dialog box that you can complete to manually send an e-mail notification to multiple recipients. The e-mail notification adds the event/alert details for the selected event. (If you want to send automatic e-mail notifications when alerts or events occur on certain devices, use Notification Services to set up an e-mail notification subscription. (See Configuring Notifications, page 15-7.)
Step 1
From the Alert Details page (either for a device alert or a service quality alert), click Notify. The E-mail Notification Recipient(s) dialog box opens.
Step 2
Enter a fully qualified DNS name or IP address for an SMTP server.
Step 3
Enter your e-mail address in the Sender Address field.
Step 4
Enter a comma-separated list of e-mail addresses in the Recipient Address(es) field.
Step 5
Enter a subject heading in the Header field.
Step 6
(Optional) Enter a message in the Message field.
Step 7
Click Send.
Responding to Events Using the Alert Details Page
The Alert Details page provides command buttons in the bottom-right corner of the page (see Figure 3-5). The Suspend button is discussed in Suspending Device Monitoring. This topic explains how you can perform the following actions:
•
Acknowledge an event (see Acknowledging an Event—Using the Alert Details Page).
•
Clear an event (see Clearing an Event—Using the Alert Details Page).
•
Annotate an event (see Annotating an Event).
•
Send e-mail in response to an event (see Sending E-Mail in Response to an Event).
Acknowledging an Event—Using the Alert Details Page
Acknowledging an event signals to other users that you are aware of the event and are working on it.
After the issue gets resolved, it moves to the Cleared state. Cleared events should not be Acknowledged.
Step 1
From the Alert Details page, do one of the following:
•
To acknowledge all of the events, open the alert, check the Select All check box.
•
To acknowledge a single event, select the check box next to the event.
•
To acknowledge multiple events, select the check boxes for the events.
Step 2
Click Acknowledge. A confirmation window opens.
Step 3
Click OK. In the Alerts and Events display the Status column displays Acknowledged for the selected devices.
Clearing an Event—Using the Alert Details Page
Clearing an event changes the alerts state in the Alerts and Events display to user cleared. When the issue is resolved, the event is moved to the cleared state.
User cleared events do not move to the active state directly. Any subsequent active events are suppressed. If you manually clear an event it signals that you are no longer interested in receiving that event.
Once an event is cleared, the status cannot be changed back. To get the existing state of the device, you must manually delete and re-add the device to Operations Manager. User cleared events are displayed for 30 minutes.
Note
The cleared alert is removed from the Alerts and Events display after Operations Manager performs its normal polling and determines that the alarm has been in the Cleared state for 30 minutes or longer (from the time of polling).
If an event on the alert recurs, the status reverts to Active.
Step 1
From the Alert Details page, do one of the following:
•
To clear all of the events, open the alert, check the Select All check box.
•
To clear a single event, select the check box next to the event.
•
To clear multiple events, select the check boxes for the events.
Step 2
Click Clear. A confirmation window opens.
Step 3
Click OK.
Annotating an Event
You can annotate an alert or an event by clicking the Annotate button. An editable Annotation dialog box opens; in the dialog box, you can enter up to 255 characters. Any number of annotations can be entered. An annotation is shown whenever other users view the alert from an Alert or Event Details page.
Step 1
From either the Alert or Event Details page, do one of the following:
•
To annotate all of the events, open the alert, check the Select All check box.
•
To annotate a single event, select the check box next to the event.
•
To annotate multiple events, select the check boxes for the events.
Step 2
Click Annotate. The Annotation dialog box opens.
Step 3
Enter your text. Text that exceeds 255 characters is truncated without warning. (If this happens, you can add another annotation.)
Step 4
Click OK. The annotated text is displayed in the Notes box.
Sending E-Mail in Response to an Event
When you click the Notify button in an alert details page (for an alert on a device), Operations Manager opens a dialog box that you can complete to manually send an e-mail notification to multiple recipients. The e-mail notification adds the event/alert details for the selected event. (If you want to send automatic e-mail notifications when alerts or events occur on certain devices, use Notification Services to set up an e-mail notification subscription. (See Configuring Notifications, page 15-7.)
Step 1
From the Alert Details page (either for a device alert or a service quality alert), do one of the following:
•
To email notifications for all of the events, open the alert, check the Select All check box.
•
To email notification for a single event, select the check box next to the event.
•
To email notification for multiple events, select the check boxes for the events.
Step 2
Click Notify. The E-mail Notification Recipient(s) dialog box opens.
Step 3
Enter a fully qualified DNS name or IP address for an SMTP server.
Step 4
Enter your e-mail address in the Sender Address field.
Step 5
Enter a comma-separated list of e-mail addresses in the Recipient Address(es) field.
Step 6
Enter a subject heading in the Header field.
Step 7
(Optional) Enter a message in the Message field.
Step 8
Click Send.
