Managing Inventory
This chapter describes how to manage inventory using CTM. This chapter contains the following sections:
•
Overview
•Domain NE Table
•Equipment Inventory Table
11.1 Overview
Managing inventory involves maintaining a record of all of the network element (NE) resources installed in the network to support the provisioning of services. It should include collecting information about locations, quantities of equipment, model numbers, serial numbers, versions, installation dates, and so on.
Inventory management is one of the fundamental network management functions. When forecasting service growth or even attempting to provision a new service, it is necessary to know the current network inventory. Can the existing inventory support the forecast growth or new service requests, or must additional equipment be ordered and installed onsite? Can your hardware support a new software release? You will need to check the type and revision of hardware to determine the answer. Has a recall been issued by the vendor for a certain hardware revision of a board? Are you affected? You will need to check the inventory again.
CTM allows you to add NEs, and it autodiscovers the details about the NE itself and the contained physical inventory. CTM remains automatically synchronized with changes relating to inventory that might occur in the network. All inventory information is stored in the CTM database and is available at any time.
Inventory management includes the discovery of the NEs from the EMS, and ongoing synchronization with the NEs. It also includes the ability to provide the inventory to a higher-level NMS through a northbound interface.
CTM can quickly capture, display, and store an inventory of the NEs on your network. It allows you to view information about the NEs, installed software, and software licenses. CTM also lets you edit the inventory information for the NEs in your network.
For passive NEs, you can add inventory information manually. You can also add inventory information for unmanaged NEs or for NEs from other vendors.
CTM allows you to export inventory reports to a flat text file with a user-specified delimiter character. This file can be imported easily into a spreadsheet application for further analysis.
Note Japanese characters are supported for inventory reports. When generating a report from the Domain NE table, choose File > HTML Report for a report that includes Japanese characters.
CTM provides two levels of inventory reports:
•A complete list of all the NEs that belong to a specific group or to the entire domain. See Domain NE Table.
•A detailed list of cards and modules installed on the NEs. See Equipment Inventory Table.
11.2 Domain NE Table
The Domain NE table displays an inventory of all the NEs in the selected CTM domain, group, or subnetwork. Based on your selection criteria, the Domain NE table tells you which NEs are in or out of service, available or unavailable, and so on. The following figure shows an example of the Domain NE table.
Figure 11-1 Domain NE Table
Note See Appendix A, "Icons and Menus Displayed in CTM" for details of all the icons displayed in the window.
11.2.1 Viewing the Domain NE Table
Select a node in the Domain Explorer or Subnetwork Explorer tree and choose File > Domain NE Table. The following table provides descriptions.
Table 11-1 Field Descriptions for the Domain NE Table
Field
|
Description
|
Alias ID
|
Alias name of the NE.
|
NE Model
|
Selected NE model:
•Cisco MDS 9000
•Cisco ONS 15216
•Cisco ONS 15302
•Cisco ONS 15305
•Cisco ONS 15310 CL
•Cisco ONS 15310 MA or Cisco ONS 15310 MA SDH
•Cisco ONS 15327
•Cisco ONS 15454 or Cisco ONS 15454 SDH
•Cisco ONS 15501
•Cisco ONS 15530
•Cisco ONS 15540
•Cisco ONS 15600 or Cisco ONS 15600 SDH
•Cisco MGX Voice Gateway
|
IP Address
|
IP address of the NE, in IPv4 or IPv6 format.
Note If the node is a gateway network element (GNE) or a LAN-connected network element (LNE), the NE IP address is the same as the active IP address.
|
Active IP Address
|
IP address of the GNE, in IPv4 or IPv6 format.
|
Communication State
|
Connectivity state between CTM and the selected NE: Available, Unavailable, Initialization Failed, and Only Reachable.
|
Operational State
|
Current operational state of the system: In Service, Under Maintenance, or Out of Service.
|
PM Collection State (not applicable to the ONS 15216, or Cisco MDS 90000)
|
Whether performance monitoring collection is enabled or disabled. You can configure the PM collection state in the Domain Explorer > Network Element Properties pane > Status tab.
Note The MGX do not support 24-hour PM data collection.
|
Robust PM Collection State (not applicable to all NEs)
|
Whether robust PM collection is enabled or disabled. You can configure the robust PM collection state in the Domain Explorer > Network Element Properties pane > Status tab.
Note You cannot collect robust PM data until at least one 15-minute or one 1-day interval has been collected in normal operation.
Note Robust PM data collection applies only to CTC-based NEs and to the ONS 15302, ONS 15305, ONS 15530, ONS 15540, ONS 15800, ONS 15801, and ONS 15808. Robust PM collection is not supported for the ONS 15216, ONS 15501, MGX, or MDS 9000.
Note You can collect up to 8 hours of 15-minute robust PM data for CTC-based NEs.
Note You can collect up to the previous day's 1-day robust PM data for CTC-based NEs.
Note For the ONS 15530 and ONS 15540 ESPx, you can collect up to 24 hours (96 previous missed intervals) of 15-minute robust PM data and up to the previous day's 1-day robust PM data.
Note For the ONS 15540 ESP, you can collect up to 24 hours (96 previous missed intervals) of 15-minute robust PM data.
Note For the ONS 1580x (TL1 Agent release after 2.x), you can collect up to 8 hours (32 previous missed intervals) of 15-minute robust PM data and up to 2 days of 1-day robust PM data.
|
Version
|
NE software version that is running.
|
GNE ID
|
ID for the GNE on the selected NE's ring.
|
Subnetwork ID
|
Name of the subnetwork associated with the selected NE.
|
Network Partition ID
|
Name of the network partition to which this NE is associated.
|
NE Type
|
Type of NE.
|
Location Name
|
Geographic location of the NE.
|
Description
|
Information that a user might have entered to describe the selected NE.
|
NE ID
|
Name of the selected NE.
|
Designated Socks Server
|
Indicates whether or not the selected CTC-based SONET or CTC-based SDH NE serves as a designated SOCKS server (DSS). If so, the NE manages connectivity among other NEs through firewalls. Values for the DSS column are Yes, No, and Not Applicable.
|
Tip The Dashboard window displays an NE counter icon. This counter lists the total number of NEs in the domain. Click the counter to open the Domain NE table.
11.2.2 Viewing the ONS 1580x Domain NE Table
The Domain 1580x table shows the status of a selected ONS 15800, ONS 15801, or ONS 15808 NE; displays both the primary and secondary IP addresses; and tells whether the NEs are in or out of service, available, or unavailable.
Step 1 Select an ONS 15800, ONS 15801, and ONS 15808 node in the Domain Explorer or Subnetwork Explorer tree.
Step 2 Choose Configuration > ONS 15800, ONS 15801, or ONS 15808 > Domain 1580x Table. The following table provides descriptions.
Table 11-2 ONS 1580x Domain NE Table
Field
|
Description
|
NE ID
|
ID number of the NE.
|
NE Model
|
Model of the selected NE.
|
NE Type
|
Type of NE. Values are:
•Terminal—Represents the default setting, where it is not possible to identify if the NE type is east or west terminal for a long haul (LH) system.
•Terminal East—Contains one transmit east-to-west section (transmit transponders, multiplexers, transmit power amplifiers) and one receive west-to-east section (amplifiers, demultiplexer, splitters, receive transponders) for an LH system.
•Terminal West—Contains one transmit west-to-east section (transmit transponders, multiplexers, transmit power amplifiers) and one receive east-to-west section (amplifiers, demultiplexer, splitters, receive transponders) for an LH system.
•Optical Line Amplifier—Amplifies signals in two stages through optical amplifiers for an LH system.
•Optical ADM—Exchanges high-volume traffic between terminal and intermediate sites for an LH system.
•Line Extender Module—Retimes, reshapes, and retransmits the optical signal between optical line amplification (OLA) sites for an LH system.
•ELH Terminal—Represents the default setting, where it is not possible to identify whether the NE type is east or west terminal for an Extended Long Haul (ELH) system.
•ELH East Terminal—Contains one transmit east-to-west section (wavelength converters, multiplexers, and transmit power amplifiers) and one receive west-to-east section (line preamplifier, demultiplexer, and optional receive transponders) for an ELH system.
•ELH West Terminal—Contains one transmit west-to-east section (wavelength converters, multiplexers, and transmit power amplifiers) and one receive east-to-west section (line preamplifier, demultiplexer, and optional receive transponders) for an ELH system.
|
NE Type (continued)
|
•ELH Optical Line Amplifier—Amplifies signals in two stages through optical amplifiers for an ELH system.
•ELH Optical ADM—Exchanges high-volume traffic between terminal and intermediate sites for an ELH system.
•ELH Line Extender Module—Retimes, reshapes, and retransmits the optical signal between OLA sites for an ELH system.
•Unknown—NE type is unknown.
•Other—NE type is not specified.
|
Active IP Address
|
Primary or secondary IP address, depending on which address is currently used to reach the selected NE.
|
Primary IP Address
|
Primary IP address.
|
Secondary IP Address
|
Backup IP address that the CTM server uses to reach the selected NE.
When the primary and secondary IP addresses are the same, the secondary IP address is not supported. For ONS 1580x NEs, the secondary IP address points to a backup address that is remapped to the ONS 1580x primary address. This backup address allows CTM to reach the ONS 1580x node through a different route by using Layer 3 routing instead of the less-secure Layer 2 routing.
If you change the primary IP address when the ONS 1580x is in service or under maintenance, the actual node IP address changes. CTM resets the NE automatically to activate the new IP address. After resetting the active IP address, the primary IP address and secondary IP address have the same value. If you want to reset the secondary IP address, you should first reset the NAT address on the router to map the NAT address to the new CMP address.
|
Communication State
|
Current connectivity state between CTM and the selected NE. Values are Available or Unavailable.
|
Operational State
|
Current operational state of the system. Values are In Service, Under Maintenance, or Out of Service.
|
Version
|
NE software version.
|
Alarm Log Size
|
Size of the alarm log.
|
Alarm Log Status
|
Current status of the alarm log.
|
PM Collection State
|
Whether performance monitoring collection is enabled or disabled. You can configure the PM collection state in the Domain Explorer > Network Element Properties pane > Status tab.
|
11.2.3 Filtering the Domain NE Table
Step 1 Select a node in the Domain Explorer or Subnetwork Explorer tree.
Step 2 Choose File > Domain NE Table. The Domain NE table opens. (See Figure 11-1.)
Step 3 Choose File > Filter (or click the Filter Data tool). The Filter dialog box opens.
Step 4 Specify the filter criteria to display the results in the Domain NE table. The following table describes the fields in the filter.
Step 5 Click OK. The filtered data is displayed in the Domain NE table.
Table 11-3 Field Descriptions for the Domain NE Table Filter
Field
|
Description
|
NE ID Tab
|
Available NE ID/Selected NE ID
|
List of available NE IDs. Click Add and Remove to move NE IDs to and from the Selected NE ID list.
Note Use the scroll bars at the bottom and right side of the Available NE ID list and the Selected NE ID list to display all options in the lists.
|
Inventory Tab
|
Communication State
|
Filters NEs according to their communication state (Available, Unavailable, Initialization Failed, and Only Reachable).
|
Operational State
|
Filters NEs according to their operational state (In Service, Out of Service, Preprovisioned, or Under Maintenance).
|
PM Collection State
|
Filters NEs according to their PM collection state (Enabled; 5,10,15 Min Collection; 1 Day Collection; Disabled).
|
Robust PM Collection State
|
Filters NEs according to their robust PM data collection state (Enabled, 15 Min Collection, 1 Day Collection, Disabled).
|
GNE
|
Filters domain inventory data based on GNE IDs. You can select <ALL> to filter all GNE IDs or you can choose a particular GNE ID from the drop-down list.
|
NP ID Tab
|
Available Network Partitions/Selected Network Partitions
|
Filters domain inventory data based on network partition. Click Add and Remove to move network partitions to and from the Selected Network Partitions list.
Note Use the scroll bars at the bottom and right side of the Available Network Partitions list and the Selected Network Partitions list to display all options in the lists.
|
11.2.4 Viewing the ENE Devices Table
Use the ENE Devices table to view subtending end network elements (ENEs) that are supported by a given GNE. The GNE-ENE relationship is calculated on a theoretical projection, which does not necessarily equate to a real network situation.
Step 1 Select a GNE node in the Domain Explorer or Subnetwork Explorer tree.
Step 2 Choose File > ENE Devices. The ENE Devices table opens.
The fields in the ENE Devices table are identical to the fields in the Domain NE table (see Table 11-1), except that the ENE Devices table shows only those ENEs that are associated with the selected GNE.
11.2.5 Viewing the TNE Devices Table
Use the TNE Devices table to view information about each tunnel NE (TNE) that CTM manages. The Edit menu options allow you to open, close, or modify an individual TL1 tunnel.
Step 1 Select any node in the Domain Explorer or Subnetwork Explorer tree.
Step 2 Choose File > TNE Devices. The TNE Devices (Tunnel) table opens. The following table provides descriptions.
Step 3 (Optional) To open, close, or modify a TL1 tunnel, select an individual TNE in the table and choose any of the following menu options:
•Edit > Open Tunnel—Opens a TL1 tunnel on the selected TNE. See Opening a TL1 Tunnel.
•Edit > Close Tunnel—Closes the TL1 tunnel on the selected TNE. See Closing a TL1 Tunnel.
•Edit > Modify Tunnel—Allows you to modify the settings of the selected TNE. See Modifying a TL1 Tunnel.
Table 11-4 Field Descriptions for the TNE Devices Table
Field
|
Description
|
TNE ID
|
ID of the selected tunnel NE.
|
Alias ID
|
Alias of the selected tunnel NE.
|
GNE IP Address
|
IP address of the non-Cisco GNE.
|
TL1 Port Number
|
Port number used by the non-Cisco GNE to support the TL1 tunnel.
|
Encoding Type
|
Type of encoding used by the selected tunnel NE. Values are LV + Base64 Payload, LV + Binary Payload, or Raw.
|
Tunnel Status
|
Status of the selected TL1 tunnel.
|
11.2.6 Filtering the TNE Devices Table
Step 1 Select any node in the Domain Explorer or Subnetwork Explorer tree.
Step 2 Choose File > TNE Devices. The TNE Devices (Tunnel) table opens.
Step 3 Choose File > Filter (or click the Filter Data tool). The Filter dialog box opens.
Step 4 Specify the filter criteria to display the results in the TNE Devices (Tunnel) table. The following table describes the fields in the filter.
Step 5 Click OK. The filtered data is displayed in the TNE Devices (Tunnel) table.
Table 11-5 Field Descriptions for the TNE Devices Table Filter
Field
|
Description
|
TNE ID Tab
|
Available Network Partitions/Selected Network Partitions
|
Filters TL1 tunnel data based on network partition. Click Add and Remove to move network partitions to and from the Selected Network Partitions list.
|
GNE IP Address Tab
|
Available Network Partitions/Selected Network Partitions
|
Filters GNE IP address data based on network partition. Click Add and Remove to move network partitions to and from the Selected Network Partitions list.
|
Tunnel Status Tab
|
Connection Type
|
Filters TL1 tunnel data based on the status of the tunnel connection. Check any of the following check boxes:
•Open—Filters on open TL1 tunnels.
•Close—Filters on closed TL1 tunnels.
•Initial—Filters on TL1 tunnels that are initializing.
|
11.2.7 Opening a TL1 Tunnel
Use the Open TL1 Tunnel dialog box to open a TL1 tunnel on the selected TNE.
Step 1 Select any node in the Domain Explorer or Subnetwork Explorer tree.
Step 2 Choose File > TNE Devices. The TNE Devices (Tunnel) table opens.
Step 3 In the TNE Devices table, select an individual TNE and choose Edit > Open Tunnel (or click the Open Tunnel tool). The Open TL1 Tunnel dialog box opens. The following table provides descriptions.
Note The Open Tunnel menu option and tool are dimmed if the TNE Devices table is empty.
Step 4 After making your selections, click Finish. The Job Monitor table (Administration > Job Monitor) reports the result of the operation.
Table 11-6 Field Descriptions for the Open TL1 Tunnel Dialog Box
Field
|
Description
|
TNE ID
|
Display only. ID of the selected tunnel NE.
|
Alias ID
|
Display only. Alias of the selected tunnel NE.
|
GNE IP Address
|
Display only. IP address of the non-Cisco GNE.
|
Port
|
Display only. Port number used by the non-Cisco GNE to support the TL1 tunnel.
|
TL1 Encoding
|
Display only. Type of encoding used by the selected tunnel NE. Values are LV + Base64 Payload, LV + Binary Payload, or Raw.
|
Job Comments
|
Enter comments about the TL1 tunnel, if needed.
|
Time (time zone)
|
Set a time to open the TL1 tunnel. Click Now to open the tunnel immediately, or click At Time and specify when to open the tunnel, in 5-minute increments.
Note The time zone can be GMT, a user-defined offset from GMT, or local time, depending on what is specified in the User Preferences dialog box.
|
11.2.8 Closing a TL1 Tunnel
Use the Close TL1 Tunnel dialog box to close the TL1 tunnel on the selected TNE.
Step 1 Select any node in the Domain Explorer or Subnetwork Explorer tree.
Step 2 Choose File > TNE Devices. The TNE Devices (Tunnel) table opens.
Step 3 In the TNE Devices table, select an individual TNE and choose Edit > Close Tunnel (or click the Close Tunnel tool). The Close TL1 Tunnel dialog box opens. The following table provides descriptions.
Step 4 After making your selections, click Finish. A warning message is displayed, alerting you that closing a tunnel will result in loss of connectivity to the selected TNE and all of its ENEs.
The Job Monitor table (Administration > Job Monitor) reports the result of the operation.
Table 11-7 Field Descriptions for the Close TL1 Tunnel Dialog Box
Field
|
Description
|
TNE ID
|
Display only. ID of the selected tunnel NE.
|
Alias ID
|
Display only. Alias of the selected tunnel NE.
|
GNE IP Address
|
Display only. IP address of the non-Cisco GNE.
|
Port
|
Display only. Port number used by the non-Cisco GNE to support the TL1 tunnel.
|
TL1 Encoding
|
Display only. Type of encoding used by the selected tunnel NE. Values are LV + Base64 Payload, LV + Binary Payload, or Raw.
|
Job Comments
|
Enter comments about the TL1 tunnel closure, if needed.
|
Time (time zone)
|
Set a time for the TL1 tunnel closure. Click Now to close the tunnel immediately, or click At Time and specify when to close the tunnel, in 5-minute increments.
Note The time zone can be GMT, a user-defined offset from GMT, or local time, depending on what is specified in the User Preferences dialog box.
|
11.2.9 Modifying a TL1 Tunnel
Use the Modify TL1 Tunnel dialog box to modify the settings of an individual TNE.
Step 1 Select any node in the Domain Explorer or Subnetwork Explorer tree.
Step 2 Choose File > TNE Devices. The TNE Devices (Tunnel) table opens.
Step 3 In the TNE Devices table, select an individual TNE and choose Edit > Modify Tunnel (or click the Modify Tunnel tool). The Modify TL1 Tunnel dialog box opens. The following table provides descriptions.
Step 4 After modifying the selections, click Finish. The Job Monitor table (Administration > Job Monitor) reports the result of the operation.
Table 11-8 Field Descriptions for the Modify TL1 Tunnel Dialog Box
Field
|
Description
|
TNE ID
|
Display only. ID of the selected tunnel NE.
|
Alias ID
|
Display only. Alias of the selected tunnel NE.
|
GNE IP Address
|
Modify the IP address of the non-Cisco GNE.
|
Port
|
Modify the port number used by the non-Cisco GNE to support the TL1 tunnel.
|
TL1 Encoding
|
Modify the type of encoding used by the selected tunnel NE. Values are LV + Base64 Payload, LV + Binary Payload, or Raw.
|
Job Comments
|
Enter comments about the TL1 tunnel modification, if needed.
|
Time (time zone)
|
Set a time for the tunnel modification. Click Now to begin modification immediately, or click At Time and specify when to begin modification, in 5-minute increments.
Note The time zone can be GMT, a user-defined offset from GMT, or local time, depending on what is specified in the User Preferences dialog box.
|
11.3 Equipment Inventory Table
The Equipment Inventory table displays a complete inventory of the components of the selected NE or of the NEs in a group or subnetwork. The following figure shows an example of the Equipment Inventory table.

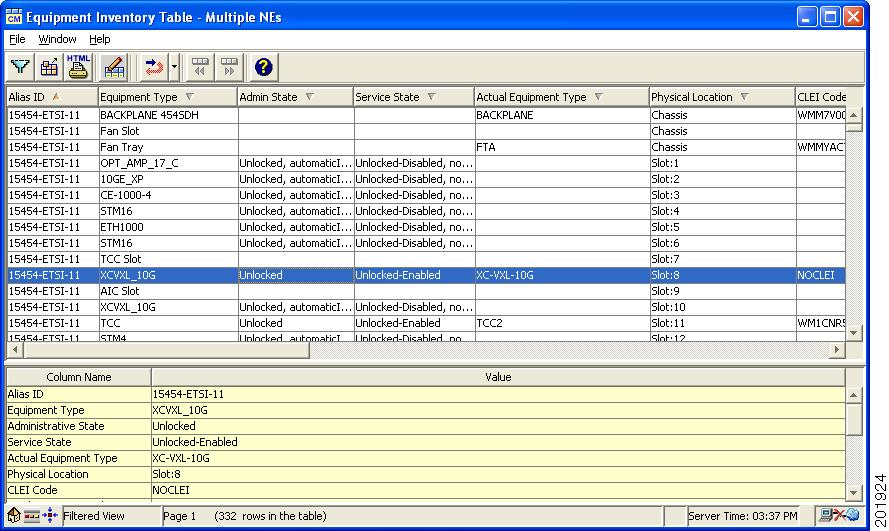

Figure 11-2 Equipment Inventory Table
Note See Appendix A, "Icons and Menus Displayed in CTM" for details of all the icons displayed in the window.
11.3.1 Viewing an Equipment Inventory Table
Step 1 In the Domain Explorer or Subnetwork Explorer tree, select the NE, group, or subnetwork for which you want to view inventory data, and choose Configuration.
Step 2 From the Configuration menu, select the NE model and choose Equipment Inventory Table. The Equipment Inventory table for the selected NE model opens.
The following sections provide information about the individual Equipment Inventory tables:
•ONS 15216 Equipment Inventory Table
•ONS 15302 or ONS 15305 Equipment Inventory Table
•Equipment Inventory Table for CTC-Based NEs
•ONS 155xx Equipment Inventory Table
•ONS 15800, ONS 15801, or ONS 15808 Equipment Inventory Table
•MGX 8830, 8850, 8880 Equipment Inventory Table
Note The Equipment Inventory table is not available for MDS 9000 and unmanaged NEs.
11.3.1.1 ONS 15216 Equipment Inventory Table
The ONS 15216 Equipment Inventory table displays a complete list of the ONS 15216 system inventory. The following table provides descriptions.
Table 11-9 Field Descriptions for the ONS 15216 Equipment Inventory Table
Field
|
Description
|
Alias ID
|
Alias name of the NE.
|
Equipment Type
|
NE model type.
|
Physical Location
|
Location where the NE is installed.
|
Wavelength(s)
|
Number of wavelengths for this NE.
|
CLEI Code
|
CLEI code for the device. CLEI code is an industry-standard code that precisely defines a component.
|
Product Name
|
Name of the product.
|
Serial Number
|
Serial number of the device.
|
NE ID
|
Name of the selected NE.
|
11.3.1.2 ONS 15302 or ONS 15305 Equipment Inventory Table
The ONS 15302 or ONS 15305 Equipment Inventory table displays a complete list of the ONS 15302 or ONS 15305 system inventory. The following table provides descriptions.
Table 11-10 Field Descriptions for the ONS 1530x Equipment Inventory Table
Field
|
Description
|
Alias NE ID
|
Alias name of the NE.
|
Module Name
|
Generic type of card.
|
Physical Location
|
Slot number where the card appears.
|
Install State
|
Installation state of the card.
|
Expected Module
|
Default card for the slot.
|
Operational State
|
Operational state of the card. (Not applicable if the slot is empty.)
|
Software Version
|
Version of software present on the card. (Not applicable if the slot is empty.)
|
Board Serial Number
|
Serial number of the card.
|
Hardware Version
|
Hardware version of the card. (Not applicable if the slot is empty.)
|
NE ID
|
Name of the selected NE.
|
11.3.1.3 Equipment Inventory Table for CTC-Based NEs
The Equipment Inventory table for CTC-based NEs displays a complete list of the ONS 15305 R3.0, ONS 15310 CL, ONS 15310 MA SONET, ONS 15310 MA SDH, ONS 15327, ONS 15454 SONET, ONS 15454 SDH, ONS 15600 SONET, or ONS 15600 SDH system inventory. The following table provides descriptions.
Table 11-11 Field Descriptions for the Equipment Inventory Table—CTC-Based NEs
Field
|
Description
|
Alias ID
|
Alias name of the NE.
|
Equipment Type
|
Generic type of card.
|
Admin State
|
User-assigned designation that drives whether an entity is in service or out of service. The administrative state is the driver for the service state. For SONET nodes, values are:
•IS—In Service. Able to carry traffic.
•OOS, DSBLD—Out of Service. Unable to carry traffic.
•IS, AINS—Auto In Service. Alarm reporting is suppressed, but traffic is carried.
•OOS, MT—Out of Service, Maintenance. Alarm reporting is suppressed, but traffic is carried and loopbacks are allowed.
•OOS, OOG—Out of Service, Out of Group. This state is used to place a member circuit out of the group and to stop sending traffic. OOS, OOG applies only to the cross-connects on the end node where the VCAT resides. For intermediate nodes, the cross-connects are OOS, MT.
For SDH nodes, corresponding values are:
•Unlocked (corresponds to IS)
•Locked (corresponds to OOS)
•Failed (corresponds to FLT)
•Locked Maintenance (corresponds to OOS, MT)
•Unlocked Automatic In Service (corresponds to IS, AINS)
Note If the NE release does not support the administrative state, this field shows N/A.
|
Service State
|
Overall availability of the entity. Values are:
•IS-NR—In Service-Normal.
•OOS-AU—Out of Service-Autonomous.
•OOS-MA—Out of Service-Management.
•OOS-AUMA—Out of Service-Autonomous and Management.
In addition, a secondary state provides additional information about the status of the entity. Values for secondary state are:
•AINS—Automatic In Service.
•DSBLD—Traffic is disabled on the entity.
•FLT—Fault secondary state. When an entity is faulted, an FLT state is raised. Equipment and ports in FLT state should be cleared as they transition. Transition states are listed in Table 11-12.
•LPBK—Port or connection has a loopback on it.
•MEA—Mismatch of equipment due to invalid equipment insertion.
•MT—Maintenance, as per the administrative state change.
•SWDL—Software download in progress.
•UAS—Unassigned. The entity does not exist, has not been created, or has been deleted.
•UEQ—Unequipped. There is nothing in the slot.
See Table 11-12 for the Service state-Secondary state possible values.
Note If the NE release does not support the service state, this field shows N/A.
|
Actual Equipment Type
|
Specific type of card. This field also shows small form-factor pluggable (SFP) information (such as wavelength, reach, and payload rate) for all line cards and pluggable I/O modules (PIMs) that support pluggable port modules (PPMs).
Note For the Customer Access Panel2 (CAP2) module on the ONS 15600, CTM displays "CAP" for the Equipment Type and "15600-CAP2" for the Actual Equipment Type.
|
Physical Location
|
Slot number where the card appears.
For PPMs, this field contains the slot number and the PPM numbers.
|
CLEI Code
|
CLEI code for the card. CLEI code is an industry-standard code that precisely defines a component.
|
Hardware Part Number
|
Part number used for the card.
|
Serial Number
|
Serial number of the card.
|
Hardware Revision
|
Hardware revision number of the card.
|
Firmware Version
|
Firmware version of the card.
|
Inventory Code
|
Inventory code of the card.
|
Application Filename
|
Name of the file that the card loads from the TCC or XTC flash in order to run its application.
|
Other Information
|
Additional information entered by the manufacturer.
|
Equipment State
|
Current state of the card. Values are:
•Active
•Deleted
•Empty
•Failed
•Loading
•Mismatch
•Not Present
•Standby
|
Product ID
|
Product ID string of 63 characters maximum. If the card does not support the product ID, the field shows N/A.
|
Version ID
|
Version ID string in the format V99_. The version ID always begins with a V and ends with a space. If the card does not support the version ID, the field shows N/A.
|
NE ID
|
Name of the selected NE.
|
Table 11-12 Service State and Fault Secondary State Values
Service State-Secondary State Possible Values
|
Initial State Transition
|
Final State Transition
|
Equipment
|
IS-NR
|
FLT
|
OOS-AU, FLT
|
OOS-AU, FLT
|
All AE Cleared
|
IS-NR
|
OOS-AU, FLT
|
ED: OOS, MT RMV
|
OOS-AUMA, FLT & MT
|
OOS-MA, MT
|
FLT
|
OOS-AUMA, FLT & MT
|
OOS-AUMA
|
FLT
|
OOS-AUMA, FLT
|
OOS-AUMA, FLT & MT
|
All AE Cleared
|
OOS-MA
|
Port
|
IS-NR
|
FLT
|
OOS-AU, FLT
|
OOS-AU. FLT
|
FLT Cleared
|
IS-NR
|
OOS-AU, AINS
|
FLT
|
OOS-AU, AINS & FLT
|
OOS-AU, AINS & FLT
|
FLT Cleared
|
OOS-AU, AINS
|
OOS-MA, MT
|
FLT
|
OOS-AUMA & FLT & MT
|
OOAS-AUMA & FLT & MT
|
FLT Cleared
|
OOS-MA & MT
|
OOS-AUMA & LPBK & MT
|
FLT
|
OOS-MA & LPBK & MT & FLT
|
OOS-AUMA & LPBK & MT & FLT
|
FLT Cleared
|
OOS-MA & LPBK & MT & FLT
|
11.3.1.4 ONS 155xx Equipment Inventory Table
The ONS 155xx Equipment Inventory table displays a complete list of the system inventory of the selected ONS 15501, ONS 15530, or ONS 15540 NE. The following table provides descriptions.
Table 11-13 Field Descriptions for the ONS 155xx Equipment Inventory Table
Field
|
Description
|
Alias ID
|
Alias name of the NE.
|
Equipment Type
|
General type of the component.
|
Name
|
Name of the ONS 155xx component.
|
Module Name
|
Name of the ONS 155xx module.
|
Physical Location
|
Physical location for the component in the NE as a slot, subslot, and port number.
|
CLEI Code
|
CLEI code, an industry-standard code that precisely defines a component.
|
Serial Number
|
Serial number of the NE.
|
Hardware Version
|
Hardware revision of the NE.
|
Firmware Version
|
Firmware revision of the NE.
|
Software Version
|
Software revision of the NE.
|
Manufacturer Name
|
Name of the manufacturer of the NE.
|
Product Name
|
Vendor-specific model name; for example, the part number.
|
Alias
|
Alias specified for the component by the network manager.
|
Asset ID
|
Asset tracking identifier specified for the component by the network manager.
|
Description
|
Description of the component.
|
NE ID
|
Name of the selected ONS 155xx NE.
|
11.3.1.5 ONS 15800, ONS 15801, or ONS 15808 Equipment Inventory Table
The ONS 1580x Equipment Inventory table displays a complete list of the ONS 15800, ONS 15801, or ONS 15808 system inventory. The following table provides descriptions.
Table 11-14 Field Descriptions for the ONS 1580x Equipment Inventory Table
Field
|
Description
|
Alias ID
|
Alias name of the NE.
|
Module Name
|
Name of the ONS 1580x module.
|
Physical Location
|
Physical location of the ONS 1580x module.
|
Operational State
|
Operational state of the module: In Service, Out of Service, or Under Maintenance.
|
Working Condition
|
Working condition of the module:
•Normal—Operational state is In Service; no alarms are present.
•Abnormal—Operational state is In Service; alarms are present.
•Not Applicable—Operational state is Out of Service.
•Maintenance—Operational state is In Maintenance.
|
Software Version
|
Version of the firmware that resides on the module.
|
BIOS Version
|
Version number of the module's BIOS.
|
Board Serial Number
|
Serial number of the module's board.
|
SCC Version
|
Version of the module's serial communication controller.
|
Product Option
|
Product option. Displays Not Available if the TL1 Agent version is earlier than version 2.1.
|
Hardware Version
|
Version of the hardware. Displays Not Available if the TL1 Agent version is earlier than version 2.1.
|
Line Direction
|
Working direction associated with the module. Some modules work on the east-to-west fiber; others work on the west-to-east fiber. If the module is bidirectional or is not associated with a specific fiber direction, this field is undetermined.
|
NE ID
|
Name of the selected NE.
|
11.3.1.6 MGX 8830, 8850, 8880 Equipment Inventory Table
The Cisco MGX 8830, 8850, and 8880 Equipment Inventory tables display a complete list of the MGX system inventory. The following table provides descriptions.
Table 11-15 Field Descriptions for the MGX Equipment Inventory Table
Field
|
Description
|
NE Alias ID
|
Alias name of the NE.
|
Physical Location
|
Name of the location where the NE is installed.
|
Module Name
|
Name of the module.
|
Description
|
Any information that was previously entered to describe the selected NE.
|
Front Card Serial Number
|
Serial number of the front card (FC).
|
Front Card Hardware Revision
|
Hardware revision number of the front card.
|
Front Card Software Revision
|
Software revision number of the front card.
|
Front Card Reset Reason
|
Reason for resetting the front card.
|
Front Card State
|
State of the front card.
|
Back Card Name
|
Name of the back card.
|
Back Card Serial Number
|
Serial number of the back card.
|
Back Card Hardware Revision
|
Hardware revision number of the back card.
|
Back Card State
|
State of the back card.
|
Secondary Back Card Name
|
Name of the secondary back card.
|
Secondary Back Card Serial Number
|
Serial number of the secondary back card.
|
Secondary Back Card Hardware Revision
|
Hardware revision number of the secondary back card.
|
Secondary Back Card State
|
State of the secondary back card.
|
Synchronization Mode
|
Synchronization mode.
|
Logical Slot
|
Logical slot.
|
Peripheral Unit Number
|
Number of the peripheral unit.
|
Peripheral Group Number
|
Number of the peripheral group.
|
Network Element ID
|
Name of the selected NE.
|
11.3.2 Exporting Equipment Inventory Table Data
You can schedule the export of Equipment Inventory table data to a flat file.
The Export Equipment Inventory Table dialog box allows you to export the data as comma-separated values (CSVs) or tab-separated values (TSVs), which are formats commonly used to import data into spreadsheet and database applications for further analysis and manipulation. You can also select a user-specified character as a separator.
Tip If you export data to Microsoft Excel, save the exported file with ".csv" as the filename extension.
To open the Export dialog box, open the Equipment Inventory table for the NE(s); then, click the Export Data to File tool (or choose File > Export). The following table provides descriptions. After making your selections, click OK to export the data.
Table 11-16 Field Descriptions for the Export Equipment Inventory Table Dialog Box
Field
|
Description
|
Field Separator
|
Comma separated
|
If selected, the data is exported as comma-separated values.
|
Tab separated
|
If selected, the data is exported as tab-separated values.
|
Other
|
If selected, the data is exported with the separator that you specify in the Other text field.
Note If you specify a character as a separator and your data contains the same character, the character in the data is automatically enclosed in double quotes. This allows the spreadsheet or database application to understand that the character is part of your data. Regardless of whether you select Comma separated, Tab separated, or Other, CTM automatically encloses text in double quotes if it has a separator.
|
Export
|
Selected row(s)
|
If selected, only the selected rows in the current page are exported.
|
All rows in current page
|
If selected, all rows in the current page are exported.
|
Export Data
|
Local (file)
|
If selected, data is exported to a local file on your system. Specify the path directory and the filename. With the Local option, you can export selected rows or all rows in the Equipment Inventory table. By default, exported data is stored in the C:\Cisco\TransportManagerClient<version>\exports file.
|
Server (dir)
|
If selected, data is exported to a directory on the server. The directory path is a fixed, display-only string. With the Server option, you can export all rows in the Equipment Inventory table; you cannot export selected rows. By default, exported data is stored in the /opt/CiscoTransportManagerServer/export directory.
|
Time
|
Time (time zone)
|
Set a time for the export. Click Now to begin exporting immediately, or click At Time and specify when to begin exporting, in 5-minute increments.
For local exports, you can only select Now. For server exports, you can select Now or At Time.
Note The time zone can be GMT, a user-defined offset from GMT, or local time, depending on what is specified in the User Preferences dialog box.
|
Repeat
|
Once
|
If selected, the export of inventory data to the server occurs once.
|
Daily
|
If selected, the export of inventory data to the server occurs daily.
|
Weekly
|
If selected, the export of inventory data to the server occurs weekly.
|
Monthly
|
If selected, the export of inventory data to the server occurs monthly.
|
Job Comments
|
Job Comments
|
Enter comments about the export. The comments will be attached to the scheduled job.
|
