Preface

---

New and Changed Information

The following table describes information that has been added or changed since the Cisco Transport Manager Release 9.0 Installation Guide was last published online.

Table 1 New and Changed Information in This Guide

Date Released	Revision	Location
February 25, 2009	Initial version.	—
April 8, 2009	Noted that the Oracle 5752399 patch is required if you are using Veritas as a disk management system.	1.1  CTM Server Requirements, page 1-1
	Added this new step: If you are using Veritas as a disk management system, Oracle patch 5752399 is required in both high availability (HA) and non-HA configurations. See A.4  Downloading and Installing the Oracle Patch 5752399, page A-12.	2.1.1  Setting the Environment for Installation, page 2-2, Step 12
	Added a new section to download and install the Oracle patch 5752399.	A.4  Downloading and Installing the Oracle Patch 5752399, page A-12
	Added this new step: If you receive the following warning prompt, click OK: For proper operation, restart the machine.	2.1.2  Updating the System Parameters, page 2-3, Step 18
April 20, 2008	Added this new step: To verify that you have the Opatch utility 10.2.0.3.4 installed, enter the following command as the oracle user: $ORACLE_HOME/OPatch/opatch version The following messages appear: Invoking OPatch 10.2.0.3.4 OPatch Version: 10.2.0.3.4 OPatch succeeded.	A.1.6.2  Installing the OPatch (Patch Number 4898608), page A-7
May 19, 2009	Added this footnote: A small installation with UltraSPARC processors requires a minimum of 4 GB of RAM; however, 8 GB of RAM is recommended.	•Table 1-1 •Table 1-2
August 20, 2009	Added this footnote: In a small network configuration, the swap space must be at least 1.5 times the RAM. Therefore, if your server has 4 GB of RAM, you must have 6 GB of swap space. If your server has 8 GB of RAM, you must have 12 GB of swap space.	•Table 1-5, Part 1 •Table 1-5, Part 2 •Table 1-6, Part 1 •Table 1-6, Part 2
September 16, 2009	Merged T2 processor information into Table 1-1 and Table 1-2. Previously, T2 processor information was listed in a separate table.	•Table 1-1 •Table 1-2
November 24, 2009	Moved this step to the beginning of the procedure: For a small installation on a T2 processor, the CTM R9.0.0.550 patch is required. See CSCsy01229 in the Release Notes for Cisco Transport Manager Release 9.0 for information about downloading and installing the CTM R9.0.0.550 patch.	2.1.3  Installing the CTM R9.0 Server and Database, page 2-5,

Introduction

This guide explains how to install Cisco Transport Manager (CTM) Release 9.0 and how to upgrade from previous releases.

CTM is an advanced management system that provides functionality at the element and network management levels for Cisco optical network elements (NEs) and switches. CTM supports fault, configuration, performance, and security management functional areas. CTM also serves as a foundation for integration into a larger overall Operations Support System (OSS) environment by providing northbound gateway interfaces to higher-layer management systems.

In Release 9.0, CTM supports the Cisco Optical Networking System (ONS) family of optical NEs, the Cisco MGX 8880 Voice Gateway and MGX 8850/8830 Voice-Enabled Multiservice Switch, and the Cisco MDS 9000 Multilayer Director and Fabric Switch.

---

Note See the Release Notes for Cisco Transport Manager Release 9.0 for the NE software versions that are supported in CTM R9.0. The CTM release notes are available on the product CD and online at http://www.cisco.com/en/US/products/sw/opticsw/ps2204/prod_release_notes_list.html.

---

---

Caution Before updating the software image on an NE, check the CTM release notes to verify whether the NE software version is supported in this CTM release.

---

Audience

The primary audience for this guide includes network operations personnel and system administrators. This guide assumes that you are familiar with the following products and topics:

•Basic internetworking terminology and concepts

•Network topology and protocols

•Microsoft Windows Vista, Windows 2000 Professional, Windows XP Professional, and Windows Server 2003 Terminal Server

•Sun Microsystems Solaris administration

•Oracle database administration

Conventions

This document uses the conventions listed in the following table.

Table 2 Document Conventions

Item	Convention
Commands and keywords	boldface font
Variables for which you supply values	italic font
Displayed session and system information	screen font
Information you enter	boldface screen font
Variables you enter	italic_screen font
Selecting a menu item	Option  >  Network Preferences

---

Note Means reader take note. Notes contain helpful suggestions or references to material not covered in the publication.

---

---

Caution Means reader be careful. In this situation, you might do something that could result in equipment damage or loss of data.

---

---

Tip Means the following information will help you solve a problem.

---

---

Timesaver Means the described action saves time. You can save time by performing the action described in the paragraph.

---

Installation and Upgrade Overview

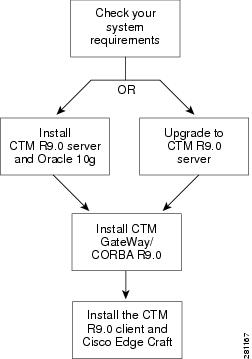

The following figure describes the typical CTM installation and upgrade workflow and the various components that can be installed in addition to CTM.

Figure 1 CTM Installation and Upgrade Workflow

1. Check your system requirements before installing CTM R9.0 or upgrading from an earlier release. See Chapter 1, "System Requirements."

2. For a new CTM R9.0 server installation, see Table 1 and Chapter 2, "Installing the CTM R9.0 Server and Oracle 10g."

3. When upgrading to the CTM R9.0 server from an earlier release, see Table 1 and Chapter 3, "Upgrading to CTM R9.0 from an Earlier Release."

4. To install CTM GateWay/CORBA, see Chapter 4, "Installing CTM GateWay/CORBA R9.0." The CTM GateWay/CORBA option is a CORBA-based interface that provides higher-layer management systems with information for all supported NEs.

---

Note You must purchase a separate license for CTM GateWay/CORBA R9.0.

---

5. To install the CTM R9.0 client and Cisco Edge Craft (optional), see Chapter 5, "Installing the CTM R9.0 Client and Cisco Edge Craft." Cisco Edge Craft is the local craft application used to manage ONS 15302 and ONS 15305 NEs. You can install the CTM client manually or automatically. Cisco Edge Craft cannot be upgraded automatically even though it is bundled with the CTM client.

Installation and Upgrade Scenarios

The following table describes the different installation scenarios for CTM R9.0, and where information on these scenarios can be found. Based on your requirements and on your existing installation, choose one of the scenarios listed.

Table 3 Installation and Upgrade Scenarios

What is your existing release?	Will you install the CTM R9.0 server and Oracle 10g database on separate workstations?	For more information, see
New installation	No	Page 2-1
New installation	Yes	Page 2-9
CTM R8.5	No	Page 3-21
CTM R8.5	Yes	Page 3-26
CTM R8.0	No	Page 3-4
CTM R8.0	Yes	Page 3-12

---

Note If you are upgrading from a release prior to CTM R8.0, you must first upgrade to CTM R8.0. See the Cisco Transport Manager Release 8.0 Installation Guide for the exact installation procedure. After you install CTM R8.0, you can upgrade to CTM R9.0.

---

Where to Find CTM Documentation

A Where to Find Cisco Transport Manager Documentation leaflet ships with your product. This leaflet contains information about how to locate CTM documentation online and on the documentation CD-ROM.

Related Documentation

---

Note You can access the most current CTM R9.0 documentation online at http://www.cisco.com/en/US/products/sw/opticsw/ps2204/tsd_products_support_series_home.html.

---

The CTM documentation set comprises the following guides:

•Release Notes for Cisco Transport Manager Release 9.0—Describes the caveats for CTM.

•Cisco Transport Manager Release 9.0 Installation Guide—This guide.

•Cisco Transport Manager Release 9.0 User Guide—Describes how to use the CTM software, which consists of user applications and tools for network discovery, network configuration, connection management, fault management, system administration, and security management.

•Cisco Transport Manager Release 9.0 GateWay/CORBA User Guide and Programmer Manual—Describes the CTM GateWay/CORBA northbound interface product that is available for CTM. This document serves as a reference for developers of OSS applications that work with the CTM GateWay/CORBA interface.

•Cisco Transport Manager Release 9.0 Database Schema—Describes the database schema that CTM uses to store information in a Structured Query Language (SQL) database such as the Oracle database. The document is designed for users who need to create their own reports without using CTM.

•Cisco Transport Manager Release 9.0 High Availability Installation Guide—Explains how to install CTM in a high availability (HA) environment.

---

Note The Cisco Transport Manager Release 9.0 High Availability Installation Guide is not available online. Contact your Cisco account representative to obtain this guide.

---

•Cisco Transport Manager Release 9.0 ML Provisioning Methodology—Describes the methodology that CTM uses to provision ML-series cards.

•Cisco Transport Manager Release 9.0 Basic External Authentication—Describes how CTM supports basic external authentication.

•Migration Matrix for Cisco Transport Manager Service Pack Releases—Describes the migration matrix for CTM service pack releases.

Obtaining Documentation and Submitting a Service Request

For information on obtaining documentation, submitting a service request, and gathering additional information, see the monthly What's New in Cisco Product Documentation, which also lists all new and revised Cisco technical documentation, at:

http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html

Subscribe to the What's New in Cisco Product Documentation as a Really Simple Syndication (RSS) feed and set content to be delivered directly to your desktop using a reader application. The RSS feeds are a free service and Cisco currently supports RSS version 2.0.
