Provisioning Services and Connections

This chapter describes how to use CTM to provision network services. It also details the tasks required to create new connections, and display, modify, and delete existing connections. This chapter includes the following sections:

•Overview

•Managing Circuits

•Managing BLSRs

•Managing MS-SPRings

•Managing VLANs for E-Series Cards

•Managing VLANs (ML-Series Cards)

•Managing VLAN Database Profile

•Provisioning Data Services

•Managing QoS Profiles

•Managing DWDM Nodes

•What Is Connection Provisioning?

7.1  Overview

A metro network is a network that aggregates customer traffic and connects customers to services. The metro network is responsible for receiving network traffic from long-haul transport networks and routing this traffic to and from enterprises and end users.

The service point-of-presence (POP) performs service adaptation and packet switching. This layer performs the following functions:

•Grooming of traffic from the metro network

•Edge packet switching, where IP services are enabled

•Core packet switching, where POPs are interconnected over the IP backbone

The service POP is the hub of high-value Internet services. The core network, where optical technologies predominate, is the domain of the long-haul carrier. This high-speed transport fabric interconnects service POPs and has traditionally been built as SONET ring architectures.

CTM simplifies operations support system (OSS) integration for service providers for the end-to-end management of transport networks.

7.2  Managing Circuits

A circuit represents an end-to-end connection between two or more connection termination points (CTPs). A circuit consists of an alternating series of cross-connections and link connections. In its simplest form, a circuit consists of a single cross-connection (if the circuit is defined between two CTPs on the same NE). A circuit can be bidirectional or unidirectional, point-to-point (PTP) or point-to-multipoint, and protected or unprotected.

CTM allows you to create unidirectional and bidirectional circuits for CTC-based NEs and DWDM optical channel client connection (OCHCC) circuits for CRS-1 NEs. For unidirectional path switched ring (UPSR) circuits, you can create revertive or nonrevertive circuits. CTM can route the circuits automatically, or you can route them manually. For CRS-1 and CTC-based NEs (including the ONS 15305 R3.0), circuits can be viewed, created, modified, traced, and deleted. For the ONS 15530 or ONS 15540, a circuit is an end-to-end connection between two ports on ONS 15530 or ONS 15540 NEs in terms of lambda (wavelength). For the ONS 155xx, circuit services provide the following major capabilities:

•Finding all end-to-end connections between NEs in terms of client ports, provided the entire path was traversed within ONS 15530 and ONS 15540 NEs.

•Displaying the protection information associated with each circuit.

•Displaying all directional-based paths that have been configured and are in use for a protected circuit.

•Displaying the active and standby paths that have been configured and are in use for a protected circuit.

Note Circuit information is not available for the ONS 15216, ONS 15302, ONS 15501, ONS 15800, ONS 15801, ONS 15808, Cisco Catalyst 6509, Cisco 7600, or Cisco XR 12000. For the ONS 15302 and ONS 15305, circuits can be created through CEC (Configuration > ONS 15302 or ONS 15305 > Launch Cisco Edge Craft).

For ONS 15305 NE releases 3.0 and later, circuits can be created in CTM, CTC, and CEC. Circuits that are created in CTM or CTC can be managed in CTM, CTC, and CEC. But circuits that are created in CEC show unpredictable and erroneous behavior in CTM and CTC.

For ONS 15305 NE releases earlier than R3.0, the circuit information is not available in CTM. Circuits can be created in CEC but cannot be managed in CTM.

Note Circuit management performance depends on an efficient DCN network. Refer to the ONS 15454 user documentation for details.

The following table defines the circuit terms and options that are used throughout this chapter.

Table 7-1 Circuit Terms and Options

Circuit Option

Description

Link

Represents a topological relationship between two physical termination points (PTPs) for a particular layer rate. The possible set of layer rates is determined by the layer rates terminated by the PTP. For example, an OC-N port will terminate a physical layer rate and a SONET layer rate.

Circuit

Represents an end-to-end connection between two or more CTPs.

Cross-connection

A (normally flexible) connection between two CTPs within the same NE.

Link connection

An inflexible (or fixed) connection between two CTPs that are contained by two PTPs connected by a link. It represents a portion of the transport capacity of a link, such as an STS-1 channel within an OC-N link.

PTP

A termination point that is the actual or potential endpoint of a link that might be abstracted as a PTP. It is the representation of a physical port.

CTP

Represents the actual or potential endpoint of a cross-connection, link connection, or circuit. A CTP is contained within a PTP. In some cases, there is a single CTP associated with a PTP, such as with a DS-1 PTP. There could also be multiple CTPs, such as with STS-1 or STS-Nc CTPs contained within an OC-N PTP.

Source

The circuit source is where the circuit enters the network.

Destination

The circuit destination is where the circuit exits the network.

Automatic circuit routing

CTM routes the circuit automatically on the shortest available path based on routing parameters and bandwidth availability.

Manual circuit routing

Manual routing allows you to choose a specific path, not just the shortest path chosen by automatic routing. You can choose a specific STS or VT for each circuit segment for SONET nodes, or a specific VC4, VC3, or VC12 for each circuit segment for SDH nodes. You can also create circuits from work orders prepared by an OSS such as the Telcordia TIRKS system.

Low-order tunnel

Low-order tunnels allow VC3 and VC12 circuits to pass through an SDH node without using cross-connect card (XC10G and XCVXL) resources. Low-order circuits using tunnels use cross-connect capacity only at the source and destination nodes. One low-order tunnel can carry three VC3s, and each VC3 can carry 21 VC12s. One tunnel can carry one VC3 circuit span and 42 VC12 circuit spans, and each VC3 is a separate container that can contain a VC3 circuit span or 21 VC12 circuit spans.

Low-order aggregation point

Low-order aggregation points (LAPs) allow low-order VC12 and VC3 circuits to be aggregated into a VC4 for handoff to non-ONS networks or equipment, such as interoffice facilities (IOFs), switches, or digital access cross-connect systems. The VC4 grooming end of the LAP requires an STM-N card. LAPs can be created on MS-SPRings, 1-1, or unprotected nodes, but cannot be created on subnetwork connection protection (SNCP) nodes.

VT tunnel

VT tunnels allow VT1.5 circuits to pass through a SONET node without using cross-connect resources. VT circuits using VT tunnels use cross-connect capacity only at the source and destination nodes. One VT tunnel can carry 28 VT1.5 circuits.

VT aggregation point

VT aggregation points (VAPs) allow VT circuits to be aggregated into an STS for handoff to non-ONS networks or equipment, such as IOFs, switches, or digital access cross-connect systems. VAPs reduce VT matrix resource utilization at the node where the VT1.5s are aggregated onto the STS. This node is called the STS grooming end. The STS grooming end requires an OC-N, EC-1, or DS3XM-6 card. VT aggregation points can be created on BLSR, 1+1, or unprotected nodes, but cannot be created on UPSR nodes.

7.2.1  Circuit Table Launch Points

The following table describes the various launch points and the expected behavior for the Circuit table.

Table 7-2 Circuit Table Launch Points and Expected Behavior

Selection

Circuit Table

The top-level root node or group nodes in the Domain Explorer

All circuits that have NEs in the domain as source/destination or pass-through NEs.

The top-level root node or subnetwork nodes in the Subnetwork Explorer

All circuits that have NEs in the subnetwork as source/destination or pass-through NEs.

A group or subnetwork in the Network Map

All circuits that have NEs in the Network Map as source/destination or pass-through NEs.

A link in the Network Map

All circuits that pass through the specified link as well as circuits that have termination points on the specified link's endpoints.

A group of links in the Network Map

All circuits that pass through the specified link as well as circuits that have termination points on the specified link's endpoints.

A link in the Link table

All circuits that pass through the specified link as well as circuits that have termination points on the specified link's endpoints.

Note You cannot launch the Circuit table from the Link table for Layer 2 links.

An NE node in the Domain Explorer, Subnetwork Explorer, or Network Map

All circuits that have the selected NE node as the source/destination or pass-through NE.

An NE node in the NE Explorer

All circuits that have the selected NE node as the source/destination or pass-through NE.

NE Explorer > Configuration > Circuit Table

Can be launched by the selecting the node, a slot, or a port.

7.2.2  Circuit Table Management Tasks

The following table describes the various tasks that can be carried out from the Circuit table and the recommended order in which to complete these tasks.

Table 7-3 Circuit Table Management Tasks

Task

Description

Selection

Icon

See

View the Circuit table

The Circuit table displays the circuit information for all circuits that make up the topology.

From the Domain Explorer, choose Configuration > CTC-Based SONET NEs, CTC-Based SDH NEs, or Cisco CRS-1 > Circuit Table

—

Viewing the Circuit Table

Create a circuit

The Circuit wizard allows you to create a circuit between NEs in the same group or subnetwork.

Configuration > Create Circuit

Creating Circuits Using the Circuit Wizard

Modify a circuit

The Modify Circuit dialog box allows you to change circuit information for selected circuits.

Configuration > Modify Circuit

Modifying a Circuit on CTC-Based NEs

Modifying a Circuit on CRS-1 NEs

Modifying a Circuit on ONS 15530 or ONS 15540 NEs

Update a circuit

You need to update circuits after adding nodes to the network.

From the Domain Explorer, choose Configuration > CTC-Based SONET NEs, CTC-Based SDH NEs, or Cisco CRS-1 > Update Circuit

—

Updating Circuits on CRS-1 or CTC-Based NEs

Merge circuits on CTC-based NEs

Use the circuit merge feature to merge different circuits into one or more new circuits.

Configuration > Merge Table

Merging Circuits on CTC-Based NEs

Repair a circuit on CTC-based NEs

Use the Repair Circuit window to repair circuits.

From the Domain Explorer, choose Configuration > CTC-Based SONET NEs or CTC-Based SDH NEs > Repair Circuit

—

Repairing a Circuit

Delete a circuit

Allows you to delete an existing circuit. You can also select and delete multiple circuits.

Configuration > Delete Circuit

Deleting a Circuit on CRS-1 or CTC-Based NEs

View the Circuit Span table

The Circuit Span table displays information about all spans associated with the selected circuit.

Configuration > Open Circuit Span

Viewing Circuit Spans

View VCAT member circuits

Use the VCAT Member table to view members of a virtual concatenation (VCAT) circuit.

Configuration > Member Circuits

Viewing VCAT Member Circuits

Create VCAT member circuits

Use the Add Member wizard to add new members to an existing VCAT circuit.

In the VCAT Member table, choose Configuration > Add Member

Creating VCAT Member Circuits

Filter the Circuit table

Use the Circuit table filter to filter circuit data according to criteria that you select and to display the results in the Circuit table.

File > Filter

Filtering the Circuit Table

Trace a circuit on CRS-1 or CTC-based NEs

Use the Circuit table to trace the connectivity of a circuit by showing the source node, the destination node, and any intermediate nodes in graphical format.

Configuration > Trace Circuit

Tracing a Circuit on CRS-1 or CTC-Based NEs

Modify a trace on CTC-based NEs

Use the Modify Trace window to change the section trace information for transponder and muxponder cards. Trace information can be used to find faults.

Select a trace and click Modify to open the Modify Trace window

—

Modifying a Trace on CTC-Based NEs

Manage circuit notes on CTC-based NEs

Allows you to view and add notes to circuits displayed in the Circuit table.

Configuration > Show Circuit Note

Managing Circuit Notes on CTC-Based NEs

Manage circuit rolls on ONS 15600 NEs

Use the Rolls table to manage ONS 15600 circuit rolls.

To view the Rolls table, select an ONS 15600 in the Domain Explorer tree and choose Configuration > CTC-Based SONET NEs or CTC-Based SDH NEs > Rolls Table

Managing Circuit Rolls on CTC-Based NEs

Reconfigure circuits

Use the reconfigure circuit(s) feature to upgrade TL1 circuits to regular circuits.

Configuration > Reconfigure Circuit(s)

—

Reconfiguring Circuits on CTC-Based NEs

7.2.3  Viewing the Circuit Table

The Circuit table shows circuit information for all circuits that make up a topology. A circuit describes a fixed-size bandwidth pipe that is fully cross-connected from one user-defined source point (node, slot, or port) to a second user-defined destination point across some number of node-to-node optical spans (zero if the circuit is local to a single NE).

An endpoint can be an actual physical drop port (DS-1, DS-3, and so on) or an STS-n or VT1.5 channel in an optical line. A multicast circuit consists of circuit spans that have one source endpoint and a sequence of destination endpoints.

Figure 7-1 Circuit Table

Note See Appendix A, "Icons and Menus Displayed in CTM" for details of all the icons displayed in this window.

To launch the Circuit table, do any of the following:

•Select a node in the Domain Explorer tree or Network Map and choose Configuration > CTC-Based SONET NEs, CTC-Based SDH NEs, or Cisco CRS-1 > Circuit Table.

•Right-click a node in the Domain Explorer tree and choose Circuit Table.

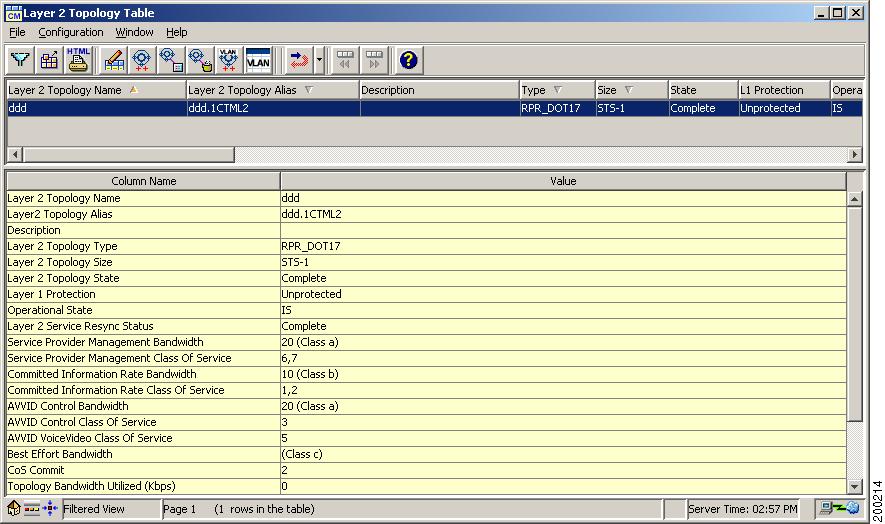

•(For CTC-based NEs) Open the Layer 2 Topology table and choose Configuration > Circuits.

Note When launching the Circuit table in a large or high-end network setup and on a larger scope (for example, for the Domain Explorer), a database timeout can occur due to the high volume of data being retrieved. As a workaround, launch the Circuit table on a smaller scope.

The following table describes the fields in the Circuit table.

Table 7-4 Field Descriptions for the Circuit Table

Column Name

Description

Circuit Alias Name

Displays the alias name of the circuit.

Note

Displays comments that have been entered for the selected circuit, and allows you to add additional comments.

Source NE: Module Type/Physical Loc/Interface

Displays the NE ID and module type at the span source, the slot and port name and numbers (physical location), and the STS number (interface).

Destination NE: Module Type/Physical Loc/Interface

Displays the NE ID, the module type at the destination, the slot and port name and numbers (physical location), and the STS number (interface).

Circuit Type

Displays the type of circuit selected. SONET circuit types are STS, VT, VT Aggregation, VT Tunnel, VT VCAT (shown as VT-v), STS VCAT (shown as STS-v), DWDM optical channel network connection (OCHNC), DWDM OCHCC, OCHTRAIL, and OCHNC DCN.

SDH circuit types are HOP, LOP, LOPA, LOPT, HOV (HO VCAT), LOV (LO VCAT), OCHNC, OCHCC, OCHTRAIL, and OCHNC DCN.

Circuit Size

Displays the size of the circuit:

•SONET circuit sizes are VT1.5, VT2, STS 1, STS 3c, STS 6c, STS 9c, STS 12c, STS 24c, STS 48c, STS 96c, STS 192c, STS-1-nv, STS-3c-nv, STS-12c-nv, and VT1.5-nv.

•SDH circuit sizes are VC11, VC12, VC3, VC4, VC4-2c, VC4-3c, VC4-4c, VC4-8c, VC4-16c, VC4-32c, VC4-64c, VC4-nv, VC4-4c-nv, and VC3-nv.

Note n can be any value from 0 through 256 (0 is valid when all members of a VCAT circuit are deleted).

•OCHNC circuit size is fixed as Equipment Not Specific.

•OCHCC circuit sizes are STM1, STM4, STM16, STM64, OC3, OC12, OC48, OC192, 10GE, 1GE, 10GFC, 4GFC, 2GFC, 1GFC, 4GFiCon, 2GFiCon, 1GFiCon, ESCON, ETR-CLO, ISC-PEER, ISC3-PEER-1G, ISC-PEER-2G, ISC-COMPACT, HDVT, SD1/D1, DV6000, or Pass Through.

Note Not all circuit sizes are supported on all NE releases.

Circuit Direction

Indicates whether the circuit carries unidirectional (1-way) or bidirectional (2-way) traffic.

Customer ID

Optional text field that displays the customer ID of the circuit.

Service ID

Optional text field that displays the service ID of the selected circuit.

Circuit Status (for optical NEs)

Displays the status of the selected optical circuit:

•Discovered—The circuit is completely configured in the network; all components are in place and a complete path exists from the circuit source to the circuit destination.

•Partial—The circuit is not complete; one or more cross-connections are not in place or one of the spans is missing.

•Active—The circuit is active and completely discovered.

•Inactive—The source or destination port(s) have been shut down administratively.

•Creating—CTM is creating the circuit.

•Deleting—CTM is deleting the circuit.

•Discovered_TL1—A TL1-created circuit or a TL1-like CTM-created circuit is complete and has upgradable cross-connects. A complete path from source to destination(s) exists.

•Partial_TL1—A TL1-created circuit or a TL1-like CTM-created circuit with upgradable cross-connects is missing a cross-connect, and a complete path from source to destination(s) does not exist. The circuit cannot be upgraded until the missing cross-connects are in place.

Circuit Status (for CRS-1 NEs)

Displays the status of the selected CRS-1 circuit:

•Active—The wavelengths match and the ports are up.

•Errored—The wavelengths do not match, the port state is down, any links are deleted, or the NE state is Unavailable or Out of Service.

Circuit Service State (for optical NEs)

Displays the state of the SONET, SDH, or DWDM circuit. SONET/DWDM and SDH circuits have different values. For SONET and DWDM circuits, values are:

•IS—Circuit is in service

•OOS—Circuit is out of service

•OOS Partial—Some segments of the circuit are out of service

For SDH circuits, corresponding values are:

•Unlocked

•Locked

•Locked [Partial]

Circuit Service State (for CRS-1 NEs)

Displays the state of the OCHCC circuit. Values are:

•IS—The circuit is In Service. The wavelengths match and the ports are up.

•OOS—The circuit is Out of Service. The wavelengths do not match, the port state is down, any links are deleted, or the NE state is Unavailable or Out of Service.

Is Monitor

A value of True means that the circuit is a monitor circuit. A value of False means that the circuit is not a monitor circuit.

Circuit Protection Type

Indicates the circuit protection scheme. Values are:

•2F BLSR—The circuit is protected by a 2-fiber bidirectional line switch ring (BLSR).

•4F BLSR—The circuit is protected by a 4-fiber BLSR.

•BLSR—The circuit is protected by both 2-fiber and 4-fiber BLSR.

•UPSR—The circuit is protected by UPSR.

•DRI—The circuit is protected by a UPSR dual ring interconnection (DRI).

•1+1—The circuit is protected by a 1+1 protection group.

•Y-Cable—The circuit is protected by a transponder or muxponder card Y-cable protection group.

•Protected—The circuit is protected by diverse SONET topologies; for example, a BLSR and a UPSR, or a UPSR and 1+1.

•Unprotected—The circuit is not protected.

•2F-PCA—The circuit is routed on a protection channel access (PCA) path on a 2-fiber BLSR. PCA circuits are unprotected.

•4F-PCA—The circuit is routed on a PCA path on a 4-fiber BLSR. PCA circuits are unprotected.

•PCA—The circuit is routed on a PCA path on both 2-fiber and 4-fiber BLSRs. PCA circuits are unprotected.

•SPLITTER—The circuit is protected by a splitter protected transponder (TXPP_MR_2.5G or 2.5G_DMP).

•Unknown—Circuit protection types appear in the Circuit Protection Type column of the Circuit table when the circuit status is Discovered. If the circuit is not discovered, the protection type is Unknown.

•Lost—The circuit was protected, but the protection has been lost due to changes in the network.

Description

Displays a description of the selected circuit.

No. of VLANs

Displays the number of VLANs associated with the circuit.

No. of SPANs

Displays the number of spans for each contiguous concatenation (CCAT) circuit. For VCAT circuits, N/A is displayed. You must launch the member table for the parent VCAT to see the number of spans per member VCAT.

Is VCAT or Member Circuit

A value of True means that the circuit is a VCAT circuit. A value of False means that the circuit is a normal CCAT circuit.

OCHNC Wavelength

Indicates the wavelength provisioned for the OCHNC, in nanometers (nm).

OCHNC Direction

Indicates the direction of the OCHNC. Values are east-to-west, west-to-east, or N/A.

VCAT Member State

For VCAT members, indicates whether the members are enabled and active or temporarily disabled. When VCAT members are enabled and active, the value is In Group. If any of the members are disabled temporarily, the value changes to Out of Group.

For non-VCAT members, the value of this field is always N/A.

Circuit Name

Displays the name of the selected circuit.

Note If there are multiple circuits with the same name displayed in the Circuit table, the label Duplicate appears in this column.

Note If a card is upgraded or changed on an NE and an existing circuit terminates on the changed card, the Circuit table display does not reflect the new card type for the circuit until CTM next reads the circuit information from the network. You can force all circuits involved with the upgraded card in the Circuit table to update by marking the NE as Out of Service and then In Service.

Caution For TL1 circuits, if you simultaneously mark all of the NEs involved in the circuit as Out of Service, CTM loses the EMS attributes (such as circuit alias, customer ID, and service ID). If you later mark all of the NEs involved in the TL1 circuit as In Service, the circuits are discovered, but the EMS attributes remain missing. To retain EMS attributes, you must upgrade the TL1 circuits to regular CTC circuits before adding EMS attributes and marking the NEs as Out of Service. To do this, select the TL1 circuit in the Circuit table and choose Configuration > Reconfigure Circuit(s).

7.2.4  Creating Circuits Using the Circuit Wizard

The Create Circuit wizard (Configuration > Create Circuit) allows you to create circuits on CTC-based and CRS-1 NEs. Use the Create Circuit wizard to create an end-to-end circuit through a subnetwork. A subnetwork is defined as a set of NEs that are interconnected directly or indirectly through links known by CTM. CTM supports circuit provisioning across a heterogeneous network. Establish a circuit by specifying the A and Z termination points (TPs). You can create multiple circuits using the Create Circuit wizard; however, for VT tunnel circuits, the number you can create is limited by the bandwidth available on the VT tunnel being used. The maximum number of VT circuits that can be routed through a VT tunnel is 28.

Caution When adding CTC-based circuits, examine the links in the network to ensure correct operation. If any links are down, verify that the ports are not data communications channel (DCC) enabled. For information about viewing links, see 3.6.4  Viewing the Link Table, page 3-43.

Note New circuits can be created across subnetworks. To create a new circuit across subnetworks you must first disable automatic grouping of NEs in the Control Panel. See 4.4.9  Configuring Application-Specific Parameters, page 4-62 for more information.

The following table describes the launch points and the expected behavior for the Circuit wizard.

Table 7-5 Create Circuit Wizard Launch Points and Expected Behavior

Launch Point

Expected Behavior

Source and destination NE nodes in the Domain Explorer or Subnetwork Explorer

Select the source NE in the Domain Explorer or Subnetwork Explorer and choose Configuration > Create Circuit (or right-click the NE and choose Create Circuit). The pointer changes to a plus (+) symbol; select the destination NE. The destination NE must be in the same network partition as the source. The Circuit wizard opens. Source and destination NEs are preset to the selected source and destination.

Note If the Esc key is pressed while the plus symbol is enabled, the operation is canceled and the plus symbol returns to a pointer.

Source and destination NE nodes in the Network Map

Select the source NE in the Network Map and choose Configuration > Create Circuit (or right-click the NE and choose Create Circuit). The pointer displays a line extending from the source NE; select the destination NE. The Circuit wizard opens. Source and destination NEs in the Circuit wizard are preset to the selected source and destination NE nodes in the Network Map.

Configuration > Create Circuit in the Circuit table

Choose Configuration > Create Circuit in the Circuit table. The Circuit wizard opens. Select source and destination nodes. Destination nodes are filtered based on the source node. Source and destination nodes must be in the same network partition.

The following table describes the various types of circuits that can be created. The type of circuit that you can create depends on the NEs that you select as the source and destination.

Table 7-6 Circuit Types that Can Be Created Using the Circuit Wizard

Task

Description

See

Create an STS (including Ethernet), VT, VT tunnel, or VT aggregation circuit

—

Creating an STS (Including Ethernet), STS-V, VT, VT-V, VT Tunnel, or VT Aggregation Circuit

Create a VCAT circuit

You can create VCAT circuits (STS-v, VT-v, VC_HO_PATH_VCAT_CIRCUIT, or VC_LO_PATH_VCAT_CIRCUIT).

Creating a VCAT Circuit

Create a VC_HO_path circuit

You can create unidirectional or bidirectional, revertive or nonrevertive, high-order path circuits.

Creating a VC_HO_Path_Circuit

Create a VC_LO_path circuit

You can create unidirectional or bidirectional, revertive or nonrevertive, low-order path circuits.

Creating a VC_LO_Path_Circuit

Create a VC low path tunnel connection

—

Creating a VC_LO_Path_Tunnel

Create a VC low path aggregation connection

—

Creating a VC_LO_Path_Aggregation Circuit

Create a DWDM optical channel connection

—

Creating a DWDM OCHNC—ONS 15454 MSTP

Create a DWDM optical channel client connection

—

Creating a DWDM OCHCC—ONS 15454 MSTP

Creating a DWDM OCHCC—CRS-1

Create a DWDM optical channel trail

—

Creating a DWDM OCH Trail Circuit—ONS 15454 MSTP

Create a monitor circuit

Use the Circuit table to create new circuits from the CTM database and the associated cross-connections between NEs.

Creating a Monitor Circuit—CTC-Based NEs

Create a unidirectional drop circuit

Use the Create Drop wizard to create a new protected or unprotected unidirectional circuit drop.

Creating a Unidirectional Drop Circuit—CTC-Based NEs

Create a G1000-4 circuit

Provision G1000-4 point-to-point circuits and Ethernet manual cross-connects.

Creating G1000-4 Circuits

Create an E-series circuit

Create these configurations and Ethernet manual cross-connects.

Creating E-Series Circuits

Create a BLSR DRI or MS-SPRing DRI circuit

—

Creating a BLSR DRI or MS-SPRing DRI Circuit Automatically

Creating a BLSR DRI or MS-SPRing DRI Circuit Manually

Note Low-order (LO) circuit options are not available for LO_VCAT circuits. Routing a LO_VCAT circuit, by selecting LO routing options to create a LAP/VC tunnel automatically, is not supported. If the LAP/VC tunnel already exists, and bandwidth is available, the LAP/VC tunnel is used to route LO_VCAT circuits.

Note When you create a low-order circuit and choose to create a tunnel automatically (by selecting the VT Tunnel on Transit Nodes option), the alias for the tunnel circuit will be the same as that provided for the low-order circuit. When you create multiple low-order circuits, the alias for the tunnel will be the same as the alias of the first low-order circuit.

The following table describes the fields in the Create Circuit wizard for optical devices.

Table 7-7 Field Descriptions for the Create Circuit Wizard—Optical Devices

Field

Description

Navigation Pane

The navigation pane on the left side of the Create Circuit wizard tells you where you are in the process of creating the circuit. The list of tasks shown initially is the default list of all possible tasks. As you move through the circuit creation, you are taken to the appropriate task. You can use the navigation pane to jump quickly from one task to the next, or to an already visited task.

Using the navigation pane is faster than using the Back and Next buttons, because you can jump over multiple panes in one step versus clicking Back or Next and moving through the panes sequentially.

Tip As you proceed through the wizard, the panes you have visited are highlighted in white and identified by a number. Panes that are not applicable to the current circuit creation sequence are shown in italics.

Tip Click the Maximize button to expand the Create Circuit wizard. After you expand the Create Circuit wizard, the Maximize button changes to the Reset Size button. Click the Reset Size button to reduce the Create Circuit wizard to its original size.

Type

Type

Select the type of circuit to create from the Type field.

Note The circuit type selected is displayed (dimmed) in other panes in the Create Circuit wizard. To change the circuit type you must return to the Type pane and make a new selection.

SONET and SDH circuits have different types. For SONET circuits, values are:

•OCHCC; see Creating a DWDM OCHCC—ONS 15454 MSTP or Creating a DWDM OCHCC—CRS-1

•OCHNC; see Creating a DWDM OCHNC—ONS 15454 MSTP

•OCHTRAIL

•STS (including Ethernet circuits)

•STS-v

•VT

•VT Aggregation

•VT Tunnel

•VT-v

For SDH circuits, values are:

•OCHCC

•OCHNC

•OCHTRAIL

•VC_HO_PATH_CIRCUIT

•VC_HO_PATH_VCAT_CIRCUIT

•VC_LO_PATH_AGGREGATION

•VC_LO_PATH_CIRCUIT

•VC_LO_PATH_TUNNEL

•VC_LO_PATH_VCAT_CIRCUIT

Note The available circuit types are based on the types selected for the user during user creation.

Number of Circuits

Enter the number of circuits that you want to create.

Auto-Ranged

If you are creating multiple circuits with the same slot and sequential port numbers, you can use Auto-Ranged to create the circuits automatically. The Auto-Ranged check box is checked automatically for multiple circuits.

For VC3 Port Grouping Only

(For SDH tunnel circuits only) Check this check box to create VC low-order path tunnels for port grouping. Using these circuits, VC4 tunnels can transport VC3 signal rates. Three ports form a port group. For example, in one E3 or one DS3i card, there are four port groups: Ports 1-3 = PG1, ports 4-6 = PG2, ports 7-9 = PG3, and ports 10-12 = PG4.

Attributes

(fields depend on the circuit type)

Circuit

Name

Enter a unique name for the new circuit. The circuit name is a free-format string, up to 48 ASCII characters. For VCAT circuits, the maximum circuit name length is 44 ASCII characters.

Circuit Alias

Enter a unique alias name for the new circuit. The alias name can contain alphanumeric characters. It also supports international character sets.

Description

Enter a description for the new circuit, up to 256 ASCII characters.

Type

Display only. Indicates the type of circuit that you selected in the Type pane.

Note To change the circuit type you must return to the Type pane and make a new selection.

Size Group

(OCHNC circuits only) Choose a size for the group that you want to provision.

Size

Specify the size of the circuit. SONET circuit sizes are VT 1.5, VT2, STS-1, STS-3c, STS-6c, STS-9c, STS-12c, STS-18c, STS-24c, STS-36c, STS-48c, STS-96c, and STS-192c.

SDH circuit sizes are VC11, VC12, VC3, VC4, VC4-2c, VC4-3c, VC4-4c, VC4-6c, VC4-8c, VC4-12c, VC4-16c, VC4-32c, and VC4-64c.

If OCHNC is selected in Type, the OCHNC circuit size is Equipment Not Specific.

For supported circuit sizes on Ethernet cards, see the Cisco ONS 15454 Reference Manual.

For single-card EtherSwitch, only STS-1, STS-3c, STS-6c, and STS-12c apply. For multicard EtherSwitch, only STS-1, STS-3c, and STS-6c apply.

Note The available circuit sizes are based on the size limitation imposed on the user during user creation.

OCHNC Wavelength

If OCHNC is selected in Type, the wavelength of the OCHNC is selected here. If OCHNC is not selected in Type, this option is not available.

Band

(OCHNC circuits only) Choose the band that you want to provision.

Use OCHNC Direction

Choose whether or not to specify the OCHNC direction. Select the check box to allow you to specify the circuit direction (for NEs up to and including R6.0) in the OCHNC Direction drop-down list. If the check box is unchecked (for R7.0 NEs) the OCHNC Direction drop-down list is disabled.

Channel Group

Choose the channel group that you want to provision.

OCHCC Wavelength

If OCHCC is selected in Type, the wavelength of the OCHCC is selected here. If OCHCC is not selected in Type, this option is not available.

OCHNC Direction

If OCHNC is selected in Type, the east-to-west or west-to-east direction of the OCHNC is selected here. If OCHNC is not selected in Type, this option is not available.

Bidirectional

Check this check box to create a two-way circuit; uncheck it to create a one-way circuit.

State

Select an administrative state for the new circuit. SONET and SDH circuits have different values. For SONET circuits, values are:

•IS (In Service)—The circuit is in service and able to carry traffic.

•IS AINS (In Service-Auto In Service)—Alarm reporting is suppressed, but the circuit is able to carry traffic.

•OOS DSBLD (Out of Service-Disabled)—The circuit is out of service and unable to carry traffic.

•OOS_MT (Out of Service-Maintenance)—The circuit is in maintenance state. The maintenance state does not interrupt traffic flow; it suppresses alarms and conditions and allows loopbacks to be performed on the circuit.

For SDH circuits, corresponding values are:

•Unlocked

•Unlocked,autoInService

•Locked,disabled

•Locked,maintenance

Apply to Source/Destination Ports, If Allowed

Check this check box to apply the selected state to the source and destination ports.

Trunk Filtering

(available for OCHCC circuit type only)

G.709 OTN

Disables or enables the G.709 OTN feature. Check this check box to filter the list of circuits to display only G.709 OTN-compatible circuits.

FEC

Disables or enables forward error correction.

OTN must be enabled before you can enable FEC.

SF BER

Allows you to enter the signal fail bit error rate.

SD BER

Allows you to select the signal degrade bit error rate.

Mapping

The card can perform multiplexing per ITU-T G.709. The ODUk (client SONET/SDH payload) can be mapped to the Optical Channel (OTUk) either asynchronously (asynch mapping) or synchronously (synch mapping) with this setting.

Customer Information

Customer ID

Optional text field that displays the customer ID of the circuit. The customer ID can contain 0 to 256 alphanumeric and special characters.

Service ID

Optional text field that displays the service ID of the selected circuit. The service ID can contain 0 to 256 alphanumeric and special characters.

VCAT

Symmetric

Check this check box to create a symmetric VCAT circuit.

Member Size

Select a size for each VCAT member.

Number of Members

Specify the number of members to be configured for the VCAT circuit.

Mode

Choose the protection mode for the VCAT circuit:

•None—Provides no protection. A failure on one member causes the entire VCAT circuit to fail.

•SW-LCAS—Allows the VCAT circuit to adapt to member failures and keep traffic flowing after failures at a reduced bandwidth.

•LCAS—Uses a signaling protocol where the members in a virtual concatenation group (VCG) can be dynamically changed without interrupting the operation of uninvolved members. If implemented correctly, there are no errors. LCAS allows the source and destination nodes of a VCG to signal to each other so that the addition or deletion of a member from the VCG can be synchronized without errors.

Protection

Protected

Check this check box to specify that circuit endpoints have to be selected only from cards that have embedded splitter-type protection.

Protected Drops (Non-Ethernet)

Specify whether protected drops are indicated. If selected, this option restricts the set of displayed source or destination termination points to those in 1:1, 1:n, or 1+1 protection groups.

Provision Working Go and Return on Primary Path

Check this check box to provision SNCP/UPSR protection routes in a Go and Return fashion as detailed in ITU-T G.841, to avoid too long a delay on another direction of traffic. This feature applies only to bidirectional UPSR/SNCP circuits. Unidirectional UPSR/SNCP circuits are not affected and the shortest path to the destination is always used as the working path.

Revertive

Specify whether traffic is reverted back to its original path when the conditions that diverted the circuit to the protect path are repaired. If you do not choose Revertive, traffic remains on the protect path.

Reversion Time

Specify the amount of time (in minutes) after which traffic reverts back to the original working path when conditions that caused the switch are cleared. The range is from 5.0 to 12.0 minutes. The Cisco default is 5 minutes.

SF Threshold (for SONET circuits only)

Set the UPSR path-level signal failure (SF) threshold.

Note This field is visible only for point-to-point topologies.

SD Threshold (for SONET circuits only)

Set the UPSR path-level signal degrade (SD) threshold.

Note This field is visible only for point-to-point topologies.

Switch on PDI-P (for SONET circuits only)

Specify whether traffic should switch based on a received STS payload defect indication.

Note This field is visible only for point-to-point topologies.

Source

(fields depend on the NE selected and the circuit type)

Use Secondary Source

(For DRI, open UPSR, and open-ended SNCP circuits) Check this check box to define a secondary source. Then, specify the slot, port, STS, DS-1, or VT for the secondary source.

NE ID

Select from the list of available NE IDs to specify the source NE ID.

Subnetwork ID

Display only. Displays the ID of the subnetwork associated with the circuit source.

Slot

Specify the source slot (only for SONET/SDH circuits).

Port

Specify the source port (only for SONET/SDH circuits).

STS

(For SONET circuits) Specify the source STS.

VT

(For SONET circuits) Specify the source VT.

DS1

(For SONET circuits) Specify the source DS-1.

VC4

(For SDH circuits) Specify the source VC4.

VC3

(For SDH circuits) Specify the source VC3.

VC11

(For SDH circuits) Specify the source VC11.

VC12

(For SDH circuits) Specify the source VC12.

TUG3

(For SDH circuits) Specify the source TUG3.

TUG2

(For SDH circuits) Specify the source TUG2.

Destination

(fields depend on the NE selected and the circuit type)

Use Secondary Destination

(For DRI, open UPSR, and open-ended SNCP circuits) Check this check box to define a secondary destination. Then, specify the slot, port, STS, DS-1, or VT for the secondary destination.

NE ID

Select from the list of available TPs to specify the destination TP.

Subnetwork ID

Display only. Displays the ID of the subnetwork associated with the circuit destination.

Slot

(For SONET and SDH circuits) Specify the destination slot.

Port

(For SONET and SDH circuits) Specify the destination port.

STS

(For SONET circuits) Specify the destination STS.

VT

(For SONET circuits) Specify the destination VT.

DS1

(For SONET circuits) Specify the destination DS-1.

VC4

(For SDH circuits) Specify the destination VC4.

VC3

(For SDH circuits) Specify the destination VC3.

VC11

(For SDH circuits) Specify the destination VC11.

VC12

(For SDH circuits) Specify the destination VC12.

TUG3

(For SDH circuits) Specify the destination TUG3.

TUG2

(For SDH circuits) Specify the destination TUG2.

OCHxx Options

G.709 OTN

Disable or enable the G.709 OTN feature. Check this check box to filter the list of circuits to display only G.709 OTN-compatible circuits.

FEC

Disable or enable forward error correction. G.709 OTN must be enabled before you can enable FEC.

SD BER

Set the signal degrade bit error rate.

Mapping

The card can perform multiplexing per ITU-T G.709. The ODUk (client SONET/SDH payload) can be mapped to the optical channel (OTUk) either asynchronously (asynch mapping) or synchronously (synch mapping) with this setting.

Revert/Reversion Time

(For protected circuits) Select the splitter-type protection.

Routing Preferences

Route Automatically

Enable or disable automatic route selection. If enabled, CTM automatically determines the route for the circuit. Alternately, you can disable automatic route selection and manually route the circuit where you specify all the intermediate hops on a hop-by-hop basis (up to 64 hops per circuit). You can manually route the circuit using either one of the following views:

•Graphical—Provides a map view that displays the nodes and links you can use to create the circuits. You can select the nodes and links that you need for your circuit from the map view.

•Textual—Provides a text view that lists the nodes and links you can use to create the circuits.

Note If the source and destination of the circuit are on the same node, automatic routing is enabled.

Using Required Nodes/Links

(Available only if Route Automatically is checked) If checked, CTM automatically routes the circuit through the required nodes and/or links. There are two ways you can specify the required nodes and links. Choose one of the following:

•Graphical

•Textual

Review Route Before Creation

(Available only if Route Automatically is checked) Check this check box to review the route before it is created.

VT-DS3 Mapped Conversion

(Available only if Route Automatically is checked) If checked, you can route the circuit using the DS3XM12 card. Not applicable for data cards (ML-series and CE-100T-8 cards). VT-DS3 mapped conversion is for VAP circuits and is automatically selected while creating a VAP circuit using a DS3 port.

Time Slot Restriction

If checked, you can enter an STS/VC4 value (to be used end-to-end) that CTM will use to automatically determine the route for the circuit. Circuit creation is rejected if the same STS/VC4 is not available end-to-end. If circuit creation is rejected, you can try circuit creation again using different values. The valid range you can enter is from 1 to 192 for SONET, or 1 to 64 for SDH networks.

Note Time Slot Restriction is not available for OCHCC and OCHNC circuit types.

Note For VCAT circuits, you must enter multiple STS/VC4 values in the Time Slot Restriction field, in the Member Preferences table. The STS/VC4 values you enter in the Time Slot Restriction field cannot be identical, or circuit creation will fail with an error message.

Common Fiber Routing

(For VCAT circuits) Click this radio button to route each member circuit on the same fiber.

Split Routing

(For VCAT circuits) Click this radio button to route member circuits on separate paths.

Member Preferences

(For VCAT circuits) Specify the following information for member circuits:

•Number—Enter a number between 1 and 256 to identify the member.

•Name—Enter a unique name to identify the member. The name can contain up to 48 alphanumeric characters, including spaces.

•Protection—Specify the member circuit protection type (Fully Protected, PCA, or Unprotected).

•Node Diverse—Specify the node diversity for each member circuit:

–Required—Ensures that the primary and alternate paths are node-diverse.

–Desired—CTM attempts node diversity. If node diversity is impossible, CTM uses primary and alternate paths that are link-diverse.

–Don't Care: Link Diverse Only—CTM creates primary and alternate paths that are link-diverse. The paths might be node-diverse, but CTM does not check for node diversity.

•Set Protection for All—Allows you to choose the same protection type for all members.

•Set Node Diversity for All—Allows you to specify the same node diversity for all members.

Fully Protected Path

If selected, CTM ensures that the circuit is fully protected. You can provision the circuit in a UPSR DRI topology by checking the Dual Ring Interconnect check box. Alternately, if the circuit must pass across unprotected links, CTM creates a primary and alternate circuit route (virtual UPSR) based on the following node diversity specifications:

•Required—Ensures that the primary and alternate paths of the UPSR portions of the complete circuit path are node-diverse.

•Desired—CTM attempts node diversity. If node diversity is impossible, CTM uses primary and alternate paths that are link-diverse for the UPSR portions of the complete circuit path.

•Don't Care: Link Diverse Only—CTM creates primary and alternate paths that are link-diverse for the UPSR portions of the complete circuit path. The paths might be node-diverse, but CTM does not check for node diversity.

Protection Channel Access

To route the circuit on a BLSR protection channel, if available, uncheck the Fully Protected Path check box, and check the Protection Channel Access check box.

Dual Ring Interconnect

If you selected Fully Protected Path and the circuit will be routed on a DRI, check the Dual Ring Interconnect check box.

Note For DRI and iDRI manually created circuits, you must double-click the DRI span for it to become DRI. A single-click does not enable the DRI span.

Diverse Shared Risk Link Group (SRLG)

If checked, fully protected circuits will be routed through working and protected links that do not share risk groups.

Conversion Route Constraints

(available only if VT-DS3 Mapped Conversion is checked)

NE ID

Select from the list of available NE IDs to specify the source NE ID.

Subnetwork ID

Display only. Displays the ID of the subnetwork associated with the circuit source.

Slot

Specify the source slot that contains the DS3XM12 card.

DS3 Mapped STS

Choose Circuit Source or Circuit Dest.

VT/VC LO Circuit Options

(available only for VT and VC LO path circuits)

VT/VC LO Tunnel on Transit Nodes

This option is available if the VT or VC circuit passes through a node that does not have a low-order tunnel, or if an existing low-order tunnel is full. Low-order tunnels allow VT/VC circuits to pass through NEs without consuming low-order cross-connect card resources. In general, creating tunnels is a good idea if you are creating many low-order circuits from the same source and destination.

VT Aggregation Point (VAP)/VC LO Aggregation Point (LAP)

(For SONET) This option is available if you are creating a VT1.5 circuit to a DS-1, EC-1, DS3XM-6; or an OC-N port on a BLSR, 1+1, or Unprotected node. A VAP allows VT1.5 circuits to be routed through a node using one STS connection on the cross-connect card matrix rather than multiple connections on the VT1.5 matrix.

(For SDH) This option is available if you are creating a VC12 circuit to an STM-N port for handoff to non-SDH networks or equipment, such as an IOF, switch, or DACS. A LAP allows low-order circuits to be routed through a node using one VC4 connection on the cross-connect card high-order matrix rather than multiple connections on the low-order matrix.

Circuit Source is STS/VC4 Grooming Node

Creates the VAP or LAP on the VT or VC circuit source node. This option is available only if the VT circuit originates on a DS-1, EC-1, DS3XM-6, or OC-N card, or if the VC circuit originates on an STM-N card.

Circuit Destination is STS/VC4 Grooming Node

Creates the VAP or LAP on the VT or VC circuit destination node. This option is available only if the VT circuit terminates on a DS-1, EC-1, DS3XM-6, or OC-N card, or if the VC circuit terminates on an STM-N card.

None

Choose this option if you do not want to create a low-order tunnel or a VAP/LAP. This is the only available option if CTM cannot create a low-order tunnel or VAP/LAP.

VLAN Selection

(available only for Ethernet cards or EtherGroups)

VLANs

Select from the list of available VLANs to associate an existing VLAN to the circuit. If the Circuit VLANs list is empty, CTM assigns the default VLAN.

To create a new VLAN, click the New VLAN button. Enter a unique VLAN name and ID. The VLAN ID must be an integer greater than 1 but less than 4093. Click OK; then, click OK in the Successfully created VLAN confirmation dialog box. The new VLAN appears in the list of VLANs. The list is ordered alphanumerically by VLAN name, where numbers precede letters and uppercase letters precede lowercase ones.

Note Gigabit Ethernet G-series, ML-series, and E-series cards that are configured in port ML-series mode do not support VLAN assignment.

Enable Spanning Tree

Check this check box to enable spanning tree protection for the circuit. This option is disabled for intranode and multicard Ethernet circuits.

VT/VC LO Grooming Node Selection

Map view

Allows you to tag a node in the map view as a VT or VC LO grooming node. By clicking a node icon, the node is automatically tagged as a VT or VC LO grooming node.

Manual Provisioning

(available if the Route Automatically check box is unchecked and the Graphical radio button is selected)

VCAT Member Number

(For VCAT circuits) Use the drop-down list to select route constraints for each member circuit.

Map view

Displays the NEs that are available in the subnetwork for circuit creation. Map view also indicates the source (and secondary source, if applicable) and destination (and secondary destination, if applicable) NEs selected for circuit creation. The map view is used to manually route the circuit from the source to the destination specified by the addition of the links selected.

Use the right-click menu options to navigate within the map view:

•Find Node—Opens the Find Node dialog box, which lists all of the nodes displayed on the map view. Select a node from the drop-down list and click OK. The selection context in the map view changes to show the selected node highlighted in the visible map area.

•Zoom In—Allows you to zoom in on an object in the map view.

•Zoom Out—Allows you to zoom out on the map view.

•Reset Zoom—Resets the current zoom level to the default.

•Add—Allows you to add the selected span. Right-click a link and choose Add in the right-click menu. The selected link is added to the Include list with the default STS or VC4 value. The Add option applies to manual provisioning across all circuit types.

Available Spans

Select a link on the map view (related to the selected node) and its corresponding details are displayed in the Available Spans pane. Click Add to move the spans to the Selected Spans field. The newly added link appears in blue on the map view.

Selected Spans

Select one or more spans and click Remove to remove them from the Selected Spans field. The removed link appears in green to indicate its unselected state.

Note To specify a DRI link, double-click the link on the map. The map view displays the link as bidirectional.

Links/Nodes tab

Select the links/nodes in the graphic to populate the selected node field.

BLSR DRI Nodes or MS-SPRing DRI Nodes tab

(For BLSR DRI or MS-SPRing DRI circuits) Click the Add button to open the BLSR/MS-SPRing DRI dialog box, which allows you to provide primary and secondary pairs for traditional and nontraditional DRI circuits. Also specify ring and path options for the first and second rings. Click Remove to remove a DRI node from the list.

Manual Provisioning

(available if the Route Automatically check box is unchecked and the Textual radio button is selected)

Src NE ID

Displays the circuit source NE.

Dest NE ID

Displays the circuit destination NE.

Current NE ID

Displays the currently selected NE.

Adj NE ID

Displays all the NEs that are adjacent to the currently selected NE.

Available Links

Lists all links between the currently selected and adjacent NEs. Select a link from the drop-down list.

Available Spans

After you select a link from the Available Links drop-down list, its corresponding details are displayed in the Available Spans pane. Click Add to move the spans to the Selected Spans field.

Selected Spans

Select one or more spans and click Remove to remove them from the Selected Spans field.

Next Hop

Click Next Hop to specify the next intermediate hop.

Reset

Click Reset to reset all hop information to the default values.

Alternate Route

Click Alternate Route to specify hop information for the alternate circuit route.

Route Constraints

(applicable only if the Using Required Nodes/Links check box is checked)

VCAT Member Number

(For VCAT circuits) Use the drop-down list to select route constraints for each member circuit.

Map view

(For graphical manual provisioning) Displays the NEs that are available in the subnetwork for circuit creation. This pane also indicates the source (and secondary source, if applicable) and destination (and secondary destination, if applicable) NEs selected for circuit creation. The map view is used for the inclusion and exclusion of links or nodes during the specification of route constraints. The included nodes are shown in blue and the excluded links are shown in magenta.

Use the right-click menu options to navigate within the map view:

•Find Node—Opens the Find Node dialog box, which lists all of the nodes displayed on the map view. Select a node from the drop-down list and click OK. The selection context in the map view changes to show the selected node highlighted in the visible map area.

•Zoom In—Allows you to zoom in on an object in the map view.

•Zoom Out—Allows you to zoom out on the map view.

•Reset Zoom—Resets the current zoom level to the default.

Src NE ID

(For textual manual provisioning) Displays the circuit source NE.

Dest NE ID

(For textual manual provisioning) Displays the circuit destination NE.

Nodes

(For textual manual provisioning) Select Nodes if you want to add nodes to your circuit route.

Links

(For textual manual provisioning) Select Links if you want to add links to your circuit route.

Current NE ID

(For textual manual provisioning) Displays the currently selected NE.

Adj NE ID

(For textual manual provisioning) Displays all the NEs that are adjacent to the currently selected NE.

Available Links

(For textual manual provisioning) Lists all links between the currently selected and adjacent NEs. Select a link from the drop-down list.

Select Nodes

(For textual manual provisioning) Lists all nodes related to the currently selected NE. Select a node from the list.

Selected Node/Link

Displays the currently selected NE or link.

Included Links/Nodes

Displays the list of links or nodes that are included in the route.

Excluded Links/Nodes

Displays the list of links or nodes that are excluded from the route.

Review Route

(applicable only if the Review Route before creation check box is checked)

VCAT Member Number

(For VCAT circuits) Use the drop-down list to view the route chosen for each member circuit.

Map view

Displays the NEs that are available in the subnetwork for circuit creation. This pane also indicates the source (and secondary source, if applicable) and destination (and secondary destination, if applicable) NEs selected for circuit creation. The map view is used for the inclusion and exclusion of links or nodes during the specification of route constraints. The included nodes are shown in blue and the excluded links are shown in magenta.

Use the right-click menu options to navigate within the map view:

•Find Node—Opens the Find Node dialog box, which lists all of the nodes displayed on the map view. Select a node from the drop-down list and click OK. The selection context in the map view changes to show the selected node highlighted in the visible map area.

•Zoom In—Allows you to zoom in on an object in the map view.

•Zoom Out—Allows you to zoom out on the map view.

•Reset Zoom—Resets the current zoom level to the default.

Review Route

Displays the NEs that are available in the subnetwork for circuit creation. This pane also indicates the source (and secondary source, if applicable) and destination (and secondary destination, if applicable) NEs selected for circuit creation. The map view displays information about the spans selected during autorouting in the subnetwork. The selected spans are shown in blue. When you select a span, its corresponding details are displayed in the Selected Span pane. The circuit summary displays the total hops and the cost for working and protect paths for the routed circuit.

Source NE ID

Displays the ID of the NE selected as the source node.

Destination NE ID

Displays the ID of the NE selected as the destination node.

Included Spans

If you enabled automatic route selection in the Routing Preferences pane, CTM automatically selects spans to route the circuit. This field lists all the spans that the CTM server selected automatically.

Selected Span

Displays detailed information about the span selected in the Included Spans list.

Add and Remove buttons

You can review and modify the automatic route that is selected for circuit creation. Click Add to change the automatically selected route by adding a route to the Selected Spans list. Click Remove to remove a route from the list.

This functionality is similar to manual routing, except that the route from the source to the destination is preselected.

Note You can modify the review route only for the following circuit types: STS_CIRCUIT, VT_CIRCUIT, VT_TUNNEL, VT_AGGREGATION, STS_VCAT_CIRCUIT, VT_VCAT_CIRCUIT, VC_HO_PATH_CIRCUIT, VC_LO_PATH_CIRCUIT, VC_LO_PATH_TUNNEL, VC_LO_PATH_AGGREGATION, VC_HO_VCAT_CIRCUIT, and VC_LO_VCAT_CIRCUIT.

Circuit Summary

Circuit Summary

Summarizes the selections you made in the wizard panes. To change the circuit summary, click Back and change your selection(s).

The following table describes the fields in the Create Circuit wizard for CRS-1 devices.

Table 7-8 Field Descriptions for the Create Circuit Wizard—CRS-1 Devices

Field

Description

Navigation Pane

The navigation pane on the left side of the Create Circuit wizard tells you where you are in the process of creating the circuit. The list of tasks shown initially is the default list of all possible tasks. As you move through the circuit creation, you are taken to the appropriate task. You can use the navigation pane to jump quickly from one task to the next, or to an already visited task.

Using the navigation pane is faster than using the Back and Next buttons, because you can jump over multiple panes in one step versus clicking Back or Next and moving through the panes sequentially.

Tip As you proceed through the wizard, the panes you have visited are highlighted in white and identified by a number. Panes that are not applicable to the current circuit creation sequence are shown in italics.

Tip Click the Maximize button to expand the Create Circuit wizard. After you expand the Create Circuit wizard, the Maximize button changes to a Reset Size button. Click the Reset Size button to reduce the Create Circuit wizard to its original size.

Type

Type

In CTM R8.0, the available circuit type for CRS-1 circuits is OCHCC.

Number of Circuits

This option is not available.

Auto-Ranged

This option is not available.

For VC3 Port Grouping Only

This option is not available.

Attributes

Circuit

Name

Enter a unique name for the new circuit. The circuit name is a free-format string, up to 48 ASCII characters.

Circuit Alias

Enter a unique alias name for the new circuit. The alias name can contain alphanumeric characters. It also supports international character sets.

Description

Enter a description for the new circuit, up to 256 ASCII characters.

Type

Display only. Indicates the OCHCC circuit type that was selected in the Type pane.

Size Group

Choose the type of interface that you want to provision. Values are SONET, SDH, and Ethernet.

Size

Refers to the layer rate. The supported circuit size is OC-768 on SONET, STM-256 on SDH, and 10GE on Ethernet cards.

OCHCC Wavelength

Select the wavelength of the OCHCC.

Channel Group

Choose the channel group that you want to provision.

Bidirectional

Display only. Only bidirectional circuits are supported.

State

Select the service state for the new circuit. SONET and SDH circuits have different values. Values are:

•IS (In Service)—The circuit is in service and able to carry traffic.

•IS AINS (In Service-Auto In Service)—Alarm reporting is suppressed, but the circuit is able to carry traffic.

•OOS DSBLD (Out of Service-Disabled)—The circuit is out of service and unable to carry traffic.

•OOS_MT (Out of Service-Maintenance)—The circuit is in maintenance state. The maintenance state does not interrupt traffic flow; it suppresses alarms and conditions and allows loopbacks to be performed on the circuit.

Protection

Protected

Check this check box to specify that circuit endpoints have to be selected only from cards that have embedded splitter-type protection.

Trunk Filtering

G.709 OTN

Disables or enables the G.709 OTN feature. Check this check box to filter the list of circuits to display only G.709 OTN-compatible circuits.

FEC

Disables or enables forward error correction.

OTN must be enabled before you can enable FEC.

SF BER

Allows you to enter the signal fail bit error rate.

SD BER

Allows you to select the signal degrade bit error rate.

Mapping

The card can perform multiplexing per ITU-T G.709. The ODUk (client SONET/SDH payload) can be mapped to the Optical Channel (OTUk) either asynchronously (asynch mapping) or synchronously (synch mapping) with this setting.

Customer Information

Customer ID

Optional text field that displays the customer ID of the circuit. The customer ID can contain 0 to 256 alphanumeric and special characters.

Service ID

Optional text field that displays the service ID of the selected circuit. The service ID can contain 0 to 256 alphanumeric and special characters.

Source

NE ID

Select from the list of available NE IDs to specify the source NE ID.

Subnetwork ID

Display only. Displays the ID of the subnetwork associated with the circuit source.

Shelf

Display only. Displays the shelf number of the source node.

Slot

Display only. Displays the slot number of the source node.

Card

Display only. Displays the card number of the source node.

Port

Specify the source port.

Destination

NE ID

Select from the list of available TPs to specify the destination TP.

Subnetwork ID

Display only. Displays the ID of the subnetwork associated with the circuit destination.

Shelf

Display only. Displays the shelf number of the destination node.

Slot

Display only. Displays the slot number of the destination node.

Card

Display only. Displays the card number of the destination node.

Port

Specify the destination port.

7.2.4.1  Creating an STS (Including Ethernet), STS-V, VT, VT-V, VT Tunnel, or VT Aggregation Circuit

Step 1 Select the node for which to create a circuit and open the Circuit wizard. For an explanation of Circuit wizard launch points, see Table 7-5.

Step 2 In the Type pane, choose STS (including Ethernet circuits), STS-v, VT, VT-v, VT Tunnel, or VT Aggregation. (Choose STS for ML-series circuits. For ONS 15454, choose STS for circuits starting and ending at a fiber channel [FCMR] card). In the Number of Circuits field, enter the number of circuits you want to create. The Cisco default is 1. If you enter more than one, you can use autoranging to create the additional circuits automatically.

Step 3 Click Next.

Step 4 In the Attributes pane, enter the following information; then, click Next:

•Name—Enter a unique name for the new circuit. The circuit name is a free-format string of up to 48 ASCII characters.

•Circuit Alias—Enter a unique alias name for the new circuit. The alias name can contain alphanumeric characters. It also supports international character sets.

•Description—Enter a circuit description of up to 256 characters.

•Size (STS circuits only)—Specify STS-1, STS-9c, STS-12c, STS-24c, STS-48c, STS-96c, or STS-192c. The valid size for circuits involving the DS3i card is STS-3c. Valid sizes for circuits involving the FC_MR-4 card are STS-1, STS-3c, STS-24c, and STS-48c.

For a single-card EtherSwitch, only STS-1, STS-3c, STS-6c, and STS-12c apply. For a multicard EtherSwitch, only STS-1, STS-3c, and STS-6c apply.

Valid circuit sizes for an ML-series circuit are STS-1, STS-3c, STS6c, STS-9c, STS-12c, STS-24c, and STS-96c.

•Bidirectional—Check this check box to create a two-way circuit; uncheck it to create a one-way circuit. (For STS and VT circuits only; E-series circuits, G-series circuits, ML-series circuits, VAP circuits, and VT tunnels are bidirectional.)

•Number of Circuits—Enter the number of circuits to be created. For ML-series circuits, only one circuit can be created.

•State—Choose an administrative state to apply to the circuit:

–IS—The circuit is in service.

–OOS—The circuit is out of service. Traffic is not passed on the circuit.

–OOS-AINS—The circuit is out of service until it receives a valid signal, at which time the circuit state automatically changes to in service.

–OOS-MT—The circuit is in maintenance state. The maintenance state does not interrupt traffic flow; it suppresses alarms and conditions and allows loopbacks to be performed on the circuit.

•Apply to source/destination ports—Check this check box to apply the selected state in the State field to the circuit source and destination ports. Uncheck this check box for ML-series circuits.

•Protected Drops (Non-Ethernet)—Check this check box if you want the circuit routed on protected drops only. If selected, this option restricts the set of displayed source or destination termination points to those in 1:1, 1:N, or 1+1 protection groups. Uncheck this check box for ML-series circuits.

•Provision working go and return on primary path (bidirectional UPSR/SNCP protection only)—Check this check box to provision the working path to go or return to the primary path.

Note CTM currently provisions unidirectional SNCP/UPSR circuits following the GR-1400 standard. For bidirectional SNCP/UPSR circuits, you can check the Provision working go and return on primary path check box to route the working and protect paths in one direction following the ITU-T G.841 standard. Unidirectional UPSR/SNCP circuits are not affected by this new routing, and the shortest path is always used as the working path.

•Path Selectors (UPSR protection only)—If the circuit will be routed on a UPSR, set the UPSR path selectors as follows:

–Revertive—Check this check box if you want traffic to revert to the working path when the conditions that diverted it to the protect path are repaired. If you do not choose Revertive, traffic remains on the protect path.

–Reversion Time—If Revertive is checked, specify the amount of time (in minutes) after which traffic reverts back to the original working path when the conditions that caused the switch are cleared.

–SF Threshold (for STS circuits only)—Set the UPSR path-level SF bit error rate (BER) threshold. This field is visible only for point-to-point topologies.

–SD Threshold (for STS circuits only)—Set the UPSR path-level SD BER threshold. This field is visible only for point-to-point topologies.

–Switch on PDI-P (for STS circuits only)—Specify whether or not traffic should switch based on a received STS payload defect indication. This field is visible only for point-to-point topologies.

•(Optional) Specify the customer information:

–Customer ID—Identify the end user of the circuit.

–Service ID—Enter the service ID of the circuit.

Step 5 In the Source pane, enter the following information; then, click Next:

•NE ID—Select from the list of available TPs to specify the source TP.

•Source—Specify the source slot, port, STS, DS1-14, and VT.

•Use Secondary Source—Check this check box to create a secondary source. Then, specify the NE ID, slot, port, STS, DS1-14, and VT for the secondary source.

Note The secondary source is applied to open-ended UPSR and DRI.

Step 6 In the Destination pane, enter the following information; then, click Next:

•NE ID—Select from the list of available TPs to specify the destination TP.

•Destination—Specify the destination slot, port, STS, DS1-14, and VT.

•Use Secondary Destination—Check this check box to create a secondary destination. Then, specify the slot, port, STS, DS1-14, and VT for the secondary destination.

Note The secondary destination is applied to open-ended UPSR and DRI.

Step 7 In the VLAN Selection pane (available only if an E-series Ethernet card or EtherGroup is chosen as the source or destination slot), complete the following substeps; then, click Next:

a. Select from the list of available VLANs to associate an existing VLAN to the circuit. If the Circuit VLANs list is empty, CTM assigns the default VLAN.

Note Gigabit Ethernet G-series, ML-series, and E-series cards that are configured in Port Mapped mode do not support VLAN assignment.

b. To create a new VLAN, click the New VLAN button. Enter a unique VLAN name and ID. The VLAN ID must be an integer greater than 1 but less than 4093. Click OK; then, click OK in the Successfully created VLAN confirmation dialog box. The new VLAN appears in the list of VLANs. The list is arranged alphanumerically by VLAN name, where numbers precede letters and uppercase letters precede lowercase ones.

c. Check the Enable Spanning Tree check box to enable spanning tree protection for the circuit. This option is disabled for intranode and multicard Ethernet circuits.

Step 8 In the Routing Preferences pane, complete the following substeps; then, click Next.

a. Route Automatically—Enable or disable automatic route selection. If enabled, CTM automatically determines the route for the circuit. If the source and destination of the circuit are on the same node, automatic routing is enabled. If disabled, you can specify the spans associated with the circuit. You can manually provision the circuit using one of the following views:

•Graphical

•Textual

b. Using Required Nodes/Links—(Available only if Route Automatically is checked) Check this check box to let CTM automatically route the circuit through the required nodes and/or links. You can specify the required nodes and links using one of the following views:

•Graphical

•Textual

c. Review Route Before Creation—(Available only if Route Automatically is checked) Check this check box to review the route before it is created.

d. VT-DS3 Mapped Conversion—(Available only if Route Automatically is checked) If checked, you can route the circuit using the DS3XM12 card. Not applicable for data cards (ML-series and CE-100T-8 cards). VT-DS3 mapped conversion is for VAP circuits and is automatically selected while creating a VAP circuit using a DS3 port.

e. Time Slot Restriction—If checked, you can enter an STS/VC4 value (to be used end-to-end) that CTM uses to automatically determine the route for the circuit. Circuit creation is rejected if the same STS/VC4 is not available end-to-end. If circuit creation is rejected, you can try circuit creation again using different values. The valid range you can enter is from 1 to 192 for SONET, or 1 to 64 for SDH networks.

Note For VCAT circuits, you must enter multiple STS/VC4 values in the Time Slot Restriction field, in the Member Preferences table. The STS/VC4 values you enter in the Time Slot Restriction field cannot be identical or circuit creation will fail with an error message.

f. Fully Protected Path—If not selected, choose Protection Channel Access to route the circuit on a BLSR protection channel.

g. Fully Protected Path—If selected, CTM ensures that the circuit is fully protected. You can provision the circuit in a UPSR DRI topology by checking Dual Ring Interconnect. Alternately, if the circuit must pass across unprotected links, CTM creates a primary and alternate circuit route (virtual UPSR) based on the following node diversity specifications:

•Required—CTM ensures that the primary and alternate paths within the UPSR portions of the complete circuit path are node-diverse.

•Desired—CTM attempts node diversity. If node diversity is impossible, CTM uses primary and alternate paths that are link-diverse for the UPSR portions of the complete circuit path.

•Don't Care: Link Diverse Only—CTM creates primary and alternate paths that are link-diverse for the UPSR portions of the complete circuit path. The paths might be node-diverse, but CTM does not check for node diversity.

•Dual Ring Interconnect—If selected, the other node specifications (Required, Desired, and Don't Care: Link Diverse Only) are disabled.

Step 9 In the VT Options pane (available only if you are creating a VT circuit and automatic routing is selected), choose one of the following radio buttons; then, click Next:

•VT Tunnel on Transit Nodes

•VAP

•None

Step 10 If you created a VAP, in the VT Grooming pane, select the following:

•STS Grooming Node

•VT Grooming Node

Step 11 In the Manual Provisioning pane (available when Route Automatically is unchecked and the Graphical radio button is selected), do the following; then, click Next:

a. Use the map view to manually route the circuit from the source to the destination specified by the addition of the links selected. Use the right-click menu options to navigate within the map view:

•Find Node—Opens the Find Node dialog box, which lists all of the nodes displayed on the map view. Select a node from the drop-down list and click OK. The selection context in the map view changes to show the selected node highlighted in the visible map area.

•Zoom In—Allows you to zoom in on an object in the map view.

•Zoom Out—Allows you to zoom out on the map view.

•Reset Zoom—Resets the current zoom level to the default.

•Add—Allows you to add the selected span. Right-click a link and choose Add in the right-click menu. The selected link is added to the Available Spans list with the default STS or VC4 value. The Add option applies to manual provisioning across all circuit types.

b. Select a link on the map view (related to the selected node) and its corresponding details are displayed in the Available Spans pane. Click Add to move the spans to the Selected Spans field. The newly added link appears in blue on the map view.

c. Select one or more spans and click Remove to remove them from the Selected Spans field. The removed link appears in green to indicate its unselected state.

Note To specify a DRI link, double-click the link on the map. The map view displays the link as bidirectional.

d. (For BLSR DRI or MS-SPRing DRI circuits) In the BLSR DRI Nodes or MS-SPRing DRI Nodes tab, click the Add button to open the BLSR/MS-SPRing DRI dialog box, which allows you to provide primary and secondary pairs for traditional and nontraditional DRI circuits. Also specify ring and path options for the first and second rings. Click Remove to remove a DRI node from the list.

Step 12 In the Manual Provisioning pane (available when Route Automatically is unchecked and the Textual radio button is selected), do the following; then, click Next:

a. Specify the following:

•Src NE ID—Display only.

•Dest NE ID—Display only.

•Current NE ID—Display only.

•Adj NE ID—Display only.

•Available Links—Lists all links between the currently selected and adjacent NEs. Select a link from the drop-down list.

•Available Spans—After you select a link from the Available Links drop-down list, its corresponding details are displayed in the Available Spans pane. Click Add to move the spans to the Selected Spans field.

•Selected Spans—Select one or more spans and click Remove to remove them from the Selected Spans field.

b. Click Next Hop to specify the next intermediate hop; then, repeat step a.

c. Click Reset to reset all hop information to the default values.

d. Click Alternate Route to specify hop information for the alternate circuit route.

Step 13 In the Route Constraints pane (available when Route Automatically and Using Required Nodes/Links are enabled and the Graphical radio button is selected), a graphical representation of the circuit is displayed, including source and destination nodes. Specify the nodes or links to include in the circuit route. Complete the following substeps:

a. In the circuit display, select the node or link. The NE ID or link ID is displayed in the Selected Node/Link field.

b. Click Include to include the selected node or link in the route. The node or link appears in the Included Links/Nodes list.

c. Click Exclude to exclude the selected node or link from the route. The node or link appears in the Excluded Links/Nodes list.

d. Click Remove to remove the selected node or link from the Included Links/Nodes or Excluded Links/Nodes lists.

e. Click Up or Down to set the sequence of the nodes and spans included in the circuit.

f. Repeat substeps a to e for each node or link that you want to include in the circuit route.

g. Click Finish, or, if Review Route Before Creation is checked in the Routing Preferences pane, click Next.

Step 14 In the Route Constraints pane (available when Route Automatically and Using Required Nodes/Links are enabled and the Textual radio button is selected), specify the nodes or links to include in each hop of the circuit route. Complete the following substeps:

a. Select Nodes in the Select Nodes/Links area if you want to add nodes to your circuit route; then, specify the node information in the Select Nodes area.

b. Select Links in the Select Nodes/Links area if you want to add links to your circuit route; then, specify the link information in the Select Links area.

c. Click Add to add a BLSR-DRI or MS-SPring-DRI to the circuit route.

d. Click Include to include the selected node or link in the route. The node or link appears in the Included Links/Nodes list.

e. Click Exclude to exclude the selected node or link from the route. The node or link appears in the Excluded Links/Nodes list.

f. Click Remove to remove the selected node or link from the Included Links/Nodes or Excluded Links/Nodes lists.

g. Click Up or Down to set the sequence of the nodes and spans included in the circuit.

h. Repeat these substeps for each node or link that you want to include in the circuit route.

i. Click Finish, or, if Review Route Before Creation is checked in the Routing Preferences pane, click Next.

Step 15 In the Review Route pane (available only if Review Route Before Creation is checked), complete the following substeps:

a. In the circuit display, review the ID of the source and destination NEs.

b. Included Spans—Because automatic route selection is enabled in the Routing Preferences pane, CTM automatically selects spans to route the circuit. This field lists all the spans that the CTM server selected automatically.

c. Selected Span—Displays the following information about the span selected in the Included Spans list:

•From—Span source

•To—Span destination

•Source STS—STS value

•VT—VT time slot

Note If you selected VT as the circuit type in the Attributes pane, chose Review Route Before Creation in the Routing Preferences pane, and selected VT Tunnel on Transit Nodes in the VT Options pane, the VT tunnel is created regardless of whether or not you are finished provisioning the circuit. Even if you click the Back button in the Review Route pane and change the VT circuit options, the newly created VT tunnel will not be deleted.

d. (Optional) You can review and modify the automatic route that is selected for circuit creation. Click Add to change the automatically selected route by adding a route to the Selected Spans list. Click Remove to remove a route from the list.

e. Click Finish.

Step 16 In the message box, click OK.

Caution It takes several seconds to create a circuit. During that interval, if a new circuit is added with the same name, both circuits might be identified as duplicates. Therefore, be careful not to add a duplicate circuit during the creation of the first circuit.

7.2.4.2  Creating a VCAT Circuit

This section describes how to create VCAT circuits (STS-v, VT-v, VC_HO_PATH_VCAT_CIRCUIT, or VC_LO_PATH_VCAT_CIRCUIT).

VCAT circuits are supported on the following cards:

•ML1000, ML100T—Supported on ONS 15454 SONET and ONS 15454 SDH NEs

•FCMR—Supported on ONS 15454 SONET and ONS 15454 SDH NEs

•CE-100T-8—Supported only on ONS 15454 SONET NEs

•ML-100T-8—Supported on ONS 15310 CL and ONS 15310 MA NEs

•E100-WAN-8, GigE-WAN-2, STM-1-1-8-LC—Supported on ONS 15305 CTC NEs

Note Each card supports a different number of members. You can create only bidirectional, revertive or nonrevertive, and high-order/low-order path circuits. CTM can route the circuits automatically, or you can route them manually. Also, all members can be routed through a single fiber or you can specify a split fiber routing preference.

Step 1 Select the node for which to create a VCAT circuit and open the Circuit wizard. For an explanation of Circuit wizard launch points, see Table 7-5.

Step 2 In the Type pane, select STS-v, VT-v, VC_HO_PATH_VCAT_CIRCUIT, or VC_LO_PATH_VCAT_CIRCUIT.

For SDH nodes:

•a LO_VCAT circuit from an ONS 15454 SDH CE-100T-8 card to a 15305 E-100 card is supported for VCAT circuits

•LO_VCAT (VC3) circuits between a GigE-WAN-2 and ML1000 card (Number of Members = 2), and between a GigE-WAN-2 card and CE-100T-8 card (Number of Members = 1) is supported for VCAT circuits

Step 3 In the Number of Circuits field, enter the number of circuits you want to create. The Cisco default is 1. If you enter more than one, you can use autoranging to create the additional circuits automatically.

Note You can create only one VCAT circuit at a time.

Step 4 In the Attributes pane, enter the following information; then, click Next:

•Name—Enter a unique name for the new circuit. For VCAT circuits, the circuit name is a free-format string, up to 44 ASCII characters.

•Circuit Alias—Enter a unique alias name for the new circuit. The alias name can contain alphanumeric characters. It also supports international character sets.

•Description—Enter a circuit description of up to 256 characters.

•Bidirectional—In this release, only bidirectional VCAT circuits are supported. You cannot edit this field.

•State—Specify IS, OOS_DSBLD, OOS_MT, IS_AINS, or OOS_OOG (Out of Service-Out of Group).

•Apply to source/destination ports—Check this check box to apply the selected state to the source and destination ports.

•Member Size—Select the size of the member for the VCAT circuit. This is the unit for VCAT circuit size.

•Number of Members—Select the number of members (of the size selected above). Different cards support different numbers of members with different sizes.

•Mode—Select the LCAS mode (None, Sw-LCAS, or LCAS) for the VCAT circuit. If other than None is selected as the Mode, only the cards supporting the LCAS mode selected are listed for the source and destination selection.

•Protected Drops—Check this check box if you want the circuit routed to protected drops only; that is, to cards that are in 1:1, 1:N, or 1+1 protection.

•Provision working go and return on primary path (bidirectional UPSR/SNCP protection only)—Check this check box to provision the working path to go and return to the primary path.

•SNCP path selector defaults—If the circuit will be routed on an SNCP, set the defaults as follows:

–Revertive—Check this check box if you want traffic to revert to the working path when the conditions that diverted it to the protect path are repaired. If Revertive is not chosen, traffic remains on the protect path.

–Reversion time—If Revertive is checked, set the reversion time. This is the amount of time that elapses before the traffic reverts to the working path. Traffic can revert when conditions causing the switch are cleared. (The Cisco default reversion time is 5 minutes.)

–SF threshold—Choose from 1 E-3, 1 E-4, or 1 E-5.

–SD threshold—Choose from 1 E-5, 1 E-6, 1 E-7, 1 E-8, or 1 E-9.

–Switch on PDI-P—Not applicable.

•Customer ID (optional)—Identify the end user of the circuit.

•Service ID (optional)—Enter the service ID of the circuit.

Note The customer ID and service ID for the VCAT circuit will be applied to all member circuits.

Step 5 In the Source pane, set the circuit source. The options displayed depend on the circuit type, the circuit properties selected in the Attributes pane, and the cards installed on the node.

Step 6 Click Next.

Step 7 In the Destination pane, set the circuit destination. The options displayed depend on the circuit type, the circuit properties selected in the Attributes pane, and the cards installed on the node.

Step 8 Click Next.

Step 9 In the Routing Preferences pane, complete the following substeps; then, click Next:

a. Route Automatically—Enable or disable automatic route selection. If enabled, CTM automatically determines the route for the circuit. If the source and destination of the circuit are on the same node, automatic routing is enabled. If disabled, you can specify the spans associated with the circuit. You can manually provision the circuit using one of the following views:

•Graphical

•Textual

b. Using Required Nodes/Links—(Available only if Route Automatically is checked) Check this check box to let CTM automatically route the circuit through the required nodes and/or links. You can specify the required nodes and links using one of the following views:

•Graphical

•Textual

c. Review Route Before Creation—(Available only if Route Automatically is checked) Check this check box to review the route before it is created.

d. Time Slot Restriction—If checked, you can enter an STS/VC4 value (to be used end-to-end) that CTM uses to automatically determine the route for the circuit. Circuit creation is rejected if the same STS/VC4 is not available end-to-end. If circuit creation is rejected, you can try circuit creation again using different values. The valid range you can enter is from 1 to 192 for SONET, or 1 to 64 for SDH networks.

Note For VCAT circuits, you must enter multiple STS/VC4 values in the Member Preferences table > Time Slot Restriction field. The STS/VC4 values that you enter in the Time Slot Restriction field cannot be identical, or circuit creation will fail with an error message.

e. Select the routing preference for VCAT members. If all members are to be routed on a single fiber, choose Common Fiber Routing. If members are to be routed through different fibers in case one fiber does not have sufficient bandwidth, choose Split Routing.

f. Specify the following member preferences:

•Number—Select the member number, a unique number from 1 to 256.

•Name—Edit the name for the member circuit. By default, <VCAT_NAME>_<Default MemberNumber> is the member name, where <VCAT_NAME> is the parent VCAT circuit name being created.

•Protection—Select the protection mechanism for member circuits. To route the circuit on a protected path, choose Fully Protected (default). A fully protected circuit route is created based on the diversity option you choose. Fully protected paths might or might not have UPSR/SNCP path segments with primary and alternate paths. The path diversity options apply only to UPSR/SNCP path segments, if any exist. To create an unprotected circuit, choose Unprotected.

•Node Diversity—Select node diversity for each member circuit.

g. If you selected Fully Protected Path, choose one of the following options:

•Required—Ensures that the primary and alternate paths within the extended UPSR/SNCP mesh network portions of the complete circuit path are nodally diverse.

•Desired—Specifies that node diversity is preferred, but if node diversity is not possible, link-diverse paths are created for the extended UPSR/SNCP mesh network portion of the complete circuit path.

•Link Diverse Only—Specifies that only link-diverse primary and alternate paths for extended UPSR/SNCP mesh network portions of the complete circuit path are needed.

•N/A (Not Applicable)—Dual Ring Interconnect is not supported from CTM.

Note Node diversity can be set for each member when Fully Protected is selected and Split Fiber Routing is selected.

Step 10 In the Manual Provisioning pane (available when Route Automatically is unchecked and the Graphical radio button is selected), do the following; then, click Next:

a. Use the map view to manually route the circuit from the source to the destination specified by the addition of the links selected. Use the right-click menu options to navigate within the map view:

•Find Node—Opens the Find Node dialog box, which lists all of the nodes displayed on the map view. Select a node from the drop-down list and click OK. The selection context in the map view changes to show the selected node highlighted in the visible map area.

•Zoom In—Allows you to zoom in on an object in the map view.

•Zoom Out—Allows you to zoom out on the map view.

•Reset Zoom—Resets the current zoom level to the default.

•Add—Allows you to add the selected span. Right-click a link and choose Add in the right-click menu. The selected link is added to the Available Spans list. The Add option applies to manual provisioning across all circuit types.

b. In the VCAT Member Number list box, select the member for which the route is to be selected.

c. In the circuit display, select the span to use for the next hop.

d. In the Available Spans area, complete the following information:

•From—Displays the source of the span

•To—Displays the destination of the span

e. Click Add. The span is added to the Selected Spans list.

f. Repeat substeps b to d for each intermediate NE until the destination NE is reached.

g. Repeat substeps a to e for each member until all members are routed.

h. To delete a span from the Selected Spans area, select a span from the Selected Spans list and click Remove.

Note To specify a DRI link, double-click the link on the map. The map view displays the link as bidirectional.

i. (For BLSR DRI or MS-SPRing DRI circuits) In the BLSR DRI Nodes or MS-SPRing DRI Nodes tab, click the Add button to open the BLSR/MS-SPRing DRI dialog box, which allows you to provide primary and secondary pairs for traditional and nontraditional DRI circuits. Also specify ring and path options for the first and second rings. Click Remove to remove a DRI node from the list.

Step 11 In the Manual Provisioning pane (available when Route Automatically is unchecked and the Textual radio button is selected), do the following; then, click Next:

a. Specify the following:

•Src NE ID—Display only.

•Dest NE ID—Display only.

•Current NE ID—Display only.

•Adj NE ID—Display only.

•Available Links—Lists all links between the currently selected and adjacent NEs. Select a link from the drop-down list.

•Available Spans—After you select a link from the Available Links drop-down list, its corresponding details are displayed in the Available Spans pane. Click Add to move the spans to the Selected Spans field.

•Selected Spans—Select one or more spans and click Remove to remove them from the Selected Spans field.

b. Click Next Hop to specify the next intermediate hop; then, repeat step a.

c. Click Reset to reset all hop information to the default values.

d. Click Alternate Route to specify hop information for the alternate circuit route.

Step 12 In the Route Constraints pane (available when Route Automatically and Using Required Nodes/Links are enabled and the Graphical radio button is selected), a graphical representation of the circuit is displayed, including source and destination nodes. Select the member from the Member list box at the top of the pane. For common fiber routing, there is no Member list box, because constraints are applied to all the members. In split fiber routing, you can select different constraints for different members by selecting a member and then selecting spans or NEs to be included or excluded for routing the circuit. Specify the nodes or links to include in the circuit route. Complete the following substeps:

a. In the VCAT Member Number list box, select the member for which constraints are to be selected.

b. In the circuit display, select the node or link. The NE ID or link ID is displayed in the Selected Node/Link field.

c. Click Include to include the selected node or link in the route. The node or link appears in the Included Links/Nodes list.

d. Click Exclude to exclude the selected node or link from the route. The node or link appears in the Excluded Links/Nodes list.

e. Click Remove to remove the selected node or link from the Included Links/Nodes or Excluded Links/Nodes lists.

f. Click Up or Down to set the sequence of the nodes and spans included in the circuit.

g. Repeat substeps b to f for each node or link that you want to include in the circuit route.

h. (Optional) Repeat substeps a to g for each member.

i. Click Finish, or, if Review Route Before Creation is checked in the Routing Preferences pane, click Next.

Step 13 In the Route Constraints pane (available when Route Automatically and Using Required Nodes/Links are enabled and the Textual radio button is selected), specify the nodes or links to include in each hop of the circuit route. Complete the following substeps:

a. Select Nodes in the Select Nodes/Links area if you want to add nodes to your circuit route; then, specify the node information in the Select Nodes area.

b. Select Links in the Select Nodes/Links area if you want to add links to your circuit route; then, specify the link information in the Select Links area.

c. Click Add to add a BLSR-DRI or MS-SPring-DRI to the circuit route.

d. Click Include to include the selected node or link in the route. The node or link appears in the Included Links/Nodes list.

e. Click Exclude to exclude the selected node or link from the route. The node or link appears in the Excluded Links/Nodes list.

f. Click Remove to remove the selected node or link from the Included Links/Nodes or Excluded Links/Nodes lists.

g. Click Up or Down to set the sequence of the nodes and spans included in the circuit.

h. Repeat substeps a to e for each node or link that you want to include in the circuit route.

i. Click Finish, or, if Review Route Before Creation is checked in the Routing Preferences pane, click Next.

Step 14 In the Review Route pane (available only if Review Route Before Creation is checked), complete the following substeps:

Note Member routing information is displayed when a particular member is selected from the list box.

a. In the VCAT Member Number list box, select the member.

b. In the circuit display, review the ID of the source and destination NEs.

c. Included Spans—Because automatic route selection is enabled in the Routing Preferences pane, CTM automatically selects spans to route the circuit. This field lists all the spans that the CTM server selected automatically.

d. Selected Span—Review the span information.

e. (Optional) You can review and modify the automatic route that is selected for circuit creation. Click Add to change the automatically selected route by adding a route to the Selected Spans list. Click Remove to remove a route from the list.

f. Click Finish.

Step 15 In the message box, click OK.

7.2.4.3  Creating a VC_HO_Path_Circuit

The E1-N-14 card, STM-N cards, and Ethernet cards all use high-order path circuits. You can create unidirectional or bidirectional, revertive or nonrevertive, high-order path circuits. CTM can route the circuits automatically, or you can route them manually. The E3-12 and DS3i-N-12 cards use VC low-order path tunnels.

Step 1 Select the node for which to create a circuit and open the Circuit wizard. For an explanation of Circuit wizard launch points, see Table 7-5.

Step 2 In the Type pane, choose VC_HO_Path_Circuit. The circuit type determines the provisioning options that are displayed. In the Number of Circuits field, enter the number of circuits you want to create. The Cisco default is 1. If you enter more than one, you can use autoranging to create the additional circuits automatically.

Step 3 Click Next.

Step 4 In the Attributes pane, enter the following information; then, click Next:

•Name—Enter a unique name for the new circuit. The circuit name is a free-format string of up to 48 ASCII characters.

•Circuit Alias—Enter a unique alias name for the new circuit. The alias name can contain alphanumeric characters. It also supports international character sets.

•Description—Enter a circuit description of up to 256 characters.

•Size—Select the circuit size. VC high-order path circuits can be VC4, VC4-2c, VC4-3c, VC4-4c, VC4-8c, VC4-16c, or VC4-64c for optical cards and for some Ethernet cards (depending on the card type). Of the Ethernet cards, only the G-1000 can use VC4-3c, VC4-8c, and VC4-16c. The "c" indicates concatenated VC4s.

•Bidirectional—Check this check box to create a two-way circuit; uncheck it to create a one-way circuit.

•State—Specify the circuit state. Options vary depending on the type of circuit selected.

•Apply to source/destination ports—Check this check box to apply the selected state to the source and destination ports.

•Protected Drops—Check this check box if you want the circuit routed to protected drops only; that is, to cards that are in 1:1, 1:N, or 1+1 protection.

•Provision working go and return on primary path (bidirectional UPSR/SNCP protection only)—Check this check box to provision the working path to go and return to the primary path.

Note CTM currently provisions unidirectional SNCP/UPSR circuits following the GR-1400 standard. For bidirectional SNCP/UPSR circuits, you can check the Provision working go and return on primary path check box to route the working and protect paths in one direction following the ITU-T G.841 standard. Unidirectional UPSR/SNCP circuits are not affected by this new routing, and the shortest path is always used as the working path.

•SNCP path selector defaults—If the circuit will be routed on an SNCP, set the defaults as follows:

–Revertive—Check this check box if you want traffic to revert to the working path when the conditions that diverted it to the protect path are repaired. If Revertive is not chosen, traffic remains on the protect path.

–Reversion time—If Revertive is checked, set the reversion time. This is the amount of time that elapses before the traffic reverts to the working path. Traffic can revert when conditions causing the switch are cleared. (The Cisco default reversion time is 5 minutes.)

–SF threshold—Choose from 1 E-3, 1 E-4, or 1 E-5.

–SD threshold—Choose from 1 E-5, 1 E-6, 1 E-7, 1 E-8, or 1 E-9.

–Switch on PDI-P—Not applicable.

•Customer ID (optional)—Identify the end user of the circuit.

•Service ID (optional)—Enter the service ID of the circuit.

Step 5 In the Source pane, set the circuit source. The options displayed depend on the circuit type, the circuit properties selected in the Attributes pane, and the cards installed in the node. Click Use Secondary Source if you want to create an SNCP bridge/selector circuit entry point in a multivendor SNCP.

Step 6 Click Next.

Step 7 In the Destination pane, set the circuit destination. The options displayed depend on the circuit type, the circuit properties selected in the Attributes pane, and the cards installed in the node. Click Use Secondary Destination if you want to create a circuit destination point for unidirectional/bidirectional circuits.

Step 8 Click Next.

Step 9 In the Routing Preferences pane, complete the following substeps; then, click Next:

a. Route Automatically—Enable or disable automatic route selection. If enabled, CTM automatically determines the route for the circuit. If the source and destination of the circuit are on the same node, automatic routing is enabled. If disabled, you can specify the spans associated with the circuit. You can manually provision the circuit using one of the following views:

•Graphical

•Textual

b. Using Required Nodes/Links—(Available only if Route Automatically is checked) Check this check box to let CTM automatically route the circuit through the required nodes and/or links. You can specify the required nodes and links using one of the following views:

•Graphical

•Textual

c. Review Route Before Creation—(Available only if Route Automatically is checked) Check this check box to review the route before it is created.

d. Time Slot Restriction—If checked, you can enter an STS/VC4 value (to be used end-to-end) that CTM uses to automatically determine the route for the circuit. Circuit creation is rejected if the same STS/VC4 is not available end-to-end. If circuit creation is rejected, you can try circuit creation again using different values. The valid range you can enter is from 1 to 192 for SONET, or 1 to 64 for SDH networks.

Note For VCAT circuits, you must enter multiple STS/VC4 values in the Member Preferences table > Time Slot Restriction field. The STS/VC4 values that you enter in the Time Slot Restriction field cannot be identical, or circuit creation will fail with an error message.

e. Set the circuit path protection as follows:

•To route the circuit on a protected path, leave the Fully Protected Path check box checked (default) and proceed to the next substep. A fully protected circuit route is created based on the path diversity option you choose. Fully protected paths might or might not have SNCP path segments with primary and alternate paths. The path diversity options apply only to SNCP path segments, if any exist.

•To create an unprotected circuit, uncheck Fully Protected Path and go to Step 10.

•To route the circuit on an MS-SPRing protection channel, uncheck Fully Protected Path, check Protection Channel Access, and go to Step 10.

f. If you selected Fully Protected Path, choose one of the following options:

•Required—Ensures that the primary and alternate paths within the extended SNCP mesh network portions of the complete circuit path are nodally diverse.

•Desired—Specifies that node diversity is preferred, but if node diversity is not possible, link-diverse paths are created for the extended SNCP mesh network portion of the complete circuit path.

•Don't Care: Link Diverse Only—Specifies that only link-diverse primary and alternate paths for extended SNCP mesh network portions of the complete circuit path are needed.

•Dual Ring Interconnect—Provisions the circuit in a DRI topology. If selected, the other node specifications (Required, Desired, and Don't Care: Link Diverse Only) are disabled.

Step 10 In the Manual Provisioning pane (available when Route Automatically is unchecked and the Graphical radio button is selected), do the following; then, click Next:

a. Use the map view to manually route the circuit from the source to the destination specified by the addition of the links selected. Use the right-click menu options to navigate within the map view:

•Find Node—Opens the Find Node dialog box, which lists all of the nodes displayed on the map view. Select a node from the drop-down list and click OK. The selection context in the map view changes to show the selected node highlighted in the visible map area.

•Zoom In—Allows you to zoom in on an object in the map view.

•Zoom Out—Allows you to zoom out on the map view.

•Reset Zoom—Resets the current zoom level to the default.

•Add—Allows you to add the selected span. Right-click a link and choose Add in the right-click menu. The selected link is added to the Available Spans list. The Add option applies to manual provisioning across all circuit types.

b. In the VCAT Member Number list box, select the member for which the route is to be selected.

c. In the circuit display, select the span to use for the next hop.

d. In the Available Spans area, complete the following information:

•From—Displays the source of the span

•To—Displays the destination of the span

e. Click Add. The span is added to the Selected Spans list.

f. Repeat substeps b to d for each intermediate NE until the destination NE is reached.

g. Repeat substeps a to e for each member until all members are routed.

h. To delete a span from the Selected Spans area, select a span from the Selected Spans list and click Remove.

Note To specify a DRI link, double-click the link on the map. The map view displays the link as bidirectional.

i. (For BLSR DRI or MS-SPRing DRI circuits) In the BLSR DRI Nodes or MS-SPRing DRI Nodes tab, click the Add button to open the BLSR/MS-SPRing DRI dialog box, which allows you to provide primary and secondary pairs for traditional and nontraditional DRI circuits. Also specify ring and path options for the first and second rings. Click Remove to remove a DRI node from the list.

Step 11 In the Manual Provisioning pane (available when Route Automatically is unchecked and the Textual radio button is selected), do the following; then, click Next:

a. Specify the following:

•Src NE ID—Display only.

•Dest NE ID—Display only.

•Current NE ID—Display only.

•Adj NE ID—Display only.

•Available Links—Lists all links between the currently selected and adjacent NEs. Select a link from the drop-down list.

•Available Spans—After you select a link from the Available Links drop-down list, its corresponding details are displayed in the Available Spans pane. Click Add to move the spans to the Selected Spans field.

•Selected Spans—Select one or more spans and click Remove to remove them from the Selected Spans field.

b. Click Next Hop to specify the next intermediate hop; then, repeat step a.

c. Click Reset to reset all hop information to the default values.

d. Click Alternate Route to specify hop information for the alternate circuit route.

Step 12 In the Route Constraints pane (available when Route Automatically and Using Required Nodes/Links are enabled and the Graphical radio button is selected), a graphical representation of the circuit is displayed, including source and destination nodes. Specify the spans that will route to the circuit. CTM starts at the source node. The next NE associated with each span is also displayed. Complete the following substeps:

a. In the circuit display, select the node or link. The NE ID or link ID is displayed in the Selected Node/Link field.

b. Click Include to include the selected node or link in the route. The node or link appears in the Included Links/Nodes list.

c. Click Exclude to exclude the selected node or link from the route. The node or link appears in the Excluded Links/Nodes list.

d. Click Remove to remove the selected node or link from the Included Links/Nodes or Excluded Links/Nodes lists.

e. Click Up or Down to set the sequence of the nodes and spans included in the circuit.

f. Repeat substeps a to e for each node or link that you want to include in the circuit route.

g. (Optional) Repeat substeps a to f for each intermediate NE until the destination NE is reached.

h. Click Finish, or, if Review Route Before Creation is checked in the Routing Preferences pane, click Next.

Step 13 In the Route Constraints pane (available when Route Automatically and Using Required Nodes/Links are enabled and the Textual radio button is selected), specify the nodes or links to include in each hop of the circuit route. Complete the following substeps:

a. Select Nodes in the Select Nodes/Links area if you want to add nodes to your circuit route; then, specify the node information in the Select Nodes area.

b. Select Links in the Select Nodes/Links area if you want to add links to your circuit route; then, specify the link information in the Select Links area.

c. Click Add to add a BLSR-DRI or MS-SPring-DRI to the circuit route.

d. Click Include to include the selected node or link in the route. The node or link appears in the Included Links/Nodes list.

e. Click Exclude to exclude the selected node or link from the route. The node or link appears in the Excluded Links/Nodes list.

f. Click Remove to remove the selected node or link from the Included Links/Nodes or Excluded Links/Nodes lists.

g. Click Up or Down to set the sequence of the nodes and spans included in the circuit.

h. Repeat substeps a to e for each node or link that you want to include in the circuit route.

i. Click Finish, or, if Review Route Before Creation is checked in the Routing Preferences pane, click Next.

Step 14 In the Review Route pane (available only if Review Route Before Creation is checked), review the following information; then, click Finish:

a. In the circuit display, review the ID of the source and destination NEs.

b. Included Spans—Because automatic route selection is enabled in the Routing Preferences pane, CTM automatically selects spans to route the circuit. This field lists all the spans that the CTM server selected automatically.

c. Selected Span—Review the span information.

Step 15 In the message box, click OK.

7.2.4.4  Creating a VC_LO_Path_Circuit

Step 1 Select the node for which to create a circuit and open the Circuit wizard. For an explanation of Circuit wizard launch points, see Table 7-5.

Step 2 In the Type pane, choose VC_LO_Path_Circuit. The circuit type determines the provisioning options that are displayed. In the Number of Circuits field, enter the number of circuits you want to create. The Cisco default is 1. If you enter more than one, you can use autoranging to create the additional circuits automatically.

Step 3 Click Next.

Step 4 In the Attributes pane, enter the following information; then, click Next:

•Name—Enter a unique name for the new circuit. The circuit name is a free-format string of up to 48 ASCII characters.

•Circuit Alias—Enter a unique alias name for the new circuit. The alias name can contain alphanumeric characters. It also supports international character sets.

•Description—Enter a circuit description of up to 256 characters.

•Size—Select VC3, VC11, or VC12.

•Bidirectional—Check this check box to create a two-way circuit; uncheck it to create a one-way circuit.

•State—Specify the circuit state. Options vary depending on the type of circuit selected.

•Apply to source/destination ports—Check this check box to apply the selected state to the source and destination ports.

•Protected Drops—Check this check box if you want the circuit routed to protected drops only; that is, to cards that are in 1:1, 1:N, or 1+1 protection.

•Provision working go and return on primary path (bidirectional UPSR/SNCP protection only)—Check this check box to provision the working path to go and return to the primary path.

Note CTM currently provisions unidirectional SNCP/UPSR circuits following the GR-1400 standard. For bidirectional SNCP/UPSR circuits, you can check the Provision working go and return on primary path check box to route the working and protect paths in one direction following the ITU-T G.841 standard. Unidirectional UPSR/SNCP circuits are not affected by this new routing, and the shortest path is always used as the working path.

•SNCP path selector defaults—If the circuit will be routed on an SNCP, set the defaults as follows:

–Revertive—Check this check box if you want traffic to revert to the working path when the conditions that diverted it to the protect path are repaired. If Revertive is not chosen, traffic remains on the protect path.

–Reversion time—If Revertive is checked, set the reversion time. This is the amount of time that elapses before the traffic reverts to the working path. Traffic can revert when conditions causing the switch are cleared. (The Cisco default reversion time is 5 minutes.)

–SF threshold.

–SD threshold.

–Switch on PDI-P—Not applicable.

•Customer ID (optional)—Identify the end user of the circuit.

•Service ID (optional)—Enter the service ID of the circuit.

Step 5 In the Source pane, set the circuit source. The options displayed depend on the circuit type, the circuit properties selected in the Attributes pane, and the cards installed in the node. Click Use Secondary Source if you want to create an SNCP bridge/selector circuit entry point in a multivendor SNCP.

Step 6 Click Next.

Step 7 In the Destination pane, set the circuit destination. The options displayed depend on the circuit type, the circuit properties selected in the Attributes pane, and the cards installed in the node. Click Use Secondary Destination if you want to create a circuit destination point for unidirectional/bidirectional and VC_LO_Path_Circuits.

Step 8 Click Next.

Step 9 In the Routing Preferences pane, complete the following substeps; then, click Next:

a. Route Automatically—Enable or disable automatic route selection. If enabled, CTM automatically determines the route for the circuit. If the source and destination of the circuit are on the same node, automatic routing is enabled. If disabled, you can specify the spans associated with the circuit. You can manually provision the circuit using one of the following views:

•Graphical

•Textual

b. Using Required Nodes/Links—(Available only if Route Automatically is checked) Check this check box to let CTM automatically route the circuit through the required nodes and/or links. You can specify the required nodes and links using one of the following views:

•Graphical

•Textual

c. Review Route Before Creation—(Available only if Route Automatically is checked) Check this check box to review the route before it is created.

d. Time Slot Restriction—If checked, you can enter an STS/VC4 value (to be used end-to-end) that CTM uses to automatically determine the route for the circuit. Circuit creation is rejected if the same STS/VC4 is not available end-to-end. If circuit creation is rejected, you can try circuit creation again using different values. The valid range you can enter is from 1 to 192 for SONET, or 1 to 64 for SDH networks.

Note For VCAT circuits, you must enter multiple STS/VC4 values in the Member Preferences table > Time Slot Restriction field. The STS/VC4 values that you enter in the Time Slot Restriction field cannot be identical, or circuit creation will fail with an error message.

e. Set the circuit path protection as follows:

•To route the circuit on a protected path, leave the Fully Protected Path check box checked (default) and proceed to the next substep. A fully protected circuit route is created based on the path diversity option you choose. Fully protected paths might or might not have SNCP path segments with primary and alternate paths. The path diversity options apply only to SNCP path segments, if any exist.

•To create an unprotected circuit, uncheck Fully Protected Path and go to Step 10.

•To route the circuit on an MS-SPRing protection channel, uncheck Fully Protected Path, check Protection Channel Access, and go to Step 10.

f. If you selected Fully Protected Path, choose one of the following options:

•Required—Ensures that the primary and alternate paths within the extended SNCP mesh network portions of the complete circuit path are nodally diverse.

•Desired—Specifies that node diversity is preferred, but if node diversity is not possible, link-diverse paths are created for the extended SNCP mesh network portion of the complete circuit path.

•Don't Care: Link Diverse Only—Specifies that only link-diverse primary and alternate paths for extended SNCP mesh network portions of the complete circuit path are needed.

•Dual Ring Interconnect—Provisions the circuit in a DRI topology. If selected, the other node specifications (Required, Desired, and Don't Care: Link Diverse Only) are disabled.

Step 10 If you did not select Using Required Nodes/Links in Step 9, specify VC-LO circuit options. In the VC LO Options pane, choose one of the following radio buttons; then, click Finish (if you did not check Review Route Before Creation in Step 9) or Next (to view the spans included in the route in the Review Route pane):

a. VC LO Tunnel on transit nodes

b. VC LAP

•Circuit source is VC4 grooming node

•Circuit destination is VC4 grooming node

c. None

Step 11 If you created a VC LAP, in the VC LO Options pane, select the following; then, click Finish (if you did not check Review Route Before Creation in Step 9) or Next (to view the spans included in the route in the Review Route pane).

•VC4 Grooming Node

•VC LO Grooming Node

Step 12 In the Manual Provisioning pane (available when Route Automatically is unchecked and the Graphical radio button is selected), do the following; then, click Next:

a. Use the map view to manually route the circuit from the source to the destination specified by the addition of the links selected. Use the right-click menu options to navigate within the map view:

•Find Node—Opens the Find Node dialog box, which lists all of the nodes displayed on the map view. Select a node from the drop-down list and click OK. The selection context in the map view changes to show the selected node highlighted in the visible map area.

•Zoom In—Allows you to zoom in on an object in the map view.

•Zoom Out—Allows you to zoom out on the map view.

•Reset Zoom—Resets the current zoom level to the default.

•Add—Allows you to add the selected span. Right-click a link and choose Add in the right-click menu. The selected link is added to the Available Spans list. The Add option applies to manual provisioning across all circuit types.

b. In the VCAT Member Number list box, select the member for which the route is to be selected.

c. In the circuit display, select the span to use for the next hop.

d. In the Available Spans area, complete the following information:

•From—Displays the source of the span

•To—Displays the destination of the span

e. Click Add. The span is added to the Selected Spans list.

f. Repeat substeps b to d for each intermediate NE until the destination NE is reached.

g. Repeat substeps a to e for each member until all members are routed.

h. To delete a span from the Selected Spans area, select a span from the Selected Spans list and click Remove.

Note To specify a DRI link, double-click the link on the map. The map view displays the link as bidirectional.

i. (For BLSR DRI or MS-SPRing DRI circuits) In the BLSR DRI Nodes or MS-SPRing DRI Nodes tab, click the Add button to open the BLSR/MS-SPRing DRI dialog box, which allows you to provide primary and secondary pairs for traditional and nontraditional DRI circuits. Also specify ring and path options for the first and second rings. Click Remove to remove a DRI node from the list.

Step 13 In the Manual Provisioning pane (available when Route Automatically is unchecked and the Textual radio button is selected), do the following; then, click Next:

a. Specify the following:

•Src NE ID—Display only.

•Dest NE ID—Display only.

•Current NE ID—Display only.

•Adj NE ID—Display only.

•Available Links—Lists all links between the currently selected and adjacent NEs. Select a link from the drop-down list.

•Available Spans—After you select a link from the Available Links drop-down list, its corresponding details are displayed in the Available Spans pane. Click Add to move the spans to the Selected Spans field.

•Selected Spans—Select one or more spans and click Remove to remove them from the Selected Spans field.

b. Click Next Hop to specify the next intermediate hop; then, repeat step a.

c. Click Reset to reset all hop information to the default values.

d. Click Alternate Route to specify hop information for the alternate circuit route.

Step 14 In the Route Constraints pane (available when Route Automatically and Using Required Nodes/Links are enabled and the Graphical radio button is selected), a graphical representation of the circuit is displayed, including source and destination nodes. Specify the spans that will route to the circuit. CTM starts at the source node. The next NE associated with each span is also displayed. Complete the following substeps:

a. In the circuit display, select the node or link. The NE ID or link ID is displayed in the Selected Node/Link field.

b. Click Include to include the selected node or link in the route. The node or link appears in the Included Links/Nodes list.

c. Click Exclude to exclude the selected node or link from the route. The node or link appears in the Excluded Links/Nodes list.

d. Click Remove to remove the selected node or link from the Included Links/Nodes or Excluded Links/Nodes lists.

e. Click Up or Down to set the sequence of the nodes and spans included in the circuit.

f. Repeat substeps a to e for each node or link that you want to include in the circuit route.

g. (Optional) Repeat substeps a to f for each intermediate NE until the destination NE is reached.

h. Click Finish, or, if Review Route Before Creation is checked in the Routing Preferences pane, click Next.

Step 15 In the Route Constraints pane (available when Route Automatically and Using Required Nodes/Links are enabled and the Textual radio button is selected), specify the nodes or links to include in each hop of the circuit route. Complete the following substeps:

a. Select Nodes in the Select Nodes/Links area if you want to add nodes to your circuit route; then, specify the node information in the Select Nodes area.

b. Select Links in the Select Nodes/Links area if you want to add links to your circuit route; then, specify the link information in the Select Links area.

c. Click Add to add a BLSR-DRI or MS-SPring-DRI to the circuit route.

d. Click Include to include the selected node or link in the route. The node or link appears in the Included Links/Nodes list.

e. Click Exclude to exclude the selected node or link from the route. The node or link appears in the Excluded Links/Nodes list.

f. Click Remove to remove the selected node or link from the Included Links/Nodes or Excluded Links/Nodes lists.

g. Click Up or Down to set the sequence of the nodes and spans included in the circuit.

h. Repeat substeps a to e for each node or link that you want to include in the circuit route.

i. Click Finish, or, if Review Route Before Creation is checked in the Routing Preferences pane, click Next.

Step 16 In the Review Route pane (available only if Review Route Before Creation is checked), complete the following substeps:

a. In the circuit display, review the ID of the source and destination NEs.

b. Included Spans—Because automatic route selection is enabled in the Routing Preferences pane, CTM automatically chooses spans to route the circuit. This field lists all the spans that the CTM server selected automatically.

c. Selected Span—Review the span information.

d. (Optional) You can review and modify the automatic route that is selected for circuit creation. Click Add to change the automatically selected route by adding a route to the Selected Spans list. Click Remove to remove a route from the list.

e. Click Finish.

Step 17 In the message box, click OK.

7.2.4.5  Creating a VC_LO_Path_Tunnel

Step 1 Select the node for which to create a circuit and open the Circuit wizard. For an explanation of Circuit wizard launch points, see Table 7-5.

Step 2 In the Type pane, choose VC_LO_Path_Tunnel. The circuit type determines the provisioning options that are displayed. The E3-12 and DS3i-N-12 cards must use VC low-order path tunnels. In the Number of Circuits field, enter the number of circuits you want to create. The Cisco default is 1. If you enter more than one, you can use autoranging to create the additional circuits automatically.

Step 3 Click Next.

Step 4 In the Attributes pane, enter the following information; then, click Next:

•Name—Enter a unique name for the new circuit. The circuit name is a free-format string of up to 48 ASCII characters.

•Circuit Alias—Enter a unique alias name for the new circuit. The alias name can contain alphanumeric characters. It also supports international character sets.

•Description—Enter a circuit description of up to 256 characters.

•Size—For VC_LO_Path_Tunnel, this is automatically set to VC4.

•For VC3 Port Grouping Only—Available only when you select VC_LO_Path_Tunnel.

•Bidirectional—For VC_LO_Path_Tunnel, this is automatically set to bidirectional.

•State—Specify the circuit state. Options vary depending on the type of circuit selected.

•Apply to source/destination ports—Check this check box to apply the selected state to the source and destination ports.

•Protected Drops—Check this check box if you want the circuit routed to protected drops only; that is, to cards that are in 1:1, 1:N, or 1+1 protection.

•SNCP path selector defaults—If the circuit will be routed on an SNCP, set the defaults as follows:

–Revertive—Check this check box if you want traffic to revert to the working path when the conditions that diverted it to the protect path are repaired. If Revertive is not chosen, traffic remains on the protect path.

–Reversion time—If Revertive is checked, set the reversion time. This is the amount of time that elapses before the traffic reverts to the working path. Traffic can revert when conditions causing the switch are cleared. (The Cisco default reversion time is 5 minutes.)

–SF threshold—Choose from 1 E-3, 1 E-4, or 1 E-5.

–SD threshold—Choose from 1 E-5, 1 E-6, 1 E-7, 1 E-8, or 1 E-9.

–Switch on PDI-P—Not applicable.

•Customer ID (optional)—Identify the end user of the circuit.

•Service ID (optional)—Enter the service ID of the circuit.

Step 5 In the Source pane, set the circuit source. The options displayed depend on the circuit type, the circuit properties selected in the Attributes pane, and the cards installed in the node. Click Use Secondary Source if you want to create an SNCP bridge/selector circuit entry point in a multivendor SNCP.

Step 6 Click Next.

Step 7 In the Destination pane, set the circuit destination. The options displayed depend on the circuit type, the circuit properties selected in the Attributes pane, and the cards installed in the node. Click Use Secondary Destination if you want to create a circuit destination point for unidirectional/bidirectional.

Step 8 Click Next.

Step 9 In the Routing Preferences pane, for VC_LO_Path_Tunnel (with port grouping), Route Automatically is disabled.

Step 10 Set the circuit path protection as follows:

•To route the circuit on a protected path, leave the Fully Protected Path check box checked (default) and go to Step 11. A fully protected circuit route is created based on the path diversity option you choose. Fully protected paths might or might not have SNCP path segments with primary and alternate paths. The path diversity options apply only to SNCP path segments, if any exist.

•To create an unprotected circuit, uncheck Fully Protected Path and go to Step 12.

•To route the circuit on an MS-SPRing protection channel, uncheck Fully Protected Path, check Protection Channel Access, and go to Step 12.

Step 11 If you selected Fully Protected Path, choose one of the following options:

•Required—Ensures that the primary and alternate paths within the extended SNCP mesh network portions of the complete circuit path are nodally diverse.

•Desired—Specifies that node diversity is preferred, but if node diversity is not possible, link-diverse paths are created for the extended SNCP mesh network portion of the complete circuit path.

•Don't Care: Link Diverse Only—Specifies that only link-diverse primary and alternate paths for extended SNCP mesh network portions of the complete circuit path are needed.

Step 12 In the Manual Provisioning pane (available when Route Automatically is unchecked and the Graphical radio button is selected), do the following; then, click Next:

a. Use the map view to manually route the circuit from the source to the destination specified by the addition of the links selected. Use the right-click menu options to navigate within the map view:

•Find Node—Opens the Find Node dialog box, which lists all of the nodes displayed on the map view. Select a node from the drop-down list and click OK. The selection context in the map view changes to show the selected node highlighted in the visible map area.

•Zoom In—Allows you to zoom in on an object in the map view.

•Zoom Out—Allows you to zoom out on the map view.

•Reset Zoom—Resets the current zoom level to the default.

•Add—Allows you to add the selected span. Right-click a link and choose Add in the right-click menu. The selected link is added to the Available Spans list. The Add option applies to manual provisioning across all circuit types.

b. In the VCAT Member Number list box, select the member for which the route is to be selected.

c. In the circuit display, select the span to use for the next hop.

d. In the Available Spans area, complete the following information:

•From—Displays the source of the span

•To—Displays the destination of the span

e. Click Add. The span is added to the Selected Spans list.

f. Repeat substeps b to d for each intermediate NE until the destination NE is reached.

g. Repeat substeps a to e for each member until all members are routed.

h. To delete a span from the Selected Spans area, select a span from the Selected Spans list and click Remove.

Note To specify a DRI link, double-click the link on the map. The map view displays the link as bidirectional.

i. (For BLSR DRI or MS-SPRing DRI circuits) In the BLSR DRI Nodes or MS-SPRing DRI Nodes tab, click the Add button to open the BLSR/MS-SPRing DRI dialog box, which allows you to provide primary and secondary pairs for traditional and nontraditional DRI circuits. Also specify ring and path options for the first and second rings. Click Remove to remove a DRI node from the list.

Step 13 In the Manual Provisioning pane (available when Route Automatically is unchecked and the Textual radio button is selected), do the following; then, click Next:

a. Specify the following:

•Src NE ID—Display only.

•Dest NE ID—Display only.

•Current NE ID—Display only.

•Adj NE ID—Display only.

•Available Links—Lists all links between the currently selected and adjacent NEs. Select a link from the drop-down list.

•Available Spans—After you select a link from the Available Links drop-down list, its corresponding details are displayed in the Available Spans pane. Click Add to move the spans to the Selected Spans field.

•Selected Spans—Select one or more spans and click Remove to remove them from the Selected Spans field.

b. Click Next Hop to specify the next intermediate hop; then, repeat step a.

c. Click Reset to reset all hop information to the default values.

d. Click Alternate Route to specify hop information for the alternate circuit route.

Step 14 In the Route Constraints pane (available when Route Automatically and Using Required Nodes/Links are enabled and the Graphical radio button is selected), a graphical representation of the circuit is displayed, including source and destination nodes. Specify the spans that will route to the circuit. CTM starts at the source node. The next NE associated with each span is also displayed. Complete the following substeps:

a. In the circuit display, select the node or link. The NE ID or link ID is displayed in the Selected Node/Link field.

b. Click Include to include the selected node or link in the route. The node or link appears in the Included Links/Nodes list.

c. Click Exclude to exclude the selected node or link from the route. The node or link appears in the Excluded Links/Nodes list.

d. Click Remove to remove the selected node or link from the Included Links/Nodes or Excluded Links/Nodes lists.

e. Click Up or Down to set the sequence of the nodes and spans included in the circuit.

f. Repeat substeps a to e for each node or link that you want to include in the circuit route.

g. (Optional) Repeat substeps a to f for each intermediate NE until the destination NE is reached.

h. Click Finish, or, if Review Route Before Creation is checked in the Routing Preferences pane, click Next.

Step 15 In the Route Constraints pane (available when Route Automatically and Using Required Nodes/Links are enabled and the Textual radio button is selected), specify the nodes or links to include in each hop of the circuit route. Complete the following substeps:

a. Select Nodes in the Select Nodes/Links area if you want to add nodes to your circuit route; then, specify the node information in the Select Nodes area.

b. Select Links in the Select Nodes/Links area if you want to add links to your circuit route; then, specify the link information in the Select Links area.

c. Click Add to add a BLSR-DRI or MS-SPring-DRI to the circuit route.

d. Click Include to include the selected node or link in the route. The node or link appears in the Included Links/Nodes list.

e. Click Exclude to exclude the selected node or link from the route. The node or link appears in the Excluded Links/Nodes list.

f. Click Remove to remove the selected node or link from the Included Links/Nodes or Excluded Links/Nodes lists.

g. Click Up or Down to set the sequence of the nodes and spans included in the circuit.

h. Repeat substeps a to e for each node or link that you want to include in the circuit route.

i. Click Finish, or, if Review Route Before Creation is checked in the Routing Preferences pane, click Next.

Step 16 In the Review Route pane (available only if Review Route Before Creation is checked), complete the following substeps:

a. In the circuit display, review the ID of the source and destination NEs.

b. Included Spans—Because automatic route selection is enabled in the Routing Preferences pane, CTM automatically chooses spans to route the circuit. This field lists all the spans that the CTM server selected automatically.

c. Selected Span—Review the span information.

d. (Optional) You can review and modify the automatic route that is selected for circuit creation. Click Add to change the automatically selected route by adding a route to the Selected Spans list. Click Remove to remove a route from the list.

e. Click Finish.

Step 17 In the message box, click OK.

7.2.4.6  Creating a VC_LO_Path_Aggregation Circuit

Step 1 Select the node for which to create a circuit and open the Circuit wizard. For an explanation of Circuit wizard launch points, see Table 7-5.

Note VC_LO_path_aggregation circuits are not supported by the ONS 15305 CTC.

Step 2 In the Type pane, choose VC_LO_Path_Aggregation. The circuit type determines the provisioning options that are displayed. In the Number of Circuits field, enter the number of circuits you want to create. The Cisco default is 1. If you enter more than one, you can use autoranging to create the additional circuits automatically.

Step 3 Click Next.

Step 4 In the Attributes pane, enter the following information; then, click Next:

•Name—Enter a unique name for the new circuit. The circuit name is a free-format string of up to 48 ASCII characters.

•Circuit Alias—Enter a unique alias name for the new circuit. The alias name can contain alphanumeric characters. It also supports international character sets.

•Description—Enter a circuit description of up to 256 characters.

•Size—For VC_LO_Path_Aggregation, this is automatically set to VC4.

•Bidirectional—For VC_LO_Path_Aggregation, this is automatically set to bidirectional.

•State—Specify the circuit state. Options vary depending on the type of circuit selected.

•Apply to source/destination ports—Check this check box to apply the selected state to the source and destination ports.

•Protected Drops—Check this check box if you want the circuit routed to protected drops only; that is, to cards that are in 1:1, 1:N, or 1+1 protection.

•SNCP path selector defaults—If the circuit will be routed on an SNCP, set the defaults as follows:

–Revertive—Check this check box if you want traffic to revert to the working path when the conditions that diverted it to the protect path are repaired. If Revertive is not chosen, traffic remains on the protect path.

–Reversion time—If Revertive is checked, set the reversion time. This is the amount of time that elapses before the traffic reverts to the working path. Traffic can revert when conditions causing the switch are cleared. (The Cisco reversion time is 5 minutes.)

–SF threshold—Choose from 1 E-3, 1 E-4, or 1 E-5.

–SD threshold—Choose from 1 E-5, 1 E-6, 1 E-7, 1 E-8, or 1 E-9.

–Switch on PDI-P—Not applicable.

•Customer ID (optional)—Identify the end user of the circuit.

•Service ID (optional)—Enter the service ID of the circuit.

Step 5 In the Source pane, set the circuit source. The options displayed depend on the circuit type, the circuit properties selected in the Attributes pane, and the cards installed in the node.

Step 6 Click Next.

Step 7 In the Destination pane, enter the appropriate information for the circuit destination.

Step 8 Click Next.

Step 9 In the Routing Preferences pane, complete the following substeps; then, click Next:

a. Route Automatically—Enable or disable automatic route selection. If enabled, CTM automatically determines the route for the circuit. If the source and destination of the circuit are on the same node, automatic routing is enabled. If disabled, you can specify the spans associated with the circuit. You can manually provision the circuit using one of the following views:

•Graphical

•Textual

b. Using Required Nodes/Links—(Available only if Route Automatically is checked) Check this check box to let CTM automatically route the circuit through the required nodes and/or links. You can specify the required nodes and links using one of the following views:

•Graphical

•Textual

c. Review Route Before Creation—(Available only if Route Automatically is checked) Check this check box to review the route before it is created.

d. Time Slot Restriction—If checked, you can enter an STS/VC4 value (to be used end-to-end) that CTM uses to automatically determine the route for the circuit. Circuit creation is rejected if the same STS/VC4 is not available end-to-end. If circuit creation is rejected, you can try circuit creation again using different values. The valid range you can enter is from 1 to 192 for SONET, or 1 to 64 for SDH networks.

Note For VCAT circuits, you must enter multiple STS/VC4 values in the Member Preferences table > Time Slot Restriction field. The STS/VC4 values that you enter in the Time Slot Restriction field cannot be identical, or circuit creation will fail with an error message.

e. Set the circuit path protection as follows:

•To route the circuit on a protected path, leave the Fully Protected Path check box checked (default) and proceed to the next substep. A fully protected circuit route is created based on the path diversity option you choose. Fully protected paths might or might not have SNCP path segments with primary and alternate paths. The path diversity options apply only to SNCP path segments, if any exist.

•To create an unprotected circuit, uncheck Fully Protected Path and go to Step 10.

•To route the circuit on an MS-SPRing protection channel, uncheck Fully Protected Path, check Protection Channel Access, and go to Step 10.

f. If you selected Fully Protected Path, choose one of the following options:

•Required—Ensures that the primary and alternate paths within the extended SNCP mesh network portions of the complete circuit path are nodally diverse.

•Desired—Specifies that node diversity is preferred, but if node diversity is not possible, link-diverse paths are created for the extended SNCP mesh network portion of the complete circuit path.

•Don't Care: Link Diverse Only—Specifies that only link-diverse primary and alternate paths for extended SNCP mesh network portions of the complete circuit path are needed.

•Dual Ring Interconnect—Provisions the circuit in a DRI topology. If selected, the other node specifications (Required, Desired, and Don't Care: Link Diverse Only) are disabled.

Step 10 In the Manual Provisioning pane (available when Route Automatically is unchecked and the Graphical radio button is selected), do the following; then, click Next:

a. Use the map view to manually route the circuit from the source to the destination specified by the addition of the links selected. Use the right-click menu options to navigate within the map view:

•Find Node—Opens the Find Node dialog box, which lists all of the nodes displayed on the map view. Select a node from the drop-down list and click OK. The selection context in the map view changes to show the selected node highlighted in the visible map area.

•Zoom In—Allows you to zoom in on an object in the map view.

•Zoom Out—Allows you to zoom out on the map view.

•Reset Zoom—Resets the current zoom level to the default.

•Add—Allows you to add the selected span. Right-click a link and choose Add in the right-click menu. The selected link is added to the Available Spans list. The Add option applies to manual provisioning across all circuit types.

b. In the VCAT Member Number list box, select the member for which the route is to be selected.

c. In the circuit display, select the span to use for the next hop.

d. In the Available Spans area, complete the following information:

•From—Displays the source of the span

•To—Displays the destination of the span

e. Click Add. The span is added to the Selected Spans list.

f. Repeat substeps b to d for each intermediate NE until the destination NE is reached.

g. Repeat substeps a to e for each member until all members are routed.

h. To delete a span from the Selected Spans area, select a span from the Selected Spans list and click Remove.

Note To specify a DRI link, double-click the link on the map. The map view displays the link as bidirectional.

i. (For BLSR DRI or MS-SPRing DRI circuits) In the BLSR DRI Nodes or MS-SPRing DRI Nodes tab, click the Add button to open the BLSR/MS-SPRing DRI dialog box, which allows you to provide primary and secondary pairs for traditional and nontraditional DRI circuits. Also specify ring and path options for the first and second rings. Click Remove to remove a DRI node from the list.

Step 11 In the Manual Provisioning pane (available when Route Automatically is unchecked and the Textual radio button is selected), do the following; then, click Next:

a. Specify the following:

•Src NE ID—Display only.

•Dest NE ID—Display only.

•Current NE ID—Display only.

•Adj NE ID—Display only.

•Available Links—Lists all links between the currently selected and adjacent NEs. Select a link from the drop-down list.

•Available Spans—After you select a link from the Available Links drop-down list, its corresponding details are displayed in the Available Spans pane. Click Add to move the spans to the Selected Spans field.

•Selected Spans—Select one or more spans and click Remove to remove them from the Selected Spans field.

b. Click Next Hop to specify the next intermediate hop; then, repeat step a.

c. Click Reset to reset all hop information to the default values.

d. Click Alternate Route to specify hop information for the alternate circuit route.

Step 12 In the Route Constraints pane (available when Route Automatically and Using Required Nodes/Links are enabled and the Graphical radio button is selected), a graphical representation of the circuit is displayed, including source and destination nodes. Specify the spans that will route to the circuit. CTM starts at the source node. The next NE associated with each span is also displayed. Complete the following substeps:

a. In the circuit display, select the node or link. The NE ID or link ID is displayed in the Selected Node/Link field.

b. Click Include to include the selected node or link in the route. The node or link appears in the Included Links/Nodes list.

c. Click Exclude to exclude the selected node or link from the route. The node or link appears in the Excluded Links/Nodes list.

d. Click Remove to remove the selected node or link from the Included Links/Nodes or Excluded Links/Nodes lists.

e. Click Up or Down to set the sequence of the nodes and spans included in the circuit.

f. Repeat substeps a to e for each node or link that you want to include in the circuit route.

g. (Optional) Repeat substeps a to f for each intermediate NE until the destination NE is reached.

h. Click Finish, or, if Review Route Before Creation is checked in the Routing Preferences pane, click Next.

Step 13 In the Route Constraints pane (available when Route Automatically and Using Required Nodes/Links are enabled and the Textual radio button is selected), specify the nodes or links to include in each hop of the circuit route. Complete the following substeps:

a. Select Nodes in the Select Nodes/Links area if you want to add nodes to your circuit route; then, specify the node information in the Select Nodes area.

b. Select Links in the Select Nodes/Links area if you want to add links to your circuit route; then, specify the link information in the Select Links area.

c. Click Add to add a BLSR-DRI or MS-SPring-DRI to the circuit route.

d. Click Include to include the selected node or link in the route. The node or link appears in the Included Links/Nodes list.

e. Click Exclude to exclude the selected node or link from the route. The node or link appears in the Excluded Links/Nodes list.

f. Click Remove to remove the selected node or link from the Included Links/Nodes or Excluded Links/Nodes lists.

g. Click Up or Down to set the sequence of the nodes and spans included in the circuit.

h. Repeat substeps a to e for each node or link that you want to include in the circuit route.

i. Click Finish, or, if Review Route Before Creation is checked in the Routing Preferences pane, click Next.

Step 14 In the Review Route pane (available only if Review Route Before Creation is checked), complete the following substeps:

a. In the circuit display, review the ID of the source and destination NEs.

b. Included Spans—Because automatic route selection is enabled in the Routing Preferences pane, CTM automatically selects spans to route the circuit. This field lists all the spans that the CTM server selected automatically.

c. Selected Span—Review the span information.

d. (Optional) You can review and modify the automatic route that is selected for circuit creation. Click Add to change the automatically selected route by adding a route to the Selected Spans list. Click Remove to remove a route from the list.

e. Click Finish.

Step 15 In the message box, click OK.

7.2.4.7  Creating a DWDM OCHNC—ONS 15454 MSTP

Step 1 Select the node for which to create a circuit and open the Circuit wizard. For an explanation of Circuit wizard launch points, see Table 7-5.

Step 2 In the Type pane, choose OCHNC. The circuit type determines the provisioning options that are displayed.

Step 3 Click Next.

Step 4 In the Attributes pane, enter the following information; then, click Next:

•Name—Enter a unique name for the new circuit. The circuit name is a free-format string of up to 48 ASCII characters.

•Circuit Alias—Enter a unique alias name for the new circuit. The alias name can contain alphanumeric characters. It also supports international character sets.

•Description—Enter a circuit description of up to 256 characters.

•Size—Display only. Displays Equipment Not Specific.

•OCHNC Wavelength—Choose the OCHNC wavelength that you want to provision. The Wavelength column lists the correct wavelengths, depending on the type of card and the band selected.

•Band—Choose the band that you want to provision. The Band column reduces the number of selectable wavelengths.

•Use OCHNC Direction—Choose whether or not to specify the OCHNC direction. Select the check box to allow you to specify the circuit direction (for NEs up to and including R6.0) in the OCHNC Direction drop-down list. If the check box is unchecked (for R7.0 NEs and later releases), the OCHNC Direction drop-down list is disabled.

•Channel Group—Choose the channel group that you want to provision.

•OCHNC Direction—Choose whether the OCHNC direction is east-to-west to west-to-east.

•Bidirectional—Check this check box to create a bidirectional OCHNC, or uncheck it to create a unidirectional OCHNC. Bidirectional circuits have been supported since CTM R5.0.

•Customer ID (optional)—Identify the end user of the circuit.

•Service ID (optional)—Enter the service ID of the circuit.

Note The remaining fields in the Attributes pane are not available.

Step 5 In the Source pane, set the circuit source (shelf, slot, or port; shelf only in the case of NEs configured as multishelf); then, click Next.

Note If the Use OCHNC Direction check box was unchecked (for R7.0 NEs and later) in Step 4, you must select a shelf, slot, and port. If the Use OCHNC Direction check box was checked (for R6.0 NEs and earlier), you need only select the source NE.

Step 6 For R6.0 NEs and earlier, click Finish. For R7.0 NEs and later, proceed to Step 7.

Step 7 Click Next.

Note In the Routing Preferences pane, some check boxes are checked and cannot be unchecked.

Step 8 Click Next.

Step 9 In the Route Constraints pane, a graphical representation of the network is displayed, including source and destination nodes. You can add route constraints in this pane.

a. Click Include to include the selected node in the route. The node appears in the Included Nodes list.

b. Click Exclude to exclude the selected node from the route. The node appears in the Excluded Nodes list.

c. Click Remove to remove the selected node from the Included Nodes or Excluded Nodes lists.

d. (Optional) Select an NE from the Included Nodes list and click Sides. Specify the in/out sides to be included in the route and click OK.

Step 10 Click Next. The routing for the OCHNC circuit is calculated.

Step 11 In the Review Route pane, review the following information; then, click Finish:

a. In the circuit display, review the ID of the source and destination NEs.

b. Included Spans—Because automatic route selection is enabled in the Routing Preferences pane, CTM automatically selects spans to route the circuit. This field lists all of the spans that the CTM server selected automatically.

c. Selected Span—Review the span information.

Step 12 In the message box, click OK.

Caution It takes several seconds to create a circuit. During that interval, if a new circuit is added with the same name, both circuits might be identified as duplicates. Therefore, be careful not to add a duplicate circuit during the creation of the first circuit.

7.2.4.8  Creating a DWDM OCHCC—ONS 15454 MSTP

CTM allows you to create OCHCC circuits between two ONS 15454 MSTP NEs. OCHCC increases ONS 15454 MSTP platform functionalities, allowing you to create a new end-to-end circuit layer with transponder/muxponder client ports or ITU-T line card trunk ports as endpoints.

OCHCC can be created in a peer-to-peer setup, where the trunk ports are directly connected by a routable virtual link, or in an MSTP setup, where the circuit is routed through a tunnel circuit, which is created between the trunk ports (OCH trail tunnel), and which contains an OCHNC-type circuit.

Step 1 Select the source and destination nodes for which to create a circuit and open the Circuit wizard. For an explanation of Circuit wizard launch points, see Table 7-5.

Step 2 In the Type pane, choose OCHCC. The circuit type determines the provisioning options that are displayed.

Step 3 Click Next.

Step 4 In the Attributes pane, enter the following information; then, click Next:

•Name—Enter a unique name for the new circuit. The circuit name is a free-format string of up to 48 ASCII characters.

•Circuit Alias—Enter a unique alias name for the new circuit. The alias name can contain alphanumeric characters. It also supports international character sets.

•Description—Enter a circuit description of up to 256 characters.

•Type—Choose a client payload.

•Size Group—Choose the type of interface that you want to provision. Size Group and Size are used together to select the circuit size. (Because there are many possible sizes, they have been grouped.)

•Size—Choose the layer rate.

•OCHCC Wavelength—Choose the OCHCC wavelength that you want to provision.

•Channel Group—Choose the channel group that you want to provision.

•Bidirectional—Display only. OCHCC circuits are always bidirectional.

•State—Specify the circuit state.

•Apply to source/destination ports, if allowed—Check this check box to apply the status value indicated for the circuit to the client/trunk ports that are involved in the circuit.

•Protected—Check this check box to select source/destination ports only from protected cards (TXPP/MXPP).

•Customer ID (optional)—Identify the end user of the circuit.

•Service ID (optional)—Enter the service ID of the circuit.

Step 5 In the Source pane, select the circuit source (shelf, slot, card, and port; shelf applies to multishelf NEs). Then, click Next.

Step 6 In the Destination pane, enter the circuit destination information; then, click Next.

Note Circuit creation will fail if the source or destination endpoints are in Unmanaged state. Circuit creation is not allowed between NEs in Out of Service or Unmanaged states.

Step 7 In the OCHxx Options pane, specify the following attributes for the trunk ports that are involved in the circuit; then, click Next:

•G.709 OTN—Disables or enables the G.709 OTN feature.

•FEC—Disables or enables forward error correction. G.709 OTN must be enabled before you can enable FEC.

•SD BER—Sets the signal degrade bit error rate.

•Mapping—The card can perform multiplexing per ITU-T G.709. The ODUk (client SONET/SDH payload) can be mapped to the optical channel (OTUk) either asynchronously (asynch mapping) or synchronously (synch mapping) with this setting.

•Revert/Reversion Time—Only for protected circuits (splitter-type protection).

Step 8 In the Routing Preferences pane, the Automatic Routing and Graphical check boxes are checked automatically. You can finish circuit creation at this point by clicking Finish. Alternately, you can check the Route Constraints and Review Route check boxes and click Next.

Step 9 In the Route Constraints pane, a graphical representation of the network is displayed, including source and destination nodes. You can add route constraints in this pane.

a. Click Include to include the selected node in the route. The node appears in the Included Nodes list.

b. Click Exclude to exclude the selected node from the route. The node appears in the Excluded Nodes list.

c. Click Remove to remove the selected node from the Included Nodes or Excluded Nodes lists.

d. (Optional) Select an NE from the Included Nodes list and click Sides. Specify the in/out sides to be included in the route and click OK.

e. (Optional) Click the Protected tab. Repeat steps a through d. This allows you to provide different constraints for both working and protected paths.

Step 10 The Review Route pane displays the selected route. Click Finish to create the circuit, Back to return to the Route Constraints pane, or Cancel to cancel the circuit creation.

Step 11 In the message box, click OK. You can view the OCHCC circuit information in the Circuit table. See Viewing the Circuit Table. For a graphical representation of the circuit, view the circuit trace. See Tracing a Circuit on CRS-1 or CTC-Based NEs.

Caution It takes several seconds to create a circuit. During that interval, if a new circuit is added with the same name, both circuits might be identified as duplicates. Therefore, be careful not to add a duplicate circuit during the creation of the first circuit.

7.2.4.9  Creating a DWDM OCHCC—CRS-1

CTM allows you to create OCHCC circuits between two CRS-1 or ONS 15454 MSTP products. ONS 15454 MSTP is a DWDM optical product designed to provide transparent, reliable, and manageable transport capacity to Cisco Metro optical products such as ONS 15454 MSPP, ONS 15530, and ONS 15540. OCHCC increases ONS 15454 MSTP platform functionalities, allowing you to create a new end-to-end circuit layer with transponder/muxponder client ports or ITU-T line card trunk ports as endpoints.

OCHCC can be created in a peer-to-peer setup, where the trunk ports are directly connected by a routable virtual link, or in an MSTP setup, where the circuit is routed through a tunnel circuit, which is created between the trunk ports (OCH trail tunnel), and which in practice contains an OCHNC-type circuit.

OCHCC circuit creation is supported on CRS-1 NEs with ITU Physical Layer Interface Modules (PLIMs) on 10 GE C-band and OC768 interfaces. OCHCC circuit creation between CRS-1 NEs is supported in the following scenarios:

•Trunk ports of CRS-1 peers pass through an ONS 15454 MSTP and the PLIM TXP card is connected to the ONS 15454 MSTP through two manually routable unidirectional physical links at 10G-ITU layer rate. One unidirectional link is from the CRS-1 trunk port to the ONS 15454 MSTP DEMUX card port; the other unidirectional link is from the ONS 15454 MSTP MUX card port to the same trunk port on the CRS-1.

If there is more than one ONS 15454 MSTP NE connection between CRS-1 peers, an OCHNC circuit is created automatically between the ONS 15454 MTSP NEs. The following figure shows a graphical representation of this scenario.

Figure 7-2 CRS-1 DWDM OCHCC Circuit Creation—Scenario 1

•Trunk ports of CRS-1 peers do not pass through an ONS 15454 MSTP and the PLIM cards are directly connected to the trunk ports of the CRS-1 NEs. The following figure shows a graphical representation of this scenario.

Figure 7-3 CRS-1 DWDM OCHCC Circuit Creation—Scenario 2

Note Autodiscovery is not supported on OCHCC circuits on CRS-1 NEs.

Step 1 Select the node for which to create a circuit and open the Circuit wizard. For an explanation of Circuit wizard launch points, see Table 7-5.

Step 2 In the Type pane, choose OCHCC. The circuit type determines the provisioning options that are displayed.

Step 3 Click Next.

Step 4 In the Attributes pane, enter the following information; then, click Next:

•Name—Enter a unique name for the new circuit. The circuit name is a free-format string of up to 48 ASCII characters.

•Circuit Alias—Enter a unique alias name for the new circuit. The alias name can contain alphanumeric characters. It also supports international character sets.

•Description—Enter a circuit description of up to 256 characters.

•Type—Choose the client payload. For the CRS-1, this is a display-only field.

•Size Group—Choose the type of interface that you want to provision. Size Group and Size are used together to select the circuit size. (Because there are many possible sizes, they have been grouped.)

•Size—Choose the layer rate.

•OCHCC Wavelength—Choose the OCHCC wavelength that you want to provision.

•Channel Group—Choose the channel group that you want to provision. In CTM R8.0, only the C-band channel group is supported for CRS-1 circuits.

•Bidirectional—Display only. OCHCC circuits are always bidirectional.

•State—Specify the circuit state.

•Apply to source/destination ports, if allowed—This field is not available for CRS-1 circuits.

•Protected—Check this check box to select source/destination ports only from protected cards (TXPP/MXPP).

•Trunk—This field is not available for CRS-1 circuits.

•G.709 OTN—Disables or enables the G.709 OTN feature. Check this check box to filter the list of circuits to display only G.709 OTN-compatible circuits.

•FEC—Disables or enables forward error correction. G.709 OTN must be enabled before you can enable FEC.

•SF BER—Display only. Displays the signal fail bit error rate.

•SD BER—Sets the signal degrade bit error rate.

•Mapping—The card can perform multiplexing per ITU-T G.709. The ODUk (client SONET/SDH payload) can be mapped to the optical channel (OTUk) either asynchronously (asynch mapping) or synchronously (synch mapping) with this setting.

•Customer ID (optional)—Identify the end user of the circuit.

•Service ID (optional)—Enter the service ID of the circuit.

Step 5 In the Source pane, select the circuit source (shelf, slot, card, and port; shelf applies to multishelf NEs). Then, click Next.

Step 6 In the Destination pane, enter the circuit destination information; then, click Next.

Note Circuit creation will fail if the source or destination endpoints are in Unmanaged state. Circuit creation is not allowed between NEs in Out of Service or Unmanaged states.

Step 7 Click Finish.

Step 8 In the message box, click OK. You can view the OCHCC circuit information in the Circuit table. See Viewing the Circuit Table. For a graphical representation of the circuit, view the circuit trace. See Tracing a Circuit on CRS-1 or CTC-Based NEs.

Caution It takes several seconds to create a circuit. During that interval, if a new circuit is added with the same name, both circuits might be identified as duplicates. Therefore, be careful not to add a duplicate circuit during the creation of the first circuit.

7.2.4.10  Creating a DWDM OCH Trail Circuit—ONS 15454 MSTP

CTM allows you to create independent OCH trail circuits between two ONS 15454 MSTP NEs. For transponder and muxponder cards, OCH trail circuits are created automatically when an OCHCC is created. You can create independent OCH trail circuits for the following cards:

•ADM10G

•XP_10GE, XP_GE (when configured as an L2 switch)

Step 1 Select the node for which to create a circuit and open the Circuit wizard. For an explanation of Circuit wizard launch points, see Table 7-5.

Step 2 In the Type pane, choose OCHTRAIL. The circuit type determines the provisioning options that are displayed.

Step 3 Click Next.

Step 4 In the Attributes pane, enter the following information; then, click Next:

•Name—Enter a unique name for the new circuit. The circuit name is a free-format string of up to 48 ASCII characters.

•Circuit Alias—Enter a unique alias name for the new circuit. The alias name can contain alphanumeric characters. It also supports international character sets.

•Description—Enter a circuit description of up to 256 characters.

•Type—Display only.

•Size—Display only.

•OCHCC Wavelength—Choose the wavelength that you want to provision.

•Channel Group—Choose the channel group that you want to provision.

•Bidirectional—Display only. OCHCC circuits are always bidirectional.

•State—Specify the circuit state.

•Apply to source/destination ports, if allowed—Check this check box to apply the status value indicated for the circuit to the trunk ports that are involved in the circuit.

•Customer ID (optional)—Identify the end user of the circuit.

•Service ID (optional)—Enter the service ID of the circuit.

Step 5 In the Source pane, select the circuit source (shelf, slot, card, and port; shelf applies to multishelf NEs). Then, click Next.

Step 6 In the Destination pane, enter the circuit destination information; then, click Next.

Step 7 In the OCHxx Options pane, specify the following attributes for the trunk ports that are involved in the circuit; then, click Next.

•G.709 OTN—Disables or enables the G.709 OTN feature.

•FEC—Disables or enables forward error correction. G.709 OTN must be enabled before you can enable FEC.

•SD BER—Sets the signal degrade bit error rate.

•Mapping—The card can perform multiplexing per ITU-T G.709. The ODUk (client SONET/SDH payload) can be mapped to the optical channel (OTUk) either asynchronously (asynch mapping) or synchronously (synch mapping) with this setting.

Step 8 In the Routing Preferences pane, the Automatic Routing and Graphical check boxes are checked automatically. You can finish circuit creation at this point by clicking Finish. Alternately, you can check the Route Constraints and Review Route check boxes and click Next.

Step 9 In the Route Constraints pane, a graphical representation of the network is displayed, including source and destination nodes. You can add route constraints in this pane.

a. Click Include to include the selected node in the route. The node appears in the Included Nodes list.

b. Click Exclude to exclude the selected node from the route. The node appears in the Excluded Nodes list.

c. Click Remove to remove the selected node from the Included Nodes or Excluded Nodes lists.

d. (Optional) Select an NE from the Included Nodes list and click Sides. Specify the in/out sides to be included in the route and click OK.

Step 10 The Review Route pane displays the selected route. Click Finish to create the circuit, Back to return to the Route Constraints pane, or Cancel to cancel the circuit creation.

Step 11 In the message box, click OK. You can view the OCH trail circuit information in the Circuit table. See Viewing the Circuit Table. For a graphical representation of the circuit, view the circuit trace. See Tracing a Circuit on CRS-1 or CTC-Based NEs.

Caution It takes several seconds to create a circuit. During that interval, if a new circuit is added with the same name, both circuits might be identified as duplicates. Therefore, be careful not to add a duplicate circuit during the creation of the first circuit.

7.2.4.11  Creating a Monitor Circuit—CTC-Based NEs

Use the Create Monitor Circuit wizard to create a new monitor circuit on CTC-based NEs.

Note A monitor circuit's alias is based on the alias of the original circuit. CTM does not generate unique numbers; therefore, two monitor circuits created on the same circuit will have the same alias, while their names will be different (including two unique numbers appended in the network).

Step 1 Select the CTC-based NE where you want to create a monitor circuit and open the Circuit table. For an explanation of Circuit table launch points, see Table 7-2.

Step 2 In the Circuit table, select the bidirectional circuit to be monitored.

Step 3 Choose Configuration > Modify Circuit (or click the Modify tool). The Modify Circuit dialog box opens.

Step 4 In the Modify Circuit dialog box, click the Monitor tab. The Monitor tab displays the ports that can be used to monitor the circuit selected in Step 2.

Step 5 In the Monitor tab, select the monitor source and click Create Monitors. The Create Monitor Circuit wizard opens.

Step 6 In the Create Monitor Circuit wizard, enter the following monitor circuit information; then, click Next:

•Name—Enter the monitor circuit name.

•Circuit Alias—Enter a unique alias name for the new circuit. The alias name can contain alphanumeric characters. It also supports international character sets.

•State—Specify the circuit state. Options vary depending on the type of circuit selected.

Step 7 In the Source pane, choose the source node, slot, port, STS, VT, or DS-1 for the monitored circuit; then, click Next.

Step 8 In the Destination pane, choose the destination node, slot, port, STS, VT, or DS-1 for the monitored circuit; then, click Next.

Step 9 In the Routing Preferences pane, complete the following substeps; then, click Next:

a. Route Automatically—Enable or disable automatic route selection. If enabled, CTM automatically determines the route for the circuit. If the source and destination of the circuit are on the same node, automatic routing is enabled. If disabled, you can specify the spans associated with the circuit. You can manually provision the circuit using one of the following views:

•Graphical

•Textual

b. Using Required Nodes/Links—(Available only if Route Automatically is checked) Check this check box to let CTM automatically route the circuit through the required nodes and/or links. You can specify the required nodes and links using one of the following views:

•Graphical

•Textual

c. Review Route Before Creation—(Available only if Route Automatically is checked) Check this check box to review the route before it is created.

d. Time Slot Restriction—If checked, you can enter an STS/VC4 value (to be used end-to-end) that CTM uses to automatically determine the route for the circuit. Circuit creation is rejected if the same STS/VC4 is not available end-to-end. If circuit creation is rejected, you can try circuit creation again using different values. The valid range you can enter is from 1 to 192 for SONET, or 1 to 64 for SDH networks.

Note For VCAT circuits, you must enter multiple STS/VC4 values in the Member Preferences table > Time Slot Restriction field. The STS/VC4 values that you enter in the Time Slot Restriction field cannot be identical, or circuit creation will fail with an error message.

e. Set the circuit path protection as follows:

•To route the circuit on a protected path, leave the Fully Protected Path check box checked (default) and proceed to the next substep. A fully protected circuit route is created based on the path diversity option you choose. Fully protected paths might or might not have SNCP path segments with primary and alternate paths. The path diversity options apply only to SNCP path segments, if any exist.

•To create an unprotected circuit, uncheck Fully Protected Path and go to Step 10.

•To route the circuit on an MS-SPRing protection channel, uncheck Fully Protected Path, check Protection Channel Access, and go to Step 10.

f. If you selected Fully Protected Path, choose one of the following options:

•Required—Ensures that the primary and alternate paths within the extended SNCP mesh network portions of the complete circuit path are nodally diverse.

•Desired—Specifies that node diversity is preferred, but if node diversity is not possible, link-diverse paths are created for the extended SNCP mesh network portion of the complete circuit path.

•Don't Care: Link Diverse Only—Specifies that only link-diverse primary and alternate paths for extended SNCP mesh network portions of the complete circuit path are needed.

•Dual Ring Interconnect—Provisions the circuit in a DRI topology. If selected, the other node specifications (Required, Desired, and Don't Care: Link Diverse Only) are disabled.

Step 10 In the Manual Provisioning pane (available when Route Automatically is unchecked and the Graphical radio button is selected), do the following; then, click Next:

a. Use the map view to manually route the circuit from the source to the destination specified by the addition of the links selected. Use the right-click menu options to navigate within the map view:

•Find Node—Opens the Find Node dialog box, which lists all of the nodes displayed on the map view. Select a node from the drop-down list and click OK. The selection context in the map view changes to show the selected node highlighted in the visible map area.

•Zoom In—Allows you to zoom in on an object in the map view.

•Zoom Out—Allows you to zoom out on the map view.

•Reset Zoom—Resets the current zoom level to the default.

•Add—Allows you to add the selected span. Right-click a link and choose Add in the right-click menu. The selected link is added to the Available Spans list. The Add option applies to manual provisioning across all circuit types.

b. In the VCAT Member Number list box, select the member for which the route is to be selected.

c. In the circuit display, select the span to use for the next hop.

d. In the Available Spans area, complete the following information:

•From—Displays the source of the span

•To—Displays the destination of the span

e. Click Add. The span is added to the Selected Spans list.

f. Repeat substeps b to d for each intermediate NE until the destination NE is reached.

g. Repeat substeps a to e for each member until all members are routed.

h. To delete a span from the Selected Spans area, select a span from the Selected Spans list and click Remove.

Note To specify a DRI link, double-click the link on the map. The map view displays the link as bidirectional.

i. (For BLSR DRI or MS-SPRing DRI circuits) In the BLSR DRI Nodes or MS-SPRing DRI Nodes tab, click the Add button to open the BLSR/MS-SPRing DRI dialog box, which allows you to provide primary and secondary pairs for traditional and nontraditional DRI circuits. Also specify ring and path options for the first and second rings. Click Remove to remove a DRI node from the list.

Step 11 In the Manual Provisioning pane (available when Route Automatically is unchecked and the Textual radio button is selected), do the following; then, click Next:

a. Specify the following:

•Src NE ID—Display only.

•Dest NE ID—Display only.

•Current NE ID—Display only.

•Adj NE ID—Display only.

•Available Links—Lists all links between the currently selected and adjacent NEs. Select a link from the drop-down list.

•Available Spans—After you select a link from the Available Links drop-down list, its corresponding details are displayed in the Available Spans pane. Click Add to move the spans to the Selected Spans field.

•Selected Spans—Select one or more spans and click Remove to remove them from the Selected Spans field.

b. Click Next Hop to specify the next intermediate hop; then, repeat step a.

c. Click Reset to reset all hop information to the default values.

d. Click Alternate Route to specify hop information for the alternate circuit route.

Step 12 In the Route Constraints pane (available when Route Automatically and Using Required Nodes/Links are enabled and the Graphical radio button is selected), a graphical representation of the circuit is displayed, including source and destination nodes. Specify the spans that will route to the circuit. CTM starts at the source node. The next NE associated with each span is also displayed. Complete the following substeps:

a. In the circuit display, select the node or link. The NE ID or link ID is displayed in the Selected Node/Link field.

b. Click Include to include the selected node or link in the route. The node or link appears in the Included Links/Nodes list.

c. Click Exclude to exclude the selected node or link from the route. The node or link appears in the Excluded Links/Nodes list.

d. Click Remove to remove the selected node or link from the Included Links/Nodes or Excluded Links/Nodes lists.

e. Click Up or Down to set the sequence of the nodes and spans included in the circuit.

f. Repeat substeps a to e for each node or link that you want to include in the circuit route.

g. (Optional) Repeat substeps a to f for each intermediate NE until the destination NE is reached.

h. Click Finish, or, if Review Route Before Creation is checked in the Routing Preferences pane, click Next.

Step 13 In the Route Constraints pane (available when Route Automatically and Using Required Nodes/Links are enabled and the Textual radio button is selected), specify the nodes or links to include in each hop of the circuit route. Complete the following substeps:

a. Select Nodes in the Select Nodes/Links area if you want to add nodes to your circuit route; then, specify the node information in the Select Nodes area.

b. Select Links in the Select Nodes/Links area if you want to add links to your circuit route; then, specify the link information in the Select Links area.

c. Click Add to add a BLSR-DRI or MS-SPring-DRI to the circuit route.

d. Click Include to include the selected node or link in the route. The node or link appears in the Included Links/Nodes list.

e. Click Exclude to exclude the selected node or link from the route. The node or link appears in the Excluded Links/Nodes list.

f. Click Remove to remove the selected node or link from the Included Links/Nodes or Excluded Links/Nodes lists.

g. Click Up or Down to set the sequence of the nodes and spans included in the circuit.

h. Repeat substeps a to e for each node or link that you want to include in the circuit route.

i. Click Finish, or, if Review Route Before Creation is checked in the Routing Preferences pane, click Next.

Step 14 In the Review Route pane (available only if Review Route Before Creation is checked), review the following information; then, click Finish:

a. In the circuit display, review the ID of the source and destination NEs.

b. Included Spans—Because automatic route selection is enabled in the Routing Preferences pane, CTM automatically selects spans to route the circuit. This field lists all the spans that the CTM server selected automatically.

c. Selected Span—Review the span information.

Step 15 In the message box, click OK.

Step 16 In the confirmation dialog box, click OK.

Step 17 In the Modify Circuit dialog box, click Close. The new monitor circuit is displayed in the Circuit table.

7.2.4.12  Creating a Unidirectional Drop Circuit—CTC-Based NEs

Use the Create Drop wizard to create a new protected or unprotected unidirectional circuit drop. A circuit drop can also be created on bidirectional Ethernet circuits. For all other types of circuits, drop creation is possible only on unidirectional circuits.

Step 1 Select the CTC-based NE where you want to create a new unidirectional circuit drop and open the Circuit table. For an explanation of Circuit table launch points, see Table 7-2.

Step 2 In the Circuit table, select the unidirectional circuit where you want to create the drop.

Step 3 Choose Configuration > Modify Circuit (or click the Modify tool). The Modify Circuit dialog box opens.

Step 4 In the Modify Circuit dialog box, click the Drops tab, which displays the existing drops on the selected circuit.

Step 5 In the Drops tab, click Create. The Create Drop wizard opens.

Step 6 In the Create Drop wizard, fill in the following fields; then, click Next.

Note Fields shown depend on the type and size of the selected circuit.

•NE ID—Select the NE ID.

•Slot—Specify the drop slot.

•Port—Specify the drop port.

•STS—(For SONET circuits) Specify the drop STS.

•VT—(For SONET circuits) Specify the drop VT.

•DS1—(For SONET circuits) Specify the drop DS-1.

•VC4—(For SDH circuits) Specify the drop VC4.

•VC3—(For SDH circuits) Specify the drop VC3.

•VC11—(For SDH circuits) Specify the drop VC11.

•VC12—(For SDH circuits) Specify the drop VC12.

•TUG3—(For SDH circuits) Specify the drop TUG3.

•TUG2—(For SDH circuits) Specify the drop TUG2.

•Target Circuit State—Select an administrative state for the new circuit drop. SONET and SDH circuits have different values. For SONET circuits, values are:

–IS

–OOS DSBLD

–IS AINS

–OOS MT

For SDH circuits, values are:

–Unlocked

–Locked, disabled

–Unlocked, automaticInService

–Locked, maintenance

•Apply to drop ports—Check this check box to apply the selected state to the drop port.

Step 7 (For protected unidirectional circuits) In the Routing Preferences pane, specify the routing and protection preferences for the new drop.

The Routing Preferences pane in the Create Drop wizard is similar to the Routing Preferences pane in the Create Circuit wizard, except that for a drop, the Fully Protected Path check box is unchecked (disabled) for Ethernet circuits and unchecked (enabled) for all other circuits. You can check or uncheck the Fully Protected Path check box. If the existing circuit is protected and during drop creation you check or uncheck the Fully Protected Path check box, an error message is returned after you click Next. You must change the protection option if the error message indicates that all drops must have the same protection.

Subsequent panes in the Create Drop wizard are identical to the panes in the Create Circuit wizard (see Table 7-7).

Step 8 Click Finish.

Step 9 In the message box, click OK.

Step 10 In the Modify Circuit dialog box, click Close.

7.2.4.13  Creating G1000-4 Circuits

This section explains how to provision G1000-4 point-to-point circuits and Ethernet manual cross-connects. Ethernet manual cross-connects allow you to cross-connect individual Ethernet circuits to an STS channel on the ONS 15454 SONET or ONS 15454 SDH optical interface and to bridge non-ONS SONET network segments.

7.2.4.13.1  G1000-4 Point-to-Point Ethernet Circuits

G1000-4 cards support point-to-point circuit configuration. Provisionable circuit sizes are STS-1, STS-3c, STS-6c, STS-9c, STS-12c, STS-24c, and STS-48c. Each Ethernet port maps to a unique STS circuit on the SONET side of the G1000-4.

The G1000-4 card supports any combination of up to four circuits from the list of valid circuit sizes; however, the circuit sizes can add up to no more than 48 STSs. Due to hardware constraints, the initial release of the G1000-4 card (software release 3.2) imposes additional restrictions on the combinations of circuits that can be dropped onto a G1000-4 card. These restrictions are transparently enforced by the ONS 15454 SONET and ONS 15454 SDH, so there is no need to keep track of restricted circuit combinations.

•The restriction occurs when a single STS-24c is dropped on a card. In this instance, the remaining circuits on that card can be another single STS-24c or any combination of circuits of STS-12c size or smaller that add up to no more than 12 STSs (that is, a total of 36 STSs on the card).

•No circuit restrictions are present if STS-24c circuits are not being dropped on the card. The full 48 STSs of bandwidth can be used (for example, a single STS-48c circuit or 4 STS-12c circuits).

•Since the restrictions apply only when STS-24c circuits are involved but do not apply when two STS-24c circuits are on the same card, the impact of these restrictions can be easily minimized. Group the STS-24c circuits together on a card separate from circuits of other sizes. The grouped circuits can be dropped onto other G1000-4 cards on the ONS 15454 SONET or ONS 15454 SDH. The G1000-4 uses STS cross-connects only. No VT-level cross-connects are used. All SONET-side STS circuits must be contiguous.

Caution G1000-4 circuits connect with OC-N cards or other G1000-4 cards. G1000-4 cards do not connect with E-series Ethernet cards.

Caution The G1000-4 card requires the XC10G card to operate. The G1000-4 card is not compatible with XC or XCVT cards.

Step 1 In the Domain Explorer, select the ONS 15454 SONET or ONS 15454 SDH NE to use as one of the Ethernet circuit endpoints.

Step 2 Complete the following in the Domain Explorer:

a. Select the source circuit.

b. Choose Configuration > Create Circuit.

c. Select the destination circuit. The Create Circuit wizard opens.

Step 3 From the Type field, choose STS; then, click Next. The Attributes pane opens.

Note The VT and VT Tunnel types do not apply to Ethernet circuits.

Step 4 In the Name field, enter a name for the circuit.

Step 5 In the Circuit Alias field, enter a unique alias name for the circuit. The alias name can contain alphanumeric characters. It also supports international character sets.

Step 6 From the Size field, choose the size of the circuit. The valid circuit sizes for a G1000-4 circuit are STS-1, STS-3c, STS-6c, STS-9c, STS-12c, STS-24c, and STS-48c.

Step 7 Verify that the Bidirectional check box is checked.

Note The states of the Number of Circuits check box and the Protected Drops check box are provided.

Caution If provisioning a G1000-4 circuit on a UPSR, do not check the Switch on PDI-P check box. Checking the Switch on PDI-P check box might cause unnecessary UPSR protection switches.

Step 8 (Optional) Specify the customer information:

•Customer ID

•Service ID

Step 9 Click Next.

Step 10 In the Source pane, choose the circuit source node. Either end node can be the circuit source.

Step 11 From the Slot field, choose the slot containing the G1000-4 card to use as one end of the point-to-point circuit.

Step 12 In the Port field, choose a port.

Step 13 Click Next.

Step 14 In the Destination pane, choose the circuit destination node.

Step 15 In the Slot field, choose the slot containing the G1000-4 card to use as the other end of the point-to-point circuit.

Step 16 From the Port field, choose a port.

Step 17 Click Next. The Routing Preferences pane opens.

Step 18 In the Routing Preferences pane, complete the following substeps; then, click Next:

a. Route Automatically—Enable or disable automatic route selection. If enabled, CTM automatically determines the route for the circuit. If the source and destination of the circuit are on the same node, automatic routing is enabled. If disabled, you can specify the spans associated with the circuit. You can manually provision the circuit using one of the following views:

•Graphical

•Textual

b. Using Required Nodes/Links—(Available only if Route Automatically is checked) Check this check box to let CTM automatically route the circuit through the required nodes and/or links. You can specify the required nodes and links using one of the following views:

•Graphical

•Textual

c. Review Route Before Creation—(Available only if Route Automatically is checked) Check this check box to review the route before it is created.

d. Time Slot Restriction—If checked, you can enter an STS/VC4 value (to be used end-to-end) that CTM uses to automatically determine the route for the circuit. Circuit creation is rejected if the same STS/VC4 is not available end-to-end. If circuit creation is rejected, you can try circuit creation again using different values. The valid range you can enter is from 1 to 192 for SONET, or 1 to 64 for SDH networks.

Note For VCAT circuits, you must enter multiple STS/VC4 values in the Member Preferences table > Time Slot Restriction field. The STS/VC4 values that you enter in the Time Slot Restriction field cannot be identical, or circuit creation will fail with an error message.

e. Set the circuit path protection as follows:

•To route the circuit on a protected path, leave the Fully Protected Path check box checked (default) and proceed to the next substep. A fully protected circuit route is created based on the path diversity option you choose. Fully protected paths might or might not have SNCP path segments with primary and alternate paths. The path diversity options apply only to SNCP path segments, if any exist.

•To create an unprotected circuit, uncheck Fully Protected Path and go to Step 19.

•To route the circuit on an MS-SPRing protection channel, uncheck Fully Protected Path, check Protection Channel Access, and go to Step 19.

f. If you selected Fully Protected Path, choose one of the following options:

•Required—Ensures that the primary and alternate paths within the extended SNCP mesh network portions of the complete circuit path are nodally diverse.

•Desired—Specifies that node diversity is preferred, but if node diversity is not possible, link-diverse paths are created for the extended SNCP mesh network portion of the complete circuit path.

•Don't Care: Link Diverse Only—Specifies that only link-diverse primary and alternate paths for extended SNCP mesh network portions of the complete circuit path are needed.

•Dual Ring Interconnect—Provisions the circuit in a DRI topology. If selected, the other node specifications (Required, Desired, and Don't Care: Link Diverse Only) are disabled.

Step 19 In the Manual Provisioning pane (available when Route Automatically is unchecked and the Graphical radio button is selected), do the following; then, click Next:

a. Use the map view to manually route the circuit from the source to the destination specified by the addition of the links selected. Use the right-click menu options to navigate within the map view:

•Find Node—Opens the Find Node dialog box, which lists all of the nodes displayed on the map view. Select a node from the drop-down list and click OK. The selection context in the map view changes to show the selected node highlighted in the visible map area.

•Zoom In—Allows you to zoom in on an object in the map view.

•Zoom Out—Allows you to zoom out on the map view.

•Reset Zoom—Resets the current zoom level to the default.

•Add—Allows you to add the selected span. Right-click a link and choose Add in the right-click menu. The selected link is added to the Available Spans list. The Add option applies to manual provisioning across all circuit types.

b. In the VCAT Member Number list box, select the member for which the route is to be selected.

c. In the circuit display, select the span to use for the next hop.

d. In the Available Spans area, complete the following information:

•From—Displays the source of the span

•To—Displays the destination of the span

e. Click Add. The span is added to the Selected Spans list.

f. Repeat substeps b to d for each intermediate NE until the destination NE is reached.

g. Repeat substeps a to e for each member until all members are routed.

h. To delete a span from the Selected Spans area, select a span from the Selected Spans list and click Remove.

Note To specify a DRI link, double-click the link on the map. The map view displays the link as bidirectional.

i. (For BLSR DRI or MS-SPRing DRI circuits) In the BLSR DRI Nodes or MS-SPRing DRI Nodes tab, click the Add button to open the BLSR/MS-SPRing DRI dialog box, which allows you to provide primary and secondary pairs for traditional and nontraditional DRI circuits. Also specify ring and path options for the first and second rings. Click Remove to remove a DRI node from the list.

Step 20 In the Manual Provisioning pane (available when Route Automatically is unchecked and the Textual radio button is selected), do the following; then, click Next:

a. Specify the following:

•Src NE ID—Display only.

•Dest NE ID—Display only.

•Current NE ID—Display only.

•Adj NE ID—Display only.

•Available Links—Lists all links between the currently selected and adjacent NEs. Select a link from the drop-down list.

•Available Spans—After you select a link from the Available Links drop-down list, its corresponding details are displayed in the Available Spans pane. Click Add to move the spans to the Selected Spans field.

•Selected Spans—Select one or more spans and click Remove to remove them from the Selected Spans field.

b. Click Next Hop to specify the next intermediate hop; then, repeat step a.

c. Click Reset to reset all hop information to the default values.

d. Click Alternate Route to specify hop information for the alternate circuit route.

Step 21 In the Route Constraints pane (available when Route Automatically and Using Required Nodes/Links are enabled and the Graphical radio button is selected), a graphical representation of the circuit is displayed, including source and destination nodes. Specify the spans that will route to the circuit. CTM starts at the source node. The next NE associated with each span is also displayed. Complete the following substeps:

a. In the circuit display, select the node or link. The NE ID or link ID is displayed in the Selected Node/Link field.

b. Click Include to include the selected node or link in the route. The node or link appears in the Included Links/Nodes list.

c. Click Exclude to exclude the selected node or link from the route. The node or link appears in the Excluded Links/Nodes list.

d. Click Remove to remove the selected node or link from the Included Links/Nodes or Excluded Links/Nodes lists.

e. Click Up or Down to set the sequence of the nodes and spans included in the circuit.

f. Repeat substeps a to e for each node or link that you want to include in the circuit route.

g. (Optional) Repeat substeps a to f for each intermediate NE until the destination NE is reached.

h. Click Finish, or, if Review Route Before Creation is checked in the Routing Preferences pane, click Next.

Step 22 In the Route Constraints pane (available when Route Automatically and Using Required Nodes/Links are enabled and the Textual radio button is selected), specify the nodes or links to include in each hop of the circuit route. Complete the following substeps:

a. Select Nodes in the Select Nodes/Links area if you want to add nodes to your circuit route; then, specify the node information in the Select Nodes area.

b. Select Links in the Select Nodes/Links area if you want to add links to your circuit route; then, specify the link information in the Select Links area.

c. Click Add to add a BLSR-DRI or MS-SPring-DRI to the circuit route.

d. Click Include to include the selected node or link in the route. The node or link appears in the Included Links/Nodes list.

e. Click Exclude to exclude the selected node or link from the route. The node or link appears in the Excluded Links/Nodes list.

f. Click Remove to remove the selected node or link from the Included Links/Nodes or Excluded Links/Nodes lists.

g. Click Up or Down to set the sequence of the nodes and spans included in the circuit.

h. Repeat substeps a to e for each node or link that you want to include in the circuit route.

i. Click Finish, or, if Review Route Before Creation is checked in the Routing Preferences pane, click Next.

Step 23 In the Review Route pane (available only if Review Route Before Creation is checked), review the following information; then, click Finish:

a. In the circuit display, verify the following information about the point-to-point circuit:

•Circuit name

•Circuit type

•Circuit size

•ONS 15454 SONET or ONS 15454 SDH nodes are included in the circuit

b. Included Spans—Because automatic route selection is enabled in the Routing Preferences pane, CTM automatically selects spans to route the circuit. This field lists all the spans that the CTM server selected automatically.

c. Selected Span—Review the span information.

Step 24 In the message box, click OK.

Step 25 To change the slot property information for the Ethernet card, see C.4.14  Slot Properties—G1000-4, page C-706.

Note To change the capacity of a G1000-4 point-to-point circuit, delete the original circuit and reprovision a new, larger circuit.

7.2.4.13.2  G1000-4 Manual Cross-Connects

ONS 15454 SONET and ONS 15454 SDH NEs require end-to-end CTC visibility between nodes for normal provisioning of Ethernet circuits. When equipment from other vendors is placed between the ONS 15454 SONET and ONS 15454 SDH, equipment based on Open System Interconnection/Target Identifier Address Resolution Protocol (OSI/TARP) does not allow tunneling of the ONS 15454 SONET or ONS 15454 SDH TCP/IP-based data communications channel (DCC). To circumvent a lack of continuous DCC, the Ethernet circuit must be manually cross-connected to an STS channel riding through the non-ONS network. This allows an Ethernet circuit to run from ONS node to ONS node while utilizing the non-ONS network.

Note In this chapter, cross-connect and circuit have the following meanings: Cross-connect refers to the connections that occur within a single ONS 15454 SONET or ONS 15454 SDH to allow a circuit to enter and exit an ONS 15454 SONET or ONS 15454 SDH. Circuit refers to the series of connections from a traffic source (where traffic enters the ONS 15454 SONET or ONS 15454 SDH network) to the drop or destination (where traffic exits an ONS 15454 SONET or ONS 15454 SDH network).

Step 1 In the Domain Explorer, select the ONS 15454 SONET and ONS 15454 SDH Ethernet circuit endpoint nodes.

Step 2 Complete the following in the Domain Explorer:

a. Select the source circuit.

b. Choose Configuration > Create Circuit.

c. Select the destination circuit. The Create Circuit wizard opens.

Step 3 From the Type field, choose STS; then, click Next. The Attributes pane opens.

Note The VT and VT Tunnel types do not apply to Ethernet circuits.

Step 4 In the Name field, enter a name for the circuit.

Step 5 In the Circuit Alias field, enter a unique alias name for the circuit. The alias name can contain alphanumeric characters. It also supports international character sets.

Step 6 From the Size field, choose the size of the circuit. The valid circuit sizes for a G1000-4 circuit are STS-1, STS-3c, STS-6c, STS-9c, STS-12c, STS-24c, and STS-48c.

Step 7 Verify that the Bidirectional check box is checked.

Step 8 (Optional) Specify the customer information:

•Customer ID

•Service ID

Step 9 Click Next.

Step 10 In the Source pane, choose the circuit source node.

Step 11 From the Slot field, choose the slot containing the Ethernet card.

Step 12 From the Port field, choose a port.

Step 13 Click Next.

Step 14 In the Destination pane, choose the current node as the circuit destination.

Step 15 From the Slot field, choose the optical card that will carry the circuit.

Step 16 Choose the STS that will carry the circuit from the STS field; then, click Next. The Routing Preferences pane opens.

Note For Ethernet manual cross-connects, the same ONS 15454 SONET or ONS 15454 SDH serves as both source and destination.

Step 17 In the Routing Preferences pane, complete the following substeps; then, click Next:

a. Route Automatically—Enable or disable automatic route selection. If enabled, CTM automatically determines the route for the circuit. If the source and destination of the circuit are on the same node, automatic routing is enabled. If disabled, you can specify the spans associated with the circuit. You can manually provision the circuit using one of the following views:

•Graphical

•Textual

b. Using Required Nodes/Links—(Available only if Route Automatically is checked) Check this check box to let CTM automatically route the circuit through the required nodes and/or links. You can specify the required nodes and links using one of the following views:

•Graphical

•Textual

c. Review Route Before Creation—(Available only if Route Automatically is checked) Check this check box to review the route before it is created.

d. Time Slot Restriction—If checked, you can enter an STS/VC4 value (to be used end-to-end) that CTM uses to automatically determine the route for the circuit. Circuit creation is rejected if the same STS/VC4 is not available end-to-end. If circuit creation is rejected, you can try circuit creation again using different values. The valid range you can enter is from 1 to 192 for SONET, or 1 to 64 for SDH networks.

Note For VCAT circuits, you must enter multiple STS/VC4 values in the Member Preferences table > Time Slot Restriction field. The STS/VC4 values that you enter in the Time Slot Restriction field cannot be identical, or circuit creation will fail with an error message.

e. Set the circuit path protection as follows:

•To route the circuit on a protected path, leave the Fully Protected Path check box checked (default) and proceed to the next substep. A fully protected circuit route is created based on the path diversity option you choose. Fully protected paths might or might not have SNCP path segments with primary and alternate paths. The path diversity options apply only to SNCP path segments, if any exist.

•To create an unprotected circuit, uncheck Fully Protected Path and go to Step 18.

•To route the circuit on an MS-SPRing protection channel, uncheck Fully Protected Path, check Protection Channel Access, and go to Step 18.

f. If you selected Fully Protected Path, choose one of the following options:

•Required—Ensures that the primary and alternate paths within the extended SNCP mesh network portions of the complete circuit path are nodally diverse.

•Desired—Specifies that node diversity is preferred, but if node diversity is not possible, link-diverse paths are created for the extended SNCP mesh network portion of the complete circuit path.

•Don't Care: Link Diverse Only—Specifies that only link-diverse primary and alternate paths for extended SNCP mesh network portions of the complete circuit path are needed.

•Dual Ring Interconnect—Provisions the circuit in a DRI topology. If selected, the other node specifications (Required, Desired, and Don't Care: Link Diverse Only) are disabled.

Step 18 In the Manual Provisioning pane (available when Route Automatically is unchecked and the Graphical radio button is selected), do the following; then, click Next:

a. Use the map view to manually route the circuit from the source to the destination specified by the addition of the links selected. Use the right-click menu options to navigate within the map view:

•Find Node—Opens the Find Node dialog box, which lists all of the nodes displayed on the map view. Select a node from the drop-down list and click OK. The selection context in the map view changes to show the selected node highlighted in the visible map area.

•Zoom In—Allows you to zoom in on an object in the map view.

•Zoom Out—Allows you to zoom out on the map view.

•Reset Zoom—Resets the current zoom level to the default.

•Add—Allows you to add the selected span. Right-click a link and choose Add in the right-click menu. The selected link is added to the Available Spans list. The Add option applies to manual provisioning across all circuit types.

b. In the VCAT Member Number list box, select the member for which the route is to be selected.

c. In the circuit display, select the span to use for the next hop.

d. In the Available Spans area, complete the following information:

•From—Displays the source of the span

•To—Displays the destination of the span

e. Click Add. The span is added to the Selected Spans list.

f. Repeat substeps b to d for each intermediate NE until the destination NE is reached.

g. Repeat substeps a to e for each member until all members are routed.

h. To delete a span from the Selected Spans area, select a span from the Selected Spans list and click Remove.

Note To specify a DRI link, double-click the link on the map. The map view displays the link as bidirectional.

i. (For BLSR DRI or MS-SPRing DRI circuits) In the BLSR DRI Nodes or MS-SPRing DRI Nodes tab, click the Add button to open the BLSR/MS-SPRing DRI dialog box, which allows you to provide primary and secondary pairs for traditional and nontraditional DRI circuits. Also specify ring and path options for the first and second rings. Click Remove to remove a DRI node from the list.

Step 19 In the Manual Provisioning pane (available when Route Automatically is unchecked and the Textual radio button is selected), do the following; then, click Next:

a. Specify the following:

•Src NE ID—Display only.

•Dest NE ID—Display only.

•Current NE ID—Display only.

•Adj NE ID—Display only.

•Available Links—Lists all links between the currently selected and adjacent NEs. Select a link from the drop-down list.

•Available Spans—After you select a link from the Available Links drop-down list, its corresponding details are displayed in the Available Spans pane. Click Add to move the spans to the Selected Spans field.

•Selected Spans—Select one or more spans and click Remove to remove them from the Selected Spans field.

b. Click Next Hop to specify the next interme
