Slot Property Information—Common, DWDM, Electrical, and Ethernet Cards

---

This appendix provides information on the cards supported in CTM. This appendix contains the following sections:

•Common Cards

•DWDM Cards

•Electrical Cards

•Ethernet Cards

---

Note In the CTM GUI, display-only fields have a gray background.

---

---

Caution Refer to the appropriate hardware documentation before attempting to set thresholds on ONS 1580x boards. See 1.7  Related Documentation, page 1-47.

---

C.1  Common Cards

This section describes the following common cards supported within CTM:

•Slot Properties—AIC

•Slot Properties—AIC-I

•Slot Properties—AIU

•Slot Properties—CMP

•Slot Properties—CMP-W

•Slot Properties—CTX-2500

•Slot Properties—CTX-CL600

•Slot Properties—EOI-W

•Slot Properties—FILLER

•Slot Properties—IOC-W

•Slot Properties—LSM-W

•Slot Properties—MIC-28-3-A and MIC-28-3-B

•Slot Properties—MMU (ONS 15454 SONET and ONS 15454 SDH)

•Slot Properties—OCP

•Slot Properties—OSCM (ONS 15454 SONET and ONS 15454 SDH)

•Slot Properties—OSCM (ONS 15808)

•Slot Properties—OSU-W

•Slot Properties—PLF

•Slot Properties—RBU

•Slot Properties—SCF

•Slot Properties—SCU

•Slot Properties—SNH

•Slot Properties—SNS

•Slot Properties—SSXC

•Slot Properties—TCC+

•Slot Properties—TCC-I

•Slot Properties—TCC2

•Slot Properties—TCC2P

•Slot Properties—TSC

•Slot Properties—UDC

•Slot Properties—Unequipped Slot (ONS 15800 and ONS 15801)

•Slot Properties—Unequipped Slot (ONS 15808)

•Slot Properties—Unprovisioned Slot (ONS 15327 and ONS 15454 SONET)

•Slot Properties—Unprovisioned Slot (ONS 15454 SDH)

•Slot Properties—Unprovisioned Slot (ONS 15800 and ONS 15801)

•Slot Properties—Unprovisioned Slot (ONS 15808)

•Slot Properties—XC

•Slot Properties—XC-VXL-10G

•Slot Properties—XC10G

•Slot Properties—XCVT

•Slot Properties—XCVXC

•Slot Properties—XTC (ONS 15305)

•Slot Properties—XTC (ONS 15327)

C.1.1  Slot Properties—AIC

The Slot Properties pane displays information about the Cisco ONS 15327 or ONS 15454 SONET slot that is selected in the NE Explorer tree. Use this properties pane to change the module performance monitoring thresholds.

The optional Alarm Interface Controller (AIC) card provides customer-defined alarm input/output (I/O) and supports local and express orderwire.

For the AIC module, the Slot Properties pane displays the following tabs: Module View, Identification, Alarm Extenders, Local Orderwire, Express Orderwire, and Info.

C.1.1.1  Module View Tab

The Module View tab displays a graphic of the AIC that is installed in the slot. The number of critical, major, minor, and warning alarms for the module is displayed under Alarm Status. (Alarms are also displayed when you move the mouse pointer over the graphic.) The Suppress Alarms check box is display-only and indicates whether all alarms are suppressed for the card and its port(s). Right-clicking the graphic opens a shortcut menu that you can use to reset, delete, or change the card.

C.1.1.2  Identification Tab

The Identification tab allows you to view and update AIC identification information.

Table C-1 Field Descriptions for the Identification Tab

Field	Description
Equipment Type	Displays the equipment type that the slot is provisioned for.
Actual Equipment Type	Displays the actual card that is installed in the slot.
Hardware Part Number	Displays the part number that is printed on the top of the card.
Hardware Revision	Displays the hardware revision number.
Serial Number	Displays the serial number that is unique to each card.
CLEI Code	Displays the Common Language Equipment Identifier (CLEI) code.
Firmware Version	Displays the revision number of the software used by the ASIC chip installed on the card.
Product ID	Displays a product ID string of 63 characters maximum. If the card does not support the product ID, the field shows N/A.
Version ID	Displays a version ID string in the format "V99_." The version ID always begins with a V and ends with a space. If the card does not support the version ID, the field shows N/A.
Administration State	The port administration state. It can be: •IS—In Service •IS, AINS—Automatic In Service •OOS, DSBLD—Out of Service, Disabled •OOS, MT—Out of Service, Maintenance
Service State	An autonomously generated state that gives the overall condition of the entity. Service states appear in the format Administrative_State-Operational_State, Status_Attribute.
Equipment State	Displays the equipment state of the card.
Alarm Profile	Sets the alarm profile for the port. Check the Suppress Alarms check box to suppress all alarms for this card and its port(s).

C.1.1.3  Alarm Extenders Tab

The Alarm Extenders tab allows you view AIC alarm information. The Alarm Extenders tab contains the following subtabs:

•External Alarms Subtab

•External Controls Subtab

C.1.1.3.1  External Alarms Subtab

The External Alarms subtab allows you to view and update external alarm information.

Table C-2 Field Descriptions for the External Alarms Subtab

Field	Description
Input Number	Displays the alarm input number.
Enabled	Check to activate the fields for the alarm input number.
Alarm Type	Choose an alarm type from the provided list.
Severity	Choose a severity from the list.
Raised When	Choose the contact condition that will trigger the alarm in CTC.
Virtual Wire	To assign the external device to a virtual wire, choose a virtual wire from the list, or choose None if no assignment is required.
Description	Displays a default description that is provided for every enabled external alarm.
Raised	Indicates if an alarm has been raised.
Contact Status	Indicates the current status of the contact.

C.1.1.3.2  External Controls Subtab

The External Controls subtab allows you to view and update external controls.

Table C-3 Field Descriptions for the External Controls Subtab

Field	Description
Control Number	Displays the control number.
Enabled	Check to activate the fields for the control number.
Control Type	Choose a control type from the provided list.
Trigger Type	Choose a trigger type: a local minor, major, or critical alarm; a remote minor, major, or critical alarm; or a virtual wire activation.
Description	Enter a description.
Current State	Displays the current state of the control.
Auto State	Displays the auto state of the control.
Contact Setting	Displays the current contact setting.

C.1.1.4  Local Orderwire Tab

Local Orderwire allows a craftsperson to plug a phoneset into a node and communicate with craftspeople working at other nodes or other facility equipment. The orderwire is a pulse code modulation (PCM) encoded voice channel that uses E1 or E2 bytes in section/line overhead. The AIC allows simultaneous use of both local (section overhead signal) and express (line overhead channel) orderwire channels on a SONET ring or particular optics facility. Local orderwire also allows communication at regeneration sites when the regenerator is not a Cisco device.

Table C-4 Field Descriptions for the Local Orderwire Tab

Field	Description
4-Wire Level	If needed, adjust the Tx and Rx dBm (decibels referenced per milliwatt) by moving the slider to the right or left for the four-wire headset that you will use. In general, you should not need to adjust the dBm.
2-Wire Level	If needed, adjust the Tx and Rx dBm by moving the slider to the right or left for the two-wire headset that you will use. In general, you should not need to adjust the dBm.

C.1.1.5  Express Orderwire Tab

The Express Orderwire tab allows you to configure express orderwire settings.

Table C-5 Field Descriptions for the Express Orderwire Tab

Field	Description
4-Wire Level	If needed, adjust the Tx and Rx dBm by moving the slider to the right or left for the four-wire headset that you will use. In general, you should not need to adjust the dBm.
2-Wire Level	If needed, adjust the Tx and Rx dBm by moving the slider to the right or left for the two-wire headset that you will use. In general, you should not need to adjust the dBm.

C.1.1.6  Info Tab

The Info tab allows you to view nominal operating values set during manufacturing for the AIC card.

Table C-6 Field Descriptions for the Info Tab

Field	Description
Extended Manufacturing Information
Attribute	Displays the nominal card specification.
Value	Displays the value of the attribute.

---

Note See Table 1-22 on page 1-46 for descriptions of actions that can be performed using the buttons at the bottom of the window.

---

C.1.2  Slot Properties—AIC-I

The Slot Properties pane displays information about the Cisco ONS 15454 SONET and ONS 15454 SDH slot that is selected in the NE Explorer tree. Use this properties pane to change the module performance monitoring thresholds.

The optional Alarm Interface Controller-International (AIC-I) card provides customer-defined (environmental) alarms and controls and supports local and express orderwire. It provides twelve customer-defined input and four customer-defined input/output contacts. The physical connections are through the backplane wire-wrap pin terminals.

For the AIC-I module, the Slot Properties pane displays the following tabs: Module View, Identification, Card, Alarm Extenders, Local Orderwire, Express Orderwire, and Info.

C.1.2.1  Module View Tab

The Module View tab displays a graphic of the AIC-I that is installed in the slot. The number of critical, major, minor, and warning alarms for the module is displayed under Alarm Status. (Alarms are also displayed when you move the mouse pointer over the graphic.) Right-clicking the graphic opens a shortcut menu that you can use to reset, delete, or change the card.

C.1.2.2  Identification Tab

The Identification tab allows you to view and update AIC-I identification information.

Table C-7 Field Descriptions for the Identification Tab

Field	Description
Equipment Type	Displays the equipment type that the slot is provisioned for.
Actual Equipment Type	Displays the actual card that is installed in the slot.
Hardware Part Number	Displays the part number that is printed on the top of the card.
Hardware Revision	Displays the hardware revision number.
Serial Number	Displays the serial number that is unique to each card.
CLEI Code	Displays the CLEI code.
Firmware Version	Displays the revision number of the software used by the ASIC chip installed on the card.
Product ID	Displays a product ID string of 63 characters maximum. If the card does not support the product ID, the field shows N/A.
Version ID	Displays a version ID string in the format "V99_." The version ID always begins with a V and ends with a space. If the card does not support the version ID, the field shows N/A.
Administration State	The port administration state. It can be: •IS—In Service •IS, AINS—Automatic In Service •OOS, DSBLD—Out of Service, Disabled •OOS, MT—Out of Service, Maintenance
Service State	An autonomously generated state that gives the overall condition of the entity. Service states appear in the format Administrative_State-Operational_State, Status_Attribute.
Equipment State	Displays the equipment state of the card.
Alarm Profile	Sets the alarm profile for the port. Check the Suppress Alarms check box to suppress all alarms for this card and its port(s).

C.1.2.3  Card Tab

The Card tab allows you to view and update AIC-I card information.

Table C-8 Field Descriptions for the Card Tab

Field	Description
Add Extension	Check this check box if you are using the Alarm Expansion Panel (AEP).
Extended Type	The AEP radio button is automatically selected if you checked the Add Extension check box.
Input/Output	Select External Alarm if you use external alarms only; select External Control if you use both external alarms and external controls. Selecting only External Alarm gives you 16 external alarm ports and no external control ports. If you select External control, four of the ports are converted to external control ports, leaving you with 12 external alarm ports.
Station Number	Enter a four-digit station number. The valid range is 0 to 9999.

C.1.2.4  Alarm Extenders Tab

The Alarm Extenders tab allows you view AIC-I alarm information. The Alarm Extenders tab contains the following subtabs:

•External Alarms Subtab

•External Controls Subtab

C.1.2.4.1  External Alarms Subtab

The External Alarms subtab allows you to view and update external alarm information.

Table C-9 Field Descriptions for the External Alarms Subtab

Field	Description
Input Number	The alarm input number.
Enabled	Check to activate the fields for the alarm input number.
Alarm Type	Choose an alarm type from the provided list.
Severity	Choose a severity from the list.
Raised When	Choose the contact condition that will trigger the alarm in CTC.
Virtual Wire	To assign the external device to a virtual wire, choose a virtual wire from the list, or choose None if no assignment is required.
Description	A default description is provided in this line for every external alarm that is enabled.
Raised	Indicates if an alarm has been raised.
Contact Status	Indicates the current status of the contact.

C.1.2.4.2  External Controls Subtab

The External Controls subtab allows you to view and update external controls.

Table C-10 Field Descriptions for the External Controls Subtab

Field	Description
Control Number	The control number.
Enabled	Check to activate the fields for the control number.
Control Type	Choose a control type from the provided list.
Trigger Type	Choose a trigger type: a local minor, major, or critical alarm; a remote minor, major, or critical alarm; or a virtual wire activation.
Description	Enter a description.
Current State	The current state of the control.
Auto State	The auto state of the control.
Contact Setting	The current contact setting.

C.1.2.5  Local Orderwire Tab

Orderwire allows a craftsperson to plug a phoneset into a node and communicate with craftspeople working at other nodes or other facility equipment. The orderwire is a pulse code modulation (PCM) encoded voice channel that uses E1 or E2 bytes in section/line overhead. The AIC-I allows simultaneous use of both local (section overhead signal) and express (line overhead channel) orderwire channels on a SONET ring or particular optics facility. Local orderwire also allows communication at regeneration sites when the regenerator is not a Cisco device.

Table C-11 Field Descriptions for the Local Orderwire Tab

Field	Description
Buzzer	The AIC-I supports selective dual tone multifrequency (DTMF) dialing for telephony connectivity, which causes one AIC-I card or all AIC-I cards on the orderwire subnetwork to ring. The ringer/buzzer resides on the AIC-I. If you want to turn on the audible alert (buzzer) for the orderwire, check the Buzzer check box.
4-Wire Level	If needed, adjust the Tx and Rx dBm by moving the slider to the right or left for the four-wire headset that you will use. In general, you should not need to adjust the dBm.
2-Wire Level	If needed, adjust the Tx and Rx dBm by moving the slider to the right or left for the two-wire headset that you will use. In general, you should not need to adjust the dBm.

C.1.2.6  Express Orderwire Tab

The Express Orderwire tab allows you to configure express orderwire settings.

Table C-12 Field Descriptions for the Express Orderwire Tab

Field	Description
Buzzer	If you want to turn on the audible alert (buzzer) for the orderwire, check the Buzzer check box.
4-Wire Level	If needed, adjust the Tx and Rx dBm by moving the slider to the right or left for the four-wire headset that you will use. In general, you should not need to adjust the dBm.
2-Wire Level	If needed, adjust the Tx and Rx dBm by moving the slider to the right or left for the two-wire headset that you will use. In general, you should not need to adjust the dBm.

C.1.2.7  Info Tab

The Info tab allows you to view nominal operating values set during manufacturing for the AIC-I card.

Table C-13 Field Descriptions for the Info Tab

Field	Description
Extended Manufacturing Information
Attribute	Displays the nominal card specification.
Value	Displays the value of the attribute.

---

Note See Table 1-22 on page 1-46 for descriptions of actions that can be performed using the buttons at the bottom of the window.

---

C.1.3  Slot Properties—AIU

The Slot Properties pane displays information about the Cisco ONS 15808 module that is installed in the slot selected in the NE Explorer tree. Use this properties pane to change the module performance monitoring thresholds.

The Alarm Interface Unit (AIU) manages digital and analog inputs from external equipment. It also manages digital outputs that can control external devices. The AIU allows remote control of isolated optical line amplification sites. Each AIU module manages up to 32 digital inputs, eight analog inputs, and 20 digital outputs. The digital inputs are ground-activated and are used to monitor site conditions such as fire alarms, flood warnings, and open doors. The analog inputs are used to remotely monitor voltages from transducers with slow parameter sensors. The digital outputs are used to operate equipment remotely. For example, digital outputs are used to start a generator engine or turn on security lights at a remote site from the network operations center (NOC).

For ONS 15808 AIU, the Slot Properties pane displays the following tabs: Module View, Identification, Analog, Digital Input, and Digital Output.

C.1.3.1  Module View Tab

The Module View tab displays a graphic of the AIU that is installed in the slot. The number of critical, major, minor, and warning alarms for the module is displayed under Alarm Status. (Moving the mouse pointer over the graphic also displays the alarm counts.) Right-clicking the graphic opens a shortcut menu that you can use to display the module in the Equipment Inventory table, in the Alarm Browser, or in the AIU PM table.

C.1.3.2  Identification Tab

The Identification tab allows you to view and update AIU identification information.

Table C-14 Field Descriptions for the Identification Tab

Field	Description
NE ID	Displays the user-defined name of the NE where the AIU is installed.
Description	Displays information that a user has entered (if any) to describe the NE.
NE Model	Identifies the model of the selected NE (ONS 15808) where the AIU is installed.
Rack ID	Displays the identification number of the rack where the subrack containing the AIU is installed.
Subrack ID	Displays the identification number of the subrack.
Slot ID	Displays the identification number of the slot containing the AIU.
Software Version	Displays the version of the software.
BIOS Version	Displays the version number of the BIOS.
Board Serial Number	Displays the serial number of the board.
SCC Number	Displays the version of the module serial communication controller (SCC).
Product Option	Displays the product option. Displays Not Available if TL1 Agent version is earlier than version 2.1.
Hardware Version	Displays the version of the hardware. Displays Not Available if TL1 Agent version is earlier than version 2.1.
Line Direction	Shows the line direction for the AIU.
State	Allows you to place the AIU in one of two states: In Service or Under Maintenance.
PM Collection Status	Allows you to enable or disable PM collection for the AIU.

C.1.3.3  Analog Tab

The Analog tab allows you to assign performance monitoring thresholds for the AIU analog voltages. Each AIU module manages up to eight analog inputs.

Table C-15 Field Descriptions for the Analog Tab

Field	Description
General Analog Input 1-8
Value	When the Update button is clicked, displays the current analog input (in volts) from analog source x.
Voltage High	Sets the high voltage threshold, the alarm severity level, and a description of the alarm.
Voltage Low	Sets the low voltage threshold, the alarm severity level, and a description of the alarm.
Name	Sets the name of the general analog input on which the alarm occurred.

C.1.3.4  Digital Input Tab

The Digital Input tab allows you to assign performance monitoring thresholds for the AIU digital inputs. Each AIU module manages up to 32 digital inputs.

Table C-16 Field Descriptions for the Digital Input Tab

Field	Description
General Digital Input 1-32
General Digital Input x	Shows the current alarm status of the general digital input.
Alarm Severity	Sets the alarm severity (critical, major, minor, warning, or not reported).
Name	Sets the name of the general digital input on which the alarm occurred.
Description	Sets a description of the alarm.

C.1.3.5  Digital Output Tab

The Digital Output tab allows you to assign performance monitoring thresholds for the AIU digital outputs. Each AIU module manages up to 20 digital outputs.

Table C-17 Field Descriptions for the Digital Output Tab

Field	Description
General Digital Output 1-20
General Digital Output x	Sets the general digital output status to Operated or Released.
Name	Sets the name of the general digital output on which the alarm occurred.

---

Note See Table 1-22 on page 1-46 for descriptions of actions that can be performed using the buttons at the bottom of the window.

---

C.1.4  Slot Properties—CMP

The Slot Properties pane displays information about the Cisco ONS 15808 module that is installed in the slot selected in the NE Explorer tree. Use this properties pane to change the module performance monitoring thresholds.

The Control and Monitoring Processor (CMP) module monitors and relays commands to the ONS 15808 modules. It also provides an interface to supervisory software such as CTM. The CMP module is able to monitor all modules in the system through the Shelf Control Unit (SCU) module, which connects the internal control buses (CBUS) of all optical subracks in the site. This configuration allows all modules installed at a site to be managed as a unique NE. In sites containing more than one bay, multiple CMP modules are required. One CMP module is required for each bay.

CMP modules shown include:

•Control and Monitoring Processor—Master (CMP)

•Control and Monitoring Processor—Slave (CMP-S)

For ONS 15808 CMP modules, the Slot Properties pane displays the following tabs: Module View, Identification, and Statistics.

C.1.4.1  Module View Tab

The Module View tab displays a graphic of the CMP module that is installed in the slot. The number of critical, major, minor, and warning alarms for the module is displayed under Alarm Status. (Moving the mouse pointer over the graphic also displays the alarm counts.) Right-clicking the graphic opens a shortcut menu that you can use to display the module in the Equipment Inventory table or in the Alarm Browser.

C.1.4.2  Identification Tab

The Identification tab allows you to view and update CMP module identification information.

Table C-18 Field Descriptions for the Identification Tab

Field	Description
NE ID	Displays the user-defined name of the NE where the CMP module is installed.
Description	Displays information that a user has entered (if any) to describe the NE.
NE Model	Identifies the model of the selected NE (ONS 15808) where the CMP module is installed.
Rack ID	Displays the identification number of the rack where the subrack containing the CMP module is installed.
Subrack ID	Displays the identification number of the subrack.
Slot ID	Displays the identification number of the slot containing the CMP module.
Software Version	Displays the version of the software.
BIOS Version	Displays the version number of the BIOS.
Board Serial Number	Displays the serial number of the board.
SCC Number	Displays the version of the module serial communication controller (SCC).
Product Option	Displays the product option. Displays Not Available if TL1 Agent version is earlier than version 2.1.
Hardware Version	Displays the version of the hardware. Displays Not Available if TL1 Agent version is earlier than version 2.1.
State	Allows you to place the CMP module in service.

C.1.4.3  Statistics Tab

The Statistics tab allows you to view memory statistics for the CMP module.

Table C-19 Field Descriptions for the Statistics Tab

Field	Description
Memory
Free disk/flash space	Shows the amount of remaining free disk/flash space, in megabytes.
Percentage of free space	Shows the percentage of remaining free disk/flash space.
Free RAM memory	Shows the amount of free RAM memory, in megabytes.
Percentage of free RAM memory	Shows the percentage of remaining free RAM memory.
RAM largest contiguous block	Shows the largest contiguous block of RAM memory, in megabytes.

---

Note See Table 1-22 on page 1-46 for descriptions of actions that can be performed using the buttons at the bottom of the window.

---

C.1.5  Slot Properties—CMP-W

The Slot Properties pane displays information about the Cisco ONS 15800 or ONS 15801 slot that is selected in the NE Explorer tree. Use this properties pane to change the module performance monitoring thresholds.

The Control and Monitoring Processor-Master (CMP-W) module is the heart of the management system, controlling all optical and common modules in the ONS 15800 or ONS 15801 NE. The CMP-W module collects information about status, alarms, parameters, and actions on the internal control bus (CBUS). The CMP-W module makes NE information available to the local craft terminal and to the element management system.

For the CMP-W module, the Slot Properties pane displays the following tabs: Module View, Identification, and Statistics. Fields on these tabs are described in the following sections.

C.1.5.1  Module View Tab

The Module View tab displays a graphic of the CMP-W module that is installed in the slot. The number of critical, major, minor, and warning alarms for the module is displayed under Alarm Status. (Alarms are also displayed when you move the mouse pointer over the graphic.) Right-click the graphic to open a shortcut menu that you can use to display the module in the Alarm Browser, Equipment Inventory table, 15-Minute PM table, or 1-Day PM table.

C.1.5.2  Identification Tab

The Identification tab allows you to view and update CMP-W module identification information.

Table C-20 Field Descriptions for the Identification Tab

Field	Description
NE ID	Displays the user-defined name of the NE where the CMP-W module is installed.
NE Model	Identifies the model of the selected NE (ONS 15800 or ONS 15801) where the CMP-W module is installed.
Description	Displays information that a user has entered (if any) to describe the NE.
Rack ID	Displays the identification number of the rack where the subrack containing the CMP-W module is installed.
Subrack ID	Displays the identification number of the subrack.
Slot ID	Displays the identification number of the slot containing the CMP-W module.
Software Version	Displays the NE software version of the agent that it is running.
BIOS Version	Displays the version number of the module BIOS (future).
Board Serial Number	Displays the serial number of the module board.
SCC Number	Displays the version of the module serial communication controller (SCC).
Product Option	Displays the product option.
Hardware Version	Displays the version of the hardware.
State	Allows you to place the CMP-W module in service.
PM Collection Status	Allows you to enable or disable PM collection for the CMP-W module.

C.1.5.3  Statistics Tab

The Statistics tab allows you to view memory statistics for the CMP-W module.

Table C-21 Field Descriptions for the Statistics Tab

Field	Description
Memory
Free disk/flash space	Shows the amount of remaining free disk/flash space, in megabytes.
Percentage of free space	Shows the percentage of remaining free disk/flash space.
Free RAM memory	Shows the amount of free RAM memory, in megabytes.
Percentage of free RAM memory	Shows the percentage of remaining free RAM memory.
RAM largest contiguous block	Shows the largest contiguous block of RAM memory, in megabytes.

---

Note See Table 1-22 on page 1-46 for descriptions of actions that can be performed using the buttons at the bottom of the window.

---

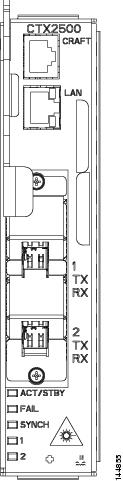

C.1.6  Slot Properties—CTX-2500

The Slot Properties pane displays information about the Cisco ONS 15310 MA slot that is selected in the NE Explorer tree. Use this properties pane to change the module performance monitoring thresholds.

The CTX-2500 card, for use with the ONS 15310 MA, is a fully nonblocking cross-connect card that operates in a redundant configuration. It performs system initialization, provisioning, alarm reporting, maintenance, diagnostics, IP address detection/resolution, SONET data communications channel (DCC) termination, system fault detection, and cross-connect maintenance and management for the ONS 15310 MA. The card also provides the circuitry for the OC-3/OC-12/OC-48 interfaces, and ensures that the system maintains timing with SMC stability.

The CTX-2500 card provides 576 x 576 STS-1 level cross-connections, 96 x 96 TU-3 level cross-connections, 2688 x 2688 VT1.5s, or 2016 x 2016 VT2s.

The CTX-2500 card can be installed in slots 3 or 4. Protection switches between the active and standby CTX-2500 are hitless (less than a 50-ms impact to any traffic).

The CTX-2500 supports errorless side switches (switching from one CTX-2500 on one side of the shelf to the other CTX-2500 on the other side of the shelf) when the switch is initiated through software and is caused by a software upgrade.

There are two PPM (SFP) slots on the CTX-2500 faceplate. Each slot can contain a one-port PPM. Cisco-qualified SFPs can be single-rate (OC-3, OC-12, or OC-48) or multirate (OC-3, OC-12, and OC-48). Single-rate PPMs are autoprovisioned when they are installed, but multirate PPMs must be provisioned. This behavior can be controlled by NE defaults.

The following figure shows the CTX-2500 card faceplate.

Figure C-1 CTX-2500 Faceplate

For the CTX-2500 module, the Slot Properties pane displays the following tabs: Module View, Identification, Pluggable Provisioning, Line, STS, VT, Loopback, Alarm Behavior, Transceiver, Auto Laser Shutdown, Protection, J1 Path Trace, and Section Trace.

C.1.6.1  Module View Tab

The Module View tab displays a graphic of the CTX-2500 that is installed in the slot. The number of critical, major, minor, and warning alarms for the module is displayed under Alarm Status. (Alarms are also displayed when you move the mouse pointer over the graphic.) The Suppress Alarms check box is display-only and indicates whether all alarms are suppressed for the card and its port(s). Right-clicking the graphic opens a shortcut menu that you can use to reset or delete the card.

C.1.6.2  Identification Tab

The Identification tab allows you to view and update CTX-2500 identification information.

Table C-22 Field Descriptions for the Identification Tab

Field	Description
Equipment Type	Displays the equipment type that the slot is provisioned for.
Actual Equipment Type	Displays the actual card that is installed in the slot.
Hardware Part Number	Displays the part number that is printed on the top of the card.
Hardware Revision	Displays the hardware revision number.
Serial Number	Displays the serial number that is unique to each card.
CLEI Code	Displays the CLEI code.
Firmware Version	Displays the revision number of the software used by the ASIC chip installed on the card.
Product ID	Displays a product ID string of 63 characters maximum. If the card does not support the product ID, the field shows N/A.
Version ID	Displays a version ID string in the format "V99_." The version ID always begins with a V and ends with a space. If the card does not support the version ID, the field shows N/A.
Card State
Administration State	Select the designation that determines whether an entity is in service or out of service. The Administration State is the driver for the Service state.
Service State	An autonomously generated state that gives the overall condition of the entity. Service states appear in the format Administrative_State-Operational_State, Status_Attribute.
Equipment State	Displays the equipment state of the card.
Alarm Profile	Sets the alarm profile for the port.
Suppress Alarms	Check the Suppress Alarms check box to suppress all alarms for this card and its port(s).

C.1.6.3  Pluggable Provisioning Tab

The Pluggable Provisioning tab allows you to view and provision pluggable entities; for example, the pluggable port module (PPM) and pluggable I/O module (PIM) and the ports inside these entities.

Table C-23 Field Descriptions for the Pluggable Provisioning Tab

Field	Description
Pluggable Number	Displays the identifier of the plugin module.
Actual Equipment Type	Displays the actual card that is installed in the slot.
Equipment State	Displays the equipment state of the card.
Administration State	Select the designation that determines whether an entity is in service or out of service. The Administration State is the driver for the Service state.
Service State	An autonomously generated state that gives the overall condition of the entity. Service states appear in the format Administrative_State-Operational_State, Status_Attribute.
Pluggable Number	Displays the identifier of the plugin module and the port number.
Rate	Displays the rate of the port inside the pluggable entity.

C.1.6.3.1  Provision Pluggable Dialog Box

Click the Create button to launch the Provision Pluggable dialog box. This dialog box allows you to provision pluggable entities such as the PPM and PIM, and to create the ports inside these entities. Table C-24 describes the fields displayed in the Provision Pluggable dialog box when provisioning a PPM. Table C-25 applies only to the ONS 15600 SONET/SDH ASAP_4 card and describes the fields displayed in the Provision Pluggable dialog box when provisioning a PIM. Table C-26 describes the fields displayed in the Provision Pluggable dialog box when provisioning a PPM. Table C-27 describes the fields displayed in the Provision Pluggable dialog box when creating the ports inside the PPM and PIM.

Table C-24 Field Descriptions for the Provision Pluggable Dialog Box—PPM

Field	Description
PPM #	Sets the PPM number.
No. of Ports	Sets the number of ports inside the PPM.
PPM Type	Sets the type of PPM.

Table C-25 Field Descriptions for the Provision Pluggable Dialog Box—PIM (ONS 15600 SONET/SDH ASAP_4 Card)

Field	Description
PIM #	Sets the PIM number.
No. of Ports	Sets the number of ports inside the PIM.
PIM Type	Sets the type of PIM.

Table C-26 Field Descriptions for the Provision Pluggable Dialog Box—PPM (ONS 15454 SONET/SDH MRC-12 Card)

Field	Description
PPM	Select the PPM for which you want to create the port.
PPM Type	Sets the PPM type.

Table C-27 Field Descriptions for the Provision Pluggable Dialog Box

Field	Description
PPM	Select the PPM for which you want to create the port.
Port Number	Sets the port number.
Port Rate	Sets the rate of the new port.

C.1.6.4  Line Tab

The Line tab allows you to view and update line card information. The Line tab displays the following subtabs:

•Line Config Subtab

•Line Thresh 15 Min Subtab

•Line Thresh 1 Day Subtab

•Section Thresh 15 Min Subtab

•Section Thresh 1 Day Subtab

•Physical Thresh 15 Min Subtab

•Physical Thresh 1 Day Subtab

•Alarm Thresholds Subtab

C.1.6.4.1  Line Config Subtab

The Line Config subtab allows you to view and change the line settings of an optical card.

Table C-28 Field Descriptions for the Line Config Subtab

Field	Description
Port Number	Displays the port number.
Port Name	Allows you to add a name for the optical port.
Administration State	Select the designation that determines whether an entity is in service or out of service. The Administration State is the driver for the Service state.
Port Rate	Sets the rate of the new port.
Service State	An autonomously generated state that gives the overall condition of the entity. Service states appear in the format Administrative_State-Operational_State, Status_Attribute.
SF BER	Sets the signal fail bit error rate.
SD BER	Sets the signal degrade bit error rate.
ProvidesSync	If checked, the card is provisioned as an NE timing reference.
EnableSyncMsg	Enables synchronization status messages (S1 byte), which allow the node to choose the best timing source.
SendDoNotUse	When checked, sends a do not use (DUS) message on the S1 byte.
Send <FF> DoNotUse	When checked, sends a do not use (DUS) (0xff) message on the S1 byte.
BLSR Ext. Byte	Select an alternate BLSR byte. Choices are Z2, E2, or F1.
Type	Defines the port as SONET or SDH.
AINS Soak	Automatic in-service soak. The determination of duration left before the traffic/termination transitions to IS state.
AINS Soak Count Down	Automatic in-service soak countdown. Displays the remaining time of valid input signal in hh:mm format, after which the card becomes in service (IS) automatically.
Admin SSM	If the node does not receive an SSM signal, it defaults to synchronization traceability unknown (STU). Admin SSM allows you to override the STU value with one of the following: •PRS—Primary reference source (Stratum 1) •STS2—Stratum 2 •TNC—Transit node clock •STS3E—Stratum 3E •STS3—Stratum 3 •SMC—SONET minimum clock •ST4—Stratum 4
ALS Mode	Displays the auto laser shutdown mode (Disabled, Auto Restart, Manual Restart, or Manual Restart for Test).
PJSTSMon#	Sets the STS that will be used for pointer justification. If set to 0, no STS is monitored. Only one STS can be monitored on each OC-N port. •0 (Cisco default)-3 (OC-3, per port) •0 (Cisco default)-12 (OC-12) •0 (Cisco default)-48 (OC-48)
Reach	Allows you to provision the reach value. You can choose Auto Provision, which allows the system to automatically provision the reach from the PPM reach value on the hardware. Choose one of the following reach distances: Note The reach distance options that appear in the drop-down list depend on the card selected. •SR (short reach, up to 2 km distance) •SR 1 (up to 2 km distance) •IR 1 (intermediate reach, up to 15 km distance) •IR 2 (up to 40 km distance) •LR 1 (long reach, up to 40 km distance) •LR 2 (up to 80 km distance) •LR 3 (up to 80 km distance) •I1 •S1 •S2 •L1 •L2 •L3 •SX (up to 550 m or 270 m distance based on 50 um/62.5 um diameter fiber) •LX (up to 10 km or 550 m distance based on 50 um/62.5 um diameter fiber) •CX •T •DX (up to 40 km distance) •HX (up to 40 km distance) •ZX (up to 80 km distance) •VX (up to 100 km distance)
Wavelength	Allows you to provision the wavelength frequency. The Wavelength column lists the correct wavelengths, depending on the type of card and the band selected.

C.1.6.4.2  Line Thresh 15 Min Subtab

The Line Thresh 15 Min subtab allows you to view and change the near- and far-end 15-minute threshold settings of an optical card.

Table C-29 Field Descriptions for the Line Thresh 15 Min Subtab

Field	Description
Near End
Port Number	Displays the optical port number.
ES-L	Displays the errored seconds-line.
SES-L	Displays the severely errored seconds-line.
CV-L	Displays the coding violations-line.
UAS-L	Displays unavailable seconds-line information.
FC-L	Failure count-line (FC-L) lists a count of the number of near-end line failure events. A failure event begins when an AIS-L failure is declared, or when a lower-layer, traffic-related, near-end failure is declared. This failure event ends when the failure is cleared. A failure event that begins in one period and ends in another period is counted only in the period where it begins.
PSC	In a 1 + 1 protection scheme for a working card, protection switching count (PSC) is a count of the number of times service switches from a working card to a protection card plus the number of times service switches back to the working card. For a protection card, PSC is a count of the number of times service switches to a working card from a protection card plus the number of times service switches back to the protection card. The PSC PM is only applicable if revertive line-level protection switching is used. PSC is supported in revertive and nonrevertive modes. Note This parameter is not supported for transponder or muxponder cards.
PSD	Protection switching duration (PSD) applies to the length of time, in seconds, that service is carried on another line. For a working line, PSD is a count of the number of seconds that service was carried on the protection line. For the protection line, it is a count of the seconds that the line was used to carry service. The PSD PM is only applicable if revertive line-level protection switching is used. PSD is supported in revertive and nonrevertive modes. Note This parameter is not supported for transponder or muxponder cards.
Far End
Port Number	Displays the optical port number.
ES-L	Displays the errored seconds-line.
SES-L	Displays the severely errored seconds-line.
CV-L	Displays the coding violations-line.
UAS-L	Displays unavailable seconds-line information.
FC-L	Failure count-line (FC-L) lists a count of the number of near-end line failure events. A failure event begins when an AIS-L failure is declared, or when a lower-layer, traffic-related, near-end failure is declared. This failure event ends when the failure is cleared. A failure event that begins in one period and ends in another period is counted only in the period where it begins.

C.1.6.4.3  Line Thresh 1 Day Subtab

The Line Thresh 1 Day subtab allows you to view and change the near- and far-end 1-day threshold settings of an optical card.

Table C-30 Field Descriptions for the Line Thresh 1 Day Subtab

Field	Description
Near End
Port Number	Displays the optical port number.
ES-L	Displays the errored seconds-line.
SES-L	Displays the severely errored seconds-line.
CV-L	Displays the coding violations-line.
UAS-L	Displays unavailable seconds-line information.
FC-L	Failure count-line (FC-L) lists a count of the number of near-end line failure events. A failure event begins when an AIS-L failure is declared, or when a lower-layer, traffic-related, near-end failure is declared. This failure event ends when the failure is cleared. A failure event that begins in one period and ends in another period is counted only in the period where it begins.
PSC	In a 1 + 1 protection scheme for a working card, protection switching count (PSC) is a count of the number of times service switches from a working card to a protection card plus the number of times service switches back to the working card. For a protection card, PSC is a count of the number of times service switches to a working card from a protection card plus the number of times service switches back to the protection card. The PSC PM is only applicable if revertive line-level protection switching is used. PSC is supported in revertive and nonrevertive modes. Note This parameter is not supported for transponder or muxponder cards.
PSD	Protection switching duration (PSD) applies to the length of time, in seconds, that service is carried on another line. For a working line, PSD is a count of the number of seconds that service was carried on the protection line. For the protection line, it is a count of the seconds that the line was used to carry service. The PSD PM is only applicable if revertive line-level protection switching is used. PSD is supported in revertive and nonrevertive modes. Note This parameter is not supported for transponder or muxponder cards.
Far End
Port Number	Displays the optical port number.
ES-L	Displays the errored seconds-line.
SES-L	Displays the severely errored seconds-line.
CV-L	Displays the coding violations-line.
UAS-L	Displays unavailable seconds-line information.
FC-L	Failure count-line (FC-L) lists a count of the number of near-end line failure events. A failure event begins when an AIS-L failure is declared, or when a lower-layer, traffic-related, near-end failure is declared. This failure event ends when the failure is cleared. A failure event that begins in one period and ends in another period is counted only in the period where it begins.

C.1.6.4.4  Section Thresh 15 Min Subtab

The Section Thresh 15 Min subtab allows you to view and change the near-end 15-minute section threshold settings of an optical card.

Table C-31 Field Descriptions for the Section Thresh 15 Min Subtab

Field	Description
Near End
Port Number	Displays the port number.
CV-S	Displays the coding violations-section.
ES-S	Displays the errored seconds-section.
SES-S	Displays the severely errored seconds-section.
SEFS-S	Displays the severely errored framing seconds-section.

C.1.6.4.5  Section Thresh 1 Day Subtab

The Section Thresh 1 Day subtab allows you to view and change the near-end 1-day section threshold settings of an optical card.

Table C-32 Field Descriptions for the Section Thresh 1 Day Subtab

Field	Description
Near End
Port Number	Displays the port number.
CV-S	Displays the coding violations-section.
ES-S	Displays the errored seconds-section.
SES-S	Displays the severely errored seconds-section.
SEFS-S	Displays the severely errored framing seconds-section.

C.1.6.4.6  Physical Thresh 15 Min Subtab

The Physical Thresh 15 Min subtab allows you to view and change 15-minute physical threshold information on an optical card.

Table C-33 Field Descriptions for the Physical Thresh 15 Min Subtab

Field	Description
Port No.	Pluggable entity number and port number.
LBC-HIGH	Maximum laser bias current. The Cisco default is (15 min): 200 percent.
LBC-LOW	Minimum laser bias current. The Cisco default is (15 min): 20 percent.
OPT-HIGH	Maximum optical power transmitted. The Cisco default is (15 min): 120 percent.
OPT-LOW	Minimum optical power transmitted. The Cisco default is (15 min): 80 percent.
OPR-HIGH	Maximum optical power received. The Cisco default is (15 min): 200 percent.
OPR-LOW	Minimum optical power received. The Cisco default is (15 min): 50 percent.
Set OPR	Setting the optical power received (OPR) establishes the received power level as 100 percent. If the received power decreases, then the OPR percentage decreases to reflect the loss in received power. For example, if the received power decreases 3 dBm, the OPR decreases 50 percent.

C.1.6.4.7  Physical Thresh 1 Day Subtab

The Physical Thresh 1 Day subtab allows you to view and change 1-day physical threshold information on an optical card.

Table C-34 Field Descriptions for the Physical Thresh 1 Day Subtab

Field	Description
Port No.	Pluggable entity number and port number.
LBC-HIGH	Maximum laser bias current. The Cisco default is (15 min): 200 percent.
LBC-LOW	Minimum laser bias current. The Cisco default is (15 min): 20 percent.
OPT-HIGH	Maximum optical power transmitted. The Cisco default is (15 min): 120 percent.
OPT-LOW	Minimum optical power transmitted. The Cisco default is (15 min): 80 percent.
OPR-HIGH	Maximum optical power received. The Cisco default is (15 min): 200 percent.
OPR-LOW	Minimum optical power received. The Cisco default is (15 min): 50 percent.
Set OPR	Setting the OPR establishes the received power level as 100 percent. If the received power decreases, then the OPR percentage decreases to reflect the loss in received power. For example, if the received power decreases 3 dBm, the OPR decreases 50 percent.

C.1.6.4.8  Alarm Thresholds Subtab

The Alarm Thresholds subtab allows you to select thresholds for alarm generation.

Table C-35 Field Descriptions for the Alarm Thresholds Subtab

Field	Description
Port Number	The port number.
LBC-High	Maximum laser bias current. The Cisco default is (15 min): 200 percent.
LBC-Low	Minimum laser bias current. The Cisco default is (15 min): 20 percent.
OPT-High	Maximum optical power transmitted. The Cisco default is (15 min): 120 percent.
OPT-Low	Minimum optical power transmitted. The Cisco default is (15 min): 80 percent.
OPR-High	Maximum optical power received. The Cisco default is (15 min): 200 percent.
OPR-Low	Minimum optical power received. The Cisco default is (15 min): 50 percent.
Set OPR	Setting the OPR establishes the received power level as 100 percent. If the received power decreases, then the OPR percentage decreases to reflect the loss in received power. For example, if the received power decreases 3 dBm, the OPR decreases 50 percent.

C.1.6.5  STS Tab

The STS tab allows you to view and update synchronous transport signal (STS) information. The STS tab displays the following subtabs:

•STS Config Subtab

•Path Thresh 15 Min Subtab

•Path Thresh 1 Day Subtab

•Customer Info Subtab

C.1.6.5.1  STS Config Subtab

The STS Config subtab allows you to view and change the STS settings of the EC1 port.

Table C-36 Field Descriptions for the STS Config Subtab

Field	Description
STS Number	Displays the synchronous transport signal number information.
IPPM Enabled	Check to enable intermediate path performance monitoring (IPPM) and uncheck to disable IPPM.
XC Loopback	Displays the cross-connect loopback status.

C.1.6.5.2  Path Thresh 15 Min Subtab

The Path Thresh 15 Min subtab allows you to view and change the 15-minute path threshold information for the CTX-2500 card.

Table C-37 Field Descriptions for the Path Thresh 15 Min Subtab

Field	Description
Near End
STS No.	Displays the synchronous transport signal number.
CV-P	Displays coding violations-path information.
ES-P	Displays errored seconds-path information.
SES-P	Displays severely errored seconds-path information.
SAS-P	Displays severely errored frame/alarm indication signal-path information.
UAS-P	Displays unavailable seconds-path information.
PPJC-Pdet	Displays positive pointer justification count-VC4 path detected.
NPJC-Pdet	Displays negative pointer justification count-VC4 path detected.
PPJC-Pgen	Displays positive pointer justification count-VC4 path generated.
NPJC-Pgen	Displays negative pointer justification count-VC4 path generated.
PJCS-Pdet	Indicates the number of pointer justification count seconds (PJCS) detected on a particular path.
PJCS-Pgen	Indicates the number of pointer justification count seconds generated for a particular path.
PJC-Diff	Displays the sum of the absolute values of differences between positive transmitted and received, and negative transmitted and received. The important metric on pointer justification is not the exact counts, but how many were absorbed.
Far End
STS No.	Displays the synchronous transport signal number.
CV-P	Displays coding violations-path information.
ES-P	Displays errored seconds-path information.
SES-P	Displays severely errored seconds-path information.
UAS-P	Displays unavailable seconds-path information.

C.1.6.5.3  Path Thresh 1 Day Subtab

The Path Thresh 1 Day subtab allows you to view and change the 1-day path threshold information for the CTX-2500 card.

Table C-38 Field Descriptions for the Path Thresh 1 Day Subtab

Field	Description
Near End
STS No.	Displays the synchronous transport signal number.
CV-P	Displays coding violations-path information.
ES-P	Displays errored seconds-path information.
SES-P	Displays severely errored seconds-path information.
UAS-P	Displays unavailable seconds-path information.
FC-P	Displays failure count-path information.
PPJC-Pdet	Displays positive pointer justification count-VC4 path detected.
NPJC-Pdet	Displays negative pointer justification count-VC4 path detected.
PPJC-Pgen	Displays positive pointer justification count-VC4 path generated.
NPJC-Pgen	Displays negative pointer justification count-VC4 path generated.
PJCS-Pdet	Indicates the number of pointer justification count seconds (PJCS) detected on a particular path.
PJCS-Pgen	Indicates the number of pointer justification count seconds generated for a particular path.
PJC-Diff	Displays the sum of the absolute values of differences between positive transmitted and received, and negative transmitted and received. The important metric on pointer justification is not the exact counts, but how many were absorbed.
Far End
STS No.	Displays the synchronous transport signal number.
CV-P	Displays coding violations-path information.
ES-P	Displays errored seconds-path information.
SES-P	Displays severely errored seconds-path information.
UAS-P	Displays unavailable seconds-path information.
FC-P	Displays failure count-path information.

C.1.6.5.4  Customer Info Subtab

The Customer Info subtab displays customer information.

Table C-39 Field Descriptions for the Customer Subtab

Field	Description
STS No.	Displays the STS number.
Customer ID	The customer ID.
Service ID	The service ID.

C.1.6.6  VT Tab

The VT tab allows you to view and update VT line information. The VT tab displays the following subtabs:

•VT Config Subtab

•VT Thresh 15 Min Subtab

•VT Thresh 1 Day Subtab

•Customer Info Subtab

C.1.6.6.1  VT Config Subtab

The VT Config subtab allows you to view and change the VT settings of the card.

Table C-40 Field Descriptions for the VT Config Subtab

Field	Description
VT No.	Displays VT number information.
IPPM Enabled	Check to enable intermediate path performance monitoring (IPPM) and uncheck to disable IPPM.

C.1.6.6.2  VT Thresh 15 Min Subtab

The VT Thresh 15 Min subtab displays near- and far-end 15-minute VT threshold information.

Table C-41 Field Descriptions for the VT Thresh 15 Min Subtab

Field	Description
VT Thresh 15 Minutes, Near End and Far End
VT No.	Displays VT number information.
CV	Displays coding violations information.
ES	Displays errored seconds information.
SES	Displays severely errored seconds information.
UAS	Displays unavailable seconds information.
FC	Displays failure count information.
Reset to Defaults button (available in CTM R8.0 and later)	Resets the value of the port parameters to the default value.

C.1.6.6.3  VT Thresh 1 Day Subtab

The VT Thresh 1 Day subtab displays near- and far-end 1-day VT threshold information.

Table C-42 Field Descriptions for the VT Thresh 1 Day Subtab

Field	Description
VT Thresh 1 Day, Near End and Far End
VT No.	Displays VT number information.
CV	Displays coding violations information.
ES	Displays errored seconds information.
SES	Displays severely errored seconds information.
UAS	Displays unavailable seconds information.
FC	Displays failure count information.
Reset to Defaults button (available in CTM R8.0 and later)	Resets the value of the port parameters to the default value.

C.1.6.6.4  Customer Info Subtab

The Customer Info subtab displays customer information.

Table C-43 Field Descriptions for the Customer Subtab

Field	Description
STS No.	Displays the STS number.
Customer ID	The customer ID.
Service ID	The service ID.

C.1.6.7  Loopback Tab

The Loopback tab allows you to view and update CTX-2500 loopback information.

Table C-44 Field Descriptions for the Loopback Tab

Field	Description
Port Number	Displays the port number.
Administration State	Allows you to select the administration state of the port: In Service (IS) or Out of Service (OOS).
Loopback Type	Allows you to configure a port to terminal loopback (Inward) or clear the current loopback (none).
Service State	An autonomously generated state that gives the overall condition of the entity. Service states appear in the format Administrative_State-Operational_State, Status_Attribute.
Send AIS on Facility Loopback	When selected, sends AIS on the facility loopback.
Send AIS on Terminal Loopback	When selected, sends AIS on the terminal loopback.

C.1.6.8  Alarm Behavior Tab

The Alarm Behavior tab allows you to view and update alarm profiles assigned to cards on the ONS 15310 MA node.

Table C-45 Field Descriptions for the Alarm Behavior Tab

Field	Description
Alarm Profile	Displays the alarm profile that has been configured for the card.
Suppress Alarms	If checked, indicates that all alarms are suppressed for the card.
Port Number	Displays the card port number.
Alarm Profile	Choose an alarm profile for the port from the drop-down list. Values are Default, Inherited, or a customized alarm profile.
Suppress Alarms	If checked, all alarms are suppressed for the port.
Alarm Profile	Choose an alarm profile for all ports.
Force to All Ports	When clicked, forces all the ports to the selected alarm profile.

C.1.6.9  Transceiver Tab

The Transceiver tab shows OC-N port optical power received (OPR), optical power transmitted (OPT), and laser bias current (LBC) from the line card and stores these values with the PM counts for the 15-minute and 1-day periods. The physical layer performance parameters consist of normalized and non-normalized values of LBC, OPT, and OPR.

Table C-46 Field Descriptions for the Transceiver Tab

Field	Description
Port No.	Displays the port number.
Non-Normalized LBC (mA)	Displays the actual operating value of laser bias current (mA) for the specified card port. This value should be somewhat consistent from port to port and cannot be configured.
Non-Normalized OPT (dBm)	Displays the actual operating value of optical power transmitted (dBm) for the specified card port. This value should be somewhat consistent from port to port and cannot be configured.
Non-Normalized OPR (dBm)	Displays the actual operating value of optical power received (dBm) for the specified card port. This value varies from port to port because of received optical signal power differences.

C.1.6.10  Auto Laser Shutdown Tab

The Auto Laser Shutdown tab allows you to view and update the automatic laser shutdown parameters.

Table C-47 Field Descriptions for the Auto Laser Shutdown Tab

Field	Description
Port Number	Displays the port number.
ALS Mode	Displays the auto laser shutdown mode (Disabled, Auto Restart, Manual Restart, or Manual Restart for Test).
Rec. Pulse Dur. (sec)	Allows you to set the received laser pulse duration, in seconds. The range is 2.0 to 100.0 seconds.
Rec. Pulse Int. (sec)	Allows you to set the received laser pulse interval, in seconds. The range is 60 to 300 seconds.
Status	Displays the current laser status. Values are Shutdown or Not Shutdown.
Request Restart	If selected, it allows you to request a laser restart. This parameter is configurable only when the ALS mode is set to Manual Restart or Manual Restart for Test and when the laser status is Shutdown.

C.1.6.11  Protection Tab

The Protection tab allows you to view and update protection group information.

Table C-48 Field Descriptions for the Protection Tab

Field	Description
Protection Groups	Displays a list of available protection groups.
Protection Group Details	Displays details about the selected protection group.

C.1.6.12  J1 Path Trace Tab

The J1 Path Trace tab allows you to view and retrieve J1 path trace information.

Table C-49 Field Descriptions for the J1 Path Trace Tab

Field	Description
Port Number	Displays the port number.
STS/VC Number	Displays the STS or VC number.
Expected String	Displays the current expected string.
Received String	Displays the current received string.
Mode	Displays the path trace mode (Off/None, Auto, or Manual).
C2	Represents a machine-generated J1/J2 payload label byte.
Display	Click the Display button to view the circuit trace information. See 7.2.22.2  Viewing a J1 Path Trace from the NE Explorer, page 7-141 for more information.
Retrieve	Click the Retrieve button to retrieve J1 path trace information.

C.1.6.13  Section Trace Tab

The Section Trace tab is used to provision section trace.

Table C-50 Field Descriptions for the Section Trace Tab

Field	Description
Port No.	Displays the port number.
Trace Mode	Displays the trace mode (Off/None or Manual).
Disable AIS/RDI on TIM-S	Allows you to disable the Alarm Indication Signal (AIS) and the Remote Defect Indication (RDI) when the path Trace Identifier Mismatch Section (TIM-S) alarm is detected.
Transmit Length	Select a transmit length for the trace.
Current Transmit String	Displays the current transmit string. The trail trace identifier is 64 bytes in length.
Current Expected String	Displays the current expected string; sets a new expected string.
Current Received String	Displays the current received string.

---

Note See Table 1-22 on page 1-46 for descriptions of actions that can be performed using the buttons at the bottom of the window.

---

C.1.7  Slot Properties—CTX-CL600

The Slot Properties pane displays information about the Cisco ONS 15310 CL slot that is selected in the NE Explorer tree. Use this properties pane to change the module performance monitoring thresholds.

The CTX-CL600 card is an unpluggable card on the ONS 15310 CL NE. It has a total of 26 ports that are either mounted or pluggable.

For the CTX-CL600 module, the Slot Properties pane displays the following tabs: Module View, Identification, Wideband Ports, Broadband Ports, Pluggable Provisioning, DS-1, DS-3, EC1, Optical, Alarm Extenders, and Info.

C.1.7.1  Module View Tab

The Module View tab displays a graphic of the CTX-CL600 that is installed in the slot. The number of critical, major, minor, and warning alarms for the module is displayed under Alarm Status. (Alarms are also displayed when you move the mouse pointer over the graphic.) The Suppress Alarms check box is display-only and indicates whether all alarms are suppressed for the card and its port(s). Right-clicking the graphic opens a shortcut menu that you can use to reset or delete the card.

C.1.7.2  Identification Tab

The Identification tab allows you to view and update CTX-CL600 identification information.

Table C-51 Field Descriptions for the Identification Tab

Field	Description
Equipment Type	Displays the equipment type that the slot is provisioned for.
Actual Equipment Type	Displays the actual card that is installed in the slot.
Hardware Part Number	Displays the part number that is printed on the top of the card.
Hardware Revision	Displays the hardware revision number.
Serial Number	Displays the serial number that is unique to each card.
CLEI Code	Displays the CLEI code.
Firmware Version	Displays the revision number of the software used by the ASIC chip installed on the card.
Administration State	Select the designation that determines whether an entity is in service or out of service. The Administration State is the driver for the Service state.
Service State	An autonomously generated state that gives the overall condition of the entity. Service states appear in the format Administrative_State-Operational_State, Status_Attribute.
Equipment State	Displays the equipment state of the card.
Alarm Profile	Sets the alarm profile for the port.
Suppress Alarms	Check the Suppress Alarms check box to suppress all alarms for this card and its port(s).

C.1.7.3  Wideband Ports Tab

The Wideband Ports tab allows you to view the wideband port information.

Table C-52 Field Descriptions for the Wideband Ports Tab

Field	Description
Port Number	Displays the port number.
Rate	Displays the rate that the slot is provisioned for.

C.1.7.4  Broadband Ports Tab

The Broadband Ports tab allows you to view, create, and delete DS-3 and EC1 broadband ports.

Table C-53 Field Descriptions for the Broadband Ports Tab

Field	Description
Create	Click the Create button to launch the Create Port dialog box and create a new broadband port. Use the Port Number drop-down list to choose an available port. Use the Port Rate drop-down list to specify the port rate (DS-3 or EC1). After making your selections, click OK.
Delete	Click the Delete button to delete an existing DS-3 or EC1 broadband port.
DS-3
Port Number	Displays the DS-3 port number.
Rate	Displays the rate that the slot is provisioned for.
EC1
Port Number	Displays the EC1 port number.
Rate	Displays the rate that the slot is provisioned for.

C.1.7.5  Pluggable Provisioning Tab

The Pluggable Provisioning tab allows you to view and provision pluggable entities; for example, the pluggable port module (PPM) and pluggable I/O module (PIM) and the ports inside these entities.

Table C-54 Field Descriptions for the Pluggable Provisioning Tab

Field	Description
Pluggable Number	Displays the identifier of the plugin module.
Actual Equipment Type	Displays the actual card that is installed in the slot.
Administration State	Select the designation that determines whether an entity is in service or out of service. The Administration State is the driver for the Service state.
Service State	An autonomously generated state that gives the overall condition of the entity. Service states appear in the format Administrative_State-Operational_State, Status_Attribute.
Equipment State	Displays the equipment state of the card.
Pluggable Number	Displays the identifier of the plugin module and the port number.
Rate	Displays the rate of the port inside the pluggable entity.

C.1.7.5.1  Provision Pluggable Dialog Box

Click the Create button to launch the Provision Pluggable dialog box. This dialog box allows you to provision pluggable entities such as the PPM and PIM, and to create the ports inside these entities. Table C-55 describes the fields displayed in the Provision Pluggable dialog box when provisioning a PPM. Table C-56 applies only to the ONS 15600 SONET/SDH ASAP_4 card and describes the fields displayed in the Provision Pluggable dialog box when provisioning a PIM. Table C-57 describes the fields displayed in the Provision Pluggable dialog box when provisioning a PPM. Table C-58 describes the fields displayed in the Provision Pluggable dialog box when creating the ports inside the PPM and PIM.

Table C-55 Field Descriptions for the Provision Pluggable Dialog Box—PPM

Field	Description
PPM #	Sets the PPM number.
No. of Ports	Sets the number of ports inside the PPM.
PPM Type	Sets the type of PPM.

Table C-56 Field Descriptions for the Provision Pluggable Dialog Box—PIM (ONS 15600 SONET/SDH ASAP_4 Card)

Field	Description
PIM #	Sets the PIM number.
No. of Ports	Sets the number of ports inside the PIM.
PIM Type	Sets the type of PIM.

Table C-57 Field Descriptions for the Provision Pluggable Dialog Box—PPM (ONS 15454 SONET/SDH MRC-12 Card)

Field	Description
PPM	Select the PPM for which you want to create the port.
PPM Type	Sets the PPM type.

Table C-58 Field Descriptions for the Provision Pluggable Dialog Box

Field	Description
PPM	Select the PPM for which you want to create the port.
Port Number	Sets the port number.
Port Rate	Sets the rate of the new port.

C.1.7.6  DS-1 Tab

The DS-1 tab allows you to view node near-end and far-end performance on a DS-1 card to detect possible performance problems. The DS-1 tab contains the following subtabs:

•Line Config Subtab

•Line Thresh 15 Min Subtab

•Line Thresh 1 Day Subtab

•Electric Path Thresh 15 Min Subtab

•Electric Path Thresh 1 Day Subtab

•STS Thresh 15 Min Subtab

•STS Thresh 1 Day Subtab

•VT Thresh 15 Min Subtab

•VT Thresh 1 Day Subtab

•Alarm Behavior Subtab

•Loopback Subtab

•J1 Path Trace Subtab

•Customer Info Subtab

C.1.7.6.1  Line Config Subtab

The Line Config subtab allows you to view and change the line settings of the DS-1 card.

Table C-59 Field Descriptions for the Line Config Subtab

Field	Description
Port Name	Allows you to add a name for the optical port.
Line Type	Allows you to select the line framing type.
Line Coding	Allows you to define the DS-1 transmission coding type.
Line Length	Defines the distance (in feet) from backplane connection to the next termination point. •0-131 (Cisco default) •132-262 •263-393 •394-524 •525-655
Administration State	Displays the status of the line: In Service (IS), In Service-Auto In Service Soak (IS_AINS), Out of Service (OOS), or Out of Service-Maintenance (OOS_MT).
AINS Soak	Automatic in-service soak. The determination of duration left before the traffic/termination transitions to IS state.
AINS Soak Count Down	Automatic in-service soak countdown. Displays the remaining time of valid input signal in hh:mm format, after which the card becomes in service (IS) automatically.
SF BER	Sets the signal fail bit error rate.
SD BER	Sets the signal degrade bit error rate.
Send Do Not Use	When checked, sends a do not use (DUS) message on the S1 byte.
Provide Sync	If checked, the card is provisioned as an NE timing reference.
Enable Sync Message	When checked, enables synchronization status messages, which allow the node to choose the best timing source.
Enable Retiming	When checked, enables retiming. Retiming removes accumulated jitter and wander from synchronous transport network payload signals. Retiming should not be enabled when accumulated jitter and wander is not present.
Service State	An autonomously generated state that gives the overall condition of the entity. Service states appear in the format Administrative_State-Operational_State, Status_Attribute.
Send AIS-V for DS-1 AIS	When checked, sends an Alarm Indication Signal VT (AIS-V) instead of a DS-1 AIS (from the line side toward the backplane/system side) when a line-side trigger occurs.
Raise AIS for LOF	Sends an AIS when a Loss of Frame (LOF) occurs.

C.1.7.6.2  Line Thresh 15 Min Subtab

The Line Thresh 15 Min subtab allows you to view and change the near- and far-end 15-minute threshold settings of the DS-1 card.

Table C-60 Field Descriptions for the Line Thresh 15 Min Subtab

Field	Description
Near End
Port Number	Displays the optical port number.
CV-L	Displays the coding violations-line.
ES-L	Displays the errored seconds-line.
SES-L	Displays the severely errored seconds-line.
LOSS-L	Displays the loss of signal seconds-line.
Far End
Port Number	Displays the optical port number.
ES-L	Displays the errored seconds-line.

C.1.7.6.3  Line Thresh 1 Day Subtab

The Line Thresh 1 Day subtab allows you to view and change the near- and far-end 1-day threshold settings of the DS-1 card.

Table C-61 Field Descriptions for the Line Thresh 1 Day Subtab

Field	Description
Near End
Port Number	Displays the optical port number.
CV-L	Displays the coding violations-line.
ES-L	Displays the errored seconds-line.
SES-L	Displays the severely errored seconds-line.
LOSS-L	Displays the loss of signal seconds-line.
Far End
Port Number	Displays the optical port number.
ES-L	Displays the errored seconds-line.

C.1.7.6.4  Electric Path Thresh 15 Min Subtab

The Electric Path Thresh 15 Min subtab allows you to view and change the near- and far-end 15-minute electrical path threshold settings for the DS-1 card.

Table C-62 Field Descriptions for the Electric Path Thresh 15 Min Subtab

Field	Description
Near End
Port No.	Displays the port number.
CV-P	Displays coding violations-path information.
ES-P	Displays errored seconds-path information.
SES-P	Displays severely errored seconds-path information.
SAS-P	Displays severely errored frame/alarm indication signal-path information.
AISS-P	Displays alarm indication signal seconds-path information.
UAS-P	Displays unavailable seconds-path information.
FC-P	Displays failure count-path information.
Far End
Port No.	Displays the port number.
CV-P	Displays coding violations-path information.
ES-P	Displays errored seconds-path information.
SES-P	Displays severely errored seconds-path information.
UAS-P	Displays unavailable seconds-path information.
ESA-P	Displays errored seconds type A-path information.
ESB-P	Displays errored seconds type B-path information.
CSS-P	Displays controlled slip seconds-path information.
SEFS-P	Displays severely errored framing seconds-path information.

C.1.7.6.5  Electric Path Thresh 1 Day Subtab

The Electric Path Thresh 1 Day subtab allows you to view and change the near- and far-end 1-day electrical path threshold settings for the DS-1 card.

Table C-63 Field Descriptions for the Electric Path Thresh 1 Day Subtab

Field	Description
Near End
Port No.	Displays the port number.
CV-P	Displays coding violations-path information.
ES-P	Displays errored seconds-path information.
SES-P	Displays severely errored seconds-path information.
SAS-P	Displays severely errored frame/alarm indication signal-path information.
AISS-P	Displays alarm indication signal seconds-path information.
UAS-P	Displays unavailable seconds-path information.
FC-P	Displays failure count-path information.
Far End
Port No.	Displays the port number.
CV-P	Displays coding violations-path information.
ES-P	Displays errored seconds-path information.
SES-P	Displays severely errored seconds-path information.
UAS-P	Displays unavailable seconds-path information.
ESA-P	Displays errored seconds type A-path information.
ESB-P	Displays errored seconds type B-path information.
CSS-P	Displays controlled slip seconds-path information.
SEFS-P	Displays severely errored framing seconds-path information.

C.1.7.6.6  STS Thresh 15 Min Subtab

The STS Thresh 15 Min subtab allows you to view and change near- and far-end 15-minute STS information for the DS-1 card.

Table C-64 Field Descriptions for the STS Thresh 15 Min Subtab

Field	Description
Near End
STS Number	Displays the synchronous transport signal number.
CV-P	Displays coding violations-path information.
ES-P	Displays errored seconds-path information.
SES-P	Displays severely errored seconds-path information.
UAS-P	Displays unavailable seconds-path information.
FC-P	Displays failure count-path information.
Far End
STS Number	Displays the synchronous transport signal number.
CV-P	Displays coding violations-path information.
ES-P	Displays errored seconds-path information.
SES-P	Displays severely errored seconds-path information.
UAS-P	Displays unavailable seconds-path information.
FC-P	Displays failure count-path information.

C.1.7.6.7  STS Thresh 1 Day Subtab

The STS Thresh 1 Day subtab allows you to view and change near- and far-end 1-day STS information for the DS-1 card.

Table C-65 Field Descriptions for the STS Thresh 1 Day Subtab

Field	Description
Near End
STS Number	Displays the synchronous transport signal number.
CV-P	Displays coding violations-path information.
ES-P	Displays errored seconds-path information.
SES-P	Displays severely errored seconds-path information.
UAS-P	Displays unavailable seconds-path information.
FC-P	Displays failure count-path information.
Far End
STS Number	Displays the synchronous transport signal number.
CV-P	Displays coding violations-path information.
ES-P	Displays errored seconds-path information.
SES-P	Displays severely errored seconds-path information.
UAS-P	Displays unavailable seconds-path information.
FC-P	Displays failure count-path information.

C.1.7.6.8  VT Thresh 15 Min Subtab

The VT Thresh 15 Min subtab displays near- and far-end 15-minute VT threshold information.

Table C-66 Field Descriptions for the VT Thresh 15 Min Subtab

Field	Description
Near End
VT Number	Displays VT number information.
CV-V	Displays coding violations-VT path information.
ES-V	Displays errored seconds-VT path information.
SES-V	Displays severely errored seconds-VT path information.
UAS-V	Displays unavailable seconds-VT path information.
Far End
VT Number	Displays VT number information.
CV-V	Displays coding violations-VT path information.
ES-V	Displays errored seconds-VT path information.
SES-V	Displays severely errored seconds-VT path information.
UAS-V	Displays unavailable seconds-VT path information.

C.1.7.6.9  VT Thresh 1 Day Subtab

The VT Thresh 1 Day subtab displays near- and far-end 1-day VT threshold information.

Table C-67 Field Descriptions for the VT Thresh 1 Day Subtab

Field	Description
Near End
VT Number	Displays VT number information.
CV-V	Displays coding violations-VT path information.
ES-V	Displays errored seconds-VT path information.
SES-V	Displays severely errored seconds-VT path information.
UAS-V	Displays unavailable seconds-VT path information.
Far End
VT Number	Displays VT number information.
CV-V	Displays coding violations-VT path information.
ES-V	Displays errored seconds-VT path information.
SES-V	Displays severely errored seconds-VT path information.
UAS-V	Displays unavailable seconds-VT path information.

C.1.7.6.10  Alarm Behavior Subtab

The Alarm Behavior subtab allows you to view and update DS-1 alarm profile information.

Table C-68 Field Descriptions for the Alarm Behavior Subtab

Field	Description
Alarm Profile	Select the alarm profile for the port.
Suppress Alarms	Check the Suppress Alarms check box to suppress all alarms for this card and its port(s).
Port Number	Displays the port number.
Alarm Profile	Displays the alarm profile for the port.
Suppress Alarms	Check the Suppress Alarms check box to suppress all alarms for this card and its port(s).
Force to All Ports	When clicked, forces all the ports to the selected alarm profile.

C.1.7.6.11  Loopback Subtab

The Loopback subtab allows you to view and update DS-1 loopback information.

Table C-69 Field Descriptions for the Loopback Subtab

Field	Description
Line Number	Displays the line number.
Administration State	Allows you to configure the status of the line. The line can be In Service (IS), In Service-Auto In Service Soak (IS_AINS), Out of Service (OOS), or Out of Service-Maintenance (OOS_MT)
Loopback Type	Allows you to configure a port to terminal loopback (Inward) or Facility (Line), or clear the current loopback (none). Note The line state must be OOS_MT before you can configure the loopback type.
Service State	An autonomously generated state that gives the overall condition of the entity. Service states appear in the format Administrative_State-Operational_State, Status_Attribute.
Send Code	Allows you to send loopback commands to the far end.
Send AIS on Facility Loopback	When selected, sends AIS on the facility loopback.
Send AIS on Terminal Loopback	When selected, sends AIS on the terminal loopback.

C.1.7.6.12  J1 Path Trace Subtab

The J1 Path Trace subtab allows you to view and retrieve J1 path trace information.

Table C-70  Field Descriptions for the J1 Path Trace Subtab

Field	Description
Port Number	Displays the port number.
STS Number	Displays the synchronous transport signal number.
Expected String	Displays the current expected string.
Received String	Displays the current received string.
Mode	Displays the path trace mode (Off/None, Auto, or Manual).
C2	Represents a machine-generated J1/J2 payload label byte.
Display	Click the Display button to view the circuit trace information. See 7.2.22.2  Viewing a J1 Path Trace from the NE Explorer, page 7-141 for more information.
Retrieve	Click the Retrieve button to retrieve J1 path trace information.

C.1.7.6.13  Customer Info Subtab

The Customer Info subtab displays customer information.

Table C-71 Field Descriptions for the Customer Info Subtab

Field	Description
STS Number, VT Number	Displays the STS or VT number.
Customer ID	The customer ID.
Service ID	The service ID.

C.1.7.7  DS-3 Tab

The DS-3 tab allows you to view node near-end and far-end performance on a DS-3 card to detect possible performance problems. The DS-3 tab contains the following subtabs:

•Line Config Subtab

•Line Thresh 15 Min Subtab

•Line Thresh 1 Day Subtab

•PBit Thresh 15 Min Subtab

•PBit Thresh 1 Day Subtab

•CPBit Thresh 15 Min Subtab

•CPBit Thresh 1 Day Subtab

•STS Thresh 15 Min Subtab

•STS Thresh 1 Day Subtab

•Alarm Behavior Subtab

•Loopback Subtab

•J1 Path Trace Subtab

•Customer Info Subtab

C.1.7.7.1  Line Config Subtab

The Line Config subtab allows you to view and change the line settings of the DS-3 card.

Table C-72 Field Descriptions for the Line Config Subtab

Field	Description
Port Number	Displays the port number for the optical port.
Port Name	Allows you to add a name for the optical port.
SF BER	Sets the signal fail bit error rate.
SD BER	Sets the signal degrade bit error rate.
Line Length	Defines the distance (in feet) from backplane connection to the next termination point. •0 - 225 (default) •226 - 450
Line Type	Allows you to select the line framing type.
Line Coding	Allows you to define the transmission coding type.
Administration State	Displays the status of the line. The line can be In Service (IS), In Service-Auto In Service Soak (IS_AINS), Out of Service (OOS), or Out of Service-Maintenance (OOS_MT).
AINS Soak	Automatic in-service soak. The determination of duration left before the traffic/termination transitions to IS state.
AINS Soak Count Down	Automatic in-service soak countdown. Displays the remaining time of valid input signal in hh:mm format, after which the card becomes in service (IS) automatically.
Service State	An autonomously generated state that gives the overall condition of the entity. Service states appear in the format Administrative_State-Operational_State, Status_Attribute.

C.1.7.7.2  Line Thresh 15 Min Subtab

The Line Thresh 15 Min subtab allows you to view and change the near- and far-end 15-minute threshold settings of the DS-3 card.

Table C-73 Field Descriptions for the Line Thresh 15 Min Subtab

Field	Description
Port Number	Displays the optical port number.
CV-L	Displays the coding violations-line (near-end only).
ES-L	Displays the errored seconds-line.
SES-L	Displays the severely errored seconds-line (near-end only).
LOSS-L	Displays the loss of signal seconds-line (near-end only).

C.1.7.7.3  Line Thresh 1 Day Subtab

The Line Thresh 1 Day subtab allows you to view and change the near- and far-end 1-day threshold settings of the DS-3 card.

Table C-74 Field Descriptions for the Line Thresh 1 Day Subtab

Field	Description
Port Number	Displays the optical port number.
CV-L	Displays the coding violations-line (near-end only).
ES-L	Displays the errored seconds-line.
SES-L	Displays the severely errored seconds-line (near-end only).
LOSS-L	Displays the loss of signal seconds-line (near-end only).

C.1.7.7.4  PBit Thresh 15 Min Subtab

The PBit Thresh 15 Min subtab displays near-end 15-minute PBit path threshold information on the DS-3 card.

Table C-75 Field Descriptions for the PBit Thresh 15 Min Subtab

Field	Description
Near End
Port No.	Displays the optical port number.
CV-P	Displays coding violations-path information.
ES-P	Displays errored seconds-path information.
SES-P	Displays severely errored seconds-path information.
SAS-P	Severely errored frame/alarm indication signal-path
AISS-P	Alarm indication signal seconds-path
UAS-P	Displays unavailable seconds-path information.

C.1.7.7.5  PBit Thresh 1 Day Subtab

The PBit Thresh 1 Day subtab displays near- and far-end 1-day PBit path threshold information on the DS-3 card.

Table C-76 Field Descriptions for the PBit Thresh 1 Day Subtab

Field	Description
Near End
Port No.	Displays the optical port number.
CV-P	Displays coding violations-path information.
ES-P	Displays errored seconds-path information.
SES-P	Displays severely errored seconds-path information.
SAS-P	Severely errored frame/alarm indication signal-path information.
AISS-P	Alarm indication signal seconds-path
UAS-P	Displays unavailable seconds-path information.

C.1.7.7.6  CPBit Thresh 15 Min Subtab

The CPBit Thresh 15 Min subtab displays near- and far-end 15-minute CPBit path threshold information on the DS-3 card.

Table C-77 Field Descriptions for the CPBit Thresh 15 Min Subtab

Field	Description
Near End
Port No.	Displays the optical port number.
CV-P	Displays coding violations-path information.
ES-P	Displays errored seconds-path information.
SES-P	Displays severely errored seconds-path information.
UAS-P	Displays unavailable seconds-path information.
Far End
Port No.	Displays the optical port number.
CV-P	Displays coding violations-path information.
ES-P	Displays errored seconds-path information.
SES-P	Displays severely errored seconds-path information.
SAS-P	Displays severely errored frame/alarm indication signal-path information.
UAS-P	Displays unavailable seconds-path information.

C.1.7.7.7  CPBit Thresh 1 Day Subtab

The CPBit Thresh 1 Day subtab displays near- and far-end 1-day CPBit path threshold information on the DS-3 card.

Table C-78 Field Descriptions for the CPBit Thresh 1 Day Subtab

Field	Description
Near End
Port No.	Displays the optical port number.
CV-P	Displays coding violations-path information.
ES-P	Displays errored seconds-path information.
SES-P	Displays severely errored seconds-path information.
UAS-P	Displays unavailable seconds-path information.
Far End
Port No.	Displays the optical port number.
CV-P	Displays coding violations-path information.
ES-P	Displays errored seconds-path information.
SES-P	Displays severely errored seconds-path information.
SAS-P	Displays severely errored frame/alarm indication signal-path information.
UAS-P	Displays unavailable seconds-path information.

C.1.7.7.8  STS Thresh 15 Min Subtab

The STS Thresh 15 Min subtab allows you to view and change near- and far-end 15-minute STS information on the card.

Table C-79 Field Descriptions for the STS Thresh 15 Min Subtab

Field	Description
Near End
STS Number	Displays the synchronous transport signal number.
CV-P	Displays coding violations-path information.
ES-P	Displays errored seconds-path information.
SES-P	Displays severely errored seconds-path information.
UAS-P	Displays unavailable seconds-path information.
FC-P	Displays failure count-path information.
Far End
STS Number	Displays the synchronous transport signal number.
CV-P	Displays coding violations-path information.
ES-P	Displays errored seconds-path information.
SES-P	Displays severely errored seconds-path information.
UAS-P	Displays unavailable seconds-path information.
FC-P	Displays failure count-path information.

C.1.7.7.9  STS Thresh 1 Day Subtab

The STS Thresh 1 Day subtab allows you to view and change near- and far-end 1-day STS information on the DS-3 card.

Table C-80 Field Descriptions for the STS Thresh 1 Day Subtab

Field	Description
Near End
STS Number	Displays the synchronous transport signal number.
CV-P	Displays coding violations-path information.
ES-P	Displays errored seconds-path information.
SES-P	Displays severely errored seconds-path information.
UAS-P	Displays unavailable seconds-path information.
FC-P	Displays failure count-path information.
Far End
STS Number	Displays the synchronous transport signal number.
CV-P	Displays coding violations-path information.
ES-P	Displays errored seconds-path information.
SES-P	Displays severely errored seconds-path information.
UAS-P	Displays unavailable seconds-path information.
FC-P	Displays failure count-path information.

C.1.7.7.10  Alarm Behavior Subtab

The Alarm Behavior subtab allows you to view and update DS-3 alarm profile information.

Table C-81 Field Descriptions for the Alarm Behavior Subtab

Field	Description
Alarm Profile	Select the alarm profile for the port.
Suppress Alarms	Check the Suppress Alarms check box to suppress all alarms for this card and its port(s).
Port Number	Displays the port number.
Alarm Profile	Displays the alarm profile for the port.
Suppress Alarms	Check the Suppress Alarms check box to suppress all alarms for this card and its port(s).
Force to All Ports	When clicked, forces all the ports to the selected alarm profile.

C.1.7.7.11  Loopback Subtab

The Loopback subtab allows you to view and update DS-3 loopback information.

Table C-82  Field Descriptions for the Loopback Subtab

Field	Description
Port Number	Displays the port number.
Administration State	Displays the status of the line. The line can be In Service (IS), In Service-Auto In Service Soak (IS_AINS), Out of Service (OOS), or Out of Service-Maintenance (OOS_MT).
Loopback Type	Allows you to configure a port to terminal loopback (Inward) or Facility (Line), or clear the current loopback (none). Note The line state must be OOS_MT before you can configure the loopback type.
Inhibit FE Loopback	When selected, inhibits far-end loopback.
Service State	An autonomously generated state that gives the overall condition of the entity. Service states appear in the format Administrative_State-Operational_State, Status_Attribute.
Send AIS on Facility Loopback	When selected, sends AIS on the facility loopback.
Send AIS on Terminal Loopback	When selected, sends AIS on the terminal loopback.

C.1.7.7.12  J1 Path Trace Subtab

The J1 Path Trace subtab allows you to view and retrieve J1 path trace information.

Table C-83  Field Descriptions for the J1 Path Trace Subtab

Field	Description
Port Number	Displays the port number.
STS Number	Displays the synchronous transport signal number.
Expected String	Displays the current expected string.
Received String	Displays the current received string.
Mode	Displays the path trace mode (Off/None, Auto, or Manual).
C2	Represents a machine-generated J1/J2 payload label byte.
Display	Click the Display button to view the circuit trace information. See 7.2.22.2  Viewing a J1 Path Trace from the NE Explorer, page 7-141 for more information.
Retrieve	Click the Retrieve button to retrieve J1 path trace information.

C.1.7.7.13  Customer Info Subtab

The Customer Info subtab displays customer information.

Table C-84 Field Descriptions for the Customer Info Subtab

Field	Description
STS Number	Displays the STS number.
Customer ID	The customer ID.
Service ID	The service ID.

C.1.7.8  EC1 Tab

The EC1 tab allows you to view node near-end and far-end performance on an EC1 card to detect possible performance problems. The EC1 tab contains the following subtabs:

•Line Config Subtab

•Line Thresh 15 Min Subtab

•Line Thresh 1 Day Subtab

•Section Thresh 15 Min Subtab

•Section Thresh 1 Day Subtab

•Path Thresh 15 Min Subtab

•Path Thresh 1 Day Subtab

•STS Config Subtab

•Alarm Behavior Subtab

•Loopback Subtab

•J1 Path Trace Subtab

•Customer Info Subtab

C.1.7.8.1  Line Config Subtab

The Line Config subtab allows you to view and change the line settings of the EC1 card.

Table C-85 Field Descriptions for the Line Config Subtab

Field	Description
Port Number	Displays the port number for the optical port.
Port Name	Allows you to add a name for the optical port.
SD BER	Sets the signal degrade bit error rate.
SF BER	Sets the signal fail bit error rate.
PJSTSMon#	Sets the STS that will be used for pointer justification. If set to 0, no STS is monitored. Only one STS can be monitored on each OC-N port. •0 (Cisco default)-3 (OC-3, per port) •0 (Cisco default)-12 (OC-12) •0 (Cisco default)-48 (OC-48)
Line Length (feet)	Defines the distance (in feet) from backplane connection to the next termination point. Values are 0 through 225 (Cisco default) or 226 through 450.
Rx Equalization	For early EC1 card versions, equalization can be turned off if the line length is short or the environment is extremely cold; Rx Equalization should normally be set to On (checked, Cisco default).
Administration State	Displays the status of the line. The line can be In Service (IS), In Service-Auto In Service Soak (IS_AINS), Out of Service (OOS), or Out of Service-Maintenance (OOS_MT).
AINS Soak	Automatic in-service soak. The determination of duration left before the traffic/termination transitions to IS state.
AINS Soak Count Down	Automatic in-service soak countdown. Displays the remaining time of valid input signal in hh:mm format, after which the card becomes in service (IS) automatically.
Service State	An autonomously generated state that gives the overall condition of the entity. Service states appear in the format Administrative_State-Operational_State, Status_Attribute.

C.1.7.8.2  Line Thresh 15 Min Subtab

The Line Thresh 15 Min subtab allows you to view and change the near- and far-end 15-minute threshold settings of the EC1 card.

Table C-86 Field Descriptions for the Line Thresh 15 Min Subtab

Field	Description
Near End
Port Number	Displays the optical port number.
ES-L	Displays the errored seconds-line.
SES-L	Displays the severely errored seconds-line.
CV-L	Displays the coding violations-line.
UAS-L	Displays unavailable seconds-line.
FC-L	Displays failure count-line.
Far End
Port Number	Displays the optical port number.
ES-L	Displays the errored seconds-line.
SES-L	Displays the severely errored seconds-line.
CV-L	Displays the coding violations-line.
UAS-L	Displays unavailable seconds-line.
FC-L	Displays failure count-line.

C.1.7.8.3  Line Thresh 1 Day Subtab

The Line Thresh 1 Day subtab allows you to view and change the near- and far-end 1-day threshold settings of the EC1 card.

Table C-87 Field Descriptions for the Line Thresh 1 Day Subtab

Field	Description
Near End
Port Number	Displays the optical port number.
ES-L	Displays the errored seconds-line.
SES-L	Displays the severely errored seconds-line.
CV-L	Displays the coding violations-line.
UAS-L	Displays the unavailable seconds-line.
FC-L	Displays the failure count-line.
Far End
Port Number	Displays the optical port number.
ES-L	Displays the errored seconds-line.
SES-L	Displays the severely errored seconds-line.
CV-L	Displays the coding violations-line.
UAS-L	Displays the unavailable seconds-line.
FC-L	Displays the failure count-line.

C.1.7.8.4  Section Thresh 15 Min Subtab

The Section Thresh 15 Min subtab allows you to view and change the near-end 15-minute section threshold information on the EC1 card.

Table C-88 Field Descriptions for the Section Thresh 15 Min Subtab

Field	Description
Near End
Port Number	Displays the port number.
CV-S	Displays the coding violations-section.
ES-S	Displays the errored seconds-section.
SES-S	Displays the severely errored seconds-section.
SEFS-S	Displays the severely errored framing seconds-section.

C.1.7.8.5  Section Thresh 1 Day Subtab

The Section Thresh 1 Day subtab allows you to view and change the near-end 1-day section threshold information on the EC1 card.

Table C-89 Field Descriptions for the Section Thresh 1 Day Subtab

Field	Description
Near End
Port Number	Displays the port number.
CV-S	Displays the coding violations-section.
ES-S	Displays the errored seconds-section.
SES-S	Displays the severely errored seconds-section.
SEFS-S	Displays the severely errored framing seconds-section.

C.1.7.8.6  Path Thresh 15 Min Subtab

The Path Thresh 15 Min subtab allows you to view and change near- and far-end 15-minute path threshold information on the EC1 card.

Table C-90 Field Descriptions for the Path Thresh 15 Min Subtab

Field	Description
Near End
STS Number	Displays the synchronous transport signal number.
CV-P	Displays coding violations-path information.
ES-P	Displays errored seconds-path information.
SES-P	Displays severely errored seconds-path information.
UAS-P	Displays unavailable seconds-path information.
FC-P	Displays failure count-path information.
PPJC-Pdet	Displays positive pointer justification count-VC4 path detected.
NPJC-Pdet	Displays negative pointer justification count-VC4 path detected.
PPJC-Pgen	Displays positive pointer justification count-VC4 path generated.
NPJC-Pgen	Displays negative pointer justification count-VC4 path generated.
PJCS-Pdet	Indicates the number of pointer justification count seconds (PJCS) detected on a particular path.
PJCS-Pgen	Indicates the number of pointer justification count seconds generated for a particular path.
PJC-Diff	Displays the sum of the absolute values of differences between positive transmitted and received, and negative transmitted and received. The important metric on pointer justification is not the exact counts, but how many were absorbed.
Far End
STS Number	Displays the synchronous transport signal number.
CV-P	Displays coding violations-path information.
ES-P	Displays errored seconds-path information.
SES-P	Displays severely errored seconds-path information.
UAS-P	Displays unavailable seconds-path information.
FC-P	Displays failure count-path information.
PPJC-Pdet	Displays positive pointer justification count-VC4 path detected.
NPJC-Pdet	Displays negative pointer justification count-VC4 path detected.
PPJC-Pgen	Displays positive pointer justification count-VC4 path generated.
NPJC-Pgen	Displays negative pointer justification count-VC4 path generated.
PJCS-Pdet	Indicates the number of pointer justification count seconds (PJCS) detected on a particular path.
PJCS-Pgen	Indicates the number of pointer justification count seconds generated for a particular path.
PJC-Diff	Displays the sum of the absolute values of differences between positive transmitted and received, and negative transmitted and received. The important metric on pointer justification is not the exact counts, but how many were absorbed.

C.1.7.8.7  Path Thresh 1 Day Subtab

The Path Thresh 1 Day subtab allows you to view and change near- and far-end 1-day path threshold information on the EC1 card.

Table C-91 Field Descriptions for the Path Thresh 1 Day Subtab

Field	Description
Near End
STS Number	Displays the synchronous transport signal number.
CV-P	Displays coding violations-path information.
ES-P	Displays errored seconds-path information.
SES-P	Displays severely errored seconds-path information.
UAS-P	Displays unavailable seconds-path information.
FC-P	Displays failure count-path information.
PPJC-Pdet	Displays positive pointer justification count-VC4 path detected.
NPJC-Pdet	Displays negative pointer justification count-VC4 path detected.
PPJC-Pgen	Displays positive pointer justification count-VC4 path generated.
NPJC-Pgen	Displays negative pointer justification count-VC4 path generated.
PJCS-Pdet	Indicates the number of pointer justification count seconds (PJCS) detected on a particular path.
PJCS-Pgen	Indicates the number of pointer justification count seconds generated for a particular path.
PJC-Diff	Displays the sum of the absolute values of differences between positive transmitted and received, and negative transmitted and received. The important metric on pointer justification is not the exact counts, but how many were absorbed.
Far End
STS Number	Displays the synchronous transport signal number.
CV-P	Displays coding violations-path information.
ES-P	Displays errored seconds-path information.
SES-P	Displays severely errored seconds-path information.
UAS-P	Displays unavailable seconds-path information.
PPJC-Pdet	Displays positive pointer justification count-VC4 path detected.
NPJC-Pdet	Displays negative pointer justification count-VC4 path detected.
PPJC-Pgen	Displays positive pointer justification count-VC4 path generated.
NPJC-Pgen	Displays negative pointer justification count-VC4 path generated.
PJCS-Pdet	Indicates the number of pointer justification count seconds (PJCS) detected on a particular path.
PJCS-Pgen	Indicates the number of pointer justification count seconds generated for a particular path.
PJC-Diff	Displays the sum of the absolute values of differences between positive transmitted and received, and negative transmitted and received. The important metric on pointer justification is not the exact counts, but how many were absorbed.

C.1.7.8.8  STS Config Subtab

The STS Config subtab allows you to view and change the STS settings of the EC1 card.

Table C-92 Field Descriptions for the STS Config Subtab

Field	Description
STS Number	Displays the synchronous transport signal number information.
IPPM Enabled	Check to enable intermediate path performance monitoring (IPPM) and uncheck to disable IPPM.

C.1.7.8.9  Alarm Behavior Subtab

The Alarm Behavior subtab allows you to view and change EC1 alarm profile information.

Table C-93 Field Descriptions for the Alarm Behavior Subtab

Field	Description
Alarm Profile	Select the alarm profile for the port.
Suppress Alarms	Check the Suppress Alarms check box to suppress all alarms for this card and its port(s).
Port Number	Displays the port number.
Alarm Profile	Displays the alarm profile for the port.
Suppress Alarms	Check the Suppress Alarms check box to suppress all alarms for this card and its port(s).
Force to All Ports	When clicked, forces all the ports to the selected alarm profile.

C.1.7.8.10  Loopback Subtab

The Loopback subtab allows you to view and change EC1 loopback information.

Table C-94 Field Descriptions for the Loopback Subtab

Field	Description
Port Number	Displays the port number.
Administration State	Displays the status of the line. The line can be In Service (IS), In Service-Auto In Service Soak (IS_AINS), Out of Service (OOS), or Out of Service-Maintenance (OOS_MT).
Loopback Type	Allows you to configure a port to terminal loopback (Inward) or Facility (Line), or clear the current loopback (none). Note The line state must be OOS_MT before you can configure the loopback type.
Service State	An autonomously generated state that gives the overall condition of the entity. Service states appear in the format Administrative_State-Operational_State, Status_Attribute.
Send AIS on Facility Loopback	When selected, sends AIS on the facility loopback.
Send AIS on Terminal Loopback	When selected, sends AIS on the terminal loopback.

C.1.7.8.11  J1 Path Trace Subtab

The J1 Path Trace subtab allows you to view and retrieve J1 path trace information.

Table C-95 Field Descriptions for the J1 Path Trace Subtab

Field	Description
Port Number	Displays the port number.
STS Number	Displays the synchronous transport signal number.
Expected String	Displays the current expected string.
Received String	Displays the current received string.
Mode	Displays the path trace mode (Off/None, Auto, or Manual).
C2	Represents a machine-generated J1/J2 payload label byte.
Display	Click the Display button to view the circuit trace information. See 7.2.22.2  Viewing a J1 Path Trace from the NE Explorer, page 7-141 for more information.
Retrieve	Click the Retrieve button to retrieve J1 path trace information.

C.1.7.8.12  Customer Info Subtab

The Customer Info subtab displays customer information.

Table C-96 Field Descriptions for the Customer Info Subtab

Field	Description
STS Number	Displays the STS number.
Customer ID	The customer ID.
Service ID	The service ID.

C.1.7.9  Optical Tab

The Optical tab allows you to view node near-end and far-end performance on an optical card to detect possible performance problems. The Optical tab contains the following subtabs:

•Line Config Subtab

•Line Thresh 15 Min Subtab

•Line Thresh 1 Day Subtab

•Section Thresh 15 Min Subtab

•Section Thresh 1 Day Subtab

•Physical Thresh 15 Min Subtab

•Physical Thresh 1 Day Subtab

•STS Config Subtab

•Alarm Behavior Subtab

•Loopback Subtab

•Auto Laser Shutdown Subtab

•Protection Subtab

•J1 Path Trace Subtab

•Customer Info Subtab

C.1.7.9.1  Line Config Subtab

The Line Config subtab allows you to view and change the line settings of an optical card.

Table C-97 Field Descriptions for the Line Config Subtab

Field	Description
Port Number	Displays the port number.
Port Name	Allows you to add a name for the optical port.
Port Rate	Sets the rate of the new port.
SD BER	Sets the signal degrade bit error rate.
SF BER	Sets the signal fail bit error rate.
Type	Defines the port as SONET or SDH.
PJSTSMon#	Sets the STS that will be used for pointer justification. If set to 0, no STS is monitored. Only one STS can be monitored on each OC-N port. •0 (Cisco default)-3 (OC-3, per port) •0 (Cisco default)-12 (OC-12) •0 (Cisco default)-48 (OC-48)
Provides Sync	If checked, the card is provisioned as an NE timing reference.
EnableSyncMsg	Enables synchronization status messages (S1 byte), which allow the node to choose the best timing source.
SendDoNotUse	When checked, sends a do not use (DUS) message on the S1 byte.
Administration State	Displays the status of the line. The line can be In Service (IS), In Service-Auto In Service Soak (IS_AINS), Out of Service (OOS), or Out of Service-Maintenance (OOS_MT).
AINS Soak	Automatic in-service soak. The determination of duration left before the traffic/termination transitions to IS state.
AINS Soak Count Down	Automatic in-service soak countdown. Displays the remaining time of valid input signal in hh:mm format, after which the card becomes in service (IS) automatically.
Service State	An autonomously generated state that gives the overall condition of the entity. Service states appear in the format Administrative_State-Operational_State, Status_Attribute.
Admin SSM	If the node does not receive an SSM signal, it defaults to synchronization traceability unknown (STU). Admin SSM allows you to override the STU value with one of the following: •PRS—Primary reference source (Stratum 1) •STS2—Stratum 2 •TNC—Transit node clock •STS3E—Stratum 3E •STS3—Stratum 3 •SMC—SONET minimum clock •ST4—Stratum 4
Send <FF> DoNotUse	When checked, sends a do not use (DUS) (0xff) message on the S1 byte.
Reach	Allows you to provision the reach value. You can choose Auto Provision, which allows the system to automatically provision the reach from the PPM reach value on the hardware. Choose one of the following reach distances: Note The reach distance options that appear in the drop-down list depend on the card selected. •SR (short reach, up to 2 km distance) •SR 1 (up to 2 km distance) •IR 1 (intermediate reach, up to 15 km distance) •IR 2 (up to 40 km distance) •LR 1 (long reach, up to 40 km distance) •LR 2 (up to 80 km distance) •LR 3 (up to 80 km distance) •I1 •S1 •S2 •L1 •L2 •L3 •SX (up to 550 m or 270 m distance based on 50 um/62.5 um diameter fiber) •LX (up to 10 km or 550 m distance based on 50 um/62.5 um diameter fiber) •CX •T •DX (up to 40 km distance) •HX (up to 40 km distance) •ZX (up to 80 km distance) •VX (up to 100 km distance)
Wavelength	Allows you to provision the wavelength frequency. The Wavelength column lists the correct wavelengths, depending on the type of card and the band selected.

C.1.7.9.2  Line Thresh 15 Min Subtab

The Line Thresh 15 Min subtab allows you to view and change the near- and far-end 15-minute threshold settings of an optical card.

Table C-98 Field Descriptions for the Line Thresh 15 Min Subtab

Field	Description
Near End
Port Number	Displays the optical port number.
ES-L	Displays the errored seconds-line.
SES-L	Displays the severely errored seconds-line.
CV-L	Displays the coding violations-line.
UAS-L	Displays unavailable seconds-line information.
FC-L	Failure count-line (FC-L) lists a count of the number of near-end line failure events. A failure event begins when an AIS-L failure is declared, or when a lower-layer, traffic-related, near-end failure is declared. This failure event ends when the failure is cleared. A failure event that begins in one period and ends in another period is counted only in the period where it begins.
PSC	In a 1 + 1 protection scheme for a working card, protection switching count (PSC) is a count of the number of times service switches from a working card to a protection card plus the number of times service switches back to the working card. For a protection card, PSC is a count of the number of times service switches to a working card from a protection card plus the number of times service switches back to the protection card. The PSC PM is only applicable if revertive line-level protection switching is used. PSC is supported in revertive and nonrevertive modes. Note This parameter is not supported for transponder or muxponder cards.
PSD	Protection switching duration (PSD) applies to the length of time, in seconds, that service is carried on another line. For a working line, PSD is a count of the number of seconds that service was carried on the protection line. For the protection line, it is a count of the seconds that the line was used to carry service. The PSD PM is only applicable if revertive line-level protection switching is used. PSD is supported in revertive and nonrevertive modes. Note This parameter is not supported for transponder or muxponder cards.
Far End
Port Number	Displays the optical port number.
ES-L	Displays the errored seconds-line.
SES-L	Displays the severely errored seconds-line.
CV-L	Displays the coding violations-line.
UAS-L	Displays unavailable seconds-line information.
FC-L	Failure count-line (FC-L) lists a count of the number of near-end line failure events. A failure event begins when an AIS-L failure is declared, or when a lower-layer, traffic-related, near-end failure is declared. This failure event ends when the failure is cleared. A failure event that begins in one period and ends in another period is counted only in the period where it begins.

C.1.7.9.3  Line Thresh 1 Day Subtab

The Line Thresh 1 Day subtab allows you to view and change the near- and far-end 1-day threshold settings of an optical card.

Table C-99 Field Descriptions for the Line Thresh 1 Day Subtab

Field	Description
Near End
Port Number	Displays the optical port number.
ES-L	Displays the errored seconds-line.
SES-L	Displays the severely errored seconds-line.
CV-L	Displays the coding violations-line.
UAS-L	Displays unavailable seconds-line information.
FC-L	Failure count-line (FC-L) lists a count of the number of near-end line failure events. A failure event begins when an AIS-L failure is declared, or when a lower-layer, traffic-related, near-end failure is declared. This failure event ends when the failure is cleared. A failure event that begins in one period and ends in another period is counted only in the period where it begins.
PSC	In a 1 + 1 protection scheme for a working card, protection switching count (PSC) is a count of the number of times service switches from a working card to a protection card plus the number of times service switches back to the working card. For a protection card, PSC is a count of the number of times service switches to a working card from a protection card plus the number of times service switches back to the protection card. The PSC PM is only applicable if revertive line-level protection switching is used. PSC is supported in revertive and nonrevertive modes. Note This parameter is not supported for transponder or muxponder cards.
PSD	Protection switching duration (PSD) applies to the length of time, in seconds, that service is carried on another line. For a working line, PSD is a count of the number of seconds that service was carried on the protection line. For the protection line, it is a count of the seconds that the line was used to carry service. The PSD PM is only applicable if revertive line-level protection switching is used. PSD is supported in revertive and nonrevertive modes. Note This parameter is not supported for transponder or muxponder cards.
Far End
Port Number	Displays the optical port number.
ES-L	Displays the errored seconds-line.
SES-L	Displays the severely errored seconds-line.
CV-L	Displays the coding violations-line.
UAS-L	Displays unavailable seconds-line information.
FC-L	Failure count-line (FC-L) lists a count of the number of near-end line failure events. A failure event begins when an AIS-L failure is declared, or when a lower-layer, traffic-related, near-end failure is declared. This failure event ends when the failure is cleared. A failure event that begins in one period and ends in another period is counted only in the period where it begins.

C.1.7.9.4  Section Thresh 15 Min Subtab

The Section Thresh 15 Min subtab allows you to view and change the near-end 15-minute section threshold settings of an optical card.

Table C-100 Field Descriptions for the Section Thresh 15 Min Subtab

Field	Description
Near End
Port Number	Displays the port number.
CV-S	Displays the coding violations-section.
ES-S	Displays the errored seconds-section.
SES-S	Displays the severely errored seconds-section.
SEFS-S	Displays the severely errored framing seconds-section.

C.1.7.9.5  Section Thresh 1 Day Subtab

The Section Thresh 1 Day subtab allows you to view and change the near-end 1-day section threshold settings of an optical card.

Table C-101 Field Descriptions for the Section Thresh 1 Day Subtab

Field	Description
Near End
Port Number	Displays the port number.
CV-S	Displays the coding violations-section.
ES-S	Displays the errored seconds-section.
SES-S	Displays the severely errored seconds-section.
SEFS-S	Displays the severely errored framing seconds-section.

C.1.7.9.6  Physical Thresh 15 Min Subtab

The Physical Thresh 15 Min subtab allows you to view and change 15-minute physical threshold information on an optical card.

Table C-102 Field Descriptions for the Physical Thresh 15 Min Subtab

Field	Description
Port No.	Pluggable entity number and port number.
LBC-HIGH	Maximum laser bias current. The Cisco default is (15 min): 200 percent.
LBC-LOW	Minimum laser bias current. The Cisco default is (15 min): 20 percent.
OPT-HIGH	Maximum optical power transmitted. The Cisco default is (15 min): 120 percent.
OPT-LOW	Minimum optical power transmitted. The Cisco default is (15 min): 80 percent.
OPR-HIGH	Maximum optical power received. The Cisco default is (15 min): 200 percent.
OPR-LOW	Minimum optical power received. The Cisco default is (15 min): 50 percent.
Set OPR	Setting the optical power received (OPR) establishes the received power level as 100 percent. If the received power decreases, then the OPR percentage decreases to reflect the loss in received power. For example, if the received power decreases 3 dBm, the OPR decreases 50 percent.

C.1.7.9.7  Physical Thresh 1 Day Subtab

The Physical Thresh 1 Day subtab allows you to view and change 1-day physical threshold information on an optical card.

Table C-103 Field Descriptions for the Physical Thresh 1 Day Subtab

Field	Description
Port No.	Pluggable entity number and port number.
LBC-HIGH	Maximum laser bias current. The Cisco default is (15 min): 200 percent.
LBC-LOW	Minimum laser bias current. The Cisco default is (15 min): 20 percent.
OPT-HIGH	Maximum optical power transmitted. The Cisco default is (15 min): 120 percent.
OPT-LOW	Minimum optical power transmitted. The Cisco default is (15 min): 80 percent.
OPR-HIGH	Maximum optical power received. The Cisco default is (15 min): 200 percent.
OPR-LOW	Minimum optical power received. The Cisco default is (15 min): 50 percent.
Set OPR	Setting the OPR establishes the received power level as 100 percent. If the received power decreases, then the OPR percentage decreases to reflect the loss in received power. For example, if the received power decreases 3 dBm, the OPR decreases 50 percent.

C.1.7.9.8  STS Config Subtab

The STS Config subtab allows you to view and change the STS settings of an optical card.

Table C-104  Field Descriptions for the STS Config Subtab

Field	Description
STS Number	Displays the synchronous transport signal number information.
IPPM Enabled	Check to enable IPPM and uncheck to disable IPPM.
XC Loopback	Displays the cross-connect loopback status.

C.1.7.9.9  Alarm Behavior Subtab

The Alarm Behavior subtab allows you to view and change optical card alarm profile information.

Table C-105  Field Descriptions for the Alarm Behavior Subtab

Field	Description
Alarm Profile	Select the alarm profile for the port.
Suppress Alarms	Check the Suppress Alarms check box to suppress all alarms for this card and its port(s).
Port Number	Displays the port number.
Alarm Profile	Displays the alarm profile for the port.
Suppress Alarms	Check the Suppress Alarms check box to suppress all alarms for this card and its port(s).
Force to All Ports	When clicked, forces all the ports to the selected alarm profile.

C.1.7.9.10  Loopback Subtab

The Loopback subtab allows you to view and change optical card loopback information.

Table C-106 Field Descriptions for the Loopback Subtab

Field	Description
Port Number	Displays the port number.
Administration State	Displays the status of the line. The line can be In Service (IS), In Service-Auto In Service Soak (IS_AINS), Out of Service (OOS), or Out of Service-Maintenance (OOS_MT).
Loopback Type	Allows you to configure a port to terminal loopback (Inward) or Facility (Line), or clear the current loopback (none). Note The line state must be OOS_MT before you can configure the loopback type.
Service State	An autonomously generated state that gives the overall condition of the entity. Service states appear in the format Administrative_State-Operational_State, Status_Attribute.
Send AIS on Facility Loopback	When selected, sends AIS on the facility loopback.
Send AIS on Terminal Loopback	When selected, sends AIS on the terminal loopback.

C.1.7.9.11  Auto Laser Shutdown Subtab

The Auto Laser Shutdown subtab allows you to view and update optical card auto laser shut down (ALS) parameters.

Table C-107 Field Descriptions for the Auto Laser Shutdown Subtab

Field	Description
Port Number	Displays the port number.
ASL Mode	Displays the auto laser shutdown mode (Disabled, Auto Restart, Manual Restart, or Manual Restart for Test).
Rec. Pulse Dur. (sec)	Allows you to set the received laser pulse duration, in seconds. The range is 2.0 to 100.0 seconds.
Rec. Pulse Int. (sec)	Allows you to set the received laser pulse interval, in seconds. The range is 60 to 300 seconds.
Status	Displays the current laser status. Values are Shutdown or Not Shutdown.
Request Restart	If selected, it allows you to request a laser restart. This parameter is configurable only when the ALS mode is set to Manual Restart or Manual Restart for Test and when the laser status is Shutdown.

C.1.7.9.12  Protection Subtab

The Protection subtab allows you to view and update protection group information.

Table C-108 Field Descriptions for the Protection Subtab

Field	Description
Protection Groups	Displays a list of available protection groups.
Protection Group Details	Displays details about the selected protection groups, such as which port is the protected port and which port is the working port. Also allows you to execute switch commands.
Switch Commands	Allows you to perform a manual switch, perform a forced switch, or clear the existing command switching.
Inhibit Switching	Allows you to inhibit unlock switching, lock-out switching, or lock-on switching.

C.1.7.9.13  J1 Path Trace Subtab

The J1 Path Trace subtab allows you to view and retrieve J1 path trace information.

Table C-109 Field Descriptions for the J1 Path Trace Subtab

Field	Description
Port Number	Displays the port number.
STS Number	Displays the synchronous transport signal number.
Expected String	Displays the current expected string.
Received String	Displays the current received string.
Mode	Displays the path trace mode (Off/None, Auto, or Manual).
C2	Represents a machine-generated J1/J2 payload label byte.
Display	Click the Display button to view the circuit trace information. See 7.2.22.2  Viewing a J1 Path Trace from the NE Explorer, page 7-141 for more information.
Retrieve	Click the Retrieve button to retrieve J1 path trace information.

C.1.7.9.14  Customer Info Subtab

The Customer Info subtab displays customer information.

Table C-110 Field Descriptions for the Customer Info Subtab

Field	Description
STS Number	Displays the STS number.
Customer ID	The customer ID.
Service ID	The service ID.

C.1.7.10  Alarm Extenders Tab

The Alarm Extenders tab allows you to view CTX-CL600 alarm information. The Alarm Extenders tab contains the following subtabs:

•External Alarms Subtab

•External Controls Subtab

C.1.7.10.1  External Alarms Subtab

The External Alarms subtab allows you to view and update external alarm information.

Table C-111 Field Descriptions for the External Alarms Subtab

Field	Description
Input Number	The alarm input number.
Enabled	Check to activate the fields for the alarm input number.
Alarm Type	Choose an alarm type from the provided list.
Severity	Choose a severity from the list.
Raised When	Choose the contact condition that will trigger the alarm in CTC.
Virtual Wire	To assign the external device to a virtual wire, choose a virtual wire from the list, or choose None if no assignment is required.
Description	A default description is provided in this line for every external alarm that is enabled.
Raised	Indicates if an alarm has been raised.
Contact Status	Indicates the current status of the contact.

C.1.7.10.2  External Controls Subtab

The External Controls subtab allows you to view and update external controls.

Table C-112 Field Descriptions for the External Controls Subtab

Field	Description
Control Number	The control number.
Enabled	Check to activate the fields for the control number.
Control Type	Choose a control type from the provided list.
Trigger Type	Choose a trigger type: a local minor, major, or critical alarm; a remote minor, major, or critical alarm; or a virtual wire activation.
Description	Enter a description.
Current State	The current state of the control.
Auto State	The auto state of the control.
Contact Setting	The current contact setting.

C.1.7.11  Info Tab

The Info tab allows you to view nominal operating values set during manufacturing for the CTX-CL600 module.

Table C-113 Field Descriptions for the Info Tab

Field	Description
Extended Manufacturing Information
Attribute	Displays the nominal card specification.
Value	Displays the value of the attribute.

---

Note See Table 1-22 on page 1-46 for descriptions of actions that can be performed using the buttons at the bottom of the window.

---

C.1.8  Slot Properties—EOI-W

The Slot Properties pane displays information about the Cisco ONS 15800 or ONS 15801 slot that is selected in the NE Explorer tree. Use this properties pane to change the module alarm thresholds and severities.

The ONS 15800 and ONS 15801 External Orderwire Interface (EOI-W) module provides an isolated interface between the Line Service Modem (LSM-W) module and an external orderwire terminal. All orderwire signals are transmitted from the LSM-W module to the EOI-W module. The EOI-W module provides two isolated, bidirectional, 64-kbps voice channels through the service line for the orderwire.

For EOI-W modules, the Slot Properties pane displays Module View and Identification tabs.

C.1.8.1  Module View Tab

The Module View tab displays a graphic of the EOI-W that is installed in the slot. The number of critical, major, minor, and warning alarms for the module is displayed under Alarm Status. (Alarms also display when you move the mouse over the graphic.) Right-clicking the graphic opens a shortcut menu that you can use to display the module in the Alarm Browser or in the Equipment Inventory table.

C.1.8.2  Identification Tab

The Identification tab allows you to view and update the EOI-W identification information.

Table C-114 Field Descriptions for the Identification Tab

Field	Description
NE ID	Displays the user-defined name of the NE where the EOI-W is installed.
Description	Displays information that a user has entered (if any) to describe the NE.
NE Model	Identifies the model of the selected NE (ONS 15800 or ONS 15801) where the EOI-W is installed.
Rack ID	Displays the identification number of the rack where the subrack containing the EOI-W is installed.
Subrack ID	Displays the identification number of the subrack.
Slot ID	Displays the identification number of the slot containing the EOI-W.
Software Version	Displays the version of the software running on the module.
BIOS Version	Displays the version number of the BIOS.
Board Serial Number	Displays the serial number of the board.
SCC Number	Displays the version of the module serial communication controller (SCC).
Product Option	Displays the product option. Displays "Not Available" if TL1 Agent version is earlier than version 2.1.
Hardware Version	Displays the version of the hardware. Displays "Not Available" if TL1 Agent version is earlier than version 2.1.
Line Direction	Shows the line direction for the EOI-W module.
State	Allows you to place the EOI-W module in one of two states: In Service or Under Maintenance.

---

Note See Table 1-22 on page 1-46 for descriptions of actions that can be performed using the buttons at the bottom of the window.

---

C.1.9  Slot Properties—FILLER

The Slot Properties pane displays information about the ONS 15310 CL, ONS 15310 MA, ONS 15454 SONET, ONS 15454 SDH, ONS 15600 SONET, or ONS 15600 SDH slot that is selected in the NE Explorer tree. For the FILLER module, the Slot Properties pane displays the Module View tab.

C.1.9.1  Module View Tab

The Module View tab displays a graphic of the FILLER card that is installed in the slot. The number of critical, major, minor, and warning alarms for the module is displayed under Alarm Status. (Alarms are also displayed when you move the mouse pointer over the graphic.) Right-clicking the graphic opens a shortcut menu that you can use to add a card.

C.1.10  Slot Properties—IOC-W

The Slot Properties pane displays information about the Cisco ONS 15800 or ONS 15801 slot that is selected in the NE Explorer tree. Use this properties pane to change the module alarm thresholds and severities.

ONS 15800 and ONS 15801 Input/Output Card (IOC-W) modules protect NEs by reporting indications from externally sensed equipment and housekeeping alarms. Alarms reported include AC power, DC power, fire, flood, open doors, and so on. The IOC-W module also permits remote control of isolated optical line amplifier (OLA) sites.

For IOC-W modules, the Slot Properties pane displays the following tabs: Module View, Identification, Analog, Digital Input, and Digital Output.

C.1.10.1  Module View Tab

The Module View tab displays a graphic of the IOC-W module that is installed in the slot. The number of critical, major, minor, and warning alarms for the module is displayed under Alarm Status. (Alarms are also displayed when you move the mouse pointer over the graphic.) Right-clicking the graphic opens a shortcut menu that you can use to display the module in the Alarm Browser or in the Equipment Inventory table.

C.1.10.2  Identification Tab

The Identification tab allows you to view and update IOC-W identification information.

Table C-115 Field Descriptions for the Identification Tab

Field	Description
NE ID	Displays the user-defined name of the NE where the IOC-W is installed.
Description	Displays information that a user has entered (if any) to describe the NE.
NE Model	Identifies the model of the selected NE (ONS 15800 or ONS 15801) where the IOC-W is installed.
Rack ID	Displays the identification number of the rack where the subrack containing the IOC-W is installed.
Subrack ID	Displays the identification number of the subrack.
Slot ID	Displays the identification number of the slot containing the IOC-W.
Software Version	Displays the version of the software running on the module.
BIOS Version	Displays the version number of the BIOS.
Board Serial Number	Displays the serial number of the board.
SCC Number	Displays the SCC version number.
Product Option	Displays the product option. Displays "Not Available" if TL1 Agent version is earlier than version 2.1.
Hardware Version	Displays the version of the hardware. Displays "Not Available" if TL1 Agent version is earlier than version 2.1.
Line Direction	Shows the line direction for the IOC-W.
State	Allows you to place the IOC-W in one of two states: In Service or Under Maintenance.
PM Collection Status	Allows you to enable or disable performance monitoring (PM) data collection for the IOC-W.

C.1.10.3  Analog Tab

The Analog tab allows you to assign high- and low-voltage thresholds and alarm severities for eight analog inputs.

---

Note Acceptable alarm severities are CR, MJ, and MN. NR and NA are not acceptable alarm severities.

---

Table C-116 Field Descriptions for the Analog Tab

Field	Description
General Analog Input 1-8
Value	When the Update button is clicked, displays the current voltage of the analog input.
Voltage High	Use the fields in this row to view or set the high voltage threshold (in volts), the alarm severity level, and a description for the analog input.
Voltage Low	Use the fields in this row to view or set the low voltage threshold (in volts), the alarm severity level, and a description for the analog input.
Name	Allows you to specify the name of the IOC-W module for which you want to view or provision analog inputs.

C.1.10.4  Digital Input Tab

The Digital Input tab allows you to assign the alarm input levels for up to 32 digital devices.

Table C-117 Field Descriptions for the Digital Input Tab

Field	Description
General Digital Input 1-32
General Digital Input	Displays the general input level for the digital input.
Alarm Severity	Sets the severity for alarms that occur for the digital input.
Name	Displays the name entered by the user for the digital input.
Description	Displays the description entered by the user for the digital input.

C.1.10.5  Digital Output Tab

The Digital Output tab allows you to assign the alarm output levels for up to 20 digital devices.

Table C-118 Field Descriptions for the Digital Output Tab

Field	Description
General Digital Output 1-20
General Digital Output	Displays the general output level for the digital output.
Name	Displays the name entered by the user for the digital output.

---

Note See Table 1-22 on page 1-46 for descriptions of actions that can be performed using the buttons at the bottom of the window.

---

C.1.11  Slot Properties—LSM-W

The Slot Properties pane displays information about the Cisco ONS 15800 or ONS 15801 slot that is selected in the NE Explorer tree. Use this properties pane to change the module performance monitoring thresholds.

The ONS 15800 and ONS 15801 Line Service Modem (LSM-W) module is a bidirectional optical module that operates at an E1 line rate (2.048 Mbps). It transports the optical service channel (OSC), which carries telemetry, supervision, user-defined information, and orderwire between ONS 15800 or ONS 15801 sites.

A block diagram is shown in the following figure.

Figure C-2 Cisco ONS 15800 or ONS 15801 Line Service Modem Module

For the LSM-W module, the Slot Properties pane displays the following tabs: Module View, Identification, Temperature, Current, and Output Power.

C.1.11.1  Module View Tab

The Module View tab displays a graphic of the LSM-W module that is installed in the slot. The number of critical, major, minor, and warning alarms for the module is displayed under Alarm Status. (Alarms are also displayed when you move the mouse pointer over the graphic.) Right-clicking the graphic opens a shortcut menu that you can use to display the module in the Alarm Browser or in the Equipment Inventory table.

C.1.11.2  Identification Tab

The Identification tab allows you to view and update LSM-W module identification information.

Table C-119 Field Descriptions for the Identification Tab

Field	Description
NE ID	Displays the user-defined name of the NE where the LSM-W is installed.
Description	Displays information that a user has entered (if any) to describe the NE.
NE Model	Identifies the model of the selected NE (ONS 15800 or ONS 15801) where the LSM-W is installed.
Rack ID	Displays the identification number of the rack where the subrack containing the LSM-W is installed.
Subrack ID	Displays the identification number of the subrack.
Slot ID	Displays the identification number of the slot containing the LSM-W.
Software Version	Displays the version of the software.
BIOS Version	Displays the version number of the BIOS.
Board Serial Number	Displays the serial number of the board.
SCC Number	Displays the version of the module serial communication controller (SCC).
Product Option	Displays the product option. Displays "Not Available" if the TL1 Agent version is earlier than version 2.1.
Hardware Version	Displays the version of the hardware. Displays "Not Available" if the TL1 Agent version is earlier than version 2.1.
Line Direction	Shows the line direction for the LSM-W.
State	Allows you to place the LSM-W in one of two states: In Service or Under Maintenance.
PM Collection Status	Allows you to enable or disable PM collection for the LSM-W.

C.1.11.3  Temperature Tab

The Temperature tab allows you to view and assign performance monitoring thresholds for the temperature of the east and west lasers of the LSM-W module.

Table C-120 Field Descriptions for the Temperature Tab

Field	Description
East Laser 1 Temperature
Value	When the Update button is clicked, displays the current temperature of East Laser 1.
Low	Sets the low temperature threshold for East Laser 1 (in degrees Celsius) and the alarm severity level.
High	Sets the high temperature threshold for East Laser 1 (in degrees Celsius) and the alarm severity level.
West Laser 2 Temperature
Value	When the Update button is clicked, displays the current temperature of West Laser 2.
Low	Sets the low temperature threshold for West Laser 2 (in degrees Celsius) and the alarm severity level.
High	Sets the high temperature threshold for West Laser 2 (in degrees Celsius) and the alarm severity level.

C.1.11.4  Current Tab

The Current tab allows you to assign performance monitoring thresholds for the line service east and west laser current levels of the LSM-W module.

Table C-121 Field Descriptions for the Current Tab

Field	Description
East Laser 1 Current
Value	When the Update button is clicked, displays the current value of the East Laser 1 current.
Low	Sets the low current threshold for East Laser 1 (in milliamperes [mA]) and the alarm severity level.
High	Sets the high current threshold for East Laser 1 (in mA) and the alarm severity level.
West Laser 2 Current
Value	When the Update button is clicked, displays the current value of the West Laser 2 current.
Low	Sets the low current threshold for West Laser 2 (in mA) and the alarm severity level.
High	Sets the high current threshold for West Laser 2 (in mA) and the alarm severity level.

C.1.11.5  Output Power Tab

The Output Power tab allows you to assign performance monitoring thresholds for the LSM-W module east and west laser output power levels.

Table C-122 Field Descriptions for the Output Power Tab

Field	Description
East Laser 1 Output Power
Value	When the Update button is clicked, displays the current output power of East Laser 1.
Low	Sets the low output power threshold for East Laser 1 (in dBm) and the alarm severity level.
High	Sets the high output power threshold East Laser 1 (in dBm) and the alarm severity level.
West Laser 2 Output Power
Value	When the Update button is clicked, displays the current output power of West Laser 2.
Low	Sets the low output power threshold for West Laser 2 (in dBm) and the alarm severity level.
High	Sets the high output power threshold for West Laser 2 (in dBm) and the alarm severity level.

---

Note See Table 1-22 on page 1-46 for descriptions of actions that can be performed using the buttons at the bottom of the window.

---

C.1.12  Slot Properties—MIC-28-3-A and MIC-28-3-B

The Slot Properties pane displays information about the Cisco ONS 15327 slot that is selected in the NE Explorer tree. Use this properties pane to change the module performance monitoring thresholds.

The MIC-28-3-A and MIC-28-3-B cards are the Mechanical Interface Cards (MICs). The MICs provide the physical connection points for the DS-1 and DS-3 interfaces on the XTC cards, the redundant power inputs, the alarm inputs and outputs, and the BITS timing inputs and outputs.

For the MIC module, the Slot Properties pane displays the following tabs: Module View and Identification.

C.1.12.1  Module View Tab

The Module View tab displays a graphic of the MIC that is installed in the slot. The number of critical, major, minor, and warning alarms for the module is displayed under Alarm Status. (Alarms are also displayed when you move the mouse pointer over the graphic.) The Suppress Alarms check box is display-only and indicates whether all alarms are suppressed for the card and its port(s). Right-clicking the graphic opens a shortcut menu that you can use to reset, delete, or change the card.

C.1.12.2  Identification Tab

The Identification tab allows you to view and update MIC identification information.

Table C-123 Field Descriptions for the Identification Tab

Field	Description
Equipment Type	Displays the equipment type the slot is provisioned for.
Actual Equipment Type	Displays the actual card that is installed in the slot.
Hardware Part Number	Displays the part number that is printed on the top of the card.
Hardware Revision	Displays the hardware revision number of the card.
Serial Number	Displays the serial number that is unique to each card.
CLEI Code	Displays the CLEI code.
Firmware Version	Displays the revision number of the software used by the ASIC chip installed on the card.
Product ID	Displays a product ID string of 63 characters maximum. If the card does not support the product ID, the field shows N/A.
Version ID	Displays a version ID string in the format "V99_." The version ID always begins with a V and ends with a space. If the card does not support the version ID, the field shows N/A.
Equipment State	Displays the equipment state of the card.
Alarm Profile	Sets the alarm profile for the port. Check the Suppress Alarms check box to suppress all alarms for this card and its port(s).

---

Note See Table 1-22 on page 1-46 for descriptions of actions that can be performed using the buttons at the bottom of the window.

---

C.1.13  Slot Properties—MMU (ONS 15454 SONET and ONS 15454 SDH)

The Slot Properties pane displays information about the Cisco ONS 15454 SONET or ONS 15454 SDH slot that is selected in the NE Explorer tree. Use this properties pane to change the module performance monitoring thresholds.

The Multi-Ring/Mesh Upgrade Unit (MMU) supports multiring and mesh upgrades for ROADM nodes in both the C band and the L band. Mesh/multiring upgrade is the capability to optically bypass a given wavelength from one section of the network or ring to another one without requiring 3R regeneration. In each node, you need to install two MMUs, one on the east side and one on the west side. You can install the MMU card in slots 1 through 6 and 12 through 17.

The MMU has six ports:

•EXP RX port—Receives the optical signal from the ROADM section available on the NE.

•EXP TX port—Sends the optical signal to the ROADM section available on the NE.

•EXP-A RX port—Receives the optical signal from the ROADM section available on other NEs or rings.

•EXP-A TX port—Sends the optical signal to the ROADM section available on other NEs or rings.

•COM TX port—Sends the optical signal to the fiber stage section.

•COM RX port—Receives the optical signal from the fiber stage section.

The card faceplate is shown in the following figure.

Figure C-3 MMU Faceplate and Ports

For the MMU module, the Slot Properties pane displays the following tabs: Module View, Identification, Optical Line, and Inventory.

C.1.13.1  Module View Tab

The Module View tab displays a graphic of the card that is installed in the slot. The number of critical, major, minor, and warning alarms for the module is displayed under Alarm Status. (Alarms are also displayed when you move the mouse pointer over the graphic.) The Suppress Alarms check box is display-only and indicates whether all alarms are suppressed for the card and its port(s). Right-clicking the graphic opens a shortcut menu that you can use to reset or delete the card.

C.1.13.2  Identification Tab

The Identification tab allows you to view and update card identification information.

Table C-124 Field Descriptions for the Identification Tab

Field	Description
Equipment Type	Displays the equipment type the slot is provisioned for.
Actual Equipment Type	Displays the actual card that is installed in the slot.
HW Part Number	Displays the part number that is printed on the top of the card.
Hardware Revision	Displays the hardware version number of the card.
Serial Number	Displays the serial number that is unique to each card.
CLEI Code	Displays the CLEI code.
Firmware Version	Displays the revision number of the software used by the ASIC chip installed on the card.
Product ID	Displays a product ID string of 63 characters maximum. If the card does not support the product ID, the field shows N/A.
Version ID	Displays a version ID string in the format "V99_." The version ID always begins with a V and ends with a space. If the card does not support the version ID, the field shows N/A.
Administration State	Displays the administration state. The state can either be Unlocked or Locked, Maintenance.
Service State	An autonomously generated state that gives the overall condition of the entity. Service states appear in the format Administrative_State-Operational_State, Status_Attribute.
Equipment State	Displays the equipment state of the card.
Alarm Profile	Sets the alarm profile for the port. Check the Suppress Alarms check box to suppress all alarms for this card and its port(s).

C.1.13.3  Optical Line Tab

The Optical Line tab allows you to view and update optical channel threshold information. The tab contains the following subtabs:

•Parameters Subtab

•Warning Thresh 15 Min Subtab

•Warning Thresh 1 Day Subtab

•Alarm Thresh Subtab

C.1.13.3.1  Parameters Subtab

The Parameters subtab provides information on the status and directions specified for the optical connectors.

Table C-125 Field Descriptions for the Parameters Subtab

Field	Description
Port Number	Displays the identifier of the port (and specific channel information: Add, Drop, TX, or RX).
Type	Displays the port type.
Port Name	Allows you to assign the specified port a user-defined name. The port name can be up to 32 alphanumeric or special characters. The port name is blank by default.
Administration State	Displays the status of the channel. Values are: •IS—In Service; able to carry traffic. •OOS_DSBLD—Out of Service-Disabled. Unable to carry traffic. •IS_AINS—In Service-Auto In Service. Alarm reporting is suppressed, but traffic is carried. •OOS_MT—Out of Service-Maintenance. Alarm reporting is suppressed, but traffic is carried and loopbacks are allowed.
Service State	An autonomously generated state that gives the overall condition of the entity. Service states appear in the format Administrative_State-Operational_State, Status_Attribute.
Line Direction (available in CTM R7.2 and earlier)	Allows you to associate a card with the line direction. Use this field if you have two cards on the same shelf and must designate which one will carry the traffic flow from east-to-west. The second card will carry traffic from west-to-east.
Type	Identifies the type of port, such as Output Express, Input Express, Output COM, Input COM, and Drop.
Power	Shows the current power level per port.

C.1.13.3.2  Warning Thresh 15 Min Subtab

The Warning Thresh 15 Min subtab allows you to set thresholds for the 15-minute threshold crossing alert (TCA) generation.

Table C-126 Field Descriptions for the Warning Thresh 15 Min Subtab

Field	Description
Port Number	Displays the identifier of the port (and specific channel information: Add, Drop, TX, or RX).
Type	Displays the port type.
Power Low (dBm)	Allows you to set the low-power settings.
Power High (dBm)	Allows you to set the high-power settings.

C.1.13.3.3  Warning Thresh 1 Day Subtab

The Warning Thresh 1 Day subtab allows you to set thresholds for the 1-day threshold crossing alert generation.

Table C-127 Field Descriptions for the Warning Thresh 1 Day Subtab

Field	Description
Port Number	Displays the identifier of the port (and specific channel information: Add, Drop, TX, or RX).
Type	Displays the port type.
Power Low (dBm)	Allows you to set the low-power settings.
Power High (dBm)	Allows you to set the high-power settings.

C.1.13.3.4  Alarm Thresh Subtab

The Alarm Thresh subtab allows you to select thresholds for alarm generation.

Table C-128 Field Descriptions for the Alarm Thresh Subtab

Field	Description
Port Number	The port number.
Power Failure Low (dBm)	Allows you to set the low power failure settings.

C.1.13.4  Inventory Tab

The Inventory tab allows you to view the card inventory information.

Table C-129 Field Descriptions for the Inventory Tab

Field	Description
Attribute	Displays the object that can be inventoried.
Value	Displays the value of the object that is inventoried.
Units	Displays the unit of measure (when applicable) of the object that is inventoried.

---

Note See Table 1-22 on page 1-46 for descriptions of actions that can be performed using the buttons at the bottom of the window.

---

C.1.14  Slot Properties—OCP

The Slot Properties pane displays information about the Cisco ONS 15808 module that is installed in the slot selected in the NE Explorer tree. Use this properties pane to change the module performance monitoring thresholds.

The Optical Channel Protection (OCP) module enables 1+1 protection of a generic client optical signal regardless of bit rate, format protocol, and wavelength. To provide this protection, the OCP module is placed at the optical system access point. This means that the module must be connected between the client terminal and the ONS 15808 system transponders to provide path protection. The OCP module can provide channel protection on the physical layer.

A block diagram is shown in the following figure.

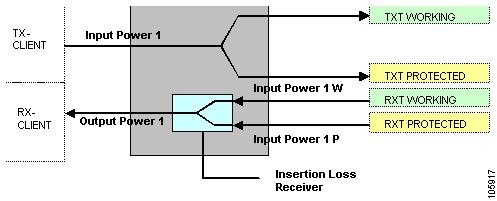

Figure C-4 Cisco ONS 15808 Optical Channel Protection Unit

For ONS 15808 OCP modules, the Slot Properties pane displays the following tabs: Module View, Identification, Config, Input Power, and Optical Power.

C.1.14.1  Module View Tab

The Module View tab displays a graphic of the OCP module that is installed in the slot. The number of critical, major, minor, and warning alarms for the module is displayed under Alarm Status. (Moving the mouse pointer over the graphic also displays the alarm counts.) Right-clicking the graphic opens a shortcut menu that you can use to display the module in the Equipment Inventory table, in the Alarm Browser, or in the OCP PM table.

C.1.14.2  Identification Tab

The Identification tab allows you to view and update OCP module identification information.

Table C-130 Field Descriptions for the Identification Tab

Field	Description
NE ID	Displays the user-defined name of the NE where the OCP module is installed.
Description	Displays information that a user has entered (if any) to describe the NE.
NE Model	Identifies the model of the selected NE (ONS 15808) where the OCP module is installed.
Rack ID	Displays the identification number of the rack where the subrack containing the OCP module is installed.
Subrack ID	Displays the identification number of the subrack.
Slot ID	Displays the identification number of the slot containing the OCP module.
Software Version	Displays the version of the software.
BIOS Version	Displays the version number of the BIOS.
Board Serial Number	Displays the serial number of the board.
SCC Number	Displays the version of the module serial communication controller (SCC).
Product Option	Displays the product option. Displays Not Available if TL1 Agent version is earlier than version 2.1.
Hardware Version	Displays the version of the hardware. Displays Not Available if TL1 Agent version is earlier than version 2.1.
Line Direction	Shows the line direction for the OCP module.
State	Allows you to place the OCP module in one of two states: In Service or Under Maintenance.
PM Collection Status	Allows you to enable or disable PM collection for the OCP module.

C.1.14.3  Config Tab

The Config tab allows you to set certain OCP module configuration parameters.

Table C-131 Field Descriptions for the Config Tab

Field	Description
Unit State	Shows the current status of the unit state and allows you to set the alarm severity level.
Hardware State	Shows the current status of the hardware state and allows you to set the alarm severity level.
Channel Number Protected	Allows you to set the channel number protected.
W/P Line Hold Off Time	Allows you to set the working/protection line hold off time (in milliseconds).
Unit Operation Mode	Allows you to specify Auto or Manual unit operation mode and set the alarm severity level.
Forcing Operation Mode	When Unit Operation Mode is set to Manual, allows you to specify working or protected operation mode.
External Line	When Unit Operation Mode is set to Auto, allows you to enable or disable the external line.
Lock Out of Protection	Allows you to turn the lock out of protection on or off.

C.1.14.4  Input Power Tab

The Input Power tab allows you to assign thresholds and alarm severities for the power coming into the OCP module lasers.

Table C-132 Field Descriptions for the Input Power Tab

Field	Description
Input Power Working Line
Value	When the Update button is clicked, displays the current OCP module working line input power (in dBm).
Working Line Threshold	Sets the threshold for the working line input power, in dBm.
Internal Working Line State	When the Update button is clicked, displays the current internal working line state and lets you set the alarm severity level.
External Working Line State	When the Update button is clicked, displays the current external working line state and lets you set the alarm severity level.
Input Power Protection Line
Value	When the Update button is clicked, displays the current OCP module protection line input power (in dBm).
Protection Line Threshold	Sets the threshold for the protection line input power, in dBm.
Internal Protection Line State	When the Update button is clicked, displays the current internal protection line state and lets you set the alarm severity level.
External Protection Line State	When the Update button is clicked, displays the current external protection line state and lets you set the alarm severity level.

C.1.14.5  Optical Power Tab

The Optical Power tab allows you to view and assign thresholds and alarm severities for the OCP module optical power.

Table C-133 Field Descriptions for the Optical Power Tab

Field	Description
Input Power from Client Transmitter
Value	When the Update button is clicked, displays the current input power from the client transmitter (in dBm).
Output Power from Client Receiver
Value	When the Update button is clicked, displays the current output power from the client receiver (in dBm).
Optical Switch Insertion Loss
Value	When the Update button is clicked, displays the current optical switch insertion loss (in dB). Insertion loss is the total optical power loss caused by insertion of an optical component.
High	Sets the high threshold for the optical switch insertion loss, in dB, and the alarm severity level.

---

Note See Table 1-22 on page 1-46 for descriptions of actions that can be performed using the buttons at the bottom of the window.

---

C.1.15  Slot Properties—OSCM (ONS 15454 SONET and ONS 15454 SDH)

The Slot Properties pane displays information about the Cisco ONS 15454 SONET or ONS 15454 SDH slot that is selected in the NE Explorer tree. Use this properties pane to change the module performance monitoring thresholds.

The Optical Service Channel Modem (OSCM) module is a single-slot card with a 1510 nm OC-3 optical transceiver interface. The OSCM features a Variable Optical Attenuator (VOA) in the transmit path and a 100BASE-T FE user data channel. The OSCM also distributes the synchronous clock to all NEs on the ring.

A block diagram is shown in the following figure.

Figure C-5 Cisco ONS 15454 OSCM Module

For the OSCM module, the Slot Properties pane displays the following tabs: Module View, Identification, Line, Optical Line, Inventory, and Alarm Behavior.

C.1.15.1  Module View Tab

The Module View tab displays a graphic of the card that is installed in the slot. The number of critical, major, minor, and warning alarms for the module is displayed under Alarm Status. (Alarms are also displayed when you move the mouse pointer over the graphic.) The Suppress Alarms check box is display-only and indicates whether all alarms are suppressed for the card and its port(s). Right-clicking the graphic opens a shortcut menu that you can use to reset or delete the card.

C.1.15.2  Identification Tab

The Identification tab allows you to view and update card identification information.

Table C-134 Field Descriptions for the Identification Tab

Field	Description
Equipment Type	Displays the equipment type the slot is provisioned for.
Actual Equipment Type	Displays the actual card that is installed in the slot.
HW Part Number	Displays the part number that is printed on the top of the card.
Hardware Revision	Displays the hardware version number of the card.
Serial Number	Displays the serial number that is unique to each card.
CLEI Code	Displays the CLEI code.
Firmware Version	Displays the revision number of the software used by the ASIC chip installed on the card.
Product ID	Displays a product ID string of 63 characters maximum. If the card does not support the product ID, the field shows N/A.
Version ID	Displays a version ID string in the format "V99_." The version ID always begins with a V and ends with a space. If the card does not support the version ID, the field shows N/A.
Equipment State	Displays the equipment state of the card.
Alarm Profile <
