New and Changed Information

The following table describes information that has been added or changed since the Cisco Transport Manager Release 8.0 Installation Guide was printed or last published online.

Table 1 New and Changed Information in This Guide

Date Released	Revision	Location
March 26, 2007	Initial version.	—
April 4, 2007	Added a procedure that explains how to use the SSH client from SSH Communications Security or Tectia with MGX NEs.	5.1.4  Enabling the SSH Remote Access CLI for MGX, page 5-4
April 30, 2007	Corrected a filename in Step 9 and Step 17 of the procedure to install Oracle9i on the CTM server workstation.	2.2.1  Installing Oracle9i on the CTM Server Workstation, page 2-18
	Corrected a filename in Step 9 of the procedure to download the 9.2.0.7 patch for Oracle9i on the CTM server workstation.	2.2.1.1  Downloading the 9.2.0.7 Patch for Oracle9i on the CTM Server Workstation, page 2-21
	Added this step when installing the 9.2.0.7 patch for Oracle9i: After the patch is installed, read the Oracle patch README.html file to carry out the post-installation steps and check any caveats associated with this patch.	Chapters 2 and 3, Installing the 9.2.0.7 Patch for Oracle9i
May 7, 2007	Added instructions for installing the 9.2.0.8 patch for Oracle9i.	Throughout
May 9, 2007	Revised the procedure for setting up the UNIX environment on the CTM server workstation.	2.2.1.6  Setting Up the UNIX Environment on the CTM Server Workstation, page 2-24
	Revised the procedure for installing the CTM R8.0 server on the CTM server workstation.	2.2.3  Installing the CTM R8.0 Server on the CTM Server Workstation, page 2-27
	Revised the procedure for installing the CTM R8.0 database.	2.2.7  Installing the CTM R8.0 Database, page 2-41
	Revised the procedure for verifying the Oracle9i client installation on the CTM server workstation.	2.2.8  Verifying the Oracle9i Client Installation on the CTM Server Workstation and Starting the CTM Server, page 2-43
May 17, 2007	Changed the part number of this guide from 78-17620-01 to 78-17620-02.	—
June 13, 2007	Removed this text: The disk space values are for new installations of CTM R8.0 only. If you are migrating from a previous release, you will need this amount of disk space in addition to the disk space used by the previous release. The partition sizes are for new installations of CTM R8.0 only. If you are migrating from a previous release, each partition will require this amount of disk space in addition to the size of the partitions used by the previous release.	Chapter 1, "System Requirements"
June 29, 2007	Corrected the commands to install 64-bit Oracle Standard or Enterprise Edition and 9.2.0.8.	2.2.1  Installing Oracle9i on the CTM Server Workstation, page 2-18
July 30, 2007	Corrected the command to install the response file with the -silent option.	2.1.1.4  Installing the 9.2.0.7 Patch for Oracle9i, page 2-8 2.2.5.2  Installing Oracle9i on the CTM Database Workstation, page 2-33 2.2.5.4  Installing the 9.2.0.7 Patch for Oracle9i on the CTM Database Workstation, page 2-36 2.2.5.6  Installing the 9.2.0.8 Patch for Oracle9i on the CTM Database Workstation, page 2-37
January 28, 2008	Reworded Step 2.	2.1.1.1  Setting the Environment for Installation, page 2-2
	Revised the patch installation procedures detailed in Chapter 2, "Installing the CTM R8.0 Server and Oracle9i."	2.1.1.4  Installing the 9.2.0.7 Patch for Oracle9i, page 2-8 2.1.1.6  Installing the 9.2.0.8 Patch for Oracle9i, page 2-9 2.2.1.2  Installing the 9.2.0.7 Patch for Oracle9i on the CTM Server Workstation, page 2-21 2.2.1.4  Installing the 9.2.0.8 Patch for Oracle9i on the CTM Server Workstation, page 2-23 2.2.5.4  Installing the 9.2.0.7 Patch for Oracle9i on the CTM Database Workstation, page 2-36 2.2.5.6  Installing the 9.2.0.8 Patch for Oracle9i on the CTM Database Workstation, page 2-37
	Revised the upgrade procedures detailed in Chapter 3, "Upgrading to CTM R8.0 from an Earlier Release."	3.1.5  Installing the 9.2.0.7 Patch for Oracle9i, page 3-4 3.1.8  Installing the 9.2.0.8 Patch for Oracle9i, page 3-7 3.2.5  Installing the 9.2.0.7 Patch for Oracle9i, page 3-18 3.2.8  Installing the 9.2.0.8 Patch for Oracle9i, page 3-20
February 28, 2008	Replaced all instances of http://www.cisco.com/pcgi-bin/tablebuild.pl/ctm and http://www.cisco.com/pcgi-bin/tablebuild.pl/ctm with http://tools.cisco.com/support/downloads/pub/Redirect.x?mdfid=278875317.	Chapter 2, "Installing the CTM R8.0 Server and Oracle9i" Chapter 3, "Upgrading to CTM R8.0 from an Earlier Release"
April 29, 2008	Modified the values detailed for the high-end configuration in Table 1-5. Changed 329 GB to 234 GB (without PM collection) and changed 951 GB to 856 GB (with PM collection). Modified the swap space required in a high-end setup. Changed 196 GB to 96 GB in Table 1-9 and Table 1-10, Part 1.	Chapter 1, "System Requirements"
	Updated the procedures detailed in Chapter 3, "Upgrading to CTM R8.0 from an Earlier Release."	3.1.9  Post-Installation Steps for 9.2.0.7 or 9.2.0.8—When Upgrading Your CTM Server Installation, page 3-8 3.2.2  Solaris Migration from Sun Solaris 8 to Sun Solaris 10, page 3-16 3.2.9  Post-Installation Steps for 9.2.0.7 or 9.2.0.8—When Upgrading Your CTM Server Installation, page 3-21
June 6, 2008	Added steps to install the latest CTM R7.2 service pack and to run the pre- and postmigration scripts.	3.1.11  Installing the CTM R8.0 Server and Upgrading the Database, page 3-10 3.2.11  Installing the CTM R8.0 Server and Upgrading the Database, page 3-23 3.2.12  Upgrading the Database on the CTM Database Workstation, page 3-28
	Corrected the disk space requirements for small, medium, and large networks.	Table 1-5
July 2, 2008	For disk space requirements, added that the disk space shown does not include the /ctm_backup directory.	1.1.2  Disk Space Specifications, page 1-6
September 2, 2008	Added steps to install the latest CTM R7.0 service pack and to run the pre- and postmigration scripts.	3.1.11  Installing the CTM R8.0 Server and Upgrading the Database, page 3-10 3.2.11  Installing the CTM R8.0 Server and Upgrading the Database, page 3-23 3.2.12  Upgrading the Database on the CTM Database Workstation, page 3-28

Introduction

This guide explains how to install Cisco Transport Manager (CTM) Release 8.0 and how to upgrade from previous releases.

CTM is an advanced management system that provides functionality at the element and network management levels for Cisco optical network elements (NEs), routers, and switches. CTM supports fault, configuration, performance, and security management functional areas. CTM also serves as a foundation for integration into a larger overall Operations Support System (OSS) environment by providing northbound gateway interfaces to higher-layer management systems.

In Release 8.0, CTM supports the Cisco 7600 Series Edge Router (Cisco 7600); the Cisco Optical Networking System (ONS) family of optical NEs; the Cisco Catalyst 6509; the Cisco Carrier Routing System 1 (CRS-1); the Cisco XR 12000; the Cisco MGX 8880 Voice Gateway and MGX 8850/8830 Voice-Enabled Multiservice Switch; and the Cisco MDS 9000 Multilayer Director and Fabric Switch.

---

Note See the Release Notes for Cisco Transport Manager Release 8.0 for the NE software versions that are supported in CTM R8.0. The CTM release notes are available on the product CD and online at http://www.cisco.com/en/US/products/sw/opticsw/ps2204/prod_release_notes_list.html.

---

---

Caution Before updating the software image on an NE, check the CTM release notes to verify whether the NE software version is supported in this CTM release.

---

Audience

The primary audience for this guide includes network operations personnel and system administrators. This guide assumes that you are familiar with the following products and topics:

•Basic internetworking terminology and concepts

•Network topology and protocols

•Microsoft Windows 2000 Professional, Windows XP Professional, and Windows Server 2003 Terminal Server

•Sun Microsystems Solaris administration

•Oracle database administration

Conventions

This document uses the conventions listed in the following table.

Table 2 Document Conventions

Item	Convention
Commands and keywords	boldface font
Variables for which you supply values	italic font
Displayed session and system information	screen font
Information you enter	boldface screen font
Variables you enter	italic_screen font
Menu items and button names	boldface font
Selecting a menu item	Option  >  Network Preferences

---

Note Means reader take note. Notes contain helpful suggestions or references to material not covered in the publication.

---

---

Caution Means reader be careful. In this situation, you might do something that could result in equipment damage or loss of data.

---

---

Tip Means the following information will help you solve a problem.

---

---

Timesaver Means the described action saves time. You can save time by performing the action described in the paragraph.

---

Installation and Upgrade Overview

The following figure describes the typical CTM installation and upgrade workflow and the various components that can be installed in addition to CTM.

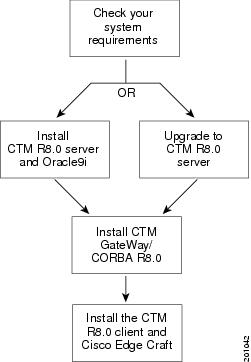

Figure 1 CTM Installation and Upgrade Workflow

1. Check your system requirements before installing CTM R8.0 or upgrading from an earlier release. See Chapter 1, "System Requirements."

2. For a new CTM R8.0 server installation, see Table 3 and Chapter 2, "Installing the CTM R8.0 Server and Oracle9i."

3. When upgrading to the CTM R8.0 server from an earlier installation, see Table 3 and Chapter 3, "Upgrading to CTM R8.0 from an Earlier Release."

4. To install CTM GateWay/CORBA, see Chapter 4, "Installing CTM GateWay/CORBA R8.0." The CTM GateWay/CORBA option is a CORBA-based interface that provides higher-layer management systems with information for all supported NEs. You can install CTM GateWay/CORBA when you install the CTM server or you can install it separately after the CTM server installation.

---

Note You must purchase a separate license for CTM GateWay/CORBA R8.0.

---

5. To install the CTM R8.0 client and Cisco Edge Craft (optional), see Chapter 5, "Installing the CTM R8.0 Client and Cisco Edge Craft." Cisco Edge Craft is the local craft application used to manage ONS 15302 and ONS 15305 NEs. You can install the CTM client manually or automatically. Cisco Edge Craft cannot be upgraded automatically even though it is bundled with the CTM client.

Installation and Upgrade Scenarios

The following table describes the different installation scenarios for CTM R8.0, and where information on these scenarios can be found. Based on your requirements and on your existing installation, choose one of the scenarios listed.

Table 3 Installation and Upgrade Scenarios

What is your existing release?	Will you install the CTM R8.0 server and Oracle9i database on separate workstations?	For more information, see
New installation	No	Page 2-1
New installation	Yes	Page 2-17
CTM R7.2	No	Page 3-2
CTM R7.2	Yes	Page 3-16
CTM R7.0	No	Page 3-2
CTM R7.0	Yes	Page 3-16

Related Documentation

---

Note You can access the most current CTM R8.0 documentation online at http://www.cisco.com/en/US/products/sw/opticsw/ps2204/tsd_products_support_series_home.html.

---

The CTM documentation set comprises the following guides:

1. Release Notes for Cisco Transport Manager Release 8.0—Describes the caveats for CTM.

2. Cisco Transport Manager Release 8.0 Installation Guide—This guide.

3. Cisco Transport Manager Release 8.0 User Guide—Describes how to use the CTM software, which consists of user applications and tools for network discovery, network configuration, connection management, fault management, system administration, and security management.

4. Cisco Transport Manager Release 8.0 GateWay/CORBA User Guide and Programmer Manual—Describes the CTM GateWay/CORBA northbound interface product that is available for CTM. This document serves as a reference for developers of OSS applications that work with the CTM GateWay/CORBA interface.

5. Cisco Transport Manager Release 8.0 Database Schema—Describes the database schema that CTM uses to store information in a Structured Query Language (SQL) database such as the Oracle database. The document is designed for users who need to create their own reports without using CTM.

6. Cisco Transport Manager Release 8.0 High Availability Installation Guide—Explains how to install CTM in a high availability (HA) environment.

---

Note The Cisco Transport Manager Release 8.0 High Availability Installation Guide is not available online. Contact your Cisco account representative to obtain this guide.

---

7. Cisco Transport Manager Release 8.0 ML Provisioning Methodology—Describes the methodology that CTM uses to provision ML-series cards.

Obtaining Documentation, Obtaining Support, and Security Guidelines

For information on obtaining documentation, obtaining support, providing documentation feedback, security guidelines, and also recommended aliases and general Cisco documents, see the monthly What's New in Cisco Product Documentation, which also lists all new and revised Cisco technical documentation, at:

http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html

Subscribe to the What's New in Cisco Product Documentation as a Really Simple Syndication (RSS) feed and set content to be delivered directly to your desktop using a reader application. The RSS feeds are a free service and Cisco currently supports RSS version 2.0.
