Slot Property Information

---

This appendix provides information on the cards supported in CTM. This appendix contains the following sections:

•Common Cards

•DWDM Cards

•Electrical Cards

•Ethernet Cards

•FC_MR-4 Card

•FMEC Cards

•Multirate Cards

•Optical Cards

•Transponder Cards

C.1  Common Cards

This section describes the following common cards supported within CTM:

•Slot Properties—AIC Card

•Slot Properties—AIC-I Card

•Slot Properties—AIU

•Slot Properties—CMP Module

•Slot Properties—CMP-W Module

•Slot Properties—CTX-CL600 Module

•Slot Properties—CXC Card

•Slot Properties—EOI-W Card

•Slot Properties—Filler Card

•Slot Properties—IOC-W Card

•Slot Properties—LSM-W

•Slot Properties—MIC-28-3-A and MIC-28-3-B Cards

•Slot Properties—OCP Module

•Slot Properties—OSCM Module

•Slot Properties—OSU-W Card

•Slot Properties—PLF Module

•Slot Properties—RBU Card

•Slot Properties—SCF Card

•Slot Properties—SCU Module

•Slot Properties—SNH Module

•Slot Properties—SNS Modules

•Slot Properties—TCC+ Card

•Slot Properties—TCC2 Card

•Slot Properties—TCC2P Card

•Slot Properties—TCC-I Card

•Slot Properties—TSC Card

•Slot Properties—UDC Module

•Slot Properties—Unequipped Slot (ONS 15800 and ONS 15801)

•Slot Properties—Unequipped Slot (ONS 15808)

•Slot Properties—Unprovisioned Slot (ONS 15327 and ONS 15454 SONET)

•Slot Properties—Unprovisioned Slot (ONS 15454 SDH)

•Slot Properties—Unprovisioned Slot (ONS 15800 and ONS 15801)

•Slot Properties—Unprovisioned Slot (ONS 15808)

•Slot Properties—XC Card

•Slot Properties—XC10G Card

•Slot Properties—XCVT Card

•Slot Properties—XC-VXL-10G Card

•Slot Properties—XTC Card

C.1.1  Slot Properties—AIC Card

The Slot Properties pane displays information about the Cisco ONS 15327 or ONS 15454 SONET slot that is selected in the NE Explorer tree. Use this properties pane to change the module performance monitoring thresholds.

The optional Alarm Interface Controller (AIC) card provides customer-defined alarm input/output (I/O) and supports local and express orderwire.

For the AIC module, the Slot Properties pane displays the following tabs: Module View, Identification, Alarm Extenders, Local Orderwire, and Express Orderwire.

C.1.1.1  Module View Tab

The Module View tab displays a graphic of the AIC that is installed in the slot. The number of critical, major, minor, and warning alarms for the module is displayed under Alarm Status. (Alarms are also displayed when you move the mouse pointer over the graphic.) The Suppress Alarms check box is read-only and indicates whether all alarms are suppressed for the card and its port(s). Right-clicking the graphic opens a shortcut menu that you can use to reset, delete, or change the card.

C.1.1.2  Identification Tab

The Identification tab (see Table C-1) allows you to view and update AIC identification information. The tab contains the following fields.

Table C-1 Field Descriptions for the Identification Tab

Field	Description
Equipment Type	Displays the equipment type that the slot is provisioned for.
Actual Equipment Type	Displays the actual card that is installed in the slot.
Hardware Part Number	Displays the card part number that is printed on the top of the card.
Hardware Revision	Displays the hardware revision number.
Serial Number	Displays the card serial number that is unique to each card.
CLEI Code	Displays the Common Language Equipment Identifier (CLEI) code.
Firmware Version	Displays the revision number of the software used by the ASIC chip installed on the card.
Product ID	Displays a product ID string of 63 characters maximum. If the card does not support the product ID, the field shows N/A.
Version ID	Displays a version ID string in the format "V99_." The version ID always begins with a V and ends with a space. If the card does not support the version ID, the field shows N/A.
Administration State	The port administration state. It can be: •IS—Puts the port in service •IS, AINS—Puts the port in automatic in service •OOS, DSBLD—Removes the port from service and disables it •OOS, MT—Removes the port from service for maintenance
Service State	Overall condition of the port. It can be: •IS_NR—In Service and Normal •OOS_AU, AINS—Out of Service and Autonomous, Automatic In Service •OOS_MA, DSBLD—Out of Service and Management, Disabled •OOS_MA, MT—Out of Service and Management, Maintenance
Equipment State	Displays the equipment state of the card.
Alarm Profile	Sets the alarm profile for the port. Check the Suppress Alarms check box to suppress all alarms for this card and its port(s).

C.1.1.3  Alarm Extenders Tab

The Alarm Extenders tab allows you view AIC alarm information. The Alarm Extenders tab contains two subtabs:

•External Alarms Subtab

•External Controls Subtab

C.1.1.3.1  External Alarms Subtab

The External Alarms subtab (see Table C-2) allows you to view and update external alarm information. The subtab contains the following fields.

Table C-2 Field Descriptions for the External Alarms Subtab

Field	Description
Input Number	Displays the alarm input number.
Enabled	Check to activate the fields for the alarm input number.
Alarm Type	Choose an alarm type from the provided list.
Severity	Choose a severity from the list.
Raised When	Choose the contact condition that will trigger the alarm in CTC.
Virtual Wire	To assign the external device to a virtual wire, choose a virtual wire from the list, or choose None if no assignment is required.
Description	Displays a default description that is provided for every enabled external alarm.
Raised	Indicates if an alarm has been raised.
Contact Status	Indicates the current status of the contact.

C.1.1.3.2  External Controls Subtab

The External Controls subtab (see Table C-3) allows you to view and update external controls. The subtab contains the following fields.

Table C-3 Field Descriptions for the External Controls Subtab

Field	Description
Control Number	Displays the control number.
Enabled	Check to activate the fields for the control number.
Control Type	Choose a control type from the provided list.
Trigger Type	Choose a trigger type: a local minor, major, or critical alarm; a remote minor, major, or critical alarm; or a virtual wire activation.
Description	Enter a description.
Current State	Displays the current state of the control.
Auto State	Displays the auto state of the control.
Contact Setting	Displays the current contact setting.

C.1.1.4  Local Orderwire Tab

Local Orderwire allows a craftsperson to plug a phoneset into a node and communicate with craftspeople working at other nodes or other facility equipment. The orderwire is a pulse code modulation (PCM) encoded voice channel that uses E1 or E2 bytes in section/line overhead. The AIC allows simultaneous use of both local (section overhead signal) and express (line overhead channel) orderwire channels on a SONET ring or particular optics facility. Local orderwire also allows communication at regeneration sites when the regenerator is not a Cisco device. The Local Orderwire tab (see Table C-4) contains the following fields.

Table C-4 Field Descriptions for the Local Orderwire Tab

Field	Description
Buzzer	The AIC supports a call button on the module front panel which, when pressed, causes all AICs on the orderwire subnetwork to ring. The ringer/buzzer resides on the AIC. There is also a ring LED that mimics the AIC ringer. It flashes when any call button is pressed on the orderwire subnetwork. The call button and ringer LED allow a remote craftsperson to get the attention of craftspeople across the network. If you want to turn on the audible alert (buzzer) for the orderwire, check the Buzzer check box.
4-Wire Level	If needed, adjust the Tx and Rx dBm (decibels referenced per milliwatt) by moving the slider to the right or left for the four-wire headset that you will use. In general, you should not need to adjust the dBm.
2-Wire Level	If needed, adjust the Tx and Rx dBm by moving the slider to the right or left for the two-wire headset that you will use. In general, you should not need to adjust the dBm.

C.1.1.5  Express Orderwire Tab

The Express Orderwire tab (see Table C-5) allows you to configure express orderwire settings. The tab contains the following fields.

Table C-5 Field Descriptions for the Express Orderwire Tab

Field	Description
Buzzer	If you want to turn on the audible alert (buzzer) for the orderwire, check the Buzzer check box.
4-Wire Level	If needed, adjust the Tx and Rx dBm by moving the slider to the right or left for the four-wire headset that you will use. In general, you should not need to adjust the dBm.
2-Wire Level	If needed, adjust the Tx and Rx dBm by moving the slider to the right or left for the two-wire headset that you will use. In general, you should not need to adjust the dBm.

---

Note See Table 1-19 on page 1-38 for the descriptions of the actions that can be performed using the buttons at the bottom of the window.

---

C.1.2  Slot Properties—AIC-I Card

The Slot Properties pane displays information about the Cisco ONS 15454 SONET and ONS 15454 SDH slot that is selected in the NE Explorer tree. Use this properties pane to change the module performance monitoring thresholds.

The optional Alarm Interface Controller-International (AIC-I) card provides customer-defined (environmental) alarms and controls and supports local and express orderwire. It provides twelve customer-defined input and four customer-defined input/output contacts. The physical connections are through the backplane wire-wrap pin terminals.

For the AIC-I module, the Slot Properties pane displays the following tabs: Module View, Identification, Card, Alarm Extenders, Local Orderwire, and Express Orderwire.

C.1.2.1  Module View Tab

The Module View tab displays a graphic of the AIC-I that is installed in the slot. The number of critical, major, minor, and warning alarms for the module is displayed under Alarm Status. (Alarms are also displayed when you move the mouse pointer over the graphic.) Right-clicking the graphic opens a shortcut menu that you can use to reset, delete, or change the card.

C.1.2.2  Identification Tab

The Identification tab (see Table C-6) allows you to view and update AIC-I identification information. The tab contains the following fields.

Table C-6 Field Descriptions for the Identification Tab

Field	Description
Equipment Type	Displays the equipment type that the slot is provisioned for.
Actual Equipment Type	Displays the actual card that is installed in the slot.
Hardware Part Number	Displays the card part number that is printed on the top of the card.
Hardware Revision	Displays the hardware revision number.
Serial Number	Displays the card serial number that is unique to each card.
CLEI Code	Displays the CLEI code.
Firmware Version	Displays the revision number of the software used by the ASIC chip installed on the card.
Product ID	Displays a product ID string of 63 characters maximum. If the card does not support the product ID, the field shows N/A.
Version ID	Displays a version ID string in the format "V99_." The version ID always begins with a V and ends with a space. If the card does not support the version ID, the field shows N/A.
Administration State	The port administration state. It can be: •IS—Puts the port in service •IS, AINS—Puts the port in automatic in service •OOS, DSBLD—Removes the port from service and disables it •OOS, MT—Removes the port from service for maintenance
Service State	Overall condition of the port. It can be: •IS_NR—In Service and Normal •OOS_AU, AINS—Out of Service and Autonomous, Automatic In Service •OOS_MA, DSBLD—Out of Service and Management, Disabled •OOS_MA, MT—Out of Service and Management, Maintenance
Equipment State	Displays the equipment state of the card.
Alarm Profile	Sets the alarm profile for the port. Check the Suppress Alarms check box to suppress all alarms for this card and its port(s).

C.1.2.3  Card Tab

The Card tab (see Table C-7) allows you to view and update AIC-I card information. The tab contains the following fields.

Table C-7 Field Descriptions for the Card Tab

Field	Description
Add Extension	Check this check box if you are using the Alarm Expansion Panel (AEP).
Extended Type	The AEP radio button is automatically selected if you checked the Add Extension check box.
Input/Output	Select External Alarm if you use external alarms only; select External Control if you use both external alarms and external controls. Selecting only External Alarm gives you 16 external alarm ports and no external control ports. If you select External control, four of the ports are converted to external control ports, leaving you with 12 external alarm ports.
Station Number	Enter a four-digit station number. The valid range is 0 to 9999.

C.1.2.4  Alarm Extenders Tab

The Alarm Extenders tab allows you view AIC-I alarm information. The Alarm Extenders tab contains two subtabs:

•External Alarms Subtab

•External Controls Subtab

C.1.2.4.1  External Alarms Subtab

The External Alarms subtab (see Table C-8) allows you to view and update external alarm information. The subtab contains the following fields.

Table C-8 Field Descriptions for the External Alarms Subtab

Field	Description
Input Number	The alarm input number.
Enabled	Check to activate the fields for the alarm input number.
Alarm Type	Choose an alarm type from the provided list.
Severity	Choose a severity from the list.
Raised When	Choose the contact condition that will trigger the alarm in CTC.
Virtual Wire	To assign the external device to a virtual wire, choose a virtual wire from the list, or choose None if no assignment is required.
Description	A default description is provided in this line for every external alarm that is enabled.
Raised	Indicates if an alarm has been raised.
Contact Status	Indicates the current status of the contact.

C.1.2.4.2  External Controls Subtab

The External Controls subtab (see Table C-9) allows you to view and update external controls. The subtab contains the following fields.

Table C-9 Field Descriptions for the External Controls Subtab

Field	Description
Control Number	The control number.
Enabled	Check to activate the fields for the control number.
Control Type	Choose a control type from the provided list.
Trigger Type	Choose a trigger type: a local minor, major, or critical alarm; a remote minor, major, or critical alarm; or a virtual wire activation.
Description	Enter a description.
Current State	The current state of the control.
Auto State	The auto state of the control.
Contact Setting	The current contact setting.

C.1.2.5  Local Orderwire Tab

Orderwire allows a craftsperson to plug a phoneset into a node and communicate with craftspeople working at other nodes or other facility equipment. The orderwire is a pulse code modulation (PCM) encoded voice channel that uses E1 or E2 bytes in section/line overhead. The AIC-I allows simultaneous use of both local (section overhead signal) and express (line overhead channel) orderwire channels on a SONET ring or particular optics facility. Local orderwire also allows communication at regeneration sites when the regenerator is not a Cisco device. The Local Orderwire tab (see Table C-10) contains the following fields.

Table C-10 Field Descriptions for the Local Orderwire Tab

Field	Description
Buzzer	The AIC-I supports selective dual tone multifrequency (DTMF) dialing for telephony connectivity, which causes one AIC-I card or all AIC-I cards on the orderwire subnetwork to ring. The ringer/buzzer resides on the AIC-I. If you want to turn on the audible alert (buzzer) for the orderwire, check the Buzzer check box.
4-Wire Level	If needed, adjust the Tx and Rx dBm by moving the slider to the right or left for the four-wire headset that you will use. In general, you should not need to adjust the dBm.
2-Wire Level	If needed, adjust the Tx and Rx dBm by moving the slider to the right or left for the two-wire headset that you will use. In general, you should not need to adjust the dBm.

C.1.2.6  Express Orderwire Tab

The Express Orderwire tab (see Table C-11) allows you to configure express orderwire settings. The tab contains the following fields.

Table C-11 Field Descriptions for the Express Orderwire Tab

Field	Description
Buzzer	If you want to turn on the audible alert (buzzer) for the orderwire, check the Buzzer check box.
4-Wire Level	If needed, adjust the Tx and Rx dBm by moving the slider to the right or left for the four-wire headset that you will use. In general, you should not need to adjust the dBm.
2-Wire Level	If needed, adjust the Tx and Rx dBm by moving the slider to the right or left for the two-wire headset that you will use. In general, you should not need to adjust the dBm.

---

Note See Table 1-19 on page 1-38 for the descriptions of the actions that can be performed using the buttons at the bottom of the window.

---

C.1.3  Slot Properties—AIU

The Slot Properties pane displays information about the Cisco ONS 15808 module that is installed in the slot selected in the NE Explorer tree. Use this properties pane to change the module performance monitoring thresholds.

The Alarm Interface Unit (AIU) manages digital and analog inputs from external equipment. It also manages digital outputs that can control external devices. The AIU allows remote control of isolated optical line amplification sites. Each AIU module manages up to 32 digital inputs, eight analog inputs, and 20 digital outputs. The digital inputs are ground-activated and are used to monitor site conditions such as fire alarms, flood warnings, and open doors. The analog inputs are used to remotely monitor voltages from transducers with slow parameter sensors. The digital outputs are used to operate equipment remotely. For example, digital outputs are used to start a generator engine or turn on security lights at a remote site from the network operations center (NOC).

For ONS 15808 AIU, the Slot Properties pane displays the following tabs: Module View, Identification, Analog, Digital Input, and Digital Output.

C.1.3.1  Module View Tab

The Module View tab displays a graphic of the AIU that is installed in the slot. The number of critical, major, minor, and warning alarms for the module is displayed under Alarm Status. (Moving the mouse pointer over the graphic also displays the alarm counts.) The module status is displayed under Operational State. Right-clicking the graphic opens a shortcut menu that you can use to display the module in the Equipment Inventory Table, in the Alarm Browser, or in the AIU PM Table.

C.1.3.2  Identification Tab

The Identification tab (see Table C-12) allows you to view and update AIU identification information. The tab contains the following fields.

Table C-12 Field Descriptions for the Identification Tab

Field	Description
NE ID	Displays the user-defined name of the NE where the AIU is installed.
Description	Displays information that a user has entered (if any) to describe the NE.
NE Model	Identifies the model of the selected NE (ONS 15808) where the AIU is installed.
Rack ID	Displays the identification number of the rack where the subrack containing the AIU is installed.
Subrack ID	Displays the identification number of the subrack.
Slot ID	Displays the identification number of the slot containing the AIU.
Software Version	Displays the version of the software.
BIOS Version	Displays the version number of the BIOS.
Board Serial Number	Displays the serial number of the board.
SCC Number	Displays the version of the module serial communication controller (SCC).
Product Option	Displays the product option. Displays Not Available if TL1 Agent version is earlier than version 2.1.
Hardware Version	Displays the version of the hardware. Displays Not Available if TL1 Agent version is earlier than version 2.1.
Line Direction	Shows the line direction for the AIU.
State	Allows you to place the AIU in one of two states: In Service or Under Maintenance.
PM Collection Status	Allows you to enable or disable PM collection for the AIU.

C.1.3.3  Analog Tab

The Analog tab (see Table C-13) allows you to assign performance monitoring thresholds for the AIU analog voltages. Each AIU module manages up to eight analog inputs. The tab contains the following fields.

Table C-13 Field Descriptions for the Analog Tab

Field	Description
General Analog Input 1-8
Value	When the Update button is clicked, displays the current analog input (in volts) from analog source x.
Voltage High	Sets the high voltage threshold, the alarm severity level, and a description of the alarm.
Voltage Low	Sets the low voltage threshold, the alarm severity level, and a description of the alarm.
Name	Sets the name of the general analog input on which the alarm occurred.

C.1.3.4  Digital Input Tab

The Digital Input tab (see Table C-14) allows you to assign performance monitoring thresholds for the AIU digital inputs. Each AIU module manages up to 32 digital inputs. The tab contains the following fields.

Table C-14 Field Descriptions for the Digital Input Tab

Field	Description
General Digital Input 1-32
General Digital Input x	Shows the current alarm status of the general digital input.
Alarm Severity	Sets the alarm severity (critical, major, minor, warning, or not reported).
Name	Sets the name of the general digital input on which the alarm occurred.
Description	Sets a description of the alarm.

C.1.3.5  Digital Output Tab

The Digital Output tab (see Table C-15) allows you to assign performance monitoring thresholds for the AIU digital outputs. Each AIU module manages up to 20 digital outputs. The tab contains the following fields.

Table C-15 Field Descriptions for the Digital Output Tab

Field	Description
General Digital Output 1-20
General Digital Output x	Sets the general digital output status to Operated or Released.
Name	Sets the name of the general digital output on which the alarm occurred.

---

Note See Table 1-19 on page 1-38 for the descriptions of the actions that can be performed using the buttons at the bottom of the window.

---

C.1.4  Slot Properties—CMP Module

The Slot Properties pane displays information about the Cisco ONS 15808 module that is installed in the slot selected in the NE Explorer tree. Use this properties pane to change the module performance monitoring thresholds.

The Control and Monitoring Processor (CMP) module monitors and relays commands to the ONS 15808 modules. It also provides an interface to supervisory software such as CTM. The CMP module is able to monitor all modules in the system through the Shelf Control Unit (SCU) module, which connects the internal control buses (CBUS) of all optical subracks in the site. This configuration allows all modules installed at a site to be managed as a unique NE. In sites containing more than one bay, multiple CMP modules are required. One CMP module is required for each bay.

CMP modules shown on this sheet include:

•Control and Monitoring Processor—Master (CMP)

•Control and Monitoring Processor—Slave (CMP-S)

For ONS 15808 CMP modules, the Slot Properties pane displays the following tabs: Module View, Identification, and Statistics.

C.1.4.1  Module View Tab

The Module View tab displays a graphic of the CMP module that is installed in the slot. The number of critical, major, minor, and warning alarms for the module is displayed under Alarm Status. (Moving the mouse pointer over the graphic also displays the alarm counts.) The module status is displayed under Operational State. Right-clicking the graphic opens a shortcut menu that you can use to display the module in the Equipment Inventory Table or in the Alarm Browser.

C.1.4.2  Identification Tab

The Identification tab (see Table C-16) allows you to view and update CMP module identification information. The tab contains the following fields.

Table C-16 Field Descriptions for the Identification Tab

Field	Description
NE ID	Displays the user-defined name of the NE where the CMP module is installed.
Description	Displays information that a user has entered (if any) to describe the NE.
NE Model	Identifies the model of the selected NE (ONS 15808) where the CMP module is installed.
Rack ID	Displays the identification number of the rack where the subrack containing the CMP module is installed.
Subrack ID	Displays the identification number of the subrack.
Slot ID	Displays the identification number of the slot containing the CMP module.
Software Version	Displays the version of the software.
BIOS Version	Displays the version number of the BIOS.
Board Serial Number	Displays the serial number of the board.
SCC Number	Displays the version of the module serial communication controller (SCC).
Product Option	Displays the product option. Displays Not Available if TL1 Agent version is earlier than version 2.1.
Hardware Version	Displays the version of the hardware. Displays Not Available if TL1 Agent version is earlier than version 2.1.
State	Allows you to place the CMP module in service.

C.1.4.3  Statistics Tab

The Statistics tab (see Table C-17) allows you to view memory statistics for the CMP module. The tab contains the following fields.

Table C-17 Field Descriptions for the Statistics Tab

Field	Description
Memory
Free disk/flash space	Shows the amount of remaining free disk/flash space, in megabytes.
Percentage of free space	Shows the percentage of remaining free disk/flash space.
Free RAM memory	Shows the amount of free RAM memory, in megabytes.
Percentage of free RAM memory	Shows the percentage of remaining free RAM memory.
RAM largest contiguous block	Shows the largest contiguous block of RAM memory, in megabytes.

---

Note See Table 1-19 on page 1-38 for the descriptions of the actions that can be performed using the buttons at the bottom of the window.

---

C.1.5  Slot Properties—CMP-W Module

The Slot Properties pane displays information about the Cisco ONS 15800 or ONS 15801 slot that is selected in the NE Explorer tree. Use this properties pane to change the module performance monitoring thresholds.

The Control and Monitoring Processor-Master (CMP-W) module is the heart of the management system, controlling all optical and common modules in the ONS 15800 or ONS 15801 NE. The CMP-W module collects information about status, alarms, parameters, and actions on the internal control bus (CBUS). The CMP-W module makes NE information available to the local craft terminal and to the element management system.

For the CMP-W module, the Slot Properties pane displays Module View, Identification, and Statistics tabs. Fields on these tabs are described in the following sections.

C.1.5.1  Module View Tab

The Module View tab displays a graphic of the CMP-W module that is installed in the slot. The number of critical, major, minor, and warning alarms for the module is displayed under Alarm Status. (Alarms are also displayed when you move the mouse pointer over the graphic.) The module status is displayed under Operational State. Right-click the graphic to open a shortcut menu that you can use to display the module in the Alarm Browser or in the Equipment Inventory Table.

C.1.5.2  Identification Tab

The Identification tab (see Table C-18) allows you to view and update CMP-W module identification information. The tab contains the following fields.

Table C-18 Field Descriptions for the Identification Tab

Field	Description
NE ID	Displays the user-defined name of the NE where the CMP-W module is installed.
Description	Displays information that a user has entered (if any) to describe the NE.
NE Model	Identifies the model of the selected NE (ONS 15800 or ONS 15801) where the CMP-W module is installed.
Rack ID	Displays the identification number of the rack where the subrack containing the CMP-W module is installed.
Subrack ID	Displays the identification number of the subrack.
Slot ID	Displays the identification number of the slot containing the CMP-W module.
Software Version	Displays the NE software version of the agent that it is running.
BIOS Version	Displays the version number of the module BIOS (future).
Board Serial Number	Displays the serial number of the module board.
SCC Number	Displays the version of the module serial communication controller (SCC).
State	Allows you to place the CMP-W module in service.

C.1.5.3  Statistics Tab

The Statistics tab (see Table C-19) allows you to view memory statistics for the CMP-W module. The tab contains the following fields.

Table C-19 Field Descriptions for the Statistics Tab

Field	Description
Memory
Free disk/flash space	Shows the amount of remaining free disk/flash space, in megabytes.
Percentage of free space	Shows the percentage of remaining free disk/flash space.
Free RAM memory	Shows the amount of free RAM memory, in megabytes.
Percentage of free RAM memory	Shows the percentage of remaining free RAM memory.
RAM largest contiguous block	Shows the largest contiguous block of RAM memory, in megabytes.

---

Note See Table 1-19 on page 1-38 for the descriptions of the actions that can be performed using the buttons at the bottom of the window.

---

C.1.6  Slot Properties—CTX-CL600 Module

The Slot Properties pane displays information about the Cisco ONS 15310 CL slot that is selected in the NE Explorer tree. Use this properties pane to change the module performance monitoring thresholds.

The CTX-CL600 card is an unpluggable card on the ONS 15310 CL NE. It has a total of 26 ports that are either mounted or pluggable.

For the CTX-CL600 module, the Slot Properties pane displays the following tabs: Module View, Identification, Wideband Ports, Broadband Ports, Pluggable Provisioning, DS1, DS3, EC1, Optical, Alarm Extenders, and Info.

C.1.6.1  Module View Tab

The Module View tab displays a graphic of the CTX-CL600 that is installed in the slot. The number of critical, major, minor, and warning alarms for the module is displayed under Alarm Status. (Alarms are also displayed when you move the mouse pointer over the graphic.) The Suppress Alarms check box is read-only and indicates whether all alarms are suppressed for the card and its port(s). Right-clicking the graphic opens a shortcut menu that you can use to reset or delete the card.

C.1.6.2  Identification Tab

The Identification tab (see Table C-20) allows you to view and update CTX-CL600 identification information. The tab contains the following fields.

Table C-20 Field Descriptions for the Identification Tab

Field	Description
Equipment Type	Displays the equipment type that the slot is provisioned for.
Actual Equipment Type	Displays the actual card that is installed in the slot.
Hardware Part Number	Displays the card part number that is printed on the top of the card.
Hardware Revision	Displays the hardware revision number.
Serial Number	Displays the card serial number that is unique to each card.
CLEI Code	Displays the CLEI code.
Firmware Version	Displays the revision number of the software used by the ASIC chip installed on the card.
Admin State	Select the designation that drives whether an entity is in service or out of service. The Admin State is the driver for the Service State.
Service State	Displays the overall availability of the entity. Values are: •IS_NR—In Service-Normal •OOS_AU—Out of Service-Autonomous •OOS_MA—Out of Service-Management •OOS_AUMA—Out of Service-Autonomous and Management
Equipment State	Displays the equipment state of the card.
Alarm Profile	Sets the alarm profile for the port.
Suppress Alarms	Check the Suppress Alarms check box to suppress all alarms for this card and its port(s).

C.1.6.3  Wideband Ports Tab

The Wideband Ports tab (see Table C-21) allows you to view the DS1 port information. The tab contains the following fields.

Table C-21 Field Descriptions for the Wideband Ports Tab

Field	Description
Port Number	Displays the port number.
Rate	Displays the rate that the slot is provisioned for.

C.1.6.4  Broadband Ports Tab

The Broadband Ports tab (see Table C-22) allows you to view the DS3 or EC1 port information. The tab contains the following fields.

Table C-22 Field Descriptions for the Broadband Ports Tab

Field	Description
DS3
Port Number	Displays the DS3 port number.
Rate	Displays the rate that the slot is provisioned for.
EC1
Port Number	Displays the EC1 port number.
Rate	Displays the rate that the slot is provisioned for.

C.1.6.5  Pluggable Provisioning Tab

The Pluggable Provisioning tab (see Table C-23) allows you to view and provision pluggable entities; for example, the pluggable port module (PPM) and pluggable I/O module (PIM) and the ports inside these entities. The tab contains the following fields.

Table C-23 Field Descriptions for the Pluggable Provisioning Tab

Field	Description
Pluggable Number	Displays the identifier of the plugin module.
Actual Equipment Type	Displays the actual card that is installed in the slot.
Admin State	Select the designation that drives whether an entity is in service or out of service. The Admin State is the driver for the Service State.
Service State	Displays the overall availability of the entity. Values are: •IS_NR—In Service-Normal •OOS_AU—Out of Service-Autonomous •OOS_MA—Out of Service-Management •OOS_AUMA—Out of Service-Autonomous and Management
Equipment State	Displays the equipment state of the card.
Pluggable Number	Displays the identifier of the plugin module and the port number.
Rate	Displays the rate of the port inside the pluggable entity.

C.1.6.5.1  Provision Pluggable Dialog Box

Click the Create button to launch the Provision Pluggable dialog box. The Provision Pluggable dialog box allows you to provision pluggable entities such as the PPM and PIM, and to create the ports inside these entities. Table C-24 describes the fields displayed in the Provision Pluggable dialog box when provisioning a PPM. Table C-25 applies only to the ONS 15600 SONET ASAP_4 card and describes the fields displayed in the Provision Pluggable dialog box when provisioning a PIM. Table C-26 describes the fields displayed in the Provision Pluggable dialog box when creating the ports inside the PPM and PIM.

Table C-24 Field Description for the Provision Pluggable Dialog Box—PPM

Field	Description
PPM #	Sets the PPM number.
No. of Ports	Sets the number of ports inside the PPM.
PPM Type	Sets the type of PPM.

Table C-25 Field Description for the Provision Pluggable Dialog Box—PIM (ONS 15600 SONET ASAP_4 Card)

Field	Description
PIM #	Sets the PIM number.
No. of Ports	Sets the number of ports inside the PIM.
PIM Type	Sets the type of PIM.

Table C-26 Field Descriptions for the Provision Pluggable Dialog Box

Field	Description
PPM	Select the PPM for which you want to create the port.
Port Number	Sets the port number.
Port Rate	Sets the rate of the new port.

C.1.6.6  DS1 Tab

The DS1 tab allows you to view node near-end and far-end performance on a DS1 card to detect possible performance problems. The DS1 tab contains the following subtabs:

•Line Config Subtab

•Line Thresh 15 Min Subtab

•Line Thresh 1 Day Subtab

•Electric Path Thresh 15 Min Subtab

•Electric Path Thresh 1 Day Subtab

•STS Thresh 15 Min Subtab

•STS Thresh 1 Day Subtab

•VT Thresh 15 Min Subtab

•VT Thresh 1 Day Subtab

•Alarm Behavior Subtab

•Loopback Subtab

•J1 Path Trace Subtab

•Customer Info Subtab

C.1.6.6.1  Line Config Subtab

The Line Config subtab (see Table C-27) allows you to view and change the line settings of the DS1 card. The subtab contains the following fields.

Table C-27 Field Descriptions for the Line Config Subtab

Field	Description
Port Name	Allows you to add a name for the optical port.
Line Type	Allows you to select the line framing type.
Line Coding	Allows you to define the DS-1 transmission coding type.
Line Length	Defines the distance (in feet) from backplane connection to the next termination point. •0-131 (default) •132-262
Administration State	Displays the status of the line. The line can be In Service (IS), In Service-Auto In Service Soak (IS_AINS), Out of Service (OOS), or Out of Service-Maintenance (OOS_MT).
AINS Soak (H:M)	Auto-in service soak. The determination of duration left before the traffic/termination transitions to IS state.
AINS Soak Count Down	Automatic in-service soak countdown. Displays the remaining time of valid input signal in hh:mm, after which the card becomes in service (IS) automatically.
SF BER	Sets the signal fail bit error rate.
SD BER	Sets the signal degrade bit error rate.
Send Do Not Use	When checked, sends a DUS (do not use) message on the S1 byte.
Provide Sync	If checked, the card is provisioned as an NE timing reference.
Provide Sync Message	When checked, enables synchronization status messages, which allow the node to choose the best timing source.
Service State	Displays the overall availability of the entity. Values are: •IS_NR—In Service-Normal •OOS_AU—Out of Service-Autonomous •OOS_MA—Out of Service-Management •OOS_AUMA—Out of Service-Autonomous and Management

C.1.6.6.2  Line Thresh 15 Min Subtab

The Line Thresh 15 Min subtab (see Table C-28) allows you to view and change the near- and far-end 15-minute threshold settings of the DS1 card. The subtab contains the following fields.

Table C-28 Field Descriptions for the Line Thresh 15 Min Subtab

Field	Description
Near End
Port Number	Displays the optical port number.
CV-L	Displays the coding violations-line.
ES-L	Displays the errored seconds-line.
SES-L	Displays the severely errored seconds-line.
LOSS-L	Displays the loss of signal seconds-line.
Far End
Port Number	Displays the optical port number.
ES-L	Displays the errored seconds-line.

C.1.6.6.3  Line Thresh 1 Day Subtab

The Line Thresh 1 Day subtab (see Table C-29) allows you to view and change the near- and far-end 1-day threshold settings of the DS1 card. The subtab contains the following fields.

Table C-29 Field Descriptions for the Line Thresh 1 Day Subtab

Field	Description
Near End
Port Number	Displays the optical port number.
CV-L	Displays the coding violations-line.
ES-L	Displays the errored seconds-line.
SES-L	Displays the severely errored seconds-line.
LOSS-L	Displays the loss of signal seconds-line.
Far End
Port Number	Displays the optical port number.
ES-L	Displays the errored seconds-line.

C.1.6.6.4  Electric Path Thresh 15 Min Subtab

The Electric Path Thresh 15 Min subtab (see Table C-30) allows you to view and change the near- and far-end 15-minute electrical path threshold settings for the DS1 card. The subtab contains the following fields.

Table C-30 Field Descriptions for the Electric Path Thresh 15 Min Subtab

Field	Description
Near End
CV-P	Displays coding violations-path information.
ES-P	Displays errored seconds-path information.
SAS-P	Displays severely errored frame/alarm indication signal-path information.
AISS-P	Displays alarm indication signal seconds-path information.
UAS-P	Displays unavailable seconds-path information.
Far End
CV-P	Displays coding violations-path information.
ES-P	Displays errored seconds-path information.
SES-P	Displays severely errored seconds-path information.
UAS-P	Displays unavailable seconds-path information.
ESA-P	Displays errored seconds type A-path information.
ESB-P	Displays errored seconds type B-path information.
CSS-P	Displays controlled slip seconds-path information.
SEFS-P	Displays severely errored framing seconds-path information.

C.1.6.6.5  Electric Path Thresh 1 Day Subtab

The Electric Path Thresh 1 Day subtab (see Table C-31) allows you to view and change the near- and far-end 1-day electrical path threshold settings for the DS1 card. The subtab contains the following fields.

Table C-31 Field Descriptions for the Electric Path Thresh 1 Day Subtab

Field	Description
Near End
CV-P	Displays coding violations-path information.
ES-P	Displays errored seconds-path information.
SES-P	Displays severely errored seconds-path information.
SAS-P	Displays severely errored frame/alarm indication signal-path information.
AISS-P	Displays alarm indication signal seconds-path information.
UAS-P	Displays unavailable seconds-path information.
Far End
CV-P	Displays coding violations-path information.
ES-P	Displays errored seconds-path information.
SES-P	Displays severely errored seconds-path information.
UAS-P	Displays unavailable seconds-path information.
ESA-P	Displays errored seconds type A-path information.
ESB-P	Displays errored seconds type B-path information.
CSS-P	Displays controlled slip seconds-path information.
SEFS-P	Displays severely errored framing seconds-path information.

C.1.6.6.6  STS Thresh 15 Min Subtab

The STS Thresh 15 Min subtab (see Table C-32) allows you to view and change near- and far-end 15-minute STS information for the DS1 card. The subtab contains the following fields.

Table C-32 Field Descriptions for the STS Thresh 15 Min Subtab

Field	Description
Near End
STS Number	Displays the synchronous transport signal number.
CV-P	Displays coding violations-path information.
ES-P	Displays errored seconds-path information.
SES-P	Displays severely errored seconds-path information.
UAS-P	Displays unavailable seconds-path information.
FC-P	Displays failure count-path information.
Far End
STS Number	Displays the synchronous transport signal number.
CV-P	Displays coding violations-path information.
ES-P	Displays errored seconds-path information.
SES-P	Displays severely errored seconds-path information.
UAS-P	Displays unavailable seconds-path information.
FC-P	Displays failure count-path information.

C.1.6.6.7  STS Thresh 1 Day Subtab

The STS Thresh 1 Day subtab (see Table C-33) allows you to view and change near- and far-end 1-day STS information for the DS1 card. The subtab contains the following fields.

Table C-33 Field Descriptions for the STS Thresh 1 Day Subtab

Field	Description
Near End
STS Number	Displays the synchronous transport signal number.
CV-P	Displays coding violations-path information.
ES-P	Displays errored seconds-path information.
SES-P	Displays severely errored seconds-path information.
UAS-P	Displays unavailable seconds-path information.
FC-P	Displays failure count-path information.
Far End
STS Number	Displays the synchronous transport signal number.
CV-P	Displays coding violations-path information.
ES-P	Displays errored seconds-path information.
SES-P	Displays severely errored seconds-path information.
UAS-P	Displays unavailable seconds-path information.
FC-P	Displays failure count-path information.

C.1.6.6.8  VT Thresh 15 Min Subtab

The VT Thresh 15 Min subtab (see Table C-34) displays near- and far-end 15-minute VT threshold information. The subtab contains the following fields.

Table C-34 Field Descriptions for the VT Thresh 15 Min Subtab

Field	Description
Near End
VT Number	Displays VT Number information.
CV-V	Displays coding violations-VT path information.
ES-V	Displays errored seconds-VT path information.
SES-V	Displays severely errored seconds-VT path information.
UAS-V	Displays unavailable seconds-VT path information.
Far End
VT Number	Displays VT Number information.
CV-V	Displays coding violations-VT path information.
ES-V	Displays errored seconds-VT path information.
SES-V	Displays severely errored seconds-VT path information.
UAS-V	Displays unavailable seconds-VT path information.

C.1.6.6.9  VT Thresh 1 Day Subtab

The VT Thresh 1 Day subtab (see Table C-35) displays near- and far-end 1-day VT threshold information. The subtab contains the following fields.

Table C-35 Field Descriptions for the VT Thresh 1 Day Subtab

Field	Description
Near End
VT Number	Displays VT Number information.
CV-V	Displays coding violations-VT path information.
ES-V	Displays errored seconds-VT path information.
SES-V	Displays severely errored seconds-VT path information.
UAS-V	Displays unavailable seconds-VT path information.
Far End
VT Number	Displays VT Number information.
CV-V	Displays coding violations-VT path information.
ES-V	Displays errored seconds-VT path information.
SES-V	Displays severely errored seconds-VT path information.
UAS-V	Displays unavailable seconds-VT path information.

C.1.6.6.10  Alarm Behavior Subtab

The Alarm Behavior subtab (see Table C-36) allows you to view and update DS1 alarm profile information. The subtab contains the following fields.

Table C-36 Field Descriptions for the Alarm Behavior Subtab

Pane	Field	Description
Card Profile	Alarm Profile	Select the alarm profile for the port.
	Suppress Alarms	Check the Suppress Alarms check box to suppress all alarms for this card and its port(s).
—	Port Number	Displays the port number.
—	Alarm Profile	Displays the alarm profile for the port.
—	Suppress Alarms	Check the Suppress Alarms check box to suppress all alarms for this card and its port(s).

C.1.6.6.11  Loopback Subtab

The Loopback subtab (see Table C-37) allows you to view and update DS1 loopback information. The subtab contains the following fields.

Table C-37 Field Descriptions for the Loopback Subtab

Field	Description
Line Number	Displays the line number.
Administration State	Allows you to configure the status of the line. The line can be In Service (IS), In Service-Auto In Service Soak (IS_AINS), Out of Service (OOS), or Out of Service-Maintenance (OOS_MT)
Loopback Type	Allows you to configure a port to terminal loopback (Inward) or Facility (Line), or clear the current loopback (none). Note The line state must be OOS_MT before you can configure the loopback type.
Service State	Displays the overall availability of the entity. Values are: •IS_NR—In Service-Normal •OOS_AU—Out of Service-Autonomous •OOS_MA—Out of Service-Management •OOS_AUMA—Out of Service-Autonomous and Management
Send Code	Allows you to send loopback commands to the far end.
Send AIS on Facility Loopback	When selected, sends AIS on the facility loopback.
Send AIS on Terminal Loopback	When selected, sends AIS on the terminal loopback.

C.1.6.6.12  J1 Path Trace Subtab

The J1 Path Trace subtab (see Table C-38) allows you to view and retrieve J1 path trace information. The subtab contains the following fields.

Table C-38  Field Descriptions for the J1 Path Trace Subtab

Field	Description
Port Number	Displays the port number.
STS Number	Displays the synchronous transport signal number.
Expected String	Displays the current expected string.
Received String	Displays the current received string.
Mode	Displays the path trace mode (Off/None, Auto, or Manual).
C2	Represents a machine-generated J1/J2 payload label byte.
Display	Click the Display button to view the circuit trace information. See 7.2.19.1  Viewing a J1 Path Trace from the NE Explorer, page 7-80 for more information.
Retrieve	Click the Retrieve button to retrieve J1 path trace information.

C.1.6.6.13  Customer Info Subtab

The Customer Info subtab (see Table C-39) displays customer information. The subtab contains the following fields.

Table C-39 Field Descriptions for the Customer Info Subtab

Field	Description
STS Number, VT Number	Displays the STS or VT number.
Customer ID	The customer ID.
Service ID	The service ID.

C.1.6.7  DS3 Tab

The DS3 tab allows you to view node near-end and far-end performance on a DS3 card to detect possible performance problems. The DS3 tab contains the following subtabs:

•Line Config Subtab

•Line Thresh 15 Min Subtab

•Line Thresh 1 Day Subtab

•PBit Thresh 15 Min Subtab

•PBit Thresh 1 Day Subtab

•CPBit Thresh 15 Min Subtab

•CPBit Thresh 1 Day Subtab

•STS Thresh 15 Min Subtab

•STS Thresh 1 Day Subtab

•Alarm Behavior Subtab

•Loopback Subtab

•J1 Path Trace Subtab

•Customer Info Subtab

C.1.6.7.1  Line Config Subtab

The Line Config subtab (see Table C-40) allows you to view and change the line settings of the DS3 card. The subtab contains the following fields.

Table C-40 Field Descriptions for the Line Config Subtab

Field	Description
Port Number	Displays the port number for the optical port.
Port Name	Allows you to add a name for the optical port.
SF BER	Sets the signal fail bit error rate.
SD BER	Sets the signal degrade bit error rate.
Line Length	Defines the distance (in feet) from backplane connection to the next termination point. •0-131 (default) •132-262
Line Type	Allows you to select the line framing type.
Line Coding	Allows you to define the transmission coding type.
Detected Line Type	Displays the detected line type.
Administration State	Displays the status of the line. The line can be In Service (IS), In Service-Auto In Service Soak (IS_AINS), Out of Service (OOS), or Out of Service-Maintenance (OOS_MT).
AINS Soak (H:M)	Auto-in service soak. The determination of duration left before the traffic/termination transitions to IS state.
Service State	Displays the service state of the CLIP or NCB. There are four states: •Unknown—The state cannot be determined. •Not Installed—The CLIP or NCB is not installed. •Out of Service—The CLIP or NCB is installed but is not commissioned and is not carrying traffic. •In Service—The CLIP or NCB is commissioned and carrying traffic.

C.1.6.7.2  Line Thresh 15 Min Subtab

The Line Thresh 15 Min subtab (see Table C-41) allows you to view and change the near- and far-end 15-minute threshold settings of the DS3 card. The subtab contains the following fields.

Table C-41 Field Descriptions for the Line Thresh 15 Min Subtab

Field	Description
Port Number	Displays the optical port number.
CV-L	Displays the coding violations-line (near-end only).
ES-L	Displays the errored seconds-line.
SES-L	Displays the severely errored seconds-line (near-end only).
LOSS-L	Displays the loss of signal seconds-line (near-end only).

C.1.6.7.3  Line Thresh 1 Day Subtab

The Line Thresh 1 Day subtab (see Table C-42) allows you to view and change the near- and far-end 1-day threshold settings of the DS3 card. The subtab contains the following fields.

Table C-42 Field Descriptions for the Line Thresh 1 Day Subtab

Field	Description
Port Number	Displays the optical port number.
CV-L	Displays the coding violations-line (near-end only).
ES-L	Displays the errored seconds-line.
SES-L	Displays the severely errored seconds-line (near-end only).
LOSS-L	Displays the loss of signal seconds-line (near-end only).

C.1.6.7.4  PBit Thresh 15 Min Subtab

The PBit Thresh 15 Min subtab (see Table C-43) displays near-end 15-minute PBit Path threshold information on the DS3 card. The subtab contains the following fields.

Table C-43 Field Descriptions for the PBit Thresh 15 Min Subtab

Field	Description
Near End
Port No.	Displays the optical port number.
CV-P	Displays coding violations-path information.
ES-P	Displays errored seconds-path information.
SES-P	Displays severely errored seconds-path information.
SAS-P	Severely errored frame/alarm indication signal-path
AISS-P	Alarm indication signal seconds-path
UAS-P	Displays unavailable seconds-path information.

C.1.6.7.5  PBit Thresh 1 Day Subtab

The PBit Thresh 1 Day subtab (see Table C-44) displays near- and far-end 1-day PBit Path threshold information on the DS3 card. The subtab contains the following fields.

Table C-44 Field Descriptions for the PBit Thresh 1 Day Subtab

Field	Description
Near End
Port No.	Displays the optical port number.
CV-P	Displays coding violations-path information.
ES-P	Displays errored seconds-path information.
SES-P	Displays severely errored seconds-path information.
SAS-P	Severely errored frame/alarm indication signal-path
AISS-P	Alarm indication signal seconds-path
UAS-P	Displays unavailable seconds-path information.

C.1.6.7.6  CPBit Thresh 15 Min Subtab

The CPBit Thresh 15 Min subtab (see Table C-45) displays near- and far-end 15-minute CPBit path threshold information on the DS3 card. The subtab contains the following fields.

Table C-45 Field Descriptions for the CPBit Thresh 15 Min Subtab

Field	Description
Near End
Port No.	Displays the optical port number.
CV-P	Displays coding violations-path information.
ES-P	Displays errored seconds-path information.
SES-P	Displays severely errored seconds-path information.
UAS-P	Displays unavailable seconds-path information.
Far End
Port No.	Displays the optical port number.
CV-P	Displays coding violations-path information.
ES-P	Displays errored seconds-path information.
SES-P	Displays severely errored seconds-path information.
UAS-P	Displays unavailable seconds-path information.

C.1.6.7.7  CPBit Thresh 1 Day Subtab

The CPBit Thresh 1 Day subtab (see Table C-46) displays near- and far-end 1-day CPBit path threshold information on the DS3 card. The subtab contains the following fields.

Table C-46 Field Descriptions for the CPBit Thresh 1 Day Subtab

Field	Description
Near End
Port No.	Displays the optical port number.
CV-P	Displays coding violations-path information.
ES-P	Displays errored seconds-path information.
SES-P	Displays severely errored seconds-path information.
UAS-P	Displays unavailable seconds-path information.
Far End
Port No.	Displays the optical port number.
CV-P	Displays coding violations-path information.
ES-P	Displays errored seconds-path information.
SES-P	Displays severely errored seconds-path information.
UAS-P	Displays unavailable seconds-path information.

C.1.6.7.8  STS Thresh 15 Min Subtab

The STS Thresh 15 Min subtab (see Table C-47) allows you to view and change near- and far-end 15-minute STS information on the DS3 card. The subtab contains the following fields.

Table C-47 Field Descriptions for the STS Thresh 15 Min Subtab

Field	Description
Near End
STS Number	Displays the synchronous transport signal number.
CV-P	Displays coding violations-path information.
ES-P	Displays errored seconds-path information.
SES-P	Displays severely errored seconds-path information.
UAS-P	Displays unavailable seconds-path information.
FC-P	Displays failure count-path information.
Far End
STS Number	Displays the synchronous transport signal number.
CV-P	Displays coding violations-path information.
ES-P	Displays errored seconds-path information.
SES-P	Displays severely errored seconds-path information.
UAS-P	Displays unavailable seconds-path information.
FC-P	Displays failure count-path information.

C.1.6.7.9  STS Thresh 1 Day Subtab

The STS Thresh 1 Day subtab (see Table C-48) allows you to view and change near- and far-end 1-day STS information on the DS3 card. The subtab contains the following fields.

Table C-48 Field Descriptions for the STS Thresh 1 Day Subtab

Field	Description
Near End
STS Number	Displays the synchronous transport signal number.
CV-P	Displays coding violations-path information.
ES-P	Displays errored seconds-path information.
SES-P	Displays severely errored seconds-path information.
UAS-P	Displays unavailable seconds-path information.
FC-P	Displays failure count-path information.
Far End
STS Number	Displays the synchronous transport signal number.
CV-P	Displays coding violations-path information.
ES-P	Displays errored seconds-path information.
SES-P	Displays severely errored seconds-path information.
UAS-P	Displays unavailable seconds-path information.
FC-P	Displays failure count-path information.

C.1.6.7.10  Alarm Behavior Subtab

The Alarm Behavior subtab (see Table C-49) allows you to view and update DS3 alarm profile information. The subtab contains the following fields.

Table C-49 Field Descriptions for the Alarm Behavior Subtab

Field	Description
Alarm Profile	Select the alarm profile for the port.
Suppress Alarms	Check the Suppress Alarms check box to suppress all alarms for this card and its port(s).
Port Number	Displays the port number.
Alarm Profile	Displays the alarm profile for the port.
Suppress Alarms	Check the Suppress Alarms check box to suppress all alarms for this card and its port(s).
Force To All Ports	When clicked, forces all the ports to the selected alarm profile.

C.1.6.7.11  Loopback Subtab

The Loopback subtab (see Table C-50) allows you to view and update DS3 loopback information. The subtab contains the following fields.

Table C-50  Field Descriptions for the Loopback Subtab

Field	Description
Port Number	Displays the port number.
Administration State	Displays the status of the line. The line can be In Service (IS), In Service-Auto In Service Soak (IS_AINS), Out of Service (OOS), or Out of Service-Maintenance (OOS_MT).
Loopback Type	Allows you to configure a port to terminal loopback (Inward) or Facility (Line), or clear the current loopback (none). Note The line state must be OOS_MT before you can configure the loopback type.
Inhibit FE Loopback	When selected, inhibits far-end loopback.
Service State	Displays the overall availability of the entity. Values are: •IS_NR—In Service-Normal •OOS_AU—Out of Service-Autonomous •OOS_MA—Out of Service-Management •OOS_AUMA—Out of Service-Autonomous and Management
Send AIS on Facility Loopback	When selected, sends AIS on the facility loopback.
Send AIS on Terminal Loopback	When selected, sends AIS on the terminal loopback.

C.1.6.7.12  J1 Path Trace Subtab

The J1 Path Trace subtab (see Table C-51) allows you to view and retrieve J1 path trace information. The subtab contains the following fields.

Table C-51  Field Descriptions for the J1 Path Trace Subtab

Field	Description
Port Number	Displays the port number.
STS Number	Displays the synchronous transport signal number.
Expected String	Displays the current expected string.
Received String	Displays the current received string.
Mode	Displays the path trace mode (Off/None, Auto, or Manual).
C2	Represents a machine-generated J1/J2 payload label byte.
Display	Click the Display button to view the circuit trace information. See 7.2.19.1  Viewing a J1 Path Trace from the NE Explorer, page 7-80 for more information.
Retrieve	Click the Retrieve button to retrieve J1 path trace information.

C.1.6.7.13  Customer Info Subtab

The Customer Info subtab (see Table C-52) displays customer information. The subtab contains the following fields.

Table C-52 Field Descriptions for the Customer Info Subtab

Field	Description
STS Number	Displays the STS number.
Customer ID	The customer ID.
Service ID	The service ID.

C.1.6.8  EC1 Tab

The EC1 tab allows you to view node near-end and far-end performance on an EC1 card to detect possible performance problems. The EC1 tab contains the following subtabs:

•Line Config Subtab

•Line Thresh 15 Min Subtab

•Line Thresh 1 Day Subtab

•Section Thresh 15 Min Subtab

•Section Thresh 1 Day Subtab

•Path Thresh 15 Min Subtab

•Path Thresh 1 Day Subtab

•STS Config Subtab

•Alarm Behavior Subtab

•Loopback Subtab

•J1 Path Trace Subtab

•Customer Info Subtab

C.1.6.8.1  Line Config Subtab

The Line Config subtab (see Table C-53) allows you to view and change the line settings of the DS3 card. The subtab contains the following fields.

Table C-53 Field Descriptions for the Line Config Subtab

Field	Description
Port Number	Displays the port number for the optical port.
Port Name	Allows you to add a name for the optical port.
SD BER	Sets the signal degrade bit error rate.
SF BER	Sets the signal fail bit error rate.
PJSTSMon#	Sets the STS that will be used for pointer justification. If set to 0, no STS is monitored. Only one STS can be monitored on each OC-N port. •0 (default)-3 (OC-3, per port) •0 (default)-12 (OC-12) •0 (default)-48 (OC-48)
Line Length (feet)	Defines the distance (in feet) from backplane connection to the next termination point. Values are 0 through 225 (default) or 226 through 450.
Rx Equalization	For early EC1 card versions, equalization can be turned off if the line length is short or the environment is extremely cold; Rx Equalization should normally be set to On (checked, default).
AINS Soak (H:M)	Auto-in service soak. The determination of duration left before the traffic/termination transitions to IS state.
AINS Soak Count Down	Automatic in-service soak countdown. Displays the remaining time of valid input signal in hh:mm, after which the card becomes in service (IS) automatically.
Service State	Displays the service state of the CLIP or NCB. There are four states: •Unknown—The state cannot be determined. •Not Installed—The CLIP or NCB is not installed. •Out of Service—The CLIP or NCB is installed but is not commissioned and is not carrying traffic. •In Service—The CLIP or NCB is commissioned and carrying traffic.

C.1.6.8.2  Line Thresh 15 Min Subtab

The Line Thresh 15 Min subtab (see Table C-54) allows you to view and change the near- and far-end 15-minute threshold settings of the EC1 card. The subtab contains the following fields.

Table C-54 Field Descriptions for the Line Thresh 15 Min Subtab

Field	Description
Near End
Port Number	Displays the optical port number.
ES-L	Displays the errored seconds-line.
SES-L	Displays the severely errored seconds-line.
CV-L	Displays the coding violations-line.
UAS-L	Displays unavailable seconds-line.
FC-L	Displays failure count-line.
Far End
Port Number	Displays the optical port number.
ES-L	Displays the errored seconds-line.
SES-L	Displays the severely errored seconds-line.
CV-L	Displays the coding violations-line.
UAS-L	Displays unavailable seconds-line.
FC-L	Displays failure count-line.

C.1.6.8.3  Line Thresh 1 Day Subtab

The Line Thresh 1 Day subtab (see Table C-55) allows you to view and change the near- and far-end 1-day threshold settings of the EC1 card. The subtab contains the following fields.

Table C-55 Field Descriptions for the Line Thresh 1 Day Subtab

Field	Description
Near End
Port Number	Displays the optical port number.
ES-L	Displays the errored seconds-line.
SES-L	Displays the severely errored seconds-line.
CV-L	Displays the coding violations-line.
UAS-L	Displays the unavailable seconds-line.
FC-L	Displays the failure count-line.
Far End
Port Number	Displays the optical port number.
ES-L	Displays the errored seconds-line.
SES-L	Displays the severely errored seconds-line.
CV-L	Displays the coding violations-line.
UAS-L	Displays the unavailable seconds-line.
FC-L	Displays the failure count-line.

C.1.6.8.4  Section Thresh 15 Min Subtab

The Section Thresh 15 Min subtab (see Table C-56) allows you to view and change the near-end 15-minute section threshold information on the EC1 card. The subtab contains the following fields.

Table C-56 Field Descriptions for the Section Thresh 15 Min Subtab

Field	Description
Near End
Port Number	Displays the port number.
CV-S	Displays the coding violations-section.
ES-S	Displays the errored seconds-section.
SES-S	Displays the severely errored seconds-section.
SEFS-S	Displays the severely errored framing seconds-section.

C.1.6.8.5  Section Thresh 1 Day Subtab

The Section Thresh 1 Day subtab (see Table C-57) allows you to view and change the near-end 1-day section threshold information on the EC1 card. The subtab contains the following fields.

Table C-57 Field Descriptions for the Section Thresh 1 Day Subtab

Field	Description
Near End
Port Number	Displays the port number.
CV-S	Displays the coding violations-section.
ES-S	Displays the errored seconds-section.
SES-S	Displays the severely errored seconds-section.
SEFS-S	Displays the severely errored framing seconds-section.

C.1.6.8.6  Path Thresh 15 Min Subtab

The Path Thresh 15 Min subtab (see Table C-58) allows you to view and change near- and far-end 15-minute path threshold information on the EC1 card. The subtab contains the following fields.

Table C-58 Field Descriptions for the Path Thresh 15 Min Subtab

Field	Description
Near End
STS Number	Displays the synchronous transport signal number.
CV-P	Displays coding violations-path information.
ES-P	Displays errored seconds-path information.
SES-P	Displays severely errored seconds-path information.
UAS-P	Displays unavailable seconds-path information.
FC-P	Displays failure count-path information.
PPJC-Pdet	Positive pointer justification count-VC4 path detected.
PPJC-Pgen	Positive pointer justification count-VC4 path generated.
PJCS-Pdet	Indicates the number of pointer justification count seconds (PJCS) detected on a particular path.
PJCS-Pgen	Indicates the number of pointer justification count seconds generated for a particular path.
PJC-Diff	Displays the sum of the absolute values of differences between positive transmitted and received, and negative transmitted and received. The important metric on pointer justification is not the exact counts, but how many were absorbed.
Far End
STS Number	Displays the synchronous transport signal number.
CV-P	Displays coding violations-path information.
ES-P	Displays errored seconds-path information.
SES-P	Displays severely errored seconds-path information.
UAS-P	Displays unavailable seconds-path information.
FC-P	Displays failure count-path information.
PPJC-Pdet	Positive pointer justification count-VC4 path detected.
PPJC-Pgen	Positive pointer justification count-VC4 path generated.

C.1.6.8.7  Path Thresh 1 Day Subtab

The Path Thresh 1 Day subtab (see Table C-59) allows you to view and change near- and far-end 1-day path threshold information on the EC1 card. The subtab contains the following fields.

Table C-59 Field Descriptions for the Path Thresh 1 Day Subtab

Field	Description
Near End
STS Number	Displays the synchronous transport signal number.
CV-P	Displays coding violations-path information.
ES-P	Displays errored seconds-path information.
SES-P	Displays severely errored seconds-path information.
UAS-P	Displays unavailable seconds-path information.
FC-P	Displays failure count-path information.
PPJC-Pdet	Positive pointer justification count-VC4 path detected.
PPJC-Pgen	Positive pointer justification count-VC4 path generated.
PJCS-Pdet	Indicates the number of pointer justification count seconds (PJCS) detected on a particular path.
PJCS-Pgen	Indicates the number of pointer justification count seconds generated for a particular path.
PJC-Diff	Displays the sum of the absolute values of differences between positive transmitted and received, and negative transmitted and received. The important metric on pointer justification is not the exact counts, but how many were absorbed.
Far End
STS Number	Displays the synchronous transport signal number.
CV-P	Displays coding violations-path information.
ES-P	Displays errored seconds-path information.
SES-P	Displays severely errored seconds-path information.
UAS-P	Displays unavailable seconds-path information.
FC-P	Displays failure count-path information.
PPJC-Pdet	Positive pointer justification count-VC4 path detected.
PPJC-Pgen	Positive pointer justification count-VC4 path generated.
PJCS-Pdet	Indicates the number of pointer justification count seconds (PJCS) detected on a particular path.
PJCS-Pgen	Indicates the number of pointer justification count seconds generated for a particular path.
PJC-Diff	Displays the sum of the absolute values of differences between positive transmitted and received, and negative transmitted and received. The important metric on pointer justification is not the exact counts, but how many were absorbed.

C.1.6.8.8  STS Config Subtab

The STS Config subtab (see Table C-60) allows you to view and change the STS settings of the EC1 card. The subtab contains the following fields.

Table C-60 Field Descriptions for the STS Config Subtab

Field	Description
STS Number	Displays the synchronous transport signal number information.
IPPM Enabled	Check to enable intermediate path performance monitoring (IPPM) and uncheck to disable IPPM.

C.1.6.8.9  Alarm Behavior Subtab

The Alarm Behavior subtab (see Table C-61) allows you to view and change EC1 alarm profile information. The subtab contains the following fields.

Table C-61 Field Descriptions for the Alarm Behavior Subtab

Field	Description
Alarm Profile	Select the alarm profile for the port.
Suppress Alarms	Check the Suppress Alarms check box to suppress all alarms for this card and its port(s).
Port Number	Displays the port number.
Alarm Profile	Displays the alarm profile for the port.
Suppress Alarms	Check the Suppress Alarms check box to suppress all alarms for this card and its port(s).

C.1.6.8.10  Loopback Subtab

The Loopback subtab (see Table C-62) allows you to view and change EC1 loopback information. The subtab contains the following fields.

Table C-62 Field Descriptions for the Loopback Subtab

Field	Description
Port Number	Displays the port number.
Administration State	Displays the status of the line. The line can be In Service (IS), In Service-Auto In Service Soak (IS_AINS), Out of Service (OOS), or Out of Service-Maintenance (OOS_MT).
Loopback Type	Allows you to configure a port to terminal loopback (Inward) or Facility (Line), or clear the current loopback (none). Note The line state must be OOS_MT before you can configure the loopback type.
Service State	Displays the overall availability of the entity. Values are: •IS_NR—In Service-Normal •OOS_AU—Out of Service-Autonomous •OOS_MA—Out of Service-Management •OOS_AUMA—Out of Service-Autonomous and Management
Send AIS on Facility Loopback	When selected, sends AIS on the facility loopback.
Send AIS on Terminal Loopback	When selected, sends AIS on the terminal loopback.

C.1.6.8.11  J1 Path Trace Subtab

The J1 Path Trace subtab (see Table C-63) allows you to view and retrieve J1 path trace information. The subtab contains the following fields.

Table C-63 Field Descriptions for the J1 Path Trace Subtab

Field	Description
Port Number	Displays the port number.
STS Number	Displays the synchronous transport signal number.
Expected String	Displays the current expected string.
Received String	Displays the current received string.
Mode	Displays the path trace mode (Off/None, Auto, or Manual).
C2	Represents a machine-generated J1/J2 payload label byte.
Display	Click the Display button to view the circuit trace information. See 7.2.19.1  Viewing a J1 Path Trace from the NE Explorer, page 7-80 for more information.
Retrieve	Click the Retrieve button to retrieve J1 path trace information.

C.1.6.8.12  Customer Info Subtab

The Customer Info subtab (see Table C-64) displays customer information. The subtab contains the following fields.

Table C-64 Field Descriptions for the Customer Info Subtab

Field	Description
STS Number	Displays the STS number.
Customer ID	The customer ID.
Service ID	The service ID.

C.1.6.9  Optical Tab

The Optical tab allows you to view node near-end and far-end performance on an optical card to detect possible performance problems. The Optical tab contains the following subtabs:

•Line Config Subtab

•Line Thresh 15 Min Subtab

•Line Thresh 1 Day Subtab

•Section Thresh 15 Min Subtab

•Section Thresh 1 Day Subtab

•Path Thresh 15 Min Subtab

•Path Thresh 1 Day Subtab

•Physical Thresh 15 Min Subtab

•Physical Thresh 1 Day Subtab

•STS Config Subtab

•Alarm Behavior Subtab

•Loopback Subtab

•Auto Laser Shutdown Subtab

•Protection Subtab

•J1 Path Trace Subtab

•Customer Info Subtab

C.1.6.9.1  Line Config Subtab

The Line Config subtab (see Table C-65) allows you to view and change the line settings of an optical card. The subtab contains the following fields.

Table C-65 Field Descriptions for the Line Config Subtab

Field	Description
Port Number	Displays the port number.
Port Name	Allows you to add a name for the optical port.
SD BER	Sets the signal degrade bit error rate.
SF BER	Sets the signal fail bit error rate.
Type	Defines the port as SONET or SDH.
PJSTSMon#	Sets the STS that will be used for pointer justification. If set to 0, no STS is monitored. Only one STS can be monitored on each OC-N port. •0 (default)-3 (OC-3, per port) •0 (default)-12 (OC-12) •0 (default)-48 (OC-48)
Provides Sync	If checked, the card is provisioned as an NE timing reference.
EnableSyncMsg	Enables synchronization status messages (S1 byte), which allow the node to choose the best timing source.
SendDoNotUse	When checked, sends a DUS (do not use) message on the S1 byte.
Administration State	Displays the status of the line. The line can be In Service (IS), In Service-Auto In Service Soak (IS_AINS), Out of Service (OOS), or Out of Service-Maintenance (OOS_MT).
AINS Soak (H:M)	Auto-in service soak. The determination of duration left before the traffic/termination transitions to IS state.
AINS Soak Count Down	Automatic in-service soak countdown. Displays the remaining time of valid input signal in hh:mm, after which the card becomes in service (IS) automatically.
Service State	Displays the service state of the CLIP or NCB. There are four states: •Unknown—The state cannot be determined. •Not Installed—The CLIP or NCB is not installed. •Out of Service—The CLIP or NCB is installed but is not commissioned and is not carrying traffic. •In Service—The CLIP or NCB is commissioned and carrying traffic.

C.1.6.9.2  Line Thresh 15 Min Subtab

The Line Thresh 15 Min subtab (see Table C-66) allows you to view and change the near- and far-end 15-minute threshold settings of an optical card. The subtab contains the following fields.

Table C-66 Field Descriptions for the Line Thresh 15 Min Subtab

Field	Description
Near End
Port Number	Displays the optical port number.
ES-L	Displays the errored seconds-line.
SES-L	Displays the severely errored seconds-line.
CV-L	Displays the coding violations-line.
UAS-L	Displays unavailable seconds-line information.
FC-L	Failure count-line (FC-L) lists a count of the number of near-end line failure events. A failure event begins when an AIS-L failure is declared, or when a lower-layer, traffic-related, near-end failure is declared. This failure event ends when the failure is cleared. A failure event that begins in one period and ends in another period is counted only in the period where it begins.
PSC	In a 1 + 1 protection scheme for a working card, protection switching count (PSC) is a count of the number of times service switches from a working card to a protection card plus the number of times service switches back to the working card. For a protection card, PSC is a count of the number of times service switches to a working card from a protection card plus the number of times service switches back to the protection card. The PSC PM is only applicable if revertive line-level protection switching is used. PSC is supported in revertive and nonrevertive modes. Note This parameter is not supported for transponder or muxponder cards.
PSD	Protection switching duration (PSD) applies to the length of time, in seconds, that service is carried on another line. For a working line, PSD is a count of the number of seconds that service was carried on the protection line. For the protection line, it is a count of the seconds that the line was used to carry service. The PSD PM is only applicable if revertive line-level protection switching is used. PSD is supported in revertive and nonrevertive modes. Note This parameter is not supported for transponder or muxponder cards.
PSC-W	For a working line in a 2-fiber BLSR, protection switching count-working (PSC-W) is a count of the number of times traffic switches away from the working capacity in the failed line and back to the working capacity after the failure is cleared. PSC-W increments on the failed working line and PSC increments on the active protect line. Note This parameter is not supported for transponder or muxponder cards.
PSD-W	For a working line in a 2-fiber BLSR, protection switching duration-working (PSD-W) is a count of the number of seconds that service was carried on the protection line. PSD-W increments on the failed working line and PSD increments on the active protect line. Note This parameter is not supported for transponder or muxponder cards.
Far End
Port Number	Displays the optical port number.
ES-L	Displays the errored seconds-line.
SES-L	Displays the severely errored seconds-line.
CV-L	Displays the coding violations-line.
UAS-L	Displays unavailable seconds-line information.
FC-L	Failure count-line (FC-L) lists a count of the number of near-end line failure events. A failure event begins when an AIS-L failure is declared, or when a lower-layer, traffic-related, near-end failure is declared. This failure event ends when the failure is cleared. A failure event that begins in one period and ends in another period is counted only in the period where it begins.

C.1.6.9.3  Line Thresh 1 Day Subtab

The Line Thresh 1 Day subtab (see Table C-67) allows you to view and change the near- and far-end 1-day threshold settings of an optical card. The subtab contains the following fields.

Table C-67 Field Descriptions for the Line Thresh 1 Day Subtab

Field	Description
Near End
Port Number	Displays the optical port number.
ES-L	Displays the errored seconds-line.
SES-L	Displays the severely errored seconds-line.
CV-L	Displays the coding violations-line.
UAS-L	Displays unavailable seconds-line information.
FC-L	Failure count-line (FC-L) lists a count of the number of near-end line failure events. A failure event begins when an AIS-L failure is declared, or when a lower-layer, traffic-related, near-end failure is declared. This failure event ends when the failure is cleared. A failure event that begins in one period and ends in another period is counted only in the period where it begins.
PSC	In a 1 + 1 protection scheme for a working card, protection switching count (PSC) is a count of the number of times service switches from a working card to a protection card plus the number of times service switches back to the working card. For a protection card, PSC is a count of the number of times service switches to a working card from a protection card plus the number of times service switches back to the protection card. The PSC PM is only applicable if revertive line-level protection switching is used. PSC is supported in revertive and nonrevertive modes. Note This parameter is not supported for transponder or muxponder cards.
PSD	Protection switching duration (PSD) applies to the length of time, in seconds, that service is carried on another line. For a working line, PSD is a count of the number of seconds that service was carried on the protection line. For the protection line, it is a count of the seconds that the line was used to carry service. The PSD PM is only applicable if revertive line-level protection switching is used. PSD is supported in revertive and nonrevertive modes. Note This parameter is not supported for transponder or muxponder cards.
PSC-W	For a working line in a 2-fiber BLSR, protection switching count-working (PSC-W) is a count of the number of times traffic switches away from the working capacity in the failed line and back to the working capacity after the failure is cleared. PSC-W increments on the failed working line and PSC increments on the active protect line. Note This parameter is not supported for transponder or muxponder cards.
PSD-W	For a working line in a 2-fiber BLSR, protection switching duration-working (PSD-W) is a count of the number of seconds that service was carried on the protection line. PSD-W increments on the failed working line and PSD increments on the active protect line. Note This parameter is not supported for transponder or muxponder cards.
Far End
Port Number	Displays the optical port number.
ES-L	Displays the errored seconds-line.
SES-L	Displays the severely errored seconds-line.
CV-L	Displays the coding violations-line.
UAS-L	Displays unavailable seconds-line information.
FC-L	Failure count-line (FC-L) lists a count of the number of near-end line failure events. A failure event begins when an AIS-L failure is declared, or when a lower-layer, traffic-related, near-end failure is declared. This failure event ends when the failure is cleared. A failure event that begins in one period and ends in another period is counted only in the period where it begins.

C.1.6.9.4  Section Thresh 15 Min Subtab

The Section Thresh 15 Min subtab (see Table C-68) allows you to view and change the near-end 15-minute section threshold settings of an optical card. The subtab contains the following fields.

Table C-68 Field Descriptions for the Section Thresh 15 Min Subtab

Field	Description
Near End
Port Number	Displays the port number.
CV-S	Displays the coding violations-section.
ES-S	Displays the errored seconds-section.
SES-S	Displays the severely errored seconds-section.
SEFS-S	Displays the severely errored framing seconds-section.

C.1.6.9.5  Section Thresh 1 Day Subtab

The Section Thresh 1 Day subtab (see Table C-69) allows you to view and change the near-end 1-day section threshold settings of an optical card. The subtab contains the following fields.

Table C-69 Field Descriptions for the Section Thresh 1 Day Subtab

Field	Description
Near End
Port Number	Displays the port number.
CV-S	Displays the coding violations-section.
ES-S	Displays the errored seconds-section.
SES-S	Displays the severely errored seconds-section.
SEFS-S	Displays the severely errored framing seconds-section.

C.1.6.9.6  Path Thresh 15 Min Subtab

The Path Thresh 15 Min subtab (see Table C-70) allows you to view and change near-end 15-minute path threshold information on an optical card. The subtab contains the following fields.

Table C-70 Field Descriptions for the Path Thresh 15 Min Subtab

Field	Description
Near End
STS Number	Displays the synchronous transport signal number.
CV-P	Displays coding violations-path information.
ES-P	Displays errored seconds-path information.
SES-P	Displays severely errored seconds-path information.
UAS-P	Displays unavailable seconds-path information.
FC-P	Displays failure count-path information.
PPJC-Pdet	Positive pointer justification count-VC4 path detected.
NPJC-Pdet	Negative pointer justification count-VC4 path detected.
PPJC-Pgen	Positive pointer justification count-VC4 path generated.
NPJC-Pgen	Negative pointer justification count-VC4 path detected.
PJCS-Pdet	Indicates the number of pointer justification count seconds (PJCS) detected on a particular path.
PJCS-Pgen	Indicates the number of pointer justification count seconds generated for a particular path.
PJC-Diff	Displays the sum of the absolute values of differences between positive transmitted and received, and negative transmitted and received. The important metric on pointer justification is not the exact counts, but how many were absorbed.

C.1.6.9.7  Path Thresh 1 Day Subtab

The Path Thresh 1 Day subtab (see Table C-71) allows you to view and change near-end 1-day path threshold information on an optical card. The subtab contains the following fields.

Table C-71 Field Descriptions for the Path Thresh 1 Day Subtab

Field	Description
Near End
STS Number	Displays the synchronous transport signal number.
CV-P	Displays coding violations-path information.
ES-P	Displays errored seconds-path information.
SES-P	Displays severely errored seconds-path information.
UAS-P	Displays unavailable seconds-path information.
FC-P	Displays failure count-path information.
PPJC-Pdet	Positive pointer justification count-VC4 path detected.
NPJC-Pdet	Negative pointer justification count-VC4 path detected.
PPJC-Pgen	Positive pointer justification count-VC4 path generated.
NPJC-Pgen	Negative pointer justification count-VC4 path detected.
PJCS-Pdet	Indicates the number of pointer justification count seconds (PJCS) detected on a particular path.
PJCS-Pgen	Indicates the number of pointer justification count seconds generated for a particular path.
PJC-Diff	Displays the sum of the absolute values of differences between positive transmitted and received, and negative transmitted and received. The important metric on pointer justification is not the exact counts, but how many were absorbed.

C.1.6.9.8  Physical Thresh 15 Min Subtab

The Physical Thresh 15 Min subtab (see Table C-72) allows you to view and change 15-minute physical threshold information on an optical card. The subtab contains the following fields.

Table C-72 Field Descriptions for the Physical Thresh 15 Min Subtab

Field	Description
Port No.	Pluggable entity number and port number.
LBC-HIGH	Laser bias current maximum. Default is (15 min): 200 percent.
LBC-LOW	Laser bias current minimum. Default is (15 min): 20 percent.
OPT-HIGH	Optical power transmitted maximum. Default is (15 min): 120 percent.
OPT-LOW	Optical power transmitted minimum. Default is (15 min): 80 percent.
OPR-HIGH	Optical power received maximum. Default is (15 min): 200 percent.
OPR-LOW	Optical power received minimum. Default is (15 min): 50 percent.
Set OPR	Setting the optical power received (OPR) establishes the received power level as 100 percent. If the receiver power decreases, then the OPR percentage decreases to reflect the loss in receiver power. For example, if the receiver power decreases 3 dBm, the OPR decreases 50 percent.

C.1.6.9.9  Physical Thresh 1 Day Subtab

The Physical Thresh 1 Day subtab (see Table C-73) allows you to view and change 1-day physical threshold information on an optical card. The subtab contains the following fields.

Table C-73 Field Descriptions for the Physical Thresh 1 Day Subtab

Field	Description
Port No.	Pluggable entity number and port number.
LBC-HIGH	Laser bias current maximum. Default is (15 min): 200 percent.
LBC-LOW	Laser bias current minimum. Default is (15 min): 20 percent.
OPT-HIGH	Optical power transmitted maximum. Default is (15 min): 120 percent.
OPT-LOW	Optical power transmitted minimum. Default is (15 min): 80 percent.
OPR-HIGH	Optical power received maximum. Default is (15 min): 200 percent.
OPR-LOW	Optical power received minimum. Default is (15 min): 50 percent.
Set OPR	Setting the optical power received (OPR) establishes the received power level as 100 percent. If the receiver power decreases, then the OPR percentage decreases to reflect the loss in receiver power. For example, if the receiver power decreases 3 dBm, the OPR decreases 50 percent.

C.1.6.9.10  STS Config Subtab

The STS Config subtab (see Table C-74) allows you to view and change the STS settings of an optical card. The subtab contains the following fields.

Table C-74  Field Descriptions for the STS Config Subtab

Field	Description
STS Number	Displays the synchronous transport signal number information.
IPPM Enabled	Check to enable IPPM and uncheck to disable IPPM.
XC Loopback	Displays the cross-connect loopback status.

C.1.6.9.11  Alarm Behavior Subtab

The Alarm Behavior subtab (see Table C-75) allows you to view and change optical card alarm profile information. The subtab contains the following fields.

Table C-75  Field Descriptions for the Alarm Behavior Subtab

Field	Description
Alarm Profile	Select the alarm profile for the port.
Suppress Alarms	Check the Suppress Alarms check box to suppress all alarms for this card and its port(s).
Port Number	Displays the port number.
Alarm Profile	Displays the alarm profile for the port.
Suppress Alarms	Check the Suppress Alarms check box to suppress all alarms for this card and its port(s).
Force To All Ports	When clicked, forces all the ports to the selected alarm profile.

C.1.6.9.12  Loopback Subtab

The Loopback subtab (see Table C-76) allows you to view and change optical card loopback information. The subtab contains the following fields.

Table C-76 Field Descriptions for the Loopback Subtab

Field	Description
Port Number	Displays the port number.
Administration State	Displays the status of the line. The line can be In Service (IS), In Service-Auto In Service Soak (IS_AINS), Out of Service (OOS), or Out of Service-Maintenance (OOS_MT).
Loopback Type	Allows you to configure a port to terminal loopback (Inward) or Facility (Line), or clear the current loopback (none). Note The line state must be OOS_MT before you can configure the loopback type.
Service State	Displays the overall availability of the entity. Values are: •IS_NR—In Service-Normal •OOS_AU—Out of Service-Autonomous •OOS_MA—Out of Service-Management •OOS_AUMA—Out of Service-Autonomous and Management
Send AIS on Facility Loopback	When selected, sends AIS on the facility loopback.
Send AIS on Terminal Loopback	When selected, sends AIS on the terminal loopback.

C.1.6.9.13  Auto Laser Shutdown Subtab

The Auto Laser Shutdown subtab (see Table C-77) allows you to view and update optical card auto laser shutdown (ALS) parameters. The subtab contains the following fields.

Table C-77 Field Descriptions for the Auto Laser Shutdown Subtab

Field	Description
Port Number	Displays the port number.
ASL Mode	Displays the auto laser shutdown mode (Disabled, Auto Restart, Manual Restart, or Manual Restart for Test).
Rec. Pulse Dur. (sec)	Allows you to set the received laser pulse duration, in seconds. The range is 2.0 to 100.0 seconds.
Rec. Pulse Int. (sec)	Allows you to set the received laser pulse interval, in seconds. The range is 60 to 300 seconds.
Status	Displays the current laser status. Values are Shutdown or Not Shutdown.
Request Restart	If selected, it allows you to request a laser restart. This parameter is configurable only when the ALS mode is set to Manual Restart or Manual Restart for Test and when the laser status is Shut Down.

C.1.6.9.14  Protection Subtab

The Protection subtab (see Table C-78) allows you to view and update protection group information. The subtab contains the following fields.

Table C-78 Field Descriptions for the Protection Subtab

Field	Description
Protection Groups	Displays a list of available protection groups.
Protection Group Details	Displays details about the selected protection group.

C.1.6.9.15  J1 Path Trace Subtab

The J1 Path Trace subtab (see Table C-79) allows you to view and retrieve J1 path trace information. The subtab contains the following fields.

Table C-79 Field Descriptions for the J1 Path Trace Subtab

Field	Description
Port Number	Displays the port number.
STS Number	Displays the synchronous transport signal number.
Expected String	Displays the current expected string.
Received String	Displays the current received string.
Mode	Displays the path trace mode (Off/None, Auto, or Manual).
C2	Represents a machine-generated J1/J2 payload label byte.
Display	Click the Display button to view the circuit trace information. See 7.2.19.1  Viewing a J1 Path Trace from the NE Explorer, page 7-80 for more information.
Retrieve	Click the Retrieve button to retrieve J1 path trace information.

C.1.6.9.16  Customer Info Subtab

The Customer Info subtab (see Table C-80) displays customer information. The subtab contains the following fields.

Table C-80 Field Descriptions for the Customer Info Subtab

Field	Description
STS Number	Displays the STS number.
Customer ID	The customer ID.
Service ID	The service ID.

C.1.6.10  Alarm Extenders Tab

The Alarm Extenders tab allows you to view CTX-CL600 alarm information. The Alarm Extenders tab contains two subtabs:

•External Alarms Subtab

•External Controls Subtab

C.1.6.10.1  External Alarms Subtab

The External Alarms subtab (see Table C-81) allows you to view and update external alarm information. The subtab contains the following fields.

Table C-81 Field Descriptions for the External Alarms Subtab

Field	Description
Input Number	The alarm input number.
Enabled	Check to activate the fields for the alarm input number.
Alarm Type	Choose an alarm type from the provided list.
Severity	Choose a severity from the list.
Raised When	Choose the contact condition that will trigger the alarm in CTC.
Virtual Wire	To assign the external device to a virtual wire, choose a virtual wire from the list, or choose None if no assignment is required.
Description	A default description is provided in this line for every external alarm that is enabled.
Raised	Indicates if an alarm has been raised.
Contact Status	Indicates the current status of the contact.

C.1.6.10.2  External Controls Subtab

The External Controls subtab (see Table C-82) allows you to view and update external controls. The subtab contains the following fields.

Table C-82 Field Descriptions for the External Controls Subtab

Field	Description
Control Number	The control number.
Enabled	Check to activate the fields for the control number.
Control Type	Choose a control type from the provided list.
Trigger Type	Choose a trigger type: a local minor, major, or critical alarm; a remote minor, major, or critical alarm; or a virtual wire activation.
Description	Enter a description.
Current State	The current state of the control.
Auto State	The auto state of the control.
Contact Setting	The current contact setting.

C.1.6.11  Info Tab

The Info tab (see Table C-83) allows you to view nominal operating values set during manufacturing for the CTX-CL600 module. The tab contains the following fields.

Table C-83 Field Descriptions for the Info Tab

Field	Description
Extended Manufacturing Information
Attribute	(Read-only) Displays the nominal card specification.
Value	(Read-only) Displays the value of the attribute.

---

Note See Table 1-19 on page 1-38 for the descriptions of the actions that can be performed using the buttons at the bottom of the window.

---

C.1.7  Slot Properties—CXC Card

The Slot Properties pane displays information about the Cisco ONS 15600 SONET and ONS 15600 SDH slot that is selected in the NE Explorer tree. Use this properties pane to change the module performance monitoring thresholds.

For the CXC, the Slot Properties pane displays the following tabs: Module View and Identification.

C.1.7.1  Module View Tab

The Module View tab displays a graphic of the CXC card that is installed in the slot. The number of critical, major, minor, and warning alarms for the module is displayed under Alarm Status. (Alarms are also displayed when you move the mouse pointer over the graphic.) The Suppress Alarms check box is read-only and indicates whether all alarms are suppressed for the card and its port(s). Right-clicking the graphic opens a shortcut menu that you can use to reset, delete, or change the card.

C.1.7.2  Identification Tab

The Identification tab (see Table C-84) allows you to view and update CXC identification information. The tab contains the following fields.

Table C-84 Field Descriptions for the Identification Tab

Field	Description
Equipment Type	Displays the equipment type the slot is provisioned for.
Hardware Part Number	Displays the card part number that is printed on the top of the card.
Hardware Revision	Displays the hardware revision number of the card.
Serial Number	Displays the card serial number that is unique to each card.
CLEI Code	Displays the CLEI code.
Actual Equipment Type	Displays the actual card that is installed in the slot.
Firmware Version	Displays the revision number of the software used by the ASIC chip installed on the card.
User Code	Allows you to enter an ASCII string to identify the card. The user code is stored in nonvolatile memory so that it is not lost when the unit is moved or stored as a spare.
Product ID	Displays a product ID string of 63 characters maximum. If the card does not support the product ID, the field shows N/A.
Version ID	Displays a version ID string in the format "V99_." The version ID always begins with a V and ends with a space. If the card does not support the version ID, the field shows N/A.
Equipment State	Displays the equipment state of the card.
Alarm Profile	Sets the alarm profile for the port. Check the Suppress Alarms check box to suppress all alarms for this card and its port(s).

---

Note See Table 1-19 on page 1-38 for the descriptions of the actions that can be performed using the buttons at the bottom of the window.

---

C.1.8  Slot Properties—EOI-W Card

The Slot Properties pane displays information about the Cisco ONS 15800 or ONS 15801 slot that is selected in the NE Explorer tree. Use this properties pane to change the module alarm thresholds and severities.

The ONS 15800 and ONS 15801 External Orderwire Interface (EOI-W) module provides an isolated interface between the Line Service Modem (LSM-W) module and an external orderwire terminal. All orderwire signals are transmitted from the LSM-W module to the EOI-W module. The EOI-W module provides two isolated, bidirectional, 64-kbps voice channels through the service line for the orderwire.

For EOI-W modules, the Slot Properties pane displays Module View and Identification tabs.

C.1.8.1  Module View Tab

The Module View tab displays a graphic of the EOI-W that is installed in the slot. The number of critical, major, minor, and warning alarms for the module is displayed under Alarm Status. (Alarms also display when you move the mouse over the graphic.) The module status is displayed under Operational State. Right-clicking the graphic opens a shortcut menu that you can use to display the module in the Alarm Browser or in the Equipment Inventory Table.

C.1.8.2  Identification Tab

The Identification tab (see Table C-85) allows you to view and update the EOI-W identification information. The tab contains the following fields.

Table C-85 Field Descriptions for the Identification Tab

Field	Description
NE ID	Displays the user-defined name of the NE where the EOI-W is installed.
Description	Displays information that a user has entered (if any) to describe the NE.
NE Model	Identifies the model of the selected NE (ONS 15800 or ONS 15801) where the EOI-W is installed.
Rack ID	Displays the identification number of the rack where the subrack containing the EOI-W is installed.
Subrack ID	Displays the identification number of the subrack.
Slot ID	Displays the identification number of the slot containing the EOI-W.
Software Version	Displays the version of the software running on the module.
BIOS Version	Displays the version number of the BIOS.
Board Serial Number	Displays the serial number of the board.
SCC Number	Displays the version of the module serial communication controller (SCC).
Product Option	Displays the product option. Displays "Not Available" if TL1 Agent version is earlier than version 2.1.
Hardware Version	Displays the version of the hardware. Displays "Not Available" if TL1 Agent version is earlier than version 2.1.
Line Direction	Shows the line direction for the EOI-W module.
State	Allows you to place the EOI-W module in one of two states: In Service or Under Maintenance.

---

Note See Table 1-19 on page 1-38 for the descriptions of the actions that can be performed using the buttons at the bottom of the window.

---

C.1.9  Slot Properties—Filler Card

The Slot Properties pane displays information about the Cisco ONS 15600 SONET and ONS 15600 SDH slot that is selected in the NE Explorer tree. For the Filler module, the Slot Properties pane displays the Module View tab.

C.1.9.1  Module View Tab

The Module View tab displays a graphic of the Filler card that is installed in the slot. The number of critical, major, minor, and warning alarms for the module is displayed under Alarm Status. (Alarms are also displayed when you move the mouse pointer over the graphic.) Right-clicking the graphic opens a shortcut menu that you can use to add a card.

C.1.10  Slot Properties—IOC-W Card

The Slot Properties pane displays information about the Cisco ONS 15800 or ONS 15801 slot that is selected in the NE Explorer tree. Use this properties pane to change the module alarm thresholds and severities.

ONS 15800 and ONS 15801 Input/Output Card (IOC-W) modules protect NEs by reporting indications from externally sensed equipment and housekeeping alarms. Alarms reported include AC power, DC power, fire, flood, open doors, and so on. The IOC-W module also permits remote control of isolated optical line amplifier (OLA) sites.

For IOC-W modules, the Slot Properties pane displays the following tabs: Module View, Identification, Analog, Digital Input, and Digital Output.

C.1.10.1  Module View Tab

The Module View tab displays a graphic of the IOC-W module that is installed in the slot. The number of critical, major, minor, and warning alarms for the module is displayed under Alarm Status. (Alarms are also displayed when you move the mouse pointer over the graphic.) The module status is displayed under Operational State. Right-clicking the graphic opens a shortcut menu that you can use to display the module in the Alarm Browser or in the Equipment Inventory Table.

C.1.10.2  Identification Tab

The Identification tab (see Table C-86) allows you to view and update IOC-W identification information. The tab contains the following fields.

Table C-86 Field Descriptions for the Identification Tab

Field	Description
NE ID	Displays the user-defined name of the NE where the IOC-W is installed.
Description	Displays information that a user has entered (if any) to describe the NE.
NE Model	Identifies the model of the selected NE (ONS 15800 or ONS 15801) where the IOC-W is installed.
Rack ID	Displays the identification number of the rack where the subrack containing the IOC-W is installed.
Subrack ID	Displays the identification number of the subrack.
Slot ID	Displays the identification number of the slot containing the IOC-W.
Software Version	Displays the version of the software running on the module.
BIOS Version	Displays the version number of the BIOS.
Board Serial Number	Displays the serial number of the board.
SCC Number	Displays the SCC version number.
Product Option	Displays the product option. Displays "Not Available" if TL1 Agent version is earlier than version 2.1.
Hardware Version	Displays the version of the hardware. Displays "Not Available" if TL1 Agent version is earlier than version 2.1.
Line Direction	Shows the line direction for the IOC-W.
State	Allows you to place the IOC-W in one of two states: In Service or Under Maintenance.
PM Collection Status	Allows you to enable or disable performance monitoring (PM) collection for the IOC-W.

C.1.10.3  Analog Tab

The Analog tab (see Table C-87) allows you to assign high and low voltage thresholds and alarm severities for eight analog inputs. The tab contains the following fields for each analog input.

Table C-87 Field Descriptions for the Analog Tab

Field	Description
General Analog Input 1-8
Value	When the Update button is clicked, displays the current voltage of the analog input.
Voltage High	Use the fields in this row to view or set the high voltage threshold (in volts), the alarm severity level, and a description for the analog input.
Voltage Low	Use the fields in this row to view or set the low voltage threshold (in volts), the alarm severity level, and a description for the analog input.
Name	Allows you to specify the name of the IOC-W module for which you want to view or provision analog inputs.

C.1.10.4  Digital Input Tab

The Digital Input tab (see Table C-88) allows you to assign the alarm input levels for up to 32 digital devices. The tab contains the following fields.

Table C-88 Field Descriptions for the Digital Input Tab

Field	Description
General Digital Input 1-32
General Digital Input	Displays the general input level for the digital input (read-only).
Alarm Severity	Sets the severity for alarms that occur for the digital input.
Name	Displays the name entered by the user for the digital input.
Description	Displays the description entered by the user for the digital input.

C.1.10.5  Digital Output Tab

The Digital Output tab (see Table C-89) allows you to assign the alarm output levels for up to 20 digital devices. The tab contains the following fields.

Table C-89 Field Descriptions for the Digital Output Tab

Field	Description
General Digital Output 1-20
General Digital Output	Displays the general output level for the digital output.
Name	Displays the name entered by the user for the digital output.

---

Note See Table 1-19 on page 1-38 for the descriptions of the actions that can be performed using the buttons at the bottom of the window.

---

C.1.11  Slot Properties—LSM-W

The Slot Properties pane displays information about the Cisco ONS 15800 or ONS 15801 slot that is selected in the NE Explorer tree. Use this properties pane to change the module performance monitoring thresholds.

The ONS 15800 and ONS 15801 Line Service Modem (LSM-W) module is a bidirectional optical module that operates at an E1 line rate (2.048 Mbps). It transports the optical service channel (OSC), which carries telemetry, supervision, user-defined information, and orderwire between ONS 15800 or ONS 15801 sites.

A block diagram is shown in Figure C-1.

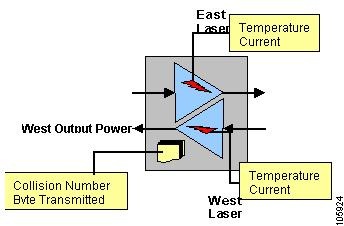

Figure C-1 Cisco ONS 15800 or ONS 15801 Line Service Modem Module

For the LSM-W module, the Slot Properties pane displays the following tabs: Module View, Identification, Temperature, Current, and Output Power.

C.1.11.1  Module View Tab

The Module View tab displays a graphic of the LSM-W module that is installed in the slot. The number of critical, major, minor, and warning alarms for the module is displayed under Alarm Status. (Alarms are also displayed when you move the mouse pointer over the graphic.) The module status is displayed under Operational State. Right-clicking the graphic opens a shortcut menu that you can use to display the module in the Alarm Browser or in the Equipment Inventory Table.

C.1.11.2  Identification Tab

The Identification tab (see Table C-90) allows you to view and update LSM-W module identification information. The tab contains the following fields.

Table C-90 Field Descriptions for the Identification Tab

Field	Description
NE ID	Displays the user-defined name of the NE where the LSM-W is installed.
Description	Displays information that a user has entered (if any) to describe the NE.
NE Model	Identifies the model of the selected NE (ONS 15800 or ONS 15801) where the LSM-W is installed.
Rack ID	Displays the identification number of the rack where the subrack containing the LSM-W is installed.
Subrack ID	Displays the identification number of the subrack.
Slot ID	Displays the identification number of the slot containing the LSM-W.
Software Version	Displays the version of the software.
BIOS Version	Displays the version number of the BIOS.
Board Serial Number	Displays the serial number of the board.
SCC Number	Displays the version of the module serial communication controller (SCC).
Product Option	Displays the product option. Displays "Not Available" if the TL1 Agent version is earlier than version 2.1.
Hardware Version	Displays the version of the hardware. Displays "Not Available" if the TL1 Agent version is earlier than version 2.1.
Line Direction	Shows the line direction for the LSM-W.
State	Allows you to place the LSM-W in one of two states: In Service or Under Maintenance.
PM Collection Status	Allows you to enable or disable performance monitoring (PM) collection for the LSM-W.

C.1.11.3  Temperature Tab

The Temperature tab (see Table C-91) allows you to view and assign performance monitoring thresholds for the temperature of the east and west lasers of the LSM-W module. The tab contains the following fields.

Table C-91 Field Descriptions for the Temperature Tab

Field	Description
East Laser 1 Temperature
Value	When the Update button is clicked, displays the current temperature of East Laser 1.
Low	Sets the low temperature threshold for East Laser 1 (in degrees Celsius) and the alarm severity level.
High	Sets the high temperature threshold for East Laser 1 (in degrees Celsius) and the alarm severity level.
West Laser 2 Temperature
Value	When the Update button is clicked, displays the current temperature of West Laser 2.
Low	Sets the low temperature threshold for West Laser 2 (in degrees Celsius) and the alarm severity level.
High	Sets the high temperature threshold for West Laser 2 (in degrees Celsius) and the alarm severity level.

C.1.11.4  Current Tab

The Current tab (see Table C-92) allows you to assign performance monitoring thresholds for the line service east and west laser current levels of the LSM-W module. The tab contains the following fields.

Table C-92 Field Descriptions for the Current Tab

Field	Description
East Laser 1 Current
Value	When the Update button is clicked, displays the current value of the East Laser 1 current.
Low	Sets the low current threshold for East Laser 1 (in milliamperes [mA]) and the alarm severity level.
High	Sets the high current threshold for East Laser 1 (in mA) and the alarm severity level.
West Laser 2 Current
Value	When the Update button is clicked, displays the current value of the West Laser 2 current.
Low	Sets the low current threshold for West Laser 2 (in mA) and the alarm severity level.
High	Sets the high current threshold for West Laser 2 (in mA) and the alarm severity level.

C.1.11.5  Output Power Tab

The Output Power tab (see Table C-93) allows you to assign performance monitoring thresholds for the LSM-W module east and west laser output power levels. The tab contains the following fields.

Table C-93 Field Descriptions for the Output Power Tab

Field	Description
East Laser 1 Output Power
Value	When the Update button is clicked, displays the current output power of East Laser 1.
Low	Sets the low output power threshold for East Laser 1 (in dBm) and the alarm severity level.
High	Sets the high output power threshold East Laser 1 (in dBm) and the alarm severity level.
West Laser 2 Output Power
Value	When the Update button is clicked, displays the current output power of West Laser 2.
Low	Sets the low output power threshold for West Laser 2 (in dBm) and the alarm severity level.
High	Sets the high output power threshold for West Laser 2 (in dBm) and the alarm severity level.

---

Note See Table 1-19 on page 1-38 for the descriptions of the actions that can be performed using the buttons at the bottom of the window.

---

C.1.12  Slot Properties—MIC-28-3-A and MIC-28-3-B Cards

The Slot Properties pane displays information about the Cisco ONS 15327 or ONS 15454 slot that is selected in the NE Explorer tree. Use this properties pane to change the module performance monitoring thresholds.

The MIC-28-3-A and MIC-28-3-B cards are the Mechanical Interface Cards (MICs). The MICs provide the physical connection points for the DS-1 and DS-3 interfaces on the XTC cards, the redundant power inputs, the alarm inputs and outputs, and the BITS timing inputs and outputs.

For the MIC module, the Slot Properties pane displays the following tabs: Module View and Identification.

C.1.12.1  Module View Tab

The Module View tab displays a graphic of the MIC that is installed in the slot. The number of critical, major, minor, and warning alarms for the module is displayed under Alarm Status. (Alarms are also displayed when you move the mouse pointer over the graphic.) The Suppress Alarms check box is read-only and indicates whether all alarms are suppressed for the card and its port(s). Right-clicking the graphic opens a shortcut menu that you can use to reset, delete, or change the card.

C.1.12.2  Identification Tab

The Identification tab (see Table C-94) allows you to view and update MIC identification information. The tab contains the following fields.

Table C-94 Field Descriptions for the Identification Tab

Field	Description
Equipment Type	Displays the equipment type the slot is provisioned for.
Actual Equipment Type	Displays the actual card that is installed in the slot.
Hardware Part Number	Displays the card part number that is printed on the top of the card.
Hardware Revision	Displays the hardware revision number of the card.
Serial Number	Displays the card serial number that is unique to each card.
CLEI Code	Displays the CLEI code.
Firmware Version	Displays the revision number of the software used by the ASIC chip installed on the card.
Product ID	Displays a product ID string of 63 characters maximum. If the card does not support the product ID, the field shows N/A.
Version ID	Displays a version ID string in the format "V99_." The version ID always begins with a V and ends with a space. If the card does not support the version ID, the field shows N/A.
Equipment State	Displays the equipment state of the card.
Alarm Profile	Sets the alarm profile for the port. Check the Suppress Alarms check box to suppress all alarms for this card and its port(s).

---

Note See Table 1-19 on page 1-38 for the descriptions of the actions that can be performed using the buttons at the bottom of the window.

---

C.1.13  Slot Properties—OCP Module

The Slot Properties pane displays information about the Cisco ONS 15808 module that is installed in the slot selected in the NE Explorer tree. Use this properties pane to change the module performance monitoring thresholds.

The Optical Channel Protection (OCP) module enables 1+1 protection of a generic client optical signal regardless of bit rate, format protocol, and wavelength. To provide this protection, the OCP module is placed at the optical system access point. This means that the module must be connected between the client terminal and the ONS 15808 system transponders to provide path protection. The OCP module can provide channel protection on the physical layer.

A block diagram is shown in Figure C-2.

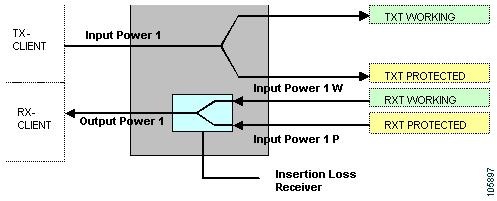

Figure C-2 Cisco ONS 15808 Optical Channel Protection Unit

For ONS 15808 OCP modules, the Slot Properties pane displays the following tabs: Module View, Identification, Config, Input Power, and Optical Power.

C.1.13.1  Module View Tab

The Module View tab displays a graphic of the OCP module that is installed in the slot. The number of critical, major, minor, and warning alarms for the module is displayed under Alarm Status. (Moving the mouse pointer over the graphic also displays the alarm counts.) The module status is displayed under Operational State. Right-clicking the graphic opens a shortcut menu that you can use to display the module in the Equipment Inventory Table, in the Alarm Browser, or in the OCP PM Table.

C.1.13.2  Identification Tab

The Identification tab (see Table C-95) allows you to view and update OCP module identification information. The tab contains the following fields.

Table C-95 Field Descriptions for the Identification Tab

Field	Description
NE ID	Displays the user-defined name of the NE where the OCP module is installed.
Description	Displays information that a user has entered (if any) to describe the NE.
NE Model	Identifies the model of the selected NE (ONS 15808) where the OCP module is installed.
Rack ID	Displays the identification number of the rack where the subrack containing the OCP module is installed.
Subrack ID	Displays the identification number of the subrack.
Slot ID	Displays the identification number of the slot containing the OCP module.
Software Version	Displays the version of the software.
BIOS Version	Displays the version number of the BIOS.
Board Serial Number	Displays the serial number of the board.
SCC Number	Displays the version of the module serial communication controller (SCC).
Product Option	Displays the product option. Displays Not Available if TL1 Agent version is earlier than version 2.1.
Hardware Version	Displays the version of the hardware. Displays Not Available if TL1 Agent version is earlier than version 2.1.
Line Direction	Shows the line direction for the OCP module.
State	Allows you to place the OCP module in one of two states: In Service or Under Maintenance.
PM Collection Status	Allows you to enable or disable PM collection for the OCP module.

C.1.13.3  Config Tab

The Config tab (see Table C-96) allows you to set certain OCP module configuration parameters. The tab contains the following fields.

Table C-96 Field Descriptions for the Config Tab

Field	Description
Unit State	Shows the current status of the unit state and allows you to set the alarm severity level.
Hardware State	Shows the current status of the hardware state and allows you to set the alarm severity level.
Channel Number Protected	Allows you to set the channel number protected.
W/P Line Hold Off Time	Allows you to set the working/protection line hold off time (in milliseconds).
Unit Operation Mode	Allows you to specify Auto or Manual unit operation mode and set the alarm severity level.
Forcing Operation Mode	When Unit Operation Mode is set to Manual, allows you to specify working or protected operation mode.
External Line	When Unit Operation Mode is set to Auto, allows you to enable or disable the external line.
Lock Out of Protection	Allows you to turn the lock out of protection on or off.

C.1.13.4  Input Power Tab

The Input Power tab (see Table C-97) allows you to assign thresholds and alarm severities for the power coming into the OCP module lasers. The tab contains the following fields.

Table C-97 Field Descriptions for the Input Power Tab

Field	Description
Input Power Working Line
Value	When the Update button is clicked, displays the current OCP module working line input power (in dBm).
Working Line Threshold	Sets the threshold for the working line input power, in dBm.
Internal Working Line State	When the Update button is clicked, displays the current internal working line state and lets you set the alarm severity level.
External Working Line State	When the Update button is clicked, displays the current external working line state and lets you set the alarm severity level.
Input Power Protection Line
Value	When the Update button is clicked, displays the current OCP module protection line input power (in dBm).
Protection Line Threshold	Sets the threshold for the protection line input power, in dBm.
Internal Protection Line State	When the Update button is clicked, displays the current internal protection line state and lets you set the alarm severity level.
External Protection Line State	When the Update button is clicked, displays the current external protection line state and lets you set the alarm severity level.

C.1.13.5  Optical Power Tab

The Optical Power tab (see Table C-98) allows you to view and assign thresholds and alarm severities for the OCP module optical power. The tab contains the following fields.

Table C-98 Field Descriptions for the Optical Power Tab

Field	Description
Input Power from Client Transmitter
Value	When the Update button is clicked, displays the current input power from the client transmitter (in dBm).
Output Power Client Receiver
Value	When the Update button is clicked, displays the current output power from the client receiver (in dBm).
Optical Switch Insertion Loss
Value	When the Update button is clicked, displays the current optical switch insertion loss (in dB). Insertion loss is the total optical power loss caused by insertion of an optical component.
High	Sets the high threshold for the optical switch insertion loss, in dB, and the alarm severity level.

---

Note See Table 1-19 on page 1-38 for the descriptions of the actions that can be performed using the buttons at the bottom of the window.

---

C.1.14  Slot Properties—OSCM Module

The Slot Properties pane displays information about the Cisco ONS 15808 module that is installed in the slot selected in the NE Explorer tree. Use this properties pane to change the module performance monitoring thresholds.

The Optical Service Channel Modem (OSCM) module provides each NE with logical and physical interfaces to manage the two-channel, unidirectional optical service channel information. The optical service channel connects all the stations of an optical network or subnetwork and transports general purpose information without affecting user traffic. The primary function of the OSCM module is to manage data subchannels for supervisory and order-wire services and to provide transparent links between each node of the network or user-defined functions. The OSCM module transports data in each direction by using a single optical wavelength (1620 nm) running on the same fiber pair as the optical payload channels.

A block diagram is shown in Figure C-3.

Figure C-3 Cisco ONS 15808 Optical Service Channel Modem

For ONS 15808 OSCM modules, the Slot Properties pane displays the following tabs: Module View, Identification, Temperature, Performance, Current, and Output Power.

C.1.14.1  Module View Tab

The Module View tab displays a graphic of the OSCM module that is installed in the slot. The number of critical, major, minor, and warning alarms for the module is displayed under Alarm Status. (Moving the mouse pointer over the graphic also displays the alarm counts.) The module status is displayed under Operational State. Right-clicking the graphic opens a shortcut menu that you can use to display the module in the Equipment Inventory Table, in the Alarm Browser, or in the OSCM PM Table.

C.1.14.2  Identification Tab

The Identification tab (see Table C-99) allows you to view and update OSCM module identification information. The tab contains the following fields.

Table C-99 Field Descriptions for the Identification Tab

Field	Description
NE ID	Displays the user-defined name of the NE where the OSCM module is installed.
Description	Displays information that a user has entered (if any) to describe the NE.
NE Model	Identifies the model of the selected NE (ONS 15808) where the OSCM module is installed.
Rack ID	Displays the identification number of the rack where the subrack containing the OSCM module is installed.
Subrack ID	Displays the identification number of the subrack.
Slot ID	Displays the identification number of the slot containing the OSCM module.
Software Version	Displays the version of the software.
BIOS Version	Displays the version number of the BIOS.
Board Serial Number	Displays the serial number of the board.
SCC Number	Displays the version of the module serial communication controller (SCC).
Product Option	Displays the product option. Displays Not Available if TL1 Agent version is earlier than version 2.1.
Hardware Version	Displays the version of the hardware. Displays Not Available if TL1 Agent version is earlier than version 2.1.
Line Direction	Shows the line direction for the OSCM module.
State	Allows you to place the OSCM module in one of two states: In Service or Under Maintenance.
PM Collection Status	Allows you to enable or disable PM collection for the OSCM module.

C.1.14.3  Temperature Tab

The Temperature tab (see Table C-100) allows you to assign performance monitoring thresholds for the OSCM module operating temperature. The tab contains the following fields.

Table C-100 Field Descriptions for the Temperature Tab

Field	Description
East Laser Temperature 1
Value	When the Update button is clicked, displays the current temperature of the east laser (in degrees Celsius).
Low	Sets the operating temperature low threshold, in degrees Celsius, and the alarm severity level.
High	Sets the operating temperature high threshold, in degrees Celsius, and the alarm severity level.
West Laser Temperature 2
Value	When the Update button is clicked, displays the current temperature of the west laser (in degrees Celsius).
Low	Sets the operating temperature low threshold, in degrees Celsius, and the alarm severity level.
High	Sets the operating temperature high threshold, in degrees Celsius, and the alarm severity level.

C.1.14.4  Performance Tab

The Performance tab (see Table C-101) allows you to view performance information for the OSCM module. The tab contains the following fields.

Table C-101 Field Descriptions for the Performance Tab

Field	Description
Number of Collisions
Value	When the Update button is clicked, displays the current number of collisions.
Number of Transmitted Bytes
Value	When the Update button is clicked, displays the current number of transmitted bytes.

C.1.14.5  Current Tab

The Current tab (see Table C-102) allows you to assign thresholds and alarm severities for the OSCM module laser current levels. The tab contains the following fields.

Table C-102 Field Descriptions for the Current Tab

Field	Description
East Laser Current 1
Value	When the Update button is clicked, displays the current value of the east laser current (in mA).
Low	Sets the low threshold for the east laser current, in mA, and the alarm severity level.
High	Sets the high threshold for the east laser current, in mA, and the alarm severity level.
West Laser Current 2
Value	When the Update button is clicked, displays the current value of the west laser current (in mA).
Low	Sets the low threshold for the west laser current, in mA, and the alarm severity level.
High	Sets the high threshold for the west laser current, in mA, and the alarm severity level.

C.1.14.6  Output Power Tab

The Output Power tab (see Table C-103) allows you to assign thresholds and alarm severities for the OSCM module laser power levels. The tab contains the following fields.

Table C-103 Field Descriptions for the Output Power Tab

Field	Description
East Output Power 1
Value	When the Update button is clicked, displays the current output power of the east laser (in dBm).
Low	Sets the low threshold for the east laser output power, in dBm, and the alarm severity level.
High	Sets the high threshold for the east laser output power, in dBm, and the alarm severity level.
West Output Power 2
Value	When the Update button is clicked, displays the current output power of the west laser (in dBm).
Low	Sets the low threshold for the west laser output power, in dBm, and the alarm severity level.
High	Sets the high threshold for the west laser output power, in dBm, and the alarm severity level.

---

Note See Table 1-19 on page 1-38 for the descriptions of the actions that can be performed using the buttons at the bottom of the window.

---

C.1.15  Slot Properties—OSU-W Card

The Slot Properties pane displays information about the Cisco ONS 15800 or ONS 15801 module that is installed in the slot selected in the NE Explorer tree. Use this properties pane to change the module performance monitoring thresholds.

The Optical Switch Unit (OSU-W) module enables 1+1 protection of a generic client optical signal regardless of bit rate, format protocol, and wavelength. To provide this protection, the OSU-W module is placed at the optical system access point. This means that the module must be connected between the client terminal and the ONS 15800 or ONS 15801 system transponders to provide path protection. The OSU-W module can provide channel protection on the physical layer, for SDH and SONET traffic as well as for unprotected traffic such as IP, ATM, and plesiochronous digital hierarchy (PDH).

A block diagram is shown in Figure C-4.

Figure C-4 Cisco ONS 15800 or ONS 15801 Optical Switch Unit

For ONS 15800 or ONS 15801 OSU-W modules, the Slot Properties pane displays the following tabs: Module View, Identification, Config, Input Power, and Optical Power.

C.1.15.1  Module View Tab

The Module View tab displays a graphic of the OSU-W module that is installed in the slot. The number of critical, major, minor, and warning alarms for the module is displayed under Alarm Status. (Moving the mouse pointer over the graphic also displays the alarm counts.) The module status is displayed under Operational State. Right-clicking the graphic opens a shortcut menu that you can use to display the module in the Equipment Inventory Table, in the Alarm Browser, or in the OSU PM Table.

C.1.15.2  Identification Tab

The Identification tab (see Table C-104) allows you to view and update OSU-W module identification information. The tab contains the following fields.

Table C-104 Field Descriptions for the Identification Tab

Field	Description
NE ID	Displays the user-defined name of the NE where the OSU-W module is installed.
Description	Displays information that a user has entered (if any) to describe the NE.
NE Model	Identifies the model of the selected NE (ONS 15800 or ONS 15801) where the OSU-W module is installed.
Rack ID	Displays the identification number of the rack where the subrack containing the OSU-W module is installed.
Subrack ID	Displays the identification number of the subrack.
Slot ID	Displays the identification number of the slot containing the OSU-W module.
Software Version	Displays the version of the software.
BIOS Version	Displays the version number of the BIOS.
Board Serial Number	Displays the serial number of the board.
SCC Number	Displays the version of the module serial communication controller (SCC).
Product Option	Displays the product option. Displays "Not Available" if the TL1 Agent version is earlier than version 2.1.
Hardware Version	Displays the version of the hardware. Displays "Not Available" if the TL1 Agent version is earlier than version 2.1.
Line Direction	Shows the line direction for the OSU-W module.
State	Allows you to place the OSU-W module in one of two states: In Service or Under Maintenance.
PM Collection Status	Allows you to enable or disable performance monitoring (PM) collection for the OSU-W module.

C.1.15.3  Config Tab

The Config tab (see Table C-105) allows you to set certain OSU-W module configuration parameters. The tab contains the following fields.

Table C-105 Field Descriptions for the Config Tab

Field	Description
Unit State	Shows the current status of the unit state and allows you to set the alarm severity level.
Hardware State	Shows the current status of the hardware state and allows you to set the alarm severity level.
Channel Number Protected	Allows you to set the channel number that is protected by this OSU-W module.
W/P Line Hold Off Time	Allows you to set the working/protection line hold-off time (in milliseconds).
Unit Operation Mode	Allows you to specify Auto or Manual unit operation mode and set the alarm severity level.
Forcing Operation Mode	When Unit Operation Mode is set to Manual, allows you to specify working or protected operation mode.
External Line	When Unit Operation Mode is set to Auto, allows you to enable or disable the external line.
Lock Out of Protection	Allows you to turn the lockout of protection on or off.

C.1.15.4  Input Power Tab

The Input Power tab (see Table C-106) allows you to assign thresholds and alarm severities for the power coming into the OSU-W module lasers.The tab contains the following fields.

Table C-106 Field Descriptions for the Input Power Tab

Field	Description
Input Power Working Line
Value	When the Update button is clicked, displays the current OSU-W module working line input power in (dBm).
Working Line Threshold	Sets the threshold for the working line input power (in dBm).
Internal Working Line State	When the Update button is clicked, displays the current internal working line state and lets you set the alarm severity level.
External Working Line State	When the Update button is clicked, displays the current external working line state and lets you set the alarm severity level.
Input Power Protection Line
Value	When the Update button is clicked, displays the current OSU-W module protection line input power (in dBm).
Protection Line Threshold	Sets the threshold for the protection line input power (in dBm).
Internal Protection Line State	When the Update button is clicked, displays the current internal protection line state and lets you set the alarm severity level.
External Protection Line State	When the Update button is clicked, displays the current external protection line state and lets you set the alarm severity level.

C.1.15.5  Optical Power Tab

The Optical Power (see Table C-107) tab allows you to view and assign thresholds and alarm severities for the OSU-W module optical power. The tab contains the following fields.

Table C-107 Field Descriptions for the Optical Power Tab

Field	Description
Input Power from Client Transmitter
Value	When the Update button is clicked, displays the current input power from the client transmitter (in dBm).
Output Power Client Receiver
Value	When the Update button is clicked, displays the current output power from the client receiver (in dBm).
Optical Switch Insertion Loss
Value	When the Update button is clicked, displays the current optical switch insertion loss (in decibels [dB]). Insertion loss is the total optical power loss caused by insertion of an optical component.
High	Sets the high threshold for the optical switch insertion loss (in dB) and the alarm severity level.

---

Note See Table 1-19 on page 1-38 for the descriptions of the actions that can be performed using the buttons at the bottom of the window.

---

C.1.16  Slot Properties—PLF Module

The Slot Properties pane displays information about the Cisco ONS 15808 module that is installed in the slot selected in the NE Explorer tree. Use this properties pane to change the module performance monitoring thresholds.

The Power Line Filter (PLF) module is a line conditioner and filtering module. CTM does not directly manage the PLF; rather, the Shelf Control Unit (SCU) monitors the PLF module. The PLF has the following functions:

•Manages one of the two independent input power supply voltages

•Provides redundant power capability

•Provides a single ON/OFF switch to turn off module output voltage

•Protects against polarity inversion of input voltage, input over-voltage greater than 75 V, input under-voltage less than 36 V, and inrush current surges

For ONS 15808 PLF modules, the Slot Properties pane displays the following tabs: Module View and Identification.

C.1.16.1  Module View Tab

The Module View tab displays a graphic of the PLF module that is installed in the slot. The number of critical, major, minor, and warning alarms for the module is displayed under Alarm Status. (Moving the mouse pointer over the graphic also displays the alarm counts.) The module status is displayed under Operational State. Right-clicking the graphic opens a shortcut menu that you can use to display the module in the Equipment Inventory Table or in the Alarm Browser.

C.1.16.2  Identification Tab

The Identification tab (see Table C-108) allows you to view and update PLF module identification information. The tab contains the following fields.

Table C-108 Field Descriptions for the Identification Tab

Field	Description
NE ID	Displays the user-defined name of the NE where the PLF module is installed.
Description	Displays information that a user has entered (if any) to describe the NE.
NE Model	Identifies the model of the selected NE (ONS 15808) where the PLF module is installed.
Rack ID	Displays the identification number of the rack where the subrack containing the PLF module is installed.
Subrack ID	Displays the identification number of the subrack.
Slot ID	Displays the identification number of the slot containing the PLF module.
Software Version	Displays the version of the software.
BIOS Version	Displays the version number of the BIOS.
Board Serial Number	Displays the serial number of the board.
SCC Number	Displays the version of the module serial communication controller (SCC).
Product Option	Displays the product option. Displays Not Available if TL1 Agent version is earlier than version 2.1.
Hardware Version	Displays the version of the hardware. Displays Not Available if TL1 Agent version is earlier than version 2.1.
Line Direction	Shows the line direction for the PLF module.
State	Allows you to place the PLF module in one of two states: In Service or Under Maintenance.

---

Note See Table 1-19 on page 1-38 for the descriptions of the actions that can be performed using the buttons at the bottom of the window.

---

C.1.17  Slot Properties—RBU Card

The Slot Properties pane displays information about the Cisco ONS 15800 or ONS 15801 slot that is selected in the NE Explorer tree. Use this properties pane to set performance monitoring thresholds for the module.

The Router Bridge Unit (RBU) provides redundant telemetry lines for the ONS 15800 or ONS 15801 system. RBUs are connected to the Ethernet interface by Line Service Modem (LSM-W) modules and are placed at the end link of terminal sites.

For the RBU, the Slot Properties pane displays the following tabs: Module View and Identification.

C.1.17.1  Module View Tab

The Module View tab displays a graphic of the RBU that is installed in the slot. Moving the mouse pointer over the graphic displays the number of critical, major, minor, and warning alarms for the module.

C.1.17.2  Identification Tab

The Identification tab (see Table C-109) allows you to view and update RBU identification information. The tab contains the following fields.

Table C-109 Field Descriptions for the Identification Tab

Field	Description
NE ID	Displays the user-defined name of the NE where the RBU is installed.
Description	Displays information that a user has entered (if any) to describe the NE.
NE Model	Identifies the model of the selected NE (ONS 15800 or ONS 15801) where the RBU is installed.
Rack ID	Displays the identification number of the rack where the subrack containing the RBU is installed.
Subrack ID	Displays the identification number of the subrack.
Slot ID	Displays the identification number of the slot containing the RBU.
Software Version	Displays the version of the software.
BIOS Version	Displays the version number of the BIOS.
Board Serial Number	Displays the serial number of the board.
SCC Number	Displays the version of the module serial communication controller (SCC).
Product Option	Displays the product option. Displays "Not Available" if the TL1 Agent version is earlier than version 2.1.
Hardware Version	Displays the version of the hardware. Displays "Not Available" if the TL1 Agent version is earlier than version 2.1.
Line Direction	Shows the line direction for the transponder.
State	Allows you to place the transponder in one of two states: In Service or Under Maintenance.

---

Note See Table 1-19 on page 1-38 for the descriptions of the actions that can be performed using the buttons at the bottom of the window.

---

C.1.18  Slot Properties—SCF Card

The Slot Properties pane displays information about the Cisco ONS 15800 or ONS 15801 slot that is selected in the NE Explorer tree. Use this properties pane to change the module performance monitoring thresholds.

The Subrack Common Functions (SCF) module powers and monitors ONS 15800 and ONS 15801 fans, including the BAT1 and BAT2 external power supplies and the filtered power that is supplied to the internal power bus. The SCF module also manages the internal control bus extension, summarizes the alarm status of the optical subrack, and tests LEDs on all modules in the optical subrack.

For the SCF module, the Slot Properties pane displays the following tabs: Module View, Identification, Fan, DCC, and BAT. Descriptions of fields displayed on these tabs are provided in the following sections.

C.1.18.1  Module View Tab

The Module View tab displays a graphic of the SCF module that is installed in the slot. The number of critical, major, minor, and warning alarms for the module is displayed under Alarm Status. (Alarms are also displayed when you move the mouse pointer over the graphic.) The module status is displayed under Operational State. Right-clicking the graphic opens a shortcut menu that you can use to display the module in the Alarm Browser, in the Equipment Inventory Table, or in the SCF PM Table.

C.1.18.2  Identification Tab

The Identification tab (see Table C-110) allows you to view and update SCF identification information. The tab contains the following fields.

Table C-110 Field Descriptions for the Identification Tab

Field	Description
NE ID	Displays the user-defined name of the NE where the SCF module is installed.
Description	Displays information that a user has entered (if any) to describe the NE.
NE Model	Identifies the model of the selected NE (ONS 15800 or ONS 15801) where the SCF module is installed.
Rack ID	Displays the identification number of the rack where the subrack containing the SCF module is installed.
Subrack ID	Displays the identification number of the subrack where the SCF module is installed.
Slot ID	Displays the identification number of the slot containing the SCF module.
Software Version	Displays the version of the software.
BIOS Version	Displays the version number of the BIOS.
Board Serial Number	Displays the serial number of the board.
SCC Number	Displays the SCC number.
Product Option	Displays the product option. Displays "Not Available" if the TL1 Agent version is earlier than version 2.1.
Hardware Version	Displays the version of the hardware. Displays "Not Available" if the TL1 Agent version is earlier than version 2.1.
Line Direction	Shows the line direction for the SCF module.
State	Allows you to place the SCF module in one of two states: In Service or Under Maintenance.
PM Collection Status	Allows you to enable or disable performance monitoring (PM) collection for the SCF module.

C.1.18.3  Fan Tab

The Fan tab (see Table C-111) allows you to assign performance monitoring thresholds to up to four fans that are powered by the SCF. The tab contains the following fields.

Table C-111 Field Descriptions for the Fan Tab

Field	Description
Fan Current 1 to 4
Value	When the Update button is clicked, displays the current fan threshold.
Low	Sets the low fan current threshold (in mA) and the alarm severity level.
High	Sets the high fan current threshold (in mA) and the alarm severity level.

C.1.18.4  DCC Tab

The DCC tab (see Table C-112) allows you to assign performance monitoring thresholds to the data communications channel (DCC) converter, which is powered by the SCF module. The tab contains the following fields.

Table C-112 Field Descriptions for the DCC Tab

Field	Description
DCC Converter
Value	When the Update button is clicked, displays the threshold of the DCC converter.
Low	Sets the low DCC converter threshold (in volts) and the alarm severity level.
High	Sets the high DCC converter threshold (in volts) and the alarm severity level.

C.1.18.5  BAT Tab

The BAT tab (see Table C-113) allows you to assign performance monitoring thresholds to the Battery Management (BAT) module, which is powered by the SCF module. The tab contains the following fields.

Table C-113 Field Descriptions for the BAT Tab

Field	Description
Battery Control
Value	When the Update button is clicked, displays the battery threshold.
Low	Sets the low battery control threshold (in volts) and the alarm severity level.
High	Sets the high battery control threshold (in volts) and the alarm severity level.

---

Note See Table 1-19 on page 1-38 for the descriptions of the actions that can be performed using the buttons at the bottom of the window.

---

C.1.19  Slot Properties—SCU Module

The Slot Properties pane displays information about the Cisco ONS 15808 module that is installed in the slot selected in the NE Explorer tree. Use this properties pane to change the module performance monitoring thresholds.

The Shelf Control Unit (SCU) module is installed in every shelf in the system to manage all of the common shelf functions. The front panel of the SCU module has LEDs that indicate the status of the module, fans, and the bay alarms. The SCU module controls the following shelf functions:

•Monitor the power supply and fan status

•Monitor the local shelf input voltage

•Extend the control bus (CBUS) to other shelves

•LED test of all shelf modules

•B-alarm relay and LED management

•Alarm memory and acknowledgment

For ONS 15808 SCU modules, the Slot Properties pane displays the following tabs: Module View, Identification, Fan, DCC, and BAT.

C.1.19.1  Module View Tab

The Module View tab displays a graphic of the SCU module that is installed in the slot. The number of critical, major, minor, and warning alarms for the module is displayed under Alarm Status. (Moving the mouse pointer over the graphic also displays the alarm counts.) The module status is displayed under Operational State. Right-clicking the graphic opens a shortcut menu that you can use to display the module in the Equipment Inventory Table, in the Alarm Browser, or in the SCU PM Table.

C.1.19.2  Identification Tab

The Identification tab (see Table C-114) allows you to view and update SCU module identification information. The tab contains the following fields.

Table C-114 Field Descriptions for the Identification Tab

Field	Description
NE ID	Displays the user-defined name of the NE where the SCU module is installed.
Description	Displays information that a user has entered (if any) to describe the NE.
NE Model	Identifies the model of the selected NE (ONS 15808) where the SCU module is installed.
Rack ID	Displays the identification number of the rack where the subrack containing the SCU module is installed.
Subrack ID	Displays the identification number of the subrack.
Slot ID	Displays the identification number of the slot containing the SCU module.
Software Version	Displays the version of the software.
BIOS Version	Displays the version number of the BIOS.
Board Serial Number	Displays the serial number of the board.
SCC Number	Displays the version of the module serial communication controller (SCC).
Product Option	Displays the product option. Displays Not Available if TL1 Agent version is earlier than version 2.1.
Hardware Version	Displays the version of the hardware. Displays Not Available if TL1 Agent version is earlier than version 2.1.
Line Direction	Shows the line direction for the SCU module.
State	Allows you to place the SCU module in one of two states: In Service or Under Maintenance.
PM Collection Status	Allows you to enable or disable PM collection for the SCU module.

C.1.19.3  Fan Tab

The Fan tab (see Table C-115) allows you to assign performance monitoring thresholds for the four SCU module fan currents. The tab contains the following fields.

Table C-115 Field Descriptions for the Fan Tab

Field	Description
Fan Current 1-4
Value	When the Update button is clicked, displays the current (in mA) for fan x.
Low	Sets the fan current low threshold, in mA, and the alarm severity level.
High	Sets the fan current high threshold, in mA, and the alarm severity level.

C.1.19.4  DCC Tab

The DCC tab (see Table C-116) allows you to assign thresholds and alarm severities for the SCU module DCC converter. The tab contains the following fields.

Table C-116 Field Descriptions for the DCC Tab

Field	Description
DCC Converter
Value	When the Update button is clicked, displays the current voltage of the DCC converter.
Low	Sets the low voltage for the DCC converter and the alarm severity level.
High	Sets the high voltage for the DCC converter and the alarm severity level.

C.1.19.5  BAT Tab

The BAT tab (see Table C-117) allows you to assign thresholds and alarm severities for the SCU module battery. The tab contains the following fields.

Table C-117 Field Descriptions for the BAT Tab

Field	Description
Battery Control
Value	When the Update button is clicked, displays the current voltage of the SCU module battery.
Low	Sets the low voltage for the SCU module battery and the alarm severity level.
High	Sets the high voltage for the SCU module battery and the alarm severity level.

---

Note See Table 1-19 on page 1-38 for the descriptions of the actions that can be performed using the buttons at the bottom of the window.

---

C.1.20  Slot Properties—SNH Module

The Slot Properties pane displays information about the Cisco ONS 15808 module that is installed in the slot selected in the NE Explorer tree. Use this properties pane to change the module performance monitoring thresholds.

The Supervision Network Hub (SNH) module is an Ethernet hub that provides the following functions:

•Interconnection between the protect NE and the working NE through UTP/STP cable (10BASE-T interface)

•Element management interface and local craft terminal interface through UTP/STP cable (10BASE-T interface)

For ONS 15808 SNH modules, the Slot Properties pane displays the following tabs: Module View and Identification.

C.1.20.1  Module View Tab

The Module View tab displays a graphic of the SNH module that is installed in the slot. The number of critical, major, minor, and warning alarms for the module is displayed under Alarm Status. (Moving the mouse pointer over the graphic also displays the alarm counts.) The module status is displayed under Operational State. Right-clicking the graphic opens a shortcut menu that you can use to display the module in the Equipment Inventory Table or in the Alarm Browser.

C.1.20.2  Identification Tab

The Identification tab (see Table C-118) allows you to view and update SNH module identification information. The tab contains the following fields.

Table C-118 Field Descriptions for the Identification Tab

Field	Description
NE ID	Displays the user-defined name of the NE where the SNH module is installed.
Description	Displays information that a user has entered (if any) to describe the NE.
NE Model	Identifies the model of the selected NE (ONS 15808) where the SNH module is installed.
Rack ID	Displays the identification number of the rack where the subrack containing the SNH module is installed.
Subrack ID	Displays the identification number of the subrack.
Slot ID	Displays the identification number of the slot containing the SNH module.
Software Version	Displays the version of the software.
BIOS Version	Displays the version number of the BIOS.
Board Serial Number	Displays the serial number of the board.
SCC Number	Displays the version of the module serial communication controller (SCC).
Product Option	Displays the product option. Displays Not Available if TL1 Agent version is earlier than version 2.1.
Hardware Version	Displays the version of the hardware. Displays Not Available if TL1 Agent version is earlier than version 2.1.
Line Direction	Shows the line direction for the SNH module.
State	Allows you to place the SNH module in one of two states: In Service or Under Maintenance.

---

Note See Table 1-19 on page 1-38 for the descriptions of the actions that can be performed using the buttons at the bottom of the window.

---

C.1.21  Slot Properties—SNS Modules

The Slot Properties pane displays information about the Cisco ONS 15808 module that is installed in the slot selected in the NE Explorer tree. Use this properties pane to change the module performance monitoring thresholds.

The Supervision Network Switch (SNS) module is an eight-port Ethernet switch that provides protection to the supervisory data communications network (DCN) in a redundant system. The SNS module provides the following functions:

•DCN domain partitioning

•Interconnection between the protect NE and the working NE through UTP/STP cable (10BASE-T interface)

•Element management interface through the UTP/STP cable (10BASE-T interface)

For ONS 15808 SNS modules, the Slot Properties pane displays the following tabs: Module View and Identification.

C.1.21.1  Module View Tab

The Module View tab displays a graphic of the SNS module that is installed in the slot. The number of critical, major, minor, and warning alarms for the module is displayed under Alarm Status. (Moving the mouse pointer over the graphic also displays the alarm counts.) The module status is displayed under Operational State. Right-clicking the graphic opens a shortcut menu that you can use to display the module in the Equipment Inventory Table or in the Alarm Browser.

C.1.21.2  Identification Tab

The Identification tab (see Table C-119) allows you to view and update SNS module identification information. The tab contains the following fields.

Table C-119 Field Descriptions for the Identification Tab

Field	Description
NE ID	Displays the user-defined name of the NE where the SNS module is installed.
Description	Displays information that a user has entered (if any) to describe the NE.
NE Model	Identifies the model of the selected NE (ONS 15808) where the SNS module is installed.
Rack ID	Displays the identification number of the rack where the subrack containing the SNS module is installed.
Subrack ID	Displays the identification number of the subrack.
Slot ID	Displays the identification number of the slot containing the SNS module.
Software Version	Displays the version of the software.
BIOS Version	Displays the version number of the BIOS.
Board Serial Number	Displays the serial number of the board.
SCC Number	Displays the version of the module serial communication controller (SCC).
Product Option	Displays the product option. Displays Not Available if TL1 Agent version is earlier than version 2.1.
Hardware Version	Displays the version of the hardware. Displays Not Available if TL1 Agent version is earlier than version 2.1.
Line Direction	Shows the line direction for the SNS module.
State	Allows you to place the SNS module in one of two states: In Service or Under Maintenance.

---

Note See Table 1-19 on page 1-38 for the descriptions of the actions that can be performed using the buttons at the bottom of the window.

---

C.1.22  Slot Properties—TCC+ Card

The Slot Properties pane displays information about the Cisco ONS 15327 or ONS 15454 slot that is selected in the NE Explorer tree. Use this properties pane to change the module performance monitoring thresholds.

The Timing Communication and Control+ (TCC+) card performs system initialization, provisioning, alarm reporting, maintenance, diagnostics, IP address detection/resolution, SONET data communications channel (DCC) termination, and system fault detection for the ONS 15327 and ONS 15454. The TCC+ also ensures that the system maintains Telcordia timing requirements.

For the TCC+ module, the Slot Properties pane displays the following tabs: Module View and Identification.

C.1.22.1  Module View Tab

The Module View tab displays a graphic of the TCC+ that is installed in the slot. The number of critical, major, minor, and warning alarms for the module is displayed under Alarm Status. (Alarms are also displayed when you move the mouse pointer over the graphic.) The Suppress Alarms check box is read-only and indicates whether all alarms are suppressed for the card and its port(s).

C.1.22.2  Identification Tab

The Identification tab (see Table C-120) allows you to view and update TCC+ identification information. The tab contains the following fields.

Table C-120 Field Descriptions for the Identification Tab

Field	Description
Equipment Type	Displays the equipment type the slot is provisioned for.
Actual Equipment Type	Displays the actual card that is installed in the slot.
HW Part Number	Displays the card part number that is printed on the top of the card.
Hardware Revision	Displays the hardware version number of the card.
Serial Number	Displays the card serial number that is unique to each card.
CLEI Code	Displays the CLEI code.
Firmware Version	Displays the revision number of the software used by the ASIC chip installed on the card.
Product ID	Displays a product ID string of 63 characters maximum. If the card does not support the product ID, the field shows N/A.
Version ID	Displays a version ID string in the format "V99_." The version ID always begins with a V and ends with a space. If the card does not support the version ID, the field shows N/A.
Equipment State	Displays the equipment state of the card.
Alarm Profile	Sets the alarm profile for the port. Check the Suppress Alarms check box to suppress all alarms for this card and its port(s).

---

Note See Table 1-19 on page 1-38 for the descriptions of the actions that can be performed using the buttons at the bottom of the window.

---

C.1.23  Slot Properties—TCC2 Card

The Slot Properties pane displays information about the Cisco ONS 15454 SONET and ONS 15454 SDH slot that is selected in the NE Explorer tree. Use this properties pane to change the module performance monitoring thresholds.

The Advanced Timing, Communications, and Control (TCC2) performs system initialization, provisioning, alarm reporting, maintenance, diagnostics, IP address detection/resolution, SDH section overhead (SOH) data communication channel/generic communication channel (DCC/GCC) termination, and system fault detection for the ONS 15454 SDH. The TCC2 also ensures that the system maintains Stratum 3E (ITU-T G.813) timing requirements. It monitors the supply voltage of the system. The TCC2 card can work with the XC10G, XC-VXL-10G, or XC-VXL-2.5G cross-connect cards. It requires Software Release 4.0.0 or later.

For the TCC2 module, the Slot Properties pane displays the following tabs: Module View, Identification, and Info.

C.1.23.1  Module View Tab

The Module View tab displays a graphic of the TCC2 that is installed in the slot. The number of critical, major, minor, and warning alarms for the module is displayed under Alarm Status. (Alarms are also displayed when you move the mouse pointer over the graphic.) The Suppress Alarms check box is read-only and indicates whether all alarms are suppressed for the card and its port(s). Right-clicking the graphic opens a shortcut menu that you can use to reset, delete, or change the card.

C.1.23.2  Identification Tab

The Identification tab (see Table C-121) allows you to view and update TCC2 identification information. The tab contains the following fields.

Table C-121 Field Descriptions for the Identification Tab

Field	Description
Equipment Type	Displays the equipment type that the slot is provisioned for.
Actual Equipment Type	Displays the actual card that is installed in the slot.
Hardware Part Number	Displays the card part number that is printed on the top of the card.
Hardware Revision	Displays the hardware revision number.
Serial Number	Displays the card serial number that is unique to each card.
CLEI Code	Displays the CLEI code.
Firmware Version	Displays the revision number of the software used by the ASIC chip installed on the card.
Product ID	Displays a product ID string of 63 characters maximum. If the card does not support the product ID, the field shows N/A.
Version ID	Displays a version ID string in the format "V99_." The version ID always begins with a V and ends with a space. If the card does not support the version ID, the field shows N/A.
Administration State	The port administration state. It can be: •IS—Puts the port in service •IS, AINS—Puts the port in automatic in service •OOS, DSBLD—Removes the port from service and disables it •OOS, MT—Removes the port from service for maintenance
Service State	Overall condition of the port. It can be: •IS_NR—In Service and Normal •OOS_AU, AINS—Out of Service and Autonomous, Automatic In Service •OOS_MA, DSBLD—Out of Service and Management, Disabled •OOS_MA, MT—Out of Service and Management, Maintenance
Equipment State	Displays the equipment state of the card.
Alarm Profile	Sets the alarm profile for the port. Check the Suppress Alarms check box to suppress all alarms for this card and its port(s).

C.1.23.3  Info Tab

The Info tab (see Table C-122) allows you to view nominal operating values set during manufacturing for the TCC2 card. The tab contains the following fields.

Table C-122 Field Descriptions for the Info Tab

Field	Description
Extended Manufacturing Information
Attribute	(Read-only) Displays the nominal card specification.
Value	(Read-only) Displays the value of the attribute.

---

Note See Table 1-19 on page 1-38 for the descriptions of the actions that can be performed using the buttons at the bottom of the window.

---

C.1.24  Slot Properties—TCC2P Card

The Slot Properties pane displays information about the Cisco ONS 15454 SONET and ONS 15454 SDH slot that is selected in the NE Explorer tree. Use this properties pane to change the module performance monitoring thresholds.

The Advanced Timing, Communications, and Control Plus (TCC2P) card is an enhanced version of the TCC2 card. The primary enhancements are Ethernet security features and 64K composite clock BITS timing.

The TCC2P card performs system initialization, provisioning, alarm reporting, maintenance, diagnostics, IP address detection/resolution, SONET SOH DCC/GCC termination, and system fault detection for the ONS 15454. The TCC2P also ensures that the system maintains Stratum 3 (Telcordia GR-253-CORE) timing requirements. It monitors the supply voltage of the system.

---

Note The TCC2P card requires Software Release 4.0.0 or later.

---

For the TCC2P module, the Slot Properties pane displays the following tabs: Module View, Identification, and Info.

C.1.24.1  Module View Tab

The Module View tab displays a graphic of the TCC2P that is installed in the slot. The number of critical, major, minor, and warning alarms for the module is displayed under Alarm Status. (Alarms are also displayed when you move the mouse pointer over the graphic.) The Suppress Alarms check box is read-only and indicates whether all alarms are suppressed for the card and its port(s). Right-clicking the graphic opens a shortcut menu that you can use to reset, delete, or change the card.

C.1.24.2  Identification Tab

The Identification tab (see Table C-123) allows you to view and update TCC2P identification information. The tab contains the following fields.

Table C-123 Field Descriptions for the Identification Tab

Field	Description
Equipment Type	Displays the equipment type that the slot is provisioned for.
Actual Equipment Type	Displays the actual card that is installed in the slot.
Hardware Part Number	Displays the card part number that is printed on the top of the card.
Hardware Revision	Displays the hardware revision number.
Serial Number	Displays the card serial number that is unique to each card.
CLEI Code	Displays the CLEI code.
Firmware Version	Displays the revision number of the software used by the ASIC chip installed on the card.
Product ID	Displays a product ID string of 63 characters maximum. If the card does not support the product ID, the field shows N/A.
Version ID	Displays a version ID string in the format "V99_." The version ID always begins with a V and ends with a space. If the card does not support the version ID, the field shows N/A.
Admin State	Displays the administration state. The state can either be Unlocked or Locked, Maintenance.
Service State	Displays the service state. It can be: •Locked-Disabled •Locked-Enabled •Unlocked-Disabled •Unlocked-Enabled
Equipment State	Displays the equipment state of the card.
Alarm Profile	Sets the alarm profile for the port. Check the
