NE Explorer Information

---

This appendix provides information on the various NE Explorer windows supported in CTM. This appendix contains the following sections:

•CRS-1 NE Explorer

•ONS 15200 NE Explorer

•ONS 15216 NE Explorer

•ONS 15302 and ONS 15305

•ONS 15310 CL NE Explorer

•ONS 15327 NE Explorer

•ONS 15454 SONET NE Explorer

•ONS 15454 SDH NE Explorer

•ONS 15501 NE Explorer

•ONS 15530 and ONS 15540

•ONS 15600 SONET NE Explorer

•ONS 15600 SDH NE Explorer

•ONS 15800 and ONS 15801 NE Explorer

•ONS 15808 NE Explorer

•Unmanaged NE/Other Vendor Node Property Sheet

B.1  CRS-1 NE Explorer

When you choose Configuration > NE Explorer for the Cisco CRS-1, the window displayed by CTM consists of a tree on the left side and a rack view graphic on the right. (See Figure B-1.) The tree provides a hierarchical view and alarm status of the device's racks, slots, ports, and line cards. The Rack View window provides information about the CRS-1 line-card chassis that is selected in the NE Explorer tree. The NE Explorer is ported from the CRS-1 craft web interface (CWI).

The Configuration and Administration menus in the NE Explorer window allow you to configure the CRS-1 device. See 5.4  Configuring the CRS-1, page 5-25 for detailed information about the Configuration and Administration menu options.

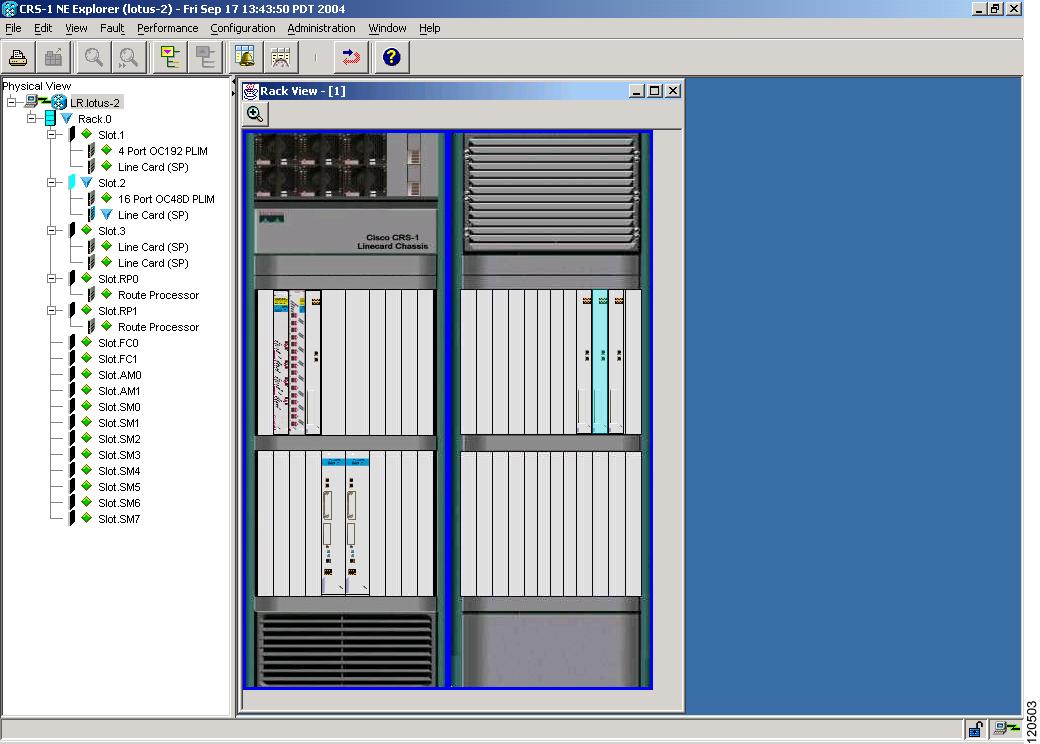

Figure B-1 NE Explorer—CRS-1

B.1.1  Rack View

The Rack View window displays a graphic of the CRS-1 line-card chassis that is selected in the NE Explorer tree. Moving the mouse over the graphic displays the current number of critical, major, minor, and warning alarms for the rack, slot, or card. The right-click menu opens the Alarm Browser or the Alarm Log for the selected entity.

The background color of alarms in the Rack View window corresponds to alarm severity. The background alarm color is not configurable.

You can change the alphanumeric LED display on the route processors. Right-click the route processor, choose Set Character Display, enter the new text, and click OK. The LED display changes on the router in real time.

In addition, you can hide or show the front or rear chassis. Right-click the chassis and choose Hide Front Chassis or Hide Rear Chassis. The menu option changes to Show Front Chassis or Show Rear Chassis.

Use the Magnify icon to zoom in anywhere on the rack view.

B.2  ONS 15200 NE Explorer

When you choose Configuration > NE Explorer for the ONS 15200, the window displayed by CTM consists of a tree on the left side and a node view on the right. (See Figure B-2.)

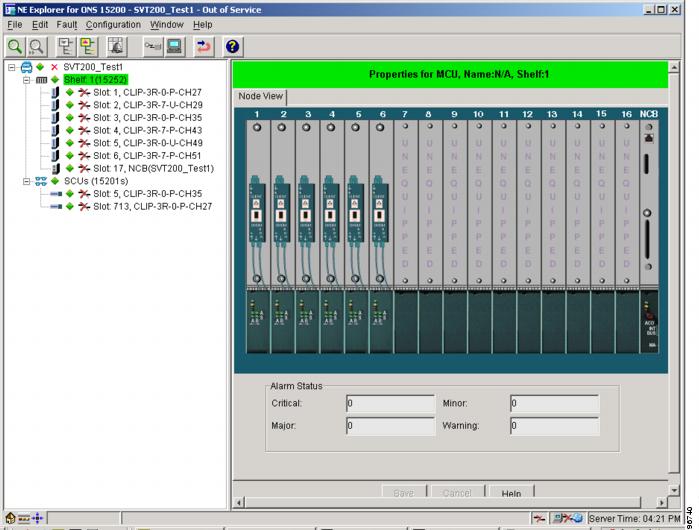

Figure B-2 NE Explorer—ONS 15200

The tree provides a hierarchical view and alarm status of the selected interface. The node view tab displays a graphic of the interface that is selected in the NE Explorer tree. Selectable interfaces in the ONS 15200 system include:

•ONS 15201 CLIPs

•ONS 15252 Multichannel Units (MCUs)

•ONS 15252 Client Layer Interface Port Modules (CLIPs)

•ONS 15252 Unassociated CLIPs

•Network Controller Board (NCB)

The ONS 15200 is a dense wavelength division multiplexing (DWDM) metro system that operates in the 1550-nm transmission window. Over a signal optical fiber pair, the ONS 15200 can carry up to sixteen channels of data in the following bit rates and formats:

•155 Mbps-SONET OC-3 or SDH STM-1

•622 Mbps-SONET OC-12 or SDH STM-4

•2.5 Gbps-SONET OC-48 or SDH STM-16

•1.25 Gbps Gigabit Ethernet

All ONS 15200 configurations consist of one or multiple ONS 15252 MCUs or ONS 15201 Single-Channel Units (SCUs). A CLIP module fits into the ONS 15252 or ONS 15201.

B.2.1  ONS 15201

The ONS 15201 SCU communicates with the other NEs in the ONS 15200 system on a specific wavelength or channel. From the DWDM layer, several channels of information, each occupying a wavelength, enter the ONS 15201 SCU.

B.2.2  ONS 15252

The ONS 15252 MCU communicates with the other NEs in the ONS 15200 system on one or several channels. Each channel occupies a wavelength, but in some ONS 15200 system configurations, the wavelengths can be reused. Several channels of information, each occupying a wavelength, enter the NE from the DWDM layer.

B.2.3  Node View Tab

The Node View tab shows the physical configuration of the system. Moving the mouse pointer over the NE, its shelves, or CLIPs in the node view displays the current alarms for the NE, shelf, or CLIP. Double-clicking a shelf or CLIP displays the shelf or CLIP in the NE Explorer. To display the shelf or CLIP in the Alarm Browser or Equipment Inventory table, right-click a shelf or CLIP and select the desired option from the shortcut menu.

Some nodes in the NE Explorer tree display Alarm Status and Operational State fields. The Alarm Status field shows the total number of critical, major, minor, and warning alarms currently existing on the selected NE. The Operational State field indicates the state of the CLIP. There are four states:

•Unknown—The state cannot be determined.

•Not Installed—The CLIP is not installed.

•Out of Service—The CLIP is installed but is not commissioned and is not carrying traffic.

•In Service—The CLIP is commissioned and is carrying traffic.

The MIB for the ONS 15200 R1.0(5) does not support discovery of the NCB location in a multishelf ONS 15252. However, the NCB is displayed for a single-shelf ONS 15252.

The MIB for the ONS 15200 R1.1(1) and later supports discovery information for the NCB, which is shown as part of the shelf.

---

Note See Table 1-19 on page 1-38 for the descriptions of the actions that can be performed using the action buttons at the bottom of the window.

---

B.3  ONS 15216 NE Explorer

The NE Explorer for the ONS 15216 displays information about the selected ONS 15216 NE. (See Figure B-3.)

Figure B-3 NE Explorer—ONS 15216 DCU

ONS 15216 NEs are grouped as active NEs or passive NEs. (See Table B-1.) Passive NEs do not have a management interface, so there is no communication between CTM and passive ONS 15216 NEs. For passive ONS 15216 NEs, the NE Explorer summarizes NE information that has been entered manually through the Domain Explorer and also allows you to specify the serial number. For active ONS 15216 NEs, the NE Explorer allows you to view the actual values of settings and parameters on the NE and modify configurable parameters.

Table B-1 ONS 15216 NEs

Active ONS 15216 NEs	Passive ONS 15216 NEs
ONS 15216 100-GHz OADM	ONS 15216 EDFA1
ONS 15216 EDFA2	ONS 15216 200-GHz OADM
ONS 15216 EDFA3	ONS 15216 100-GHz DWDM Filters
	ONS 15216 200-GHz DWDM Filters
	ONS 15216 OSC
	ONS 15216 DCU
	ONS 15216 FlexLayer

B.3.1  Active ONS 15216 NEs

The Network Element Properties sheet for active ONS 15216 NEs displays information specific to the active ONS 15216 erbium-doped fiber amplifier (EDFA) and optical add drop multiplexer (OADM) NEs. The property sheet contains the following tabs:

•Status Tab

•Identification Tab

•Address Tab

•NE Authentication Tab

Table B-2 lists the different types of active ONS 15216 NEs.

Table B-2 List of Active ONS 15216 NE Types and Descriptions

Active ONS 15216 Types	Description
EDFA and EDFA 2.1	Active EDFA with an IP address.
OADM	Active 100-GHz OADM with an IP address. The OADM can be a 1-, 2-, or 4-channel OADM.

B.3.1.1  Status Tab

The Status tab displays status information for the active NE.

Table B-3 Field Descriptions for the Status Tab

Field	Description
NE ID	Displays the user-defined name of the selected NE.
Description	Displays information that a user has entered (if any) to describe the NE.
NE Model	Identifies the model of the selected ONS 15216 NE.
Alarm Status	Displays the total number of critical, major, minor, and warning alarms currently existing on the selected NE.
Communication State	Displays the current connectivity state between CTM and the selected NE. Values are Available or Unavailable.
Operational State	Displays the current operational state of the selected NE and allows you to change the state. Values are In Service, Out of Service, and Under Maintenance.

B.3.1.2  Identification Tab

The Identification tab displays NE identification information.

Table B-4 Field Descriptions for the Identification Tab

Field	Description
NE ID	Displays the user-defined name of the selected NE.
Description	Displays information that user has entered (if any) to describe the NE.
NE Model	Identifies the model of the selected ONS 15216 NE.
NE Type	Displays the ONS 15216 NE type.
Vendor Name	Displays the vendor name. The default vendor name is Cisco Systems.
Software Version	Displays the NE software version.
Version Name	Displays the name of the software version.
Location Name	Displays the geographic location of the selected NE.

B.3.1.3  Address Tab

The Address tab provides address information for the NE. If you change an address, the NE is reset automatically to make the new address selection valid.

Table B-5 Field Descriptions for the Address Tab

Field	Description
NE ID	Displays the user-defined name of the selected NE.
Description	Displays information that a user has entered (if any) to describe the NE.
NE Model	Identifies the model of the selected ONS 15216 NE.
Active IP Address	Displays the IP address of the selected NE.
SNMP Community String	Displays the configured community string name used in Simple Network Management Protocol (SNMP) messages. The community name is used to determine whether a user has access to the device.
GNE ID	Displays the ID for the gateway NE (GNE) on the selected NE ring.
Subnetwork ID	Displays the name of the subnetwork associated with the selected NE.
Network Partition ID	Displays the name of the network partition associated with the selected NE.

B.3.1.4  NE Authentication Tab

The NE Authentication tab allows you to specify user names and passwords for CTM server and CTM GateWay/TL1 connections to ONS 15216 NEs. Fields shown depend on the type of NE selected.

Table B-6 Field Descriptions for the NE Authentication Tab

Field	Description
CTM Server - NE Connection
Username	Specify the username that the CTM server uses to connect to ONS 15216 NEs.
Password	Specify the password to use for CTM server-to-NE connections.
Confirm Password	Retype the password to confirm it.
GateWay/TL1 - NE Connection
Username	Specify the username that CTM GateWay/TL1 uses to connect to ONS 15216 NEs.
Password	Specify the password to use for GateWay/TL1-to-NE connections.
Confirm Password	Retype the password to confirm it.

---

Note See Table 1-19 on page 1-38 for the descriptions of the actions that can be performed using the action buttons at the bottom of the window.

---

B.3.2  Passive ONS 15216 NEs

The Network Element Properties sheet for passive ONS 15216 NEs displays information specific to the passive EDFA, the passive OADM, the DCU, the OSC, and the DWDM ONS 15216 NEs. The passive ONS 15216 property sheet contains an Identification tab.

Table B-7 lists the different types of passive ONS 15216 NEs.

Table B-7 List of Passive ONS 15216 NE Types and Descriptions

Passive ONS 15216 Types	Description
EDFA	Passive EDFA with no IP address or connectivity.
OADM	Passive 200-GHz OADM with no IP address or connectivity. The OADM can be either a 1- or 2-channel OADM.
DCU	Passive DCU with no IP address or connectivity.
OSC	Passive OSC with no IP address or connectivity.
DWDM	Passive DWDM filter with no IP address or connectivity. The DWDM filter can be a red, 200-GHz, DWDM filter; a blue, 200-GHz, DWDM filter; a red, 100-GHz, DWDM filter; or a blue, 100-GHz, DWDM filter.

B.3.2.1  Identification Tab

The Identification tab displays the NE identification information.

Table B-8 Field Descriptions for the Identification Tab

Field	Description
NE ID	Displays the user-defined name of the selected NE.
Description	Displays information that a user has entered (if any) to describe the NE.
NE Model	Identifies the model of the selected NE (ONS 15216).
NE Type	Displays the ONS 15216 NE type.
Vendor Name	Displays the vendor name. The default vendor name is Cisco Systems.
Version Name	Displays the name of the software version.
Location Name	Displays the geographic location of the selected NE.
Operational State	Displays the current operational state of the system: In Service, Under Maintenance, or Out of Service.
Subnetwork ID	Displays the name of the subnetwork associated with the selected NE.

---

Note See Table 1-19 on page 1-38 for the descriptions of the actions that can be performed using the action buttons at the bottom of the window.

---

B.3.3  ONS 15216 Passive DCU NE Explorer

The ONS 15216 Passive DCU NE Explorer displays information about the ONS 15216 Passive DCU NE. It contains Identification, Slot 1, and Slot 2 tabs. (See Figure B-3.)

Each slot can accommodate any one of the following modules:

•DCU-100 (100 ps/nm)

•DCU-350 (350 ps/nm)

•DCU-450 (450 ps/nm)

•DCU-550 (550 ps/nm)

•DCU-750 (750 ps/nm)

•DCU-950 (950 ps/nm)

•DCU-1150 (1150 ps/nm)

B.3.3.1  Identification Tab

The Identification tab displays identification information for the ONS 15216 DCU NE.

Table B-9 Field Descriptions for the Identification Tab

Field	Description
NE ID	Displays the ID of the NE from the Domain Explorer.
Description	Displays the description of the NE from the Domain Explorer.
NE Model	Displays the NE model type.
NE Type	Displays the type of NE.
NE Version	Displays the software version of the NE.
Product Name	Displays the name of the product.
CLEI Code	Displays the CLEI code.
Serial Number	Displays the serial number of the NE.
Location Name	Displays the name of the location where the NE is installed.
Subnetwork ID	Displays the ID of the subnetwork to which the NE belongs.
Network Partition ID	Displays the ID of the network partition.

B.3.3.2  Slot 1 and Slot 2 Tabs

The Slot 1 and Slot 2 tabs display information about the first and second slots. The fields in the tabs are identical, except that they pertain to different slots.

Table B-10 Field Descriptions for the Slot 1 and Slot 2 Tabs

Field	Description
Module Type	Displays the NE model type. Select one of the following module types: DCU-100 (100 ps/nm), DCU-350 (350 ps/nm), DCU-450 (450 ps/nm), DCU-550 (550 ps/nm), DCU-750 (750ps/nm), DCU-950 (950 ps/nm), DCU-1150 (1150 ps/nm).
Product Name	Displays the name of the product.
CLEI Code	Displays the CLEI code.
Serial Number	Displays the serial number of the NE.

B.3.4  ONS 15216 DWDM NE Explorer

The NE Explorer for the ONS 15216 DWDM displays information about the passive ONS 15216 DWDM NE. It contains an Identification tab. (See Figure B-4.)

Figure B-4 NE Explorer—ONS 15216 DWDM

B.3.4.1  Identification Tab

The Identification tab displays identification information about the ONS 15216 DWDM NE.

Table B-11 Field Descriptions for the Identification Tab

Field	Description
NE ID	Displays the ID of the NE from the Domain Explorer.
Description	Displays the description of the NE from the Domain Explorer.
NE Model	Displays the NE model type.
NE Type	Displays the type of NE.
NE Version	Displays the software version of the NE.
Product Name	Displays the name of the product.
CLEI Code	Displays the Common Language Equipment Identification (CLEI) code.
Serial Number	Displays the serial number of the NE.
Location Name	Displays the name of the location where the NE is installed.
Subnetwork ID	Displays the ID of the subnetwork to which the NE belongs.
Network Partition ID	Displays the ID of the network partition.

B.3.5  ONS 15216 FlexLayer NE Explorer

The ONS 15216 FlexLayer NE Explorer displays information about the ONS 15216 FlexLayer NE. It contains Identification and Slot tabs. (See Figure B-5.)

Figure B-5 NE Explorer—ONS 15216 FlexLayer

B.3.5.1  Identification Tab

The Identification tab displays identification information about the ONS 15216 FlexLayer NE.

Table B-12 Field Descriptions for the Identification Tab

Field	Description
NE ID	Displays the ID of the NE from the Domain Explorer.
Description	Displays the description of the NE from the Domain Explorer.
NE Model	Displays the NE model type.
NE Type	Displays the type of NE.
NE Version	Displays the software version of the NE.
Product Name	Displays the name of the product.
CLEI Code	Displays the CLEI code.
Serial Number	Displays the serial number of the NE.
Location Name	Displays the name of the location where the NE is installed.
Subnetwork ID	Displays the ID of the subnetwork to which the NE belongs.
Network Partition ID	Displays the ID of the network partition.

B.3.5.2  Slot 1 Through Slot 4 Tabs

The Slot tabs show module information pertaining to the selected ONS 15216 FlexLayer NE slot. The fields in the tabs are identical, except that they pertain to different slots.

Table B-13 Field Descriptions for the Slot 1 through Slot 4 Tabs

Field	Description
Module Type	Displays the type of module in the slot.
Product Name	Displays the name of the product.
CLEI Code	Displays the CLEI code.
Serial Number	Displays the serial number of the NE.

B.3.6  ONS 15216 Passive EDFA NE Explorer

The ONS 15216 Passive EDFA NE Explorer displays information about the ONS 15216 Passive EDFA NE. It contains an Identification tab.

B.3.6.1  Identification Tab

The Identification tab displays identification information for the ONS 15216 Passive EDFA NE.

Table B-14 Field Descriptions for the Identification Tab

Field	Description
NE ID	Displays the ID of the NE from the Domain Explorer.
Description	Displays the description of the NE from the Domain Explorer.
NE Model	Displays the NE model type.
NE Type	Displays the type of NE.
NE Version	Displays the software version of the NE.
Product Name	Displays the name of the product.
CLEI Code	Displays the CLEI code.
Serial Number	Displays the serial number of the NE.
Location Name	Displays the name of the location where the NE is installed.
Subnetwork ID	Displays the ID of the subnetwork to which the NE belongs.
Network Partition ID	Displays the ID of the network partition.

B.3.7  ONS 15216 Active EDFA2 NE Explorer

The ONS 15216 EDFA2 NE Explorer displays information about the ONS 15216 EDFA2 NE. (See Figure B-6.)

Figure B-6 NE Explorer—ONS 15216 EDFA2

The ONS 15216 EDFA2 NE Explorer contains the following tabs, some of which apply only to a specific NE version:

•Identification Tab

•Address Tab

•Config/Status Tab

•Diagnostics Tab

•Thresholds Tab

•Alarm Behavior Tab

•SNMP Tab

B.3.7.1  Identification Tab

The Identification tab displays identification information about the ONS 15216 EDFA2 NEs.

Table B-15 Field Descriptions for the Identification Tab

Field	Description
NE ID	Displays the ID of the NE from the Domain Explorer.
Description	Displays the description of the NE from the Domain Explorer.
NE Model	Displays the NE model type.
NE Type	Displays the type of NE.
NE Version	Displays the software version of the NE.
Wavelength(s)	Displays the number of wavelengths for the NE. This field is not applicable to the active EDFA NE type.
Product Name	Displays the name of the product.
CLEI Code	Displays the CLEI code.
Serial Number	Displays the serial number of the NE.
Location Name	Displays the name of the location where the NE is installed.
Location
Latitude	Allows you to set the latitude in the database. Select North or South from the drop-down list; then, enter the degrees and minutes (or click the up and down arrows to increase or decrease each by 1 unit).
Longitude	Allows you to set the longitude in the database. Select East or West from the drop-down list; then, enter the degrees and minutes (or click the up and down arrows to increase or decrease each by 1 unit).
Date and Time
Time	Displays the NE date and time.
Time Zone	Displays the time zone where the NE is located.
Use Daylight Savings Time	If checked, Daylight Savings Time is observed.

B.3.7.2  Address Tab

The Address tab displays information about the NE network address.

Table B-16 Field Descriptions for the Address Tab

Field	Description
IP Address	(Read-only) Displays the IP address of the NE.
Subnet Mask	(Read-only) Displays the subnetwork mask ID of the NE.
Gateway Address	(Read-only) Displays the gateway address of the NE.
SNMP Community String	Displays the SNMP community string of the NE. You can edit this field.
GNE ID	(Read-only) Displays the GNE ID.
Subnetwork ID	(Read-only) Displays the ID of the subnetwork to which the NE belongs.
Network Partition ID	(Read-only) Displays the ID of the network partition.

B.3.7.3  Config/Status Tab

The Config/Status tab displays the configuration settings and status of the EDFA2.

Table B-17 Field Descriptions for the Config/Status Tab

Field	Description
Overall
Overall Gain	Displays the value of the gain set point in dB when the mode is GAINTEMP (gets cerent15216EdfaConstGainOverallGainMeasured). Must be an integer from 13.0 to 22.0.
Measured Gain	Displays the measured overall gain. The range is 0.0 to 23.0. Note If there is no input power, this field reports a negative (invalid) value.
Pre-Attenuation	Displays the gain preattenuation value in dB (gets cerent15216EdfaVariableGainPreAttenuationMeasured). Must be an integer from 0.0 to 11.0.
Input Power	Displays the EDFA2 input power. Must be an integer from -9999.99 to 9999.99.
Output Power	Displays the EDFA2 output power. Must be an integer from -999.99 to 999.99.
DC Power Bus Mode	Displays the power bus mode setting (Simplex or Duplex) and allows you to change the mode.
Auto Laser Shutdown	Allows you to enable (On) or disable (Off) auto laser shutdown for the EDFA2. Note The auto laser shutdown feature is available for the ONS 15216 EDFA2 R2.4 and later.
Pump
Control Mode Setting	Displays the control mode of the laser pumps. Constant gain is achieved by using an automatic control circuit that adjusts pump power when changes in input power are detected. The ONS 15216 EDFA2 operates in Constant Gain Temperature Compensated mode by default, but since there might be applications where other operating modes are required, the ONS 15216 EDFA2 can be set to operate in any one the following pump control modes: •Constant Gain Temperature Compensated mode (ConstGainTempComp; default). •Constant Output Power mode (ConstOutputPower). Note Pump 1 cannot be set to ConstOutputPower mode. •Constant Pump Current mode (ConstCurrent). •Constant Pump Power mode (ConstPower). •Idle—Laser pumps can be shut down using the Idle control mode. Caution Use the pump control modes Constant Output Power, Constant Pump Current, and Constant Pump Power with extreme caution. These modes are service affecting and can reduce the lifecycle of the lasers if used in extreme conditions. The factory default setting and the recommended mode of operation is Constant Gain Temperature Compensated mode. It is recommended that you contact the Cisco TAC before changing from this mode of operation.
Actual Control Mode	Displays the actual control mode of the laser pumps.
Constant Pump Current	Displays the laser pump constant pump current in milliamperes (mA). This is the current used when the control mode is changed to constCurrent. When changing Pump 1, Pump 2 is changed automatically when the Apply button is clicked.
Constant Pump Power	Displays the constant pump power in milliwatts (mW). The range is 0 to 100 mW; the default is 0. You must set the constant power of pump 1 and pump 2 at the same time.
Constant Output Power	Displays the constant output power in mW. Only Pump2 is writeable. When ConstOutputPower is selected as the control mode, this field is enabled and editable for Pump2 and not for Pump1. The Const Power field is enabled with the default value (0). The range is 0.0 to 65.0 mW.

B.3.7.4  Diagnostics Tab

The Diagnostics tab allows you to view NE laser pump attributes.

Table B-18 Field Descriptions for the Diagnostics Tab

Field	Description
Gain Module Temp	Displays the gain module temperature in degrees Celsius. Must be an integer from -99.99 to 99.99.
Gain Module Volt	Displays the gain module voltage in volts. Must be an integer from 0 to 999.
Input Power	Displays the laser input power in dBm. Must be an integer from -9999.99 to 9999.99.
Output Power	Displays the laser output power in dBm. Must be an integer from -999.99 to 999.99.
Gain	Displays the laser gain in dB. Must be an integer from -999.9 to 999.9.
Pump
Chip Temp	Displays the chip temperature in degrees Celsius. Must be an integer from -999.9 to 999.9.
Chip Temp Set Pt.	Displays the chip temperature set point in degrees Celsius. Must be an integer from 0.0 to 99.9.
TEC Current	Displays the TEC current in mA. Must be an integer from 0 to 99999.
Current	Displays the laser current in mA. Must be an integer from 0 to 999.
Power	Displays the pump power in mW. Must be an integer from 0.0 to 999.99.

B.3.7.5  Thresholds Tab

The Thresholds tab displays the threshold settings of the EDFA2.

Table B-19 Field Descriptions for the Thresholds Tab

Field	Description
Input Power
Threshold	Displays the input power threshold value in dBm. Must be an integer from -31 to -15.
Hysteresis	Displays the input power hysteresis value in dB. Must be an integer from 0 to 10.
Input Power	Displays the input power threshold value. Must be an integer from -9999.99 to 9999.99.
Output Power
Alm Deviation	Displays the output power alarm deviation value in dB. Must be an integer from 0 to 10.
Alm Hysteresis	Displays the output power alarm hysteresis value in dB. Must be an integer from 0 to 10.
Output Power Setpt	Displays the output power setpoint threshold value.
Gain
Min Gain	Displays the minimum gain setting. Must be an integer from -999.99 to 999.99.
Max Gain	Displays the maximum gain setting. Must be an integer from -999.99 to 999.99.
Measured Gain	Displays the value of the gain in dB when the mode is GAINTEMP (gets cerent15216EdfaConstGainOverallGainMeasured). Must be an integer from 0 to 23.
Gain Module Temperature
Min Temperature	Displays the minimum case temperature in degrees Celsius. Must be an integer from -10 to 10.
Max Temperature	Displays the maximum case temperature in degrees Celsius. Must be an integer from 20 to 70.
Min Hysteresis	Displays the minimum case temperature hysteresis in degrees Celsius. Must be an integer from 0 to 10.
Max Hysteresis	Displays the maximum case temperature hysteresis in degrees Celsius. Must be an integer from 0 to 10.
Power Bus
Power Bus Min	Displays the minimum allowable power bus DC voltage. Must be an integer from -70 to -35.
Power Bus Max	Displays the maximum allowable power bus DC voltage. Must be an integer from -70 to -35.
Laser 1 Current
Out-of-Range	Displays the Laser 1 pump temperature that is out of range.
Current	Displays the current of the Laser 1 pump in mA.
Laser 2 Current
Out-of-Range	Displays the Laser 2 pump temperature that is out of range.
Current	Displays the current of the Laser 2 pump in mA.
Laser 1 Temperature
Temp Min	Displays the minimum temperature of Laser 1.
Temp Max	Displays the maximum temperature of Laser 1.
Chip Temp	Displays the Laser 1 chip temperature in degrees Celsius. Must be an integer from -999.99 to 999.99.
Laser 2 Temperature
Temp Min	Displays the minimum temperature of Laser 2.
Temp Max	Displays the maximum temperature of Laser 2.
Chip Temp	Displays the Laser 2 chip temperature in degrees Celsius. Must be an integer from -999.99 to 999.99.

B.3.7.6  Alarm Behavior Tab

The Alarm Behavior tab allows you to enter, save, view, and update NE fault management attributes.

Table B-20 Field Descriptions for the Alarm Behavior Tab

Field	Description
Probable Cause	Displays the probable cause of the alarm.
Severity	Displays the alarm severity (Critical, Major, Minor, Informational, or Not Alarmed). Note If two minor power bus alarms are generated, the second alarm is escalated to critical in the Alarm Browser window. If the alarm severity is changed to another value, the alarm remains critical due to the power bus escalation feature, which overrides the alarm severity provisioning for power bus alarms.

B.3.7.7  SNMP Tab

The SNMP tab displays the settings for the SNMP Community table, the Trap Destination table, and SNMP views. The SNMP tab contains the following subtabs: SNMP Community Table, Trap Destination Table, and SNMP Views.

Table B-21 Field Descriptions for the SNMP Tab

Field	Description
SNMP Community Table
Community Name	Displays the SNMP community name.
View Index	Displays the view index that specifies which MIBs that the community string can access.
Privileges	Displays the bitmap of access privilege that govern what management operations a particular community can perform. These privileges are expressed as a sum of values, where each value represents a particular operation. The decimal values and their respective SNMP operation are: •1—Get •2—GetNext •4—Response (enabled for all community strings) •8—Set •16—SNMPv1-Trap •32—GetBulk •64—Inform (enabled for all community strings) •128—SNMPv2-Trap (enabled for all community strings) For example, 255 is the sum of all decimal values and specifies access to all SNMP operations. This sum is the default private community. 247 is the sum for all SNMP operations with the exception of the Set operation. This sum is the default public community. Use the buttons in the Privileges column to set privilege values. In the Privilege Editor dialog box, check the check boxes that correspond to the privileges that you want to set. After making your selections, click OK. CTM computes the bit value automatically.
IP Address	Displays the source IP address.
Subnet Mask	Displays the subnet mask for the source IP address.
Status	Displays the community string status. Values are: •Active •Not in Service •Not Ready •Create and Go •Create and Wait •Destroy
Trap Destination Table
IP Address	Displays the trap destination IP address.
UDP Port	Displays the trap destination UDP port.
Community Name	Displays the trap destination community string.
Version	Displays the trap version number.
View Index	Displays the trap destination MIB view index.
Status	Displays the community string status. Values are: •Active •Not in Service •Not ready •Create and Go •Create and Wait •Destroy
SNMP Trap Enable check box	If checked, allows you to enable SNMP traps on the NE. Note This is a global setting, meaning all users are affected by a change to this setting.
SNMP Views
View Index	Displays the view index number, which is a unique value for each MIB view.
Subtree	Displays an object identifier that designates a subtree element in the MIB hierarchy.
Mask	Displays a bit mask that identifies objects in the subtree.
Type	Displays a flag that specifies the status of the view. Valid entries are included and excluded.
Status	Indicates the status of the SNMP view entry. If the entry currently exists, the status is active.

---

Note See Table 1-19 on page 1-38 for the descriptions of the actions that can be performed using the action buttons at the bottom of the window.

---

B.3.8  ONS 15216 Active EDFA3 NE Explorer

The ONS 15216 EDFA3 NE Explorer displays information about the ONS 15216 EDFA3 NE. (See Figure B-7.)

Figure B-7 NE Explorer—ONS 15216 EDFA3

The ONS 15216 EDFA3 NE Explorer contains the following tabs:

•Identification Tab

•Address Tab

•Config/Status Tab

•Diagnostics Tab

•Thresholds Tab

•Alarm Behavior Tab

•SNMP Tab

B.3.8.1  Identification Tab

The Identification tab displays identification information for the ONS 15216 EDFA3 NE.

Table B-22 Field Descriptions for the Identification Tab

Field	Description
NE ID	Displays the ID of the NE from the Domain Explorer.
Description	Displays the description of the NE from the Domain Explorer.
NE Model	Displays the NE model type.
NE Type	Displays the type of NE.
NE Version	Displays the software version of the NE.
Wavelength(s)	Displays the number of wavelengths for the NE. This field is not applicable to the active EDFA NE type.
Product Name	Displays the name of the product.
CLEI Code	Displays the CLEI code.
Serial Number	Displays the serial number of the NE.
Location Name	Displays the name of the location where the NE is installed.
NE Date and Time	Displays the date and time configured on the NE.
Location
Latitude	Allows you to set the latitude of the NE. Select North or South from the drop-down list; then, enter the degrees and minutes (or click the up and down arrows to increase or decrease each by 1 unit).
Longitude	Allows you to set the longitude of the NE. Select East or West from the drop-down list; then, enter the degrees and minutes (or click the up and down arrows to increase or decrease each by 1 unit).

B.3.8.2  Address Tab

The Address tab displays information about the NE network address.

Table B-23 Field Descriptions for the Address Tab

Field	Description
IP Address	(Read-only) Displays the IP address of the NE.
Subnet Mask	(Read-only) Displays the subnetwork mask ID of the NE.
Gateway Address	(Read-only) Displays the gateway address of the NE.
SNMP Community String	Displays the SNMP community string of the NE. You can edit this field.
MAC Address	(Read-only) Displays the ONS 15216 EDFA3 address as it is identified on the IEEE 802 MAC layer.
GNE ID	(Read-only) Displays the GNE ID.
Subnetwork ID	(Read-only) Displays the ID of the subnetwork to which the NE belongs.
Network Partition ID	(Read-only) Displays the ID of the network partition.

B.3.8.3  Config/Status Tab

The Config/Status tab displays the configuration settings and status of the EDFA3 and lasers.

Table B-24 Field Descriptions for the Config/Status Tab

Field	Description
Control Mode
Control Mode	Displays the amplifier control mode. Values are: •Constant Output Power •Constant Gain (default)
Gain
Gain	Displays the gain value. Values are integers from 0 to 40 dB.
Gain Setpoint	Displays the gain setpoint. The range is 5.0 to 38.5 dB; the default is 21 dB.
Power
Laser 1 Output Power	Displays the amplifier output power related to laser 1. The range is -60 to 25 dBm.
Power Setpoint	Displays the amplifier output power setpoint value. The range is -7 to 17 dBm; the default is 10 dBm.
Amplifier Input Power	Displays the amplifier input power. The range is -60 to 25 dBm.
Laser 2 Input Power	Displays the mid-stage access input power value related to laser 2. The range is -60 to 25 dBm.
Amplifier Output Power	Displays the mid-stage access output power value. The range is -60 to 25 dBm.
Power Offset	Displays the output power offset. The range is -20 to 20 dBm; the default is 0.
Tilt
Tilt	Displays the tilt value. The range is -15 to 15 dB.
Tilt Setpoint	Displays the tilt setpoint. The range is -15 to 15 dB; the default is 0 dB.
Tilt Offset	Displays the tilt offset. The range is -20 to 20 dB; the default is 0 dB.
Laser
Laser Status	Displays the automatic laser shutdown (ALS) status. Values are: •On—Lasers are on •APR—Lasers are in the automatic power reduction state •Off—Lasers are off
OSRI	Displays the OSRI. Values are: •On—Laser switch is locked on •Off—(Default) There is no lock on the lasers
DC Power Bus Mode
DC Power Bus Mode	Displays the power bus mode: Simplex or Duplex.

B.3.8.4  Diagnostics Tab

The fields in the Diagnostics tab are read-only.

Table B-25 Field Descriptions for the Diagnostics Tab

Field	Description
DCU Insertion Loss	Displays the insertion loss of the DCU inserted in mid-stage. The range is 0 to 20 dB.
VOA Value	Displays the VOA value. The range is -100 to 100 dB.
Laser Bias
Laser 1 Bias	Displays the laser 1 bias. The range is 0 to 150 mA.
Laser 2 Bias	Displays the laser 2 bias. The range is 0 to 150 mA.
Temperatures
Case Temperature	Displays the case temperature. The range is -100 to 150 degrees Celsius.
Fiber Temperature	Displays the fiber temperature. The range is -100 to 150 degrees Celsius.
Pump 1 Temperature	Displays the pump 1 temperature. The range is -100 to 150 degrees Celsius.
Pump 2 Temperature	Displays the pump 2 temperature. The range is -100 to 150 degrees Celsius.
Bus Voltages
Bus A Voltage	Displays the power bus A voltage. The range is 0 to 999 V.
Bus B Voltage	Displays the power bus B voltage. The range is 0 to 999 V.

B.3.8.5  Thresholds Tab

The Thresholds tab displays the threshold settings of the EDFA3.

Table B-26 Field Descriptions for the Thresholds Tab

Field	Description
Gain
Degrade High	Displays the degrade high threshold associated with the amplifier gain. The range is 0 to 40 dB.
Degrade Low	Displays the degrade low threshold associated with the amplifier gain. The range is 0 to 40 dB.
Gain	Displays the gain value. The range is 0 to 40 dB.
Line 1 Tx Power
Degrade High	Displays the degrade high threshold associated with the amplifier output power related to the Line 1 Tx port. The range is 0 to 40 dB.
Degrade Low	Displays the degrade low threshold associated with the amplifier output power related to the Line 1 Tx port. The range is 0 to 40 dB.
Line 1 Output Power	Displays the amplifier output power related to the Line 1 Tx port. The range is -60 to 25 dBm.
Fail Low	Displays the fail low threshold associated with the output power value related to the Line 1 Tx port. The range is -10 to 14 dBm; the default is -6 dBm.
Line 1 Rx Power
Amplifier Input Power	Displays the amplifier input power value related to the Line 1 Rx port. The range is -60 to 25 dBm.
Fail Low	Displays the fail low threshold associated with the input power value related to the Line 1 Rx port. The range is -49 to 13 dBm; the default is 10 dBm.
Line 2 Rx Power
Laser 2 Input Power	Displays the mid-stage access input power value related to the Line 1 Rx port. The range is -60 to 25 dBm.
Fail Low	Displays the fail low threshold associated with the mid-stage access input power related to the Line 2 Rx port. The range is -49 to 15 dBm; the default is -33 dBm.
Gain Module Temperature
Temperature Max	Displays the maximum allowable case temperature threshold. The range is 60 to 100 degrees Celsius; the default is 65 degrees Celsius.
Temperature Min	Displays minimum allowable case temperature threshold. The range is -10 to 30 degrees Celsius; the default is -5 degrees Celsius.
Case Temperature	Displays the case temperature. The range is -100 to 150.
Bus Voltage
Bus Voltage Max	Displays the power bus A and B maximum voltage. The range is 49 to 70 V; the default is 57 V.
Bus Voltage Min	Displays the power bus A and B minimum voltage. The range is 0 to 47 V; the default is 40 V.
Bus A Voltage	Displays the power bus A voltage. The range is 0.0 to 999.9 V.
Bus B Voltage	Displays the power bus B voltage. The range is 0.0 to 999.9 V.

B.3.8.6  Alarm Behavior Tab

The Alarm Behavior tab allows you to enter, save, view, and update NE fault management attributes.

Table B-27 Field Descriptions for the Alarm Behavior Tab

Field	Description
Probable Cause	Displays the possible causes of the alarm.
Severity	Displays the alarm severity (Critical, Major, Minor, or Not Alarmed) and whether the alarm is service affecting (SA) or nonservice affecting (NSA).

B.3.8.7  SNMP Tab

The SNMP tab displays information about the SNMP Trap Destination table. Click Add Row to create a new trap destination; click Delete Row to delete an existing trap destination.

Table B-28 Field Descriptions for the SNMP Tab

Field	Description
IP Address	Displays the SNMP IP address.
UDP Port Number	Displays the trap destination UDP port.
Community Name	Displays the trap destination community name.
Version	Displays the SNMP version number.

---

Note See Table 1-19 on page 1-38 for the descriptions of the actions that can be performed using the action buttons at the bottom of the window.

---

B.3.9  ONS 15216 Active OADM NE Explorer

The ONS 15216 OADM NE Explorer displays information about the ONS 15216 100-GHz OADM NE. (See Figure B-8.)

Figure B-8 NE Explorer—ONS 15216 100-GHz OADM

The ONS 15216 100-GHz OADM NE Explorer contains the following tabs:

•Identification Tab

•Address Tab

•DWDM Tab

•Alarms Tab

•Thresholds Tab

B.3.9.1  Identification Tab

The Identification tab displays identification information for the ONS 15216 100-GHz OADM NE.

Table B-29 Field Descriptions for the Identification Tab

Field	Description
NE ID	Displays the ID of the NE from the Domain Explorer.
Description	Displays the description of the NE from the Domain Explorer.
NE Model	Displays the NE model type.
NE Type	Displays the type of NE.
NE Version	Displays the software version of the NE.
Wavelength(s)	Displays the number of wavelengths for this NE.
Product Name	Displays the name of the product.
CLEI Code	Displays the CLEI code.
Serial Number	Displays the serial number of the NE.
Location Name	Displays the name of the location where the NE is installed.
NE Date and Time	Displays the date and time when the NE was installed.

B.3.9.2  Address Tab

The Address tab displays information about the NE network address. The fields in this tab are read-only.

Table B-30 Field Descriptions for the Address Tab

Field	Description
IP Address	Displays the IP address of the NE.
Subnet Mask	Displays the subnetwork mask ID of the NE. If the field does not apply to the NE, the label is grayed out and the value reads Not Applicable.
Gateway Address	Displays the gateway address of the NE. If the field does not apply to the NE, the label is grayed out and the value reads Not Applicable.
SNMP Community String	Displays the SNMP community string of the NE. If the field does not apply to the NE, the label is grayed out and the value reads Not Applicable.
GNE ID	Displays the GNE ID.
Subnetwork ID	Displays the ID of the subnetwork to which the NE belongs.
Network Partition ID	Displays the ID of the network partition associated with the selected NE.

B.3.9.3  DWDM Tab

The DWDM tab allows you to view, enter, update, and save the NE DWDM attributes.

Table B-31 Field Descriptions for the DWDM Tab

Field	Description
Channel Number	Displays the channels that can be added or dropped. Values are: •1-channel—West 1, East 1 •2-channel—West 1, East 1, West 2, East 2 •4-channel—West 1, East 1, West 2, East 2, West 3, East 3, West 4, East 4
Mode	Allows you to configure the NE DWDM mode. Values are: •Setpoint (default)—The add channel power is set to the value of the Default Add Channel Power. Although the Default Add Channel Power can be set in any configuration, the add channel power is only equal to the Default Add Channel Power value in this mode. •Off—To turn off an add channel, set the channel power to a very low value (for example, -35 dBm). No alarm will be triggered. •Disable—When an add/drop channel is not in use, the channel should be configured in DISBABLE mode where no alarms will be triggered.
Default Add Channel Power	Displays the default power of the added channel in dBm. It is only available if you select Setpoint as the mode. Values must be from -29.0 to 3.0 in increments of 0.1.
InsLossAdd	Shows the calculated insertion loss for the add channel.
InsLossDrop	Shows the calculated insertion loss for the drop channel.
InsLossXpress	Shows the calculated insertion loss for the express/through channels.
Calculated Setpoint (CALCSETP)	The CALCSETP feature of the ONS 15216 OADM is a calculated value, and represents the OADMs recommended optical power level setting for a particular add channel. Following this recommendation when selecting the setpoint value for a particular add channel will allow the composite outgoing signal (composed of express channels and newly added channels) to be as flat as possible. The formula used for this calculation is CALCSETP = PWRDROP + ILDROP - ILTHRU.

B.3.9.4  Alarms Tab

The Alarms tab allows you to enter, save, view, and update NE dropped channel signal loss alarm attributes.

Table B-32 Field Descriptions for the Alarms Tab

Field	Description
Channel Number	Displays the channels that can be added or dropped. Values are: •1-channel—West 1, East 1 •2-channel—West 1, East 1, West 2, East 2 •4-channel—West 1, East 1, West 2, East 2, West 3, East 3, West 4, East 4
Drop Channel Signal Loss Alarm	Displays the current condition of the drop channel signal loss alarm. Values are: •On—Enables the loss signal alarm of the drop channel. •Off—Disables the loss signal alarm of the drop channel.

B.3.9.5  Thresholds Tab

The Thresholds tab allows you to enter, save, view, and update NE loss of signal and add/drop channel signal mismatch threshold attributes.

Table B-33 Field Descriptions for the Thresholds Tab

Field	Description
Channel Number	Displays the channels that can be added or dropped. Values are: •1-channel—West 1, East 1 •2-channel—West 1, East 1, West 2, East 2 •4-channel—West 1, East 1, West 2, East 2, West 3, East 3, West 4, East 4
Loss of Signal	Displays the signal loss threshold value. Valid values are -30.0 to 3.5 dBm in increments of 0.1 dBm.
Drop and Add Signal Mismatch	Displays the threshold value for the drop channel signal loss alarm. Valid values are 0.2 to 2.0 dB in increments of 0.1 dB. The default is 1.0 dB.

---

Note See Table 1-19 on page 1-38 for the descriptions of the actions that can be performed using the action buttons at the bottom of the window.

---

B.3.10  ONS 15216 Passive OADM NE Explorer

The ONS 15216 Passive OADM NE Explorer displays information about the ONS 15216 passive OADM NE. It contains an Identification tab.

B.3.10.1  Identification Tab

The Identification tab displays identification information for the ONS 15216 passive OADM NE.

Table B-34 Field Descriptions for the Identification Tab

Field	Description
NE ID	Displays the ID of the NE from the Domain Explorer.
Description	Displays the description of the NE from the Domain Explorer.
NE Model	Displays the NE model type.
NE Type	Displays the type of NE.
NE Version	Displays the software version of the NE.
Wavelength(s)	Displays the number of wavelengths for this NE.
Product Name	Displays the name of the product. Displays 15216-MD16-2-BLUE for the blue version and 15216-MD16-2-RED for the red version. Displays Unknown if the product name is not known. Note The information displayed in the Product Name field depends on the wavelength selected.
CLEI Code	Displays the CLEI code. Displays WMMFD00BRA for the blue version and WMMFE00BRA for the red version. Displays Unknown if the CLEI code is not known. Note The information displayed in the CLEI Code field depends on the wavelength selected.
Serial Number	Displays the serial number of the NE. You can edit this field.
Location Name	Displays the name of the location where the NE is installed. You can edit this field.
Subnetwork ID	Displays the ID of the subnetwork to which the NE belongs.
Network Partition ID	Displays the ID of the network partition to which the NE belongs.

---

Note See Table 1-19 on page 1-38 for the descriptions of the actions that can be performed using the action buttons at the bottom of the window.

---

B.3.11  ONS 15216 OSC Passive NE Explorer

The ONS 15216 Passive OSC NE Explorer displays information about the ONS 15216 passive OSC NE. It contains an Identification tab.

B.3.11.1  Identification Tab

The Identification tab displays the identification information for the ONS 15216 passive OSC NE.

Table B-35 Field Descriptions for the Identification Tab

Field	Description
NE ID	Displays the ID of the NE from the Domain Explorer.
Description	Displays the description of the NE from the Domain Explorer.
NE Model	Displays the NE model type.
NE Type	Displays the type of NE.
NE Version	Displays the software version of the NE.
Wavelength(s)	Displays the number of wavelengths for this NE.
Product Name	Displays the name of the product.
CLEI Code	Displays the CLEI code.
Serial Number	Displays the serial number of the NE. You can edit this field.
Location Name	Displays the name of the location where the NE is installed. You can edit this field.
Subnetwork ID	Displays the ID of the subnetwork to which the NE belongs.
Network Partition ID	Displays the ID of the network partition.

---

Note See Table 1-19 on page 1-38 for the descriptions of the actions that can be performed using the action buttons at the bottom of the window.

---

B.4  ONS 15302 and ONS 15305

The NE Explorer is not available for the ONS 15302 and ONS 15305. Equivalent functionality is provided through launching Cisco Edge Craft from CTM; choose Configuration > ONS 15302 or ONS 15305 > Launch Cisco Edge Craft. (See Figure B-9.)

Figure B-9 Cisco Edge Craft for the ONS 15305

B.5  ONS 15310 CL NE Explorer

When you choose Configuration > NE Explorer for the ONS 15310, the window displayed by CTM consists of a tree on the left side and a property sheet on the right. (See Figure B-10). The tree provides a hierarchical view and alarm status of the NE's physical shelves and slots. The property sheet shows information about the selected entity (NE or slot). See Node Property Sheet—ONS 15310 CL for more information.

Figure B-10 ONS 15310 CL NE Explorer

---

Note If CTC is launched from the web browser for an ONS 15310 node, the CTC GUI might look different from when it is launched from CTM. This discrepancy occurs because the latest version of CTC (for NE releases supported by CTM) is packaged with CTM. If launched from a browser, the CTC software is retrieved from the NE itself, which might be a different version than that packaged with CTM.

---

When an NE Explorer is in autorefresh mode, all values of an entity that is being edited by the user are automatically refreshed. You will lose all of your changes unless you click the Apply button. To enable autorefresh, click the Refresh Data button in the NE Explorer.

B.5.1  Node Property Sheet—ONS 15310 CL

The node property sheet displays information about the ONS 15310 slot that is selected in the NE Explorer tree. Use this properties sheet to change the module performance monitoring thresholds.

•Shelf View Tab

•Identification Tab

•Network Tab

•DCC Tab

•Timing Tab

•Protection Tab

•NE Defaults Tab

•Security Tab

•Alarm Tab

•XC Utilization Tab

B.5.1.1  Shelf View Tab

The Shelf View tab displays a graphic of the ONS 15310 that is selected in the NE Explorer tree. Moving the mouse pointer over the graphic of the NE, its shelves, slots, or cards displays the current alarms for the shelf, slot, or card. Double-clicking a slot or card displays the slot or card in the property sheet. The right-click menu allows you to reset or delete the card. For unprovisioned slots, the right-click menu allows you to add a card.

B.5.1.2  Identification Tab

The Identification tab displays information about the NE.

Table B-36 Field Descriptions for the Identification Tab

Field	Description
NE ID	Displays the ID of the NE from the Domain Explorer.
Description	Displays the description of the NE from the Domain Explorer.
NE Model	Displays Unmanaged NE as the NE model type.
Software Version	Displays the current running version of the system software.
Contact	Displays the name of the node contact person and the phone number.
System Description	Displays a description of the NE.
SNTP Settings
Use NTP/SNTP Server	If checked, CTC uses a Simple Network Time Protocol (SNTP) server to set the date and time of the node. Using an SNTP server ensures that all ONS 15310 network nodes use the same date and time reference. The server synchronizes the node's time after power outages or software upgrades. If you check the Use NTP/SNTP Server check box, enter the server's IP address in the next field. If you do not use an SNTP server, complete the Time and Time Zone fields. The ONS 15310 will use these fields for alarm dates and times.
SNTP Server	Displays the SNTP server IP address.
Location
Latitude	Allows you to set the latitude of the NE. Select North or South from the drop-down list, then enter the degrees and minutes (or click the up and down arrows to increase or decrease each by 1 unit).
Longitude	Allows you to set the longitude of the NE. Select East or West from the drop-down list, then enter the degrees and minutes (or click the up and down arrows to increase or decrease each by 1 unit).
Date and Time
Time	Displays the NE date and time.
Time Zone	Displays the time zone where the NE is located.
Use Daylight Savings Time	If checked, Daylight Savings Time is observed.
AIS-V Insertion on STS-1 Signal Degrade - Path
Insert AIS-V on STS-1 SD-P	If checked, the NE inserts an AIS-V signal when it detects an STS-1 signal degrade.
SD-P BER	Select the signal degrade path bit error rate for AIS-V insertion.

B.5.1.3  Network Tab

The Network tab displays information about the NE network address. The Network tab contains the following subtabs:

•Address Subtab

•Static Routes Subtab

•OSPF Subtab

•OSPF Area Range Subtab

•OSPF Virtual Links Subtab

•SNMP Subtab

•Firewall/Proxy Subtab

•RIP Routing Table Subtab

•RIP Subtab

•Routing Table Subtab

•Proxy Tunnels Subtab

•Firewall Tunnels Subtab

B.5.1.3.1  Address Subtab

The Address subtab allows you to view and change information about the NE network address.

Table B-37 Field Descriptions for the Address Subtab

Field	Description
IP Address	Displays the IP address of the NE.
Default Router	Displays the IP address of the default router.
Subnet Mask	Displays the subnetwork mask ID of the NE.
MAC Address	(Read-only) Displays the ONS 15310 address as it is identified on the IEEE 802 MAC layer.
Forward DHCP Requests	If checked, forwards Dynamic Host Configuration Protocol (DHCP) requests to the IP address entered in the DHCP Server field.
DHCP Server	Displays the IP address of the DHCP server.
CORBA (IIOP) Listener Port	Allows you to set a listener port to allow communication with the ONS 15310 through firewalls.

B.5.1.3.2  Static Routes Subtab

The Static Routes subtab allows you to view information about CTM and ONS 15310 connectivity and create or delete static routes.

Table B-38 Field Descriptions for the Static Routes Subtab

Field	Description
Destination	(Read-only) Displays the IP address of the computer running CTM.
Mask	(Read-only) Displays the subnetwork mask.
Next Hop	(Read-only) Displays the IP address of the router port or the node IP address if the CTM computer is connected to the node directly.
Cost	(Read-only) Displays the number of hops between the ONS 15310 and the computer.

B.5.1.3.3  OSPF Subtab

The OSPF subtab displays Open Shortest Path First (OSPF) information. OSPF is a link state Internet routing protocol.

Table B-39 Field Descriptions for the OSPF Subtab

Field	Description
Slot	Displays the slot number.
Port	Displays the port number.
DCC OSPF Area ID	Displays the number that identifies the ONS 15310s as a unique OSPF area. The OSPF area number can be from 0.0.0.0 to 255.255.255.255. The number must be unique to the LAN OSPF area.
SDCC Metric	Sets a cost for sending packets across the Section Data Communications Channel (SDCC), which is used by OSPF routers to calculate the shortest path. This value should always be higher than the LAN metric. The default metric is 100. This value is normally unchanged.
OSPF Active on LAN	If checked, enables ONS 15310 OSPF topology to be advertised to OSPF routers on the LAN. Enable this field on ONS 15310s that directly connect to OSPF routers.
LAN Port Area ID	Displays the OSPF area ID for the router port where the ONS 15310 is connected. (This number is different from the DCC OSPF Area ID.)
Router Priority	Displays the designated router for a subnet.
Dead Interval	Displays the number of seconds that will pass while an OSPF router's packets are not visible before its neighbors declare the router down. Forty seconds is the default.
Retransmit Interval	Displays the time that will elapse before a packet is resent. Five seconds is the default.
Hello Interval	Displays the number of seconds between OSPF hello packet advertisements sent by OSPF routers. Ten seconds is the default.
Transit Delay	Displays the service speed. One second is the default.
LAN Metric	Displays a cost for sending packets across the LAN. This value should always be lower than the DCC metric. Ten is the default.
Authentication Type	Displays Simple Password if the router where the ONS 15310 is connected uses authentication. Otherwise, it displays No Authentication.
Authentication Key	Displays the OSPF key (password) if authentication is enabled.
Confirm Authentication Key	Retype the authentication key to confirm it.

B.5.1.3.4  OSPF Area Range Subtab

The OSPF Area Range subtab allows you to view information about OSPF area ranges and create or delete area ranges.

Table B-40 Field Descriptions for the OSPF Area Range Subtab

Field	Description
Range Address	(Read-only) Displays the area IP address for the ONS 15310s that reside within the OSPF area. For example, if the ONS 15310 OSPF area includes nodes with IP addresses 10.10.20.100, 10.10.30.150, 10.10.40.200, and 10.10.50.250, the range address would be 10.10.0.0.
Range Area ID	(Read-only) Displays the OSPF area ID for the ONS 15310. This is either the ID in the DCC OSPF Area ID field or the ID in the Area ID for LAN Port field.
Mask Length	(Read-only) Displays the subnet mask length.
Mask	(Read-only) Displays the subnet mask IP address.
Advertise	(Read-only) Indicates whether the OSPF range table is advertised.

B.5.1.3.5  OSPF Virtual Links Subtab

The OSPF Virtual Links subtab allows you to view information about OSPF virtual links and create or delete virtual links.

---

Note You cannot create a new virtual link unless OSPF is active on the LAN.

---

Table B-41 Field Descriptions for the OSPF Virtual Links Subtab

Field	Description
Neighbor	(Read-only) Displays the router ID of the Area 0 router.
Transit Delay (sec)	(Read-only) Displays the service speed. One second is the default.
Retransmit Interval (sec)	(Read-only) Displays the time that will elapse before a packet is resent. Five seconds is the default.
Hello Interval (sec)	(Read-only) Displays the number of seconds between OSPF hello packet advertisements sent by OSPF routers. Ten seconds is the default.
Dead Interval (sec)	(Read-only) Displays the number of seconds that will pass while the packets of an OSPF router are not visible before its neighbors declare the router down. Forty seconds is the default.
Authentication Type	(Read-only) Displays the authentication type.
Authentication Key	(Read-only) Displays the authentication key.

B.5.1.3.6  SNMP Subtab

The SNMP subtab allows you to view SNMP information and create or delete SNMP trap destinations.

Table B-42 Field Descriptions for the SNMP Subtab

Field	Description
Allow SNMP Set	If checked, allows you to use SNMP management software with the ONS 15310.
Allow SNMP Proxy	If checked, allows you to configure the ONS 15310 to proxy SNMP calls.
IP Address	The IP address of the NMS.
Community Name	The SNMP community name. Note The SNMP community string cannot be blank in CTM. If a blank community string is required in CTC builds earlier than R4.6, you must set the blank community string in CTC.
UDP Port	The UDP port for SNMP. The default UDP port is 162.
Trap Version	The trap version, either SNMP version 1 or version 2. See your NMS documentation to determine whether to use SNMP version 1 or version 2.
Relay A IP Address	The first ONS 15310 to relay traps through. The IP address is appended to the base community string (to tell the first NE that is relaying the trap) the IP address, and port to forward the trap to. The second NE recognizes the IP address and strips it from the community string before forwarding the trap.
Relay A Community Name	The community name for the relay A node to use in the trap when forwarding it.
Relay B IP Address	The second ONS 15310 to relay traps through.
Relay B Community Name	The community name for the relay B node to use in the trap when forwarding it.
Relay C IP Address	The third ONS 15310 to relay traps through.
Relay C Community Name	The community name for the relay C node to use in the trap when forwarding it.

B.5.1.3.7  Firewall/Proxy Subtab

The Firewall/Proxy subtab allows you to use an NE as a proxy server or as a firewall.

Table B-43 Field Descriptions for the Firewall/Proxy Subtab

Field	Description
Gateway Settings
Enable Proxy Server on Port	If checked, the ONS 15310 serves as a proxy for connections between the CTM server and ONS 15310s that are DCC-connected to the proxy ONS 15310. The CTM server establishes connections to DCC-connected nodes through the proxy node. The CTM server can connect to nodes that it cannot directly reach from the host on which it runs. If checked, the following radio buttons are enabled: •External Network Element (ENE)—Enables the ONS 15310 to proxy as an ENE. •Gateway Network Element (GNE)—Enables the ONS 15310 to proxy as a GNE. •Proxy-only—Enables proxy only. If unchecked, the node does not proxy.

B.5.1.3.8  RIP Routing Table Subtab

The RIP Routing Table subtab allows you to view the Routing Information Protocol (RIP) routing table.

Table B-44 Field Descriptions for the RIP Routing Table Subtab

Field	Description
Destination	(Read-only) Displays the IP address of the destination network or host.
Mask	(Read-only) Displays the subnet mask used to reach the destination host or network.
Gateway	(Read-only) Displays the IP address of the gateway used to reach the destination network or host.
Cost	(Read-only) Displays the hop count metric. The valid range is 1 to 15.

B.5.1.3.9  RIP Subtab

The RIP subtab allows you to view and configure RIP parameters.

---

Note When you enable RIP, you must wait for approximately one minute for the default RIP address summary to become visible.

---

Table B-45 Field Descriptions for the RIP Subtab

Field	Description
RIP Active	Enable or disable RIP.
RIP Type	Select RIP version 1.0 or RIP version 2.0.
Metric	Select the hop count metric. The valid range is 1 to 15.
Authentication Type	Select the authentication type.
Authentication Key	Enter the authentication key (password) if the authentication type is Simple Password.
Confirm Authentication Key	Retype the authentication key to confirm it.
RIP Address Summary	•Summary Address—Displays the summary address. •Mask Length—Displays the subnet mask length. •Cost—Displays the hop count metric. The valid range is 1 to 15.

B.5.1.3.10  Routing Table Subtab

The Routing Table subtab allows you to view the OSPF routing table.

Table B-46 Field Descriptions for the Routing Table Subtab

Field	Description
Destination	(Read-only) Displays the IP address of the destination network or host.
Mask	(Read-only) Displays the subnet mask used to reach the destination host or network.
Gateway	(Read-only) Displays the IP address of the gateway used to reach the destination network or host.
Usage	(Read-only) Shows the number of times the listed route has been used.
Interface	(Read-only) Shows the ONS 15310 interface used to access the destination. Values are: •cpm0—The ONS 15310 Ethernet interface (that is, the RJ-45 jack on the TCC+/TCC2 and the LAN 1 pins on the backplane) •pdcc0—An SDCC interface (that is, an OC-N trunk card identified as the SDCC termination) •lo0—A loopback interface

B.5.1.3.11  Proxy Tunnels Subtab

The Proxy Tunnels subtab allows you to configure source and destination information for proxy tunnels.

Table B-47 Field Descriptions for the Proxy Tunnels Subtab

Field	Description
Source Address	Specify the source IP address in the source-destination pair for the tunnel that will be routed through the proxy server.
Source Mask	Specify the source subnetwork mask in the source-destination pair for the tunnel that will be routed through the proxy server.
Destination Address	Specify the destination IP address in the source-destination pair for the tunnel that will be routed through the proxy server.
Destination Mask	Specify the destination subnetwork mask in the source-destination pair for the tunnel that will be routed through the proxy server.

B.5.1.3.12  Firewall Tunnels Subtab

The Firewall Tunnels subtab allows you to configure source and destination information for firewall tunnels.

Table B-48 Field Descriptions for the Firewall Tunnels Subtab

Field	Description
Source Address	Specify the source IP address in the source-destination pair for the tunnel that will be routed through the firewall.
Source Mask	Specify the source subnetwork mask in the source-destination pair for the tunnel that will be routed through the firewall.
Destination Address	Specify the destination IP address in the source-destination pair for the tunnel that will be routed through the firewall.
Destination Mask	Specify the destination subnetwork mask in the source-destination pair for the tunnel that will be routed through the firewall.

B.5.1.4  DCC Tab

The DCC tab allows you to create, delete, and view SONET or SDH DCCs. The DCC tab contains the following subtabs:

•SDCC Subtab

•LDCC Subtab

B.5.1.4.1  SDCC Subtab

The SDCC subtab allows you to create, delete, and view SDCCs.

Table B-49 Field Descriptions for the SDCC Subtab

Field	Description
SDCC Terminations	Displays the slot, port, and card type of an SDCC termination. Click Create to create a new SDCC termination; click Delete to delete the selected SDCC termination.
OSPF Disabled on Link	Check if you want to prevent the advertisement of the OSPF routing table.
Foreign	A check mark indicates that the far-end node is a non-ONS node.
Foreign IP	Displays the foreign node IP address.
Service State	Select the state of the SDCC termination: •IS-NR—In Service-Normal •OOS-AU—Out of Service-Autonomous •OOS-MA—Out of Service-Management •OOS-AUMA—Out of Service-Autonomous and Management In addition, a secondary state provides additional information about the status of the entity. Values for secondary state are: •MEA—Mismatch of equipment due to invalid equipment insertion •UEQ—Unequipped; there is nothing in the slot •UAS—Unassigned; the entity does not exist, has not been created, or has been deleted •SWDL—Software download in progress •MT—Maintenance, as per the Admin State change •AINS—Automatic in service •DSBLD—Traffic is disabled on the entity •LPBK—Port or connection has a loopback on it

B.5.1.4.2  LDCC Subtab

The LDCC subtab allows you to create, delete, and view LDCCs.

Table B-50 Field Descriptions for the LDCC Subtab

Field	Description
LDCC Terminations	Displays the slot, port, and card type of an LDCC termination. Click Create to create a new LDCC termination; click Delete to delete the selected LDCC termination.
OSPF Disabled on Link	Check if you want to prevent the advertisement of the OSPF routing table.
Foreign	A check mark indicates that the far-end node is a non-ONS node.
Foreign IP	Displays the foreign node IP address.
Service State	Select the state of the LDCC termination: •IS-NR—In Service-Normal •OOS-AU—Out of Service-Autonomous •OOS-MA—Out of Service-Management •OOS-AUMA—Out of Service-Autonomous and Management In addition, a secondary state provides additional information about the status of the entity. Values for secondary state are: •MEA—Mismatch of equipment due to invalid equipment insertion •UEQ—Unequipped; there is nothing in the slot •UAS—Unassigned; the entity does not exist, has not been created, or has been deleted •SWDL—Software download in progress •MT—Maintenance, as per the Admin State change •AINS—Automatic in service •DSBLD—Traffic is disabled on the entity •LPBK—Port or connection has a loopback on it

B.5.1.5  Timing Tab

The Timing tab contains the following subtabs:

•General Subtab

•Reference List Subtab

•Status Subtab

•Timing Report Subtab

B.5.1.5.1  General Subtab

The General subtab displays general timing information.

Table B-51 Field Descriptions for the General Subtab

Field	Description
General Timing
Timing Mode	Set the node timing mode: •External—The ONS 15310 derives its timing from a BITS source wired to the backplane pins. •Line—Timing is derived from an OC-N card (non-DWDM nodes) or OSC card (DWDM nodes) that is optically connected to the timing node. •Mixed—Timing is set to external and line timing references. Caution Mixed timing might cause timing loops; it is recommended that you use this mode with care.
SSM Message Set	Choose the sync status message (SSM) set level supported by your network. SSM is a SONET protocol that communicates information about the quality of the timing source. SSM messages are carried on the S1 byte of the SONET Line layer. They enable SONET devices to automatically select the highest quality timing reference and to avoid timing loops. If a Generation 1 node receives a Generation 2 message, the message will be mapped down to the next available Generation 1. For example, an ST3E message becomes an ST3.
Revertive	If checked, the ONS 15310 reverts to a primary reference source after the conditions that caused it to switch to a secondary timing reference are corrected.
Reversion Time	Use the Reversion Time field to specify the time in half-minute increments.
Quality of RES	If your timing source supports the reserved S1 byte, you set the timing quality here. (Most timing sources do not use RES.) Qualities are displayed in descending quality order as ranges. For example, ST3 < RES < ST2 means the timing reference is higher than a Stratum 3 and lower than a Stratum 2.
BITS Facilities 1
In State	Set the BITS In state to In Service (IS) or Out of Service (OOS). If Timing Mode is set to External or Mixed, set the BITS In State for BITS-1 and/or BITS-2 to IS (In Service) depending on whether one or both BITS input pin pairs on the backplane are connected to the external timing source. If Timing Mode is set to Line, set the BITS In State to OOS.
Out State	Set the BITS Out state to IS or OOS. If Timing Mode is set to External or Mixed, set the BITS Out State for BITS-1 and/or BITS-2 to IS depending whether one or both BITS input pin pairs on the backplane are connected to the external timing source. If Timing Mode is set to Line, set the BITS Out State to OOS.
Coding	Set to the coding used by your BITS reference, either B8ZS or AMI.
Framing	Set to the framing used by your BITS reference, either Extended Super Frame (ESF), or Super Frame (SF). SSM is not available with Super Frame.
Sync Messaging	If checked, enables the Synchronization Status Message (SSM) for BITS In. (SSM is not available if Framing is set to Super Frame.)
AIS Threshold	If SSM is disabled or Super Frame is used, set the quality level where a node sends an alarm indication signal (AIS) from the BITS-1 Out and BITS-2 Out backplane pins. An AIS is raised when the optical source for the BITS reference falls to or below the SSM quality level defined in this field.
LBO	If you are timing an external device connected to the BITS Out pins, set the distance between it and the ONS 15310. Options are 0-133 ft. (default), 134-266 ft., 267-399 ft., 400-533 ft., and 534-655 ft.

B.5.1.5.2  Reference List Subtab

The Reference List subtab provides timing reference information.

Table B-52 Field Descriptions for the Reference List Subtab

Field	Description
NE References	Allows you to define three timing references (Ref-1, Ref-2, Ref-3). The node uses Reference 1 unless a failure occurs on that reference, in which case, the node uses Reference 2. If that fails, the node uses Reference 3, which is typically set to the internal clock. This is the Stratum 3 clock provided on the TCC+. The options displayed depend on the Timing Mode setting. •Timing Mode set to External—Options are BITS-1, BITS-2, and Internal. •Timing Mode set to Line—Options are the node's working optical cards and Internal. Select the cards/ports that are directly or indirectly connected to the node wired to the BITS source; that is, the node's trunk cards. Set Reference 1 to the trunk card that is closest to the BITS source. For example, if Slot 5 is connected to the node wired to the BITS source, select Slot 5 as Reference 1. •Timing Mode set to Mixed—Both BITS and optical cards are available, allowing you to set a mixture of external BITS and optical trunk cards as timing references.
BITS-1 Out References	Define the timing references for equipment wired to the BITS Out backplane pins. Normally, BITS Out is used with line nodes, so the options displayed are the working optical cards. BITS-1 Out is enabled as soon as BITS-1 facilities are placed in service.

B.5.1.5.3  Status Subtab

The Status subtab provides timing status information.

Table B-53 Field Descriptions for the Status Subtab

Field	Description
NE Reference	Set the NE timing reference to internal, BITS-1, or BITS-2.
Status	(Read-only) Displays the status of the NE clock.
Operations	Execute a switch on the NE timing reference.
BITS-1 Out	Set the BITS-1 out timing reference.
Status	(Read-only) Displays the status of the BITS-1 out timing reference.
Operations	Execute a switch on the BITS-1 out timing reference.

B.5.1.5.4  Timing Report Subtab

The Timing Report subtab summarizes the NE's current timing settings.

B.5.1.6  Protection Tab

The Protection tab contains the following subtabs:

•Protection Groups Subtab

•Operations Subtab

B.5.1.6.1  Protection Groups Subtab

The Protection Groups subtab displays a list of available protection groups and allows you to create, delete, and view protection groups.

Table B-54 Field Descriptions for the Protection Groups Subtab

Field	Description
Protection Groups
Displays a list of available protection groups. Click the Create or Delete button to create a new protection group or delete an existing one.
Selected Protection Group
Name	Modify the name of the selected protection group. The name can have up to 32 alphanumeric characters.
Type	View the protection type (1:1 [card], 1:N [card], Y Cable [port], or 1+1 [port]) of the selected protection group.
Protect Module	View the protect module if using 1+1 protection.
Available Entities	Displays a list of available entities. You can toggle between available and working entities.
Working Entities	Displays a list of working entities. You can toggle between working and available entities.
Bidirectional Switching	Click if you want both the transmit and the receive channels to switch if a failure occurs on one. This option is only available if you select 1+1 (port) type.
Revertive	If checked, the node reverts traffic to the working card or port after failure conditions stay corrected for the amount of time entered in Reversion Time. This option is not available if the 1:N (card) type has been selected.
Reversion Time	If Revertive is checked, choose the amount of time following failure condition correction after which the node should switch back to the working card or port. Use half-minute increments. This option is only available if you select 1:1 (card) type.

B.5.1.6.2  Operations Subtab

The Operations subtab displays the protection group operation information.

Table B-55 Field Descriptions for the Operations Subtab

Field	Description
Protection Groups	Displays a list of available protection groups.
Protection Group Details	Displays details about the selected protection groups and allows you to execute switch commands.
Switch Commands	Allows you to perform a manual switch, perform a forced switch, or clear the existing command switching.
Inhibit Switching	Allows you to inhibit unlock switching, lock out switching, or lock on switching.

B.5.1.7  NE Defaults Tab

The NE Defaults tab displays a list of default thresholds for the ONS 15310 NE.

Table B-56 Field Descriptions for the NE Defaults Tab

Field	Description
Parameter (Units)	Lists the default NE parameter, with its corresponding unit of measure.
Value	Shows the default parameter value, and allows you to change the default.

You can load different NE defaults using the NE Defaults Management window. See 4.5.8  Restoring NE Defaults, page 4-67.

B.5.1.8  Security Tab

The Security tab allows you to view and edit security features for the ONS 15310 NE. The security tab contains the following subtabs:

•Policy Subtab

•Password Subtab

•Access Subtab

•Legal Disclaimer Subtab

B.5.1.8.1  Policy Subtab

The Policy subtab allows you to specify user security parameters.

---

Note If the user is already logged in, any changes to the NE user type settings become applicable only when the user next logs in.

---

Table B-57 Field Descriptions for the Policy Subtab

Field	Description
Idle User Timeout
Each CTC or TL1 user can be idle during his or her login session for a specified amount of time before the CTC window is locked. The lockouts prevent unauthorized users from making changes. Higher-level users have shorter default idle periods and lower-level users have longer or unlimited default idle periods. The user idle period can be modified by a SuperUser. Note A user already logged into the node is not affected by a change to the Idle User Timeout policy.
Retrieve	Set the idle user timeout for a CTC Retrieve user.
Maintenance	Set the idle user timeout for a CTC Maintenance user.
Provisioner	Set the idle user timeout for a CTC Provisioner user.
SuperUser	Set the idle user timeout for a CTC SuperUser user.
User Lockout
Manual Unlock by SuperUser	If checked, the CTC SuperUser user must manually unlock locked out CTC users. If unchecked, locked out CTC users are automatically unlocked after the lockout duration period elapses.
Lockout Duration	Set the lockout duration period for locked out CTC users. This field is only enabled if the Manual Unlock by SuperUser check box is unchecked.
Failed Logins Before Lockout	Set the number of failed logins before the CTC user is automatically locked out.
Other
Single Sessions per User	If checked, each CTC user can only launch one session at a time.
Disable Inactive User	If checked, inactive users are disabled automatically for the amount of time in the Inactive Duration field.
Inactive Duration	Specify the inactive duration in days. The range is 45 to 90 days; the default is 45 days.

B.5.1.8.2  Password Subtab

The Password subtab allows you to specify user password security parameters.

Table B-58 Field Descriptions for the Password Subtab

Field	Description
Password Change
Prevent Reusing Last	Prevents setting a CTC user's current password to one of the most recent passwords. You can set the number of most recent passwords that cannot be reused.
Disable Password Flipping	If checked, users are not allowed to change passwords for the number of days specified in the Cannot Change New Password For field.
Cannot Change New Password For	Enter the number of days that will elapse before the user can change the password.
Force Password Change After Assigned	If checked, during the first successful login, the user is forced to change the password.
Password Aging
Enable Password Aging	Check this check box to enable password aging.
Aging Period	Enter the aging period, in days, for Retrieve, Maintenance, Provisioner, and SuperUser CTC users. After the aging period expires, CTC users are forced to change their passwords.
Warning Period	Enter the warning period, in days, for Retrieve, Maintenance, Provisioner, and SuperUser CTC users. After the warning period expires, CTC users are warned that their passwords will soon expire.

B.5.1.8.3  Access Subtab

The Access subtab allows you to configure LAN and shell access to the NE.

Table B-59 Field Descriptions for the Access Subtab

Field	Description
LAN Access
LAN Access	Specify the type of LAN access allowed. Values are Backplane Only, No LAN Access, or Front and Backplane. After setting the LAN access to the backplane, the CTM client is unusable for 4 to 5 minutes.
Restore Timeout	This time period begins if No LAN Access is selected and all DCC connections are lost. If the time expires before a DCC is restored, LAN access is restored so that the node is not isolated. When the DCC comes back, LAN access returns to its specified settings. The range is 0 (never) to 60 minutes; the default is 5 minutes.
Shell Access
Shell Access on	Specify shell access on Telnet or SSH.
SSH Port	(Read-only) Indicates the SSH port number that will be used if the SSH radio button is selected.
Telnet Port	This is enabled if you selected the Telnet radio button. Enter the Telnet port number.
Use Standard Telnet Port	If checked, the standard Telnet port is used for Telnet access.
Other
PM Clearing Privilege	Select the users privilege that allows clearing PM statistics for the NE.

B.5.1.8.4  Legal Disclaimer Subtab

The Legal Disclaimer subtab allows you to edit the NE's advisory message and preview the disclaimer.

Table B-60 Field Descriptions for the Legal Disclaimer Subtab

Field	Description
Advisory Message	The existing message is a default, noncustomer-specific disclaimer. If you want to edit this statement with specifics for your company, you can change the text. You can also use the following HTML commands to format the text: <b> Begins boldface font </b> Ends boldface font <center> Aligns type in the center of the window </center> Ends the center alignment <font=n, where n = point size> Changes the font to the new size </font> Ends the font size command <p> Creates a line break <sub> Begins subscript </sub> Ends subscript <sup> Begins superscript </sup> Ends superscript <u> Starts underline </u> Ends underline
Preview	Allows you to view the advisory message before saving it.

B.5.1.9  Alarm Tab

The Alarm tab allows you to change default alarm severities by creating unique alarm profiles for individual ONS 15310 nodes. The Alarm tab contains the following subtabs:

•Profile Subtab

•Alarm Behavior Subtab

---

Note The Alarm tab might contain default alarm profile entries for cards that are not supported by the ONS 15310. Therefore, you might see some alarms that do not apply to the NE type that you are provisioning.

---

B.5.1.9.1  Profile Subtab

The Profile subtab allows you to select, create, or delete alarm profiles.

Table B-61 Field Descriptions for the Profile Subtab

Field	Description
Alarm Profile Name	Choose an alarm profile for the NE from the drop-down list. Click Create to create a new alarm profile for the NE. Click Delete to delete an alarm profile from the NE.
Condition	Displays the alarm condition.
Severity	Displays the alarm severity.

B.5.1.9.2  Alarm Behavior Subtab

The Alarm Behavior subtab allows you to change default alarm severities by creating unique alarm profiles.

Table B-62 Field Descriptions for the Alarm Behavior Subtab

Field	Description
Alarm Profile	Choose a global alarm profile for the NE from the drop-down list.
Suppress Alarms	If checked, all alarms are suppressed.
Slot Number	Displays the location of the module.
Equipment Type	Displays the type of module in the slot.
Profile	Choose an alarm profile for the slot from the drop-down list.
Suppress Alarms	Indicates whether or not the alarms for the particular card are suppressed. If checked, all alarms are suppressed for the port.

B.5.1.10  XC Utilization Tab

The XC Utilization tab allows you to view a summary of the percentage of XTC cross-connect resources used by circuits that traverse or terminate at an ONS 15310.

Table B-63 Field Descriptions for the XC Utilization Tab

Field	Description
STS-1 Matrix	Provides the percentage of the XC cross-connect STS-1 paths resources that are used. 1152 STS-1 paths are available.
VT Matrix Ports	Provides the percentage of the XTC cross-connect VT matrix ports that are used. Each port is one STS in size, and each can transport 28 VT1.5s. 24 VT matrix ports are available.
VT Matrix	Provides the percentage of the VT matrix resources that are used. 672 are available, which is the number of VT matrix ports (24) multiplied by the number of VT1.5s in an STS (28).

---

Note See Table 1-19 on page 1-38 for the descriptions of the actions that can be performed using the action buttons at the bottom of the window.

---

B.6  ONS 15327 NE Explorer

When you choose Configuration > NE Explorer for the ONS 15327, the window displayed by CTM consists of a tree on the left side and a property sheet on the right. (See Figure B-11.) The tree provides a hierarchical view and alarm status of the NE's physical shelves and slots. The property sheet shows information about the selected entity (NE or slot). See Node Property Sheet—ONS 15327 for more information.

Figure B-11 NE Explorer—ONS 15327

---

Note If CTC is launched from the web browser for an ONS 15327 node, the CTC GUI might look different from when it is launched from CTM. This discrepancy occurs because the latest version of CTC (for NE releases supported by CTM) is packaged with CTM. If launched from a browser, the CTC software is retrieved from the NE itself, which might be a different version than that packaged with CTM.

---

When an NE Explorer is in autorefresh mode, all values of an entity that is being edited by the user are automatically refreshed. You will lose all of your changes unless you click the Apply button. To enable autorefresh, click the Refresh Data button in the NE Explorer.

B.6.1  Node Property Sheet—ONS 15327

The node property sheet for the ONS 15327 displays information about the ONS 15327 NE. The ONS 15327 property sheet contains the following tabs, some of which apply only to a specific NE version:

•Shelf View Tab

•Identification Tab

•Network Tab

•DCC Tab

•Timing Tab

•Protection Tab

•Ether Bridge Tab

•NE Defaults Tab

•Security Tab

•Alarm Tab

•XC Utilization Tab

•BLSR Tab

B.6.1.1  Shelf View Tab

The Shelf View tab displays a graphic of the ONS 15327 that is selected in the NE Explorer tree. Moving the mouse pointer over the graphic of the NE, its shelves, slots, or cards displays the current alarms for the shelf, slot, or card. Double-clicking a slot or card displays the slot or card in the property sheet. The right-click menu allows you to reset, delete, or change the card. For unprovisioned slots, the right-click menu allows you to add a card.

B.6.1.2  Identification Tab

The Identification tab displays identification information about the ONS 15327 NE.

Table B-64 Field Descriptions for the Identification Tab

Field	Description
NE ID	Displays the ID of the NE from the Domain Explorer.
Description	Displays the description of the NE from the Domain Explorer.
NE Model	Displays the NE model type.
Software Version	Displays the current running version of the system software.
Contact	Displays the name of the node contact person and the phone number.
System Description	Displays a description of the NE.
SNTP Settings
Use NTP/SNTP Server	If checked, CTC uses an SNTP server to set the date and time of the node. Using an SNTP server ensures that all ONS 15327 network nodes use the same date and time reference. The server synchronizes the node's time after power outages or software upgrades. If you check the Use NTP/SNTP Server check box, enter the server's IP address in the next field. If you do not use an SNTP server, complete the Time and Time Zone fields. The ONS 15327 will use these fields for alarm dates and times.
SNTP Server	Displays the SNTP server IP address.
Location
Latitude	Allows you to set the latitude of the NE. Select North or South from the drop-down list, then enter the degrees and minutes (or click the up and down arrows to increase or decrease each by 1 unit).
Longitude	Allows you to set the longitude of the NE. Select East or West from the drop-down list, then enter the degrees and minutes (or click the up and down arrows to increase or decrease each by 1 unit).
Date and Time
Time	Displays the NE date and time.
Time Zone	Displays the time zone where the NE is located.
Use Daylight Savings Time	If checked, Daylight Savings Time is observed.
AIS-V Insertion on STS-1 Signal Degrade - Path
Insert AIS-V on STS-1 SD-P	If checked, the NE inserts an AIS-V signal when it detects an STS-1 signal degrade.
SD-P BER	Select the signal degrade path bit error rate for AIS-V insertion.

B.6.1.3  Network Tab

The Network tab displays information about the NE network address. The Network tab contains the following subtabs:

•Address Subtab

•Static Routes Subtab

•OSPF Subtab

•OSPF Area Range Subtab

•OSPF Virtual Links Subtab

•SNMP Subtab

•Firewall/Proxy Subtab

•RIP Routing Table Subtab

•RIP Subtab

•Routing Table Subtab

•Proxy Tunnels Subtab

•Firewall Tunnels Subtab

B.6.1.3.1  Address Subtab

The Address subtab allows you to view and change information about the NE network address.

Table B-65 Field Descriptions for the Address Subtab

Field	Description
IP Address	Displays the IP address of the NE.
Default Router	Displays the IP address of the default router.
Subnet Mask	Displays the subnetwork mask ID of the NE.
MAC Address	(Read-only) Displays the ONS 15327 address as it is identified on the IEEE 802 MAC layer.
Forward DHCP Requests	If checked, forwards DHCP requests to the IP address entered in the DHCP Server field.
DHCP Server	Displays the IP address of the DHCP server.
XTC CORBA (IIOP) Listener Port	Allows you to set a listener port to allow communication with the ONS 15327 through firewalls.

B.6.1.3.2  Static Routes Subtab

The Static Routes subtab allows you to view information about CTM and ONS 15327 connectivity and create or delete static routes.

Table B-66 Field Descriptions for the Static Routes Subtab

Field	Description
Destination	(Read-only) Displays the IP address of the computer running CTM.
Mask	(Read-only) Displays the subnetwork mask.
Next Hop	(Read-only) Displays the IP address of the router port or the node IP address if the CTM computer is connected to the node directly.
Cost	(Read-only) Displays the number of hops between the ONS 15327 and the computer.

B.6.1.3.3  OSPF Subtab

The OSPF subtab displays OSPF information. OSPF is a link state Internet routing protocol.

Table B-67 Field Descriptions for the OSPF Subtab

Field	Description
Slot	Displays the slot number.
Port	Displays the port number.
DCC OSPF Area ID	Displays the number that identifies the ONS 15327 as a unique OSPF area. The OSPF area number can be from 0.0.0.0 to 255.255.255.255. The number must be unique to the LAN OSPF area.
SDCC Metric	Sets a cost for sending packets across the Section Data Communications Channel (SDCC), which is used by OSPF routers to calculate the shortest path. This value should always be higher than the LAN metric. The default DCC metric is 100. This value is normally unchanged.
OSPF Active on LAN	If checked, enables the ONS 15327 OSPF topology to be advertised to OSPF routers on the LAN. Enable this field on ONS 15327s that connect directly to OSPF routers.
LAN Port Area ID	Displays the OSPF area ID for the router port where the ONS 15327 is connected. (This number is different from the DCC OSPF Area ID.)
Router Priority	Displays the designated router for a subnet.
Dead Interval	Displays the number of seconds that will pass while an OSPF router's packets are not visible before its neighbors declare the router down. Forty seconds is the default.
Retransmit Interval	Displays the time that will elapse before a packet is resent. Five seconds is the default.
Hello Interval	Displays the number of seconds between OSPF hello packet advertisements sent by OSPF routers. Ten seconds is the default.
Transit Delay	Displays the service speed. One second is the default.
LAN Metric	Displays a cost for sending packets across the LAN. This value should always be lower than the DCC metric. Ten is the default.
Authentication Type	Displays Simple Password if the router where the ONS 15327 is connected uses authentication. Otherwise, it displays No Authentication.
Authentication Key	Displays the OSPF key (password) if authentication is enabled.
Confirm Authentication Key	Retype the authentication key to confirm it.

B.6.1.3.4  OSPF Area Range Subtab

The OSPF Area Range subtab allows you to view information about OSPF area ranges and create or delete area ranges.

Table B-68 Field Descriptions for the OSPF Area Range Subtab

Field	Description
Range Address	(Read-only) Displays the area IP address for the ONS 15327s that reside within the OSPF area. For example, if the ONS 15327 OSPF area includes nodes with IP addresses 10.10.20.100, 10.10.30.150, 10.10.40.200, and 10.10.50.250, the range address would be 10.10.0.0.
Range Area ID	(Read-only) Displays the OSPF area ID for the ONS 15327. This is either the ID in the DCC OSPF Area ID field or the ID in the Area ID for LAN Port field.
Mask Length	(Read-only) Displays the subnet mask length.
Mask	(Read-only) Displays the subnet mask IP address.
Advertise	(Read-only) Indicates whether the OSPF range table is advertised.

B.6.1.3.5  OSPF Virtual Links Subtab

The OSPF Virtual Links subtab allows you to view information about OSPF virtual links and create or delete virtual links.

---

Note You cannot create a new virtual link unless OSPF is active on the LAN.

---

Table B-69 Field Descriptions for the OSPF Virtual Links Subtab

Field	Description
Neighbor	(Read-only) Displays the router ID of the Area 0 router.
Transit Delay	(Read-only) Displays the service speed. One second is the default.
Retransmit Interval	(Read-only) Displays the time that will elapse before a packet is resent. Five seconds is the default.
Hello Interval	(Read-only) Displays the number of seconds between OSPF hello packet advertisements sent by OSPF routers. Ten seconds is the default.
Dead Interval	(Read-only) Displays the number of seconds that will pass while the packets of an OSPF router are not visible before its neighbors declare the router down. Forty seconds is the default.
Authentication Type	(Read-only) Displays the authentication type.
Authentication Key	(Read-only) Displays the authentication key.

B.6.1.3.6  SNMP Subtab

The SNMP subtab allows you to view SNMP information and create or delete SNMP trap destinations.

Table B-70 Field Descriptions for the SNMP Subtab

Field	Description
Allow SNMP Set	If checked, allows you to use SNMP management software with the ONS 15327.
Allow SNMP Proxy	If checked, allows you to configure the ONS 15327 to proxy SNMP calls.
IP Address	The IP address of the NMS.
Community Name	The SNMP community name. Note The SNMP community string cannot be blank in CTM. If a blank community string is required in CTC builds earlier than R4.6, you must set the blank community string in CTC.
UDP Port	The UDP port for SNMP. The default UDP port is 162.
Trap Version	The trap version, either SNMP version 1 or version 2. See your NMS documentation to determine whether to use SNMP version 1 or version 2.
Relay A IP Address	The first ONS 15327 to relay traps through. The IP address is appended to the base community string to tell the first NE that is relaying the trap the IP address and port to forward the trap to. The second NE recognizes the IP address and strips it from the community string before forwarding the trap.
Relay A Community Name	The community name for the relay A node to use in the trap when forwarding it.
Relay B IP Address	The second ONS 15327 to relay traps through.
Relay B Community Name	The community name for the relay B node to use in the trap when forwarding it.
Relay C IP Address	The third ONS 15327 to relay traps through.
Relay C Community Name	The community name for the relay C node to use in the trap when forwarding it.

B.6.1.3.7  Firewall/Proxy Subtab

The Firewall/Proxy subtab allows you to use an NE as a proxy server and/or as a firewall.

Table B-71 Field Descriptions for the Firewall/Proxy Subtab

Field	Description
Craft Access Only	If checked, only allows CTC to access the firewall and proxy settings of the NE. Check this item only if the LAN port is used for direct workstation-to-network element connections, and not connected to a LAN. Disabling craft-only access allows the installation of a route to the LAN. Disable this only if the LAN port is actually connected to the LAN. Note This field applies only to ONS 15327 releases earlier than R4.6.
Enable Firewall	If checked, blocks packets routed between the local area and DCC networks. This causes a loss of connectivity to DCC-only connected NEs. CTM cannot reestablish the connection unless the proxy is enabled. Additionally, all NEs connected to the LAN must also have their firewall enabled, or connectivity problems will result. Note This field applies only to ONS 15327 releases earlier than R4.6.
Enable Proxy Server on Port	If checked, the ONS 15327 serves as a proxy for connections between the CTM server and ONS 15327s that are DCC-connected to the proxy ONS 15327. The CTM server establishes connections to DCC-connected nodes through the proxy node. The CTM server can connect to nodes that it cannot directly reach from the host on which it runs. If checked, the following radio buttons are enabled: •External Network Element (ENE)—Enables the ONS 15327 to proxy as an ENE. •Gateway Network Element (GNE)—Enables the ONS 15327 to proxy as a GNE. •Proxy-only—Enables proxy only. If unchecked, the node does not proxy.

B.6.1.3.8  RIP Routing Table Subtab

The RIP Routing Table subtab allows you to view the RIP routing table.

Table B-72 Field Descriptions for the RIP Routing Table Subtab

Field	Description
Destination	(Read-only) Displays the IP address of the destination network or host.
Mask	(Read-only) Displays the subnet mask used to reach the destination host or network.
Gateway	(Read-only) Displays the IP address of the gateway used to reach the destination network or host.
Cost	(Read-only) Displays the hop count metric. The valid range is 1 to 15.

B.6.1.3.9  RIP Subtab

The RIP subtab allows you to view and configure RIP parameters.

---

Note When you enable RIP, you must wait for approximately one minute for the default RIP address summary to become visible.

---

Table B-73 Field Descriptions for the RIP Subtab

Field	Description
RIP Active	Enable or disable RIP.
RIP Type	Select RIP version 1.0 or RIP version 2.0.
Metric	Select the hop count metric. The valid range is 1 to 15.
Authentication Type	Select the authentication type.
Authentication Key	Enter the authentication key (password) if the authentication type is Simple Password.
Confirm Authentication Key	Retype the authentication key to confirm it.
RIP Address Summary	•Summary Address—Displays the summary address. •Mask Length—Displays the subnet mask length. •Cost—Displays the hop count metric. The valid range is 1 to 15.

B.6.1.3.10  Routing Table Subtab

The Routing Table subtab allows you to view the OSPF routing table.

Table B-74 Field Descriptions for the Routing Table Subtab

Field	Description
Destination	(Read-only) Displays the IP address of the destination network or host.
Mask	(Read-only) Displays the subnet mask used to reach the destination host or network.
Gateway	(Read-only) Displays the IP address of the gateway used to reach the destination network or host.
Usage	(Read-only) Shows the number of times the listed route has been used.
Interface	(Read-only) Shows the ONS 15327 interface used to access the destination. Values are: •cpm0—The ONS 15327 Ethernet interface (that is, the RJ-45 jack on the TCC+/TCC2 and the LAN 1 pins on the backplane) •pdcc0—An SDCC interface (that is, an OC-N trunk card identified as the SDCC termination) •lo0—A loopback interface

B.6.1.3.11  Proxy Tunnels Subtab

The Proxy Tunnels subtab allows you to configure source and destination information for proxy tunnels.

Table B-75 Field Descriptions for the Proxy Tunnels Subtab

Field	Description
Source Address	Specify the source IP address in the source-destination pair for the tunnel that will be routed through the proxy server.
Source Mask	Specify the source subnetwork mask in the source-destination pair for the tunnel that will be routed through the proxy server.
Destination Address	Specify the destination IP address in the source-destination pair for the tunnel that will be routed through the proxy server.
Destination Mask	Specify the destination subnetwork mask in the source-destination pair for the tunnel that will be routed through the proxy server.

B.6.1.3.12  Firewall Tunnels Subtab

The Firewall Tunnels subtab allows you to configure source and destination information for firewall tunnels.

Table B-76 Field Descriptions for the Firewall Tunnels Subtab

Field	Description
Source Address	Specify the source IP address in the source-destination pair for the tunnel that will be routed through the firewall.
Source Mask	Specify the source subnetwork mask in the source-destination pair for the tunnel that will be routed through the firewall.
Destination Address	Specify the destination IP address in the source-destination pair for the tunnel that will be routed through the firewall.
Destination Mask	Specify the destination subnetwork mask in the source-destination pair for the tunnel that will be routed through the firewall.

B.6.1.4  DCC Tab

The DCC tab allows you to create, delete, and view SONET or SDH DCCs.

Table B-77 Field Descriptions for the DCC Tab

Field	Description
SDCC Terminations	Displays the slot, port, and card type of an SDCC termination. Click Create to create a new SDCC termination; click Delete to delete the selected SDCC termination.
OSPF Disabled on Link	Check if you want to prevent the advertisement of the OSPF routing table.
Foreign	A check mark indicates that the far-end node is a non-ONS node.
Foreign IP	Displays the foreign node IP address.
Service State	Select the state of the termination: •IS-NR—In Service-Normal •OOS-AU—Out of Service-Autonomous •OOS-MA—Out of Service-Management •OOS-AUMA—Out of Service-Autonomous and Management In addition, a secondary state provides additional information about the status of the entity. Values for secondary state are: •MEA—Mismatch of equipment due to invalid equipment insertion •UEQ—Unequipped; there is nothing in the slot •UAS—Unassigned; the entity does not exist, has not been created, or has been deleted •SWDL—Software download in progress •MT—Maintenance, as per the Admin State change •AINS—Automatic in service •DSBLD—Traffic is disabled on the entity •LPBK—Port or connection has a loopback on it

B.6.1.5  Timing Tab

The Timing tab contains the following subtabs:

•General Subtab

•Reference List Subtab

•Status Subtab

•Timing Report Subtab

B.6.1.5.1  General Subtab

The General subtab displays general timing information.

Table B-78 Field Descriptions for the General Subtab

Field	Description
General
Timing Mode	Set to External if the ONS 15327 derives its timing from a BITS source wired to the backplane pins; set to Line if timing is derived from an OC-N card that is optically connected to the timing node. A third option, Mixed, allows you to set external and line timing references. Caution Mixed timing may cause timing loops; it is recommended that you use this mode with care.
SSM Message Set	Choose the SSM set level supported by your network. SSM is a SONET protocol that communicates information about the quality of the timing source. SSM messages are carried on the S1 byte of the SONET Line layer. They enable SONET devices to automatically select the highest quality timing reference and to avoid timing loops. If a Generation 1 node receives a Generation 2 message, the message will be mapped down to the next available Generation 1. For example, an ST3E message becomes an ST3.
Revertive	If checked, the ONS 15327 reverts to a primary reference source after the conditions that caused it to switch to a secondary timing reference are corrected.
Reversion Time	Specify the reversion time in half-minute increments.
Quality of RES	If your timing source supports the reserved S1 byte, you set the timing quality here. (Most timing sources do not use RES.) Qualities are displayed in descending quality order as ranges. For example, ST3 < RES < ST2 means the timing reference is higher than a Stratum 3 and lower than a Stratum 2.
BITS-IN-OUT Facility Type
In Facility Type	Provision the BITS In facility type.
Out Facility Type	Provisions the BITS Out facility type.
BITS IN Facilities
In State	Set the BITS reference to IS (In Service) or OOS (Out of Service). For nodes set to Line timing with no equipment timed through BITS Out, set State to OOS. For nodes using External timing or Line timing with equipment timed through BITS Out, set State to IS.
Coding	Set to the coding used by your BITS reference, either B8ZS or AMI.
Framing	Set to the framing used by your BITS reference, either ESF or SF (D4). SSM is not available with Super Frame.
Sync Messaging	If checked, enables the Synchronization Status Message (SSM) for BITS In. (SSM is not available if Framing is set to Super Frame.)
Admin SSM	If the Sync Messaging check box is not checked, you can choose the SSM Generation 2 type from the drop-down list.
BITS OUT Facilities
Out State	Set the BITS reference to IS (In Service) or OOS (Out of Service). For nodes set to Line timing with no equipment timed through BITS Out, set State to OOS. For nodes using External timing or Line timing with equipment timed through BITS Out, set State to IS.
Coding	Set to the coding used by your BITS reference, either B8ZS or AMI.
Framing	Set to the framing used by your BITS reference, either ESF or SF (D4). SSM is not available with Super Frame.
AIS Threshold	If SSM is disabled or Super Frame is used, sets the quality level where a node sends an AIS from the BITS-1 Out and BITS-2 Out backplane pins. An AIS is raised when the optical source for the BITS reference falls to or below the SSM quality level defined in this field.
LBO	If you are timing an external device connected to the BITS Out pins, set the distance between it and the ONS 15327. Options are 0-133 ft. (default), 134-266 ft., 267-399 ft., 400-533 ft., and 534-655 ft.

B.6.1.5.2  Reference List Subtab

The Reference List subtab provides timing reference information.

Table B-79 Field Descriptions for the Reference List Subtab

Field	Description
NE References	Allows you to define three timing references (Ref-1, Ref-2, Ref-3). The node uses Reference 1 unless a failure occurs on that reference, in which case, the node uses Reference 2. If that fails, the node uses Reference 3, which is typically set to Internal Clock. This is the Stratum 3 clock provided on the TCC+. The options displayed depend on the Timing Mode setting. •Timing Mode set to External—Options are BITS-1, BITS-2, and Internal Clock. •Timing Mode set to Line—Options are the node's working optical cards and Internal Clock. Select the cards/ports that are directly or indirectly connected to the node wired to the BITS source, that is, the node's trunk cards. Set Reference 1 to the trunk card that is closest to the BITS source. For example, if Slot 5 is connected to the node wired to the BITS source, select Slot 5 as Reference 1. •Timing Mode set to Mixed—Both BITS and optical cards are available, allowing you to set a mixture of external BITS and optical trunk cards as timing references.
BITS-1 Out References	Define the timing references for equipment wired to the BITS Out backplane pins. Normally, BITS Out is used with line nodes, so the options displayed are the working optical cards. BITS-1 and BITS-2 Out are enabled as soon as BITS-1 and BITS-2 facilities are placed in service.
BITS-2 Out References	Define the timing references for equipment wired to the BITS Out backplane pins. Normally, BITS Out is used with line nodes, so the options displayed are the working optical cards. BITS-1 and BITS-2 Out are enabled as soon as BITS-1 and BITS-2 facilities are placed in service.

B.6.1.5.3  Status Subtab

The Status subtab displays timing status information.

Table B-80 Field Descriptions for the Status Subtab

Field	Description
NE Clock
NE Reference	Set the NE timing reference to internal, BITS-1, or BITS-2.
Status	(Read-only) Displays the status of the NE clock.
Operations	Execute a switch on the NE timing reference.
BITS-1 Out
BITS-1 Out	Set the BITS-1 out timing reference.
Status	(Read-only) Displays the status of the BITS-1 out timing reference.
Operations	Execute a switch on the BITS-1 out timing reference.
BITS-2 Out
BITS-2 Out	Set the BITS-2 out timing reference.
Status	(Read-only) Displays the status of the BITS-2 out timing reference.
Operations	Execute a switch on the BITS-2 out timing reference.

B.6.1.5.4  Timing Report Subtab

The Timing Report subtab summarizes the NE's current timing settings.

B.6.1.6  Protection Tab

The Protection tab contains the following subtabs:

•Protection Groups Subtab

•Operations Subtab

B.6.1.6.1  Protection Groups Subtab

The Protection Groups subtab displays a list of available protection groups and allows you to create, delete, and view protection groups.

Table B-81 Field Descriptions for the Protection Groups Subtab

Field	Description
Protection Groups
Displays a list of available protection groups. Click the Create or Delete button to create a new protection group or delete an existing one.
Selected Protection Group
Name	Modify the name of the selected protection group. The name can have up to 32 alphanumeric characters.
Type	View the protection type (1:1 [card], 1:N [card], Y Cable [port], or 1+1 [port]) of the selected protection group.
Protect Card	View the protect module if using 1:1 or 1:N protection.
Available Entities	Displays a list of available entities. You can toggle between available and working entities.
Working Entities	Displays a list of working entities. You can toggle between working and available entities.
Bidirectional Switching	Click if you want both the transmit and the receive channels to switch if a failure occurs on one. This option is only available if you select 1+1 (port) type.
Revertive	If checked, the node reverts traffic to the working card or port after failure conditions stay corrected for the amount of time entered in Reversion Time. This option is not available if the 1:N (card) type has been selected.
Reversion Time	If Revertive is checked, choose the amount of time following failure condition correction after which the node should switch back to the working card or port. Use half-minute increments. This option is only available if you select 1:1 (card) type.

B.6.1.6.2  Operations Subtab

The Operations subtab displays protection group operation information.

Table B-82 Field Descriptions for the Operations Subtab

Field	Description
Protection Groups	Displays a list of available protection groups.
Protection Group Details	Displays details about the selected protection groups and allows you to execute switch commands.
Switch Commands	Allows you to perform a manual switch, perform a forced switch, or clear the existing command switching.
Inhibit Switching	Allows you to inhibit unlock switching, lock out switching, or lock on switching.

B.6.1.7  Ether Bridge Tab

The Ether Bridge tab contains the following subtabs:

•Spanning Tree Config Subtab

•Spanning Tree Status Tab

B.6.1.7.1  Spanning Tree Config Subtab

The Spanning Tree Config subtab displays spanning tree configuration information for the ONS 15327.

Table B-83 Field Descriptions for the Spanning Tree Config Subtab

Field	Description
Index Number	Unique number that identifies the spanning tree.
Priority	Incoming traffic queue. Priority can be either high or low.
Bridge Max Age	Maximum amount of time that received-protocol information is retained before it is discarded.
Bridge Hello Time	Time interval, in seconds, between the transmission of configuration bridge protocol data units (BPDUs) by a bridge that is the spanning-tree root or is attempting to become the spanning-tree root.
Bridge Forward Delay	Time spent by a port in the listening state and the learning state.

B.6.1.7.2  Spanning Tree Status Tab

The Spanning Tree Status tab displays spanning tree status information for the ONS 15327.

Table B-84 Field Descriptions for the Spanning Tree Status Tab

Field	Description
Index Number	Unique number that identifies the spanning tree.
Bridge ID	ONS 15327 unique identifier that transmits the BPDU; the bridge ID is a combination of the bridge priority and the ONS 15327 MAC address.
Topology Age	Amount of time, in seconds, since the last topology change.
Topology Changes	Number of times the spanning-tree topology has been changed since the node booted up.
Designated Root	Spanning tree's designated root for a particular spanning-tree instance.
Root Cost	Total path cost to the designated root.
Root Port	Port used to reach the root.
Max Age	Maximum amount of time that received-protocol information is retained before it is discarded.
Hello Time	Time interval, in seconds, between the transmission of configuration BPDUs by a bridge that is the spanning-tree root or is attempting to become the spanning-tree root.
Hold Time	Minimum time period, in seconds, that elapses during the transmission of configuration information on a given port.
Forward Delay	Time spent by a port in the listening state and the learning state.

B.6.1.8  NE Defaults Tab

The NE Defaults tab displays a list of default thresholds for the ONS 15327 NE.

Table B-85 Field Descriptions for the NE Defaults Tab

Field	Description
Parameter (Units)	Lists the default NE parameter, with its corresponding unit of measure.
Value	Shows the default parameter value, and allows you to change the default.

You can load different NE defaults using the NE Defaults Management window. See 4.5.8  Restoring NE Defaults, page 4-67.

B.6.1.9  Security Tab

The Security tab allows you to view and edit security features for the ONS 15327 NE. The security tab contains the following subtabs:

•Policy Subtab

•Password Subtab

•Access Subtab

•Legal Disclaimer Subtab

B.6.1.9.1  Policy Subtab

The Policy subtab allows you to specify user security parameters.

---

Note If the user is already logged in, any changes to the NE user type settings become applicable only when the user next logs in.

---

Table B-86 Field Descriptions for the Policy Subtab

Field	Description
Idle User Timeout
Each CTC or TL1 user can be idle during his or her login session for a specified amount of time before the CTC window is locked. The lockouts prevent unauthorized users from making changes. Higher-level users have shorter default idle periods and lower-level users have longer or unlimited default idle periods. The user idle period can be modified by a SuperUser. Note A user already logged into the node is not affected by a change to the Idle User Timeout policy.
Retrieve	Set the idle user timeout for a CTC Retrieve user.
Maintenance	Set the idle user timeout for a CTC Maintenance user.
Provisioner	Set the idle user timeout for a CTC Provisioner user.
SuperUser	Set the idle user timeout for a CTC SuperUser user.
User Lockout
Manual Unlock by SuperUser	If checked, the CTC SuperUser user must manually unlock locked out CTC users. If unchecked, locked out CTC users are automatically unlocked after the lockout duration period elapses.
Lockout Duration	Set the lockout duration period for locked out CTC users. This field is only enabled if the Manual Unlock by SuperUser check box is unchecked.
Failed Logins Before Lockout	Set the number of failed logins before the CTC user is automatically locked out.
Other
Single Sessions per User	If checked, each CTC user can only launch one session at a time.
Disable Inactive User	If checked, inactive users are disabled automatically for the amount of time in the Inactive Duration field.
Inactive Duration	Specify the inactive duration in days. The range is 45 to 90 days; the default is 45 days.

B.6.1.9.2  Password Subtab

The Password subtab allows you to specify user password security parameters.

Table B-87 Field Descriptions for the Password Subtab

Field	Description
Password Change
Prevent Reusing Last	Prevents setting a CTC user's current password to one of the most recent passwords. You can set the number of most recent passwords that cannot be reused.
Disable Password Flipping	If checked, users are not allowed to change passwords for the number of days specified in the Cannot Change New Password For field.
Cannot Change New Password For	Enter the number of days that will elapse before the user can change the password.
Force Password Change After Assigned	If checked, during the first successful login, the user is forced to change the password.
Password Aging
Enable Password Aging	Check this check box to enable password aging.
Aging Period	Enter the aging period, in days, for Retrieve, Maintenance, Provisioner, and SuperUser CTC users. After the aging period expires, CTC users are forced to change their passwords.
Warning Period	Enter the warning period, in days, for Retrieve, Maintenance, Provisioner, and SuperUser CTC users. After the warning period expires, CTC users are warned that their passwords will soon expire.

B.6.1.9.3  Access Subtab

The Access subtab allows you to configure LAN and shell access to the NE.

Table B-88 Field Descriptions for the Access Subtab

Field	Description
Access
LAN Access	Specify the type of LAN access allowed. Values are Backplane Only, NO LAN Access, or Front and Backplane. After setting the LAN access to the backplane, the CTM client is unusable for 4 to 5 minutes.
Restore Timeout	This time period begins if LAN Access is NO and all DCC connections are lost. If the time expires before a DCC is restored, LAN Access is restored so that the node is not isolated. When the DCC comes back, LAN Access returns to its specified settings. The range is 0 (never) to 60 minutes; the default is 5 minutes.
Shell Access
Shell Access on	Specify shell access on Telnet or SSH.
SSH Port	(Read-only) Indicates the SSH port number that will be used if the SSH radio button is selected.
Telnet Port	This is enabled if you selected the Telnet radio button. Enter the Telnet port number.
Use Standard Telnet Port	If checked, the standard Telnet port is used for Telnet access.
Other
PM Clearing Privilege	Select the users privilege that allows clearing PM statistics for the NE.

B.6.1.9.4  Legal Disclaimer Subtab

The Legal Disclaimer subtab allows you to edit the NE's advisory message and preview the disclaimer.

Table B-89 Field Descriptions for the Legal Disclaimer Subtab

Field	Description
Advisory Message	The existing message is a default, noncustomer-specific disclaimer. If you want to edit this statement with specifics for your company, you can change the text. You can also use the following HTML commands to format the text: <b> Begins boldface font </b> Ends boldface font <center> Aligns type in the center of the window </center> Ends the center alignment <font=n, where n = point size> Changes the font to the new size </font> Ends the font size command <p> Creates a line break <sub> Begins subscript </sub> Ends subscript <sup> Begins superscript </sup> Ends superscript <u> Starts underline </u> Ends underline
Preview	Allows you to view the advisory message before saving it.

B.6.1.10  Alarm Tab

The Alarm tab allows you to change default alarm severities by creating unique alarm profiles for individual ONS 15327 nodes. The Alarm tab contains the following subtabs:

•Profile Subtab

•Alarm Behavior Subtab

---

Note The Alarm tab might contain default alarm profile entries for cards that are not supported by the ONS 15327. Therefore, you might see some alarms that do not apply to the NE type that you are provisioning.

---

B.6.1.10.1  Profile Subtab

The Profile subtab allows you to select, create, or delete alarm profiles.

Table B-90 Field Descriptions for the Profile Subtab

Field	Description
Alarm Profile Name	Choose an alarm profile for the NE from the drop-down list. Click Create to create a new alarm profile for the NE. Click Delete to delete an alarm profile from the NE.
Condition	Displays the alarm condition.
Severity	Displays the alarm severity.

B.6.1.10.2  Alarm Behavior Subtab

The Alarm Behavior subtab allows you to change default alarm severities by creating unique alarm profiles.

Table B-91 Field Descriptions for the Alarm Behavior Subtab

Field	Description
Alarm Profile	Choose a global alarm profile for the NE from the drop-down list.
Suppress Alarms	If checked, all alarms are suppressed.
Slot Number	Displays the location of the module.
Equipment Type	Displays the type of module in the slot.
Profile	Choose an alarm profile for the slot from the drop-down list.
Suppress Alarms	Indicates whether or not the alarms for the particular card are suppressed. If checked, all alarms are suppressed for the port.

B.6.1.11  XC Utilization Tab

The XC Utilization tab allows you to view a summary of the percentage of XTC cross-connect resources used by circuits that traverse or terminate at an ONS 15327.

Table B-92 Field Descriptions for the XC Utilization Tab

Field	Description
STS-1 Matrix	Provides the percentage of the XC cross-connect STS-1 paths resources that are used. 1152 STS-1 paths are available.
VT Matrix Ports	Provides the percentage of the XTC cross-connect VT matrix ports that are used. Each port is one STS in size, and each can transport 28 VT1.5s. 24 VT matrix ports are available.
VT Matrix	Provides the percentage of the VT matrix resources that are used. 672 are available, which is the number of VT matrix ports (24) multiplied by the number of VT1.5s in an STS (28).

B.6.1.12  BLSR Tab

The BLSR tab allows you to view BLSR information and create or delete BLSRs.

Table B-93 Field Descriptions for the BLSR Tab

Field	Description
Fiber Type	Indicates whether the fiber type is 2-fiber or 4-fiber.
Rate	Select the BLSR rate.
Ring Name	Assign a six-digit alphanumeric ring name. Nodes in the same BLSR must have the same ring name.
Node ID	Assign a node ID. The node ID identifies the node to the BLSR. Nodes in the same BLSR must have unique node IDs.
Ring Reversion	Set the amount of time that will pass before the traffic reverts to the original working path. The default is 5 minutes. All nodes in a BLSR ring should have the same ring reversion setting, particularly if never (nonrevertive) is selected.
East Line	Assign the east BLSR port.
East Switch	Displays a list of switch commands for the east port.
West Line	Assign the west BLSR port.
West Switch	Displays a list of switch commands for the west port.

---

Note See Table 1-19 on page 1-38 for the descriptions of the actions that can be performed using the action buttons at the bottom of the window.

---

B.7  ONS 15454 SONET NE Explorer

When you choose Configuration > NE Explorer for the ONS 15454 SONET, the window displayed by CTM consists of a tree on the left side and a node property sheet on the right. (See Figure B-12.) The tree provides a hierarchical view and alarm status of the NE's physical shelves and slots. The property sheet shows information about the selected entity (NE or slot). See Node Property Sheet—ONS 15454 SONET for more information.

Figure B-12 NE Explorer—ONS 15454 SONET

---

Note If CTC is launched from the web browser for an ONS 15454 SONET node, the CTC GUI might look different from when it is launched from CTM. This discrepancy occurs because the latest version of CTC (for NE releases supported by CTM) is packaged with CTM. If launched from a browser, the CTC software is retrieved from the NE itself, which might be a different version than that packaged with CTM.

---

When an NE Explorer is in autorefresh mode, all values of an entity that is being edited by the user are automatically refreshed. You will lose all of your changes unless you click the Apply button. To enable autorefresh, click the Refresh Data button in the NE Explorer.

B.7.1  Node Property Sheet—ONS 15454 SONET

The node property sheet displays information about the ONS 15454 SONET NE. The ONS 15454 SONET property sheet contains the following tabs, some of which apply only to a specific NE version:

•Shelf View Tab

•Identification Tab

•Network Tab

•DCC/GCC/OSC Tab

•Timing Tab

•Protection Tab

•Ether Bridge Tab

•NE Defaults Tab

•Security Tab

•Alarm Tab

•XC Utilization Tab

•BLSR Tab

•DWDM Tab

B.7.1.1  Shelf View Tab

The Shelf View tab displays a graphic of the ONS 15454 SONET that is selected in the NE Explorer tree. Moving the mouse pointer over the NE, its shelves, slots, or cards displays the current alarms for the shelf, slot, or card. Double-clicking a slot or card displays the slot or card in the property sheet. The right-click menu allows you to reset, delete, or change a card. For unprovisioned slots, the right-click menu allows you to add a card.

B.7.1.2  Identification Tab

The Identification tab displays information about the ONS 15454 SONET NE.

Table B-94 Field Descriptions for the Identification Tab

Field	Description
NE ID	Displays the ID of the NE from the Domain Explorer.
Description	Displays the description of the NE from the Domain Explorer.
NE Model	Displays the NE model type.
Software Version	Displays the current running version of the system software.
Contact	Displays the name and phone number of the node contact person.
System Description	Displays a description of the NE.
SNTP Settings
Use NTP/SNTP Server	If checked, CTC uses an SNTP server to set the date and time of the node. Using an SNTP server ensures that all ONS 15454 network nodes use the same date and time reference. The server synchronizes the node's time after power outages or software upgrades. If you check the Use NTP/SNTP Server check box, enter the server's IP address in the next field. If you do not use an SNTP server, complete the Time and Time Zone fields. The ONS 15454 will use these fields for alarm dates and times.
SNTP Server	Displays the SNTP server IP address.
Location
Latitude	Allows you to set the latitude of the NE. Select North or South from the drop-down list, then enter the degrees and minutes (or click the up and down arrows to increase or decrease each by 1 unit).
Longitude	Allows you to set the longitude of the NE. Select East or West from the drop-down list, then enter the degrees and minutes (or click the up and down arrows to increase or decrease each by 1 unit).
Date and Time
Time	Displays the NE date and time.
Time Zone	Displays the time zone where the NE is located.
Use Daylight Savings Time	If checked, Daylight Savings Time is observed.
AIS-V Insertion on STS-1 Signal Degrade - Path
Insert AIS-V on STS-1 SD-P	If checked, the NE inserts an AIS-V signal when it detects an STS-1 signal degrade.
SD-P BER	Select the signal degrade path bit error rate for AIS-V insertion.
APC Group Name
APC State	(Read-only) Allows you to view the automatic power control state.
Voltage Thresholds
ELWBATVG	Allows you to set the monitor value for extreme low battery voltage (ELWBATVG) in volts direct current (VDC).
LWBATVG	Allows you to set the monitor value for low battery voltage (LWBATVG) in VDC.
HIBATVG	Allows you to set the monitor value for high battery voltage (HIBATVG) in VDC.
EHIBATVG	Allows you to set the monitor value for extreme high battery voltage (EHIBATVG) in VDC.
Current Voltage Environment	(Read-only) Shows the current voltage environment (48 volts for SONET; 60 volts for SDH).

B.7.1.3  Network Tab

The Network tab displays information about the NE network address. The Network tab contains the following subtabs:

Address Subtab

Static Routes Subtab

OSPF Subtab

OSPF Area Range Subtab

OSPF Virtual Links Subtab

SNMP Subtab

Firewall/Proxy Subtab

Routing Table Subtab

RIP Routing Table Subtab

RIP Subtab

Proxy Tunnels Subtab

Firewall Tunnels Subtab

Secure Config Mode Subtab

B.7.1.3.1  Address Subtab

The Address subtab allows you to view and change information about the NE network address.

Table B-95 Field Descriptions for the Address Subtab

Field	Description
IP Address	Displays the IP address of the NE.
Default Router	Displays the IP address of the default router.
Subnet Mask	Displays the subnetwork mask ID of the NE.
MAC Address	(Read-only) Displays the ONS 15454 address as it is identified on the IEEE 802 MAC layer.
Prevent LCD IP Config	If checked, prevents users from changing the shelf IP address from the LCD screen. Note This field is present only on the ONS 15454 SONET R3.41 and earlier.
LCD IP Setting	Allows you to configure the LCD screen. Select Allow Configuration to enable shelf address changing from the LCD. Select Display Only to prevent users from changing the shelf IP address from the LCD screen. Select Suppress Display to make the LCD screen blank.
Forward DHCP Requests	If checked, forwards DHCP requests to the IP address entered in the DHCP Server field.
DHCP Server	Displays the IP address of the DHCP server.
TCC CORBA (IIOP) Listener Port	Allows you to set a listener port to allow communication with the ONS 15454 through firewalls.

B.7.1.3.2  Static Routes Subtab

The Static Routes subtab allows you to view information about CTM and ONS 15454 connectivity and create or delete static routes.

Table B-96 Field Descriptions for the Static Routes Subtab

Field	Description
Destination	(Read-only) Displays the IP address of the computer running CTM.
Mask	(Read-only) Displays the subnetwork mask.
Next Hop	(Read-only) Displays the IP address of the router port or the node IP address if the CTM computer is connected to the node directly.
Cost	(Read-only) Displays the number of hops between the ONS 15454 and the computer.

B.7.1.3.3  OSPF Subtab

The OSPF subtab displays OSPF information. OSPF is a link state Internet routing protocol.

Table B-97 Field Descriptions for the OSPF Subtab

Field	Description
Slot	Displays the slot number.
Port	Displays the port number.
DCC OSPF Area ID	Displays the number that identifies the ONS 15454 as a unique OSPF area. The OSPF area number can be from 0.0.0.0 to 255.255.255.255. The number must be unique to the LAN OSPF area.
SDCC Metric	Sets a cost for sending packets across the Section Data Communications Channel (SDCC), which is used by OSPF routers to calculate the shortest path. This value should always be higher than the LAN metric. This value is normally unchanged.
LDCC Metric	Sets a cost for sending packets across the Line Data Communications Channel (LDCC), which is used by OSPF routers to calculate the shortest path. This value should always be higher than the LAN metric. This value is normally unchanged.
OSPF Active on LAN	If checked, enables the ONS 15454 OSPF topology to be advertised to OSPF routers on the LAN. Enable this field on ONS 15454s that directly connect to OSPF routers.
LAN Port Area ID	Displays the OSPF area ID for the router port where the ONS 15454 is connected. (This number is different from the DCC OSPF area ID.)
Router Priority	Displays the value used for this NE in designated router election. The default value is zero (0). A router that has Router Priority set to 0 is ineligible to become a designated router on the attached network.
Dead Interval	Displays the number of seconds that will pass while an OSPF router's packets are not visible before its neighbors declare the router down. Forty seconds is the default.
Retransmit Interval	Displays the time that will elapse before a packet is resent. Five seconds is the default.
Hello Interval	Displays the number of seconds between OSPF hello packet advertisements sent by OSPF routers. Ten seconds is the default.
Transit Delay	Displays the service speed. One second is the default.
LAN Metric	Displays a cost for sending packets across the LAN. This value should always be lower than the DCC metric. Ten is the default.
Authentication Type	Displays Simple Password if the router where the ONS 15454 is connected uses authentication. Otherwise, it displays No Authentication.
Authentication Key	Displays the OSPF key (password) if authentication is enabled.
Confirm Authentication Key	Retype the authentication key to confirm it.

B.7.1.3.4  OSPF Area Range Subtab

The OSPF Area Range subtab allows you to view information about OSPF area ranges and create or delete area ranges.

Table B-98 Field Descriptions for the OSPF Area Range Subtab

Field	Description
Range Address	(Read-only) Displays the area IP address for the ONS 15454s that reside within the OSPF area. For example, if the ONS 15454 OSPF area includes nodes with IP addresses 10.10.20.100, 10.10.30.150, 10.10.40.200, and 10.10.50.250, the range address would be 10.10.0.0.
Range Area ID	(Read-only) Displays the OSPF area ID for the ONS 15454s. This is either the ID in the DCC OSPF Area ID field or the ID in the Area ID for LAN Port field.
Mask Length	(Read-only) Displays the subnet mask length.
Mask	(Read-only) Displays the subnet mask IP address.
Advertise	(Read-only) Indicates whether the OSPF routing table is advertised.

B.7.1.3.5  OSPF Virtual Links Subtab

The OSPF Virtual Links subtab allows you to view information about OSPF virtual links and create, edit, or delete virtual links.

---

Note You cannot create a new virtual link unless OSPF is active on the LAN.

---

Table B-99 Field Descriptions for the OSPF Virtual Links Subtab

Field	Description
Neighbor	(Read-only) Displays the router ID of the Area 0 router.
Transit Delay	(Read-only) Displays the service speed. One second is the default.
Retransmit Interval	(Read-only) Displays the time that will elapse before a packet is resent. Five seconds is the default.
Hello Interval	(Read-only) Displays the number of seconds between OSPF hello packet advertisements sent by OSPF routers. Ten seconds is the default.
Dead Interval	(Read-only) Displays the number of seconds that will pass while the packets of an OSPF router are not visible before its neighbors declare the router down. Forty seconds is the default.
Authentication Type	(Read-only) Displays the authentication type.
Authentication Key	(Read-only) Displays the authentication key.

B.7.1.3.6  SNMP Subtab

The SNMP subtab allows you to view SNMP information and create or delete SNMP trap destinations.

Table B-100 Field Descriptions for the SNMP Subtab

Field	Description
Allow SNMP Set	If checked, allows you to use SNMP management software with the ONS 15454.
Allow SNMP Proxy	If checked, allows you to configure the ONS 15454 to proxy SNMP calls.
IP Address	The IP address of the NMS.
Community Name	The SNMP community name. Note The SNMP community string cannot be blank in CTM. If a blank community string is required in CTC builds earlier than R4.6, you must set the blank community string in CTC.
UDP Port	The UDP port for SNMP. The default UDP port is 162.
Trap Version	The trap version, either SNMP version 1 or version 2. See your NMS documentation to determine whether to use SNMP version 1 or version 2.
Relay A IP Address	The first ONS 15454 to relay traps through. The IP address is appended to the base community string to tell the first NE that is relaying the trap the IP address and port to forward the trap to. The second NE recognizes the IP address and strips it from the community string before forwarding the trap.
Relay A Community Name	The community name for the relay A node to use in the trap when forwarding it.
Relay B IP Address	The second ONS 15454 to relay traps through.
Relay B Community Name	The community name for the relay B node to use in the trap when forwarding it.
Relay C IP Address	The third ONS 15454 to relay traps through.
Relay C Community Name	The community name for the relay C node to use in the trap when forwarding it.

B.7.1.3.7  Firewall/Proxy Subtab

The Firewall/Proxy subtab allows you to use an NE as a proxy server and/or as a firewall.

Table B-101 Field Descriptions for the Firewall/Proxy Subtab

Field	Description
Craft Access Only	If checked, only allows CTC to access the firewall and proxy settings of the NE. Check this item only if the LAN port is used for direct workstation-to-NE connections, and not connected to a LAN. Disabling craft-only access allows the installation of a route to the LAN. Disable this only if the LAN port is actually connected to the LAN. Note This field applies only to ONS 15454 SONET releases earlier than R4.6.
Enable Firewall	If checked, blocks packets routed between the local area and DCC networks. This causes a loss of connectivity to DCC-only connected NEs. CTM cannot reestablish the connection unless the proxy is enabled. Additionally, all NEs connected to the LAN must also have their firewall enabled, or connectivity problems will result. Note This field applies only to ONS 15454 SONET releases earlier than R4.6.
Gateway Settings
Enable Proxy Server on Port	If checked, the ONS 15454 serves as a proxy for connections between the CTM server and ONS 15454s that are DCC-connected to the proxy ONS 15454. The CTM server establishes connections to DCC-connected nodes through the proxy node. The CTM server can connect to nodes that it cannot directly reach from the host on which it runs. The proxy server uses port number 1080. If checked, the following radio buttons are enabled: •External Network Element (ENE)—Configures the ONS 15454 to proxy as an ENE, meaning the NE supports craft access only, supports firewall, and acts as a proxy. •Gateway Network Element (GNE)—Configures the ONS 15454 to proxy as a GNE, meaning the NE supports firewall and acts as a proxy. •Proxy-only—Configures the ONS 15454 to act as a proxy. If unchecked, the node does not proxy; instead, it acts as a LAN-connected NE (LNE).

B.7.1.3.8  Routing Table Subtab

The Routing Table subtab allows you to view the OSPF routing table.

Table B-102 Field Descriptions for the Routing Table Subtab

Field	Description
Destination	(Read-only) Displays the IP address of the destination network or host.
Mask	(Read-only) Displays the subnet mask used to reach the destination host or network.
Gateway	(Read-only) Displays the IP address of the gateway used to reach the destination network or host.
Usage	(Read-only) Shows the number of times the listed route has been used.
Interface	(Read-only) Shows the ONS 15454 interface used to access the destination. Values are: •cpm0—The ONS 15454 Ethernet interface (that is, the RJ-45 jack on the TCC+/TCC2 and the LAN 1 pins on the backplane) •pdcc0—An SDCC interface (that is, an OC-N trunk card identified as the SDCC termination) •lo0—A loopback interface

B.7.1.3.9  RIP Routing Table Subtab

The RIP Routing Table subtab allows you to view the RIP routing table.

Table B-103 Field Descriptions for the RIP Routing Table Subtab

Field	Description
Destination	(Read-only) Displays the IP address of the destination network or host.
Mask	(Read-only) Displays the subnet mask used to reach the destination host or network.
Gateway	(Read-only) Displays the IP address of the gateway used to reach the destination network or host.
Cost	(Read-only) Displays the hop count metric. The valid range is 1 to 15.

B.7.1.3.10  RIP Subtab

The RIP subtab allows you to view and configure RIP parameters.

---

Note When you enable RIP, you must wait for approximately one minute for the default RIP address summary to become visible.

---

Table B-104 Field Descriptions for the RIP Subtab

Field	Description
RIP Active	Check this check box to enable or disable RIP.
RIP Type	Select RIP version 1.0 or RIP version 2.0.
Metric	Select the hop count metric. The valid range is 1 to 15.
Authentication Type	Select the authentication type.
Authentication Key	Enter the authentication key (password) if the authentication type is Simple Password.
Confirm Authentication Key	Retype the authentication key to confirm it.
RIP Address Summary	•Summary Address—Displays the summary address. •Mask Length—Displays the subnet mask length. •Cost—Displays the hop count metric. The valid range is 1 to 15.

B.7.1.3.11  Proxy Tunnels Subtab

The Proxy Tunnels subtab allows you to configure source and destination information for proxy tunnels.

Table B-105 Field Descriptions for the Proxy Tunnels Subtab

Field	Description
Source Address	Specify the source IP address in the source-destination pair for the tunnel that will be routed through the proxy server.
Source Mask	Specify the source subnetwork mask in the source-destination pair for the tunnel that will be routed through the proxy server.
Destination Address	Specify the destination IP address in the source-destination pair for the tunnel that will be routed through the proxy server.
Destination Mask	Specify the destination subnetwork mask in the source-destination pair for the tunnel that will be routed through the proxy server.

B.7.1.3.12  Firewall Tunnels Subtab

The Firewall Tunnels subtab allows you to configure source and destination information for firewall tunnels.

Table B-106 Field Descriptions for the Firewall Tunnels Subtab

Field	Description
Source Address	Specify the source IP address in the source-destination pair for the tunnel that will be routed through the firewall.
Source Mask	Specify the source subnetwork mask in the source-destination pair for the tunnel that will be routed through the firewall.
Destination Address	Specify the destination IP address in the source-destination pair for the tunnel that will be routed through the firewall.
Destination Mask	Specify the destination subnetwork mask in the source-destination pair for the tunnel that will be routed through the firewall.

B.7.1.3.13  Secure Config Mode Subtab

The TCC2P card supports secure config mode. When the secure mode is ON, the NE has two IP addresses, one for the backplane and one for the front port. The front port IP address is used by the DCC-connected NEs. The secure config mode feature applies to the ONS 15454 SONET R5.0 and later.

The Secure Config Mode subtab allows you to configure the secure config mode. The fields shown depend on whether the NE is in secure mode. For example, the Backplane Ethernet Port values are displayed only when the NE is in secure mode.

Table B-107 Field Descriptions for the Secure Config Mode Subtab

Field	Description
TCP/IP Mode
Normal	When this text is visible, the NE is not in secure mode. There is one IP address shared by TCC and backplane Ethernet ports, with full connectivity between ports.
Secure	When this text is visible, the NE is in secure mode. There are separate IP addresses for TCC and backplane Ethernet ports, with no connectivity between ports.
Mode not locked	When this text is visible, you can change the secure mode.
Mode permanently locked and cannot be unlocked	When this text is visible, the NE is in secure mode, and the secure mode is locked and cannot be changed.
Backplane Ethernet Port
IP Address	Displays the IP address of the NE.
Secure IP Address	Displays the backplane IP address.
Secure Subnet Mask Length	Displays the mask length of the secure IP address. Use the up or down arrows to change the mask length.
Default Router	Displays the address of the default router for this NE.
Secure MAC Address	Displays the MAC/Ethernet address for the backplane.
Secure LCD IP Setting	Displays the setting value applicable for the secure mode. Values are: •Display only •No display •Allow configuration
Change Mode
Change Mode button	Opens the Change Secure Mode dialog box, which allows you to change the mode of the NE from secure to unsecure, and vice versa. This button is enabled only if an active TCC2P card exists on the NE.
Lock
Lock button	When the NE is in secure mode, the Lock button locks the secure mode on the NE/TCC so that it cannot be changed.

B.7.1.4  DCC/GCC/OSC Tab

The DCC/GCC/OSC tab allows you to create, delete, and view SDCCs, LDCCs, Generic Communications Channels (GCCs), Optical Service Channels (OSCs), and DWDM ring IDs.

Table B-108 Field Descriptions for the DCC/GCC/OSC Tab

Field	Description
SDCC
SDCC Terminations	Displays the slot, port, and card type of an SDCC termination.
OSPF Disabled on Link	Check if you want to prevent the advertisement of the OSPF routing table.
Foreign	A check mark indicates that the far-end node is a non-ONS node.
Foreign IP	Displays the foreign node IP address.
Service State	Select the state of the SDCC termination: •IS-NR—In Service-Normal •OOS-AU—Out of Service-Autonomous •OOS-MA—Out of Service-Management •OOS-AUMA—Out of Service-Autonomous and Management In addition, a secondary state provides additional information about the status of the entity. Values for secondary state are: •MEA—Mismatch of equipment due to invalid equipment insertion •UEQ—Unequipped; there is nothing in the slot •UAS—Unassigned; the entity does not exist, has not been created, or has been deleted •SWDL—Software download in progress •MT—Maintenance, as per the Admin State change •AINS—Automatic in service •DSBLD—Traffic is disabled on the entity •LPBK—Port or connection has a loopback on it
LDCC
LDCC Terminations	Displays the slot, port, and card type of an LDCC termination.
OSPF Disabled on Link	Check if you want to prevent the advertisement of the OSPF routing table.
Foreign	A check mark indicates that the far-end node is a non-ONS node.
Foreign IP	Displays the foreign node IP address.
Service State	Select the state of the LDCC termination (IS-NR, OOS-AU, OOS-MA, OOS-AUMA) plus the secondary state (MEA, UEQ, UAS, SWDL, MT, AINS, DSBLD, LPBK).
GCC
GCC Terminations	Displays the slot, port, and card type of a GCC termination.
OSPF Disabled on Link	Check if you want to prevent the advertisement of the OSPF routing table.
GCC Rate	Displays the GCC rate.
Foreign	A check mark indicates that the far-end node is a non-ONS node.
Foreign IP	Displays the foreign node IP address.
Service State	Select the state of the GCC termination (IS-NR, OOS-AU, OOS-MA, OOS-AUMA) plus the secondary state (MEA, UEQ, UAS, SWDL, MT, AINS, DSBLD, LPBK).
OSC
OSC Terminations	Displays the slot, port, and card type of an OSC termination.
Service State	Displays the state of the OSC termination.
DWDM Ring ID
Ring ID	Displays the ring ID.
West Direction	Lists the OSCM or OSC-CSM port that supports the ring in the west direction. The value is N/A if there are no ports in the west direction.
East Direction	Lists the OSCM or OSC-CSM port that supports the ring in the east direction. The value is N/A if there are no ports in the east direction.

B.7.1.4.1  DCC Tunnel Connection Subtab

---

Note Release 3.3 and earlier of the ONS 15454 also display an additional subtab for DCC tunnel connection information.

---

The DCC Tunnel Connection subtab allows you to create, delete, and view DCC tunnel connections.

Table B-109 DCC Tunnel Connection Subtab

Field	Description
Interface A	Displays the A interface for the DCC tunnel.
DCC A	Displays the A DCC for the DCC tunnel.
Interface B	Displays the B interface for the DCC tunnel.
DCC B	Displays the B DCC for the DCC tunnel.

B.7.1.5  Timing Tab

The Timing tab contains the following subtabs:

•General Subtab

•Reference List Subtab

•Status Subtab

•Timing Report Subtab

B.7.1.5.1  General Subtab

The General subtab displays general timing information.

Table B-110 Field Descriptions for the General Subtab

Field	Description
Timing Mode	Set to External if the ONS 15454 derives its timing from a BITS source wired to the backplane pins; set to Line if timing is derived from an OC-N card that is optically connected to the timing node. A third option, Mixed, allows you to set external and line timing references. Caution Mixed timing might cause timing loops; it is recommended that you use this mode with care.
SSM Message Set	Choose the SSM set level supported by your network. SSM is a SONET protocol that communicates information about the quality of the timing source. SSM messages are carried on the S1 byte of the SONET Line layer. They enable SONET devices to automatically select the highest quality timing reference and to avoid timing loops. If a Generation 1 node receives a Generation 2 message, the message will be mapped down to the next available Generation 1. For example, an ST3E message becomes an ST3.
Revertive	If checked, the ONS 15454 reverts to a primary reference source after the conditions that caused it to switch to a secondary timing reference are corrected. Use the Reversion Time field to specify the time in half-minute increments.
Quality of RES	If your timing source supports the reserved S1 byte, set the timing quality here. (Most timing sources do not use RES.) Qualities are displayed in descending quality order as ranges. For example, ST3 < RES < ST2 means the timing reference is higher than a Stratum 3 and lower than a Stratum 2.
In Facility Type	Provision the BITS In facility type.
Out Facility Type	Provisions the BITS Out facility type.
In State/Out State	Set the BITS reference to IS (In Service) or OOS (Out of Service). For nodes set to Line timing with no equipment timed through BITS Out, set the state to OOS. For nodes using External timing or Line timing with equipment timed through BITS Out, set the state to IS.
Coding	Set to the coding used by your BITS reference, either B8ZS or AMI.
Framing	Set to the framing used by your BITS reference, either ESF or SF (D4). SSM is not available with Super Frame.
Sync Messaging	If checked, enables the Synchronization Status Message (SSM) for BITS In. (SSM is not available if Framing is set to Super Frame.)
Admin. SSM	If the Sync Messaging check box is not checked, you can choose the SSM Generation 2 type from the drop-down list.
AIS Threshold	If SSM is disabled or Super Frame is used, sets the quality level where a node sends an AIS from the BITS-1 Out and BITS-2 Out backplane pins. An AIS is raised when the optical source for the BITS reference falls to or below the SSM quality level defined in this field.
LBO	If you are timing an external device connected to the BITS Out pins, set the distance between it and the ONS 15454. Options are 0-133 ft. (default), 134-266 ft., 267-399 ft., 400-533 ft., and 534-655 ft.

B.7.1.5.2  Reference List Subtab

The Reference List subtab provides timing reference information.

Table B-111 Field Descriptions for the Reference List Subtab

Field	Description
NE References	Allows you to define three timing references (Ref-1, Ref-2, Ref-3). The node uses Reference 1 unless a failure occurs on that reference, in which case, the node uses Reference 2. If that fails, the node uses Reference 3, which is typically set to the internal clock. This is the Stratum 3 clock provided on the TCC+. The options displayed depend on the Timing Mode setting. •Timing Mode set to External—Options are BITS-1, BITS-2, and Internal. •Timing Mode set to Line—Options are the node's working optical cards and Internal. Select the cards/ports that are directly or indirectly connected to the node wired to the BITS source; that is, the node's trunk cards. Set Reference 1 to the trunk card that is closest to the BITS source. For example, if Slot 5 is connected to the node wired to the BITS source, select Slot 5 as Reference 1. •Timing Mode set to Mixed—Both BITS and optical cards are available, allowing you to set a mixture of external BITS and optical trunk cards as timing references.
BITS-1 Out References	Define the timing references for equipment wired to the BITS Out backplane pins. Normally, BITS Out is used with line nodes, so the options displayed are the working optical cards. BITS-1 and BITS-2 Out are enabled as soon as BITS-1 and BITS-2 facilities are placed in service.
BITS-2 Out References	Define the timing references for equipment wired to the BITS Out backplane pins. Normally, BITS Out is used with line nodes, so the options displayed are the working optical cards. BITS-1 and BITS-2 Out are enabled as soon as BITS-1 and BITS-2 facilities are placed in service.

B.7.1.5.3  Status Subtab

The Status subtab displays timing status information.

Table B-112 Field Descriptions for the Status Subtab

Field	Description
NE Clock
NE Reference	Set the NE timing reference to internal, BITS-1, or BITS-2.
Status	(Read-only) Displays the status of the NE clock.
Operations	Execute a switch on the NE timing reference.
BITS-1 Out
BITS-1 Out	Set the BITS-1 out timing reference.
Status	(Read-only) Displays the status of the BITS-1 out timing reference.
Operations	Execute a switch on the BITS-1 out timing reference.
BITS-2 Out
BITS-2 Out	Set the BITS-2 out timing reference.
Status	(Read-only) Displays the status of the BITS-2 out timing reference.
Operations	Execute a switch on the BITS-2 out timing reference.

B.7.1.5.4  Timing Report Subtab

The Timing Report subtab summarizes the NE's current timing settings.

B.7.1.6  Protection Tab

The Protection tab contains the following subtabs:

•Protection Groups Subtab

•Operations Subtab

B.7.1.6.1  Protection Groups Subtab

The Protection Groups subtab displays a list of available protection groups and allows you to create, delete, and view protection groups.

Table B-113 Field Descriptions for the Protection Groups Subtab

Field	Description
Protection Groups
Protection Groups	Displays a list of available protection groups. Click the Create or Delete button to create a new protection group or delete an existing one.
Selected Protection Group
Name	Modify the name of the selected protection group. The name can have up to 32 alphanumeric characters.
Type	View the protection type (1:1 [card], 1:N [card], Y Cable [port], 1+1 [port], or 1+1 Optimized [port]) of the selected protection group.
Protect Module	View the protect module if using 1:1 or 1:N protection.
Available Entities	Displays a list of available entities. You can toggle between available and working entities.
Working Entities	Displays a list of working entities. You can toggle between working and available entities.
Bidirectional Switching	Click if you want both the transmit and the receive channels to switch if a failure occurs on one. This option is only available if you select 1+1 (port) type.
Revertive	If checked, the node reverts traffic to the working card or port after failure conditions stay corrected for the amount of time entered in Reversion Time. This option is not available if the 1:N (card) type has been selected.
Reversion Time	If Revertive is checked, choose the amount of time following failure condition correction after which the node should switch back to the working card or port. Use half-minute increments. This option is only available if you select 1:1 (card) type.
Recovery Guard Time	The recovery guard timer prevents rapid switches due to SD or SF failures. After the SD or SF condition is cleared on a facility protected by Optimized 1+1 protection, no switches are performed for the duration of the recovery guard timer.
Verification Guard Time	The verification guard timer specifies the amount of time that a user command has to complete. If a user command cannot be completed within the duration set by the verification guard timer, the command is cleared and an APS_CLEAR event is sent.
Detection Guard Time	The detection guard timer specifies the amount of time after a failure that the system has to complete a switch. After detecting a SD, SF, LOS, LOF, or AISL failure, the detection guard timer is started. If the detection guard timer is set to zero, the system completes a switch within 60 ms for failure events.

B.7.1.6.2  Operations Subtab

The Operations subtab displays protection group operation information.

Table B-114 Field Descriptions for the Operations Subtab

Field	Description
Protection Groups	Displays a list of available protection groups.
Protection Group Details	Displays details about the selected protection groups and allows you to execute switch commands.
Switch Commands	Allows you to perform a manual switch, perform a forced switch, or clear the existing command switching.
Inhibit Switching	Allows you to inhibit unlock switching, lock out switching, or lock on switching.

B.7.1.7  Ether Bridge Tab

The Ether Bridge tab contains the following subtabs:

•Spanning Tree Config Subtab

•Spanning Tree Status Subtab

B.7.1.7.1  Spanning Tree Config Subtab

The Spanning Tree Config subtab displays spanning tree configuration information for the ONS 15454.

Table B-115 Field Descriptions for the Spanning Tree Config Subtab

Field	Description
Index Number	Unique number that identifies the spanning tree.
Priority	Incoming traffic queue. Priority can be either high or low.
Bridge Max Age	Maximum amount of time that received-protocol information is retained before it is discarded.
Bridge Hello Time	Time interval, in seconds, between the transmission of configuration bridge protocol data units (BPDUs) by a bridge that is the spanning-tree root or is attempting to become the spanning-tree root.
Bridge Forward Delay	Time spent by a port in the listening state and the learning state.

B.7.1.7.2  Spanning Tree Status Subtab

The Spanning Tree Status subtab displays spanning tree status information for the ONS 15454.

Table B-116 Field Descriptions for the Spanning Tree Status Subtab

Field	Description
Index Number	Unique number that identifies the spanning tree.
Bridge ID	ONS 15454 unique identifier that transmits the configuration BPDU; the bridge ID is a combination of the bridge priority and the ONS 15454 MAC address.
Topology Age	Amount of time, in seconds, since the last topology change.
Topology Changes	Number of times the spanning-tree topology has been changed since the node booted up.
Designated Root	Spanning tree's designated root for a particular spanning-tree instance.
Root Cost	Total path cost to the designated root.
Root Port	Port used to reach the root.
Max Age	Maximum amount of time that received-protocol information is retained before it is discarded.
Hello Time	Time interval, in seconds, between the transmission of configuration BPDUs by a bridge that is the spanning-tree root or is attempting to become the spanning-tree root.
Hold Time	Minimum time period, in seconds, that elapses during the transmission of configuration information on a given port.
Forward Delay	Time spent by a port in the listening state and the learning state.

B.7.1.8  NE Defaults Tab

The NE Defaults tab displays a list of default thresholds for the ONS 15454 NE.

Table B-117 Field Descriptions for the NE Defaults Tab

Field	Description
Parameter (Units)	Lists the default NE parameter, with its corresponding unit of measure.
Value	Shows the default parameter value, and allows you to change the default.

You can load different NE defaults using the NE Defaults Management window. See 4.5.8  Restoring NE Defaults, page 4-67.

B.7.1.9  Security Tab

The Security tab allows you to view and edit security features for the ONS 15454 NE. The security tab contains the following subtabs:

•Policy Subtab

•Password Subtab

•Access Subtab

•Legal Disclaimer Subtab

B.7.1.9.1  Policy Subtab

The Policy subtab allows you to specify user security parameters.

---

Note If the user is already logged in, any changes to the NE user type settings become applicable only when the user next logs in.

---

Table B-118 Field Descriptions for the Policy Subtab

Field	Description
Idle User Timeout
Each CTC or TL1 user can be idle during his or her login session for a specified amount of time before the CTC window is locked. The lockouts prevent unauthorized users from making changes. Higher-level users have shorter default idle periods and lower-level users have longer or unlimited default idle periods. The user idle period can be modified by a SuperUser. Note A user already logged into the node is not affected by a change to the Idle User Timeout policy.
Retrieve	Set the idle user timeout for a CTC Retrieve user.
Maintenance	Set the idle user timeout for a CTC Maintenance user.
Provisioner	Set the idle user timeout for a CTC Provisioner user.
SuperUser	Set the idle user timeout for a CTC SuperUser user.
User Lockout
Manual Unlock by SuperUser	If checked, the CTC SuperUser user must manually unlock locked out CTC users. If unchecked, locked out CTC users are automatically unlocked after the lockout duration period elapses.
Lockout Duration	Set the lockout duration period for locked out CTC users. This field is enabled only if the Manual Unlock by SuperUser check box is unchecked.
Failed Logins Before Lockout	Set the number of failed logins before the CTC user is automatically locked out.
Other
Single Sessions per User	If checked, each CTC user can launch only one session at a time.
Disable Inactive User	If checked, inactive users are disabled automatically. Specify the duration in the Inactive Duration field.
Inactive Duration	Specify the inactive duration in days. The range is 45 to 90 days; the default is 45 days.

B.7.1.9.2  Password Subtab

The Password subtab allows you to specify user password security parameters.

Table B-119 Field Descriptions for the Password Subtab

Field	Description
Password Change
Prevent Reusing Last	Prevents setting a CTC user's current password to one of the most recent passwords. You can set the number of most recent passwords that cannot be reused.
Disable Password Flipping	If checked, users are not allowed to change passwords for the number of days specified in the Cannot Change New Password For field.
Cannot Change New Password For	Enter the number of days that will elapse before the user can change the password.
Force Password Change After Assigned	If checked, during the first successful login, the user is forced to change the password.
Password Aging
Enable Password Aging	Check this check box to enable password aging.
Aging Period	Enter the aging period, in days, for Retrieve, Maintenance, Provisioner, and SuperUser CTC users. After the aging period expires, CTC users are forced to change their passwords.
Warning Period	Enter the warning period, in days, for Retrieve, Maintenance, Provisioner, and SuperUser CTC users. After the warning period expires, CTC users are warned that their passwords will soon expire.

B.7.1.9.3  Access Subtab

The Access subtab allows you to configure LAN and shell access to the NE.

Table B-120 Field Descriptions for the Access Subtab

Field	Description
Access
LAN Access	Specify the type of LAN access allowed. Values are Backplane Only, No LAN Access, or Front and Backplane. Note After setting the LAN access to the backplane, the CTM client is unusable for 4 to 5 minutes.
Restore Timeout	This time period begins if No LAN Access is selected and all DCC connections are lost. If the time expires before a DCC is restored, LAN access is restored so that the node is not isolated. When the DCC comes back, LAN access returns to its specified settings. The range is 0 (never) to 60 minutes; the default is 5 minutes.
Shell Access
Shell Access on	Specify shell access on Telnet or SSH.
SSH Port	(Read-only) Indicates the SSH port number that will be used if the SSH radio button is selected.
Telnet Port	This is enabled if you selected the Telnet radio button. Enter the Telnet port number.
Use Standard Telnet Port	If checked, the standard Telnet port is used for Telnet access.
Other
PM Clearing Privilege	Select the user privilege that allows clearing PM statistics for the NE.

B.7.1.9.4  Legal Disclaimer Subtab

The Legal Disclaimer subtab allows you to edit the NE's advisory message and preview the disclaimer.

Table B-121 Field Descriptions for the Legal Disclaimer Subtab

Field	Description
Advisory Message	The existing message is a default, noncustomer-specific disclaimer. If you want to edit this statement with specifics for your company, you can change the text. You can also use the following HTML commands to format the text: <b> Begins boldface font </b> Ends boldface font <center> Aligns type in the center of the window </center> Ends the center alignment <font=n, where n = point size> Changes the font to the new size </font> Ends the font size command <p> Creates a line break <sub> Begins subscript </sub> Ends subscript <sup> Begins superscript </sup> Ends superscript <u> Starts underline </u> Ends underline
Preview	Allows you to view the advisory message before saving it.

B.7.1.10  Alarm Tab

The Alarm tab allows you to change default alarm severities by creating unique alarm profiles for individual ONS 15454 nodes. The Alarm tab contains Profile and Alarm Behavior subtabs.

B.7.1.10.1  Profile Subtab

The Profile subtab allows you to view, create, or delete alarm profiles.

Table B-122 Field Descriptions for the Profile Subtab

Field	Description
Alarm Profile Name	Choose an alarm profile for the NE from the drop-down list. Click Create to create a new alarm profile for the NE. Click Delete to delete an alarm profile from the NE.
Condition	Displays the alarm condition.
Severity	Displays the alarm severity.

B.7.1.10.2  Alarm Behavior Subtab

The Alarm Behavior subtab allows you to change default alarm severities by creating unique alarm profiles.

Table B-123 Field Descriptions for the Alarm Behavior Subtab

Field	Description
Alarm Profile	Choose a global alarm profile for the NE from the drop-down list.
Suppress Alarms	If checked, all alarms are suppressed.
Slot Number	Displays the location of the module.
Equipment Type	Displays the type of module in the slot.
Profile	Choose an alarm profile for the slot from the drop-down list.
Suppress Alarms	Indicates whether or not the alarms for the particular card are suppressed. If checked, all alarms are suppressed for the port.

B.7.1.11  XC Utilization Tab

The XC Utilization tab allows you to view a summary of the percentage of XTC cross-connect resources used by circuits that traverse or terminate at an ONS 15454.

Table B-124 Field Descriptions for the XC Utilization Tab

Field	Description
STS-1 Matrix	Provides the percentage of the XC cross-connect STS-1 paths resources that are used. 1152 STS-1 paths are available.
VT Matrix Ports	Provides the percentage of the XTC cross-connect VT matrix ports that are used. Each port is one STS in size, and each can transport 28 VT1.5s. 24 VT matrix ports are available.
VT Matrix	Provides the percentage of the VT matrix resources that are used. 672 are available, which is the number of VT matrix ports (24) multiplied by the number of VT1.5s in an STS (28).

B.7.1.12  BLSR Tab

The BLSR tab allows you to view BLSR information and create or delete BLSRs.

Table B-125 Field Descriptions for the BLSR Tab

Field	Description
Fiber Type	Indicates whether the fiber type is 2-fiber or 4-fiber.
Rate	Select the BLSR rate.
Ring Name	Assign a six-digit alphanumeric ring name. Nodes in the same BLSR must have the same ring name.
Node ID	Assign a node ID. The node ID identifies the node to the BLSR. Nodes in the same BLSR must have unique node IDs.
Ring Reversion	Set the amount of time that will pass before the traffic reverts to the original working path. The default is 5 minutes. All nodes in a BLSR ring should have the same ring reversion setting, particularly if never (nonrevertive) is selected.
Span Reversion	Set the amount of time to pass before the span reverts to the working path.
East Line	Assign the east BLSR port.
East Switch	Displays a list of switch commands for the east port.
West Line	Assign the west BLSR port.
West Switch	Displays a list of switch commands for the west port.
East Protect	For 4-fiber BLSRs, assign the east BLSR protect port.
West Protect	For 4-fiber BLSRs, assign the west BLSR protect port.

B.7.1.13  DWDM Tab

The DWDM tab allows you to manage and provision DWDM connections. The DWDM tab contains the following subtabs:

•Provisioning Subtab

•Connections Subtab

•Port Status Subtab

•Span Check Subtab

•APC Subtab

•ROADM Power Monitoring Subtab

B.7.1.13.1  Provisioning Subtab

The Provisioning subtab allows you to allows you to view, export, and import a Cisco MetroPlanner configuration file into the DWDM node to configure the node automatically. Use the Export and Import buttons to export or import the file.

Table B-126 Field Descriptions for the Provisioning Subtab

Field	Description
Attribute Name	Displays the property name that is imported from or exported to the Cisco MetroPlanner configuration file.
Value	Displays the default value of the corresponding property name imported from or exported to the Cisco MetroPlanner configuration file.

B.7.1.13.2  Connections Subtab

The Connections subtab allows you to create, delete, or calculate DWDM connections.

Table B-127 Field Descriptions for the Connections Subtab

Field	Description
Slot-From	The slot from which the DWDM connection originates.
Unit-From	The unit from which the DWDM connection originates.
Port-From	The port from which the DWDM connection originates.
Slot-To	The slot to which the DWDM connection terminates.
Unit-To	The unit to which the DWDM connection terminates.
Port-To	The port to which the DWDM connection terminates.
State	The state of the DWDM connection.

B.7.1.13.3  Port Status Subtab

The Port Status subtab allows you to view port status and launch automatic node setup (ANS) for the selected port.

Table B-128 Field Descriptions for the Port Status Subtab

Field	Description
Launch ANS button	Launches the ANS function for the selected port. ANS adjusts the VOAs on the different channel paths to equalize the amplifier per-channel input power.
Slot ID	Lists the ONS node slot where the DWDM card is installed.
Card	Describes the card that is installed in the slot.
Port	Displays the card port.
Link Status	Displays the status of the link. Possible values are: •Success - Changed—The calculated setpoint was changed. •Success - Unchanged—The calculated setpoint was not changed. •Fail - Out of Range—The calculated setpoint is outside the range for that parameter. •Fail - Port in IS State—The setpoint cannot be applied because the port has an IS-NR service state. •Not Applicable—The setpoint does not apply to the node.
Parameter	The parameter name.

B.7.1.13.4  Span Check Subtab

The Span Check subtab allows you to check the span loss between the selected node and the previous node in the chain. The span check is always in reception.

---

Note If the Measured Span Loss value crosses the Min or Max Expected Span Loss threshold, a condition is raised.

---

Table B-129 Field Descriptions for the Span Check Subtab

Field	Description
Retrieve Span Loss Values button	Runs the span loss verification function and retrieves values for the measure span loss column.
Side	Specifies the side for which span loss information is displayed (east-to-west or west-to-east).
Min Exp. Span Loss	Specifies the minimum expected span loss (in dBm) for the incoming span. This value is imported from MetroPlanner, but can be modified manually.
Max Exp. Span Loss	Specifies the maximum expected span loss (in dBm) for the incoming span.
Meas. Span Loss	The measured span loss value.
Resolution	The resolution or accuracy of the span loss measurement.

B.7.1.13.5  APC Subtab

The APC subtab allows you to manually run the automatic power control function, disable and enable APC, and view the date and time the power control setpoint was last checked and modified.

Table B-130 Field Descriptions for the APC Subtab

Field	Description
Disable APC button	Disables the automatic power control function. Caution Disabling APC should be performed only for specific maintenance actions. When APC is disabled, aging compensation calculations are not performed and circuits cannot be activated.
Run APC button	Runs the automatic power control function manually.
Slot ID	The slot number for power control information and actions.
Card	The card type that is installed in the slot.
Port	The port number.
Last Modification	Date and time the power control setpoint was last modified.
Last Check	Date and time the power control setpoint was last verified.

B.7.1.13.6  ROADM Power Monitoring Subtab

The ROADM Power Monitoring subtab provides a graphical representation of the power of each channel for each ROADM node. Specifically, it provides the power of the pass-through wavelength, the power of the added wavelength, and the equalized power out of the wavelength.

---

Note See Table 1-19 on page 1-38 for the descriptions of the actions that can be performed using the action buttons at the bottom of the window.

---

B.8  ONS 15454 SDH NE Explorer

When you choose Configuration > NE Explorer for the ONS 15454 SDH, the window displayed by CTM consists of a tree on the left side and a property sheet on the right. (See Figure B-13.) The tree provides a hierarchical view and alarm status of the NE's physical shelves and slots. The property sheet shows information about the selected entity (NE or slot). See Node Property Sheet—ONS 15454 SDH for more information.

Figure B-13 NE Explorer—ONS 15454 SDH

---

Note If CTC is launched from the web browser for an ONS 15454 SDH node, the CTC GUI might look different from when it is launched from CTM. This discrepancy occurs because the latest version of CTC (for NE releases supported by CTM) is packaged with CTM. If launched from a browser, the CTC software is retrieved from the NE itself, which might be a different version than that packaged with CTM.

---

When an NE Explorer is in autorefresh mode, all values of an entity that is being edited by the user are automatically refreshed. You will lose all of your changes unless you click the Apply button. To enable autorefresh, click the Refresh Data button in the NE Explorer.

B.8.1  Node Property Sheet—ONS 15454 SDH

The node property sheet for the ONS 15454 SDH displays information about the ONS 15454 SDH NE. The ONS 15454 SDH property sheet contains the following tabs, some of which apply only to a specific NE version:

•Shelf View Tab

•Identification Tab

•Network Tab

•DCC/GCC/OSC Tab

•Timing Tab

•Protection Tab

•Ether Bridge Tab

•NE Defaults Tab

•Security Tab

•Alarm Tab

•XC Utilization Tab

•MS-SPRing Tab

•DWDM Tab

---

Note When the NE Explorer is in autorefresh mode, any updates made to an entity or object (port, line, card, protection group, DCC, MS-SPRing, and so on) will refresh all the values of that entity even if you are currently editing the values. You will lose your changes on that entity.

---

B.8.1.1  Shelf View Tab

The Shelf View tab displays a graphic of the ONS 15454 SDH that is selected in the NE Explorer tree. Moving the mouse pointer over the NE, its shelves, its slots, or its cards displays the current alarms for the shelf, slot, or card. Double-clicking a slot or card displays the slot or card in the property sheet. The right-click menu allows you to reset, delete, or change the card. For unprovisioned slots, the right-click menu allows you to add a card.

B.8.1.2  Identification Tab

The Identification tab displays identification information about the ONS 15454 SDH NE.

Table B-131 Field Descriptions for the Identification Tab

Field	Description
NE ID	Displays the ID of the NE from the Domain Explorer.
Description	Displays the description of the NE from the Domain Explorer.
NE Model	Displays the NE model type.
Software Version	Displays the current running version of the system software.
Contact	Displays the name of the node contact person and the phone number.
System Description	Displays a description of the NE.
SNTP Settings
Use NTP/SNTP Server	If checked, CTC uses an SNTP server to set the date and time of the node. Using an SNTP server ensures that all ONS 15454 SDH network nodes use the same date and time reference. The server synchronizes the node's time after power outages or software upgrades. If you check the Use NTP/SNTP Server check box, enter the server's IP address in the next field. If you do not use an SNTP server, complete the Time and Time Zone fields. The ONS 15454 SDH will use these fields for alarm dates and times.
SNTP Server	Displays the SNTP server IP address.
Location
Latitude	Allows you to set the latitude of the NE. Select North or South from the drop-down list, then enter the degrees and minutes (or click the up and down arrows to increase or decrease each by 1 unit).
Longitude	Allows you to set the longitude of the NE. Select East or West from the drop-down list, then enter the degrees and minutes (or click the up and down arrows to increase or decrease each by 1 unit).
Date and Time
Time	Displays the NE date and time.
Time Zone	Displays the time zone where the NE is located.
Use Daylight Savings Time	If checked, Daylight Savings Time is observed.
APC Group Name
APC State	(Read-only) Allows you to view the automatic power control state.
Voltage Thresholds
ELWBATVG	Allows you to set the monitor value for extreme low battery voltage (ELWBATVG) in volts direct current (VDC).
EHIBATVG	Allows you to set the monitor value for extreme high battery voltage (EHIBATVG) in VDC.
Current Voltage Environment	(Read-only) Shows the current voltage environment (60 volts for SDH).

B.8.1.3  Network Tab

The Network tab displays information about the NE network address. The Network tab contains the following subtabs:

•Address Subtab

•Static Routes Tab

•OSPF Subtab

•OSPF Area Range Subtab

•OSPF Virtual Links

•SNMP Subtab

•Firewall/Proxy Subtab

•Routing Table Subtab

•RIP Routing Table Subtab

•RIP Subtab

•Proxy Tunnels Subtab

•Firewall Tunnels Subtab

•Secure Config Mode Subtab

B.8.1.3.1  Address Subtab

The Address subtab allows you to view and change information about the NE network address.

Table B-132 Field Descriptions for the Address Subtab

Field	Description
IP Address	Displays the IP address of the NE.
Default Router	Displays the IP address of the default router.
Subnet Mask	Displays the subnetwork mask ID of the NE.
MAC Address	(Read-only) Displays the ONS 15454 SDH address as it is identified on the IEEE 802 MAC layer.
Prevent LCD IP Config	If checked, prevents users from changing the shelf IP address from the LCD screen. Note This field is present only on the ONS 15454 SDH R3.41 and earlier.
LCD IP Setting	Allows you to configure the LCD screen. Select Allow Configuration to enable shelf address changing from the LCD. Select Display Only to prevent users from changing the shelf IP address from the LCD screen. Select Suppress Display to make the LCD screen blank.
Forward DHCP Requests	If checked, forwards DHCP requests to the IP address entered in the DHCP Server field.
DHCP Server	Displays the IP address of the DHCP server.
TCC CORBA (IIOP) Listener Port	Allows you to set a listener port to allow communication with the ONS 15454 SDH through firewalls.

B.8.1.3.2  Static Routes Tab

The Static Routes tab allows you to view information about CTM and ONS 15454 SDH connectivity and create or delete static routes.

Table B-133 Field Descriptions for the Static Routes Tab

Field	Description
Destination	(Read-only) Displays the IP address of the computer running CTM.
Mask	(Read-only) Displays the subnetwork mask.
Next Hop	(Read-only) Displays the IP address of the router port or the node IP address if the CTM computer is connected to the node directly.
Cost	(Read-only) Displays the number of hops between the ONS 15454 and the computer.

B.8.1.3.3  OSPF Subtab

The OSPF subtab displays OSPF information. OSPF is a link state Internet routing protocol.

Table B-134 Field Descriptions for the OSPF Subtab

Field	Description
Slot	Displays the slot number.
Port	Displays the port number.
DCC OSPF Area ID	Displays the number that identifies the ONS 15454 SDH NE as a unique OSPF area. The OSPF area number can be an integer from 0 to 4294967295, and it can take a form similar to an IP address. The number must be unique to the LAN OSPF area.
SDCC Metric	Sets a cost for sending packets across the Section Data Communications Channel (SDCC), which is used by OSPF routers to calculate the shortest path. This value should always be higher than the LAN metric. This value is normally unchanged.
LDCC Metric	Sets a cost for sending packets across the Line Data Communications Channel (LDCC), which is used by OSPF routers to calculate the shortest path. This value should always be higher than the LAN metric. This value is normally unchanged.
OSPF Active on LAN	If checked, enables ONS 15454 SDH OSPF topology to be advertised to OSPF routers on the LAN. Enable this field on ONS 15454 SDH NEs that directly connect to OSPF routers.
LAN Port Area ID	Displays the OSPF area ID for the router port where the ONS 15454 SDH is connected. (This number is different from the DCC OSPF area ID.)
Router Priority	Displays the value used for this NE in designated router election. The default value is zero (0). A router that has Router Priority set to 0 is ineligible to become a designated router on the attached network.
Dead Interval	Displays the number of seconds that will pass while an OSPF router's packets are not visible before its neighbors declare the router down. Forty seconds is the default.
Retransmit Interval	Displays the time that will elapse before a packet is resent. Five seconds is the default.
Hello Interval	Displays the number of seconds between OSPF hello packet advertisements sent by OSPF routers. Ten seconds is the default.
Transit Delay	Displays the service speed. One second is the default.
LAN Metric	Displays a cost for sending packets across the LAN. This value should always be lower than the DCC metric. Ten is the default.
Authentication Type	Displays Simple Password if the router where the ONS 15454 SDH is connected uses authentication. Otherwise, it displays No Authentication.
Authentication Key	Displays the OSPF key (password) if authentication is enabled.
Confirm Authentication Key	Retype the authentication key to confirm it.

B.8.1.3.4  OSPF Area Range Subtab

The OSPF Area Range subtab allows you to view information about OSPF area ranges and create or delete area ranges.

Table B-135 Field Descriptions for the OSPF Area Range Subtab

Field	Description
Range Address	(Read-only) Displays the area IP address for the ONS 15454 SDH NEs that reside within the OSPF area. For example, if the ONS 15454 SDH OSPF area includes nodes with IP addresses 10.10.20.100, 10.10.30.150, 10.10.40.200, and 10.10.50.250, the range address would be 10.10.0.0.
Range Area ID	(Read-only) Displays the OSPF area ID for the ONS 15454 SDH NEs. This is either the ID in the DCC OSPF Area ID field or the ID in the Area ID for LAN Port field.
Mask Length	(Read-only) Displays the subnet mask length.
Mask	(Read-only) Displays the subnet mask IP address.
Advertise	(Read-only) Indicates whether the OSPF routing table is advertised.

B.8.1.3.5  OSPF Virtual Links

The OSPF Virtual Links tab allows you to view information about OSPF virtual links and create or delete virtual links.

---

Note You cannot create a new virtual link unless OSPF is active on the LAN.

---

Table B-136 Field Descriptions for the OSPF Virtual Links

Field	Description
Neighbor	(Read-only) Displays the router ID of the Area 0 router.
Transit Delay	(Read-only) Displays the service speed. One second is the default.
Retransmit Interval	(Read-only) Displays the time that will elapse before a packet is resent. Five seconds is the default.
Hello Interval	(Read-only) Displays the number of seconds between OSPF hello packet advertisements sent by OSPF routers. Ten seconds is the default.
Dead Interval	(Read-only) Displays the number of seconds that will pass while the packets of an OSPF router are not visible before its neighbors declare the router down. Forty seconds is the default.
Authentication Type	(Read-only) Displays the authentication type.
Authentication Key	(Read-only) Displays the authentication key.

B.8.1.3.6  SNMP Subtab

The SNMP subtab allows you to view SNMP information and create or delete SNMP trap destinations.

Table B-137 Field Descriptions for the SNMP Subtab

Field	Description
Allow SNMP Set	If checked, allows you to use SNMP management software with the ONS 15454 SDH.
Allow SNMP Proxy	If checked, allows you to configure the ONS 15454 SDH to proxy SNMP calls.
IP Address	The IP address of the NMS.
Community Name	The SNMP community name. Note The SNMP community string cannot be blank in CTM. If a blank community string is required in CTC builds earlier than R4.6, you must set the blank community string in CTC.
UDP Port	The UDP port for SNMP. The default UDP port is 162.
Trap Version	The trap version, either SNMP version 1 or version 2. See your NMS documentation to determine whether to use SNMP version 1 or version 2.
Relay A IP Address	The first ONS 15454 SDH to relay traps through. The IP address is appended to the base community string to tell the first NE that is relaying the trap the IP address and port to forward the trap to. The second NE recognizes the IP address and strips it from the community string before forwarding the trap.
Relay A Community Name	The community name for the relay A node to use in the trap when forwarding it.
Relay B IP Address	The second ONS 15454 SDH to relay traps through.
Relay B Community Name	The community name for the relay B node to use in the trap when forwarding it.
Relay C IP Address	The third ONS 15454 SDH to relay traps through.
Relay C Community Name	The community name for the relay C node to use in the trap when forwarding it.

B.8.1.3.7  Firewall/Proxy Subtab

The Firewall/Proxy subtab allows you to use an NE as a proxy server and/or as a firewall.

Table B-138 Field Descriptions for the Firewall/Proxy Subtab

Field	Description
Craft Access Only	If checked, only allows CTC to access the firewall and proxy settings of the NE. Check this item only if the LAN port is used for direct workstation-to-NE connections, and not connected to a LAN. Disabling craft-only access allows the installation of a route to the LAN. Disable this only if the LAN port is actually connected to the LAN. Note This field applies only to ONS 15454 SDH releases earlier than R4.6.
Enable Firewall	If checked, blocks packets routed between the local area and DCC networks. This causes a loss of connectivity to DCC-only connected NEs. CTM cannot reestablish the connection unless the proxy is enabled. Additionally, all NEs connected to the LAN must also have their firewall enabled, or connectivity problems will result. Note This field applies only to ONS 15454 SDH releases earlier than R4.6.
Gateway Settings
Enable Proxy Server on Port	If checked, the ONS 15454 SDH serves as a proxy for connections between the CTM server and ONS 15454 SDHs that are DCC-connected to the proxy ONS 15454 SDH. The CTM server establishes connections to DCC-connected nodes through the proxy node. The CTM server can connect to nodes that it cannot directly reach from the host on which it runs. The proxy server uses port number 1080. If checked, the following radio buttons are enabled: •External Network Element (ENE)—Configures the ONS 15454 SDH to proxy as an ENE, meaning the NE supports craft access only, supports firewall, and acts as a proxy. •Gateway Network Element (GNE)—Configures the ONS 15454 SDH to proxy as a GNE, meaning the NE supports firewall and acts as a proxy. •Proxy-only—Configures the ONS 15454 SDH to act as a proxy. If unchecked, the node does not proxy; instead, it acts as a LAN-connected NE (LNE).

B.8.1.3.8  Routing Table Subtab

The Routing Table subtab allows you to view the OSPF routing table.

Table B-139 Field Descriptions for the Routing Table Subtab

Field	Description
Destination	(Read-only) Displays the IP address of the destination network or host.
Mask	(Read-only) Displays the subnet mask used to reach the destination host or network.
Gateway	(Read-only) Displays the IP address of the gateway used to reach the destination network or host.
Usage	(Read-only) Shows the number of times the listed route has been used.
Interface	(Read-only) Shows the ONS 15454 SDH interface used to access the destination. Values are: •cpm0—The ONS 15454 SDH Ethernet interface (that is, the RJ-45 jack on the TCC+/TCC2 and the LAN 1 pins on the backplane) •pdcc0—An SDCC interface (that is, an OC-N trunk card identified as the SDCC termination) •lo0—A loopback interface

B.8.1.3.9  RIP Routing Table Subtab

The RIP Routing Table subtab allows you to view the RIP routing table.

Table B-140 Field Descriptions for the RIP Routing Table Subtab

Field	Description
Destination	(Read-only) Displays the IP address of the destination network or host.
Mask	(Read-only) Displays the subnet mask used to reach the destination host or network.
Gateway	(Read-only) Displays the IP address of the gateway used to reach the destination network or host.
Cost	(Read-only) Displays the hop count metric. The valid range is 1 to 15.

B.8.1.3.10  RIP Subtab

The RIP subtab allows you to view and configure the RIP parameters.

---

Note When you enable RIP, you must wait for approximately one minute for the default RIP address summary to become visible.

---

Table B-141 Field Descriptions for the RIP Subtab

Field	Description
RIP Active	Enable or disable RIP.
RIP Type	Select RIP version 1.0 or RIP version 2.0.
Metric	Select the hop count metric. The valid range is 1 to 15.
Authentication Type	Select the authentication type.
Authentication Key	Enter the authentication key (password) if the authentication type is Simple Password.
Confirm Authentication Key	Retype the authentication key to confirm it.
RIP Address Summary	•Summary Address—Displays the summary address. •Mask Length—Displays the subnet mask length. •Cost—Displays the hop count metric. The valid range is 1 to 15.

B.8.1.3.11  Proxy Tunnels Subtab

The Proxy Tunnels subtab allows you to configure source and destination information for proxy tunnels.

Table B-142 Field Descriptions for the Proxy Tunnels Subtab

Field	Description
Source Address	Specify the source IP address in the source-destination pair for the tunnel that will be routed through the proxy server.
Source Mask	Specify the source subnetwork mask in the source-destination pair for the tunnel that will be routed through the proxy server.
Destination Address	Specify the destination IP address in the source-destination pair for the tunnel that will be routed through the proxy server.
Destination Mask	Specify the destination subnetwork mask in the source-destination pair for the tunnel that will be routed through the proxy server.

B.8.1.3.12  Firewall Tunnels Subtab

The Firewall Tunnels subtab allows you to configure source and destination information for firewall tunnels.

Table B-143 Field Descriptions for the Firewall Tunnels Subtab

Field	Description
Source Address	Specify the source IP address in the source-destination pair for the tunnel that will be routed through the firewall.
Source Mask	Specify the source subnetwork mask in the source-destination pair for the tunnel that will be routed through the firewall.
Destination Address	Specify the destination IP address in the source-destination pair for the tunnel that will be routed through the firewall.
Destination Mask	Specify the destination subnetwork mask in the source-destination pair for the tunnel that will be routed through the firewall.

B.8.1.3.13  Secure Config Mode Subtab

The TCC2P card supports secure config mode. When the secure mode is ON, the NE has two IP addresses, one for the backplane and one for the front port. The front port IP address is used by the DCC-connected NEs. The secure config mode feature applies to the ONS 15454 SDH R5.0 and later.

The Secure Config Mode subtab allows you to configure the secure config mode. The fields shown depend on whether the NE is in secure mode. For example, the Backplane Ethernet Port values are displayed only when the NE is in secure mode.

Table B-144 Field Descriptions for the Secure Config Mode Subtab

Field	Description
TCP/IP Mode
Normal	When this text is visible, the NE is not in secure mode. There is one IP address shared by TCC and backplane Ethernet ports, with full connectivity between ports.
Secure	When this text is visible, the NE is in secure mode. There are separate IP addresses for TCC and backplane Ethernet ports, with no connectivity between ports.
Mode not locked	When this text is visible, you can change the secure mode.
Mode permanently locked and cannot be unlocked	When this text is visible, the NE is in secure mode, and the secure mode is locked and cannot be changed.
Backplane Ethernet Port
IP Address	Displays the IP address of the NE.
Secure IP Address	Displays the backplane IP address.
Secure Subnet Mask Length	Displays the mask length of the secure IP address. Use the up or down arrows to change the mask length.
Default Router	Displays the address of the default router for this NE.
Secure MAC Address	Displays the MAC/Ethernet address for the backplane.
Secure LCD IP Setting	Displays the setting value applicable for the secure mode. Values are: •Display only •No display •Allow configuration
Change Mode
Change Mode button	Opens the Change Secure Mode dialog box, which allows you to change the mode of the NE from secure to unsecure, and vice versa. This button is enabled only if an active TCC2P card exists on the NE.
Lock
Lock button	When the NE is in secure mode, the Lock button locks the secure mode on the NE/TCC so that it cannot be changed.

B.8.1.4  DCC/GCC/OSC Tab

The DCC/GCC/OSC tab allows you to create, delete, and view SDCCs, LDCCs, GCCs, OSCs, and DWDM ring IDs.

Table B-145 Field Descriptions for the DCC/GCC/OSC Tab

Field	Description
SDCC
SDCC Terminations	Displays the slot, port, and card type of an SDCC termination.
OSPF Disabled on Link	Check if you want to prevent the advertisement of the OSPF routing table.
Foreign	A check mark indicates that the far-end node is a non-ONS node.
Foreign IP	Displays the foreign node IP address.
Service State	Select the state of the SDCC termination (IS-NR, OOS-AU, OOS-MA, OOS-AUMA) plus the secondary state (MEA, UEQ, UAS, SWDL, MT, AINS, DSBLD, LPBK).
LDCC
LDCC Terminations	Displays the slot, port, and card type of an LDCC termination.
OSPF Disabled on Link	Check if you want to prevent the advertisement of the OSPF routing table.
Foreign	A check mark indicates that the far-end node is a non-ONS node.
Foreign IP	Displays the foreign node IP address.
Service State	Select the state of the LDCC termination (IS-NR, OOS-AU, OOS-MA, OOS-AUMA) plus the secondary state (MEA, UEQ, UAS, SWDL, MT, AINS, DSBLD, LPBK).
GCC
GCC Terminations	Displays the slot, port, and card type of a GCC termination.
OSPF Disabled on Link	Check if you want to prevent the advertisement of the OSPF routing table.
GCC Rate	Displays the GCC rate.
Foreign	A check mark indicates that the far-end node is a non-ONS node.
Foreign IP	Displays the foreign node IP address.
Service State	Select the state of the GCC termination (IS-NR, OOS-AU, OOS-MA, OOS-AUMA) plus the secondary state (MEA, UEQ, UAS, SWDL, MT, AINS, DSBLD, LPBK).
OSC
OSC Terminations	Displays the slot, port, and card type of an OSC termination.
Admin State	Displays the state of the OSC.
DWDM Ring ID
Ring ID	Displays the ring ID.
West Direction	Lists the OSCM or OSC-CSM port that supports the ring in the west direction. The value is N/A if there are no ports in the west direction.
East Direction	Lists the OSCM or OSC-CSM port that supports the ring in the east direction. The value is N/A if there are no ports in the east direction.

B.8.1.5  Timing Tab

The Timing tab contains the following subtabs:

•General Subtab

•Reference List Subtab

•Status Subtab

•Timing Report Subtab

B.8.1.5.1  General Subtab

The General subtab displays general timing information.

Table B-146 Field Descriptions for the General Subtab

Field	Description
General Timing
Timing Mode	Set to External if the ONS 15454 SDH derives its timing from a BITS source wired to the backplane pins; set to Line if timing is derived from an OC-N card that is optically connected to the timing node. A third option, Mixed, allows you to set external and line timing references. Caution Mixed timing might cause timing loops; it is recommended that you use this mode with care.
Revertive	If checked, the ONS 15454 SDH reverts to a primary reference source after the conditions that caused it to switch to a secondary timing reference are corrected.
Reversion Time	Specify the reversion time in half-minute increments.
BITS-IN-OUT Facility Type
In Facility Type	Provision the BITS In facility type.
Out Facility Type	Provisions the BITS Out facility type.
BITS IN Facilities
In State	Set the BITS reference to IS or OOS. For nodes set to Line timing with no equipment timed through BITS Out, set State to OOS. For nodes using External timing or Line timing with equipment timed through BITS Out, set State to IS.
Coding	Set to the coding used by your BITS reference, either AMI or HDB3.
Framing	Set to the framing used by your BITS reference.
Sync Messaging	If checked, enables the Synchronization Status Message (SSM) for BITS In. (SSM is not available if Framing is set to Super Frame.)
Admin SSM	If the Sync Messaging check box is not checked, you can choose the SSM Generation 2 type from the drop-down list.
Sa Bit	The Sa Bit field is used to transmit the SSM message. The five available Sa bits are Sa4, Sa5, Sa6, Sa7, and Sa8.
BITS OUT Facilities
Out State	Set the BITS reference to IS or OOS. For nodes set to Line timing with no equipment timed through BITS Out, set State to OOS. For nodes using External timing or Line timing with equipment timed through BITS Out, set State to IS.
Coding	Set to the coding used by your BITS reference, either AMI or HDB3.
Framing	Set to the framing used by your BITS reference.
AIS Threshold	If SSM is disabled or Super Frame is used, sets the quality level where a node sends an AIS from the BITS-1 Out and BITS-2 Out backplane pins. An AIS is raised when the optical source for the BITS reference falls to or below the SSM quality level defined in this field.
LBO	If you are timing an external device connected to the BITS Out pins, set the distance between it and the ONS 15454 SDH. Values are 0-133 ft. (default), 134-266 ft., 267-399 ft., 400-533 ft., and 534-655 ft.

B.8.1.5.2  Reference List Subtab

The Reference List subtab provides timing reference information.

Table B-147 Field Descriptions for the Reference List Subtab

Field	Description
NE References	Allows you to define three timing references (Ref-1, Ref-2, and Ref-3). The node uses Reference 1 unless a failure occurs on that reference, in which case, the node uses Reference 2. If that fails, the node uses Reference 3, which is typically set to Internal Clock. This is the Stratum 3 clock provided on the TCC+. The options displayed depend on the Timing Mode setting. •Timing Mode set to External—Options are BITS-1, BITS-2, and Internal Clock. •Timing Mode set to Line—Options are the node's working optical cards and Internal Clock. Select the cards/ports that are directly or indirectly connected to the node wired to the BITS source, that is, the node's trunk cards. Set Reference 1 to the trunk card that is closest to the BITS source. For example, if Slot 5 is connected to the node wired to the BITS source, select Slot 5 as Reference 1. •Timing Mode set to Mixed—Both BITS and optical cards are available, allowing you to set a mixture of external BITS and optical trunk cards as timing references.
BITS-1 Out References	Define the timing references for the equipment wired to the BITS Out backplane pins. Normally, BITS Out is used with line nodes, so the options displayed are the working optical cards. BITS-1 and BITS-2 Out are enabled as soon as BITS-1 and BITS-2 facilities are placed in service.
BITS-2 Out References	Define the timing references for the equipment wired to the BITS Out backplane pins. Normally, BITS Out is used with line nodes, so the options displayed are the working optical cards. BITS-1 and BITS-2 Out are enabled as soon as BITS-1 and BITS-2 facilities are placed in service.

B.8.1.5.3  Status Subtab

The Status subtab displays timing status information.

Table B-148 Field Descriptions for the Status Subtab

Field	Description
NE Clock
NE Reference	Set the NE timing reference to internal, BITS-1, or BITS-2.
Status	(Read-only) Displays the status of the NE clock.
Operations	Execute a switch on the NE timing reference.
BITS-1 Out
BITS-1 Out	Set the BITS-1 out timing reference.
Status	(Read-only) Displays the status of the BITS-1 out timing reference.
Operations	Execute a switch on the BITS-1 out timing reference.
BITS-2 Out
BITS-2 Out	Set the BITS-2 out timing reference.
Status	(Read-only) Displays the status of the BITS-2 out timing reference.
Operations	Execute a switch on the BITS-2 out timing reference.

B.8.1.5.4  Timing Report Subtab

The Timing Report subtab summarizes the NE's current timing settings.

B.8.1.6  Protection Tab

The Protection tab contains the following subtabs:

•Protection Groups Subtab

•Operations Subtab

B.8.1.6.1  Protection Groups Subtab

The Protection Groups subtab displays a list of available protection groups and allows you to create, delete, and view protection groups.

Table B-149 Field Descriptions for the Protection Groups Subtab

Field	Description
Protection Groups
Displays a list of available protection groups. Click the Create or Delete button to create a new protection group or delete an existing one.
Selected Protection Group
Name	Modify the name of the selected protection group. The name can have up to 32 alphanumeric characters.
Type	Choose the protection type (1:1, 1:N, 1+1, or Y-cable) from the drop-down list. The protection selected determines the cards that are available to serve as protect and working cards. For example, if you choose 1:N protection, only DS-1N and DS-3N cards are displayed.
Protect Module	View the protect module if using 1:1, 1:N, or Y-cable protection.
Available Entities	Displays a list of available entities. You can toggle between available and working entities.
Working Entities	Displays a list of working entities. You can toggle between working and available entities.
Bidirectional Switching	Click if you want both the transmit and the receive channels to switch if a failure occurs on one. This option is only available if you select 1+1 (port) type.
Revertive	If checked, the ONS 15454 SDH reverts traffic to the working card or port after failure conditions stay corrected for the amount of time entered in Reversion Time. This option is not available if the 1:N (card) type has been selected.
Reversion Time	If Revertive is checked, enter the amount of time following failure condition correction that should elapse before the ONS 15454 SDH switches back to the working card or port. Use half-minute increments. This option is only available if you select 1:1 (card) type.

B.8.1.6.2  Operations Subtab

The Operations subtab displays protection group operation information.

Table B-150 Field Descriptions for the Operations Subtab

Field	Description
Protection Groups	Displays a list of available protection groups.
Protection Group Details	Displays details about the selected protection groups and allows you to execute switch commands.
Switch Commands	Allows you to perform command switching.
Inhibit Switching	Allows you to inhibit command switching.

B.8.1.7  Ether Bridge Tab

The Ether Bridge tab contains the following subtabs:

•Spanning Tree Config Subtab

•Spanning Tree Status Subtab

B.8.1.7.1  Spanning Tree Config Subtab

The Spanning Tree Config subtab displays spanning-tree configuration information for the ONS 15454 SDH.

Table B-151 Field Descriptions for the Spanning Tree Config Subtab

Field	Description
Index Number	Unique number that identifies the spanning tree.
Priority	Incoming traffic queue. Priority can be either high or low.
Bridge Max Age	Maximum amount of time that received-protocol information is retained before it is discarded.
Bridge Hello Time	Time interval, in seconds, between the transmission of configuration bridge protocol data units (BPDUs) by a bridge that is the spanning-tree root or is attempting to become the spanning-tree root.
Bridge Forward Delay	Time spent by a port in the listening state and the learning state.

B.8.1.7.2  Spanning Tree Status Subtab

The Spanning Tree Status subtab displays spanning tree status information for the ONS 15454 SDH.

Table B-152 Field Descriptions for the Spanning Tree Status Subtab

Field	Description
Index Number	Unique number that identifies the spanning tree.
Bridge ID	ONS 15454 SDH unique identifier that transmits the configuration BPDU; the bridge ID is a combination of the bridge priority and the ONS 15454 SDH MAC address.
Topology Age	Amount of time, in seconds, since the last topology change.
Topology Changes	Number of times the spanning-tree topology has been changed since the node booted up.
Designated Root	Spanning tree's designated root for a particular spanning-tree instance.
Root Cost	Total path cost to the designated root.
Root Port	Port used to reach the root.
Max Age	Maximum amount of time that received-protocol information is retained before it is discarded.
Hello Time	Time interval, in seconds, between the transmission of configuration BPDUs by a bridge that is the spanning-tree root or is attempting to become the spanning-tree root.
Hold Time	Minimum time period, in seconds, that elapses during the transmission of configuration information on a given port.
Forward Delay	Time spent by a port in the listening state and the learning state.

B.8.1.8  NE Defaults Tab

The NE Defaults tab displays a list of default thresholds for the ONS 15454 SDH.

Table B-153 Field Descriptions for the NE Defaults Tab

Field	Description
Parameter (Units)	Lists the default NE parameter, with its corresponding unit of measure.
Value	Shows the default parameter value, and allows you to change the default.

You can load different NE defaults using the NE Defaults Management window. See 4.5.8  Restoring NE Defaults, page 4-67.

B.8.1.9  Security Tab

The Security tab allows you to view and edit security features for the ONS 15454 SDH NE. The security tab contains the following subtabs:

•Policy Subtab

•Password Subtab

•Access Subtab

•Legal Disclaimer Subtab

B.8.1.9.1  Policy Subtab

The Policy subtab allows you to specify user security parameters.

---

Note If the user is already logged in, any changes to the NE user type settings become applicable only when the user next logs in.

---

Table B-154 Field Descriptions for the Policy Subtab

Field	Description
Idle User Timeout
Each CTC or TL1 user can be idle during his or her login session for a specified amount of time before the CTC window is locked. The lockouts prevent unauthorized users from making changes. Higher-level users have shorter default idle periods and lower-level users have longer or unlimited default idle periods. The user idle period can be modified by a SuperUser. Note A user already logged into the node is not affected by a change to the Idle User Timeout policy.
Retrieve	Set the idle user timeout for a CTC Retrieve user.
Maintenance	Set the idle user timeout for a CTC Maintenance user.
Provisioner	Set the idle user timeout for a CTC Provisioner user.
SuperUser	Set the idle user timeout for a CTC SuperUser user.
User Lockout
Manual Unlock by SuperUser	If checked, the CTC SuperUser user must manually unlock locked out CTC users. If unchecked, locked out CTC users are automatically unlocked after the lockout duration period elapses.
Lockout Duration	Set the lockout duration period for locked out CTC users. This field is enabled only if the Manual Unlock by SuperUser check box is unchecked.
Failed Logins Before Lockout	Set the number of failed logins before the CTC user is automatically locked out.
Other
Single Sessions per User	If checked, each CTC user can only launch one session at a time.
Disable Inactive User	If checked, inactive users are disabled automatically for the amount of time in the Inactive Duration field.
Inactive Duration	Specify the inactive duration in days. The valid range is 45 to 90 days; the default is 45 days.

B.8.1.9.2  Password Subtab

The Password subtab allows you to specify user password security parameters.

Table B-155 Field Descriptions for the Password Subtab

Field	Description
Password Change
Prevent Reusing Last	Prevents setting a CTC user's current password to one of the most recent passwords. You can set the number of most recent passwords that cannot be reused.
Disable Password Flipping	If checked, users are not allowed to change passwords for the number of days specified in the Cannot Change New Password For field.
Cannot Change New Password For	Enter the number of days that will elapse before the user can change the password.
Force Password Change After Assigned	If checked, during the first successful login, the user is forced to change the password.
Password Aging
Enable Password Aging	Check this check box to enable password aging.
Aging Period	Enter the aging period, in days, for Retrieve, Maintenance, Provisioner, and SuperUser CTC users. After the aging period expires, CTC users are forced to change their passwords.
Warning Period	Enter the warning period, in days, for Retrieve, Maintenance, Provisioner, and SuperUser CTC users. After the warning period expires, CTC users are warned that their passwords will soon expire.

B.8.1.9.3  Access Subtab

The Access subtab allows you to configure LAN and shell access to the NE.

Table B-156 Field Descriptions for the Access Subtab

Field	Description
Access
LAN Access	Specify the type of LAN access allowed. Values are Backplane Only, No LAN Access, or Front and Backplane. Note After setting the LAN access to the backplane, the CTM client is unusable for 4 to 5 minutes.
Restore Timeout	This time period begins if No LAN Access is selected and all DCC connections are lost. If the time expires before a DCC is restored, LAN access is restored so that the node is not isolated. When the DCC comes back, LAN access returns to its specified settings. The range is 0 (never) to 60 minutes; the default is 5 minutes.
Shell Access
Shell Access on	Specify shell access on Telnet or SSH.
SSH Port	(Read-only) Indicates the SSH port number that will be used if the SSH radio button is selected.
Telnet Port	This is enabled if you selected the Telnet radio button. Enter the Telnet port number.
Use Standard Telnet Port	If checked, the standard Telnet port is used for Telnet access.
Other
PM Clearing Privilege	Select the users privilege that allows clearing PM statistics for the NE.

B.8.1.9.4  Legal Disclaimer Subtab

The Legal Disclaimer subtab allows you to edit the NEs advisory message and preview the disclaimer.

Table B-157 Field Descriptions for the Legal Disclaimer Subtab

Field	Description
Advisory Message	The existing message is a default, noncustomer-specific disclaimer. If you want to edit this statement with specifics for your company, you can change the text. You can also use the following HTML commands to format the text: <b> Begins boldface font </b> Ends boldface font <center> Aligns type in the center of the window </center> Ends the center alignment <font=n, where n = point size> Changes the font to the new size </font> Ends the font size command <p> Creates a line break <sub> Begins subscript </sub> Ends subscript <sup> Begins superscript </sup> Ends superscript <u> Starts underline </u> Ends underline
Preview	Allows you to view the advisory message before saving it.

B.8.1.10  Alarm Tab

The Alarm tab allows you to change default alarm severities by creating unique alarm profiles for individual ONS 15454 SDH nodes. The Alarm tab contains the following subtabs:

•Profile Subtab

•Alarm Behavior Subtab

B.8.1.10.1  Profile Subtab

The Profile subtab allows you to select, create, or delete alarm profiles.

Table B-158 Field Descriptions for the Profile Subtab

Field	Description
Alarm Profile Name	Choose an alarm profile for the NE from the drop-down list. Click Create to create a new alarm profile for the NE. Click Delete to delete an alarm profile from the NE.
Condition	Displays the alarm condition.
Severity	Displays the alarm severity.

B.8.1.10.2  Alarm Behavior Subtab

The Alarm Behavior subtab allows you to change default alarm severities by creating unique alarm profiles.

Table B-159 Field Descriptions for the Alarm Behavior Subtab

Field	Description
Alarm Profile	Choose a global alarm profile for the NE from the drop-down list.
Suppress Alarms	If checked, all alarms are suppressed.
Slot Number	Displays the location of the module.
Equipment Type	Displays the type of module in the slot.
Profile	Choose an alarm profile for the slot from the drop-down list.
Suppress Alarms	Indicates whether or not the alarms for the particular card are suppressed. If checked, all alarms are suppressed for the port.

B.8.1.11  XC Utilization Tab

The XC Utilization tab allows you to view a summary of the percentage of XTC cross-connect resources used by circuits that traverse or terminate at an ONS 15454 SDH.

Table B-160 Field Descriptions for the XC Utilization Tab

Field	Description
VC-4 Matrix	Provides the percentage of the XTC cross-connect VC-4 paths resources that are used.
TUG3 Matrix Ports	Provides the percentage of the XTC cross-connect TUG3 matrix ports that are used.
TUG3 Matrix	Provides the percentage of the TUG3 matrix resources that are used.
VC12 Matrix Ports	Provides the percentage of the XTC cross-connect VC12 matrix ports that are used.
VC12 Matrix	Provides the percentage of the VC12 matrix resources that are used.

B.8.1.12  MS-SPRing Tab

The MS-SPRing tab allows you to view MS-SPRing information and create new MS-SPRings. MS-SPRings share the ring bandwidth equally between working and protection traffic. Half of the payload bandwidth is reserved for protection in each direction, making the communication pipe half-full under normal operation. Click Create to create a new MS-SPRing; click Delete to delete an existing MS-SPRing; click Ring Map to open the Ring Map; click Squelch Table to open the Squelch table.

Table B-161 Field Descriptions for the MS-SPRing Tab

Field	Description
Type	Indicates whether the fiber type is 2-fiber or 4-fiber.
Rate	Select the MS-SPRing rate.
Ring Name	Assign a six-digit alphanumeric ring name. Nodes in the same MS-SPRing must have the same ring name.
Node ID	Assign a node ID. The node ID identifies the node to the MS-SPRing. Nodes in the same MS-SPRing must have unique node IDs.
Ring Reversion	Set the amount of time that will pass before the traffic reverts to the original working path. The default is 5 minutes. All nodes in a MS-SPRing should have the same ring reversion setting, particularly if never (nonrevertive) is selected.
Span Reversion	Set the amount of time to pass before the span reverts to the working path.
East Line	Assign the east MS-SPRing port.
East Switch	Displays a list of switch commands for the east port.
West Line	Assign the west MS-SPRing port.
West Switch	Displays a list of switch commands for the west port.
East Protect	For 4-fiber MS-SPRings, assign the east MS-SPRing protect port.
West Protect	For 4-fiber MS-SPRings, assign the west MS-SPRing protect port.

B.8.1.13  DWDM Tab

The DWDM tab allows you to manage and provision DWDM connections. The DWDM tab contains the following subtabs:

•Provisioning Subtab

•Connections Subtab

•Port Status Subtab

•Span Check Subtab

•APC Subtab

•ROADM Power Monitoring Subtab

B.8.1.13.1  Provisioning Subtab

The Provisioning subtab allows you to allows you to view, export, and import a Cisco MetroPlanner configuration file into the DWDM node to configure the node automatically. Use the Export and Import buttons to export or import the file.

Table B-162 Field Descriptions for the Provisioning Subtab

Field	Description
Attribute Name	Displays the property name that is imported from or exported to the Cisco MetroPlanner configuration file.
Value	Displays the default value of the corresponding property name imported from or exported to the Cisco MetroPlanner configuration file.

B.8.1.13.2  Connections Subtab

The Connections subtab allows you to create, delete, or calculate DWDM connections.

Table B-163 Field Descriptions for the Connections Subtab

Field	Description
Slot-From	The slot from which the DWDM connection originates.
Unit-From	The unit from which the DWDM connection originates.
Port-From	The port from which the DWDM connection originates.
Slot-To	The slot to which the DWDM connection terminates.
Unit-To	The unit to which the DWDM connection terminates.
Port-To	The port to which the DWDM connection terminates.
State	The state of the DWDM connection.

B.8.1.13.3  Port Status Subtab

The Port Status subtab allows you to view port status and launch ANS for the selected port.

Table B-164 Field Descriptions for the Port Status Subtab

Field	Description
Launch ANS button	Launches the ANS function for the selected port. ANS adjusts the VOAs on the different channel paths to equalize the amplifier per-channel input power.
Slot ID	Lists the ONS node slot where the DWDM card is installed.
Card	Describes the card that is installed in the slot.
Port	Displays the card port.
Link Status	Displays the status of the link. Possible values are: •Success - Changed—The calculated setpoint was changed. •Success - Unchanged—The calculated setpoint was not changed. •Fail - Out of Range—The calculated setpoint is outside the range for that parameter. •Fail - Port in IS State—The setpoint cannot be applied because the port has an IS-NR service state. •Not Applicable—The setpoint does not apply to the node.
Parameter	The parameter name.

B.8.1.13.4  Span Check Subtab

The Span Check subtab allows you to check the span loss between the selected node and the previous node in the chain. The span check is always in reception.

---

Note If the Measured Span Loss value crosses the Min or Max Expected Span Loss threshold, a condition is raised.

---

Table B-165 Field Descriptions for the Span Check Subtab

Field	Description
Retrieve Span Loss Values button	Runs the span loss verification function and retrieves values for the measure span loss column.
Side	Specifies the side for which span loss information is displayed (east-to-west or west-to-east).
Min Exp. Span Loss	Specifies the minimum expected span loss (in dBm) for the incoming span. This value is imported from MetroPlanner, but can be modified manually.
Max Exp. Span Loss	Specifies the maximum expected span loss (in dBm) for the incoming span.
Meas. Span Loss	The measured span loss value.
Resolution	The resolution or accuracy of the span loss measurement.

B.8.1.13.5  APC Subtab

The APC subtab allows you to manually run the automatic power control function, disable and enable APC, and view the date and time the power control setpoint was last checked and modified.

Table B-166 Field Descriptions for the APC Subtab

Field	Description
Disable APC button	Disables the automatic power control function. Caution Disabling APC should be performed only for specific maintenance actions. When APC is disabled, aging compensation calculations are not performed and circuits cannot be activated.
Run APC button	Runs the automatic power control function manually.
Slot ID	The slot number for power control information and actions.
Card	The card type that is installed in the slot.
Port	The port number.
Last Modification	Date and time the power control setpoint was last modified.
Last Check	Date and time the power control setpoint was last verified.

B.8.1.13.6  ROADM Power Monitoring Subtab

The ROADM Power Monitoring subtab provides a graphical representation of the power of each channel for each ROADM node. Specifically, it provides the power of the pass-through wavelength, the power of the added wavelength, and the equalized power out of the wavelength.

---

Note See Table 1-19 on page 1-38 for the descriptions of the actions that can be performed using the action buttons at the bottom of the window.

---

B.9  ONS 15501 NE Explorer

The ONS 15501 NE Explorer displays read-only information about the ONS 15501 NE. (See Figure B-14.) Use the NE Explorer to retrieve the current values and thresholds for the ONS 15501 AC and DC.

Figure B-14 NE Explorer—ONS 15501

The NE Explorer contains the following tabs:

•Identification Tab

•Physical Tab

•Power Source Tab

The data in the NE Explorer is refreshed every time you open the NE Explorer. You can click the Refresh Data button and choose to refresh the displayed information from the CTM server or from the NE. You can choose Configuration > ONS 155XX > Equipment Inventory Table to view equipment inventory information for the NE.

B.9.1  Identification Tab

The Identification tab displays inventory information about the ONS 15501 AC and DC.

Table B-167 Field Descriptions for the Identification Tab

Field	Description
NE ID	Displays the ID of the NE from the Domain Explorer.
Description	Displays the description of the NE from the Domain Explorer.
NE Model	Displays the NE model type.
NE Type	Displays the type of NE.
Vendor Name	Displays the vendor name, Cisco Systems.
Software Version	Displays the software version that is running on the NE.
Version Name	Displays a string name tag that identifies the NE and the associated software version.
Location Name	Displays the user-defined location of the NE.

B.9.2  Physical Tab

The Physical tab displays physical information about the ONS 15501 AC and DC.

Table B-168 Field Descriptions for the Physical Tab

Field	Description
Point of Measure	Indicates whether the point of measure is Optical Input Power, Optical Output Power, Optical Output Signal Power, Optical Power Gain, or Device Temperature.
Current Value	Shows the current value of the point of measure in dBm, dB, or degrees Celsius.
Mean Threshold	Shows the alarm mean level for the point of measure.
Threshold Trigger	Shows the alarm trigger level for the point of measure. If the point of measure exceeds the mean threshold plus the threshold trigger, and if an alarm does not already exist, an alarm is raised. If the point of measure falls below the mean threshold minus the threshold trigger, and if an alarm exists, the alarm is cleared.

B.9.3  Power Source Tab

The Power Source tab displays power source information for the ONS 15501 DC. This tab is disabled for the ONS 15501 AC.

Table B-169 Field Descriptions for the Power Source Tab

Field	Description
Power Source	Displays the available sources of the power supply on the selected NE. Values are Power Supply 1 or Power Supply 2.
Current Value	Displays the value of the DC power, in volts, for the corresponding power supply.
Alarm Status	Displays the status of alarms on the corresponding power supply.

---

Note See Table 1-19 on page 1-38 for the descriptions of the actions that can be performed using the action buttons at the bottom of the window.

---

B.10  ONS 15530 and ONS 15540

The NE Explorer is not available for the ONS 15530 and ONS 15540. Equivalent functionality is provided through launching CiscoView from CTM; choose Configuration > ONS 155XX > Launch CiscoView. CiscoView shows a continuously updated shelf view of device configuration and performance. (See Figure B-15.) Moving the pointer to the device or one of its components and clicking the right mouse button displays a shortcut menu with options for configuring the device, cards, and interfaces, and for monitoring real-time statistics.

Figure B-15 CiscoView for the ONS 15540 ESP

For information about CiscoView, see Appendix F, "Using CiscoView to Configure and Monitor ONS 15501, ONS 15530, and ONS 15540 NEs."

B.11  ONS 15600 SONET NE Explorer

When you choose Configuration > NE Explorer for the ONS 15600 SONET, the window displayed by CTM consists of a tree on the left side and a property sheet on the right. (See Figure B-16.) The tree provides a hierarchical view and alarm status of the NE's physical shelves and slots. The property sheet shows information about the selected entity (NE or slot). See Node Property Sheet—ONS 15600 for more information.

Figure B-16 NE Explorer—ONS 15600 SONET

---

Note If CTC is launched from the web browser for an ONS 15600 node, the CTC GUI might look different from when it is launched from CTM. This discrepancy occurs because the latest version of CTC (for NE releases supported by CTM) is packaged with CTM. If launched from a browser, the CTC software is retrieved from the NE itself, which might be a different version than that packaged with CTM.

---

When an NE Explorer is in autorefresh mode, all values of an entity that is being edited by the user are automatically refreshed. You will lose all of your changes unless you click the Apply button. To enable autorefresh, click the Refresh Data button in the NE Explorer.

B.11.1  Node Property Sheet—ONS 15600

The node property sheet displays information about the ONS 15600 SONET NE. The ONS 15600 property sheet contains the following tabs, some of which apply only to a specific NE version:

•Shelf View Tab

•Identification Tab

•Network Tab

•DCC Tab

•Timing Tab

•Protection Tab

•NE Defaults Tab

•Security Tab

•Alarm Tab

•Maintenance Tab

•Alarm Extenders Tab

•BLSR Tab

B.11.1.1  Shelf View Tab

The Shelf View tab displays a graphic of the ONS 15600 that is selected in the NE Explorer tree. Moving the mouse pointer over the NE, its shelves, slots, or cards displays the current alarms for the shelf, slot, or card. Double-clicking a slot or card displays the slot or card in the property sheet. The right-click menu allows you to reset, delete, or change a card. For unprovisioned slots, the right-click menu allows you to add a card.

B.11.1.2  Identification Tab

The Identification tab displays identification information about the ONS 15600 NE.

Table B-170 Field Descriptions for the Identification Tab

Field	Description
NE ID	Displays the ID of the NE from the Domain Explorer.
Description	Displays the description of the NE from the Domain Explorer.
NE Model	Displays the NE model type.
Software Version	Displays the current running version of the system software.
Contact	Displays the name of the node contact person and the phone number.
System Description	Displays a description of the NE.
SNTP Settings
Use NTP/SNTP Server	If checked, CTC uses an SNTP server to set the date and time of the node. Using an SNTP server ensures that all ONS 15600 network nodes use the same date and time reference. The server synchronizes the node's time after power outages or software upgrades. If you check the Use NTP/SNTP Server check box, enter the server's IP address in the next field. If you do not use an SNTP server, complete the Time and Time Zone fields. The ONS 15600 will use these fields for alarm dates and times.
SNTP Server	Displays the SNTP server IP address.
Location
Latitude	Allows you to set the latitude of the NE. Select North or South from the drop-down list, then enter the degrees and minutes (or click the up and down arrows to increase or decrease each by 1 unit).
Longitude	Allows you to set the longitude of the NE. Select East or West from the drop-down list, then enter the degrees and minutes (or click the up and down arrows to increase or decrease each by 1 unit).
Date and Time
Time	Displays the NE date and time.
Time Zone	Displays the time zone where the NE is located.
Use Daylight Savings Time	If checked, Daylight Savings Time is observed.

B.11.1.3  Network Tab

The Network tab displays information about the NE network address. The Network tab contains the following subtabs:

•Address Subtab

•Static Routes Subtab

•OSPF Subtab

•OSPF Area Range Subtab

•OSPF Virtual Links Subtab

•SNMP Subtab

•Firewall/Proxy Subtab

•Routing Table Subtab

•Internal Subnet Subtab

•Proxy Tunnels Subtab

•Firewall Tunnels Subtab

B.11.1.3.1  Address Subtab

The Address subtab allows you to view and change information about the NE network address.

Table B-171 Field Descriptions for the Address Subtab

Field	Description
IP Address	Displays the IP address of the NE.
Default Router	Displays the IP address of the default router.
Subnet Mask	Displays the subnetwork mask ID of the NE.
MAC Address	(Read-only) Displays the ONS 15600 address as it is identified on the IEEE 802 MAC layer.
Forward DHCP Requests	If checked, forwards DHCP requests to the IP address entered in the DHCP Server field.
DHCP Server	Displays the IP address of the DHCP server.
TSC CORBA (IIOP) Listener Port	Allows you to set a listener port to allow communication with the ONS 15600 through firewalls.

B.11.1.3.2  Static Routes Subtab

The Static Routes subtab allows you to view information about CTM and ONS 15600 connectivity and create or delete static routes.

Table B-172 Field Descriptions for the Static Routes Subtab

Field	Description
Destination	(Read-only) Displays the IP address of the computer running CTM.
Mask	(Read-only) Displays the subnetwork mask.
Next Hop	(Read-only) Displays the IP address of the router port or the node IP address if the CTM computer is connected to the node directly.
Cost	(Read-only) Displays the number of hops between the ONS 15600 and the computer.

B.11.1.3.3  OSPF Subtab

The OSPF subtab displays OSPF information. OSPF is a link state Internet routing protocol.

Table B-173 Field Descriptions for the OSPF Subtab

Field	Description
Slot	Displays the slot number.
Port	Displays the port number.
DCC OSPF Area ID	Displays the number that identifies the ONS 15600s as a unique OSPF area. The OSPF area number can be from 0.0.0.0 to 255.255.255.255. The number must be unique to the LAN OSPF area.
SDCC Metric	Sets a cost for sending packets across the SDCC, which is used by OSPF routers to calculate the shortest path. This value should always be higher than the LAN metric. The default DCC metric is 100. This value is normally unchanged.
LDCC Metric	Sets a cost for sending packets across the LDCC, which is used by OSPF routers to calculate the shortest path. This value should always be higher than the LAN metric. This value is normally unchanged.
OSPF Active on LAN	If checked, enables ONS 15600 OSPF topology to be advertised to OSPF routers on the LAN. Enable this field on ONS 15600s that directly connect to OSPF routers.
LAN Port Area ID	Displays the OSPF area ID for the router port where the ONS 15600 is connected. (This number is different from the DCC OSPF Area ID.)
Router Priority	Displays the value used for this NE in designated router election. The default value is zero (0). A router that has Router Priority set to 0 is ineligible to become a designated router on the attached network.
Dead Interval	Displays the number of seconds that will pass while an OSPF router's packets are not visible before its neighbors declare the router down. Forty seconds is the default.
Retransmit Interval	Displays the time that will elapse before a packet is resent. Five seconds is the default.
Hello Interval	Displays the number of seconds between OSPF hello packet advertisements sent by OSPF routers. Ten seconds is the default.
Transit Delay	Displays the service speed. One second is the default.
LAN Metric	Displays a cost for sending packets across the LAN. This value should always be lower than the DCC metric. Ten is the default.
Authentication Type	Displays Simple Password if the router where the ONS 15600 is connected uses authentication. Otherwise, it displays No Authentication.
Authentication Key	Displays the OSPF key (password) if authentication is enabled.
Confirm Authentication Key	Retype the authentication key to confirm it.

B.11.1.3.4  OSPF Area Range Subtab

The OSPF Area Range subtab allows you to view information about OSPF area ranges and create or delete area ranges.

Table B-174 Field Descriptions for the OSPF Area Range Subtab

Field	Description
Range Address	(Read-only) Displays the area IP address for the ONS 15600s that reside within the OSPF area. For example, if the ONS 15600 OSPF area includes nodes with IP addresses 10.10.20.100, 10.10.30.150, 10.10.40.200, and 10.10.50.250, the range address would be 10.10.0.0.
Range Area ID	(Read-only) Displays the OSPF area ID for the ONS 15600s. This is either the ID in the DCC OSPF Area ID field or the ID in the Area ID for LAN Port field.
Mask Length	(Read-only) Displays the subnet mask length.
Mask	(Read-only) Displays the subnet mask IP address.
Advertise	(Read-only) Indicates whether the OSPF routing table is advertised.

B.11.1.3.5  OSPF Virtual Links Subtab

The OSPF Virtual Links subtab allows you to view information about OSPF virtual links and create or delete virtual links.

---

Note You cannot create a new virtual link unless OSPF is active on the LAN.

---

Table B-175 Field Descriptions for the OSPF Virtual Links Subtab

Field	Description
Neighbor	(Read-only) Displays the router ID of the Area 0 router.
Transit Delay	(Read-only) Displays the service speed. One second is the default.
Retransmit Interval	(Read-only) Displays the time that will elapse before a packet is resent. Five seconds is the default.
Hello Interval	(Read-only) Displays the number of seconds between OSPF hello packet advertisements sent by OSPF routers. Ten seconds is the default.
Dead Interval	(Read-only) Displays the number of seconds that will pass while the packets of an OSPF router are not visible before its neighbors declare the router down. Forty seconds is the default.
Authentication Type	(Read-only) Displays the authentication type.
Authentication Key	(Read-only) Displays the authentication key.

B.11.1.3.6  SNMP Subtab

The SNMP subtab allows you to view SNMP information and create or delete SNMP trap destinations.

Table B-176 Field Descriptions for the SNMP Subtab

Field	Description
IP Address	The IP address of the NMS.
Community Name	The SNMP community name. Note The SNMP community string cannot be blank in CTM. If a blank community string is required in CTC builds earlier than R4.6, you must set the blank community string in CTC.
UDP Port	The UDP port for SNMP. The default UDP port is 162.
Trap Version	The trap version, either SNMP version 1 or version 2. See your NMS documentation to determine whether to use SNMP version 1 or version 2.

B.11.1.3.7  Firewall/Proxy Subtab

The Firewall/Proxy subtab allows you to use an NE as a proxy server and/or as a firewall.

Table B-177 Field Descriptions for the Firewall/Proxy Subtab

Field	Description
Enable Proxy	If checked, enables the proxy to allow the NE to relay packets to DCC-only connected NEs. Disabling the proxy prevents the NE from relaying packets to DCC-only connected NEs, and can lead to a loss of connectivity.
With Port	(Read-only) Displays the port that is used by the proxy server. The port is 1080.
Enable Firewall	If checked, blocks packets routed between the local area and DCC networks. This causes a loss of connectivity to DCC-only connected NEs. CTM cannot reestablish the connection unless the proxy is enabled. Additionally, all NEs connected to the LAN must also have their firewall enabled, or connectivity problems will result.

B.11.1.3.8  Routing Table Subtab

The Routing Table subtab allows you to view the OSPF routing table.

Table B-178 Field Descriptions for the Routing Table Subtab

Field	Description
Destination	(Read-only) Displays the IP address of the destination network or host. Destination (0.0.0.0) is the default route entry. All undefined destination network or host entries on this routing table will be mapped to the default route entry.
Mask	(Read-only) Displays the subnet mask used to reach the destination host or network. Mask (0.0.0.0) is always 0 for the default route.
Gateway	(Read-only) Displays the IP address of the gateway used to reach the destination network or host. All outbound traffic belonging to this network is sent to this gateway. Gateway (172.20.214.1) is the default gateway address. All outbound traffic that cannot be found in this routing table or is not on the node's local subnet will be sent to this gateway.
Usage	(Read-only) Shows the number of times the listed route has been used.
Interface	(Read-only) Shows the ONS 15600 interface used to access the destination. Values are: •cpm0—The ONS 15600 Ethernet interface (that is, the RJ-45 jack on the TCC+/TCC2 and the LAN 1 pins on the backplane) •pdcc0—An SDCC interface (that is, an OC-N trunk card identified as the SDCC termination) •lo0—A loopback interface

B.11.1.3.9  Internal Subnet Subtab

The Internal Subnet subtab allows you to change the class B subnet address for timing and shelf controller (TSC) cards. TSC cards perform all system-timing functions for each ONS 15600 SONET. To avoid IP address conflicts, you should change the class B subnet address if your internal network uses the same address range as the default subnet addresses.

Table B-179 Field Descriptions for the Internal Subnet Subtab

Field	Description
TSC1	Enter the class B subnet address for the first TSC.
TSC2	If two TSCs are installed, enter the class B subnet address for the second TSC.

B.11.1.3.10  Proxy Tunnels Subtab

The Proxy Tunnels subtab allows you to configure source and destination information for proxy tunnels.

Table B-180 Field Descriptions for the Proxy Tunnels Subtab

Field	Description
Source Address	Specify the source IP address in the source-destination pair for the tunnel that will be routed through the proxy server.
Source Mask	Specify the source subnetwork mask in the source-destination pair for the tunnel that will be routed through the proxy server.
Destination Address	Specify the destination IP address in the source-destination pair for the tunnel that will be routed through the proxy server.
Destination Mask	Specify the destination subnetwork mask in the source-destination pair for the tunnel that will be routed through the proxy server.

B.11.1.3.11  Firewall Tunnels Subtab

The Firewall Tunnels subtab allows you to configure source and destination information for firewall tunnels.

Table B-181 Field Descriptions for the Firewall Tunnels Subtab

Field	Description
Source Address	Specify the source IP address in the source-destination pair for the tunnel that will be routed through the firewall.
Source Mask	Specify the source subnetwork mask in the source-destination pair for the tunnel that will be routed through the firewall.
Destination Address	Specify the destination IP address in the source-destination pair for the tunnel that will be routed through the firewall.
Destination Mask	Specify the destination subnetwork mask in the source-destination pair for the tunnel that will be routed through the firewall.

B.11.1.4  DCC Tab

The DCC tab allows you to create, delete, and view SONET and SDH DCCs. The DCC tab contains the following subtabs:

•SDCC Subtab

•LDCC Subtab

B.11.1.4.1  SDCC Subtab

The SDCC subtab allows you to create, delete, and view SDCCs.

Table B-182 Field Descriptions for the SDCC Subtab

Field	Description
SDCC Terminations	Displays the slot, port, and card type of an SDCC termination. Click Create to create a new SDCC termination; click Delete to delete the selected SDCC termination.
OSPF Disabled on Link	Check if you want to prevent the advertisement of the OSPF routing table.
Foreign	A check mark indicates that the far-end node is a non-ONS node.
Foreign IP	Displays the foreign node IP address.
Service State	Select the state of the SDCC termination: •IS-NR—In Service-Normal •OOS-AU—Out of Service-Autonomous •OOS-MA—Out of Service-Management •OOS-AUMA—Out of Service-Autonomous and Management In addition, a secondary state provides additional information about the status of the entity. Values for secondary state are: •MEA—Mismatch of equipment due to invalid equipment insertion •UEQ—Unequipped; there is nothing in the slot •UAS—Unassigned; the entity does not exist, has not been created, or has been deleted •SWDL—Software download in progress •MT—Maintenance, as per the Admin State change •AINS—Automatic in service •DSBLD—Traffic is disabled on the entity •LPBK—Port or connection has a loopback on it

B.11.1.4.2  LDCC Subtab

The LDCC subtab allows you to create, delete, and view LDCCs.

Table B-183 Field Descriptions for the LDCC Subtab

Field	Description
LDCC Terminations	Displays the slot, port, and card type of an LDCC termination. Click Create to create a new LDCC termination; click Delete to delete the selected LDCC termination.
OSPF Disabled on Link	Check if you want to prevent the advertisement of the OSPF routing table.
Foreign	A check mark indicates that the far-end node is a non-ONS node.
Foreign IP	Displays the foreign node IP address.
Service State	Select the state of the LDCC termination: •IS-NR—In Service-Normal •OOS-AU—Out of Service-Autonomous •OOS-MA—Out of Service-Management •OOS-AUMA—Out of Service-Autonomous and Management In addition, a secondary state provides additional information about the status of the entity. Values for secondary state are: •MEA—Mismatch of equipment due to invalid equipment insertion •UEQ—Unequipped; there is nothing in the slot •UAS—Unassigned; the entity does not exist, has not been created, or has been deleted •SWDL—Software download in progress •MT—Maintenance, as per the Admin State change •AINS—Automatic in service •DSBLD—Traffic is disabled on the entity •LPBK—Port or connection has a loopback on it

B.11.1.5  Timing Tab

The Timing tab contains the following subtabs:

•General Subtab

•Reference List Subtab

•Status Subtab

•Timing Report Subtab

B.11.1.5.1  General Subtab

The General subtab displays general timing information.

Table B-184 Field Descriptions for the General Subtab

Field	Description
General Timing
Timing Mode	Set to External if the ONS 15600 derives its timing from a BITS source wired to the backplane pins; set to Line if timing is derived from an OC-N card that is optically connected to the timing node.
SSM Message Set	Choose the SSM set level supported by your network. SSM is a SONET protocol that communicates information about the quality of the timing source. SSM messages are carried on the S1 byte of the SONET Line layer. They enable SONET devices to automatically select the highest quality timing reference and to avoid timing loops. If a Generation 1 node receives a Generation 2 message, the message will be mapped down to the next available Generation 1. For example, an ST3E message becomes an ST3.
Revertive	If checked, the ONS 15600 reverts to a primary reference source after the conditions that caused it to switch to a secondary timing reference are corrected.
Reversion Time	Specify the reversion time in half-minute increments.
Quality of RES	If your timing source supports the reserved S1 byte, you set the timing quality here. (Most timing sources do not use RES.) Qualities are displayed in descending quality order as ranges. For example, ST3 < RES < ST2 means the timing reference is higher than a Stratum 3 and lower than a Stratum 2.
BITS-IN-OUT Facility Type
In Facility Type	Provision the BITS In facility type.
Out Facility Type	Provisions the BITS Out facility type.
BITS IN Facilities
In State	Set the BITS reference to IS (In Service) or OOS (Out of Service). For nodes set to Line timing with no equipment timed through BITS Out, set the state to OOS. For nodes using External timing or Line timing with equipment timed through BITS Out, set the state to IS.
Coding	Set to the coding used by your BITS reference, either B8ZS or AMI.
Framing	Set to the framing used by your BITS reference, either ESF or SF (D4). SSM is not available with Super Frame.
Sync Messaging	If checked, enables the Synchronization Status Message (SSM) for BITS In. (SSM is not available if Framing is set to Super Frame.)
BITS OUT Facilities
Out State	Set the BITS reference to IS or OOS. For nodes set to Line timing with no equipment timed through BITS Out, set the state to OOS. For nodes using External timing or Line timing with equipment timed through BITS Out, set the state to IS.
Coding	Set to the coding used by your BITS reference, either B8ZS or AMI.
Framing	Set to the framing used by your BITS reference, either ESF or SF (D4). SSM is not available with Super Frame.
AIS Threshold	If SSM is disabled or Super Frame is used, sets the quality level where a node sends an AIS from the BITS-1 Out and BITS-2 Out backplane pins. An AIS is raised when the optical source for the BITS reference falls to or below the SSM quality level defined in this field.

B.11.1.5.2  Reference List Subtab

The Reference List subtab provides timing reference information.

Table B-185 Field Descriptions for the Reference List Subtab

Field	Description
NE References	Allows you to define three timing references (Ref-1, Ref-2, Ref-3). The node uses Reference 1 unless a failure occurs on that reference, in which case, the node uses Reference 2. If that fails, the node uses Reference 3, which is typically set to Internal Clock. This is the Stratum 3 clock provided on the TCC+. The options displayed depend on the Timing Mode setting. •Timing Mode set to External—Options are BITS-1, BITS-2, and Internal Clock. •Timing Mode set to Line—Options are the node's working optical cards and Internal Clock. Select the cards/ports that are directly or indirectly connected to the node wired to the BITS source, that is, the node's trunk cards. Set Reference 1 to the trunk card that is closest to the BITS source. For example, if Slot 5 is connected to the node wired to the BITS source, select Slot 5 as Reference 1. •Timing Mode set to Mixed—Both BITS and optical cards are available, allowing you to set a mixture of external BITS and optical trunk cards as timing references.
BITS-1 Out References	Define the timing references for equipment wired to the BITS Out backplane pins. Normally, BITS Out is used with line nodes, so the options displayed are the working optical cards. BITS-1 and BITS-2 Out are enabled as soon as BITS-1 and BITS-2 facilities are placed in service.
BITS-2 Out References	Define the timing references for equipment wired to the BITS Out backplane pins. Normally, BITS Out is used with line nodes, so the options displayed are the working optical cards. BITS-1 and BITS-2 Out are enabled as soon as BITS-1 and BITS-2 facilities are placed in service.

B.11.1.5.3  Status Subtab

The Status subtab displays timing status information.

Table B-186 Field Descriptions for the Status Subtab

Field	Description
NE Clock
NE Reference	Set the NE timing reference to internal, BITS-1, or BITS-2.
Status	(Read-only) Displays the status of the NE clock.
Operations	Execute a switch on the NE timing reference.
BITS-1 Out
BITS-1 Out	Set the BITS-1 out timing reference.
Status	(Read-only) Displays the status of the BITS-1 out timing reference.
Operations	Execute a switch on the BITS-1 out timing reference.
BITS-2 Out
BITS-2 Out	Set the BITS-2 out timing reference.
Status	(Read-only) Displays the status of the BITS-2 out timing reference.
Operations	Execute a switch on the BITS-2 out timing reference.

B.11.1.5.4  Timing Report Subtab

The Timing Report subtab summarizes the NE's current timing settings.

B.11.1.6  Protection Tab

The Protection tab contains the following subtabs:

•Protection Groups Subtab

•Operations Subtab

B.11.1.6.1  Protection Groups Subtab

The Protection Groups subtab displays a list of available protection groups and allows you to create, delete, and view protection groups.

Table B-187 Field Descriptions for the Protection Groups Subtab

Field	Description
Protection Groups
Displays a list of available protection groups. Click the Create or Delete button to create a new protection group or delete an existing one.
Selected Protection Group
Name	Modify the name of the selected protection group. The name can have up to 32 alphanumeric characters.
Type	Choose the protection type (1:1, 1:N, or 1+1) from the drop-down list. The protection selected determines the cards that are available to serve as protect and working cards. For example, if you choose 1:N protection, only DS-1N and DS-3N cards are displayed. 1+1 protection is only used for optical cards.
Protect Module	Choose the protect card if using 1:1 or 1:N protection.
Available Entities	Displays a list of available entities. You can toggle between available and working entities.
Working Entities	Displays a list of working entities. You can toggle between working and available entities.
Bidirectional Switching	Click if you want both the transmit and the receive channels to switch if a failure occurs on one. This option is only available if you select 1+1 (port) type.
Revertive	If checked, the ONS 15600 reverts traffic to the working card or port after failure conditions are corrected and remain correct for the amount of time entered in Reversion Time.
Reversion Time	If Revertive is checked, enter the amount of time following failure condition correction that should elapse before the ONS 15600 switches back to the working card or port.

B.11.1.6.2  Operations Subtab

The Operations subtab displays protection group operation information.

Table B-188 Field Descriptions for the Operations Subtab

Field	Description
Protection Groups	Displays a list of available protection groups.
Protection Group Details	Displays details about the selected protection groups and allows you to execute switch commands.
Switch Commands	Allows you to perform a manual switch, perform a forced switch, or clear the existing command switching.
Inhibit Switching	Allows you to inhibit unlock switching, lock out switching, or lock on switching.

B.11.1.7  NE Defaults Tab

The NE Defaults tab displays a list of default thresholds for the ONS 15600 SONET NE.

Table B-189 Field Descriptions for the NE Defaults Tab

Field	Description
Parameter (Units)	Lists the default NE parameter, with its corresponding unit of measure.
Value	Shows the default parameter value, and allows you to change the default.

You can load different NE defaults using the NE Defaults Management window. See 4.5.8  Restoring NE Defaults, page 4-67.

B.11.1.8  Security Tab

The Security tab allows you to view and edit security features for the ONS 15600 SONET NE. The security tab contains the following subtabs:

•Policy Subtab

•Password Subtab

•Access Subtab

•Legal Disclaimer Subtab

B.11.1.8.1  Policy Subtab

The Policy subtab allows you to specify user security parameters.

---

Note If the user is already logged in, any changes to the NE user type settings become applicable only when the user next logs in.

---

Table B-190 Field Descriptions for the Policy Subtab

Field	Description
Idle User Timeout
Each CTC or TL1 user can be idle during his or her login session for a specified amount of time before the CTC window is locked. The lockouts prevent unauthorized users from making changes. Higher-level users have shorter default idle periods and lower-level users have longer or unlimited default idle periods. The user idle period can be modified by a SuperUser. Note A user already logged into the node is not affected by a change to the Idle User Timeout policy.
Retrieve	Set the idle user timeout for a CTC Retrieve user.
Maintenance	Set the idle user timeout for a CTC Maintenance user.
Provisioner	Set the idle user timeout for a CTC Provisioner user.
SuperUser	Set the idle user timeout for a CTC SuperUser user.
User Lockout
Manual Unlock by SuperUser	If checked, the CTC SuperUser user must manually unlock locked out CTC users. If unchecked, locked out CTC users are automatically unlocked after the lockout duration period elapses.
Lockout Duration	Set the lockout duration period for locked out CTC users. This field is enabled only if the Manual Unlock by SuperUser check box is unchecked.
Failed Logins Before Lockout	Set the number of failed logins before the CTC user is automatically locked out.
Other
Single Sessions per User	If checked, each CTC user can only launch one session at a time.
Disable Inactive User	If checked, inactive users are disabled automatically for the amount of time in the Inactive Duration field.
Inactive Duration	Specify the inactive duration in days. The valid range is 45 to 90 days; the default is 45 days.

B.11.1.8.2  Password Subtab

The Password subtab allows you to specify user password security parameters.

Table B-191 Field Descriptions for the Password Subtab

Field	Description
Password Change
Prevent Reusing Last	Prevents setting a CTC user's current password to one of the most recent passwords. You can set the number of most recent passwords that cannot be reused.
Disable Password Flipping	If checked, users are not allowed to change passwords for the number of days specified in the Cannot Change New Password For field.
Cannot Change New Password For	Enter the number of days that will elapse before the user can change the password.
Force Password Change After Assigned	If checked, during the first successful login, the user is forced to change the password.
Password Aging
Enable Password Aging	Check this check box to enable password aging.
Aging Period	Enter the aging period, in days, for Retrieve, Maintenance, Provisioner, and SuperUser CTC users. After the aging period expires, CTC users are forced to change their passwords.
Warning Period	Enter the warning period, in days, for Retrieve, Maintenance, Provisioner, and SuperUser CTC users. After the warning period expires, CTC users are warned that their passwords will soon expire.

B.11.1.8.3  Access Subtab

The Access subtab allows you to configure LAN and shell access to the NE.

Table B-192 Field Descriptions for the Access Subtab

Field	Description
Access
LAN Access	Specify the type of LAN access allowed. Values are Backplane Only, No LAN Access, or Front and Backplane. Note After setting the LAN access to the backplane, the CTM client is unusable for 4 to 5 minutes.
Restore Timeout	This time period begins if No LAN Access is selected and all DCC connections are lost. If the time expires before a DCC is restored, LAN access is restored so that the node is not isolated. When the DCC comes back, LAN access returns to its specified settings. The range is 0 (never) to 60 minutes; the default is 5 minutes.
Shell Access
Shell Access on	Specify shell access on Telnet or SSH.
SSH Port	(Read-only) Indicates the SSH port number that will be used if the SSH radio button is selected.
Telnet Port	This is enabled if you selected the Telnet radio button. Enter the Telnet port number.
Use Standard Telnet Port	If checked, the standard Telnet port is used for Telnet access.
Other
PM Clearing Privilege	Select the users privilege that allows clearing PM statistics for the NE.

B.11.1.8.4  Legal Disclaimer Subtab

The Legal Disclaimer subtab allows you to edit the NEs advisory message and preview the disclaimer.

Table B-193 Field Descriptions for the Legal Disclaimer Subtab

Field	Description
Advisory Message	The existing message is a default, noncustomer-specific disclaimer. If you want to edit this statement with specifics for your company, you can change the text. You can also use the following HTML commands to format the text: <b> Begins boldface font </b> Ends boldface font <center> Aligns type in the center of the window </center> Ends the center alignment <font=n, where n = point size> Changes the font to the new size </font> Ends the font size command <p> Creates a line break <sub> Begins subscript </sub> Ends subscript <sup> Begins superscript </sup> Ends superscript <u> Starts underline </u> Ends underline
Preview	Allows you to view the advisory message before saving it.

B.11.1.9  Alarm Tab

The Alarm tab allows you to change default alarm severities by creating unique alarm profiles for individual ONS 15600 SONET nodes. The Alarm tab contains the following subtabs:

•Profile Subtab

•Alarm Behavior Subtab

B.11.1.9.1  Profile Subtab

The Profile subtab allows you to select, create, or delete alarm profiles.

Table B-194 Field Descriptions for the Profile Subtab

Field	Description
Alarm Profile Name	Choose an alarm profile for the NE from the drop-down list. Click Create to create a new alarm profile for the NE. Click Delete to delete an alarm profile from the NE.
Condition	Displays the alarm condition.
Severity	Displays the alarm severity.

B.11.1.9.2  Alarm Behavior Subtab

The Alarm behavior subtab allows you to change default alarm severities by creating unique alarm profiles.

Table B-195 Field Descriptions for the Alarm Behavior Subtab

Field	Description
Alarm Profile	Choose a global alarm profile for the NE from the drop-down list.
Suppress Alarms	If checked, all alarms are suppressed.
Slot Number	Displays the location of the module.
Equipment Type	Displays the type of module in the slot.
Profile	Choose an alarm profile for the slot from the drop-down list.
Suppress Alarms	Indicates whether or not the alarms for the particular card are suppressed. If checked, all alarms are suppressed for the port.

B.11.1.10  Maintenance Tab

The ONS 15600 SONET hardware keeps track of which copies of data (backplane STS), SYNC, O&M, and CLK are currently being used by I/O and CXC cards.

B.11.1.10.1  Preferred Copy Subtab

The Preferred Copy subtab allows you to change the preferred data source and view the clock and SYNC copy.

Table B-196 Field Descriptions for the Preferred Copy Subtab

Field	Description
Preferred Data	Allows you to select the data copy (CXC) when both the CXC cards are present in the system.
Selected Data	Displays the data copy currently being used.
Preferred Clock	Displays the preferred clock and SYNC copy.
Selected Clock	Displays the clock and SYNC copy currently being used.

B.11.1.11  Alarm Extenders Tab

The Alarm Extenders tab allows you view external alarm information. The Alarm Extenders tab contains the following subtabs:

•External Alarms Subtab

•External Controls Subtab

B.11.1.11.1  External Alarms Subtab

The External Alarms subtab allows you to view and update external alarm information.

Table B-197 Field Descriptions for the External Alarms Subtab

Field	Description
Input Number	The alarm input number.
Enabled	Check to activate the fields for the alarm input number.
Alarm Type	Choose an alarm type from the provided list.
Severity	Choose a severity from the list.
Raised When	Choose the contact condition that will trigger the alarm in CTC.
Virtual Wire	To assign the external device to a virtual wire, choose a virtual wire from the list, or choose None if no assignment is required.
Description	A default description is provided in this line for every external alarm that is enabled.
Raised	Indicates if an alarm has been raised.
Contact Status	Indicates the current status of the contact.

B.11.1.11.2  External Controls Subtab

The External Controls subtab allows you to view and update external controls.

Table B-198 Field Descriptions for the External Controls Subtab

Field	Description
Control Number	The control number.
Enabled	Check to activate the fields for the control number.
Control Type	Choose a control type from the provided list.
Trigger Type	Choose a trigger type: a local minor, major, or critical alarm; a remote minor, major, or critical alarm; or a virtual wire activation.
Description	Enter a description.
Current State	The current state of the control.
Auto State	The auto state of the control.
Contact Setting	The current contact setting.

B.11.1.12  BLSR Tab

The BLSR tab allows you to view BLSR information and create or delete BLSRs.

Table B-199 Field Descriptions for the BLSR Tab

Field	Description
Fiber Type	Indicates whether the fiber type is 2-fiber or 4-fiber. Note 4-fiber BLSR is not available for the ONS 15600 SONET.
Rate	Select the BLSR rate.
Ring Name	Assign a ring ID (a number from 0 to 9999). Nodes in the same BLSR must have the same ring ID.
Node ID	Assign a node ID. The node ID identifies the node to the BLSR. Nodes in the same BLSR must have unique node IDs.
Ring Reversion	Set the amount of time that will pass before the traffic reverts to the original working path. The default is 5 minutes. All nodes in a BLSR ring should have the same ring reversion setting, particularly if never (nonrevertive) is selected.
Span Reversion	Set the amount of time to pass before the span reverts to the working path.
East Line	Assign the east BLSR port.
East Switch	Displays a list of switch commands for the east port.
West Line	Assign the west BLSR port.
West Switch	Displays a list of switch commands for the west port.
East Protect	Assign the east BLSR protect port.
West Protect	Assign the west BLSR protect port.

---

Note See Table 1-19 on page 1-38 for the descriptions of the actions that can be performed using the action buttons at the bottom of the window.

---

B.12  ONS 15600 SDH NE Explorer

When you choose Configuration > NE Explorer for the ONS 15600 SDH, the window displayed by CTM consists of a tree on the left side and a property sheet on the right. (See Figure B-17.) The tree provides a hierarchical view and alarm status of the NE's physical shelves and slots. The property sheet shows information about the selected entity (NE or slot). See Node Property Sheet—ONS 15600 SDH for more information.

Figure B-17 NE Explorer—ONS 15600 SDH

---

Note If CTC is launched from the web browser for an ONS 15600 SDH node, the CTC GUI might look different from when it is launched from CTM. This discrepancy occurs because the latest version of CTC (for NE releases supported by CTM) is packaged with CTM. If launched from a browser, the CTC software is retrieved from the NE itself, which might be a different version than that packaged with CTM.

---

When an NE Explorer is in autorefresh mode, all values of an entity that is being edited by the user are automatically refreshed. You will lose all of your changes unless you click the Apply button. To enable autorefresh, click the Refresh Data button in the NE Explorer.

B.12.1  Node Property Sheet—ONS 15600 SDH

The node property sheet displays information about the ONS 15600 SDH NE. The ONS 15600 SDH property sheet contains the following tabs, some of which apply only to a specific NE version:

•Shelf View Tab

•Identification Tab

•Network Tab

•DCC Tab

•Timing Tab

•Protection Tab

•NE Defaults Tab

•Security Tab

•Alarm Tab

•Maintenance Tab

•Alarm Extenders Tab

•MS-SPRing Tab

B.12.1.1  Shelf View Tab

The Shelf View tab displays a graphic of the ONS 15600 SDH that is selected in the NE Explorer tree. Moving the mouse pointer over the NE, its shelves, slots, or cards displays the current alarms for the shelf, slot, or card. Double-clicking a slot or card displays the slot or card in the property sheet. The right-click menu allows you to reset, delete, or change a card. For unprovisioned slots, the right-click menu allows you to add a card.

B.12.1.2  Identification Tab

The Identification tab displays identification information about the ONS 15600 SDH NE.

Table B-200 Field Descriptions for the Identification Tab

Field	Description
NE ID	Displays the ID of the NE from the Domain Explorer.
Description	Displays the description of the NE from the Domain Explorer.
NE Model	Displays the NE model type.
Software Version	Displays the current running version of the system software.
Contact	Displays the name of the node contact person and the phone number.
System Description	Displays a description of the NE.
SNTP Settings
Use NTP/SNTP Server	If checked, CTC uses an SNTP server to set the date and time of the node. Using an SNTP server ensures that all ONS 15600 SDH network nodes use the same date and time reference. The server synchronizes the node's time after power outages or software upgrades. If you check the Use NTP/SNTP Server check box, enter the server's IP address in the next field. If you do not use an SNTP server, complete the Time and Time Zone fields. The ONS 15600 SDH will use these fields for alarm dates and times.
SNTP Server	Displays the SNTP server IP address.
Location
Latitude	Allows you to set the latitude of the NE. Select North or South from the drop-down list, then enter the degrees and minutes (or click the up and down arrows to increase or decrease each by 1 unit).
Longitude	Allows you to set the longitude of the NE. Select East or West from the drop-down list, then enter the degrees and minutes (or click the up and down arrows to increase or decrease each by 1 unit).
Date and Time
Time	Displays the NE date and time.
Time Zone	Displays the time zone where the NE is located.
Use Daylight Savings Time	If checked, Daylight Savings Time is observed.

B.12.1.3  Network Tab

The Network tab displays information about the NE network address. The Network tab contains the following subtabs:

•Address Subtab

•Static Routes Subtab

•OSPF Subtab

•OSPF Area Range Subtab

•OSPF Virtual Links Subtab

•SNMP Subtab

•Firewall/Proxy Subtab

•Routing Table Subtab

•Internal Subnet Subtab

B.12.1.3.1  Address Subtab

The Address subtab allows you to view and change information about the NE network address.

Table B-201 Field Descriptions for the Address Subtab

Field	Description
IP Address	Displays the IP address of the NE.
Default Router	Displays the IP address of the default router.
Subnet Mask	Displays the subnetwork mask ID of the NE.
MAC Address	(Read-only) Displays the ONS 15600 SDH address as it is identified on the IEEE 802 MAC layer.
Forward DHCP Requests	If checked, forwards DHCP requests to the IP address entered in the DHCP Server field.
DHCP Server	Displays the IP address of the DHCP server.
TSC CORBA (IIOP) Listener Port	Allows you to set a listener port to allow communication with the ONS 15600 SDH through firewalls.

B.12.1.3.2  Static Routes Subtab

The Static Routes subtab allows you to view information about CTM and ONS 15600 SDH connectivity and create or delete static routes.

Table B-202 Field Descriptions for the Static Routes Subtab

Field	Description
Destination	(Read-only) Displays the IP address of the computer running CTM.
Mask	(Read-only) Displays the subnetwork mask.
Next Hop	(Read-only) Displays the IP address of the router port or the node IP address if the CTM computer is connected to the node directly.
Cost	(Read-only) Displays the number of hops between the ONS 15600 SDH and the computer.

B.12.1.3.3  OSPF Subtab

The OSPF subtab displays OSPF information. OSPF is a link state Internet routing protocol.

Table B-203 Field Descriptions for the OSPF Subtab

Field	Description
Slot	Displays the slot number.
Port	Displays the port number.
DCC OSPF Area ID	Displays the number that identifies the ONS 15600 SDH as a unique OSPF area. The OSPF area number can be from 0.0.0.0 to 255.255.255.255. The number must be unique to the LAN OSPF area.
SDCC Metric	Sets a cost for sending packets across the SDCC, which is used by OSPF routers to calculate the shortest path. This value should always be higher than the LAN metric. The default DCC metric is 100. This value is normally unchanged.
OSPF Active on LAN	If checked, enables the ONS 15600 SDH OSPF topology to be advertised to OSPF routers on the LAN. Enable this field on ONS 15600 SDHs that directly connect to OSPF routers.
LAN Port Area ID	Displays the OSPF area ID for the router port where the ONS 15600 SDH is connected. (This number is different from the DCC OSPF Area ID.)
Router Priority	Displays the value used for this NE in designated router election. The default value is zero (0). A router that has Router Priority set to 0 is ineligible to become a designated router on the attached network.
Dead Interval	Displays the number of seconds that will pass while an OSPF router's packets are not visible before its neighbors declare the router down. Forty seconds is the default.
Retransmit Interval	Displays the time that will elapse before a packet is resent. Five seconds is the default.
Hello Interval	Displays the number of seconds between OSPF hello packet advertisements sent by OSPF routers. Ten seconds is the default.
Transit Delay	Displays the service speed. One second is the default.
LAN Metric	Displays a cost for sending packets across the LAN. This value should always be lower than the DCC metric. Ten is the default.
Authentication Type	Displays Simple Password if the router where the ONS 15600 SDH is connected uses authentication. Otherwise, it displays No Authentication.
Authentication Key	Displays the OSPF key (password) if authentication is enabled.
Confirm Authentication Key	Retype the authentication key to confirm it.

B.12.1.3.4  OSPF Area Range Subtab

The OSPF Area Range subtab allows you to view information about OSPF area ranges and create or delete area ranges.

Table B-204 Field Descriptions for the OSPF Area Range Subtab

Field	Description
Range Address	(Read-only) Displays the area IP address for the ONS 15600 SDHs that reside within the OSPF area. For example, if the ONS 15600 SDH OSPF area includes nodes with IP addresses 10.10.20.100, 10.10.30.150, 10.10.40.200, and 10.10.50.250, the range address would be 10.10.0.0.
Range Area ID	(Read-only) Displays the OSPF area ID for the ONS 15600 SDHs. This is either the ID in the DCC OSPF Area ID field or the ID in the Area ID for LAN Port field.
Mask Length	(Read-only) Displays the subnet mask length.
Mask	(Read-only) Displays the subnet mask IP address.
Advertise	(Read-only) Indicates whether the OSPF routing table is advertised.

B.12.1.3.5  OSPF Virtual Links Subtab

The OSPF Virtual Links subtab allows you to view information about OSPF virtual links and create or delete virtual links.

---

Note You cannot create a new virtual link unless OSPF is active on the LAN.

---

Table B-205 Field Descriptions for the OSPF Virtual Links Subtab

Field	Description
Neighbor	(Read-only) Displays the router ID of the Area 0 router.
Transit Delay	(Read-only) Displays the service speed. One second is the default.
Retransmit Interval	(Read-only) Displays the time that will elapse before a packet is resent. Five seconds is the default.
Hello Interval	(Read-only) Displays the number of seconds between OSPF hello packet advertisements sent by OSPF routers. Ten seconds is the default.
Dead Interval	(Read-only) Displays the number of seconds that will pass while the packets of an OSPF router are not visible before its neighbors declare the router down. Forty seconds is the default.
Authentication Type	(Read-only) Displays the authentication type.
Authentication Key	(Read-only) Displays the authentication key.

B.12.1.3.6  SNMP Subtab

The SNMP subtab allows you to view SNMP information and create or delete SNMP trap destinations.

Table B-206 Field Descriptions for the SNMP Subtab

Field	Description
IP Address	The IP address of the NMS.
Community Name	The SNMP community name. Note The SNMP community string cannot be blank in CTM. If a blank community string is required in CTC builds earlier than R4.6, you must set the blank community string in CTC.
UDP Port	The UDP port for SNMP. The default UDP port is 162.
Trap Version	The trap version, either SNMP version 1 or version 2. See your NMS documentation to determine whether to use SNMP version 1 or version 2.

B.12.1.3.7  Firewall/Proxy Subtab

The Firewall/Proxy subtab allows you to use an NE as a proxy server and/or as a firewall.

Table B-207 Field Descriptions for the Firewall/Proxy Subtab

Field	Description
Enable Proxy	If checked, enables the proxy to allow the NE to relay packets to DCC-only connected NEs. Disabling the proxy prevents the NE from relaying packets to DCC-only connected NEs, and can lead to a loss of connectivity.
With Port	(Read-only) Displays the port that is used by the proxy server. The port is 1080.
Enable Firewall	If checked, blocks packets routed between the local area and DCC networks. This causes a loss of connectivity to DCC-only connected NEs. CTM cannot reestablish the connection unless the proxy is enabled. Additionally, all NEs connected to the LAN must also have their firewall enabled, or connectivity problems will result.

B.12.1.3.8  Routing Table Subtab

The Routing Table subtab allows you to view the OSPF routing table.

Table B-208 Field Descriptions for the Routing Table Subtab

Field	Description
Destination	(Read-only) Displays the IP address of the destination network or host. Destination (0.0.0.0) is the default route entry. All undefined destination network or host entries on this routing table will be mapped to the default route entry.
Mask	(Read-only) Displays the subnet mask used to reach the destination host or network. Mask (0.0.0.0) is always 0 for the default route.
Gateway	(Read-only) Displays the IP address of the gateway used to reach the destination network or host. All outbound traffic belonging to this network is sent to this gateway. Gateway (172.20.214.1) is the default gateway address. All outbound traffic that cannot be found in this routing table or is not on the nodes local subnet will be sent to this gateway.
Usage	(Read-only) Shows the number of times the listed route has been used.
Interface	(Read-only) Shows the ONS 15600 SDH interface used to access the destination. Values are: •cpm0—The ONS 15600 SDH Ethernet interface (that is, the RJ-45 jack on the TCC+/TCC2 and the LAN 1 pins on the backplane) •pdcc0—An SDCC interface (that is, an OC-N trunk card identified as the SDCC termination) •lo0—A loopback interface

B.12.1.3.9  Internal Subnet Subtab

The Internal Subnet subtab allows you to change the class B subnet address for TSC cards. TSC cards perform all system-timing functions for each ONS 15600 SDH. To avoid IP address conflicts, you should change the class B subnet address if your internal network uses the same address range as the default subnet addresses.

Table B-209 Field Descriptions for the Internal Subnet Subtab

Field	Description
TSC1	Enter the class B subnet address for the first TSC.
TSC2	If two TSCs are installed, enter the class B subnet address for the second TSC.

B.12.1.4  DCC Tab

The DCC tab allows you to create, delete, and view SONET and SDH DCCs.

Table B-210 Field Descriptions for the DCC Tab

Field	Description
SDCC Terminations	Displays the slot, port, and card type of an SDCC termination.
OSPF Disabled on Link	Check if you want to prevent the advertisement of the OSPF routing table.
Admin State	Displays the state of the SDCC termination.

B.12.1.5  Timing Tab

The Timing tab contains the following subtabs:

•General Subtab

•Reference List Subtab

•Status Subtab

•Timing Report Subtab

B.12.1.5.1  General Subtab

The General subtab displays general timing information.

Table B-211 Field Descriptions for the General Subtab

Field	Description
General Timing
Timing Mode	Set to External if the ONS 15600 SDH derives its timing from a BITS source wired to the backplane pins; set to Line if timing is derived from an OC-N card that is optically connected to the timing node.
SSM Message Set	Choose the SSM set level supported by your network. SSM is a SONET protocol that communicates information about the quality of the timing source. SSM messages are carried on the S1 byte of the SONET Line layer. They enable SONET devices to automatically select the highest quality timing reference and to avoid timing loops. If a Generation 1 node receives a Generation 2 message, the message will be mapped down to the next available Generation 1. For example, an ST3E message becomes an ST3.
Revertive	If checked, the ONS 15600 SDH reverts to a primary reference source after the conditions that caused it to switch to a secondary timing reference are corrected.
Reversion Time	Specify the reversion time in half-minute increments.
Hold Off Time	If a value other than zero is provided, this is the amount of time the ONS 15600 SDH will wait before including a previously failed timing source as available and valid. The default is None.
BITS Facilities
E1, T1, 2.048 MHz, 64 KHz	Select the speed of the BITS facility.
State	Set the BITS reference to IS or OOS. For nodes set to Line timing with no equipment timed through BITS Out, set the state to OOS. For nodes using External timing or Line timing with equipment timed through BITS Out, set the state to IS.
Coding	Set to the coding used by your BITS reference, either B8ZS or AMI.
Framing	Set to the framing used by your BITS reference, either ESF or SF (D4). SSM is not available with Super Frame.
Sync Messaging	If checked, enables the Synchronization Status Message (SSM) for BITS In. (SSM is not available if Framing is set to Super Frame.)
Cable Type	Type of cable. Values are 75 ohm or 120 ohm.
Sa Bit	The Sa Bit is used to transmit the SSM message. Available Sa bits are Sa4, Sa5, Sa6, Sa7, and Sa8.

B.12.1.5.2  Reference List Subtab

The Reference List subtab provides timing reference information.

Table B-212 Field Descriptions for the Reference List Subtab

Field

Description

NE References

Allows you to define three timing references (Ref-1, Ref-2, Ref-3). The node uses Reference 1 unless a failure occurs on that reference, in which case, the node uses Reference 2. If that fails, the node uses Reference 3, which is typically set to Internal Clock. This is the Stratum 3 clock provided on the TCC+. The options displayed depend on the Timing Mode setting. •Timing Mode set to External—Options are BITS-1, BITS-2, and Internal Clock. •Timing Mode set to Line—Options are the node's working optical cards and Internal Clock. Select the cards/ports that are directly or indirectly connected to the node wired to the BITS source; that is, the node's trunk cards. Set Reference 1 to the trunk card that is closest to the BITS source. For example, if Slot 5 is connected to the node wired to the BITS source, select Slot 5 as Reference 1.

B.12.1.5.3  Status Subtab

The Status subtab displays timing status information.

Table B-213 Field Descriptions for the Status Subtab

Field	Description
NE Clock
NE Reference	Set the NE timing reference to internal, BITS-1, or BITS-2.
Status	(Read-only) Displays the status of the NE clock.
Operations	Execute a switch on the NE timing reference.
BITS-1 Out
BITS-1 Out	Set the BITS-1 out timing reference.
Status	(Read-only) Displays the status of the BITS-1 out timing reference.
Operations	Execute a switch on the BITS-1 out timing reference.
BITS-2 Out
BITS-2 Out	Set the BITS-2 out timing reference.
Status	(Read-only) Displays the status of the BITS-2 out timing reference.
Operations	Execute a switch on the BITS-2 out timing reference.

B.12.1.5.4  Timing Report Subtab

The Timing Report subtab summarizes the NE's current timing settings.

B.12.1.6  Protection Tab

The Protection tab contains the following subtabs:

•Protection Groups Subtab

•Operations Subtab

B.12.1.6.1  Protection Groups Subtab

The Protection Groups subtab displays a list of available protection groups and allows you to create, delete, and view protection groups.

Table B-214 Field Descriptions for the Protection Groups Subtab

Field	Description
Protection Groups
Displays a list of available protection groups. Click the Create or Delete button to create a new protection group or delete an existing one.
Selected Protection Group
Name	Modify the name of the selected protection group. The name can have up to 32 alphanumeric characters.
Type	Choose the protection type (1:1, 1:N, or 1+1) from the drop-down list. The protection selected determines the cards that are available to serve as protect and working cards. For example, if you choose 1:N protection, only DS-1N and DS-3N cards are displayed. 1+1 protection is only used for optical cards.
Protect Module	Choose the protect card if using 1:1 or 1:N protection.
Available Entities	Displays a list of available entities. You can toggle between available and working entities.
Working Entities	Displays a list of working entities. You can toggle between working and available entities.
Bidirectional Switching	Click if you want both the transmit and the receive channels to switch if a failure occurs on one. This option is only available if you select 1+1 (port) type.
Revertive	If checked, the ONS 15600 SDH reverts traffic to the working card or port after failure conditions are corrected and remain correct for the amount of time entered in Reversion Time.
Reversion Time	If Revertive is checked, enter the amount of time following failure condition correction that should elapse before the ONS 15600 SDH switches back to the working card or port.

B.12.1.6.2  Operations Subtab

The Operations subtab displays protection group operation information.

Table B-215 Field Descriptions for the Operations Subtab

Field	Description
Protection Groups	Displays a list of available protection groups.
Protection Group Details	Displays details about the selected protection groups and allows you to execute switch commands.
Switch Commands	Allows you to perform a manual switch, perform a forced switch, or clear the existing command switching.
Inhibit Switching	Allows you to inhibit unlock switching, lock out switching, or lock on switching.

B.12.1.7  NE Defaults Tab

The NE Defaults tab displays a list of default thresholds for the ONS 15600 SDH NE. You can load different NE defaults using the NE Defaults Management window. See 4.5.8  Restoring NE Defaults, page 4-67.

B.12.1.8  Security Tab

The Security tab allows you to view and edit the security advisory message for the ONS 15600 SDH NE. The security tab contains the following subtabs:

•Advisory Message Subtab

•Preview Subtab

B.12.1.8.1  Advisory Message Subtab

The Advisory Message subtab allows you to edit the NE's advisory message.

Table B-216 Field Descriptions for the Advisory Message Subtab

Field

Description

Advisory Message

The existing message is a default, noncustomer-specific disclaimer. If you want to edit this statement with specifics for your company, you can change the text. You can also use the following HTML commands to format the text: <b> Begins boldface font </b> Ends boldface font <center> Aligns type in the center of the window </center> Ends the center alignment <font=n, where n = point size> Changes the font to the new size </font> Ends the font size command <p> Creates a line break <sub> Begins subscript </sub> Ends subscript <sup> Begins superscript </sup> Ends superscript <u> Starts underline </u> Ends underline

B.12.1.8.2  Preview Subtab

The Preview subtab allows you to view the advisory message before saving it.

B.12.1.9  Alarm Tab

The Alarm tab allows you to change default alarm severities by creating unique alarm profiles for individual ONS 15600 SDH nodes. The Alarm tab contains the following subtabs:

•Profile Subtab

•Alarm Behavior Subtab

B.12.1.9.1  Profile Subtab

The Profile subtab allows you to select, create, or delete alarm profiles.

Table B-217 Field Descriptions for the Profile Subtab

Field	Description
Alarm Profile Name	Choose an alarm profile for the NE from the drop-down list. Click Create to create a new alarm profile for the NE. Click Delete to delete an alarm profile from the NE.
Condition	Displays the alarm condition.
Severity	Displays the alarm severity.

B.12.1.9.2  Alarm Behavior Subtab

The Alarm Behavior subtab allows you to change default alarm severities by creating unique alarm profiles.

Table B-218 Field Descriptions for the Alarm Behavior Subtab

Field	Description
Alarm Profile	Choose a global alarm profile for the NE from the drop-down list.
Suppress Alarms	If checked, all alarms are suppressed.
Slot Number	Displays the location of the module.
Equipment Type	Displays the type of module in the slot.
Profile	Choose an alarm profile for the slot from the drop-down list.
Suppress Alarms	Indicates whether or not the alarms for the particular card are suppressed. If checked, all alarms are suppressed for the port.

B.12.1.10  Maintenance Tab

The ONS 15600 SDH hardware keeps track of which copies of data (backplane STS), SYNC, O&M, and CLK are currently being used by I/O and CXC cards.

B.12.1.10.1  Preferred Copy Subtab

The Preferred Copy subtab allows you to change the preferred data source and view the clock and SYNC copy.

Table B-219 Field Descriptions for the Preferred Copy Subtab

Field	Description
Preferred Data	Allows you to select the data copy (CXC) when both the CXC cards are present in the system.
Selected Data	Displays the data copy currently being used.
Preferred Clock	Displays the preferred clock and SYNC copy.
Selected Clock	Displays the clock and SYNC copy currently being used.

B.12.1.11  Alarm Extenders Tab

The Alarm Extenders tab allows you view external alarm information. The Alarm Extenders tab contains the following subtabs:

•External Alarms Subtab

•External Controls Subtab

B.12.1.11.1  External Alarms Subtab

The External Alarms subtab allows you to view and update external alarm information.

Table B-220 Field Descriptions for the External Alarms Subtab

Field	Description
Input Number	The alarm input number.
Enabled	Check to activate the fields for the alarm input number.
Alarm Type	Choose an alarm type from the provided list.
Severity	Choose a severity from the list.
Raised When	Choose the contact condition that will trigger the alarm in CTC.
Virtual Wire	To assign the external device to a virtual wire, choose a virtual wire from the list, or choose None if no assignment is required.
Description	A default description is provided in this line for every external alarm that is enabled.
Raised	Indicates if an alarm has been raised.
Contact Status	Indicates the current status of the contact.

B.12.1.11.2  External Controls Subtab

The External Controls subtab allows you to view and update external controls.

Table B-221 Field Descriptions for the External Controls Subtab

Field	Description
Control Number	The control number.
Enabled	Check to activate the fields for the control number.
Control Type	Choose a control type from the provided list.
Trigger Type	Choose a trigger type: a local minor, major, or critical alarm; a remote minor, major, or critical alarm; or a virtual wire activation.
Description	Enter a description.
Current State	The current state of the control.
Auto State	The auto state of the control.
Contact Setting	The current contact setting.

B.12.1.12  MS-SPRing Tab

The MS-SPRing tab allows you to view MS-SPRing information and create new MS-SPRings. MS-SPRings share the ring bandwidth equally between working and protection traffic. Half of the payload bandwidth is reserved for protection in each direction, making the communication pipe half-full under normal operation. Click Create to create a new MS-SPRing; click Delete to delete an existing MS-SPRing; click Ring Map to open the Ring Map; click Squelch Table to open the Squelch table.

Table B-222 Field Descriptions for the MS-SPRing Tab

Field	Description
Type	Indicates whether the fiber type is 2-fiber or 4-fiber.
Rate	Select the MS-SPRing rate.
Ring ID	Assign a ring ID (a number from 0 to 9999). Nodes in the same MS-SPRing must have the same ring ID.
Node ID	Assign a node ID. The node ID identifies the node to the MS-SPRing. Nodes in the same MS-SPRing must have unique node IDs.
Ring Reversion	Set the amount of time that will pass before the traffic reverts to the original working path. The default is 5 minutes. All nodes in a MS-SPRing should have the same ring reversion setting, particularly if never (nonrevertive) is selected.
Span Reversion	Set the amount of time to pass before the span reverts to the working path.
East Line	Assign the east MS-SPRing port.
East Switch	Displays a list of switch commands for the east port.
West Line	Assign the west MS-SPRing port.
West Switch	Displays a list of switch commands for the west port.
East Protect	For the 4-fiber MS-SPRing, assign the east MS-SPRing protect port.
West Protect	For the 4-fiber MS-SPRing, assign the west MS-SPRing protect port.

---

Note See Table 1-19 on page 1-38 for the descriptions of the actions that can be performed using the action buttons at the bottom of the window.

---

B.13  ONS 15800 and ONS 15801 NE Explorer

When you choose Configuration > NE Explorer for the ONS 15800 or ONS 15801, the window displayed by CTM consists of a tree on the left side and a node property sheet on the right. (See Figure B-18.) The tree provides a hierarchical view and alarm status of the NE and its racks, subracks, and slots. The property sheet shows information about the selected entity. See Node Property Sheet—ONS 15800, ONS 15801 for more information.

Figure B-18 NE Explorer—ONS 15800

B.13.1  Node Property Sheet—ONS 15800, ONS 15801

The ONS 15800 or ONS 15801 node property sheet displays information about the NE that is selected in the NE Explorer tree. The property sheet contains the following tabs:

•Node View Tab

•Identification Tab

•Address Tab

•Config Tab

•Statistics Tab

B.13.1.1  Node View Tab

The Node View tab displays a graphic of the ONS 15800 or ONS 15801 that is selected in the NE Explorer tree. Moving the mouse pointer over the NE, its racks, subracks, or slots displays the current alarms for the highlighted item. Double-clicking a rack, subrack, or slot displays the selected item in the NE Explorer. The right-click menu opens the Alarm Browser or the Equipment Inventory table for the selected entity.

B.13.1.2  Identification Tab

The Identification tab displays the NE identification information.

Table B-223 Field Descriptions for the Identification Tab

Field	Description
NE ID	Displays the user-defined name of the selected NE.
NE Model	Identifies the model of the selected NE (ONS 15800 or ONS 15801).
Description	Displays information that a user has entered (if any) to describe the NE.
NE Type	Displays the ONS 15800 or ONS 15801 NE type: •Terminal—Represents the default setting, where it is not possible to identify whether the NE type is east or west terminal.
	•Terminal East—Contains one transmit east-to-west section (wavelength converters, multiplexers, transmit power amplifiers) and one receive west-to-east section (line preamplifier, demultiplexer, optional receive transponders).
	•Terminal West—Contains one transmit west-to-east section (wavelength converters, multiplexers, transmit power amplifiers) and one receive east-to-west section (pre-line amplifier, demultiplexer, optional receive transponders).
	•Optical Line Amplifier—Amplifies signals in two stages through pre-line and booster optical amplifiers. •Optical ADM—Exchanges high-volume traffic between terminal and intermediate sites. •Full Blue Optical ADM—Exchanges high-volume traffic between terminal and intermediate sites by applying full add and drop channels on the blue-band. •Full Red Optical ADM—Exchanges high-volume traffic between terminal and intermediate sites by applying full add and drop channels on the red band. •Full Red-Blue Optical ADM—Exchanges high-volume traffic between terminal and intermediate sites by applying full add and drop channels on both the blue and red bands. •Regeneration—Retimes, reshapes, and retransmits the optical signal between optical line amplification (OLA) sites. •Unknown—NE type is unknown. •Other—NE type is not specified.
Vendor Name	Displays the vendor name.
Running Software	Displays the NE software version of the agent that it is currently running.
Active Software	Displays the primary or active version of the NE software.
Standby Software	Displays the secondary or standby version of the NE software.
Location Name	Displays the geographic location of the selected NE.

B.13.1.3  Address Tab

The Address tab provides address information for the NE. If you change an address, the NE is reset automatically to make the new address selection valid.

Table B-224 Field Descriptions for the Address Tab

Field	Description
Active IP Address	Displays either the primary or secondary IP address, depending on which address is currently used to reach the selected NE.
Primary IP Address	Displays the primary IP address.
Secondary IP Address	Displays the backup IP address that the CTM server uses to reach the selected NE. When the primary and secondary IP addresses are the same, the secondary IP address is not supported. For ONS 1580x NEs, the secondary IP address points to a backup address that is remapped to the ONS 1580x primary address. This backup address allows CTM to reach the ONS 1580x node through a different route by using Layer 3 routing instead of the less-secure Layer 2 routing. If you change the primary IP address when the ONS 1580x is in service or under maintenance, the actual node IP address changes. CTM resets the NE automatically to activate the new IP address. After resetting the active IP address, the primary IP address and secondary IP address have the same value. If you want to reset the secondary IP address, you should first reset the network address translator (NAT) address on the router to map the NAT address to the new Control and Monitoring Processor (CMP) address.
Subnetwork Mask	Identifies the subnetwork mask for the selected NE.
Default Router	Displays the IP address of the default router for the NE.

B.13.1.4  Config Tab

The Config tab provides configuration information for the NE.

Table B-225 Field Descriptions for the Config Tab

Field	Description
SNTP Details	Shows the NE clock synchronization configuration. The SNTP protocol synchronizes the NE clock. The Server IP Address field displays the IP address of the SNTP server where the time is loaded. The Resync Time field displays the number of minutes between two different time requests to the server. A zero value disables the functionality. The minimum value is 10 minutes; the maximum value is 604,800 minutes (420 days).
Alarm Correlator Status	Shows the current status of the NE alarm correlator. Values are: •Loaded—The NE alarm correlator is loaded. •Not Loaded—The NE alarm correlator is not loaded because of missing configuration files. •Disable—The NE alarm correlator is disabled. All pending alarms are posted to CTM. •Enable—The NE alarm correlator is active; the correlator filters alarms. •Stand By—The NE alarm correlator is stopped; no pending masked alarms are raised to CTM.
NE Date and Time Settings	Shows the date and time settings of the NE. You can change the date and time in the text box.
Slot Management	Allows you to manage the slot status. If a module is extracted from a monitored slot, a module extraction alarm is emitted with the severity defined in the Module Extraction Severity field. If a module is replaced with an incompatible module, a module mismatch alarm is emitted with the severity defined in the Module Mismatch Severity field. Note The module extraction and module mismatch alarms are defined at the NE level and the severity is the same for all managed slots on the selected NE. Note This feature is applicable only for TL1 Agent R2.0 and later.
NE Alarm Log Management	Allows you to manage the NE alarm log status. Enter a log file size in the Alarm Log File Size field. Select a status (Stopped or Active) from the Alarm Log Status drop-down list. Note This feature is applicable only for TL1 Agent R2.0 and later.

B.13.1.5  Statistics Tab

The Statistics tab shows you alarm statistics for the selected ONS 15800 or ONS 15801. The Statistics tab is visible only for TL1 Agent R2.0 and later.

Table B-226 Field Descriptions for the Statistics Tab

Field	Description
Log free space	Shows the percentage of free space left for the log.
Alarms in last whole hour	Shows the total number of alarms sent in the last whole hour.
Alarms in the current hour	Shows the total number of alarms sent in the current hour.
Max alarms per hour in last 24h	Shows the maximum number of alarms sent per hour in the last 24 hours.
Average alarms in last 24h	Shows the average number of alarms sent per hour in the last 24 hours. The average is shown in alarms per second.
Average alarms in last 60 secs	Shows the average number of alarms sent in the last 60 seconds. The average is shown in alarms per second.

---

Note See Table 1-19 on page 1-38 for the descriptions of the actions that can be performed using the action buttons at the bottom of the window.

---

B.13.2  Rack Properties—ONS 15800, ONS 15801

The Rack Properties sheet displays information about the ONS 15800 or ONS 15801 rack that is selected in the NE Explorer tree. The Rack Properties sheet contains the following tabs:

•Rack View Tab

•Identification Tab

B.13.2.1  Rack View Tab

The Rack View tab displays a graphic of the ONS 15800 or ONS 15801 rack that is selected in the NE Explorer tree. Moving the mouse over the rack, subracks, or slots displays the current alarms for the highlighted item. Double-clicking a subrack or slot in the graphic displays the subrack or slot in the NE Explorer. The right-click menu opens the Alarm Browser or Equipment Inventory table for the selected entity.

B.13.2.2  Identification Tab

The Identification tab displays the rack identification information.

Table B-227 Field Descriptions for the Identification Tab

Field	Description
NE ID	Displays the user-defined name of the NE where the rack is installed.
NE Model	Identifies the model of the selected NE (ONS 15800 or ONS 15801).
Description	Displays information that a user has entered (if any) to describe the NE.
Rack ID	Displays the identification number of the rack.

---

Note See Table 1-19 on page 1-38 for the descriptions of the actions that can be performed using the action buttons at the bottom of the window.

---

B.13.3  Subrack Properties—ONS 15800, ONS 15801

The Subrack Properties sheet displays information about the ONS 15800 or ONS 15801 subrack that is selected in the NE Explorer tree. The Subrack Properties sheet contains the following tabs:

•Subrack View Tab

•Identification Tab

B.13.3.1  Subrack View Tab

The Subrack View tab displays a graphic of the subrack that is selected in the NE Explorer tree. Moving the mouse over the subrack and its slots displays the current alarms for the highlighted item. Double-clicking a subrack or slot in the graphic displays the subrack or slot in the NE Explorer. The right-click menu opens the Alarm Browser or Equipment Inventory table for the selected entity.

B.13.3.2  Identification Tab

The Identification tab displays the subrack identification information.

Table B-228 Field Descriptions for the Identification Tab

Field	Description
NE ID	Displays the user-defined name of the NE where the subrack is installed.
NE Model	Identifies the model of the selected NE (ONS 15800 or ONS 15801).
Description	Displays information that a user has entered (if any) to describe the NE.
Rack ID	Displays the identification number of the rack where the subrack is installed.
Subrack ID	Displays the identification number of the subrack.

---

Note See Table 1-19 on page 1-38 for the descriptions of the actions that can be performed using the action buttons at the bottom of the window.

---

B.14  ONS 15808 NE Explorer

When you choose Configuration > NE Explorer for the ONS 15808, the window displayed by CTM consists of a tree on the left side and a node property sheet on the right. (See Figure B-19.) The tree provides a hierarchical view and alarm status of the NE and its physical racks, subracks, and cards. The property sheet shows information about the selected entity. See Node Property Sheet—ONS 15808 for more information.

Figure B-19 NE Explorer—ONS 15808

B.14.1  Node Property Sheet—ONS 15808

The ONS 15808 node property sheet displays information about the ONS 15808 that is selected in the NE Explorer tree. The property sheet contains the following tabs:

•Node View Tab

•Identification Tab

•Address Tab

•Config Tab

•Statistics Tab

B.14.1.1  Node View Tab

The Node View tab displays a graphic of the ONS 15808 that is selected in the NE Explorer tree. Moving the mouse pointer over the NE, its racks, its subracks, or its slots displays the current alarms for the highlighted item. Double-clicking a rack, subrack, or slot displays the item in the NE Explorer. The right-click menu opens the Alarm Browser or the Equipment Inventory table for the selected entity.

B.14.1.2  Identification Tab

The Identification tab displays NE identification information.

Table B-229 Field Descriptions for the Identification Tab

Field	Description
NE ID	Displays the user-defined name of the selected NE.
Description	Displays information that a user has entered (if any) to describe the NE.
NE Model	Identifies the model of the selected NE (ONS 15808).
NE Type	Displays the ONS 15808 NE type: •Terminal—The default setting for a long-haul (LH) site. With this setting, it is not possible to identify whether the NE type is east or west terminal.
	•Terminal East—Contains one transmit east-to-west section (wavelength converters, multiplexers, transmit power amplifiers) and one receive west-to-east section (line preamplifier, demultiplexer, receive transponders) for an LH system.
	•Terminal West—Contains one transmit west-to-east section (wavelength converters, multiplexers, transmit power amplifiers) and one receive east-to-west section (line preamplifier, demultiplexer, receive transponders) for an LH system.
	•Optical Line Amplifier—Amplifies signals in two stages through preline and booster optical amplifiers for an LH system.
	•Optical ADM—Exchanges high-volume traffic between terminal and intermediate sites for an LH system.
	•Regeneration—Retimes, reshapes, and retransmits the optical signal between OLA sites for an LH system.
	•ELH Terminal—The default setting for an extended long-haul (ELH) system. It is not possible to identify whether the NE type is east or west terminal with this setting.
	•ELH Terminal East—Contains one transmit east-to-west section (wavelength converters, multiplexers, transmit power amplifiers) and one receive west-to-east section (line preamplifier, demultiplexer, receive transponders) for an ELH system.
	•ELH Terminal West—Contains one transmit west-to-east section (wavelength converters, multiplexers, transmit power amplifiers) and one receive east-to-west section (line preamplifier, demultiplexer, receive transponders) for an ELH system.
	•ELH Optical Line Amplifier—Amplifies signals in two stages through preline and booster optical amplifiers for an ELH system.
	•ELH Optical ADM—Exchanges high-volume traffic between terminal and intermediate sites for an ELH system.
	•ELH Regeneration—Retimes, reshapes, and retransmits the optical signal between OLA sites for an ELH system.
NE Type (Continued)	•Unknown—NE type is unknown.
	•Other—NE type is not specified.
Vendor Name	Displays the vendor name. The default vendor name is Cisco Systems.
Running Software	Displays the NE software version of the agent that it is currently running.
Active Software	Displays the primary or active version of the NE software.
Standby Software	Displays the secondary or standby version of the NE software.
Location Name	Displays the geographic location of the selected NE.

B.14.1.3  Address Tab

The Address tab provides address information for the NE. If you change an address, the NE is reset automatically to make the new address selection valid.

Table B-230 Field Descriptions for the Address Tab

Field	Description
Active IP Address	Displays either the primary or secondary IP address, depending on which address is currently used to reach the selected NE.
Primary IP Address	Displays the primary IP address.
Secondary IP Address	Displays the backup IP address that the CTM server uses to reach the selected NE. When the primary and secondary IP addresses are the same, the secondary IP address is not supported. For ONS 15808 NEs, the secondary IP address points to a backup address that is remapped to the ONS 15808 primary address. This backup address allows CTM to reach the ONS 15808 node through a different route by using Layer 3 routing instead of the less-secure Layer 2 routing. If you change the primary IP address when the ONS 15808 is in service or under maintenance, the actual node IP address changes. CTM resets the NE automatically to activate the new IP address. After resetting the active IP address, the primary IP address and secondary IP address have the same value. If you want to reset the secondary IP address, you should first reset the NAT address on the router to map the NAT address to the new CMP module address.
Subnetwork Mask	Identifies the subnetwork mask for the selected NE.
Default Router	Displays the IP address of the default router for the NE.

B.14.1.4  Config Tab

The Config tab provides configuration information for the NE.

Table B-231 Field Descriptions for the Config Tab

Field	Description
SNTP Details	Shows the NE clock synchronization configuration. The SNTP protocol synchronizes the NE clock. The Server IP Address field displays the IP address of the SNTP server where the time is loaded. The Resync Time field displays the number of minutes between two different time requests to the server. A zero value disables the functionality. The minimum value is 10 minutes; the maximum value is 604,800 minutes (420 days).
Alarm Correlator Status	Shows the current status of the NE alarm correlator. Values are: •Loaded—The NE alarm correlator is loaded. •Not Loaded—The NE alarm correlator is not loaded because of missing configuration files. •Disable—The NE alarm correlator is disabled. All pending alarms are posted to CTM. •Enable—The NE alarm correlator is active; the correlator filters alarms. •Stand By—The NE alarm correlator is stopped; no pending masked alarms are raised to CTM.
NE Date and Time Settings	Shows the date and time settings of the NE. You can change the date and time in the text box.
Slot Management	Allows you to manage the slot status. If a module is extracted from a monitored slot, a module extraction alarm is emitted with the severity defined in the Module Extraction Severity field. If a module is replaced with an incompatible module, a module mismatch alarm is emitted with the severity defined in the Module Mismatch Severity field. Note The module extraction and module mismatch alarms are defined at the NE level, and the severity is the same for all managed slots on the selected NE.
NE Alarm Log Management	Allows you to manage the NE alarm log status. Enter a log file size in the Alarm Log File Size field. Select a status (Stopped or Active) from the Alarm Log Status drop-down list. Note This feature is available only if the TL1 Agent is version 2.0 or later.

B.14.1.5  Statistics Tab

The Statistics tab shows alarm statistics for the selected ONS 15808.

Table B-232 Field Descriptions for the Statistics Tab

Field	Description
Log free space	Shows the percentage of free space left for the log.
Alarms in last whole hour	Shows the total number of alarms sent in the last whole hour.
Alarms in the current hour	Shows the total number of alarms sent in the current hour.
Max alarms per hour in last 24h	Shows the maximum number of alarms sent per hour in the last 24 hours.
Average alarms in last 24h	Shows the average number of alarms sent per hour in the last 24 hours. The average is shown in alarms per second.
Average alarms in last 60 secs	Shows the average number of alarms sent in the last 60 seconds. The average is shown in alarms per second.

---

Note See Table 1-19 on page 1-38 for the descriptions of the actions that can be performed using the action buttons at the bottom of the window.

---

B.14.2  Rack Properties—ONS 15808

The Rack Properties sheet displays information about the ONS 15808 rack that is selected in the NE Explorer tree. The Rack Properties sheet contains the following tabs:

•Rack View Tab

•Identification Tab

B.14.2.1  Rack View Tab

The Rack View tab displays a graphic of the ONS 15808 rack that is selected in the NE Explorer tree. Moving the mouse over the rack, subracks, or slots displays the current alarms for the highlighted item. Double-clicking a subrack or slot in the graphic displays the subrack or slot in the NE Explorer. The right-click menu opens the Alarm Browser or Equipment Inventory table for the selected entity.

B.14.2.2  Identification Tab

The Identification tab displays rack identification information.

Table B-233 Field Descriptions for the Identification Tab

Field	Description
NE ID	Displays the user-defined name of the NE where the rack is installed.
NE Model	Identifies the model of the selected NE (ONS 15808).
Description	Displays information that a user has entered (if any) to describe the NE.
Rack ID	Displays the identification number of the rack.

---

Note See Table 1-19 on page 1-38 for the descriptions of the actions that can be performed using the action buttons at the bottom of the window.

---

B.14.3  Subrack Properties—ONS 15808

The Subrack Properties sheet displays information about the ONS 15808 subrack that is selected in the NE Explorer tree. The Subrack Properties sheet contains the following tabs:

•Subrack View Tab

•Identification Tab

B.14.3.1  Subrack View Tab

The Subrack View tab displays a graphic of the subrack that is selected in the NE Explorer tree. Moving the mouse over the subrack and its slots displays the current alarms for the highlighted item. Double-clicking a subrack or slot in the graphic displays the subrack or slot in the NE Explorer. The right-click menu opens the Alarm Browser or Equipment Inventory table for the selected entity.

B.14.3.2  Identification Tab

The Identification tab displays the subrack identification information.

Table B-234 Field Descriptions for the Identification Tab

Field	Description
NE ID	Displays the user-defined name of the NE where the subrack is installed.
NE Model	Identifies the model of the selected NE (ONS 15808).
Description	Displays information that a user has entered (if any) to describe the NE.
Rack ID	Displays the identification number of the rack where the subrack is installed.
Subrack ID	Displays the identification number of the subrack.

---

Note See Table 1-19 on page 1-38 for the descriptions of the actions that can be performed using the action buttons at the bottom of the window.

---

B.15  Unmanaged NE/Other Vendor Node Property Sheet

The Unmanaged NE/Other Vendor node property sheet displays information about unmanaged NEs or nodes from other vendors. The property sheet contains an Identification tab.

B.15.1  Identification Tab

The Identification tab displays identification information about the unmanaged or other-vendor NE.

Table B-235 Field Descriptions for the Identification Tab

Field	Description
NE ID	Displays the ID of the NE from the Domain Explorer.
Description	Displays the description of the NE from the Domain Explorer.
NE Model	Displays Unmanaged NE as the NE model type.
NE Type	Displays Not Applicable as the NE type.
NE Version	Displays the NE version.
Serial Number	Displays the serial number of the NE.
Location Name	Displays the name of the physical location of the NE.
Subnetwork ID	Displays the assigned subnetwork ID of the NE.
Network Partition ID	Displays the network partition ID of the NE.
