Using the Web Interface
You can configure and administer ACS through the ACS web interface, in which you can access pages, perform configuration tasks, and view interface configuration errors. This section describes:
•
Understanding the Web Interface
Accessing the Web Interface
The ACS web interface is supported on HTTPS-enabled Microsoft Internet Explorer versions 6 and 7, and Firefox version 2.x, but not Firefox 3.x.
This section contains:
Logging In
To log in to the ACS web interface:
Step 1
The login page appears.
Step 2
Step 3
Note
Step 4
The login page reappears, prompting you to change your password.
Note
Step 5
Note
Step 6
You are prompted to install a valid license:
Note
Step 7
If your login is successful, the main page of the ACS web interface appears.
If your login is unsuccessful, the following error message appears:
Invalid username or password specified.
The Username and Password fields are cleared.
Step 8
Logging Out
Click Logout in the ACS web interface header to end your administrative session. A dialog box appears asking if you are sure you want to log out of ACS. Click OK.
Caution
Understanding the Web Interface
The following sections explain the ACS web interface:
Web Interface Design
Figure 18-1 shows the overall design of the ACS web interface.
Figure 18-1 ACS Web Interface
The interface contains:
Header
Use the header to:
•
•
•
•
These items appear on the right side of the header (see Figure 18-2).
Figure 18-2 Header
Related Topics
Navigation Pane

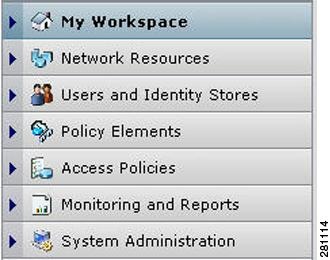

Use the navigation pane to navigate through the drawers of the web interface (see Figure 18-3).
Figure 18-3 Navigation Pane
Table 18-1 describes the function of each drawer.
Table 18-1 Navigation Pane Drawers
My Workspace
Access the Task Guide and Welcome page with shortcuts to common tasks and links to more information. See Chapter 5, "Understanding My Workspace" for more information.
Network Resources
Configure network devices, AAA clients, and network device groups. See Chapter 6, "Managing Network Resources" for more information.
Users and Identity Stores
Configure internal users and identity stores. See Chapter 7, "Managing Users and Identity Stores" for more information.
Policy Elements
Configure policy conditions and results. See Chapter 8, "Managing Policy Elements" for more information.
Access Policies
Configure access policies. See Chapter 9, "Managing Access Policies" for more information.
Monitoring and Reports
View log messages. See Chapter 10, "Monitoring and Reporting" for more information.
System Administration
Administer and maintain your ACS. See Chapter 14, "Managing System Administrators" for more information.
To open a drawer, click it. A list of options for that drawer appears. You can view the contents of only one drawer at a time. When you open a drawer, any previously open drawer automatically closes. Click an option to view the hierarchy of items and the current configuration, and perform configuration tasks associated with that option in the content area. See Content Area for more information about the content area.
To hide the navigation pane and expand the content area, click the collapse arrow, which is centered vertically between the navigation pane and content area. Click the collapse arrow again to reveal the navigation pane.
The options listed beneath drawers in the navigation pane are organized in a tree structure, where appropriate. The options in the tree structure are dynamic and can change based on administrator actions. Creating, deleting, or renaming objects in the content area can change the option display in the navigation pane. For example, beneath the Network Resources > Network Device Groups option, there are two preconfigured network device groups (options)—Location and Device Type. Figure 18-4 shows that the administrator has used the Network Device Groups option page to create an additional network device group called Business, which appears in the tree structure in the navigation pane.

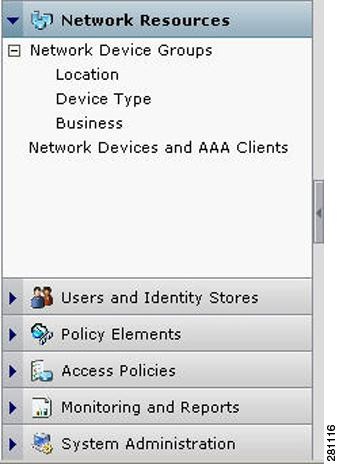

Figure 18-4 Navigation Pane—Dynamic Tree Structure
Related Topics
Content Area
Use the content area to view your current location in the interface, view your configuration, configure AAA services, and administer your ACS.
The content area can contain:
Web Interface Location
Your current location in the interface appears at the top of the content area. Figure 18-5 shows that the location is the Policy Elements drawer and the Network Devices and AAA Clients page. Using this location as an example, ACS documentation uses this convention to indicate interface locations—Policy Elements > Policy Conditions > Network Devices and AAA Clients > Location. The remainder of the content area shows the content of the chosen page.
The interface location also displays the action that you are configuring. For example, if you are in the Users and Identity Stores > Internal Identity Stores > Users page and you attempt to duplicate a specific user, the interface location is stated as:
Users and Identity Stores > Internal Identity Stores > Users > Duplicate: <user_name>, where <user_name> is the name of the user you chose to duplicate. ACS documentation also uses this convention.
List Pages

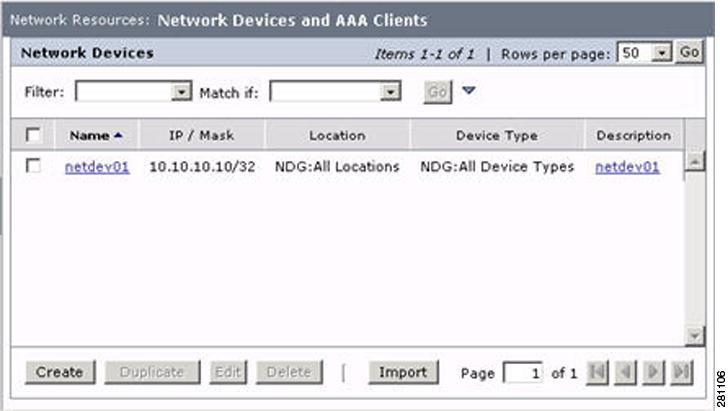

List pages contain a list of items (see Figure 18-5).
You can use list pages to delete one or more items from an option that you chose in the navigation pane.
Figure 18-5 List Page
Table 18-2 describes the content area buttons and fields that list pages have in common.
Table 18-2 Common Content Area Buttons and Fields for List Pages
Rows per page
Use the drop-down list to specify the number of items to display on this page. Options:
•
•
•
•
Go
Click to display the number of items you specify in the Rows per page field.
Check box or radio button
Chooses or does not choose items in a list, for edit, duplicate, or delete actions. Options:
•
Check the check box in the header row to choose all items in the list. Check the individual check boxes to choose specific items in the list.
•
List column
A tabular or hierarchical view of items associated with a specific configuration task. Figure 18-5 shows the list column as a list of configured network device names; the heading of this list column is Name.
Scroll bar
Use the content area scroll bar to view all the data in a page, if needed.
Create
Click to create a new item. A wizard or single page appears in the content area.
Note
Duplicate
Click to duplicate a selected item. A single page or a tabbed page appears in the content area.
Edit
Click to edit a selected item. A single page or a tabbed page appears in the content area.
Delete
Click to delete one or more selected items. A dialog box that queries
Are you sure you want to delete item/items?appears for the item, or items, you chose to delete. The confirmation dialog box contains OK and Cancel. Click:•
•
Note
Page <num> of n
Enter the number of the page you want to display in the content area of the list page, where <num> is the page you want to display, then click Go.
Note
Direction arrows
Click the arrows on the lower right side of the content area to access the first page, previous page, next page, or last page. The arrows are active when required.
Note

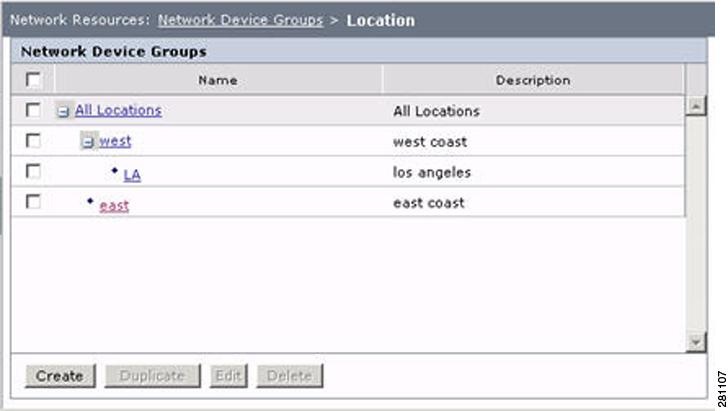

Tree table pages are a variation of list pages (see Figure 18-6). You can perform the same operations on tree table pages that you can on list pages, except for paging. In addition, with tree table pages:
•
•
•
•
•
Figure 18-6 Tree Table Page
Filtering
Large lists in a content area window or a secondary window (see Figure 18-9) can be difficult to navigate through and select the data that you want. You can use the web interface to filter data in these windows to reduce the data that appears in a list, based on criteria and conditions that you choose. Table 18-3 describes the filtering options.
Note
Table 18-3 Filtering in the Content Area Window and Secondary Windows
Filter (drop-down list box)
Select the name of the column from the drop-down list box on which to filter.
Match if (drop-down list box)
Select the condition you want to apply to your filter action:
•
•
•
•
•
•
•
•
The condition is applied to the column you select in the Filter drop-down list box.
v (down arrow)
Click to add an additional filter row on which to choose conditions to narrow or expand your filter action. The text
And:precedes the additional filter row.^ (up arrow)
Click to remove an extraneous filter row.
Go
Click to execute your filter action.
Clear Filter
Click to clear any current filter options.
OK
Click to add the selected data to your configuration and close the secondary window.
Note
Note
Sorting

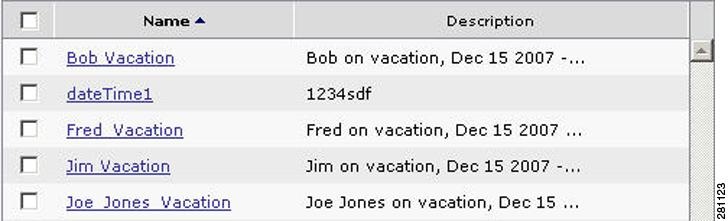

Most nontree list pages support sorting by the Name column or the Description column, when available. You can sort pages in an ascending or descending manner. For pages that do not have a Name or Description column, the sorting mechanism may be supported in the left-most column of the page, or the Description column. Place your cursor over a column heading to determine if sorting is available for a column. If sorting is available, the cursor turns into a hand and the text
Click to sortappears.When a table is sorted, the column heading text darkens and an up arrow or down arrow appears next to the text (see Figure 18-7). Click the arrow to resort in the opposing manner.
Figure 18-7 Sorting Example
Secondary Windows

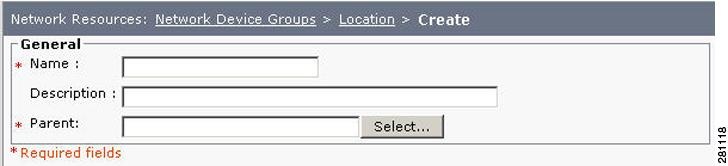

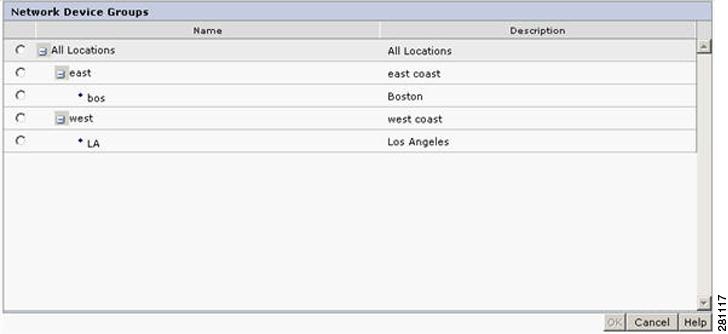

The content area serves as the launching place for any secondary (popup) windows that you access by clicking Select (see Figure 18-8) from single, tabbed, or wizard pages. You use these secondary windows to filter and select data that you want to use in your configuration (see Figure 18-9 and Table 18-3).
You can select one or more items from a secondary window to include in your configuration, dependent upon the selection option—items listed in a secondary window with radio buttons allow you to select one item to include in your configuration and items listed with check boxes allow you to select multiple items.
Figure 18-8 Select Button—Accesses Secondary Windows
Figure 18-9 Secondary Window
In addition to selecting and filtering data, you can create a selectable object within a secondary window. For example, if you attempt to create a users internal identity store, and click Select to assign the store to an identity group (a selectable object), but the identity group you want to associate it with is not available for selection, you can click Create within the secondary window to create the object you want. After you have created the object and clicked Submit, the secondary window is refreshed with the newly created object, which you can then select for your configuration. In our example, you can select the newly created identity group to assign it to the users internal identity store.
Transfer Boxes

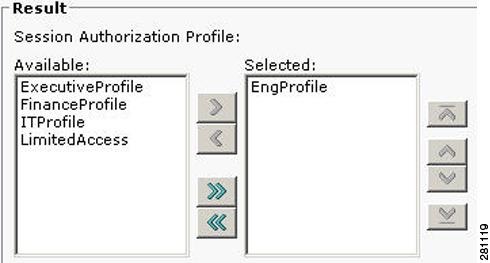

Transfer boxes are a common element in content area pages (see Figure 18-10). You use these boxes to select and remove items for use in your configuration and order them according to your needs. Figure 18-10 shows the transfer box options. Table 18-4 describes the transfer box options.
Figure 18-10 Transfer Box
Schedule Boxes

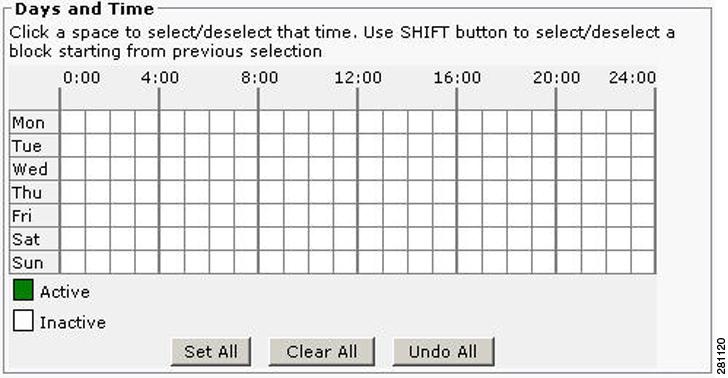

Schedule boxes are a common element in content area pages (see Figure 18-10). You use them to select active times for a policy element from a grid, where each row represents a day of the week and each square in a row represents an hour in a day. Click one square to make one hour active. Table 18-5 describes the Schedule box options.
Figure 18-11 Schedule Box
Rule Table Pages
Rule table pages display the rules that comprise policies. You can reorder rules within a rule table page and submit the policy that is associated with a table. You can access properties and customization pages from rule tables to configure your policies. For more information on specific rule table pages, and properties and customization pages, see Managing Access Policies.
Directly above the rule table are two display options:
•
•
Table 18-6 describe the common options of standard and exception rule table pages:
Table 18-6 Rule Table Page Options
#
The ordered column of rules within the rule table. You can renumber the rules by reordering, adding, or deleting rules and then clicking Save Changes to complete the renumbering. New rules are added to the end of the ordered column, so you must reorder them if you want to move a new rule to a different position within the ordered list.
Note
Check box
Click one or more check boxes to select associated rules on which to perform actions.
Status
(Display only.) Indicates the status of rules within the rule table. The status can be:
•
•
•
Name
A unique name for each rule (except the default, catch-all rule). Click a name to edit the associated rule. When you add a new rule, it is given a name in the format
Rule-<num>, where <num> is the next available consecutive integer. You can edit the name to make it more descriptive. Cisco recommends that you name rules with concatenation of the rule name and the service and policy names.Conditions
A variable number of condition types are listed, possibly in subcolumns, dependent upon the policy type.
Results
A variable number of result types are listed, possibly in subcolumns, dependent upon the policy type.
Hit Counts column
View the hits counts for rules, where hits indicate which policy rules are invoked.
Rules scroll bar
Use the scroll bar at the right of the rules rows to scroll up and down the rules list.
Conditions and results scroll bar
Use the scroll bar beneath the Conditions and Results columns to scroll left and right through the conditions and results information.
Default rule
Click to configure the catch-all rule. This option is not available for exception policy rule tables.
Customize
Click to open a secondary window where you can determine the set and order of conditions and results used by the rule table.
Hit Counts button
Click to open a secondary window where you can:
•
•
•
See Displaying Hit Counts, page 9-10 for more information.
Move to...
Use the ^ and v buttons to reorder selected rules within the rule table.
Save Changes
Click to submit your configuration changes.
Discard Changes
Click to discard your configuration changes prior to saving them.
Related Topic
Common Errors
You might encounter these common errors:
Concurrency Conflict Errors
Concurrency conflict errors occur when more than one user tries to update the same object. When you click Submit and the web interface detects an error, a dialog box appears, with an error message and OK button. Read the error message, click OK, and resubmit your configuration, if needed.
Possible error messages, explanations, and recommended actions are:
Error Message The item you are trying to Submit has been modified elsewhere while you were making your changes.Explanation You accessed an item to perform an edit and began to configure it; simultaneously, another user accessed and successfully submitted a modification to it. Your submission attempt failed.
Recommended Action Click OK to close the error message and display the content area list page. The page contains the latest version of all items. Resubmit your configuration, if needed.
Error Message The item you are trying to Submit has been deleted while you were making your changes.Explanation If you attempt to submit an edited item that another user simultaneously accessed and deleted, your submission attempt fails. This error message appears in a dialog box with an OK button.
Recommended Action Click OK to close the error message and display the content area list page. The page contains the latest version of all items. The item that you tried to submit is not saved or visible.
Error Message The item you are trying to Duplicate from has been deleted.Error Message The item you are trying to Edit has been deleted.Explanation You attempted to duplicate or edit a selected item that another user deleted at the same time that you attempted to access it.
Recommended Action Click OK to close the error message and display the content area list page. The page contains the latest version of all items. The item that you tried to duplicate or edit is not saved or visible.
Error Message The item you are trying to Submit is referencing items that do not exist anymore.Explanation You attempted to edit or duplicate an item that is referencing an item that another user deleted while you tried to submit your change.
Recommended Action Click OK to close the error message and display the previous page, the Create page or the Edit page. Your attempted changes are not saved, nor do they appear in the page.
Error Message Import already in progress.Explanation You attempted to import a .csv file while a previous import is still in progress. The subsequent import will not succeed. The original import is not interrupted due to this error.
Recommended Action Click OK to close the error message and display the previous page. Consult the Import Progress secondary window and wait for the Save Log button to become enabled. Save the log, then attempt to import your next .csv file.
Deletion Errors
Deletion errors occur when you attempt to delete an item (or items) that another item references. When you click Delete and an error is detected, a dialog box appears, with an error message and OK button. Read the error message, click OK, and perform the recommended action.
Possible error messages, explanations, and recommended actions are:
Error Message The item you are trying to Delete is referenced by other Items. You must remove all references to this item before it can be deleted.Error Message Some of the items you are trying to Delete are referenced by other Items. You must remove all references to the items before they can be deleted.Explanation If you attempt to delete one or more items that another item references, the system prevents the deletion.
Recommended Action Click OK to close the error message and display the content area list page. Your deletion does not occur and the items remain visible in the page. Remove all references to the item or items you want to delete, then perform your deletion.
System Failure Errors
System failure errors occur when a system malfunction is detected. When a system failure error is detected, a dialog box appears, with an error message and OK button. Read the error message, click OK, and perform the recommended action.
Possible error messages, explanations, and recommended actions are:
Error Message The following System Failure occurred: <description>.Where <description> describes the specific malfunction.
Explanation You have attempted to make a configuration change and the system detected a failure at the same time.
Recommended Action Click OK to close the error message and display the content area list page. Your changes are not saved. Investigate and troubleshoot the detected malfunction, if possible.
Error Message An unknown System Failure occurred.Explanation You tried to change the configuration and the system detected an unknown failure at the same time.
Recommended Action Click OK to close the error message and display the content area list page. Investigate possible system failure causes, if possible.
Accessibility
The ACS 5.0 web interface contains accessibility features for users with vision impairment and mobility limitations.
This section contains the following topics:
•
•
Display and Readability Features
The ACS 5.0 web interface includes features that:
•
•
The display and readability features include:
•
•
•
•
•
•
Keyboard and Mouse Features
You can interact with the ACS 5.0 web interface by using the keyboard and the mouse to accomplish actions. The keyboard and mouse features include:
•
•
•
•
•
Obtaining Additional Accessibility Information
For more information, refer to the Cisco Accessibility Program:
•
•
•
