Cisco Info Server SQL
The Cisco Info Server is the core of the Cisco Info Center system. This chapter describes how the Cisco Info Server stores and manages alerts, the data structures of the Cisco Info Server, and the syntax of Cisco Info Server SQL.
It contains the following sections:
•
Cisco Info Server Databases and Tables
•
•
•
•
For a full description of the properties and command line options available for the Cisco Info Server, see "Configuring the Cisco Info Server and Proxy Server."
Alert Processing
The Cisco Info Server is the database server at the core of Cisco Info Center. Alert information is forwarded to the Cisco Info Server from external programs such as Cisco Info Mediators or gateways, stored and managed in database tables, and displayed in the Event List and objective view. Figure 2-1 shows an example Cisco Info Center system architecture.

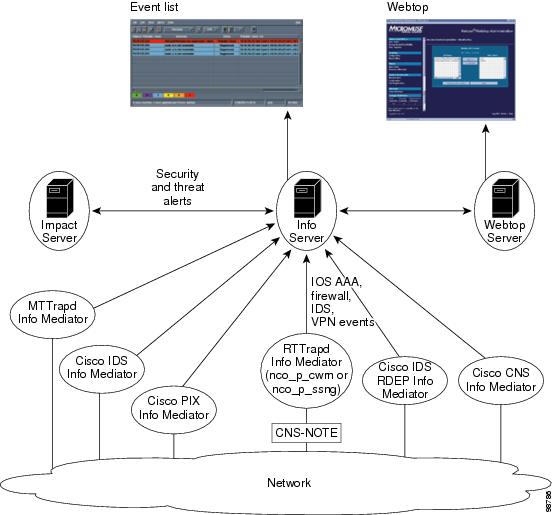

Figure 2-1 Sample Cisco Info Center System Architecture
Introduction to Deduplication
A single device may generate the same error repeatedly until the problem is dealt with. The Cisco Info Server uses a process called deduplication to ensure alert information generated from the same source is not duplicated. Repeated alerts are identified and stored as a single alert to reduce the amount of data in the Cisco Info Server.
Deduplicating the alerts.status Table
Alerts are forwarded to the Cisco Info Server from Cisco Info Mediators or gateways, and stored as rows (entries) in the alerts.status table. Each alert has an Identifier field, used to uniquely identify the problem source. The identifier is generated by the Cisco Info Mediator according to the specification in Cisco Info Mediator rules file, as described in Creating a Unique Identifier.
When the alert arrives, the alerts.status table is searched for a matching Identifier field. If no entry with the same identifier is found, a new alert entry is inserted. The entry contains detailed information about the problem. For example, the FirstOccurrence field stores the time the problem first occurred.
When an entry with the same identifier is found, deduplication occurs. The default behavior is to update the LastOccurrence field of the existing entry with the time of the new alert and increment the Tally field by one. If the ReawakenClosed property is set to TRUE, two additional updates can be made:
•
•
The DeackOnReawaken and ReawakenClosed properties are described in Specifying Cisco Info Server Properties. All of the fields in the alerts.status table are described in alerts.status Table.
Forcing Updates on Deduplication
You can force any character (char), variable-length character (varchar), integer (int), and time (time) fields to be updated during deduplication using one of the following methods:
•
•
•
Additional Alert Processing Capabilities
You can export alert information to other applications through a gateway. A bidirectional gateway can provide failover support to another Cisco Info Server.
The Cisco Info Server can also respond automatically to specified alerts. This is called automation, and is described in "Automation."
Cisco Info Server Databases and Tables
The Cisco Info Server is made up of the following databases:
•
•
•
•
•
•
Each of the tables in these databases is described in "Cisco Info Server Tables." The fully-qualified table name includes the database name and the table name, separated by a period (.). For example, alerts.details.
Specifying the SQL File
The Cisco Info Server SQL file is read when a Cisco Info Server starts. It contains a set of CREATE DATABASE and CREATE TABLE commands which define the Cisco Info Server data structures. If you do not specify an SQL file when starting a Cisco Info Server, the $OMNIHOME/etc/<servername>.sql default file is used (where <servername> is the name of the Cisco Info Server). Use the -sqlfile command line option to specify the full path and file name of an alternative SQL file.
You can modify the default Cisco Info Server template to create an alternative SQL file, as described in Adding and Modifying Cisco Info Server Data Structures.
Direct Access Using the SQL Interactive Interface (nco_sql)
This section describes how to log into the SQL interactive interface (nco_sql) to connect to Cisco Info Servers and use SQL commands to interact with and control the Cisco Info Server. The SQL interactive interface allows you to perform tasks such as creating a new database table or stopping the Cisco Info Server.
Note
Logging into the SQL Interactive Interface
Use the SQL interactive interface to connect to a Cisco Info Server as a specific user. For example:
$OMNIHOME/bin/nco_sql -server <servername> -user <username>
where <servername> is the name of the Cisco Info Server and <username> is a valid user name. If you do not specify a server name, the default server name NCOMS is used. If you do not specify a user name, the default is the user running the command. The command line options for nco_sql are described in Table 2-1.
Once logged in using nco_sql or isql, you can enter Cisco Info Server SQL commands.
Entering SQL Commands Using the SQL Interactive Interface
After connecting with a user name and password, a numbered prompt is displayed:
1>
You can enter any valid Cisco Info Server SQL command at the prompt. Commands are not processed until you enter the keyword go in lowercase at the beginning of a new line and press Return. Commands can be split over multiple lines. Multiple commands, separated by a semicolon, can be executed with a single go.
The results of the command are displayed.
For the syntax of Cisco Info Server SQL commands, see SQL Commands.
Exiting the SQL Interface
When you are using the SQL interface, the following applies:
•
•
Using the Secure SQL Interactive Interface
When a Cisco Info Server runs in secure mode, it requires clients such as Cisco Info Mediators, Desktop clients, gateways, and the SQL interactive interface to connect using valid user names and passwords. The login information is automatically encrypted when it is transmitted between components to make snooping ineffective. Versions of Cisco Info Center previous to 3.5 do not support this transmission encryption.
The SQL interactive interface runs in secure mode unless you specify the -nosecure option. You can use the -nosecure option to connect to versions of the Cisco Info Server previous to 3.5.
When you run the SQL interactive interface in secure mode, it makes use of the nco_get_login_token utility to encrypt its login data for transmission. The utility produces a token that can be used only once to log in to the Cisco Info Server. The token has a time limit after which it expires and becomes invalid.
Encrypting Passwords in nco_sql Scripts
You can use the nco_sql_crypt utility to encrypt plain text login passwords so they are not exposed in any scripts that run nco_sql. Passwords encrypted using nco_sql_crypt are decrypted by the Cisco Info Server when the connection is made.
To encrypt a plain text password:
Step 1
$OMNIHOME/bin/nco_sql_crypt <password>
where <password> is the unencrypted form of the password. The nco_sql_crypt utility displays an encrypted version of the password.
Step 2
Cisco Info Server Data Types
Each column value in a Cisco Info Server table has an associated data type. The data type determines how the Cisco Info Server processes the data in the column. For example, the plus operator (+) adds integer values, but concatenates string values. The data types supported by the Cisco Info Server are listed in Table 2-2.
Date Literals
Date literals return information about the current time and date, as shown in Table 2-3. They are used for time-sensitive automations or filters.
Date Function
You can use the to_char function to convert a date into a string.
SQL Building Blocks: Operators, Expressions, and Conditions
You can use the following SQL building blocks to manipulate data in a Cisco Info Server database in the commands described in Data Manipulation Commands:
Operators
You can use operators to compute values from data items, known as operands. An operator processes (adds, subtracts, and so on) a data item or items. The operand is a data item on which the operation is performed. Together operators and operands form expressions, described in more detail on Expressions. In the expression 7 + 3, 7 and 3 are operands and the plus symbol (+) is the operator.
Operators can be unary or binary. Unary operators act on only one operand. For example, the minus (-) operator can be used to indicate negation. Binary operators act on two operands. For example, the same minus (-) operator can be used to subtract one operand from another.
Some operators, such as the plus (+) operator, are polymorphic; they can be assigned a different meaning in different contexts. For example, you can use the plus (+) operator to add two numbers (7+3) or concatenate two strings ('The Cisco Info Server' + ' started').
Operators used in Cisco Info Server SQL are grouped into the following categories:
Each of these categories and their corresponding operators are described in the following sections.
Operator precedence is described in Operator Precedence.
Math and String Operators
You can use math operators to add, subtract, divide, and multiply numeric operands in expressions. Table 2-5 describes the math operators supported by the Cisco Info Server.
You can use string operators to manipulate character strings (VARCHAR and CHAR data types). Table 2-6 describes the string operator supported by the Cisco Info Server.
Table 2-6 String Operator
+
Binary operator used to concatenate two strings.
update alerts.status set Location = Node + NodeAlias;
Binary Comparison Operators
You can use binary comparison operators to compare numeric and string values for equality and inequality. Table 2-7 describes the comparison operators supported by the Cisco Info Server.
The LIKE and NOT LIKE comparison operators allow special regular expression pattern-matching metacharacters in the string being compared to the column expression. Regular expressions are made up of normal characters and metacharacters. Normal characters include upper and lower case letters and numbers. Regular expression pattern-matching can be performed with either a single character or a pattern of one or more characters in parentheses, called a character pattern. Metacharacters have special meanings, described in Table 2-8.
List Comparison Operators
You can use list comparison operators to compare a value to a list of values. The syntax of a list comparison expression is:
<expression> [NOT] IN (<expression>,...)
For example, in the query:
select * from alerts.status where Severity in (1, 3, 5)The query returns the rows in which Severity is equal to the number 1, 3, or 5.
Logical Operators
You can use logical operators to combine comparisons with the AND and OR operators. An AND expression is true only if all of its inputs are true. An OR expression is TRUE if any of its inputs are true. For example, you could create the following query:
SELECT * from alerts.status where Node = 'node1' and Severity > 4 and Summary like 'alert on .*'Operator Precedence
If an expression contains multiple operators, the Cisco Info Server uses operator precedence to determine the order in which to evaluate the expression. Operators are evaluated from those with the highest precedence to those with the lowest precedence. For example, the binary plus (+) operator has a lower precedence than the multiplication operator (*). In the expression 3 + 5 * 2, the result is 13 because 5 is multiplied by 2 before the result (10) is added to 3.
Use parentheses in an expression to change the order in which the items are evaluated. The contents of parentheses are always evaluated before anything outside of the parentheses. In the expression (3 + 5) * 2, the result is 16 because 3 is added to 5 before the result (8) is multiplied by 2.
If operators have equal precedence, they are evaluated in order from left to right. The order of precedence of all Cisco Info Server operators is shown below.
Unary + -
Math * /
Binary + -
Comparison operators (including list comparisons)
NOT
AND
OR
Expressions
An expression is a syntactic combination of values and operations combined to compute new values. Expressions can be simple or complex.
Simple Expressions
A simple expression is a single constant or variable value or a column name. This can be any of the following:
•
•
•
•
•
•
•
•
•
•
•
Complex Expressions
A complex expression is created from simple expressions combined using operators (Severity - 1). You can combine simple or complex expressions with other simple or complex expressions to create increasingly complex expressions, such as -(Severity+Tally).
Note
Conditions
A condition is a combination of expressions and operators that evaluate to true or false. You can use conditions to search, filter, and test rows in the WHERE clause of the SELECT, UPDATE, and DELETE SQL commands.
The following are valid conditions:
TRUE | FALSE
(<condition>)
NOT <condition>
<condition> AND <condition>
<condition> OR <condition>
<expression> <operator> <expression>
<expression>[NOT] IN (<subquery>)
<expression> [NOT] IN (<expression>,...)
<expression> [NOT] LIKE <regexp_pattern>
You can combine conditions into increasingly complex conditions. For example:
(Severity > 4) AND (Node = 'node%')
The following example shows the use of a condition in a subquery:
select * from alerts.status where Serial in
(select Serial from alerts.journal);SQL Commands
This section details Cisco Info Server SQL commands, including syntax and examples.
Note
Data Definition Language Commands
Data definition language commands enable you to create data structures, such as databases and tables, using Cisco Info Server SQL.
The names of Cisco Info Server structures must begin with an uppercase or lowercase letter, followed by uppercase or lowercase letters, numbers, or underscore (_) characters, up to forty characters in length.
Note
Creating a Database
Use the CREATE DATABASE command to create a new database. A database is a structured collection of data organized for quick access to desired information. A relational database uses tables as logical containers to store this information in rows and columns.
Syntax
CREATE DATABASE <database_name>;
The <database_name> must be unique within the Cisco Info Server.
Example
create database newthings;Creating a Table
Use the CREATE TABLE command to create a table in the database currently in use.
Syntax
CREATE TABLE <table_name>
(
<column_name> <data_type> [UPDATE ON DEDUPLICATION] ,...
[, PRIMARY KEY(<column_name>) ]
[, PERMANENT]
);The table name must be unique in the database.
For each column in the table, the column name and data type must be specified with a comma separator between column definitions. If you specify UPDATE ON DEDUPLICATION for a column, the column is updated whenever an alert is deduplicated, as described in the "Alert Processing" section.
Following the column list, you can specify a primary key column that uniquely identifies each row. The primary key is used for row retrieval and in deduplication.
Note
If you specify the table is permanent, it is maintained when the Cisco Info Server is shut down. When the Cisco Info Server is restarted, the table is restored automatically. Otherwise, it is deleted.
Example
create table userlist
(
userid char(20),
username char(128),
primary key(userid),
permanent
);Data Manipulation Commands
Data manipulation language commands enable you to query and modify data in existing tables using
Cisco Info Server SQL.Viewing Table Data: The SELECT Command
Use the SELECT command to retrieve one or more rows, or partial rows, of data from an existing table, and to perform grouping functions on the data.
Basic (Scalar) Select Syntax
The scalar SELECT command retrieves columns and rows from a table based on specified criteria. The syntax is:
SELECT [TOP num_rows] { * | <scalar_column_expr> [AS <alias_name>] ,... }
FROM [<database_name>.]<table_name>
[WHERE <condition>]
[ORDER BY <column_name_or_alias> [ASC | DESC] ,... ];Use the optional TOP keyword to display only the first num_rows number of rows of the query results that match the selection criteria. If you include the TOP keyword, you should also include an
ORDER BY clause to order the selected rows.Use an "*" to retrieve all columns in the table. Otherwise, specify a comma-separated list of columns to retrieve. You can also create virtual columns using:
•
•
•
Expressions are described in Expressions. Math and string operators are listed in Table 2-5 and Table 2-6. Date literals are listed in Date Literals.
Following a column or virtual column, you can include the AS keyword followed by an alias. This alias is a replacement heading for the column or virtual column name, displayed in the query results. If you specify a column alias, use that alias in any references in the ORDER BY clause. The maximum length of a column name or alias is 32 characters. You can specify up to 30 columns or virtual columns.
If you include a WHERE clause, only rows meeting the criteria specified in the condition are returned. Conditions are described in Conditions.
Use the optional ORDER BY clause to display the results in sequential order depending on the values of one or more column names, in either descending (DESC) or ascending (ASC), order. If the
ORDER BY clause is not specified, no ordering is used. If you have specified a column alias using the AS keyword, use that alias in any references in the ORDER BY column list rather than the corresponding column name.Basic (Scalar) Select Examples
To select all rows of the alerts.status table where the Severity is equal to 4, enter:
select * from alerts.status where Severity = 4;To select all rows of the alerts.status table where the Node contains the string terminal followed by any other characters, enter:
select * from alerts.status where Node like 'terminal.*';For information on pattern-matching metacharacters used in the WHERE clause, see Table 2-8.
In the following example, the virtual column Severity+Tally is populated by adding the values of the two columns together:
select Severity, Severity+Tally from alerts.status;The following example is the same as the previous example, except the virtual column Severity+Tally is renamed Real_Severity.
select Severity, Severity+Tally as Real_Severity from alerts.status;Aggregate Select Syntax
An aggregate SELECT command differs from a scalar SELECT command because it performs a calculation on a number of rows and returns a single value. The syntax is:
SELECT <aggr_expression> [AS <alias_name>],...
FROM [<database_name>.]<table_name>
[WHERE <condition>];Following an aggregate expression, you can include the AS keyword followed by an alias. This alias is a replacement heading for the aggregate expression, displayed in the query results.
The following aggregate expressions are allowed:
MAX(<scalar_column_expr>) |
MIN(<scalar_column_expr>) |
COUNT(<scalar_column_expr> | *) |
AVG(<scalar_column_expr>) |
SUM(<scalar_column_expr>) |
DIST(<scalar_column_expr>, <value>)
The calculation performed by of each of these aggregate functions are listed in Table 2-9.
The maximum length of a column name or alias is 32 characters. You can specify up to 30 aggregate expressions.
If you include a WHERE clause, only rows meeting the criteria specified in the condition are returned. Conditions are described in Conditions.
Aggregate Select Examples
The following example returns the highest Severity value, the average Severity value, and the number of rows for which the Severity is equal to 4:
select MAX(Severity), AVG(Severity), DIST(Severity, 4) from alerts.status;The following example returns the number of rows for which the value of Node is myhost:
select DIST(Node, 'myhost') from alerts.status;The following examples do comparisons using the getdate date literal, which returns the current time:
select MAX(getdate-LastOccurrence) from alerts.status;
select AVG((getdate-LastOccurrence)/60) as ResponseTime from alerts.status where OwnerUID=34;Date literals are described in Date Literals.
Group By Select Syntax
A SELECT command containing a GROUP BY clause enables you to group into a single row all rows that have identical values in a specified column or combination of columns. Used with aggregate functions, described in the preceding section, you can find the aggregate value for each group of column values. The syntax is:
SELECT <column_name> [AS <alias_name>] ,... ,
aggr_expression [AS <alias_name>] ,...
FROM [<database_name>.]<table_name>
[WHERE <condition>]
GROUP BY <column_or_alias_name> ,...
[ORDER BY <column_or_alias_name> [ASC | DESC] ,... ];For this syntax, you must specify the actual column names, rather than using scalar expressions to create virtual columns as described in Basic (Scalar) Select Syntax. Additionally, you cannot use the TOP keyword. An "*" is allowed only in the COUNT(*) aggregate function. Aggregate functions are listed in Table 2-9.
Note
Following a column name or aggregate expression, you can include the AS keyword followed by an alias. This alias is a replacement heading for the column name or aggregate expression, displayed in the query results. If you specify an alias, use that alias in any references in any GROUP BY and ORDER BY clauses. The maximum length of a column name or alias is 32 characters. You can specify up to 30 columns and 30 aggregate expressions.
The GROUP BY clause gathers all of the rows together that contain data in the specified columns and allows aggregate functions to be performed on these columns based on column values. If you specified a column alias using the AS keyword, use that alias in any references in the GROUP BY column list rather than the corresponding column name.
Note
Use the optional ORDER BY clause to display the results in sequential order depending on the values of one or more column names, in either descending (DESC) or ascending (ASC), order. If the
ORDER BY clause is not specified, no ordering is used. If you specified a column alias using the AS keyword, use that alias in any references in the ORDER BY column list rather than the corresponding column name.Group By Select Examples
The following example returns the highest Severity value found for each node.
select Node, max(Severity) from alerts.status group by Node;The following example returns the highest severity value found for each node except the node named Sun1, ordered from lowest to highest maximum severity.
select Node, max(Severity) as MAX_Sev from alerts.status where Node <> 'Sun1' group by Node order by MAX_Sev;The column alias for max(Severity), which is MAX_Sev, is displayed as the heading in the query results.
Removing Table Data: The DELETE Command
Use the DELETE command to delete one or more rows of data from an existing table.
Syntax
DELETE FROM [<database_name>.]<table_name>
[VIA ('<value_of_primary_key_column>')]
[WHERE <condition>];If you are deleting a single row and you know the value of the primary key for the row you wish to delete, specify the value using the optional VIA clause to improve the performance of the delete command. The value of the primary key column must be enclosed in quotes.
If you include a WHERE clause, only rows meeting the criteria specified in the condition are returned. Conditions are described in Conditions. If no WHERE clause is specified, all rows are deleted.
Example
To remove all the rows of the alerts.status table where the value of the Node field is equal to Fred, enter:
delete from alerts.status where Node = 'Fred' ;Adding Table Data: The INSERT Command
Use the INSERT command to insert a new row of data into an existing table.
Syntax
INSERT INTO [<database_name>.]<table_name>
[(<column_name>,...)] VALUES (<expression>,...)
[UPDATING (<column_name>,...)];You must specify a value for the primary key column in the INSERT command.
If you are not inserting values for every column in the row, you must specify a comma-separated list of columns being inserted in parentheses, followed by the VALUES keyword, followed by a comma-separated list of values in parentheses.
The UPDATING keyword forces the specified column(s) to be updated if the insert is deduplicated.
Examples
To insert an alert into the alerts.status table specifying the values in the specified four columns, enter:
insert into alerts.status (Identifier, Severity, Tally, Serial) values ('MasterMachineStats15', 5, 12, 21);Specify the data to be inserted following the VALUES keyword in a parenthesized, comma-separated list of literal values. Enter the values in the same sequence as the specified fields. All other fields are populated with default values.
The UPDATING keyword forces the specified columns to be updated if the insert is deduplicated. To force the Severity field of the previous example to be updated, enter:
insert into status (Identifier, Severity, Tally, Serial) values ('MasterMachineStats15', 5, 12, 21) updating (Severity);Modifying Table Data: The UPDATE Command
Use the UPDATE command to update one or more columns in an existing row of data in a table.
Syntax
UPDATE [<database_name>.]<table_name>
[VIA (['<value_of_primary_key_column>')]
SET <column_name> = <expression>,...
[WHERE< condition>];If you are updating a single row and you know the value of the primary key for the row you wish to update, specify the value using the optional VIA clause to improve the performance of the update command. The value of the primary key column must be enclosed in quotes.
If you include a WHERE clause, only rows meeting the criteria specified in the condition are returned. Conditions are described in Conditions. If no condition is specified, all rows are updated.
Examples
To set the Severity to 0 for any row of the alerts.status table where the Node is equal to Fred, enter:
update alerts.status set Severity = 0 where Node = 'Fred';You can use the values of fields in calculations. In the following example, Severity is set to 0 when an alert has been acknowledged:
update status set Severity=(1-Acknowledged)*Severity;To search for a row where Severity is equal to 1, Node is equal to Fred, and you want to set Severity to 0 and the Summary field to the string Discarded, enter:
update alerts.status set Severity = 0 , Summary = 'Discarded'
where Severity = 1 and Node = 'Fred';Adding and Modifying Service Status Data: The SVC Command
Use the SVC command to add or update the state of a service status event in the service.status table for Cisco Info Center Service Monitors.
Syntax
SVC UPDATE '<name>' <integer>;
In this command, <name> is the name of the profile element generating the alert and <integer> is its current status. Valid values for the service status are shown in Table 2-10.
If any other value is entered, the service level is set to 3 (unknown).
Example
svc update 'newservice' 2;Changing the Default Database
Use the USE command to indicate which database is the default for locating tables. You can then specify a table name in an nco_sql session without preceding it with the database name.
Syntax
USE DATABASE <database_name>;
Example
use database newthings;Viewing Table Column Information: The DESCRIBE Command
Use the DESCRIBE command to view information about the columns of the specified table. The output includes the column name, the length of the column, whether the column is a primary key (1 if TRUE, 0 if FALSE), and the data type, returned as the Cisco Info Server ID as listed in Table 2-2.
Syntax
DESCRIBE [<database_name>.]<table_name>;
Example
describe newtable;Listing All Databases: The LIST DATABASES Command
Use the LIST DATABASES command to list the all of the databases in the Cisco Info Server.
Syntax
LIST DATABASES;
Example
list databases;Listing All Tables: The LIST TABLES Command
Use the LIST TABLES command to list all of the tables in a database.
Syntax
LIST TABLES [IN <database_name>];
If the <database_name> is specified, the tables in the specified database are listed. Otherwise, tables in the current database are listed.
Examples
list tables;
list tables in mydb;Listing Connected Users
Use the USERS command to list the names of all the users connected to the Cisco Info Server.
Syntax
USERS;
Example
users;Changing a User Password
Use the PASSWORD command to change the password for the specified user. Only a super user can execute this command.
Syntax
PASSWORD <user>, <new_pass>;
where <user> is the name of the user whose password is to be changed. <new_pass> is the new password.
Example
password 'john','realpassword';System Administration Commands
Cisco Info Server SQL includes commands that enable you to view and change the current settings and perform other administrative tasks.
Shutting Down the Cisco Info Server: The SHUTDOWN Command
Use the SHUTDOWN command to shut down the Cisco Info Server after synchronizing the persistent store. Only a super user can execute this command.
Syntax
SHUTDOWN [DUMP];
The DUMP option is used to generate a logical checkpoint .dat file instead of a physical checkpoint .tab file when physical checkpointing is enabled. You can use the DUMP command, described in Generating a Logical Checkpoint File: The DUMP Command, to generate the checkpoint file without shutting down the Cisco Info Server.
Examples
shutdown;
shutdown dump;Setting a Property: The SET PROP Command
Use the SET PROP command to set a property value.
Syntax
SET PROP <property_name> TO <value>;
You can set the specified property to an integer value (for example, 10), a boolean value (for example, TRUE or FALSE), or a single quoted string (for example, '<string value>'), depending on the data type of the property. For more information on Cisco Info Server properties, see Specifying Cisco Info Server Properties.
Example
set prop LogInterval to 200;Listing All Properties and Their Values: The SHOW PROPS Command
Use the SHOW PROPS command to list all the properties, returning the names and values as rows of data.
Syntax
SHOW PROPS;
For more information on Cisco Info Server properties, see Specifying Cisco Info Server Properties.
Example
show props;Listing A Single Property and Its Value: The GET PROP Command
Use the GET PROP command to list the value of the specified property.
Syntax
GET PROP <property_name>;
This returns the value of the specified property as an SQL row. For more information on Cisco Info Server properties, see Specifying Cisco Info Server Properties.
Example
get prop DebugLevel;Saving Properties to a File: The SAVE PROPS Command
Use the SAVE PROPS command to save the current property settings to a file.
Syntax
SAVE PROPS [TO '<filename>'];
You can specify a file name other than the default; otherwise, the properties are saved to the default property file location. For more information on Cisco Info Server properties, see Specifying Cisco Info Server Properties.
Examples
save props;
save props to '/etc/mysavedprops.props';Synchronizing Database or Table Data: The SYNC Command
Use the SYNC command to force the consolidation of either the database or table specified. This writes out the current data and applies the .trans file changes to the .dat file.
Syntax
SYNC [DATABASE <database_name> | TABLE <table_name>];
Examples
sync database alerts;
sync table alerts.status;Generating a Logical Checkpoint File: The DUMP Command
Use the DUMP command to generate a logical checkpoint .dat file instead of a physical checkpoint .tab file when physical checkpointing is enabled. Only a super user can execute this command.
Syntax
DUMP;
For more information about checkpointing, see Checkpointing - Logical and Region Storage.
Example
dump;Reclaiming Unused Disk Space: The VACUUM Command
Occasionally the use of region storage can result in table fragmentation. Use the VACUUM command to reclaim unused space in Cisco Info Server tables when physical checkpointing is enabled.
Note
Syntax
VACUUM [<database_name>.]<table_name>;
In this command, <database_name> is the name of the database and <table_name> is the name of the table. If the command is issued when logical storage is enabled, it has no effect.
Example
vacuum alerts.status;Adding and Modifying Cisco Info Server Data Structures
This section describes how to add databases and tables to the Cisco Info Server and how to modify existing tables.
Adding a New Database or Table
You can add databases and tables to the Cisco Info Server to complement the standard tables. For example, you might require a table that contains all of the alerts from a single host machine. You can use automation to populate this table with data from the existing alerts.status table.
You can create new tables in the custom database, which exists for this purpose. If you prefer, you can create a new database.
To add a new data structure, modify the SQL file for your Cisco Info Server as follows:
Step 1
Note
Step 2
where <servername> is the name of the Cisco Info Server. This allows you to roll back any changes if necessary.
Step 3
Do not modify the CREATE DATABASE and CREATE TABLE commands for existing data structures. The CREATE DATABASE and CREATE TABLE commands are described in Data Definition Language Commands.
Step 4
Step 5
Step 6
These messages can indicate errors in the modified SQL file.
Modifying Database Tables
You can add or remove a column, or change the data type of a column, in an existing table. To change a table definition, modify the SQL file for your Cisco Info Server as follows:
Step 1
Note
Step 2
The data in these files is converted to the new table definition as part of this procedure. The existing files are backed up with a .orig extension and the new files are created in their place. The .bak files in the database directory are not changed.
Step 3
The nco_migrate command uses the original SQL file (.orig) to convert the database data to the format of the new SQL file (.sql), created in the next steps.
Step 4
Note
For details on available field types, see Cisco Info Server Data Types.
Step 5
Step 6
Step 7
When region storage is enabled, use the -fuzzy option or set the RegionStorage property to True in the Cisco Info Server properties file.
For more information about logical and region storage, see Checkpointing - Logical and Region Storage. The Cisco Info Server properties file is described in Specifying Cisco Info Server Properties.
Converting Data Using nco_migrate
When columns have been added to or removed from an existing Cisco Info Server table, the existing data may not conform to the new data definition. The nco_migrate command takes the existing data, based on the definition in the original $OMNIHOME/bin/nco_migrate -server <servername>.orig SQL file and converts the data into the format based on the definition in the new $OMNIHOME/bin/nco_migrate -server <servername>.sql SQL file.
where <servername> is the Cisco Info Server name. If you do not specify the -server command line option, NCOMS is the default.
Table 2-11 lists the command line options.
Table 2-11 nco_migrate Command Line Options
-defaults <string>
Specifies the file containing default values, described in Default Files.
-fuzzy
Specify this option to convert databases using region storage using .tab files. If this option is used on a Cisco Info Server that is running logical storage, the command is ignored.
-help
Displays help information about the command line options and exits.
-orig <string>
Specifies the name of the file that contains the old SQL definition with which the database was created. The default is servername.orig.
The option -old can be used as an alias.
-server <string>
Specifies the name of the server to be converted. The default is NCOMS.
-sql <string>
Specifies the name of the file that contains the new SQL definition to which to convert. The default is servername.sql.
The option -new can be used as an alias.
-user <string>
Specifies the name of a Cisco Info Center user. If you do not specify a user name, the default is the user running the command.
-verbose
Displays detailed information during the conversion.
-version
Displays version information and exits.
Default Files
To automatically assign values to new columns, specify the -defaults option followed by a file name. Create file entries in the format:
<databasename>.<tablename>.<fieldname>=<value>
where <databasename> is the name of the database, <tablename> is the name of the table, <fieldname> is the name of the field to set, and <value> is the value to set it to. The format of <value> can be a quoted string or an integer value depending on the type of the field being set. For example, if a field called HtmlPage is added to the alerts.status table, existing entries should have this field set to http://www.random.org/, and the defaults file should contain:
alerts.status.HtmlPage="http://www.random.org/"
Note
Changing the alerts.status Table
This section describes the changes that can be made to the alerts.status table. The overall procedure for modifying Cisco Info Server tables is described in Adding a New Database or Table.
Note
Adding Columns to the alerts.status Table
You can add new columns to the alerts.status table. For example, you might require a column named Customer, which contains the name of the customer who uses the device that produced the alert. Another new column might contain a URL that indicates where the online documentation for a device exists on the company intranet.
You must add the new column after the standard columns in the table definition. Additional columns can be populated using instructions in the Cisco Info Mediator rules files or during the execution of automations.
Changing String Character Data Types
You can change columns that use the varchar data type to the char data type if required. See Cisco Info Server Data Types for the differences between the varchar and char data types.
Note
Do not modify mandatory columns that use other data types.
Checkpointing - Logical and Region Storage
Cisco Info Server data is stored in memory for high speed access. Checkpoints and logging between checkpoints copy the data in memory to disk. This enables you to restore the data after a planned or unexpected shutdown occurs.
During a checkpoint, all Cisco Info Server data is copied to files on disk. Between checkpoints, new and changed data is written to replay log files. The following types of files are maintained on disk:
•
•
Checkpointing takes place at specified time intervals, set using the LogInterval property or the -interval command line option. The default time between checkpoints is 300 seconds. Checkpoints also occur each time there is a planned Cisco Info Server shutdown.
When a checkpoint occurs, each table is copied to a checkpoint file. If there is an associated replay log, it is deleted.
When a Cisco Info Server is started, the database is restored by loading the most recent checkpoint files from disk. When recovering from an unexpected shutdown, the Cisco Info Server loads both the checkpoint files and the replay logs.
The following types of storage are available for checkpoint and replay log files:
•
•
Each storage type uses a different procedure, as described in the following sections.
Logical (Default) Storage
When you use logical storage, the rows of each database table are written to the checkpoint file as SQL commands. A checkpoint file is created on disk for each database table. The checkpoint file is named:
<servername>.<databasename>.<tablename>.dat
Before writing to the .dat file, the existing file is copied to a backup file named:
<servername>.<databasename>.<tablename>.bak
Replay logs are only created for the alerts.status and alerts.journal tables. The changes made to these tables between checkpoints (because the .dat file was created) are added, as SQL commands, to files named:
<servername>.<databasename>.<tablename>.trans
For example, in the NCOMS Cisco Info Server, the alerts.status table replay log file is named:
NCOMS.alerts.status.trans
When the Cisco Info Server restarts, the database is recreated by executing the SQL commands in the .dat file. If a .trans file exists for a table, the SQL commands in this file are also executed. The .bak file is only used if the .dat file has been corrupted during an unexpected shutdown.
Region Storage
When you use region storage, two checkpoint files are generated for each database table in memory. The checkpoint files are named:
<servername>.<databasename>.<tablename>.chk0
<servername>.<databasename>.<tablename>.chk1
Two replay logs are also generated for each table. The files are named:
<servername>.<databasename>.<tablename>.log0
<servername>.<databasename>.<tablename>.log1
The checkpoint process writes alternately to the .chk0 and .chk1 files. If one file has become corrupted during an unexpected shutdown, the data in the other checkpoint file and the replay logs is used to rebuild the database tables in memory. As each checkpoint starts, the logging process switches to the alternate log file. The older log file is deleted before the start of the next checkpoint.
When a planned Cisco Info Server shutdown occurs (because the shutdown command is executed), a table file is created for each table, named:
<servername>.<databasename>.<tablename>.tab
For example, in the NCOMS Cisco Info Server, the alerts.status table file is named:
NCOMS.alerts.status.tab
The .tab file format is specific to the hardware and operating system platform on which it was created.
When the Cisco Info Server is restarted after a planned shutdown, the database is rebuilt using the table files.
When the Cisco Info Server is restarted after an unexpected shutdown, the database is rebuilt using the checkpoint and log files.
Checkpointing in a Production Environment
Region storage is the preferred method of checkpointing for production environments.
When logical storage is used, the tables in memory are locked during checkpoints. This can cause Desktops or Cisco Info Mediators to temporarily stall if they are attempting to update a table that is locked. The update occurs once the checkpoint is complete and the lock is released.
When region storage is used, tables are not locked during checkpointing.
Region storage also has a performance advantage over logical storage when the Cisco Info Server contains large database tables because the format of the tables means they can be copied to disk more quickly.
Region Storage Configuration
To enable region storage, set the RegionStorage property to True in the Cisco Info Server properties file. You must shut down the Cisco Info Server before changing this property.
Note
Converting from Logical Storage to Region Storage
To convert the .dat files to .tab files, enter the command nco_objserv -dattofuzzy while the Cisco Info Server is shut down.
The -dattofuzzy command line option is described in Specifying Cisco Info Server Command Line Options.
Converting from Region Storage to Logical Storage
There are two ways to change from region storage to logical storage:
Conversion When the Cisco Info Server Is Already Shut Down
To convert the .tab files to .dat files without starting the Cisco Info Server, use the command:
nco_objserv -fuzzytodat.
The -fuzzytodat command line option is described in Specifying Cisco Info Server Command Line Options.
Conversion During Cisco Info Server Shutdown
Log in to the Cisco Info Server using the SQL interactive interface. For details see Direct Access Using the SQL Interactive Interface (nco_sql).
Shut down the Cisco Info Server using the following commands:
1> shutdown dump;
2> go
The Cisco Info Server is shut down and .dat checkpoint files are generated instead of .tab files.
