Support Information for Cisco Routers
This chapter contains Virtual Network Element (VNE) support information for Cisco ANA 3.6 SP1 for the following devices:
•
Cisco 800 Series Routers
•Cisco 1000 Series Routers
•Cisco 1600 Series Routers
•Cisco 1700 Series Modular Access Routers
•Cisco 1800 Series Integrated Services Routers
•Cisco 2500 Series Routers
•Cisco 2600 Series Multiservice Platform Routers
•Cisco 2800 Series Integrated Services Routers
•Cisco 3600 Series Multiservice Platform Routers
•Cisco 3700 Series Multiservice Access Routers
•Cisco 7200 Series Routers
•Cisco 7400 Series Routers
•Cisco 7600 Series Routers
•Cisco 10000 Series Routers
•Cisco 12000 Series Routers
•Cisco XR 12000 Series Routers
•Cisco Carrier Routing System (CRS-1) Routers
For information about the technologies supported by each of these VNEs, see Supported Technologies on Cisco Routers.
Cisco 800 Series Routers
This section includes the following information about Cisco 800 Series routers:
•Cisco 800 Series—Supported Software Versions
•Cisco 800 Series—Supported Topologies
•Cisco 800 Series—Supported Technologies
•Cisco 800 Series—Supported Service Events
Note For information about which NE types are supported in Cisco ANA 3.6 SP1, see Supported Cisco Routers in Cisco ANA 3.6 SP1.
Cisco 800 Series—Supported Software Versions
Table 35 lists the supported software versions for Cisco 800 Series routers in Cisco ANA 3.6 SP1.
Table 35 Supported Software Versions for Cisco 800 Series Routers
Software Version
|
|
12.0*
|
S
|
12.1*
|
S
|
12.2(13)ZH4
|
S
|
12.2*
|
S
|
12.3(8)T11
|
S
|
12.3*
|
S
|
12.4(10*
|
S
|
12.4(5a)
|
S
|
12.4(7)
|
S
|
12.4(9)T1
|
S
|
12.4*
|
S
|
Note Software versions marked with an asterisk (representing a wildcard) are supported by Cisco ANA 3.6 SP1. Specific software versions that have been tested and verified are listed individually and marked as V.
Cisco 800 Series—Supported Topologies
The following topologies are supported for Cisco 800 Series routers in Cisco ANA 3.6 SP1:
•MAC
•CDP
Cisco 800 Series—Supported Technologies
The following technologies are supported by the Cisco 800 Series in Cisco ANA 3.6 SP1:
•Base Logical Components
•Layer 1
•IP
•Routing Protocols
•Ethernet (Physical)
•Physical Equipment
•Ethernet (Logical)
•DSL
Cisco 800 Series—Supported Service Events
Table 36 lists the supported service events (also called service alarms) for Cisco 800 Series routers in Cisco ANA 3.6 SP1.
Table 36 Service Events for Cisco 800 Series Routers
Event Name
|
|
card in/out
|
Y
|
link down/up
|
Y
|
Device Unreachable
|
N
|
CPU Over Utilized
|
N
|
Memory Over utilize
|
N
|
Device Unsupported
|
N
|
Module Unsupported
|
N
|
Port Flapping
|
N
|
Port Down
|
Y
|
Card up/down
|
Y
|
Cisco 1000 Series Routers
This section includes the following information about Cisco 1000 Series routers:
•Cisco 1000 Series—Supported Software Versions
•Cisco 1000 Series—Supported Topologies
•Cisco 1000 Series—Supported Technologies
•Cisco 1000 Series—Supported Service Events
Note For information about which NE types are supported in Cisco ANA 3.6 SP1, see Supported Cisco Routers in Cisco ANA 3.6 SP1.
Cisco 1000 Series—Supported Software Versions
Table 37 lists the supported software versions for Cisco 1000 Series routers in Cisco ANA 3.6 SP1.
Table 37 Supported Software Versions for Cisco 1000 Series Routers
Software Version
|
|
11.*
|
S
|
12.1*
|
S
|
12.2*
|
S
|
12.3*
|
S
|
12.4*
|
S
|
Note Software versions marked with an asterisk (representing a wildcard) are supported by Cisco ANA 3.6 SP1. Specific software versions that have been tested and verified are listed individually and marked as V.
Cisco 1000 Series—Supported Topologies
The following topologies are supported for Cisco 1000 Series routers in Cisco ANA 3.6 SP1:
•IP
•MAC
•CDP
Cisco 1000 Series—Supported Technologies
The following technologies are supported by the Cisco 1000 Series in Cisco ANA 3.6 SP1:
•Base Logical Components
•Layer 1
•IP
•Routing Protocols
•Ethernet (Physical)
•Physical Equipment
•Ethernet (Logical)
•ATM
•Frame Relay
•HDLC
•ACL
Cisco 1000 Series—Supported Service Events
Table 38 lists the supported service events (also called service alarms) for Cisco 1000 Series routers in Cisco ANA 3.6 SP1.
Table 38 Service Events for Cisco 1000 Series Routers
Event Name
|
|
Primary HSRP interface is not active Primary HSRP interface is active
|
N
|
Secondary HSRP interface is active Secondary HSRP interface is not active
|
N
|
All ip interfaces down active ip interfaces found
|
Y
|
interface status down/up
|
Y
|
link down/up
|
Y
|
Device Unreachable
|
N
|
CPU Over Utilized
|
N
|
Memory Over utilize
|
N
|
Device Unsupported
|
N
|
Discard Packets
|
N
|
Dropped Packets
|
N
|
Port Flapping
|
N
|
Port Down
|
Y
|
Rx Over utilized
|
N
|
Tx Over utilized
|
N
|
Cisco 1600 Series Routers
This section includes the following information about Cisco 1600 Series routers:
•Cisco 1600 Series—Supported Software Versions
•Cisco 1600 Series—Supported Topologies
•Cisco 1600 Series—Supported Technologies
•Cisco 1600 Series—Supported Service Events
Note For information about which NE types are supported in Cisco ANA 3.6 SP1, see Supported Cisco Routers in Cisco ANA 3.6 SP1.
Cisco 1600 Series—Supported Software Versions
Table 39 lists the supported software versions for Cisco 1600 Series routers in Cisco ANA 3.6 SP1.
Table 39 Supported Software Versions for Cisco 1600 Series Routers
Software Version
|
|
12.0(12)
|
S
|
12.1*
|
S
|
12.2*
|
S
|
Note Software versions marked with an asterisk (representing a wildcard) are supported by Cisco ANA 3.6 SP1. Specific software versions that have been tested and verified are listed individually and marked as V.
Cisco 1600 Series—Supported Topologies
The following topologies are supported for Cisco 1600 Series routers in Cisco ANA 3.6 SP1:
•IP
•MAC
•CDP
Cisco 1600 Series—Supported Technologies
The following technologies are supported by the Cisco 1600 Series in Cisco ANA 3.6 SP1:
•Base Logical Components
•Layer 1
•IP
•Routing Protocols
•Ethernet (Physical)
•Physical Equipment
•Ethernet (Logical)
•ATM
•Frame Relay
•HDLC
•ACL
Cisco 1600 Series—Supported Service Events
Table 40 lists the supported service events (also called service alarms) for Cisco 1600 Series routers in Cisco ANA 3.6 SP1.
Table 40 Service Events for Cisco 1600 Series Routers
Event Name
|
|
Primary HSRP interface is not active Primary HSRP interface is active
|
Y
|
Secondary HSRP interface is active Secondary HSRP interface is not active
|
Y
|
All ip interfaces down active ip interfaces found
|
Y
|
interface status down/up
|
Y
|
card in/out
|
Y
|
link down/up
|
Y
|
Device Unreachable
|
N
|
CPU Over Utilized
|
N
|
Memory Over utilize
|
N
|
Device Unsupported
|
N
|
Discard Packets
|
N
|
Dropped Packets
|
N
|
Module Unsupported
|
N
|
Port Flapping
|
N
|
Port Down
|
Y
|
Rx Over utilized
|
N
|
Tx Over utilized
|
N
|
BGP Neighbor Down
|
Y
|
Card up/down
|
Y
|
Cisco 1700 Series Modular Access Routers
This section includes the following information about Cisco 1700 Series routers:
•Cisco 1700 Series—Supported Software Versions
•Cisco 1700 Series—Supported Topologies
•Cisco 1700 Series—Supported Modules
•Cisco 1700 Series—Supported Technologies
•Cisco 1700 Series—Supported Service Events
Note For information about which NE types are supported in Cisco ANA 3.6 SP1, see Supported Cisco Routers in Cisco ANA 3.6 SP1.
Cisco 1700 Series—Supported Software Versions
Table 41 lists the supported software versions for Cisco 1700 Series routers in Cisco ANA 3.6 SP1.
Table 41 Supported Software Versions for Cisco 1700 Series Routers
Software Version
|
|
12.1(3)XP3
|
S
|
Note Software versions marked with an asterisk (representing a wildcard) are supported by Cisco ANA 3.6 SP1. Specific software versions that have been tested and verified are listed individually and marked as V.
Cisco 1700 Series—Supported Topologies
The following topologies are supported for Cisco 1700 Series routers in Cisco ANA 3.6 SP1:
•IP
•MAC
•CDP
•Physical
•PPP
•Static
Cisco 1700 Series—Supported Modules
Table 42 lists the supported modules for Cisco 1700 Series routers in Cisco ANA 3.6 SP1.
Table 42 Supported Modules for Cisco 1700 Series Routers
Module Name
|
Module Description
|
|
WIC-1SHDSL-V3=
|
1-port G.shdsl WIC with Four Wire Support (spare & system)
|
S
|
WIC-2A/S
|
dual-serial port WAN Interface Card
|
S
|
VWIC-2MFT-T1
|
2-Port RJ-48 Multiflex Trunk - T1
|
S
|
VWIC-2MFT-E1
|
2-port RJ-48 Multifled Trunk - E1
|
S
|
VWIC-2MFT-T1-DI
|
2-Port RJ-48 Multiflex Trunk - T1 With Drop and Insert
|
S
|
VWIC-2MFT-E1-DI
|
2-Port RJ-48 Multiflex Trunk - E1 With Drop and Insert
|
S
|
WIC-1ENET
|
1-port ethernet WAN Interface card
|
S
|
MPC860
|
Power PC processor, such as in the Cisco 1700 Series
|
S
|
WIC-1DSU-T1
|
1-port T1/Fractional T1 DSU/CSU WAN Interface card
|
S
|
AIM-VPN/BP
|
DES/3DES VPN Encryption AIM-Base Performance
|
S
|
AIM-VPN/BPII
|
DES/3DES/AES and Layer 3 (IPPCP) Compression VPN Encryption AIM-Base Performance
|
S
|
AIM-VPN/EPII
|
DES/3DES/AES and Layer 3 (IPPCP) Compression VPN Encryption AIM-Enhanced Performance
|
S
|
WIC-1DSU-T1-V2
|
Updated one-port T1/fractional T1 DSU/CSU WIC
|
S
|
VWIC-1MFT-E1
|
1-Port RJ-48 Multiflex Trunk-E1
|
S
|
Note For detailed information about the specific technologies and attributes supported by this NE, see Cisco 1700 Series—Supported Technologies.
Cisco 1700 Series—Supported Technologies
The following technologies are supported by the Cisco 1700 Series in Cisco ANA 3.6 SP1:
•Base Logical Components
•Layer 1
•IP
•Routing Protocols
•Ethernet (Physical)
•Physical Equipment
•Ethernet (Logical)
•ATM
•Frame Relay
•ACL
Cisco 1700 Series—Supported Service Events
Table 43 lists the supported service events (also called service alarms) for Cisco 1700 Series routers in Cisco ANA 3.6 SP1.
Table 43 Service Events for Cisco 1700 Series Routers
Event Name
|
|
card in/out
|
Y
|
link down/up
|
Y
|
Device Unreachable
|
N
|
CPU Over Utilized
|
N
|
Memory Over utilize
|
N
|
Device Unsupported
|
N
|
Module Unsupported
|
N
|
Port Flapping
|
N
|
Port Down
|
Y
|
Card up/down
|
Y
|
Cisco 1800 Series Integrated Services Routers
This section includes the following information about Cisco 1800 Series routers:
•Cisco 1800 Series—Supported Software Versions
•Cisco 1800 Series—Supported Topologies
•Cisco 1800 Series—Supported Modules
•Cisco 1800 Series—Supported Technologies
•Cisco 1800 Series—Supported Service Events
Note For information about which NE types are supported in Cisco ANA 3.6 SP1, see Supported Cisco Routers in Cisco ANA 3.6 SP1.
Cisco 1800 Series—Supported Software Versions
Table 44 lists the supported software versions for Cisco 1800 Series routers in Cisco ANA 3.6 SP1.
Table 44 Supported Software Versions for Cisco 1800 Series Routers
Software Version
|
|
12.3*
|
S
|
12.4*
|
S
|
Note Software versions marked with an asterisk (representing a wildcard) are supported by Cisco ANA 3.6 SP1. Specific software versions that have been tested and verified are listed individually and marked as V.
Cisco 1800 Series—Supported Topologies
The following topologies are supported for Cisco 1800 Series routers in Cisco ANA 3.6 SP1:
•IP
•MAC
•CDP
Cisco 1800 Series—Supported Modules
Table 45 lists the supported modules for Cisco 1800 Series routers in Cisco ANA 3.6 SP1.
Table 45 Supported Modules for Cisco 1800 Series Routers
Module Name
|
Module Description
|
|
WIC-1T
|
1-Port Serial WIC
|
S
|
WIC-2T
|
2-port serial WIC
|
S
|
WIC-1DSU-T1-V2
|
1-port T1/Fractional-T1 CSU/DSU WIC
|
S
|
WIC-1DSU-56K4
|
1-port 4-wire 56-/64-kbps CSU/DSU WIC
|
S
|
WIC-1ADSL(wic-dslsar-20150)
|
1-port asymmetric DSL (ADSL) over basic telephone service WIC
|
S
|
WIC-2AM
|
2-port analog modem WIC
|
S
|
VWIC-2MFT-T1-DI
|
2-port RJ-48 multiflex trunk-T1 with drop and insert- data only
|
S
|
VWIC-2MFT-G703
|
2-port RJ-48 multiflex trunk-G.703- data only
|
S
|
VWIC-2MFT-E1-DI
|
2-port RJ-48 multiflex trunk-E1 with drop and insert- data only
|
S
|
HWIC-4ESW
|
4-port 10/100 Ethernet switch interface card
|
S
|
AIM-VPN-BP2-PLUS
|
Virtual Private Network (VPN) Module
|
S
|
C1841 Motherboard with 2 Fast Ethernet
|
C1841 Motherboard with 2 Fast Ethernet
|
S
|
Note For detailed information about the specific technologies and attributes supported by this NE, see Cisco 1800 Series—Supported Technologies.
Cisco 1800 Series—Supported Technologies
The following technologies are supported by the Cisco 1800 Series in Cisco ANA 3.6 SP1:
•Base Logical Components
•Layer 1
•IP
•Routing Protocols
•Ethernet (Physical)
•Physical Equipment
•Ethernet (Logical)
•ATM
•Frame Relay
•HDLC
•ACL
Cisco 1800 Series—Supported Service Events
Table 46 lists the supported service events (also called service alarms) for Cisco 1800 Series routers in Cisco ANA 3.6 SP1.
Table 46 Service Events for Cisco 1800 Series Routers
Event Name
|
|
Primary HSRP interface is not active Primary HSRP interface is active
|
Y
|
Secondary HSRP interface is active Secondary HSRP interface is not active
|
Y
|
All ip interfaces down active ip interfaces found
|
Y
|
interface status down/up
|
Y
|
card in/out
|
Y
|
link down/up
|
Y
|
Device Unreachable
|
Y
|
CPU Over Utilized
|
Y
|
Memory Over utilize
|
Y
|
Device Unsupported
|
Y
|
Discard Packets
|
N
|
Dropped Packets
|
N
|
Module Unsupported
|
N
|
Port Flapping
|
N
|
Port Down
|
Y
|
Rx Over utilized
|
N
|
Tx Over utilized
|
N
|
VPN leak
|
N
|
Cloud Problem
|
N
|
Concurrent Backup and Primary Port
|
N
|
Backup Interface Warning
|
N
|
BGP Neighbor Down
|
Y
|
Card up/down
|
Y
|
Primary HSRP interface is not active Primary HSRP interface is active
|
Y
|
Secondary HSRP interface is active Secondary HSRP interface is not active
|
Y
|
Cisco 2500 Series Routers
This section includes the following information about Cisco 2500 Series routers:
•Cisco 2500 Series—Supported Software Versions
•Cisco 2500 Series—Supported Topologies
•Cisco 2500 Series—Supported Modules
•Cisco 2500 Series—Supported Technologies
•Cisco 2500 Series—Supported Service Events
Note For information about which NE types are supported in Cisco ANA 3.6 SP1, see Supported Cisco Routers in Cisco ANA 3.6 SP1.
Cisco 2500 Series—Supported Software Versions
Table 47 lists the supported software versions for Cisco 2500 Series routers in Cisco ANA 3.6 SP1.
Table 47 Supported Software Versions for Cisco 2500 Series Routers
Software Version
|
|
11.*
|
S
|
11.2(18)
|
S
|
12.0(17a)
|
S
|
12.0*
|
S
|
12.1*
|
S
|
12.2*
|
S
|
Note Software versions marked with an asterisk (representing a wildcard) are supported by Cisco ANA 3.6 SP1. Specific software versions that have been tested and verified are listed individually and marked as V.
Cisco 2500 Series—Supported Topologies
The following topologies are supported for Cisco 2500 Series routers in Cisco ANA 3.6 SP1:
•IP
•MAC
•CDP
Cisco 2500 Series—Supported Modules
Table 48 lists the supported modules for Cisco 2500 Series routers in Cisco ANA 3.6 SP1.
Table 48 Supported Modules for Cisco 2500 Series Routers
Module Name
|
Module Description
|
|
CPU-2500
|
Cisco 2500 CPU card
|
S
|
Note For detailed information about the specific technologies and attributes supported by this NE, see Cisco 2500 Series—Supported Technologies.
Cisco 2500 Series—Supported Technologies
The following technologies are supported by the Cisco 2500 Series in Cisco ANA 3.6 SP1:
•Base Logical Components
•Layer 1
•IP
•Routing Protocols
•Ethernet (Physical)
•Physical Equipment
•Ethernet (Logical)
•ATM
•Frame Relay
•ACL
Cisco 2500 Series—Supported Service Events
Table 49 lists the supported service events (also called service alarms) for Cisco 2500 Series routers in Cisco ANA 3.6 SP1.
Table 49 Service Events for Cisco 2500 Series Routers
Event Name
|
|
Primary HSRP interface is not active Primary HSRP interface is active
|
N
|
Secondary HSRP interface is active Secondary HSRP interface is not active
|
N
|
All ip interfaces down active ip interfaces found
|
Y
|
interface status down/up
|
Y
|
card in/out
|
Y
|
link down/up
|
Y
|
Device Unreachable
|
N
|
CPU Over Utilized
|
N
|
Memory Over utilize
|
N
|
Device Unsupported
|
N
|
Discard Packets
|
N
|
Dropped Packets
|
N
|
Module Unsupported
|
N
|
Port Flapping
|
N
|
Port Down
|
Y
|
Rx Over utilized
|
N
|
Tx Over utilized
|
N
|
Broken LSP discovered
|
N
|
BGP Neighbor Down
|
N
|
Card up/down
|
Y
|
Cisco 2600 Series Multiservice Platform Routers
This section includes the following information about Cisco 2600 Series routers:
•Cisco 2600 Series—Supported Software Versions
•Cisco 2600 Series—Supported Topologies
•Cisco 2600 Series—Supported Modules
•Cisco 2600 Series—Supported Technologies
•Cisco 2600 Series—Supported Service Events
Note For information about which NE types are supported in Cisco ANA 3.6 SP1, see Supported Cisco Routers in Cisco ANA 3.6 SP1.
Cisco 2600 Series—Supported Software Versions
Table 50 lists the supported software versions for Cisco 2600 Series routers in Cisco ANA 3.6 SP1.
Table 50 Supported Software Versions for Cisco 2600 Series Routers
Software Version
|
|
11.3(10)T
|
S
|
12.0(3)T3
|
S
|
12.2(15)T
|
S
|
12.2(17a)
|
S
|
12.2(8)T5
|
S
|
12.3(17a)
|
S
|
12.3(4)*
|
S
|
12.4*
|
S
|
11.*
|
S
|
Note Software versions marked with an asterisk (representing a wildcard) are supported by Cisco ANA 3.6 SP1. Specific software versions that have been tested and verified are listed individually and marked as V.
Cisco 2600 Series—Supported Topologies
The following topologies are supported for Cisco 2600 Series routers in Cisco ANA 3.6 SP1:
•IP
•MAC
•CDP
Cisco 2600 Series—Supported Modules
Table 51 lists the supported modules for Cisco 2600 Series routers in Cisco ANA 3.6 SP1.
Table 51 Supported Modules for Cisco 2600 Series Routers
Module Name
|
Module Description
|
|
AIM-ATM
|
AIM(Advanced Integration Module) supporting ATM features for Cisco 2600, 2600XM, 2691, 3660, and 3700
|
S
|
WIC-1ADSL
|
1-port ADSLoPOTS WAN Interface Card (System)
|
S
|
VWIC-1MFT-T1
|
1-Port RJ-48 Multiflex Trunk-T1
|
S
|
VWIC-2MFT-T1
|
2-Port RJ-48 Multiflex Trunk-T1
|
S
|
VWIC-2MFT-T1-DI
|
2-Port RJ-48 Multiflex Trunk-T1 With Drop and Insert
|
S
|
VWIC-1MFT-E1
|
1-Port RJ-48 Multiflex Trunk-E1
|
S
|
VWIC-2MFT-E1
|
2-Port RJ-48 Multiflex Trunk-E1
|
S
|
VWIC-2MFT-E1-DI
|
2-Port RJ-48 Multiflex Trunk-E1 With Drop and Insert
|
S
|
NM-1T3/E3
|
One-port clear-channel T3/E3 network module
|
S
|
NM-1E2W
|
One-port Ethernet plus two WAN interface card slots
|
S
|
NM-1E1RW
|
One-port Token Ring, one-port Ethernet plus two WAN interface card slots
|
S
|
NM-1A-T3) and E3 (NM-1A-E3
|
DS3/E3 ATM Network Modules for the Cisco 2600, 2800, 3600, 3700 and 3800 Series Routers
|
S
|
VIC-4FXS/DID
|
4-port FXS voice/fax interface card (Note
|
S
|
VIC2-2E/M
|
2-port E&M voice/fax interface card
|
S
|
VIC2-2FXS
|
2-port FXS voice/fax interface card
|
S
|
AIM-VOICE-30
|
AIM supporting voice/fax DSP features
|
S
|
VIC-2FXO
|
Two-port FXO voice/fax interface card [also see VIC-2FXO-M1]
|
S
|
WIC-1B-S/T-V3
|
1-Port ISDN WAN Interface Card (dial and leased line)
|
S
|
NM-1FE1CT1-One-port 10/100BaseTX Ethernet with one-port T1 PRI/Channelized
|
N/A(DESC)
|
S
|
NM-2FE2W
|
2 10/100 Ethernet 2 WAN card slot network module
|
S
|
NM-1FE2W
|
1 10/100 Ethernet 2 WAN card slot network module
|
S
|
NM-2FE2W-V2
|
2 Port 10/100 Ethernet with 2 WAN Card Slot Network
|
S
|
NM-1FE2W-V2
|
1 10/100Ethernet with 2 WAN card Slot Network
|
S
|
NM-1FE1R2W
|
1 10/100 Ethernet 14/16 Token Ring 2 WAN card slot network module
|
S
|
NM-2W
|
2 WIC slot network module, (WAN I/F cards offered separately)
|
S
|
NM-1T3/E3(12)
|
1-port Clear Channel
|
S
|
NM-1CE1T1-PRI
|
1-port Channelized E1/T1/ISDN PRI network module
|
S
|
NM-2CE1T1-PRI
|
2-port Channelized E1/T1/ISDN PRI network module
|
S
|
NM-8AM-V2
|
8-port analog modem network module with V.92
|
S
|
NM-16AM-V2
|
16-port analog modem network module with V.92
|
S
|
NM-HDV2
|
IP Communications high-density digital voice network module
|
S
|
NM-CUE-EC
|
Cisco Unity Express Network Module Enhanced Capacity
|
S
|
NM-AIC-64(6)
|
Alarm monitoring and control network module; 64 contact points and 16 control points
|
S
|
NM-NAM
|
Network analysis module
|
S
|
Note For detailed information about the specific technologies and attributes supported by this NE, see Cisco 2600 Series—Supported Technologies.
Cisco 2600 Series—Supported Technologies
The following technologies are supported by the Cisco 2600 Series in Cisco ANA 3.6 SP1:
•Base Logical Components
•Layer 1
•IP
•Routing Protocols
•Ethernet (Physical)
•Physical Equipment
•Ethernet (Logical)
•ATM
•Frame Relay
•ACL
Cisco 2600 Series—Supported Service Events
Table 52 lists the supported service events (also called service alarms) for Cisco 2600 Series routers in Cisco ANA 3.6 SP1.
Table 52 Service Events for Cisco 2600 Series Routers
Event Name
|
|
All ip interfaces down active ip interfaces found
|
N
|
interface status down/up
|
N
|
card in/out
|
Y
|
link down/up
|
Y
|
Device Unreachable
|
N
|
CPU Over Utilized
|
N
|
Memory Over utilize
|
N
|
Device Unsupported
|
N
|
Module Unsupported
|
N
|
Port Flapping
|
N
|
Port Down
|
Y
|
Card up/down
|
Y
|
Cisco 2800 Series Integrated Services Routers
This section includes the following information about Cisco 2800 Series routers:
•Cisco 2800 Series—Supported Software Versions
•Cisco 2800 Series—Supported Topologies
•Cisco 2800 Series—Supported Modules
•Cisco 2800 Series—Supported Technologies
•Cisco 2800 Series—Supported Service Events
Note For information about which NE types are supported in Cisco ANA 3.6 SP1, see Supported Cisco Routers in Cisco ANA 3.6 SP1.
Cisco 2800 Series—Supported Software Versions
Table 53 lists the supported software versions for Cisco 2800 Series routers in Cisco ANA 3.6 SP1.
Table 53 Supported Software Versions for Cisco 2800 Series Routers
Software Version
|
|
12.3(11)T*
|
S
|
12.3(8)T*
|
S
|
12.3(8)T5
|
S
|
12.3(14)T7
|
S
|
12.4(12)
|
S
|
12.4(3a)
|
S
|
12.4(4*
|
S
|
12.4(5a)
|
S
|
12.4(7*
|
S
|
12.4(8*
|
S
|
12.4(10)
|
S
|
12.4(1a)
|
S
|
Note Software versions marked with an asterisk (representing a wildcard) are supported by Cisco ANA 3.6 SP1. Specific software versions that have been tested and verified are listed individually and marked as V.
Cisco 2800 Series—Supported Topologies
The following topologies are supported for Cisco 2800 Series routers in Cisco ANA 3.6 SP1:
•IP
•MAC
•CDP
Cisco 2800 Series—Supported Modules
Table 54 lists the supported modules for Cisco 2800 Series routers in Cisco ANA 3.6 SP1.
Table 54 Supported Modules for Cisco 2800 Series Routers
Module Name
|
Module Description
|
|
NM-1T3E3
|
1-port clear-channel T3/E3 network module
|
S
|
NM-8AM-V2
|
8-port analog modem network module with v.92
|
S
|
NM-16AM-V2
|
16-port analog modem network module with v.92
|
S
|
NM-1CE1T1-PRI
|
1-port Channelized E1/T1/ISDN PRI network module
|
S
|
NM-2CE1T1-PRI
|
2-port Channelized E1/T1/ISDN PRI network module
|
S
|
NM-HD-2V
|
2-slot IP Communications voice and fax network module
|
S
|
NM-HDV2
|
IP Communications high-density voice and fax network module
|
S
|
NM-CUE-EC
|
Cisco Unity Express Voice-Mail Network Module extended capacity
|
S
|
NM-NAM
|
network analysis module
|
S
|
HWIC-1FE
|
1-port Fast Ethernet HWIC
|
S
|
HWIC-1GE-SFP
|
Cisco Gigabit Ethernet High-Speed Interface Card
|
S
|
HWIC-4T
|
4-Port serial HWIC
|
S
|
HWIC-16A
|
16-Port Async HWIC
|
S
|
HWIC-ADSL-BST
|
2-port HWIC with 1-port ADSLoPOTS and 1-port ISDN BRI-S/T
|
S
|
HWIC-2SHDSL
|
2-port G.SHDSL HWIC with 2-wire and 4-wire support
|
S
|
HWIC-4SHDSL
|
4-port G.SHDSL HWIC with 2-wire, 4-wire, and 8-wire support
|
S
|
WIC-1ADSL
|
1-port asymmetric DSL (ADSL) over POTS service WIC
|
S
|
WIC-1SHDSL-V3
|
1-port G.SHDSL WIC with 4-wire support
|
S
|
VWIC2-1MFT-T1E1
|
1-Port T1/E1 Voice/WAN with Drop & Insert
|
S
|
VWIC-2MFT-T1-DI
|
2-port RJ-48 multiflex trunk-T1 with drop and insert
|
S
|
VWIC-2MFT-E1-DI
|
2-port RJ-48 multiflex trunk-E1 with drop and insert
|
S
|
VWIC-2MFT-G703
|
2-port RJ-48 multiflex trunk-G.703
|
S
|
VIC2-2FXS
|
2-port VIC-FXS
|
S
|
VIC2-2BRI-NTTE
|
2-port VIC card-BRI (NT and TE)
|
S
|
WIC-1AM-V2
|
1-port analog modem WIC (updated version)
|
S
|
WIC-2AM-V2
|
2-port analog modem WIC (updated version)
|
S
|
HWIC-1ADSLI
|
1-port ADSL over ISDN HWIC
|
S
|
HWIC-4ESW
|
4-port Cisco EtherSwitch 10BASE-T/100BASE-TX autosensing HWIC
|
S
|
EM-4BRI-NTTE
|
4-port BRI voice and fax expansion module
|
S
|
Note For detailed information about the specific technologies and attributes supported by this NE, see Cisco 2800 Series—Supported Technologies.
Cisco 2800 Series—Supported Technologies
The following technologies are supported by the Cisco 2800 Series in Cisco ANA 3.6 SP1:
•Base Logical Components
•Layer 1
•IP
•Routing Protocols
•Ethernet (Physical)
•Physical Equipment
•Ethernet (Logical)
•ATM
•Frame Relay
•HDLC
•ACL
Cisco 2800 Series—Supported Service Events
Table 55 lists the supported service events (also called service alarms) for Cisco 2800 Series routers in Cisco ANA 3.6 SP1.
Table 55 Service Events for Cisco 2800 Series Routers
Event Name
|
|
All ip interfaces down active ip interfaces found
|
Y
|
interface status down/up
|
Y
|
card in/out
|
Y
|
link down/up
|
Y
|
Device Unreachable
|
Y
|
CPU Over Utilized
|
Y
|
Memory Over utilize
|
Y
|
Device Unsupported
|
Y
|
Module Unsupported
|
N
|
Port Flapping
|
N
|
Port Down
|
Y
|
Card up/down
|
Y
|
Cisco 3600 Series Multiservice Platform Routers
This section includes the following information about Cisco 3600 Series routers:
•Cisco 3600 Series—Supported Software Versions
•Cisco 3600 Series—Supported Topologies
•Cisco 3600 Series—Supported Modules
•Cisco 3600 Series—Supported Technologies
•Cisco 3600 Series—Supported Service Events
Note For information about which NE types are supported in Cisco ANA 3.6 SP1, see Supported Cisco Routers in Cisco ANA 3.6 SP1.
Cisco 3600 Series—Supported Software Versions
Table 56 lists the supported software versions for Cisco 3600 Series routers in Cisco ANA 3.6 SP1.
Table 56 Supported Software Versions for Cisco 3600 Series Routers
Software Version
|
|
12.0(0.20)T
|
S
|
12.0(3)T3
|
S
|
12.0(4)T
|
S
|
12.0(5)
|
S
|
12.0(5)T1
|
S
|
12.0(6.5)T3
|
S
|
12.0(7)XK1
|
S
|
12.1(20)
|
S
|
12.2(12)
|
S
|
12.2(4)T1
|
S
|
12.2(8)T5
|
S
|
12.3*
|
S
|
12.4*
|
S
|
Note Software versions marked with an asterisk (representing a wildcard) are supported by Cisco ANA 3.6 SP1. Specific software versions that have been tested and verified are listed individually and marked as V.
Cisco 3600 Series—Supported Topologies
The following topologies are supported for Cisco 3600 Series routers in Cisco ANA 3.6 SP1:
•IP
•MAC
•CDP
•MPLS
Cisco 3600 Series—Supported Modules
Table 57 lists the supported modules for Cisco 3600 Series routers in Cisco ANA 3.6 SP1.
Table 57 Supported Modules for Cisco 3600 Series Routers
Module Name
|
Module Description
|
|
PM-1E
|
One Port Ethernet
|
S
|
PM-C3600-1FE-TX
|
One port Fastethernet TX
|
S
|
NM-2FE-2W
|
FastEthernet/WAN
|
S
|
WIC-SERIAL-1T
|
WAN Interface Card - Serial (1T)
|
S
|
PM-4E
|
Four Port Ethernet
|
S
|
CPU-3600
|
|
S
|
PM-2CE1-UNBALANCED
|
Two Port Channelized E1/PRI (75 ohm, unbalanced)
|
S
|
Note For detailed information about the specific technologies and attributes supported by this NE, see Cisco 3600 Series—Supported Technologies.
Cisco 3600 Series—Supported Technologies
The following technologies are supported by the Cisco 3600 Series in Cisco ANA 3.6 SP1:
•Base Logical Components
•Layer 1
•IP
•Routing Protocols
•Ethernet (Physical)
•Physical Equipment
•Ethernet (Logical)
•ATM
•Frame Relay
•HDLC
•MPLS
•VPN
•ACL
•Q-in-Q (Routed Switch)
Cisco 3600 Series—Supported Service Events
Table 58 lists the supported service events (also called service alarms) for Cisco 3600 Series routers in Cisco ANA 3.6 SP1.
Table 58 Service Events for Cisco 3600 Series Routers
Event Name
|
|
Primary HSRP interface is not active Primary HSRP interface is active
|
N
|
Secondary HSRP interface is active Secondary HSRP interface is not active
|
N
|
All ip interfaces down active ip interfaces found
|
Y
|
interface status down/up
|
Y
|
card in/out
|
Y
|
link down/up
|
Y
|
Device Unreachable
|
N
|
CPU Over Utilized
|
N
|
Memory Over utilize
|
N
|
Device Unsupported
|
N
|
Discard Packets
|
N
|
Dropped Packets
|
N
|
Module Unsupported
|
N
|
Port Flapping
|
N
|
Port Down
|
Y
|
Rx Over utilized
|
N
|
Tx Over utilized
|
N
|
VPN leak
|
N
|
Cloud Problem
|
N
|
Concurrent Backup and Primary Port
|
N
|
Backup Interface Warning
|
N
|
Broken LSP discovered
|
N
|
MPLS Black hole
|
N
|
Layer 2 Tunnel Down
|
N
|
MPLS TE Tunnel Down/Flapping
|
N
|
BGP Neighbor Down
|
N
|
Card up/down
|
Y
|
Cisco 3700 Series Multiservice Access Routers
This section includes the following information about Cisco 3700 Series routers:
•Cisco 3700 Series—Supported Software Versions
•Cisco 3700 Series—Supported Topologies
•Cisco 3700 Series—Supported Modules
•Cisco 3700 Series—Supported Technologies
•Cisco 3700 Series—Supported Service Events
Note For information about which NE types are supported in Cisco ANA 3.6 SP1, see Supported Cisco Routers in Cisco ANA 3.6 SP1.
Cisco 3700 Series—Supported Software Versions
Table 59 lists the supported software versions for Cisco 3700 Series routers in Cisco ANA 3.6 SP1.
Table 59 Supported Software Versions for Cisco 3700 Series Routers
Software Version
|
|
12.4(9)T
|
S
|
12.4*
|
S
|
12.3*
|
S
|
12.2*
|
S
|
Note Software versions marked with an asterisk (representing a wildcard) are supported by Cisco ANA 3.6 SP1. Specific software versions that have been tested and verified are listed individually and marked as V.
Cisco 3700 Series—Supported Topologies
The following topologies are supported for Cisco 3700 Series routers in Cisco ANA 3.6 SP1:
•IP
•MAC
•CDP
•MPLS
Cisco 3700 Series—Supported Modules
Table 60 lists the supported modules for Cisco 3700 Series routers in Cisco ANA 3.6 SP1.
Table 60 Supported Modules for Cisco 3700 Series Routers
Module Name
|
Module Description
|
|
NM-16ESW
|
16 port 10/100 EtherSwitch NM
|
S
|
NM-1FE2W
|
1 10/100 Ethernet 2 WAN Card Slot Network Module
|
S
|
NM-2FE2W
|
2 10/100 Ethernet 2 WAN Card Slot Network Module
|
S
|
NM-2W
|
2 WAN Card Slot Network Module(no LAN)
|
S
|
NM-1T3/E3
|
1-Port Clear-channel T3/E3 Network Module
|
S
|
NM-1HSSI
|
Single port HSSI network module
|
S
|
NM-1CE1T1-PRI
|
1-Port Channelized T1 / E1 Modules with PRI Network Modules
|
S
|
NM-2CE1T1-PRI
|
2-Port Channelized T1 / E1 Modules with PRI Network Modules
|
S
|
VIC-2E/M
|
Two-port Voice Interface Card - EandM
|
S
|
VIC-2FXO
|
Two-port Voice Interface Card - FXO
|
S
|
VIC-2FXS
|
Two-port Voice Interface Card - FXS
|
S
|
VWIC-2MFT-G703
|
2-Port RJ-48 Multiflex Trunk - G.703
|
S
|
VWIC-2MFT-T1
|
2-Port RJ-48 Multiflex Trunk - T1
|
S
|
VWIC-2MFT-E1
|
2-Port RJ-48 Multiflex Trunk - E1
|
S
|
WIC-2AM
|
Two-port Analog Modem WAN Interface Card
|
S
|
WIC-1ADSL-I-DG
|
1-Port ADSLoISDN WAN Interface Card
|
S
|
Note For detailed information about the specific technologies and attributes supported by this NE, see Cisco 3700 Series—Supported Technologies.
Cisco 3700 Series—Supported Technologies
The following technologies are supported by the Cisco 3700 Series in Cisco ANA 3.6 SP1:
•Base Logical Components
•Layer 1
•IP
•Routing Protocols
•Ethernet (Physical)
•Physical Equipment
•Ethernet (Logical)
•ATM
•Frame Relay
•HDLC
•MPLS
•VPN
•ACL
Cisco 3700 Series—Supported Service Events
Table 61 lists the supported service events (also called service alarms) for Cisco 3700 Series routers in Cisco ANA 3.6 SP1.
Table 61 Service Events for Cisco 3700 Series Routers
Event Name
|
|
Primary HSRP interface is not active Primary HSRP interface is active
|
Y
|
Secondary HSRP interface is active Secondary HSRP interface is not active
|
Y
|
All ip interfaces down active ip interfaces found
|
Y
|
interface status down/up
|
Y
|
card in/out
|
Y
|
link down/up
|
Y
|
Device Unreachable
|
Y
|
CPU Over Utilized
|
Y
|
Memory Over utilize
|
Y
|
Device Unsupported
|
Y
|
Module Unsupported
|
Y
|
Port Down
|
Y
|
Rx Over utilized
|
N
|
Tx Over utilized
|
N
|
VPN leak
|
Y
|
Broken LSP discovered
|
Y
|
MPLS Black hole
|
Y
|
Layer 2 Tunnel Down
|
Y
|
MPLS TE Tunnel Down/Flapping
|
Y
|
BGP Neighbor Down
|
Y
|
Card up/down
|
Y
|
Cisco 7200 Series Routers
This section includes the following information about Cisco 7200 Series routers:
•Cisco 7200 Series—Supported Software Versions
•Cisco 7200 Series—Supported Topologies
•Cisco 7200 Series—Supported Modules
•Cisco 7200 Series—Supported Technologies
•Cisco 7200 Series—Supported Service Events
Note For information about which NE types are supported in Cisco ANA 3.6 SP1, see Supported Cisco Routers in Cisco ANA 3.6 SP1.
Cisco 7200 Series—Supported Software Versions
Table 62 lists the supported software versions for Cisco 7200 Series routers in Cisco ANA 3.6 SP1.
Table 62 Supported Software Versions for Cisco 7200 Series Routers
Software Version
|
|
IOS 12.0(26)S6
|
S
|
IOS 12.0(27)S1
|
S
|
IOS 12.0(32)S6
|
S
|
IOS 12.1(10)E
|
S
|
IOS 12.1(19)E6
|
S
|
IOS 12.1(1a)
|
S
|
IOS 12.2(12)
|
V
|
IOS 12.2(15)B
|
V
|
IOS 12.2(15)T5
|
V
|
IOS 12.2(18.2)
|
V
|
12.2(31)SB3x
|
S
|
IOS 12.2(33)SRA
|
V
|
IOS 12.2(34.*
|
S
|
IOS 12.2(37*
|
S
|
IOS 12.2(40*
|
S
|
IOS 12.3(10)
|
V
|
IOS 12.3(12.10)
|
V
|
IOS 12.3(15a)
|
V
|
IOS 12.3(3)B1
|
V
|
IOS 12.3(7)XI7a
|
V
|
IOS 12.3*
|
S
|
IOS 12.4*
|
S
|
IOS 11.3(7)T
|
V
|
IOS 12.0(22)S5
|
V
|
IOS 12.0(23)S3.0619
|
V
|
IOS 12.0(23)S4
|
V
|
IOS 12.0(23)S6
|
V
|
IOS 12.0(23)S6.0412
|
V
|
IOS 12.0(24)S3
|
V
|
IOS 12.0(25)S2
|
V
|
IOS 12.0(26)S4
|
V
|
IOS 12.0(26)S5
|
V
|
IOS 11.3(7)T
|
V
|
IOS 12.0(26)S6
|
V
|
IOS 12.0(27)S1
|
V
|
IOS 12.4(11)T1
|
V
|
Note Software versions marked with an asterisk (representing a wildcard) are supported by Cisco ANA 3.6 SP1. Specific software versions that have been tested and verified are listed individually and marked as V.
Cisco 7200 Series—Supported Topologies
The following topologies are supported for Cisco 7200 Series routers in Cisco ANA 3.6 SP1:
•ATM counters
•IP
•Ethernet
•CDP
•MPLS
Cisco 7200 Series—Supported Modules
Table 63 lists the supported modules for Cisco 7200 Series routers in Cisco ANA 3.6 SP1.
Table 63 Supported Modules for Cisco 7200 Series Routers
Module Name
|
Module Description
|
|
CX-FEIP-1FX
|
1-port fast ethernet interface processor (100FX)
|
S
|
FEIP2-DSW
|
2-Port Fast Ethernet IP with Dist. Switching
|
S
|
PA-FE-TX
|
1-Port Fast Ethernet 100BaseTx Port Adapter
|
S
|
PA-4R-DTR
|
4-port dedicated Token Ring, 4/16 Mbps, half duplex(HDX) or full duplex (FDX)
|
S
|
PA-2T3+
|
Two-port clear-channel DS3 port adap
|
S
|
VIP2-50
|
VIP2; Model 50
|
S
|
GEIP
|
Gigabit Ethernet Interface Processor
|
S
|
PA-4R-DTR
|
4-port Token Ring Port Adapter
|
S
|
PA-8E
|
8-Port 10BaseT Ethernet Port Adapter
|
S
|
PA-4E
|
4-Port 10BaseT Ethernet Port Adapter
|
S
|
NPE-100
|
Cisco 7200 Series Network Processing Engine 100
|
S
|
NSE-1
|
Cisco 7200 Series Network Services Engine, NSE-1
|
S
|
NPE-150
|
Cisco 7200 Series Network Processing Engine 150
|
S
|
NPE-200
|
Network Processing Engine NPE-200
|
S
|
NPE-300
|
Network Processing Engine NPE-300
|
S
|
NPE-225
|
Cisco 7200 Network Processing Engine NPE-225
|
S
|
C7200-I/O-GE+E
|
Cisco 7200 Series 1-Port Gigabit Ethernet and 1-Port Ethernet Input/Output Controller
|
S
|
C7200-I/O-2FE/E
|
Cisco 7200 Series 2-Port 10/100 Auto-Sensing Fast Ethernet Input/Output Controller
|
S
|
ATM WAN OC3+ (MM) /PA-A1
|
ATM WAN OC3+ (MM) Port adapter, 1 port. Port adapter
|
S
|
C7200-IO
|
I/O controller with no Ethernet port
|
S
|
NPE-400
|
Cisco 7200VXR Network Processing Engine NPE-400, including 256 MB SDRAM
|
S
|
NPE-G1
|
Cisco 7200 Series NPE-G1 including 256 MB default DRAM and 64 MB default flash memory
|
S
|
PA-MC-8E1
|
8-port MultiChannel E1 Port Adapter
|
S
|
PA-MC-E3
|
1-port MultiChannel E3 Port Adapter
|
S
|
PA-MC-2T
|
2-port multichannel T1 with integrated channel service units (CSUs)/DSUs
|
S
|
PA-2FE-TX
|
2-Port Fast Ethernet 100Base TX Port Adapter
|
S
|
PA-T3
|
One-port clear-channel DS3 port adapter
|
S
|
PA-POS-OC3SMI
|
Single-Mode Intermediate Reach PoS, OC3 Port Adapter
|
S
|
PA-POS-OC3MM
|
MultiMode PoS, OC3 Port Adapter
|
S
|
PA-POS-OC3SML
|
Single-Mode Long Reach PoS, OC3 Port Adapter
|
S
|
PA-MC-2T
|
Two-port enhanced multichannel T3 port adapter
|
S
|
PA-A6-OC3SMI
|
1-Port Enhanced ATM OC3c/STM1 Singlemode (IR) Port Adapter
|
S
|
PA-FE-FX
|
1-Port Fast Ethernet 100BaseFx Port Adapter
|
S
|
RSP4
|
Route Switch Processor 4
|
S
|
PA-MC-8TE1
|
8 port multichannel T1/E1 8PRI port adapter
|
S
|
CX-CIP2-ECAP1
|
Second-generation Channel Interface Processor with single ESCON channel and single parallel channel
|
S
|
VIP6-80
|
Services Accelerator Versatile Interface Processor 6-80
|
S
|
PA-MC-2E1/120
|
2-Port Multichannel E1/PRI Port Adapter
|
S
|
PA-MC-T3
|
Single port enhanced multichannel T3 port adapter
|
S
|
CX-FEIP-1FX
|
1-port fast ethernet interface processor (100TX)
|
S
|
PA-A3-OC3SML
|
Single port ATM OC3c/STM1 Single Mode (LR) Port Adapter
|
S
|
PA-A3-OC3SMI
|
Single port ATM OC3c/STM1 Single Mode (IR) Port Adapter
|
S
|
PA-A3-OC3MM
|
Single port ATM OC3c/STM1 Multi Mode Port Adapter
|
S
|
OSM-1OC48-POS-SI
|
1-port OC-48/STM-16 SONET/SDH enhanced OSM, single-mode, intermediate-reach with 4 GE
|
S
|
WS-X6582-2PA
|
Enhanced FlexWAN Module, Fabric-enabled
|
S
|
WS-X6582-2PA
|
FlexWAN Module
|
S
|
PA-GE
|
Gigabit Ethernet Port Adapter
|
S
|
PA-8T1
|
8-port channelized T1
|
S
|
PA-chSTM1
|
4 port channelized STM-1 card
|
S
|
PA-MC-STM1-SMI
|
|
S
|
PA-MC-T3-EC
|
Enhanced 1 port multichannel PA
|
S
|
PA-POS-2OC3
|
2 Port Packet/SONET OC3c/STM1 Port Adapter
|
S
|
Note For detailed information about the specific technologies and attributes supported by this NE, see Cisco 7200 Series—Supported Technologies.
Cisco 7200 Series—Supported Technologies
The following technologies are supported by the Cisco 7200 Series in Cisco ANA 3.6 SP1:
•Base Logical Components
•Layer 1
•IP
•Routing Protocols
•Ethernet (Physical)
•Physical Equipment
•Ethernet (Logical)
•ATM
•Frame Relay
•HDLC
•MPLS
•VPN
•ACL
Cisco 7200 Series—Supported Service Events
Table 64 lists the supported service events (also called service alarms) for Cisco 7200 Series routers in Cisco ANA 3.6 SP1.
Table 64 Service Events for Cisco 7200 Series Routers
Event Name
|
|
Primary HSRP interface is not active Primary HSRP interface is active
|
N
|
Secondary HSRP interface is active Secondary HSRP interface is not active
|
N
|
All ip interfaces down active ip interfaces found
|
Y
|
interface status down/up
|
Y
|
card in/out
|
Y
|
link down/up
|
Y
|
Device Unreachable
|
N
|
CPU Over Utilized
|
N
|
Memory Over utilize
|
N
|
Device Unsupported
|
N
|
Discard Packets
|
N
|
Dropped Packets
|
N
|
Module Unsupported
|
N
|
Port Flapping
|
N
|
Port Down
|
Y
|
Rx Over utilized
|
N
|
Tx Over utilized
|
N
|
VPN leak
|
N
|
Cloud Problem
|
N
|
Broken LSP discovered
|
N
|
MPLS Black hole
|
N
|
Layer 2 Tunnel Down
|
N
|
MPLS TE Tunnel Down/Flapping
|
N
|
BGP Neighbor Down
|
N
|
Card up/down
|
Y
|
Cisco 7400 Series Routers
This section includes the following information about Cisco 7400 Series routers:
•Cisco 7400 Series—Supported Software Versions
•Cisco 7400 Series—Supported Topologies
•Cisco 7400 Series—Supported Modules
•Cisco 7400 Series—Supported Technologies
•Cisco 7400 Series—Supported Service Events
Note For information about which NE types are supported in Cisco ANA 3.6 SP1, see Supported Cisco Routers in Cisco ANA 3.6 SP1.
Cisco 7400 Series—Supported Software Versions
Table 65 lists the supported software versions for Cisco 7400 Series routers in Cisco ANA 3.6 SP1.
Table 65 Supported Software Versions for Cisco 7400 Series Routers
Software Version
|
|
IOS 12.0(32)S6
|
S
|
IOS 12.1(10)E
|
S
|
IOS 12.1(19)E6
|
S
|
IOS 12.1(1a)
|
S
|
IOS 12.2(12)
|
S
|
IOS 12.2(15)B
|
S
|
IOS 12.2(15)T5
|
S
|
IOS 12.2(18.2)
|
S
|
IOS 12.2(31)SB3x
|
S
|
IOS 12.2(34.*
|
S
|
IOS 12.3(10)
|
S
|
IOS 12.3(12.10)
|
S
|
IOS 12.3(15a)
|
S
|
IOS 12.3(3)B1
|
S
|
IOS 12.3(7)XI7a
|
S
|
IOS 12.3*
|
S
|
IOS 12.4*
|
S
|
IOS 12.0(22)S5
|
S
|
IOS 12.0(23)S3.0619
|
S
|
IOS 12.0(23)S4
|
S
|
IOS 12.0(23)S6
|
S
|
IOS 12.0(23)S6.0412
|
S
|
IOS 12.0(24)S3
|
S
|
IOS 12.0(25)S2
|
S
|
IOS 12.0(26)S4
|
S
|
IOS 12.0(26)S5
|
S
|
IOS 11.3(7)T
|
S
|
IOS 12.0(26)S6
|
S
|
IOS 12.0(27)S1
|
S
|
IOS 12.4(11)T1
|
S
|
Note Software versions marked with an asterisk (representing a wildcard) are supported by Cisco ANA 3.6 SP1. Specific software versions that have been tested and verified are listed individually and marked as V.
Cisco 7400 Series—Supported Topologies
The following topologies are supported for Cisco 7400 Series routers in Cisco ANA 3.6 SP1:
•IP
•Ethernet
•CDP
•MPLS
Cisco 7400 Series—Supported Modules
Table 66 lists the supported modules for Cisco 7400 Series routers in Cisco ANA 3.6 SP1.
Table 66 Supported Modules for Cisco 7400 Series Routers
Module Name
|
Module Description
|
|
PA-FE-TX
|
1-Port Fast Ethernet 100BaseTx Port Adapter
|
S
|
PA-4R-DTR
|
4-port dedicated Token Ring, 4/16 Mbps, half duplex(HDX) or full duplex (FDX)
|
S
|
PA-2T3
|
Two-port clear-channel DS3 port adap
|
S
|
PA-4R-DTR
|
4-port Token Ring Port Adapter
|
S
|
PA-8E
|
8-Port 10BaseT Ethernet Port Adapter
|
S
|
PA-4E
|
4-Port 10BaseT Ethernet Port Adapter
|
S
|
PA-MC-8E1
|
8-port MultiChannel E1 Port Adapter
|
S
|
PA-MC-E3
|
1-port MultiChannel E3 Port Adapter
|
S
|
PA-MC-2T
|
2-port multichannel T1 with integrated channel service units (CSUs)/DSUs
|
S
|
PA-2FE-TX
|
2-Port Fast Ethernet 100Base TX Port Adapter
|
S
|
PA-T3
|
One-port clear-channel DS3 port adapter
|
S
|
PA-POS-OC3SMI
|
Single-Mode Intermediate Reach PoS, OC3 Port Adapter
|
S
|
PA-POS-OC3MM
|
MultiMode PoS, OC3 Port Adapter
|
S
|
PA-POS-OC3SML
|
Single-Mode Long Reach PoS, OC3 Port Adapter
|
S
|
PA-MC-2T
|
Two-port enhanced multichannel T3 port adapter
|
S
|
PA-A6-OC3SMI
|
1-Port Enhanced ATM OC3c/STM1 Singlemode (IR) Port Adapter
|
S
|
PA-FE-FX
|
1-Port Fast Ethernet 100BaseFx Port Adapter
|
S
|
PA-MC-8TE1
|
8 port multichannel T1/E1 8PRI port adapter
|
S
|
PA-MC-2E1/120
|
2-Port Multichannel E1/PRI Port Adapter
|
S
|
PA-MC-T3
|
Single port enhanced multichannel T3 port adapter
|
S
|
PA-A3-OC3SML
|
Single port ATM OC3c/STM1 Single Mode (LR) Port Adapter
|
S
|
PA-A3-OC3SMI
|
Single port ATM OC3c/STM1 Single Mode (IR) Port Adapter
|
S
|
PA-A3-OC3MM
|
Single port ATM OC3c/STM1 Multi Mode Port Adapter
|
S
|
PA-GE
|
Gigabit Ethernet Port Adapter
|
S
|
Note For detailed information about the specific technologies and attributes supported by this NE, see Cisco 7400 Series—Supported Technologies.
Cisco 7400 Series—Supported Technologies
The following technologies are supported by the Cisco 7400 Series in Cisco ANA 3.6 SP1:
•Base Logical Components
•Layer 1
•IP
•Routing Protocols
•Ethernet (Physical)
•Physical Equipment
•Ethernet (Logical)
•ATM
•Frame Relay
•HDLC
•MPLS
•VPN
•ACL
Cisco 7400 Series—Supported Service Events
Table 67 lists the supported service events (also called service alarms) for Cisco 7400 Series routers in Cisco ANA 3.6 SP1.
Table 67 Service Events for Cisco 7400 Series Routers
Event Name
|
|
Primary HSRP interface is not active Primary HSRP interface is active
|
N
|
Secondary HSRP interface is active Secondary HSRP interface is not active
|
N
|
All ip interfaces down active ip interfaces found
|
Y
|
interface status down/up
|
Y
|
card in/out
|
Y
|
link down/up
|
Y
|
Device Unreachable
|
N
|
CPU Over Utilized
|
N
|
Memory Over utilize
|
N
|
Device Unsupported
|
N
|
Discard Packets
|
N
|
Dropped Packets
|
N
|
Module Unsupported
|
N
|
Port Flapping
|
N
|
Port Down
|
Y
|
Rx Over utilized
|
N
|
Tx Over utilized
|
N
|
VPN leak
|
N
|
Cloud Problem
|
N
|
Broken LSP discovered
|
N
|
MPLS Black hole
|
N
|
Layer 2 Tunnel Down
|
N
|
MPLS TE Tunnel Down/Flapping
|
N
|
BGP Neighbor Down
|
N
|
Card up/down
|
Y
|
Cisco 7600 Series Routers
This section includes the following information about Cisco 7600 Series routers:
•Cisco 7600 Series—Supported Software Versions
•Cisco 7600 Series—Supported Topologies
•Cisco 7600 Series—Supported Modules
•Cisco 7600 Series—Supported Technologies
•Cisco 7600 Series—Supported Service Events
Note For information about which NE types are supported in Cisco ANA 3.6 SP1, see Supported Cisco Routers in Cisco ANA 3.6 SP1.
Cisco 7600 Series—Supported Software Versions
Table 68 lists the supported software versions for Cisco 7600 Series routers in Cisco ANA 3.6 SP1.
Table 68 Supported Software Versions for Cisco 7600 Series Routers
Software Version
|
|
IOS 12.1(20)E3
|
S
|
IOS 12.2(18)SXD
|
V
|
IOS 12.2(18)SXD2
|
S
|
IOS 12.2(18)SXD5
|
V
|
IOS 12.2(18)SXE6b
|
V
|
IOS 12.2(33)SRA
|
V
|
IOS 12.2(33)SRA2
|
V
|
IOS 12.2(33)SRB
|
V
|
IOS 12.2(18)SXE*
|
S
|
IOS 12.2(18)SXF*
|
S
|
IOS 12.2(33*
|
S
|
IOS 12.3*
|
S
|
IOS 12.4*
|
S
|
IOS 12.2(18)SXE
|
S
|
IOS 12.2(33)SRB1
|
S
|
IOS 12.1(13)E6
|
S
|
Note Software versions marked with an asterisk (representing a wildcard) are supported by Cisco ANA 3.6 SP1. Specific software versions that have been tested and verified are listed individually and marked as V.
Cisco 7600 Series—Supported Topologies
The following topologies are supported for Cisco 7600 Series routers in Cisco ANA 3.6 SP1:
•IP
•MAC
•CDP
•MPLS
Cisco 7600 Series—Supported Modules
Table 69 lists the supported modules for Cisco 7600 Series routers in Cisco ANA 3.6 SP1.
Table 69 Supported Modules for Cisco 7600 Series Routers
Module Name
|
Module Description
|
|
7600-ES20
|
Cisco 7600 Series Ethernet Services Card
|
S
|
7600-ES20-10G3C
|
Cisco 7600 ES20 line card, 2x10GE XFP with DFC 3C
|
S
|
7600-ES20-10G3CXL
|
Cisco 7600 ES20 line card, 2x10GE XFP with DFC 3CXL
|
S
|
7600-ES20-GE3C
|
Cisco 7600 ES20 line card, 20xGE SFP with DFC 3C
|
S
|
7600-ES20-GE3CXL
|
Cisco 7600 ES20 line card, 20xGE SFP with DFC 3CXL
|
S
|
7600-ES20-PROC
|
7600 ES20 PROC FRU
|
S
|
7600-MSFC4
|
c7600 MSFC4 Daughterboard
|
S
|
7600-SIP-200
|
SPA Interface Processor-200
|
S
|
7600-SIP-400
|
SPA Interface Processor-400
|
S
|
7600-SIP-600
|
SPA Interface Processor-600
|
S
|
OSM-12CT3T1
|
12-port channelized/unchannelized CT3-T1
|
S
|
OSM-1CHOC12T3-SI
|
1-port channelized OC-12, SM-IR
|
S
|
OSM-1OC48-POS-SI+
|
Enhanced 1-port OC-48/STM-16 SONET/SDH OSM, SM-IR
|
S
|
OSM-1OC48-POS-SL+
|
Enhanced 1-port OC-48/STM-16 SONET/SDH OSM, SM-LR
|
S
|
OSM-1OC48-POS-SS+
|
Enhanced 1-port OC-48/STM-16 SONET/SDH OSM, SM-SR
|
S
|
OSM-2+4GE-WAN+
|
4-port Gigabit Ethernet WAN (GBIC) with two Layer 2 LAN ports; CEF256
|
S
|
OSM-2OC12-ATM-MM+
|
Enhanced 2-port OC-12/STM-4 ATM OSM, MM
|
S
|
OSM-2OC12-ATM-SI+
|
Enhanced 2-port OC-12/STM-4 ATM OSM, SM-IR
|
S
|
OSM-2OC12-POS-SI+
|
Enhanced 2-port OC-12c/STM-4c POS, SM-IR; CEF256
|
S
|
OSM-4OC12-POS-SI+
|
Enhanced 4-port OC-12c/STM-4c POS, SM-IR; CEF256
|
S
|
OSM-4OC3-POS-SI+
|
Enhanced 4-port OC-3c/STM-1c POS, SM-IR;
|
S
|
PA-1FE-TX, -FX
|
1-port Fast Ethernet port adapter
|
S
|
PA-2FE-TX, -FX
|
2-port Fast Ethernet port adapter
|
S
|
PA-4T+
|
T1/E1 port adapters
|
S
|
PA-A3-E3
|
ATM with traffic shaping port adapters
|
S
|
PA-A3-T3
|
ATM with traffic shaping port adapters
|
S
|
PA-MC-4T1
|
T1/E1 port adapters
|
S
|
PA-MC-8T1
|
T1/E1 port adapters
|
S
|
PA-MC-STM-1
|
Multichannel STM-1 port adapters
|
S
|
PA-POS-2OC3
|
2-port POS OC3c/STM1 port adapter
|
S
|
SFP-OC3-IR1
|
Intermediate range, single-mode fiber
|
S
|
SFP-OC3-LR1
|
Long range, single-mode fiber
|
S
|
SFP-OC3-MM
|
Short range, multimode fiber
|
S
|
SPA-10X1GE
|
10-port Gigabit Ethernet SPA, SFP Optics
|
S
|
SPA-10X1GE-V2
|
10-port Gigabit Ethernet SPA, SFP Optics
|
S
|
SPA-1XCHSTM1/OC3
|
1-port Channelized STM1/OC3 to DS0 SPA
|
S
|
SPA-1XOC12-ATM
|
1-Port OC-12c/STM-4c ATM SPA
|
S
|
SPA-1XOC12-POS
|
1-port OC-12c/STM-4c POS SPA
|
S
|
SPA-1XOC48-ATM
|
1 port OC-48c/STM-16 ATM SPA
|
S
|
SPA-1XTENGE-XFP
|
1-port 10 Gigabit Ethernet SPA, LANPHY XFP Optics
|
S
|
SPA-24CHT1-CE-ATM
|
24-Port Channelized T1/E1/J1 ATM CEoP SPA
|
S
|
SPA-2X1GE
|
2-port Gigabit Ethernet SPA, SFP Optics
|
S
|
SPA-2X1GE-V2
|
2-port Gigabit Ethernet SPA, SFP Optics
|
S
|
SPA-2XCT3/DS0
|
2-port Channelized T3 to DS0 SPA
|
S
|
SPA-2XOC3-ATM
|
2-port OC-3c/STM-1c ATM SPA
|
S
|
SPA-2XOC3-POS
|
2-port OC-3c/STM-1c POS SPA
|
S
|
SPA-2XOC48POS/RPR
|
1-port 10 Gigabit Ethernet Shared Port Adapter XFP based
|
S
|
SPA-2XOC48POSRPR
|
2 port OC-48 POS/RPR SPA with SFP Optics
|
S
|
SPA-2XT3/E3
|
2-port Clear Channel T3/E3 SPA
|
S
|
SPA-4X1FE-TX-V2
|
4-port 10/100 Ethernet SPA TX
|
S
|
SPA-4XCT3/DS0
|
4-port Channelized T3 to DS0 SPA
|
S
|
SPA-4XOC3-ATM
|
4-port OC-3c/STM-1c ATM SPA
|
S
|
SPA-4XOC3-POS
|
4-port OC-3c/STM-1c POS SPA
|
S
|
SPA-4XOC48POSRPR
|
4-port OC-48c/STM-16 POS/DPT/RPR SPA
|
S
|
SPA-4XT3/E3
|
4-port Clear Channel T3/E3 SPA
|
S
|
SPA-5X1GE
|
5-port Gigabit Ethernet SPA, SFP Optics
|
S
|
SPA-8X1FE-TX-V2
|
8-port 10/100 Ethernet SPA TX
|
S
|
SPA-8XCHT1E1
|
8-Port Channelized T1/E1 SPA
|
S
|
SPA-OC192POS-LR
|
1-port OC-192c/STM-64 POS/RPR SPA, SM-LR
|
S
|
SPA-OC192POS-XFP
|
1-port OC-192c/STM-64 POS/RPR SPA, XFP Optics
|
S
|
WS-C6509-E-FAN
|
High-capacity fan tray
|
S
|
WS-C6509-NEB-A
|
Enhanced 9-slot vertically oriented chassis
|
S
|
WS-CAC-6000W
|
6000W AC power supply
|
S
|
WS-F6700-DFC3BXL
|
Distributed Forwarding Card 3BXL (DFC3BXL) for use on CEF720 modules
|
S
|
WS-F6700-DFC3C
|
Distributed Forwarding Card 3C (DFC3C) for use on CEF720 modules
|
S
|
WS-F6700-DFC3CXL
|
Distributed Forwarding Card 3CXL (DFC3CXL) for use on CEF720 modules
|
S
|
WS-F6K-FE48X2-AF
|
IEEE 802.3af PoE daughtercard
|
S
|
WS-F6K-GE48-AF
|
IEEE 802.3af PoE daughtercard
|
S
|
WS-F6K-MSFC2
|
Multilevel Switching Feature Card Version 2 for Catalyst 6000 that is treated as a standalone system by the NMS
|
S
|
WS-F6K-PFC2
|
Catalyst 6500 L3 switching engine II
|
S
|
WS-F6K-PFC3BXL
|
Policy Feature Card 3BXL (PFC3BXL)
|
V
|
WS-F6K-PFC3CXL
|
Policy Feature Card 3CXL (PFC3CXL)
|
S
|
WS-F6K-VPWR
|
PoE Daughtercard
|
S
|
WS-F6K-VPWR-GE
|
PoE Daughtercard
|
S
|
WS-G6483
|
10GBASE-ER serial 1550 nm extended-reach OIM
|
S
|
WS-G6488
|
10GBASE-LR serial 1310 nm long-reach OIM
|
S
|
WS-SUP32-10GE-3B
|
Supervisor Engine 32
|
S
|
WS-SUP32-GE-3B
|
Supervisor Engine 32
|
S
|
WS-SUP720-3B
|
Supervisor Engine 720 with PFC3B
|
V
|
WS-SUP720-3BXL
|
Supervisor Engine 720 with PFC3BXL
|
V
|
WS-SVC-IDS2-BUN-K9
|
Cisco Catalyst 6500 Series Intrusion Detection System (IDSM-2) Service Module
|
S
|
WS-SVC-MWAM-1
|
Multi-Processor WAN Application Module
|
S
|
WS-SVC-NAM-1
|
Network Analysis module 1
|
S
|
WS-SVC-NAM-2
|
Network Analysis module 2
|
S
|
WS-X6148A-GE-TX
|
48 port 10/100/1000 RJ-45 Ethernet Switching Module
|
S
|
WS-X6148A-RJ-45
|
48 port 10/100TX RJ-45 Ethernet/Fast Ethernet Switching Module
|
S
|
WS-X6148-FE-SFP
|
48 port 100BASE-FX Fast Ethernet Switching Module
|
S
|
WS-X6148-GE-TX
|
48 port 10/100/1000 RJ-45 Ethernet Switching Module
|
S
|
WS-X6148-RJ-21
|
48 port 10/100TX RJ-21 Ethernet/Fast Ethernet Switching Module
|
S
|
WS-X6148-RJ-45
|
48 port 10/100TX RJ-45 Ethernet/Fast Ethernet Switching Module
|
S
|
WS-X6148X2-RJ-45
|
96 port 10/100TX RJ-45 Ethernet/Fast Ethernet Switching Module
|
S
|
WS-X6196-RJ-21
|
96 port 10/100TX RJ-21 Ethernet/Fast Ethernet Switching Module
|
S
|
WS-X6248A-TEL
|
48 port 10/100TX RJ-21 Enhanced Ethernet/Fast Ethernet Switching Module
|
S
|
WS-X6248-RJ-45
|
48 port 10/100TX RJ-45 Ethernet/Fast Ethernet Switching Module
|
S
|
WS-X6248-TEL
|
48 port 10/100TX RJ-21 Ethernet/Fast Ethernet Switching Module
|
S
|
WS-X6316-GE-TX
|
16-port Gigabit Ethernet RJ-45
|
S
|
WS-X6324-100FX-SM
|
24 port 100FX SingleMode Fast Ethernet Switching Module
|
S
|
WS-X6348-RJ-21
|
6500 48 port 10/100BaseTX (RJ-21)
|
S
|
WS-X6348-RJ-45
|
48 port 10/100TX RJ-45 Ethernet/Fast Ethernet Switching Module
|
S
|
WS-X6408A-GBIC
|
8-port Gigabit Ethernet GBIC Enhanced QoS Module
|
S
|
WS-X6408-GBIC
|
8-port Gigabit Ethernet GBIC
|
S
|
WS-X6416-GBIC
|
16-port Gigabit Ethernet GBIC
|
S
|
WS-X6502-10GE
|
1-port 10-Gigabit Ethernet
|
S
|
WS-X6516A-GBIC
|
16-port Gigabit Ethernet GBIC
|
S
|
WS-X6516-GBIC
|
16-port Gigabit Ethernet GBIC
|
S
|
WS-X6516-GE-TX
|
16 port 10/100/1000 Base-T Ethernet Switching Module
|
S
|
WS-X6548-GE-TX
|
48 port 10/100/1000 RJ-45 Ethernet Switching Module
|
S
|
WS-X6548-RJ-21
|
48 port 10/100TX RJ-21 Ethernet/Fast Ethernet Switching Module
|
S
|
WS-X6548-RJ-45
|
48 port 10/100TX RJ-45 Ethernet/Fast Ethernet Switching Module
|
S
|
WS-X6582-2PA
|
Enhanced FlexWAN Module;
|
S
|
WS-X6700-CFC
|
Centralized Forwarding Card
|
S
|
WS-X6704-10GE
|
4-port 10-Gigabit Ethernet
|
S
|
WS-X6724-SFP
|
24-port Gigabit Ethernet SFP
|
S
|
WS-X6748-GE-TX
|
48 port 10/100/1000 RJ-45 Ethernet Switching Module
|
S
|
WS-X6748-SFP
|
48-port Gigabit Ethernet SFP
|
S
|
WS-X6816-GBIC
|
16-port Gigabit Ethernet GBIC
|
S
|
XENPAK-10GB-ER
|
10GBASE-ER Serial 1550-nm extended-reach, single-mode fiber (SMF), dispersion-shifted fiber (DSF)
|
S
|
XENPAK-10GB-SR
|
10GBASE-SR Serial 850-nm short-reach multimode fiber (MMF)
|
S
|
WS-6700-DFC3B
|
Catalyst 6500 Distributed forwarding card 3B
|
S
|
WS-6700-DFC3BXL
|
Catalyst 6500 Distributed forwarding card 3B XL
|
S
|
WS-X6148FE-SFP
|
Catalyst 6500 48 port 100Base-X SFP module
|
S
|
WS-X6K-S1A-MSFC2
|
Catalyst 6000 Supervisor Engine 1A, 2 Gigabit Ethernet, plus MSFC2 and policy feature card (PFC)
|
S
|
WS-X6K-SUP2-2GE
|
Supervisor 2 with 2 Gigabit Ethernet ports
|
S
|
WS-F6700-DFC3A
|
Distributed Forwarding Card 3
|
S
|
cevFan
|
Fan
|
S
|
Note For detailed information about the specific technologies and attributes supported by this NE, see Cisco 7600 Series—Supported Technologies.
Cisco 7600 Series—Supported Technologies
The following technologies are supported by the Cisco 7600 Series in Cisco ANA 3.6 SP1:
•Base Logical Components
•Layer 1
•IP
•Routing Protocols
•Ethernet (Physical)
•Physical Equipment
•Ethernet (Logical)
•ATM
•Frame Relay
•HDLC
•MPLS
•VPN
•ACL
•Q-in-Q (Switch Port)
•Q-in-Q (Routed Switch)
•STP
Cisco 7600 Series—Supported Service Events
Table 70 lists the supported service events (also called service alarms) for Cisco 7600 Series routers in Cisco ANA 3.6 SP1.
Table 70 Service Events for Cisco 7600 Series Routers
Event Name
|
|
Primary HSRP interface is not active Primary HSRP interface is active
|
N
|
Secondary HSRP interface is active Secondary HSRP interface is not active
|
N
|
All ip interfaces down active ip interfaces found
|
Y
|
interface status down/up
|
Y
|
card in/out
|
Y
|
link down/up
|
Y
|
Device Unreachable
|
N
|
CPU Over Utilized
|
N
|
Memory Over utilize
|
N
|
Device Unsupported
|
N
|
Discard Packets
|
N
|
Dropped Packets
|
N
|
Module Unsupported
|
N
|
Port Flapping
|
N
|
Port Down
|
Y
|
Rx Over utilized
|
N
|
Tx Over utilized
|
N
|
VPN leak
|
N
|
Cloud Problem
|
N
|
Broken LSP discovered
|
N
|
MPLS Black hole
|
N
|
Layer 2 Tunnel Down
|
N
|
MPLS TE Tunnel Down/Flapping
|
N
|
BGP Neighbor Down
|
N
|
Card up/down
|
Y
|
Cisco 10000 Series Routers
This section includes the following information about Cisco 10000 Series routers:
•Cisco 10000 Series—Supported Software Versions
•Cisco 10000 Series—Supported Topologies
•Cisco 10000 Series—Supported Modules
•Cisco 10000 Series—Supported Technologies
•Cisco 10000 Series—Supported Service Events
Note For information about which NE types are supported in Cisco ANA 3.6 SP1, see Supported Cisco Routers in Cisco ANA 3.6 SP1.
Cisco 10000 Series—Supported Software Versions
Table 71 lists the supported software versions for Cisco 10000 Series routers in Cisco ANA 3.6 SP1.
Table 71 Supported Software Versions for Cisco 10000 Series Routers
Software Version
|
|
12.2(31)SB
|
S
|
12.3(7)XI7b
|
S
|
12.0(20)
|
S
|
12.2(24)S
|
S
|
12.2(24)S4
|
S
|
11.3*
|
S
|
12.0*
|
S
|
12.1*
|
S
|
12.2*
|
S
|
12.0(23)S*
|
V
|
12.0(22)S5
|
V
|
12.2(18.2)
|
V
|
12.1(10)E
|
V
|
Note Software versions marked with an asterisk (representing a wildcard) are supported by Cisco ANA 3.6 SP1. Specific software versions that have been tested and verified are listed individually and marked as V.
Cisco 10000 Series—Supported Topologies
The following topologies are supported for Cisco 10000 Series routers in Cisco ANA 3.6 SP1:
•ATM counters
•IP
•Ethernet
•CDP
•MPLS
•BGP
•Layer 2 Tunnels
•Physical
•PPP
•Static
•VRF
Cisco 10000 Series—Supported Modules
Table 72 lists the supported modules for Cisco 10000 Series routers in Cisco ANA 3.6 SP1.
Table 72 Supported Modules for Cisco 10000 Series Routers
Module Name
|
Module Description
|
|
ESR-4OC3-ATM-SM
|
4-port OC-3/STM-1 ATM, single mode
|
S
|
ESR-1GE
|
1-port Gigabit Ethernet
|
S
|
ESR-HH-1GE
|
1-port Gigabit Ethernet half-height
|
S
|
ESR-HH-8FE-TX
|
8-port Fast Ethernet half-height
|
S
|
ESR-1OC-12-ATM
|
1-port OC-12 ATM
|
S
|
ESR-24CT1/E1
|
24-port channelized E1/T1
|
S
|
ESR-6OC3/P-SMI
|
6-port OC-3c/STS-3c/STM-1 POS/SDH, single mode,intermediate reach
|
S
|
ESR-6CT3
|
6-port channelized T3
|
S
|
ESR-1OC-12/P-SMI
|
1-port OC-12/STS-12c/STM-4 OS/SDH, single mode,intermediate reach
|
S
|
ESR-PRE1
|
Cisco 10K Performance Routing Engine-1
|
S
|
ESR-PRE2
|
Cisco 10K Performance Routing Engine-2
|
S
|
ESR-PRE3
|
Cisco 10K Performance Routing Engine-3
|
S
|
ESR-1COC12-SMI
|
Cisco 10K 1 port channelized OC12
|
S
|
Note For detailed information about the specific technologies and attributes supported by this NE, see Cisco 10000 Series—Supported Technologies.
Cisco 10000 Series—Supported Technologies
The following technologies are supported by the Cisco 10000 Series in Cisco ANA 3.6 SP1:
•Base Logical Components
•Layer 1
•IP
•Routing Protocols
•Ethernet (Physical)
•Physical Equipment
•Ethernet (Logical)
•ATM
•Frame Relay
•HDLC
•MPLS
•VPN
•ACL
Cisco 10000 Series—Supported Service Events
Table 73 lists the supported service events (also called service alarms) for Cisco 10000 Series routers in Cisco ANA 3.6 SP1.
Table 73 Service Events for Cisco 10000 Series Routers
Event Name
|
|
Primary HSRP interface inactive/ active
|
N
|
Secondary HSRP interface inactive/ active
|
N
|
All ip interfaces down active ip interfaces found
|
Y
|
interface status down/up
|
Y
|
card in/out
|
Y
|
link down/up
|
Y
|
Device Unreachable
|
N
|
CPU Over Utilized
|
N
|
Memory Over utilize
|
N
|
Device Unsupported
|
N
|
Discard Packets
|
N
|
Dropped Packets
|
N
|
Module Unsupported
|
N
|
Port Flapping
|
N
|
Port Down
|
Y
|
Rx Over utilized
|
N
|
Tx Over utilized
|
N
|
VPN leak
|
N
|
Cloud Problem
|
N
|
Broken LSP discovered
|
N
|
MPLS Black hole
|
N
|
Layer 2 Tunnel Down
|
N
|
MPLS TE Tunnel Down/Flapping
|
N
|
BGP Neighbor Down
|
N
|
Card up/down
|
Y
|
Cisco 12000 Series Routers
This section includes the following information about Cisco 12000 Series routers:
•Cisco 12000 Series—Supported Software Versions
•Cisco 12000 Series—Supported Topologies
•Cisco 12000 Series—Supported Modules
•Cisco 12000 Series—Supported Technologies
•Cisco 12000 Series—Supported Service Events
Note For information about which NE types are supported in Cisco ANA 3.6 SP1, see Supported Cisco Routers in Cisco ANA 3.6 SP1.
Cisco 12000 Series—Supported Software Versions
Table 74 lists the supported software versions for Cisco 12000 Series routers in Cisco ANA 3.6 SP1.
Table 74 Supported Software Versions for Cisco 12000 Series Routers
Software Version
|
|
IOS 12.0(23)S3
|
V
|
IOS 12.0(26)S
|
V
|
IOS 12.0(26)S1
|
V
|
IOS 12.0(26)S2
|
V
|
IOS 12.0(26)S3
|
V
|
IOS 12.0(26)S4
|
V
|
IOS 12.0(26)S5
|
V
|
IOS 12.0(26)S6
|
V
|
IOS 12.0(31)S
|
V
|
IOS 12.0(31)S3
|
V
|
IOS 12.0(32)SY
|
V
|
IOS 12.0(32)SY2
|
V
|
IOS 12.0(27*
|
S
|
IOS 12.0(28*
|
S
|
IOS 12.0(30*
|
S
|
IOS 12.0(31*
|
S
|
IOS 12.0(32*
|
S
|
IOS 12.1*
|
S
|
IOS 12.2*
|
S
|
Note Software versions marked with an asterisk (representing a wildcard) are supported by Cisco ANA 3.6 SP1. Specific software versions that have been tested and verified are listed individually and marked as V.
Cisco 12000 Series—Supported Topologies
The following topologies are supported for Cisco 12000 Series routers in Cisco ANA 3.6 SP1:
•ATM counters
•IP
•MAC
•CDP
•MPLS
Cisco 12000 Series—Supported Modules
Table 75 lists the supported modules for Cisco 12000 Series routers in Cisco ANA 3.6 SP1.
Table 75 Supported Modules for Cisco 12000 Series Routers
Module Name
|
Module Description
|
|
12000-SIP-401
|
Cisco 12000 Series SPA Interface Processor-401
|
S
|
12000-SIP-501
|
Cisco 12000 Series SPA Interface Processor-501
|
S
|
12000-SIP-600
|
Cisco 12000 Series SPA Interface Processor-600
|
S
|
12000-SIP-601
|
Cisco 12000 Series SPA Interface Processor-601
|
S
|
12DS3-SMB
|
24 Port Copper DS3 Interface Line Card
|
V
|
16OC3X/POS-IR-LC-B
|
GSR 16-Port OC3/POS MM/I Eng3 Release B = 16OC3X/POS-<>-<>-B
|
S
|
16OC3X/POS-I-LC-B
|
GSR16-Port OC3/POS MM/I Eng3 Release B
|
S
|
16OC3X/POS-M-MJ-B
|
GSR16-Port OC3/POS MM/I Eng3 Release B
|
S
|
16-OC3X/POS-IR-LC
|
16-Port Packet-Over-SONET OC-3/STM-1 with Extended Feature Set Line Card (concatenated)
|
V
|
1X10GE-ER-SC
|
1 Port 10Giga Ethernet Line Card
|
S
|
1X10GE-LR-SC
|
1 Port 10Giga Ethernet Line Card
|
S
|
3GE-GBIC-SC
|
4 Port Gigabit Ethernet Line Card (trident)
|
V
|
4GE-SFP-LC
|
4 port-GE line card for Cisco 12000
|
S
|
4OC12/POS-IR-SC-B
|
Enhanced 4 port OC-12 Intermediate Reach Line Card
|
V
|
4OC12X/ATM-IR-SC
|
4-port OC12/STM4 ATM SM-IR ISE LC with SC connector
|
N
|
4OC12X/ATM-MM-SC
|
4-port OC12/STM4 ATM MM ISE LC with SC connector
|
N
|
4OC12X/POS-I-SC-B
|
4 Port OC12 SM Intermediate Reach POS
|
V
|
4OC12X/POS-I-SC-B
|
4 PORT OC12 POS B
|
S
|
4OC12X/POS-M-SC-B
|
5 port (Quad) OC-12 POS Card, Single Mode, Short Reach
|
V
|
4OC3/ATM-IR-SC
|
4 port OC3/STM1 ATM line MM/IR card
|
S
|
4OC3/ATM-MM-SC
|
4 port OC3/STM1 ATM line MM/IR card
|
S
|
4OC3X/POS-IR-LC-B
|
GSR 4-port OC3/POS IR Eng3 release B
|
S
|
4OC3X/POS-LR-LC-B
|
GSR 4-port OC3/POS IR Eng3 release B
|
S
|
4OC3X/POS-MM-MJ-B
|
GSR 4-port OC3/POS IR Eng3 release B
|
S
|
4OC48E/POS-LR-SC
|
5 Port (Quad) Enhanced OC-48 Long Reach FC Connector Line Card
|
V
|
4OC48E/POS-SR-SC
|
5 Port (Quad) Enhanced OC-48 Short Reach SC Connector Line Card
|
V
|
4XOC48POS/RPR
|
4-port OC48/STM16 POS/RPR Shared Port Adapter = SPA-4XOC48POS/RPR
|
S
|
6CT3-SMB
|
18 Port Copper DS3 Interface Line Card
|
V
|
8FE-FX-SC
|
8-Port Fast Ethernet Line Card
|
V
|
8FE-TX-RJ45
|
8-Port Fast Ethernet Line Card
|
V
|
8FE-TX-RJ45-B
|
8-port 100baseTX, RJ45 connector type, version B
|
S
|
8OC3X/POS-IR-LC-B
|
GSR 8-Port OC3/POS MM/IR Eng3 Release B
|
S
|
8OC3X/POS-MM-MJ-B
|
GSR 8-Port OC3/POS MM/IR Eng3 Release B
|
S
|
8X1FE-V2
|
8-port Fast Ethernet Shared Port Adapter V2 = SPA-8X1FE-V2
|
S
|
BUS_BOARD
|
GSR16 BUS BOARD (16) =
|
S
|
CHOC12/DS1-IR-SC
|
Cisco 12000 Series 1-Port Channelized OC-12c/STM-4
|
V
|
COPPER-12DS3
|
12 Port Copper DS3 Interface Line Card
|
V
|
COPPER-6DS3
|
6 Port Copper DS3 Interface Line Card
|
V
|
CPU-GSR-PRP1
|
|
V
|
CPU-GSR-PRP2
|
|
V
|
CRS-16-ALARM
|
Cisco CRS-1 Series 16 Slots Alarm Board = CRS-16-ALARM
|
S
|
GSR10-AC-PDU
|
Cisco 12410 AC Power Distribution Unit (spare)
|
V
|
GSR10-ADVNCD-CSC
|
12010 Advanced Clock Scheduler Card
|
S
|
GSR10-ADVNCD-SFC
|
12010 Advanced Switch Fabric Card
|
S
|
GSR10-ALRM
|
12410, 12010 Alarm Card
|
S
|
GSR10-CSC
|
12410 Clock Scheduler Card
|
S
|
GSR10-SFC
|
Cisco 12410 Switch Fabric Card
|
S
|
GSR16/320-CSC
|
12416 Clock Scheduler Card
|
S
|
GSR16/320-SFC
|
12416 Switch Fabric Card
|
S
|
GSR16/80-CSC
|
Cisco 12016 80 Gbps GSR Scheduler/Fabric
|
S
|
GSR16/80-SFC
|
Cisco 12016 80 GbpsGSR Switch Fabric
|
S
|
GSR16-ALRM
|
Cisco 12016 GSR Alarm Card
|
V
|
GSR16-BLOWER
|
Cisco 12016, 12416 Blower
|
S
|
GSR-3GE
|
3 Port Gigabit Ethernet Line Card (trident)
|
V
|
GSR6-ADVNCD-CSC
|
12006 Advanced Clock Scheduler Card
|
S
|
GSR6-ALRM
|
12406, 12006 Alarm Card
|
S
|
GSR6-BLOWER
|
12406, 12006 Blower
|
S
|
GSR6-CSC
|
Cisco 12406 Clock Scheduler Card
|
S
|
GSR6-SFC
|
Cisco 12406 Switch Fabric Card
|
S
|
GSR8-CSC/ALRM
|
Cisco 12008 GSR Scheduler/Fabric/Alarm
|
S
|
GSR-8FE-FX
|
8 port Fast Ethernet card with Fiber Interface
|
V
|
GSR8-SFC
|
Switch Fabric
|
S
|
GSR-ALARM10
|
GSR Alarm module
|
V
|
GSR-ALARM16
|
GSR-Alarm
|
V
|
GSR-ALARM6
|
GSR Alarm module
|
V
|
GSR-BUS-BOARD16
|
|
V
|
GSR-CLOCK-OC192
|
GSR Clock Scheduler
|
V
|
GSR-CSC
|
GSR Clock Scheduler Card
|
V
|
GSR-CSC12410
|
GSR 12410 Clock scheduler
|
V
|
GSR-CSC16
|
Scheduler/Fabric Card
|
V
|
GSR-CSC16-OC192
|
GSR 12406 Clock Scheduler Card
|
V
|
GSR-CSC16-OC192
|
GSR 12016 OC192 Clock Scheduler Card
|
V
|
GSR-CSC6
|
GSR Clock Scheduler
|
V
|
GSR-E48-ATM-4OC12-MM-SR-SC
|
GSR Edge Engine 48, ATM, 4 port OC12/STM4Multi Mode Short Reach Line Card
|
V
|
GSR-E48-ATM-4OC12-SM-IR-SC
|
GSR Edge Engine 48, ATM, 4 ports OC12/STM4 Single Mode Intermediate Reach Line Card
|
V
|
GSR-E48-POS-16OC3-SM-IR-LC
|
16 Port OC3 SM Intermediate Reach POS
|
V
|
GSR-E48-POS-OC48-SM-LR-SC
|
GSR 12406 Switch Fabric Card
|
V
|
GSR-E48-POS-OC48-SM-SR-SC
|
GSR, Edge Engine 48 Port OC-48 SRP Single Mode Long Reach Line Card
|
V
|
GSR-E48-POS-QOC12-SM-IR-SC
|
4 Port OC12 SM Intermediate Reach POS
|
V
|
GSR-E-OC192-SM-SR-SC
|
Enhanced 1 Port OC 192 Short Reach 2 FC Connector Line Card
|
V
|
GSR-E-QOC48-SM-LR-SC
|
4 Port Enhanced OC 48 Short Reach SC Connector Line Card
|
V
|
GSR-E-QOC48-SM-SR-SC
|
4 Port Enhanced OC 48 Short Reach SC Connector Line Card
|
V
|
GSR-GEFE
|
GSR General Fan
|
V
|
GSR-PA-3GE
|
GSR 3 port Port Adapter
|
V
|
GSR-RP
|
GSR RoMman Recovery
|
V
|
GSR-SFC
|
GSR Switch Fabric Card
|
V
|
GSR-SFC12410
|
GSR 12410 Switch Fabric Card
|
V
|
GSR-SFC16
|
Switch Fabric Card
|
V
|
GSR-SFC16-OC192
|
GSR 12406 Switch Fabric Card
|
V
|
GSR-SFC6
|
GSR Switch Fabric Card
|
V
|
OC12/SRP-IR-SC-B
|
2 Port OC-12 Single Mode SRP Intermediate Reach Line Card
|
V
|
OC12/SRP-MM-SC-B
|
2 Port OC-12 Multi Mode SRP Line Card
|
V
|
OC-48E/POS-SR-SC-B
|
2 Port Packet Over Sonet OC-48, Single Mode, Short Reach, SC Connector Card
|
V
|
OC48X/POS-LR-SC
|
One-Port OC-48c/STM-16c POS/SDH ISE Line Card, Long Reach
|
V
|
OC48X/POS-SR-SC
|
One-Port OC-48c/STM-16c POS/SDH ISE Line Card, Short Reach
|
V
|
POS-EN-OC48-LR-SC
|
Enhanced OC-48 Long Reach SC Connector Line Card
|
V
|
POS-EN-OC48-SR-SC
|
Enhanced OC-48 Short Reach SC Connector Line Card
|
V
|
POS-EN-QOC12-IR
|
Enhanced 4 port OC-12 Intermediate Reach Line Card
|
V
|
POS-EN-QOC48-SM-LR-FC
|
4 Port (Quad) Enhanced OC-48 Long Reach FC Connector Line Card
|
V
|
POS-EN-QOC48-SM-LR-SC
|
4 Port (Quad) Enhanced OC-48 Long Reach SC Connector Line Card
|
V
|
POS-EN-QOC48-SM-SR-SC
|
4 Port (Quad) Enhanced OC-48 Short Reach SC Connector Line Card
|
V
|
POS-OC48-SM-SR-SC
|
1 Port Packet Over Sonet OC-48, Single Mode, Short Reach, SC Connector Card
|
V
|
POS-QOC12-MM-SR
|
4 port (Quad) OC-12 POS Card, Single Mode, Short Reach
|
V
|
PRP-1
|
Performance Route Processor-1
|
V
|
PRP-2
|
Cisco XR 12000 and 12000 Series Performance Router Processor-2
|
V
|
PRP-3
|
Performance Route Processor-2
|
V
|
PRP-4
|
Cisco XR 12000 and 12000 Series Performance Router Processor-3
|
V
|
SFP-OC48-IR1
|
OC-48c/STM-16c
|
S
|
SFP-OC48-LR2
|
OC-48c/STM-16c SFP, Long Reach (80km)
|
S
|
SPA-10X1GE
|
10-port 1 GbE Shared Port Adapter
|
S
|
SPA-10X1GE-V2
|
10-port 1GbE SPA (Fugu ASIC)
|
N
|
SPA-1X10GE-L-V2
|
Cisco 1-Port 10GE LAN-PHY Shared Port Adapter
|
S
|
SPA-1xOC192POS-VSR
|
1-port OC192/STM64 POS VSR Optics Shared Port Adapter
|
S
|
SPA-1XOC48POS/RPR
|
Port OC-48c/STM-16c POS/RPR Shared Port Adapter
|
S
|
SPA-1XTENGE-XFP
|
1-port 10Gigabit Ethernet Shared Port Adapter XFP based
|
S
|
SPA-1XTENGE-XFP-V2
|
1-port 10GbE Shared Port Adapter XFP based V2
|
S
|
SPA-24CHT1-CE-ATM
|
24-Port Channelized T1/E1/J1 ATM CEoP SPA
|
S
|
SPA-2X1GE
|
2 ports Gigabit Ethernet Shared Port Adapters
|
S
|
SPA-2X1GE-V2
|
2 ports Gigabit Ethernet Shared Port Adapters
|
S
|
SPA-2XCT3/DS0
|
2-port Channelized T3 to DS0 Shared Port Adapter
|
S
|
SPA-2XOC12-POS
|
2-Port OC-3c/STM-1 and OC-12c/STM-4 POS SPA
|
S
|
SPA-2XOC48POS/RPR
|
2-port OC48/STM16 POS/RPR Shared Port Adapters
|
S
|
SPA-2XT3/E3
|
2-port Clear Channel T3/E3 Shared Port Adapter
|
S
|
SPA-4XCT3/DS0
|
4-port Channelized T3 to DS0 Shared Port Adapter
|
V
|
SPA-4XOC12-POS
|
4-port OC-12/STM-4 POS Shared Port Adapters
|
S
|
SPA-4XT3/E3
|
4-port Clear Channel T3/E3 Shared Port Adapter
|
S
|
SPA-5X1GE
|
5-Port Gigabit Ethernet SPA
|
S
|
SPA-5X1GE-V2
|
5-Port Gigabit Ethernet SPA
|
S
|
SPA-8X1FE-TX-V2
|
8-port 10/100 Ethernet SPA TX (Fugu ASIC)
|
S
|
SPA-8X1GE
|
8-port Gigabit Ethernet Shared Port Adapter_V2
|
S
|
SPA-8X1GE-V2
|
8-port 1GbE SPA (Fugu ASIC)
|
N
|
SPA-8XCHT1/E1
|
8-port Channelized T1/E1 to DS0 Shared Port Adapter
|
S
|
SPA-8XFE-TX
|
8-port 10/100 Ethernet SPA with RJ-45
|
S
|
SPA-8XOC12-POS
|
8-Port OC-12c/STM-4 Multirate POS SPA
|
S
|
SPA-OC192POS-LR
|
1-port OC192/STM64 POS/RPR SMLR Optics
|
S
|
SPA-OC192POS-VSR
|
1-port OC192/STM64 POS/RPR VSR Optics
|
S
|
SPA-OC192POS-XFP
|
1-port OC192/STM64 POS/RPR XFP Optics Shared Port Adapter with XFP-10GLR-OC192SR
|
S
|
SPA-OC192RPR-XFP
|
1-port OC192/STM64 POS/RPR XFP Optics Shared Port Adapter = SPA-OC192RPR-XFP
|
S
|
SRP-OC12-MM
|
1 Port OC-12 Multi Mode SRP Line Card
|
V
|
SRP-OC12-SM-IR
|
1 Port OC-12 Single Mode SRP Intermediate Reach Line Card
|
V
|
SSRP-OC48-SM-LR
|
1 Port OC-48 SRP Single Mode Long Reach Line Card
|
V
|
SSRP-OC48-SM-SR
|
1 Port OC-48 SRP Single Mode Short Reach Line Card
|
V
|
Note For detailed information about the specific technologies and attributes supported by this NE, see Cisco 12000 Series—Supported Technologies.
Cisco 12000 Series—Supported Technologies
The following technologies are supported by the Cisco 12000 Series in Cisco ANA 3.6 SP1:
•Base Logical Components
•Layer 1
•IP
•Routing Protocols
•Ethernet (Physical)
•Physical Equipment
•Ethernet (Logical)
•ATM
•Frame Relay
•HDLC
•MPLS
•VPN
•ACL
Cisco 12000 Series—Supported Service Events
Table 76 lists the supported service events (also called service alarms) for Cisco 12000 Series routers in Cisco ANA 3.6 SP1.
Table 76 Service Events for Cisco 12000 Series Routers
Event Name
|
|
Primary HSRP interface is not active Primary HSRP interface is active
|
N
|
Secondary HSRP interface is active Secondary HSRP interface is not active
|
N
|
All ip interfaces down active ip interfaces found
|
Y
|
interface status down/up
|
Y
|
card in/out
|
Y
|
link down/up
|
Y
|
Device Unreachable
|
N
|
CPU Over Utilized
|
N
|
Memory Over utilize
|
N
|
Device Unsupported
|
N
|
Discard Packets
|
N
|
Dropped Packets
|
N
|
Module Unsupported
|
N
|
Port Flapping
|
N
|
Port Down
|
Y
|
Rx Over utilized
|
N
|
Tx Over utilized
|
N
|
VPN leak
|
N
|
Cloud Problem
|
N
|
Broken LSP discovered
|
N
|
MPLS Black hole
|
N
|
Layer 2 Tunnel Down
|
N
|
MPLS TE Tunnel Down/Flapping
|
N
|
BGP Neighbor Down
|
N
|
Card up/down
|
Y
|
Cisco XR 12000 Series Routers
This section includes the following information about Cisco XR 12000 Series routers:
•Cisco XR 12000 Series—Supported Software Versions
•Cisco XR 12000 Series—Supported Topologies
•Cisco XR 12000 Series—Supported Modules
•Cisco XR 12000 Series—Supported Technologies
•Cisco XR 12000 Series—Supported Service Events
•Cisco XR 12000 Series—Additional Information
Note For information about which NE types are supported in Cisco ANA 3.6 SP1, see Supported Cisco Routers in Cisco ANA 3.6 SP1.
Cisco XR 12000 Series—Supported Software Versions
Table 77 lists the supported software versions for Cisco XR 12000 Series routers in Cisco ANA 3.6 SP1.
Table 77 Supported Software Versions for Cisco XR 12000 Series Routers
Software Version
|
|
IOS XR 3.4.0
|
V
|
IOS XR 3.4.1
|
V
|
IOS XR 3.4.*
|
S
|
IOS XR 3.5.*
|
S
|
Note Software versions marked with an asterisk (representing a wildcard) are supported by Cisco ANA 3.6 SP1. Specific software versions that have been tested and verified are listed individually and marked as V.
Cisco XR 12000 Series—Supported Topologies
The following topologies are supported for Cisco XR 12000 Series routers in Cisco ANA 3.6 SP1:
•IP
•MAC
•CDP
•MPLS
Cisco XR 12000 Series—Supported Modules
Table 78 lists the supported modules for Cisco XR 12000 Series routers in Cisco ANA 3.6 SP1.
Table 78 Supported Modules for Cisco XR 12000 Series Routers
Module Name
|
Module Description
|
|
12000-SIP-401
|
Cisco 12000 Series SPA Interface Processor-401
|
S
|
12000-SIP-501
|
Cisco 12000 Series SPA Interface Processor-501
|
S
|
12000-SIP-600
|
Cisco 12000 Series SPA Interface Processor-600
|
S
|
12000-SIP-601
|
Cisco 12000 Series SPA Interface Processor-601
|
S
|
12DS3-SMB
|
24 Port Copper DS3 Interface Line Card
|
V
|
16OC3X/POS-IR-LC-B
|
GSR 16-Port OC3/POS MM/I Eng3 Release B =
|
S
|
16OC3X/POS-I-LC-B
|
GSR16-Port OC3/POS MM/I Eng3 Release B
|
S
|
16OC3X/POS-M-MJ-B
|
GSR16-Port OC3/POS MM/I Eng3 Release B
|
S
|
16-OC3X/POS-IR-LC
|
16-Port Packet-Over-SONET OC-3/STM-1 with Extended Feature Set Line Card (concatenated)
|
V
|
1X10GE-ER-SC
|
1 Port 10Giga Ethernet Line Card
|
S
|
1X10GE-LR-SC
|
1 Port 10Giga Ethernet Line Card
|
S
|
3GE-GBIC-SC
|
4 Port Gigabit Ethernet Line Card (trident)
|
V
|
4GE-SFP-LC
|
Cisco 12000 4 Port Gigabit Ethernet Card
|
S
|
4OC12/POS-IR-SC-B
|
Enhanced 4 port OC-12 Intermediate Reach Line Card
|
V
|
4OC12X/POS-I-SC-B
|
4 Port OC12 SM Intermediate Reach POS
|
V
|
4OC12X/POS-I-SC-B
|
4 Port OC12 SM Intermediate Reach POS
|
V
|
4OC12X/POS-M-SC-B
|
5 port (Quad) OC-12 POS Card, Single Mode, Short Reach
|
V
|
4OC3/ATM-IR-SC
|
4 port OC3/STM1 ATM line MM/IR card
|
S
|
4OC3/ATM-MM-SC
|
4 port OC3/STM1 ATM line MM/IR card
|
S
|
4OC3X/POS-IR-LC-B
|
GSR 4-Port OC3/POS IR/LR/MM Eng3 Release B
|
S
|
4OC3X/POS-LR-LC-B
|
GSR 4-Port OC3/POS IR/LR/MM Eng3 Release B
|
S
|
4OC3X/POS-MM-MJ-B
|
GSR 4-Port OC3/POS IR/LR/MM Eng3 Release B
|
S
|
4OC48E/POS-LR-SC
|
5 Port (Quad) Enhanced OC-48 Long Reach FC Connector Line Card
|
V
|
4OC48E/POS-SR-SC
|
5 Port (Quad) Enhanced OC-48 Short Reach SC Connector Line Card
|
V
|
4XOC48POS/RPR
|
4-port OC48/STM16 POS/RPR Shared Port Adapter = SPA-4XOC48POS/RPR
|
S
|
6CT3-SMB
|
18 Port Copper DS3 Interface Line Card
|
V
|
8FE-FX-SC
|
8-Port Fast Ethernet Line Card
|
V
|
8FE-TX-RJ45
|
8-Port Fast Ethernet Line Card
|
V
|
8FE-TX-RJ45-B
|
8-port 100baseTX, RJ45 connector type, version B
|
S
|
8OC3X/POS-IR-LC-B
|
GSR 8-Port OC3/POS MM/IR Eng3 Release B
|
S
|
8OC3X/POS-MM-MJ-B
|
GSR 8-Port OC3/POS MM/IR Eng3 Release B
|
S
|
8X1FE-V2
|
8-port Fast Ethernet Shared Port Adapter V2 = SPA-8X1FE-V2
|
S
|
BUS_BOARD
|
GSR16 BUS BOARD (16) =
|
S
|
CHOC12/DS1-IR-SC
|
Cisco 12000 Series 1-Port Channelized OC-12c/STM-4
|
V
|
COPPER-12DS3
|
12 Port Copper DS3 Interface Line Card
|
V
|
COPPER-6DS3
|
6 Port Copper DS3 Interface Line Card
|
V
|
CPU-GSR-PRP1
|
|
V
|
CPU-GSR-PRP2
|
|
V
|
CRS-16-ALARM
|
Cisco CRS-1 Series 16 Slots Alarm Board = CRS-16-ALARM
|
S
|
GSR10-AC-PDU
|
Cisco 12410 AC Power Distribution Unit (spare)
|
V
|
GSR10-ADVNCD-CSC
|
12010 Advanced Clock Scheduler Card
|
S
|
GSR10-ADVNCD-SFC
|
12010 Advanced Switch Fabric Card
|
S
|
GSR10-ALRM
|
12410, 12010 Alarm Card
|
S
|
GSR10-CSC
|
12410 Clock Scheduler Card
|
S
|
GSR10-SFC
|
Cisco 12410 Switch Fabric Card
|
S
|
GSR16/320-CSC
|
Cisco 12416 Clock Scheduler Card= GSR16/320-CSC
|
S
|
GSR16/320-SFC
|
Cisco 12416 Switch Fabric Card = GSR16/320-SFC
|
S
|
GSR16/80-CSC
|
OC48 Clock Scheduler Card for 12016 chassis
|
V
|
GSR16/80-SFC
|
OC48 Switch Fabric Card for 12016 chassis
|
V
|
GSR16-ALRM
|
Cisco 12016 GSR Alarm Card
|
V
|
GSR16-BLOWER
|
Cisco 12016, 12416 Blower
|
S
|
GSR-3GE
|
3 Port Gigabit Ethernet Line Card (trident)
|
V
|
GSR6-ADVNCD-CSC
|
12006 Advanced Clock Scheduler Card
|
S
|
GSR6-ALRM
|
12406, 12006 Alarm Card
|
S
|
GSR6-BLOWER
|
12406, 12006 Blower
|
S
|
GSR6-CSC
|
Cisco 12406 Clock Scheduler Card
|
S
|
GSR6-SFC
|
Cisco 12406 Switch Fabric Card
|
S
|
GSR8-CSC/ALRM
|
Cisco 12008 GSR Scheduler/Fabric/Alarm
|
S
|
GSR-8FE-FX
|
8 port Fast Ethernet card with Fiber Interface
|
V
|
GSR8-SFC
|
Switch Fabric
|
S
|
GSR-ALARM10
|
GSR Alarm module
|
V
|
GSR-ALARM16
|
GSR-Alarm
|
V
|
GSR-BUS-BOARD16
|
|
V
|
GSR-CLOCK-OC192
|
GSR Clock Scheduler
|
V
|
GSR-CSC
|
GSR Clock Scheduler Card
|
V
|
GSR-CSC12410
|
GSR 12410 Clock scheduler
|
V
|
GSR-CSC16
|
GSR Clock Scheduler
|
V
|
GSR-CSC16-OC192
|
|
V
|
GSR-E48-ATM-4OC12-MM-SR-SC
|
GSR Edge Engine 48, ATM, 4 port OC12/STM4Multi Mode Short Reach Line Card
|
V
|
GSR-E48-ATM-4OC12-SM-IR-SC
|
GSR Edge Engine 48, ATM, 4 ports OC12/STM4 Single Mode Intermediate Reach Line Card
|
V
|
GSR-E48-POS-16OC3-SM-IR-LC
|
16 Port OC3 SM Intermediate Reach POS
|
V
|
GSR-E48-POS-OC48-SM-LR-SC
|
GSR 12406 Switch Fabric Card
|
V
|
GSR-E48-POS-OC48-SM-SR-SC
|
GSR, Edge Engine 48 Port OC-48 SRP Single Mode Long Reach Line Card
|
V
|
GSR-E48-POS-QOC12-SM-IR-SC
|
4 Port OC12 SM Intermediate Reach POS
|
V
|
GSR-E-OC192-SM-SR-SC
|
"Enhanced 1 Port OC 192 Short Reach 2 FC Connector Line Card
|
V
|
GSR-E-QOC48-SM-LR-SC
|
4 Port Enhanced OC 48 Short Reach SC Connector Line Card
|
V
|
GSR-E-QOC48-SM-SR-SC
|
4 Port Enhanced OC 48 Short Reach SC Connector Line Card
|
V
|
GSR-GEFE
|
GSR General Fan
|
V
|
GSR-PA-3GE
|
GSR 3 port Port Adapter
|
V
|
GSR-RP
|
GSR RoMman Recovery
|
V
|
GSR-SFC
|
GSR Switch Fabric Card
|
V
|
GSR-SFC12410
|
GSR 12410 Switch Fabric Card
|
V
|
GSR-SFC16
|
Switch Fabric Card
|
V
|
GSR-SFC16-OC192
|
GSR OC192 Switch Fabric Card
|
V
|
OC12/SRP-IR-SC-B
|
2 Port OC-12 Single Mode SRP Intermediate Reach Line Card
|
V
|
OC12/SRP-MM-SC-B
|
2 Port OC-12 Multi Mode SRP Line Card
|
V
|
OC-48E/POS-SR-SC-B
|
2 Port Packet Over Sonet OC-48, Single Mode, Short Reach, SC Connector Card
|
V
|
OC48X/POS-LR-SC
|
One-Port OC-48c/STM-16c POS/SDH ISE Line Card, Long Reach
|
V
|
OC48X/POS-SR-SC
|
One-Port OC-48c/STM-16c POS/SDH ISE Line Card, Short Reach
|
V
|
POS-EN-OC48-LR-SC
|
Enhanced OC-48 Long Reach SC Connector Line Card
|
V
|
POS-EN-OC48-SR-SC
|
Enhanced OC-48 Short Reach SC Connector Line Card
|
V
|
POS-EN-QOC12-IR
|
Enhanced 4 port OC-12 Intermediate Reach Line Card
|
V
|
POS-EN-QOC48-SM-LR-FC
|
4 Port (Quad) Enhanced OC-48 Long Reach FC Connector Line Card
|
V
|
POS-EN-QOC48-SM-LR-SC
|
4 Port (Quad) Enhanced OC-48 Long Reach SC Connector Line Card
|
V
|
POS-EN-QOC48-SM-SR-SC
|
4 Port (Quad) Enhanced OC-48 Short Reach SC Connector Line Card
|
V
|
POS-OC48-SM-SR-SC
|
1 Port Packet Over Sonet OC-48, Single Mode, Short Reach, SC Connector Card
|
V
|
POS-QOC12-MM-SR
|
4 port (Quad) OC-12 POS Card, Single Mode, Short Reach
|
V
|
PRP-1
|
Performance Route Processor-1
|
V
|
PRP-2
|
Cisco XR 12000 and 12000 Series Performance Router Processor-2
|
V
|
PRP-3
|
Performance Route Processor-2
|
V
|
PRP-4
|
Cisco XR 12000 and 12000 Series Performance Router Processor-3
|
V
|
SFP-OC48-IR1
|
OC-48c/STM-16c
|
S
|
SFP-OC48-LR2
|
OC-48c/STM-16c SFP, Long Reach (80km)
|
S
|
SPA-10X1GE
|
10-port 1 GbE Shared Port Adapter
|
S
|
SPA-1X10GE-L-V2
|
Cisco 1-Port 10GE LAN-PHY Shared Port Adapter
|
S
|
SPA-1XOC192POS-VSR
|
1-port OC192/STM64 POS VSR Optics Shared Port Adapter
|
S
|
SPA-1XOC48POS/RPR
|
Port OC-48c/STM-16c POS/RPR Shared Port Adapter
|
S
|
SPA-1XTENGE-XFP
|
1-port 10Gigabit Ethernet Shared Port Adapter XFP based
|
S
|
SPA-1XTENGE-XFP-V2
|
1-port 10GbE Shared Port Adapter XFP based V2
|
S
|
SPA-2X1GE
|
2 ports Gigabit Ethernet Shared Port Adapters
|
S
|
SPA-2X1GE-V2
|
2 ports Gigabit Ethernet Shared Port Adapters
|
S
|
SPA-2XCT3/DS0
|
2-port Channelized T3 to DS0 Shared Port Adapter
|
S
|
SPA-2XOC12-POS
|
2-Port OC-3c/STM-1 and OC-12c/STM-4 POS SPA
|
S
|
SPA-2XOC48POS/RPR
|
2-port OC48/STM16 POS/RPR Shared Port Adapters
|
S
|
SPA-2XT3/E3
|
2-port Clear Channel T3/E3 Shared Port Adapter
|
S
|
SPA-4XCT3/DS0
|
4-port Channelized T3 to DS0 Shared Port Adapter
|
V
|
SPA-4XOC12-POS
|
4-port OC-12/STM-4 POS Shared Port Adapters
|
S
|
SPA-4XT3/E3
|
4-port Clear Channel T3/E3 Shared Port Adapter
|
S
|
SPA-5X1GE
|
5-Port Gigabit Ethernet SPA
|
S
|
SPA-5X1GE-V2
|
5-Port Gigabit Ethernet SPA
|
S
|
SPA-8X1FE-TX-V2
|
8-port 10/100 Ethernet SPA TX (Fugu ASIC)
|
S
|
SPA-8X1GE
|
8-port Gigabit Ethernet Shared Port Adapter_V2
|
S
|
SPA-8XCHT1/E1
|
8-port Channelized T1/E1 to DS0 Shared Port Adapter
|
S
|
SPA-8XFE-TX
|
8-port 10/100 Ethernet SPA with RJ-45
|
S
|
SPA-8XOC12-POS
|
8-Port OC-12c/STM-4 Multirate POS SPA
|
S
|
SPA-IPSEC-2G-2
|
Cisco XR 12000 Series IPsec VPN Shared Port Adapter
|
S
|
SPA-OC192POS-LR
|
1-port OC192/STM64 POS/RPR SMLR Optics
|
S
|
SPA-OC192POS-VSR
|
1-port OC192/STM64 POS VSR Optics Shared Port Adapter = SPA-OC192POS-VSR
|
S
|
SPA-OC192POS-XFP
|
1-port OC192/STM64 POS/RPR XFP Optics Shared Port Adapter with XFP-10GLR-OC192SR
|
S
|
SPA-OC192RPR-XFP
|
1-port OC192/STM64 POS/RPR XFP Optics Shared Port Adapter = SPA-OC192RPR-XFP
|
S
|
SRP-OC12-MM
|
1 Port OC-12 Multi Mode SRP Line Card
|
V
|
SRP-OC12-SM-IR
|
1 Port OC-12 Single Mode SRP Intermediate Reach Line Card
|
V
|
SSRP-OC48-SM-LR
|
1 Port OC-48 SRP Single Mode Long Reach Line Card
|
V
|
SSRP-OC48-SM-SR
|
1 Port OC-48 SRP Single Mode Short Reach Line Card
|
V
|
SPA-24CHT1-CE-ATM
|
24-Port Channelized T1/E1/J1 ATM CEoP SPA
|
S
|
16OC3X/POS-M-MJ-B
|
GSR16-Port OC3/POS MM/I Eng3 Release B
|
V
|
Note For detailed information about the specific technologies and attributes supported by this NE, see Cisco XR 12000 Series—Supported Technologies.
Cisco XR 12000 Series—Supported Technologies
The following technologies are supported by the Cisco XR 12000 Series in Cisco ANA 3.6 SP1:
•Base Logical Components
•Layer 1
•IP
•Routing Protocols
•Ethernet (Physical)
•Physical Equipment
•Ethernet (Logical)
•ATM
•HDLC
•MPLS
•VPN
•ACL
Cisco XR 12000 Series—Supported Service Events
Table 79 lists the supported service events (also called service alarms) for Cisco XR 12000 Series routers in Cisco ANA 3.6 SP1.
Table 79 Service Events for Cisco XR 12000 Series Routers
Event Name
|
|
Primary HSRP interface is not active Primary HSRP interface is active
|
N
|
Secondary HSRP interface is active Secondary HSRP interface is not active
|
N
|
All ip interfaces down active ip interfaces found
|
Y
|
interface status down/up
|
Y
|
card in/out
|
Y
|
link down/up
|
Y
|
Device Unreachable
|
N
|
CPU Over Utilized
|
N
|
Memory Over utilize
|
N
|
Device Unsupported
|
N
|
Discard Packets
|
N
|
Dropped Packets
|
N
|
Module Unsupported
|
N
|
Port Flapping
|
N
|
Port Down
|
Y
|
Rx Over utilized
|
N
|
Tx Over utilized
|
N
|
VPN leak
|
N
|
Cloud Problem
|
N
|
Broken LSP discovered
|
N
|
MPLS Black hole
|
N
|
Layer 2 Tunnel Down
|
N
|
MPLS TE Tunnel Down/Flapping
|
N
|
BGP Neighbor Down
|
N
|
Card up/down
|
Y
|
Cisco XR 12000 Series—Additional Information
This section contains additional information about the Cisco XR 12000 Series and includes the following topic:
•Cisco XR 12000 Series Prerequisite
Cisco XR 12000 Series Prerequisite
As a prerequisite for the Cisco XR 12000 Series VNE, install the Cisco IOS XR Manageability Package on top of the IOS-XR version. In addition, the device configuration must contain the command, xml agent tty.
When creating the SNMP community, the SystemOwner should be specified.
Cisco Carrier Routing System (CRS-1) Routers
This section includes the following information about Cisco Carrier Routing System (CRS-1) routers:
•Cisco Carrier Routing System (CRS-1)—Supported Software Versions
•Cisco Carrier Routing System (CRS-1)—Supported Topologies
•Cisco Carrier Routing System (CRS-1)—Supported Modules
•Cisco Carrier Routing System (CRS-1)—Supported Technologies
•Cisco Carrier Routing System (CRS-1)—Supported Service Events
•Cisco Carrier Routing System (CRS-1)—Additional Information
Note For information about which NE types are supported in Cisco ANA 3.6 SP1, see Supported Cisco Routers in Cisco ANA 3.6 SP1.
Cisco Carrier Routing System (CRS-1)—Supported Software Versions
Table 80 lists the supported software versions for Cisco Carrier Routing System (CRS-1) routers in Cisco ANA 3.6 SP1.
Table 80 Supported Software Versions for Cisco Carrier Routing System (CRS-1) Routers
Software Version
|
|
IOS XR 3.4.0
|
V
|
IOS XR 3.4.1
|
V
|
IOS XR 3.4*
|
S
|
IOS XR 3.5*
|
S
|
Note Software versions marked with an asterisk (representing a wildcard) are supported by Cisco ANA 3.6 SP1. Specific software versions that have been tested and verified are listed individually and marked as V.
Cisco Carrier Routing System (CRS-1)—Supported Topologies
The following topologies are supported for Cisco Carrier Routing System (CRS-1) routers in Cisco ANA 3.6 SP1:
•IP
•MAC
•CDP
•MPLS
Cisco Carrier Routing System (CRS-1)—Supported Modules
Table 81 lists the supported modules for Cisco Carrier Routing System (CRS-1) routers in Cisco ANA 3.6 SP1.
Table 81 Supported Modules for Cisco Carrier Routing System (CRS-1) Routers
Module Name
|
Module Description
|
|
16OC48-POS/DPT
|
Cisco CRS-1 Series 16xOC48/STM16 POS/DPT Interface Module
|
V
|
1OC768-ITU/C
|
1 port OC768-POS-DWDM Plim
|
V
|
1OC768-POS-SR
|
1-port OC-768c/STM-256c PLIM, with short-reach optics (POS)
|
S
|
4-10GE-ITU/C
|
Module Crs1 4x10 Ge CDwdm Plim
|
V
|
4OC192-ITU/C
|
Module Crs 1 4 ports OC192 C Dwdm Plim
|
S
|
4OC192-POS/DPT
|
Cisco CRS-1 Series 4xOC192/STM64 POS/DPT Interface Module
|
S
|
4OC192-POS/DPT-IR
|
Cisco CRS-1 Series 4xOC192/STM64 POS/DPT Interface Module/IR
|
V
|
4OC192-POS/DPT-LR
|
4OC192-POS DPT
|
V
|
4OC192-POS/DPT-SR
|
Cisco CRS-1 Series 4xOC192/STM64 POS/DPT Interface Module/SR
|
V
|
4OC192-POS/DPT-VS
|
4OC192-POS DPT
|
V
|
8-10GbE
|
8x10 Gigabite Ethernet port
|
V
|
8XOC3-OC12-PO
|
SPA POS 8XOC12 Card
|
S
|
CRS-16-AC-RECT
|
Cisco CRS-1 Series AC Pwr Rectifier for 16 slot LCC and FCC
|
S
|
CRS-16-ALARM
|
Cisco CRS-1 Series 16 Slots Alarm
|
V
|
CRS-16-DC-PEM
|
DC power entry module for line card chassis
|
S
|
CRS-16-FC/D
|
|
S
|
CRS-16-FC/M
|
Cisco CRS-1 Series 16 Slots Fabric Card / Multi
|
V
|
CRS-16-FC/S
|
Cisco CRS-1 Series 16 Slots Fabric Card Single
|
V
|
CRS-16-LCC
|
16 slots Line Card Chassis
|
V
|
CRS-16-LCC-FAN-CT
|
Cisco CRS-1 Series LC Chassis Fan Controler
|
V
|
CRS-16-LCC-FAN-TR
|
Cisco CRS-1 16 Slots FCC fan tray with fans
|
S
|
CRS-16-LCC-PS-ACD
|
AC Delta power shelf for line card chassis
|
S
|
CRS-16-LCC-PS-ACW
|
AC Wye power shelf for line card chassis
|
S
|
CRS-16-LCC-PS-DC
|
DC power shelf for line card chassis
|
S
|
CRS-16-RP
|
Module Crs1 16 slots RP
|
V
|
CRS-16-RP-B
|
Module Crs1 16 slots RP - B
|
V
|
CRS1-SIP-800
|
Module Crs1 SPA Interface Card
|
V
|
CRS-4-AC-SHELF
|
AC Power shelf
|
S
|
CRS-4-AC-SUPPLY
|
AC power supplies
|
S
|
CRS-4-CH
|
4 slots Chassis
|
V
|
CRS-4-DC-INPUT
|
DC power input shelf
|
S
|
CRS-4-DC-SUPPLY
|
DC power supplies
|
S
|
CRS-4-FAN-TR
|
Cisco CRS-1 4 Slots FCC fan tray with fans
|
S
|
CRS-4-FC
|
CRS-1 4-Slot Fabric Card
|
S
|
CRS-4-LCC
|
Cisco CRS-1 Series 4 Slots Line Card Chassis
|
S
|
CRS-8-AC-RECT
|
Cisco CRS-1 AC rectifier module
|
S
|
CRS-8-DC-PEM
|
DC power entry module for line card chassis
|
S
|
CRS-8-FC/D
|
|
S
|
CRS-8-FC/M
|
|
S
|
CRS-8-FC/S
|
Cisco CRS-1 Series 8 Slots Fabric Card Single
|
V
|
CRS-8-LCC
|
8 slots Line Card Chassis
|
V
|
CRS-8-LCC-ACD
|
Power Supply Crs 1 8 Slots AC Delta
|
S
|
CRS-8-LCC-ACW
|
Power Supply Crs 1 8 Slots ACW
|
S
|
CRS-8-LCC-DC
|
Cisco CRS-1 Series 8 slots with redundant DC power
|
S
|
CRS-8-LCC-FAN-TR
|
Cisco CRS-1 8 Slots FCC fan tray with fans
|
S
|
CRS-8-LCC-PDU-ACD
|
Cisco CRS-1 Series AC Delta PDU for CRS-8 LCC
|
S
|
CRS-8-LCC-PDU-ACW
|
AC Wye PDU
|
S
|
CRS-8-LCC-PDU-DC
|
DC PDU
|
S
|
CRS-8-RP
|
Module Crs1 8 slots RP
|
V
|
CRS-DRP
|
Cisco CRS-1 Series Distributed Route Processor
|
S
|
CRS-DRP-ACC
|
Cisco CRS-1 Series Distributed Route Processor Front Accsry
|
S
|
CRS-DRP-B-CPU
|
Cisco CRS-1 Series Distributed Route Processor
|
V
|
CRS-DRP-B-PLIM
|
Cisco CRS-1 Series Distributed Route Processor Front Accsry
|
V
|
CRS-DRP-CPU
|
Cisco CRS-1 Series Distributed Route Processor
|
V
|
CRS-DRP-PLIM
|
Cisco CRS-1 Series Distributed Route Processor Front Accsry
|
V
|
CRS-FCC
|
Cisco CRS-1 Series Fabric Card Chassis Only
|
V
|
CRS-FCC-FAN-TR
|
Cisco CRS-1 FCC fan tray with fans
|
S
|
CRS-FCC-FM-2S
|
Optical dual interface module (OIM)
|
S
|
CRS-FCC-LED
|
Fiber module LED card
|
S
|
CRS-FCC-OIM-1S
|
Optical single interface module (OIM)
|
S
|
CRS-FCC-PS-ACD
|
CRS-1 Fabric Chassis AC Delta Power Supply
|
S
|
CRS-FCC-PS-ACW
|
CRS-1 Fabric Chassis AC Wye Option
|
S
|
CRS-FCC-PS-DC
|
DC power shelf
|
S
|
CRS-FCC-SC
|
Module Crs 1 16 mS 2 Fan Ctrllrer Fabric
|
S
|
CRS-FCC-SC/GEW
|
Module Crs 1 Fcc SC Ge
|
S
|
CRS-FCC-SC-22GE
|
CRS-1 fan controllers
|
S
|
CRS-FCC-SC-GE
|
2-port Shelf controller Gigabit Ethernet
|
S
|
CRS-FCC-SFC
|
Switch fabric card (fabric card chassis) S2 switch fabric cards
|
S
|
CRS-MSC
|
Cisco CRS-1 Series Modular Service Card
|
V
|
CRS-MSC-B
|
Cisco CRS-1 Series Modular Service Card
|
V
|
CRS-XENPACK-10-GB-LR
|
Cisco CRS-1 Series 8x10GbE Interface Module
|
S
|
SPA-10X1GE
|
10-Port Gigabit Ethernet SPA
|
S
|
SPA-10X1GE-V2
|
10-Port Gigabit Ethernet SPA
|
S
|
SPA-1X10GE-L-V2
|
Cisco 1-Port 10GE LAN-PHY Shared Port Adapter
|
S
|
SPA-1xOC192POS-VSR
|
1-port OC192/STM64 POS VSR Optics Shared Port Adapter
|
S
|
SPA-1xOC192POS-XFP
|
1-port OC192/STM64 POS XFP Optics Shared Port Adapter
|
S
|
SPA-1XOC48POS/RPR
|
Port OC-48c/STM-16c POS/RPR Shared Port Adapter
|
S
|
SPA-1XTENGE-XFP
|
1-port 10 Gigabit Ethernet Shared Port Adapter XFP based
|
S
|
SPA-1XTENGE-XFP-V2
|
1-port 10GbE Shared Port Adapter XFP based V2 = SPA-1XTENGE-XFP-V2
|
S
|
SPA-2X1GE
|
2 ports Gigabit Ethernet Shared Port Adapters
|
S
|
SPA-2X1GE-V2
|
2 ports Gigabit Ethernet Shared Port Adapters
|
S
|
SPA-2XCT3/DS0
|
2-Port Channelized T3 SPA
|
S
|
SPA-2XOC12-POS
|
2-Port OC-3c/STM-1 and OC-12c/STM-4 POS SPA
|
S
|
SPA-2XOC48POS/RPR
|
3 Ports OC-48c/STM-16c POS/RPR Shared Port Adapter
|
S
|
SPA-2XT3/E3
|
2-Port T3/E3 Serial SPA
|
S
|
SPA-4XOC12-POS
|
4-Port OC-3c/STM-1 and OC-12c/STM-4 POS SPA
|
S
|
SPA-4XOC3-POS
|
4-Port OC-3c/STM-1 POS SPA
|
V
|
SPA-4XOC3-POS-V2
|
4-Port OC-3c/STM-1 POS SPA
|
V
|
SPA-4XOC48POS/RPR
|
Port OC-48c/STM-16c POS/RPR Shared Port Adapter
|
S
|
SPA-4XT3/E3
|
4-Port T3/E3 Serial SPA
|
S
|
SPA-5X1GE
|
5-Port Gigabit Ethernet SPA
|
S
|
SPA-5X1GE-V2
|
5-Port Gigabit Ethernet SPA
|
S
|
SPA-8X1GE
|
8-port Gigabit Ethernet Shared Port Adapter
|
V
|
SPA-8X1GE-V2
|
8-port Gigabit Ethernet Shared Port Adapter
|
V
|
SPA-8XCHT1/E1
|
8-Port Channelized T1/E1 SPA
|
S
|
SPA-8XOC12-POS
|
8-Port OC-12c/STM-4 Multirate POS SPA
|
S
|
SPA-8XOC3-POS
|
8-Port OC-3c/STM-1 POS SPA
|
V
|
SPA-OC192POS-LR
|
1-PORT OC-192C/STM-64C POS/RPR SHARED PORT ADAPTER
|
S
|
SPA-OC192POS-VSR
|
1-PORT OC-192C/STM-64C POS/RPR SHARED PORT ADAPTER
|
S
|
SPA-OC192POS-XFP
|
1-port OC192/STM64 POS/RPR XFP Optics
|
V
|
XFP-10GLR-OC192SR
|
1-port OC192/STM64 POS/RPR XFP Optics Shared Port Adapter
|
S
|
Note For detailed information about the specific technologies and attributes supported by this NE, see Cisco Carrier Routing System (CRS-1)—Supported Technologies.
Cisco Carrier Routing System (CRS-1)—Supported Technologies
The following technologies are supported by the Cisco Carrier Routing System (CRS-1) in Cisco ANA 3.6 SP1:
•Base Logical Components
•Layer 1
•IP
•Routing Protocols
•Ethernet (Physical)
•Physical Equipment
•Ethernet (Logical)
•HDLC
•MPLS
•VPN
•ACL
Cisco Carrier Routing System (CRS-1)—Supported Service Events
Table 82 lists the supported service events (also called service alarms) for Cisco Carrier Routing System (CRS-1) routers in Cisco ANA 3.6 SP1.
Table 82 Service Events for Cisco Carrier Routing System (CRS-1) Routers
Event Name
|
|
All ip interfaces down active ip interfaces found
|
Y
|
interface status down/up
|
Y
|
card in/out
|
Y
|
link down/up
|
Y
|
Device Unreachable
|
N
|
CPU Over Utilized
|
N
|
Memory Over utilize
|
N
|
Device Unsupported
|
N
|
Discard Packets
|
N
|
Dropped Packets
|
N
|
Module Unsupported
|
N
|
Port Flapping
|
N
|
Port Down
|
Y
|
Rx Over utilized
|
N
|
Tx Over utilized
|
N
|
VPN leak
|
N
|
Cloud Problem
|
N
|
Broken LSP discovered
|
N
|
MPLS Black hole
|
N
|
Layer 2 Tunnel Down
|
N
|
BGP Neighbor Down
|
N
|
Card up/down
|
Y
|
Cisco Carrier Routing System (CRS-1)—Additional Information
This section contains additional information about the Cisco Carrier Routing System (CRS-1) and includes the following topics:
•Cisco Carrier Routing System (CRS-1) Prerequisite
•SDR Support for CRS-1
•Multichassis Support for CRS-1
Cisco Carrier Routing System (CRS-1) Prerequisite
As a prerequisite for the CRS-1 VNE, install the Cisco IOS XR Manageability Package on top of the IOS-XR version. In addition, the device configuration must contain the command, xml agent tty.
When creating the SNMP community, the SystemOwner should be specified.
SDR Support for CRS-1
Secure Domain Router (SDR) is supported as a separate independent VNE, with its own IP and login sequence. When adding a SDR to Cisco ANA it is treated like any other network element, namely, it is added as a new VNE using Cisco ANA Manage. The SDR IP address is attached to the active DRP of the SDR (or the virtual IP, if it exists).
As a prerequisite for the CRS-1 VNE, install the Cisco IOS XR Manageability Package on top of the IOS-XR version (XR 3.4 and 3.4.1). In addition, the device configuration must contain the command, xml agent tty and when creating the SNMP community the SystemOwner should be specified.
The IP address, snmp read community and telnet login sequence must be defined.
Cisco ANA uses the management network (if available) to manage the devices. The CRS platform assigns specific management interfaces on the RP modules (DRP in the case of SDR). In order to retrieve the IP address of these management interfaces, login to the device and run the command show ipv4 interface brief | include Mgmt as shown in the example:
RP/0/RP1/CPU0:P1_CRS8#show ipv4 interface brief | include Mgmt
MgmtEth0/RP1/CPU0/0 1.60.34.104 Up Up
MgmtEth0/4/CPU0/0 unassigned Shutdown Down
MgmtEth0/4/CPU1/0 unassigned Shutdown Down
In a multiple (D)RP environments there is an option to configure a virtual management interface and assign an IP address to it, so that the device is reachable via the same IP address no matter which (D)RP is active. In such an environment, each (D)RP has its own IP address but it is not used in order to access the device.
In order to get the virtual IP address, login to the device and run the command show running-config ipv4 virtual address as shown in the example:
DRP/0/3/CPU0:CRS-PE1#show running-config ipv4 virtual address
ipv4 virtual address 10.52.123.11 255.255.255.0
If the SDR is managed in-band the management IP address should be supplied by the customer.
The owner SDR (namely, the main router) presents all the modules that are installed on the chassis, excluding the ports that belong to other SDRs.
The VNE of the SDR only displays the modules that are associated with the SDR in the Inventory window of Cisco ANA NetworkVision, it does not display the fabric, fan and power supply (namely, the shared modules).
Multichassis Support for CRS-1
Multichassis support is available in Cisco ANA for 16-slot CRS-1 devices. As shown in Figure 1, the chassis functions purely as a container for the shelves, which are treated as individual chassis and are numbered incrementally starting with 0.

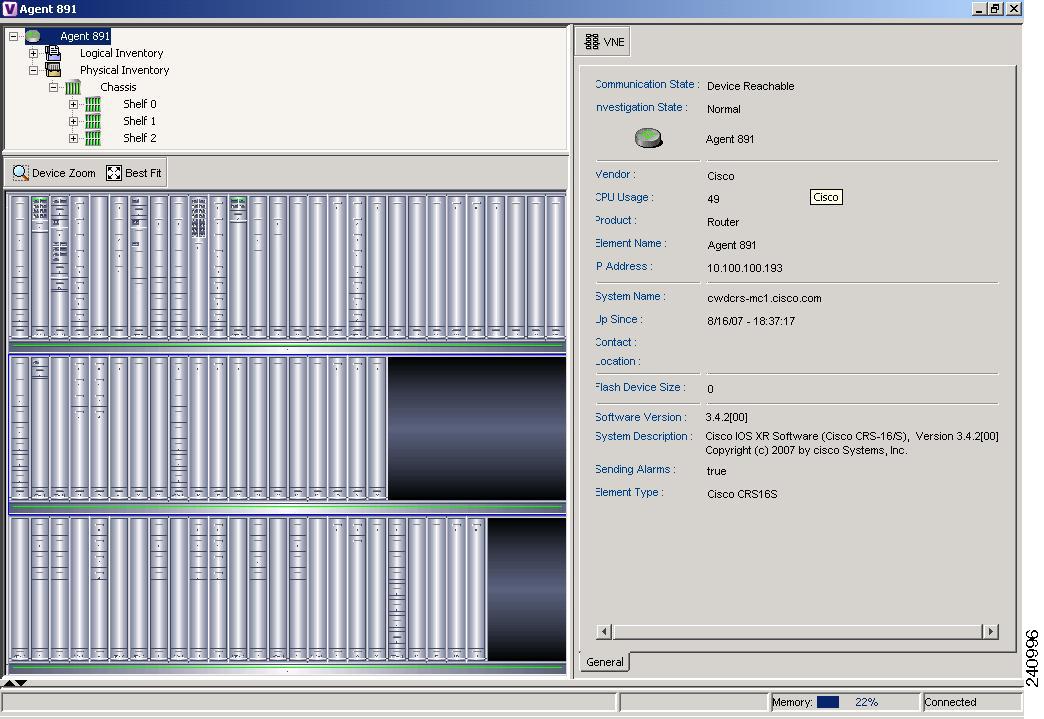

Figure 1 CRS-1 Multichassis Support
As shown in Figure 2, expanding a shelf displays the modules that are installed on that shelf.

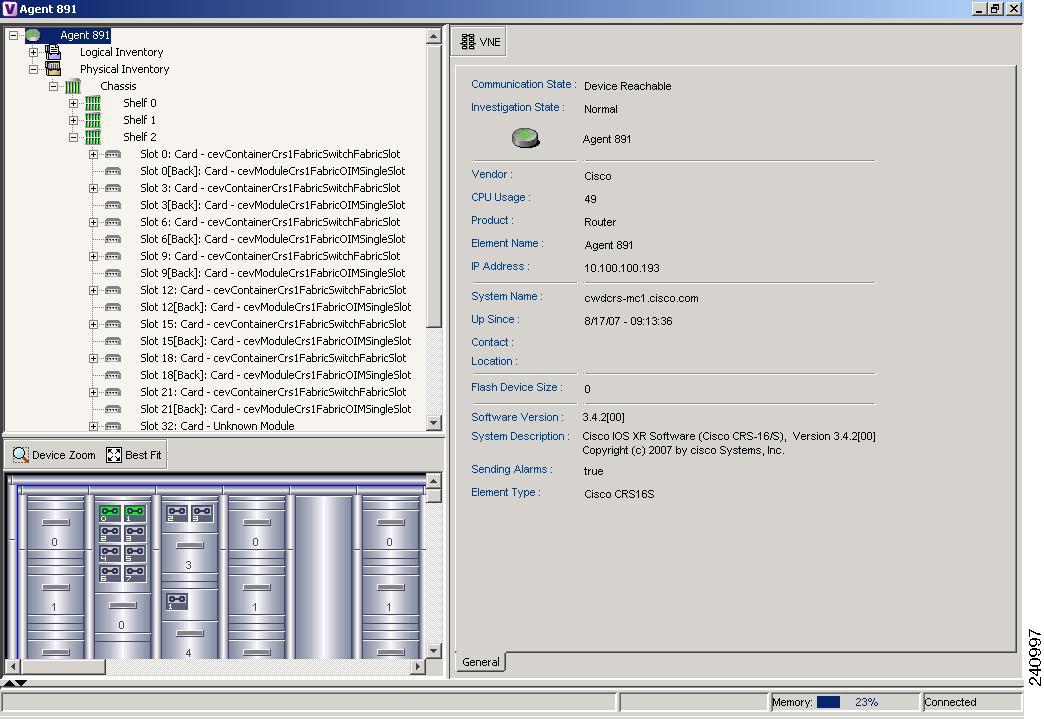

Figure 2 CRS-1 Multichassis Support—Expanded View
Because each shelf is treated as a chassis, chassis parameters such as description, serial number, status, and type are displayed for each shelf, not for the actual chassis in which the shelves are installed.
Figure 3 describes the physical model for the CRS-1 multichassis.

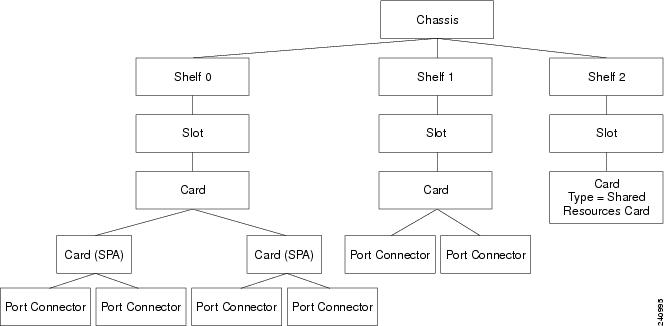

Figure 3 CRS-1 Multichassis Physical Model
When adding a multichassis device to Cisco ANA, it is treated like any other network element, namely, it is added as a new VNE using Cisco ANA Manage.
Supported Technologies on Cisco Routers
The following sections list the objects and attributes that are supported on Cisco routers in Cisco ANA 3.6 SP1 per technology:
•Base Logical Components
•Layer 1
•IP
•Routing Protocols
•Ethernet (Physical)
•Physical Equipment
•Ethernet (Logical)
•ATM
•Frame Relay
•HDLC
•DSL
•MPLS
•VPN
•ACL
•Q-in-Q (Switch Port)
•Q-in-Q (Routed Switch)
•STP
Note For more information about the objects and attributes described in this chapter, see Cisco Active Network Abstraction Technology Support and Information Model Reference Manual, Version 3.6 Service Pack 1.
Base Logical Components
Table 83 summarizes base logical component support on Cisco routers in Cisco ANA 3.6 SP1.
Table 83 Base Logical Component Support on Cisco Routers
Attribute
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Managed Element Object (IMO Name—IManagedElement)
|
IP Address
|
Y
|
Y
|
|
