Using Cisco ANA PathTracer to Diagnose Problems

---

Cisco ANA enables you to view a network path between two network objects using Cisco ANA PathTracer:

•In a circuit-switched network, such as Frame Relay or ATM, or

•In packet-switched networks, such as Ethernet and IP.

These topics describe the Cisco ANA PathTracer working environment and the functionality available when using Cisco ANA PathTracer:

•Cisco ANA PathTracer Overview, describes the Cisco ANA PathTracer single and multipath route tracing functionality and the information that can be viewed in the two main Cisco ANA PathTracer windows.

•Opening Cisco ANA PathTracer, describes how to open Cisco ANA PathTracer.

•Cisco ANA PathTracer Multipath Window, describes the Cisco ANA PathTracer multipath window working environment and the information that can be viewed.

•Cisco ANA PathTracer Single-Path Window, describes the Cisco ANA PathTracer single-path window working environment and the information that can be viewed.

•Viewing Path Information, describes how to view information about the path between two network objects, including ingress and egress port information.

•Saving and Opening Cisco ANA PathTracer Map Files, describes how to export the maps (paths) displayed in the Cisco ANA PathTracer multipath window to an .xml file.

•Saving Cisco ANA PathTracer Counter Values, describes how to export the counter values of the path displayed in the Cisco ANA PathTracer single-path window to a .csv file.

•Rerunning a Path and Making a Comparison, describes how to rerun a path using a previously saved map file with the same source and destination and then compare the paths.

•Viewing Q-in-Q Path Information, describes how to use Cisco ANA PathTracer to display path information for Q-in-Q-tagged VLANs.

•Viewing L2TP Path Information, describes how to use Cisco ANA PathTracer to display path information for L2 tunnels.

•Using Cisco ANA PathTracer in MPLS Networks, describes how to use Cisco ANA PathTracer to display MPLS network information.

Cisco ANA PathTracer Overview

Cisco ANA PathTracer enables end-to-end route tracing to be performed with informative performance information displayed simultaneously for the multiple networking layers. Upon receiving a path's start and endpoint, Cisco ANA PathTracer visually traces the route through the network. For example, in an ATM network environment, Cisco ANA PathTracer identifies all information regarding the connection of a subscriber to a provider, including all ATM PVCs, ATM switching tables, ATM class of service (CoS) definitions, IP-related information, and so on. Additionally, you can use Cisco ANA PathTracer to:

•Trace a hypothetical Ethernet frame from a VLAN interface to a user-provided MAC address.

•Trace a hypothetical Ethernet frame from an Ethernet interface to a user-provided MAC address within a user-specified VLAN ID.

Cisco ANA PathTracer can also be used for the following MPLS and Carrier Ethernet technologies:

•Path Trace across VLANs—Follows the path based on forwarding table, which means the trace follows ports in Forwarding STP state.

•Path Trace across Q-in-Q—Creates a single path trace (if the MAC address is learned) or multi-path trace (if the MAC address is not in the forwarding table). If the VLAN bridge has not learned a given MAC address, the bridge floods the Ethernet frame to the confines of a given VLAN/switching entity and across those ports that allow the given VLAN ID. A MAC/VLAN path trace can be conducted from a CE-VLAN interface across an SP-VLAN, that is, across Q-in-Q configurations with the CE-VLAN ID as inner VLAN ID and Cisco ANA PathTracer detecting the outer SP-VLAN ID that encapsulates the CE-VLAN.

•Path Trace across pseudowires (also known as EoMPLS) —A MAC/VLAN path trace can be conducted from a VLAN interface across a VLAN attachment to a pseudowire.

•VLAN-VPLS-VLAN Path Trace—A multi-point MAC/VLAN path trace can be conducted on CE-VLANs across service provider VPLS transport from a VLAN interface that attaches to the VPLS.

•MAC address not reachable— If Cisco ANA PathTracer cannot complete a MAC/VLAN path trace to a user-specified destination MAC address across an MPLS core, VPLS, or H-VPLS, then Cisco ANA PathTracer displays:

–a "MAC not reachable" message.

–The portion of the path that Cisco ANA PathTracer was able to trace toward the destination MAC address.

•Simulated Ethernet frame—Cisco ANA PathTracer can trace a simulated Ethernet frame from a VLAN port, across a VLAN (VLAN-based Flow Domain Fragment), VPLS (VPLS-based Flow Domain Fragment), and VLAN, for end-to-end MAC trace.

Cisco ANA understands and is able to derive the various paths on the network due to the up-to-date knowledge of the network. Cisco ANA PathTracer finds and retrieves the path of a specified service, after the user has selected a source and destination. The retrieved information contains network elements in the path, including all properties at Layer 1, Layer 2, and Layer 3, plus alarm information, counters, and more.

Cisco ANA PathTracer enables you to view multiple paths between the source and the destination in the Cisco ANA PathTracer multipath window, or to view a selected single-path in the Cisco ANA PathTracer single-path window.

Opening Cisco ANA PathTracer

Cisco ANA PathTracer can be opened from an Ethernet interface, a VLAN interface, ATM VC, DLCI, or from an IP interface entry point. The virtual route is found according to the cross connect table of each ATM switch or Frame Relay device. The IP routing and path finding process is enabled according to the VRF tables of each router.

To view a specific path, you must specify an initial point, such as a VPI/VCI, DLCI, VLAN, Ethernet port or IP interface and (optionally) a destination IP address. If you specified VC information or DLCI information, which ends in a router, Cisco ANA PathTracer finds the next hop according to the destination IP address. If you did not specify the destination IP address, the system uses the default gateway in the router. In addition, the related business tags that have been referred to the physical or logical entities are also displayed.

---

Note The path can also be opened if there is a business tag attached to an endpoint that can be used as the starting point for opening the Cisco ANA PathTracer.

---

The Cisco ANA PathTracer tool provides the user with two windows in which to view the path:

•Cisco ANA PathTracer Multipath Window—Displays all the paths available between the selected source and destination.

•Cisco ANA PathTracer Single-Path Window—Displays a single path available between the selected source and destination, as well as the subscribers and properties.

You can also enter the required destination IP address after opening the Cisco ANA PathTracer from the right-click shortcut menu at one of the following locations:

Element	Location
Affected Parties	Inventory window Ticket Properties window (Affected Parties tab)
VC Cross Connect Table	Inventory window (Cross Connect dialog box)
Site	Service View map
IP Interface	Inventory window Affected entry
Layer 2 MPLS Tunnel	Inventory window
VC Table	Inventory window (VC Table dialog box)
Business tag	The path can be found using a business tag, which is attached to the VPI/VCI, or using an IP interface by entering its key; it can then be opened from the Find Business Tag dialog box.
Ethernet port	Inventory window
MPLS-TE Tunnel	Inventory window

Cisco ANA PathTracer can be launched from several points in the Cisco ANA NetworkVision inventory window including IP interfaces, VLAN bridges, and Ethernet ports.

•IP interface—From the logical inventory Routing Entities, choose a routing entity, then right-click an IP interface from the routing entity IP Interfaces table as shown in Figure 15-1.

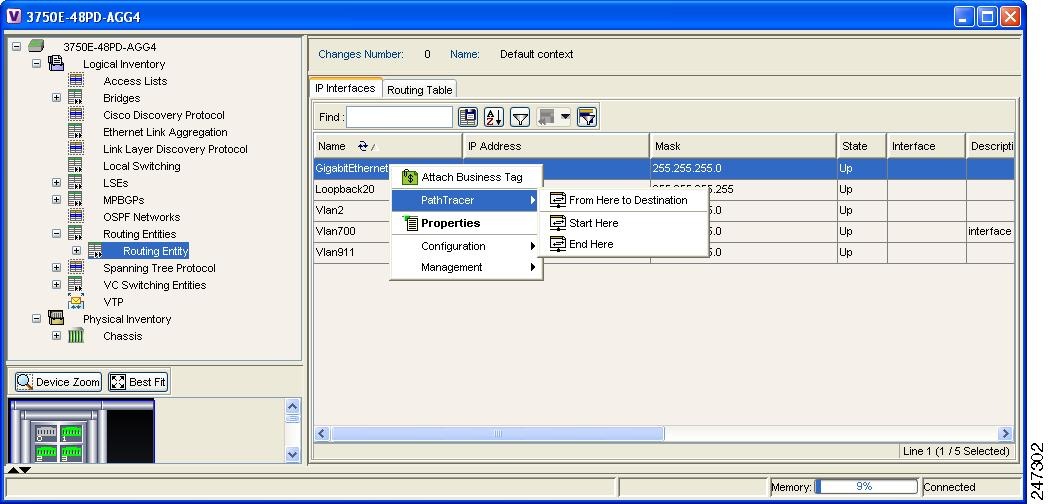

Figure 15-1 IP Interface Path Trace Launch Point

Two Cisco ANA PathTracer options are available: From Here to Destination and Start Here. If you choose From Here to Destination, the Path Information dialog box is displayed to collect the destination IP address, shown in Figure 15-2.

---

Note The Destination IP address is free text format to accommodate either IPv4 or IPv6 IP addresses. For information about IPv6 address display in Cisco ANA, see Chapter 8, "IPv6 VPN over MPLS."

---

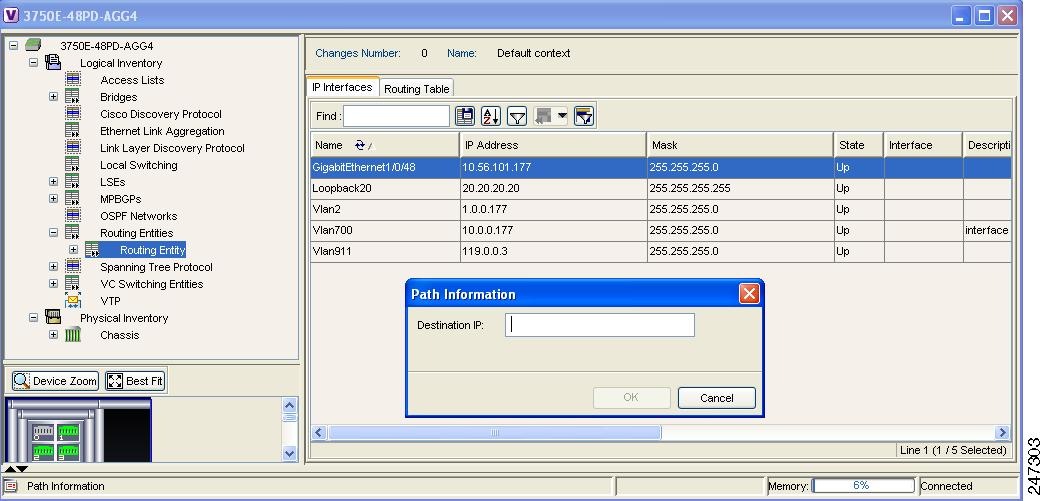

Figure 15-2 IP Interface Path Trace Launch Point Path Information Dialog Box

The path trace begins after the IP address is added and you click OK. If you choose Start Here, the End Here option is enabled after you choose the point where you want to end the path trace. Choosing End Here launches the trace.

•From a VLAN Bridge—You can launch path traces from VLAN bridges. Additionally, MAC addresses in the VLAN bridge forwarding table can be path trace destinations (the End Here option). If you launch a path trace from a bridge, The From Here to Destination and Start Here options are displayed (Figure 15-3).

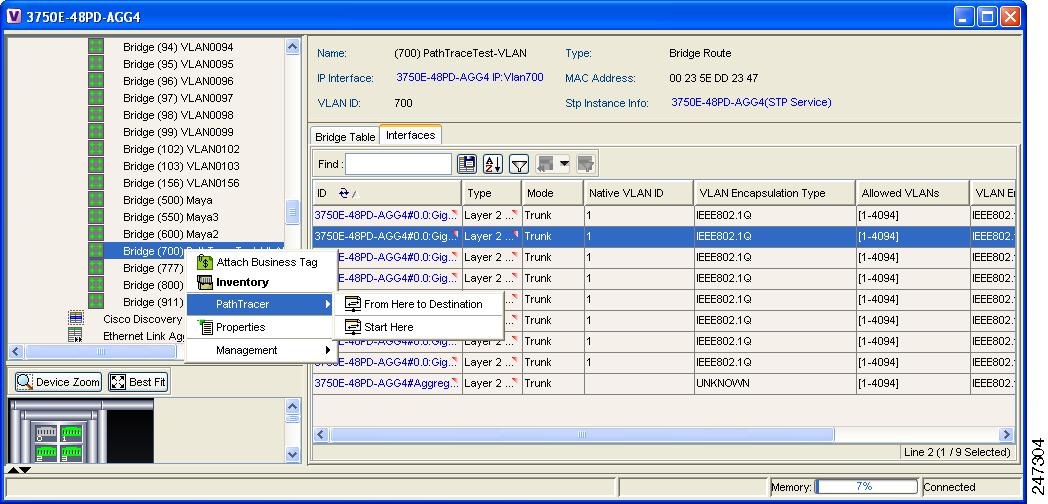

Figure 15-3 VLAN Bridge Path Trace Launch Point

If you choose From Here to Destination, the Path Information dialog box is displayed with options to enter a destination IP address or a destination MAC address.

•From an Ethernet port—You can launch path traces from Ethernet ports. Launch options include From Here to Destination and Start Here (Figure 15-4).

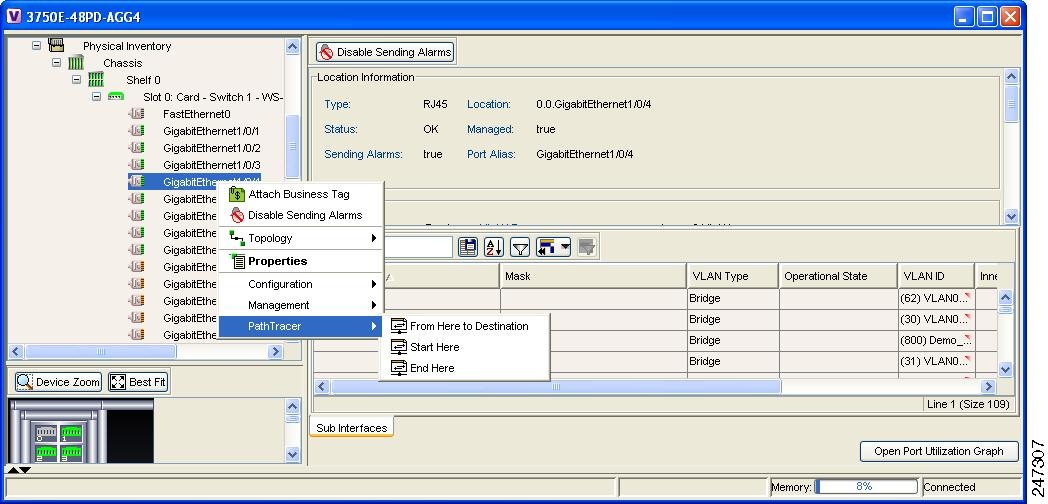

Figure 15-4 Ethernet Port Path Trace Launch Point

If you choose From Here to Destination, the Path Information dialog box is displayed with options to enter a destination IP address or destination MAC address and destination VLAN (Figure 15-5).

Figure 15-5 IP Interface Path Trace Launch Point Path Information Dialog Box

To open Cisco ANA PathTracer:

---

Step 1 Open the network element's inventory window using one of the following methods:

•Double-click a device or element in the navigation pane or in a map.

•Right-click a device or element in the navigation pane or in a map and choose Inventory.

The inventory window is displayed.

Step 2 Open Cisco ANA PathTracer from either the physical inventory or logical inventory branch.

Step 3 Choose one of the following launch points:

•IP Interface

•VLAN Bridge

•VLAN Bridge Interface

•Ethernet Port

Step 4 Choose a path trace launch option:

•From Here to Destination

•Start Here

Step 5 If you chose From Here to Destination, complete the following steps. If you choose Start Here, continue with Step 6.

a. Complete the Path Information dialog box information by entering the destination IP address or destination MAC address and destination VLAN.

The options that appear will depend on the launch point. The MAC address and VLAN destination fields do not always appear.

b. Click OK.

Step 6 If you chose Start Here, navigate to the destination interface, port, or bridge, right-click it, and choose End Here.

---

Note The End Here option indicates that when a certain point is selected as the End Here point, the system extracts the relevant IP address from this point and uses it as the destination.

---

The PathTracer multipath window is displayed showing the paths that were found. For more information about this window, see Cisco ANA PathTracer Multipath Window.

Step 7 If the multipath window displays more than one path, select a path in the Paths pane.

---

Note If multiple paths are selected in the Paths pane, they will be opened. If nothing is selected in the Paths pane, then all the available paths will be opened automatically, and each one will be displayed in a separate PathTracer single-path window.

---

Step 8 On the multipath window toolbar, click PathTracer. The PathTracer single-path window is displayed showing the end-to-end path.

For more information about the single-path window, see Cisco ANA PathTracer Single-Path Window.

---

Cisco ANA PathTracer Multipath Window

The Cisco ANA PathTracer multipath window displays all the discovered paths for the selected context, including devices and physical links.

The Cisco ANA PathTracer multipath window enables you to perform the following functions:

•View a previous path or view the next path.

•Open the Cisco ANA PathTracer single-path window in order to view a single selected path.

•Save the multipath map to a file.

•Run the Cisco ANA PathTracer again.

An example of the Cisco ANA PathTracer multipath window is displayed in Figure 15-6.

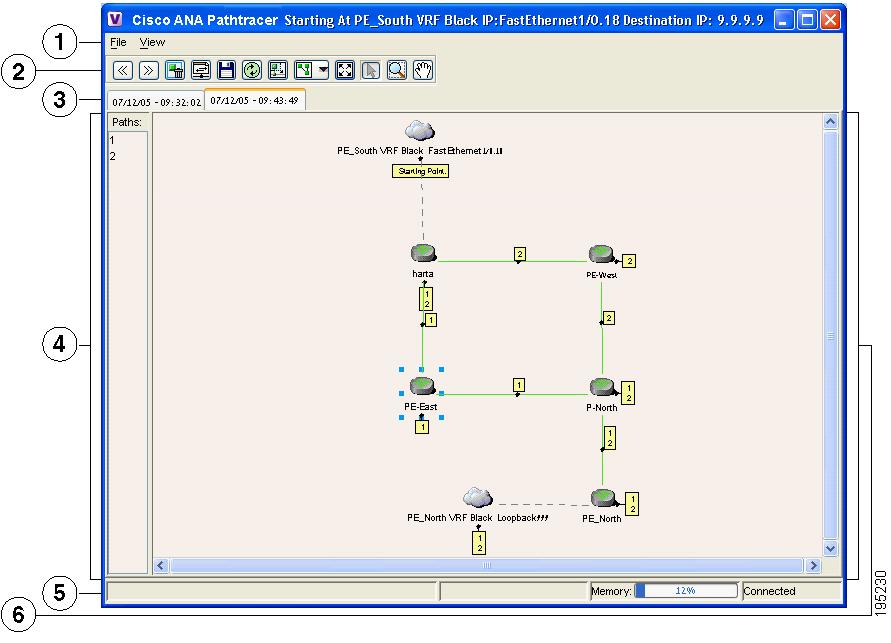

Figure 15-6 Cisco ANA PathTracer Multipath Window

1	Menu bar	4	Paths pane
2	Toolbar	5	Status bar
3	Map pathtraced at...tabs	6	Content area

The Cisco ANA PathTracer multipath window is divided into the following areas:

•Cisco ANA PathTracer Multipath Window Toolbar

•Cisco ANA PathTracer Multipath Window Menus

•Tabs

•Paths Pane

•Content Area

Cisco ANA PathTracer Multipath Window Toolbar

The Cisco ANA PathTracer multipath window contains the following tools:

Button	Function
	Selects the previous path viewed in the content area.
	Selects the next path viewed in the content area.
	Clears the path selection made in the content area.
	Opens the Cisco ANA PathTracer single-path window based on the path selected in the Cisco ANA PathTracer multipath window. A map is displayed for the selected path, including NE details, links, and property information. For more information, see Cisco ANA PathTracer Single-Path Window.
	Saves the multipath map displayed in the content area. For more information, see Saving and Opening Cisco ANA PathTracer Map Files.
	Defines the way in which the map is displayed in the content area (circular, symmetric, tree, or hierarchical).
	Opens a window displaying an overview of the network displayed in the content area.
	Runs Cisco ANA PathTracer again, creating a new map that is displayed in the content area. A new tab with an up-to-date (refreshed) path map is created for each run (the source and destination must be the same), with each tab representing a run, and its header indicating the snapshot time.

For information about the selection tools displayed on the toolbar, see Cisco ANA NetworkVision Toolbar, page 2-17.

Cisco ANA PathTracer Multipath Window Menus

The File menu in the Cisco ANA PathTracer multipath window provides the following options:

•Run Again—Runs the Cisco ANA PathTracer again, using the same source and destination parameters.

•Save—Saves the map displayed in the multipath window.

•Close—Closes the multipath window.

In addition, you can right-click views and network elements in the multipath window and choose items from a shortcut menu. The shortcut menu is context sensitive depending on the view and the network element selected. For more information about the Device shortcut menu and for a detailed description of all the menu options available here, see Device Shortcut Menu, page 2-24.

Tabs

The path is initially displayed in the content area in a tab that displays the starting point date and time at which Cisco ANA commenced the path tracing process (snapshot time).

If you want to load a saved path from a file or run the displayed path again, a new tab with an up-to-date (refreshed) path map is created for each run or file (the source and destination must be the same). This is displayed in a separate tab, with each tab representing a run or file, and its header indicating the snapshot time.

Paths Pane

The Paths pane displays all the paths available for the selected source and destination (for each source and destination pair, a new path is created). The paths are displayed using numbers. Selecting a path in the Paths pane enables you to view each individual path in the content area of the Cisco ANA PathTracer single-path window, and the selected path is highlighted in the map.

Content Area

The content area enables you to view a route map of the intermediate network elements. The map displays devices, links and paths (topological paths).

Icons are used in the content area to display the network objects and these icons provide a visual representation of the network objects' status. For more information about the icons used, see Appendix A, "Icon Reference."

All links and nodes are labeled with the relevant paths numbers. The starting point is labeled with a special Starting Point label. All other edge points are displayed as clouds.

Cisco ANA PathTracer Single-Path Window

The Cisco ANA PathTracer single-path window displays the devices and links of the discovered path, as well as path layer properties and subscriber information.

---

Note This section refers to single-path view only.

---

The Cisco ANA PathTracer single-path window enables you to:

•View a map of the intermediate network elements.

•View the following information for each network element:

–The relevant parameters for each interface on all layers along the path.

–For each layer, an indication of a mismatch between the parameters of the interfaces on both sides of a link.

–Traffic statistics along the path.

•Monitor the status and traffic of all the links along the path.

•View In and Out port properties.

In addition, right-clicking on an item in Cisco ANA PathTracer enables you to perform certain functions. For example, you can view device information, including device properties, and attach business tags.

An example of the Cisco ANA PathTracer single-path window is displayed.

Figure 15-7 Cisco ANA PathTracer Single-Path Window

1	Menu bar	5	Properties table
2	Toolbar	6	Layer tabs
3	Content area	7	Status bar
4	Hide/Display Properties table

The Cisco ANA PathTracer single-path window is divided into the following areas:

•Cisco ANA PathTracer Single-Path Window Toolbar

•Cisco ANA PathTracer Single-Path Window Menus

•Topological Map

•Properties Table and Layer Tabs

Cisco ANA PathTracer Single-Path Window Toolbar

The Cisco ANA PathTracer single-path window contains the following tools:

Table 15-1 Cisco ANA PathTracer Single-Path Window Tools

Button	Function
	Displays all the information in the tabs.
	Hides all the information in the tabs.
	Exports the currently displayed data to a CSV file.
	Starts exporting the counter values of the path displayed in the Cisco ANA PathTracer single-path window to a CSV file.
	Stops exporting the counter values of the path displayed in the Cisco ANA PathTracer single-path window to a CSV file.

Cisco ANA PathTracer Single-Path Window Menus

The following table provides a description of each option available in the Cisco ANA PathTracer single-path window menus.

Menu Name	Option Description
File	•Close—Closes the single-path window.
View	•Show All—Displays all of the information contained in the Properties table. •Hide All—Hides all of the information contained in the Properties table.
Tools	•Export to File—Exports the currently displayed data to a file. •Start Saving to File—Starts exporting the counter values of the path displayed in the Cisco ANA PathTracer single-path window to a CSV file. •Stop Saving to File—Stops exporting the counter values of the path displayed in the Cisco ANA PathTracer single-path window to a CSV file.
Help	•Help Contents—Opens the Cisco ANA NetworkVision online help. •Help About—Displays application information, such as the version number.

In addition, you can right-click views and network elements in the single-path window and choose items from a shortcut menu. The shortcut menu is context sensitive depending on the view and the network element selected. The following two Device shortcut menu options are available only from the single-path window:

•Show `In' Port—In the Properties table, highlights the In Port information (of the device in the path) of the selected network element.

•Show `Out' Port—In the Properties table, highlights the Out Port information (of the device in the path) of the selected network element.

Topological Map

The topological map displays the devices and links that are part of the path. Icons are used in Cisco ANA PathTracer to display the network objects and these icons provide a visual representation of the network objects' status. For more information about the icons used, see Appendix A, "Icon Reference."

For more information about the colors used to indicate severities, see Map View, page 2-5.

The same coloring conventions that are used in maps in the Cisco ANA NetworkVision content area are used to display links in the Cisco ANA PathTracer single-path window. Selecting a device or link on the map automatically highlights the related parameters in the table.

---

Note The color of a selected link is customizable. The default color is blue.

---

There are three ways in which the status of a network object is indicated on the topological map:

1. By severity

2. By management state

3. By new alarms

For more information, see Network Element Status Indicators, page 2-14.

Properties Table and Layer Tabs

The Properties table and tabs display the supported parameters of the specified NE. The Cisco ANA PathTracer single-path window is divided into tabs as shown in the example in Cisco ANA PathTracer Single-Path Window.

The information parameters are displayed in a table, with the ingress and egress ports on the top and the parameters on the left.

Any inconsistencies between the two connected ports are colored to emphasize a discrepancy, for example, different admin statuses.

The Cisco ANA PathTracer information parameters are arranged in groups as follows:

•Networking Layers—This group displays information regarding each network element, including ingress and egress port information. The information is either plain data that was extracted from the device or calculated data such as rates or statistics. This information is displayed in the Layer 1, Layer 2 and Layer 3 tabs.

•Business—This area displays the name and the key of the business tags that have been attached to the network entities displayed; for example, the port or the entire device (physical entity), VC, VP, DLCI, context (logical entity) or MPLS. This information is displayed in the Business Tag area.

The Cisco ANA PathTracer window is divided into the following tabs and all appear empty when the window opens:

•Layer 1—Displays the Layer 1 information in the selected path and enables you to view the link parameters. The name of each device is displayed, as well as the subslot, slot and port details.

•Layer 2—Displays the Layer 2 information in the selected path. In addition, it enables you to view the link and connection parameters. For each of the devices, the name and MAC address are displayed, as well as the VPI/VCI in an ATM link or the DLCI in a Frame Relay link. By default, the Cisco ANA PathTracer single-path window is displayed with the Layer 2 tab active.

•Layer 3—Displays the Layer 3 information selected path and enables you to view the link parameters. The name of each device is displayed.

•Business Parameter—Displays the name and the key of the business tags that have been attached to the network entities displayed; for example, the port or the entire device (physical entity), VC, VP, DLCI, IP interface or context (logical entity).

For specific information about VPN Cisco ANA PathTracer information, see Chapter 7, "Monitoring MPLS Services."

Viewing Path Information

The Cisco ANA PathTracer tabs display information regarding each network element, including ingress and egress port information. The information is either plain data that was extracted from the device or calculated data such as rates or statistics. This information is displayed in the Layer 1, Layer 2 and Layer 3 tabs of the Cisco ANA PathTracer single-path window.

To view path information, select the required tab, and click Show All. The path information is displayed in the active tab of the Cisco ANA PathTracer single-path window.

---

Note Selecting a device or link on the map automatically highlights the related parameters in the table.

---

---

Note Drag the scroll bar at the bottom of the Cisco ANA PathTracer window to view the various areas of the selected path and the parameters.

---

Saving and Opening Cisco ANA PathTracer Map Files

Cisco ANA NetworkVision enables you to export the maps (paths) displayed in the Cisco ANA PathTracer multipath window to an .xml file. The data can then be viewed at a later stage in order to assess whether anything has changed.

To save Cisco ANA PathTracer Map Files:

---

Step 1 Open the Cisco ANA PathTracer multipath window (see Opening Cisco ANA PathTracer).

Step 2 Do one of the following to save the map:

•Click Save MultiPath in the multipath window toolbar.

•Choose File > Save from the multipath window menu.

The Save dialog box is displayed.

Step 3 Browse to the directory where you want to save the file.

Step 4 In the File name field, enter a name for the map file.

Step 5 Click Save. The map file is saved in the selected directory.

---

Cisco ANA NetworkVision enables you to open saved XML-formatted path-tracing maps.

---

Note•When you load a multipath file, Cisco ANA queries the file (not the network), and loads all the persisted information.

•When you load a multipath file that does not contain the same Start Here and End Here destination information, the map is automatically opened in another instance of Cisco ANA PathTracer.

---

To open Cisco ANA PathTracer Map Files:

---

Step 1 In Cisco ANA NetworkVision, choose File > Load PathTracer from the main menu. The Open dialog box is displayed.

Step 2 Browse to the directory of the saved file and select the file.

Step 3 Click Open. The Cisco ANA PathTracer multipath window is displayed with the previously saved map file.

---

Saving Cisco ANA PathTracer Counter Values

Cisco ANA NetworkVision enables you to export the counter values of the path displayed in the Cisco ANA PathTracer single-path window to a CSV file. The data can then be viewed at a later stage.

---

Note This section refers to single-path view only.

---

To save Cisco ANA PathTracer counter values:

---

Step 1 Open the Cisco ANA PathTracer single-path window (see Opening Cisco ANA PathTracer).

Step 2 From the single-path window, do one of the following:

•Click Start Saving to File in the single-path window toolbar.

•Choose Tools > Start Saving to File from the single-path window main menu.

The Export Table to File dialog box is displayed.

Step 3 Browse to the directory where you want to save the Cisco ANA PathTracer counter values.

Step 4 In the File name field, enter a name for the Cisco ANA PathTracer counter values.

Step 5 Click Save. The Cisco ANA PathTracer counter values are saved in the selected directory.

---

You can then stop exporting the counter values of the path displayed in the Cisco ANA PathTracer single-path window to a CSV file.

To stop saving Cisco ANA PathTracer counter values, do one of the following:

•Click Stop Saving to File in the single-path window toolbar.

•Choose Tools > Stop Saving to File from the single-path window main menu.

Cisco ANA NetworkVision stops exporting the counter values to the CSV file.

Rerunning a Path and Making a Comparison

Cisco ANA NetworkVision enables you to save and load a path (see Saving and Opening Cisco ANA PathTracer Map Files). This file can then be used at a later stage to rerun the path automatically using the same source and destination. You can then compare the paths if, for example, you suspect that the path has changed, and assess where the problem is occurring.

To rerun the path:

---

Step 1 Load the required map file. See Saving and Opening Cisco ANA PathTracer Map Files. The Cisco ANA PathTracer multipath window is displayed with the previously saved map file.

Step 2 From the multipath window, do one of the following:

•Click Run Again in the multipath window toolbar.

•Choose File > Run Again from the multipath window main menu.

The path reruns automatically using the same source and destination as the loaded map file and a new tab is displayed in the Cisco ANA PathTracer multipath window with the updated map (path). The tab also displays the updated details of the date and time when the path was rerun.

Step 3 Compare the two paths by switching between the tabs in the Cisco ANA PathTracer multipath window and comparing the old map (path) with the new updated one.

---

---

Note•When you load a Cisco ANA PathTracer map file that does not contain the same source and destination information as the map that is currently displayed in the window, the map is automatically opened in another instance of the Cisco ANA PathTracer multipath window.

•If you load a Cisco ANA PathTracer map file that contains the same source and destination information as a window which has already been opened, the file will be loaded in a new tab within this window.

---

Viewing Q-in-Q Path Information

The Q-in-Q (IEEE802.1) tagging technology (also known as Dot1q tunneling) allows the nesting of an additional VLAN tag in a packet, in addition to an existing one. Either VLAN tag is considered an 802.1Q header.

Cisco ANA PathTracer uses the VLAN tags of the Ethernet header and the port configuration to trace the path from one interface to another over the network. Among other things, the tool lets you:

•View a Layer 2 path across a LAN domain with all the VLAN tag information.

•For each network element, view the relevant parameters for each interface on all layers along the path.

Q-in-Q and dot1q information is displayed in the Cisco ANA PathTracer windows when a path is traced over Ethernet ports with Dot1q and a Q-in-Q configuration.

As explained in Opening Cisco ANA PathTracer, to view a specific path, you must specify an initial start point, such as an IP interface, and then an endpoint, such as a destination IP address.

To trace a Q-in-Q path, you start the path from any:

•Router or switch which is part of the Ethernet domain with Dot1q and Q-in-Q configurations.

•IP destination which can be reached from that point of the network.

As soon as you select the endpoint, the Cisco ANA PathTracer Multipath window is displayed (see Cisco ANA PathTracer Multipath Window). From this window, you can open the Cisco ANA PathTracer Single-Path window, with the appropriate Q-in-Q information displayed in the Layer 2 tab (see Cisco ANA PathTracer Single-Path Window).

The Layer 2 tab can display the following information specific to Q-in-Q and VLAN port configurations:

•VLAN Mode—The work mode for the interface (Unknown, Access, Trunk, Dot1QTunnel). Trunk mode also refers to multiple tagging.

•Native VLAN ID—The VLAN ID that is used to tag untagged traffic received on a trunked interface. The default native VLAN ID is `1' if VLAN tagging is enabled. The native VLAN ID is `0' or `no VLAN ID' if VLAN tagging is disabled.

•CE VLAN ID—The customer edge device's VLAN ID.

•SP VLAN ID—The service provider's VLAN ID.

Viewing L2TP Path Information

Cisco ANA uses VC ID encapsulation information to trace the path from one tunnel interface to another over the network. The Cisco ANA PathTracer tool enables you to:

•View a path for the defined Layer 2 Tunneling Protocol (L2TP) session across the network.

•For each network element, view the relevant parameters for each interface on all layers along the path.

Layer 2 and Layer 3 L2TP information is displayed in the Cisco ANA PathTracer windows when a path is traced over L2TP tunnels for Redback devices.

The Layer 3 tab displays the following information specific to L2TP tunnels:

•Name—The peer name is displayed.

The Layer 2 tab displays the following information specific to L2TP tunnels:

Field	Description
Encapsulation Type	The encapsulation type, for example, Point-to-Point Protocol over ATM (PPPoA).
Binding Information	The name of the subscriber.
Binding Status	The binding status: bound or unbound.
Tunnel Session Count	The number of current sessions.
Tunnel Remote ID	The remote tunnel identifier.
Tunnel ID	The local tunnel identifier.
Tunnel Name	The name of the subscriber and the tunnel ID.
Session ID	The session identifier.
Traffic > L2TPSessionCounters	The number of traffic packets passing through the L2TP tunnel.
Traffic < L2TPSessionCounters	The number of traffic packets passing through the L2TP tunnel.
Tunnel Ctl Errors	The number of control errors.
Tunnel State	The tunnel state: unknown, idle, connecting, established, or disconnecting.
Session Type	The session type: unknown, LAC, or LNS.
Peer Name	The peer name.
Tunnel Remote IP	The remote IP address of the tunnel.
Last Error Code	The value of the last error code that caused the tunnel disconnection.
Session State	The session state: unknown, idle, connecting, established, or disconnecting.
Remote Session ID	The remote session identifier.

Using Cisco ANA PathTracer in MPLS Networks

You can open and view Cisco ANA PathTracer information between service endpoints, for example, the IP interface that is attached to the VRF over an MPLS network. The LSP in the MPLS network is found according to the cross-connect table of each router.

---

Note The LSP can be traced and displayed by Cisco ANA PathTracer as part of an end-to-end tracing of a service, as well; for example, when viewing a path between one CE device and another. Cisco ANA PathTracer traces the path that goes over circuits or VLANs in the access networks. It also traces the LSPs between the VRFs going through all intermediate devices such as CE devices, aggregation switches, PE routers, and core routers.

---

To view a specific path, you must specify an initial starting point, such as an IP interface and a destination IP address (optional). If the traced circuit (for example, a VC or VLAN) ends in a router, Cisco ANA PathTracer finds the next hop according to the destination IP address. When you select an endpoint, Cisco ANA extracts the relevant IP address from this point and uses it as the destination.

Cisco ANA PathTracer MPLS Starting Points

You can open Cisco ANA PathTracer by right-clicking a starting point and entering the required destination IP address. Table 15-2 lists the Cisco ANA PathTracer starting points.

Table 15-2 Cisco ANA PathTracer Starting Points

Element	Location	Start Options
IP Interface	•Inventory window. •Affected entity (enabled only if the affected entity has an IP interface).	•From Here to Destination •Start Here
Site	Service view map.	•From Here to Destination •To Subnet Destination •Start Here
Business tag attached to the VPI/VCI or IP interface	The path can be found using a business tag, which is attached to the VPI/VCI or IP interface by entering its key. It can then be opened from the Find Business Tag window.	From Here to Destination
Layer 2 MPLS Tunnel	Inventory window.	From Here to Destination
LCP	Service view map.	•From Here to Destination •Start Here

Cisco ANA PathTracer MPLS Endpoints

If you choose the Start Here option, Table 15-3 lists the endpoints that can be selected as a path destinations.

Table 15-3 Cisco ANA PathTracer Endpoints

Element	Location	End Options
IP Interface	•Inventory window •Affected entity (enabled only if the affected entity has an IP interface)	End Here
Site	Service view map	End Here
LCP	Service view map	End Here

The Cisco ANA PathTracer multipath window is displayed. From this window you can open the Cisco ANA PathTracer single-path window with the appropriate VPN information displayed in the Layer 2 and Layer 3 tabs.

---

Note If multiple paths are selected in the paths pane, or if nothing is selected in the paths pane, then all the available paths are opened automatically, and each one are displayed in a separate Cisco ANA PathTracer single-path window.

---

Using Cisco ANA PathTracer for Layer 3 VPNs

Cisco ANA Path Tracer uses VRF routing and label switching information to trace the path from one VRF interface to another. If you choose a start and endpoint from the right-click menu, you can open the Cisco ANA PathTracer for Layer 3 VPNs. The Cisco ANA PathTracer multipath window shows the VPN topology map. From this window, you can open the Cisco ANA PathTracer single-path window with the appropriate VPN information displayed in the Layer 2 and Layer 3 tabs.

For Layer 3 path information, Cisco ANA uses VRF routing and label switching information to trace the path from one VRF interface to another. Layer 3 Cisco ANA PathTracer information is displayed in the Cisco ANA PathTracer window when the path goes over connections and ends in VRFs.

To view Layer 3 path information, choose the Layer 3 tab and choose Show All from the View menu. The path information is displayed in the active tab.

---

Note Selecting a device or link on the map automatically highlights the related parameters in the table.

---

The Cisco ANA PathTracer single-path window with the Layer 3 tab is displayed. The table displays the Layer 3 VPN information on the device that has a VRF. The following Layer 3 properties displayed in the Layer 3 tab relate specifically to VPNs:

•Name—The name of the site, for example, ATM4/0.100(10.0.0.1) is a combination of the interface name and IP address used to reach the site. Each site belongs to a particular VPN, so the address must be unique within the VPN.

•IP Address—The IP address of the interface.

•Mask—The mask of the specific network.

•State—The state of the interface (up or down).

•VRF Name—The name of the VRF.

•Sending Alarms—Whether the alarm for the required port has been enabled (true) or disabled (false).

Cisco ANA PathTracer does not display or trace EXP bits for L3 VPNs that policy-based tunnel selection (PBTS).

Using Cisco ANA PathTracer for Layer 2 VPNs

Cisco ANA uses VC ID and label switching information to trace the path from one tunnel interface to another over the MPLS network.

The Cisco ANA PathTracer also covers end-to-end Layer 2 VPN service paths from one CE router to another. The path goes over circuits (for example, a VC) or VLANs in the access networks and LSP between the Layer 2 tunnel edge.

The Cisco ANA PathTracer multipath window shows the VPN topology map for the relevant devices and links. From this window, you can open the Cisco ANA PathTracer single-path window with the appropriate VPN information displayed in the Layer 2 and Layer 3 tabs.

For Layer 2 path information, Cisco ANA uses VC ID and label switching information to trace the path from one tunnel interface to another. Layer 2 Cisco ANA PathTracer information is displayed in the Cisco ANA PathTracer window when the path goes over pseudowire tunnels.

To view Layer 2 path information, choose the Layer 2 tab and choose Show All from the View menu. The path information is displayed in the active tab.

---

Note Selecting a device or link on the map automatically highlights the related parameters in the table.

---

Layer 2 properties that may be displayed in the Layer 2 tab relating specifically to VPNs include:

•Outer Label—The details of the outer MPLS label.

•Inner Label—The details of the inner MPLS label.

•MAC Address—The MAC address.

•Tunnel ID—The tunnel identifier. The identifier and the router IP addresses of the two tunnel edges identify the pseudowire tunnel.

•Tunnel Type—The tunnel type, 0=Unknown, 1= PWE3, and 2=TE.

•Tunnel Status—The operational state of the tunnel, either up or down.

•Tunnel Local VC Label—The MPLS label that is used by this router to identify or access the tunnel. It is inserted in the MPLS label stack by the local router.

•Tunnel Peer VC Label—The MPLS label that is used by this router to identify or access the tunnel. It is inserted in the MPLS label stack by the peer router.

•Tunnel Local Router IP—The IP address of this tunnel edge, which is used as the MPLS router ID.

•Tunnel Peer Router IP—The IP address of the peer tunnel edge, which is used as the MPLS router ID.

•Distribution Protocol Type—The protocol used by MPLS to build the tunnel, for example, LDP or TDP.

•Peer Oid—The tunnel ID and device name.

Using Cisco ANA PathTracer for MPLS TE Tunnels

Cisco ANA Path Tracer uses label switching information to trace the end-to-end path of a TE tunnel path from one PE router to another.

Using MPLS TE technology, Cisco ANA PathTracer enables you to:

•View a path or list of devices.

•View the following information for each network element:

–The relevant parameters for each interface on all layers along the path.

–The path for the defined MPLS TE-LSP across the network.

The Cisco ANA PathTracer multipath window is displayed showing the MPLS TE tunnel topology map. From this window, you can open the Cisco ANA PathTracer single-path window with the appropriate MPLS TE tunnel information displayed in the Layer 2 tab.

---

Note Cisco ANA PathTracer does not display or trace EXP bits for L3 VPNs that use PBTS.

---

Layer 2 and Layer 3 Cisco ANA PathTracer information is displayed in the Cisco ANA PathTracer windows when a path is traced over MPLS TE tunnels. To view Layer 2 path information, choose the Layer 2 tab and choose Show All from the View menu. The path information is displayed in the active tab.

---

Note Selecting a device or link on the map automatically highlights the related parameters in the table.

---

Layer 2 properties that may be displayed in the Layer 2 tab relating specifically to MPLS TE tunnels include:

•MPLS TE Properties—The MPLS TE data set in an MPLS interface, mainly bandwidth allocation levels and signaling protocol.

•Tunnel Oper Status—The operational state of the tunnel, either up or down. If the Tunnel Oper status is up, the Tunnel Admin Status must also be up (see the Tunnel Admin Status properties for additional information).

•Tunnel Bandwidth Kbps—Tunnel configured bandwidth in Kb/s.

•Tunnel Description—A textual description of the tunnel.

•Tunnel Name—The interface name.

•Tunnel Admin Status—The operational state of the tunnel, either up or down, however;

–If the Tunnel Oper status is up, the Tunnel Admin Status must also be up.

–If the Tunnel Admin status is down, the Tunnel Oper Status must also be down.

•Tunnel Lockdown—If enabled, the tunnel cannot be rerouted.

•Tunnel LSP ID—LSP identification number.

•Tunnel Auto Route—If enabled, destinations behind the tunnel are routed through the tunnel.

•Tunnel Hold Priority—The tunnel's priority after path setup, when other tunnels try to remove it and claim its resources.

•Tunnel Setup Priority—The tunnel's priority upon path setup.

•Tunnel Path Option—The tunnel's path can be either dynamic, in which case the tunnel is routed along the ordinary routing decisions after taking into account the constraints the tunnel imposes (attributes, priority, bandwidth) or explicit, in which case the route is explicitly plotted with included and excluded links.

•Tunnel Out Label—The TE tunnel's MPLS label distinguishing the LSP selection in the adjacent (next) device.

•Tunnel Affinity—The tunnel's preferential bits for specific links.

•Tunnel Destination Address—The IP address of the device in which the tunnel ends.

•Tunnel Peak Rate Kbps—Flow specification measured for this tunnel (in Kbps).

•Tunnel Out Interface—The interface through which the tunnel exits the device.

•Tunnel Burst Kbps—Tunnel burst rate (in Kb/s).

•Tunnel Average Rate Kbps—Tunnel average rate (in Kb/s).

•Tunnel Affinity Mask—Dictates which bits from the tunnel's affinity should be compared to the link's attribute bits.
