Causality Correlation and Advanced Correlation Scenarios
Causality correlation is the process of relating an event to an existing alarm in a causality relationship. The root of the resulting causality hierarchy is called the root cause, and the correlation process that determines the root cause of a fault is referred to as root cause analysis.
Root cause analysis is performed on historic snapshots of the VNE model and forwarding information. These snapshots, maintained for ten minutes, enable the correlation logic to traverse the VNE network model at a time in the past, before the occurrence of the fault that is being analyzed. This is critical for root cause analysis in the presence of network faults.
The unique correlation capability of Cisco ANA is derived from this ability to learn the impact of the suspected fault by examining snapshots of the network before the occurrence of the fault.
The following topics describe Cisco ANA correlation functionality and correlation scenarios:
•
Attributes Used by the Event Correlation Algorithm
•
•
Attributes Used by the Event Correlation Algorithm
Table 17-1 describes the attributes that control the algorithm Cisco ANA uses to perform event correlation.
Correlation Process
Figure 17-1 illustrates the correlation process in Cisco ANA.
Figure 17-1 Correlation Process in Cisco ANA
The correlation process starts when a new event is detected. A new event can be an incoming network event, such as a trap event, or a generated event, such as a service alarm. For more information on the correlate, activate-flow, and weight attributes, see Table 17-1. The is-ticketable parameter is described in Event (Subtype) Configuration Parameters, page E-2.
A
The first step in the process is event identification. After the trap has been identified, and if it is not dropped by the VNE, its attributes are determined.
B
Cisco ANA examines and parses the event notification message to pinpoint the precise entity that is the location, or source, of the event. For more information on event source association, see Chapter 12, "Understanding Fault Management."
C
Cisco ANA then examines the new event for flapping. If this event is part of a flapping sequence, it is suppressed as described in Chapter 12, "Understanding Fault Management."
D
Cisco ANA then further examines the new event. If the correlate attribute is true, the new event is subjected to correlation. Most flagging events are subject to correlation; clearing events are not. If this event was configured to expedite polling, the specific polling command is generated as well, which might result in additional generated events.
If the correlate attribute is set to false, Cisco ANA tries to relate it to an event sequence. See Step J to Step M for additional details.
E
The correlation process is now suspended for two minutes. This gives other events, possibly related in terms of cause and effect, a chance to be detected.
No further processing is performed on the event when it is suspended. As a result, the update to the database and Cisco ANA NetworkVision for this event is delayed by two minutes.
F
After the two-minute suspension, other events are examined for possible causality. Two different processes can be followed: local correlation or flow correlation. The process that is followed depends on the value of the activate-flow attribute of the new event: false initiates local correlation (G) and true initiates flow correlation (H).
G
Local correlation examines and finds other events related to the same (local) NE from which the new event originated; no network flow is initiated.
Local correlation is well suited for the following scenarios:
•
•
•
Most trap and syslog events use the local correlation process. The correlation logic looks for causing events in the VNE that:
•
•
•
H
Flow or network correlation broadens the search for events to those coming from other NEs, including those that are several hops away.
Flow correlation is well suited for the following scenarios:
•
•
Flow correlation uses historic snapshots of the VNE model to search the local VNE and other VNEs for causing events that meet the following criteria:
•
•
•
I
Correlation processes often yield more than one candidate-causing event. Additional, specific, rule-based filtering logic eliminates unlikely causing events, such as Cloud Problem, BGP Process Down, or LDP Neighbor Down. Finally, the causing event with the highest weight (or the closest in time, when there is more than one) is selected as the causing event.
The new event becomes the starting point of a new, correlated alarm.
J
If the previously described correlation process does not yield any causing events, or the new event was not subjected to correlation, it is possible that the new event simply relates to an existing event sequence (alarm). Cisco ANA searches for such an event sequence with the same source and event type as the new event.
K
If a matching event sequence is found, the new event is appended to it, and the alarm severity is updated accordingly.
L
If no matching alarm is detected, the new event is potentially a root cause in its own right. This is determined by the is-ticketable attribute. If this attribute is set to true, the new event is the basis for a new alarm that, in turn, causes the creation of a new ticket.
M
If, however, the new event is not ticketable (is-ticketable is set to false), it is archived and is no longer involved in correlations.
Advanced Correlation Scenario Lab Setup
This section describe the lab's functionality and the applied technologies. The diagram illustrates the lab setup for the scenarios described in these topics.

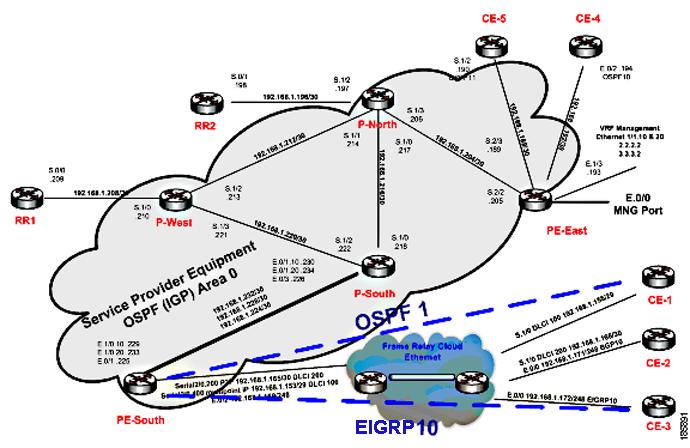

Figure 17-2 Lab Setup
The lab simulates a network that is used by the service provider (SP). The core is based on MPLS technology and runs the OSPF routing protocol as Interior Gateway Protocol (IGP).
The P-network is topologically contiguous, whereas the C-network is delineated into a number of sites (contiguous parts of the customer network that are connected in some way other than through the VPN service). Note that a site does not need to be geographically contained.
The devices that link the customer sites to the P-network are called customer edge (CE) devices, whereas the service provider devices to which the CE routers connect are called provider edge (PE) devices. Where the provider manages an Ethernet access network, the CE devices are connected to the PE devices, which are usually LAN switches with Layer 3 capabilities.
The access network can be any Layer 2 technology.
In this lab there are two Layer 2 technologies in the access network:
•
•
The access network in the lab is unmanaged (a cloud).
In most cases, the P-network is made up of more than just the PE routers. These other devices are called P-devices (or, if the P-network is implemented with Layer 3 technology, P-routers). Similarly, the additional Layer 3 devices at the customer sites that have no direct connectivity to the P-network are called C-routers. In this example, C-routers are not part of the lab setup and are not managed by Cisco ANA.
The CE devices are located at the customer site and can be managed by the SP. All other devices (PEs, Ps, and RRs) are located at the SP site. These devices are maintained by the SP.
An end-to-end MPLS VPN solution is, like any other VPN solution, divided into the central P-network to which a large number of customer sites (sites in the C-network) are attached. The customer sites are attached to the PE devices (PE routers) through CE devices (CE routers). Each PE router contains several virtual routing and forwarding tables (VRFs), at least one per VPN customer. These tables are used together with multiprotocol BGP to run between the PE routers to exchange customer routes and to propagate customer datagrams across the MPLS network. The PE routers perform the label imposition (ingress PE router) and removal (egress PE router). The central devices in the MPLS network (P routers) perform simple label switching.
There are BGP processes running on the PE devices, and each PE is a neighbor to both RR devices. This way, the lab has a backup if one RR is down.
All the devices are managed inband. The management access point is Ethernet 0/0 on PE-East. To enable access to the CE devices, a loop was created between two ports on PE-East.
Advanced Correlation Scenarios
The following topics describe specific alarms that use advanced correlation logic on top of the root cause analysis flow:
•
•
•
•
•
•
•
Device Unreachable Correlation Scenarios
Device reachability is measured by management protocol connectivity. Connectivity tests are used to verify the connection between VNEs and the managed network elements. The connectivity is tested on each protocol a VNE uses to poll a device. Cisco ANA-supported protocols for connectivity tests are SNMP, Telnet, and ICMP.
The following topics describe the scenarios in which device reachability issues occur:
•
•
•
Device Unreachable on Device Reload or Device Down Event
Figure 17-3 illustrates the lab setup for Device Unreachable on Device Down or Device Reload event.
Figure 17-3 Lab Setup for Device Unreachable on Device Down or Device Reload Event
Description of Fault Scenario in the Network
CE-5 goes down or is reloaded.
Related Faults
•
•
•
Note
Cisco ANA Failure Processing
Event Identification
The following service alarms are generated by the system:
•
The device unreachability event means that no other information can be collected from this device by the VNE.
•
The Link Down event is issued by the PE-East VNE (active) as a result of the link down negotiation process.
Possible Root Cause
1.
2.
–
Flow Path: CE-5 > PE-East > management subnet
–
Root Cause Selection
For the event [Device Unreachable, CE-5]:
•
Note
•
Note
For the event [Link Down on Unreachable, PE-East < > CE-5]:
•
•

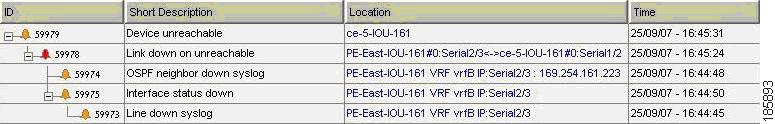

Figure 17-4 displays the events identified by the system in this scenario.
Figure 17-4 Device Unreachable on Device Down
Clearing Phase
When a down or reloaded device comes up again and starts responding to polling requests made by the corresponding VNE, the device is declared reachable, thus clearing the unreachable alarm. Other related alarms are cleared in turn after the corresponding VNEs verify that the malfunctions have been resolved.
Variation
In a device reload scenario, the following additional events are identified by the system (in addition to the device down scenario):
•
•
For the event [Device Unreachable, CE-5]:
•
•
Figure 17-5 displays the events identified by the system in this scenario.

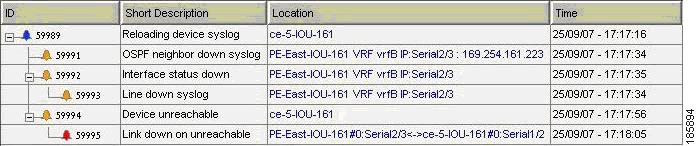

Figure 17-5 Device Unreachable on Device Reload
Device Unreachable on Another Device Unreachable Event
Figure 17-6 illustrates the lab setup for Device Unreachable on another Device Unreachable event.
Figure 17-6 Lab Setup for Device Unreachable on Another Device Unreachable Event
Description of Fault Scenario in the Network
P-North device is reloaded.
Related Faults
•
•
•
Cisco ANA Failure Processing
Note
Event Identification
The following service alarms are generated by the system:
•
The device unreachability event means that no other information can be collected from this device by the VNE.
•
Possible Root Cause
1.
2.
•
Flow Path: P-North > PE-East > management subnet
•
Flow Path: RR2 > P-North > PE-East > management subnet
Root Cause Selection
•
–
–
•
–
–

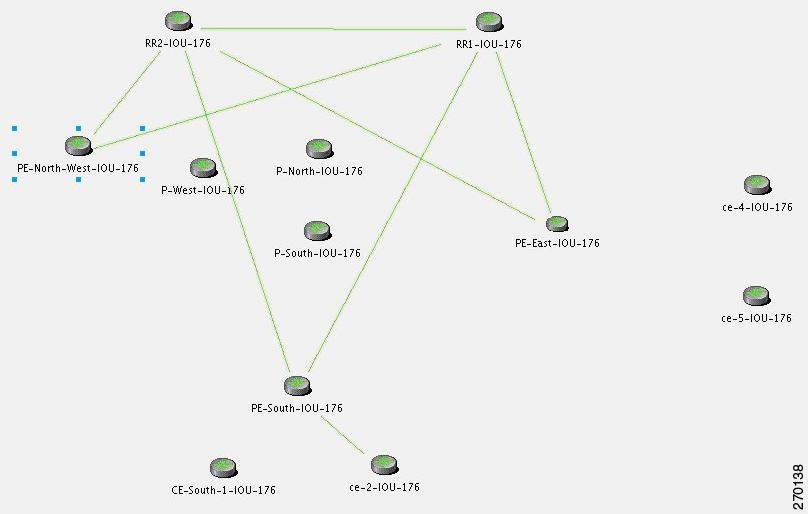

Figure 17-7 displays the events identified by the system in this scenario.

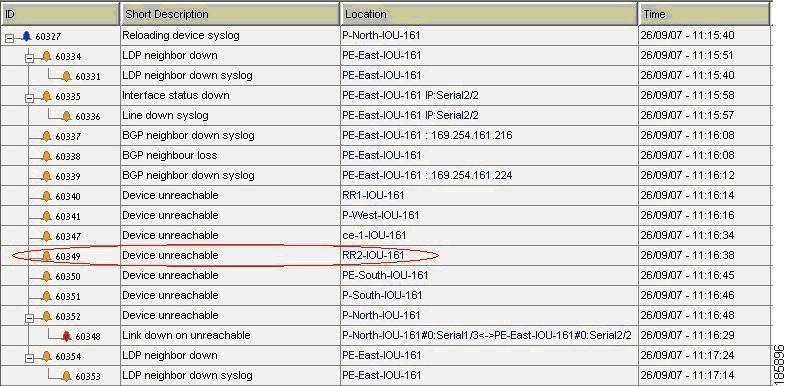

Figure 17-7 Device Unreachable on Other Device Unreachable
Clearing Phase
When a reloaded device comes up again (along with the L3 link that is vital for the RR2 management), the RR2 starts responding to polling requests from the RR2 VNE. The device is declared as reachable, thus clearing the Device Unreachable alarm.
Device Unreachable on Link Down Event
Figure 17-8 illustrates the lab setup for a Device Unreachable on a Link Down event.

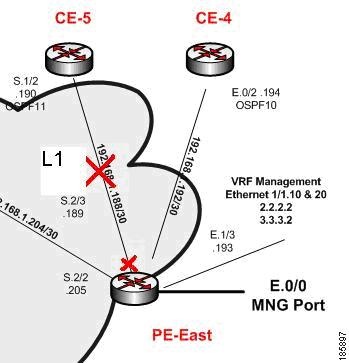

Figure 17-8 Lab Setup for Device Unreachable on a Link Down Event
Description of Fault Scenario in the Network

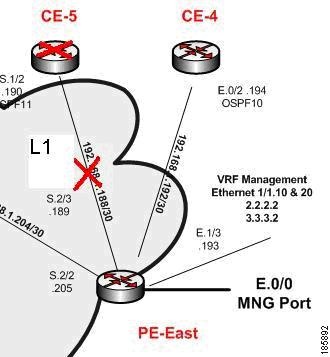

The S.2/3 port of PE-East connected to the S.1/2 port of the CE-5 device (also called L1 link) is set to administrative status down. This effectively takes the L1 link down.
Related Faults
The CE-5 device is managed from this link with no backup. With the L1 link down, the CE-5 device is unreachable from the management subnet.
Cisco ANA Failure Processing
Event Identification
The following service alarms are generated by the system:
•
The device unreachability event means that no other information can be collected from this device by the VNE.
•
The Link Down event is issued by the PE-East VNE (active) as a result of the link down negotiation process.
Noncorrelating Events
The noncorrelating event is:
[Link Down Due to Admin Down, PE-East < > CE-5]
This event opens a new ticket in the gateway.
The L1 Link Down event is configured to not correlate to other events. This is logical because the edge VNEs identify the Link Down events as [Link Down Due to Admin Down] events. This implies that the VNEs know the root cause of the event already, based on the administrator's configurations. The [Link Down Due to Admin Down] events reach the northbound interface immediately after the links' new statuses are discovered by Cisco ANA and after the link down negotiation methods are completed.
Possible Root Cause
1.
2.
Flow Path: CE-5 > PE-East > management subnet
Root Cause Selection
For the event [Device Unreachable, CE-5]:
•
Note
•

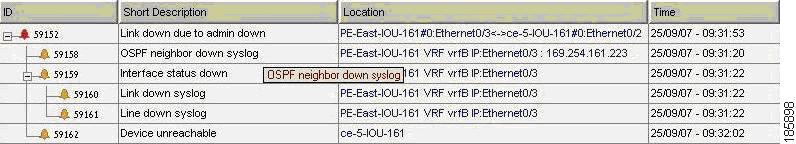

Figure 17-9 displays the events identified by the system in this scenario.
Figure 17-9 Device Unreachable on Link Down
Note
Clearing Phase
When the PE-East port S.2/3 (L1 link) comes up again, the CE-5 reachability from the management subnet also returns. The CE-5 starts responding to polling requests from the CE-5 VNE. The device is declared reachable, thus clearing the Device Unreachable alarm. The L1 Link Down is cleared when the PE-East device indicates that the status of the connected port has changed to up.
Multiroute Correlation Scenarios
Figure 17-10 displays the lab multiroute configuration setup between P-South, P-North, and P-West devices. The OSPF cost is the same along the path from P-South and P-North whether or not it goes via P-West; that is, P-South and P-North connect along two paths with equal cost.

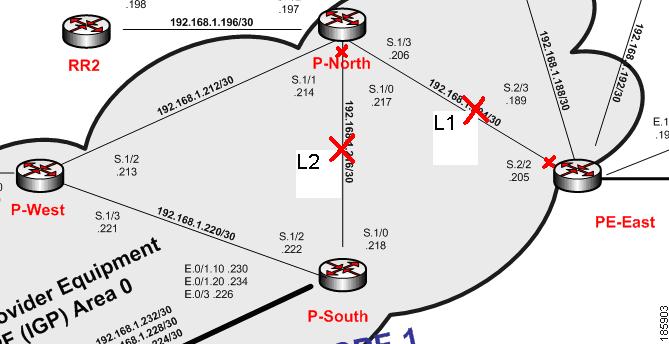

Figure 17-10 Lab Multiroute Configuration Setup Between P-South, P-North and P-West
Description of a Fault Scenario in the Network
In this example, the P-North, P-South link (also known as L2) goes down in a multiroute segment between P-South and P-North. After approximately one minute, another link, L1 (PE-East, P-North), also goes down. Both links go down administratively, the first from the P-North device and the second from the PE-East devices' ports.
Related Faults
Almost all devices are unreachable from the management subnet. This discussion focuses on CE-1 unreachability (see Figure 17-2).
Note
Cisco ANA Failure Processing
Event Identification
The following service alarms are generated by the system:
•
The device unreachability event means that no other information can be collected from this device by the VNE.
•
The Link Down event is issued by the PE-East VNE (active) as a result of the link down negotiation process.
•
The Link Down event is issued by the P-North VNE as a result of the link down negotiation process.
Noncorrelating Events
•
•
For more information, see Noncorrelating Events.
Possible Root Cause
1.
2.
Flow Path: CE-1 > Cloud > PE-South > P-South > P-North > PE-East > management subnet
Flow Path: CE-1 > Cloud > PE-South > P-South > P-West > P-North > PE-East > management subnet
Root Cause Selection
For the event [Device unreachable, CE-1]:
•
–
[Link Down Due to Admin Down, P-South > P-North].
Note
–
[Link down due to admin down, P-SouthS.1/0 > P-North S.1/0 < > PE-East S.2/2] and
[Link down due to admin down, P-NorthS.1/3 > PE-East S.2/2]•
Root Cause: Correlates to [Link Down Due to Admin Down, P-North S.1/0 < > PE-East S.2/2]
Note
Note

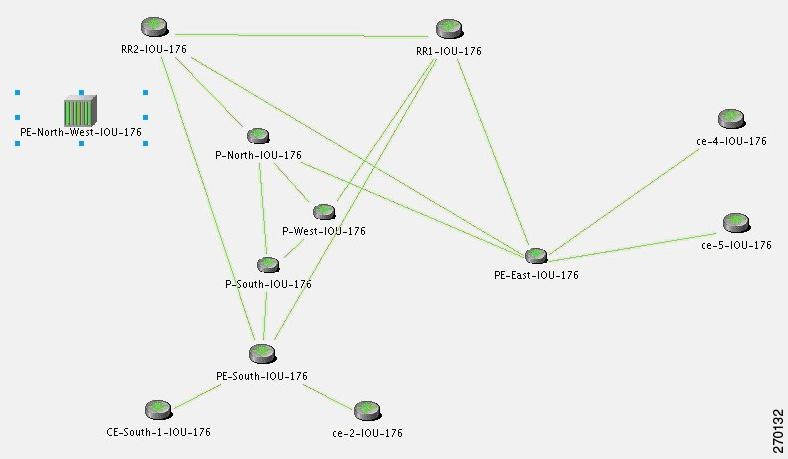

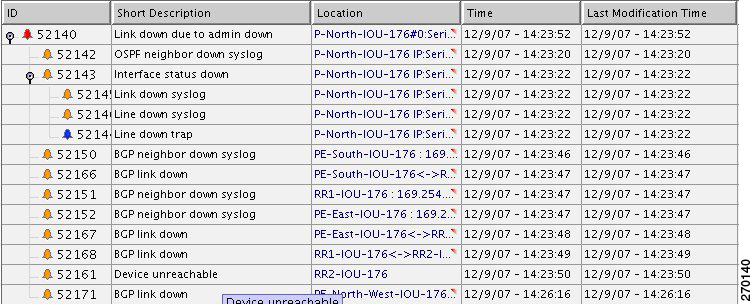

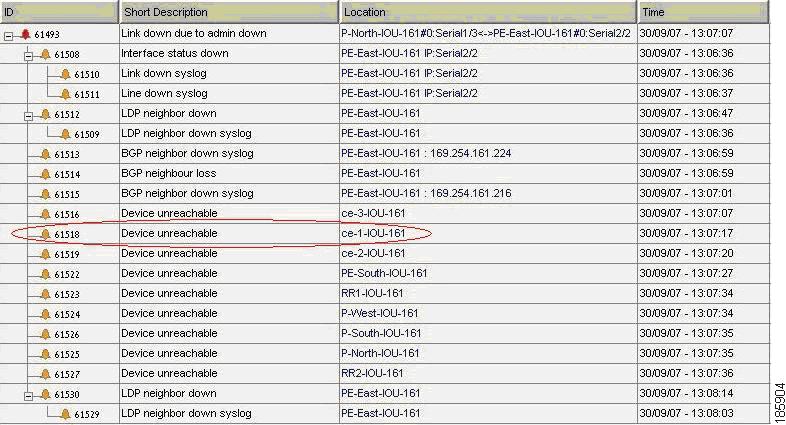

Figure 17-11 displays the events identified by the system in this scenario (L1).
Figure 17-11 Multiroute Scenario—L1

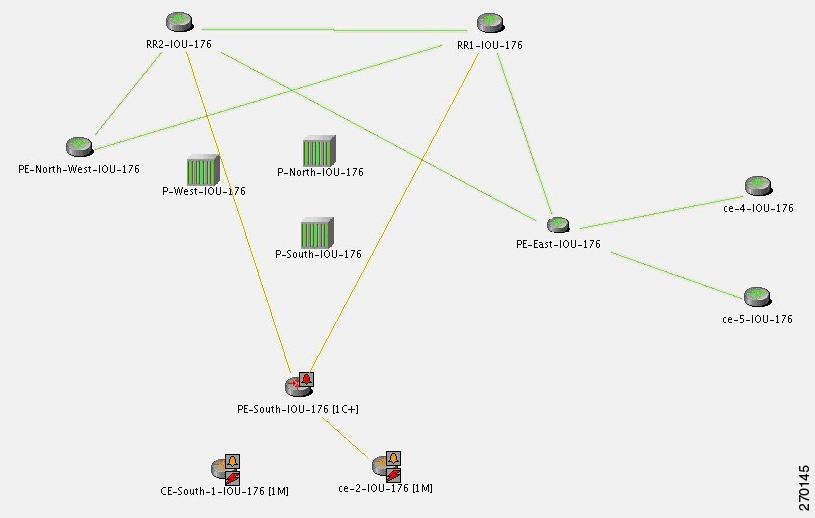

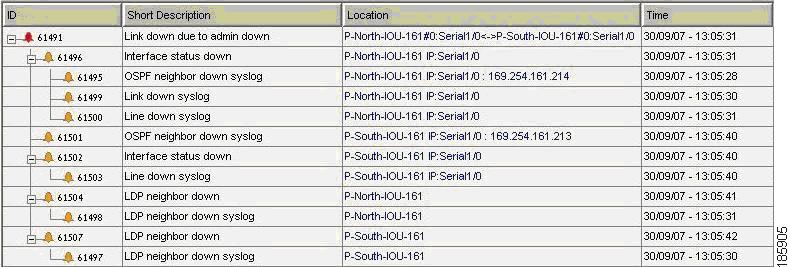

Figure 17-12 displays the events identified by the system in this scenario (L2).
Figure 17-12 Multiroute Scenario—L2
Clearing Phase
Enabling the L1 link makes the CE-1 device reachable from the management subnet IP address, thereby clearing the Device Unreachable event of the CE-1 device. When the L1 link's new status is discovered by Cisco ANA, the PE-East device eventually initiates a Link Up event for this link. When the administrator enables the Layer 2 link and Cisco ANA discovers this change, the Link Down event is cleared by its matching Link Up event.
BGP Neighbor Loss Correlation Scenarios
The VNE models the BGP connection between routers and actively monitors its state. BGP neighbor loss events are generated from both sides of the connection only when connectivity is lost, and when the other side of the link is unmanaged.
The correlation engine identifies various faults that affect the BGP connection and reports them as the root cause for the BGP Neighbor Loss alarm; for example, Link Down, CPU Overutilized, and Link Data Loss.

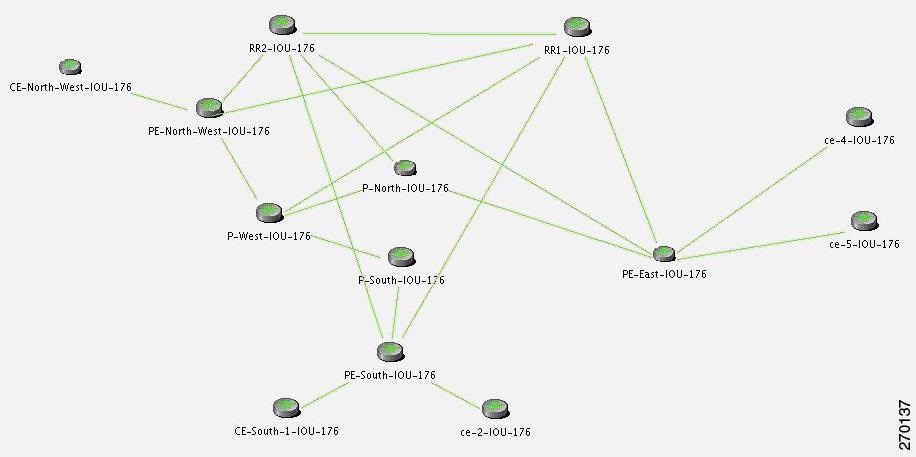

Figure 17-13 Lab Setup for BGP Neighbor Loss Correlation Scenarios
Note
There are two main scenarios that might lead to a BGP neighbor loss event:
•
•
BGP Neighbor Loss Due to Port Down

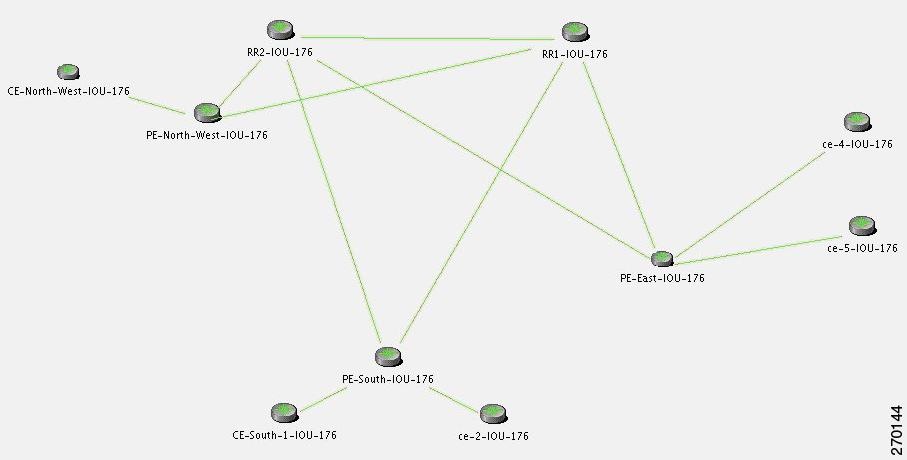

Figure 17-14 displays the BGP neighbor loss due to port down scenario.
Figure 17-14 BGP Neighbor Loss Due to Physical Port Down (P-West > PE-North-West)
Description of Fault Scenario in the Network
In Figure 17-14 the BGP neighbor loss occurs due to a physical port down (in P-West that connects to PE-North-West). The relevant devices are PE-North-West, RR2, P-North and P-West.
Related Faults
•
•
Note
Cisco ANA Failure Processing
Event Identification
The following service alarms are generated by the system:
•
Since the VNE that monitors each PE or RR holds records of the entire device's BGP information, the change in the BGP table is identified by the VNE and causes it to send this event.
Possible Root Cause
1.
2.
Flow Path: RR2 > P-North > P-West > P-West port is connected to PE-North-West (which is unmanaged), and is in a down state.
Root Cause Selection
For the event [BGP Neighbor Loss, RR2]:
•
•

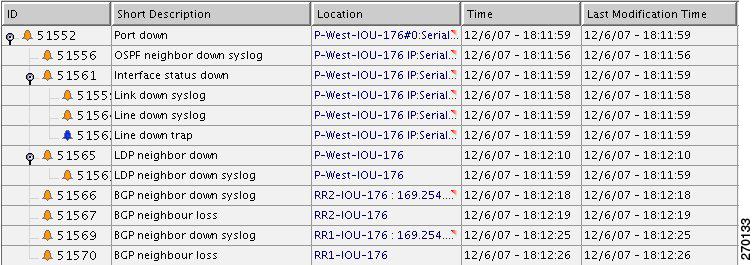

Figure 17-15 displays the events identified by the system in this scenario.
Figure 17-15 BGP Neighbor Loss Due to Physical Port Down
Clearing Phase
When a Port Up event is detected by the system for the same port that was detected as the root cause for the BGP Neighbor Loss event, the alarm is cleared. The ticket is cleared (colored green) when all the alarms in the ticket have been cleared.
Figure 17-16 displays the up event that clears all the down events identified by the system.

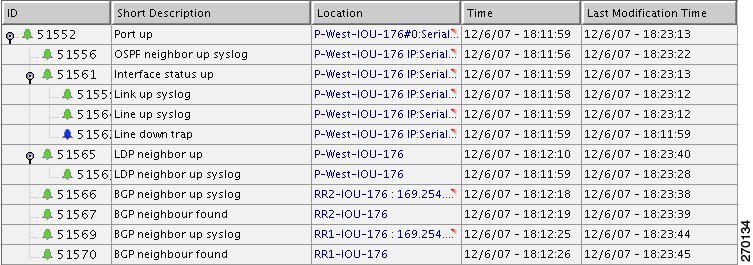

Figure 17-16 BGP Neighbor Up Event that Clears All the Down Events
Variation
In a BGP process down scenario, the BGP Process Down event is identified by the system in addition to the BGP Neighbor Loss event. See BGP Process Down, page C-7.
As illustrated in Figure 17-17, the BGP Process Down event causes several events (the BGP Neighbor Loss event cannot be seen). The relevant devices are RR2 (BGP Process Down, marked in red) and PE-North-West (marked as unmanaged).

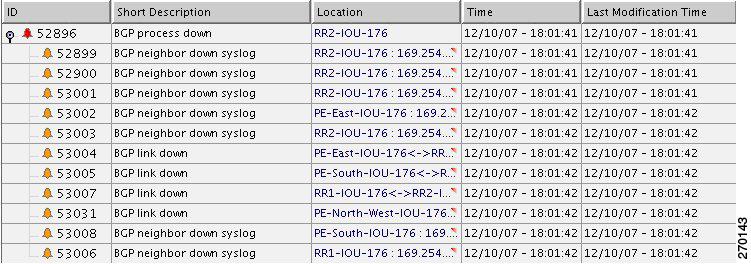

Figure 17-17 BGP Process Down Causes Several Events
For the event [BGP Neighbor Loss, RR2]:
•
•

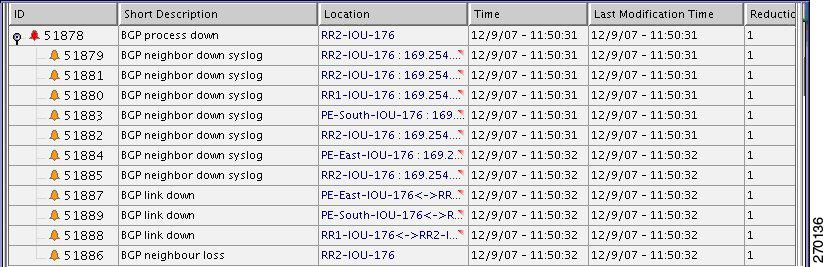

Figure 17-18 displays the events identified by the system in this scenario.
Figure 17-18 BGP Process Down Correlation
BGP Link Down Scenarios
Figure 17-19 illustrates the lab setup for the BGP Link Down scenarios described in this topic.

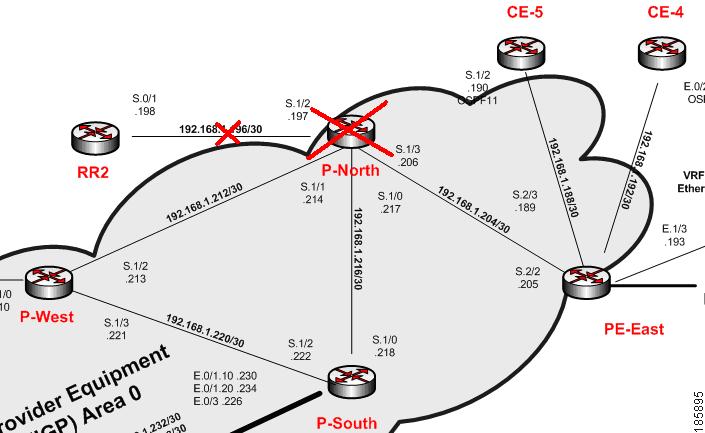

Figure 17-19 Lab Setup for BGP Link Down Scenarios
Figure 17-20 illustrates the lab setup for the scenarios with only the BGP links displayed.
Figure 17-20 Lab Setup for Scenarios with Only the BGP Links Displayed
The VNE models the BGP connection between routers and actively monitors its state. If connectivity is lost and a link between the devices exists in the VNE, a BGP Link Down event is created. A BGP Link Down event is created only if both sides of the link are managed.
A BGP link might be disconnected in the following scenarios:
•
•
•
Description of Fault Scenario in the Network
Due to a physical link down, the BGP connection between PE-North-West and RR2 is lost.
Related Faults
•
•
•
Note

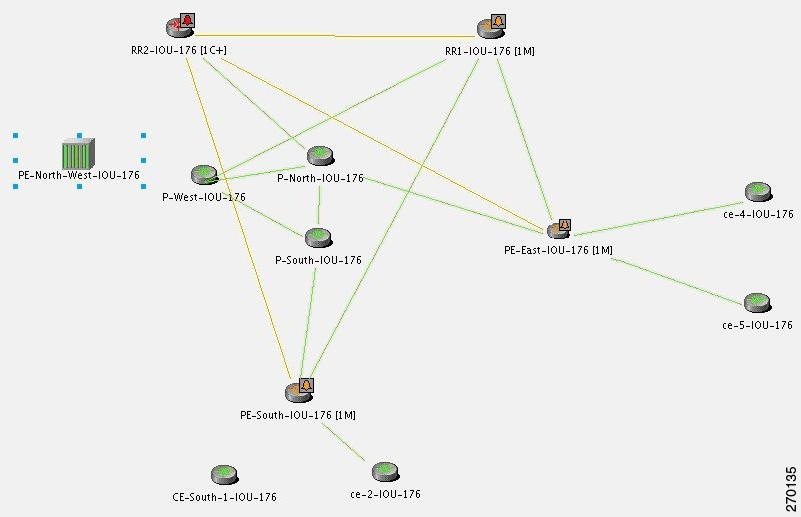

Figure 17-21 reflects the BGP Link Down due to physical link down scenario. The relevant devices are RR2, P-north, P-West, and PE-North-West.
Figure 17-21 BGP Link Down Due to Physical Link Down
Cisco ANA Failure Processing
Event Identification
The following service alarms are generated by the system:
•
–
–
This alarm causes an acceleration of the polling for the BGP neighbor data on the device.
Possible Root Cause
1.
2.
–
–
Flow Path: RR > P-North > PE-North-West
Flow Path: RR > PE-North-West > P-North > RR2
Root Cause Selection
For the event [BGP Link Down, RR2 < > PE-North-West]:
•
•
Figure 17-22 displays the events identified by the system in this scenario.
Figure 17-22 BGP Link Down Correlation to the Root Cause of Physical Link Down
Clearing Phase
A BGP Link Up event arrives when the root cause event is fixed so that the network is repaired. This clearing event is created after a clearing syslog arrives or after the next polling result reestablishes the BGP connection.

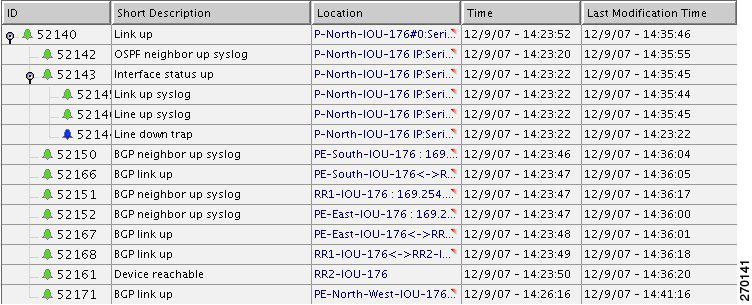

Figure 17-23 displays the up event that clears all tickets identified by the system.
Figure 17-23 BGP Link Up Clears All the Tickets
Variation
In a managed network, the following events might be identified in addition to the BGP Link Down event:
•
•
BGP Process Down
Figure 17-24 displays the scenario where a BGP Process Down event causes BGP Link Down events.

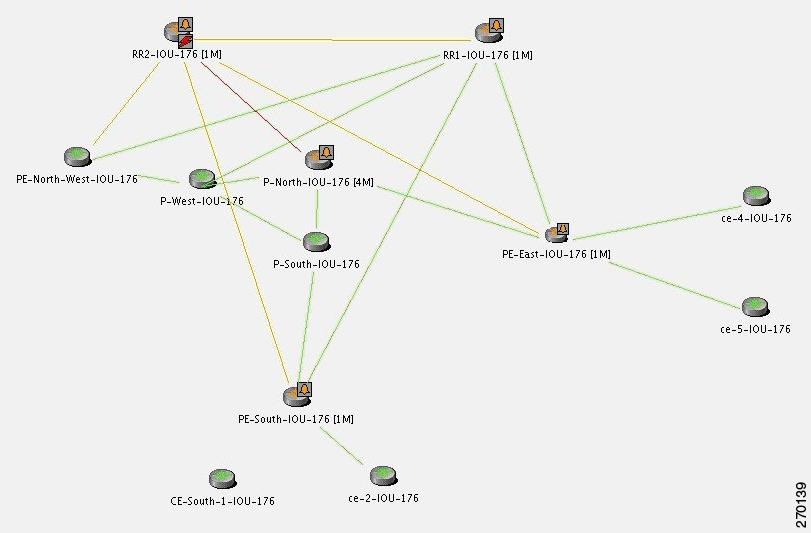

Figure 17-24 BGP Process Down Causes BGP Link Down Events
For the event [BGP Link Down, RR2 < > PE-North-West]:
•
•
Figure 17-25 displays the events identified by the system in this scenario.

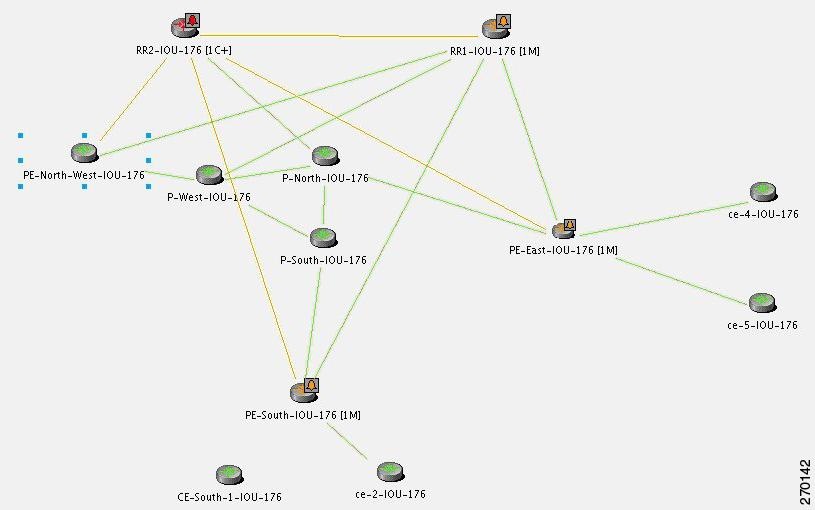

Figure 17-25 BGP Process Down Correlation
Device Unreachable
For the event [BGP Link Down, RR2 < > PE-North-West]:
•
•
In an unmanaged network core (as illustrated in Figure 17-26), the following events might be identified in addition to the BGP Link Down event:
•
•
Figure 17-26 Lab Setup with Unmanaged Network Core
BGP Process Down
Note
In Figure 17-27, the BGP Process Down event on PE-South causes BGP Link Down events. The relevant devices are PE-South, RR1, and RR2.
Figure 17-27 BGP Process Down on PE-South Causes BGP Link Down Events
For the event [BGP Link Down, PE-South < > RR2] (see BGP Link Down, page C-4):
•
[BGP Link Down, PE-South < > RR1].•
Figure 17-28 displays the events identified by the system in this scenario.

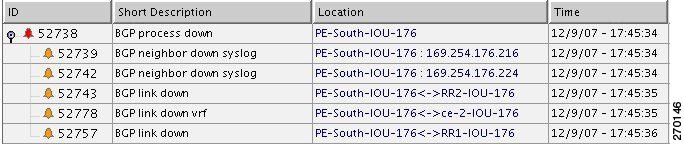

Figure 17-28 BGP Process Down Correlation
Device Unreachable
For the Device Unreachable event, one or more PEs report on BGP connectivity loss to a neighbor that is unreachable.
In Figure 17-29, the Device Unreachable on an unmanaged core causes multiple BGP Link Down events. The relevant devices are RR2 (Device Unreachable), RR1, PE-East, and PE-South.
Figure 17-29 Device Unreachable on Unmanaged Core Causes Multiple BGP Link Down Events
For the event [BGP Link Down, RR2 < > PE-South] (see BGP Link Down, page C-4):
•
•

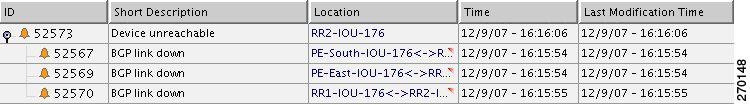

Figure 17-30 displays the events identified by the system in this scenario.

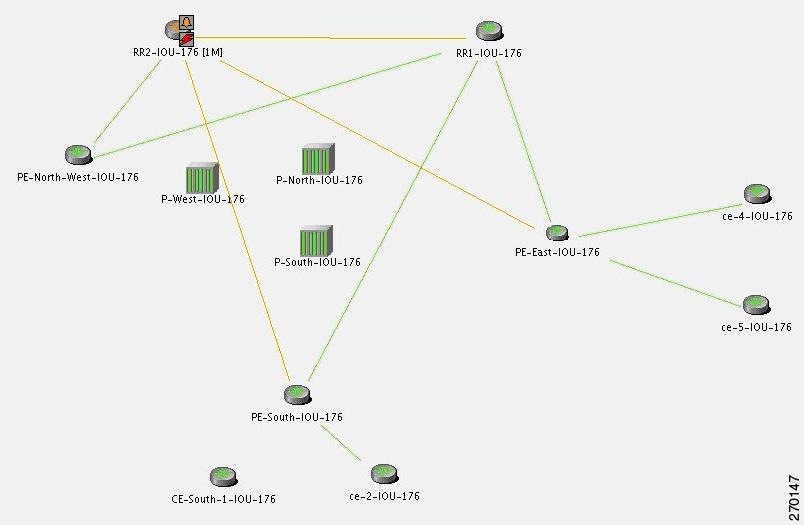

Figure 17-30 Device Unreachable on Unmanaged Core Correlation
For the event [Device Unreachable, RR2] (see Figure 17-31 and Component Unreachable, page C-12):
•
•
Figure 17-31 Device Unreachable on CE
EFP Down Correlation Scenarios
An Ethernet Flow Point (EFP) is a forwarding decision point in the PE switch or router that gives network designers the flexibility to make many Layer 2 flow decisions at the interface level. Many EFPs can be configured on a single physical port. These EFPs can be configured on any Layer 2 traffic port (usually on the UNI port). Each EFP manipulates the frames that enter it in a different manner and makes different forwarding decisions. For more information on EFPs, see EFPs, page 9-5.
EFP Down Correlation Example 1
Figure 17-32 provides an example of devices with EFP provisioning.
Figure 17-32 EFP Down Example 1
In this example, service instances 900 and 901 are configured on port Gi4/3.
The physical link (Gi0/3 < > Gi4/3) is shut down. The expected alarm hierarchy:
•
–
–
–
Note
EFP Down Correlation Example 2
Figure 17-33 provides an example of devices with EFPs and a pseudowire provisioned.
Figure 17-33 EFP Down Example 2
Service instances 900 and 901 are configured on port Gi4/3, and a local pseudowire is configured between Gi4/3 900 and Gi4/3 901 (local switching).
Service instance 900 is shut down. The expected alarm hierarchy:
•
–
–
–
EFP Down Correlation Example 3
Example 3 also uses Figure 17-33. Service instance 900 is configured on port Gi4/3 and connects to a pseudowire through a bridge domain.
Service instance 900 is shut down. The expected alarm hierarchy:
•
–
–
–
EFP Down Correlation Example 4
Example 4 also uses Figure 17-33. Service instance 900 is configured on port Gi4/3 and connects to a pseudowire through a bridge domain.
Generate traffic to switch the service instance status to error disabled. The expected alarm hierarchy:
•
–
–
–
HSRP Scenarios
These topics describe scenarios that can generate HSRP alarms:
HSRP Alarms
When an active Hot Standby Router Protocol (HSRP) group's status changes, a service alarm is generated and a syslog is sent.
Table 17-2 HSRP Service Alarms
Primary HSRP interface is not active/Primary HSRP interface is active (see HSRP Group Status Changed, page C-18)
Yes
No
Can be correlated to several other alarms; for example, link down
Major
Secondary HSRP interface is active/Secondary HSRP interface is not active (see HSRP Group Status Changed, page C-18)
Yes
No
Can be correlated to several other alarms; for example, link down
Major
Note
HSRP Example
In Figure 17-34, the link between Router 2 and Switch 2 is shut down, causing the HSRP standby group on Router 3 to become active, and a Link Down service alarm to be generated. The primary HSRP group on Router 2 is no longer active. A service alarm is generated and correlated to the Link Down alarm. Router 2 also sends a syslog which is correlated to the Link Down alarm.
The secondary HSRP group configured on Router 3 now changes from standby to active. This network event triggers an IP-based active flow with the destination being the virtual IP address configured in the HSRP group. When the flow reaches its destination, a service alarm is generated and correlated to the Link Down alarm. Router 3 also sends a syslog that is correlated to the Link Down alarm.
Figure 17-34 Example
In this case, the system provides the following report:
•
•
–
%HSRP-6-STATECHANGE: FastEthernet0/0 Grp 1 state Active -> Speak (source: Router 2)–
%STANDBY-6-STATECHANGE: Ethernet0/0 Group 1 state Standby -> Active (source: Router 3)IP Interface Failure Scenarios
These topics describe scenarios that can generate IP interface failures:
•
Interface Status Down Alarm
Alarms related to subinterfaces (for example, a Line Down trap or syslog) are reported on IP interfaces configured above the relevant subinterface. This means that in the system, subinterfaces are represented by the IP interfaces configured above them. All events sourcing from subinterfaces without a configured IP interface are reported on the underlying Layer 1.
An Interface Status Down alarm is generated when the status of an IP interface (whether over an interface or a subinterface) changes from up to down or any other nonoperational state (see Table 17-3). All events sourced from the subinterfaces correlate to this alarm. In addition, an All IP Interfaces Status Down alarm is generated when all the IP interfaces above a physical port change state to down. For more information, see Interface Status, page C-19.
The alarm's description includes the full name of the IP interface, for example Serial0.2 (including the identifier for the subinterface if it is a subinterface), and the alarm source points to the IP interface (and not to Layer 1).
All syslogs and traps indicating changes in subinterfaces (above which an IP address is configured) correlate to the Interface Status Down alarm. The source of these events is the IP interface. Syslogs and traps that indicate problems in Layer 1 (that do not have a subinterface qualifier in their description) are sourced to Layer 1.
Note
For example:
•
•
For events that occur on subinterfaces:
•
•
•
If the main interface goes down, all related subinterface traps and syslogs are correlated as child tickets to the main interface parent ticket.
The following technologies are supported:
•
•
•
•
•
Correlation of Syslogs and Traps
Upon receipt of a trap or syslog for the subinterface level, Cisco ANA immediately polls the status of the relevant IP interface and creates a polled parent event (such as Interface Status Down). The trap or syslog is correlated to this alarm.
In a multipoint setup when only some circuits under an IP interface go down do not cause the state of the IP interface to change to down, Cisco ANA does not create an Interface Status Down alarm. All circuit down syslogs correlate by flow to the possible root cause, such as Device Unreachable on a CE device.
All IP Interfaces Down Alarm
•
•
•
Note
For more information, see Table 17-4 and All IP Interfaces Down, page C-3.
The All IP Interfaces Down alarm is sourced to the Layer 1 component. All alarms from the other side (such as Device Unreachable) correlate to the All IP Interfaces Down alarm.
IP Interface Failure Examples
Note
If this is not the case, as in some Ethernet networks, and there is no change to the state of the IP interface, all the events on the subinterfaces that are capable of correlation flow will try to correlate to other possible root causes, including Cloud Problem.
Interface Example 1
Figure 17-35 represents an environment with multipoint connectivity between a PE and number of CEs through an unmanaged Frame Relay network. All CEs (Router2 and Router3) have logical connectivity to the PE through a multipoint subinterface on the PE (Router10). The keepalive option is enabled for all circuits. A link is disconnected inside the unmanaged network, causing all CEs to become unreachable.
Figure 17-35 Interface Example 1
The following failures are identified in the network:
•
•
The following correlation information is provided:
•
•
Interface Example 2
Figure 17-36 represents an environment with point-to-point connectivity between a PE and a CE through an unmanaged Frame Relay network. CE1 became unreachable, and the status of the IP interface on the other side (on PE1) changed to down. The keepalive option is enabled. The interface is shut down between the unmanaged network and CE1.
Figure 17-36 Interface Example 2
The following failures are identified in the network:
•
•
The following correlation information is provided:
•
–
–
Interface Example 3
Figure 17-37 represents an environment in which the failure of multiple IP interfaces occurs above the same physical port (mixed point-to-point and multipoint Frame Relay connectivity). CE1 (Router2) has a point-to-point connection to PE1 (Router10). CE1 and CE2 (Router3) have multipoint connections to PE1. The IP interfaces on PE1 that are connected to CE1 and CE2 are all configured above Serial0/0. The keepalive option is enabled. A link is disconnected inside the unmanaged network, causing all CEs to become unreachable.
Figure 17-37 Interface Example 3
The following failures are identified in the network:
•
•
The following correlation information is provided:
•
–
–
–
Interface Example 4
Figure 17-38 represents an environment in which the failure of multiple IP interfaces occurs above the same physical port (mixed point-to-point and multipoint Frame Relay connectivity). CE1 (Router2) has a point-to-point connection to PE1 (Router10). CE1 and CE2 (Router3) have multipoint connections to PE1. The IP interfaces on PE1 that are connected to CE1 and CE2 are all configured above Serial0/0. The keepalive option is enabled.
A link is disconnected inside the unmanaged network, causing all CEs to become unreachable. When a Link Down occurs, whether or not it involves a cloud, the link failure is considered to be the most probable root cause for any other failure. In this example, a link is disconnected between the unmanaged network and the PE.
Figure 17-38 Interface Example 4
The following failures are identified in the network:
•
•
•
•
The following correlation information is provided:
•
•
•
•
Interface Example 5
Figure 17-39 represents an environment in which a PE1 device has multipoint connectivity, one of the circuits under the IP interface has gone down, and the CE1 device has become unreachable. The status of the IP interface has not changed and other circuits are still operational.

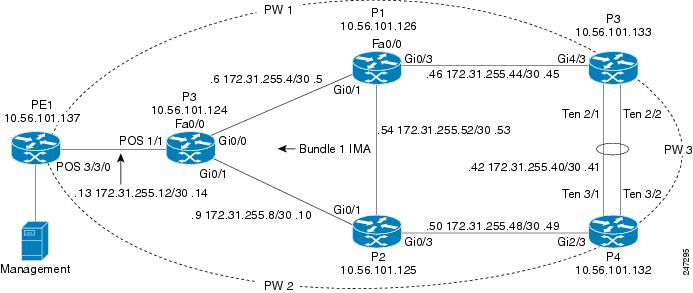

Figure 17-39 General Interface Example
The following failures are identified in the network:
•
•
The following correlation information is provided:
•
ATM Examples
Examples involving ATM technology have the same result as the examples in IP Interface Failure Examples, assuming that a failure in an unmanaged network causes the status of the IP interface to change to down (ILMI is enabled).
Ethernet, Fast Ethernet, and Gigabit Ethernet Examples
This section includes the following examples:
•
•
Interface Example 6
Figure 17-40 shows an unreachable CE due to a failure in the unmanaged network.
Figure 17-40 Interface Example 6
The following failures are identified in the network:
•
•
The following correlation information is provided:
•
•
Interface Example 7
Figure 17-41 shows a Link Down alarm on a PE that results in a CE becoming unreachable.
Figure 17-41 Interface Example 7
The following failures are identified in the network:
•
•
•
The following correlation information is provided:
•
–
–
–
GRE Tunnel Down/Up
Generic routing encapsulation (GRE) is a tunneling protocol that encapsulates a variety of network layer packets inside IP tunneling packets, creating a virtual point-to-point link to devices at remote points over an IP network. It is used on the Internet to secure VPNs. GRE encapsulates the entire original packet with a standard IP header and GRE header before the IPsec process. GRE can carry multicast and broadcast traffic, making it possible to configure a routing protocol for virtual GRE tunnels. The routing protocol detects loss of connectivity and reroutes packets to the backup GRE tunnel, thus providing high resiliency.
GRE is stateless, meaning that the tunnel endpoints do not monitor the state or availability of other tunnel endpoints. This feature helps service providers support IP tunnels for clients who do not know the service provider's internal tunneling architecture. It gives clients the flexibility of reconfiguring their IP architectures without worrying about connectivity.
GRE Tunnel Down/Up Alarm
When a GRE tunnel link exists, if the status of the IP interface of the GRE tunnel edge changes to down, a GRE Tunnel Down alarm is created. The IP Interface Status Down alarms of both sides of the link correlate to the GRE Tunnel Down alarm. The GRE Tunnel Down alarm initiates an IP-based flow toward the GRE destination. If an alarm is found during the flow, it correlates to it. For more information, see GRE Tunnel Down, page C-17.
Note
When a failure occurs, the GRE tunnel link is marked orange. When the IP interface comes back up, a fixing alarm is sent, and the link is marked green. The GRE Tunnel Down alarm is cleared by a corresponding GRE Tunnel Up alarm.
GRE Tunnel Down Correlation Example 1
Figure 17-42 illustrates an example of a GRE Tunnel Down correlation for a single GRE tunnel.
In this example:
•
•
•
Figure 17-42 GRE Tunnel Down Example 1 (Single GRE Tunnel)
When the link down occurs on L2, a Link Down alarm appears. A GRE Tunnel Down alarm is issued as the IP interfaces of the tunnel edge devices go down. The Interface Status Down alarms correlate to the GRE Tunnel Down alarm. The GRE Tunnel Down alarm correlates to the Link Down alarm.
The system provides the following report:
•
•
[GRE Tunnel Down, Router1:tunnel < > Router 2:tunnel]
–
–
GRE Tunnel Down Correlation Example 2

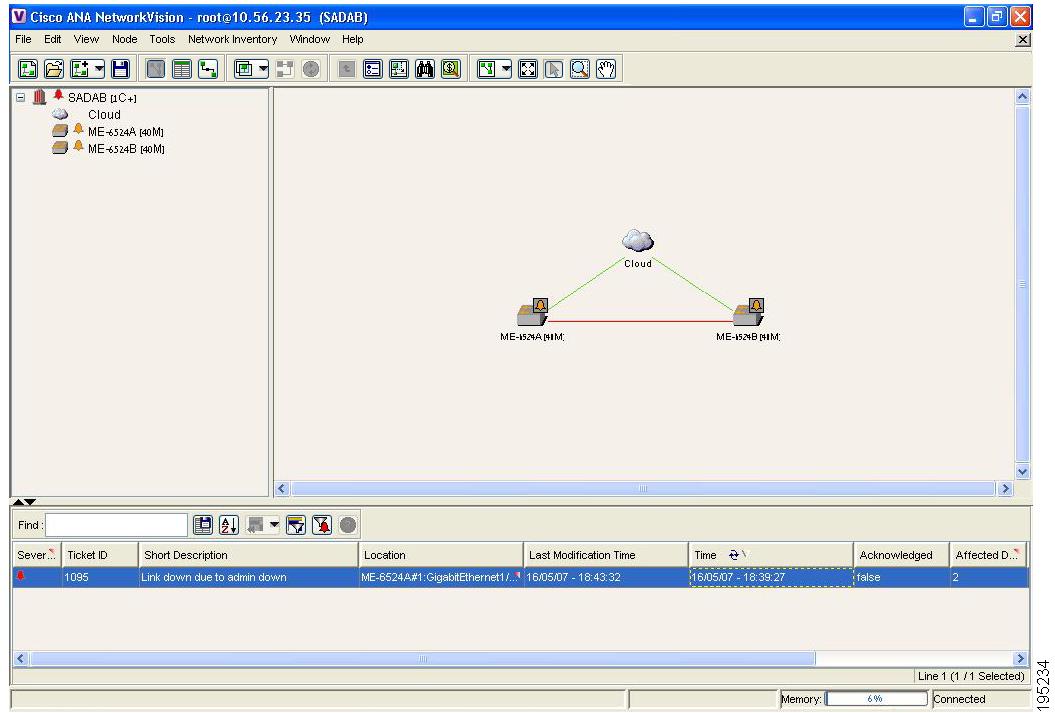

This example provides a real-world scenario in which multiple GRE tunnels cross through a physical link. When this link is shut down by an administrator, many alarms are generated. All of these alarms are correlated to the root cause ticket, Link Down Due to Admin Down ticket, as illustrated in Figure 17-43.
Figure 17-43 GRE Tunnel Down Example 2 (Multiple GRE Tunnels)
Figure 17-44 shows the Correlation tab of the Ticket Properties dialog box that displays all the alarms that are correlated to the ticket, including the correlation for each GRE tunnel and its interface status.
Figure 17-44 Alarm Correlation to GRE Tunnel Down Ticket
As illustrated, the system provides the following report:
•
•
[GRE Tunnel Down, ME-6524AGRE:Tunnel2 < > ME-6524B GRE:Tunnel2]
–
–
[GRE Tunnel Down, ME-6524AGRE:Tunnel3 < > ME-6524B GRE:Tunnel3]
–
–
and so on.
Q-in-Q Subinterface Down Correlation Scenarios
Q-in-Q technology refers to the nesting of a VLAN header in an Ethernet frame in an already existing VLAN header. Both VLAN headers must be of the type 802.1Q. When one VLAN header is nested within another VLAN header, they are often referred to as stacked VLANs.
A subinterface is a logical division of traffic on an interface, such as multiple subnets across one physical interface. A subinterface name is represented as an extension to an interface name using dot notation, such as Interface Gigabit Ethernet 0/1/2/3.10. In this example, the main interface name is Gigabit Ethernet 0/1/2/3 and the subinterface is 10.
Q-in-Q Subinterface Down Correlation Example 1
Figure 17-45 shows an example of devices connected via a stacked VLAN.
Figure 17-45 Q-in-Q Subinterface Down Example 1
In this example:
•
•
•
When the physical link between the interfaces is shut down, the following are generated:
•
•
•
•
•
The following correlation information is provided:
•
•
•
•
Q-in-Q Subinterface Down Correlation Example 2
In this example, using the devices in Figure 17-45:
•
–
–
•
When the Gi0/3.100 subinterface is shut down by the administrator, the following are generated:
•
•
•
•
The Subinterface Admin Down event does not search for the root cause through the correlation mechanism.
Q-in-Q Subinterface Down Correlation Example 3
Figure 17-46 shows an example of devices connected via a pseudowire tunnel configured on subinterfaces.
Figure 17-46 Q-in-Q Subinterface Down Example 3
In this example:
•
•
When the Gi0/3.100 subinterface is shut down by the administrator, the following are generated:
•
•
•
•
The Subinterface Admin Down event does not search for the root cause through the correlation mechanism.
VSI Down Correlation Scenarios
Virtual Private LAN Service (VPLS) is a type of Layer 2 VPN that provides Ethernet-based multipoint-to-multipoint communication over MPLS networks. It allows geographically dispersed sites to share an Ethernet broadcast domain by connecting sites through pseudowires. Emulating the function of a LAN switch or bridge, VPLS connects the different customer LAN segments to create a single-bridged Ethernet LAN. Virtual switching instances (VSIs, also known as virtual forwarding instances, or VFIs), are the main component in the PE router that constructs the logical bridge. All VSIs that build a provider logical bridge are connected with MPLS pseudowires. For more information about VPLS, see Chapter 9, "VPLS and H-VPLS."
VSI Down Correlation Example 1
Figure 17-47 shows an example of devices with VSI connected through pseudowires.
Figure 17-47 VSI Down Example 1
In this example:
•
•
The VSI is shut down. The expected alarm hierarchy is:
•
–
–
–
Note
VSI Down Correlation Example 2
In this example, using the devices in Figure 17-47, the VSI attachment circuit (the interface VLAN) is shut down. The expected alarm hierarchy is the same as in Example 1:
•
–
–
–
However, because Cisco ANA does not model the attachment circuit state, the VNE cannot issue an alarm when the interface VLAN state changes to Down. Therefore, the VSI Down alarm is the highest root cause.
VSI Down Correlation Example 3
In this example, using the devices in Figure 17-47:
•
•
•
•
•
Note
The expected alarm hierarchy:
•
•
–
–
•
