Viewing MPLS VPN Properties
The following topics tell you how to use Cisco ANA to view the properties of VPNs, sites, virtual routers, and VRF instances. Topics include:
•
Viewing VPN Properties—Tells you how to view VPN properties.
•Viewing Site Properties—Tells you how to view site properties.
•Viewing Virtual Router Properties—Tells you how to view virtual router properties. In addition, it describes the VRF table and the display of VRF egress and ingress adjacents.
•Viewing VRF Properties in the Inventory Window—Tells you how to view VRF and pseudowire tunnels as well as specific VPN logical inventory items.
•Working with the VPN Service Overlay—Tells you how to select and display an overlay, display or hide a previously defined overlay, and display or hide the callouts for map pane links.
Viewing VPN Properties
To view the properties of a VPN:
Step 1 In the Cisco ANA NetworkVision tree or map pane, right-click the VPN and choose Properties.
Step 2 In the VPN Properties window, view the following VPN properties:
•Name—The name of the VPN.
•ID—The unique key automatically assigned to the VPN.
Step 3 Click Close to close the VPN Properties dialog box.
Viewing Site Properties
Cisco ANA enables you to view site properties including the interfaces that are configured on the PE device. The displayed properties reflect the configuration Cisco ANA automatically discovered for the device.
To view site properties:
Step 1 In the Cisco ANA NetworkVision tree or map pane, right-click a site and choose Properties.
Step 2 In the Router IP Interface Properties window, view the following site properties:
•Name—The name of the site; for example, ATM4/0.100(10.0.0.1) is a combination of the interface name and IP address used to reach the site.
•Mask—The mask of the specific network.
•Sending Alarms—Whether the alarm for the required port has been enabled (true) or disabled (false).
•IP Address—The IP address of the interface.
•State—The state of the interface, either Up or Down.
•Addresses—A table that displays PE-side IP interface details. Address properties include:
–Subnet—A combination of the IP address and the subnet mask.
Note If the site is an IPv6 VPN over MPLS, IPv6 addresses will be displayed. For information about IPv6 addresses, see the "IPv6 Addressing" section on page 6-6.
–Type—The address type, for example, Primary, Secondary, IPv6 Unicast.
–Sending Alarms—Indicates whether the interface is sending alarms.
Step 3 When finished, click the Router IP Interface Properties window Close button.
Viewing Virtual Router Properties
Cisco ANA NetworkVision enables you to view VRF properties including the VRF route distinguisher, import and export route targets, and any provisioned sites and VRF routes.
To view virtual router properties:
Step 1 Right-click a virtual router in the Cisco ANA NetworkVision tree or map pane and choose Properties.

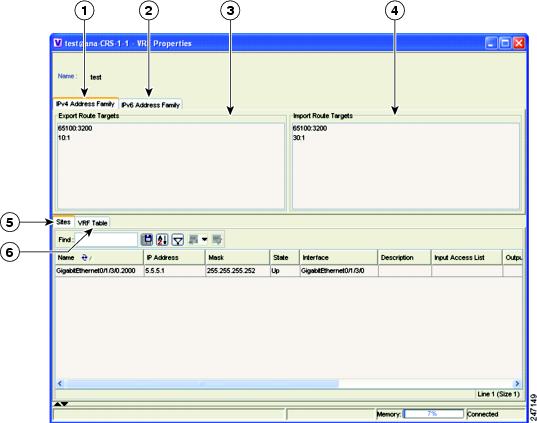

The VRF Properties window (Figure 4-1) is displayed.
Figure 4-1 VRF Properties
1
|
IPv4 Address Family tab
|
2
|
IPv6 Address Family tab
|
3
|
Export route targets
|
4
|
Import route targets
|
5
|
Sites tab
|
6
|
VRF table
|
Step 2 In the VRF Properties window, view the following VRF properties:
Note The VRF Properties window only displays properties and attributes that are provisioned in the VRF. You might not see all the fields and tabs described here.
•Route Distinguisher—The route distinguisher configured in the VRF. (The Route Distinguisher field is not shown in Figure 4-1.)
•IPv4 Address Family—Route targets are automatically assigned to IPv4 address family.
•IPv6 Address Family—If you are running an IPv6 VPN over MPLS implementation, you can assign route targets to IPv6 address families, in which case, the IPv6 Address Family tab will appear. For information about 6VPE and IPv6 address family procedures, refer to Chapter 6, "IPv6 VPN over MPLS."
•Export Route Targets—Displays the export route targets contained by the VRF.
•Import Route Targets—Displays the import route targets contained by the VRF.
•Sites—Displays the interfaces connected to the VRF. Properties include:
–Interface—A hyperlink that displays the inventory window for the IP interface linked to the site on the PE side.
–Name—The name of the site; for example, ATM4/0.100(10.0.0.1) is a combination of the interface name and IP address used to reach the site.
–IP Address—The IP address of the interface.
–Mask—The subnet mask.
–State—The state of the subinterface, either Up or Down.
–Description—A description of the interface.
–Input Access List—The access list applied to the inbound traffic of the interface.
–Output Access List—The access list applied to the outbound traffic of the interface.
–Rate Limits—Measures traffic for the IP interfaces on Cisco devices, including the average rate, normal burst size, excess burst size, conform-action and exceed action.
Note Input access list, output access list, and rate limits parameters apply only to Cisco IOS devices.
–Site Name—The name of the business element to which the interface is attached.
•VRF Table—Contains the VRF routing table for the device. The table is a collection of routes that are available or reachable to all the destinations or networks in the VRF. In addition, the forwarding table also contains MPLS encapsulation information. VRF routing properties include:
–Destination—The destination of the specific network.
–Mask—The subnet mask of the specific network.
–Next Hop—The next routing hop. This is the next CE address on the routing path. This field is empty when the routing entry goes to the PE.
–BGP Next Hop—The Border Gateway Protocol (BGP) next hop. This is the PE address from where to continue to get to a specific address. This field is empty when the routing entry goes to the CE.
–VRF Out Label—The label sent with MPLS traffic.
–VRF In Label—The label that is expected when MPLS traffic is received.
–MPLS Label—The MPLS label.
–Type—The type can be direct (local) or indirect.
–Routing Protocol—The routing protocol used to communicate with the other sites and VRFs, either BGP or local.
–Outgoing Int. Name—The name of the outgoing interface; displayed if the Routing Protocol type is local.
Step 3 When finished, press Ctrl + F4 to close the VRF Properties window.
Note You can also open a VRF table by right-clicking the virtual router in the Cisco ANA NetworkVision tree or map pane and selecting Open VRF Table. For more information about the columns displayed in the VRF Table window, see Viewing Virtual Router Properties.
Displaying VRF Egress and Ingress Adjacents
Cisco ANA enables you to view the exporting and importing neighbors by displaying the VRF egress and ingress adjacents. In addition, you can view the connectivity between the VRFs for the route targets and view their properties. For example, if VRF A retrieved route target import X, you can view all VRFs that export X as a route target whether it is in the same or another VPN.
To display the VRF egress and ingress adjacents:
Step 1 Right-click the virtual router in the Cisco ANA NetworkVision tree and choose Show VRF Egress Adjacents/Show VRF Ingress Adjacents. The Adjacents window is displayed.
Step 2 In the Adjacents dialog box, view the ingress and egress adjacent properties:
•Name—The name of the VRF as it appears in the device.
•Route Distinguisher—The route distinguisher configured in the VRF.
Note Selecting a specific VRF in the Cisco ANA NetworkVision tree pane displays the VRF properties. For more information, see Viewing Virtual Router Properties.
Step 3 When finished, press Ctrl + F4 to close the Adjacents window.
Viewing VRF Properties in the Inventory Window
You can view VRFs that are provisioned in individual devices by displaying the device inventory view and navigating to the VRF logical inventory, as shown in Figure 4-2.

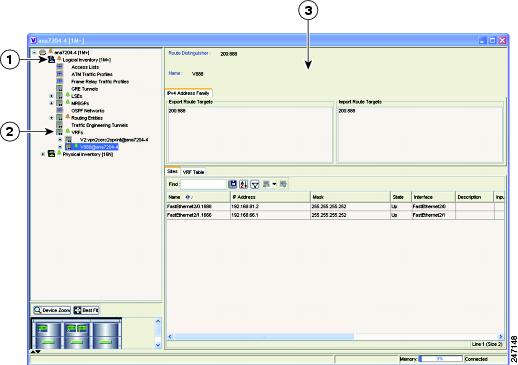

Figure 4-2 VRF Properties From a Device Inventory Window
1
|
Logical Inventory
|
2
|
VRFs provisioned on the device
|
3
|
VRF properties
|
To view VRFs provisioned on a device:
Step 1 Right-click a device in the Cisco ANA NetworkVision tree or map pane and choose Inventory.
Step 2 In the tree pane, expand the Logical Inventory tree to display the VRFs.
Step 3 Do either of the following:
•Double-click the VRF whose properties you want to view.
•Right-click the VRF and choose Properties.
The VRF properties appear in the Cisco ANA NetworkVision workspace. For descriptions of the VRF properties, see "Viewing Virtual Router Properties" procedure.
Step 4 When finished, When finished, press Ctrl + F4 to close the inventory window.
Working with the VPN Service Overlay
In addition to network and service view maps, you can select and display an overlay of a specific VPN on top of the devices displayed on the network map. The overlay is a snapshot of the network that visualizes the flows between the sites and tunnel peers. When one network VPN is selected in the network map, the PE routers, MPLS routers, and physical links that carry the label switched path (LSP) used by the VPN are highlighted in the network map. All the devices and links that are not part of the VPN are grayed out.
The VPN service overlay allows you to isolate the parts of a network that are being used by a particular service. This information can then be used for troubleshooting. For example, the overlay can highlight configuration or design problems when bottlenecks occur and all the site interconnections use the same link.
Note If the routing information changes after the overlay is run, the changes will not appear in the current overlay.
The following topics describe the following overlay functionality information:
•Choosing an Overlay—Describes how to select and display an overlay of a specific VPN on top of the devices displayed on the physical network map.
•Displaying or Hiding Overlays—Describes how to display or hide a previously defined overlay of a specific VPN on top of the physical devices displayed on the physical network map.
•Displaying or Hiding Callouts—Describes how to display or hide the callouts for every link in the map pane in order to display related information.
Choosing an Overlay
You can display an overlay of a specific VPN on top of the devices displayed on the physical network map in the map pane.
To choose an overlay:
Step 1 Display the network map for which you want to create an overlay in Cisco ANA NetworkVision.
Step 2 On the toolbar, click Choose Overlay.
The Choose Overlay dialog box displays the available VPNs in the network.
Step 3 Select a VPN, then click OK.
The PE routers, MPLS routers, and physical links used by the selected VPN are highlighted in the network map. The VPN name is displayed in the title of the window.
Note The overlay is a snapshot taken at a specific point in time. To update the overlay, you must select and run it again.
You can hide previously defined VPN network information in the map pane using the appropriate toolbar buttons:
•Overlay information, such as link and layer details
•Callouts for the VPN network
Displaying or Hiding Overlays
You can quickly display or hide a previously defined overlay of a specific VPN on top of the physical devices displayed on the network map in the map pane.
To show or hide the overlay:
Step 1 Select and display the required network map in the Cisco ANA NetworkVision window.
Step 2 On the toolbar, click Show Overlay.
Note The Show Overlay toolbar button is a toggle. When selected, the overlay is displayed. When deselected, the overlay is hidden.
Displaying or Hiding Callouts
You can display or hide the callouts for the links displayed in the map pane to show the details of the sites that are interconnected through the selected links.
Note Multiple callouts can open at the same time.
The Callouts window (Figure 4-3) enables you to view the VPN traffic connections for a specific link (either bidirectional or unidirectional). In the P-North - > PE-West example, the table displays the traffic connections from one site or LCP to another.
Figure 4-3 Callouts Dialog Box
1
|
Details of the link and the direction. In this example, the link is from P-North to PE-West.
|
3
|
Details of sites using the link and interconnections. In this example, the site PE-West is connected to all sites on PE-South.
|
2
|
Details of the sites using the link and interconnections. In this example, the site PE-88 is connected to site PE-West.
|
4
|
Details of the link and the direction. In this example, the link is from PE-West to P-North.
|
To display or hide the callouts:
Step 1 Select and display the required network map with an overlay of the specific VPN in the map pane of the Cisco ANA NetworkVision window.
Step 2 Right-click the required link in the map pane and choose Show Callouts.
Step 3 To hide the callouts, right-click the link in the map pane that is displaying the callouts and choose Hide Callouts.
