Creating a Cisco ANA Macro Language Command: An Example
Creating a Cisco ANA Macro Language Command: An Example
This chapter describes creating a Cisco ANA Macro Language addvrf command from start to finish.
To create the addvrf command:
Step 1
Select the element that you want to configure this command for in the Cisco ANA NetworkVision tree pane, context pane, or Inventory window.
Step 2 Right-click the element, then choose Management > Command Builder. The Command Builder wizard is displayed.
Step 3 Click New. The New Command dialog box is displayed.
Step 4 Define the command identification information:
•Name—addvrf
•Caption—Add VRF
•Menu Visible—Checked
•Menu Path—VRF Commands
•Context IMO—Automatically displayed
•Language—ANA Macro
•Protocol—Telnet is selected by default
Step 5 Click Next. The Command Authorizations dialog box is displayed.
Step 6 Select the security access role Administrator.
Step 7 Click Next. The User Input Arguments dialog box is displayed.
Step 8 Click New. The Add/Edit User Argument for addvrf Command dialog box is displayed.
Step 9 Using Table 15-1, enter the information for the parameters.
Table 15-1 addvrf Command Parameters
Field
|
Parameter 1
|
Parameter 2
|
Parameter 3
|
Name
|
vrfname
|
rd
|
rt
|
Caption
|
VRF Name
|
Route Distinguisher
|
Route Target Both
|
Type
|
String
|
String
|
String
|
Width
|
15
|
15
|
15
|
Visible
|
Select
|
Select
|
Select
|

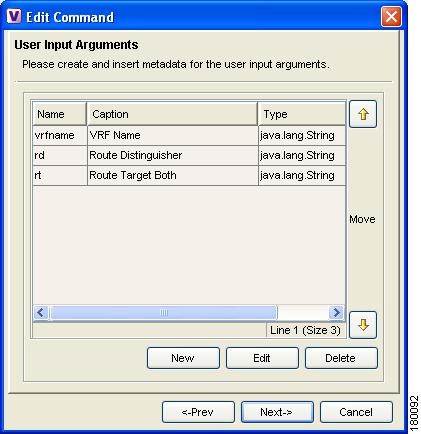

Step 10 Click OK in the Add/Edit User Argument dialog box after each parameter. The new user-defined input parameters are displayed in the User Input Arguments dialog box (Figure 15-1).
Figure 15-1 User Input Arguments Dialog Box
Step 11 Click Next. The Script Lines dialog box is displayed, enabling you to add the script lines.
Step 12 Add the script lines, as shown in Figure 15-2.
Figure 15-2 Script Lines Example
Step 13 Click Finish. The Create Command dialog box is displayed. LEDs indicate the progress or status of the command as it is being saved to the registry.
Step 14 Click Close when the command is complete. The newly created addvrf command is displayed in the Command Builder table.
Step 15 Select the addvrf command in the Command Builder table.
Step 16 Run the command in one of the following ways:
•Click Run Command in the toolbar.
•Choose Tools > Run Command.
•Right-click the command, then choose Run Command.
The input form is generated and displayed (Figure 15-3).
Figure 15-3 Input Form
Step 17 Enter values in the VRF Name, Route Distinguisher, and Route Target Both fields.
Step 18 Click Execute to view the results of the addvrf command as it is being executed.
Figure 15-4 Results of the Command
Step 19 Close the input form to return to the Command Builder wizard.
