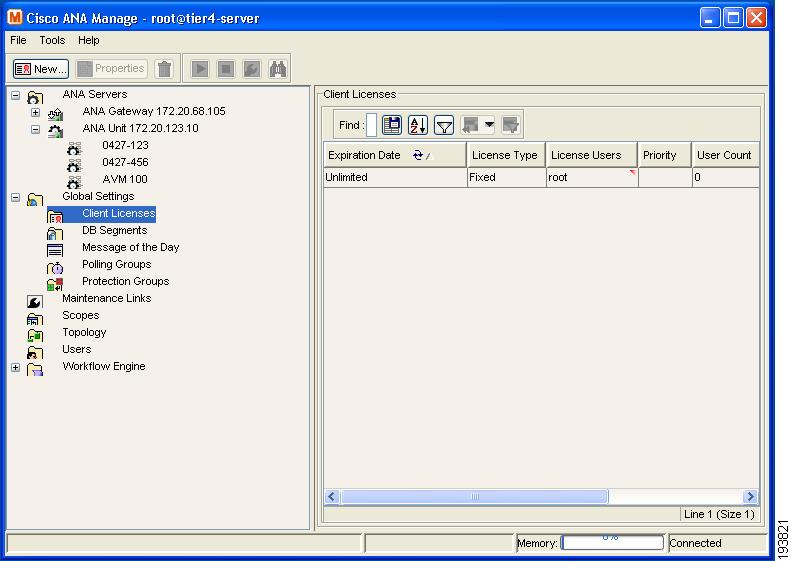

Client Licenses Sub-Branch

DB Segments Sub-Branch

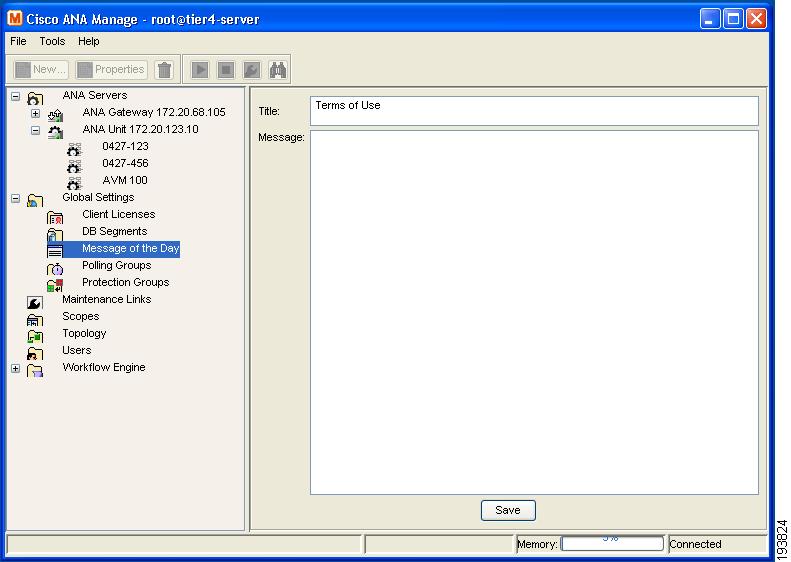

Message of the Day Sub-Branch

Polling Groups Sub-Branch

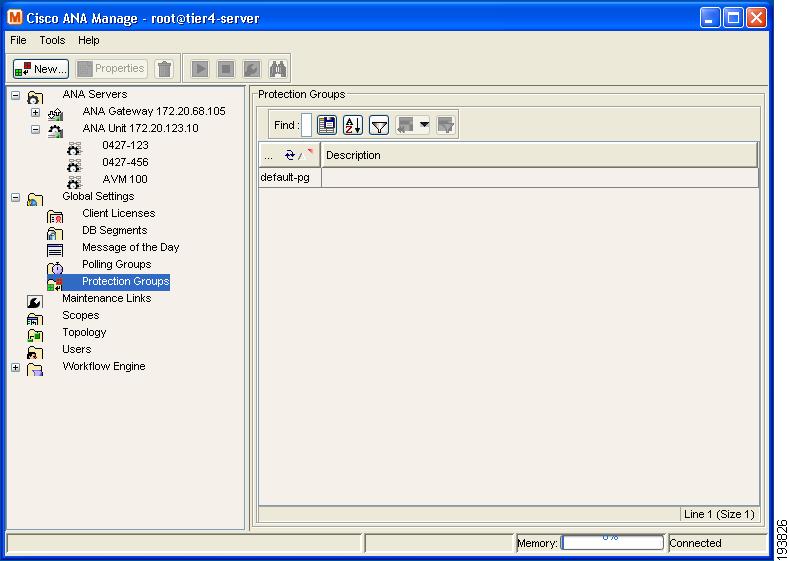

Protection Groups Sub-Branch

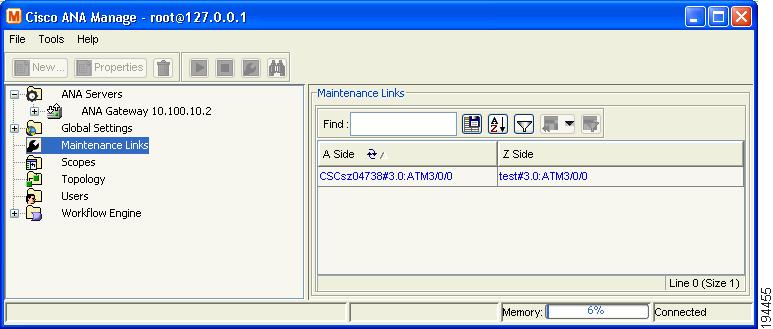

Maintenance Links Branch

Maintenance Links Branch Menus

Scopes Branch

Scopes Branch Menus

Scopes Branch Toolbar

Topology Branch

Topology Branch Menus

Topology Branch Toolbar

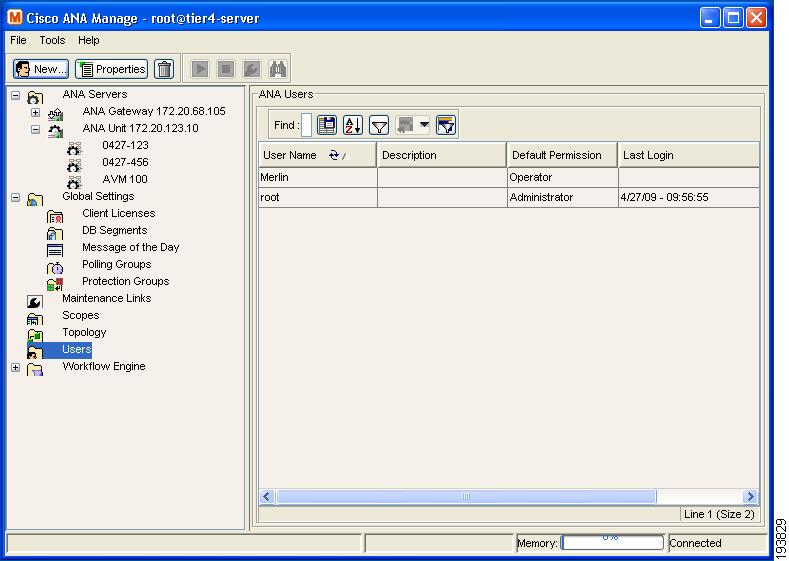

Users Branch

Users Branch Menus

Users Branch Toolbar

Workflow Engine Branch

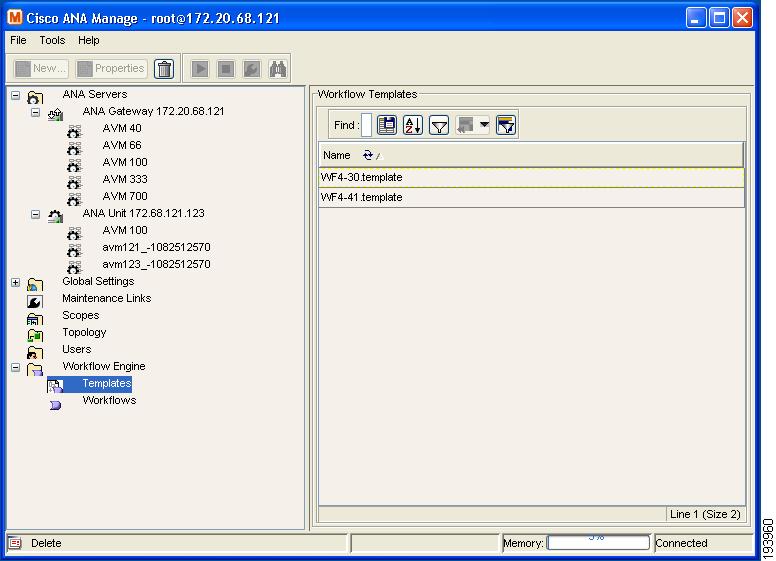

Templates Sub-Branch

Workflows Sub-Branch

Logging Out

Getting Started with Cisco ANA Manage

---

This chapter describes the Cisco ANA Manage working environment and how to access Cisco ANA Manage tools and commands. It also provides instructions for launching and operating Cisco ANA Manage with its menu and toolbar options.

The Cisco ANA Manage window provides access to all Cisco ANA Manage functionality.

This chapter contains the following sections:

•Starting Cisco ANA Manage

•The Cisco ANA Manage Window

•Cisco ANA Manage Window, Menus, and Toolbars

•Logging Out

Starting Cisco ANA Manage

Cisco ANA Manage is password-protected to ensure security, and is available only to users with administrator privileges. Before you start working with Cisco ANA Manage, make sure you know the username, password, and Cisco ANA gateway IP address or hostname that you require.

---

Note If a user does not log into the Cisco ANA Manage, Cisco ANA NetworkVision, or Cisco ANA EventVision applications during a specified period of time (the default is one month), the user's account is locked automatically. The default period can be changed in the Cisco ANA Registry. The period of time is measured from the time the user last logged out of any of the Cisco ANA client applications. For information about unlocking a user, see Editing User Rights, page 10-8.

---

To start Cisco ANA Manage:

---

Step 1 From the Start menu, choose Programs > Cisco ANA > Cisco ANA Manage. The Cisco ANA Manage Login dialog box is displayed.

Step 2 Enter the account username and password.

---

Note We recommend that you change the login password after logging in for the first time.

---

The last four Cisco ANA gateways to which you logged in successfully are displayed in the Host drop-down list. The list is displayed in chronological order with the most recent gateway appearing at the top of the list.

Step 3 In the Host field, specify the Cisco ANA gateway to log into in one of the following ways:

•Select a Cisco ANA gateway from the drop-down list.

---

Note The gateway IP address or hostname that was used when you last logged in automatically appears at the top of the Host drop-down list.

---

•Enter the Cisco ANA gateway information as an IP address or hostname.

---

Note Make sure that you use the leading IP address (the IP address on which the Cisco ANA gateway was configured) when logging into the system.

---

Step 4 Click OK. The Cisco ANA Manage window is displayed. The username and host information are displayed in the window title.

---

Note The workspace in the Cisco ANA Manage window might appear empty when the application is opened for the first time.

---

---

The Cisco ANA Manage Window

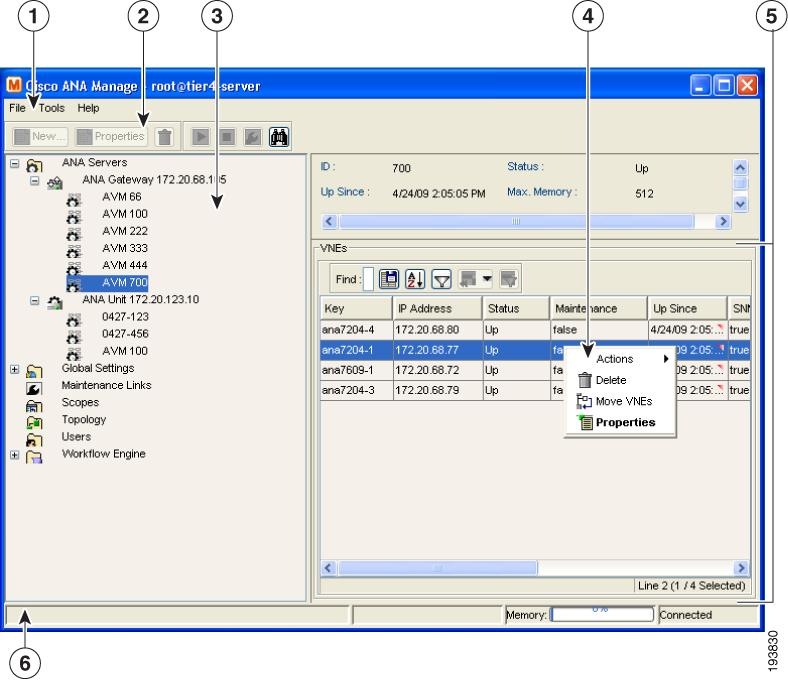

Figure 2-1 identifies the components of the Cisco ANA Manage window.

Figure 2-1 Cisco ANA Manage Window

1	Menu bar	2	Toolbar
3	Tree pane	4	Shortcut menu
5	Workspace	6	Status bar

The Cisco ANA Manage window includes:

•Tree Pane

•Workspace

•Table Toolbar

The status bar displays the memory usage of the application process, and connection status.

Dragging the window borders adjusts the size of each area.

Tree Pane

The tree pane displays a tree-and-branch representation of the Cisco ANA Manage folders. The branches can be expanded and collapsed to display and hide information as needed.

Table 2-1 describes the Cisco ANA Manage branches and identifies the tasks associated with each branch.

Table 2-1 Cisco ANA Manage Branches and Tasks

Branch	Description	Tasks
ANA Servers	•Manages information relating to the Cisco ANA gateway and Cisco ANA units, including AVMs and VNEs. •Includes the Gateway and Unit sub-branches. For more information, see ANA Servers Branch.	•View a list of units. •Add, edit, and remove AVMs and VNEs. •View AVM and VNE properties. •Start and stop AVMs and VNEs. •Move VNEs to maintenance mode.
Global Settings	•Manages system-wide settings. •Includes the following sub-branches: –Client Licenses –DB Segments –Message of the Day –Polling Groups –Protection Groups For more information, see Global Settings Branch.	•Install and manage client licenses. •View a table describing the storage allocated for all database segments. •Manage the service disclaimer (message of the day). •Define and manage the polling groups to be used by a group of devices. •Manage and change the default setup of the units by customizing protection groups and then assigning units to these protection groups.
Maintenance Links	Displays all links currently in maintenance mode. For more information, see Maintenance Links Branch.	•View all links in maintenance mode. •Remove links from maintenance mode.
Scopes	Groups a collection of managed network elements so users can view and manage network elements based on their specified role. See Scopes Branch.	•View a list of scopes. •Add and delete scopes. •View a scope's properties.
Topology	Manages topology-related parameters, namely, the static links between devices. For more information, see Topology Branch.	•View a list of static links. •Add static links between two network elements. •Delete static links.
Users	Defines and manages user accounts. For more information, see Users Branch.	•View a list of users. •Create and delete users. •Edit a user's password. •View a user's account properties.
Workflow Engine	Manages workflow templates and running workflows in runtime. For more information, see Workflow Engine Branch.	•View a list of deployed workflow templates. •View the properties of a workflow template. •Delete workflow templates. •View a list of the running or completed workflows and the status of each. •View the output of a workflow. •Stop a workflow that is being processed or that has been completed, and initiate rollback. •Delete workflows. •View the properties of a workflow.

Click a branch in the tree pane to view information relating to the selected branch in the workspace. Right-click a branch in the tree pane to open a shortcut menu to perform various functions.

Table 2-2 identifies the icons that appear in the Cisco ANA Manage window.

Table 2-2 Cisco ANA Manage Window Icons

Icon		Name
	ANA Servers Branch
		Cisco ANA Gateway
		Cisco ANA Unit
		Cisco ANA Redundant Unit
		AVM (VNE)
	Global Settings
		Client Licenses
		DB Segments
		Message of the Day
		Polling Groups
		Protection Groups
	Maintenance Links
	Scopes
	Topology
	Users
	Workflow Engine
		Templates
		Workflows

---

Note The menus and toolbar displayed in the Cisco ANA Manage window are context sensitive; the options vary depending on your selection in the tree pane and workspace.

---

Workspace

The workspace displays Cisco ANA Manage information that is related to the branch selected in the tree pane. The workspace is divided into the following two parts:

•The upper pane displays the properties of the element that is selected in the tree pane.

•The lower pane displays the element's nested children in table format.

---

Note Use the Ctrl key to select multiple rows in a workspace table.

---

The status bar displays the number of selected rows and the total number of rows in the table; for example, 6/6 Selected. It also displays the location of the currently selected row in the table, such as Line 2.

Table Toolbar

When a table forms part of the workspace, the same toolbar is displayed, no matter which branch is selected in the tree pane (see Table 2-3).

Table 2-3 Table Toolbar Tools

Icon	Name	Description
	Export to CSV	Saves the current working environment as a file in Cisco ANA. See Exporting the Table to a File, page 4-5.
	Sort Table Values	Sorts the information displayed in the table; for example, according to status or IP address.
	Filter	Defines a filter on the information displayed in the workspace table, using the Filter dialog box. See Filtering Information, page 4-2. Note The Set Selection Filter button and the Rewind All option under the Previous Selection Filter button become available only when a filter is applied.
	Previous Selection Filter	Undoes the last applied filter selection.
	Set Selection Filter	Applies filters to the selected line or lines. Note When you choose one or more lines in a table, the Previous Selection Filter button becomes available.
	Rewind All	Undoes all previously applied filter selections, and returns the originally displayed data to the workspace table. Note This option is available only when a filter is applied.
	Help	Opens the Cisco ANA Manage online help.

For details about choosing lines and applying filters, see Filtering Information, page 4-2 and Setting Selection Filters, page 4-3.

The Find field is used to search for information relating to the branch selected in the tree pane. See Finding Text in a Table, page 4-2.

Cisco ANA Manage Window, Menus, and Toolbars

This section provides a detailed description of the information displayed in the Cisco ANA Manage window for each of the following branches:

•ANA Servers Branch

•ANA Server Entities Sub-Branch, including the Cisco ANA gateway and Cisco ANA units

•AVM Sub-Branch

•Global Settings Branch

•Maintenance Links Branch

•Scopes Branch

•Topology Branch

•Users Branch

•Workflow Engine Branch

ANA Servers Branch

Cisco ANA Manage maintains a list of all servers defined in the system. The ANA Servers branch is used to add and remove unit servers.

You can expand this branch to view a list of the units, gateways, and AVMs. Each gateway, unit, and AVM has its own sub-branch. The ANA Servers branch with its associated sub-branches is used to manage information relating to the AVMs and VNEs contained in the units.

---

Note AVMs and VNEs reside on a unit as a common configuration, but they can also reside on a gateway.

---

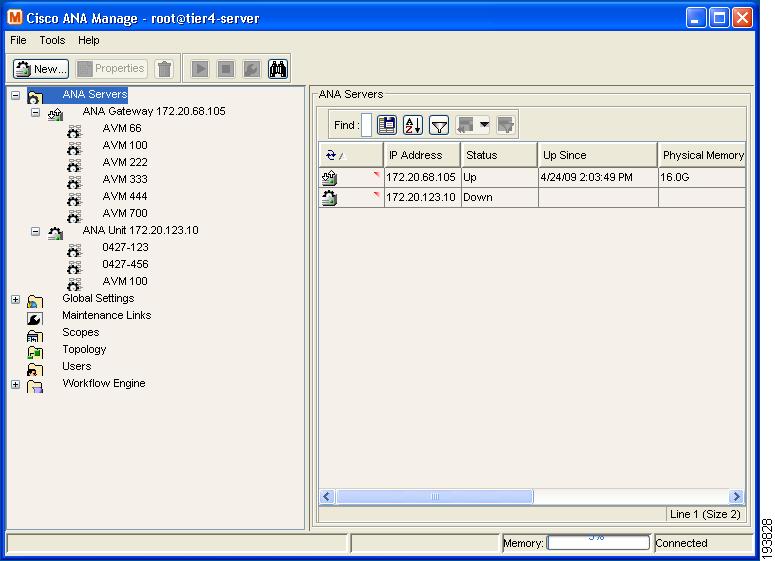

Figure 2-2 shows an example of the Cisco ANA Manage window with the ANA Servers branch selected.

Figure 2-2 ANA Servers Branch

The ANA Servers branch contains the following sub-branches:

•ANA Server Entities Sub-Branch

•AVM Sub-Branch

For more information, see:

•ANA Servers Branch Menus

•ANA Servers Branch Toolbar

The workspace table lists all gateways and units, and their status. You can sort rows in ascending or descending order by clicking the column heading that you want to sort by. To change the sort order, click the column heading again.

---

Note Any changes that are made to the ANA Servers branch are automatically saved and immediately registered in Cisco ANA.

---

Table 2-4 describes the columns displayed in the ANA Servers workspace table.

Table 2-4 ANA Servers Workspace Table

Column	Description
IP Address	The IP address of the unit or gateway as defined in Cisco ANA Manage.
Status	The status of the unit: •Up—The unit is up. •Down—The unit is down. •Unreachable—The unit cannot be reached.
Up Since	The date and time when the unit was last loaded.
Physical Memory	The physical memory of the unit.
Used Memory	The memory being used by the unit.
Allocated Memory	The amount of memory allocated to the unit. Allocated memory is the sum of all memory settings for all AVMs.
Protection Group	The protection group to which the unit is allocated.
AVM HA	The unit is enabled or disabled for high availability: •True—The unit is enabled for high availability. This is the default value. •False—The unit is not enabled for high availability.

For more information about the ANA Servers branch, see Chapter 5, "Managing Cisco ANA Units."

ANA Servers Branch Menus

Table 2-5 describes the ANA Servers branch menu options.

Table 2-5 ANA Servers Branch Menu Options

Menu	Description
File
New ANA Unit	Creates a new unit.
Exit	Exits Cisco ANA Manage. See Logging Out.
Tools
Change User Password	Changes the password used when logging into the client application suite. The change takes effect the next time you log into the application.
Help
Cisco ANA Manage Help	Displays online help for the application.
About Cisco ANA Manage	Displays application information, such as the version number.
Tree Pane Right-click the ANA Servers branch to view the shortcut menu.
New ANA Unit	Adds a new unit to the servers.
Workspace Shortcut Right-click an item in the workspace table to view the shortcut menu.
New AVM	Adds an AVM to the selected unit. See Creating AVMs, page 6-1.
Properties	Displays the ANA Unit Properties dialog box. This dialog box lists the properties of the selected unit and indicates its status. See Editing Cisco ANA Unit Properties, page 5-5.
Delete	Deletes the selected unit.

ANA Servers Branch Toolbar

Table 2-6 shows the ANA Servers branch toolbar options.

Table 2-6 ANA Servers Branch Tools

Icon	Description
	Adds a new unit to the Cisco ANA server.
	Searches for an AVM or VNE on the selected Cisco ANA server.

For more information about the ANA Servers branch, see Chapter 5, "Managing Cisco ANA Units."

ANA Server Entities Sub-Branch

The ANA Server Entities sub-branch includes the ANA Gateway and ANA Unit sub-branches. All options described in this section refer to both sub-branches.

The ANA Server Entities sub-branch enables you to manage information relating to the AVMs and VNEs on a selected unit. These include:

•Adding, editing, and removing an AVM.

•Switching manually to the standby unit.

•Viewing AVM properties.

•Moving AVMs.

•Starting and stopping AVMs and VNEs.

•Adding VNEs.

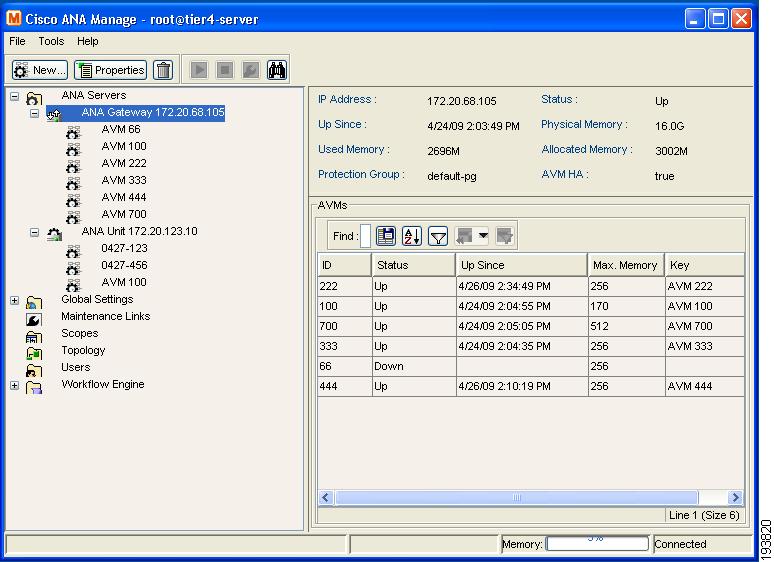

Figure 2-3 shows an example of the Cisco ANA Manage window with an ANA Servers Gateway sub-branch selected.

Figure 2-3 ANA Servers Entity Sub-Branch

Each row in the workspace table displays the status of an AVM. The AVMs can be sorted in ascending or descending order by clicking the column heading in the table.

---

Note Any changes that are made to the ANA Servers Entity sub-branch are automatically saved and immediately registered in Cisco ANA.

---

Table 2-7 describes the columns that are displayed in the AVMs workspace table.

Table 2-7 AVMs Workspace Table

Column	Description
ID	The name of the AVM as defined in Cisco ANA and unique to the AVM; for example, AVM 18.
Status	The status of the AVM: •Starting Up—The AVM is starting. •Up—The AVM is up. •Shutting Down—The AVM is stopping. •Down—The AVM is down. •Unreachable—The AVM cannot be reached.
Up Since	The date and time that the unit was last started.
Max. Memory	The maximum allocated memory size as defined when the AVM was created in Cisco ANA Manage. The default value is 256 MB.
Key	The key of the AVM, which is unique to the system. By default, the key is displayed as "AVM + ID + timestamp."

For more information, see:

•ANA Server Entities Sub-Branch Menus

•ANA Server Entities Sub-Branch Toolbar

ANA Server Entities Sub-Branch Menus

Table 2-8 describes the ANA Server Entity sub-branch menu options.

Table 2-8 ANA Server Entities Sub-Branch Menu Options

Menu	Description
File
New AVM	Adds an AVM to the selected unit. See Creating AVMs, page 6-1.
Properties	Displays the ANA Unit Properties dialog box. This dialog box lists the properties of the selected unit and indicates its status. See Editing Cisco ANA Unit Properties, page 5-5.
Exit	Exits Cisco ANA Manage. See Logging Out.
Tools
Change User Password	Changes the password used when logging into the client application suite. The change takes effect the next time you log into the application.
Help
Cisco ANA Manage Help	Displays online help for the application.
About Cisco ANA Manage	Displays application information, such as the version number.
Tree Pane Right-click the ANA Server Entities sub-branch to view the shortcut menu.
New AVM	Adds an AVM to the selected unit.
Properties	Displays the properties of the selected unit.
Switch	This option is available when high availability is enabled and is available only for units. Manually switches to the standby unit. For more information, see Appendix F, "Using High Availability."
Delete	Deletes the selected unit.
Workspace Right-click an item in the workspace table to view the shortcut menu.
New VNE	Creates a VNE for the selected AVM. See Creating AVMs, page 6-1. Note A new VNE cannot be added to the reserved AVMs 0-100.
Actions	Starts or stops an AVM. See Starting and Stopping AVMs, page 6-6.
Delete	Deletes an AVM from the server. Note Reserved AVMs 0-100 cannot be deleted.
Move AVM	Moves an entire AVM between units. See Moving AVMs, page 6-6. Note Reserved AVMs 0-100 cannot be moved.
Properties	Displays the properties of the selected AVM.

ANA Server Entities Sub-Branch Toolbar

Table 2-9 shows the ANA Server Entities sub-branch toolbar options.

Table 2-9 ANA Server Entities Sub-Branch Tools

Icon	Description
	Creates a new AVM in the selected unit or gateway.
	Displays the server properties and status.
	Deletes the selected unit.
	Searches for an AVM or VNE among the Cisco ANA servers. Note The search tool searches only on the selected unit and its sub-branches. It does not search all units.

For more information about the ANA Servers Entity sub-branch, see Chapter 6, "Managing AVMs and VNEs."

AVM Sub-Branch

The AVM sub-branch enables you to manage information relating to the VNEs in a selected AVM, including:

•Adding, editing, and removing a VNE.

•Viewing VNE or AVM properties.

•Deleting an AVM.

•Moving AVMs and VNEs.

•Starting and stopping VNEs or AVMs.

•Moving VNEs to maintenance mode.

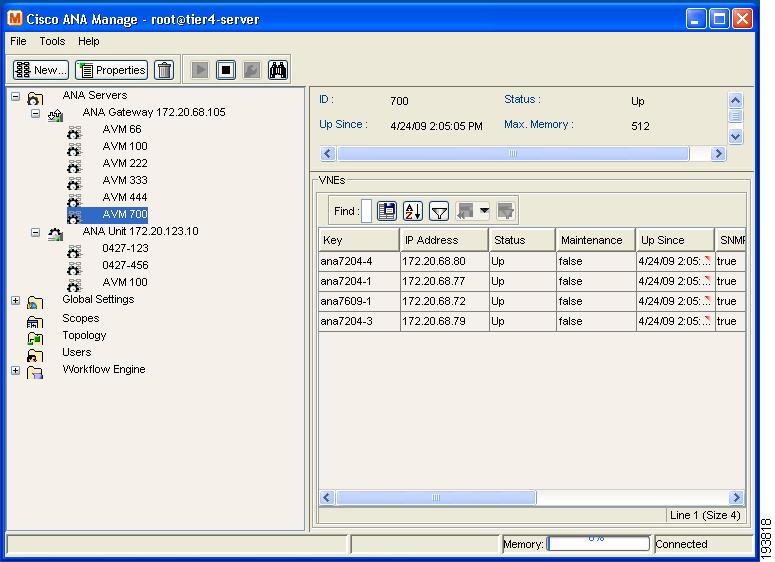

Figure 2-4 shows an example of the Cisco ANA Manage window with an AVM sub-branch selected.

Figure 2-4 AVM Sub-Branch

When you choose the AVM sub-branch, the workspace displays the properties of the AVM and a table with the list of VNEs.

---

Note No VNEs are displayed when a reserved AVM is selected. Reserved AVMs are AVMs 1-100.

---

Table 2-10 describes the columns in the VNEs workspace table.

Table 2-10 VNEs Workspace Table

Column	Description
Key	The unique key of the VNE.
IP Address	The IP address of the device as defined in Cisco ANA Manage.
Status	The status of the VNE: •Starting Up—The VNE is starting. •Up—The VNE is up. •Shutting Down—The VNE is stopping. •Down—The VNE is down. •Unreachable—The VNE cannot be reached.
Maintenance	Indicates whether or not the VNE is in maintenance mode: •True—The VNE is in maintenance mode. •False—The VNE is not in maintenance mode.
Up Since	The date and time that the VNE was last started.
SNMP	Indicates whether SNMP is enabled or disabled on the VNE: •True—SNMP is enabled. •False—SNMP is disabled.
Telnet	Indicates whether Telnet is enabled or disabled on the VNE: •True—Telnet is enabled. •False—Telnet is disabled.
Element Class	Detects the VNE category, such as Auto Detect, Generic SNMP, Cloud, or ICMP.
Element Type	The device type (manufacturer name), such as Cisco 7204.
Polling Group	The name of the customized polling group. The entry in this column is blank if the polling group is an instance.

For more information about VNEs, see Chapter 6, "Managing AVMs and VNEs."

For more information, see:

•AVM Sub-Branch Menus

•AVM Sub-Branch Toolbar

AVM Sub-Branch Menus

Table 2-11 describes the AVM sub-branch menu options.

Table 2-11 AVM Sub-Branch Menu Options

Menu	Description
File
New VNE	Adds a VNE to the selected AVM. Note A new VNE cannot be added to the reserved AVMs 0-100.
Properties	Displays the properties of the selected AVM and its status.
Exit	Exits Cisco ANA Manage. See Logging Out.
Tools
Change User Password	Changes the password used when logging into the client application suite. The change takes effect the next time you log into the application.
Help
Cisco ANA Manage Help	Displays online help for the application.
About Cisco ANA Manage	Displays application information, such as the version number.
Tree Pane Right-click the AVM sub-branch to view the shortcut menu.
New VNE	Creates a VNE for the selected AVM. See Creating AVMs, page 6-1. Note A new VNE cannot be added to the reserved AVMs 0-100.
Actions	Starts or stops an AVM. See Starting and Stopping AVMs, page 6-6.
Delete	Deletes an AVM from the server. Note Reserved AVMs 0-100 cannot be deleted.
Move AVM	Moves an entire AVM between units. See Moving AVMs, page 6-6. Note Reserved AVMs 0-100 cannot be moved.
Properties	Displays the properties of the selected AVM.
Workspace Shortcut Right-click an item in the workspace table to view the shortcut menu.
Actions	Starts or stops a VNE, or moves a VNE to maintenance mode.
Delete	Deletes the selected VNE from an AVM.
Move VNEs	Moves one or more selected VNEs between AVMs.
Properties	Displays the properties of the selected VNE.

AVM Sub-Branch Toolbar

Table 2-12 shows the AVM sub-branch toolbar options.

Table 2-12 AVM Tools

Icon	Description
	Creates a new VNE in the selected AVM.
	Displays the properties of the selected AVM.
	Deletes the selected AVM.
	Starts the selected AVM.
	Stops the selected AVM.
	Searches for an AVM or VNE among all servers.

Table 2-13 shows the toolbar options that are available when a VNE is selected in the workspace table.

Table 2-13 VNE Tools

Icon	Description
	Creates a new VNE in the selected AVM.
	Displays the properties of the selected VNE.
	Deletes the selected VNE from the selected AVM.
	Starts the selected VNE.
	Stops the selected VNE.
	Moves the selected VNE to maintenance mode.
	Searches for an AVM or VNE among all servers.

For more information on the AVM sub-branch, see Chapter 6, "Managing AVMs and VNEs."

Global Settings Branch

The Global Settings branch maintains system-wide settings, such as polling and protection groups. Any changes that are made to the settings affect the configuration throughout the system.

The Global Settings branch includes the following sub-branches:

•Client Licenses Sub-Branch

•DB Segments Sub-Branch

•Message of the Day Sub-Branch

•Polling Groups Sub-Branch

•Protection Groups Sub-Branch

Client Licenses Sub-Branch

The Client Licenses sub-branch enables control and monitoring of the number of client connections over a limited or unlimited period of time as defined in terms of the client license.

---

Note Upon installation, Cisco ANA provides one user, root. To authorize additional users, you must obtain and install license keys. To obtain a license key so that you can add users to Cisco ANA, contact your Cisco Account Manager. To activate the additional users for the licenses purchased, contact your Cisco Account Manager or Sales Representative.

---

Figure 2-5 shows an example of the Cisco ANA Manage window with the Client Licenses sub-branch selected.

Figure 2-5 Client Licenses Sub-Branch

Table 2-14 describes the columns in the Client Licenses workspace table.

Table 2-14 Client Licenses Workspace Table

Column	Description
Expiration Date	Date of the expiration of the license. The license can be for a limited or unlimited period of time.
License Type	The type of Cisco ANA license: •Fixed—Authorizes users to access Cisco ANA clients. The type of default license that comes with Cisco ANA is fixed and is limited to user root. •Floating—Authorizes a specific number of users to access Cisco ANA clients and BQL concurrently. Each user who logs into a Cisco ANA client (Cisco ANA Manage, Cisco ANA NetworkVision, or Cisco ANA EventVision) or BQL is counted as using a license. The total number of concurrent logins for all Cisco ANA clients and BQL is limited by the number of licenses. •Floating User—Authorizes a specific number of users to open one instance each of the Cisco ANA clients (Cisco ANA Manage, Cisco ANA NetworkVision, and Cisco ANA EventVision) concurrently. That is, one user can log into and work in concurrent sessions of Cisco ANA Manage, Cisco ANA NetworkVision, and Cisco ANA EventVision. If the same user opens more than one instance of the same client, each instance is counted as a separate license. For more information, see Managing Client Licenses, page 7-1.
License Users	The usernames or IP addresses of the authorized users.
Priority	Unavailable in this version.
User Count	The number of users allowed to operate the client applications, as defined in terms of the license. The exact number of users is displayed if the number is limited; 0 (zero) indicates an unlimited number of users.
Client Type	The applications to which the user is authorized to connect, such as BQL and client applications.
Creation Date	The date when the license was implemented.

For more information, see:

•Client Licenses Sub-Branch Menus

•Client Licenses Sub-Branch Toolbar

Client Licenses Sub-Branch Menus

Table 2-15 describes the Client Licenses sub-branch menu options.

Table 2-15 Client Licenses Sub-Branch Menu Options

Menu	Description
File
New License	Installs a new license.
Properties	Displays the properties of the selected license.
Exit	Exits Cisco ANA Manage. See Logging Out.
Tools
Change User Password	Changes the password used when logging into the client application suite. The change takes effect the next time you log into the application.
Help
Cisco ANA Manage Help	Displays online help for the application.
About Cisco ANA Manage	Displays application information, such as the version number.
Tree Pane Right-click the Client Licenses sub-branch to view the shortcut menu.
New License	Installs a new license.
Workspace Shortcut Right-click an item in the workspace table to view the shortcut menu.
Delete	Deletes the selected license.
Properties	Displays the properties of the selected license.

Client Licenses Sub-Branch Toolbar

Table 2-16 shows the Client Licenses sub-branch toolbar options.

Table 2-16 Client Licenses Tools

Icon	Description
	Installs a new license.
	Displays the properties of the selected license.
	Deletes the selected license.

For more information about client licenses, see Managing Client Licenses, page 7-1.

DB Segments Sub-Branch

The DB Segments sub-branch in Cisco ANA Manage displays a table describing the storage allocated for all database segments.

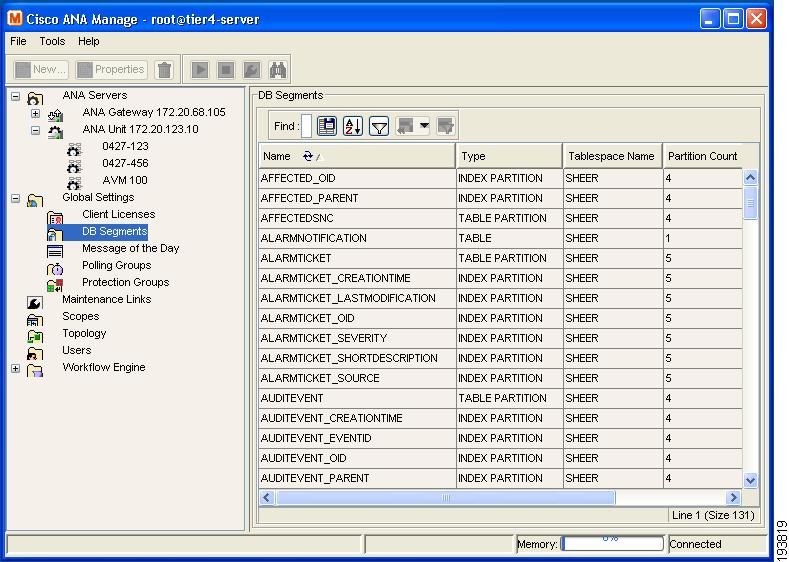

Figure 2-6 shows an example of the Cisco ANA Manage window with the DB Segments sub-branch selected.

Figure 2-6 DB Segments Sub-Branch

Table 2-17 describes the columns that are displayed in the DB Segments workspace table.

Table 2-17 DB Segments Workspace Table

Column	Description
Name	The name of the segment.
Type	The type of segment, such as INDEX PARTITION, TABLE PARTITION, TABLE, CLUSTER, INDEX, ROLLBACK, DEFERRED ROLLBACK, TEMPORARY, CACHE, LOBINDEX, LOB PARTITION, or LOBSEGMENT.
Tablespace Name	The name of the table space containing the segment.
Partition Count	The number of partitions.
Extent Count	The number of extents allocated to the segment.
Next Extent Size	The size, in bytes, of the next extent to be allocated to the segment.
Bytes	The size of the segment, in bytes.

Message of the Day Sub-Branch

The Message of the Day sub-branch enables you to define a message (service disclaimer) that is displayed when a user logs into client applications.

Figure 2-7 shows an example of the Cisco ANA Manage window with the Message of the Day sub-branch selected.

Figure 2-7 Message of the Day Sub-Branch

Table 2-18 describes the items in the Message of the Day sub-branch workspace.

Table 2-18 Message of the Day Sub-Branch Workspace

Item	Description
Title	The title for the message. By default, the title "Terms of Use" is displayed.
Message	A free text message for the user. The message supports HTML format.
Save	Click Save to save the message so that it is displayed when users log into client applications.

---

Note The Abort and Continue buttons are displayed in the message box by default, so the message must relate to these actions. The user must accept the service disclaimer (that is, click Continue) or the user cannot log in.

---

For more information about the Message of the Day branch, see Customizing a Message of the Day, page 7-5.

Polling Groups Sub-Branch

The Polling Groups sub-branch enables you to manage polling groups, by categorizing a group of devices to be polled according to preset intervals.

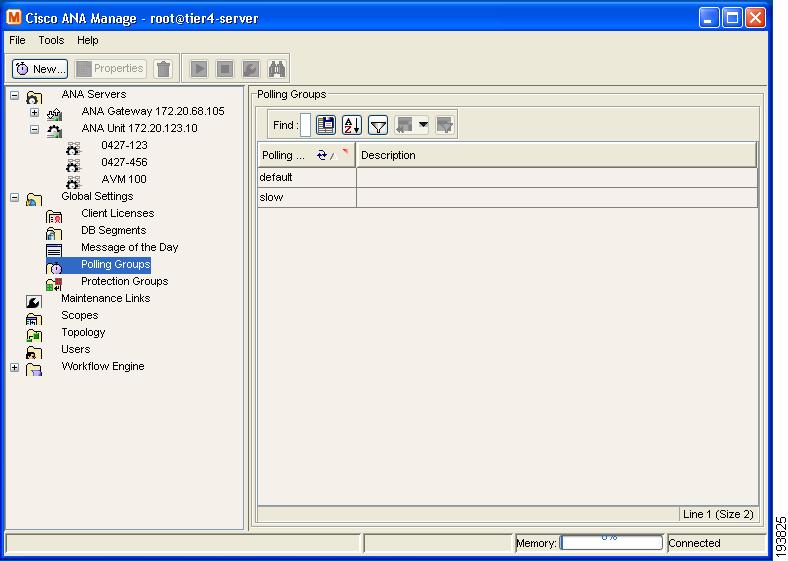

Figure 2-8 shows an example of the Cisco ANA Manage window with the Polling Groups sub-branch selected.

Figure 2-8 Polling Groups Sub-Branch

Table 2-19 describes the columns that are displayed in the Polling Groups workspace table.

Table 2-19 Polling Groups Workspace Table

Column	Description
Polling Group	The polling group name defined by the user.
Description	A description of the polling group.

---

Note Any changes that are made to the Polling Groups sub-branch are automatically saved and immediately registered in Cisco ANA.

---

For more information, see:

•Polling Groups Sub-Branch Menus

•Polling Groups Sub-Branch Toolbar

Polling Groups Sub-Branch Menus

Table 2-20 describes the Polling Groups sub-branch menu options.

Table 2-20 Polling Groups Sub-Branch Menu Options

Menu	Description
File
New Polling Group	Creates a new polling group.
Properties	Displays the properties of the selected polling group.
Exit	Exits Cisco ANA Manage. See Logging Out.
Tools
Change User Password	Changes the password used when logging into the client application suite. The change takes effect the next time you log into the application.
Help
Cisco ANA Manage Help	Displays online help for the application.
About Cisco ANA Manage	Displays application information, such as the version number.
Tree Pane Right-click the Polling Groups sub-branch to view the shortcut menu.
New Polling Group	Creates a new polling group.
Workspace Shortcut Right-click an item in the workspace table to view the shortcut menu.
Properties	Displays the properties of the selected polling group.
Delete	Deletes the selected polling group. Note The default polling group must not be deleted.

Polling Groups Sub-Branch Toolbar

Table 2-21 shows the Polling Groups sub-branch toolbar options.

Table 2-21 Polling Groups Tools

Icon	Description
	Creates a new polling group.
	Displays the properties of the selected polling group.
	Deletes the selected polling group. Note The default polling group must not be deleted.

For more information, see Managing Polling Groups, page 7-6.

Protection Groups Sub-Branch

By default, all units in the Cisco ANA fabric belong to one cluster or protection group. The Protection Groups sub-branch enables you to change the default setup of the units by customizing protection groups and then assigning units to these protection groups.

For more information, see Appendix F, "Using High Availability."

Figure 2-9 shows an example of the Cisco ANA Manage window with the Protection Groups sub-branch selected.

Figure 2-9 Protection Groups Sub-Branch

Table 2-21 describes the columns that are displayed in the Protection Groups workspace table.

Table 2-22 Protection Groups Workspace Table

Column	Description
Name	The protection group name defined by the administrator.
Description	A description of the protection group.

For more information, see:

•Protection Groups Sub-Branch Menus

•Protection Groups Sub-Branch Toolbar

Protection Groups Sub-Branch Menus

Table 2-23 describes the Protection Groups sub-branch menu options.

Table 2-23 Protection Groups Sub-Branch Menu Options

Menu	Description
File
New Protection Group	Creates a new protection group.
Properties	Displays the properties of the selected protection group.
Exit	Exits Cisco ANA Manage. See Logging Out.
Tools
Change User Password	Changes the password used when logging into the client application suite. The change takes effect the next time you log into the application.
Help
Cisco ANA Manage Help	Displays online help for the application.
About Cisco ANA Manage	Displays application information, such as the version number.
Tree Pane Right-click the Protection Groups sub-branch to view the shortcut menu.
New Protection Group	Creates a new protection group.
Workspace Shortcut Right-click an item in the workspace table to view the shortcut menu.
Properties	Displays the properties of the selected protection group.
Delete	Deletes the selected protection group. Note The default protection group must not be deleted.

Protection Groups Sub-Branch Toolbar

Table 2-24 shows the Protection Groups sub-branch toolbar options.

Table 2-24 Protection Groups Tools

Icon	Description
	Creates a new protection group.
	Displays the properties of the selected protection group.
	Deletes the selected protection group. Note The default protection group must not be deleted.

For more information about protection groups, see:

•Managing Protection Groups, page 7-11

•Appendix F, "Using High Availability"

Maintenance Links Branch

The Maintenance Links branch enables you to view all links currently in maintenance mode and remove links from maintenance mode. Click one of the hyperlinked entries in the Maintenance Links table to view the inventory window for that entry.

---

Note After removing a link from maintenance mode, new events are displayed 20 minutes after the last event that is correlated to a suppressed event.

---

For more information about maintenance links, see Chapter 8, "Managing Links."

Figure 2-10 shows an example of the Cisco ANA Manage window with the Maintenance Links branch selected.

Figure 2-10 Maintenance Links Branch

Each row in the workspace table identifies a link in maintenance mode.

For menu options, see Maintenance Links Branch Menus.

Maintenance Links Branch Menus

Table 2-25 describes the Maintenance Links branch menu options.

Table 2-25 Maintenance Links Branch Menu Options

Menu	Description
File
Exit	Exits Cisco ANA Manage. See Logging Out.
Tools
Change User Password	Enables you to change the password used when logging into the client application suite. The change takes effect the next time you log into the application.
Help
Cisco ANA Manage Help	Displays online help for the application.
About Cisco ANA Manage	Displays application information, such as the version number.
Workspace Shortcut Right-click an item in the workspace table to view the shortcut menu.
Remove Maintenance	Removes the selected links from maintenance mode. Note After removing a link from maintenance mode, new events are displayed 20 minutes after the last event that is correlated to a suppressed event.
Attach Business Tag	Adds a business tag to the selected link.
Properties	Displays the properties of the selected link.

For more information about maintains links, see:

•Chapter 8, "Managing Links"

•Cisco Active Network Abstraction 3.6.6 User Guide

Scopes Branch

The Scopes branch enables you to group a collection of managed network elements so that users can view and manage the network elements based on the role granted to their user account for the scope. For more information on the Scopes branch, see Chapter 10, "Managing Security."

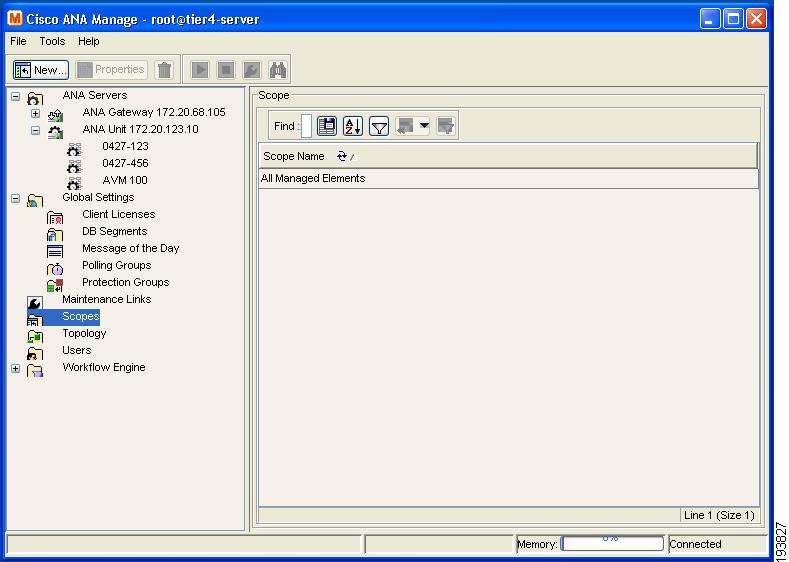

Figure 2-11 shows an example of the Cisco ANA Manage window with the Scopes branch selected.

Figure 2-11 Scopes Branch

Each row in the workspace table displays the name of a scope as defined in Cisco ANA Manage.

For information about menu options, see Scopes Branch Toolbar.

Scopes Branch Menus

Table 2-26 describes the Scopes branch menu options.

Table 2-26 Scopes Branch Menu Options

Menu	Description
File
New Scope	Creates a new scope.
Properties	Displays the properties of the selected scope. You cannot view the properties of the All Managed Elements scope.
Exit	Exits Cisco ANA Manage. See Logging Out.
Tools
Change User Password	Changes the password used when logging into the client application suite. The change takes effect the next time you log into the application.
Help
Cisco ANA Manage Help	Displays online help for the application.
About Cisco ANA Manage	Displays application information, such as the version number.
Tree Pane Right-click the Scopes branch to view the shortcut menu.
New Scope	Creates a new scope.
Workspace Shortcut Right-click an item in the workspace table to view the shortcut menu.
Delete	Deletes the selected scope. You cannot delete the All Managed Elements scope.
Properties	Displays the properties of the selected scope. You cannot view or edit the properties of the All Managed Elements scope.

Scopes Branch Toolbar

Table 2-27 shows the Scopes branch toolbar options.

Table 2-27 Scopes Branch Tools

Icon	Description
	Creates a new scope. See Creating Scopes, page 10-5.
	Displays the properties of the selected scope.
	Deletes the selected scope.

For more information about scopes, see Scopes, page 10-1.

Topology Branch

The Topology branch enables you to define static links between two network elements to supplement or override existing autodiscovered topology.

Figure 2-12 shows an example of the Cisco ANA Manage window with the Topology branch selected.

Figure 2-12 Topology Branch

The Topology branch displays all static links defined in the system, including the A side and Z side of the link.

For more information, see:

•Topology Branch Menus

•Topology Branch Toolbar

Topology Branch Menus

Table 2-28 describes the Topology branch menu options.

Table 2-28 Topology Branch Menu Options

Menu	Description
File
New Static Link	Creates a new static link.
Properties	Not available.
Exit	Exits Cisco ANA Manage. See Logging Out.
Tools
Change User Password	Changes the password used when logging into the client application suite. The change takes effect the next time you log into the application.
Help
Cisco ANA Manage Help	Displays online help for the application.
About Cisco ANA Manage	Displays application information, such as the version number.
Tree Pane Right-click the Topology branch to view the shortcut menu.
New Static Link	Creates a new static link.
Workspace Shortcut Right-click an item in the workspace table to view the shortcut menu.
Delete	Deletes the selected static link.

Topology Branch Toolbar

Table 2-29 shows the Topology branch toolbar options.

Table 2-29 Topology Branch Tools

Icon	Description
	Opens the New Link dialog box, enabling you to create a link between two devices. See Creating a Static Link, page 8-1.
	Deletes the selected static link.

For more information about the Topology branch, see Chapter 8, "Managing Links."

Users Branch

The Users branch enables you to define and manage user accounts. For more information about the Users branch, see Chapter 10, "Managing Security."

Figure 2-13 shows an example of the Cisco ANA Manage window with the Users branch selected.

Figure 2-13 Users Branch

Table 2-30 describes the columns that are displayed in the ANA Users workspace table.

Table 2-30 ANA Users Workspace Table

Column	Description
User Name	The unique username defined for the current client station.
Description	A description of the user.
Default Permission	The default permission of the user, such as Viewer or Administrator. For example, a user with the default permission Viewer can view maps and the Device List. Note The default permission applies only at an application level; that is, it applies to all activities that are related to GUI functionality and not the activities related to devices. See Chapter 10, "Managing Security."
Last Login	The date and time that the user last logged in.

For more information, see:

•Users Branch Menus

•Users Branch Toolbar

---

Note The menus and toolbar displayed in the Cisco ANA Manage window are context sensitive; the options vary depending on your selection in the tree pane and workspace.

---

Users Branch Menus

Table 2-31 describes the Users branch menu options.

Table 2-31 Users Branch Menu Options

Menu	Description
File
New User	Creates a new user for the current client station.
Properties	Displays the properties of the selected user.
Exit	Exits Cisco ANA Manage. See Logging Out.
Tools
Change User Password	Changes the password used when logging into the client application suite. The change takes effect the next time you log into the application.
Help
Cisco ANA Manage Help	Displays online help for the application.
About Cisco ANA Manage	Displays application information, such as the version number.
Tree Pane Right-click the Users branch to view the shortcut menu.
New User	Creates a new user for the current client station.
Workspace Shortcut Right-click an item in the workspace table to view the shortcut menu.
Change Password	Edits a user's password.
Delete	Deletes the selected user from the system. Note The user root cannot be deleted.
Properties	Displays the properties of the selected user.

Users Branch Toolbar

Table 2-32 shows the Users branch toolbar options.

Table 2-32 Users Branch Tools

Icon	Description
	Opens the New User dialog box, enabling you to define a new user for the current client station.
	Displays the properties of the selected user.
	Deletes the selected username from the system. Note The user root cannot be deleted.

Workflow Engine Branch

---

Note The Workflow Engine branch is visible only if the Workflow option was purchased and installed.

---

The Workflow Engine branch enables you to manage workflow templates and run workflows in runtime. The Workflow Engine branch includes the following sub-branches:

•Templates—Displays a list of the deployed workflow templates and enables you to view the properties of the workflow template. For more information, see Templates Sub-Branch.

•Workflows—Displays a list of the running or completed workflows and enables you to view and alter their current status. See Workflows Sub-Branch.

Templates Sub-Branch

The Templates sub-branch enables you to:

•View a list of the deployed workflow templates.

•View the properties (attributes) of a workflow template.

•Delete a workflow template.

Figure 2-14 shows an example of the Cisco ANA Manage window with the Templates sub-branch selected.

Figure 2-14 Templates Sub-Branch

The workspace table displays the names of the workflow templates, as defined using the Cisco Workflow Editor. For more information, see Templates Sub-Branch Toolbar.

Templates Sub-Branch Menus

Table 2-33 describes the Templates sub-branch menu options.

Table 2-33 Templates Sub-Branch Menu Options

Menu	Description
File
Exit	Exits Cisco ANA Manage. See Logging Out.
Tools
Change User Password	Changes the password used when logging into the client application suite. The change takes effect the next time you log into the application.
Help
Cisco ANA Manage Help	Displays online help for the application.
About Cisco ANA Manage	Displays application information, such as the version number.
Tree Pane Right-click the Templates sub-branch to view the shortcut menu.
Properties	Displays a list of the workflow templates available on the gateway.
Workspace Shortcut Right-click an item in the workspace table to view the shortcut menu.
Properties	Displays the properties of the selected workflow template.
Delete	Deletes the selected workflow template.

Templates Sub-Branch Toolbar

Table 2-34 shows the Templates sub-branch toolbar option.

Table 2-34 Templates Sub-Branch Tools

Icon	Description
	Deletes the selected workflow template.

For more information about workflows, see the Cisco Active Network Abstraction 3.6.6 Customization User Guide.

Workflows Sub-Branch

The Workflows sub-branch enables you to:

•View the list of running or completed workflows and the status of each.

•View the output of a workflow.

•Abort a workflow that is being processed or that has been completed, and initiate rollback.

•Delete a workflow.

•View the properties of a workflow.

Figure 2-15 shows an example of the Cisco ANA Manage window with the Workflows sub-branch.

Figure 2-15 Workflows Sub-Branch

Table 2-35 describes the columns that are displayed in the Workflows workspace table.

Table 2-35 Workflows Workspace Table

Column	Description
ID	A unique sequential number given to the workflow.
Name	The name of the workflow, as defined using the Cisco Workflow Editor.
State	The current status of the workflow, such as Ready, Running, Done, or Aborted.
Blocking Locks	The locks that the selected workflow is waiting to release.
Locks	The locks that the selected workflow currently holds.

For more information, see:

•Workflows Sub-Branch Menus

•Workflows Sub-Branch Toolbar.

Workflows Sub-Branch Menus

Table 2-36 describes the Workflows sub-branch menu options.

Table 2-36 Workflows Sub-Branch Menu Options

Menu	Description
File
Exit	Exits Cisco ANA Manage. See Logging Out.
Tools
Change User Password	Changes the password used when logging into the client application suite. The change takes effect the next time you log into the application.
Help
Cisco ANA Manage Help	Displays online help for the application.
About Cisco ANA Manage	Displays application information, such as the version number.
Tree Pane Right-click the Workflows sub-branch to view the shortcut menu.
Properties	Displays a list of the scripts and their current status.
Workspace Shortcut Right-click an item in the workspace table to view the shortcut menu.
Show Output	View the output of the workflow.
Abort/Rollback	If the workflow is running, aborts the workflow and performs rollback. If the workflow has been completed, performs rollback.
Delete	Deletes the workflow from the database. Note A workflow can be deleted from the database only when it is done or aborted. It cannot be deleted while the process is running.
Properties	Displays the properties of the selected workflow, including its status.

Workflows Sub-Branch Toolbar

Table 2-37 shows the Workflows sub-branch toolbar option.

Table 2-37 Workflows Sub-Branch Tools

Icon	Description
	Deletes the workflow from the database.

For more information about workflows, see the Cisco Active Network Abstraction 3.6.6 Customization User Guide.

Logging Out

When you have finished working with Cisco ANA Manage, you can log out of the application. Any changes that were made are automatically saved when you log out.

To log out of Cisco ANA Manage:

---

Step 1 Exit Cisco ANA Manage in one of the following ways:

•Choose File > Exit.

•Click the top right corner to close the Cisco ANA Manage window.

A confirmation message is displayed.

Step 2 Click Yes. The Cisco ANA Manage window is closed.

---
