Event and Alarm Configuration Parameters

---

This chapter describes the different options that exist to modify the alarm behavior by editing the appropriate alarm parameters in the system registry.

Alarm Type Definition describes the alarm type concept.

Event (Sub-Type) Configuration Parameters describes the event and alarm configuration parameters, and values that can be controlled through the Registry.

The parameters described in the following section are defined per event (sub-type) that belongs to the alarm.

---

Note Changes to the Registry should only be carried out with the support of Cisco Professional Services.

---

Alarm Type Definition

The alarm type serves as an identifier which enables group events from different sub-types to share the same type and source in a single event sequence.

The event sub-type is a specific occurrence of fault in the network. For example, link down and link up are two sub-types that share the same type.

Event (Sub-Type) Configuration Parameters

General Event Parameters

Parameter Name	Description	Permitted Values
severity	Severity level of the event.	Either: •CRITICAL •MAJOR •MINOR •WARNING •CLEARED •UNKNOWN •INFO
is-ticketable	Determines whether the alarm will generate a new ticket (in case there is no root-cause alarm to correlate to).	True (ticketable); False (not ticketable)
functionality-type	Determines the event type.	Either: •Service (Sheer-generated) •Syslog •SNMP Trap

Root-Cause Configuration Parameters

These parameters define the behavior of the alarm when serving as the root-cause of other alarms.

Name	Description	Permitted Values
is-correlation-allowed	Defines whether the alarm may serve as a root-cause, and allow child alarms to correlate to it.	True (correlates) or False (will not correlate)
root-cause (also: short description)	Textual description that describes the event.	User defined text
due-to-cause	Display string that will be given to the consequent alarms (which correlate to this alarm).	User defined text
timeout	Defines time period allowed (in milliseconds) for consequent alarms to correlate to this alarm.	Positive integer
gw-correlation-timeout	The period of time (in milliseconds) for how long an alarm with the severity `Clear' or `Info' (alarms with non-cleared severity are always open for a consequent alarm) is open for sequence.	Positive integer
is-correlation-allowed-when-not-correlated	If and only if this alarm is not correlated to a parent alarm it determines if the alarm may serve as root-cause, and allow child alarms to correlate to it.	True/False

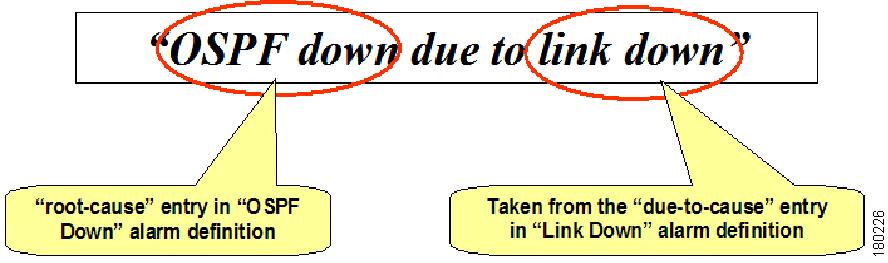

The following figure explains the difference between "Root-cause" and "Due-to-cause":

Figure 5-1 Root-Cause vs. Due-to-Cause

Correlation Configuration Parameters

These parameters define the behavior of the alarm in finding its root-cause alarm.

Name	Description	Permitted values
correlate	Determines whether the alarm should attempt to find and correlate to a root-cause alarm. If this parameter is set to true at least box level correlation will be performed.	True/False
correlate-to-cloud	Determines whether a special alarm is created for some events, when there is no root cause found. These events are then correlated to the alarm.	True/False False for all events except for: •BGP neighbor loss syslog •OSPF neighbor loss syslog •EIGRP syslogs •Cisco IGRP syslogs
send-uncorrelated	Determines whether to continue processing the event even when a root-cause alarm was not found.	True/False
correlation-delay	Period of time (in milliseconds) to wait before attempting to find and correlate to a root-cause - Obsolete Parameter.	Positive integer
expiration-time	Period of time (in milliseconds) required to wait before attempting to find a root-cause. It also controls when an event will become an alarm (if it is ticketable and did not correlate to some other alarm prior to the expiration of this interval)	Positive integer
time-stamp-delay	Used for "normalization" of the event occurrence time. The value (in milliseconds) is subtracted from the event time, to compensate for the time difference with the root-cause alarm). It is also used for running the network correlation against the historic network configuration	Positive integer
drop-event	Whether event should be dropped on VNE level - not forwarded to GW level.	True/False

Network Correlation Parameters

These parameters control the alarm's behavior in initiating an active correlation-search flow.

Name	Description	Permitted values
activate-flow	Determines whether to initiate Network level correlation.	True/False
flow-delay	Defines the time (in milliseconds) to wait before initiating the network correlation flow. Increasing this value causes the alarm to wait longer before attempting correlation. If this value is too high the correlation will be meaningless as it will show events that happened a very long time ago. Decreasing this value causes the alarm to wait a shorter period of time before attempting correlation.	Positive integer
flow-activation-message	Identifies the flow process functionality	IPBasedActiveFlowTriggerMessage
alarm-min-age	Defines how old (at least) the alarm should be in order to be a root-cause for a specified event.	Positive integer
flow-ttl	How many DCM hops may the flow trace before being stopped	Positive integer
weight	Defines the weight of an alarm as a correlation candidate. The "heavier" the alarm the more likely it will be chosen as root cause.	-2 - weightless or -1 - maximum weight or Positive integer

---

Note All delays should be smaller than expiration time to allow correlation to take place. Flow activation delay is being counted only when the correlation delay has expired.

---

Flapping Event Definitions Parameters

These parameters control the alarm's behavior in setrn=mining its flapping state.

Name	Description	Permitted values
Enabled	Is the flapping enabled for this event.	True/False
Flapping interval	The maximum amount of time (in milliseconds) between two alarms which can be considered as a flapping change.	Positive integer
Flapping threshold	After this amount of changes (each change arriving at an interval lower then the "flapping interval"), the event will be considered as flapping.	Positive integer
Update interval	After this interval (in milliseconds) an update will be sent	Positive integer
Clear interval	The amount of time (in milliseconds) an event has to stay in one state to be considered as a normal alarm and not in a flapping state	Positive integer
Update threshold	After this number of flapping alarms, an update will be sent to the Gateway updating the alarm with the number of events received.	Positive integer
