Golden Source Registry

---

About this appendix:

This appendix provides details of the Golden Source Registry.

The Golden Source registry is the master registry responsible for maintaining, distributing, and updating registry configuration files to all of the Cisco ANA Units and the Cisco ANA Gateway server. The master copy of the Golden source files is centrally located on the Cisco ANA Gateway server:

~sheer/Main/registry/ConfigurationFiles

•/0.0.0.0 is the template folder used by the system.

•/127.0.0.1 is the Cisco ANA Gateway sub-folder.

•A sub-folder for each of the Cisco ANA Units.

These sub-folders are created during the installation procedure. Each sub-folder contains the relevant registry .xml files. These files can either be edited manually using Telnet and an editor or using the Cisco Registry Tool.

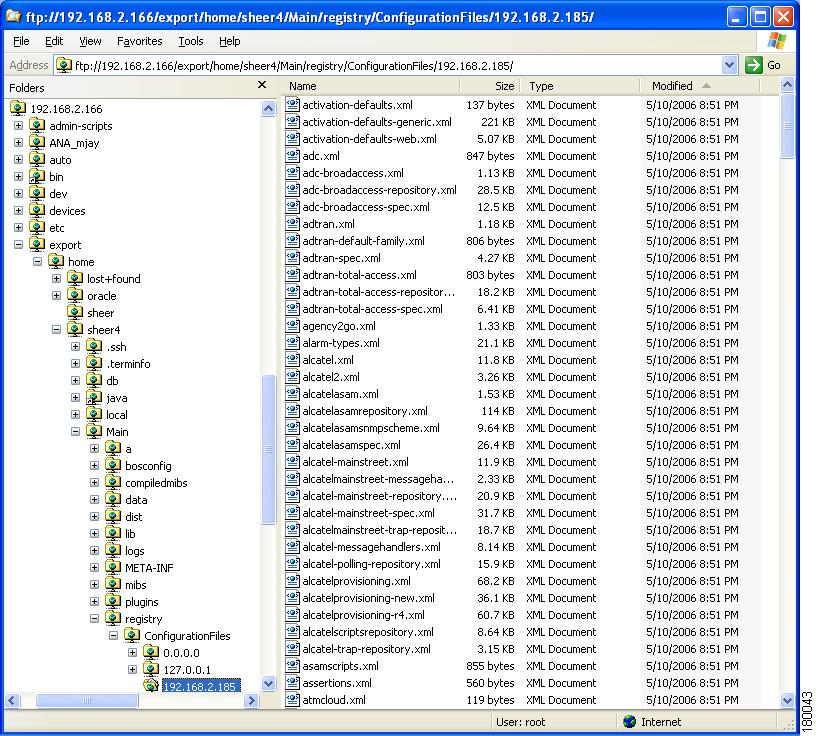

The screen below displays the registry files for each Cisco ANA server and the Golden Source hives.

Figure C-1 Registry Files and Golden Source Hives

The Golden Source mechanism enables consistent management of the entire system. Each Cisco ANA Unit and Cisco ANA Gateway has its own set of registry configuration files and parameters. The registry files are replicated automatically during the installation of the Cisco ANA Unit and Cisco ANA Gateway.

Each time a Cisco ANA Unit and Cisco ANA Gateway process starts it accesses the Golden Source and retrieves the updated configuration. All additions and changes to the Golden Source are automatically sent to the relevant Cisco ANA Servers. Each Cisco ANA Unit keeps a local copy of its relevant registry files. When a Cisco ANA Unit cannot connect to the Cisco ANA Gateway this local copy is used.
