End-to-End SBC Configuration Example on a Cisco XR 12000 Series Router

End-to-End SBC Configuration Example on a Cisco XR 12000 Series Router

---

This section contains a complete Cisco XR 12000 Series Router SBC configuration for the topology shown in Figure 17.

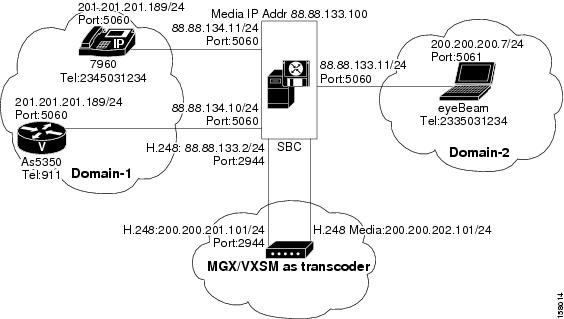

Figure 17 SBC on Cisco XR 12000 Series Router Topology

hostname sbc-node9

line template 1

 exec-timeout 0 0

 transport input all

 transport output all

!

line console

 exec-timeout 0 0

!

exception choice 1 compress on filepath disk0:/

exception choice 2 compress on filepath disk0:/tmp

logging on

logging console debugging

service timestamps log datetime msec

service timestamps debug datetime msec

placement program isis

 affinity location-set 0/0/CPU0 default

!

placement program ospf

 affinity location-set 0/0/CPU0 default

!

placement program default

 affinity location-set 0/0/CPU0 default

!

telnet vrf default ipv4 server max-servers 10

username cisco123

 password 7 094F471A1A0A4640584C

 group root-system

!

aaa authentication login default local

cdp

vty-pool default 0 4 line-template 1

router-id Loopback0

ntp

 server 1.1.1.1 source Loopback0

!

interface Loopback0

 ipv4 address 1.1.1.12 255.255.255.255

!

interface MgmtEth0/0/CPU0/0

 ipv4 address 172.20.210.176 255.255.255.128

!

interface MgmtEth0/0/CPU0/1

 shutdown

!

interface MgmtEth0/0/CPU0/2

 shutdown

!

interface MgmtEth0/3/CPU0/0

 shutdown

!

interface MgmtEth0/3/CPU0/1

 shutdown

!

interface MgmtEth0/3/CPU0/2

 shutdown

!

interface GigabitEthernet0/5/0/0

 description connection to core node1

 cdp

 ipv4 address 192.168.133.2 255.255.255.0

 negotiation auto

 load-interval 30

!

interface GigabitEthernet0/5/0/1

 description connect to 7206-9

 cdp

 ipv4 address 192.168.233.1 255.255.255.0

 negotiation auto

 load-interval 30

!

interface GigabitEthernet0/5/0/2

 shutdown

!

interface GigabitEthernet0/5/0/3

 shutdown

!

interface SBC1

 description ==== DOMAIN-2 Network =====

 ipv4 address 88.88.133.1 255.255.255.0

 service-location preferred-active 0/3/CPU0

!

interface SBC2

 description ==== DOMAIN-1 Network =====

 ipv4 address 88.88.134.1 255.255.255.0

 service-location preferred-active 0/3/CPU0

!

router static

 address-family ipv4 unicast

  171.0.0.0/8 172.20.210.129

  172.0.0.0/8 172.20.210.129

 !

!

router isis core

 is-type level-2-only

 net 50.0001.0000.0000.0012.00

 nsf cisco

 address-family ipv4 unicast

  redistribute ospf vlan109 level-2 metric 20

 !

 interface SBC1

  passive

  address-family ipv4 unicast

  !

 !

 interface SBC2

  passive

  address-family ipv4 unicast

  !

 !

 interface Loopback0

  passive

  address-family ipv4 unicast

  !

 !

 interface GigabitEthernet0/5/0/0

  address-family ipv4 unicast

  !

 !

!

router ospf vlan109

 log adjacency changes detail

 nsf cisco

 redistribute isis core metric 10

 area 0

  interface GigabitEthernet0/5/0/1

  !

  interface SBC1

   passive

  !

  interface SBC2

   passive

  !

 !

!

sbc ABC

 service-location preferred-active 0/3/CPU0

 sbe

  media-gateway ipv4 200.200.201.101

   codecs m=audio 1234 RTP/AVP 0 18,a=rtpmap:0 PCMU/8000,a=rtpmap:18 G729/8000

   transcoder

  !

  control address h248 index 1

   ipv4 88.88.133.2

   port 2944

   transport udp

  !

  activate

  adjacency sip 7960-8

   signaling-address ipv4 88.88.134.11

   signaling-port 5060

   remote-address ipv4 201.201.201.189/32

   signaling-peer 201.201.201.189

   signaling-peer-port 5060

   account DOMAIN-1

   attach

  !

  adjacency sip eyeBEAM-1

   signaling-address ipv4 88.88.133.11

   signaling-port 5060

   remote-address ipv4 200.200.200.7/32

   signaling-peer 200.200.200.7

   signaling-peer-port 5061

   account DOMAIN-2

   attach

  !

  adjacency sip SIP-AS5350-9

   signaling-address ipv4 88.88.134.10

   signaling-port 5060

   remote-address ipv4 201.201.201.190/32

   signaling-peer 201.201.201.190

   signaling-peer-port 5060

   account DOMAIN-1

   attach

  !

  cac-policy-set 1

   first-cac-scope global

   first-cac-table WHITE-LIST-BY-CATEGORY

   cac-table STANDARD-POLICY-LIST

    match-type policy-set

    entry 1

     match-value global

     action cac-complete

     max-num-calls 2

    !

   !

   cac-table WHITE-LIST-BY-CATEGORY

    match-type category

    entry 1

     match-value EMERGENCY

     action cac-complete

    !

    entry 2

     match-value NON-EMERGENCY

     action next-table STANDARD-POLICY-LIST

    !

   !

   complete

  !

  active-cac-policy-set 1

  call-policy-set 1

   first-call-routing-table ROUTE-DEST-NUM

   first-number-analysis-table NA-CATEGORIZE-DNIS

   rtg-dst-address-table ROUTE-DEST-NUM

    entry 1

     action complete

     dst-adjacency SIP-AS5350-9

     match-address 234501

     prefix

    !

    entry 2

     action complete

     dst-adjacency 7960-8

     match-address 2345031234

    !

    entry 3

     action complete

     dst-adjacency eyeBEAM-1

     match-address 2335031234

    !

    entry 4

     action complete

     dst-adjacency SIP-AS5350-9

     match-address 911

    !

   !

   na-dst-prefix-table NA-CATEGORIZE-DNIS

    entry 1

     action accept

     match-prefix 911

     category EMERGENCY

    !

    entry 2

     action accept

     match-prefix 233

     category NON-EMERGENCY

    !

   !

   complete

  !

  active-call-policy-set 1

 !

 dbe

  media-address ipv4 88.88.133.100

  activate

 !

!

end
