Configuring Client-Initiated Dial-In VPDN Tunneling

---

Client-initiated dial-in virtual private dialup networking (VPDN) tunneling deployments allow remote users to access a private network over a shared infrastructure with end-to-end protection of private data. Client-initiated VPDN tunneling does not require additional security to protect data between the client and the Internet service provider (ISP) network access server (NAS).

All of the tasks documented in this module require that tasks documented elsewhere in the   have first been completed.

Module History

This module was first published on May 2, 2005, and last updated on October 31, 2008.

Finding Feature Information in This Module

Your Cisco IOS software release may not support all features. To find information about feature support and configuration, use the "Feature Information for Client-Initiated VPDN Tunneling" section.

Contents

•Prerequisites for Client-Initiated VPDN Tunneling

•Information About Client-Initiated VPDN Tunneling

•How to Configure Client-Initiated VPDN Tunneling

•Configuration Examples for Client-Initiated VPDN Tunneling

•Where to Go Next

•Additional References

•Feature Information for Client-Initiated VPDN Tunneling

Prerequisites for Client-Initiated VPDN Tunneling

•If the client device is a PC, appropriate Virtual Private Network (VPN) software must be installed and configured. For information on installing and configuring client VPN software, refer to the instructions provided with the VPN software package.

•The NAS should be configured to receive incoming calls from clients using ISDN, the public switched telephone network (PSTN), digital subscriber line (DSL), or cable modem. For information on configuring a device to accept dial-in calls, refer to the appropriate sections of the Cisco IOS Dial Technologies Configuration Guide, Release 12.4 or the Cisco IOS Broadband and DSL Configuration Guide, Release 12.4.

•The interface between the NAS and the tunnel server must be configured for PPP. For information on configuring PPP, refer to the "PPP Configuration" part of the Cisco IOS Dial Technologies Configuration Guide, Release 12.4.

•Before performing the tasks documented in this module, you must perform the required tasks in the "Configuring AAA for VPDNs" module.

Restrictions for Client-Initiated VPDN Tunneling

•The Layer 2 Forwarding (L2F) protocol is not supported.

•Layer 2 Tunneling Protocol (L2TP) and L2TP Version 3 (L2TPv3) protocols are supported only for tunnels initiated by a client router.

•The Point-to-Point Tunneling Protocol (PPTP) is supported only for tunnels initiated by a client PC running appropriate VPN software.

Information About Client-Initiated VPDN Tunneling

Before configuring client-initiated VPDN tunneling you should understand the following concepts:

•Client-Initiated VPDN Tunneling

•Client-Initiated VPDN Tunneling Using the L2TP or L2TPv3 Protocol

•Client-Initiated VPDN Tunneling Using the PPTP Protocol

Client-Initiated VPDN Tunneling

Client-initiated dial-in VPDN tunneling is also known as voluntary tunneling. In a client-initiated dial-in VPDN scenario, the client device initiates a Layer 2 tunnel to the tunnel server, and the NAS does not participate in tunnel negotiation or establishment. In this scenario the NAS is not a tunnel endpoint, it simply provides internet connectivity.

The client can be either of the following devices:

•A properly configured router attached to a client network using either L2TP or L2TPv3.

•A PC that is running appropriate VPN client software using PPTP.

Client-initiated VPDN tunneling provides end-to-end security for the connection from the client to the tunnel server. Unlike NAS-initiated VPDN scenarios, no additional security is required to protect the connection between the client device and the NAS.

Figure 1 depicts a generic client-initiated VPDN tunneling scenario. The local device, which can be either a client PC or a client router, connects to the NAS through a medium that supports PPP. The client may initiate a VPDN tunnel to the tunnel server using either the PPTP, L2TP, or L2TPv3 protocol. The type of Layer 2 tunnel that is established is dependent on the configuration of both the client device and remote tunnel server.

Figure 1 Client-Initiated Tunneling

Client-Initiated VPDN Tunneling Using the L2TP or L2TPv3 Protocol

Client-initiated tunnels using the L2TP or L2TPv3 protocol must be initiated by a router configured as the local peer. The L2TP and L2TPv3 protocols are not supported for client-initiated tunnels from a client PC.

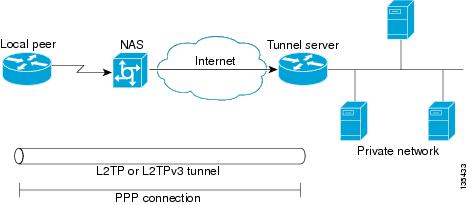

In the client-initiated tunneling scenario depicted in Figure 2, the local peer connects to the NAS through a medium that supports PPP, such as a dialup modem, DSL, ISDN, or cable modem. The client may initiate a VPDN tunnel to the tunnel server using either the L2TP or L2TPv3 protocol. The type of Layer 2 tunnel that is established is dependent on the configuration of both the local peer and remote tunnel server.

Figure 2

L2TP or L2TPv3 Client-Initiated Tunneling

Client-Initiated VPDN Tunneling Using the PPTP Protocol

Client-initiated tunnels using the PPTP protocol must be initiated by a client PC configured with appropriate VPN client software. The client must manage the software that initiates the tunnel on the PC. The PPTP protocol is not supported for client-initiated tunnels from a local peer router.

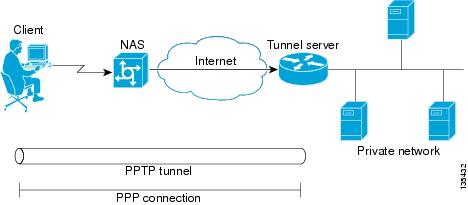

In the client-initiated tunneling scenario depicted in Figure 3, the client PC connects to the NAS through a medium that supports PPP, such as a dialup modem, DSL, ISDN, or cable modem. The client may initiate a VPDN tunnel to the tunnel server using the PPTP protocol.

Figure 3 PPTP Client-Initiated Tunneling

How to Configure Client-Initiated VPDN Tunneling

Perform one of the following procedures to configure client-initiated VPDN tunneling:

•Configuring Client-Initiated Tunneling Using the L2TP or L2TPv3 Protocol (optional)

•Configuring Client-Initiated VPDN Tunneling Using the PPTP Protocol (optional)

Configuring Client-Initiated Tunneling Using the L2TP or L2TPv3 Protocol

Support for client-initiated tunneling using the L2TP or L2TPv3 protocol was introduced in Cisco IOS Release 12.3(2)T. The type of tunnel that is established is dependent on the configuration of both the local and remote peers. The local and remote peers must be configured to establish the same type of tunnel.

L2TP or L2TPv3 client-initiated tunnels use a virtual-PPP interface. The virtual-PPP interface adds Layer 2 encapsulation to Layer 3 packets, allowing them to be sent to the tunnel server over an L2TP or L2TPv3 tunnel.

Perform the following tasks to configure client-initiated VPDN tunneling using L2TP or L2TPv3:

•Configuring L2TP or L2TPv3 Client-Initiated VPDN Tunneling on the Local Peer (required)

•Configuring Client-Initiated Tunneling on the Tunnel Server for L2TP Tunnels (required for L2TP configurations)

•Configuring Client-Initiated Tunneling on the Tunnel Server for L2TPv3 Tunnels (required for L2TPv3 configurations)

•Configuring L2TP Control Channel Parameters (optional)

•Configuring the Pseudowire (required)

Prerequisites

•This procedure requires Cisco IOS Release 12.3(2)T or a later release on both the local peer and the tunnel server for L2TPv3 tunneling configurations.

•This procedure requires Cisco IOS Release 12.3(2)T or a later release on the local peer for L2TP tunneling configurations.

•Cisco Express Forwarding must be enabled.

Restrictions

•PPP is the only encapsulation method supported.

•PPTP tunneling is not supported.

•Session establishment cannot be triggered by interesting traffic.

•Failover is not supported with the L2TP peer.

•L2TP redirect is not supported.

Configuring L2TP or L2TPv3 Client-Initiated VPDN Tunneling on the Local Peer

Perform this task to configure the local peer to initiate VPDN tunnels to the tunnel server. This task applies to both L2TP and L2TPv3 configurations.

SUMMARY STEPS

1. enable

2. configure terminal

3. l2tp-class [l2tp-class-name]

4. exit

5. pseudowire-class [pw-class-name]

6. exit

7. interface virtual-ppp number

8. ip unnumbered interface-type interface-number

9. ppp authentication protocol1 [protocol2...] [if-needed] [list-name | default] [callin] [one-time]

10. ppp chap hostname [hostname]

11. pseudowire peer-ip-address vcid pw-class pw-class-name [sequencing {transmit | receive | both}]

12. exit

13. ip route prefix mask {ip-address | interface-type interface-number [ip-address]} [distance] [name] [permanent] [tag tag]

DETAILED STEPS

	Command or Action	Purpose
Step 1	enable Example: Router> enable	Enables privileged EXEC mode. •Enter your password if prompted.
Step 2	configure terminal Example: Router# configure terminal	Enters global configuration mode.
Step 3	l2tp-class [l2tp-class-name] Example: Router(config)# l2tp-class l2tpclass2	Specifies the L2TP class name and enters L2TP class configuration mode. •The l2tp-class-name argument is optional. However, if you want to configure multiple L2TP classes you must specify a unique l2tp-class-name for each one. •You may configure L2TP control channel parameters in L2TP class configuration mode. See the "Configuring L2TP Control Channel Parameters" section for more information.
Step 4	exit Example: Router(config-l2tp-class)# exit	Exits L2TP class configuration mode.
Step 5	pseudowire-class [pw-class-name] Example: Router(config)# pseudowire-class pwclass2	Enters pseudowire class configuration mode and optionally specifies the name of the L2TP pseudowire class. •Pseudowire class configuration options must be configured in pseudowire class configuration mode. See the "Configuring the Pseudowire" section for more information.
Step 6	exit Example: Router(config-pw)# exit	Exits pseudowire class configuration mode.
Step 7	interface virtual-ppp number Example: Router(config)# interface virtual-ppp 2	Enters interface configuration mode and assigns a virtual-PPP interface number.
Step 8	ip unnumbered interface-type interface-number Example: Router(config-if)# ip unnumbered loopback 1	Enables IP processing on an interface without assigning an explicit IP address to the interface.
Step 9	ppp authentication protocol1 [protocol2...] [if-needed] [list-name | default] [callin] [one-time] Example: Router(config-if)# ppp authentication chap	Enables Challenge Handshake Authentication Protocol (CHAP) or Password Authentication Protocol (PAP) or both and specifies the order in which CHAP and PAP authentication is selected on the interface.
Step 10	ppp chap hostname [hostname] Example: Router(config-if)# ppp chap hostname peer2	Creates a pool of dialup routers that all appear to be the same host when authenticating with CHAP.
Step 11	pseudowire peer-ip-address vcid pw-class pw-class-name [sequencing {transmit | receive | both}] Example: Router(config-if)# pseudowire 172.16.32.24 10 pw-class pwclass2	Specifies the IP address of the tunnel server and the 32-bit virtual circuit identifier (VCID) shared between the devices at each end of the control channel. •peer-ip-address vcid—The tunnel server IP address and VCID must be a unique combination on the router. Note For L2TPv3 tunnels, the VCID configured on the local peer must match the VCID configured on the tunnel server. •pw-class pw-class-name—The pseudowire class configuration from which the data encapsulation type will be taken.The pw-class keyword binds the pseudowire statement to a specific pseudowire class. The pseudowire class then serves as the template configuration for all attachment circuits bound to it. •sequencing—The optional sequencing keyword specifies whether sequencing is required for packets that are received, sent, or both received and sent. Note If the network between the tunnel endpoints is unreliable, packets may be delivered out of order. Enabling sequencing can reduce the number of dropped packets and network latency.
Step 12	exit Example: Router(config-if)# exit	Exits interface configuration mode.
Step 13	ip route prefix mask {ip-address | interface-type interface-number [ip-address]} [distance] [name] [permanent] [tag tag] Example: Router(config)# ip route 10.20.20.0 255.255.255.0 virtual-PPP 1	Establishes static routes.

What to Do Next

You must perform one of the following tasks depending on the tunneling protocol you are configuring:

•Configuring Client-Initiated Tunneling on the Tunnel Server for L2TP Tunnels

•Configuring Client-Initiated Tunneling on the Tunnel Server for L2TPv3 Tunnels

Configuring Client-Initiated Tunneling on the Tunnel Server for L2TP Tunnels

The tunnel server must be configured to terminate VPDN tunnels. The same tunneling protocol must be configured on the tunnel server and the local peer device. For L2TP tunnels, the tunneling protocol is configured in a VPDN group on the tunnel server. On the local peer, the tunneling protocol is configured in a pseudowire class.

When a request to establish an L2TP tunnel is received by the tunnel server, the tunnel server must create a virtual access interface. The virtual access interface is cloned from a virtual template interface, used, and then freed when no longer needed. The virtual template interface is a logical entity that is not tied to any physical interface.

Perform this task to configure the tunnel server to terminate client-initiated L2TP tunnels and to configure a basic virtual template. For more detailed information about all of the configuration options available for a virtual template, see the "Configuring Virtual Template Interfaces" section of the Cisco IOS Dial Technologies Configuration Guide, Release 12.4.

Prerequisites

You must perform the required tasks in the "Configuring AAA for VPDNs" module.

SUMMARY STEPS

1. enable

2. configure terminal

3. vpdn-group name

4. description string

5. accept-dialin

6. protocol l2tp

7. virtual-template template-number

8. exit

9. terminate-from hostname hostname

10. exit

11. interface virtual-template number

12. ip unnumbered interface-type interface-number

13. ppp authentication protocol1 [protocol2...] [if-needed] [list-name | default] [callin] [one-time]

14. ppp chap hostname [hostname]

DETAILED STEPS

	Command or Action	Purpose
Step 1	enable Example: Router> enable	Enables privileged EXEC mode. •Enter your password if prompted.
Step 2	configure terminal Example: Router# configure terminal	Enters global configuration mode.
Step 3	vpdn-group name Example: Router(config)# vpdn group vpdngroup1	Enters VPDN group configuration mode and associates a VPDN group to a customer or VPDN profile.
Step 4	description string Example: Router(config-vpdn)# description clientl2tp	(Optional) Adds a description to a VPDN group.
Step 5	accept-dialin Example: Router(config-vpdn)# accept-dialin	Enters VPDN accept-dialin configuration mode, configures the tunnel server to accept tunneled PPP connections, and creates an accept-dialin VPDN subgroup.
Step 6	protocol l2tp Example: Router(config-vpdn-acc-in)# protocol l2tp	Specifies the Layer 2 protocol that the VPDN subgroup will use.
Step 7	virtual-template template-number Example: Router(config-vpdn-acc-in)# virtual-template 1	Specifies which virtual template will be used to clone virtual access interfaces.
Step 8	exit Example: Router(config-vpdn-acc-in)# exit	Exits VPDN accept-dialin configuration mode.
Step 9	terminate-from hostname hostname Example: Router(config-vpdn)# terminate-from hostname peer1	Specifies the hostname of the remote LAC or LNS that will be required when accepting a VPDN tunnel.
Step 10	exit Example: Router(config-vpdn)# exit	Exits VPDN group configuration mode.
Step 11	interface virtual-template number Example: Router(config)# interface virtual-template 1	Enters interface configuration mode and creates a virtual template interface that can be configured and applied dynamically in creating virtual access interfaces.
Step 12	ip unnumbered interface-type interface-number Example: Router(config-if)# ip unnumbered loopback 1	Enables IP processing on an interface without assigning an explicit IP address to the interface.
Step 13	ppp authentication protocol1 [protocol2...] [if-needed] [list-name | default] [callin] [one-time] Example: Router(config-if)# ppp authentication chap	Enables CHAP or PAP or both and specifies the order in which CHAP and PAP authentication is selected on the interface.
Step 14	ppp chap hostname [hostname] Example: Router(config-if)# ppp chap hostname peer2	Creates a pool of dialup routers that all appear to be the same host when authenticating with CHAP.

What to Do Next

•You may perform the optional task in the "Configuring L2TP Control Channel Parameters" section.

•You must perform the task in the "Configuring the Pseudowire" section.

Configuring Client-Initiated Tunneling on the Tunnel Server for L2TPv3 Tunnels

The tunnel server must be configured to terminate VPDN tunnels. The same tunneling protocol must be configured on the tunnel server and the local peer device. For L2TPv3 tunnels, the tunneling protocol is configured in a pseudowire class on both the tunnel server and the local peer.

Perform this task to configure the tunnel server to terminate client-initiated L2TPv3 tunnels.

SUMMARY STEPS

1. enable

2. configure terminal

3. l2tp-class [l2tp-class-name]

4. exit

5. pseudowire-class [pw-class-name]

6. exit

7. interface virtual-ppp number

8. ip unnumbered interface-type interface-number

9. ppp authentication protocol1 [protocol2...] [if-needed] [list-name | default] [callin] [one-time]

10. ppp chap hostname [hostname]

11. pseudowire peer-ip-address vcid pw-class pw-class-name [sequencing {transmit | receive | both}]

12. exit

13. ip route prefix mask {ip-address | interface-type interface-number [ip-address]} [distance] [name] [permanent] [tag tag]

DETAILED STEPS

	Command or Action	Purpose
Step 1	enable Example: Router> enable	Enables privileged EXEC mode. •Enter your password if prompted.
Step 2	configure terminal Example: Router# configure terminal	Enters global configuration mode.
Step 3	l2tp-class [l2tp-class-name] Example: Router(config)# l2tp-class l2tpclass2	Specifies the L2TP class name and enters L2TP class configuration mode. •The l2tp-class-name argument is optional. However, if you want to configure multiple L2TP classes you must specify a unique l2tp-class-name for each one. •You may configure L2TP control channel parameters in L2TP class configuration mode. See the "Configuring L2TP Control Channel Parameters" section for more information.
Step 4	exit Example: Router(config-l2tp-class)# exit	Exits L2TP class configuration mode.
Step 5	pseudowire-class [pw-class-name] Example: Router(config)# pseudowire-class pwclass2	Enters pseudowire class configuration mode and optionally specifies the name of the L2TP pseudowire class. •You must configure pseudowire class configuration options in pseudowire class configuration mode. See the "Configuring the Pseudowire" section for more information.
Step 6	exit Example: Router(config-pw)# exit	Exits pseudowire class configuration mode.
Step 7	interface virtual-ppp number Example: Router(config)# interface virtual-ppp 2	Enters interface configuration mode and assigns a virtual-PPP interface number.
Step 8	ip unnumbered interface-type interface-number Example: Router(config-if)# ip unnumbered loopback 1	Enables IP processing on an interface without assigning an explicit IP address to the interface.
Step 9	ppp authentication protocol1 [protocol2...] [if-needed] [list-name | default] [callin] [one-time] Example: Router(config-if)# ppp authentication chap	Enables CHAP or PAP or both and specifies the order in which CHAP and PAP authentication is selected on the interface.
Step 10	ppp chap hostname [hostname] Example: Router(config-if)# ppp chap hostname peer2	Creates a pool of dialup routers that all appear to be the same host when authenticating with CHAP.
Step 11	pseudowire peer-ip-address vcid pw-class pw-class-name [sequencing {transmit | receive | both}] Example: Router(config-if)# pseudowire 172.16.32.24 10 pw-class pwclass2	Specifies the IP address of the local peer and the 32-bit VCID shared between the local peer and the tunnel server. •peer-ip-address vcid—The peer router IP address and VCID must be a unique combination on the router. Note The VCID configured on the tunnel server must match the VCID configured on the local peer. •pw-class pw-class-name—The pseudowire class configuration from which the data encapsulation type will be taken.The pw-class keyword binds the pseudowire statement to a specific pseudowire class. The pseudowire class then serves as the template configuration for all attachment circuits bound to it. •sequencing—The optional sequencing keyword specifies whether sequencing is required for packets that are received, sent, or both received and sent. Note If the network between the tunnel endpoints is unreliable, packets may be delivered out of order. Enabling sequencing can reduce the number of dropped packets and network latency.
Step 12	exit Example: Router(config-if)# exit	Exits interface configuration mode.
Step 13	ip route prefix mask {ip-address | interface-type interface-number [ip-address]} [distance] [name] [permanent] [tag tag] Example: Router(config)# ip route 10.20.20.0 255.255.255.0 Virtual-PPP 1	Establishes static routes.

What to Do Next

•You may perform the optional task in the "Configuring L2TP Control Channel Parameters" section.

•You must perform the task in the "Configuring the Pseudowire" section.

Configuring L2TP Control Channel Parameters

The L2TP class configuration procedure creates a template of L2TP control channel parameters that can be inherited by different pseudowire classes. L2TP control channel parameters are used in control channel authentication, keepalive messages, and control channel negotiation. Configuring L2TP control channel parameters is optional.

For L2TP, the L2TP class is configured only on the local peer. An L2TP class was defined for the local peer in the task "Configuring L2TP or L2TPv3 Client-Initiated VPDN Tunneling on the Local Peer."

For L2TPv3, an L2TP class must be configured on both the local peer and the tunnel server. An L2TP class was defined for the local peer in the task "Configuring L2TP or L2TPv3 Client-Initiated VPDN Tunneling on the Local Peer." An L2TP class was defined for the tunnel server in the task "Configuring Client-Initiated Tunneling on the Tunnel Server for L2TPv3 Tunnels."

The three groups of L2TP control channel parameters that you can configure for an L2TP class are described in the following sections:

•Configuring L2TP Control Channel Timing Parameters (optional)

•Configuring L2TP Control Channel Authentication Parameters (optional)

•Configuring L2TP Control Channel Maintenance Parameters (optional)

After the router enters L2TP class configuration mode, you can configure L2TP control channel parameters in any order. If you have multiple authentication requirements you can configure multiple sets of L2TP class control channel parameters with different L2TP class names. However, only one set of L2TP class control channel parameters can be applied to a connection between any pair of IP addresses.

Prerequisites

The following configuration tasks must be completed before configuring L2TP control channel parameters:

L2TP Tunnels

•Configuring L2TP or L2TPv3 Client-Initiated VPDN Tunneling on the Local Peer

L2TPv3 Tunnels

•Configuring L2TP or L2TPv3 Client-Initiated VPDN Tunneling on the Local Peer

•Configuring Client-Initiated Tunneling on the Tunnel Server for L2TPv3 Tunnels

Configuring L2TP Control Channel Timing Parameters

The following L2TP control channel timing parameters can be configured in L2TP class configuration mode:

•Packet size of the receive window used for the control channel

•Retransmission parameters used for control messages

•Timeout parameters used for the control channel

Perform this task to configure a set of timing control channel parameters for an L2TP class. All of the timing control channel parameter configurations are optional and may be configured in any order. If these parameters are not configured, the default values are applied.

SUMMARY STEPS

1. enable

2. configure terminal

3. l2tp-class [l2tp-class-name]

4. receive-window size

5. retransmit {initial retries initial-retries | retries retries | timeout {max | min} timeout}

6. timeout setup seconds

DETAILED STEPS

	Command or Action	Purpose
Step 1	enable Example: Router> enable	Enables privileged EXEC mode. •Enter your password if prompted.
Step 2	configure terminal Example: Router# configure terminal	Enters global configuration mode.
Step 3	l2tp-class [l2tp-class-name] Example: Router(config)# l2tp-class class1	Specifies the L2TP class name and enters L2TP class configuration mode. •The l2tp-class-name argument is optional. However, if you want to configure multiple L2TP classes you must specify a unique l2tp-class-name for each one.
Step 4	receive-window size Example: Router(config-l2tp-class)# receive-window 30	(Optional) Configures the number of packets that can be received by the remote peer before backoff queueing occurs. •The valid values range from 1 to the upper limit the peer has for receiving packets. The default value is the upper limit.
Step 5	retransmit {initial retries initial-retries | retries retries | timeout {max | min} timeout} Example: Router(config-l2tp-class)# retransmit retries 10	(Optional) Configures parameters that affect the retransmission of control packets. •initial retries—Specifies how many start control channel requests (SCCRQs) are re-sent before the device gives up on the session. Valid values for the initial-retries argument range from 1 to 1000. The default value is 2. •retries—Specifies how many retransmission cycles occur before the device determines that the peer router does not respond. Valid values for the retries argument range from 1 to 1000. The default value is 15. •timeout {max | min}—Specifies maximum and minimum retransmission intervals (in seconds) for resending control packets. Valid values for the timeout argument range from 1 to 8. The default maximum interval is 8; the default minimum interval is 1.
Step 6	timeout setup seconds Example: Router(config-l2tp-class)# timeout setup 400	(Optional) Configures the amount of time, in seconds, allowed for setting up a control channel. •Valid values for the seconds argument range from 60 to 6000. The default value is 300.

What to Do Next

•You may perform the optional task in the "Configuring L2TP Control Channel Authentication Parameters" section.

•You may perform the optional task in the "Configuring L2TP Control Channel Maintenance Parameters" section.

•You must perform the task in the "Configuring the Pseudowire" section.

Configuring L2TP Control Channel Authentication Parameters

The following L2TP control channel authentication parameters can be configured in L2TP class configuration mode:

•Authentication for the L2TP control channel

•Local hostname used for authenticating the control channel

•Hiding the attribute-value (AV) pairs in outgoing control messages

•Password used for control channel authentication and AV pair hiding

Perform this task to configure a set of authentication control channel parameters for an L2TP class. All of the authentication control channel parameter configurations are optional and may be configured in any order. If these parameters are not configured, the default values will be applied.

SUMMARY STEPS

1. enable

2. configure terminal

3. l2tp-class [l2tp-class-name]

4. authentication

5. hostname name

6. hidden

7. password [encryption-type] password

DETAILED STEPS

	Command or Action	Purpose
Step 1	enable Example: Router> enable	Enables privileged EXEC mode. •Enter your password if prompted.
Step 2	configure terminal Example: Router# configure terminal	Enters global configuration mode.
Step 3	l2tp-class [l2tp-class-name] Example: Router(config)# l2tp-class class1	Specifies the L2TP class name and enters L2TP class configuration mode. •The l2tp-class-name argument is optional. However, if you want to configure multiple L2TP classes you must specify a unique l2tp-class-name for each one.
Step 4	authentication Example: Router(config-l2tp-class)# authentication	(Optional) Enables authentication for the control channel between PE routers. •Authentication is enabled by default.
Step 5	hostname name Example: Router(config-l2tp-class)# hostname yb2	(Optional) Specifies a hostname used to identify the router during L2TP control channel authentication. •If you do not use this command, the default hostname of the router is used.
Step 6	hidden Example: Router(config-l2tp-class)# hidden	(Optional) Hides the AV pairs in control messages. •AV pairs are not hidden by default.
Step 7	password [encryption-type] password Example: Router(config-l2tp-class)# password tunnel2	(Optional) Configures the password used for control channel authentication. •The valid values for the optional encryption type range from 0 to 7. If you do not use this command to specify a password, the password associated with the remote peer PE is taken from the value entered with the username password value global configuration command. Note The password configured on the local peer must match the password configured on the tunnel server.

What to Do Next

•You may perform the optional task in the "Configuring L2TP Control Channel Maintenance Parameters" section.

•You must perform the task in the "Configuring the Pseudowire" section.

Configuring L2TP Control Channel Maintenance Parameters

The L2TP hello packet keepalive interval control channel maintenance parameter can be configured in L2TP class configuration mode.

Perform this task to configure the interval used for hello messages for an L2TP class. This control channel parameter configuration is optional. If this parameter is not configured, the default value will be applied.

SUMMARY STEPS

1. enable

2. configure terminal

3. l2tp-class [l2tp-class-name]

4. hello interval

DETAILED STEPS

	Command or Action	Purpose
Step 1	enable Example: Router> enable	Enables privileged EXEC mode. •Enter your password if prompted.
Step 2	configure terminal Example: Router# configure terminal	Enters global configuration mode.
Step 3	l2tp-class [l2tp-class-name] Example: Router(config)# l2tp-class class1	Specifies the L2TP class name and enters L2TP class configuration mode. •The l2tp-class-name argument is optional. However, if you want to configure multiple L2TP classes you must specify a unique l2tp-class-name for each one.
Step 4	hello interval Example: Router(config-l2tp-class)# hello 100	(Optional) Specifies the exchange interval (in seconds) used between L2TP hello packets. •Valid values for the interval argument range from 0 to 1000. The default value is 60.

What to Do Next

You must perform the task in the "Configuring the Pseudowire" section.

Configuring the Pseudowire

The pseudowire class configuration procedure creates a configuration template for the pseudowire. You use this template, or class, to configure session-level parameters for L2TP or L2TPv3 sessions that will be used to transport attachment circuit traffic over the pseudowire.

The pseudowire configuration specifies the characteristics of the L2TP or L2TPv3 signaling mechanism, including the data encapsulation type, the control protocol, sequencing, fragmentation, payload-specific options, and IP properties. The setting that determines if signaling is used to set up the pseudowire is also included.

For L2TP, the pseudowire class is configured only on the local peer. A pseudowire class was defined for the local peer in the task "Configuring L2TP or L2TPv3 Client-Initiated VPDN Tunneling on the Local Peer."

For L2TPv3, the pseudowire class must be configured on both the local peer and the tunnel server. A pseudowire class was defined for the local peer in the task "Configuring L2TP or L2TPv3 Client-Initiated VPDN Tunneling on the Local Peer." A pseudowire class was defined for the tunnel server in the task "Configuring Client-Initiated Tunneling on the Tunnel Server for L2TPv3 Tunnels."

Specifying a source IP address to configure a loopback interface is highly recommended. If you do not configure a loopback interface, the router will choose the best available local address. This configuration could prevent a control channel from being established.

If you do not configure the optional pseudowire class configuration commands, the default values are used.

Prerequisites

The following configuration tasks must be completed before configuring the pseudowire:

L2TP Tunnels

•Configuring L2TP or L2TPv3 Client-Initiated VPDN Tunneling on the Local Peer

L2TPv3 Tunnels

•Configuring L2TP or L2TPv3 Client-Initiated VPDN Tunneling on the Local Peer

•Configuring Client-Initiated Tunneling on the Tunnel Server for L2TPv3 Tunnels

SUMMARY STEPS

1. enable

2. configure terminal

3. pseudowire-class [pw-class-name]

4. encapsulation {l2tpv2 | l2tpv3}

5. protocol {l2tpv2 | l2tpv3} [l2tp-class-name]

6. ip local interface interface-name

7. ip pmtu

8. ip tos {value value | reflect}

9. ip dfbit set

10. ip ttl value

11. sequencing {transmit | receive | both}

DETAILED STEPS

	Command or Action	Purpose
Step 1	enable Example: Router> enable	Enables privileged EXEC mode. •Enter your password if prompted.
Step 2	configure terminal Example: Router# configure terminal	Enters global configuration mode.
Step 3	pseudowire-class [pw-class-name] Example: Router(config)# pseudowire-class etherpw	Enters pseudowire class configuration mode and optionally specifies the name of the L2TP pseudowire class.
Step 4	encapsulation {l2tpv2 | l2tpv3} Example: Router(config-pw)# encapsulation l2tpv3	Specifies the data encapsulation method used to tunnel IP traffic. •l2tpv2—L2TP is the tunneling method to be used to encapsulate data in the pseudowire. •l2tpv3—L2TPv3 is the tunneling method to be used to encapsulate data in the pseudowire.
Step 5	protocol {l2tpv2 | l2tpv3} [l2tp-class-name] Example: Router(config-pw)# protocol l2tpv3 class1	Specifies the Layer 2 signaling protocol to be used to manage the pseudowires created with the control channel parameters in the specified L2TP class. •l2tpv2—Specifies L2TP as the signaling protocol to be used. •l2tpv3—Specifies L2TPv3 as the signaling protocol to be used. •l2tp-class-name—(Optional) The name of the L2TP class configuration to be used for pseudowires set up from the pseudowire class. Note If the l2tp-class-name argument is not specified, the default values for L2TP control channel parameters will be used.
Step 6	ip local interface interface-name Example: Router(config-pw)# ip local interface e0/0	Specifies the PE router interface whose IP address is to be used as the source IP address for sending tunneled packets. •Use the same local interface name for all pseudowire classes configured between a pair of PE routers. Note This command must be configured for pseudowire class configurations using L2TPv3 as the data encapsulation method.
Step 7	ip pmtu Example: Router(config-pw)# ip pmtu	(Optional) Enables the discovery of the path maximum transmission unit (PMTU) for tunneled traffic. •This command enables the processing of Internet Control Message Protocol (ICMP) unreachable messages that indicate fragmentation errors in the backbone network that carries L2TPv3 session traffic. Also, this command enables MTU checking for IP packets sent into the session and that have the Don't Fragment (DF) bit set. Any IP packet larger than the MTU is dropped and an ICMP unreachable message is sent. MTU discovery is disabled by default. •This command must be enabled in the pseudowire class configuration for fragmentation of IP packets before the data enters the pseudowire to occur. Note For fragmentation of IP packets before the data enters the pseudowire, we recommend that you also enable the ip dfbit set command in the pseudowire class configuration. This allows the PMTU to be obtained more rapidly.
Step 8	ip tos {value value | reflect} Example: Router(config-pw)# ip tos reflect	(Optional) Configures the value of the type of service (ToS) byte in IP headers of tunneled packets, or reflects the ToS byte value from the inner IP header. •Valid values for the value argument range from 0 to 255. The default ToS byte value is 0.
Step 9	ip dfbit set Example: Router(config-pw)# ip dfbit set	(Optional) Configures the value of the DF bit in the outer headers of tunneled packets. •Use this command if (for performance reasons) you do not want reassembly of tunneled packets to be performed on the peer PE router. This command is disabled by default.
Step 10	ip ttl value Example: Router(config-pw)# ip ttl 100	(Optional) Configures the value of the time to live (TTL) byte in the IP headers of tunneled packets. •Valid values for the value argument range from 1 to 255. The default TTL byte value is 255.
Step 11	sequencing {transmit | receive | both} Example: Router(config-pw)# sequencing both	(Optional) Specifies the direction in which sequencing of data packets in a pseudowire is enabled. •transmit—Updates the Sequence Number field in the headers of data packets sent over the pseudowire according to the data encapsulation method that is used. •receive—Keeps the Sequence Number field in the headers of data packets received over the pseudowire. Out-of-order packets are dropped. •both—Enables both the transmit and receive options. Note If the network between the tunnel endpoints is unreliable, packets may be delivered out of order. Enabling sequencing can reduce the number of dropped packets and network latency.

What to Do Next

•You may perform the optional task in the "Verifying an L2TP Control Channel" section.

•You may perform any of the relevant optional tasks in the "Configuring Additional VPDN Features" and "VPDN Tunnel Management" modules.

Verifying an L2TP Control Channel

Perform this task to display detailed information about the L2TP control channels that are set up to other L2TP-enabled devices for all L2TP sessions on the router.

SUMMARY STEPS

1. enable

2. show l2tun tunnel all

DETAILED STEPS

	Command or Action	Purpose
Step 1	enable Example: Router> enable	Enables privileged EXEC mode. •Enter your password if prompted.
Step 2	show l2tun tunnel all Example: Router# show l2tun tunnel all	Displays the current state of Layer 2 tunnels and information about configured tunnels, including local and remote L2TP hostnames, aggregate packet counts, and control channel information.

What to Do Next

You may perform any of the relevant optional tasks in the "Configuring Additional VPDN Features" and "VPDN Tunnel Management" modules.

Configuring Client-Initiated VPDN Tunneling Using the PPTP Protocol

Client-initiated tunnels using the PPTP protocol must be initiated by a client PC configured with appropriate VPN client software. The client must manage the software that initiates the tunnel on their PC. The PPTP protocol is not supported for client-initiated tunnels initiated by a router.

PPTP uses an enhanced Generic Routing Encapsulation (GRE) mechanism to provide a flow- and congestion-controlled encapsulated datagram service for carrying PPP packets.

The following sections contain information about PPTP features:

•MPPE Encryption of PPTP Tunnels

•PPTP Flow Control Alarm

•Prerequisites for Configuring Client-Initiated VPDN Tunneling Using the PPTP Protocol

•Restrictions for Configuring Client-Initiated VPDN Tunneling Using the PPTP Protocol

Perform the tasks in the following sections to configure client-initiated VPDN tunneling using the PPTP protocol:

•Configuring the Tunnel Server to Accept PPTP Tunnels (required)

•Configuring the Virtual Template on the Tunnel Server (required)

•Configuring MPPE on the ISA Card (optional)

•Tuning PPTP (optional)

MPPE Encryption of PPTP Tunnels

Microsoft Point-to-Point Encryption (MPPE) can be used to encrypt PPTP VPDN tunnels. MPPE encrypts the entire session from the client to the tunnel server.

MPPE is an encryption technology developed by Microsoft to encrypt point-to-point links. These connections can be over a dialup line or over a VPDN tunnel. MPPE works is a feature of Microsoft Point-to-Point Compression (MPPC).

MPPC is a scheme used to compress PPP packets between Cisco and Microsoft client devices. The MPPC algorithm is designed to optimize bandwidth utilization in order to support multiple simultaneous connections.

MPPE is negotiated using bits in the MPPC option within the Compression Control Protocol (CCP) MPPC configuration option (CCP configuration option number 18).

MPPE uses the RC4 algorithm with either 40- or 128-bit keys. All keys are derived from the cleartext authentication password of the user. RC4 is stream cipher; therefore, the sizes of the encrypted and decrypted frames are the same size as the original frame. The Cisco implementation of MPPE is fully interoperable with that of Microsoft and uses all available options, including stateless mode (sometimes referred to as historyless mode). Stateless mode can increase throughput in lossy environments such as VPDNs, because neither side needs to send CCP Resets Requests to synchronize encryption contexts when packets are lost.

The following two modes of MPPE encryption are available:

•Stateful MPPE Encryption

•Stateless MPPE Encryption

Stateful MPPE Encryption

Stateful encryption provides the best performance but may be adversely affected by networks that experience substantial packet loss. Because of the way that the RC4 tables are reinitialized during stateful synchronization, it is possible that two packets may be encrypted using the same key. For this reason, stateful encryption may not be appropriate for lossy network environments (such as Layer 2 tunnels on the Internet). If you configure stateful encryption, the PPTP flow control alarm is automatically enabled.

Stateless MPPE Encryption

Stateless encryption provides a lower level of performance, but will be more reliable in a lossy network environment. Stateless mode is sometimes referred to as historyless mode. The PPTP flow control alarm is automatically disabled when stateless encryption is being used.

PPTP Flow Control Alarm

The PPTP flow control alarm indicates when congestion or lost packets are detected. When the flow control alarm goes off, PPTP reduces volatility and additional control traffic by falling back from a stateful to a stateless encryption mode for the MPPE session.

Prerequisites for Configuring Client-Initiated VPDN Tunneling Using the PPTP Protocol

The client PC must be configured with appropriate VPN client software.

Restrictions for Configuring Client-Initiated VPDN Tunneling Using the PPTP Protocol

•Only Cisco Express Forwarding and process switching are supported. Regular fast switching is not supported.

•PPTP does not support multilink.

•VPDN multihop is not supported.

•Because all PPTP signaling is over TCP, TCP configurations will affect PPTP performance in large-scale environments.

•MPPE is not supported with TACACS.

•Windows clients must use Microsoft Challenge Handshake Authentication Protocol (MS-CHAP) authentication in order for MPPE to work.

•If you are performing mutual authentication with MS-CHAP and MPPE, both sides of the tunnel must use the same password.

•To use MPPE with authentication, authorization, and accounting (AAA), you must use a RADIUS server that supports the Microsoft vendor specific attribute for MPPE-KEYS. CiscoSecure NT supports MPPE beginning with release 2.6. CiscoSecure UNIX does not support MPPE.

Configuring the Tunnel Server to Accept PPTP Tunnels

The tunnel server must be configured to terminate PPTP tunnels.

Perform this task to configure the tunnel server to accept tunneled PPPTP connections from a client.

SUMMARY STEPS

1. enable

2. configure terminal

3. vpdn-group name

4. accept-dialin

5. protocol pptp

6. virtual-template template-number

DETAILED STEPS

	Command or Action	Purpose
Step 1	enable Example: Router> enable	Enables privileged EXEC mode. •Enter your password if prompted.
Step 2	configure terminal Example: Router# configure terminal	Enters global configuration mode.
Step 3	vpdn-group name Example: Router(config)# vpdn-group 1	Creates a VPDN group or associates a VPDN group to a customer or VPDN profile and enters VPDN group configuration mode.
Step 4	accept-dialin Example: Router(config-vpdn)# accept-dialin	Creates an accept dial-in VPDN subgroup that configures a tunnel server to accept requests from a NAS to tunnel dial-in calls, and enters accept dial-in VPDN subgroup configuration mode.
Step 5	protocol pptp Example: Router(config-vpdn-acc-in)# protocol pptp	Specifies the Layer 2 protocol that the VPDN group will use.
Step 6	virtual-template template-number Example: Router(config-vpdn-acc-in)# virtual-template 1	Specifies which virtual template will be used to clone virtual access interfaces.

What to Do Next

You must perform the task in the "Configuring the Virtual Template on the Tunnel Server" section.

Configuring the Virtual Template on the Tunnel Server

When a request to establish a tunnel is received by the tunnel server, the tunnel server must create a virtual access interface. The virtual access interface is cloned from a virtual template interface, used, and then freed when no longer needed. The virtual template interface is a logical entity that is not tied to any physical interface.

Perform this task on the tunnel server to configure a basic virtual template. For more detailed information about all of the configuration options available for a virtual template, see the "Configuring Virtual Template Interfaces" section of the Cisco IOS Dial Technologies Configuration Guide, Release 12.4.

SUMMARY STEPS

1. enable

2. configure terminal

3. interface virtual-template number

4. ip unnumbered type number

5. ppp authentication protocol1 [protocol2...] [if-needed] [list-name | default] [callin] [one-time] [optional]

6. peer default ip address {ip-address | dhcp-pool | dhcp | pool [pool-name]}

7. encapsulation encapsulation-type

8. ppp encrypt mppe {auto | 40 | 128} [passive | required] [stateful]

DETAILED STEPS

	Command or Action	Purpose
Step 1	enable Example: Router> enable	Enables privileged EXEC mode. •Enter your password if prompted.
Step 2	configure terminal Example: Router# configure terminal	Enters global configuration mode.
Step 3	interface virtual-template number Example: Router(config)# interface virtual-template 1	Enters interface configuration mode and creates a virtual template interface that can be configured and applied dynamically in creating virtual access interfaces.
Step 4	ip unnumbered type number Example: Router(config-if)# ip unnumbered FastEthernet 0/0	Enables IP processing on a serial interface without assigning an explicit IP address to the interface. Note Configuring the ip address command within a virtual template is not recommended. Configuring a specific IP address in a virtual template can result in the establishment of erroneous routes and the loss of IP packets.
Step 5	ppp authentication protocol1 [protocol2...] [if-needed] [list-name | default] [callin] [one-time] [optional] Example: Router(config-if)# ppp authentication chap	Enables at least one PPP authentication protocol and specifies the order in which the protocols are selected on the interface.
Step 6	peer default ip address {ip-address | dhcp-pool | dhcp | pool [pool-name]} Example: Router(config-if)# peer default ip address pool mypool	Specifies an IP address, an address from a specific IP address pool, or an address from the Dynamic Host Configuration Protocol (DHCP) mechanism to be returned to a remote peer connecting to this interface.
Step 7	encapsulation encapsulation-type Example: Router(config-if)# encapsulation ppp	Sets the encapsulation method used by the interface.
Step 8	ppp encrypt mppe {auto | 40 | 128} [passive | required] [stateful] Example: Router(config-if)# ppp encrypt mppe auto required	(Optional) Enable MPPE encryption on the virtual template. •passive—The tunnel server will not offer MPPE encryption, but will negotiate if the other tunnel endpoint requests encryption. •required—MPPE must be negotiated, or the connection will be terminated. •stateful—MPPE will negotiate only stateful encryption. If the stateful keyword is not used, MPPE will first attempt to negotiate stateless encryption, but will allow stateful encryption if the other tunnel endpoint requests the stateful mode.

What to Do Next

•You may perform the optional task in the "Configuring MPPE on the ISA Card" section.

•You may perform the optional task in the "Tuning PPTP" section.

Configuring MPPE on the ISA Card

Using the Industry-Standard Architecture (ISA) card to offload MPPE from the Route Processor will improve performance in large-scale environments.

Perform this optional task to offload MPPE encryption from the tunnel server processor to the ISA card.

Restrictions

An ISA card must be installed on the tunnel server.

SUMMARY STEPS

1. enable

2. configure terminal

3. controller isa slot/port

4. encryption mppe

DETAILED STEPS

	Command or Action	Purpose
Step 1	enable Example: Router> enable	Enables privileged EXEC mode. •Enter your password if prompted.
Step 2	configure terminal Example: Router# configure terminal	Enters global configuration mode.
Step 3	controller isa slot/port Example: Router(config)# controller isa 5/0	Enters controller configuration mode on the ISA card.
Step 4	encryption mppe Example: Router(config-controller)# encryption mppe	Enables MPPE encryption on an ISA card.

What to Do Next

•You must reboot your router for the configuration of the encryption mppe command to take effect.

•You may perform the optional task in the "Tuning PPTP" section.

•You may perform any of the relevant optional tasks in the "Configuring Additional VPDN Features" and "VPDN Tunnel Management" modules.

Tuning PPTP

You can configure PPTP control options to tune the performance of your PPTP deployment. All of the PPTP tuning configuration commands are optional and may be configured in any order. If these parameters are not configured, the default values are applied.

Perform this task to tune PPTP control options.

SUMMARY STEPS

1. enable

2. configure terminal

3. vpdn-group name

4. pptp flow-control receive-window packets

5. pptp flow-control static-rtt timeout-interval

6. pptp tunnel echo seconds

DETAILED STEPS

	Command or Action	Purpose
Step 1	enable Example: Router> enable	Enables privileged EXEC mode. •Enter your password if prompted.
Step 2	configure terminal Example: Router# configure terminal	Enters global configuration mode.
Step 3	vpdn-group name Example: Router(config)# vpdn group pptp1	Enters VPDN group configuration mode and associates a VPDN group to a customer or VPDN profile.
Step 4	pptp flow-control receive-window packets Example: Router(config-vpdn)# pptp flow-control receive-window 20	Specifies how many packets the client can send before it must wait for the acknowledgment from the tunnel server.
Step 5	pptp flow-control static-rtt timeout-interval Example: Router(config-vpdn)# pptp flow-control static-rtt 2000	Specifies the timeout interval of the tunnel server between sending a packet to the client and receiving a response. Note If the configured timeout interval elapses with no response, the flow control alarm will be triggered.
Step 6	pptp tunnel echo seconds Example: Router(config-vpdn)# pptp tunnel echo 90	Specifies the period of idle time on the tunnel that will trigger an echo message from the tunnel server to the client.

What to Do Next

•You may perform the optional task in the "Verifying a PPTP Client-Initiated VPDN Configuration" section.

•You may perform any of the relevant optional tasks in the "Configuring Additional VPDN Features" and "VPDN Tunnel Management" modules.

Verifying a PPTP Client-Initiated VPDN Configuration

Perform this task to verify that a PPTP client-initiated VPDN configuration functions properly.

SUMMARY STEPS

1. Dial in to the NAS from a client PC.

2. From the client PC, establish a PPTP connection to the tunnel server using the VPN client software.

3. From the client, ping the remote network.

4. enable

5. show vpdn

6. show vpdn session all

7. show ppp mppe virtual-access number

DETAILED STEPS

---

Step 1 Dial in to the NAS from a client PC.

Ensure that the client PC is able to connect to the NAS by establishing a dial-in connection. As the call comes in to the NAS, a LINK-3-UPDOWN message automatically appears on the NAS terminal screen. In the following example, the call comes into the NAS on asynchronous interface 14:

*Jan  1 21:22:18.410: %LINK-3-UPDOWN: Interface Async14, changed state to up

---

Note No debug commands are turned on to display this log message. This message should be displayed within 30 seconds after the client first sends the call.

---

If this message is not displayed by the NAS, there is a problem with the dial-in configuration. For more information about configuring and troubleshooting dial-in connections, see the Cisco IOS Dial Technologies Configuration Guide, Release 12.4.

Step 2 From the client PC, establish a PPTP connection to the tunnel server using the VPN client software.

Step 3 From the client, ping the remote network.

From the client desktop:

a. Click Start.

b. Choose Run.

c. Enter ping remote-ip-address.

d. Click OK.

e. Look at the terminal screen and verify that the remote network is sending ping reply packets to the client.

Step 4 enable

Enter this command on the tunnel server to enter privileged EXEC mode. Enter your password if prompted:

Router> enable

Step 5 show vpdn

Enter this command on the tunnel server to display information about active tunnels and message identifiers. Verify that the client has established a PPTP session.

Router# show vpdn

% No active L2TP tunnels

% No active L2F tunnels

PPTP Tunnel and Session Information (Total tunnels=1 sessions=1)

LocID RemID Remote Name     State    Remote Address  Port  Sessions

13    13    10.1.2.41       estabd   10.1.2.41       1136  1

LocID RemID TunID Intf    Username      State   Last Chg

13    0     13    Vi3                   estabd  000030

Step 6 show vpdn session all

Enter this command for more detailed information about the VPDN session. The last line of output from the show vpdn session all command indicates the current status of the flow control alarm.

Router# show vpdn session all

% No active L2TP tunnels

% No active L2F tunnels

PPTP Session Information (Total tunnels=1 sessions=1)

Call id 13 is up on tunnel id 13

Remote tunnel name is 10.1.2.41

 Internet Address is 10.1.2.41

 Session username is unknown, state is estabd

 Time since change 000106, interface Vi3

 Remote call id is 0

 10 packets sent, 10 received, 332 bytes sent, 448 received

 Ss 11, Sr 10, Remote Nr 10, peer RWS 16

 0 out of order packets

 Flow alarm is clear.

Step 7 show ppp mppe virtual-access number

Enter this command to display MPPE information for the virtual access interface:

Router# show ppp mppe virtual-access 3

Interface Virtual-Access3 (current connection)

  Hardware (ISA5/1, flow_id=13) encryption, 40 bit encryption, Stateless mode

  packets encrypted = 0        packets decrypted  = 1

  sent CCP resets   = 0        receive CCP resets = 0

  next tx coherency = 0        next rx coherency  = 0

  tx key changes    = 0        rx key changes     = 0

  rx pkt dropped    = 0        rx out of order pkt= 0

  rx missed packets = 0

To display changed information, reissue the command:

Router# show ppp mppe virtual-access 3

Interface Virtual-Access3 (current connection)

  Hardware (ISA5/1, flow_id=13) encryption, 40 bit encryption, Stateless mode

  packets encrypted = 0        packets decrypted  = 1

  sent CCP resets   = 0        receive CCP resets = 0

  next tx coherency = 0        next rx coherency  = 0

  tx key changes    = 0        rx key changes     = 1

  rx pkt dropped    = 0        rx out of order pkt= 0

rx missed packets = 0

---

Configuration Examples for Client-Initiated VPDN Tunneling

This section contains the following configuration examples:

•Configuring L2TP Client-Initiated Tunneling: Example

•Configuring L2TPv3 Client-Initiated Tunneling: Example

•Verifying an L2TP Control Channel: Example

•Configuring Client-Initiated VPDN Tunneling Using PPTP: Example

Configuring L2TP Client-Initiated Tunneling: Example

The following example configures L2TP client-initiated tunneling on the local peer and the tunnel server. This configuration is for L2TP tunnels.

Local Peer Configuration

l2tp-class l2tpclass1

!

pseudowire-class pwclass1

 encapsulation l2tpv2

 protocol l2tpv2 l2tpclass1

 ip local interface ethernet0/0

!

interface virtual-ppp 1

 ip unnumbered loopback1

 ppp authentication chap

 ppp chap hostname peer1

 pseudowire 172.24.13.196 10 pw-class pwclass1

!

ip route 10.10.10.0 255.255.255.0 virtual-PPP 1

Tunnel Server Configuration

vpdn-group l2tpgroup1

 accept-dialin

  protocol l2tp

  virtual-template 1

 terminate-from hostname peer1

!

interface virtual-template 1

 ip unnumbered loopback 1

 ppp authentication chap

 ppp chap hostname peer2

Configuring L2TPv3 Client-Initiated Tunneling: Example

The following example configures L2TP client-initiated tunneling on the local peer and tunnel server. This configuration is for L2TPv3 tunnels.

Local Peer Configuration

l2tp-class l2tpclass1

!

pseudowire-class pwclass1

 encapsulation l2tpv3

 protocol l2tpv3 l2tpclass1

 ip local interface ethernet0/0

!

interface virtual-ppp 1

 ip unnumbered loopback1

 ppp authentication chap

 ppp chap hostname peer1

 pseudowire 172.24.13.196 15 pw-class pwclass1

!

ip route 10.10.10.0 255.255.255.0 virtual-PPP 1

Tunnel Server Configuration

l2tp-class l2tpclass2

!

pseudowire-class pwclass2

 encapsulation l2tpv3

 protocol l2tpv3 l2tpclass2

 ip local interface ethernet0/1

!

interface virtual-ppp 2

 ip unnumbered loopback 1

 ppp authentication chap

 ppp chap hostname peer2

 pseudowire 172.16.32.24 15 pw-class pwclass2

!

ip route 10.20.20.0 255.255.255.0 virtual-PPP 1

Verifying an L2TP Control Channel: Example

The following output displays detailed information the L2TP control channels that are set up to other L2TP-enabled devices for all L2TP sessions on the router:

Router# show l2tun session all

Session Information Total tunnels 0 sessions 1

Session id 111 is up, tunnel id 0

Call serial number is 0

Remote tunnel name is

  Internet address is 2.0.0.1

  Session is manually signalled

  Session state is established, time since change 00:06:05

    0 Packets sent, 0 received

    0 Bytes sent, 0 received

    Receive packets dropped:

      out-of-order:             0

      total:                    0

    Send packets dropped:

      exceeded session MTU:     0

      total:                    0

  Session vcid is 123

Session Layer 2 circuit, type is ATM VPC CELL, name is ATM3/0/0:1000007

Circuit state is UP

    Remote session id is 222, remote tunnel id 0

  DF bit off, ToS reflect disabled, ToS value 0, TTL value 255

  Session cookie information:

    local cookie, size 8 bytes, value 00 00 00 00 00 00 00 64

    remote cookie, size 8 bytes, value 00 00 00 00 00 00 00 C8

  SSS switching enabled

Sequencing is off

Configuring Client-Initiated VPDN Tunneling Using PPTP: Example

The following example shows the configuration of a tunnel server for client-initiated VPDN tunneling with the PPTP protocol using an ISA card to perform stateless MPPE encryption:

vpdn-group pptp1

accept-dialin

  protocol pptp

  virtual-template 1

 local name cisco_pns

!

interface virtual-template 1

 ip unnumbered FastEthernet 0/0

 peer default ip address pool mypool

 encapsulation ppp

 ppp authentication ms-chap

 ppp encrypt mppe auto

!

controller ISA 5/0

 encryption mppe

Where to Go Next

You may perform any of the relevant optional tasks in the "Configuring Additional VPDN Features" and "VPDN Tunnel Management" modules.

Additional References

The following sections provide references related to client-initiated dial-in VPDN tunneling.

Related Documents

Related Topic	Document Title
VPDN technology overview	"VPDN Technology Overview"
VPDN commands: complete command syntax, command mode, defaults, usage guidelines, and examples	Cisco IOS VPDN Command Reference, Release 12.4
Information on configuring a PPP connection between the NAS and the tunnel server	"PPP Configuration" part of the Cisco IOS Dial Technologies Configuration Guide, Release 12.4
Information about configuring the NAS to accept dialin connections from the client	Cisco IOS Dial Technologies Configuration Guide, Release 12.4
Information about virtual templates	"Configuring Virtual Template Interfaces" chapter of the Cisco IOS Dial Technologies Configuration Guide, Release 12.4
Dial Technologies commands: complete command syntax, command mode, defaults, usage guidelines, and examples	Cisco IOS Dial Technologies Command Reference, Release 12.4
Information about configuring the NAS to accept broadband connections from the client	Cisco IOS Broadband and DSL Configuration Guide, Release 12.4
Technical support documentation for L2TP	Layer 2 Tunnel Protocol (L2TP)
Technical support documentation for PPTP	Point to Point Tunneling Protocol (PPTP)
Technical support documentation for VPDNs	Virtual Private Dial-Up Network (VPDN)

Standards

Standards	Title
None	—

MIBs

MIBs	MIBs Link
•CISCO-VPDN-MGMT-MIB •CISCO-VPDN-MGMT-EXT-MIB	To locate and download MIBs for selected platforms, Cisco IOS releases, and feature sets, use Cisco MIB Locator found at the following URL: http://www.cisco.com/go/mibs

RFCs

RFCs	Title
RFC 2637	Point-to-Point Tunneling Protocol (PPTP)
RFC 2661	Layer Two Tunneling Protocol "L2TP"
RFC 3931	Layer Two Tunneling Protocol - Version 3 (L2TPv3)

Technical Assistance

Description	Link
The Cisco Technical Support website contains thousands of pages of searchable technical content, including links to products, technologies, solutions, technical tips, and tools. Registered Cisco.com users can log in from this page to access even more content.	http://www.cisco.com/techsupport

Feature Information for Client-Initiated VPDN Tunneling

Table 1 lists the features in this module and provides links to specific configuration information. Only features that were introduced or modified in Cisco IOS Release 12.2(1) or a later release appear in the table.

Not all commands may be available in your Cisco IOS software release. For details on when support for a specific command was introduced, see the command reference documentation.

For information on a feature in this technology that is not documented here, see the "VPDN Features Roadmap."

Cisco IOS software images are specific to a Cisco IOS software release, a feature set, and a platform. Use Cisco Feature Navigator to find information about platform support and Cisco IOS software image support. Access Cisco Feature Navigator at http://www.cisco.com/go/fn. You must have an account on Cisco.com. If you do not have an account or have forgotten your username or password, click Cancel at the login dialog box and follow the instructions that appear.

---

Note Table 1 lists only the Cisco IOS software release that introduced support for a given feature in a given Cisco IOS software release train. Unless noted otherwise, subsequent releases of that Cisco IOS software release train also support that feature.

---

Table 1 Feature Information for Client-Initiated VPDN Tunneling

Feature Name	Software Releases	Feature Configuration Information
L2TP Client-Initiated Tunneling	12.3(2)T	This feature introduces the ability to establish client-initiated L2TP tunnels. The client may initiate an L2TP or L2TPv3 tunnel to the tunnel server without the intermediate NAS participating in tunnel negotiation or establishment. The following sections provide information about this feature: •Client-Initiated VPDN Tunneling Using the L2TP or L2TPv3 Protocol •Configuring Client-Initiated Tunneling Using the L2TP or L2TPv3 Protocol The following commands were introduced or modified by this feature: authentication (L2TP), encapsulation (L2TP), hello, hidden, hostname (L2TP), interface virtual-ppp, ip dfbit set, ip local interface, ip pmtu, ip protocol, ip tos (L2TP), ip ttl, l2tp-class, password (L2TP), protocol (L2TP), pseudowire, pseudowire-class, receive-window, retransmit, sequencing, timeout setup.

CCDE, CCENT, CCSI, Cisco Eos, Cisco HealthPresence, Cisco IronPort, the Cisco logo, Cisco Lumin, Cisco Nexus, Cisco Nurse Connect, Cisco Pulse, Cisco StackPower, Cisco StadiumVision, Cisco TelePresence, Cisco Unified Computing System, Cisco WebEx, DCE, Flip Channels, Flip for Good, Flip Mino, Flipshare (Design), Flip Ultra, Flip Video, Flip Video (Design), Instant Broadband, and Welcome to the Human Network are trademarks; Changing the Way We Work, Live, Play, and Learn, Cisco Capital, Cisco Capital (Design), Cisco:Financed (Stylized), Cisco Store, and Flip Gift Card are service marks; and Access Registrar, Aironet, AllTouch, AsyncOS, Bringing the Meeting To You, Catalyst, CCDA, CCDP, CCIE, CCIP, CCNA, CCNP, CCSP, CCVP, Cisco, the Cisco Certified Internetwork Expert logo, Cisco  IOS, Cisco Press, Cisco Systems, Cisco Systems Capital, the Cisco Systems logo, Cisco Unity, Collaboration Without Limitation, Continuum, EtherFast, EtherSwitch, Event Center, Explorer, Fast Step, Follow Me Browsing, FormShare, GainMaker, GigaDrive, HomeLink, iLYNX, Internet Quotient, IOS, iPhone, iQuick Study, IronPort, the IronPort logo, Laser Link, LightStream, Linksys, MediaTone, MeetingPlace, MeetingPlace Chime Sound, MGX, Networkers, Networking Academy, Network Registrar, PCNow, PIX, PowerKEY, PowerPanels, PowerTV, PowerTV (Design), PowerVu, Prisma, ProConnect, ROSA, ScriptShare, SenderBase, SMARTnet, Spectrum Expert, StackWise, The Fastest Way to Increase Your Internet Quotient, TransPath, WebEx, and the WebEx logo are registered trademarks of Cisco Systems, Inc. and/or its affiliates in the United States and certain other countries.

All other trademarks mentioned in this document or website are the property of their respective owners. The use of the word partner does not imply a partnership relationship between Cisco and any other company. (0908R)

Any Internet Protocol (IP) addresses used in this document are not intended to be actual addresses. Any examples, command display output, and figures included in the document are shown for illustrative purposes only. Any use of actual IP addresses in illustrative content is unintentional and coincidental.

© 2008 Cisco Systems, Inc. All rights reserved.
