Debug Command Output on Cisco IOS Voice Gateways
CallEntry ID and GUID Call Legs
Enabling Command Profile Debugging
Enabling Individual Debug Commands for CCAPI, TSP, and VTSP Debugging
Managing the Voice Call Debug Output
Sample Output Examples for the Enhanced debug Commands
Debug Command Output on Cisco IOS Voice Gateways
The debugging capability for Cisco voice gateways enables you to identify and track a specific call in a multiple-call environment. This capability allows you to correlate call information between gateways or to identify specific debug messages associated with a single call when multiple voice calls were simultaneously active.
Voice debug output contains a standardized header to the debug outputs of multiple voice modules, such as voice telephony service provider (VTSP), call control application program interface (CCAPI), session application (SSAPP), and interactive voice response (IVR).
The following information can be found in the Cisco IOS Debug Command Reference:
•
Using debug commands is contained in the "Using Debug Commands" chapter.
•
•
This chapter contains the following information:
•
•
Voice Debug Concepts
The following concepts provide background for the enhanced debug capabilities on Cisco voice gateways:
•
•
•
Debug Header Format
You can control the contents of the standardized header with the following display options:
•
•
•
The format of the GUID headers is as follows:
//CallEntryID/GUID/Module-dependent-list/Function-name:The format of the short header is as follows:
//CallEntryID/Function-name:The parameters in the header are as follows:
•
•
By default, the debug header displays a more compact 6-byte form of the GUID that is generally unique enough for debugging purposes. If you need to correlate GUID information to third-party devices or to conduct debugging sessions lasting more than a month, you can display the full 16-byte header with the voice call debug command using the full-guid keyword.
When the GUID information is unavailable to the module producing the debug message, the header displays the GUID field as blank or filled with "x" characters (/xxxxxxx/). For non-IVR debugs, if the GUID field is unavailable, the header is //CallentryID/xxxxxxxx/. For IVR debugs, the header is //CallentryID//. IVR rarely has GUID information but reserves the space in order to have field-by-field consistency.
•
Table 1 Module-Dependent List Parameters
CCAPI
None.
VTSP
Port name, channel number, DSP slot, and DSP channel number.
SSAPP
Dial-peer number and the number of the connection through the dial peer. (Multiple sessions can be associated with a single dial peer.)
IVR
See the "IVR Module-Dependent List" section.
•
IVR Module-Dependent List
The module-dependent list for IVR information has the following form:
<Module Name> : [LP:] [<OBJ><OBJ-ID>: [<OBJ><OBJ-ID>:[...]]]Module names are shown in Table 2. The LP parameter is the link point, which is the point where two or more objects can be associated . The OBJ parameter is the object name, shown in Table 3. The OBJ-ID is a numeric identifier for the object. The ranges are also shown in Table 3.
CallEntry ID and GUID Call Legs

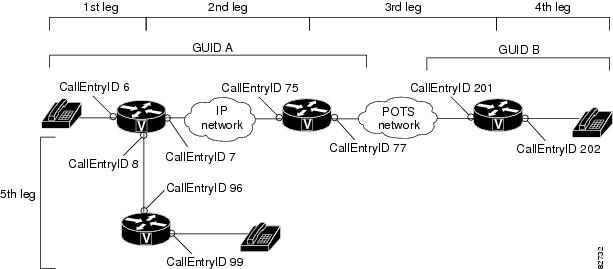

The parts of the call that are identified by CallEntry IDs and GUIDs are shown in Figure 8. The example shown in the figure is a conference call in which two of the participants are on the same IP network and the third participant is called over the POTS network. Most of the IP-based voice signaling protocols (like H.225) carry the GUID information between gateways. Traditional voice connections such as POTS and ISDN have no means to carry a GUID. A voice gateway creates a new GUID when one is not available from the call originator. In the example, call legs 1, 2, and 5 use GUID A, and leg 4 uses GUID B. Leg 3 is across the POTS network, so no GUID is associated with it. There is a CallEntry ID for each incoming or outgoing call on each gateway.
Figure 8 GUIDs and CallEntry IDs in a Conference Call
Enabling Command Profile Debugging
You can enable a set of debugs based upon a specific profile. You can enable the following profiles:
Enabling the debugging on each of these profiles produces many types of debug information. The advantage of using profile debugging is that instead of having to enable several debug commands to get a full picture of the problem, you can enable a profile which gives you all of the debugs that are appropriate.
When profile debugging is enabled, a large number of debug messages are produced which might affect system performance. For this reason, you should only use profile debugging during low traffic periods or on a non-production system.
Caution
Fax Debug Profile
The debug commands that are activated within the fax debug profile depends on the syntax that you use when you enable the command. The syntax for the fax debug profile is as follows:
debug voip profile fax { mail | relay { application | signaling }}
For more information on command syntax, refer to the Cisco IOS Debug Command Reference.
If you use the debug voip profile fax mail command, you enable the following debug commands for an onramp or offramp fax mail call:
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
The following debug commands are enabled for access servers with MICA modem cards:
•
•
•
•
•
•
•
The following debug options are enabled for access servers with universal port dial feature cards:
•
•
•
•
•
•
If you use the debug voip profile fax relay command, you enable the debug fax relay t30 all-level-1 and the sets specified by either the application or signaling keyword.
For the debug voip profile fax relay application command, the following debugs are enabled for fax relay applications:
•
•
•
•
•
For the debug voip profile fax relay signaling command, the following debugs are enabled for fax relay signaling:
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
For detailed information about the individual debug commands, refer to the Cisco IOS Debug Command Reference.
Modem Debug Profile
The debug commands that are activated within the modem debug profile depends on the syntax that you use when you enable the command. The syntax for the modem debug profile is as follows:
debug voip profile modem { pass-through signaling | relay signaling }
For more information on command syntax, refer to the Cisco IOS Debug Command Reference.
If you use the debug voip profile modem pass-through signaling command, you enable the following debug commands for modem pass-through signaling:
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
If you use the debug voip profile modem relay signaling command, you enable the following debug commands for modem relay signaling:
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
For detailed information about the individual debug commands, refer to the Cisco IOS Debug Command Reference.
Voice Debug Profile
The debug commands that are activated within the voice debug profile depends on the syntax that you use when you enable the command. The syntax for the voice debug profile is as follows:
debug voip profile voice { application | signaling }
For more information on command syntax, refer to the Cisco IOS Debug Command Reference.
If you use the debug voip profile voice application command, you enable the following debug commands for voice applications:
•
•
•
•
•
If you use the debug voip profile voice signaling command, you enable the following debug commands for voice signaling:
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
For detailed information about the individual debug commands, refer to the Cisco IOS Debug Command Reference.
Enabling Individual Debug Commands for CCAPI, TSP, and VTSP Debugging
If you want to use a debug command for CCAPI, TSP, or VTSP and you want to limit the output so that the performance on the router is not impacted, you can select to use individual parts of the debug command. You can use debug voip ccapi individual range, debug voip tsp individual range, or debug voip vtsp individual range to get individual debug output for each of these processes. Table 4, Table 5, and Table 6 show the specific debugs for the individual ranges.
I
Managing the Voice Call Debug Output
The debug output for calls on Cisco voice gateways is managed by using the voice call debug command in global configuration mode. When this command is enabled, the standardized header appears when voice debugs are used.
Supported Commands
The voice debug commands that support the standardized header include the following:
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
For detailed examples of these debug commands, see the Cisco IOS Debug Command Reference.
SUMMARY STEPS
1.
2.
3.
4.
5.
DETAILED STEPS
Step 1
enable
Example:Router> enable
Enables privileged EXEC mode.
•
Step 2
configure terminal
Example:Router# configure terminal
Enters global configuration mode.
Step 3
voice call debug {full-guid | short-header}
Example:Router(config)# voice call debug full-guid
Specifies the full GUID or short header for debugging a voice call in a multiple-call environment.
•
•
Step 4
exit
Example:Router(config)# exit
Exits to privileged EXEC mode.
Step 5
Run desired voice debug command.
Example:Router# debug voip ccapi inout
Enter the appropriate debug command for your troubleshooting needs.
•
Sample Output Examples for the Enhanced debug Commands
The following sections provide examples for the enhanced debug commands:
Full GUID Header: Example
The following is sample output from the voice call debug command when the full-guid keyword is specified:
Router(config)# voice call debug full-guid!00:05:12: //1/0E2C8A90-BC00-11D5-8002-DACCFDCEF87D/VTSP:(0:D):0:0:4385/vtsp_insert_cdb: 00:05:12: //-1/xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx/CCAPI/cc_incr_if_call_volume:In the first line, the following parameters are described:
•
•
•
•
In the second line, the following parameters are described:
•
•
•
•
Short Header: Example
The following is sample output from the voice call debug command when the short-header keyword is specified:
Router(config)# voice call debug short-header!00:10:12: //-1/cc_incr_if_call_volume:00:10:12: //9/vtsp_open_voice_and_set_params:In the first line, the CallEntry ID is not available, and in the following line the CallEntry ID is 9. The remainder of the line displays the function name.
Setup and Teardown: Example
In the following example, the debug voip ccapi inout command used with the voice call debug full-guid command traces the execution path through the call control API, which serves as the interface between the call session application and the underlying network-specific software. This output shows how calls are being handled by the voice gateway. Using this debug level, you can see the call setup and teardown operations performed on both the telephony and network call legs.
Router# debug voip ccapi inout*Mar 1 15:35:53.588: //-1/xxxxxxxxxxxx/CCAPI/ccTDConstructTDUsrContainer: usrContainer[0x638C1BF0], magic[FACE0FFF]*Mar 1 15:35:53.592: //-1/xxxxxxxxxxxx/CCAPI/ccTDUtilAddDataToUsrContainer: container=0x638C1BF0, tagID=6, dataSize=16, instID=-1,modifier=1*Mar 1 15:35:53.592: //-1/xxxxxxxxxxxx/CCAPI/ccTDConstructInstanceTDObject: tdObject[0x638BC1AC], nxtElem[0x0], magic[0xFACE0FFF] tagID[6], dataLen[16], modif[1]*Mar 1 15:35:53.592: //-1/xxxxxxxxxxxx/CCAPI/ccTDPvtAddObjectToContainer: Adding tdObject[0x638BC1AC] instID[-1] into container[0x638C1BF0]*Mar 1 15:35:53.592: //-1/xxxxxxxxxxxx/CCAPI/ccTDUtilAddDataToUsrContainer: container=0x638C1BF0, tagID=5, dataSize=276, instID=-1,modifier=1*Mar 1 15:35:53.592: //-1/xxxxxxxxxxxx/CCAPI/ccTDConstructInstanceTDObject: tdObject[0x63401148], nxtElem[0x0], magic[0xFACE0FFF] tagID[5], dataLen[276], modif[1]*Mar 1 15:35:53.592: //-1/xxxxxxxxxxxx/CCAPI/ccTDPvtAddObjectToContainer: Adding tdObject[0x63401148] instID[-1] into container[0x638C1BF0]In the following lines, the CCAPI receives the call setup. The called number is 34999, and the calling number is 55555. The calling number matches dial peer 10002.
*Mar 1 15:35:53.592: //-1/xxxxxxxxxxxx/CCAPI/cc_api_display_ie_subfields:*Mar 1 15:35:53.592: cc_api_call_setup_ind:*Mar 1 15:35:53.592: cisco-username=*Mar 1 15:35:53.596: ----- ccCallInfo IE subfields -----*Mar 1 15:35:53.596: cisco-ani=55555*Mar 1 15:35:53.596: cisco-anitype=0*Mar 1 15:35:53.596: cisco-aniplan=0*Mar 1 15:35:53.596: cisco-anipi=0*Mar 1 15:35:53.596: cisco-anisi=0*Mar 1 15:35:53.596: dest=34999*Mar 1 15:35:53.596: cisco-desttype=0*Mar 1 15:35:53.596: cisco-destplan=0*Mar 1 15:35:53.596: cisco-rdn=*Mar 1 15:35:53.596: cisco-rdntype=-1*Mar 1 15:35:53.596: cisco-rdnplan=-1*Mar 1 15:35:53.596: cisco-rdnpi=-1*Mar 1 15:35:53.596: cisco-rdnsi=-1*Mar 1 15:35:53.596: cisco-redirectreason=-1*Mar 1 15:35:53.596: //-1/xxxxxxxxxxxx/CCAPI/cc_api_call_setup_ind: (vdbPtr=0x637EC1E0, callInfo={called=34999,called_oct3=0x80,calling=55555,calling_oct3=0x80,calling_oct3a=0x0, calling_xlated=false,subscriber_type_str=RegularLine,fdest=1,peer_tag=10002, prog_ind=0,callingIE_present 1, src_route_label=, tgt_route_label= clid_transparent=0},callID=0x637B4278)*Mar 1 15:35:53.596: //-1/xxxxxxxxxxxx/CCAPI/cc_api_call_setup_ind:*Mar 1 15:35:53.596: //-1/xxxxxxxxxxxx/CCAPI/cc_api_call_setup_ind: type 13 , prot 0*Mar 1 15:35:53.596: //-1/xxxxxxxxxxxx/CCAPI/ccCheckClipClir:*Mar 1 15:35:53.596: ccCheckClipClir: calling number is: "55555", calling oct3a is: 0x0*Mar 1 15:35:53.596: //-1/xxxxxxxxxxxx/CCAPI/ccCheckClipClir:*Mar 1 15:35:53.596: Calling Party number is User Provided*Mar 1 15:35:53.596: //-1/xxxxxxxxxxxx/CCAPI/ccCheckClipClir:*Mar 1 15:35:53.596: Leaving ccCheckClipClircalling number is: "55555"calling oct3 is: 0x80calling oct3a is: 0x0In the next line, 44 is the CallEntry ID.
*Mar 1 15:35:53.600: //44/xxxxxxxxxxxx/CCAPI/cc_insert_call_entry: Increment call volume: 0*Mar 1 15:35:53.600: //44/xxxxxxxxxxxx/CCAPI/cc_insert_call_entry: current call volume: 1*Mar 1 15:35:53.600: //44/xxxxxxxxxxxx/CCAPI/cc_insert_call_entry: entry's incoming TRUE.*Mar 1 15:35:53.600: //44/xxxxxxxxxxxx/CCAPI/cc_insert_call_entry: is_incomingis TRUE*Mar 1 15:35:53.600: //-1/xxxxxxxxxxxx/CCAPI/ccTDConstructHashProfileTab: profileTable[0x6380E11C], numBuckets[11], numEntries[0]*Mar 1 15:35:53.600: //-1/xxxxxxxxxxxx/CCAPI/ccTDPvtProfileTableBuildManager: Invoking necessary profileTable updaters...*Mar 1 15:35:53.600: //-1/xxxxxxxxxxxx/CCAPI/ccTDPvtUpdateProfileTabFromContainer: Updating profileTable[0x6380E11C] with objects in container[0x638C1BF0]*Mar 1 15:35:53.600: //-1/xxxxxxxxxxxx/CCAPI/ccTDPvtUpdateProfileTabFromContainer: obtained key[5] for the tag[6]*Mar 1 15:35:53.600: //-1/xxxxxxxxxxxx/CCAPI/ccTDPvtAddObjectToProfileBucket: profileTable[0x6380E11C], tdObject[0x638BC1AC]*Mar 1 15:35:53.600: //-1/xxxxxxxxxxxx/CCAPI/ccTDPvtUpdateProfileTabFromContainer: obtained key[0] for the tag[5]*Mar 1 15:35:53.600: //-1/xxxxxxxxxxxx/CCAPI/ccTDPvtAddObjectToProfileBucket: profileTable[0x6380E11C], tdObject[0x63401148]*Mar 1 15:35:53.600: //-1/xxxxxxxxxxxx/CCAPI/ccTDPvtProfileTableBuildManager:*Mar 1 15:35:53.600: ccTDUtilDumpAllElemInProfileTab: profileTable[0x6380E11C],numBuckets[11], numEntries[2]*Mar 1 15:35:53.600: Bucket { 0 } ------>0x63401148[0x0,t-5,l-276,d-0x63401168,m-1,u-56153,g-FACE0FFF]*Mar 1 15:35:53.604:*Mar 1 15:35:53.604: Bucket { 5 } ------>0x638BC1AC[0x0,t-6,l-16,d-0x638BC1CC,m-1,u-56153,g-FACE0FFF]*Mar 1 15:35:53.604:*Mar 1 15:35:53.604: //-1/xxxxxxxxxxxx/CCAPI/ccTDDestructTDUsrContainer: Container[0x638C1BF0]*Mar 1 15:35:53.604: //-1/xxxxxxxxxxxx/CCAPI/cc_incr_if_call_volume: not the VoIP or MMoIP*Mar 1 15:35:53.608: //-1/xxxxxxxxxxxx/CCAPI/cc_process_call_setup_ind: (event=0x63073AA0)In the next line, 45F2AAE28044 is the GUID. The tag 10002 entry shows that the incoming dial peer matched the CallEntry ID.
*Mar 1 15:35:53.608: //44/45F2AAE28044/CCAPI/cc_process_call_setup_ind: >>>>CCAPI handed cid 44 with tag 10002 to app "DEFAULT"*Mar 1 15:35:53.608: //44/xxxxxxxxxxxx/SSAPP:-1:-1/sess_appl: ev(24=CC_EV_CALL_SETUP_IND), cid(44), disp(0)*Mar 1 15:35:53.608: //44/xxxxxxxxxxxx/SSAPP:-1:-1/sess_appl: ev(SSA_EV_CALL_SETUP_IND), cid(44), disp(0)*Mar 1 15:35:53.608: //44/xxxxxxxxxxxx/SSAPP:-1:-1/ssaCallSetupInd:The next line shows CallEntry ID in hexadecimal form, 0x2C (44 in decimal). The CallEntry ID and GUID numbers have been identified. The incoming dial peer is 10002.
*Mar 1 15:35:53.608: //44/xxxxxxxxxxxx/CCAPI/ccCallSetContext: (callID=0x2C, context=0x634A430C)*Mar 1 15:35:53.608: //44/45F2AAE28044/SSAPP:10002:-1/ssaCallSetupInd: cid(44), st(SSA_CS_MAPPING),oldst(0), ev(24)ev->e.evCallSetupInd.nCallInfo.finalDestFlag = 1*Mar 1 15:35:53.608: //44/45F2AAE28044/SSAPP:10002:-1/ssaCallSetupInd: src route label=, tgt route label= tg_label_flag 0x0*Mar 1 15:35:53.608: //44/45F2AAE28044/SSAPP:10002:-1/ssaCallSetupInd: finalDest cllng(55555), clled(34999) tgt_route_label()tg_label_flag 0x0*Mar 1 15:35:53.612: //44/45F2AAE28044/SSAPP:10002:-1/ssaCallSetupInd: cid(44), st(SSA_CS_CALL_SETTING),oldst(0), ev(24)dpMatchPeersMoreArg result= 0For CallEntry ID 44, two dial-peer tags (10001 and 20002) were matched with called number 34999.
*Mar 1 15:35:53.612: //44/45F2AAE28044/SSAPP:10002:-1/ssaDebugPeers: ssaSetupPeer cid(44) peer list: tag(10001) called number (34999) tag(20002) called number(34999)*Mar 1 15:35:53.612: //44/45F2AAE28044/SSAPP:10002:-1/ssaSetupPeer: dialpeer tags in rotary= 10001 20002The next line shows that five digits were matched for this dial peer and no prefix was added. The encapType (2) entry indicates a VoIP call.
*Mar 1 15:35:53.612: //44/45F2AAE28044/SSAPP:10002:-1/ssaSetupPeer: cid(44), destPat(34999), matched(5), prefix(), peer(637B0984), peer->encapType (2)*Mar 1 15:35:53.612: //-1/xxxxxxxxxxxx/CCAPI/cc_can_gateway: Call legs: In=6, Out=1The next line shows the voice gateway sending out a call-proceeding message to the incoming call leg with a progress indicator of 0x0.
*Mar 1 15:35:53.612: //44/xxxxxxxxxxxx/CCAPI/ccCallProceeding: (callID=0x2C, prog_ind=0x0)The next line shows the voice gateway sending out the call-setup request to the outgoing call leg. The dial peer is 10001 with the incoming CallEntry ID being 0x2C.
*Mar 1 15:35:53.612: //44/xxxxxxxxxxxx/CCAPI/ccCallSetupRequest: (Inbound call= 0x2C, outbound peer =10001, dest=,params=0x63085D80 mode=0, *callID=0x63086314, prog_ind = 0callingIE_present 1)*Mar 1 15:35:53.612: //44/45F2AAE28044/CCAPI/ccCallSetupRequest:*Mar 1 15:35:53.612: ccCallSetupRequest numbering_type 0x80*Mar 1 15:35:53.612: //44/45F2AAE28044/CCAPI/ccCallSetupRequest:*Mar 1 15:35:53.616: ccCallSetupRequest: calling number is:55555*Mar 1 15:35:53.616: //44/45F2AAE28044/CCAPI/ccCallSetupRequest: calling oct3ais:0x0*Mar 1 15:35:53.616: //-1/xxxxxxxxxxxx/CCAPI/ccCheckClipClir:*Mar 1 15:35:53.616: ccCheckClipClir: calling number is: "55555", calling oct3a is: 0x0*Mar 1 15:35:53.616: //-1/xxxxxxxxxxxx/CCAPI/ccCheckClipClir:*Mar 1 15:35:53.616: Calling Party number is User Provided*Mar 1 15:35:53.616: //-1/xxxxxxxxxxxx/CCAPI/ccCheckClipClir:*Mar 1 15:35:53.616: Leaving ccCheckClipClircalling number is: "55555"calling oct3 is: 0x80calling oct3a is: 0x0*Mar 1 15:35:53.616: //44/45F2AAE28044/CCAPI/ccCallSetupRequest: after ccCheckClipClir - calling oct3a is:0x0The next line shows that all digits are passed.
*Mar 1 15:35:53.616: //44/45F2AAE28044/CCAPI/ccCallSetupRequest: dest pattern 34999, called 34999, digit_strip 0*Mar 1 15:35:53.616: //44/45F2AAE28044/CCAPI/ccCallSetupRequest:*Mar 1 15:35:53.616: callingNumber=55555, calledNumber=34999, redirectNumber= display_info= calling_oct3a=0*Mar 1 15:35:53.616: accountNumber=, finalDestFlag=1,guid=45f2.aae2.1571.11cc.8044.95f5.fabb.6b0f*Mar 1 15:35:53.616: peer_tag=10001*Mar 1 15:35:53.616: //-1/xxxxxxxxxxxx/CCAPI/cc_api_display_ie_subfields:*Mar 1 15:35:53.616: ccCallSetupRequest:*Mar 1 15:35:53.616: cisco-username=*Mar 1 15:35:53.616: ----- ccCallInfo IE subfields -----*Mar 1 15:35:53.616: cisco-ani=55555*Mar 1 15:35:53.616: cisco-anitype=0*Mar 1 15:35:53.616: cisco-aniplan=0*Mar 1 15:35:53.616: cisco-anipi=0*Mar 1 15:35:53.616: cisco-anisi=0*Mar 1 15:35:53.620: dest=34999*Mar 1 15:35:53.620: cisco-desttype=0*Mar 1 15:35:53.620: cisco-destplan=0*Mar 1 15:35:53.620: cisco-rdn=*Mar 1 15:35:53.620: cisco-rdntype=-1*Mar 1 15:35:53.620: cisco-rdnplan=-1*Mar 1 15:35:53.620: cisco-rdnpi=-1*Mar 1 15:35:53.620: cisco-rdnsi=-1*Mar 1 15:35:53.620: cisco-redirectreason=-1*Mar 1 15:35:53.620: //-1/xxxxxxxxxxxx/CCAPI/ccIFCallSetupRequestPrivate: (vdbPtr=0x62EC61A4, dest=, callParams={called=34999,called_oct3=0x80, calling=55555,calling_oct3=0x80, calling_oct3a= 0x0, calling_xlated=false, subscriber_type_str=RegularLine, fdest=1, voice_peer_tag=10001},mode=0x0)*Mar 1 15:35:53.620: //-1/xxxxxxxxxxxx/CCAPI/ccIFCallSetupRequestPrivate:*Mar 1 15:35:53.620: ccIFCallSetupRequestPrivate: src route label tgt route label tg_label_flag 0x0*Mar 1 15:35:53.620: //-1/xxxxxxxxxxxx/CCAPI/ccIFCallSetupRequestPrivate: vdbPtr type = 1*Mar 1 15:35:53.620: //-1/xxxxxxxxxxxx/CCAPI/ccIFCallSetupRequestPrivate:*Mar 1 15:35:53.620: //-1/xxxxxxxxxxxx/CCAPI/ccIFCallSetupRequestPrivate: (vdbPtr=0x62EC61A4, dest=, callParams={called=34999, called_oct3 0x80, calling=55555, calling_oct3 0x80, calling_oct3a 0x0, calling_xlated=false, fdest=1, voice_peer_tag=10001}, mode=0x0, xltrc=-5)*Mar 1 15:35:53.620: //-1/xxxxxxxxxxxx/CCAPI/ccIFCallSetupRequestPrivate:In the next line, outgoing CallEntry ID 45 is bound to the same GUID 45F2AAE28044.
*Mar 1 15:35:53.620: //45/45F2AAE28044/CCAPI/cc_insert_call_entry: not incoming entry*Mar 1 15:35:53.620: //45/45F2AAE28044/CCAPI/cc_insert_call_entry: entry's incoming FALSE.*Mar 1 15:35:53.620: //45/45F2AAE28044/CCAPI/cc_insert_call_entry: is_incomingis FALSE*Mar 1 15:35:53.624: //44/xxxxxxxxxxxx/CCAPI/ccSaveDialpeerTag: (callID=0x2C, dialpeer_tag=10001)*Mar 1 15:35:53.624: //45/xxxxxxxxxxxx/CCAPI/ccCallSetContext: (callID=0x2D, context=0x634A537C) 0x2D (decimal 45 is the second call leg ID).*Mar 1 15:35:53.624: //44/xxxxxxxxxxxx/CCAPI/ccCallReportDigits: (callID=0x2C,enable=0x0)The next line shows that the voice gateway informs the incoming call leg that digits were forwarded.
*Mar 1 15:35:53.624: //44/xxxxxxxxxxxx/CCAPI/cc_api_call_report_digits_done: (vdbPtr=0x637EC1E0, callID=0x2C, disp=0)*Mar 1 15:35:53.624: //44/xxxxxxxxxxxx/SSAPP:-1:-1/sess_appl: ev(54=CC_EV_CALL_REPORT_DIGITS_DONE), cid(44), disp(0)*Mar 1 15:35:53.624: //44/45F2AAE28044/SSRouter#APP:10002:-1/ssaTraceSct: cid(44)st(SSA_CS_CALL_SETTING)ev(SSA_EV_CALL_REPORT_DIGITS_DONE)oldst(SSA_CS_MAPPING)cfid(-1)csize(0)in(1)fDest(1)*Mar 1 15:35:53.624: //44/45F2AAE28044/SSAPP:10002:-1/ssaTraceSct: -cid2(45)st2(SSA_CS_CALL_SETTING)oldst2(SSA_CS_MAPPING)*Mar 1 15:35:53.624: //44/45F2AAE28044/SSAPP:10002:-1/ssaDebugPeers: ssaReportDigitsDone cid(44) peer list: tag(20002) called number (34999)*Mar 1 15:35:53.624: //44/45F2AAE28044/SSAPP:10002:-1/ssaReportDigitsDone: callid=44 Reporting disabled.*Mar 1 15:35:53.628: //-1/xxxxxxxxxxxx/CCAPI/cc_api_supported_data: data_mode=0x10082*Mar 1 15:35:53.628: //45/xxxxxxxxxxxx/CCAPI/cc_api_get_ic_leg_obtained_numbers: callID=0x2DThe next two lines show the IP address of the terminating gateway and indicate that the terminating gateway is reached through Ethernet port 0/0.
*Mar 1 15:35:53.628: //-1/xxxxxxxxxxxx/CCAPI/cc_incr_if_call_volume: remote IP is 172.31.85.111*Mar 1 15:35:53.632: //-1/xxxxxxxxxxxx/CCAPI/cc_incr_if_call_volume: hwidb is Ethernet0/0*Mar 1 15:35:53.632: //-1/xxxxxxxxxxxx/CCAPI/cc_incr_if_call_volume: create entry in list: 1*Mar 1 15:35:53.636: //45/xxxxxxxxxxxx/CCAPI/ccTDUtilGetInstanceCount: For tagID[1] of callID[45]*Mar 1 15:35:53.636: //45/45F2AAE28044/CCAPI/ccTDPvtProfileTableObjectAccessManager: No profileTable set for callID[45]*Mar 1 15:35:53.636: //45/xxxxxxxxxxxx/CCAPI/ccTDUtilGetInstanceCount: For tagID[2] of callID[45]*Mar 1 15:35:53.636: //45/45F2AAE28044/CCAPI/ccTDPvtProfileTableObjectAccessManager: No profileTable set for callID[45]The next line shows that the voice gateway received a call proceeding message from the terminating gateway. The following line shows that the voice gateway received a call alert from the terminating gateway.
*Mar 1 15:35:53.740: //45/xxxxxxxxxxxx/CCAPI/cc_api_call_proceeding: (vdbPtr=0x62EC61A4, callID=0x2D,prog_ind=0x0)*Mar 1 15:35:53.740: //45/xxxxxxxxxxxx/CCAPI/cc_api_call_alert: (vdbPtr=0x62EC61A4, callID=0x2D, prog_ind=0x0, sig_ind=0x1)*Mar 1 15:35:53.744: //45/xxxxxxxxxxxx/SSAPP:-1:-1/sess_appl: ev(21=CC_EV_CALL_PROCEEDING), cid(45), disp(0)*Mar 1 15:35:53.744: //45/45F2AAE28044/SSAPP:0:-1/ssaTraceSct: cid(45)st(SSA_CS_CALL_SETTING)ev(SSA_EV_CALL_PROCEEDING)oldst(SSA_CS_MAPPING)cfid(-1)csize(0)in(0)fDest(0)*Mar 1 15:35:53.744: //45/45F2AAE28044/SSAPP:0:-1/ssaTraceSct: -cid2(44)st2(SSA_CS_CALL_SETTING)oldst2(SSA_CS_CALL_SETTING)*Mar 1 15:35:53.744: //45/45F2AAE28044/SSAPP:0:-1/ssaCallProc:*Mar 1 15:35:53.744: //44/xxxxxxxxxxxx/CCAPI/ccGetDialpeerTag: (callID=0x2C)*Mar 1 15:35:53.744: //45/45F2AAE28044/SSAPP:0:-1/ssaIgnore: cid(45), st(SSA_CS_CALL_SETTING),oldst(1), ev(21)*Mar 1 15:35:53.744: //45/xxxxxxxxxxxx/SSAPP:-1:-1/sess_appl: ev(7=CC_EV_CALL_ALERT), cid(45), disp(0)*Mar 1 15:35:53.744: //45/45F2AAE28044/SSAPP:0:-1/ssaTraceSct: cid(45)st(SSA_CS_CALL_SETTING)ev(SSA_EV_CALL_ALERT)oldst(SSA_CS_CALL_SETTING)cfid(-1)csize (0)in(0)fDest(0)*Mar 1 15:35:53.744: //45/45F2AAE28044/SSAPP:0:-1/ssaTraceSct: -cid2(44)st2(SSA_CS_CALL_SETTING)oldst2(SSA_CS_CALL_SETTING)*Mar 1 15:35:53.744: //44/45F2AAE28044/SSAPP:10002:-1/ssaAlert:*Mar 1 15:35:53.744: //44/xxxxxxxxxxxx/CCAPI/ccGetDialpeerTag: (callID=0x2C)Router#In the following line, the voice gateway forwarded a call alert to the originating gateway.
*Mar 1 15:35:53.744: //44/xxxxxxxxxxxx/CCAPI/ccCallAlert: (callID=0x2C, prog_ind=0x0, sig_ind=0x1)Router#The phone is answered at the called number.
Router#!call answeredThe voice gateway receives a connect message from the terminating gateway.
*Mar 1 15:36:05.016: //45/xxxxxxxxxxxx/CCAPI/cc_api_call_connected: (vdbPtr=0x62EC61A4, callID=0x2D), prog_ind = 0*Mar 1 15:36:05.016: //45/45F2AAE28044/CCAPI/cc_api_call_connected: setting callEntry->connected to TRUEThe next line shows that the call accounting starts. The leg_type=False message means this is for an outgoing call. The line that follows shows that AAA accounting is not configured.
*Mar 1 15:36:05.016: //45/45F2AAE28044/CCAPI/cc_api_call_connected: calling accounting start for callID=45 leg_type=0*Mar 1 15:36:05.020: //45/xxxxxxxxxxxx/CCAPI/ccCallSetAAA_Accounting: callID=0x2D, accounting=0*Mar 1 15:36:05.020: //45/xxxxxxxxxxxx/SSAPP:-1:-1/sess_appl: ev(8=CC_EV_CALL_CONNECTED), cid(45), disp(0)*Mar 1 15:36:05.020: //45/45F2AAE28044/SSAPP:0:-1/ssaTraceSct: cid(45)st(SSA_CS_ALERT_RCVD)ev(SSA_EV_CALL_CONNECTED)oldst(SSA_CS_CALL_SETTING)cfid(-1)csize(0)in(0)fDest(0)*Mar 1 15:36:05.020: //45/45F2AAE28044/SSAPP:0:-1/ssaTraceSct: -cid2(44)st2(SSA_CS_ALERT_RCVD)oldst2(SSA_CS_CALL_SETTING)*Mar 1 15:36:05.020: //45/45F2AAE28044/SSAPP:0:-1/ssaConnect:*Mar 1 15:36:05.020: //44/xxxxxxxxxxxx/CCAPI/ccGetDialpeerTag: (callID=0x2C)The next lines show a conference being set up between the two call legs 0x2C and 0x2D. Bridge complete messages are sent to both the terminating and originating gateways.
*Mar 1 15:36:05.020: //44/xxxxxxxxxxxx/CCAPI/ccConferenceCreate: (confID=0x63086424, callID1=0x2C, callID2=0x2D, tag=0x0)*Mar 1 15:36:05.020: //45/xxxxxxxxxxxx/CCAPI/cc_api_bridge_done: (confID=0x15,srcIF=0x62EC61A4, srcCallID=0x2D, dstCallID=0x2C, disposition=0, tag=0x0)*Mar 1 15:36:05.024: //44/xxxxxxxxxxxx/CCAPI/cc_api_bridge_done: (confID=0x15,srcIF=0x637EC1E0, srcCallID=0x2C, dstCallID=0x2D, disposition=0, tag=0x0)Here, the voice gateway sets up negotiating capability with the originating telephony leg.
*Mar 1 15:36:05.024: //44/xxxxxxxxxxxx/CCAPI/cc_api_caps_ind: (dstVdbPtr=0x62EC61A4, dstCallId=0x2D, srcCallId=0x2C,caps={codec=0x2887F, fax_rate=0xBF, vad=0x3, modem=0x2codec_bytes=0, signal_type=3})*Mar 1 15:36:05.024: //44/xxxxxxxxxxxx/CCAPI/cc_api_caps_ind: (Playout: mode 0, initial 60,min 40, max 300)*Mar 1 15:36:05.024: //44/xxxxxxxxxxxx/SSAPP:-1:-1/sess_appl: ev(29=CC_EV_CONF_CREATE_DONE), cid(44), disp(0)*Mar 1 15:36:05.024: //44/45F2AAE28044/SSAPP:10002:21/ssaTraceSct: cid(44)st(SSA_CS_CONFERENCING)ev(SSA_EV_CONF_CREATE_DONE)oldst(SSA_CS_CALL_SETTING)cfid(21)csize(2)in(1)fDest(1)*Mar 1 15:36:05.024: //44/45F2AAE28044/SSAPP:10002:21/ssaTraceSct: -cid2(45)st2(SSA_CS_CONFERENCING)oldst2(SSA_CS_ALERT_RCVD)*Mar 1 15:36:05.024: //44/45F2AAE28044/SSAPP:10002:21/ssaConfCreateDone:*Mar 1 15:36:05.024: //44/xxxxxxxxxxxx/CCAPI/ccCallConnect: (callID=0x2C), prog_ind = 0*Mar 1 15:36:05.024: //44/45F2AAE28044/CCAPI/ccCallConnect: setting callEntry->connected to TRUE*Mar 1 15:36:05.024: //44/45F2AAE28044/SSAPP:10002:21/ssaDebugPeers: ssaFlushPeerTagQueue cid(44) peer list: tag(20002) called number (34999)*Mar 1 15:36:05.028: //-1/xxxxxxxxxxxx/CCAPI/cc_process_notify_bridge_done: (event=0x63067FC0)The voice gateway sets up negotiating capability with the terminating VoIP leg.
*Mar 1 15:36:05.028: //45/xxxxxxxxxxxx/CCAPI/cc_api_caps_ind: (dstVdbPtr=0x637EC1E0, dstCallId=0x2C, srcCallId=0x2D,caps={codec=0x4, fax_rate=0x2, vad=0x2, modem=0x0codec_bytes=20, signal_type=2})*Mar 1 15:36:05.028: //45/xxxxxxxxxxxx/CCAPI/cc_api_caps_ind: (Playout: mode 0, initial 60,min 40, max 300)The capabilities are acknowledged for both call legs.
*Mar 1 15:36:05.028: //45/xxxxxxxxxxxx/CCAPI/cc_api_caps_ack: (dstVdbPtr=0x637EC1E0, dstCallId=0x2C, srcCallId=0x2D,caps={codec=0x4, fax_rate=0x2, vad=0x2, modem=0x0codec_bytes=20, signal_type=2, seq_num_start=2944})*Mar 1 15:36:05.028: //44/xxxxxxxxxxxx/CCAPI/cc_api_caps_ack: (dstVdbPtr=0x62EC61A4, dstCallId=0x2D, srcCallId=0x2C,caps={codec=0x4, fax_rate=0x2, vad=0x2, modem=0x0codec_bytes=20, signal_type=2, seq_num_start=2944})*Mar 1 15:36:05.032: //44/xxxxxxxxxxxx/CCAPI/cc_api_voice_mode_event: callID=0x2C*Mar 1 15:36:05.032: //44/45F2AAE28044/CCAPI/cc_api_voice_mode_event: Call Pointer =634A430C*Mar 1 15:36:05.032: //44/xxxxxxxxxxxx/SSAPP:-1:-1/sess_appl: ev(52=CC_EV_VOICE_MODE_DONE), cid(44), disp(0)*Mar 1 15:36:05.032: //44/45F2AAE28044/SSAPP:10002:21/ssaTraceSct:Router#Router#cid(44)st(SSA_CS_ACTIVE)ev(SSA_EV_VOICE_MODE_DONE)oldst(SSA_CS_CONFERENCING)cfid(21 )csize(2)in(1)fDest(1)*Mar 1 15:36:05.032: //44/45F2AAE28044/SSAPP:10002:21/ssaTraceSct: -cid2(45)st2(SSA_CS_ACTIVE)oldst2(SSA_CS_ALERT_RCVD)*Mar 1 15:36:05.032: //44/45F2AAE28044/SSAPP:10002:21/ssaIgnore: cid(44), st(SSA_CS_ACTIVE),oldst(5), ev(52)Router#Router#! digit punchedRouter#The phone at the terminating gateway enters digit 1.
*Mar 1 15:36:11.204: //45/xxxxxxxxxxxx/CCAPI/cc_api_call_digit_begin: (dstVdbPtr=0x637EC1E0, dstCallId=0x2C, srcCallId=0x2D,digit=1, digit_begin_flags=0x0, rtp_timestamp=0x0rtp_expiration=0x0, dest_mask=0x2)*Mar 1 15:36:11.504: //45/xxxxxxxxxxxx/CCAPI/cc_api_call_digit_end: (dstVdbPtr=0x637EC1E0, dstCallId=0x2C, srcCallId=0x2D,digit=1,duration=300,xruleCallingTag=0,xruleCalledTag=0, dest_mask=0x2), digit_tone_mode=0The phone at the terminating gateway enters digit 2.
*Mar 1 15:36:11.604: //45/xxxxxxxxxxxx/CCAPI/cc_api_call_digit_begin: (dstVdbPtr=0x637EC1E0, dstCallId=0x2C, srcCallId=0x2D,digit=2, digit_begin_flags=0x0, rtp_timestamp=0x0rtp_expiration=0x0, dest_mask=0x2)*Mar 1 15:36:11.904: //45/xxxxxxxxxxxx/CCAPI/cc_api_call_digit_end: (dstVdbPtr=0x637EC1E0, dstCallId=0x2C, srcCallId=0x2D,digit=2,duration=300,xruleCallingTag=0,xruleCalledTag=0, dest_mask=0x2), digit_tone_mode=0Router#*Mar 1 15:36:14.476: //-1/xxxxxxxxxxxx/CCAPI/cc_handle_periodic_timer: Calling the callback, ccTimerctx - 0x628B6330*Mar 1 15:36:14.476: //-1/xxxxxxxxxxxx/CCAPI/ccTimerStart: ccTimerctx - 0x628B6330Router#Router#!call hung up The user at the terminating gateway hangs up the call.Router#The voice gateway receives a disconnect message from the terminating gateway. The cause code is 0x10 which is normal call clearing.
*Mar 1 15:36:22.916: //45/xxxxxxxxxxxx/CCAPI/cc_api_call_disconnected: (vdbPtr=0x62EC61A4, callID=0x2D, cause=0x10)*Mar 1 15:36:22.920: //45/xxxxxxxxxxxx/SSAPP:-1:-1/sess_appl: ev(11=CC_EV_CALL_DISCONNECTED), cid(45), disp(0)*Mar 1 15:36:22.920: //45/45F2AAE28044/SSAPP:0:21/ssaTraceSct: cid(45)st(SSA_CS_ACTIVE)ev(SSA_EV_CALL_DISCONNECTED)oldst(SSA_CS_ALERT_RCVD)cfid(21)csize(2)in(0)fDest(0)*Mar 1 15:36:22.920: //45/45F2AAE28044/SSAPP:0:21/ssaTraceSct: -cid2(44)st2(SSA_CS_ACTIVE)oldst2(SSA_CS_ACTIVE)*Mar 1 15:36:22.920: ssa: Disconnected cid(45) state(5) cause(0x10)The voice gateway begins tearing down the conference and dropping the bridge.
*Mar 1 15:36:22.920: //-1/xxxxxxxxxxxx/CCAPI/ccConferenceDestroy: (confID=0x15, tag=0x0)*Mar 1 15:36:22.920: //45/xxxxxxxxxxxx/CCAPI/cc_api_bridge_drop_done: (confID=0x15, srcIF=0x62EC61A4, srcCallID=0x2D, dstCallID=0x2C, disposition=0 tag=0x0)*Mar 1 15:36:22.920: //44/xxxxxxxxxxxx/CCAPI/cc_api_bridge_drop_done: (confID=0x15, srcIF=0x637EC1E0, srcCallID=0x2C, dstCallID=0x2D, disposition=0 tag=0x0)*Mar 1 15:36:22.924: //44/xxxxxxxxxxxx/SSAPP:-1:-1/sess_appl: ev(30=CC_EV_CONF_DESTROY_DONE), cid(44), disp(0)*Mar 1 15:36:22.924: //44/45F2AAE28044/SSAPP:10002:21/ssaTraceSct: cid(44)st(SSA_CS_CONF_DESTROYING)ev(SSA_EV_CONF_DESTROY_DONE)oldst(SSA_CS_ACTIVE)cfid(21)csize(2)in(1)fDest(1)*Mar 1 15:36:22.924: //44/45F2AAE28044/SSAPP:10002:21/ssaTraceSct: -cid2(45)st2(SSA_CS_CONF_DESTROYING)oldst2(SSA_CS_ACTIVE)*Mar 1 15:36:22.924: //45/45F2AAE28044/SSAPP:0:-1/ssaConfDestroyDone:*Mar 1 15:36:22.924: //44/xxxxxxxxxxxx/CCAPI/ccCallDisconnect: (callID=0x2C, cause=0x10 tag=0x0)The voice gateway stops call accounting on the incoming call, indicated by the leg_type=True message. The cause code is then set for the originating leg.
*Mar 1 15:36:22.924: //44/45F2AAE28044/CCAPI/ccCallDisconnect: calling accounting start for callID=44 leg_type=1*Mar 1 15:36:22.924: //44/45F2AAE28044/CCAPI/ccCallDisconnect: existing_cause = 0x0, new_cause = 0x10*Mar 1 15:36:22.924: //44/xxxxxxxxxxxx/CCAPI/cc_api_get_transfer_info: (callID=0x2C)*Mar 1 15:36:22.924: //45/xxxxxxxxxxxx/CCAPI/ccCallDisconnect: (callID=0x2D, cause=0x10 tag=0x0)The voice gateway stops call accounting for the outgoing call, indicated by the leg_type=False message. The cause code is verified for the terminating leg.
*Mar 1 15:36:22.924: //45/45F2AAE28044/CCAPI/ccCallDisconnect: calling accounting start for callID=45 leg_type=0*Mar 1 15:36:22.924: //45/45F2AAE28044/CCAPI/ccCallDisconnect: existing_cause = 0x10, new_cause = 0x10*Mar 1 15:36:22.924: //45/45F2AAE28044/CCAPI/ccCallDisconnect: using the existing_cause 0x10*Mar 1 15:36:22.928: //45/xxxxxxxxxxxx/CCAPI/cc_api_get_transfer_info: (callID=0x2D)*Mar 1 15:36:22.932: //-1/xxxxxxxxxxxx/CCAPI/cc_api_icpif: expect factor = 0*Mar 1 15:36:22.932: //-1/xxxxxxxxxxxx/CCAPI/g113_calculate_impairment: (delay=79,loss=0), Io=0 Iq=0 Idte=0 Idd=0 Ie=10 Itot=10*Mar 1 15:36:22.932: //-1/xxxxxxxxxxxx/CCAPI/cc_decr_if_call_volume: the remote IP is 171.69.85.111*Mar 1 15:36:22.932: //-1/xxxxxxxxxxxx/CCAPI/cc_decr_if_call_volume: hwidb is Ethernet0/0*Mar 1 15:36:22.932: //-1/xxxxxxxxxxxx/CCAPI/cc_decr_if_call_volume: reduce callnum of entry: 0, voip: 0, mmoip: 0*Mar 1 15:36:22.932: //-1/xxxxxxxxxxxx/CCAPI/cc_decr_if_call_volume: remove anentry*Mar 1 15:36:22.932: //45/xxxxxxxxxxxx/CCAPI/cc_api_call_disconnect_done: (vdbPtr=0x62EC61A4, callID=0x2D, disp=0, tag=0x0)*Mar 1 15:36:22.932: //45/45F2AAE28044/CCAPI/ccTDPvtProfileTableObjectAccessManager: No profileTable set for callID[45]*Mar 1 15:36:22.936: //45/xxxxxxxxxxxx/CCAPI/ccTDUtilGetDataByRef: No tdObjectfound in profileTable for tagID[6] of callID[45]*Mar 1 15:36:22.936: //45/45F2AAE28044/CCAPI/cc_delete_call_entry: not incoming entry*Mar 1 15:36:22.936: //45/45F2AAE28044/CCAPI/cc_delete_call_entry: entry's incoming FALSE.*Mar 1 15:36:22.936: //45/45F2AAE28044/CCAPI/cc_delete_call_entry: is_incomingis FALSE*Mar 1 15:36:22.940: //45/xxxxxxxxxxxx/SSAPP:-1:-1/sess_appl: ev(12=CC_EV_CALL_DISCONNECT_DONE), cid(45), disp(0)*Mar 1 15:36:22.940: //45/45F2AAE28044/SSAPP:0:-1/ssaTraceSct: cid(45)st(SSA_CS_DISCONNECTING)ev(SSA_EV_CALL_DISCONNECT_DONE)oldst(SSA_CS_ACTIVE)cfid(-1)csize(2)in(0)fDe st(0)*Mar 1 15:36:22.940: //45/45F2AAE28044/SSAPP:0:-1/ssaTraceSct: -cid2(44)st2(SSA_CS_DISCONNECTING)oldst2(SSA_CS_CONF_DESTROYING)*Mar 1 15:36:22.940: //45/45F2AAE28044/SSAPP:0:-1/ssaDisconnectDone:*Mar 1 15:36:22.940: //45/45F2AAE28044/SSAPP:0:-1/ssaAAA_CheckAccounting: accounting generation enabled*Mar 1 15:36:22.940: //45/xxxxxxxxxxxx/CCAPI/ccCallSetAAA_Accounting: callID=0x2D, accounting=0*Mar 1 15:36:22.944: //-1/xxxxxxxxxxxx/CCAPI/cc_decr_if_call_volume: not the VoIP or MMoIP*Mar 1 15:36:22.948: //44/xxxxxxxxxxxx/CCAPI/cc_api_call_disconnect_done: (vdbPtr=0x637EC1E0, callID=0x2C, disp=0, tag=0x0)*Mar 1 15:36:22.948: //44/45F2AAE28044/CCAPI/cc_delete_call_entry: ccFreeRawMsgInfo(0x6307595C)*Mar 1 15:36:22.948: //44/45F2AAE28044/CCAPI/cc_delete_call_entry: Decrement call volume counter 1*Mar 1 15:36:22.948: //44/45F2AAE28044/CCAPI/cc_delete_call_entry: current call volume: 0*Mar 1 15:36:22.948: //44/45F2AAE28044/CCAPI/cc_delete_call_entry: entry's incoming TRUE.*Mar 1 15:36:22.948: //44/45F2AAE28044/CCAPI/cc_delete_call_entry: is_incomingis TRUE*Mar 1 15:36:22.948: //44/45F2AAE28044/CCAPI/cc_delete_call_entry: Deleting profileTable[0x6380E11C]*Mar 1 15:36:22.948: //-1/xxxxxxxxxxxx/CCAPI/ccTDDestructTDHashProfileTab: Destructor Profile Table (0x6380E11C)*Mar 1 15:36:22.948: //-1/xxxxxxxxxxxx/CCAPI/ccTDDestructInstanceTDObject: tdObject[0x63401148] tagID[5]*Mar 1 15:36:22.948: //-1/xxxxxxxxxxxx/CCAPI/ccTDDestructInstanceTDObject: tdObject[0x638BC1AC] tagID[6]*Mar 1 15:36:22.956: //44/xxxxxxxxxxxx/SSAPP:-1:-1/sess_appl: ev(12=CC_EV_CALL_DISCONNECT_DONE), cid(44), disp(0)*Mar 1 15:36:22.956: //44/45F2AAE28044/SSAPP:10002:-1/ssaTraceSct: cid(44)st(SSA_CS_DISCONNECTING)ev(SSA_EV_CALL_DISCONNECT_DONE)oldst(SSA_CS_CONF_DESTROYING )cfid(-1)csize(1)in(1)fDest(1)Router#*Mar 1 15:36:22.956: //44/45F2AAE28044/SSAPP:10002:-1/ssaDisconnectDone:
