Using Performance Routing to Profile the Traffic Classes
First Published: July 11, 2008Last Updated: July 11, 2008This module describes how Performance Routing (PfR) profiles the traffic classes. To optimize traffic routing, subsets of the total traffic must be identified, and these traffic subsets are named traffic classes. The PfR master controller can profile traffic classes either by manual configuration on the master controller or by automatic learning on the basis of parameters such as throughput or delay characteristics of traffic on the border routers. Automatic learning requires traffic class parameters to be configured on the master controller.
Note
Performance Routing is an extension of the Optimized Edge Routing (OER) technology and many of the commands and command modes use the OER naming conventions. If you are running Cisco IOS Release 12.4(11)T, 12.2(33)SXH, 12.2(33)SRB or earlier releases, see the "Using OER to Profile the Traffic Classes" module for configuration information and tasks appropriate to your release.
Finding Feature Information
Your software release may not support all the features documented in this module. For the latest feature information and caveats, see the release notes for your platform and software release. To find information about the features documented in this module, and to see a list of the releases in which each feature is supported, see the "Feature Information for Using PfR to Profile the Traffic Classes" section.
Use Cisco Feature Navigator to find information about platform support and Cisco IOS and Catalyst OS software image support. To access Cisco Feature Navigator, go to http://www.cisco.com/go/cfn. An account on Cisco.com is not required.
Contents
•
•
•
•
•
•
Prerequisites for Using PfR to Profile the Traffic Classes
•
•
Restrictions for Using PfR to Profile the Traffic Classes
If any of the border routers is a Cisco Catalyst 6500 switch or a Cisco 7600 series router, there are some hardware constraints and the master controller will set the monitoring mode to special where only the throughput method of learning is used to profile the traffic classes.If both delay and throughput are configured, the master controller will ignore the delay configuration. For more details about the special monitoring mode, see the "Measuring the Traffic Class Performance and Link Utilization Using OER" module for more details.
Information About Using PfR to Profile the Traffic Classes
To configure the master controller to profile traffic classes, you should understand the following concepts:
•
•
PfR Traffic Class Profiling
Before optimizing traffic, PfR has to determine the traffic classes from the traffic flowing through the border routers. To optimize traffic routing, subsets of the total traffic must be identified, and these traffic subsets are named traffic classes. The list of traffic classes entries is named a Monitored Traffic Class (MTC) list. The entries in the MTC list can be profiled either by automatically learning the traffic flowing through the device or by manually configuring the traffic classes. Learned and configured traffic classes can both exist in the MTC list at the same time. The PfR profile phase includes both the learn mechanism and the configure mechanism. The overall structure of the PfR traffic class profile process and its component parts can be seen in Figure 1.

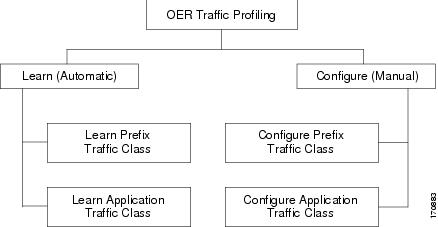

Figure 1 PfR Traffic Class Profiling Process
The ultimate objective of this phase is to select a subset of traffic flowing through the network. This subset of traffic—the traffic classes in the MTC list—represents the classes of traffic that need to be routed based on the best performance path available.
More details about each of the components in Figure 1 are contained in the following concepts:
•
•
PfR Automatic Traffic Class Learning
PfR can automatically learn the traffic classes while monitoring the traffic flow through border routers. Although the goal is to optimize a subset of the traffic, you may not know all the exact parameters of this traffic and PfR provides a method to automatically learn the traffic and create traffic classes by populating the MTC list. Several features have been added to PfR since the original release to add functionality to the automatic traffic class learning process.
Within the automatic traffic class learning process there are now three components. One component describes the automatic learning of prefix-based traffic classes, the second component describes automatic learning of application-based traffic classes, and the third component describes the use of learn lists to categorize both prefix-based and application-based traffic classes. These three components are described in the following sections:
•
•
•
Prefix Traffic Class Learning Using PfR
The PfR master controller can be configured, using NetFlow Top Talker functionality, to automatically learn prefixes based on the highest outbound throughput or the highest delay time. Throughput learning measures prefixes that generate the highest outbound traffic volume. Throughput prefixes are sorted from highest to lowest. Delay learning measures prefixes with the highest round-trip response time (RTT) to optimize these highest delay prefixes to try to reduce the RTT for these prefixes. Delay prefixes are sorted from the highest to the lowest delay time.
PfR can automatically learn two types of prefixes:
•
•
In Cisco IOS Release 12.4(9)T, 12.2(33)SRB, and later releases, the ability to learn inside prefixes was introduced. Using BGP, PfR can select inside prefixes to support best entrance selection for traffic that originates from prefixes outside an autonomous system destined for prefixes inside the autonomous system. In prior releases, only outside prefixes were supported. Company networks advertise the inside prefixes over the Internet using an Internet service provider (ISP) and receive advertisements for outside prefixes from an ISP.
Note
Automatic prefix learning is configured in OER Top Talker and Top Delay learning configuration mode. The learn command is used to enter this mode from PfR master controller configuration mode. When automatic prefix learning is enabled, prefixes and their delay or throughput characteristics are measured on the border routers. Performance measurements for the prefix-based traffic classes are reported to the master controller where the learned prefixes are stored in the MTC list.
Prefixes are learned on the border routers through monitoring the traffic flow using the embedded NetFlow capability. All incoming and outgoing traffic flows are monitored. The top 100 flows are learned by default, but the master controller can be configured to learn up to 2500 flows for each learn cycle. The master controller can control a maximum of 5000 prefixes.
The master controller can be configured to aggregate learned prefixes based on type, BGP or non-BGP (static). Prefixes can be aggregated based on the prefix length. Traffic flows are aggregated using a /24 prefix length by default. Prefix aggregation can be configured to include any subset or superset of the network, from single host route (/32) to a major network address range. For each aggregated prefix, up to five host addresses are selected to use as active probe targets. Prefix aggregation is configured with the aggregation-type command in OER Top Talker and Delay learning configuration mode.
Application Traffic Class Learning Using PfR
In the first release of OER, Cisco IOS Release 12.3(8)T, only Layer 3 prefixes could be learned. In subsequent releases, Layer 4 options such as protocol or port numbers were added as filters to the prefix-based traffic class. The protocol and port numbers can be used to identify specific application traffic classes; protocol and port number parameters are monitored only within the context of a prefix and are not sent to the master controller database (MTC list). The prefix that carries the specific traffic is then monitored by the master controller. In Cisco IOS Release 12.4(9)T, Release 12.2(33)SRB, and later releases, application traffic class learning supports Differentiated Services Code Point (DSCP) values in addition to protocol and port numbers, and these Layer 4 options are entered in the MTC list.
DSCP Value, Port, and Protocol Learning by PfR
In Cisco IOS Release 12.4(9)T, 12.2(33)SRB, and later releases, the ability to filter and aggregate application traffic by DSCP value, port number or protocol was introduced. Traffic classes can be defined by a combination of keys comprising of protocol, port numbers, and DSCP values. The ability to filter out traffic that is not required, and the ability to aggregate the traffic in which you are interested, was introduced. Information such as protocol, port number, and DSCP value is now sent to the master controller database in addition to the prefix information. The new functionality allows PfR to both actively and passively monitor application traffic. Using new CLI and access lists, PfR can be configured to automatically learn application traffic classes.
Learn List Configuration Mode
In Cisco IOS Release 12.4(15)T, a new configuration mode named learn list was introduced. Learn lists are a way to categorize learned traffic classes. In each learn list, different criteria including prefixes, application definitions, filters, and aggregation parameters for learning traffic classes can be configured. A traffic class is automatically learned by PfR based on each learn list criteria, and each learn list is configured with a sequence number. The sequence number determines the order in which learn list criteria are applied. Learn lists allow different PfR policies to be applied to each learn list; in previous releases, the traffic classes could not be divided, and an PfR policy was applied to all the learned traffic classes.
New traffic-class commands were introduced under learn list mode to simplify the learning of traffic classes. Four types of traffic classes—to be automatically learned—can be profiled:
•
•
•
•
Only one type of traffic-class command can be specified per learn list, and the throughput and delay commands are also mutually exclusive within a learn list.
Static Application Mapping Using PfR
In Cisco IOS Release 12.4(15)T, the ability to define an application using a keyword was introduced to simplify the configuration of application-based traffic classes. PfR uses well-known applications with fixed ports, and more than one application may be configured at the same time. The list of static applications available for profiling Performance Routing traffic classes is constantly evolving. Use the traffic-class application ? command in Cisco IOS Release 12.4(15)T, and later releases, to determine if a static application is available for use with Performance Routing.
Table 1 displays a partial list of static applications that can be configured with Performance Routing. The applications are considered static because they are defined with fixed port and protocols as shown in the table. Configuration is performed on a master controller under learn list configuration mode.
The master controller is configured to learn the top prefixes based on highest outbound throughput or delay for the filtered traffic, and the resulting traffic classes are added to the PfR application database to be passively and actively monitored.
For more details on configuring application-based traffic classes using static application mapping, see the "Defining a Learn List to Automatically Learn Traffic Classes Using Static Application Mapping" section.
PfR Application Mapping Using NBAR
In Cisco IOS Release 12.4(20)T, the ability to profile an application-based traffic class using NBAR was introduced. Network-Based Application Recognition (NBAR) is a classification engine that recognizes and classifies a wide variety of protocols and applications, including web-based and other difficult-to-classify applications and protocols that use dynamic TCP/UDP port assignments. PfR uses NBAR to recognize and classify a protocol or application, and the resulting traffic classes are added to the PfR application database to be passively and actively monitored.
The new traffic-class application nbar command was introduced under learn list configuration mode to automatically profile traffic classes based on an NBAR application mapping name with an optional prefix list to eliminate or allow specific traffic classes.
NBAR is capable of identifying applications based on the following three types of protocols:
•
•
•
The list of applications identified using NBAR and available for profiling of Performance Routing traffic classes is constantly evolving. Use the traffic-class application nbar ? command in Cisco IOS Release 12.4(20)T, and later releases, to determine if an application that can be identified using NBAR is available for use with Performance Routing. Custom user-defined applications can also be configured to add a new application to the list of supported NBAR applications using a Packet Description Language Module (PDLM). A PDLM uses a mapping of static TCP and UDP port numbers to create a custom application. The application defined by a PDLM file must be recognized on an OER border router and configured on the master controller using the application define command.
In addition to the static applications in Table 1, and many applications based on non-UDP and non-TCP protocols, Table 2 displays a partial list of TCP and UDP applications that dynamically assign port numbers. All these applications can be identified using NBAR and used to profile traffic classes for Performance Routing.
For more details about NBAR, see the "Classifying Network Traffic Using NBAR" section of the Cisco IOS Quality of Service Solutions Configuration Guide.
PfR Manual Traffic Class Configuration
PfR can be manually configured to create traffic classes for monitoring and subsequent optimizing. Automatic learning generally uses a default prefix length of /24 but manual configuration allows exact prefixes to be defined. Within the manual traffic class configuration process there are two components— manually configuring prefix-based traffic classes and manually configuring application-based traffic classes, both of which are described in the following sections:
•
•
Prefix Traffic Class Configuration Using PfR
A prefix or range of prefixes can be selected for PfR monitoring by configuring an IP prefix list. The IP prefix list is then imported into the MTC list by configuring a match clause in an OER map. An OER map is similar to an IP route map. IP prefix lists are configured with the ip prefix-list command and OER maps are configured with the oer-map command in global configuration mode.
The prefix list syntax operates in a slightly different way with PfR than in regular routing. The ge keyword is not used and the le keyword is used by PfR to specify only an inclusive prefix. A prefix list can also be used to specify an exact prefix.
A master controller can monitor and control an exact prefix of any length including the default route. If an exact prefix is specified, PfR monitors only the exact prefix.
A master controller can monitor and control an inclusive prefix using the le keyword and the le-value argument set to 32. PfR monitors the configured prefix and any more specific prefixes (for example, configuring the 10.0.0.0/8 le 32 prefix would include the 10.1.0.0/16 and the 10.1.1.0/24 prefixes) over the same exit and records the information in the routing information base (RIB).
Note
An IP prefix list with a deny statement can be used to configure the master controller to exclude a prefix or prefix length for learned traffic classes. Deny prefix list sequences should be applied in the lowest OER map sequences for best performance. In Cisco IOS Release 12.4(9)T, 12.2(33)SRB, and later releases, the master controller can be configured to tell border routers to filter out uninteresting traffic using an access list.
Note
Two types of prefix can be manually configured for PfR monitoring using an IP prefix list:
•
•
In Cisco IOS Release 12.4(9)T, 12.2(33)SRB, and later releases, the ability to manually configure inside prefixes was introduced. Using BGP, PfR can be configured to select inside prefixes to support best entrance selection for traffic that originates from prefixes outside an autonomous system destined for prefixes inside the autonomous system. In prior releases, only outside prefixes were supported. Company networks advertise the inside prefixes over the Internet using an Internet service provider (ISP) and receive advertisements for outside prefixes from an ISP.
Note
Application Traffic Class Configuration Using PfR
In the first release of OER, Cisco IOS Release 12.3(8)T, only Layer 3 prefixes could be manually configured during the OER profile phase. In Cisco IOS Release 12.4(2)T, 12.2(33)SRB, and later releases, support for OER application-aware routing for policy-based routing (PBR) was introduced. Application-aware routing allows the selection of traffic for specific applications based on values in the IP packet header, other than the Layer 3 destination address through a named extended IP access control list (ACL). Only named extended ACLs are supported. The extended ACL is configured with a permit statement and then referenced in an OER map. The protocol and port numbers can be used to identify specific application traffic classes, but protocol and port number parameters are monitored only within the context of a prefix, and are not sent to the MTC list. Only the prefix that carries the specific application traffic is profiled by the master controller. With application-aware routing support, active monitoring of application traffic was supported. Passive monitoring of application traffic was introduced in Cisco IOS Release 12.4(9)T, 12.2(33)SRB, and later releases, with application traffic class configuration support of the profiling of DSCP values as well as protocol and port numbers. DSCP values, port numbers, and protocols in addition to prefixes, are all now stored in the MTC list.
In Cisco IOS Release 12.4(15)T, new match traffic-class commands were introduced under OER map configuration mode to simplify the configuration of traffic classes. Four types of traffic classes—to be manually configured—can be profiled:
•
•
•
•
Only one type of match traffic-class command can be specified per OER map.
For a series of well-known applications, static ports have been defined and each application can be defined by entering a keyword. For more details about the mapping of keywords to static applications using PfR, see the "Static Application Mapping Using PfR" section.
In Cisco IOS Release 12.4(20)T, the ability to profile an application-based traffic class using NBAR was introduced. NBAR is a classification engine that recognizes and classifies a wide variety of protocols and applications, including web-based and other difficult-to-classify applications and protocols that use dynamic TCP/UDP port assignments. PfR uses NBAR to recognize and classify a protocol or application, and the resulting traffic classes are added to the PfR application database to be passively and actively monitored. The new match traffic-class application nbar command was introduced to manually configure traffic classes based on an NBAR application mapping name and destination prefixes defined using a mandatory prefix list.
For more details about the mapping of keywords to applications using NBAR, see the "PfR Application Mapping Using NBAR" section.
How to Configure PfR to Profile the Traffic Classes
A PfR master controller can be configured to automatically learn the traffic classes, or the traffic classes can be manually configured. In Cisco IOS Release 12.4(15)T, the introduction of learn lists allows traffic classes that are automatically learned by PfR to be categorized into separate learn lists to which different PfR policies can be applied. New commands were also introduced to simplify the profiling of traffic classes.
In Cisco IOS Release 12.4(15)T the introduction of learn lists allows traffic classes that are automatically learned by PfR to be categorized into separate learn lists to which different PfR policies can be applied. The ability to learn application traffic classes using a keyword representing a static application is also introduced and new traffic-class and match traffic-class commands simplify the configuration of traffic classes that PfR can automatically learn, or that can be manually configured.
In Cisco IOS Release 12.4(20)T, the ability to learn application traffic classes using a keyword representing an application that can be recognized using NBAR was introduced. Two new learn list commands, traffic-class application nbar and match traffic-class application nbar, were introduced.
Automatic Learning
Four types of automatically learned traffic classes can be profiled:
•
•
•
•
Only one type of traffic-class command can be specified per learn list, and the throughput and delay commands are also mutually exclusive within a learn list.
Manual Configuration
Four types of manually configured traffic classes can be profiled:
•
•
•
•
Only one type of match traffic-class command can be specified per OER map.
Note
Perform any of the following tasks to profile traffic classes:
•
•
•
•
•
•
•
•
•
•
Defining a Learn List for Automatically Learned Prefix-Based Traffic Classes
Perform this task at the master controller to define a learn list that will contain traffic classes that are automatically learned based on a prefix list. In Cisco IOS Release 12.4(15)T learn lists were introduced to allow traffic classes to be categorized. Learn lists allow different PfR policies to be applied to each learn list; in previous releases the traffic classes could not be divided, and an PfR policy was applied to all the learned traffic classes.
This task is performed on the master controller shown in Figure 2. In this task, a prefix list is created to specify destination addresses and a learn list is defined under OER Top Talker and Top Delay configuration mode. This task configures prefix learning based on the highest outbound throughput.
In this task, the IP prefix list specifies that the prefix 10.1.0.0/16 is to be used as filter when learning the traffic classes. Under learn list mode, the prefix length aggregation is configured as a /24 prefix length. The traffic classes learned by this task will be:
10.1.1.0/2410.1.2.0/24...10.1.255.0/24Figure 2 Network Diagram of PfR Master Controller and Border Routers
Prerequisites
This task requires the master controller and border routers to be running Cisco IOS Release 12.4(15)T or a later release.
SUMMARY STEPS
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
DETAILED STEPS
Step 1
enable
Example:Router> enable
Enables privileged EXEC mode.
•
Step 2
configure terminal
Example:Router# configure terminal
Enters global configuration mode.
Step 3
ip prefix-list list-name [seq seq-value] {deny network/length | permit network/length} [le le-value]
Example:Router(config)# ip prefix-list PREFIXES seq 10 permit 10.1.0.0/16
Creates an IP prefix list.
•
•
Step 4
Repeat Step 3 for more prefix list entries, as required.
—
Step 5
oer master
Example:Router(config)# oer master
Enters OER master controller configuration mode to configure a Cisco router as a master controller and to configure master controller policy and timer settings.
Step 6
learn
Example:Router(config-oer-mc)# learn
Enters OER Top Talker and Top Delay learning configuration mode to automatically learn traffic classes.
Step 7
list seq number refname refname
Example:Router(config-oer-mc-learn)# list seq 10 refname LEARN_PREFIXES_TC
Creates an OER learn list and enters learn list configuration mode.
•
•
•
Step 8
count number max max-number
Example:Router(config-oer-mc-learn-list)# count 40 max 90
Sets the number of traffic classes to be learned during an PfR learn session.
•
•
•
Step 9
traffic-class prefix-list prefix-list-name [inside]
Example:Router(config-oer-mc-learn-list)# traffic-class prefix-list LEARN_PREFIXES_TC
Defines an PfR traffic class using a prefix list.
•
•
•
Step 10
aggregation-type {bgp | non-bgp | prefix-length} prefix-mask
Example:Router(config-oer-mc-learn-list)# aggregation-type prefix-length 24
(Optional) Configures a master controller to aggregate learned prefixes based on traffic flow type.
•
•
•
•
•
Step 11
throughput
Example:Router(config-oer-mc-learn-list)# throughput
Enables prefix learning based on the highest outbound throughput.
•
•
Note
Step 12
end
Example:Router(config-oer-mc-learn-list)# end
Exits learn list configuration mode, and returns to privileged EXEC mode.
Defining a Learn List for Automatically Learned Application Traffic Classes Using an Access List
Perform this task at the master controller to define a learn list that will contain traffic classes that are automatically learned by PfR using an access list to create customized application traffic classes. Use this task to build application traffic classes where the traffic cannot be defined using standard application port and protocol mapping. If there are some known prefixes that you want to exclude, an optional prefix list can be used to further filter the traffic although this is not shown in this task.
In Cisco IOS Release 12.4(15)T learn lists were introduced to allow traffic classes to be categorized. Learn lists allow different PfR policies to be applied to each learn list; in previous releases the traffic classes could not be divided, and an PfR policy was applied to all the traffic classes profiled during one learning session.
In this task, an access list is created that defines custom application traffic classes. Every entry in the access list defines one application. A learn list is then defined, the access list is applied, and an aggregation method is configured. Using the count command, 50 traffic classes can be learned during one learning session for the learn list named LEARN_USER_DEFINED_TC, with a maximum specified number of 90 traffic classes for this learn list. The master controller is configured to learn the top prefixes based on highest delay for the filtered traffic and the resulting traffic classes are added to the PfR application database.
To display information about the traffic classes learned by PfR, use the "Displaying and Resetting Traffic Class and Learn List Information" section.
Prerequisites
This task requires the master controller and border routers to be running Cisco IOS Release 12.4(15)T or a later release.
SUMMARY STEPS
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
DETAILED STEPS
Step 1
enable
Example:Router> enable
Enables privileged EXEC mode.
•
Step 2
configure terminal
Example:Router# configure terminal
Enters global configuration mode.
Step 3
ip access-list {standard | extended} access-list-name
Example:Router(config)# ip access-list extended USER_DEFINED_TC
Defines an IP access list by name.
•
•
Step 4
[sequence-number] permit udp source source-wildcard [operator [port]] destination destination-wildcard [operator [port]] [dscp dscp-value]
Example:Router(config-ext-nacl)# permit tcp any any 500
Sets conditions to allow a packet to pass a named IP access list.
•
Note
Step 5
Repeat Step 4 for more access list entries, as required.
—
Step 6
exit
Example:Router(config-ext-nacl)# exit
(Optional) Exits extended access list configuration mode and returns to global configuration mode.
Step 7
oer master
Example:Router(config)# oer master
Enters OER master controller configuration mode to configure a Cisco router as a master controller and to configure master controller policy and timer settings.
Step 8
learn
Example:Router(config-oer-mc)# learn
Enters OER Top Talker and Top Delay learning configuration mode to automatically learn traffic classes.
Step 9
list seq number refname refname
Example:Router(config-oer-mc-learn)# list seq 10 refname LEARN_USER_DEFINED_TC
Creates an PfR learn list and enters learn list configuration mode.
•
•
•
Step 10
count number max max-number
Example:Router(config-oer-mc-learn-list)# count 50 max 90
Sets the number of traffic classes to be learned during an PfR learn session.
•
•
•
Step 11
traffic-class access-list access-list-name [filter prefix-list-name]
Example:Router(config-oer-mc-learn-list)# traffic-class access-list USER_DEFINED_TC
Defines a PfR traffic class using an access list.
•
•
Step 12
aggregation-type {bgp | non-bgp | prefix-length} prefix-mask
Example:Router(config-oer-mc-learn-list)# aggregation-type prefix-length 24
(Optional) Configures a master controller to aggregate learned prefixes based on traffic flow type.
•
•
•
•
•
Step 13
delay
Example:Router(config-oer-mc-learn-list)# delay
Enables prefix learning based on the highest delay time.
•
•
Note
Step 14
end
Example:Router(config-oer-mc-learn-list)# end
Exits learn list configuration mode, and returns to privileged EXEC mode.
Defining a Learn List to Automatically Learn Traffic Classes Using Static Application Mapping
Perform this task at the master controller to define a learn list using static application mapping. Within a learn list, a keyword that represents an application can be used to identify specific application traffic classes. The defined learn list will contain traffic classes to be automatically learned by PfR using the static application mapping. The resulting traffic classes can be filtered by a prefix list, if required.
In Cisco IOS Release 12.4(15)T learn lists were introduced to allow traffic classes to be categorized. Learn lists allow different PfR policies to be applied to each learn list; in previous releases the traffic classes could not be divided, and an PfR policy was applied to all the traffic classes profiled during one learning session.
In this example, two learn lists are configured to identify remote login traffic and file transfer traffic. The remote login traffic class is configured using keywords representing Telnet and Secure Shell (SSH) traffic, and the resulting prefixes are aggregated to a prefix length of 24. The file transfer traffic class is configured using a keyword that represents FTP and is also aggregated to a prefix length of 24. A prefix list is applied to the file transfer traffic class to permit traffic from the 10.0.0.0/8 prefix. The master controller is configured to learn the top prefixes based on highest outbound throughput for the filtered traffic, and the resulting traffic classes are added to the PfR application database.
To display information about the configured learn lists and the traffic classes learned by PfR, use the "Displaying and Resetting Traffic Class and Learn List Information" section.
Prerequisites
This task requires the master controller and border routers to be running Cisco IOS Release 12.4(15)T or a later release.
SUMMARY STEPS
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
DETAILED STEPS
Defining a Learn List to Automatically Learn Traffic Classes Using NBAR Application Mapping
Perform this task at the master controller to define a learn list using applications identified using NBAR. Within a learn list, NBAR is used to identify specific application traffic classes. The defined learn list will contain traffic classes to be automatically learned by PfR using NBAR, and an optional prefix list can be used to allow or eliminate certain traffic classes.
In Cisco IOS Release 12.4(15)T, learn lists were introduced to allow traffic classes to be categorized. Learn lists allow different PfR policies to be applied to each learn list; in earlier releases, the traffic classes could not be divided, and a PfR policy was applied to all the traffic classes profiled during one learning session. In Cisco IOS Release 12.4(20)T, the ability to use applications identified using NBAR was introduced.
In this example, a learn list is configured to identify Real-Time Transport Protocol streaming audio (RTP-Audio) traffic. The RTP-Audio traffic is identified using NBAR and the resulting prefixes are aggregated to a prefix length of 24. A second learn list to identify a Skype traffic class is configured using a keyword that represents Skype and is also aggregated to a prefix length of 24. A prefix list is applied to the Skype traffic class to permit traffic from the 10.0.0.0/8 prefix. The master controller is configured to learn the top prefixes based on highest outbound throughput for the filtered traffic, and the resulting traffic classes are added to the PfR application database.
The traffic streams that the learn list profiles for both the RTP-Audio and the Skype applications are:
10.1.1.110.1.2.120.1.1.120.1.2.1The traffic classes that are learned for each application are:
10.1.1.0/24 rtp-audio10.1.2.0/24 rtp-audio20.1.1.0/24 rtp-audio20.1.2.0/24 rtp-audio10.1.1.0/24 skype10.1.2.0/24 skypeThe difference in traffic classes learned is due to the INCLUDE_10_NET prefix list that only includes Skype application traffic with a destination prefix that matches the prefix 10.0.0.0/8.
To display information about the configured learn lists and the traffic classes learned by PfR, use the "Displaying and Resetting Information About Traffic Classes Identified Using NBAR" section.
Prerequisites
This task requires the master controller and border routers to be running Cisco IOS Release 12.4(20)T or a later release.
SUMMARY STEPS
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
DETAILED STEPS
Manually Selecting Traffic Classes Using Static Application Mapping
Perform this task to manually select traffic classes using static application mapping. Use this task when you know the destination prefixes and the applications that you want to select for the traffic classes. In this task, an IP prefix list is created to define the destination prefixes, and static applications are defined using the match traffic-class application command. Using an OER map, each prefix is matched with each application to create the traffic classes.
Prerequisites
This task requires the master controller and border routers to be running Cisco IOS Release 12.4(15)T, or a later release.
SUMMARY STEPS
1.
2.
3.
4.
5.
6.
7.
DETAILED STEPS
Step 1
enable
Example:Router> enable
Enables privileged EXEC mode.
•
Step 2
configure terminal
Example:Router# configure terminal
Enters global configuration mode.
Step 3
ip prefix-list list-name [seq seq-value] {deny network/length | permit network/length} [le le-value]
Example:Router(config)# ip prefix-list LIST1 permit 10.1.1.0/24
Creates a prefix list to specify destination prefix-based traffic classes.
•
Step 4
Repeat Step 3 for more prefix list entries, as required.
—
Step 5
oer-map map-name sequence-number
Example:Router(config)# oer-map APPLICATION_MAP 10
Enters OER map configuration mode to configure an OER map.
•
•
•
Step 6
match traffic-class application application-name prefix-list prefix-list-name
Example:Router(config-oer-map)# traffic-class application telnet ssh prefix-list LIST1
Manually configures one or more static applications as match criteria against a prefix list to create traffic classes using an OER map.
•
•
Step 7
end
Example:Router(config-oer-map)# end
(Optional) Exits OER map configuration mode and returns to privileged EXEC mode.
Manually Selecting Traffic Classes Using NBAR Application Mapping
Perform this task to manually select traffic classes using NBAR application mapping. Use this task when you know the destination prefixes and the NBAR-identified applications that you want to select for the traffic classes. In this task, an IP prefix list is created to define the destination prefixes and the NBAR-identified applications, BitTorrent and Direct Connect, are defined using the match traffic-class application command. Using an OER map, each prefix is matched with each application to create the traffic classes.
The traffic classes in this example consist of BitTorrent and Direct Connect traffic identified using NBAR and matched with the destination prefix 10.1.1.0/24 that is specified in a prefix list, LIST1. Only traffic that matches both the BitTorrent and Direct Connect applications and the destination prefix is learned.
To display information about manually configured traffic classes identified using NBAR and learned by PfR, use the "Displaying and Resetting Information About Traffic Classes Identified Using NBAR" section.
Prerequisites
This task requires the master controller and border routers to be running Cisco IOS Release 12.4(20)T, or a later release.
SUMMARY STEPS
1.
2.
3.
4.
5.
6.
7.
DETAILED STEPS
Step 1
enable
Example:Router> enable
Enables privileged EXEC mode.
•
Step 2
configure terminal
Example:Router# configure terminal
Enters global configuration mode.
Step 3
ip prefix-list list-name [seq seq-value] {deny network/length | permit network/length} [le le-value]
Example:Router(config)# ip prefix-list LIST1 permit 10.1.1.0/24
Creates a prefix list to specify destination prefix-based traffic classes.
•
Step 4
Repeat Step 3 for more prefix list entries, as required.
—
Step 5
oer-map map-name sequence-number
Example:Router(config)# oer-map APPL_NBAR_MAP 10
Enters OER map configuration mode to configure an OER map.
•
•
•
Step 6
match traffic-class application nbar nbar-app-name [nbar-app-name...] prefix-list prefix-list-name
Example:Router(config-oer-map)# match traffic-class application nbar bittorrent directconnect prefix-list LIST1
Manually configures one or more applications that can be identified using NBAR as match criteria against a prefix list to create traffic classes using an OER map.
•
•
Step 7
end
Example:Router(config-oer-map)# end
(Optional) Exits OER map configuration mode and returns to privileged EXEC mode.
Manually Selecting Prefix-Based Traffic Classes Using a Prefix List
Perform this task on the master controller to manually select traffic classes based only on destination prefixes. Use this task when you know the destination prefixes that you want to select for the traffic classes. An IP prefix list is created to define the destination prefixes and using an OER map, the traffic classes are profiled.
Prerequisites
This task requires the master controller and border routers to be running Cisco IOS Release 12.4(15)T or a later release.
SUMMARY STEPS
1.
2.
3.
4.
5.
6.
7.
DETAILED STEPS
Step 1
enable
Example:Router> enable
Enables privileged EXEC mode.
•
Step 2
configure terminal
Example:Router# configure terminal
Enters global configuration mode.
Step 3
ip prefix-list list-name [seq seq-value] {deny network/length | permit network/length} [le le-value]
Example:Router(config)# ip prefix-list PREFIX_TC permit 172.16.1.0/24
Creates a prefix list to specify destination prefix-based traffic classes.
•
Step 4
Repeat Step 3 for more prefix list entries, as required.
—
Step 5
oer-map map-name sequence-number
Example:Router(config)# oer-map PREFIX_MAP 10
Enters OER map configuration mode to configure an OER map.
•
•
•
Step 6
match traffic-class prefix-list prefix-list-name
Example:Router(config-oer-map)# match traffic-class prefix-list PREFIX_TC
Manually configures a prefix list as match criteria used to create traffic classes using an OER map.
•
Step 7
end
Example:Router(config-oer-map)# end
(Optional) Exits OER map configuration mode and returns to privileged EXEC mode.
Manually Selecting Application Traffic Classes Using an Access List
Perform this task on the master controller to manually select traffic classes using an access list. Each access list entry is a traffic class that must include a destination prefix and may include other optional parameters. This task uses the match traffic-class access-list command, which is the similar to using the match ip-address command in previous releases. In this task, an access list is created and using an OER map, the traffic classes are profiled.
Prerequisites
This task requires the master controller and border routers to be running Cisco IOS Release 12.4(15)T or a later release.
SUMMARY STEPS
1.
2.
3.
4.
5.
6.
7.
8.
9.
DETAILED STEPS
Step 1
enable
Example:Router> enable
Enables privileged EXEC mode.
•
Step 2
configure terminal
Example:Router# configure terminal
Enters global configuration mode.
Step 3
ip access-list {standard | extended} access-list-name
Example:Router(config)# ip access-list extended ACCESS_TC
Defines an IP access list by name and enters extended named access list configuration mode.
•
•
Step 4
[sequence-number] permit udp source source-wildcard [operator [port]] destination destination-wildcard [operator [port]] [dscp dscp-value]
Example:Router(config-ext-nacl)# permit tcp any any 500
Sets conditions to allow a packet to pass a named IP access list.
•
Note
Step 5
Repeat Step 4 for more access list entries, as required.
—
Step 6
exit
Example:Router(config-ext-nacl)# exit
(Optional) Exits extended named access list configuration mode and returns to global configuration mode.
Step 7
oer-map map-name sequence-number
Example:Router(config)# oer-map ACCESS_MAP 10
Enters OER map configuration mode to configure an OER map.
•
•
•
Step 8
match traffic-class access-list access-list-name
Example:Router(config-oer-map)# match traffic-class access-list ACCESS_TC
Manually configures an access list as match criteria used to create traffic classes using an OER map.
•
•
Step 9
end
Example:Router(config-oer-map)# end
(Optional) Exits OER map configuration mode and returns to privileged EXEC mode.
Displaying and Resetting Traffic Class and Learn List Information
Perform this task to display traffic class and learn list information and optionally, to reset some traffic class information. These commands can be entered on a master controller after learn lists are configured and traffic classes are automatically learned, or when traffic classes are manually configured using an OER map. The commands can be entered in any order and all the commands are optional.
Prerequisites
This task requires the master controller to be running Cisco IOS Release 12.4(15)T.
SUMMARY STEPS
1.
2.
3.
4.
DETAILED STEPS
Step 1
Enables privileged EXEC mode. Enter your password if prompted.
Router> enableStep 2
This command is used to display information about traffic classes learned or manually configured under PfR learn list configuration mode.
Router# show oer master traffic-classOER Prefix Statistics:Pas - Passive, Act - Active, S - Short term, L - Long term, Dly - Delay (ms),P - Percentage below threshold, Jit - Jitter (ms),MOS - Mean Opinion ScoreLos - Packet Loss (packets-per-million), Un - Unreachable (flows-per-million),E - Egress, I - Ingress, Bw - Bandwidth (kbps), N - Not applicableU - unknown, * - uncontrolled, + - control more specific, @ - active probe all# - Prefix monitor mode is Special, & - Blackholed Prefix% - Force Next-Hop, ^ - Prefix is deniedDstPrefix Appl_ID Dscp Prot SrcPort DstPort SrcPrefixFlags State Time CurrBR CurrI/F ProtocolPasSDly PasLDly PasSUn PasLUn PasSLos PasLLos EBw IBwActSDly ActLDly ActSUn ActLUn ActSJit ActPMOS--------------------------------------------------------------------------------10.1.1.0/24 N defa N N N N# OOPOLICY 32 10.11.1.3 Et1/0 BGPN N N N N N N IBwN130 134 0 0 N NStep 3
This command is used to display one or all of the configured PfR learn lists. In this example, the information about two learn lists is displayed.
Router# show oer master learn listLearn-List LIST1 10Configuration:Application: ftpAggregation-type: bgpLearn type: thruputPolicies assigned: 8 10Stats:Application Count: 0Application Learned:Learn-List LIST2 20Configuration:Application: telnetAggregation-type: prefix-length 24Learn type: thruputPolicies assigned: 5 20Stats:Application Count: 2Application Learned:Appl Prefix 10.1.5.0/24 telnetAppl Prefix 10.1.5.16/28 telnetStep 4
This command is used to clear PfR controlled traffic classes from the master controller database. The following example clears traffic classes defined by the Telnet application and the 10.1.1.0/24 prefix:
Router# clear oer master traffic-class application telnet 10.1.1.0/24
Displaying and Resetting Information About Traffic Classes Identified Using NBAR
Perform this task to display and reset information about traffic classes identified using NBAR. All the commands in this task are optional and can be entered either after learn lists are configured and traffic classes are automatically learned or after traffic classes are manually configured using an OER map. Most of the commands are entered on a master controller—although some of the commands are entered on a border router—and the following steps indicate on which device you enter each command.
Prerequisites
This task requires the master controller and border routers to be running Cisco IOS Release 12.4(20)T.
SUMMARY STEPS
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
DETAILED STEPS
Step 1
Step 2
Enables privileged EXEC mode. Enter your password if prompted.
Router> enableStep 3
This command is used to display information about application traffic classes that are identified using NBAR and are monitored and controlled by an OER master controller. The following example shows information about traffic classes consisting of Real-time Transport Protocol streaming audio (RTP-Audio) traffic.
Router# show oer master traffic-class application nbar rtp:audioOER Prefix Statistics:Pas - Passive, Act - Active, S - Short term, L - Long term, Dly - Delay (ms),P - Percentage below threshold, Jit - Jitter (ms),MOS - Mean Opinion ScoreLos - Packet Loss (packets-per-million), Un - Unreachable (flows-per-million),E - Egress, I - Ingress, Bw - Bandwidth (kbps), N - Not applicableU - unknown, * - uncontrolled, + - control more specific, @ - active probe all# - Prefix monitor mode is Special, & - Blackholed Prefix% - Force Next-Hop, ^ - Prefix is deniedDstPrefix Appl_ID Dscp Prot SrcPort DstPort SrcPrefixFlags State Time CurrBR CurrI/F ProtocolPasSDly PasLDly PasSUn PasLUn EBw IBwActSDly ActLDly ActSUn ActLUn ActSJit ActPMOS--------------------------------------------------------------------------------10.1.1.0/28 RTP-Audio defa N N N 0.0.0.0/0DEFAULT* 461 10.11.1.2 Et1/0 UU U 0 0 1 2150 130 0 0 15 010.1.1.16/28 RTP-Audio defa N N N 0.0.0.0/0DEFAULT* 461 10.11.1.2 Et1/0 UU U 0 0 1 2250 200 0 0 30 0Step 4
This command is used to display information about the status of an application identified using NBAR for each OER border router. The following partial output shows information about the status of applications identified using NBAR at three OER border routers identified by their IP addresses. If the NBAR application is not supported on one or more border routers, then all the traffic classes related to that NBAR application are marked inactive and cannot be optimized using OER.
Router# show oer master nbar applicationNBAR Appl 10.1.1.4 10.1.1.2 10.1.1.3-------------------------------------------------------------------aarp Invalid Invalid Invalidappletalk Invalid Invalid Invalidarp Invalid Invalid Invalidbgp Valid Valid Validbittorrent Valid Valid Validbridge Invalid Invalid Invalidbstun Invalid Invalid Invalidcdp Invalid Invalid Invalidcitrix Invalid Invalid Invalidclns Valid Invalid Invalidclns_es Invalid Invalid Invalidclns_is Invalid Invalid Invalidcmns Invalid Invalid Invalidcompressedtcp Invalid Invalid Invalidcuseeme Invalid Invalid Invalid...Step 5
This command is used to display information about user-defined application definitions used in OER. The following partial example output shows information about the user-defined applications configured for use with OER:
Router# show oer master defined applicationOER Defined Applications:Name Appl_ID Dscp Prot SrcPort DstPort SrcPrefix--------------------------------------------------------------------------------telnet 1 defa tcp 23-23 1-65535 0.0.0.0/0telnet 1 defa tcp 1-65535 23-23 0.0.0.0/0ftp 2 defa tcp 21-21 1-65535 0.0.0.0/0ftp 2 defa tcp 1-65535 21-21 0.0.0.0/0cuseeme 4 defa tcp 7648-7648 1-65535 0.0.0.0/0cuseeme 4 defa tcp 7649-7649 1-65535 0.0.0.0/0cuseeme 4 defa tcp 1-65535 7648-7648 0.0.0.0/0cuseeme 4 defa tcp 1-65535 7649-7649 0.0.0.0/0dhcp 5 defa udp 68-68 67-67 0.0.0.0/0dns 6 defa tcp 53-53 1-65535 0.0.0.0/0dns 6 defa tcp 1-65535 53-53 0.0.0.0/0dns 6 defa udp 53-53 1-65535 0.0.0.0/0dns 6 defa udp 1-65535 53-53 0.0.0.0/0finger 7 defa tcp 79-79 1-65535 0.0.0.0/0finger 7 defa tcp 1-65535 79-79 0.0.0.0/0gopher 8 defa tcp 70-70 1-65535 0.0.0.0/0...Step 6
This command is used to clear PfR controlled traffic classes from the master controller database. The following example clears OER traffic classes defined by the RTP-Audio application that is identified using NBAR and filtered by the 10.1.1.0/24 prefix:
Router# clear oer master traffic-class application nbar rtp:audio 10.1.1.0/24Step 7
Step 8
Enables privileged EXEC mode. Enter your password if prompted.
Router> enableStep 9
This command is used to display information about OER controlled routes of applications identified using NBAR. The following example displays CCE-controlled routes on a border router:
Router# show oer border routes cceClass-map oer-class-acl-oer_cce#2-stile-telnet, permit, sequence 0, mask 24Match clauses:ip address (access-list): oer_cce#2stile: telnetSet clauses:ip next-hop 10.1.3.2interface Ethernet2/3Statistic:Packet-matched: 60Step 10
This command is used to display all user-defined applications monitored by an OER border router. The following partial example output shows information about the user-defined applications monitored by an OER border router:
Router# show oer border defined applicationOER Defined Applications:Name Appl_ID Dscp Prot SrcPort DstPort SrcPrefix--------------------------------------------------------------------------------telnet 1 defa tcp 23-23 1-65535 0.0.0.0/0telnet 1 defa tcp 1-65535 23-23 0.0.0.0/0ftp 2 defa tcp 21-21 1-65535 0.0.0.0/0ftp 2 defa tcp 1-65535 21-21 0.0.0.0/0cuseeme 4 defa tcp 7648-7648 1-65535 0.0.0.0/0cuseeme 4 defa tcp 7649-7649 1-65535 0.0.0.0/0dhcp 5 defa udp 68-68 67-67 0.0.0.0/0dns 6 defa tcp 53-53 1-65535 0.0.0.0/0dns 6 defa tcp 1-65535 53-53 0.0.0.0/0dns 6 defa udp 53-53 1-65535 0.0.0.0/0dns 6 defa udp 1-65535 53-53 0.0.0.0/0finger 7 defa tcp 79-79 1-65535 0.0.0.0/0finger 7 defa tcp 1-65535 79-79 0.0.0.0/0gopher 8 defa tcp 70-70 1-65535 0.0.0.0/0...
Configuration Examples for Using PfR to Profile the Traffic Classes
The configuration examples in this section show how to use performance routing techniques introduced in Cisco IOS Release 12.4(15)T and later releases, to profile the traffic classes:
Note
•
•
•
•
•
•
Defining a Learn List for Automatically Learned Prefix-Based Traffic Classes: Example
The following example configured on the master controller, defines a learn list that will contain traffic classes that are automatically learned based only on a prefix list. In this example, there are three branch offices and the goal is to optimize all the traffic going to branch offices A and B using one policy (Policy1), and to optimize traffic going to branch office C using a different policy (Policy2).
Branch A is defined as any prefix that matches 10.1.0.0./16, Branch B is defined as any prefix that matches 10.2.0.0./16, and Branch C is defined as any prefix that matches 10.3.0.0./16.
This task configures prefix learning based on the highest outbound throughput.
ip prefix-list BRANCH_A_B permit seq 10 10.1.0.0/16ip prefix-list BRANCH_A_B permit seq 20 10.2.0.0/16ip prefix-list BRANCH_C permit seq 30 10.3.0.0/16oer masterlearnlist seq 10 refname LEARN_BRANCH_A_Btraffic-class prefix-list BRANCH_A_Bthroughputexitexitlearnlist seq 20 refname LEARN_BRANCH_Ctraffic-class prefix-list BRANCH_Cthroughputexitexitoer-map POLICY1 10match learn list LEARN_BRANCH_A_Bexitoer-map POLICY2 10match learn list LEARN_BRANCH_CendDefining a Learn List for Automatically Learned Application Traffic Classes Using an Access List: Example
The following example creates an access list that defines custom application traffic classes. In this example, the custom application consists of four criteria:
•
•
•
•
The goal is to optimize same policy POLICY_CUSTOM_APP is to be applied to all the learned traffic classes. This task configures traffic class learning based on the highest outbound throughput.
ip access-list extended USER_DEFINED_TCpermit tcp any any 500permit tcp any any range 700 750permit udp any eq 400 anypermit ip any any dscp efexitoer masterlearnlist seq 10 refname CUSTOM_APPLICATION_TCtraffic-class access-list USER_DEFINED_TCaggregation-type prefix-length 24throughputexitexitoer-map POLICY_CUSTOM_APP 10match learn list CUSTOM_APPLICATION_TCendDefining a Learn List to Automatically Learn Traffic Classes Using Static Application Mapping: Example
The following example defines application traffic classes using static application mapping. In this example, the following two PfR learn lists are defined:
•
•
The goal is to optimize the remote login traffic using one policy (POLICY_REMOTE), and to optimize the file transfer traffic using a different policy (POLICY_FILE). This task configures traffic class learning based on the highest delay.
ip prefix-list INCLUDE_10_NET 10.0.0.0/8oer masterlearnlist seq 10 refname LEARN_REMOTE_LOGIN_TCtraffic-class application telnet sshaggregation-type prefix-length 24delayexitlist seq 20 refname LEARN_FILE_TRANSFER_TCtraffic-class application ftp filter INCLUDE_10_NETaggregation-type prefix-length 24delayexitexitoer-map POLICY_REMOTE 10match learn list LEARN_REMOTE_LOGIN_TCexitoer-map POLICY_FILE 20match learn list LEARN_FILE_TRANSFER_TCendDefining a Learn List to Automatically Learn Traffic Classes Using NBAR Application Mapping: Example
The following example defines application traffic classes using NBAR application mapping. In this example, the following two PfR learn lists are defined:
•
•
The goal is to optimize the real-time streaming audio traffic using one policy (STREAM_AUDIO), and to optimize the remote audio and video traffic using a different policy (REMOTE_AUDIO_VIDEO). This task configures traffic class learning based on the highest delay.
The traffic streams that the learn list profiles for both the RTP-Audio and the Skype applications are:
10.1.1.110.1.2.120.1.1.120.1.2.1The traffic classes that are learned for each application are:
10.1.1.0/24 rtp-audio10.1.2.0/24 rtp-audio20.1.1.0/24 rtp-audio20.1.2.0/24 rtp-audio10.1.1.0/24 skype10.1.2.0/24 skypeThe difference in traffic classes learned is due to the INCLUDE_10_NET prefix list that only includes Skype application traffic with a destination prefix that matches the prefix 10.0.0.0/8.
ip prefix-list INCLUDE_10_NET 10.0.0.0/8oer masterlearnlist seq 10 refname LEARN_RTP_AUDIO_TCtraffic-class application nbar rtp-audioaggregation-type prefix-length 24delayexitlist seq 20 refname LEARN_SKYPE_TCtraffic-class application nbar skype filter INCLUDE_10_NETaggregation-type prefix-length 24delayexitexitexitoer-map STREAM_AUDIO 10match learn list LEARN_RTP_AUDIO_TCexitoer-map REMOTE_AUDIO_VIDEO 20match learn list LEARN_SKYPE_TCendManually Selecting Traffic Classes Using Static Application Mapping: Example
The following example starting in global configuration mode, configures an OER map to include application traffic predefined as telnet or Secure Shell and destined to prefixes in the 10.1.1.0/24 network, 10.1.2.0/24 network, and 172.16.1.0/24 network.
ip prefix-list LIST1 permit 10.1.1.0/24ip prefix-list LIST1 permit 10.1.2.0/24ip prefix-list LIST1 permit 172.16.1.0/24oer-map PREFIXES 10match traffic-class application telnet ssh prefix-list LIST1endManually Selecting Traffic Classes Using NBAR Application Mapping: Example
The following example starting in global configuration mode, configures an OER map to include file transfer BitTorrent or Direct Connect application traffic identified using NBAR and matched with the destination prefixes 10.1.1.0/24, 10.1.2.0/24, and 172.16.1.0/24 as specified in the prefix list, LIST1. Only traffic that matches both the BitTorrent and Direct Connect applications and the destination prefix is learned.
ip prefix-list LIST1 permit 10.1.1.0/24ip prefix-list LIST1 permit 10.1.2.0/24ip prefix-list LIST1 permit 172.16.1.0/24oer-map PREFIXES 10match traffic-class application nbar bittorrent directconnect prefix-list LIST1endManually Selecting Prefix-Based Traffic Classes Using a Prefix List: Example
The following example configured on the master controller, manually selects traffic classes based only on destination prefixes. Use this task when you know the destination prefixes that you want to select for the traffic classes. An IP prefix list is created to define the destination prefixes and using an OER map, the traffic classes are profiled.
ip prefix-list PREFIX_TC permit 10.1.1.0/24ip prefix-list PREFIX_TC permit 10.1.2.0/24ip prefix-list PREFIX_TC permit 172.16.1.0/24oer-map PREFIX_MAP 10match traffic-class prefix-list PREFIX_TCManually Selecting Application Traffic Classes Using an Access List: Example
The following example configured on the master controller, manually selects traffic classes using an access list. Each access list entry is a traffic class that must include a destination prefix and may include other optional parameters.
ip access-list extended ACCESS_TCpermit tcp any 10.1.1.0 0.0.0.255 eq 500permit tcp any 172.17.1.0 0.0.255.255 eq 500permit tcp any 172.17.1.0 0.0.255.255 range 700 750permit tcp 192.168.1.1 0.0.0.0 10.1.2.0 0.0.0.255 eq 800any any dscp efexitoer-map ACCESS_MAP 10match traffic-class access-list ACCESS_TCWhere To Go Next
This module covered the PfR profile phase for Cisco IOS Releases 12.4(15)T and later releases, and it has assumed that you started with the "Cisco IOS Optimized Edge Routing Overview" and the "Setting Up OER Network Components" module. The profile phase is the first phase in the PfR/OER performance loop. To learn more about the other OER phases, read through the other modules in the following list:
•
•
•
Additional References
The following sections provide references related to using PfR to profile the traffic classes.
Related Documents
Technical Assistance
Feature Information for Using PfR to Profile the Traffic Classes
Table 3 lists the features in this module and provides links to specific configuration information. Only features that were introduced or modified in Cisco IOS Release 12.3(11)T, 12.2(33)SRB, 12.2(33)SXH or a later release, appear in the table.
For information on a feature in this technology that is not documented here, see the "Cisco IOS Optimized Edge Routing Features Roadmap."
Not all commands may be available in your Cisco IOS software release. For release information about a specific command, see the command reference documentation.
Use Cisco Feature Navigator to find information about platform support and software image support. Cisco Feature Navigator enables you to determine which Cisco IOS and Catalyst OS software images support a specific software release, feature set, or platform. To access Cisco Feature Navigator, go to http://www.cisco.com/go/cfn. An account on Cisco.com is not required.
Note
Table 3 Feature Information for Using PfR to Profile the Traffic Classes
Port and Protocol Based Prefix Learning
12.3(11)T
12.2(33)SRBPort and protocol based prefix learning allows you to configure a master controller to learn prefixes based on the protocol type and TCP or UDP port number.
The following sections provide information about this feature:
•
•
The protocol command was introduced by this feature.
expire command1
12.3(14)T
12.2(33)SRBThe expire command is used to set an expiration period for learned prefixes. By default, the master controller removes inactive prefixes from the central policy database as memory is needed. This command allows you to refine this behavior by setting a time or session based limit. The time based limit is configured in minutes. The session based limit is configured for the number of monitor periods (or sessions).
OER Application-Aware Routing: PBR
12.4(2)T
12.2(33)SRBThe OER Application-Aware Routing: PBR feature introduces the capability to optimize IP traffic based on the type of application that is carried by the monitored prefix. Independent policy configuration is applied to the subset (application) of traffic.
The following sections provide information about this feature:
•
The following commands were introduced or modified by this feature: debug oer border pbr, debug oer master prefix, match ip address (OER), show oer master active-probes, and show oer master appl.
OER BGP Inbound Optimization
12.4(9)T
12.2(33)SRBOER BGP inbound optimization supports best entrance selection for traffic that originates from prefixes outside an autonomous system destined for prefixes inside the autonomous system. External BGP (eBGP) advertisements from an autonomous system to an Internet service provider (ISP) can influence the entrance path for traffic entering the network. OER uses eBGP advertisements to manipulate the best entrance selection.
The following sections provide information about this feature:
•
The following commands were introduced or modified by this feature: clear oer master prefix, downgrade bgp, inside bgp, match ip address (OER), match oer learn, max range receive, maximum utilization receive, show oer master prefix.
OER DSCP Monitoring
12.4(9)T
12.2(33)SRBOER DSCP Monitoring introduced automatic learning of traffic classes based on protocol, port numbers, and DSCP value. Traffic classes can be defined by a combination of keys comprising of protocol, port numbers, and DSCP values, with the ability to filter out traffic that is not required, and the ability to aggregate the traffic in which you are interested. Layer 4 information such as protocol, port number, and DSCP information is now sent to the master controller database in addition to the Layer 3 prefix information. The new functionality allows OER to both actively and passively monitor application traffic.
The following sections provide information about this feature:
•
•
The following commands were introduced or modified by this feature: show oer border passive applications, show oer border passive cache, show oer border passive learn, show oer master appl, traffic-class aggregation, traffic-class filter, and traffic-class keys.
OER - Application Aware Routing with Static Application Mapping
12.4(15)T
The OER - Application Aware Routing with Static Application Mapping feature introduces the ability to configure standard applications using just one keyword. In Cisco IOS Release 12.4(9)T, and prior releases, the definition of application traffic involves some awkward configuration. This feature also introduces a learn list configuration mode that allows Optimized Edge Routing (OER) policies to be applied to traffic classes profiled in a learn list. Different policies can be applied to each learn list. New traffic-class and match traffic-class commands are introduced to simplify the configuration of traffic classes that OER can automatically learn, or that can be manually configured.
The following sections provide information about this feature:
•
•
•
•
•
•
•
The following commands were introduced or modified by this feature: clear oer master traffic-class, count, delay (OER), list (OER), match traffic-class access-list, match traffic-class application, match traffic-class prefix-list, show oer border defined application, show oer master defined application, show oer master learn list, show oer master traffic-class, throughput, traffic-class access-list, traffic-class application, traffic-class prefix-list.
OER Border Router Only Functionality
12.2(33)SXH
In Cisco IOS Release 12.2(33)SXH support for using a Cisco Catalyst 6500 series switch as an OER border router was introduced. Only border router functionality is included in the Cisco IOS Release 12.2(33)SXH images; no master controller configuration is available. The master controller that communicates with the Cisco Catalyst 6500 series switch being used as a border router must be a router running Cisco IOS Release 12.4(6)T or a later release. The OER master controller software has been modified to handle the limited functionality supported by the Cisco Catalyst 6500 border routers. Using the Route Processor (RP), the Catalyst 6500 border routers can capture throughput statistics only for a traffic class compared to the delay, loss, unreachability, and throughput statistics collected by non-Catalyst 6500 border routers. A master controller automatically detects the limited capabilities of the Catalyst 6500 border routers and downgrades other border routers to capture only the throughput statistics for traffic classes. By ignoring other types of statistics, the master controller is presented with a uniform view of the border router functionality.
The following sections provide information about this feature:
•
The following command was introduced or modified by this feature: show oer border passive cache.
Performance Routing with NBAR/CCE Application Recognition
12.4(20)T
The Performance Routing with NBAR/CCE Application Recognition feature introduces the ability to profile an application-based traffic class using Network-Based Application Recognition (NBAR). NBAR is a classification engine that recognizes and classifies a wide variety of protocols and applications, including web-based and other difficult-to-classify applications and protocols that use dynamic TCP/UDP port assignments. PfR uses NBAR to recognize and classify a protocol or application, and the resulting traffic classes are added to the PfR application database to be passively and actively monitored.
The following sections provide information about this feature:
•
•
•
•
•
•
•
The following commands were introduced or modified by this feature: application define, clear oer master traffic-class application nbar, match traffic-class application nbar, show oer border routes, show oer master nbar application, show oer master traffic-class application nbar, traffic-class application nbar.
1 This is a minor enhancement. Minor enhancements are not typically listed in Feature Navigator.
CCDE, CCSI, CCENT, Cisco Eos, Cisco HealthPresence, the Cisco logo, Cisco Lumin, Cisco Nexus, Cisco Nurse Connect, Cisco Stackpower, Cisco StadiumVision, Cisco TelePresence, Cisco WebEx, DCE, and Welcome to the Human Network are trademarks; Changing the Way We Work, Live, Play, and Learn and Cisco Store are service marks; and Access Registrar, Aironet, AsyncOS, Bringing the Meeting To You, Catalyst, CCDA, CCDP, CCIE, CCIP, CCNA, CCNP, CCSP, CCVP, Cisco, the Cisco Certified Internetwork Expert logo, Cisco IOS, Cisco Press, Cisco Systems, Cisco Systems Capital, the Cisco Systems logo, Cisco Unity, Collaboration Without Limitation, EtherFast, EtherSwitch, Event Center, Fast Step, Follow Me Browsing, FormShare, GigaDrive, HomeLink, Internet Quotient, IOS, iPhone, iQuick Study, IronPort, the IronPort logo, LightStream, Linksys, MediaTone, MeetingPlace, MeetingPlace Chime Sound, MGX, Networkers, Networking Academy, Network Registrar, PCNow, PIX, PowerPanels, ProConnect, ScriptShare, SenderBase, SMARTnet, Spectrum Expert, StackWise, The Fastest Way to Increase Your Internet Quotient, TransPath, WebEx, and the WebEx logo are registered trademarks of Cisco Systems, Inc. and/or its affiliates in the United States and certain other countries.
All other trademarks mentioned in this document or website are the property of their respective owners. The use of the word partner does not imply a partnership relationship between Cisco and any other company. (0903R)
Any Internet Protocol (IP) addresses and phone numbers used in this document are not intended to be actual addresses and phone numbers. Any examples, command display output, network topology diagrams, and other figures included in the document are shown for illustrative purposes only. Any use of actual IP addresses or phone numbers in illustrative content is unintentional and coincidental.
© 2007-2009 Cisco Systems, Inc. All rights reserved.
