Configuring ISDN on Cisco 800 Series Routers
This chapter describes the Common Application Programming Interface (CAPI) and Remote Common Application Programming Interface (RCAPI) feature for the Cisco 800 series routers. This information is included in the following main sections:
•
CAPI and RCAPI Overview
•
How to Configure RCAPI
•
Configuration Examples for RCAPI
The CAPI is an application programming interface standard used to access ISDN equipment connected to ISDN BRIs and ISDN PRIs. RCAPI is the CAPI feature configured remotely from a PC client.
Before you can enable the RCAPI feature on the Cisco 800 series router, the following requirements must be met:
•
Cisco 800 series software with RCAPI support is installed on the router.
•
CAPI commands are properly configured on the router.
•
Both the CAPI local device console and RCAPI client devices on the LAN are correctly installed and configured with RVS-COM client driver software.
To identify the hardware platform or software image information associated with a feature, use the Feature Navigator on Cisco.com to search for information about the feature or refer to the software release notes for a specific release. For more information see the "Identifying Supported Platforms" section in the "Using Cisco IOS Software" chapter.
For a complete description of the commands in this chapter, refer to the Cisco IOS Dial Technologies Command Reference. To locate documentation of other commands that appear in this chapter, use the command reference master index or search online.
CAPI and RCAPI Overview

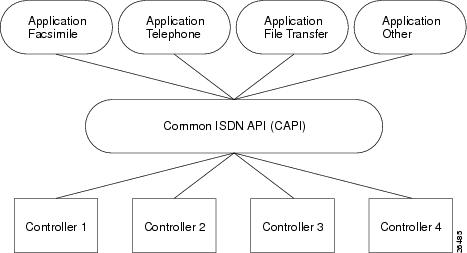

Figure 1 shows how CAPI connects applications, drivers, and controllers.
Figure 1 CAPI Connections
Framing Protocols
The framing protocols supported by CAPI include High-Level Data Link Control (HDLC), HDLC inverted, bit transparent (speech), and V.110 synchronous/asynchronous.
Data Link and Network Layer Protocols
CAPI integrates the following data link and network layer protocols:
•
Link Access Procedure on the D-channel (LAPD) in accordance with Q.921 for X.25 D-channel implementation
•
PPP
•
ISO 8208 (X.25 DTE-DTE)
•
X.25 DCE, T.90NL, and T.30 (fax group 3)
CAPI Features
CAPI supports the following features:
•
Basic call features, such as call setup and tear-down
•
Multiple B channels for data and voice connections
•
Multiple logical data link connections within a physical connection
•
Selection of different services and protocols during connection setup and on answering incoming calls
•
Transparent interface for protocols above Layer 3
•
One or more BRIs as well as PRI on one or more Integrated Services Digital Network (ISDN) adapters
•
Multiple applications
•
Operating-systems-independent messages
•
Operating-system-dependent exchange mechanism for optimum operating system integration
•
Asynchronous event-driven mechanism, resulting in high throughput
•
Well-defined mechanism for manufacturer-specific extensions
•
Multiple supplementary services

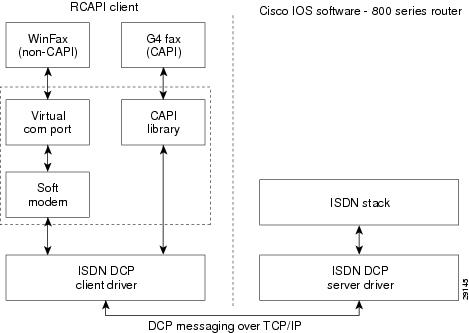

Figure 2 shows the components of the RCAPI implementation.
Figure 2 Components of RCAPI
CAPI provides a standardized interface through which application programs can use ISDN drivers and controllers. One application can use one or more controllers. Several applications can share one or more controllers.
CAPI supplies a selection mechanism that supports applications that use protocols at different levels and standardized network access. An abstraction from different protocol variables is performed to provide this support. All connection-related data, such as connection state and display messages, is available to the applications at any time.
Supported B-Channel Protocols
The router provides two 64-kbps B channels to RCAPI clients. Each B channel can be configured separately to work in either HDLC mode or bit transparent mode. For CAPI support, layers B2 through B7 protocols are transparent to the applications using these B channels.
The ISDN Core Engine of RVS-COM supports the following B-channel protocols:
•
CAPI layer B1
–
64-kbps with HDLC framing
–
64-kbps bit transparent operation with byte framing from the network
–
T.30 modem for fax group 3
–
Modem with full negotiation
•
CAPI layer B2
–
V.120
–
Transparent
–
T.30 modem for fax group 3
–
Modem with full negotiation
•
CAPI layer B3
–
Transparent
–
T.90NL with compatibility to T.70NL according to T.90 Appendix II
–
ISO 8208 (X.25 DTE-DTE) modulo 8 and windows size 2, no multiple logical connections
–
T.30 for fax group 3
–
Modem with full negotiation
•
T.30 for fax group 3 (SFF file format [default], sending and receiving up to 14400 bit/s with ECM option, modulations V.17, V.21, V.27ter, V.29)
•
Analog modem (sending and receiving up to 14,400 bit/s, modulations V.21, V.22, V.22bis, V.23, V.32, V.32bis)
Supported Switch Types
CAPI and RCAPI support is available only for the ISDN switch type Net3.
CAPI and RVS-COM
The router supports the ISDN Device Control Protocol (ISDN-DCP) from RVS-COM. ISDN-DCP allows a workstation on the LAN or router to use legacy dial computer telephony integration (CTI) applications. These applications include placing and receiving telephone calls and transmitting and receiving faxes.
Using ISDN-DCP, the router acts as a DCP server. By default, the router listens for DCP messages on TCP port number 2578 (the Internet-assigned number for RVS-COM DCP) on its LAN port.
When the router receives a DCP message from a DCP client (connected to the LAN port of the router), the router processes the message and acts on it; it can send confirmations to the DCP clients and ISDN packets through the BRI port of the router.
When the router receives packets destined for one of the DCP clients on its BRI port, the router formats the packet as a DCP message and sends it to the corresponding client. The router supports all the DCP messages specified in the ISDN-DCP specifications defined by RVS-COM.
Supported Applications
ISDN-DCP supports CAPI and non-CAPI applications. Applications are supported that use one or two B channels for data transfer, different HDLC-based protocols, Euro File transfer, or G4 fax; also supported are applications that send bit-transparent data such as A/Mu law audio, G3 fax, analog modem, or analog telephones.
How to Configure RCAPI
To configure RCAPI, perform the tasks in the following sections:
•
Configuring RCAPI on the Cisco 800 Series Router (Required)
•
Monitoring and Maintaining RCAPI (Optional)
•
Troubleshooting RCAPI (Optional)
Configuring RCAPI on the Cisco 800 Series Router
To configure RCAPI on the Cisco 800 series router, use the following commands beginning in global configuration mode:
|
Command
|
Purpose
|
Step 1
|
Router(config)# isdn switch-type basic-net3
|
Sets the switch type. In this example, the switch type is set to NET3 ISDN, which covers the Euro-ISDN E-DSS1 signaling system and is ETSI-compliant.
|
Step 2
|
Router(config)# rcapi number number
|
Enters the RCAPI directory number assigned by the ISDN provider for the device.
An example command:
|
Step 3
|
Router(config)# rcapi server port number
|
The rcapi server command is mandatory for RCAPI to be enabled on the router. The parameter port is optional and is entered only when you need to specify a port number for RCAPI functions. Otherwise, the default port 2578 is used.
An example command with default port 2578:
An example command with port 2000:
Configure the same number on both the router and the client PC.
|
Step 4
|
Router(config)# interface bri0
|
Configures the ISDN BRI interface and begins interface configuration mode.
|
Step 5
|
Router(config-if)# isdn switch-type basic-net3
|
Sets the switch type for the bri0 interface. In this example, the switch type is set to NET3 ISDN, which covers the Euro-ISDN E-DSS1 signaling system and is ETSI-compliant.
|
Step 6
|
Router(config-if)# isdn incoming-voice modem
|
Sets the modem as the default handler for incoming voice calls.
|

Note
If required, at each remote device console change to global configuration mode, using the command configure terminal, and repeat Step 2 through Step 7 to configure that device.
Monitoring and Maintaining RCAPI
To monitor and maintain RCAPI, use the following command in privileged EXEC mode:
Command
|
Purpose
|
Router# show rcapi status
|
Displays RCAPI status.
|
Troubleshooting RCAPI
To test the RCAPI operation, use the following command in privileged EXEC mode
Command
|
Purpose
|
Router# debug rcapi events
|
Starts a background debug program.
|
Configuration Examples for RCAPI
The following configuration output example shows two Cisco 800 series routers configured for RCAPI:
Router 1
Router1# show running-config
Building configuration...
service timestamps debug uptime
service timestamps log uptime
no service password-encryption
isdn switch-type basic-net3
isdn voice-call-failure 0
ip address 192.168.2.1 255.255.255.0
isdn switch-type basic-net3
isdn incoming-voice modem
Router 2
Router2# show running-config
Building configuration...
service timestamps debug uptime
service timestamps log uptime
no service password-encryption
isdn switch-type basic-net3
isdn voice-call-failure 0
ip address 192.168.1.1 255.255.255.0
isdn switch-type basic-net3
isdn incoming-voice modem
