debug nat64

To enable stateless Network Address Translation 64 (NAT64) debugging, use the debug nat64 command in privileged EXEC mode. To disable NAT64 debugging, use the no form of this command.

debug nat64 {all | {aliases | ha {all | info | trace | warn}} | id-manager | info | intf-address | issu {all | message | trace} | memory | pool-routes | statistics | trace | warn}

no debug nat64 {all | {aliases | ha {all | info | trace | warn}} | id-manager | info | intf-address | issu {all | message | trace} | memory | pool-routes | statistics | trace | warn}

Syntax Description

all	Enables information, trace, and warning level debugging.
aliases	Enables debugging of IP aliases created by NAT64.
ha	Enables high availability (HA) debugging.
all	Enables HA information, trace, and warning level debugging.
info	Enables HA information level debugging.
trace	Enables HA trace level debugging.
warn	Enables HA warning level debugging.
id-manager	Enables Interface Descriptor manager trace debugging.
info	Enables information level debugging.
intf-address	Enables interface address change events debugging.
issu	Enables In-Service Software Upgrade (ISSU) debugging.
all	Enables ISSU trace level and message debugging.
message	Enables ISSU message debugging.
trace	Enables ISSU trace level debugging.
memory	Enables memory trace debugging.
pool-routes	Enables the debugging of routes attached to a a pool address range.
statistics	Enables statistics debugging.
trace	Enables trace level debugging.
warn	Enables warning level debugging.

Command Modes

Privileged EXEC (#)

Command History

Release	Modification
Cisco IOS XE Release 3.2S	This command was introduced.
Cisco IOS XE Release 3.4S	This command was modified. The aliases, intf-address, and pool-routes keywords were added.

Usage Guidelines

The general debugging levels are information, trace, and warning. The debug nat64 memory and debug nat64 id-manager commands provide detailed traces related to resources and memory allocation. The debug nat64 issu command provides traces specific to the ISSU messages exchanged.

Examples

The following is sample output from the debug nat64 statistics command. The output fields are self-explanatory.

Router# debug nat64 statistics

NAT64 statistics debugging is on

Sep 16 18:26:24.537 IST: NAT64 (stats): Received stats update for IDB(FastEthernet0/3/5)

Sep 16 18:26:24.537 IST: NAT64 (stats): Updating pkts_translated_v4v6 from 94368894 to
95856998 (is_delta(TRUE) value(1488104))

Sep 16 18:26:24.537 IST: NAT64 (stats): Received stats update for IDB(FastEthernet0/3/4)

Sep 16 18:26:24.537 IST: NAT64 (stats): Updating pkts_translated_v6v4 from 7771538 to
7894088 (is_delta(TRUE) value(122550))

Sep 16 18:26:24.537 IST: NAT64 (stats): Received global stats update

Sep 16 18:26:24.537 IST: NAT64 (stats): Updating pkts_translated_v4v6 from 1718650332 to
1720138437 (is_delta(TRUE) value(1488105))

Sep 16 18:26:24.537 IST: NAT64 (stats): Updating pkts_translated_v6v4 from 1604459283 to
1604581833 (is_delta(TRUE) value(122550))

The following is sample output from the debug nat64 memory command. The output fields are self-explanatory.

Router# debug nat64 memory

NAT64 memory debugging is on

Sep 16 18:28:03.713 IST: NAT64 (memory): Allocated 0x7FFA7DA2F750

Sep 16 18:28:03.713 IST: NAT64 (memory): Allocated 0x7FFA9EC00D30

Sep 16 18:28:03.713 IST: NAT64 (memory): Allocated 0x7FFA9D1532C8

Related Commands

Command	Description
nat64 enable	Enables stateless NAT64 on an interface.

debug ncia circuit

To display circuit-related information between the native client interface architecture (NCIA) server and client, use the debug ncia circuit command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug ncia circuit [error | event | flow-control | state]

no debug ncia circuit [error | event | flow-control | state]

Syntax Description

error	(Optional) Displays the error situation for each circuit.
event	(Optional) Displays the packets received and sent for each circuit.
flow-control	(Optional) Displays the flow control information for each circuit.
state	(Optional) Displays the state changes for each circuit.

Command Modes

Privileged EXEC (#)

Usage Guidelines

NCIA is an architecture developed by Cisco for accessing Systems Network Architecture (SNA) applications. This architecture allows native SNA interfaces on hosts and clients to access TCP/IP backbones.

You cannot enable debugging output for a particular client or particular circuit.

---

Caution Do not enable the debug ncia circuit command during normal operation because this command generates a substantial amount of output messages and could slow down the router.

---

Examples

The following is sample output from the debug ncia circuit error command. In this example, the possible errors are displayed. The first error message indicates that the router is out of memory. The second message indicates that the router has an invalid circuit control block. The third message indicates that the router is out of memory. The remaining messages identify errors related to the finite state machine.

Router# debug ncia circuit error

NCIA: ncia_circuit_create memory allocation fail

NCIA: ncia_send_ndlc: invalid circuit control block

NCIA: send_ndlc: fail to get buffer for ndlc primitive xxx

NCIA: ncia circuit fsm: Invalid input

NCIA: ncia circuit fsm: Illegal state

NCIA: ncia circuit fsm: Illegal input

NCIA: ncia circuit fsm: Unexpected input

NCIA: ncia circuit fsm: Unknown error rtn code

The following is sample output from the debug ncia circuit event command. In this example, a session startup sequence is displayed.

Router# debug ncia circuit event

NCIA(IN): Ver_Id: 0x81, MsgType: NDLC_START_DL, Len: 24, tmac: 4000.1060.1000,

          tsap: 4, csap 8, oid: 8A91E8, tid 0, lfs 16, ws 1

NCIA: create circuit: saddr 4000.1060.1000, ssap 4, daddr 4000.3000.0003, dsap 8 sid:

          8B09A8

NCIA: send NDLC_DL_STARTED to client 10.2.20.3 for ckt: 8B09A8

NCIA(OUT): Ver_Id: 0x81, MsgType: NDLC_DL_STARTED, Len: 2,4 tmac: 4000.1060.1000,

          tsap: 4, csap 8, oid: 8A91E8, tid 8B09A8, lfs 16, ws 1

NCIA(IN): Ver_Id: 0x81, MsgType: NDLC_XID_FRAME, Len: 12, sid: 8B09A8, FC 0x81

NCIA: send NDLC_XID_FRAME to client 10.2.20.3 for ckt: 8B09A8

NCIA(OUT): Ver_Id: 0x81, MsgType: NDLC_XID_FRAME, Len: 12, sid: 8A91E8, FC 0xC1

NCIA(IN): Ver_Id: 0x81, MsgType: NDLC_XID_FRAME, Len: 18, sid: 8B09A8, FC 0xC1

NCIA: send NDLC_CONTACT_STN to client 10.2.20.3 for ckt: 8B09A8

NCIA(OUT): Ver_Id: 0x81, MsgType: NDLC_CONTACT_STN, Len: 12, sid: 8A91E8, FC 0xC1

NCIA(IN): Ver_Id: 0x81, MsgType: NDLC_STN_CONTACTED, Len: 12, sid: 8B09A8, FC 0xC1

NCIA: send NDLC_INFO_FRAME to client 10.2.20.3 for ckt: 8B09A8

NCIA(OUT): Ver_Id: 0x81, MsgType: NDLC_INFO_FRAME, Len: 30, sid: 8A91E8, FC 0xC1

Table 247 describes the significant fields shown in the display.

Table 247 debug ncia circuit event Field Descriptions

Field	Description
IN	Incoming message from client.
OUT	Outgoing message to client.
Ver_Id	NDLC version ID.
MsgType	NDLC message type.
Len	NDLC message length.
tmac	Target MAC.
tsap	Target SAP.
csap	Client SAP.
oid	Origin ID.
tid	Target ID.
lfs	Largest frame size flag.
ws	Window size.
saddr	Source MAC address.
ssap	Source SAP.
daddr	Destination MAC address.
dsap	Destination SAP.
sid	Session ID.
FC	Flow control flag.

In the following messages, an NDLC_START_DL messages is received from a client to start a data-link session:

NCIA(IN): Ver_Id: 0x81, MsgType: NDLC_START_DL, Len: 24, tmac: 4000.1060.1000,

          tsap: 4, csap 8, oid: 8A91E8, tid 0, lfs 16, ws 1

NCIA: create circuit: saddr 4000.1060.1000, ssap 4, daddr 4000.3000.0003, dsap 8 sid:

          8B09A8

The next two messages indicate that an NDLC_DL_STARTED message is sent to a client. The server informs the client that a data-the link session is started.

NCIA: send NDLC_DL_STARTED to client 10.2.20.3 for ckt: 8B09A8

NCIA(OUT): Ver_Id: 0x81, MsgType: NDLC_DL_STARTED, Len: 2,4 tmac: 4000.1060.1000,

          tsap: 4, csap 8, oid: 8A91E8, tid 8B09A8, lfs 16, ws 1

In the following two messages, an NDLC_XID_FRAME message is received from a client, and the client starts an XID exchange:

NCIA(IN): Ver_Id: 0x81, MsgType: NDLC_XID_FRAME, Len: 12, sid: 8B09A8, FC 0x81

NCIA: send NDLC_XID_FRAME to client 10.2.20.3 for ckt: 8B09A8

In the following two messages, an NDLC_XID_FRAME message is sent from a client, and an DLC_XID_FRAME message is received from a client:

NCIA(OUT): Ver_Id: 0x81, MsgType: NDLC_XID_FRAME, Len: 12, sid: 8A91E8, FC 0xC1

NCIA(IN): Ver_Id: 0x81, MsgType: NDLC_XID_FRAME, Len: 18, sid: 8B09A8, FC 0xC1

The next two messages show that an NDLC_CONTACT_STN message is sent to a client:

NCIA: send NDLC_CONTACT_STN to client 10.2.20.3 for ckt: 8B09A8

NCIA(OUT): Ver_Id: 0x81, MsgType: NDLC_CONTACT_STN, Len: 12, sid: 8A91E8, FC 0xC1

In the following message, an NDLC_STN_CONTACTED message is received from a client. The client informs the server that the station has been contacted.

NCIA(IN): Ver_Id: 0x81, MsgType: NDLC_STN_CONTACTED, Len: 12, sid: 8B09A8, FC 0xC1

In the last two messages, an NDLC_INFO_FRAME is sent to a client, and the server sends data to the client:

NCIA: send NDLC_INFO_FRAME to client 10.2.20.3 for ckt: 8B09A8

NCIA(OUT): Ver_Id: 0x81, MsgType: NDLC_INFO_FRAME, Len: 30, sid: 8A91E8, FC 0xC1

The following is sample output from the debug ncia circuit flow-control command. In this example, the flow control in a session startup sequence is displayed:

Router# debug ncia circuit flow-control

NCIA: no flow control in NDLC_DL_STARTED frame

NCIA: receive Increment Window Op for circuit 8ADE00

NCIA: ncia_flow_control_in FC 0x81, IW 1 GP 2 CW 2, Client IW 1 GP 0 CW 1

NCIA: grant client more packet by sending Repeat Window Op

NCIA: ncia_flow_control_out FC: 0xC1, IW 1 GP 2 CW 2, Client IW 1 GP 2 CW 2

NCIA: receive FCA for circuit 8ADE00

NCIA: receive Increment Window Op for circuit 8ADE00

NCIA: ncia_flow_control_in FC 0xC1, IW 1 GP 5 CW 3, Client IW 1 GP 2 CW 2

NCIA: grant client more packet by sending Repeat Window Op

NCIA: ncia_flow_control_out FC: 0xC1, IW 1 GP 5 CW 3, Client IW 1 GP 5 CW 3

NCIA: receive FCA for circuit 8ADE00

NCIA: receive Increment Window Op for circuit 8ADE00

NCIA: ncia_flow_control_in FC 0xC1, IW 1 GP 9 CW 4, Client IW 1 GP 5 CW 3

NCIA: grant client more packet by sending Repeat Window Op

NCIA: ncia_flow_control_out FC: 0xC1, IW 1 GP 8 CW 4, Client IW 1 GP 9 CW 4

NCIA: reduce ClientGrantPacket by 1 (Granted: 8)

NCIA: receive FCA for circuit 8ADE00

NCIA: receive Increment Window Op for circuit 8ADE00

Table 248 describes the significant fields shown in the display.

Table 248 debug ncia circuit flow-control Field Descriptions

Field	Description
IW	Initial window size.
GP	Granted packet number.
CW	Current window size.

The following is sample output from the debug ncia circuit state command. In this example, a session startup sequence is displayed:

Router# debug ncia circuit state

NCIA: pre-server fsm: event CONN_OPENED

NCIA: pre-server fsm: event NDLC_PRIMITIVES

NCIA: server event: WAN - STDL state: CLSOED

NCIA: ncia server fsm action 32

NCIA: circuit state: CLOSED -> START_DL_RCVD

NCIA: server event: DLU - TestStn.Rsp state: START_DL_RCVD

NCIA: ncia server fsm action 17

NCIA: circuit state: START_DL_RCVD -> DL_STARTED_SND

NCIA: pre-server fsm: event NDLC_PRIMITIVES

NCIA: server event: WAN - XID state: DL_STARTED_SND

NCIA: ncia server fsm action 33

NCIA: circuit state: DL_STARTED_SND -> DL_STARTED_SND

NCIA: server event: DLU - ReqOpnStn.Req state: DL_STARTED_SND

NCIA: ncia server fsm action 33

NCIA: circuit state: DL_STARTED_SND -> OPENED

NCIA: server event: DLU - Id.Rsp state: OPENED

NCIA: ncia server fsm action 11

NCIA: circuit state: OPENED -> OPENED

NCIA: pre-server fsm: event NDLC_PRIMITIVES

NCIA: server event: WAN - XID state: OPENED

NCIA: ncia server fsm action 33

NCIA: circuit state: OPENED -> OPENED

NCIA: server event: DLU - Connect.Req state: OPENED

NCIA: ncia server fsm action 6

NCIA: circuit state: OPENED -> CONNECT_PENDING

NCIA: pre-server fsm: event NDLC_PRIMITIVES

NCIA: server event: WAN - CONR state: CONNECT_PENDING

NCIA: ncia server fsm action 33 --> CLS_CONNECT_CNF sets NciaClsBusy

NCIA: circuit state: CONNECT_PENDING -> CONNECTED

NCIA: server event: DLU - Flow.Req (START) state: CONNECTED

NCIA: ncia server fsm action 25 --> unset NciaClsBusy

NCIA: circuit state: CONNECTED -> CONNECTED

NCIA: server event: DLU - Data.Rsp state: CONNECTED

NCIA: ncia server fsm action 8

NCIA: circuit state: CONNECTED -> CONNECTED

Table 249 describes the significant fields shown in the display.

Table 249 debug ncia circuit state Field Descriptions

Field	Description
WAN	Event from WAN (client).
DLU	Event from upstream module—dependent logical unit (DLU).
ADMIN	Administrative event.
TIMER	Timer event.

Related Commands

Command	Description
debug dmsp fax-to-doc	Enables debugging of DLSw+.
debug ncia client	Displays debug information for all NCIA client processing that occurs in the router.
debug ncia server	Displays debug information for the NCIA server and its upstream software modules.

debug ncia client

To display debug information for all native client interface architecture (NCIA) client processing that occurs in the router, use the debug ncia client command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug ncia client [ip-address | error [ip-address] | event [ip-address] | message [ip-address]]

no debug ncia client [ip-address | error [ip-address] | event [ip-address] | message [ip-address]]

Syntax Description

ip-address	(Optional) The remote client IP address.
error	(Optional) Triggers the recording of messages only when errors occur. The current state and event of an NCIA client are normally included in the message. If you do not specify an IP address, the error messages are logged for all active clients.
event	(Optional) Triggers the recording of messages that describe the current state and event—and sometimes the action that just completed—for the NCIA client. If you do not specify an IP address, the messages are logged for all active clients.
message	(Optional) Triggers the recording of messages that contain up to the first 32 bytes of data in a TCP packet sent to or received from an NCIA client. If you do not specify an IP address, the messages are logged for all active clients.

Command Modes

Privileged EXEC (#)

Usage Guidelines

NCIA is an architecture developed by Cisco for accessing Systems Network Architecture (SNA) applications. This architecture allows native SNA interfaces on hosts and clients to access TCP/IP backbones.

Use the debug ncia client error command to see only certain error conditions that occur.

Use the debug ncia client event command to determine the sequences of activities that occur while an NCIA client is in different processing states.

Use the debug ncia client message command to see only the first 32 bytes of data in a TCP packet sent to or received from an NCIA client.

The debug ncia client command can be used in conjunction with the debug ncia server and debug ncia circuit commands to get a complete picture of NCIA activity.

Examples

The following is sample output from the debug ncia client command. Following the example is a description of each sample output message.

Router# debug ncia client

NCIA: Passive open 10.2.20.123(1088) -> 1973

NCIA: index for client hash queue is 27

NCIA: number of element in client hash queue 27 is 1

NCIA: event PASSIVE_OPEN, state NCIA_CLOSED for client 10.2.20.123

NCIA: Rcvd msg type NDLC_CAP_XCHG in tcp packet for client 10.2.20.123

NCIA: First 17 byte of data rcvd: 811200110000000000000400050104080C

NCIA: Sent msg type NDLC_CAP_XCHG in tcp packet to client 10.2.20.123

NCIA: First 17 byte of data sent: 811200111000000010000400050104080C

NCIA: event CAP_CMD_RCVD, state NCIA_CAP_WAIT, for client 10.2.20.123, cap xchg cmd sent

NCIA: Rcvd msg type NDLC_CAP_XCHG in tcp packet for client 10.2.20.123

NCIA: First 17 byte of data rcvd: 811200111000000010000000050104080C

NCIA: event CAP_RSP_RCVD, state NCIA_CAP_NEG for client 10.2.20.123

NCIA: Rcvd msg type NDLC_PEER_TEST_REQ in tcp packet for client 10.2.20.123

NCIA: First 4 byte of data rcvd: 811D0004

NCIA: event KEEPALIVE_RCVD, state NCIA_OPENED for client 10.2.20.123

NCIA: Sent msg type NDLC_PEER_TEST_RSP in tcp packet to client 10.2.20.123

NCIA: First 4 byte of data sent: 811E0004IA

NCIA: event TIME_OUT, state NCIA_OPENED, for client 10.2.20.123, keepalive_count = 0

NCIA: Sent msg type NDLC_PEER_TEST_REQ, in tcp packet to client 10.2.20.123

NCIA: First 4 byte of data sent: 811D0004

NCIA: Rcvd msg type NDLC_PEER_TEST_RSP in tcp packet for client 10.2.20.123

NCIA: First 4 byte of data rcvd: 811E0004

NCIA: event KEEPALIVE_RSP_RCVD, state NCIA_OPENED for client 10.2.20.123

NCIA: Error, event PASIVE_OPEN, state NCIA_OPENED, for client 10.2.20.123, should not have
occurred.

NCIA: Error, active_open for pre_client_fsm while client 10.2.20.123 is active or not
configured, registered.

Messages in lines 1 through 12 show the events that occur when a client connects to the router (the NCIA server). These messages show a passive_open process.

Messages in lines 13 to 17 show the events that occur when a TIME_OUT event is detected by a client PC workstation. The workstation sends an NDLC_PEER_TEST_REQ message to the NCIA server, and the router responds with an NDLC_PEER_TEST_RSP message.

Messages in lines 18 to 23 show the events that occur when a TIME_OUT event is detected by the router (the NCIA server). The router sends an NDLC_PEER_TEST_REQ message to the client PC workstation, and the PC responds with an NDLC_PEER_TEST_RSP message.

When you use the debug ncia client message command, the messages shown on lines 6, 8, 11, 14, 17, 20, and 22 are output in addition to other messages not shown in this example.

When you use the debug ncia client error command, the messages shown on lines 24 and 25 are output in addition to other messages not shown in this example.

Related Commands

Command	Description
debug ncia circuit	Displays debug information for all NCIA client processing that occurs in the router.
debug ncia server	Displays debug information for the NCIA server and its upstream software modules.

debug ncia server

To display debug information for the native client interface architecture (NCIA) server and its upstream software modules, use the debug ncia server command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug ncia server

no debug ncia server

Syntax Description

This command has no arguments or keywords.

Command Modes

Privileged EXEC (#)

Usage Guidelines

NCIA is an architecture developed by Cisco for accessing Systems Network Architecture (SNA) applications. This architecture allows native SNA interfaces on hosts and clients to access TCP/IP backbones.

The debug ncia server command displays all Cisco Link Services (CLS) messages between the NCIA server and its upstream modules, such as data-link switching (DLSw) and downstream physical units (DSPUs). Use this command when a problem exists between the NCIA server and other software modules within the router.

You cannot enable debugging output for a particular client or particular circuit.

Examples

The following is sample output from the debug ncia server command. In this example, a session startup sequence is displayed. Following the example is a description of each group of sample output messages.

Router# debug ncia server

NCIA: send CLS_TEST_STN_IND to DLU

NCIA: Receive TestStn.Rsp

NCIA: send CLS_ID_STN_IND to DLU

NCIA: Receive ReqOpnStn.Req

NCIA: send CLS_REQ_OPNSTN_CNF to DLU

NCIA: Receive Id.Rsp

NCIA: send CLS_ID_IND to DLU

NCIA: Receive Connect.Req

NCIA: send CLS_CONNECT_CNF to DLU

NCIA: Receive Flow.Req

NCIA: Receive Data.Req

NCIA: send CLS_DATA_IND to DLU

NCIA: send CLS_DISC_IND to DLU

NCIA: Receive Disconnect.Rsp

In the following messages, the client is sending a test message to the host and the test message is received by the host:

NCIA: send CLS_TEST_STN_IND to DLU

NCIA: Receive TestStn.Rsp

In the next message, the server is sending an exchange identification (XID) message to the host:

NCIA: send CLS_ID_STN_IND to DLU

In the next two messages, the host opens the station and the server responds:

NCIA: Receive ReqOpnStn.Req

NCIA: send CLS_REQ_OPNSTN_CNF to DLU

In the following two messages, the client is performing an XID exchange with the host:

NCIA: Receive Id.Rsp

NCIA: send CLS_ID_IND to DLU

In the next group of messages, the host attempts to establish a session with the client:

NCIA: Receive Connect.Req

NCIA: send CLS_CONNECT_CNF to DLU

NCIA: Receive Flow.Req

In the next two messages, the host sends data to the client:

NCIA: Receive Data.Req

NCIA: send CLS_DATA_IND to DLU

In the last two messages, the client closes the session:

NCIA: send CLS_DISC_IND to DLU

NCIA: Receive Disconnect.Rsp

Related Commands

Command	Description
debug dmsp fax-to-doc	Enables debugging of DLSw+.
debig mcoa circuit	Displays circuit-related information between the NCIA server and client.
debug ncia client	Displays debug information for all NCIA client processing that occurs in the router.

debug netbios error

To display information about Network Basic Input/Output System (NetBIOS) protocol errors, use the debug netbios error command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug netbios error

no debug netbios error

Syntax Description

This command has no arguments or keywords.

Command Modes

Privileged EXEC (#)

Usage Guidelines

For complete information on the NetBIOS process, use the debug netbios packet command along with the debug netbios error command.

Examples

The following is sample output from the debug netbios error command. This example shows that an illegal packet has been received on the asynchronous interface.

Router# debug netbios error

Async1 nbf Bad packet

Related Commands

Command	Description
debug netbios-name-cache	Displays name caching activities on a router.
debug netbios packet	Displays general information about NetBIOS packets.

debug netbios packet

To display general information about Network Basic Input/Output System (NetBIOS) packets, use the debug netbios packet command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug netbios packet

no debug netbios packet

Syntax Description

This command has no arguments or keywords.

Command Modes

Privileged EXEC (#)

Usage Guidelines

For complete information on the NetBIOS process, use the debug netbios error command along with the debug netbios packet command.

Examples

The following is sample output from the debug netbios packet and debug netbios error commands. This example shows the Logical Link Control (LLC) header for an asynchronous interface followed by the NetBIOS information. For additional information on the NetBIOS fields, refer to IBM LAN Technical Reference IEEE 802.2.

Router# debug netbios packet

Async1 (i) U-format UI C_R=0x0

(i) NETBIOS_ADD_NAME_QUERY

 Resp_correlator= 0x6F 0x0

 Src name=CS-NT-1

Async1 (i) U-format UI C_R=0x0

(i) NETBIOS_ADD_GROUP_QUERY

 Resp_correlator= 0x6F 0x0

 Src name=COMMSERVER-WG

Async1 (i) U-format UI C_R=0x0

(i) NETBIOS_ADD_NAME_QUERY

 Resp_correlator= 0x6F 0x0

 Src name=CS-NT-1

Ethernet0 (i) U-format UI C_R=0x0

(i) NETBIOS_DATAGRAM

 Length= 0x2C 0x0

 Dest name=COMMSERVER-WG

 Src name=CS-NT-3

Related Commands

Command	Description
debug netbios error	Displays information about NetBIOS protocol errors.
debug netbios-name-cache	Displays name caching activities on a router.

debug netbios-name-cache

To display name caching activities on a router, use the debug netbios-name-cache command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug netbios-name-cache

no debug netbios-name-cache

Syntax Description

This command has no arguments or keywords.

Command Modes

Privileged EXEC (#)

Usage Guidelines

Examine the display to diagnose problems in Network Basic Input/Output System (NetBIOS) name caching.

Examples

The following is sample output from the debug netbios-name-cache command:

Router# debug netbios-name-cache

NETBIOS: L checking name ORINDA, vrn=0

NetBIOS name cache table corrupted at offset 13

NetBIOS name cache table corrupted at later offset, at location 13

NETBIOS: U chk name=ORINDA, addr=1000.4444.5555, idb=TR1, vrn=0, type=1

NETBIOS: U upd name=ORINDA,addr=1000.4444.5555,idb=TR1,vrn=0,type=1

NETBIOS: U add name=ORINDA,addr=1000.4444.5555,idb=TR1,vrn=0,type=1

NETBIOS: U no memory to add cache entry. name=ORINDA,addr=1000.4444.5555

NETBIOS: Invalid structure detected in netbios_name_cache_ager

NETBIOS: flushed name=ORINDA, addr=1000.4444.5555

NETBIOS: expired name=ORINDA, addr=1000.4444.5555

NETBIOS: removing entry. name=ORINDA,addr=1000.4444.5555,idb=TR1,vrn=0

NETBIOS: Tossing ADD_NAME/STATUS/NAME/ADD_GROUP frame

NETBIOS: Lookup Failed -- not in cache

NETBIOS: Lookup Worked, but split horizon failed

NETBIOS: Could not find RIF entry

NETBIOS: Cannot duplicate packet in netbios_name_cache_proxy

---

Note The sample display is a composite output. Debugging output that you actually see would not necessarily occur in this sequence.

---

Table 250 describes the significant fields shown in the display.

Table 250 debug netbios-name-cache Field Descriptions

Field	Description
NETBIOS	NetBIOS name caching debugging output.
L, U	L means lookup; U means update.
addr=1000.4444.5555	MAC address of machine being looked up in NetBIOS name cache.
idb=TR1	Indicates that the name of machine was learned from Token Ring interface number 1; idb is into interface data block.
vrn=0	Packet comes from virtual ring number 0. This packet actually comes from a real Token Ring interface, because virtual ring number 0 is not valid.
type=1	Indicates the way that the router learned about the specified machine. The possible values are as follows: •1—Learned from traffic •2—Learned from a remote peer •4—Statically entered via the configuration of the router

With the first line of output, the router declares that it has examined the NetBIOS name cache table for the machine name ORINDA and that the packet that prompted the lookup came from virtual ring 0. In this case, this packet comes from a real interface—virtual ring number 0 is not valid.

NETBIOS: L checking name ORINDA, vrn=0

The following two lines indicate that an invalid NetBIOS entry exists and that the corrupted memory was detected. The invalid memory will be removed from the table; no action is needed.

NetBIOS name cache table corrupted at offset 13

NetBIOS name cache table corrupted at later offset, at location 13

The following line indicates that the router attempted to check the NetBIOS cache table for the name ORINDA with MAC address 1000.4444.5555. This name was obtained from Token Ring interface 1. The type field indicates that the name was learned from traffic.

NETBIOS: U chk name=ORINDA, addr=1000.4444.5555, idb=TR1, vrn=0, type=1

The following line indicates that the NetBIOS name ORINDA is in the name cache table and was updated to the current value:

NETBIOS: U upd name=ORINDA,addr=1000.4444.5555,idb=TR1,vrn=0,type=1

The following line indicates that the NetBIOS name ORINDA is not in the table and must be added to the table:

NETBIOS: U add name=ORINDA,addr=1000.4444.5555,idb=TR1,vrn=0,type=1

The following line indicates that there was insufficient cache buffer space when the router tried to add this name:

NETBIOS: U no memory to add cache entry. name=ORINDA,addr=1000.4444.5555

The following line indicates that the NetBIOS ager detects an invalid memory in the cache. The router clears the entry; no action is needed.

NETBIOS: Invalid structure detected in netbios_name_cache_ager

The following line indicates that the entry for ORINDA was flushed from the cache table:

NETBIOS: flushed name=ORINDA, addr=1000.4444.5555

The following line indicates that the entry for ORINDA timed out and was flushed from the cache table:

NETBIOS: expired name=ORINDA, addr=1000.4444.5555

The following line indicates that the router removed the ORINDA entry from its cache table:

NETBIOS: removing entry. name=ORINDA,addr=1000.4444.5555,idb=TR1,vrn=0

The following line indicates that the router discarded a NetBIOS packet of type ADD_NAME, STATUS, NAME_QUERY, or ADD_GROUP. These packets are discarded when multiple copies of one of these packet types are detected during a certain period of time.

NETBIOS: Tossing ADD_NAME/STATUS/NAME/ADD_GROUP frame

The following line indicates that the system could not find a NetBIOS name in the cache:

NETBIOS: Lookup Failed -- not in cache

The following line indicates that the system found the destination NetBIOS name in the cache, but located on the same ring from which the packet came. The router will drop this packet because the packet should not leave this ring.

NETBIOS: Lookup Worked, but split horizon failed

The following line indicates that the system found the NetBIOS name in the cache, but the router could not find the corresponding RIF. The packet will be sent as a broadcast frame.

NETBIOS: Could not find RIF entry

The following line indicates that no buffer was available to create a NetBIOS name cache proxy. A proxy will not be created for the packet, which will be forwarded as a broadcast frame.

NETBIOS: Cannot duplicate packet in netbios_name_cache_proxy

Related Commands

Command	Description
debug netbios error	Displays information about NetBIOS protocol errors.
debug netbios packet	Displays general information about NetBIOS packets.

debug netconf

To enable debugging of network configuration protocol (NETCONF) sessions, use the debug netconf command in privileged EXEC mode. To turn off NETCONF debugging, use the no form of this command.

debug netconf {all | error}

no debug netconf {all | error}

Syntax Description

all	Enables debugging of NETCONF sessions, including NETCONF errors.
error	Enables debugging of NETCONF errors.

Command Default

NETCONF debugging is not enabled.

Command Modes

Privileged EXEC (#)

Command History

Release	Modification
12.2(33)SRA	This command was introduced.
12.4(9)T	This command was integrated into Cisco IOS Release 12.4(9)T.
12.2SX	This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.
12.2(33)SB	This command was integrated into Cisco IOS Release 12.2(33)SB.
12.2(33)SXI	This command was integrated into Cisco IOS Release 12.2(33)SXI.

Usage Guidelines

The debug netconf command issues debug information only when an operational error has happened. In most situations, the NETCONF notifications sent between the NETCONF Network Manager and the client are sufficient to diagnose most NETCONF problems.

To view Extensible Markup Language (XML) parsing errors when using NETCONF over SSHv2, you must also configure the debug cns xml all command.

Examples

The following example shows how to enable debugging of all NETCONF sessions:

Router# debug netconf

00:14:03: NETCONF-ERROR: could not find user1
00:14:03: NETCONF-ERROR: could not find tftp://samplelocation/samplefile
00:14:03: NETCONF: locking 1 by session 646B7038
00:14:03: NETCONF: locking 2 by session 646B7038
00:14:03: NETCONF: locking 1 by session 646B7038
00:14:03: NETCONF-ERROR: invalid session unlock attempt
00:14:03: NETCONF: locking 1 by session 646B7038
00:14:03: NETCONF-ERROR: lock already active
00:14:13: NETCONF-ERROR: lock time 1 expired closing session 646B7038

Table 251 describes the significant fields shown in the display.

Table 251 debug netconf Field Descriptions

Field	Description
NETCONF-ERROR: could not find user1	NETCONF could not find the specified username.
NETCONF-ERROR: could not find tftp://samplelocation/samplefile	NETCONF could not find the specified file path.
NETCONF: locking 1 by session 646B7038	This user is locking NETCONF.
NETCONF-ERROR: invalid session unlock attempt	Another user is trying to unlock NETCONF without first acquiring the lock.
NETCONF-ERROR: lock already active	Another user is trying to lock NETCONF while it is currently locked.
NETCONF-ERROR: lock time 1 expired closing session 646B7038	A locked NETCONF session has been idle longer than the time configured by the netconf lock-time command. The locked NETCONF session is closed.

Related Commands

Command	Description
clear netconf	Clears NETCONF statistics counters, NETCONF sessions, and frees associated resources and locks.
debug cns xml	Turns on debugging messages related to the CNS XML parser.
netconf lock-time	Specifies the maximum time a NETCONF configuration lock is in place without an intermediate operation.
netconf max-sessions	Specifies the maximum number of concurrent NETCONF sessions allowed.
netconf ssh	Enables NETCONF over SSHv2.
show netconf	Displays NETCONF statistics counters and session information.

debug nextport vsmgr detail

To turn on debugging for NextPort voice services, use the debug nextport vsmgr detail command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug nextport vsmgr detail

no debug nextport vsmgr detail

Syntax Description

This command has no arguments or keywords.

Defaults

No default behavior or values

Command Modes

Privileged EXEC (#)

Command History

Release	Modification
12.2(2)XB	This command was introduced.
12.3(4)T	This command was integrated into Cisco IOS Release 12.3(4)T.
12.3(14)T	T.38 fax relay call statistics were made available to Call Detail Records (CDRs) through Vendor-Specific Attributes (VSAs) and added to the call log.
12.2SX	This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.

Usage Guidelines

This command debugs digital signal processor (DSP) message exchanges between applications and the DSP.

Examples

The following examples turn on debugging for NextPort voice services:

debug nextport vsmgr detail Command on the Originating Gateway

Router# debug nextport vsmgr detail

NextPort Voice Service Manager:

  NP Voice Service Manager Detail debugging is on

.

.

.

May  7 21:09:49.135 UTC: vsm(1/2): np_vsmgr_voice_state_change() - state IDLE

May  7 21:09:49.195 UTC: vsm(1/2): np_vsmgr_voice_state_change() - state IDLE

May  7 21:09:49.291 UTC: vsm(1/2): np_vsmgr_voice_state_change() - state ACTIVE

May  7 21:09:51.191 UTC: vsm(1/2): np_vsmgr_voice_state_change() - state IDLE

May  7 21:09:51.331 UTC: vsm(1/2): np_vsmgr_voice_state_change() - state ACTIVE

May  7 21:09:51.803 UTC: np_vsmgr_dispatch_voice_rsp(1/2): VOICE_LINK_INFO_RSP_NTF
Received

May  7 21:09:51.803 UTC: request_id = 0x01, request_type = 0x0F

May  7 21:09:51.803 UTC: VOICE_TRANSMIT_STATS(1/2): num_voice_packets 4 num_sig_packets 0
num_cn_packets 1 transmit_duration 8FC end_point_detection 0

May  7 21:09:51.803 UTC: VOICE_RECEIVE_STATS(1/2): num_voice_packets 4 num_sig_packets 0
num_cn_packets 1 receive_duration 8FC  voice_receive_duration 0 num_pos_packets 0
num_bph_packets 0 num_late_packets 0 num_early_packets 0

May  7 21:09:51.803 UTC: VOICE_PLAYOUT_DELAY_STATS(1/2): curr_playout_delay 0
min_playout_delay 0 max_playout_delay 0 clock offset 0

May  7 21:09:51.803 UTC: VOICE_PLAYOUT_ERROR(1/2): pred_conceal 0x0 inter_conceal 0x0
silence_conceal 0x0 buffer_overflow 0x0 endpt_det_error 0x0

May  7 21:09:53.231 UTC: np_vsmgr_dispatch_voice_rsp(1/2): VOICE_LINK_INFO_RSP_NTF
Received

May  7 21:09:53.231 UTC: request_id = 0x01, request_type = 0x0F

May  7 21:09:53.231 UTC: VOICE_TRANSMIT_STATS(1/2): num_voice_packets 1E num_sig_packets 0
num_cn_packets 1 transmit_duration E92 end_point_detection 0

May  7 21:09:53.231 UTC: VOICE_RECEIVE_STATS(1/2): num_voice_packets 4 num_sig_packets 0
num_cn_packets 1 receive_duration E92  voice_receive_duration 0 num_pos_packets 0
num_bph_packets 0 num_late_packets 0 num_early_packets 0

May  7 21:09:53.231 UTC: VOICE_PLAYOUT_DELAY_STATS(1/2): curr_playout_delay 5A
min_playout_delay 5A max_playout_delay 5A clock offset 19778906

May  7 21:09:53.231 UTC: VOICE_PLAYOUT_ERROR(1/2): pred_conceal 0x0 inter_conceal 0x0
silence_conceal 0x0 buffer_overflow 0x0 endpt_det_error 0x0

May  7 21:09:56.055 UTC: np_vsmgr_dispatch_voice_rsp(1/2): VOICE_LINK_INFO_RSP_NTF
Received

May  7 21:09:56.055 UTC: request_id = 0x01, request_type = 0x0F

May  7 21:09:56.055 UTC: VOICE_TRANSMIT_STATS(1/2): num_voice_packets 23 num_sig_packets 0
num_cn_packets 2 transmit_duration 19A0 end_point_detection BB8

May  7 21:09:56.055 UTC: VOICE_RECEIVE_STATS(1/2): num_voice_packets 8A num_sig_packets 0
num_cn_packets 1 receive_duration 19A0  voice_receive_duration 0 num_pos_packets 0
num_bph_packets 0 num_late_packets 0 num_early_packets 1

May  7 21:09:56.055 UTC: VOICE_PLAYOUT_DELAY_STATS(1/2): curr_playout_delay 3C
min_playout_delay 3C max_playout_delay 64 clock offset 197788E4

May  7 21:09:56.055 UTC: VOICE_PLAYOUT_ERROR(1/2): pred_conceal 0x0 inter_conceal 0x0
silence_conceal 0x0 buffer_overflow 0x1 endpt_det_error 0x0

May  7 21:09:56.855 UTC: vsm(1/2): np_vsmgr_voice_state_change() - state IDLE

May  7 21:09:57.907 UTC: vsm(1/2): np_vsmgr_voice_state_change() - state ACTIVE

May  7 21:09:57.907 UTC: FAX_RELAY_LINK_INFO_RSP_NTF: slot 1 port 2 timestamp 68137565
fr-entered (20ms)

May  7 21:09:57.907 UTC: chan_id [3/1:D] np_vsmgr_fax_relay_link_info_response:

May  7 21:10:15.047 UTC: np_fax_relay_t30_decode : Tx Direction

May  7 21:10:15.067 UTC: FARELAY_INIT_HS_MOD : 0xC

May  7 21:10:51.579 UTC: FAX_RELAY_DATA_PUMP_STATS(1/2) - valid:0x3FFC1F55 state_code:0x0
level:0x18 phase_jitter:0x5 freq_offset:0x0 eqm:0x7FFE jit_depth:0x230 jit_buf_ov:0x0
tx_paks:0x626 rx_pkts:0x5A inv_pkts:0x0 oos_pkts:0x0 hs_mod:0x8 init_hs_mod:0xC tx_pgs:0x1
rx_pgs:0x0 ecm:0x1 nsf_country:0x0 nsf_manuf_len:0x20
nsf_manuf:0031B8EE80C48511DD0D0000DDDD0000DDDD000000000000000022ED00B0A400 encap:0x1
pkt_loss_con:0x0

May  7 21:10:52.463 UTC: vsm(1/2): np_vsmgr_voice_state_change() - state IDLE

May  7 21:10:52.463 UTC: vsm(1/2): np_vsmgr_voice_state_change - NULL DSP Interface Handle

debug nextport vsmgr detail Command on the Terminating Gateway

Router# debug nextport vsmgr detail

NextPort Voice Service Manager:

  NP Voice Service Manager Detail debugging is on

.

.

Router#

May  7 21:09:51.179 UTC: vsm(1/2): np_vsmgr_voice_state_change() - state IDLE

May  7 21:09:51.263 UTC: vsm(1/2): np_vsmgr_voice_state_change() - state ACTIVE

May  7 21:09:51.303 UTC: vsm(1/2): np_vsmgr_voice_state_change() - state IDLE

May  7 21:09:51.443 UTC: vsm(1/2): np_vsmgr_voice_state_change() - state ACTIVE

May  7 21:09:51.467 UTC: np_vsmgr_dispatch_voice_rsp(1/2): VOICE_LINK_INFO_RSP_NTF
Received

May  7 21:09:51.467 UTC: request_id = 0x01, request_type = 0x0F

May  7 21:09:51.467 UTC: VOICE_TRANSMIT_STATS(1/2): num_voice_packets 0 num_sig_packets 0
num_cn_packets 0 transmit_duration 0 end_point_detection 0

May  7 21:09:51.467 UTC: VOICE_RECEIVE_STATS(1/2): num_voice_packets 0 num_sig_packets 0
num_cn_packets 0 receive_duration 0  voice_receive_duration 0 num_pos_packets 0
num_bph_packets 0 num_late_packets 0 num_early_packets 0

May  7 21:09:51.467 UTC: VOICE_PLAYOUT_DELAY_STATS(1/2): curr_playout_delay 0
min_playout_delay 0 max_playout_delay 0 clock offset 0

May  7 21:09:51.467 UTC: VOICE_PLAYOUT_ERROR(1/2): pred_conceal 0x0 inter_conceal 0x0
silence_conceal 0x0 buffer_overflow 0x0 endpt_det_error 0x0

May  7 21:09:53.787 UTC: np_vsmgr_dispatch_voice_rsp(1/2): VOICE_LINK_INFO_RSP_NTF
Received

May  7 21:09:53.787 UTC: request_id = 0x01, request_type = 0x0F

May  7 21:09:53.787 UTC: VOICE_TRANSMIT_STATS(1/2): num_voice_packets 19 num_sig_packets 0
num_cn_packets 1 transmit_duration 910 end_point_detection 0

May  7 21:09:53.787 UTC: VOICE_RECEIVE_STATS(1/2): num_voice_packets 1F num_sig_packets 0
num_cn_packets 2 receive_duration 910  voice_receive_duration 0 num_pos_packets 0
num_bph_packets 0 num_late_packets 0 num_early_packets 0

May  7 21:09:53.787 UTC: VOICE_PLAYOUT_DELAY_STATS(1/2): curr_playout_delay 5A
min_playout_delay 5A max_playout_delay 5A clock offset 68877C4

May  7 21:09:53.787 UTC: VOICE_PLAYOUT_ERROR(1/2): pred_conceal 0x0 inter_conceal 0x0
silence_conceal 0x0 buffer_overflow 0x0 endpt_det_error 0x0

May  7 21:09:56.571 UTC: np_vsmgr_dispatch_voice_rsp(1/2): VOICE_LINK_INFO_RSP_NTF
Received

May  7 21:09:56.571 UTC: request_id = 0x01, request_type = 0x0F

May  7 21:09:56.571 UTC: VOICE_TRANSMIT_STATS(1/2): num_voice_packets A5 num_sig_packets 0
num_cn_packets 1 transmit_duration 13F6 end_point_detection 0

May  7 21:09:56.571 UTC: VOICE_RECEIVE_STATS(1/2): num_voice_packets 30 num_sig_packets 0
num_cn_packets 2 receive_duration 13F6  voice_receive_duration 7D0 num_pos_packets 0
num_bph_packets 0 num_late_packets 0 num_early_packets 0

May  7 21:09:56.571 UTC: VOICE_PLAYOUT_DELAY_STATS(1/2): curr_playout_delay 64
min_playout_delay 5A max_playout_delay 64 clock offset 68877D4

May  7 21:09:56.571 UTC: VOICE_PLAYOUT_ERROR(1/2): pred_conceal 0x0 inter_conceal 0x0
silence_conceal 0x0 buffer_overflow 0x0 endpt_det_error 0x0

May  7 21:09:56.807 UTC: VOICE_DET_STATUS_CHANGE_NTF(1/2): detector mask: 1 timestamp
791687D5

May  7 21:09:56.855 UTC: vsm(1/2): np_vsmgr_voice_state_change() - state IDLE

May  7 21:09:57.911 UTC: vsm(1/2): np_vsmgr_voice_state_change() - state ACTIVE

May  7 21:09:57.911 UTC: FAX_RELAY_LINK_INFO_RSP_NTF: slot 1 port 2 timestamp 65325022
fr-entered (20ms)

May  7 21:09:57.911 UTC: chan_id [3/1:D (6)] np_vsmgr_fax_relay_link_info_response:

May  7 21:10:15.043 UTC: np_fax_relay_t30_decode : Rx Direction

May  7 21:10:15.107 UTC: FARELAY_INIT_HS_MOD : 0x8

May  7 21:10:51.376 UTC: FAX_RELAY_DET_STATUS_CHANGE: slot: 1 port: 2 detector mask 0x2

May  7 21:10:51.404 UTC: FAX_RELAY_DATA_PUMP_STATS(1/2) - valid:0x3FFC1F55 state_code:0x1
level:0x18 phase_jitter:0x0 freq_offset:0x0 eqm:0x7FFE jit_depth:0x39E jit_buf_ov:0x0
tx_paks:0x5A rx_pkts:0x626 inv_pkts:0x0 oos_pkts:0x0 hs_mod:0x8 init_hs_mod:0x8 tx_pgs:0x0
rx_pgs:0x1 ecm:0x1 nsf_country:0x0 nsf_manuf_len:0x20
nsf_manuf:0031B8EE80C48511DD0D0000DDDD0000DDDD000000000000000022ED00B0A400 encap:0x1
pkt_loss_con:0x0

May  7 21:10:52.288 UTC: FAX_RELAY_LINK_INFO_RSP_NTF: slot 1 port 2 timestamp 65760060
fr-end

May  7 21:10:52.304 UTC: vsm(1/2): np_vsmgr_voice_state_change() - state IDLE

May  7 21:10:52.388 UTC: vsm(1/2): np_vsmgr_voice_state_change() - state ACTIVE

May  7 21:10:52.416 UTC: np_vsmgr_dispatch_voice_rsp(1/2): VOICE_LINK_INFO_RSP_NTF
Received

May  7 21:10:52.416 UTC: request_id = 0x05, request_type = 0x30

May  7 21:10:52.416 UTC: VOICE_LEVELS_STATS(1/2): tx_power FF7E tx_mean FF7F rx_power FDBD
rx_mean FB48  bnl FD81 erl FD acom 1EA tx_act 1 rx_act 0

May  7 21:10:52.440 UTC: vsm(1/2): np_vsmgr_voice_state_change() - state IDLE

May  7 21:10:52.440 UTC: vsm(1/2): np_vsmgr_voice_state_change - NULL DSP Interface Handle

Related Commands

Command	Description
debug dspapi detail	Displays details of the DSP API message events with debugging enabled.
voicecap entry	Creates a voicecap on NextPort platforms.
voicecap configure	Applies a voicecap on NextPort platforms.

debug nhrp

To enable Next Hop Resolution Protocol (NHRP) debugging, use the debug nhrp command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug nhrp {ipv4 | ipv6} [cache | extension | packet | rate]

no debug nhrp

Syntax Description

ipv4	Specifies the IPv4 overlay address.
ipv6	Specifies the IPv6 overlay address.
cache	(Optional) Specifies NHRP cache operations.
extension	(Optional) Specifies NHRP extension processing.
packet	(Optional) Specifies NHRP activity.
rate	(Optional) Specifies NHRP rate limiting.

(

Command Default

NHRP debugging is not enabled.

Command Modes

Privileged EXEC (#)

Command History

Release	Modification
12.4(20)T	This command was introduced.

Examples

The following example shows NHRP debugging output for IPv6:

Router# debug nhrp ipv6

Aug  9 13:13:41.486: NHRP: Attempting to send packet via DEST

			- 2001:0db8:3c4d:0015:0000:0000:1a2f:3d2c/32

Aug  9 13:13:41.486: NHRP: Encapsulation succeeded.

Aug  9 13:13:41.486: NHRP: Tunnel NBMA addr 11.11.11.99

Aug  9 13:13:41.486: NHRP: Send Registration Request via Tunnel0 vrf 0, packet size: 105

Aug  9 13:13:41.486: src: 2001:0db8:3c4d:0015:0000:0000:1a2f:3d2c/32,

	         dst: 2001:0db8:3c4d:0015:0000:0000:1a2f:3d2c/32

Aug  9 13:13:41.486: NHRP: 105 bytes out Tunnel0

Aug  9 13:13:41.486: NHRP: Receive Registration Reply via Tunnel0 vrf 0, packet size: 125

The following example shows NHRP debugging output for IPv4:

Router# debug nhrp ipv4

Aug  9 13:13:41.486: NHRP: Attempting to send packet via DEST 10.1.1.99

Aug  9 13:13:41.486: NHRP: Encapsulation succeeded.  Tunnel IP addr 10.11.11.99

Aug  9 13:13:41.486: NHRP: Send Registration Request via Tunnel0 vrf 0, packet size: 105

Aug  9 13:13:41.486:       src: 10.1.1.11, dst: 10.1.1.99

Aug  9 13:13:41.486: NHRP: 105 bytes out Tunnel0

Aug  9 13:13:41.486: NHRP: Receive Registration Reply via Tunnel0 vrf 0, packet size: 125

Aug  9 13:13:41.486: NHRP: netid_in = 0, to_us = 1

Related Commands

Command	Description
debug dmvpn	Displays DMVPN session debugging information.
debug nhrp error	Displays NHRP error level debugging information.

debug nhrp condition

To enable Next Hop Resolution Protocol (NHRP) conditional debugging, use the debug nhrp condition command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug nhrp condition [interface tunnel number | peer {nbma {ip-address | FQDN-string} | tunnel {ip-address | ipv6-address}} | vrf vrf-name]

no debug nhrp condition [interface tunnel number | peer {nbma {ip-address | FQDN-string} | tunnel {ip-address | ipv6-address}} | vrf vrf-name]

Syntax Description

tunnel	(Optional) Specifies a tunnel.
interface	(Optional) Displays NHRP information based on a specific interface.
tunnel number	(Optional) Specifies the tunnel address for the NHRP peer.
peer	(Optional) Specifies an NHRP peer.
nbma	(Optional) Specifies mapping nonbroadcast multiple access (NBMA).
ip-address	(Optional) The IPv4 address for the NHRP peer.
FQDN-string	(Optional) Next hop server (NHS) fully qualified domain name (FQDN) string.
ipv6-address	(Optional) The IPv6 address for the NHRP peer. Note Cisco IOS XE Release 2.5 does not support the ipv6-address argument.
vrf vrf-name	(Optional) Specifies debugging information for sessions related to the specified virtual routing and forwarding (VRF) configuration.

Command Modes

Privileged EXEC (#)

Command History

Release	Modification
12.4(9)T	This command was introduced.
12.4(20)T	This command was modified. The ipv6-address argument was added.
Cisco IOS XE Release 2.5	This command was integrated into Cisco IOS XE Release 2.5 and implemented on the Cisco ASR 1000 Series Aggregation Services Routers.
15.1(2)T	This command was modified. The FQDN-string argument was added.

Examples

The following example shows how to enable conditional NHRP debugging for a specified NBMA address:

Router# debug nhrp condition peer tunnel 192.0.2.1

The following example shows how to enable conditional NHRP debugging for a specified FQDN string:

Router# debug nhrp condition peer examplehub.example1.com

Related Commands

Command	Description
debug dmvpn	Displays DMVPN session debugging information.
debug nhrp error	Displays NHRP error level debugging information.

debug nhrp error

To display Next Hop Resolution Protocol (NHRP) error level debugging information, use the debug nhrp error command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug nhrp {ipv4 | ipv6} error

no debug nhrp {ipv4 | ipv6} error

Syntax Description

ipv4	Specifies the IPv6 overlay network.
ipv6	Specifies the IPv6 overlay network.

Command Default

Error level NHRP debugging is not enabled.

Command Modes

Privileged EXEC (#)

Command History

Release	Modification
12.4(9)T	This command was introduced.
12.4(20)T	The ipv4 and ipv6 keywords were added.

Examples

The following example shows how to enable error level debugging for IPv4 NHRP:

Router# debug nhrp ipv4 error

NHRP errors debugging is on

Related Commands

Command	Description
debug dmvpn	Displays DMVPN session debugging information.
debug nhrp condition	Enables NHRP conditional debugging.

debug nhrp extension

To display the extensions portion of a NHRP packet, use the debug nhrp extension privileged EXEC command. The no form of this command disables debugging output.

debug nhrp extension

no debug nhrp extension

Syntax Description

This command has no arguments or keywords.

Examples

The following is sample output from the debug nhrp extension command:

Router# debug nhrp extension

NHRP extension processing debugging is on

Router#

Forward Transit NHS Record Extension(4):

 (C-1) code: no error(0)

       prefix: 0, mtu: 9180, hd_time: 7200

       addr_len: 20(NSAP), subaddr_len: 0(NSAP), proto_len: 4, pref: 0

       client NBMA: 47.0091810000000002ba08e101.525354555354.01

       client protocol: 135.206.58.54

Reverse Transit NHS Record Extension(5):

Responder Address Extension(3):

 (C) code: no error(0)

       prefix: 0, mtu: 9180, hd_time: 7200

       addr_len: 20(NSAP), subaddr_len: 0(NSAP), proto_len: 4, pref: 0

       client NBMA: 47.0091810000000002ba08e101.525354555355.01

       client protocol: 135.206.58.55

Forward Transit NHS Record Extension(4):

 (C-1) code: no error(0)

       prefix: 0, mtu: 9180, hd_time: 7200

       addr_len: 20(NSAP), subaddr_len: 0(NSAP), proto_len: 4, pref: 0

       client NBMA: 47.0091810000000002ba08e101.525354555354.01

       client protocol: 135.206.58.54

Reverse Transit NHS Record Extension(5):

Responder Address Extension(3):

Forward Transit NHS Record Extension(4):

Reverse Transit NHS Record Extension(5):

debug nhrp options

To display information about NHRP option processing, use the debug nhrp options privileged EXEC command. The no form of this command disables debugging output.

debug nhrp options

no debug nhrp options

Syntax Description

This command has no arguments or keywords.

Usage Guidelines

Use this command to show you whether there are problems or error situations with NHRP option processing (for example, unknown options).

Examples

The following is sample output from the debug nhrp options command:

Router# debug nhrp options

NHRP-OPT: MASK 4

NHRP-OPT-MASK: FFFFFFFF

NHRP-OPT: NETID 4

NHRP-OPT: RESPONDER 4

NHRP-OPT: RECORD 0

NHRP-OPT: RRECORD 0

Table 252 describes the significant fields shown in the display.

Table 252 debug nhrp options Field Descriptions

Field	Descriptions
NHRP-OPT	NHRP options debugging output.
MASK 4	Number of bytes of information in the destination prefix option.
NHRP-OPT-MASK	Contents of the destination prefix option.
NETID	Number of bytes of information in the subnetwork identifier option.
RESPONDER	Number of bytes of information in the responder address option.
RECORD	Forward record option.
RRECORD	Reverse record option.

Related Commands

Command	Description
debug nhrp	Displays information about NHRP activity.
debug nhrp packet	Displays a dump of NHRP packets.

debug nhrp packet

To display a dump of NHRP packets, use the debug nhrp packet privileged EXEC command. The no form of this command disables debugging output.

debug nhrp packet

no debug nhrp packet

Syntax Description

This command has no arguments or keywords.

Examples

The following is sample output from the debug nhrp packet command:

Router# debug nhrp packet

NHRP activity debugging is on

Router#

NHRP: Send Purge Request via ATM3/0.1, packet size: 72

 src: 135.206.58.55, dst: 135.206.58.56

 (F) afn: NSAP(3), type: IP(800), hop: 255, ver: 1

     shtl: 20(NSAP), sstl: 0(NSAP)

 (M) flags: "reply required", reqid: 2

     src NBMA: 47.0091810000000002ba08e101.525354555355.01

     src protocol: 135.206.58.55, dst protocol: 135.206.58.56

 (C-1) code: no error(0)

       prefix: 0, mtu: 9180, hd_time: 0

       addr_len: 0(NSAP), subaddr_len: 0(NSAP), proto_len: 4, pref: 0

       client protocol: 135.206.58.130

NHRP: Receive Purge Reply via ATM3/0.1, packet size: 72

 (F) afn: NSAP(3), type: IP(800), hop: 254, ver: 1

     shtl: 20(NSAP), sstl: 0(NSAP)

 (M) flags: "reply required", reqid: 2

     src NBMA: 47.0091810000000002ba08e101.525354555355.01

     src protocol: 135.206.58.55, dst protocol: 135.206.58.56

 (C-1) code: no error(0)

       prefix: 0, mtu: 9180, hd_time: 0

       addr_len: 0(NSAP), subaddr_len: 0(NSAP), proto_len: 4, pref: 0

       client protocol: 135.206.58.130

debug nhrp rate

To display information about NHRP traffic rate limits, use the debug nhrp rate privileged EXEC command. The no form of this command disables debugging output.

debug nhrp rate

no debug nhrp rate

Syntax Description

This command has no arguments or keywords.

Usage Guidelines

Use this command to verify that the traffic is consistent with the setting of the NHRP commands (such as ip nhrp use and ip max-send commands).

Examples

The following is sample output from the debug nhrp rate command:

Router# debug nhrp rate

NHRP-RATE: Sending initial request

NHRP-RATE: Retransmitting request (retrans ivl 2)

NHRP-RATE: Retransmitting request (retrans ivl 4)

NHRP-RATE: Ethernet1: Used 3

Table 253 describes the significant fields shown in the display.

Table 253 debug nhrp rate Field Descriptions

Field	Descriptions
NHRP-RATE	NHRP rate debugging output.
Sending initial request	First time an attempt was made to send an NHRP packet to a particular destination.
Retransmitting request	Indicates that the NHRP packet was re-sent, and shows the time interval (in seconds) to wait before the NHRP packet is re-sent again.
Ethernet1: Used 3	Interface over which the NHRP packet was sent. Number of packets sent out of the default maximum five (in this case, three were sent).

Related Commands

Command	Description
debug nhrp	Displays information about NHRP activity.
debug nhrp options	Displays information about NHRP option processing

debug ntp

To display debugging messages for Network Time Protocol (NTP) features, use the debug ntp command in prvileged EXEC mode. To disable debugging output, use the no form of this command.

debug ntp {adjust | all | authentication | core | events | loopfilter | packet | params | refclock | select | sync | validity}

no debug ntp {adjust | all | authentication | core | events | loopfilter | packet | params | refclock | select | sync | validity}

Syntax Description

adjust	Displays debugging information on NTP clock adjustments.
all	Displays all debugging information on NTP.
authentication	Displays debugging information on NTP authentication.
core	Displays debugging information on NTP core messages.
events	Displays debugging information on NTP events.
loopfilter	Displays debugging information on NTP loop filters.
packet	Displays debugging information on NTP packets.
params	Displays debugging information on NTP clock parameters.
refclock	Displays debugging information on NTP reference clocks.
select	Displays debugging information on NTP clock selection.
sync	Displays debugging information on NTP clock synchronization.
validity	Displays debugging information on NTP peer clock validity.

Command Default

Debugging is not enabled.

Command Modes

Privileged EXEC (#)

Command History

Release	Modification
12.1	This command was introduced in a release prior to Cisco IOS Release 12.1.
12.2(33)SRA	This command was integrated into Cisco IOS Release 12.2(33)SRA.
12.4(20)T	Support for IPv6 and NTP version 4 was added. The all and core keywords were added. The authentication, loopfilter, params, select, sync and validity keywords were removed. The packets keyword was modified as packet.

Usage Guidelines

Starting from Cisco IOS Release 12.4(20)T, NTP version 4 is supported. In NTP version 4 the debugging options available are adjust, all, core, events, packet, and refclock. In NTP version 3 the debugging options available were events, authentication, loopfilter, packets, params, select, sync and validity.

Examples

The following example shows how to enable all debugging options for NTP:

Router# debug ntp all

NTP events debugging is on

NTP core messages debugging is on

NTP clock adjustments debugging is on

NTP reference clocks debugging is on

NTP packets debugging is on

Related Commands

Command	Description
ntp refclock	Configures an external clock source for use with NTP services.

debug oam

To display operation and maintenance (OAM) events, use the debug oam command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug oam

no debug oam

Syntax Description

This command has no arguments or keywords.

Command Modes

Privileged EXEC

Examples

The following is sample output from the debug oam command:

Router# debug oam

4/0(O): VCD:0x0 DM:0x300 *OAM Cell* Length:0x39

0000 0300 0070 007A 0018 0100 0000 05FF FFFF FFFF FFFF FFFF FFFF FFFF FFFF

FFFF FFFF FFFF FFFF FF6A 6A6A 6A6A 6A6A 6A6A 6A6A 6A6A 6A6A 6A00 0000

Table 254 describes the significant fields shown in the display.

Table 254 debug oam Field Descriptions

Field	Description
0000	Virtual circuit designator (VCD) Special OAM indicator.
0300	Descriptor MODE bits for the ATM Interface Processor (AIP).
0	GFC (4 bits).
07	Virtual path identifier (VPI) (8 bits).
0007	Virtual channel identifier (VCI )(16 bits).
A	Payload type field (PTI) (4 bits).
00	Header Error Correction (8 bits).
1	OAM Fault mangement cell (4 bits).
8	OAM LOOPBACK indicator (4 bits).
01	Loopback indicator value, always 1 (8 bits).
00000005	Loopback unique ID, sequence number (32 bits).
FF6A	Fs and 6A required in the remaining cell, per UNI3.0.

debug oer api

To display Optimized Edge Routing (OER) application interface debugging information, use the debug oer api command in privileged EXEC mode. To stop the display of OER application interface debugging information, use the no form of this command.

debug oer api [detail]

no debug oer api

Syntax Description

detail

(Optional) Displays detailed application interface debugging information.

Command Default

Detailed OER application interface debugging messages are not displayed.

Command Modes

Privileged EXEC (#)

Command History

Release	Modification
12.4(15)T	This command was introduced.
12.2SX	This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.

Usage Guidelines

The debug oer api command is used to display messages about any configured OER application interface providers or host devices. The OER application interface defines the mode of communication and messaging between applications and the network for the purpose of optimizing the traffic associated with the applications. A provider is defined as an entity outside the network in which the router configured as an OER master controller exists, for example, an ISP, or a branch office of the same company. The provider has one or more host devices running one or more applications that use the OER application interface to communicate with an OER master controller. A provider must be registered with an OER master controller before an application on a host device can interface with OER. Use the api provider command to register the provider, and use the host-address command to configure a host device. After registration, a host device in the provider network can initiate a session with an OER master controller. The application interface provides an automated method for networks to be aware of applications and provides application-aware performance routing.

---

Caution When the detail keyword is entered, the amount of detailed output to be displayed can utilize a considerable amount of system resources. Use the detail keyword with caution in a production network.

---

Examples

The following example enables the display of OER application interface debugging messages and the output shows that an OER policy failed due to a prefix that is not found:

Router# debug oer api

OER api debugging is on

*May 26 01:04:07.278: OER API: Data set id received 5, data set len 9, host ip 10.3.3.3,
session id 1, requies2

*May 26 01:04:07.278: OER API: Received get current policy, session id 1 request id 22

*May 26 01:04:07.278: OER API: Recvd Appl with Prot 256 DSCP 0 SrcPrefix 0.0.0.0/0
SrcMask 0.0.0.0

*May 26 01:04:07.278: OER API:  DstPrefix 10.2.0.0/24 DstMask 255.255.255.0 Sport_min 0
Sport_max 0 Dport_mi0

*May 26 01:04:07.278: OER API: get prefix policy failed - prefix not found

*May 26 01:04:07.278: OER API: Get curr policy cmd received. rc 0

*May 26 01:04:07.278: OER API: Received send status response, status 0, session id 1,
request id 22, sequence0

*May 26 01:04:07.278: OER API: rc for data set 0

Table 255 describes the significant fields shown in the display. The content of the debugging messages depends on the commands that are subsequently entered at the router prompt.

Table 255 debug oer api Field Descriptions

Field	Description
OER api debugging is on	Shows that application interface debugging is enabled.
OER API	Displays an OER application interface message.

Related Commands

Command	Description
api provider	Registers an application interface provider with an OER master controller and enters OER master controller application interface provider configuration mode.
host-address	Configures information about a host device used by an application interface provider to communicate with an OER master controller.
oer	Enables an OER process and configures a router as an OER border router or as an OER master controller.
show oer api provider	Displays information about application interface providers registered with OER.

debug oer api client

To display Optimized Edge Routing (OER) application programming interface (API) client debugging information for master controller and border router communication, use the debug oer api client command in privileged EXEC mode. To stop the display of OER debugging information, use the no form of this command.

debug oer api client [detail]

no debug oer api client [detail]

Syntax Description

detail

(Optional) Displays detailed information.

Command Default

No debugging messages are enabled.

Command Modes

Privileged EXEC

Command History

Release	Modification
12.4(6)T	This command was introduced.
12.2(33)SRB	This command was integrated into Cisco IOS Release 12.2(33)SRB.
12.2SX	This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.

Usage Guidelines

The debug oer api client command can be entered on a master controller. This command is used to display messages about a configured OER API client. When the detail keyword is entered, the amount of detailed output to be displayed can utilize a considerable amount of system resources. Use the detail keyword with caution in a production network.

Examples

The following example enables the display of OER API client debugging messages:

Router# debug oer api client

API Client debugging enabled

Related Commands

Command	Description
oer	Enables an OER process and configures a router as an OER border router or as an OER master controller.

debug oer border

To display general OER border router debugging information, use the debug oer border command in privileged EXEC mode. To stop the display of OER debugging information, use the no form of this command.

debug oer border

no debug oer border

Syntax Description

This command has no arguments or keywords.

Command Default

No debugging messages are enabled.

Command Modes

Privileged EXEC

Command History

Release	Modification
12.3(8)T	This command was introduced.
12.2(33)SRB	This command was integrated into Cisco IOS Release 12.2(33)SRB.
12.2SX	This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.

Usage Guidelines

The debug oer border command is entered on a border router. This command is used to display debugging information about the OER border process, controlled routes and monitored prefixes.

Examples

The following example displays general OER debugging information:

Router# debug oer border

*May  4 22:32:33.695: OER BR: Process Message, msg 4, ptr 33272128, value  140

*May  4 22:32:34.455: OER BR: Timer event, 0

Table 256 describes the significant fields shown in the display.

Table 256 debug oer border Field Descriptions

Field	Description
OER BR:	Indicates debugging information for OER Border process.

Related Commands

Command	Description
oer	Enables an OER process and configures a router as an OER border router or as an OER master controller.

debug oer border active-probe

To display debugging information for active probes configured on the local border router, use the debug oer border active-probe command in privileged EXEC mode. To stop the display of debug event information, use the no form of this command.

debug oer border active-probe

no debug oer border active-probe

Syntax Description

This command has no arguments or keywords.

Command Default

No debugging messages are enabled.

Command Modes

Privileged EXEC

Command History

Release	Modification
12.3(8)T	This command was introduced.
12.2(33)SRB	This command was integrated into Cisco IOS Release 12.2(33)SRB.
12.2SX	This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.

Usage Guidelines

The debug oer border active-probe command is entered on a master controller. This command is used to display the status and results of active probes that are configured on the local border router.

Examples

The following example enables the display of active-probe debug information on a border router:

Router# debug oer border active-probe

*May  4 23:47:45.633: OER BR ACTIVE PROBE: Attempting to retrieve Probe

Statistics.

      probeType = echo, probeTarget = 10.1.5.1, probeTargetPort = 0

      probeSource = Default, probeSourcePort = 0, probeNextHop = Default

      probeIfIndex = 13

*May  4 23:47:45.633: OER BR ACTIVE PROBE: Completed retrieving Probe

Statistics.

      probeType = echo, probeTarget = 10.1.5.1, probeTargetPort = 0

      probeSource = Default, probeSourcePort = 0, probeNextHop = 10.30.30.2

      probeIfIndex = 13, SAA index = 15

*May  4 23:47:45.633: OER BR ACTIVE PROBE: Completions 11, Sum of rtt 172,

Max rtt 36, Min rtt 12

*May  4 23:47:45.693: OER BR ACTIVE PROBE: Attempting to retrieve Probe

Statistics.

      probeType = echo, probeTarget = 10.1.4.1, probeTargetPort = 0

      probeSource = Default, probeSourcePort = 0, probeNextHop = Default

      probeIfIndex = 13

*May  4 23:47:45.693: OER BR ACTIVE PROBE: Completed retrieving Probe

Statistics.

      probeType = echo, probeTarget = 10.1.4.1, probeTargetPort = 0

      probeSource = Default, probeSourcePort = 0, probeNextHop = 10.30.30.2

      probeIfIndex = 13, SAA index = 14

Table 257 describes the significant fields shown in the display.

Table 257 debug oer border active-probe Field Descriptions

Field	Description
OER BR ACTIVE PROBE:	Indicates debugging information for OER active probes on a border router.
Statistics	The heading for OER active probe statistics.
probeType	The active probe type. The active probe types that can be displayed are ICMP, TCP, and UDP.
probeTarget	The target IP address of the active probe.
probeTargetPort	The target port of the active probe.
probeSource	The source IP address of the active probe. Default is displayed for a locally generated active probe.
probeSourcePort	The source port of the active probe.
probeNextHop	The next hop for the active probe.
probeIfIndex	The active probe source interface index.
SAA index	The IP SLAs collection index number.

Related Commands

Command	Description
oer	Enables an OER process and configures a router as an OER border router or as an OER master controller.

debug oer border learn

To display debugging information about learned prefixes on the local border router, use the debug oer border learn command in privileged EXEC mode. To stop the display of debug event information, use the no form of this command.

debug oer border learn [top number]

no debug oer border learn [top number]

Syntax Description

top number

(Optional) Displays debugging information about the top delay or top throughput prefixes. The number of top delay or throughput prefixes can be specified. The range of prefixes that can be specified is a number from 1 to 65535.

Command Default

No debugging messages are enabled.

Command Modes

Privileged EXEC (#)

Command History

Release	Modification
12.3(8)T	This command was introduced.
12.2(33)SRB	This command was integrated into Cisco IOS Release 12.2(33)SRB.
12.2SX	This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.

Usage Guidelines

The debug oer border learn command is entered on a border router. This command is used to display debugging information about prefixes learned on the local border router.

Examples

The following example enables the display of active-probe debug information on a border router:

Router# debug oer border learn

*May  4 22:51:31.971: OER BR LEARN: Reporting prefix 1: 10.1.5.0, throughput 201

*May  4 22:51:31.971: OER BR LEARN: Reporting 1 throughput learned prefixes

*May  4 22:51:31.971: OER BR LEARN: State change, new STOPPED, old STARTED, reason Stop
Learn

Table 258 describes the significant fields shown in the display.

Table 258 debug oer border learn Field Descriptions

Field	Description
OER BR LEARN:	Indicates debugging information for the OER border router learning process.

Related Commands

Command	Description
oer	Enables an OER process and configures a router as an OER border router or as an OER master controller.

debug oer border routes

To display debugging information for OER controlled or monitored routes on the local border router, use the debug oer border routes command in privileged EXEC mode. To stop the display of debug event information, use the no form of this command.

debug oer border routes {bgp | static}

no debug oer border routes {bgp | static}

Syntax Description

bgp	Displays debugging information for only BGP routes.
static	Displays debugging information for only static routes.

Command Default

No debugging is enabled.

Command Modes

Privileged EXEC

Command History

Release	Modification
12.3(8)T	This command was introduced.
12.2(33)SRB	This command was integrated into Cisco IOS Release 12.2(33)SRB.
12.2SX	This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.

Usage Guidelines

The debug oer border routes command is entered on a border router. This command is used to display the debugging information about OER controlled or monitored routes on the local border router.

Examples

The following example enables the display of active-probe debug information on a border router:

Router# debug oer border routes

*May  4 22:35:53.239: OER BGP: Control exact prefix 10.1.5.0/24

*May  4 22:35:53.239: OER BGP: Walking the BGP table for 10.1.5.0/24

*May  4 22:35:53.239: OER BGP: Path for 10.1.5.0/24 is now under OER control

*May  4 22:35:53.239: OER BGP: Setting prefix 10.1.5.0/24 as OER net#

Table 259 describes the significant fields shown in the display.

Table 259 debug oer border routes Field Descriptions

Field	Description
OER BR BGP:	Indicates debugging information for OER controlled BGP routes.
OER BR STATIC:	Indicates debugging information for OER controlled Static routes. (Not displayed in the example output.)

Related Commands

Command	Description
oer	Enables an OER process and configures a router as an OER border router or as an OER master controller.

debug oer border traceroute reporting

To display debugging information for traceroute probes on the local border router, use the debug oer border traceroute reporting command in privileged EXEC mode. To stop the display of debug event information, use the no form of this command.

debug oer border traceroute reporting [detail]

no debug oer border traceroute reporting [detail]

Syntax Description

detail

(Optional) Displays detailed traceroute debug information.

Command Default

No debugging messages are enabled.

Command Modes

Privileged EXEC (#)

Command History

Release	Modification
12.3(14)T	This command was introduced.
12.2(33)SRB	This command was integrated into Cisco IOS Release 12.2(33)SRB.
12.2SX	This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.

Usage Guidelines

The debug oer border traceroute reporting command is entered on a border router. This command is used to display the debugging information about traceroute probes sourced on the local border router.

Examples

The following example enables the display of active-probe debug information on a border router:

Router# debug oer border traceroute reporting

May 19 03:46:23.807: OER BR TRACE(det): Received start message: msg1 458776,
msg2 1677787648, if index 19, host addr 100.1.2.1, flags 1, max ttl 30,
protocol 17, probe delay 0

May 19 03:46:26.811: OER BR TRACE(det): Result msg1 458776,
msg2 1677787648 num hops 30 sent May 19 03:47:20.919: OER BR TRACE(det):
Received start message: msg1 524312, msg2 1677787648, if index 2,
host addr 100.1.2.1, flags 1, max ttl 30, protocol 17, probe delay 0

May 19 03:47:23.923: OER BR TRACE(det): Result msg1 524312,
msg2 1677787648 num hops 3 sent

Table 260 describes the significant fields shown in the display.

Table 260 debug oer border traceroute reporting Field Descriptions

Field	Description
OER BR TRACE:	Indicates border router debugging information for traceroute probes.

Related Commands

Command	Description
oer	Enables an OER process and configures a router as an OER border router or as an OER master controller.

debug oer cc

To display OER communication control debugging information for master controller and border router communication, use the debug oer cc command in privileged EXEC mode. To stop the display of OER debugging information, use the no form of this command.

debug oer cc [detail]

no debug oer cc [detail]

Syntax Description

detail

(Optional) Displays detailed information.

Command Default

No debugging messages are enabled.

Command Modes

Privileged EXEC

Command History

Release	Modification
12.3(8)T	This command was introduced.
12.2(33)SRB	This command was integrated into Cisco IOS Release 12.2(33)SRB.
12.2SX	This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.

Usage Guidelines

The debug oer cc command can be entered on a master controller on a border router. This command is used to display messages exchanged between the master controller and the border router. These messages include control commands, configuration commands, and monitoring information. Enabling this command will cause very detailed output to be displayed and can utilize a considerable amount of system resources. This command should be enabled with caution in a production network.

Examples

The following example enables the display of OER communication control debugging messages:

Router# debug oer cc

*May  4 23:03:22.527: OER CC: ipflow prefix reset received: 10.1.5.0/24

Table 261 describes the significant fields shown in the display.

Table 261 debug oer cc Field Descriptions

Field	Description
OER CC:	Indicates debugging information for OER communication messages.

Related Commands

Command	Description
oer	Enables an OER process and configures a router as an OER border router or as an OER master controller.

debug oer master border

To display debugging information for OER border router events on an OER master controller, use the debug oer master border command in privileged EXEC mode. To stop border router event debugging, use the no form of this command.

debug oer master border [ip-address]

no debug oer master border

Syntax Description

ip-address

(Optional) Specifies the IP address of a border router.

Command Default

No debugging messages are enabled.

Command Modes

Privileged EXEC

Command History

Release	Modification
12.3(8)T	This command was introduced.
12.2(33)SRB	This command was integrated into Cisco IOS Release 12.2(33)SRB.
12.2SX	This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.

Usage Guidelines

The debug oer master border command is entered on a master controller. The output displays information related to the events or updates from one or more border routers.

Examples

The following example shows the status of 2 border routers. Both routers are up and operating normally.

Router# debug oer master border

OER Master Border Router debugging is on

Router#

1d05h: OER MC BR 10.4.9.7: BR I/F update, status UP, line 1 index 1, tx bw 10000

0, rx bw 100000, time, tx ld 0, rx ld 0, rx rate 0 rx bytes 3496553, tx rate 0,

tx bytes 5016033

1d05h: OER MC BR 10.4.9.7: BR I/F update, status UP, line 1 index 2, tx bw 10000

0, rx bw 100000, time, tx ld 0, rx ld 0, rx rate 0 rx bytes 710149, tx rate 0, t

x bytes 1028907

1d05h: OER MC BR 10.4.9.6: BR I/F update, status UP, line 1 index 2, tx bw 10000

0, rx bw 100000, time, tx ld 0, rx ld 0, rx rate 0 rx bytes 743298, tx rate 0, t

x bytes 1027912

1d05h: OER MC BR 10.4.9.6: BR I/F update, status UP, line 1 index 1, tx bw 10000

0, rx bw 100000, time, tx ld 0, rx ld 0, rx rate 0 rx bytes 3491383, tx rate 0,

tx bytes 5013993

Table 262 describes the significant fields shown in the display.

Table 262 debug oer master border Field Descriptions

Field	Description
OER MC BR ip-address:	Indicates debugging information for a border router process. The ip-address identifies the border router.

Related Commands

Command	Description
oer	Enables an OER process and configures a router as an OER border router or as an OER master controller.

debug oer master collector

To display data collection debugging information for OER monitored prefixes, use the debug oer master collector command in privileged EXEC mode. To disable the display of this debugging information, use the no form of this command.

debug oer master collector {active-probes [detail [trace]] | netflow}

no debug oer master collector {active-probes [detail [trace]] | netflow}

Syntax Description

active-probes	Displays aggregate active probe results for a given prefix on all border routers that are executing the active probe.
detail	(Optional) Displays the active probe results from each target for a given prefix on all border routers that are executing the active probe.
trace	(Optional) Displays aggregate active probe results and historical statistics for a given prefix on all border routers that are executing the active probe.
netflow	Displays information about the passive (NetFlow) measurements received by the master controller for prefixes monitored from the border router.

Command Default

No debugging messages are enabled.

Command Modes

Privileged EXEC

Command History

Release	Modification
12.3(8)T	This command was introduced.
12.2(33)SRB	This command was integrated into Cisco IOS Release 12.2(33)SRB.
12.2SX	This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.

Usage Guidelines

The debug oer master collector command is entered on a master controller. The output displays data collection information for monitored prefixes.

Examples

debug oer master collector active-probes Example

The following example displays aggregate active probe results for the 10.1.0.0/16 prefix on all border routers that are configured to execute this active probe:

Router# debug oer master collector active-probes

*May  4 22:34:58.221: OER MC APC: Probe Statistics Gathered for prefix 10.1.0.0/16 on all
exits,notifying the PDP

*May  4 22:34:58.221: OER MC APC: Summary Exit Data (pfx 10.1.0.0/16, bdr 10.2.2.2, if 13,
nxtHop Default):savg delay 13, lavg delay 14, sinits 25, scompletes 25

*May  4 22:34:58.221: OER MC APC: Summary Prefix Data: (pfx 10.1.0.0/16) sloss 0, lloss 0,
sunreach 25, lunreach 25, savg raw delay 15, lavg raw delay 15, sinits 6561, scompletes
6536, linits 6561, lcompletes 6536

*May  4 22:34:58.221: OER MC APC: Active OOP check done

Table 263 describes the significant fields shown in the display.

Table 263 debug oer master collector active-probes Field Descriptions

Field	Description
OER MC APC:	Indicates debugging information for active probes from the r OER master collector.

debug oer master collector active-probes detail Example

The following example displays aggregate active probe results from each target for the 10.1.0.0/16 prefix on all border routers that are configured to execute this active probe:

Router# debug oer master collector active-probes detail

*May  4 22:36:21.945: OER MC APC: Rtrv Probe Stats: BR 10.2.2.2, Type echo,

Tgt 10.1.1.1,TgtPt 0, Src Default, SrcPt 0, NxtHp Default, Ndx 13

*May  4 22:36:22.001: OER MC APC: Remote stats received: BR 10.2.2.2, Type

echo, Tgt 10.15.1, TgtPt 0, Src Default, SrcPt 0, NxtHp Default, Ndx 13

*May  4 22:36:22.313: OER MC APC: Perf data point (pfx 10.1.0.0/16, bdr

10.2.2.2, if 13, xtHop Default):  avg delay 20, loss 0, unreach 0,

initiations 2, completions 2, delay sum40, ldelay max 20, ldelay min 12

*May  4 22:36:22.313: OER MC APC: Perf data point (pfx 10.1.0.0/16, bdr

10.2.2.2, if 13, xtHop Default):  avg delay 20, loss 0, unreach 0,

initiations 2, completions 2, delay sum40, ldelay max 20, ldelay min 12

*May  4 22:36:22.313: OER MC APC: Probe Statistics Gathered for prefix

10.1.0.0/16 on al exits, notifying the PDP

*May  4 22:36:22.313: OER MC APC: Active OOP check done

Table 264 describes the significant fields shown in the display.

Table 264 debug oer master collector active-probes detail Field Descriptions

Field	Description
OER MC APC:	Indicates debugging information for active probes from the r OER master collector.

debug oer master collector active-probes detail trace Example

The following example displays aggregate active probe results and historical statistics from each target for the 10.1.0.0/16 prefix on all border routers that are configured to execute this active probe:

Router# debug oer master collector active-probes detail trace

*May  4 22:40:33.845: OER MC APC: Rtrv Probe Stats: BR 10.2.2.2, Type echo,

Tgt 10.1.5.1, TgtPt 0, Src Default, SrcPt 0, NxtHp Default, Ndx 13

*May  4 22:40:33.885: OER MC APC: Remote stats received: BR 10.2.2.2, Type

echo, Tgt 10.1.5.1, TgtPt 0, Src Default, SrcPt 0, NxtHp Default, Ndx 13

*May  4 22:40:34.197: OER MC APC: Remote stats received: BR 10.2.2.2, Type

echo, Tgt 10.1.2.1, TgtPt 0, Src Default, SrcPt 0, NxtHp Default, Ndx 13

*May  4 22:40:34.197: OER MC APC: Updating Probe (Type echo Tgt 10.1.2.1

TgtPt 0) Total Completes 1306, Total Attempts 1318

*May  4 22:40:34.197: OER MC APC: All stats gathered for pfx 10.1.0.0/16

Accumulating Stats

*May  4 22:40:34.197: OER MC APC: Updating Curr Exit Ref (pfx 10.1.0.0/16,

bdr 10.2.2.2, if 13, nxtHop Default) savg delay 17, lavg delay 14, savg loss

0, lavg loss 0, savg unreach 0, lavg unreach 0

*May  4 22:40:34.197: OER MC APC: Probe Statistics Gathered for prefix

10.1.0.0/16 on all exits, notifying the PDP

*May  4 22:40:34.197: OER MC APC: Active OOP check done

Table 265 describes the significant fields shown in the display.

Table 265 debug oer master collector active-probes detail trace Field Descriptions

Field	Description
OER MC APC:	Indicates debugging information for active probes from the r OER master collector.

debug oer master collector netflow Example

The following example displays passive monitoring results for the 10.1.5.0/24 prefix:

Router# debug oer master collector netflow

*May  4 22:31:45.739: OER MC NFC: Rcvd  egress update from BR 10.1.1.2

  prefix 10.1.5.0/24  Interval 75688  delay_sum 0  samples 0  bytes 20362  pkts 505  flows
359  pktloss 1 unreach 0

*May  4 22:31:45.739: OER MC NFC: Updating exit_ref; BR 10.1.1.2 i/f Et1/0, s_avg_delay
655, l_avg_delay 655, s_avg_pkt_loss 328, l_avg_pkt_loss 328, s_avg_flow_unreach 513,
l_avg_flow_unreach 513

*May  4 22:32:07.007: OER MC NFC: Rcvd ingress update from BR 10.1.1.3

  prefix 10.1.5.0/24  Interval 75172  delay_sum 42328  samples 77  bytes 22040  pkts 551
flows 310  pktloss 0 unreach 0

Table 266 describes the significant fields shown in the display.

Table 266 debug oer master collector netflow Field Descriptions

Field	Description
OER MC NFC:	Indicates debugging information for the OER master collector from passive monitoring (NetFlow).

Related Commands

Command	Description
oer	Enables an OER process and configures a router as an OER border router or as an OER master controller.

debug oer master cost-minimization

To display debugging information for cost-based optimization policies, use the debug oer master cost-minimization command in privileged EXEC mode. To disable the display of this debugging information, use the no form of this command.

debug oer master cost-minimization [detail]

no debug oer master cost-minimization [detail]

Syntax Description

detail

(Optional) Displays detailed information.

Command Default

No debugging messages are enabled.

Command Modes

Privileged EXEC

Command History

Release	Modification
12.3(14)T	This command was introduced.
12.2(33)SRB	This command was integrated into Cisco IOS Release 12.2(33)SRB.
12.2SX	This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.

Usage Guidelines

The debug oer master cost-minimization command is entered on a master controller. The output displays debugging information for cost-minimization policies.

Examples

The following example displays detailed cost optimization policy debug information:

Router# debug oer master cost-minimization detail

OER Master cost-minimization Detail debugging is on

*May 14 00:38:48.839: OER MC COST: Momentary target utilization for exit 10.1.1.2 i/f

Ethernet1/0 nickname ISP1 is 7500 kbps, time_left 52889 secs, cumulative 16 kb, rollup
period 84000 secs, rollup target 6000 kbps, bw_capacity 10000 kbps

*May 14 00:38:48.839: OER MC COST: Cost OOP check for border 10.1.1.2, current util: 0
target util: 7500 kbps

*May 14 00:39:00.199: OER MC COST: ISP1 calc separate rollup ended at 55 ingress Kbps

*May 14 00:39:00.199: OER MC COST: ISP1 calc separate rollup ended at 55 egress bytes

*May 14 00:39:00.199: OER MC COST: Target utilization for nickname ISP1 set to 6000,
rollups elapsed 4, rollups left 24

*May 14 00:39:00.271: OER MC COST: Momentary target utilization for exit 10.1.1.2 i/f
Ethernet1/0 nickname ISP1 is 7500 kbps, time_left 52878 secs, cumulative 0 kb, rollup
period 84000 secs, rollup target 6000 kbps, bw_capacity 10000 kbps

*May 14 00:39:00.271: OER MC COST: Cost OOP check for border 10.1.1.2, current util: 0
target util: 7500 kbps

Table 267 describes the significant fields shown in the display.

Table 267 debug oer master cost-minimization detail Field Descriptions

Field	Description
OER MC COST:	Indicates debugging information for cost-based optimization on the master controller.

Related Commands

Command	Description
cost-minimization	Configures cost-based optimization policies on a master controller.
oer	Enables an OER process and configures a router as an OER border router or as an OER master controller.
show oer master cost-minimization	Displays the status of cost-based optimization policies.

debug oer master exit

To display debug event information for OER managed exits, use the debug oer master exit command in privileged EXEC mode. To stop the display of debug event information, use the no form of this command.

debug oer master exit [detail]

no debug oer master exit [detail]

Syntax Description

detail

Displays detailed OER managed exit information.

Command Default

No debugging messages are enabled.

Command Modes

Privileged EXEC

Command History

Release	Modification
12.3(8)T	This command was introduced.
12.2(33)SRB	This command was integrated into Cisco IOS Release 12.2(33)SRB.
12.2SX	This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.

Usage Guidelines

The debug oer master exit command is entered on a master controller. This command is used to display debugging information for master controller exit selection processes.

Examples

The following example shows output form the debug oer master exit command, entered with the detail keyword:

Router# debug oer master exit detail

*May  4 11:26:51.539: OER MC EXIT: 10.1.1.1, intf Fa4/0 INPOLICY

*May  4 11:26:52.195: OER MC EXIT: 10.2.2.3, intf Se2/0 INPOLICY

*May  4 11:26:55.515: OER MC EXIT: 10.1.1.2, intf Se5/0 INPOLICY

*May  4 11:29:14.987: OER MC EXIT: 7 kbps should be moved from 10.1.1.1, intf Fa4/0

*May  4 11:29:35.467: OER MC EXIT: 10.1.1.1, intf Fa4/0 in holddown state so skip OOP
check

*May  4 11:29:35.831: OER MC EXIT: 10.2.2.3, intf Se2/0 in holddown state so skip OOP
check

*May  4 11:29:39.455: OER MC EXIT: 10.1.1.2, intf Se5/0 in holddown state so skip OOP
check

Table 268 describes the significant fields shown in the display.

Table 268 debug oer master exit detail Field Descriptions

Field	Description
OER MC EXIT:	Indicates OER master controller exit event.

Related Commands

Command	Description
oer	Enables an OER process and configures a router as an OER border router or as an OER master controller.

debug oer master learn

To display debug information for OER master controller learning events, use the debug oer master learn command in privileged EXEC mode. To stop the display of debug information, use the no form of this command.

debug oer master learn

no debug oer master learn

Syntax Description

This command has no arguments or keywords.

Command Default

No debugging messages are enabled.

Command Modes

Privileged EXEC

Command History

Release	Modification
12.3(8)T	This command was introduced.
12.2(33)SRB	This command was integrated into Cisco IOS Release 12.2(33)SRB.
12.2SX	This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.

Usage Guidelines

The debug oer master learn command is entered on a master controller. This command is used to display debugging information for master controller learning events.

Examples

The following example shows output from the debug oer master learn command. The output an shows OER Top Talker debug events. The master controller is enabling prefix learning for new border router process:

Router# debug oer master learn

06:13:43: OER MC LEARN: Enable type 3, state 0

06:13:43: OER MC LEARN: OER TTC: State change, new RETRY, old DISABLED, reason TT start

06:13:43: OER MC LEARN: OER TTC: State change, new RETRY, old DISABLED, reason TT start
request

06:13:43: OER MC LEARN: OER TTC: State change, new RETRY, old DISABLED, reason T

T start request

06:14:13: OER MC LEARN: TTC Retry timer expired

06:14:13: OER MC LEARN: OER TTC: State change, new STARTED, old RETRY, reason At

 least one BR started

06:14:13: %OER_MC-5-NOTICE: Prefix Learning STARTED

06:14:13: OER MC LEARN: MC received BR TT status as enabled

06:14:13: OER MC LEARN: MC received BR TT status as enabled

06:19:14: OER MC LEARN: OER TTC: State change, new WRITING DATA, old STARTED, reason
Updating DB

06:19:14: OER MC LEARN: OER TTC: State change, new SLEEP, old WRITING DATA, reason
Sleep state

Table 269 describes the significant fields shown in the display.

Table 269 debug oer master learn Field Descriptions

Field	Description
OER MC LEARN:	Indicates OER master controller learning events.

Related Commands

Command	Description
oer	Enables an OER process and configures a router as an OER border router or as an OER master controller.

debug oer master prefix

To display debug events related to prefix processing on an OER master controller, use the debug oer master prefix command in privileged EXEC mode. To disable the display of debug information, use the no form of this command.

debug oer master prefix [prefix | appl] [detail]

no debug oer master prefix [prefix | appl] [detail]

Syntax Description

prefix	(Optional) Specifies a single prefix or prefix range. The prefix address and mask are entered with this argument.
appl	(Optional) Displays information about prefixes used by applications monitored and controlled by an OER master controller.
detail	(Optional) Displays detailed OER prefix processing information.

Command Default

No debugging messages are enabled.

Command Modes

Privileged EXEC

Command History

Release	Modification
12.3(8)T	This command was introduced.
12.2(33)SRB	This command was integrated into Cisco IOS Release 12.2(33)SRB.
12.2SX	This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.

Usage Guidelines

The debug oer master prefix command is entered on a master controller. This command displays debugging information related to prefix monitoring and processing.

Examples

The following example shows the master controller searching for the target of an active probe after the target has become unreachable.

Router# debug oer master prefix

OER Master Prefix debugging is on

06:01:28: OER MC PFX 10.4.9.0/24: APC last target deleted for prefix, no targets

 left assigned and running

06:01:38: OER MC PFX 10.4.9.0/24: APC Attempting to probe all exits

06:02:59: OER MC PFX 10.4.9.0/24: APC last target deleted for prefix, no targets

 left assigned and running

06:03:08: OER MC PFX 10.4.9.0/24: APC Attempting to probe all exits

06:04:29: OER MC PFX 10.4.9.0/24: APC last target deleted for prefix, no targets

 left assigned and running

06:04:39: OER MC PFX 10.4.9.0/24: APC Attempting to probe all exits

06:05:59: OER MC PFX 10.4.9.0/24: APC last target deleted for prefix, no targets

 left assigned and running

06:06:09: OER MC PFX 10.4.9.0/24: APC Attempting to probe all exits

Table 270 describes the significant fields shown in the display.

Table 270 debug oer master prefix Field Descriptions

Field	Description
OER MC PFX ip-address:	Indicates debugging information for OER monitored prefixes. The ip-address identifies the prefix.

Related Commands

Command	Description
oer	Enables an OER process and configures a router as an OER border router or as an OER master controller.

debug oer master prefix-list

To display debug events related to prefix-list processing on an OER master controller, use the debug oer master prefix-list command in privileged EXEC mode. To disable the display of debug information, use the no form of this command.

debug oer master prefix-list list-name [detail]

no debug oer master prefix-list list-name

Syntax Description

list-name	Specifies a single prefix or prefix range. The prefix address and mask are entered with this argument.
detail	(Optional) Displays detailed OER prefix-list processing information.

Command Default

No debugging messages are enabled.

Command Modes

Privileged EXEC

Command History

Release	Modification
12.3(11)T	This command was introduced.
12.2(33)SRB	This command was integrated into Cisco IOS Release 12.2(33)SRB.
12.2SX	This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.

Usage Guidelines

The debug oer master prefix-list command is entered on a master controller. This command displays debugging information related to prefix-list processing.

Examples

The following example shows output from the debug oer master prefix-list command.

Router# debug oer master prefix-list

23:02:16.283: OER MC PFX 10.1.5.0/24: Check PASS REL loss: loss 0, policy 10%, notify TRUE

23:02:16.283: OER MC PFX 10.1.5.0/24: Passive REL loss in-policy

23:02:16.283: OER MC PFX 10.1.5.0/24: Check PASS REL delay: delay 124, policy 50%, notify
TRUE

23:02:16.283: OER MC PFX 10.1.5.0/24: Passive REL delay in policy

23:02:16.283: OER MC PFX 10.1.5.0/24: Prefix not OOP

23:02:16.283: OER MC PFX 10.1.5.0/24: Check PASS REL unreachable: unreachable 0, policy
50%, notify TRUE

23:02:16.283: OER MC PFX 10.1.5.0/24: Passive REL unreachable in-policy

23:02:16.283: OER MC PFX 10.1.5.0/24: Check PASS REL loss: loss 0, policy 10%, notify TRUE

23:02:16.283: OER MC PFX 10.1.5.0/24: Passive REL loss in policy

Table 271 describes the significant fields shown in the display.

Table 271 debug oer master prefix-list Field Descriptions

Field	Description
OER MC PFX ip-address:	Indicates debugging information for OER monitored prefixes. The ip-address identifies the prefix.

Related Commands

Command	Description
oer	Enables an OER process and configures a router as an OER border router or as an OER master controller.

debug oer master process

To display debug information about the OER master controller process, use the debug oer master process command in privileged EXEC mode. To stop displaying debug information, use the no form of this command.

debug oer master process

no debug oer master process

Syntax Description

This command has no arguments or keywords.

Command Default

No debugging messages are enabled.

Command Modes

Privileged EXEC (#)

Command History

Release	Modification
12.3(8)T	This command was introduced.
12.2(33)SRB	This command was integrated into Cisco IOS Release 12.2(33)SRB.
12.2SX	This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.

Usage Guidelines

The debug oer master process command is entered on a master controller.

Examples

The following sample debug output for a master controller process:

Router# debug oer master process

01:12:00: OER MC PROCESS: Main msg type 15, ptr 0, value 0

Table 272 describes the significant fields shown in the display.

Table 272 debug oer master process Field Descriptions

Field	Description
OER MC PROCESS:	Indicates a master controller master process debugging message.

Related Commands

Command	Description
oer	Enables an OER process and configures a router as an OER border router or as an OER master controller.

debug oer master traceroute reporting

To display debug information about traceroute probes, use the debug oer master traceroute reporting command in privileged EXEC mode. To stop displaying debug information, use the no form of this command.

debug oer master traceroute reporting [detail]

no debug oer master traceroute reporting [detail]

Syntax Description

detail

(Optional) Displays detailed information.

Command Default

No debugging messages are enabled.

Command Modes

Privileged EXEC

Command History

Release	Modification
12.3(14)T	This command was introduced.
12.2(33)SRB	This command was integrated into Cisco IOS Release 12.2(33)SRB.
12.2SX	This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.

Usage Guidelines

The debug oer master traceroute reporting command is entered on a master controller. This command is used to display traceroute events on a master controller.

Examples

The following sample debug output for a master controller process:

Router# debug oer master traceroute reporting detail

*May 12 18:55:14.239: OER MC TRACE: sent start message msg1 327704, msg2 167838976, if
index 2, host add 10.1.5.2, flags 1, max ttl 30, protocol 17

*May 12 18:55:16.003: OER MC TRACE: sent start message msg1 393240, msg2 167838976, if
index 2, host add 10.1.5.2, flags 1, max ttl 30, protocol 17

master#

*May 12 18:55:17.303: OER MC TRACE: Received result: msg_id1 327704, prefix 10.1.5.0/24,
hops 4, flags 1

*May 12 18:55:19.059: OER MC TRACE: Received result: msg_id1 393240, prefix 10.1.5.0/24,
hops 4, flags 1

Table 273 describes the significant fields shown in the display.

Table 273 debug oer master traceroute reporting detail Field Descriptions

Field	Description
OER MC PROCESS:	Indicates master controller debugging information for traceroute probes.

Related Commands

Command	Description
oer	Enables an OER process and configures a router as an OER border router or as an OER master controller.

debug packet

To display per-packet debugging output, use the debug packet command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug packet [interface number [vcd vcd-number] | vc vpi/vci | vc-name]

no debug packet [interface number [vcd vcd-number] | vc vpi/vci | vc-name]

Syntax Description

interface number	(Optional) interface or subinterface number.
vcd vcd-number	(Optional) Number of the virtual circuit designator (VCD).
vc vpi/vci	(Optional) Virtual path identifier (VPI) and virtual channel identifier (VCI) numbers of the VC.
vc-name	(Optional) Name of the PVC or SVC.

Defaults

Debugging for packets is disabled by default.

Command Modes

Privileged EXEC

Command History

Release	Modification
9.21	This command was introduced.
12.2(13)T	Support for Apollo Domain and Banyan VINES was removed.
12.2(33)SRA	This command was integrated into Cisco IOS Release 12.2(33)SRA.
12.2SX	This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.

Usage Guidelines

The debug packet command displays all process-level packets for both outbound and inbound packets. This command is useful for determining whether packets are being received and sent correctly. The output reports information online when a packet is received or a transmission is attempted.

For sent packets, the information is displayed only after the protocol data unit (PDU) is entirely encapsulated and a next hop VC is found. If information is not displayed, the address translation probably failed during encapsulation. When a next hop VC is found, the packet is displayed exactly as it will be presented on the wire. Having a display indicates that the packets are properly encapsulated for transmission.

For received packets, information is displayed for all incoming frames. The display can show whether the sending station properly encapsulates the frames. Because all incoming frames are displayed, this information is useful when performing back-to-back testing and corrupted frames cannot be dropped by an intermediary switch.

The debug packet command also displays the initial bytes of the actual PDU in hexadecimal. This information can be decoded only by qualified support or engineering personnel.

---

Caution Because the debug packet command generates a substantial amount of output for every packet processed, use it only when traffic on the network is low so other activity on the system is not adversely affected.

---

Examples

The following is sample output from the debug packet command:

Router# debug packet

2/0.5(I): VCD:0x9 VCI:0x23 Type:0x0 SAP:AAAA CTL:03 OUI:000000 TYPE:0800 Length0x70

4500 002E 0000 0000 0209 92ED 836C A26E FFFF FFFF 1108 006D 0001 0000 0000

A5CC 6CA2 0000 000A 0000 6411 76FF 0100 6C08 00FF FFFF 0003 E805 DCFF 0105

Table 274 describes the significant fields shown in the display.

Table 274 debug packet Field Descriptions

Field	Description
2/0.5	Indicates the subinterface that generated this packet.
(I)	Indicates a receive packet. (O) indicates an output packet.
VCD: 0xn	Indicates the virtual circuit associated with this packet, where n is some value.
DM: 0xnnnn	Indicates the descriptor mode bits on output only, where nnnn is a hexadecimal value.
TYPE:n	Displays the encapsulation type for this packet.
Length:n	Displays the total length of the packet including the headers.

The following two lines of output are the binary data, which are the contents of the protocol data unit (PDU) before encapsulation:

4500 002E 0000 0000 0209 92ED 836C A26E FFFF FFFF 1108 006D 0001 0000 0000

A5CC 6CA2 0000 000A 0000 6411 76FF 0100 6C08 00FF FFFF 0003 E805 DCFF 0105

The following is sample output from the debug packet command:

Router# debug packet

Ethernet0: Unknown ARPA, src 0000.0c00.6fa4, dst ffff.ffff.ffff, type 0x0a0

data 00000c00f23a00000c00ab45, len 60

Serial3: Unknown HDLC, size 64, type 0xaaaa, flags 0x0F00

Serial2: Unknown PPP, size 128

Serial7: Unknown FRAME-RELAY, size 174, type 0x5865, DLCI 7a

Serial0: compressed TCP/IP packet dropped

Table 275 describes the significant fields shown in the display.

Table 275 debug packet Field Descriptions

Field	Description
Ethernet0	Name of the Ethernet interface that received the packet.
Unknown	Network could not classify this packet. Examples include packets with unknown link types.
ARPA	Packet uses ARPA-style encapsulation. Possible encapsulation styles vary depending on the media command mode (MCM) and encapsulation style. Ethernet (MCM)—Encapsulation Style: •ARP •ETHERTALK •ISO1 •ISO3 •LLC2 •NOVELL-ETHER •SNAP
	FDDI (MCM)—Encapsulation Style: •ISO1 •ISO3 •LLC2 •SNAP
	Frame Relay—Encapsulation Style: •BRIDGE •FRAME-RELAY
ARPA (continued)	Serial (MCM)—Encapsulation Style: •BFEX25 •BRIDGE •DDN-X25 •DDNX25-DCE •ETHERTALK •FRAME-RELAY •HDLC •HDH •LAPB •LAPBDCE •MULTI-LAPB •PPP •SDLC-PRIMARY •SDLC-SECONDARY •SLIP •SMDS •STUN •X25 •X25-DCE
	Token Ring (MCM)—Encapsulation Style: •3COM-TR •ISO1 •ISO3 •MAC •LLC2 •NOVELL-TR •SNAP •VINES-TR
src 0000.0c00.6fa4	MAC address of the node generating the packet.
dst.ffff.ffff.ffff	MAC address of the destination node for the packet.
type 0x0a0	Packet type.
data...	First 12 bytes of the datagram following the MAC header.
len 60	Length of the message (in bytes) that the interface received from the wire.
size 64	Length of the message (in bytes) that the interface received from the wire. Equivalent to the len field.
flags 0x0F00	HDLC or PP flags field.
DLCI 7a	The DLCI number on Frame Relay.
compressed TCP/IP packet dropped	TCP header compression is enabled on an interface and the packet is not HDLC or X25.

debug packet-capture

To enable packet capture debugs, use the debug packet-capture command in privileged EXEC mode. To disable debugging packet capture, use the no form of this command.

debug packet-capture

no debug packet-capture

Syntax Description

This command has no arguments or keywords.

Command Modes

Privileged EXEC (#)

Command History

Release	Modification
12.4(20)T	This command was introduced.
12.2(33)SRE	This command was integrated into Cisco IOS 12.2(33)SRE.

Examples

The following example shows output from a successful request when using the debug packet-capture command:

Router# debug packet-capture

Buffer Capture Infrastructure debugging is on

Related Commands

Command	Description
show monitor capture	Displays the contents of a capture buffer or a capture point.

debug pad

To display debugging messages for all packet assembler/disassembler (PAD) connections, use the debug pad command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug pad

no debug pad

Syntax Description

This command has no arguments or keywords.

Defaults

No default behavior or values

Command Modes

Privileged EXEC

Command History

Release	Modification
12.0	This command was introduced in a release prior to Cisco IOS Release 12.0.
12.2(33)SRA	This command was integrated into Cisco IOS Release 12.2(33)SRA.
12.2SX	This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.

Examples

Use the debug pad command to gather information to forward to the Cisco Technical Assistance Center (TAC) to assist in troubleshooting a problem that involves PAD connections.

The following example shows output of the debug pad and debug x25 event commands for an incoming PAD call destined for a terminal line. The incoming PAD call is rejected by the terminal line because the selected network closed user group (CUG) has not been subscribed to by the caller:

Router# debug pad

Router# debug x25 event

Serial1/1:X.25 I R1 Call (16) 8 lci 8

  From (7):2001534 To (9):200261150

  Facilities:(2)

    Closed User Group (basic):99

  Call User Data (4):0x01000000 (pad)

pad_svc_announce:destination matched 1

PAD:incoming call to 200261150 on line 130 CUD length 4

!PAD130:Incoming Call packet, Closed User Group (CUG) service protection, selected network
CUG not subscribed

PAD:CUG service protection Cause:11 Diag:65

Serial1/1:X.25 O R1 Clear (5) 8 lci 8

  Cause 0, Diag 65 (DTE originated/Facility code not allowed)

Serial1/1:X.25 I R1 Clear Confirm (3) 8 lci 8

The following example shows the output of the debug pad command for an outgoing PAD call initiated from a terminal line with a subscribed CUG that bars outgoing access:

!PAD130:Outgoing Call packet, Closed User Group - CUG service validation, selected CUG
!bars outgoing access

PAD130:Closing connection to .  In 0/0, out 0/0

debug piafs events

To check the debugging messages for Personal Handyphone Internet Access Forum Standard (PIAFS) calls, use the debug piafs events command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug piafs events

no debug piafs events

Syntax Description

This command has no arguments or keywords.

Defaults

No default behavior or values

Command Modes

Privileged EXEC

Command History

Release	Modification
12.2(8)T	This command was introduced on Cisco 803, Cisco 804, and Cisco 813 routers.
12.2SX	This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.

Usage Guidelines

The debug piafs events command provides debugging information for the PIAFS calls on the router, including the inband negotiation process.

Examples

The debug piafs events command was configured to provide the following information for PIAFS calls:

Router# debug piafs events

02:16:39:PIAFS events debugging is on

02:16:167516180371:PIAFS: RX <- CDAPI :cdapi_route_call Request

02:16:167517398148:PIAFS: RX <- CDAPI :CDAPI_MSG_CONNECT_IND

02:16:171798691839:PIAFS: TX -> CDAPI :CDAPI_MSG_SUBTYPE_ALERT_REQ

02:16:167503724545:PIAFS: TX -> CDAPI :CDAPI_MSG_CONNECT_RESP

02:16:167503765504:PIAFS: TX -> CDAPI :CDAPI_MSG_CONN_ACTIVE_REQ

02:16:167503724544:PIAFS: RX <- CDAPI :CDAPI_MSG_CONN_ACTIVE_IND

02:16:171798691839:PIAFS:Network allotted Channel :B1

02:16:167503765504:PIAFS:Enabling QMC in PIAFS mode for B1

02:16:171798691839:PIAFS:piafs_driver_enable_settings()

02:16:167503765504:PIAFS:The speed is :64

02:16:167503724544:PIAFS:Starting 64 kbps PIAFS Incoming

02:16:39:PIAFS:RX <- NEGO_SYNC_REQUEST[GSN:13 RSN:1 CRSN:1 SISN:

255]

02:16:39:PIAFS:Updating conf resp num

02:16:39:PIAFS:TX -> NEGO_SYNC_RECEPTION[GSN:1 RSN:1 CRSN:13 SISN:

255]

02:16:39:PIAFS:RX <- NEGO_SYNC_REQUEST[GSN:14 RSN:1 CRSN:1 SISN:

255]

02:16:39:PIAFS:TX -> NEGO_SYNC_RECEPTION[GSN:2 RSN:2 CRSN:13 SISN:

255]

02:16:39:PIAFS:RX <- NEGO_SYNC_REQUEST[GSN:15 RSN:1 CRSN:1 SISN:

255]

02:16:39:PIAFS:TX -> NEGO_SYNC_RECEPTION[GSN:3 RSN:3 CRSN:13 SISN:

255]

02:16:39:PIAFS:RX <- NEGO_SYNC_REQUEST[GSN:16 RSN:1 CRSN:1 SISN:

255]

02:16:39:PIAFS:TX -> NEGO_SYNC_RECEPTION[GSN:4 RSN:4 CRSN:13 SISN:

255]

02:16:39:PIAFS:RX <- NEGO_SYNC_REQUEST[GSN:17 RSN:1 CRSN:1 SISN:

255]

02:16:39:PIAFS:TX -> NEGO_SYNC_RECEPTION[GSN:5 RSN:5 CRSN:13 SISN:

255]

02:16:39:PIAFS:RX <- NEGO_SYNC_REQUEST[GSN:18 RSN:1 CRSN:1 SISN:

255]

02:16:39:PIAFS:TX -> NEGO_SYNC_RECEPTION[GSN:6 RSN:6 CRSN:13 SISN:

255]

02:16:39:PIAFS:RX <- NEGO_SYNC_REQUEST[GSN:19 RSN:1 CRSN:1 SISN:

255]

02:16:39:PIAFS:TX -> NEGO_SYNC_RECEPTION[GSN:7 RSN:7 CRSN:13 SISN:

255]

02:16:39:PIAFS:RX <- CONTROL_REQUEST(comm parameter)[Seq No:0]

02:16:39:PIAFS:Rx Parameters:

02:16:39:PIAFS:  Data Protocol:Version 1

02:16:39:PIAFS:  Control Protocol:Version 1

02:16:39:PIAFS:  RTF value:9

02:16:39:PIAFS:  Compression:V.42bis

02:16:39:PIAFS:  Frame Length:80

02:16:39:PIAFS:  Frame Number:63

02:16:39:PIAFS:TX -> CONTROL_RECEPTION[0]

02:16:39:PIAFS:ACKed all the Rx control parameters

02:16:39:PIAFS:Piafs layer up & Main FSM set to DATA

02:16:39:PIAFS:Compression v42bis enabled

02:16:39:PIAFS:V42BIS:v42bis_init()

02:16:39:PIAFS:V42BIS:v42bis_init()

02:16:39:PIAFS:V42BIS:Negotiated Values for P1, P2 are - 4096 , 250

02:16:39:PIAFS:Incoming call invoking ISDN_CALL_CONNECT

02:16:39:%LINK-3-UPDOWN:Interface BRI0:1, changed state to up

02:16:39:PIAFS:RX <- CONTROL_REQUEST(comm parameter)[Seq No:0]

02:16:39:PIAFS:Rx Parameters:

02:16:39:PIAFS:  Data Protocol:Version 1

02:16:39:PIAFS:  Control Protocol:Version 1

02:16:39:PIAFS:  RTF value:9

02:16:39:PIAFS:  Compression:V.42bis

02:16:39:PIAFS:  Frame Length:80

02:16:39:PIAFS:  Frame Number:63

02:16:39:PIAFS:TX -> CONTROL_RECEPTION[0]

02:16:39:PIAFS:ACKed all the Rx control parameters

02:16:39:PIAFS:RX <- CONTROL_REQUEST(comm parameter)[Seq No:0]

02:16:39:PIAFS:Rx Parameters:

02:16:39:PIAFS:  Data Protocol:Version 1

02:16:39:PIAFS:  Control Protocol:Version 1

02:16:39:PIAFS:  RTF value:9

02:16:39:PIAFS:  Compression:V.42bis

02:16:39:PIAFS:  Frame Length:80

02:16:39:PIAFS:  Frame Number:63

02:16:39:PIAFS:TX -> CONTROL_RECEPTION[0]

02:16:39:PIAFS:ACKed all the Rx control parameters

02:16:39:PIAFS:RX <- CONTROL_REQUEST(comm parameter)[Seq No:0]

02:16:39:PIAFS:Rx Parameters:

02:16:39:PIAFS:  Data Protocol:Version 1

02:16:39:PIAFS:  Control Protocol:Version 1

02:16:39:PIAFS:  RTF value:9

02:16:39:PIAFS:  Compression:V.42bis

02:16:39:PIAFS:  Frame Length:80

02:16:39:PIAFS:  Frame Number:63

02:16:39:PIAFS:TX -> CONTROL_RECEPTION[0]

02:16:39:PIAFS:ACKed all the Rx control parameters

02:16:39:PIAFS:RX <- CONTROL_REQUEST(comm parameter)[Seq No:0]

02:16:39:PIAFS:Rx Parameters:

02:16:39:PIAFS:  Data Protocol:Version 1

02:16:39:PIAFS:  Control Protocol:Version 1

02:16:39:PIAFS:  RTF value:9

02:16:39:PIAFS:  Compression:V.42bis

02:16:39:PIAFS:  Frame Length:80

02:16:39:PIAFS:  Frame Number:63

02:16:39:PIAFS:TX -> CONTROL_RECEPTION[0]

02:16:39:PIAFS:ACKed all the Rx control parameters

02:16:39:PIAFS:RX <- CONTROL_REQUEST(comm parameter)[Seq No:0]

02:16:39:PIAFS:Rx Parameters:

02:16:39:PIAFS:  Data Protocol:Version 1

02:16:39:PIAFS:  Control Protocol:Version 1

02:16:39:PIAFS:  RTF value:9

02:16:39:PIAFS:  Compression:V.42bis

02:16:39:PIAFS:  Frame Length:80

02:16:39:PIAFS:  Frame Number:63

02:16:39:PIAFS:TX -> CONTROL_RECEPTION[0]

02:16:39:PIAFS:ACKed all the Rx control parameters

02:16:39:PIAFS:RX <- CONTROL_REQUEST(comm parameter)[Seq No:0]

02:16:39:PIAFS:Rx Parameters:

02:16:39:PIAFS:  Data Protocol:Version 1

02:16:39:PIAFS:  Control Protocol:Version 1

02:16:39:PIAFS:  RTF value:9

02:16:39:PIAFS:  Compression:V.42bis

02:16:39:PIAFS:  Frame Length:80

02:16:39:PIAFS:  Frame Number:63

02:16:39:PIAFS:TX -> CONTROL_RECEPTION[0]

02:16:39:PIAFS:ACKed all the Rx control parameters

02:16:39:PIAFS:RX <- CONTROL_REQUEST(comm parameter)[Seq No:0]

02:16:39:PIAFS:Rx Parameters:

02:16:39:PIAFS:  Data Protocol:Version 1

02:16:39:PIAFS:  Control Protocol:Version 1

02:16:39:PIAFS:  RTF value:9

02:16:39:PIAFS:  Compression:V.42bis

02:16:39:PIAFS:  Frame Length:80

02:16:39:PIAFS:  Frame Number:63

02:16:39:PIAFS:TX -> CONTROL_RECEPTION[0]

02:16:39:PIAFS:ACKed all the Rx control parameters

02:16:39:PIAFS:piafs_setmap() tx_map FFFFFFFF

02:16:39:PIAFS:piafs_setmap() rx_map 0

02:16:41:PIAFS:PPP:Autoselect sample 7E

02:16:41:PIAFS:PPP:Autoselect sample 7EFF

02:16:41:PIAFS:PPP:Autoselect sample 7EFF7D

02:16:41:PIAFS:PPP:Autoselect sample 7EFF7D23

02:16:41:PIAFS:piafs_setmap() tx_map FFFFFFFF

02:16:41:PIAFS:piafs_setmap() rx_map 0

02:16:42:PIAFS:piafs_setmap() tx_map A0000

02:16:42:PIAFS:piafs_setmap() rx_map 0

Table 276 describes the significant fields shown in the display.

Table 276 debug piafs events Field Descriptions

Field	Description
RX <- CDAPI :cdapi_route_call Request	The call distributor application programming interface (CDAPI) in the router receives an ISDN call request from the switch.
RX <- CDAPI :CDAPI_MSG_CONNECT_IND	The CDAPI in the router receives a connection indicator message from the switch.
TX -> CDAPI :CDAPI_MSG_SUBTYPE_ALERT_REQ	The CDAPI in the router transmits an alert request to the switch.
TX -> CDAPI :CDAPI_MSG_CONNECT_RESP	The CDAPI in the router transmits a connect response message to the switch.
TX -> CDAPI :CDAPI_MSG_CONN_ACTIVE_REQ	The CDAPI in the router transmits a connection active request to the switch.
RX <-CDAPI:CDAPI_MSG_CONN_ACTIVE_IND	The CDAPI in the router receives a connection active indicator from the switch.
Enabling QMC in PIAFS mode for B1	QMC (global multichannel parameters) are being enabled in PIAFS mode for the B1 channel.
piafs_driver_enable_settings()	The PIAFS driver is enabling the settings.
Starting 64 kbps PIAFS Incoming	The speed of the transmission in kbps. In this case, the speed is 64 kbps.
RX <- NEGO_SYNC_REQUEST[GSN: RSN: CRSN: SISN:]	The router receives a PIAFS negotiation synchronization request frame from the peer PIAFS device. The frame contains the following: general sequence number (GSN), reception sequence number (RSN), confirmation response sequence number (CRSN), and synchronization initiation sequence number (SISN).
Updating conf resp num	The confirmation response number is being updated.
TX -> NEGO_SYNC_RECEPTION[GSN:  RSN:  CRSN:  SISN: ]	The router transmits a PIAFS negotiation synchronization reception message to the peer PIAFS device. The message includes the GSN, RSN, CRSN, and SISN.
RX <- CONTROL_REQUEST	The router receives a PIAFS control request frame that includes communication parameters.
Rx Parameters	The communication parameters are as follows.
Data Protocol	The version of the data protocol.
Control Protocol	The version of the control protocol.
RTF value	Round-trip frame value.
Compression	The compression standard.
Frame Length	The length of the frame, in bytes.
Frame Number	The number of packets per frame.
TX -> CONTROL_RECEPTION	The router transmits a PIAFS control reception frame.
ACKed all the Rx control parameters	The control reception frame acknowledges all the communication parameters that were received from the peer.
Piafs layer up & Main FSM set to DATA	The PIAFS protocol is active on the router. The router is ready to receive data from the peer device.
Compression v42bis enabled	The compression protocol v42bis is enabled.
V42BIS:v42bis_init()	The v42bis compression protocol has been initiated.
V42BIS:Negotiated Values for P1, P2 are - 4096 , 250	In this example, P1 is the total count of encoded words when v42bis compression is enabled. P2 is the maximum letter line length for the V42bis compression.
Incoming call invoking ISDN_CALL_CONNECT	An incoming ISDN call connection message is received.
PPP	The PPP layer on the router becomes active and starts to process the PPP frame from the peer PIAFS device.

debug platform hardware qfp active feature evtmon

To debug the event monitoring features in the Cisco QuantumFlow Processor (QFP), use the debug platform hardware qfp feature evtmon command in Privileged EXEC mode. To disable this form of debugging, use the no form of this command.

debug platform hardware qfp {active | standby} feature evtmon {client debug-level | datapath protocol}

no debug platform hardware qfp {active | standby} feature evtmon {client debug-level | datapath protocol}

Syntax Description

active	Enables debug logging for the active processor.
standby	Enables debug logging for the standby processor.
evtmon	Displays the event monitoring information pertaining to the processor.
client	Specifies the event monitoring QFP client information for one of the following debug-level options: •all •error •info •trace •warning
datapath	Specifies the event monitoring datapath for one of the following protocols: •ip—ipv4 protocol •ipv6—ipv6 protocol

Command Default

No default behavior or values.

Command Modes

Privileged EXEC (#)

Command History

Release	Modification
Cisco IOS XE Release 3.2S	This command was introduced on the Cisco ASR 1000 Series Routers.

Examples

The following example shows how to debug the event monitoring datapath for an IPv4 protocol: :

Router# debug platform hardware qfp active feature evtmon datapath ip

The selected EVTMON Datapath debugging is on

debug platform hardware qfp active feature wccp

To enable debug logging for the Web Cache Communication Protocol (WCCP) client in the Cisco Quantum Flow Processor (QFP), use the debug platform hardware qfp active feature wccp command in privileged EXEC mode. To disable WCCP QFP debug logging, use the no form of this command.

debug platform hardware qfp active feature wccp {{client | lib-client {all | error | info | trace | warning}} | datapath all}

no debug platform hardware qfp active feature wccp {{client | lib-client {all | error | info | trace | warning}} | datapath all}

Syntax Description

client	Enables WCCP QFP client debug logging.
lib-client	Enables WCCP QFP client-library debug logging.
all	Enables all logs.
error	Enables error logs.
info	Enables info logs.
trace	Enables trace logs.
warning	Enables warning logs.
datapath all	Enables all WCCP QFP datapath debug logging.

Command Default

WCCP QFP debug logging is disabled.

Command Modes

Privileged EXEC (#)

Command History

Release	Modification
Cisco IOS XE Release 3.1S	This command was introduced.

Usage Guidelines

When the debug platform hardware qfp active feature wccp command is configured, QFP client debugs are enabled and can be collected from the forwarding processor (FP) from the file cpp_cp_F0-0.log.

When the debug platform hardware qfp active feature wccp lib-client all command is configured, QFP lib-client debugs are enabled and can be collected from the FP from the file fman-fp_F0-0.log.

When the debug platform hardware qfp active feature wccp datapath all command is configured, QFP datapath debugs are enabled and can be collected from the FP from the file cpp_cp-F0-0.log.

Examples

The following is sample output from the debug platform hardware qfp active feature wccp command:

Router# debug platform hardware qfp active feature wccp

A WCCP service is configured:

06/17 10:48:15.980 [(null)]: (debug): cpp_wccp_service_add_handler: service_params::: type
=0 id = 0priority = 240  is_closed = 0 assign = 0

06/17 10:48:15.980 [(null)]: (debug): cpp_wccp_dplane_init dplane cpp-init for all cpps

06/17 10:48:15.980 [(null)]: (debug): cpp_wccp_dplane_init_cpp Enter: cpp_info =
0x1027b970:

.

.

.

The sequence of messages repeats for each access control entry (ACE) of a merged access control list (ACL):

06/17 10:53:38.792 [(null)]: (debug): cpp_wccp_update_bind_obj_list:idx = 63
bind-info:no.lvl = 1 fobj = 80024000 bind-id = 0

06/17 10:53:38.792 [(null)]: (debug): cpp_wccp_update_bind_obj_list fobj:service-id = 0
type = 0 cache-id = 9action = 2 acl-log = 0

06/17 10:53:38.792 [(null)]: (debug): cpp_wccp_add_dplane_cache_desc service-index = 0,
cache_id = 9

06/17 10:53:38.792 [(null)]: (debug): cpp_wccp_get_dplane_cache_index service-index = 0,
cache_id = 9

06/17 10:53:38.792 [(null)]: (debug): cpp_wccp_create_dplane_cache_index Cache index = 0
exists for cache-id = 9,service-index  = 0

.

.

.

WCCP redirection is configured on an interface:

06/17 13:15:44.655 [(null)]: (debug): cpp_wccp_intf_attach_msg req = 0x13116848, msg-len =
36

06/17 13:15:44.655 [(null)]: (debug): cpp_wccp_intf_attach_handler: type = 0 id = 0 ifh =
17dir = 0 vrfid = 0

06/17 13:15:44.655 [(null)]: (debug): cpp_wccp_get_service_index WCCP: service_id 0 vrfid
0service_desc_index 0

06/17 13:15:44.655 [(null)]: (debug): cpp_wccp_get_service_desc: service-id: 0  type = 0
index = 0

.

.

.

Debug messages appear for each ACE of the merged ACL for a service group:

06/17 13:15:44.670 [(null)]: (debug): cpp_wccp_translate_fobj_to_cce_result Entry

06/17 13:15:44.670 [(null)]: (debug): cpp_wccp_get_service_index WCCP: service_id 0 vrfid
0service_desc_index 0

06/17 13:15:44.670 [(null)]: (debug): cpp_wccp_get_service_desc: service-id: 0  type = 0
index = 0

06/17 13:15:44.670 [(null)]: (debug): cpp_wccp_get_dplane_cache_index service-index = 0,
cache_id = 9

.

.

.

Redirection is removed from an interface:

06/17 13:24:54.617 [(null)]: (debug): cpp_wccp_intf_detach_handler: type = 0 id = 0 ifh =
17dir = 0 vrfid = 0

06/17 13:24:54.617 [(null)]: (debug): cpp_wccp_get_service_index WCCP: service_id 0 vrfid
0service_desc_index 0

06/17 13:24:54.617 [(null)]: (debug): cpp_wccp_get_service_desc: service-id: 0  type = 0
index = 0

06/17 13:24:54.617 [(null)]: (debug): cpp_wccp_intf_detach_handler:hw_cg_node, ifh = 17
dir = 0vrfid = 0 service-index = 0 exists

.

.

A service group is unconfigured:

06/17 13:29:41.828 [(null)]: (debug): cpp_wccp_cache_delete_handler: cache-desc ip-addr =
5a140102 id-addr = 0cache-id = 9  cef_handle = 0x112d3b68 cef-obj-type = 10router-id =
42424242 ce_mac_addr  fwd-method = 0 hw-addr = 0x11188f78

06/17 13:29:41.828 [(null)]: (debug): cpp_wccp_remove_dplane_ip_hash_entry cache_id= 9:

06/17 13:29:41.828 [(null)]: (debug): cpp_wccp_remove_dplane_ip_hash_entry ip-hash-index =
6934:

.

.

.

The following is sample output from the debug platform hardware qfp active feature wccp lib-client all command:

Router# debug platform hardware qfp active feature wccp lib-client all

A WCCP service group is configured:

06/17 13:47:00.158 [buginf]: (debug): cpp_wccp_service_group_add_a: API call from PAL
service-type = 0 id = 0vrfid = 0, priority = 240 is_closed = 0 has_ports = 1 assign-method
= 0

06/17 13:47:00.158 [buginf]: (debug): cpp_wccp_api_async_msg_send: data size = 28 for this
3message

06/17 13:47:00.158 [buginf]: (debug): cpp_wccp_api_async_send_cb: SMC async send call-back

.

.

.

The set of debug messages repeats for each ACE of the merged ACL of the WCCP service group:

06/17 13:47:29.474 [buginf]: (debug):   Notification from CGM to WCCP, op:13, tid:0,async:
0, ctx: (nil)

06/17 13:47:29.474 [buginf]: (debug): cpp_wccp_cgm_notif_handler:cgm BIND num_lvl = 1,
bind-id = 0 fobj = 80028000

06/17 13:47:29.474 [buginf]: (debug):   Notification from CGM to WCCP, op:2, tid:0,async:
1,ctx: 0x77

.

.

.

WCCP redirection is configured on an interface:

06/17 13:52:05.841 [buginf]: (debug):   Notification from CGM to WCCP, op:1, tid:0,async:
0,ctx: (nil)

06/17 13:52:05.841 [buginf]: (debug): cpp_wccp_attach_service_to_intf_a: API call from PAL
service-type = 0 id = 0 vrfid = 0 if_h = 11 dir = 0

06/17 13:52:05.841 [buginf]: (debug): cpp_wccp_attach_service_to_intf_a:tid el= 0x11347470
ifh = 17, dir = 0 id = 0 type = 0 vrfid = 0

.

.

.

WCCP is unconfigured on an interface:

06/17 13:54:30.544 [buginf]: (debug):   Notification from CGM to WCCP, op:1, tid:0,async:
0,ctx: (nil)

06/17 13:54:30.544 [buginf]: (debug): cpp_wccp_detach_service_from_intf_a: API call from
PALservice-type = 0 id = 0 vrfid = 0 if_h = 11 dir = 0

06/17 13:54:30.544 [buginf]: (debug): cpp_wccp_detach_service_from_intf_a:tid el=
0x11338890ifh = 17, dir = 0 id = 0 type = 0

06/17 13:54:30.544 [buginf]: (debug):   Notification from CGM to WCCP, op:2, tid:0,async:
1,ctx: 0x79

.

.

.

A WCCP service group is unconfigured:

06/17 13:56:14.492 [buginf]: (debug): cpp_wccp_cache_delete_a: API call from PAL cache-id=
10

06/17 13:56:14.492 [buginf]: (debug): cpp_wccp_api_async_msg_send: data size = 2 for this
6 message

06/17 13:56:14.492 [buginf]: (debug): cpp_wccp_api_async_send_cb: SMC async send call-back

06/17 13:56:14.492 [buginf]: (debug):  cpp_wccp_api_async_msg_send successfully sent
msg-type 6 to server.

06/17 13:56:14.492 [buginf]: (debug):   Notification from CGM to WCCP, op:1, tid:0,async:
0,ctx: (nil)

06/17 13:56:14.492 [buginf]: (debug):   Notification from CGM to WCCP, op:14, tid:0,async:
0, ctx: (nil)

06/17 13:56:14.493 [buginf]: (debug): cpp_wccp_cgm_notif_handler:cgm BIND num_lvl = 1,
bind-id = 0 fobj = 80028000

.

.

.

The debug messages repeat for each ACE of the merged ACL for the WCCP service group:

06/17 13:56:14.500 [buginf]: (debug):   Notification from CGM to WCCP, op:14, tid:0,async:
0, ctx: (nil)

06/17 13:56:14.500 [buginf]: (debug): cpp_wccp_cgm_notif_handler:cgm BIND num_lvl = 1,
bind-id = 0 fobj = 80028000

06/17 13:56:14.501 [buginf]: (debug):   Notification from CGM to WCCP, op:2, tid:0,async:
1,ctx: 0x7a

.

.

.

The following is sample output from the debug platform hardware qfp active feature wccp datapath all command:

Router# debug platform hardware qfp active feature wccp datapath all

A packet is successfully redirected:

06/17 14:49:28.935 [(null)]: (debug):

QFP:00 Thread:090 TS:00003918904609765795
##########################################################################################
#########

06/17 14:49:28.936 [(null)]: (debug):

QFP:00 Thread:090 TS:00003918904609777642 CCE IPV4 PKT
(src:3.3.3.2,dst:2.2.2.2,sprt:0000,dprt:0050,prot:06,tos:00,len:0014,ttl:3f) , intf:3f3

06/17 14:49:28.936 [(null)]: (debug):

QFP:00 Thread:090 TS:00003918904609814715
##########################################################################################
#########

06/17 14:49:28.936 [(null)]: (debug):

QFP:00 Thread:090 TS:00003918904609825865 CCE IPV4 UIDB_INFO W0:00000004, W1:00084441,
tcam_region_index:0004, key_index:00, cmd:00084441

06/17 14:49:28.936 [(null)]: (debug):

.

.

.

Related Commands

Command	Description
clear ip wccp	Removes WCCP statistics (counts) maintained on the router for a particular service.
ip wccp	Enables support of the specified WCCP service for participation in a service group.
ip wccp check services all	Enables enable all WCCP services.
ip wccp outbound-acl-check	Enables execution of ACL applied on the actual outgoing interface of a packet before a decision is taken to redirect a packet.
ip wccp redirect	Enables packet redirection on an outbound or inbound interface using WCCP.

debug platform hardware qfp feature

To debug features in the Cisco QuantumFlow Processor (QFP), use the debug platform hardware qfp feature command in Privileged EXEC mode. To disable this form of debugging, use the no form of this command.

debug platform hardware qfp {active | standby} feature alg {client debug-level | datapath protocol [detail]}

no debug platform hardware qfp {active | standby} feature alg {client debug-level | datapath netbios [detail]}

Syntax Description

active	Enables debug logging for the active processor.
standby	Enables debug logging for the standby processor.
alg	Displays the Application Level Gateway (ALG) information of the processor.
client	Specifies the ALG QFP client information.
debug-level	One of the following debug level options: •all •error •info •trace •warning
datapath	Specifies the ALG datapath.
protocol	One of the following protocols: •dns •exec •ftp •h323 •http •ldap •login •netbios •rtsp •shell •sip •skinny •smtp •tftp
detail	(Optional) Specifies the QFP datapath ALG in detail.

Command Modes

Privileged EXEC (#)

Command History

Release	Modification
Cisco IOS XE Release 2.2	This command was introduced.
Cisco IOS XE Release 3.1S	This command was modified. Support for the Network Basic Input Output System (NetBIOS) protocol. The following keywords were added: netbios-dgm,netbios-ns,netbios-ssn.

Examples

The following example shows how to debug the ALG datapath for a dns protocol:

Router# debug platform hardware qfp  active feature alg datapath dns

CPP ALG datapath event debugging is on

Related Commands

Command	Description
show platform hardware qfp feature	Displays feature specific information in QFP.

debug platform link-dc

To display debugging messages for the link daughter card, use the debug platform link-dc command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug platform link-dc {dwdm | interface | interrupt | netclk | serdes | transceiver | wanphy}

no debug platform link-dc {dwdm | interface | interrupt | netclk | serdes | transceiver | wanphy}

Syntax Description

dwdm	OTN G.709/DWDM driver debug information.
interface	Interface driver debug information.
interrupt	Interrupt debug information.
netclk	Network clocking debug information.
serdes	Physical layer (PHY) and SerDes debug information.
transceiver	Pluggable optics module information.
wanphy	WAN PHY driver debug information.

Defaults

Debugging is not enabled.

Command Modes

Privileged EXEC (#)

Command History

Release	Modification
12.2(33)SRD	This command was introduced. Note This command applies only to the Cisco 7600 Series Ethernet Services Plus (ES+) line card on the Cisco 7600 series router.
12.2(33)SRD1	This command added the dwdm and wanphy keywords.

Usage Guidelines

Use this command with the remote command command or the attach command in privileged EXEC mode.

Examples

The following examples show the output for both the debug platform link-dc tranceiver command and the debug platform link-dc interrupt command. Notice that the show platform hardware transceiver command shows the status for the port.

Router# remote command module 1 debug platform link-dc tranceiver

Link-DC transceiver debugging is on

Router# remote command module 1 debug platform link-dc interrupt

Link-DC interrupt debugging is on

Router# remote command module 1 show debug

x40g subsystem:

  Link-DC transceiver debugging is on

  Link-DC interrupt debugging is on

Router# remote command module 1 show platform hardware transceiver status 1

Show status info for port 1:

TenGigabitEthernet1/1:

        State: Enabled

        Environmental Information - raw values

                Temperature: 7616

                Tx voltage: 0 in units of 100uVolt

                Tx bias: 28722 uA

                Tx power: -2 dBm (5441 in units of 0.1 uW)

                Rx power: 0 dBm (7712 in units of 0.1 uW)

                (AUX1) Laser Temperature: 8704

                (AUX2) +3.3V Supply Voltage: 32928

        XFP TX is enabled.

        XFP TX is soft enabled.

        XFP is ready.

        XFP is not power down.

        XFP is not soft power down.

        XFP doesn't have interrupt(s).

        XFP is not LOS.

        XFP data is ready.

        XFP TX path is ready.

        XFP TX laser is not in fault condition.

        XFP TX path CDR is locked.

        XFP RX path is ready.

        XFP RX path CDR is locked.

        No active alarms

        No active warning

Router-dfc1#

*Aug 15 11:20:26.436 PDT: DFC1: TenGigabitEthernet1/1 XFP: show status

*Aug 15 11:20:26.436 PDT: DFC1: TenGigabitEthernet1/1 XFP: show environmental monitoring

*Aug 15 11:20:26.436 PDT: DFC1: pluggable optics read - addr: 50, offset: 60, len: 14,
dataptr: 2377A668

*Aug 15 11:20:26.448 PDT: DFC1: pluggable optics read - addr: 50, offset: 6E, len: 2,
dataptr: 21AA028E

*Aug 15 11:20:26.452 PDT: DFC1: pluggable optics read - addr: 50, offset: 50, len: 2,
dataptr: 2377A6A0

*Aug 15 11:20:26.456 PDT: DFC1: pluggable optics read - addr: 50, offset: 52, len: 2,
dataptr: 2377A6A2

---

Note The following console log is seen when both the debug platform link-dc tranceiver command and the debug platform link-dc interrupt command are entered (as in the preceding example), and there is a transceiver Rx loss of signal (LOS) event.

---

Router-dfc1#

*Aug 15 11:23:52.127 PDT: DFC1: x40g_link_dc_interrupt_handler:  intr_status 0x8000

*Aug 15 11:23:52.127 PDT: DFC1: x40g_link_xphy_isr: xphy intr intr_st 0x80000

*Aug 15 11:23:52.127 PDT: DFC1: x40g_link_xphy_isr: xphy intr port 1

*Aug 15 11:23:52.127 PDT: DFC1: x40g_xphy_link_status_callout: port 1 link status 0

*Aug 15 11:23:52.131 PDT: DFC1: x40g_link_dc_interrupt_handler:  intr_status 0x8000

*Aug 15 11:23:52.131 PDT: DFC1: x40g_link_xphy_isr: xphy intr intr_st 0x80000

*Aug 15 11:23:52.131 PDT: DFC1: x40g_link_xphy_isr: xphy intr port 1

*Aug 15 11:23:52.131 PDT: DFC1: x40g_xphy_link_status_callout: port 1 link status 1

*Aug 15 11:23:52.135 PDT: DFC1: x40g_link_dc_process: interrupt msg_id 6, msg_num 1

*Aug 15 11:23:52.135 PDT: DFC1: x40g_link_dc_interrupt_handler:  intr_status 0x8000

*Aug 15 11:23:52.135 PDT: DFC1: x40g_link_xphy_isr: xphy intr intr_st 0x80000

*Aug 15 11:23:52.135 PDT: DFC1: x40g_link_xphy_isr: xphy intr port 1

*Aug 15 11:23:52.135 PDT: DFC1: x40g_xphy_link_status_callout: port 1 link status 0

*Aug 15 11:23:52.135 PDT: DFC1: x40g_link_dc_interrupt_handler:  intr_status 0x4000

*Aug 15 11:23:52.135 PDT: DFC1: x40g_link_xcvr_isr: intr_st 0x2, start 0, end 4, type
2,port_offset 0x0

*Aug 15 11:23:52.135 PDT: DFC1: Link xcvr port 1: Rx LOS interrupt

*Aug 15 11:23:52.135 PDT: DFC1: x40g_link_dc_process: interrupt msg_id 2, msg_num 1

*Aug 15 11:23:52.135 PDT: DFC1: Port 2: transceiver Rx LOS event

*Aug 15 11:23:52.147 PDT: DFC1: x40g_link_dc_process: xcvr oir timer timeout

00:12:37: %LINEPROTO-DFC1-5-UPDOWN: Line protocol on Interface TenGigabitEthernet1/2,
changed state to down

*Aug 15 11:24:46.576 PDT: DFC1: x40g_link_dc_interrupt_handler:  intr_status 0x4000

*Aug 15 11:24:46.576 PDT: DFC1: x40g_link_xcvr_isr: intr_st 0x2, start 0, end 4, type
2,port_offset 0x0

*Aug 15 11:24:46.576 PDT: DFC1: Link xcvr port 1: Rx LOS interrupt

*Aug 15 11:24:46.576 PDT: DFC1: x40g_link_dc_process: interrupt msg_id 2, msg_num 1

*Aug 15 11:24:46.576 PDT: DFC1: Port 2: transceiver Rx LOS recovered

*Aug 15 11:24:46.580 PDT: DFC1: x40g_link_dc_interrupt_handler:  intr_status 0x8000

*Aug 15 11:24:46.580 PDT: DFC1: x40g_link_xphy_isr: xphy intr intr_st 0x80000

*Aug 15 11:24:46.580 PDT: DFC1: x40g_link_xphy_isr: xphy intr port 1

*Aug 15 11:24:46.580 PDT: DFC1: x40g_xphy_link_status_callout: port 1 link status 0

*Aug 15 11:24:46.584 PDT: DFC1: x40g_link_dc_interrupt_handler:  intr_status 0x8000

*Aug 15 11:24:46.584 PDT: DFC1: x40g_link_xphy_isr: xphy intr intr_st 0x80000

*Aug 15 11:24:46.584 PDT: DFC1: x40g_link_xphy_isr: xphy intr port 1

*Aug 15 11:24:46.584 PDT: DFC1: x40g_xphy_link_status_callout: port 1 link status 1

*Aug 15 11:24:46.584 PDT: DFC1: x40g_link_dc_process: interrupt msg_id 6, msg_num 1

*Aug 15 11:24:46.600 PDT: DFC1: x40g_link_dc_process: xcvr oir timer timeout

00:13:31: %LINEPROTO-DFC1-5-UPDOWN: Line protocol on Interface TenGigabitEthernet1/2,
changed state to up

The following example shows the output for the debug platform link-dc dwdm command.

Router-dfc1# debug platform link-dc dwdm

Link-DC OTN G.709/DWDM debugging is on

*Jan 28 12:10:38.784 PDT: DFC1: Port 1: OTN Alarm Query, return ptr 228E877C

los 1, oof 0, lof 0, mfas 1, lom 0

otuAis 0, otuIae 0-0, otuBdi 0, otuTim 0

oduAis 0, oduBdi 0, oduLck 0, oduOci 0, oduPtim 0

*Jan 28 12:10:38.864 PDT: DFC1: x40g_link_pemaquid_pm_tick_timer_event(1): pm_tick timer
timeout

*Jan 28 12:10:39.364 PDT: DFC1: x40g_link_pemaquid_pm_tick_timer_event(1): pm_tick timer
timeout

*Jan 28 12:10:39.840 PDT: DFC1: Port 1: OTN Alarm Query, return ptr 228E877C

los 1, oof 0, lof 0, mfas 1, lom 0

otuAis 0, otuIae 0-0, otuBdi 0, otuTim 0

oduAis 0, oduBdi 0, oduLck 0, oduOci 0, oduPtim 0

The following example shows the output for the debug platform link-dc wanphy command.

Router-dfc1# debug platform link-dc wanphy

Link-DC WAN PHY debugging is on

*Jan 28 11:59:16.184 PDT: DFC1: Port 1 WIS alarms:

     ser 0, plm_p_far 0, ais_p_far 0, lof 0, los 0

     rdi 0, ais_l 0, lcd_p 0, plm_p 0, ais_p 0, lop 0

*Jan 28 11:59:17.184 PDT: DFC1: Port 1 WIS alarms:

     ser 0, plm_p_far 0, ais_p_far 0, lof 0, los 0

     rdi 0, ais_l 0, lcd_p 0, plm_p 0, ais_p 0, lop 0

*Jan 28 11:59:17.184 PDT: DFC1: Port 1 WIS counters: b1 0, b2 0, b3 0, fe_b2 0, fe_b3 0

*Jan 28 11:59:17.184 PDT: DFC1: Port 1 WIS J1RX: 0x0000000000000089.0x302E302E302E3000

...

*Jan 28 11:59:22.288 PDT: DFC1: Port 1 WIS alarms:

     ser 0, plm_p_far 0, ais_p_far 0, lof 0, los 0

     rdi 0, ais_l 0, lcd_p 0, plm_p 0, ais_p 0, lop 0

*Jan 28 11:59:22.288 PDT: DFC1: Port 1 WIS counters: b1 0, b2 0, b3 0, fe_b2 0, fe_b3 0

*Jan 28 11:59:22.288 PDT: DFC1: Port 1 WIS J1RX: 0x0000000000000089.0x302E302E302E3000

Related Commands

Command	Description
show platform hardware transceiver	Displays transceiver information on a port.

debug platform software evtmon

To debug the event monitoring features in the Cisco QuantumFlow Processor (QFP), use the debug platform software evtmon command in Privileged EXEC mode. To disable this form of debugging, use the no form of this command.

debug platform software evtmon configuration

no debug platform software evtmon configuration

Syntax Description

configuration

Enables configuration-related debugs.

Command Default

No default behavior or values.

Command Modes

Privileged EXEC (#)

Command History

Release	Modification
Cisco IOS XE Release 3.2S	This command was introduced on the Cisco ASR 1000 Series Routers.

Examples

The following example shows how to debug the event monitoring configurations:

Router# debug platform software evtmon configuration

evtmon configuration messages debugging is on

debug platform software multicast

To display information about log events, packet information, and assert events, use the debug platform software multicast command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug platform software multicast {all events | assert events}

no debug platform software multicast {all events | assert events}

Syntax Description

all	Displays all multicast hardware switching debugging information, including errors, events, and packets for the specified group.
assert	Specifies the assert events.

Defaults

Debugging is enabled.

Command Modes

Privileged EXEC

Command History

Release	Modification
12.2(33)SRE	This command was introduced on Cisco 7600 series routers.

Usage Guidelines

Only one of the keywords is required.

Examples

The following example shows output from thedebug platform software multicast command using the all keyword:

PE-3-sp#debug platform software multicast all

Global enable but not the periodic debugging is on

PE-3-sp#

*Oct 30 09:17:26.150 EDT: SP: RELAYED PAK to index 0x0008440B, vlan 1035

*Oct 30 09:17:26.770 EDT: SP: hal_timer_event: NRPF-AG

*Oct 30 09:17:27.151 EDT: SP: RELAYED PAK to index 0x0008440B, vlan 1035

*Oct 30 09:17:28.151 EDT: SP: RELAYED PAK to index 0x0008440B, vlan 1035

*Oct 30 09:17:28.395 EDT: SP: hal_timer_event: NRPF-AG

*Oct 30 09:17:29.152 EDT: SP: RELAYED PAK to index 0x0008440B, vlan 1035

*Oct 30 09:17:30.152 EDT: SP: RELAYED PAK to index 0x0008440B, vlan 1035

*Oct 30 09:17:30.248 EDT: SP: hal_timer_event: NRPF-AGun al

*Oct 30 09:17:31.153 EDT: SP: RELAYED PAK to index 0x0008440B, vlan 1035

The following example shows output from the debug platform software multicast command using the assert keyword:

PE-3-sp#debug platform software multicast assert

Assertion for Layer 2 multicast debugging is on

PE-3-sp#

PE-3-sp#debug platform software multicast ha l2-sso all

Debug for mcast SSO all debugging is on

PE-3-sp#debug platform software multicast ha l2-sso err

PE-3-sp#debug platform software multicast ha l2-sso error

Debug for mcast SSO error debugging is on

PE-3-sp#debug platform software multicast ha l2-sso eve

PE-3-sp#debug platform software multicast ha l2-sso event

Debug for mcast SSO events debugging is on

PE-3-sp#debug platform software multicast ha l2-sso pak

PE-3-sp#debug platform software multicast ha l2-sso pak

Debug for mcast SSO packets debugging is on

PE-3-sp#

Related Commands

Command	Description
debug platform software multicast	Displays the multicast debugging information.

debug platform software multicast cgmp

To display information about cgmp debugging events and packet information use the debug platform software multicast cgmp command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug platform software multicast cgmp {event events | pak events}

debug platform software multicast cgmp {event events | pak events}

Syntax Description

event	Specifies the events for the selected group.
pak	Specifies the packet information.

Defaults

Debugging is enabled.

Command Modes

Privileged EXEC

Command History

Release	Modification
12.2(33)SRE	This command was introduced on Cisco 7600 series routers.

Usage Guidelines

Only one of the keywords is required.

Examples

The following example shows output from the debug platform software multicast cgmp command using the event keyword:

PE-3-sp#debug platform software multicast cgmp event

Router Discovery (CGMP Protocol) event log debugging is on

The following example shows output from the debug platform software multicast cgmp command using the pak keyword:

PE-3-sp#debug platform software multicast cgmp pak

Router Discovery (CGMP Protocol) packet log debugging is on

Related Commands

Command	Description
debug platform software multicast ha	Displays the high availability multicast shortcuts debugging errors and events.

debug platform software multicast igmp

To display information about igmp debugging events and packet information use the debug platform software multicast igmp command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug platform software multicast igmp {event events | pak events}

no debug platform software multicast igmp {event events | pak events}

Syntax Description

event	Specifies the igmp events for the selected group.
pak	Specifies the igmp packet information.

Defaults

Debugging is enabled.

Command Modes

Privileged EXEC

Command History

Release	Modification
12.2(33)SRE	This command was introduced on Cisco 7600 series routers.

Usage Guidelines

Only one of the keywords is required.

Examples

The following example shows output from the debug platform software multicast igmp command using the event keyword:

Router# debug platform software multicast igmp event

PE-3-sp#debug platform software multicast igmp event

IGMP snooping event log debugging is on

...

The following example shows output from the debug platform software multicast igmp command using the pak keyword:

PE-3-sp#debug platform software multicast igmp pak

PE-3-sp#debug platform software multicast igmp pak

IGMP snooping packet log debugging is on

PE-3-sp#

*Oct 30 09:26:22.143 EDT: SP: RELAYED PAK to index 0x0008440B, vlan 1035

*Oct 30 09:26:22.143 EDT: SP: Packet dump:

18000070:              0100 5E000016 00000E00        ..^.......

18000080: 02000800 45000028 00000000 400254BC  ....E..(....@.T<

18000090: 46000002 E0000016 2200CBF6 00000001  F...`...".Kv....

180000A0: 01000001 E8000104 28000002 00010203  ....h...(.......

180000B0: 04058C

Related Commands

Command	Description
debug platform software multicast ha	Displays the high availability multicast shortcuts debugging errors and events.

debug platform software multicast ip cmfib

To display information about multicast ip cmfib errors, shortcut events, and export the hardware statistics command, use the debug platform software multicast ip cmfib command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug platform software multicast ip cmfib {error | events | stats}

no debug platform software multicast ip cmfib {error | events | stats}

Syntax Description

error	Specifies the mfib IPV4 error information.
event	Specifies the IPv4 shortcut event information.
stats	Specifies the IPV4 hardware statistic information for export.

Defaults

Debugging is enabled.

Command Modes

Privileged EXEC

Command History

Release	Modification
12.2(33)SRE	This command was introduced on Cisco 7600 series routers.

Usage Guidelines

Only one of the keywords is required.

Examples

The following example shows output from the debug platform software multicast ip cmfib command using the error keyword:

PE-3-sp#debug platform software multicast ip cmfib cmfib error

CMFIB-LC IPv6 error debugging enabled

The following example shows output from the debug platform software multicast ip cmfib command using the event keyword:

PE-3-sp#debug platform software multicast ip cmfib cmfib eve

CMFIB-LC IPv6 event debugging enabled

The following example shows output from the debug platform software multicast ip cmfib command using the stats keyword:

PE-3-sp#debug platform software multicast ip cmfib cmfib stats

CMFIB-LC IPv6 stats debugging enabled

Related Commands

Command	Description
debug platform software multicast ha	Displays the high availability multicast shortcuts debugging errors and events.

debug platform software multicast ip cmfib error

To display information about source or group IP address and the mfib IPv4 pending entry , use the debug platform software multicast ip cmfib error command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug platform software multicast ip cmfib error {A.B.C.D | pending }

no debug platform software multicast ip cmfib error {A.B.C.D | pending}

Syntax Description

A.B.C.D	Specifies the source or group IP address information.
pending	Specifies the mfib IPv4 pending entry error information.

Defaults

Debugging is enabled.

Command Modes

Privileged EXEC

Command History

Release	Modification
12.2(33)SRE	This command was introduced on Cisco 7600 series routers.

Usage Guidelines

Only one of the keywords is required.

Examples

The following example shows output from the debug platform software multicast ip cmfib error command:

PE-3-sp#debug platform software multicast ip cmfib error 232.0.1.4 ver

PE-3-sp#debug platform software multicast ip cmfib error 232.0.1.4 verbose

CMFIB-LC IPv4 verbose error debugging enabled for group 232.0.1.4

PE-3-sp#debug platform software multicast ip cmfib error pending ?

<cr>

PE-3-sp#debug platform software multicast ip cmfib error pending

CMFIB-LC IPv4 error pending debugging enabled

Related Commands

Command	Description
debug platform software multicast ha	Displays the high availability multicast shortcuts debugging errors and events.

debug platform software multicast ip cmfib event

To display information about source or group IP address, mfib IPv4 ctrl entries events, mfib hw-api events, mfib IPv4 table events, mfib IPv4 pending entry events, and mfib IPv4 table events, use the debug platform software multicast ip cmfib event command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug platform software multicast ip cmfib event {A.B.C.D | ctrl | hwapi | mdt | pending | table}

no debug platform software multicast ip cmfib event {A.B.C.D | ctrl | hwapi | mdt | pending | table}

Syntax Description

A.B.C.D	Specifies the source or group IP address information.
pending	Specifies the mfib IPv4 pending entry information.
ctrl	Specifies the mfib IPv4 ctrl entry events.
hwapi	Specifies the mfib hardware API events.
mdt	Specifies the mfib IPv4 table events.
table	Specifies the mfib IPv4 table events.

Defaults

Debugging is enabled.

Command Modes

Privileged EXEC

Command History

Release	Modification
12.2(33)SRE	This command was introduced on Cisco 7600 series routers.

Usage Guidelines

Only one of the keywords is required.

Examples

The following example shows output from the debug platform software multicast ip cmfib event command:

PE-3-sp#debug platform software multicast ip cmfib event ctrl

CMFIB-LC IPv4 event control debugging enabled

PE-3-sp#debug platform software multicast ip cmfib event hwapi

CMFIB-LC IPv4 event hwapi debugging enabled

PE-3-sp#debug platform software multicast ip cmfib event mdt

CMFIB-LC IPv4 event mdt debugging enabled

PE-3-sp#debug platform software multicast ip cmfib event pending

CMFIB-LC IPv4 event pending debugging enabled

PE-3-sp#debug platform software multicast ip cmfib event table

CMFIB-LC IPv4 event table debugging enabled

Related Commands

Command	Description
debug platform software multicast ha	Displays the high availability multicast shortcuts debugging errors and events.

debug platform software multicast ip hal

To display information about the the multicast hal error, event, timer and packet information, use the debug platform software multicast ip hal command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug platform software multicast ip hal {error events | event events | pak | timer}

no debug platform software multicast hal {error events | event events | pak | timer}

Syntax Description

event	Specifies the events for the selected group.
error	Specifies the debugging errors.
pak	Specifies the packet information.
timer	Specifies the timer information.

Defaults

Debugging is enabled.

Command Modes

Privileged EXEC

Command History

Release	Modification
12.2(33)SRE	This command was introduced on Cisco 7600 series routers.

Usage Guidelines

Only one of the keywords is required.

Examples

The following example shows output from the debug platform software multicast ip hal command using the event keyword:

PE-3-sp#debug platform software multicast ip  hal eve

PE-3-sp#debug platform software multicast ip  hal event

Multicast HAL event log debugging is on

PE-3-sp#

*Oct 30 09:24:48.078 EDT: SP: hal_timer_event: NRPF-AG

*Oct 30 09:24:48.790 EDT: SP: hal_timer_event: S-CHECK

*Oct 30 09:24:49.754 EDT: SP: hal_timer_event: NRPF-AG

*Oct 30 09:24:51.530 EDT: SP: hal_timer_event: NRPF-AG

*Oct 30 09:24:53.298 EDT: SP: hal_timer_event: NRPF-AG

*Oct 30 09:24:55.154 EDT: SP: hal_timer_event: NRPF-AG

The following example shows output from the debug platform software multicast ip hal command using the error keyword:

PE-3-sp#debug platform software multicast ip  hal error

Multicast HAL error log debugging is on

The following example shows output from the debug platform software multicast ip hal command using the pak keyword:

PE-3-sp#debug platform software multicast ip  hal pak

PE-3-sp#debug platform software multicast ip  hal pak

Multicast HAL packet log debugging is on

The following example shows output from the debug platform software multicast ip hal command using the timer keyword:

PE-3-sp#debug platform software multicast ip  hal tim

PE-3-sp#debug platform software multicast ip  hal timer

Multicast HAL timer log debugging is on

Related Commands

Command	Description
debug platform software multicast ha	Displays the high availability multicast shortcuts debugging errors and events.

debug platform software multicast ipv6

To display information about multicast IPv6 hardware switching, use the debug platform software multicast ipv6 command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug platform software multicast ipv6 {control | error group-address | event group-address}

no debug platform software multicast ipv6 {control | error group-address | event group-address}

Syntax Description

control	Displays all multicast hardware switching debugging information, including errors, events, and packets.
error group-address	Displays error messages related to multicast hardware switching for the specified group-address.
event group-address	Displays the run-time sequence of events for multicast hardware switching.

Defaults

Debugging is not enabled.

Command Modes

Privileged EXEC

Command History

Release	Modification
12.2(33)SRE	This command was introduced on Cisco 7600 series routers.

Usage Guidelines

Only one of the keywords is required.

Examples

The following example shows output from the debug platform software multicast ipv6 command using the control keyword:

Router# debug platform software multicast ipv6 control

The following example shows output from the debug platform software multicast ipv6 command using the error keyword:

Router# debug mls rp ip multicast error

The following example shows output from the debug platform software multicast ipv6 command using the event keyword:

Router# debug mls rp ip multicast event

Related Commands

Command	Description
ipv6 multicast hardware-switching connected	Downloads the interface and mask entry for IPv6 multicast packet.
ipv6 multicast hardware-switching replication-mode ingress	Configures the ingress hardware replication mode for IPv6 multicast packets.

debug platform software multicast ipv6 cmfib

To display information about multicast ipv6 mfib errors, shortcut events, and hardware statistics export information, use the debug platform software multicast ipv6 cmfib command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug platform software multicast ipv6 cmfib {error | event | stats}

no debug platform software multicast ipv6 cmfib {error | event | stats}

Syntax Description

error	Specifies the multicast ipv6 mfib errors.
event	Specifies the mfib IPv4 pending entry information.
stats	Specifies the hardware statistics export information.

Debugging is enabled.

Command Modes

Privileged EXEC

Command History

Release	Modification
12.2(33)SRE	This command was introduced on Cisco 7600 series routers.

Usage Guidelines

Only one of the keyword is required.

Examples

The following example shows output from the debug platform software multicast ipv6 cmfib command:

PE-3-sp#debug platform software multicast ipv6 cmfib error

CMFIB-LC IPv6 error debugging enabled

PE-3-sp#debug platform software multicast ipv6 cmfib event

CMFIB-LC IPv6 event debugging enabled

PE-3-sp#debug platform software multicast ipv6 cmfib stats

CMFIB-LC IPv6 stats debugging enabled

Related Commands

Command	Description
debug platform software multicast ha	Displays the high availability multicast shortcuts debugging errors and events.

debug platform software multicast ipv6

To display information about MFIB IPv6 platform code debugging, and multicast HAL IPv6 debug command, use the debug platform software multicast ipv6 command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug platform software multicast ipv6 {cmfib | hal}

no debug platform software multicast ipv6 {cmfib | hal}

Syntax Description

cmfib	Specifies theMFIB IPV6 platform code debugging information.
hal	Specifies the HAL IPV6 debug information.

Defaults

Debugging is enabled.

Command Modes

Privileged EXEC

Command History

Release	Modification
12.2(33)SRE	This command was introduced on Cisco 7600 series routers.

Usage Guidelines

Only one of the keywords is required.

Examples

The following example shows output from the debug platform software multicast ipv6 command using the cmfib keyword:

PE-3-sp#debug platform software multicast ipv6 cmfib error

CMFIB-LC IPv6 error debugging enabled

PE-3-sp#debug platform software multicast ipv6 cmfib eve

CMFIB-LC IPv6 event debugging enabled

PE-3-sp#debug platform software multicast ipv6 cmfib stats

CMFIB-LC IPv6 stats debugging enabled

Related Commands

Command	Description
debug platform software multicast ha	Displays the high availability multicast shortcuts debugging errors and events.

debug platform software multicast ipv6 hal

To display information about multicast ipv6 hal errors and event information, use the debug platform software multicast ipv6 hal command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug platform software multicast ipv6 hal {error | event}

no debug platform software multicast ipv6 hal {error | event}

Syntax Description

error	Specifies the multicast ipv6 mfib errors.
event	Specifies the mfib IPv4 pending entry information.

Defaults

Debugging is enabled.

Command Modes

Privileged EXEC

Command History

Release	Modification
12.2(33)SRE	This command was introduced on Cisco 7600 series routers.

Usage Guidelines

Only one of the keyword is required.

Examples

The following example shows output from the debug platform software multicast ipv6 hal command:

PE-3-sp#debug platform software multicast ipv6 hal error

CMFIB-LC IPv6 debugging enabled

PE-3-sp#debug platform software multicast ipv6 hal event

CMFIB-LC IPv6 IPv6 HAL error debugging enabled

Related Commands

Command	Description
debug platform software multicast ha	Displays the high availability multicast shortcuts debugging errors and events.

debug platform software multicast lc

To display the layer 2 line card multicast events, use the debug platform software multicast lc command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug platform software multicast lc

no debug platform software multicast lc

Syntax Description

lc	Specifies the line card for which the multicast events are to be displayed.

Defaults

Debugging is enabled.

Command Modes

Privileged EXEC

Command History

Release	Modification
12.2(33)SRE	This command was introduced on Cisco 7600 series routers.

Usage Guidelines

Only one of the keywords is required.

Examples

The following example shows output from the debug platform software multicast lc command:

PE-3-sp#debug platform software multicast lc

Debug from mls_mcast_lc library debugging is on

Related Commands

Command	Description
debug platform software multicast ha	Displays the high availability multicast shortcuts debugging errors and events.

debug platform software multicast mld

To display information about the events and packet information for mld debugging, use the debug platform software multicast mld command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug platform software multicast mld {event events | pak events}

debug platform software multicast mld {event events | pak events}

Syntax Description

event	Specifies the mld events for the selected group.
pak	Specifies the mld packet information.

Defaults

Debugging is enabled.

Command Modes

Privileged EXEC

Command History

Release	Modification
12.2(33)SRE	This command was introduced on Cisco 7600 series routers.

Usage Guidelines

Only one of the keywords is required.

Examples

The following example shows output from the debug platform software multicast mld command using the event keyword:

PE-3-sp#debug platform software multicast igmp event

multicast snooping event log debugging is on

Related Commands

Command	Description
debug platform software multicast ha	Displays the high availability multicast shortcuts debugging errors and events.

debug platform software multicast mrouter

To display the multicast router events and packet information, use the debug platform software multicast mrouter command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug platform software multicast mrouter {event events | pak events}

no debug platform software multicast mrouter {event events | pak events}

Syntax Description

event	Specifies the mld events for the selected group.
pak	Specifies the mld packet information.

Defaults

Debugging is enabled.

Command Modes

Privileged EXEC

Command History

Release	Modification
12.2(33)SRE	This command was introduced on Cisco 7600 series routers.

Usage Guidelines

Only one of the keywords is required.

Examples

The following example shows output from the debug platform software multicast mrouter command using the event keyword:

PE-3-sp#debug platform software multicast mrouter event

Router Discovery (MLD MROUTER Protocol) event log debugging is on

The following example shows output from the debug platform software multicast mrouter command using the pak keyword:

PE-3-sp#debug platform software multicast mrouter pak

Router Discovery (MLD MROUTER Protocol) packet log debugging is on

Related Commands

Command	Description
debug platform software multicast ha	Displays the high availability multicast shortcuts debugging errors and events.

debug platform software multicast msc

To display information about multicast shortcut debugging, use the debug platform software multicast msc command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug platform software multicast msc {error events | event events | pak events}

no debug platform software multicast msc {error events | event events | pak events}

Syntax Description

events	Specifies the events for the selected group.
error	Specifies the debugging errors.
pak	Specifies the packet information.

Defaults

Debugging is enabled.

Command Modes

Privileged EXEC

Command History

Release	Modification
12.2(33)SRE	This command was introduced on Cisco 7600 series routers.

Usage Guidelines

Only one of the keywords is required.

Examples

The following example shows output from the debug platform software multicast msc command using the error keyword:

PE-3-sp#debug platform software multicast msc error

Multicast Shortcuts error log debugging is on

The following example shows output from the debug platform software multicast msc command using the event keyword:

PE-3-sp#debug platform software multicast msc eve

Multicast Shortcuts event log debugging is on

The following example shows output from the debug platform software multicast msc command using the pak keyword:

PE-3-sp#debug platform software multicast msc pak

Multicast Shortcuts packet log debugging is on

Related Commands

Command	Description
debug platform software multicast ha	Displays the high availability multicast shortcuts debugging errors and events.

debug platform software multicast rgmp

To display information about multicast shortcut debugging, use the debug platform software multicast rgmp command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug platform software multicast rgmp {event events | pak events}

no debug platform software multicast rgmp {event events | pak events}

Syntax Description

events	Specifies the events for the selected group.
pak	Specifies the packet information.

Defaults

Debugging is enabled.

Command Modes

Privileged EXEC

Command History

Release	Modification
12.2(33)SRE	This command was introduced on Cisco 7600 series routers.

Usage Guidelines

Only one of the keywords is required.

Examples

The following example shows output from the debug platform software multicast rgmp command using the event keyword:

PE-3-sp#debug platform software multicast rgmp event

RGMP event log debugging is on

The following example shows output from the debug platform software multicast rgmp command using the pak keyword:

PE-3-sp#debug platform software multicast rgmp pak

RGMP packet log debugging is on

Related Commands

Command	Description
debug platform software multicast ha	Displays the high availability multicast shortcuts debugging errors and events.

debug platform software multicast rpdf

To display information about multicast bidirectional df debugging, use the debug platform software multicast rpdf command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug platform software multicast rpdf {error events | event events}

no debug platform software multicast rpdf {error events | event events}

Syntax Description

events	Specifies the events for the selected group.
error	Specifies the debugging errors.

Defaults

Debugging is enabled.

Command Modes

Privileged EXEC

Command History

Release	Modification
12.2(33)SRE	This command was introduced on Cisco 7600 series routers.

Usage Guidelines

Only one of the keywords is required.

Examples

The following example shows output from the debug platform software multicast rpdf command using the error keyword:

PE-3-sp#debug platform software multicast rpdf error

Multicast Shortcuts error log debugging is on

The following example shows output from the debug platform software multicast rpdf command using the event keyword:

PE-3-sp#debug platform software multicast rpdf eve

Multicast Shortcuts event log debugging is on

The following example shows output from the debug platform software multicast rpdf command using the pak keyword:

PE-3-sp#debug platform software multicast rpdf pak

Multicast Shortcuts packet log debugging is on

Related Commands

Command	Description
debug platform software multicast ha	Displays the high availability multicast shortcuts debugging errors and events.

debug platform software multicast titan

To display information about multicast titan debugging, use the debug platform software multicast titan command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug platform software multicast titan {error events | event events}

no debug platform software multicast titan {error events | event events}

Syntax Description

events	Specifies the events for the selected group.
error	Specifies the debugging errors.

Defaults

Debugging is enabled.

Command Modes

Privileged EXEC

Command History

Release	Modification
12.2(33)SRE	This command was introduced on Cisco 7600 series routers.

Usage Guidelines

Only one of the keywords is required.

Examples

The following example shows output from the debug platform software multicast titan command using the error keyword:

PE-3-sp#debug platform software multicast rpdf error

Multicast Bidir RP/DF error log debugging is on

The following example shows output from the debug platform software multicast titan command using the event keyword:

PE-3-sp#debug platform software multicast rpdf eve

PE-3-sp#debug platform software multicast rpdf event

Multicast Bidir RP/DF event log debugging is on

Related Commands

Command	Description
debug platform software multicast ha	Displays the high availability multicast shortcuts debugging errors and events.

debug platform software wccp

To enable Web Cache Control Protocol (WCCP) platform debug messages, use the debug platform software wccp command in privileged EXEC mode. To disable WCCP platform debug messages, use the no form of this command.

debug platform software wccp {configuration | counters | detail | messages}

no debug platform software wccp {configuration | counters | detail | messages}

Syntax Description

configuration	Enables configuration related debugs.
counters	Enables statistics collection related debugs.
detail	Enables detailed debugs for all WCCP related configurations.
messages	Enables debugs related to type definition language (TDL) messages being exchanged.

Command Default

Debugging is disabled.

Command Modes

Privileged EXEC (#)

Command History

Release	Modification
Cisco IOS XE Release 2.2	This command was introduced.
Cisco IOS XE Release 3.1S	This command was modified. The counters keyword was added.

Examples

The following is sample output from the debug platform software wccp configuration command:

Router# debug platform software wccp configuration

A WCCP service is configured:

*Jun 17 15:41:04.816: FMANRP-WCCP: Config Service Group (0, 0, 0)

                        acl = , propagate_tos = TRUE, mode_is_closed = FALSE

                        definition_is_valid = TRUE, protocol = 6, priority = 240

                        ass_method = Unknown, fwd_method = Unknown, ret_method = Unknown

                        num_mv_sets = 0, redirection_is_active = FALSE, num_wcs = 0

                        use_source_port = FALSE, ports_defined = TRUE

                        ports[0] = 80

                        ports[1] = 0

                        ports[2] = 0

                        ports[3] = 0

                        ports[4] = 0

                        ports[5] = 0

                        ports[6] = 0

                        ports[7] = 0

*Jun 17 15:41:24.827: FMANRP-WCCP: create ce adjacency: CE = 90.20.1.2, fwd_method = GRE
oce= 0x30692230 adj = 0x306921C0 handle = 0x30692230 obj_id = 135

*Jun 17 15:41:24.827: FMANRP-WCCP: adjacency 90.20.1.2 (4500.0000.0000), router_id
66.66.66.66 proto=47

*Jun 17 15:41:39.807: FMANRP-WCCP: update mask data, Service Group (0, 0, 0)

                        acl = , propagate_tos = TRUE, mode_is_closed = FALSE

                        definition_is_valid = TRUE, protocol = 6, priority = 240

                        ass_method = Mask, fwd_method = GRE, ret_method = L2

                        num_mv_sets = 1, redirection_is_active = TRUE, num_wcs = 1

                        use_source_port = FALSE, ports_defined = TRUE

                        wc[0] = 90.20.1.2

                        ports[0] = 80

                        ports[1] = 0

                        ports[2] = 0

                        ports[3] = 0

                        ports[4] = 0

                        ports[5] = 0

                        ports[6] = 0

                        ports[7] = 0

*Jun 17 15:41:39.808: FMANRP-WCCP: Service Group (0, 0, 0) generate merged acl from IOS

*Jun 17 15:41:39.808: FMANRP-WCCP: wccp merged_acl(acl=), p=64 t=64 MCP wccp merged_acl,
num_port=1 result_len=64

A WCCP service is configured on an interface:

*Jun 17 15:45:17.083: FMANRP-WCCP: Config Service Group (0, 0, 0) to interface
GigabitEthernet0/3/1, direction = IN

*Jun 17 15:45:17.084: FMANRP-WCCP: Attach GigabitEthernet0/3/1 interface info for Service
group (0, 0, 0) if_handle 20, direction Input(0x2)

A WCCP service is removed from an interface:

*Jun 17 15:46:29.815: FMANRP-WCCP: Unconfig Service Group (0, 0, 0) to interface
GigabitEthernet0/3/1, direction = IN

*Jun 17 15:46:29.815: FMANRP-WCCP: Detach GigabitEthernet0/3/1 interface info for Service
group (0, 0, 0) if_handle 20, direction Input(0x2)

A WCCP service group is unconfigured:

*Jun 17 15:48:17.224: FMANRP-WCCP: (0 0 0) Delete ce = 90.20.1.2

*Jun 17 15:48:17.225: Failed to retrieve service group params while removing ce

*Jun 17 15:48:17.241: FMANRP-WCCP: Unconfig Service Group (0, 0, 0)

The following is sample output from debug platform software wccp messages command:

Router# debug platform software wccp messages

A WCCP service is configured:

*Jun 17 15:50:57.796: FMANRP-WCCP: send out (0, 0, 0) wccp_svc_cfg (ADD) to fman-rp

                        pri=0, ce_num=0, ass=Unknown, fwd=Unknown, ret=Unknown

                        protocol=6 use_source_port=0 is_closed=0

                        ports[0] = 80

                        ports[1] = 0

                        ports[2] = 0

                        ports[3] = 0

                        ports[4] = 0

                        ports[5] = 0

                        ports[6] = 0

                        ports[7] = 0

*Jun 17 15:51:14.864: FMANRP-WCCP: send out (0, 0, 0) wccp_ce_cfg (ADD) to fman-rp,
ce=90.20.1.2 ce_id=0.0.0.0 rtr_id=66.66.66.66 fwd_method=GRE obj_id=141

*Jun 17 15:51:29.846: FMANRP-WCCP: send out (0, 0, 0) wccp_svc_cfg (MODIFY) to fman-rp

                        pri=0, ce_num=1, ass=Mask, fwd=GRE, ret=L2

                        protocol=6 use_source_port=0 is_closed=0

                        ports[0] = 80

                        ports[1] = 0

                        ports[2] = 0

                        ports[3] = 0

                        ports[4] = 0

                        ports[5] = 0

                        ports[6] = 0

                        ports[7] = 0

*Jun 17 15:51:29.847: FMANRP-WCCP: send out (0, 0, 0) wccp_acl_begin to fman-rp

*Jun 17 15:51:29.886: FMANRP-WCCP:   Service Group (0, 0, 0) send out ACL=WCCP_ACL_0x0, 64
ACEs to fman-rp

*Jun 17 15:51:29.886: FMANRP-WCCP: send out (0, 0, 0) wccp_acl_end to fman-rp

A WCCP service is removed from an interface:

*Jun 17 15:53:40.710: FMANRP-WCCP: send out (0, 0, 0) wccp_if_svc_bind (ADD) to fman-rp
if_handle=20 dir=IN

A WCCP service is removed from an interface:

*Jun 17 15:54:36.924: FMANRP-WCCP: send out (0, 0, 0) wccp_if_svc_bind (DELETE) to fman-rp
if_handle=20 dir=IN

A WCCP service group is unconfigured:

*Jun 17 15:55:13.117: FMANRP-WCCP: send out (0, 0, 0) wccp_ce_cfg (DELETE) to fman-rp,
ce=90.20.1.2 ce_id=0.0.0.0 rtr_id=0.0.0.0 fwd_method=Unknown obj_id=0

*Jun 17 15:55:13.128: FMANRP-WCCP: send out (0, 0, 0) wccp_svc_cfg (DELETE) to fman-rp

                        pri=0, ce_num=0, ass=Unknown, fwd=Unknown, ret=Unknown

                        protocol=0 use_source_port=0 is_closed=0

                        ports[0] = 0

                        ports[1] = 0

                        ports[2] = 0

                        ports[3] = 0

                        ports[4] = 0

                        ports[5] = 0

                        ports[6] = 0

                        ports[7] = 0

The following is sample output from the debug platform software wccp detail command:

Router# debug platform software wccp detail

WCCP service is configured:

*Jun 17 18:42:15.491: FMANRP-WCCP: create ce adjacency: CE = 90.20.1.2, fwd_method = GRE
oce= 0x30692230 adj = 0x306921C0 handle = 0x30692230 obj_id = 181

*Jun 17 18:42:30.472: FMANRP-WCCP: Converted adjacency (0x30692230), to ce_addr
(90.20.1.2)

*Jun 17 18:42:30.473: FMANRP-WCCP:  Service Group (0, 0, 0) send out ACL=WCCP_ACL_0x0,
ACE=1, obj_id=181 PERMIT, srcopr 5, dstopr 3 to fman-rp

*Jun 17 18:42:30.473: FMANRP-WCCP: oce 0x30692230 adj 0x306921C0 handle 0x30692230

The debug messages appear for each access control entry (ACE) of the merged access control list (ACL) for the service group:

*Jun 17 18:42:30.487: FMANRP-WCCP: Converted adjacency (0x30692230), to ce_addr
(90.20.1.2)

*Jun 17 18:42:30.487: FMANRP-WCCP:  Service Group (0, 0, 0) send out ACL=WCCP_ACL_0x0,
ACE=64, obj_id=181 PERMIT, srcopr 5, dstopr 3 to fman-rp

*Jun 17 18:42:30.487: FMANRP-WCCP: oce 0x30692230 adj 0x306921C0 handle 0x30692230

A WCCP service group is unconfigured:

*Jun 17 18:46:34.316: FMANRP-WCCP: (0 0 0) Delete ce = 90.20.1.2

*Jun 17 18:46:34.316: Failed to retrieve service group params while removing ce

The following is sample output from the debug platform software wccp counters command.

Router# debug platform software wccp counters

Statistics are collected for the first time on a WCCP-enabled interface:

*Jun 17 18:50:18.930: FMANRP-WCCP: Received wccp_if_stats intf 20, redirect(IN) 0 from
fman-fp

The following debug messages are displayed every 10 seconds:

*Jun 17 18:51:18.929: FMANRP-WCCP: Received (0, 0, 0) svc_grp_stats from fman-fp

  unassigned_count = 0, dropped_closed_count = 0

  bypass_count = 0, bypass_failed_count = 0

  denied_count = 0, redirect_count = 0

  num_entries = 0

*Jun 17 18:51:18.929: FMANRP-WCCP: Received wccp_if_stats intf 20, redirect(IN) 0 from
fman-fp

*Jun 17 18:51:28.929: FMANRP-WCCP: Received (0, 0, 0) svc_grp_stats from fman-fp

  unassigned_count = 0, dropped_closed_count = 0

  bypass_count = 0, bypass_failed_count = 0

  denied_count = 0, redirect_count = 0

  num_entries = 0

Related Commands

Command	Description
clear ip wccp	Removes WCCP statistics (counts) maintained on the router for a particular service.
ip wccp	Enables support of the specified WCCP service for participation in a service group.
ip wccp check services all	Enables all WCCP services.
ip wccp outbound-acl-check	Enables execution of ACL applied on the actual outgoing interface of a packet before a decision is taken to redirect a packet.
ip wccp redirect	Enables packet redirection on an outbound or inbound interface using WCCP.
show platform software wccp	Displays global statistics related to WCCP on Cisco ASR 1000 Series Routers.

debug policy-firewall

---

Note Effective with Cisco IOS Release 12.4(20)T, the debug policy-firewall command replaces the debug ip inspect command.

---

To display messages about Cisco IOS firewall events, including details about the packets of the protocol, use the debug policy-firewall command in EXEC mode. To disable debugging output, use the no form of this command.

debug policy-firewall {function-trace | object-creation | object-deletion | list {access-list | extended-access-list} | events | timers | packet-path | protocol protocol-name | L2-transparent | control-plane | detailed}

no debug policy-firewall {function-trace | object-creation | object-deletion | list {access-list | extended-access-list} | events | timers | packet-path | protocol protocol-name | L2-transparent | control-plane | detailed}

Syntax Description

function-trace	Displays messages about software functions called by the Cisco IOS firewall.
object-creation	Displays messages about software objects being created by the Cisco IOS firewall. Object creation corresponds to the beginning of Cisco IOS firewall-inspected sessions.
object-deletion	Displays messages about software objects being deleted by the Cisco IOS firewall. Object deletion corresponds to the closing of Cisco IOS firewall-inspected sessions.
list	Displays messages about policy firewall conditional debugging.
access-list	Filters the basic list of policy firewall conditional debugging messages. The valid range is from 1 to 199.
extended-access-list	Filters the extended range of policy firewall conditional debugging messages. The valid range is from 1300 to 2699.
events	Displays messages about Cisco IOS firewall software events, including information about Cisco IOS firewall packet processing or MIB special events.
timers	Displays messages about Cisco IOS firewall timer events such as when the Cisco IOS firewall idle timeout is reached.
packet-path	Displays messages about the packet-path functions.
protocol protocol-name	Displays messages about Cisco IOS firewall-inspected protocol events, including details about the packets of the protocol. The supported protocols are as follows: •aol—America Online Instant Messenger (IM) •cuseeme—CU-SeeMe •dns-resolver—Domain Name System (DNS) resolver •dns-timer—Domain Name System (DNS) timer •ftp-cmd—FTP commands and responses •ftp-token—FTP token (enables tracing of the FTP tokens parsed) •h225ras—H.225 RAS (Registration, Admission, and Status) Configuration •h323—H.225 Protocol, Version 4 •http—HTTP •icmp—Internet Control Message Protocol (ICMP) •icq—I Seek You (ICQ) IM •imap—Internet Message Access Protocol (IMAP) •mgcp—Media Gateway Control Protocol (MGCP) •msn-msgr—MSN Messenger IM protocol •msrpc—Microsoft RPC (Remote Procedure Call) (MSRPC) •netshow—Microsoft NetShow •p2p—Peer-to-peer (P2P) protocol •pop3—Post Office Protocol, Version 3 (POP 3) •rcmd—UNIX R commands (rlogin, rexec, rsh) •realaudio—RealAudio •rpc—Remote Procedure Call (RPC) •rtsp—Real-Time Streaming Protocol (RTSP) •sip—Session Initiation Protocol (SIP) •skinny—Skinny Client Control Protocol (SCCP) •smtp—Simple Mail Transfer Protocol (SMTP) •sqlnet— Structured Query Language*Net (SQL*Net) •streamworks— StreamWorks •stun-ice—STUN-ICE •tcp—Transmission Control Protocol (TCP)
protocol protocol-name (continued)	•tftp—Trivial File Transfer Protocol (TFTP) •udp—User Datagram Protocol (UDP) •vdolive—VDOLive •winmsgr—Windows IM •yahoo—Yahoo IM
L2-transparent	Displays messages about Layer 2 transparent (firewall) bridge mode events.
control-plane	Displays messages about the control-plane routines.
detailed	Detailed information is displayed for all the other enabled Cisco IOS firewall debug commands. Use this form of the command in conjunction with the other Cisco IOS firewall debug commands.

Command Modes

Privileged EXEC (#)

Command History

Release	Modification
12.4(20)T	This command was introduced. This command replaces the debug ip inspect command.
15.0(1)M	The list and packet-path keywords were added.

Usage Guidelines

The debug policy-firewall command is used to troubleshoot firewall problems. The output of this command can be used to analyze the behavior of the firewall and to diagnose the root cause of the problem.

Examples

The following is sample output from the debug policy-firewall function-trace command:

Router# debug policy-firewall function-trace

Feb 13 08:13:43: FIREWALL: fw_dp_tcp_init_sis():

Feb 13 08:13:43: FIREWALL: fw_dp_insp_init_sis():

Feb 13 08:13:43: FIREWALL: fw_dp_tcp_inspect(): , i2r = 1

Feb 13 08:13:43: FIREWALL: fw_dp_insp_listen_state():

Feb 13 08:13:43: FIREWALL: fw_dp_insp_ensure_return_traffic():

Feb 13 08:13:43: FIREWALL: fw_dp_insp_process_syn_packet():

Feb 13 08:13:43: FIREWALL: fw_dp_insp_create_tcp_host_entry():

Feb 13 08:13:43: FIREWALL*: fw_dp_tcp_inspect(): , i2r = 0

Feb 13 08:13:43: FIREWALL*: fw_dp_insp_synsent_state():

Feb 13 08:13:44: FIREWALL*: fw_dp_tcp_inspect(): , i2r = 1

Feb 13 08:13:44: FIREWALL*: fw_dp_insp_synrcvd_state():

Feb 13 08:13:44: FIREWALL*: fw_dp_insp_remove_sis_from_host_entry():

Feb 13 08:13:44: FIREWALL*: fw_dp_insp_remove_host_entry():

Feb 13 08:13:44: FIREWALL*: fw_dp_insp_delete_host_entry():

Feb 13 08:13:44: FIREWALL*: fw_dp_insp_handle_icq_control_stream():

Feb 13 08:13:44: FIREWALL*: fw_dp_tcp_inspect(): , i2r = 0

Feb 13 08:13:44: FIREWALL*: fw_dp_insp_estab_state():

Feb 13 08:13:44: FIREWALL*: fw_dp_insp_handle_icq_control_stream():

Feb 13 08:13:44: FIREWALL*: fw_dp_tcp_inspect(): , i2r = 1

Feb 13 08:13:44: FIREWALL*: fw_dp_insp_estab_state():

Feb 13 08:13:44: FIREWALL*: fw_dp_insp_handle_icq_control_stream():

Feb 13 08:13:44: FIREWALL*: fw_dp_tcp_inspect(): , i2r = 0

Feb 13 08:13:44: FIREWALL*: fw_dp_insp_estab_state():

Feb 13 08:13:44: FIREWALL*: fw_dp_insp_handle_icq_control_stream():

Feb 13 08:13:44: FIREWALL*: fw_dp_tcp_inspect(): , i2r = 1

Feb 13 08:13:44: FIREWALL*: fw_dp_insp_estab_state():

Feb 13 08:13:44: FIREWALL*: fw_dp_insp_handle_icq_control_stream():

Feb 13 08:13:44: FIREWALL*: fw_dp_tcp_inspect(): , i2r = 0

Feb 13 08:13:44: FIREWALL*: fw_dp_insp_estab_state():

Feb 13 08:13:44: FIREWALL*: fw_dp_tcp_inspect(): , i2r = 1

Feb 13 08:13:44: FIREWALL*: fw_dp_insp_estab_state():

Feb 13 08:13:44: %APPFW-6-IM_ICQ_SESSION: im-icq text-chat service session initiator sends
77 bytes  session 192.168.3.3:36091 192.168.103.3:5190 on zone-pair zp_test_in class
test_im appl-class test_icq_1

The date in each line of the output is the timestamp. This output shows the functions called by the Cisco IOS firewall as a session is inspected. Entries with an asterisk (*) after the word "FIREWALL" are entries when the fast path is used; otherwise, the process path is used.

The following is sample output from the debug policy-firewall object-creation, debug policy-firewall object-deletion, debug policy-firewall timers and debug policy-firewall events commands:

Router# debug policy-firewall object-creation

Router# debug policy-firewall object-deletion

Router# debug policy-firewall timers

Router# debug policy-firewall events

Log Buffer (600000 bytes):

Feb 13 08:16:17: FIREWALL: FW CCE got packet 0x66030694 in process path

Feb 13 08:16:17: FIREWALL: Router gen or router destined pak 0x66030694, let it pass

Feb 13 08:16:17: FIREWALL: FW CCE got packet 0x660311F8 in process path

Feb 13 08:16:17: FIREWALL: Router gen or router destined pak 0x660311F8, let it pass

Feb 13 08:16:17: FIREWALL: FW CCE got packet 0x66030A60 in process path

Feb 13 08:16:17: FIREWALL: Router gen or router destined pak 0x66030A60, let it pass

Feb 13 08:16:19: FIREWALL: FW CCE got packet 0x660328C0 in process path

Feb 13 08:16:19: FIREWALL: Router gen or router destined pak 0x660328C0, let it pass

Feb 13 08:16:21: FIREWALL: FW CCE got packet 0x66031D5C in process path

Feb 13 08:16:21: FIREWALL: Router gen or router destined pak 0x66031D5C, let it pass

Feb 13 08:16:22: FIREWALL: FW CCE got packet 0x66032128 in process path

Feb 13 08:16:22: FIREWALL: Router gen or router destined pak 0x66032128, let it pass

Feb 13 08:16:22: FIREWALL: FW CCE got packet 0x660324F4 in process path

Feb 13 08:16:22: FIREWALL: Router gen or router destined pak 0x660324F4, let it pass

Feb 13 08:16:24: FIREWALL: FW CCE got packet 0x66033424 in process path

Feb 13 08:16:24: FIREWALL: Router gen or router destined pak 0x66033424, let it pass

Feb 13 08:16:25: FIREWALL: fw_dp_insp_handle_timer_event

Feb 13 08:16:25: FIREWALL: fw_dp_insp_sample_session_rate

Feb 13 08:16:26: FIREWALL: FW CCE got packet 0x66032C8C in process path

Feb 13 08:16:26: FIREWALL: Router gen or router destined pak 0x66032C8C, let it pass

Feb 13 08:16:26: FIREWALL: FW CCE got packet 0x6602DCD0 in process path

Feb 13 08:16:26: FIREWALL: Router gen or router destined pak 0x6602DCD0, let it pass

Feb 13 08:16:26: FIREWALL: FW CCE got packet 0x5011DDB4 in process path

Feb 13 08:16:26: FIREWALL: Router gen or router destined pak 0x5011DDB4, let it pass

Feb 13 08:16:28: FIREWALL: FW CCE got packet 0x5011D9E8 in process path

Feb 13 08:16:28: FIREWALL: sis 20491840 : Timer Start: Timer: 20491964 Time: 30000
milisecs

Feb 13 08:16:28: FIREWALL: sis 20491840 : Timer Init Leaf

Feb 13 08:16:28: FIREWALL: sis 20491840 : Allocating L7 sis extensionL4 protocol = 1, L7
protocol = 62, granular = 5

Feb 13 08:16:28: FIREWALL: sis 20491840 : create host entry 669F3180 addr 192.168.103.3
bucket 12 (vrf 0:0) fwfo 0x507E39C0

Feb 13 08:16:29: FIREWALL*: sis 20491840 : Timer Start: Timer: 20491964 Time: 3600000
milisecs

Feb 13 08:16:29: %APPFW-6-IM_ICQ_SESSION: im-icq text-chat service session initiator sends
77 bytes  session 192.168.3.3:36091 192.168.103.3:5190 on zone-pair zp_test_in class
test_im appl-class test_icq_1

Feb 13 08:16:29: %APPFW-6-IM_ICQ_SESSION: im-icq text-chat service session initiator gets
198 bytes  session 192.168.103.3:5190 192.168.3.3:36091 on zone-pair zp_test_in class
test_im appl-class test_icq_1

Feb 13 08:16:29: FIREWALL: FW CCE got packet 0x20159864 in process path

Feb 13 08:16:29: FIREWALL: Router gen or router destined pak 0x20159864, let it pass

Feb 13 08:16:29: FIREWALL: fw_dp_insp_handle_timer_event

Feb 13 08:16:29: FIREWALL: delete host entry 669F3180 addr 192.168.103.3

Feb 13 08:16:30: FIREWALL: FW CCE got packet 0x66033058 in process path

Feb 13 08:16:30: FIREWALL: Router gen or router destined pak 0x66033058, let it pass

Feb 13 08:16:31: FIREWALL: FW CCE got packet 0x660337F0 in process path

Feb 13 08:16:31: FIREWALL: Router gen or router destined pak 0x660337F0, let it pass

Feb 13 08:16:31: FIREWALL: FW CCE got packet 0x20159C30 in process path

Feb 13 08:16:31: FIREWALL: Router gen or router destined pak 0x20159C30, let it pass

Feb 13 08:16:34: FIREWALL: FW CCE got packet 0x20159FFC in process path

Feb 13 08:16:34: FIREWALL: Router gen or router destined pak 0x20159FFC, let it pass

Feb 13 08:16:35: FIREWALL: FW CCE got packet 0x5011E54C in process path

Feb 13 08:16:35: FIREWALL: Router gen or router destined pak 0x5011E54C, let it pass

Feb 13 08:16:36: FIREWALL: FW CCE got packet 0x665E6304 in process path

Feb 13 08:16:36: FIREWALL: Router gen or router destined pak 0x665E6304, let it pass

Feb 13 08:16:36: FIREWALL: FW CCE got packet 0x5011E180 in process path

Feb 13 08:16:36: FIREWALL: Router gen or router destined pak 0x5011E180, let it pass

Feb 13 08:16:38: FIREWALL: fw_dp_insp_handle_timer_event

Feb 13 08:16:38: FIREWALL: fw_dp_insp_sample_session_rate

Feb 13 08:16:38: FIREWALL: FW CCE got packet 0x2015A3C8 in process path

Feb 13 08:16:38: FIREWALL: Router gen or router destined pak 0x2015A3C8, let it pass

Feb 13 08:16:39: FIREWALL: FW CCE got packet 0x5011E918 in process path

Feb 13 08:16:39: FIREWALL: Router gen or router destined pak 0x5011E918, let it pass

Feb 13 08:16:40: FIREWALL: FW CCE got packet 0x665E6E68 in process path

Feb 13 08:16:40: FIREWALL: Router gen or router destined pak 0x665E6E68, let it pass

Feb 13 08:16:40: FIREWALL: FW CCE got packet 0x2015A794 in process path

Feb 13 08:16:40: FIREWALL: Router gen or router destined pak 0x2015A794, let it pass

Feb 13 08:16:43: FIREWALL: FW CCE got packet 0x665E7234 in process path

Feb 13 08:16:43: FIREWALL: Router gen or router destined pak 0x665E7234, let it pass

Feb 13 08:16:44: FIREWALL: FW CCE got packet 0x5011ECE4 in process path

Feb 13 08:16:44: FIREWALL: Router gen or router destined pak 0x5011ECE4, let it pass

Feb 13 08:16:44: FIREWALL: FW CCE got packet 0x2015AB60 in process path

Feb 13 08:16:44: FIREWALL: Router gen or router destined pak 0x2015AB60, let it pass

Feb 13 08:16:45: FIREWALL: FW CCE got packet 0x665E7600 in process path

Feb 13 08:16:45: FIREWALL: Router gen or router destined pak 0x665E7600, let it pass

Feb 13 08:16:48: FIREWALL: FW CCE got packet 0x665E79CC in process path

Feb 13 08:16:48: FIREWALL: Router gen or router destined pak 0x665E79CC, let it pass

Feb 13 08:16:48: FIREWALL: FW CCE got packet 0x5011F47C in process path

Feb 13 08:16:48: FIREWALL: Router gen or router destined pak 0x5011F47C, let it pass

Feb 13 08:16:49: FIREWALL: FW CCE got packet 0x6602E468 in process path

Feb 13 08:16:49: FIREWALL: Router gen or router destined pak 0x6602E468, let it pass

Feb 13 08:16:50: FIREWALL: fw_dp_insp_handle_timer_event

Feb 13 08:16:50: FIREWALL: fw_dp_insp_sample_session_rate

Feb 13 08:16:50: FIREWALL: FW CCE got packet 0x2015B2F8 in process path

Feb 13 08:16:50: FIREWALL: Router gen or router destined pak 0x2015B2F8, let it pass

Feb 13 08:16:52: FIREWALL: FW CCE got packet 0x6602E09C in process path

Feb 13 08:16:52: FIREWALL: Router gen or router destined pak 0x6602E09C, let it pass

Feb 13 08:16:53: FIREWALL: FW CCE got packet 0x6602EC00 in process path

Feb 13 08:16:53: FIREWALL: Router gen or router destined pak 0x6602EC00, let it pass

Feb 13 08:16:54: FIREWALL: FW CCE got packet 0x6602EFCC in process path

Feb 13 08:16:54: FIREWALL: Router gen or router destined pak 0x6602EFCC, let it pass

Feb 13 08:16:55: FIREWALL: FW CCE got packet 0x6602F764 in process path

Feb 13 08:16:55: FIREWALL: Router gen or router destined pak 0x6602F764, let it pass

Feb 13 08:16:57: FIREWALL: FW CCE got packet 0x6602F398 in process path

Feb 13 08:16:57: FIREWALL: Router gen or router destined pak 0x6602F398, let it pass

Feb 13 08:16:57: FIREWALL: FW CCE got packet 0x6602FB30 in process path

Feb 13 08:16:57: FIREWALL: Router gen or router destined pak 0x6602FB30, let it pass

Feb 13 08:16:59: FIREWALL: FW CCE got packet 0x66030E2C in process path

Feb 13 08:16:59: FIREWALL: Router gen or router destined pak 0x66030E2C, let it pass

Feb 13 08:16:59: FIREWALL: FW CCE got packet 0x66030694 in process path

Feb 13 08:16:59: FIREWALL: Router gen or router destined pak 0x66030694, let it pass

Feb 13 08:17:00: FIREWALL*: sis 20491840 : Timer Start: Timer: 20491964 Time: 5000
milisecs

Feb 13 08:17:00: FIREWALL*: sis 20491840 : Timer Start: Timer: 20491964 Time: 1000
milisecs

Feb 13 08:17:01: FIREWALL: fw_dp_insp_handle_timer_event

Feb 13 08:17:01: FIREWALL: sis 20491840 : Idle Timer Expires: Timer: 20491964

Feb 13 08:17:01: FIREWALL: sis 20491840 : Delete sis half_open 0

Feb 13 08:17:01: FIREWALL: sis 20491840 : Timer Stop: Timer: 20491964

Feb 13 08:17:01: FIREWALL: sis 20491840 : Delete sis

Feb 13 08:17:01: FIREWALL: sis 20491840 : session on temporary delete list

Feb 13 08:17:01: FIREWALL: sis 20491840 : Calling l4 cleanup

Feb 13 08:17:01: FIREWALL: FW CCE got packet 0x660311F8 in process path

Feb 13 08:17:01: FIREWALL: Router gen or router destined pak 0x660311F8, let it pass

Feb 13 08:17:02: FIREWALL: FW CCE got packet 0x66030A60 in process path

Feb 13 08:17:02: FIREWALL: Router gen or router destined pak 0x66030A60, let it pass

Feb 13 08:17:02: FIREWALL: fw_dp_insp_handle_timer_event

Feb 13 08:17:02: FIREWALL: fw_dp_insp_sample_session_rate

Feb 13 08:17:04: FIREWALL: FW CCE got packet 0x66031990 in process path

Feb 13 08:17:04: FIREWALL: Router gen or router destined pak 0x66031990, let it pass

Feb 13 08:17:04: FIREWALL: FW CCE got packet 0x660315C4 in process path

Feb 13 08:17:04: FIREWALL: Router gen or router destined pak 0x660315C4, let it pass

Feb 13 08:17:06: FIREWALL: FW CCE got packet 0x660328C0 in process path

Feb 13 08:17:06: FIREWALL: Router gen or router destined pak 0x660328C0, let it pass

Feb 13 08:17:07: FIREWALL: FW CCE got packet 0x66031D5C in process path

Feb 13 08:17:07: FIREWALL: Router gen or router destined pak 0x66031D5C, let it pass

Feb 13 08:17:08: FIREWALL: FW CCE got packet 0x66033424 in process path

Feb 13 08:17:08: FIREWALL: Router gen or router destined pak 0x66033424, let it pass

Feb 13 08:17:09: FIREWALL: FW CCE got packet 0x66032C8C in process path

Feb 13 08:17:09: FIREWALL: Router gen or router destined pak 0x66032C8C, let it pass

Feb 13 08:17:11: FIREWALL: FW CCE got packet 0x6602DCD0 in process path

Feb 13 08:17:11: FIREWALL: Router gen or router destined pak 0x6602DCD0, let it pass

Feb 13 08:17:11: FIREWALL: FW CCE got packet 0x5011DDB4 in process path

Feb 13 08:17:11: FIREWALL: Router gen or router destined pak 0x5011DDB4, let it pass

Feb 13 08:17:13: FIREWALL: FW CCE got packet 0x20159498 in process path

Feb 13 08:17:13: FIREWALL: Router gen or router destined pak 0x20159498, let it pass

Feb 13 08:17:13: FIREWALL: FW CCE got packet 0x665E5F38 in process path

Feb 13 08:17:13: FIREWALL: Router gen or router destined pak 0x665E5F38, let it pass

Feb 13 08:17:14: FIREWALL: fw_dp_insp_handle_timer_event

Feb 13 08:17:14: FIREWALL: fw_dp_insp_sample_session_rate

Feb 13 08:17:16: FIREWALL: FW CCE got packet 0x5011D9E8 in process path

Feb 13 08:17:16: FIREWALL: Router gen or router destined pak 0x5011D9E8, let it pass

Feb 13 08:17:16: FIREWALL: FW CCE got packet 0x20159864 in process path

Feb 13 08:17:16: FIREWALL: Router gen or router destined pak 0x20159864, let it pass

blr6-7200b#

blr6-7200b#

The event debug output declares the packet path from which the firewall got the packet. The packet path can be either the Cisco Express Forwarding (CEF) or the process path. The debug policy-firewall command is used when the firewall sends out a packet acting like a proxy.

The timer debug output specifies timer related events. Timers are used to close the sessions created by the firewall. Whenever a timeout happens, the timer debugging output specifies whether it needs to close the session or keep it open for longer.

The following is sample output from the debug policy-firewall protocol icq command:

Router# debug policy-firewall protocol icq

Apr  2 23:55:21: CCE*: I2R = 1, state_object = 0x0, data_len = 0

Apr  2 23:55:21: CCE*: ICQ protocol found...

Apr  2 23:55:21: CCE*: cce_dp_named_db_inspect_icq_create_cso

Apr  2 23:55:21: CCE*: I2R = 0, state_object = 0x508A1014, data_len = 10

Apr  2 23:55:21: CCE*: ICQ:state = 1

Apr  2 23:55:21: CCE*: ICQ:FLAP Channel = 1 , Packet length = 4

Apr  2 23:55:21: CCE*: I2R = 1, state_object = 0x508A1014, data_len = 270

Apr  2 23:55:21: CCE*: ICQ:state = 1

Apr  2 23:55:21: CCE*: ICQ:FLAP Channel = 1 , Packet length = 264

Apr  2 23:55:21: CCE*: ICQ:Find the client version

Apr  2 23:55:21: CCE*: ICQ:Get the client string

Apr  2 23:55:21: CCE*: ICQ:Object Type = 6,Object Length = 256

Apr  2 23:55:21: CCE*: icq_setstate_on_servicetype

Apr  2 23:55:21: CCE*: ICQ:Obj Data Skipping :prev state =4

Apr  2 23:55:21: CCE*: ICQ:ICQ Data length = 0,Curr state = 1 , Prev state = 0

Apr  2 23:55:21: CCE*: I2R = 0, state_object = 0x508A1014, data_len = 42

Apr  2 23:55:21: CCE*: ICQ:state = 1

Apr  2 23:55:21: CCE*: ICQ:FLAP Channel = 2 , Packet length = 36

Apr  2 23:55:21: CCE*: ICQ:Family Service Id = 1,Subtype Id = 3

Apr  2 23:55:21: CCE*: ICQ:curr state = 9

Apr  2 23:55:21: CCE*: I2R = 1, state_object = 0x508A1014, data_len = 56

Apr  2 23:55:21: CCE*: ICQ:state = 1

Apr  2 23:55:21: CCE*: ICQ:FLAP Channel = 2 , Packet length = 50

Apr  2 23:55:21: CCE*: ICQ:Family Service Id = 1,Subtype Id = 23

Apr  2 23:55:21: CCE*: ICQ:curr state = 22

Apr  2 23:55:21: CCE*: ICQ:service = 1 , version = 4

Apr  2 23:55:21: CCE*: ICQ:service = 19 , version = 4

Apr  2 23:55:21: CCE*: ICQ:service = 2 , version = 1

Apr  2 23:55:21: CCE*: ICQ:service = 3 , version = 1

Apr  2 23:55:21: CCE*: ICQ:service = 21 , version = 1

Apr  2 23:55:21: CCE*: ICQ:Detected ICQ Protocol

Apr  2 23:55:21: CCE*: I2R = 1, state_object = 0x508A1014, data_len = 230

Apr  2 23:55:21: CCE*: ICQ:state = 1

Apr  2 23:55:21: CCE*: ICQ:FLAP Channel = 2 , Packet length = 224

Apr  2 23:55:21: CCE*: ICQ:Family Service Id = 4,Subtype Id = 6

Apr  2 23:55:21: CCE*: ICQ:curr state = 14

Apr  2 23:55:21: CCE*: icq_process_client_message

Apr  2 23:55:21: CCE*: ICQ:Message Channel ID = 2

Apr  2 23:55:21: CCE*: icq_skip_client_msg

Apr  2 23:55:21: CCE*: ICQ:TLV Service Type = 5

Apr  2 23:55:21: CCE*: ICQ:length = 190,obj length = 186

Apr  2 23:55:21: CCE*: ICQ:ICQ Data length = 4,Curr state = 19 , Prev state = 19

Apr  2 23:55:21: CCE*: ICQ:TLV Service Type = 3

Apr  2 23:55:21: CCE*: ICQ:length = 0,obj length = 0

Apr  2 23:55:21: CCE*: I2R = 1, state_object = 0x508A1014, data_len = 66

Apr  2 23:55:21: CCE*: ICQ:state = 21

Apr  2 23:55:21: CCE*: ICQ:FLAP Channel = 2 , Packet length = 60

Apr  2 23:55:21: CCE*: ICQ:Family Service Id = 4,Subtype Id = 6

Apr  2 23:55:21: CCE*: ICQ:curr state = 14

Apr  2 23:55:21: CCE*: icq_process_client_message

Apr  2 23:55:21: CCE*: ICQ:Message Channel ID = 2

Apr  2 23:55:21: CCE*: icq_skip_client_msg

Apr  2 23:55:21: CCE*: ICQ:TLV Service Type = 5

Apr  2 23:55:21: CCE*: ICQ:length = 26,obj length = 26

Apr  2 23:55:21: CCE*: ICQ:Obj Data Skipping :prev state =19

Apr  2 23:55:21: CCE*: ICQ:ICQ Data length = 0,Curr state = 1 , Prev state = 0

Apr  2 23:55:21: CCE*: ICQ:service found = 2

Apr  2 23:55:21: CCE*: ICQ: Found IM default service

Apr  2 23:55:21: %APPFW-6-IM_ICQ_SESSION: im-icq un-recognized service session initiator
sends 66 bytes  session 192.168.5.3:25610 63.147.175.30:5190 on zone-pair zp_test_in class
test_im appl-class test_icq_1

Apr  2 23:55:21: CCE*: I2R = 0, state_object = 0x508A1014, data_len = 36

Apr  2 23:55:21: CCE*: ICQ:state = 1

Apr  2 23:55:21: CCE*: ICQ:FLAP Channel = 2 , Packet length = 30

Apr  2 23:55:21: CCE*: ICQ:Family Service Id = 4,Subtype Id = 12

Apr  2 23:55:21: CCE*: ICQ:curr state = 9

Apr  2 23:55:21: CCE*: I2R = 0, state_object = 0x508A1014, data_len = 285

Apr  2 23:55:21: CCE*: ICQ:state = 1

Apr  2 23:55:21: CCE*: ICQ:FLAP Channel = 2 , Packet length = 279

Apr  2 23:55:21: CCE*: ICQ:Family Service Id = 4,Subtype Id = 7

Apr  2 23:55:21: CCE*: ICQ:curr state = 14

Apr  2 23:55:21: CCE*: icq_process_client_message

Apr  2 23:55:21: CCE*: ICQ:Message Channel ID = 2

Apr  2 23:55:21: CCE*: icq_skip_client_msg

Apr  2 23:55:21: CCE*: ICQ:TLV Service Type = 1

Apr  2 23:55:21: CCE*: ICQ:length = 241,obj length = 2

Apr  2 23:55:21: CCE*: ICQ:ICQ Data length = 239,Curr state = 19 , Prev state = 19

Apr  2 23:55:21: CCE*: ICQ:TLV Service Type = 6

Apr  2 23:55:21: CCE*: ICQ:length = 235,obj length = 4

Apr  2 23:55:21: CCE*: ICQ:ICQ Data length = 231,Curr state = 19 , Prev state = 19

Apr  2 23:55:21: CCE*: ICQ:TLV Service Type = 5

Apr  2 23:55:21: CCE*: ICQ:length = 227,obj length = 4

Apr  2 23:55:21: CCE*: ICQ:ICQ Data length = 223,Curr state = 19 , Prev state = 19

Apr  2 23:55:21: CCE*: ICQ:TLV Service Type = 15

Apr  2 23:55:21: CCE*: ICQ:length = 219,obj length = 4

Apr  2 23:55:21: CCE*: ICQ:ICQ Data length = 215,Curr state = 19 , Prev state = 19

Apr  2 23:55:21: CCE*: ICQ:TLV Service Type = 3

Apr  2 23:55:21: CCE*: ICQ:length = 211,obj length = 4

Apr  2 23:55:21: CCE*: ICQ:ICQ Data length = 207,Curr state = 19 , Prev state = 19

Apr  2 23:55:21: CCE*: ICQ:TLV Service Type = 5

Apr  2 23:55:21: CCE*: ICQ:length = 203,obj length = 190

Apr  2 23:55:21: CCE*: ICQ:ICQ Data length = 13,Curr state = 19 , Prev state = 19

Apr  2 23:55:21: CCE*: ICQ:TLV Service Type = 22

Apr  2 23:55:21: CCE*: ICQ:length = 9,obj length = 4

Apr  2 23:55:21: CCE*: ICQ:ICQ Data length = 5,Curr state = 19 , Prev state = 19

Apr  2 23:55:21: CCE*: ICQ:TLV Service Type = 19

Apr  2 23:55:21: CCE*: ICQ:length = 1,obj length = 1

Apr  2 23:55:21: CCE*: ICQ:Obj Data Skipping :prev state =19

Apr  2 23:55:21: CCE*: ICQ:ICQ Data length = 0,Curr state = 1 , Prev state = 0

Apr  2 23:56:10: CCE*: I2R = 1, state_object = 0x508A1014, data_len = 0

Apr  2 23:56:11: FIREWALL sis 65A1C100: Sis extension deleted

Apr  2 23:56:11: CCE: cce_dp_named_db_inspect_icq_delete_cso

blr2-7200b#

The debug output details the different states the state machine sees while parsing the Layer 7 ICQ payload.

The sample output from the debug policy-firewall protocol winmsgr command includes information on the IM service. For example, the following lines declare that the type of IM service the user is running is Windows Messenger (WINMSGR):

Apr  3 00:21:46: CCE*: WINMSGR:service found = 2

Apr  3 00:21:46: CCE*: WINMSGR: Found IM default service

The following is sample output from the debug policy-firewall protocol winmsgr command:

Router# debug policy-firewall protocol winmsgr

Apr  3 00:21:46: CCE*: I2R = 1, state_object = 0x0, data_len = 0

Apr  3 00:21:46: CCE*: WINMSGR protocol found...

Apr  3 00:21:46: CCE*: cce_dp_named_db_inspect_winmsgr_create_cso

Apr  3 00:21:46: CCE*: I2R = 1, state_object = 0x660CF5B4, data_len = 19

Apr  3 00:21:46: CCE*: WINMSGR:datalen=19,matchflag=11,matchlen=19

Apr  3 00:21:46: CCE*: WINMSGR:Initial trafficfound

Apr  3 00:21:46: CCE*: I2R = 0, state_object = 0x660CF5B4, data_len = 19

Apr  3 00:21:46: CCE*: WINMSGR:datalen=19,matchflag=11,matchlen=19

Apr  3 00:21:46: CCE*: WINMSGR:Initial trafficfound

Apr  3 00:21:46: CCE*: I2R = 1, state_object = 0x660CF5B4, data_len = 82

Apr  3 00:21:46: CCE*: WINMSGR:datalen=82,matchflag=6,matchlen=4

Apr  3 00:21:46: CCE*: WINMSGR:version msg : CVR 31 0x0409 winnt 5.0 i386 MSMSGS 5.1.0701
WindowsMessenger fwuser@example.com

Apr  3 00:21:46: CCE*: I2R = 0, state_object = 0x660CF5B4, data_len = 96

Apr  3 00:21:46: CCE*: WINMSGR:datalen=96,matchflag=6,matchlen=4

Apr  3 00:21:46: CCE*: I2R = 1, state_object = 0x660CF5B4, data_len = 33

Apr  3 00:21:46: CCE*: WINMSGR:datalen=33,matchflag=12,matchlen=33

Apr  3 00:21:46: CCE*: WINMSGR:Initial trafficfound

Apr  3 00:21:46: CCE*: I2R = 0, state_object = 0x660CF5B4, data_len = 162

Apr  3 00:21:46: CCE*: I2R = 1, state_object = 0x660CF5B4, data_len = 324

Apr  3 00:21:46: CCE*: I2R = 0, state_object = 0x660CF5B4, data_len = 37

Apr  3 00:21:46: CCE*: WINMSGR:datalen=37,matchflag=12,matchlen=37

Apr  3 00:21:46: CCE*: WINMSGR:Initial trafficfound

Apr  3 00:21:46: CCE*: I2R = 1, state_object = 0x660CF5B4, data_len = 307

Apr  3 00:21:46: CCE*: WINMSGR:datalen=307,matchflag=5,matchlen=118

Apr  3 00:21:46: CCE*: WINMSGR:service found = 2

Apr  3 00:21:46: CCE*: WINMSGR: Found IM default service

Apr  3 00:21:46: %APPFW-6-IM_WINMSGR_SESSION: im-winmsgr un-recognized service session
initiator sends 307 bytes  session 192.168.5.3:24601 209.165.200.230:1863 on zone-pair
zp_test_in class test_im appl-class test_winmsgr_1

Apr  3 00:21:46: CCE*: I2R = 0, state_object = 0x660CF5B4, data_len = 320

Apr  3 00:21:46: CCE*: I2R = 0, state_object = 0x660CF5B4, data_len = 332

Apr  3 00:21:46: CCE*: WINMSGR:datalen=332,matchflag=5,matchlen=143

Apr  3 00:21:46: CCE*: WINMSGR:service found = 2

Apr  3 00:21:46: CCE*: WINMSGR: Found IM default service

Apr  3 00:21:46: %APPFW-6-IM_WINMSGR_SESSION: im-winmsgr un-recognized service session
initiator gets 332 bytes  session 209.165.200.230:1863 192.168.5.3:24601 on zone-pair
zp_test_in class test_im appl-class test_winmsgr_1

Apr  3 00:23:11: CCE*: I2R = 1, state_object = 0x660CF5B4, data_len = 0

Apr  3 00:23:11: FIREWALL sis 65A1D540: Sis extension deleted

The following is sample output from the debug policy-firewall control-plane command:

Router# show debug

policy_fw:

  Policy-Firewall control-plane debugging is on

voice-gw-118.03#

Syslog logging: enabled (0 messages dropped, 0 messages rate-limited,

                0 flushes, 0 overruns, xml disabled, filtering disabled)

No Active Message Discriminator.

No Inactive Message Discriminator.

    Console logging: disabled

    Monitor logging: level debugging, 0 messages logged, xml disabled,

                     filtering disabled

    Buffer logging:  level debugging, 247 messages logged, xml disabled,

                     filtering disabled

    Logging Exception size (4096 bytes)

    Count and timestamp logging messages: disabled

    Persistent logging: disabled

    Trap logging: level informational, 44 message lines logged

Log Buffer (60000000 bytes):

FIREWALL CP: fw_cp_prot_num_to_name()  l4 1, l7 5, gran 0

FIREWALL CP: fw_cp_get_flow_policy_and_class()  Flow policy does not exist

FIREWALL CP: fw_cp_check_create_default_l7_policy()  Could not retrieve flow policy for L4
policy l4-pmap L4 class l4-cmap

FIREWALL CP: fw_classmap_filter_update_in_policymap()  Adding filter 0x650187F0 to class
l4-cmap in policy l4-pmap

FIREWALL CP: fw_policy_action_cmd()  PPM create action inspect with params 0x64CAF8E8

FIREWALL CP: fw_inspect_class_params()  inspect config-plane CLASS-ADD action
0x66315C5C,params 0x64CAF8E8

FIREWALL CP: fw_validate_class_for_matchprot()  Validating protocols in class l4-cmap

FIREWALL CP: fw_validate_class_for_matchprot()  protocol filter found

FIREWALL CP: fw_inspect_class_params()  Attached config-plane action_params 0x663BD280

FIREWALL CP: fw_cp_create_attach_flow_policy()

FIREWALL CP: fw_cp_get_string_from_random_num()  Random number generated is 2697258553

FIREWALL CP: fw_cp_generate_random_string()  Allocated random str 2697258553 for policy
l4-pmap class l4-cmap

FIREWALL CP: fw_cp_get_random_string()  Found random string  for policy l4-pmap class
l4-cmap

FIREWALL CP: fw_cp_get_random_string()  Found random string  for policy l4-pmap class
l4-cmap

FIREWALL CP: fw_cp_get_random_string()  Found random string  for policy l4-pmap class
l4-cmap

FIREWALL CP: fw_cp_prot_num_to_name()  l4 2, l7 5, gran 0

FIREWALL CP: fw_inspect_int_class_params()

FIREWALL CP: fw_create_attach_template_class()

FIREWALL CP: fw_create_attach_template_class()  Creating template class for trigger
15udp_2697258553 in 15_2697258553

FIREWALL CP: fw_create_attach_template_class()  Trying to create a PPM filter with id
0x64CA73EC

FIREWALL CP: fw_cp_prot_num_to_name()  l4 4, l7 5, gran 0

FIREWALL CP: fw_inspect_int_class_params()

FIREWALL CP: fw_create_attach_template_class()

FIREWALL CP: fw_create_attach_template_class()  Creating template class for trigger
15icmp_2697258553 in 15_2697258553

FIREWALL CP: fw_create_attach_template_class()  Trying to create a PPM filter with id
0x64CA73EC

FIREWALL CP: fw_cp_create_attach_vtcp_classes()  Create policy 15

FIREWALL CP: fw_cp_create_tcp_15()

FIREWALL CP: fw_cp_vtcp_support_get_tcp_init_class()  Creating TCP Class with Pure SYN
filter

FIREWALL CP: fw_inspect_int_class_params()

FIREWALL CP: fw_create_attach_template_class()

FIREWALL CP: fw_create_attach_template_class()  Creating template class for trigger
15tcp_2697258553 in 15_2697258553

FIREWALL CP: fw_create_attach_template_class()  Trying to create a PPM filter with id
0x64CA73A4

FIREWALL CP: fw_cp_create_attach_flow_policy()  Success-creating flow policy

FIREWALL CP: fw_cp_create_attach_flow_policy()  Attach flow policy to trigger class as
child policy

FIREWALL CP: fw_cp_create_attach_flow_policy()  Success- Attached flow policy to trigger
class

FIREWALL CP: fw_cp_create_attach_flow_policy()  Creating P20 & P21 for vtcp

FIREWALL CP: fw_cp_generate_random_string()  Found random string  for policy l4-pmap class
l4-cmap

FIREWALL CP: fw_cp_get_flow_policy_and_class()  Found flow policy 0x64FFC838

FIREWALL CP: fw_cp_get_random_string()  Found random string  for policy l4-pmap class
l4-cmap

FIREWALL CP: fw_cp_get_random_string()  Found random string  for policy l4-pmap class
l4-cmap

FIREWALL CP: fw_cp_get_flow_policy_and_class()  Found flow TCP 0x6585718C and UDP
0x645D1794 classes

FIREWALL CP: fw_cp_check_create_default_l7_class()  Checking the class l4-cmap

FIREWALL CP: fw_reverse_policy_handle_zp_event()

FIREWALL CP: fw_reverse_policy_handle_zp_event()  Reverse_policy Zone pair add event

FIREWALL CP: fw_get_ppm_policy_on_zp()  Did not find ppm policy on zp zp p_type 0x7

FIREWALL CP: fw_get_name_type_and_client_of_first_class_in_policy()

FIREWALL CP: fw_create_cp_dynamic_class()

FIREWALL CP: fw_create_cp_dynamic_class()  Trying to create a PPM filter with id
0x10000000

FIREWALL CP: fw_create_cp_dynamic_class()  Success

FIREWALL CP: fw_drop_class_params()  action 0x6637A5C0, cmd_params 0x64CA7550, event 0x21

FIREWALL CP: fw_create_noop_feature_object()

FIREWALL CP: fw_create_inspect_feature_object()

FIREWALL CP: fw_create_fo_internal()  Create FO for class 0xC0000002 target_class
0xA0000000 action CCE_INSPECT_CONFIGURED

FIREWALL CP: fw_cp_get_inspect_params()

FIREWALL CP: fw_cp_get_inspect_params()  Creating the FO with default parameters

FIREWALL CP: fw_create_fo_internal()  Created FO with id 0xAAAA0006 action
CCE_INSPECT_CONFIGURED

FIREWALL CP: fw_cp_store_fo_id()  Enqueue  0xAAAA0006 to fo_param_list

FIREWALL CP: fw_create_noop_feature_object()

FIREWALL CP: fw_create_inspect_int_feature_object()

FIREWALL CP: fw_create_fo_internal()  Create FO for class 0xC0000005 target_class
0xA0000000 action CCE_INSPECT

FIREWALL CP: fw_cp_get_inspect_params()

FIREWALL CP: fw_cp_get_inspect_params()  Creating the FO with default parameters

FIREWALL CP: fw_create_fo_internal()  Created FO with id 0xAAAA0007 action CCE_INSPECT

FIREWALL CP: fw_cp_store_fo_id()  Enqueue  0xAAAA0007 to fo_param_list

FIREWALL CP: fw_create_noop_feature_object()

FIREWALL CP: fw_create_inspect_int_feature_object()

FIREWALL CP: fw_create_fo_internal()  Create FO for class 0xC0000007 target_class
0xA0000000 action CCE_INSPECT

FIREWALL CP: fw_cp_get_inspect_params()

FIREWALL CP: fw_cp_get_inspect_params()  Creating the FO with default parameters

FIREWALL CP: fw_create_fo_internal()  Created FO with id 0xAAAA0008 action CCE_INSPECT

FIREWALL CP: fw_cp_store_fo_id()  Enqueue  0xAAAA0008 to fo_param_list

FIREWALL CP: fw_create_noop_feature_object()

FIREWALL CP: fw_create_inspect_int_feature_object()

FIREWALL CP: fw_create_fo_internal()  Create FO for class 0xC0000009 target_class
0xA0000000 action CCE_INSPECT

FIREWALL CP: fw_cp_get_inspect_params()

FIREWALL CP: fw_cp_get_inspect_params()  Creating the FO with default parameters

FIREWALL CP: fw_create_fo_internal()  Created FO with id 0xAAAA0009 action CCE_INSPECT

FIREWALL CP: fw_cp_store_fo_id()  Enqueue  0xAAAA0009 to fo_param_list

FIREWALL CP: fw_create_drop_feature_object()

FIREWALL CP: fw_create_fo_internal()  Create FO for class 0xC0000003 target_class
0xA0000000 action CCE_FW_DROP

FIREWALL CP: fw_create_fo_internal()  Created FO with id 0xAAAA000A action CCE_FW_DROP

FIREWALL CP: fw_create_internal_reverse_policy()

FIREWALL CP: fw_create_ppm_reverse_policy()

FIREWALL CP: fw_get_name_type_and_client_of_first_class_in_policy()

FIREWALL CP: fw_create_cp_dynamic_class()

FIREWALL CP: fw_create_noop_feature_object()

FIREWALL CP: fw_create_noop_feature_object()

%SYS-5-CONFIG_I: Configured from console by console

FIREWALL CP: fw_cp_prot_num_to_name()  l4 1, l7 5, gran 0

FIREWALL CP: fw_drop_class_params()  action 0x6637A5C0, cmd_params 0x00000000, event 0x40

FIREWALL CP: fw_get_ppm_policy_on_zp()  Found ppm policy l4-pmap on zp zp p_type 0x7

The following is sample output from the debug policy-firewall L2-transparent command:

Router# debug policy-firewall L2-transparent

*Apr  4 08:28:23.554: L2FW*:insp_l2_fast_inspection: pak 673DBD90, input-interface
FastEthernet1/1, output-interface FastEthernet1/0

*Apr  4 08:28:23.554: L2FW*:Src 17.3.39.1 dst 17.3.39.3 protocol tcp

*Apr  4 08:28:23.554: TBAP: Check AuthProxy is configured on idb=FastEthernet1/1 path=1
linktype=38

*Apr  4 08:28:23.554: L2FW:Input ACL not configured or the ACL is bypassed

*Apr  4 08:28:23.554: L2FW:Output ACL is not configured or ACL is bypassed

*Apr  4 08:28:23.554: L2FW*:IP inspect firewall is not cfged on  input or output
interface.PASS

*Apr  4 08:28:23.554: L2FW* 2:insp_l2_fast_inspection: pak 673DBD90, input-interface
FastEthernet1/1, output-interface FastEthernet1/0

*Apr  4 08:28:23.554:  CCE L2 FW

*Apr  4 08:28:23.554: L2FW* -3:insp_l2_fast_inspection: pak 673DBD90, input-interface
FastEthernet1/1, output-interface FastEthernet1/0

The following is sample output from the debug policy-firewall detailed command:

Router# debug policy-firewall detailed

Log Buffer (600000 bytes):

Feb 13 08:40:01: FIREWALL: ret_val 0 is not FW_DP_INSP_PASS_PAK

<snip>

Feb 13 08:41:22: FIREWALL: ret_val 0 is not FW_DP_INSP_PASS_PAK

Feb 13 08:41:24: FIREWALL: ret_val 0 is not FW_DP_INSP_PASS_PAK

Feb 13 08:41:25: FIREWALL*: Searching for FSO in class 0x50793C20class group 0x10000000,

target 0x1, cce class type 0x2B

Feb 13 08:41:25: FIREWALL*: not found

Feb 13 08:41:25: FIREWALL*: Try to create session in fastpath

Feb 13 08:41:25: FIREWALL: Searching for FSO in class 0x50793C20class group 0x10000000,

target 0x1, cce class type 0x2B

Feb 13 08:41:25: FIREWALL: not found

Feb 13 08:41:25: FIREWALL: Create FSO

Feb 13 08:41:25: FIREWALL: sis 204925C0 : fw_dp_state_object_link

Feb 13 08:41:25: FIREWALL: sis 204925C0 : FO class 0x50793C20 class group 0x10000000,
target 0x1, FO 0x20255D80

Feb 13 08:41:25: FIREWALL: sis 204925C0 : alert = 1, audit_trail = 0

Feb 13 08:41:25: FIREWALL: sis 204925C0 : l7 protocol 62, granular = 5

Feb 13 08:41:25: FIREWALL: sis 204925C0 : fw_dp_state_object_attach_forward

Feb 13 08:41:25: FIREWALL: sis 204925C0 : fw_dp_state_object_create_and_attach_reverse

Feb 13 08:41:25: FIREWALL: sis 204925C0 : FSO bind success for reverse class
0x50793C80class group 0x10000000, target 0x1

Feb 13 08:41:25: FIREWALL: sis 204925C0 :Session Info :

Feb 13 08:41:25: session->fwfo 0x507E39C0

Feb 13 08:41:25: class type 0x2B, target 0x1, policy id 0x10000000, class id 0x50793C20

Feb 13 08:41:25: class type 0x2B, reverse target 0x1, reverse policy id 0x10000000,
reverse class id 0x50793C80

Feb 13 08:41:25: src addr 192.168.3.3, port 36091, vrf id 0

Feb 13 08:41:25: dst addr 192.168.103.3, port 5190, vrf id 0

Feb 13 08:41:25: L4 Protocol : TCP

Feb 13 08:41:25: FIREWALL: sis 204925C0 : L4 inspection returned 3

Feb 13 08:41:25: FIREWALL*: FSO feature object 0x204925C0 found

Feb 13 08:41:25: FIREWALL*: sis 204925C0 : L4 inspection returned 3

Feb 13 08:41:25: FIREWALL*: FSO feature object 0x204925C0 found

Feb 13 08:41:25: FIREWALL*: sis 204925C0 : max_sessions 2147483647; current sessions 0

Feb 13 08:41:25: FIREWALL*: sis 204925C0 : IM : Token set for L7 named-db

Feb 13 08:41:25: FIREWALL*: sis 204925C0 : cce_sb 0x66A5BA00, pak 0x50028974, data_len 0
in_fast_path 1, dir = 1

Feb 13 08:41:25: FIREWALL*: sis 204925C0 : p_app_data = C174268, p_data_len = 6p_offset =
0

Feb 13 08:41:25: FIREWALL*: sis 204925C0 : Found particle offset token, data1 = 0

Feb 13 08:41:25: FIREWALL*: sis 204925C0 : Opening 0 channels for icq

Feb 13 08:41:25: FIREWALL*: sis 204925C0 : icq L7 inspect result: PASS packet

Feb 13 08:41:25: FIREWALL*: sis 204925C0 : L4 inspection returned 3

Feb 13 08:41:25: FIREWALL*: FSO feature object 0x204925C0 found

Feb 13 08:41:25: FIREWALL*: sis 204925C0 : cce_sb 0x66A5BA00, pak 0x5004CAC8, data_len 10
in_fast_path 1, dir = 2

Feb 13 08:41:25: FIREWALL*: sis 204925C0 : p_app_data = C210848, p_data_len = Ap_offset =
0

Feb 13 08:41:25: FIREWALL*: sis 204925C0 : Found particle offset token, data1 = 0

Feb 13 08:41:25: FIREWALL*: sis 204925C0 : Opening 0 channels for icq

Feb 13 08:41:25: FIREWALL*: sis 204925C0 : icq L7 inspect result: PASS packet

Feb 13 08:41:25: FIREWALL*: sis 204925C0 : L4 inspection returned 3

Feb 13 08:41:25: FIREWALL*: FSO feature object 0x204925C0 found

Feb 13 08:41:25: FIREWALL*: sis 204925C0 : cce_sb 0x66A5BA00, pak 0x50028974, data_len 270
in_fast_path 1, dir = 1

debug policy-firewall mib

To toggle on or off the support for MIBs in a zone-based policy firewall, use the debug policy-firewall mib command in privileged EXEC mode. To disable the MIB support, use the no form of this command.

debug policy-firewall mib {event | object-creation | object-deletion | object-retrieval}

no debug policy-firewall mib {event | object-creation | object-deletion | object-retrieval}

Syntax Description

event	Turns on debugging for a firewall MIB event.
object-creation	Turns on debugging for a firewall MIB object creation.
object-deletion	Turns on debugging for a firewall MIB object deletion.
object-retrieval	Turns on debugging for a firewall MIB object retrieval.

Command Default

Privileged EXEC (#)

Command History

Release	Modification
15.1(1)T	This command was introduced.

Usage Guidelines

This command provides debug support for MIBs in zone-based policy firewall similar to the Cisco IOS firewall.

Examples

The following is a sample output from the debug policy-firewall mib object-retrieval command:

Router# debug policy-firewall mib object-retrieval

Firewall MIB object retrieval debugging is on

debug port-channel load-balance

To enable debug output for port-channel load balancing, use the debug port-channel load-balance command in privileged EXEC mode. To turn off debugging, use the no form of this command.

debug port-channel load-balance {all | manual | weighted}

no debug port-channel load-balance {all | manual | weighted}

Syntax Description

all	Turns on debugging for all load-balancing operations.
manual	Turns on debugging for only manual load-balancing operations.
weighted	Turns on debugging for only weighted load-balancing operations.

Command Default

Port-channel debugging is turned off.

Command Modes

Privileged EXEC (#)

Command History

Release	Modification
15.0(1)S	This command was introduced.

Usage Guidelines

Use this command to help troubleshoot load balancing of service instances over port-channel member links.

Examples

The following example shows how to enable debugging for only weighted load-balancing operations:

Router# debug port-channel load-balance weighted

Port-channel Load-Balance Weighted debugging is on

debug pots

To display information on the telephone interfaces, use the debug pots command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug pots {driver | csm} [1 | 2]

no debug pots {driver | csm} [1 | 2]

Syntax Description

driver	Displays driver debug information.
csm	Displays Content Switching Module (CSM) debug information.
1	(Optional) Displays information for telephone port 1 only.
2	(Optional) Displays information for telephone port 2 only.

Command Modes

Privileged EXEC

Usage Guidelines

The debug pots command displays driver and CSM debug information for telephone ports 1 and 2.

Examples

The following is sample output from the debug pots driver 1 command. This sample display indicates that the telephone port driver is not receiving caller ID information from the ISDN line. Therefore, the analog caller ID device attached to the telephone port does not display caller ID information.

Router# debug pots driver 1

00:01:51:POTS DRIVER port=1 activate ringer: cadence=0 callerId=Unknown

00:01:51:POTS DRIVER port=1 state=Idle drv_event=RING_EVENT

00:01:51:POTS DRIVER port=1 enter_ringing

00:01:51:POTS DRIVER port=1 cmd=19

00:01:51:POTS DRIVER port=1 activate disconnect

00:01:51:POTS DRIVER port=1 state=Ringing drv_event=DISCONNECT_EVENT

00:01:51:POTS DRIVER port=1 cmd=1A

00:01:51:POTS DRIVER port=1 enter_idle

00:01:51:POTS DRIVER port=1 ts connect: 0 0

00:01:51:POTS DRIVER port=1 cmd=D

00:01:51:POTS DRIVER port=1 report onhook

00:01:51:POTS DRIVER port=1 activate tone=SILENCE_TONE

00:01:51:POTS DRIVER port=1 state=Idle drv_event=TONE_EVENT

00:01:51:POTS DRIVER port=1 activate tone=SILENCE_TONE

00:01:51:POTS DRIVER port=1 state=Idle drv_event=TONE_EVENT

00:01:53:POTS DRIVER port=1 activate ringer: cadence=0 callerId=Unknown

00:01:53:POTS DRIVER port=1 state=Idle drv_event=RING_EVENT

00:01:53:POTS DRIVER port=1 enter_ringing

00:01:53:POTS DRIVER port=1 cmd=19

00:01:55:POTS DRIVER port=1 cmd=1A

00:02:49:POTS DRIVER port=1 state=Ringing drv_event=OFFHOOK_EVENT

00:02:49:POTS DRIVER port=1 cmd=1A

00:02:49:POTS DRIVER port=1 enter_suspend

00:02:49:POTS DRIVER port=1 cmd=A

00:02:49:POTS DRIVER port=1 report offhook

00:02:49:POTS DRIVER port=1 activate connect: endpt=1 calltype=TWO_PARTY_CALL

00:02:49:POTS DRIVER port=1 state=Suspend drv_event=CONNECT_EVENT

00:02:49:POTS DRIVER port=1 enter_connect: endpt=1 calltype=0

00:02:49:POTS DRIVER port=1 cmd=A

00:02:49:POTS DRIVER port=1 ts connect: 1 0

00:02:49:POTS DRIVER port=1 activate connect: endpt=1 calltype=TWO_PARTY_CALL

00:02:49:POTS DRIVER port=1 state=Connect drv_event=CONNECT_EVENT

00:02:49:POTS DRIVER port=1 enter_connect: endpt=1 calltype=0

00:02:49:POTS DRIVER port=1 cmd=A

00:02:49:POTS DRIVER port=1 ts connect: 1 0

00:02:55:POTS DRIVER port=1 state=Connect drv_event=ONHOOK_EVENT

00:02:55:POTS DRIVER port=1 enter_idle

00:02:55:POTS DRIVER port=1 ts connect: 0 0

00:02:55:POTS DRIVER port=1 cmd=D

00:02:55:POTS DRIVER port=1 report onhook

00:02:55:POTS DRIVER port=1 activate tone=SILENCE_TONE

00:02:55:POTS DRIVER port=1 state=Idle drv_event=TONE_EVENT

00:02:55:POTS DRIVER port=1 activate tone=SILENCE_TONE

00:02:55:POTS DRIVER port=1 state=Idle drv_event=TONE_EVENT

The following is sample output from the debug pots csm 1 command. This sample display indicates that a dial peer contains an invalid destination pattern (555-1111).

Router# debug pots csm 1

01:57:28:EVENT_FROM_ISDN:dchanidb=0x66CB38, call_id=0x11, ces=0x2 bchan=0x0, event=0x1,
cause=0x0

01:57:28:Dial peer not found, route call to port 1

01:57:28:CSM_PROC_IDLE:CSM_EVENT_ISDN_CALL, call_id=0x11, port=1

01:57:28:Calling number `5551111'

01:57:40:CSM_PROC_RINGING:CSM_EVENT_VDEV_OFFHOOK, call_id=0x11, port=1

01:57:40:EVENT_FROM_ISDN:dchan_idb=0x66CB38, call_id=0x11, ces=0x2 bchan=0x0, event=0x4,
cause=0x0

01:57:40:CSM_PROC_CONNECTING:CSM_EVENT_ISDN_CONNECTED, call_id=0x11, port=1

01:57:47:CSM_PROC_CONNECTING:CSM_EVENT_VDEV_ONHOOK, call_id=0x11, port=1

01:57:201863503872: %ISDN-6-DISCONNECT:Interface BRI0:1 disconnected from unknown, call
lasted 5485 seconds

01:57:47: %ISDN-6-DISCONNECT:Interface BRI0:1 disconnected from unknown, call lasted 5485
seconds

01:57:47:EVENT_FROM_ISDN:dchan _idb=0x66CB38, call_id=0x11, ces=0x2 bchan=0xFFFFFFFF,
event=0x0, cause=0x1

01:57:47:CSM_PROC_NEAR_END_DISCONNECT:CSM_

debug pots csm

To activate events from which an application can determine and display the status and progress of calls to and from plain old telephone service (POTS) ports, use the debug pots csm command in privileged EXEC mode.

debug pots csm

Syntax Description

This command has no arguments or keywords.

Command Modes

Privileged EXEC

Command History

Release	Modification
12.1.(2)XF	This command was introduced on the Cisco 800 series routers.
12.2SX	This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.

Examples

To see debugging messages, enter the logging console global configuration mode command as follows:

Router(config)# logging console

Router(config)# exit

Debugging messages are displayed in one of two formats that are relevant to the POTS dial feature:

hh:mm:ss: CSM_STATE: CSM_EVENT, call id = ??, port = ?

or

hh:mm:ss: EVENT_FROM_ISDN:dchan_idb=0x???????, call_id=0x????, ces=? bchan=0x????????,
event=0x?, cause=0x??

Table 277 describes the significant fields shown in the display.

Table 277 debug pots csm Field Descriptions

Command Elements	Description
hh:mm:ss	Timestamp (in hours, minutes, and seconds).
CSM_STATE	One of the call CSM states listed in Table 278.
CSM_EVENT	One of the CSM events listed in Table 279.
call id	Hexadecimal value from 0x00 to 0xFF.
port	Telephone port 1 or 2.
EVENT_FROM_ISDN	A CSM event. Table 279 shows a list of CSM events.
dchan_idb	Internal data structure address.
ces	Connection end point suffix used by ISDN.
bchan	Channel used by the call. A value of 0xFFFFFFFF indicates that a channel is not assigned.
event	A hexadecimal value that is translated into a CSM event. Table 280 shows a list of events and the corresponding CSM events.
cause	A hexadecimal value that is given to call-progressing events. Table 281 shows a list of cause values and definitions.

Table 278 shows the values for CSM states.

Table 278 CSM States

CSM State	Description
CSM_IDLE_STATE	Telephone on the hook.
CSM_RINGING	Telephone ringing.
CSM_SETUP	Setup for outgoing call in progress.
CSM_DIALING	Dialing number of outgoing call.
CSM_IVR_DIALING	Interactive voice response (IVR) for Japanese telephone dialing.
CSM_CONNECTING	Waiting for carrier to connect the call.
CSM_CONNECTED	Call connected.
CSM_DISCONNECTING	Waiting for carrier to disconnect the call.
CSM_NEAR_END_DISCONNECTING	Waiting for carrier to disconnect the call.
CSM_HARD_HOLD	Call on hard hold.
CSM_CONSULTATION_HOLD	Call on consultation hold.
CSM_WAIT_FOR_HOLD	Waiting for carrier to put call on hard hold.
CSM_WAIT_FOR_CONSULTATION_HOLD	Waiting for carrier to put call on consultation hold.
CSM_CONFERENCE	Waiting for carrier to complete call conference.
CSM_TRANSFER	Waiting for carrier to transfer call.
CSM_APPLIC_DIALING	Call initiated from Cisco IOS command-line interface (CLI).

Table 279 shows the values for CSM events.

Table 279 CSM Events

CSM Events	Description
CSM_EVENT_INTER_DIGIT_TIMEOUT	Time waiting for dial digits has expired.
CSM_EVENT_TIMEOUT	Near- or far-end disconnect timeout.
CSM_EVENT_ISDN_CALL	Incoming call.
CSM_EVENT_ISDN_CONNECTED	Call connected.
CSM_EVENT_ISDN_DISCONNECT	Far end disconnected.
CSM_EVENT_ISDN_DISCONNECTED	Call disconnected.
CSM_EVENT_ISDN_SETUP	Outgoing call requested.
CSM_EVENT_ISDN_SETUP_ACK	Outgoing call accepted.
CSM_EVENT_ISDN_PROC	Call proceeding and dialing completed.
CSM_EVENT_ISDN_CALL_PROGRESSING	Call being received in band tone.
CSM_EVENT_ISDN_HARD_HOLD	Call on hard hold.
CSM_EVENT_ISDN_HARD_HOLD_REJ	Hold attempt rejected.
CSM_EVENT_ISDN_CHOLD	Call on consultation hold.
CSM_EVENT_ISDN_CHOLD_REJ	Consultation hold attempt rejected.
CSM_EVENT_ISDN_RETRIEVED	Call retrieved.
CSM_EVENT_ISDN_RETRIEVE_REJ	Call retrieval attempt rejected.
CSM_EVENT_ISDN_TRANSFERRED	Call transferred.
CSM_EVENT_ISDN_TRANSFER_REJ	Call transfer attempt rejected.
CSM_EVENT_ISDN_CONFERENCE	Call conference started.
CSM_EVENT_ISDN_CONFERENCE_REJ	Call conference attempt rejected.
CSM_EVENT_ISDN_IF_DOWN	ISDN interface down.
CSM_EVENT_ISDN_INFORMATION	ISDN information element received (used by NTT IVR application).
CSM_EVENT_VDEV_OFFHOOK	Telephone off the hook.
CSM_EVENT_VDEV_ONHOOK	Telephone on the hook.
CSM_EVENT_VDEV_FLASHHOOK	Telephone hook switch has flashed.
CSM_EVENT_VDEV_DIGIT	DTMF digit has been detected.
CSM_EVENT_VDEV_APPLICATION_CALL	Call initiated from Cisco IOS CLI.

Table 280 shows the values for events that are translated into CSM events.

Table 280 Event Values

Hexadecimal Value	Event	CSM Event
0x0	DEV_IDLE	CSM_EVENT_ISDN_DISCONNECTED
0x1	DEV_INCALL	CSM_EVENT_ISDN_CALL
0x2	DEV_SETUP_ACK	CSM_EVENT_ISDN_SETUP_ACK
0x3	DEV_CALL_PROC	CSM_EVENT_ISDN_PROC
0x4	DEV_CONNECTED	CSM_EVENT_ISDN_CONNECTED
0x5	DEV_CALL_PROGRESSING	CSM_EVENT_ISDN_CALL_PROGRESSING
0x6	DEV_HOLD_ACK	CSM_EVENT_ISDN_HARD_HOLD
0x7	DEV_HOLD_REJECT	CSM_EVENT_ISDN_HARD_HOLD_REJ
0x8	DEV_CHOLD_ACK	CSM_EVENT_ISDN_CHOLD
0x9	DEV_CHOLD_REJECT	CSM_EVENT_ISDN_CHOLD_REJ
0xa	DEV_RETRIEVE_ACK	CSM_EVENT_ISDN_RETRIEVED
0xb	DEV_RETRIEVE_REJECT	CSM_EVENT_ISDN_RETRIEVE_REJ
0xc	DEV_CONFR_ACK	CSM_EVENT_ISDN_CONFERENCE
0xd	DEV_CONFR_REJECT	CSM_EVENT_ISDN_CONFERENCE_REJ
0xe	DEV_TRANS_ACK	CSM_EVENT_ISDN_TRANSFERRED
0xf	DEV_TRANS_REJECT	CSM_EVENT_ISDN_TRANSFER_REJ

Table 281 shows cause values that are assigned only to call-progressing events.

Table 281 Cause Values

Hexadecimal Value	Cause Definitions
0x01	UNASSIGNED_NUMBER
0x02	NO_ROUTE
0x03	NO_ROUTE_DEST
0x04	NO_PREFIX
0x06	CHANNEL_UNACCEPTABLE
0x07	CALL_AWARDED
0x08	CALL_PROC_OR_ERROR
0x09	PREFIX_DIALED_ERROR
0x0a	PREFIX_NOT_DIALED
0x0b	EXCESSIVE_DIGITS
0x0d	SERVICE_DENIED
0x10	NORMAL_CLEARING
0x11	USER_BUSY
0x12	NO_USER_RESPONDING
0x13	NO_USER_ANSWER
0x15	CALL_REJECTED
0x16	NUMBER_CHANGED
0x1a	NON_SELECTED_CLEARING
0x1b	DEST_OUT_OF_ORDER
0x1c	INVALID_NUMBER_FORMAT
0x1d	FACILITY_REJECTED
0x1e	RESP_TO_STAT_ENQ
0x1f	UNSPECIFIED_CAUSE
0x22	NO_CIRCUIT_AVAILABLE
0x26	NETWORK_OUT_OF_ORDER
0x29	TEMPORARY_FAILURE
0x2a	NETWORK_CONGESTION
0x2b	ACCESS_INFO_DISCARDED
0x2c	REQ_CHANNEL_NOT_AVAIL
0x2d	PRE_EMPTED
0x2f	RESOURCES_UNAVAILABLE
0x32	FACILITY_NOT_SUBSCRIBED
0x33	BEARER_CAP_INCOMPAT
0x34	OUTGOING_CALL_BARRED
0x36	INCOMING_CALL_BARRED
0x39	BEARER_CAP_NOT_AUTH
0x3a	BEAR_CAP_NOT_AVAIL
0x3b	CALL_RESTRICTION
0x3c	REJECTED_TERMINAL
0x3e	SERVICE_NOT_ALLOWED
0x3f	SERVICE_NOT_AVAIL
0x41	CAP_NOT_IMPLEMENTED
0x42	CHAN_NOT_IMPLEMENTED
0x45	FACILITY_NOT_IMPLEMENT
0x46	BEARER_CAP_RESTRICTED
0x4f	SERV_OPT_NOT_IMPLEMENT
0x51	INVALID_CALL_REF
0x52	CHAN_DOES_NOT_EXIST
0x53	SUSPENDED_CALL_EXISTS
0x54	NO_CALL_SUSPENDED
0x55	CALL_ID_IN_USE
0x56	CALL_ID_CLEARED
0x58	INCOMPATIBLE_DEST
0x5a	SEGMENTATION_ERROR
0x5b	INVALID_TRANSIT_NETWORK
0x5c	CS_PARAMETER_NOT_VALID
0x5f	INVALID_MSG_UNSPEC
0x60	MANDATORY_IE_MISSING
0x61	NONEXISTENT_MSG
0x62	WRONG_MESSAGE
0x63	BAD_INFO_ELEM
0x64	INVALID_ELEM_CONTENTS
0x65	WRONG_MSG_FOR_STATE
0x66	TIMER_EXPIRY
0x67	MANDATORY_IE_LEN_ERR
0x6f	PROTOCOL_ERROR
0x7f	INTERWORKING_UNSPEC

Examples

This section provides debug output examples for three call scenarios, displaying the sequence of events that occur during a POTS dial call or POTS disconnect call.

Call Scenario 1

In this example call scenario, port 1 is on the hook, the application dial is set to call 4085552221, and the far-end successfully connects.

Router# debug pots csm

Router# test pots 1 dial 4085552221#

Router#

The following output shows an event indicating that port 1 is being used by the dial application:

01:58:27: CSM_PROC_IDLE: CSM_EVENT_VDEV_APPLICATION_CALL, call id = 0x0, port = 1

The following output shows events indicating that the CSM is receiving the application digits of the number to dial:

01:58:27: CSM_PROC_APPLIC_DIALING: CSM_EVENT_VDEV_DIGIT, call id = 0x0, port = 1

01:58:27: CSM_PROC_APPLIC_DIALING: CSM_EVENT_VDEV_DIGIT, call id = 0x0, port = 1

01:58:27: CSM_PROC_APPLIC_DIALING: CSM_EVENT_VDEV_DIGIT, call id = 0x0, port = 1

01:58:27: CSM_PROC_APPLIC_DIALING: CSM_EVENT_VDEV_DIGIT, call id = 0x0, port = 1

01:58:27: CSM_PROC_APPLIC_DIALING: CSM_EVENT_VDEV_DIGIT, call id = 0x0, port = 1

01:58:27: CSM_PROC_APPLIC_DIALING: CSM_EVENT_VDEV_DIGIT, call id = 0x0, port = 1

01:58:27: CSM_PROC_APPLIC_DIALING: CSM_EVENT_VDEV_DIGIT, call id = 0x0, port = 1

01:58:27: CSM_PROC_APPLIC_DIALING: CSM_EVENT_VDEV_DIGIT, call id = 0x0, port = 1

01:58:27: CSM_PROC_APPLIC_DIALING: CSM_EVENT_VDEV_DIGIT, call id = 0x0, port = 1

01:58:27: CSM_PROC_APPLIC_DIALING: CSM_EVENT_VDEV_DIGIT, call id = 0x0, port = 1

The following output shows that the telephone connected to port 1 is off the hook:

01:58:39: CSM_PROC_APPLIC_DIALING: CSM_EVENT_VDEV_OFFHOOK, call id = 0x0, port = 1

The following output shows a call-proceeding event pair indicating that the router ISDN software has sent the dialed digits to the ISDN switch:

01:58:40: EVENT_FROM_ISDN:dchan_idb=0x280AF38, call_id=0x8004, ces=0x1 bchan=0x0,
event=0x3, cause=0x0

01:58:40: CSM_PROC_ENBLOC_DIALING: CSM_EVENT_ISDN_PROC, call id =

0x8004, port = 1

The following output shows the call-progressing event pair indicating that the telephone at the far end is ringing:

01:58:40: EVENT_FROM_ISDN:dchan_idb=0x280AF38, call_id=0x8004, ces=0x1 bchan=0xFFFFFFFF,
event=0x5, cause=0x0

01:58:40: CSM_PROC_ENBLOC_DIALING: CSM_EVENT_ISDN_CALL_PROGRESSING, call id = 0x8004, port
= 1

The following output shows a call-connecting event pair indicating that the telephone at the far end has answered:

01:58:48: EVENT_FROM_ISDN:dchan_idb=0x280AF38, call_id=0x8004, ces=0x1 bchan=0xFFFFFFFF,
event=0x4, cause=0x0

01:58:48: CSM_PROC_CONNECTING: CSM_EVENT_ISDN_CONNECTED, call id = 0x8004, port = 1

The following output shows a call-progressing event pair indicating that the telephone at the far end has hung up and that the calling telephone is receiving an in-band tone from the ISDN switch:

01:58:55: EVENT_FROM_ISDN:dchan_idb=0x280AF38, call_id=0x8004, ces=0x1 bchan=0xFFFFFFFF,
event=0x5, cause=0x10

01:58:55: CSM_PROC_CONNECTED: CSM_EVENT_ISDN_CALL_PROGRESSING, call id = 0x8004, port = 1

The following output shows that the telephone connected to port 1 has hung up:

01:58:57: CSM_PROC_CONNECTED: CSM_EVENT_VDEV_ONHOOK, call id = 0x8004, port = 1

The following output shows an event pair indicating that the call has been terminated:

01:58:57: EVENT_FROM_ISDN:dchan_idb=0x280AF38, call_id=0x8004, ces=0x1 bchan=0xFFFFFFFF,
event=0x0, cause=0x0

01:58:57: CSM_PROC_NEAR_END_DISCONNECT: CSM_EVENT_ISDN_DISCONNECTED, call id = 0x8004,
port = 1

813_local#

Call Scenario 2

In this example scenario, port 1 is on the hook, the application dial is set to call 4085552221, and the destination number is busy.

Router# debug pots csm

Router# test pots 1 dial 4085552221#

Router#

The following output shows that port 1 is used by the dial application:

01:59:42: CSM_PROC_IDLE: CSM_EVENT_VDEV_APPLICATION_CALL, call id = 0x0, port = 1

The following output shows the events indicating that the CSM is receiving the application digits of the number to call:

01:59:42: CSM_PROC_APPLIC_DIALING: CSM_EVENT_VDEV_DIGIT, call id = 0x0, port = 1

01:59:42: CSM_PROC_APPLIC_DIALING: CSM_EVENT_VDEV_DIGIT, call id = 0x0, port = 1

01:59:42: CSM_PROC_APPLIC_DIALING: CSM_EVENT_VDEV_DIGIT, call id = 0x0, port = 1

01:59:42: CSM_PROC_APPLIC_DIALING: CSM_EVENT_VDEV_DIGIT, call id = 0x0, port = 1

01:59:42: CSM_PROC_APPLIC_DIALING: CSM_EVENT_VDEV_DIGIT, call id = 0x0, port = 1

01:59:42: CSM_PROC_APPLIC_DIALING: CSM_EVENT_VDEV_DIGIT, call id = 0x0, port = 1

01:59:42: CSM_PROC_APPLIC_DIALING: CSM_EVENT_VDEV_DIGIT, call id = 0x0, port = 1

01:59:42: CSM_PROC_APPLIC_DIALING: CSM_EVENT_VDEV_DIGIT, call id = 0x0, port = 1

01:59:42: CSM_PROC_APPLIC_DIALING: CSM_EVENT_VDEV_DIGIT, call id = 0x0, port = 1

01:59:42: CSM_PROC_APPLIC_DIALING: CSM_EVENT_VDEV_DIGIT, call id = 0x0, port = 1

The following output shows an event indicating that the telephone connected to port 1 is off the hook:

01:59:52: CSM_PROC_APPLIC_DIALING: CSM_EVENT_VDEV_OFFHOOK, call id = 0x0, port = 1

The following output shows a call-proceeding event pair indicating that the telephone at the far end is busy:

01:59:52: EVENT_FROM_ISDN:dchan_idb=0x280AF38, call_id=0x8005, ces=0x1 bchan=0x0,
event=0x3, cause=0x11

01:59:52: CSM_PROC_ENBLOC_DIALING: CSM_EVENT_ISDN_PROC, call id = 0x8005, port = 1

The following output shows a call-progressing event pair indicating that the calling telephone is receiving an in-band busy tone from the ISDN switch:

01:59:58: EVENT_FROM_ISDN:dchan_idb=0x280AF38, call_id=0x8005, ces=0x1 bchan=0xFFFFFFFF,
event=0x5, cause=0x0

01:59:58: CSM_PROC_ENBLOC_DIALING: CSM_EVENT_ISDN_CALL_PROGRESSING, call id = 0x8005, port
= 1

The following output shows an event indicating that the calling telephone has hung up:

02:00:05: CSM_PROC_ENBLOC_DIALING: CSM_EVENT_VDEV_ONHOOK, call id = 0x8005, port = 1

The following output shows an event pair indicating that the call has been terminated:

02:00:05: EVENT_FROM_ISDN:dchan_idb=0x280AF38, call_id=0x8005, ces=0x1 bchan=0xFFFFFFFF,
event=0x0, cause=0x0

02:00:05: CSM_PROC_NEAR_END_DISCONNECT: CSM_EVENT_ISDN_DISCONNECTED, call id = 0x8005,
port = 1

Call Scenario 3

In this example call scenario, port 1 is on the hook, the application dial is set to call 4086661112, the far end successfully connects, and the command test pots disconnect terminates the call:

Router# debug pots csm

Router# test pots 1 dial 4086661112

Router#

The following output follows the same sequence of events as shown in Call Scenario 1:

1d03h: CSM_PROC_IDLE: CSM_EVENT_VDEV_APPLICATION_CALL, call id = 0x0, port = 1

1d03h: CSM_PROC_APPLIC_DIALING: CSM_EVENT_VDEV_DIGIT, call id = 0x0, port = 1

1d03h: CSM_PROC_APPLIC_DIALING: CSM_EVENT_VDEV_DIGIT, call id = 0x0, port = 1

1d03h: CSM_PROC_APPLIC_DIALING: CSM_EVENT_VDEV_DIGIT, call id = 0x0, port = 1

1d03h: CSM_PROC_APPLIC_DIALING: CSM_EVENT_VDEV_DIGIT, call id = 0x0, port = 1

1d03h: CSM_PROC_APPLIC_DIALING: CSM_EVENT_VDEV_DIGIT, call id = 0x0, port = 1

1d03h: CSM_PROC_APPLIC_DIALING: CSM_EVENT_VDEV_DIGIT, call id = 0x0, port = 1

1d03h: CSM_PROC_APPLIC_DIALING: CSM_EVENT_VDEV_DIGIT, call id = 0x0, port = 1

1d03h: CSM_PROC_APPLIC_DIALING: CSM_EVENT_VDEV_DIGIT, call id = 0x0, port = 1

1d03h: CSM_PROC_APPLIC_DIALING: CSM_EVENT_VDEV_DIGIT, call id = 0x0, port = 1

1d03h: CSM_PROC_APPLIC_DIALING: CSM_EVENT_VDEV_DIGIT, call id = 0x0, port = 1

1d03h: CSM_PROC_APPLIC_DIALING: CSM_EVENT_VDEV_OFFHOOK, call id = 0x0, port = 1

1d03h: EVENT_FROM_ISDN:dchan_idb=0x2821F38, call_id=0x8039, ces=0x1

   bchan=0x0, event=0x3, cause=0x0

1d03h: CSM_PROC_ENBLOC_DIALING: CSM_EVENT_ISDN_PROC, call id = 0x8039, port = 1

1d03h: EVENT_FROM_ISDN:dchan_idb=0x2821F38, call_id=0x8039, ces=0x1

   bchan=0xFFFFFFFF, event=0x5, cause=0x0

1d03h: CSM_PROC_ENBLOC_DIALING: CSM_EVENT_ISDN_CALL_PROGRESSING, call id = 0x8039,
    port = 1

Router# test pots 1 disconnect

The test pots disconnect command disconnects the call before you physically need to put the telephone back on the hook:

1d03h: CSM_PROC_CONNECTING: CSM_EVENT_VDEV_APPLICATION_HANGUP_CALL, call id = 0x8039,
     port = 1

1d03h: EVENT_FROM_ISDN:dchan_idb=0x2821F38, call_id=0x8039, ces=0x1

   bchan=0xFFFFFFFF, event=0x0, cause=0x0

1d03h: CSM_PROC_DISCONNECTING: CSM_EVENT_ISDN_DISCONNECTED, call id = 0x8039,
    port = 1

1d03h: CSM_PROC_DISCONNECTING: CSM_EVENT_TIMEOUT, call id = 0x8039, port = 1

debug ppp

To display information on traffic and exchanges in an internetwork implementing the Point-to-Point Protocol (PPP), use the debug ppp command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug ppp {packet | negotiation | error | authentication | compression | cbcp}

no debug ppp {packet | negotiation | error | authentication | compression | cbcp}

Syntax Description

packet	Displays PPP packets being sent and received. (This command displays low-level packet dumps.)
negotiation	Displays PPP packets sent during PPP startup, where PPP options are negotiated.
error	Displays protocol errors and error statistics associated with PPP connection negotiation and operation.
authentication	Displays authentication protocol messages, including Challenge Authentication Protocol (CHAP) packet exchanges and Password Authentication Protocol (PAP) exchanges.
compression	Displays information specific to the exchange of PPP connections using Microsoft Point-to-Point Compression (MPPC). This command is useful for obtaining incorrect packet sequence number information where MPPC compression is enabled.
cbcp	Displays protocol errors and statistics associated with PPP connection negotiations using Microsoft Callback (MSCB).

Command Modes

Privileged EXEC

Usage Guidelines

Use the debug ppp command when trying to find the following:

•The Network Control Protocols (NCPs) that are supported on either end of a PPP connection

•Any loops that might exist in a PPP internetwork

•Nodes that are (or are not) properly negotiating PPP connections

•Errors that have occurred over the PPP connection

•Causes for CHAP session failures

•Causes for PAP session failures

•Information specific to the exchange of PPP connections using the Callback Control Protocol (CBCP), used by Microsoft clients

•Incorrect packet sequence number information where MPPC compression is enabled

Refer to Internet RFCs 1331, 1332, and 1333 for details concerning PPP-related nomenclature and protocol information.

---

Caution The debug ppp compression command is CPU-intensive and should be used with caution. This command should be disabled immediately after debugging.

---

Examples

The following is sample output from the debug ppp packet command as seen from the Link Quality Monitor (LQM) side of the connection. This example depicts packet exchanges under normal PPP operation.

Router# debug ppp packet

PPP Serial4(o): lcp_slqr() state = OPEN magic = D21B4, len = 48

PPP Serial4(i): pkt type 0xC025, datagramsize 52

PPP Serial4(i): lcp_rlqr() state = OPEN magic = D3454, len = 48

PPP Serial4(i): pkt type 0xC021, datagramsize 16

PPP Serial4: I LCP ECHOREQ(9) id 3 (C) magic D3454

PPP Serial4: input(C021) state = OPEN code = ECHOREQ(9) id = 3 len = 12

PPP Serial4: O LCP ECHOREP(A) id 3 (C) magic D21B4

PPP Serial4(o): lcp_slqr() state = OPEN magic = D21B4, len = 48

PPP Serial4(i): pkt type 0xC025, datagramsize 52

PPP Serial4(i): lcp_rlqr() state = OPEN magic = D3454, len = 48

PPP Serial4(i): pkt type 0xC021, datagramsize 16

PPP Serial4: I LCP ECHOREQ(9) id 4 (C) magic D3454

PPP Serial4: input(C021) state = OPEN code = ECHOREQ(9) id = 4 len = 12

PPP Serial4: O LCP ECHOREP(A) id 4 (C) magic D21B4

PPP Serial4(o): lcp_slqr() state = OPEN magic = D21B4, len = 48

PPP Serial4(i): pkt type 0xC025, datagramsize 52

PPP Serial4(i): lcp_rlqr() state = OPEN magic = D3454, len = 48

PPP Serial4(i): pkt type 0xC021, datagramsize 16

PPP Serial4: I LCP ECHOREQ(9) id 5 (C) magic D3454

PPP Serial4: input(C021) state = OPEN code = ECHOREQ(9) id = 5 len = 12

PPP Serial4: O LCP ECHOREP(A) id 5 (C) magic D21B4

PPP Serial4(o): lcp_slqr() state = OPEN magic = D21B4, len = 48

PPP Serial4(i): pkt type 0xC025, datagramsize 52

PPP Serial4(i): lcp_rlqr() state = OPEN magic = D3454, len = 48

PPP Serial4(i): pkt type 0xC021, datagramsize 16

PPP Serial4: I LCP ECHOREQ(9) id 6 (C) magic D3454

PPP Serial4: input(C021) state = OPEN code = ECHOREQ(9) id = 6 len = 12

PPP Serial4: O LCP ECHOREP(A) id 6 (C) magic D21B4

PPP Serial4(o): lcp_slqr() state = OPEN magic = D21B4, len = 48

PPP Serial4(i): pkt type 0xC025, datagramsize 52

PPP Serial4(i): lcp_rlqr() state = OPEN magic = D3454, len = 48

PPP Serial4(i): pkt type 0xC021, datagramsize 16

PPP Serial4: I LCP ECHOREQ(9) id 7 (C) magic D3454

PPP Serial4: input(C021) state = OPEN code = ECHOREQ(9) id = 7 len = 12

PPP Serial4: O LCP ECHOREP(A) id 7 (C) magic D21B4

PPP Serial4(o): lcp_slqr() state = OPEN magic = D21B4, len = 48

Table 282 describes the significant fields shown in the display.

Table 282 debug ppp packet Field Descriptions

Field	Description
PPP	PPP debugging output.
Serial4	Interface number associated with this debugging information.
(o), O	Packet was detected as an output packet.
(i), I	Packet was detected as an input packet.
lcp_slqr()	Procedure name; running LQM, send a Link Quality Report (LQR).
lcp_rlqr()	Procedure name; running LQM, received an LQR.
input (C021)	Router received a packet of the specified packet type (in hexadecimal notation). A value of C025 indicates packet of type LQM.
state = OPEN	PPP state; normal state is OPEN.
magic = D21B4	Magic Number for indicated node; when output is indicated, this is the Magic Number of the node on which debugging is enabled. The actual Magic Number depends on whether the packet detected is indicated as I or O.
datagramsize 52	Packet length including header.
code = ECHOREQ(9)	Identifies the type of packet received. Both forms of the packet, string and hexadecimal, are presented.
len = 48	Packet length without header.
id = 3	ID number per Link Control Protocol (LCP) packet format.
pkt type 0xC025	Packet type in hexadecimal notation; typical packet types are C025 for LQM and C021 for LCP.
LCP ECHOREQ(9)	Echo Request; value in parentheses is the hexadecimal representation of the LCP type.
LCP ECHOREP(A)	Echo Reply; value in parentheses is the hexadecimal representation of the LCP type.

To elaborate on the displayed output, consider the partial exchange. This sequence shows that one side is using ECHO for its keepalives and the other side is using LQRs.

Router# debug ppp packet

PPP Serial4(o): lcp_slqr() state = OPEN magic = D21B4, len = 48

PPP Serial4(i): pkt type 0xC025, datagramsize 52

PPP Serial4(i): lcp_rlqr() state = OPEN magic = D3454, len = 48

PPP Serial4(i): pkt type 0xC021, datagramsize 16

PPP Serial4: I LCP ECHOREQ(9) id 3 (C) magic D3454

PPP Serial4: input(C021) state = OPEN code = ECHOREQ(9) id = 3 len = 12

PPP Serial4: O LCP ECHOREP(A) id 3 (C) magic D21B4

PPP Serial4(o): lcp_slqr() state = OPEN magic = D21B4, len = 48

The first line states that the router with debugging enabled has sent an LQR to the other side of the PPP connection:

PPP Serial4(o): lcp_slqr() state = OPEN magic = D21B4, len = 48

The next two lines indicate that the router has received a packet of type C025 (LQM) and provides details about the packet:

PPP Serial4(i): pkt type 0xC025, datagramsize 52

PPP Serial4(i): lcp_rlqr() state = OPEN magic = D3454, len = 48

The next two lines indicate that the router received an ECHOREQ of type C021 (LCP). The other side is sending ECHOs. The router on which debugging is configured for LQM but also responds to ECHOs.

PPP Serial4(i): pkt type 0xC021, datagramsize 16

PPP Serial4: I LCP ECHOREQ(9) id 3 (C) magic D3454

Next, the router is detected to have responded to the ECHOREQ with an ECHOREP and is preparing to send out an LQR:

PPP Serial4: O LCP ECHOREP(A) id 3 (C) magic D21B4

PPP Serial4(o): lcp_slqr() state = OPEN magic = D21B4, len = 48

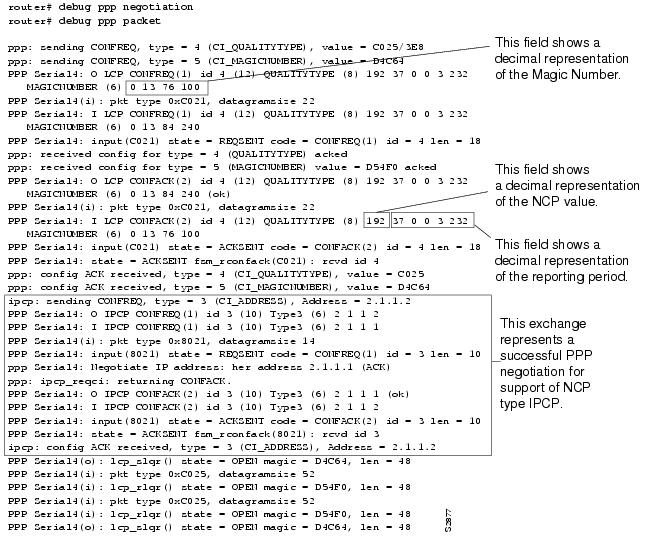

The following is sample output from the debug ppp negotiation command. This is a normal negotiation, where both sides agree on Network Control Program (NCP) parameters. In this case, protocol type IP is proposed and acknowledged.

Router# debug ppp negotiation

ppp: sending CONFREQ, type = 4 (CI_QUALITYTYPE), value = C025/3E8

ppp: sending CONFREQ, type = 5 (CI_MAGICNUMBER), value = 3D56CAC

ppp: received config for type = 4 (QUALITYTYPE) acked

ppp: received config for type = 5 (MAGICNUMBER) value = 3D567F8 acked (ok)

PPP Serial4: state = ACKSENT fsm_rconfack(C021): rcvd id 5

ppp: config ACK received, type = 4 (CI_QUALITYTYPE), value = C025

ppp: config ACK received, type = 5 (CI_MAGICNUMBER), value = 3D56CAC

ppp: ipcp_reqci: returning CONFACK.

 (ok)

PPP Serial4: state = ACKSENT fsm_rconfack(8021): rcvd id 4

Table 283 describes significant fields shown in the display.

Table 283 debug ppp negotiation Field Descriptions

Field	Description
ppp	PPP debugging output.
sending CONFREQ	Router sent a configuration request.
type = 4 (CI_QUALITYTYPE)	Type of LCP configuration option that is being negotiated and a descriptor. A type value of 4 indicates Quality Protocol negotiation; a type value of 5 indicates Magic Number negotiation.
value = C025/3E8	For Quality Protocol negotiation, indicates NCP type and reporting period. In the example, C025 indicates LQM; 3E8 is a hexadecimal value translating to about 10 seconds (in hundredths of a second).
value = 3D56CAC	For Magic Number negotiation, indicates the Magic Number being negotiated.
received config	Receiving node has received the proposed option negotiation for the indicated option type.
acked	Acknowledgment and acceptance of options.
state = ACKSENT	Specific PPP state in the negotiation process.
ipcp_reqci	IPCP notification message; sending CONFACK.
fsm_rconfack (8021)	Procedure fsm_rconfack processes received CONFACKs, and the protocol (8021) is IP.

The first two lines indicate that the router is trying to bring up LCP and will use the indicated negotiation options (Quality Protocol and Magic Number). The value fields are the values of the options themselves. C025/3E8 translates to Quality Protocol LQM. 3E8 is the reporting period (in hundredths of a second). 3D56CAC is the value of the Magic Number for the router.

ppp: sending CONFREQ, type = 4 (CI_QUALITYTYPE), value = C025/3E8

ppp: sending CONFREQ, type = 5 (CI_MAGICNUMBER), value = 3D56CAC

The next two lines indicate that the other side negotiated for options 4 and 5 as requested and acknowledged both. If the responding end does not support the options, a CONFREJ is sent by the responding node. If the responding end does not accept the value of the option, a Configure-Negative-Acknowledge (CONFNAK) is sent with the value field modified.

ppp: received config for type = 4 (QUALITYTYPE) acked

ppp: received config for type = 5 (MAGICNUMBER) value = 3D567F8 acked (ok)

The next three lines indicate that the router received a CONFAK from the responding side and displays accepted option values. Use the rcvd id field to verify that the CONFREQ and CONFACK have the same ID field.

PPP Serial4: state = ACKSENT fsm_rconfack(C021): rcvd id 5

ppp: config ACK received, type = 4 (CI_QUALITYTYPE), value = C025

ppp: config ACK received, type = 5 (CI_MAGICNUMBER), value = 3D56CAC

The next line indicates that the router has IP routing enabled on this interface and that the IPCP NCP negotiated successfully:

ppp: ipcp_reqci: returning CONFACK.

In the last line, the state of the router is listed as ACKSENT.

PPP Serial4: state = ACKSENT fsm_rconfack(C021): rcvd id 5\

The following is sample output from when the debug ppp packet and debug ppp negotiation commands are enabled at the same time.

The following is sample output from the debug ppp negotiation command when the remote side of the connection is unable to respond to LQM requests:

Router# debug ppp negotiation

ppp: sending CONFREQ, type = 4 (CI_QUALITYTYPE), value = C025/3E8

ppp: sending CONFREQ, type = 5 (CI_MAGICNUMBER), value = 44B7010

ppp: sending CONFREQ, type = 4 (CI_QUALITYTYPE), value = C025/3E8

ppp: sending CONFREQ, type = 5 (CI_MAGICNUMBER), value = 44B7010

ppp: sending CONFREQ, type = 4 (CI_QUALITYTYPE), value = C025/3E8

ppp: sending CONFREQ, type = 5 (CI_MAGICNUMBER), value = 44B7010

ppp: sending CONFREQ, type = 4 (CI_QUALITYTYPE), value = C025/3E8

ppp: sending CONFREQ, type = 5 (CI_MAGICNUMBER), value = 44B7010

ppp: sending CONFREQ, type = 4 (CI_QUALITYTYPE), value = C025/3E8

ppp: sending CONFREQ, type = 5 (CI_MAGICNUMBER), value = 44B7010

ppp: sending CONFREQ, type = 4 (CI_QUALITYTYPE), value = C025/3E8

ppp: sending CONFREQ, type = 5 (CI_MAGICNUMBER), value = 44B7010

ppp: sending CONFREQ, type = 4 (CI_QUALITYTYPE), value = C025/3E8

ppp: sending CONFREQ, type = 5 (CI_MAGICNUMBER), value = 44B7010

ppp: sending CONFREQ, type = 4 (CI_QUALITYTYPE), value = C025/3E8

ppp: sending CONFREQ, type = 5 (CI_MAGICNUMBER), value = 44B7010

ppp: sending CONFREQ, type = 4 (CI_QUALITYTYPE), value = C025/3E8

ppp: sending CONFREQ, type = 5 (CI_MAGICNUMBER), value = 44B7010

ppp: sending CONFREQ, type = 4 (CI_QUALITYTYPE), value = C025/3E8

ppp: sending CONFREQ, type = 5 (CI_MAGICNUMBER), value = 44B7010

ppp: sending CONFREQ, type = 4 (CI_QUALITYTYPE), value = C025/3E8

ppp: sending CONFREQ, type = 5 (CI_MAGICNUMBER), value = 44B7010

ppp: sending CONFREQ, type = 4 (CI_QUALITYTYPE), value = C025/3E8

ppp: sending CONFREQ, type = 5 (CI_MAGICNUMBER), value = 44C1488

The following is sample output when no response is detected for configuration requests (with both the debug ppp negotiation and debug ppp packet commands enabled):

Router# debug ppp negotiation

Router# debug ppp packet

ppp: sending CONFREQ, type = 4 (CI_QUALITYTYPE), value = C025/3E8

ppp: sending CONFREQ, type = 5 (CI_MAGICNUMBER), value = 44DFDC8

PPP Serial4: O LCP CONFREQ(1) id 14 (12) QUALITYTYPE (8) 192 37 0 0 3 232

   MAGICNUMBER (6) 4 77 253 200

ppp: TIMEout: Time= 44E0980 State= 3

ppp: sending CONFREQ, type = 4 (CI_QUALITYTYPE), value = C025/3E8

ppp: sending CONFREQ, type = 5 (CI_MAGICNUMBER), value = 44DFDC8

PPP Serial4: O LCP CONFREQ(1) id 15 (12) QUALITYTYPE (8) 192 37 0 0 3 232

   MAGICNUMBER (6) 4 77 253 200

ppp: TIMEout: Time= 44E1828 State= 3

ppp: sending CONFREQ, type = 4 (CI_QUALITYTYPE), value = C025/3E8

ppp: sending CONFREQ, type = 5 (CI_MAGICNUMBER), value = 44DFDC8

PPP Serial4: O LCP CONFREQ(1) id 16 (12) QUALITYTYPE (8) 192 37 0 0 3 232

   MAGICNUMBER (6) 4 77 253 200

ppp: TIMEout: Time= 44E27C8 State= 3

ppp: sending CONFREQ, type = 4 (CI_QUALITYTYPE), value = C025/3E8

ppp: sending CONFREQ, type = 5 (CI_MAGICNUMBER), value = 44DFDC8

PPP Serial4: O LCP CONFREQ(1) id 17 (12) QUALITYTYPE (8) 192 37 0 0 3 232

   MAGICNUMBER (6) 4 77 253 200

ppp: TIMEout: Time= 44E3768 State= 3

The following is sample output from the debug ppp error command. These messages might appear when the Quality Protocol option is enabled on an interface that is already running PPP.

Router# debug ppp error

PPP Serial3(i): rlqr receive failure. successes = 15

PPP: myrcvdiffp = 159 peerxmitdiffp = 41091

PPP: myrcvdiffo = 2183 peerxmitdiffo = 1714439

PPP: threshold = 25

PPP Serial4(i): rlqr transmit failure. successes = 15

PPP: myxmitdiffp = 41091 peerrcvdiffp = 159

PPP: myxmitdiffo = 1714439 peerrcvdiffo = 2183

PPP: l->OutLQRs = 1 LastOutLQRs = 1

PPP: threshold = 25

PPP Serial3(i): lqr_protrej() Stop sending LQRs.

PPP Serial3(i): The link appears to be looped back.

Table 284 describes the significant fields shown in the display.

Table 284 debug ppp error Field Descriptions

Field	Description
PPP	PPP debugging output.
Serial3(i)	Interface number associated with this debugging information; indicates that this is an input packet.
rlqr receive failure	Request to negotiate the Quality Protocol option is not accepted.
myrcvdiffp = 159	Number of packets received over the time period.
peerxmitdiffp = 41091	Number of packets sent by the remote node over this period.
myrcvdiffo = 2183	Number of octets received over this period.
peerxmitdiffo = 1714439	Number of octets sent by the remote node over this period.
threshold = 25	Maximum error percentage acceptable on this interface. This percentage is calculated by the threshold value entered in the ppp quality number interface configuration command. A value of 100 - number (100 minus number) is the maximum error percentage. In this case, a number of 75 was entered. This means that the local router must maintain a minimum 75 percent non-error percentage, or the PPP link will be considered down.
OutLQRs = 1	Local router's current send LQR sequence number.
LastOutLQRs = 1	The last sequence number that the remote node side has seen from the local node.

The following is sample output from the debug ppp authentication command. Use this command to determine why an authentication fails.

Router# debug ppp authentication

Serial0: Unable to authenticate. No name received from peer

Serial0: Unable to validate CHAP response. USERNAME pioneer not found.

Serial0: Unable to validate CHAP response. No password defined for USERNAME pioneer

Serial0: Failed CHAP authentication with remote.

Remote message is Unknown name

Serial0: remote passed CHAP authentication.

Serial0: Passed CHAP authentication with remote.

Serial0: CHAP input code = 4 id = 3 len = 48

In general, these messages are self-explanatory. Fields that can show optional output are outlined in Table 285.

Table 285 debug ppp authentication Field Descriptions

Field	Description
Serial0	Interface number associated with this debugging information and CHAP access session in question.
USERNAME pioneer not found.	The name pioneer in this example is the name received in the CHAP response. The router looks up this name in the list of usernames that are configured for the router.
Remote message is Unknown name	The following messages can appear: •No name received to authenticate •Unknown name •No secret for given name •Short MD5 response received •MD compare failed
code = 4	Specific CHAP type packet detected. Possible values are as follows: •1—Challenge •2—Response •3—Success •4—Failure
id = 3	ID number per LCP packet format.
len = 48	Packet length without header.

The following shows sample output from the debug ppp command using the cbcp keyword. This output depicts packet exchanges under normal PPP operation where the Cisco access server is waiting for the remote PC to respond to the MSCB request. The router also has debug ppp negotiation and service timestamps msec commands enabled.

Router# debug ppp cbcp

Dec 17 00:48:11.302: As8 MCB: User mscb Callback Number - Client ANY

Dec 17 00:48:11.306: Async8 PPP: O MCB Request(1) id 1 len 9

Dec 17 00:48:11.310: Async8 MCB: O  1  1  0  9  2  5  0  1  0

Dec 17 00:48:11.314: As8 MCB: O Request Id 1 Callback Type Client-Num delay 0

Dec 17 00:48:13.342: As8 MCB: Timeout in state WAIT_RESPONSE

Dec 17 00:48:13.346: Async8 PPP: O MCB Request(1) id 2 len 9

Dec 17 00:48:13.346: Async8 MCB: O  1  2  0  9  2  5  0  1  0

Dec 17 00:48:13.350: As8 MCB: O Request Id 2 Callback Type Client-Num delay 0

Dec 17 00:48:15.370: As8 MCB: Timeout in state WAIT_RESPONSE

Dec 17 00:48:15.374: Async8 PPP: O MCB Request(1) id 3 len 9

Dec 17 00:48:15.374: Async8 MCB: O  1  3  0  9  2  5  0  1  0

Dec 17 00:48:15.378: As8 MCB: O Request Id 3 Callback Type Client-Num delay 0

Dec 17 00:48:17.398: As8 MCB: Timeout in state WAIT_RESPONSE

Dec 17 00:48:17.402: Async8 PPP: O MCB Request(1) id 4 len 9

Dec 17 00:48:17.406: Async8 MCB: O  1  4  0  9  2  5  0  1  0

Dec 17 00:48:17.406: As8 MCB: O Request Id 4 Callback Type Client-Num delay 0

Dec 17 00:48:19.426: As8 MCB: Timeout in state WAIT_RESPONSE

Dec 17 00:48:19.430: Async8 PPP: O MCB Request(1) id 5 len 9

Dec 17 00:48:19.430: Async8 MCB: O  1  5  0  9  2  5  0  1  0

Dec 17 00:48:19.434: As8 MCB: O Request Id 5 Callback Type Client-Num delay 0

Dec 17 00:48:21.454: As8 MCB: Timeout in state WAIT_RESPONSE

Dec 17 00:48:21.458: Async8 PPP: O MCB Request(1) id 6 len 9

Dec 17 00:48:21.462: Async8 MCB: O  1  6  0  9  2  5  0  1  0

Dec 17 00:48:21.462: As8 MCB: O Request Id 6 Callback Type Client-Num delay 0

Dec 17 00:48:23.482: As8 MCB: Timeout in state WAIT_RESPONSE

Dec 17 00:48:23.486: Async8 PPP: O MCB Request(1) id 7 len 9

Dec 17 00:48:23.490: Async8 MCB: O  1  7  0  9  2  5  0  1  0

Dec 17 00:48:23.490: As8 MCB: O Request Id 7 Callback Type Client-Num delay 0

Dec 17 00:48:25.510: As8 MCB: Timeout in state WAIT_RESPONSE

Dec 17 00:48:25.514: Async8 PPP: O MCB Request(1) id 8 len 9

Dec 17 00:48:25.514: Async8 MCB: O  1  8  0  9  2  5  0  1  0

Dec 17 00:48:25.518: As8 MCB: O Request Id 8 Callback Type Client-Num delay 0

Dec 17 00:48:26.242: As8 PPP: I pkt type 0xC029, datagramsize 18

Dec 17 00:48:26.246: Async8 PPP: I MCB Response(2) id 8 len 16

Dec 17 00:48:26.250: Async8 MCB: I  2  8  0  10  2  C  C  1  32  34  39  32  36  31  33  0

Dec 17 00:48:26.254: As8 MCB: Received response

Dec 17 00:48:26.258: As8 MCB: Response CBK-Client-Num 2 12 12,  addr 1-2492613

Dec 17 00:48:26.262: Async8 PPP: O MCB Ack(3) id 9 len 16

Dec 17 00:48:26.266: Async8 MCB: O  3  9  0  10  2  C  C  1  32  34  39  32  36  31  33  0

Dec 17 00:48:26.270: As8 MCB: O Ack Id 9 Callback Type Client-Num delay 12

Dec 17 00:48:26.270: As8 MCB: Negotiated MCB with peer

Dec 17 00:48:26.390: As8 LCP: I TERMREQ [Open] id 4 len 8 (0x00000000)

Dec 17 00:48:26.390: As8 LCP: O TERMACK [Open] id 4 len 4

Dec 17 00:48:26.394: As8 MCB: Peer terminating the link

Dec 17 00:48:26.402: As8 MCB: Initiate Callback for mscb at 2492613 using Async

The following is sample output from the debug ppp compression command with service timestamps enabled and shows a typical PPP packet exchange between the router and Microsoft client where the MPPC header sequence numbers increment correctly:

Router# debug ppp compression

00:04:14: BR0:1 MPPC: Decomp - hdr/exp_cc# 0x2003/0x0003

00:04:14: BR0:1 MPPC: Decomp - hdr/exp_cc# 0x2004/0x0004

00:04:14: BR0:1 MPPC: Decomp - hdr/exp_cc# 0x2005/0x0005

00:04:14: BR0:1 MPPC: Decomp - hdr/exp_cc# 0x2006/0x0006

00:04:14: BR0:1 MPPC: Decomp - hdr/exp_cc# 0x2007/0x0007

Table 286 describes the significant fields shown in the display.

Table 286 debug ppp compression Field Descriptions

Field	Description
interface	Interface enabled with MPPC.
Decomp - hdr/	Decompression header and bit settings.
exp_cc#	Expected coherency count.
0x2003	Received sequence number.
0x0003	Expected sequence number.

The following shows sample output from debug ppp negotiation and debug ppp error commands, which can be used to troubleshoot initial PPP negotiation and setup errors. This example shows a virtual interface (virtual interface 1) during normal PPP operation and CCP negotiation.

Router# debug ppp negotiation error

Vt1 PPP: Unsupported or un-negotiated protocol. Link arp

VPDN: Chap authentication succeeded for p5200

Vi1 PPP: Phase is DOWN, Setup

Vi1 VPDN: Virtual interface created for dinesh@cisco.com

Vi1 VPDN: Set to Async interface

Vi1 PPP: Phase is DOWN, Setup

Vi1 VPDN: Clone from Vtemplate 1 filterPPP=0 blocking

Vi1 CCP: Re-Syncing history using legacy method

%LINK-3-UPDOWN: Interface Virtual-Access1, changed state to up

Vi1 PPP: Treating connection as a dedicated line

Vi1 PPP: Phase is ESTABLISHING, Active Open

Vi1 LCP: O CONFREQ [Closed] id 1 len 25

Vi1 LCP:    ACCM 0x000A0000 (0x0206000A0000)

Vi1 LCP:    AuthProto CHAP (0x0305C22305)

Vi1 LCP:    MagicNumber 0x000FB69F (0x0506000FB69F)

Vi1 LCP:    PFC (0x0702)

Vi1 LCP:    ACFC (0x0802)

Vi1 VPDN: Bind interface direction=2

Vi1 PPP: Treating connection as a dedicated line

Vi1 LCP: I FORCED CONFREQ len 21

Vi1 LCP:    ACCM 0x000A0000 (0x0206000A0000)

Vi1 LCP:    AuthProto CHAP (0x0305C22305)

Vi1 LCP:    MagicNumber 0x12A5E4B5 (0x050612A5E4B5)

Vi1 LCP:    PFC (0x0702)

Vi1 LCP:    ACFC (0x0802)

Vi1 VPDN: PPP LCP accepted sent & rcv CONFACK

Vi1 PPP: Phase is AUTHENTICATING, by this end

Vi1 CHAP: O CHALLENGE id 1 len 27 from "l_4000"

Vi1 CHAP: I RESPONSE id 20 len 37 from "dinesh@cisco.com"

Vi1 CHAP: O SUCCESS id 20 len 4

Vi1 PPP: Phase is UP

Vi1 IPCP: O CONFREQ [Closed] id 1 len 10

Vi1 IPCP:    Address 15.2.2.3 (0x03060F020203)

Vi1 CCP: O CONFREQ [Not negotiated] id 1 len 10

Vi1 CCP:    MS-PPC supported bits 0x00000001 (0x120600000001)

Vi1 IPCP: I CONFREQ [REQsent] id 1 len 34

Vi1 IPCP:    Address 0.0.0.0 (0x030600000000)

Vi1 IPCP:    PrimaryDNS 0.0.0.0 (0x810600000000)

Vi1 IPCP:    PrimaryWINS 0.0.0.0 (0x820600000000)

Vi1 IPCP:    SecondaryDNS 0.0.0.0 (0x830600000000)

Vi1 IPCP:    SecondaryWINS 0.0.0.0 (0x840600000000)

Vi1 IPCP: Using the default pool

Vi1 IPCP: Pool returned 11.2.2.5

Vi1 IPCP: O CONFREJ [REQsent] id 1 len 16

Vi1 IPCP:    PrimaryWINS 0.0.0.0 (0x820600000000)

Vi1 IPCP:    SecondaryWINS 0.0.0.0 (0x840600000000)

Vi1 CCP: I CONFREQ [REQsent] id 1 len 15

Vi1 CCP:    MS-PPC supported bits 0x00000001 (0x120600000001)

Vi1 CCP:    Stacker history 1 check mode EXTENDED (0x1105000104)

Vi1 CCP: Already accepted another CCP option, rejecting this STACKER

Vi1 CCP: O CONFREJ [REQsent] id 1 len 9

Vi1 CCP:    Stacker history 1 check mode EXTENDED (0x1105000104)

Vi1 IPCP: I CONFACK [REQsent] id 1 len 10

Vi1 IPCP:    Address 15.2.2.3 (0x03060F020203)

Vi1 CCP: I CONFACK [REQsent] id 1 len 10

Vi1 CCP:    MS-PPC supported bits 0x00000001 (0x120600000001)

Vi1 CCP: I CONFREQ [ACKrcvd] id 2 len 10

Vi1 CCP:    MS-PPC supported bits 0x00000001 (0x120600000001)

Vi1 CCP: O CONFACK [ACKrcvd] id 2 len 10

Vi1 CCP:    MS-PPC supported bits 0x00000001 (0x120600000001)

Vi1 CCP: State is Open

Vi1 IPCP: I CONFREQ [ACKrcvd] id 2 len 22

Vi1 IPCP:    Address 0.0.0.0 (0x030600000000)

Vi1 IPCP:    PrimaryDNS 0.0.0.0 (0x810600000000)

Vi1 IPCP:    SecondaryDNS 0.0.0.0 (0x830600000000)

Vi1 IPCP: O CONFNAK [ACKrcvd] id 2 len 22

Vi1 IPCP:    Address 11.2.2.5 (0x03060B020205)

Vi1 IPCP:    PrimaryDNS 171.69.1.148 (0x8106AB450194)

Vi1 IPCP:    SecondaryDNS 171.69.2.132 (0x8306AB450284)

Vi1 IPCP: I CONFREQ [ACKrcvd] id 3 len 22

Vi1 IPCP:    Address 11.2.2.5 (0x03060B020205)

Vi1 IPCP:    PrimaryDNS 171.69.1.148 (0x8106AB450194)

Vi1 IPCP:    SecondaryDNS 171.69.2.132 (0x8306AB450284)

Vi1 IPCP: O CONFACK [ACKrcvd] id 3 len 22

Vi1 IPCP:    Address 11.2.2.5 (0x03060B020205)

Vi1 IPCP:    PrimaryDNS 171.69.1.148 (0x8106AB450194)

Vi1 IPCP:    SecondaryDNS 171.69.2.132 (0x8306AB450284)

Vi1 IPCP: State is Open

Vi1 IPCP: Install route to 11.2.2.5

debug ppp bap

To display general Bandwidth Allocation Control Protocol (BACP) transactions, use the debug ppp bap command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug ppp bap [error | event | negotiation]

no debug ppp bap [error | event | negotiation]

Syntax Description

error	(Optional) Displays local errors.
event	(Optional) Displays information about protocol actions and transitions between action states (pending, waiting, idle) on the link.
negotiation	(Optional) Displays successive steps in negotiations between peers.

Command Modes

Privileged EXEC

Usage Guidelines

Do not use this command when memory is scarce or in very high traffic situations.

Examples

The following types of events generate the debugging messages displayed in the figures in this section:

•A dial attempt failed.

•A BACP group was created.

•A BACP group was removed.

•The precedence of the group changed.

•Attempting to dial a number.

•Received a BACP message.

•Discarding a BACP message.

•Received an unknown code.

•Cannot find the appropriate BACP group on input.

•Displaying the response type.

•Incomplete mandatory options notification.

•Invalid outgoing message type.

•Unable to build an output message.

•Sending a BACP message.

•Details about the sent message (type of message, its identifier, the virtual access interface that sent it).

The following is sample output from the debug ppp bap command:

Router# debug ppp bap

BAP Virtual-Access1: group "laudrup" (2) (multilink) without precedence created

BAP laudrup: sending CallReq, id 2, len 38 on BRI3:1 to remote

BAP Virtual-Access1: received CallRsp, id 2, len 13

BAP laudrup: CallRsp, id 2, ACK

BAP laudrup: attempt1 to dial 19995776677 on BRI3

 ---> reason BAP - Multilink bundle overloaded

BAP laudrup: sending StatusInd, id 2, len 44 on Virtual-Access1 to remote

BAP Virtual-Access1: received StatusRsp, id 2, len 1

BAP laudrup: StatusRsp, id 2, ACK

Table 287 describes the significant fields shown in the display.

Table 287 debug ppp bap Field Descriptions

Field	Description
BAP Virtual-Access1:	Identifier of the virtual access interface in use.
group "laudrup"	Name of the BACP group.
sending CallReq	Action initiated; in this case, sending a call request.
on BRI3:1 to remote	Physical interface being used.
BAP laudrup: attempt1 to dial 19995776677 on BRI3 ---> reason BAP - Multilink bundle overloaded	Call initiated, number being dialed, and physical interface being used. Reason for initiating the BACP call.
BAP laudrup: sending StatusInd, id 2, len 44 on Virtual-Access1 to remote	Details about the sent message: It was a status indication message, had identifier 2, had a BACP datagram length 44, and was sent on virtual access interface 1. You can display information about the virtual access interface by using the show interfaces virtual-access EXEC command. (The length shown at the end of each negotiated option includes the 2-byte type and length header.)

The debug ppp bap event command might show state transitions and protocol actions, in addition to the basic debug ppp bap command.

The following is sample output from the debug ppp bap event command:

Router# debug ppp bap event

BAP laudrup: Idle --> AddWait

BAP laudrup: AddWait --> AddPending

BAP laudrup: AddPending --> Idle

The following is sample output from the debug ppp bap event command:

Router# debug ppp bap event

Peer does not support a message type

No response to a particular request

No response to all request retransmissions

Not configured to initiate link addition

Expected action by peer has not occurred

Exceeded number of retries

No links available to call out

Unable to provide phone numbers for callback

Maximum number of links in the group

Minimum number of links in the group

Unable to process link addition at present

Unable to process link removal at present

Not configured/unable to initiate link removal

Link addition completed notification

Link addition failed notification

Determination of location of the group config

Link with specified discriminator not in group

Link removal failed

Call failure with status

Failed to dial specified number

Discarding retransmission

Unable to find received identifier

Received StatusInd when no call pending

Discarding message with no phone delta

Unable to send message in particular state

Received a zero identifier

Request has precedence

The error messages displayed might be added to the basic output when the debug ppp bap error command is used. Because the errors are very rare, you might never see these messages.

Router# debug ppp bap error

Unable to find appropriate request for received response

Invalid message type of queue

Received request is not part of the group

Add link attempt failed to locate group

Remove link attempt failed to locate group

Unable to inform peer of link addition

Changing of precedence cannot locate group

Received short header/illegal length/short packet

Invalid configuration information length

Unable to NAK incomplete options

Unable to determine current number of links

No interface list to dial on

Attempt to send invalid data

Local link discriminator is not in group

Received response type is incorrect for identifier

The messages displayed might be added to the basic output when the debug ppp bap negotiation command is used:

Router# debug ppp bap negotiation

BAP laudrup: adding link speed 64 kbps for type 0x1 len 5

BAP laudrup: adding reason "User initiated addition", len 25

BAP laudrup: CallRsp, id 4, ACK

BAP laudrup: link speed 64 kbps for types 0x1, len 5 (ACK)

BAP laudrup: phone number "1: 0 2: ", len 7 (ACK)

BAP laudrup: adding call status 0, action 0 len 4

BAP laudrup: adding 1 phone numbers "1: 0 2: " len 7

BAP laudrup: adding reason "Successfully added link", len 25

BAP laudrup: StatusRsp, id 4, ACK

Additional negotiation messages might also be displayed for the following:

Received BAP message

Sending message

Decode individual options for send/receive

Notification of invalid options

The following shows additional reasons for a particular BAP action that might be displayed in an "adding reason" line of the debug ppp bap negotiation command output:

"Outgoing add request has precedence"

"Outgoing remove request has precedence"

"Unable to change request precedence"

"Unable to determine valid phone delta"

"Attempting to add link"

"Link addition is pending"

"Attempting to remove link"

"Link removal is pending"

"Precedence of peer marked CallReq for no action"

"Callback request rejected due to configuration"

"Call request rejected due to configuration"

"No links of specified type(s) available"

"Drop request disallowed due to configuration"

"Discriminator is invalid"

"No response to call requests"

"Successfully added link"

"Attempt to dial destination failed"

"No interfaces present to dial out"

"No dial string present to dial out"

"Mandatory options incomplete"

"Load has not exceeded threshold"

"Load is above threshold"

"Currently attempting to dial destination"

"No response to CallReq from race condition"

Table 288 describes the reasons for a BACP Negotiation Action.

Table 288 Explanation of Reasons for BACP Negotiation Action

Reason	Explanation
"Outgoing add request has precedence"	Received a CallRequest or CallbackRequest while we were waiting on a CallResponse or CallbackResponse to a sent request. We are the favored peer from the initial BACP negotiation, so we are issuing a NAK to our peer request.
"Outgoing remove request has precedence"	Received a LinkDropQueryRequest while waiting on a LinkDropQueryResponse to a sent request. We are the favored peer from the initial BACP negotiation, therefore we are issuing a NAK to our peer request.
"Unable to change request precedence"	Received a CallRequest, CallbackRequest, or LinkDropQueryRequest while waiting on a LinkDropQueryResponse to a sent request. Our peer is deemed to be the favored peer from the initial BACP negotiation and we were unable to change the status of our outgoing request in response to the favored request, so we are issuing a NAK. (This is an internal error and should never be seen.)
"Unable to determine valid phone delta"	Received a CallRequest from our peer but are unable to provide the required phone delta for the response, so we are issuing a NAK. (This is an internal error and should never be seen.)
"Attempting to add link"	Received a LinkDropQueryRequest while attempting to add a link; a NAK is issued.
"Link addition is pending"	Received a LinkDropQueryRequest, CallRequest, or CallbackRequest while attempting to add a link as the result of a previous operation; a NAK is issued in the response.
"Attempting to remove link"	Received a CallRequest or CallbackRequest while attempting to remove a link; a NAK is issued.
"Link removal is pending"	Received a CallRequest, CallbackRequest, or LinkDropQueryRequest while attempting to remove a link as the result of a previous operation; a NAK is issued in the response.
"Precedence of peer marked CallReq for no action"	Received an ACK to a previously unfavored CallRequest; we are issuing a CallStatusIndication to inform our peer that there will be no further action on our part as per this response.
"Callback request rejected due to configuration"	Received a CallbackRequest but we are configured not to accept them; a REJect is issued to our peer.
"Call request rejected due to configuration"	Received a CallRequest but we are configured not to accept them; a REJect is issued to our peer.
"No links of specified type(s) available"	We received a CallRequest but no links of the specified type and speed are available; a NAK is issued.
"Drop request disallowed due to configuration"	Received a LinkDropQueryRequest but we are configured not to accept them; a NAK is issued to our peer.
"Discriminator is invalid"	Received a LinkDropQueryRequest but the local link discriminator is not contained within the bundle; a NAK is issued.
"No response to call requests"	After no response to our CallRequest message, a CallStatusIndication is sent to the peer informing that no more action will be taken on behalf of this operation.
"Successfully added link"	Sent as part of the CallStatusIndication informing our peer that we successfully completed the addition of a link to the bundle as the result of the transmission of a CallRequest or the reception of a CallbackRequest.
"Attempt to dial destination failed"	Sent as part of the CallStatusIndication informing our peer that we failed in an attempt to add a link to the bundle as the result of the transmission of a CallRequest or the reception of a CallbackRequest. The retry field with the CallStatusIndication informs the peer of our intentions.
"No interfaces present to dial out"	There are no available interfaces to dial out on to attempt to add a link to the bundle, and we will not retry the dial attempt.
"No dial string present to dial out"	We do not have a dial string to dial out with to attempt to add a link to the bundle, and we are not going to retry the dial attempt. (This is an internal error and should never be seen.)
"Mandatory options incomplete"	Received a CallRequest, CallbackRequest, LinkDropQueryRequest, or CallStatusIndication and the mandatory options are not present, so a NAK is issued in the response. (A CallStatusResponse is an ACK, however).
"Load has not exceeded threshold"	Received a CallRequest or CallbackRequest but we are issuing a NAK in the response. We are monitoring the load of the bundle, and so we determine when links should be added to the bundle.
"Load is above threshold"	Received a LinkDropQueryRequest but we are issuing a NAK in the response. We are monitoring the load of the bundle, and so we determine when links should be removed from the bundle.
"Currently attempting to dial destination"	Received a CallbackRequest which is a retransmission of one that we previously ACK'd and are dialing the number suggested in the request. We are issuing an ACK because we did so previously, even though our peer never saw the previous response.
"No response to CallReq from race condition"	We issued a CallRequest but failed to receive a response, and we are issuing a CallStatusIndication to inform our peer of our intention not to proceed with the operation.

debug ppp multilink events

To display information about events affecting multilink groups established for Bandwidth Allocation Control Protocol (BACP), use the debug ppp multilink events command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug ppp multilink events

no debug ppp multilink events

Syntax Description

This command has no arguments or keywords.

Command Modes

Privileged EXEC

Usage Guidelines

---

Caution Do not use this command when memory is scarce or in very high traffic situations.

---

Examples

The following is sample output from the debug ppp multilink events command:

Router# debug ppp multilink events

MLP laudrup: established BAP group 4 on Virtual-Access1, physical BRI3:1

MLP laudrup: removed BAP group 4

Other event messages include the following:

Unable to find bundle for BAP group identifier

Unable to find physical interface to start BAP

Unable to create BAP group

Attempt to start BACP when inactive or running

Attempt to start BACP on non-MLP interface

Link protocol has gone down, removing BAP group

Link protocol has gone down, BAP not running or present

Table 289 describes the significant fields shown in the display.

Table 289 debug ppp multilink events Field Descriptions

Field	Description
MLP laudrup	Name of the multilink group.
established BAP group 4	Internal identifier. The same identifiers are used in the show ppp bap group command output.
Virtual-Access1	Dynamic access interface number.
physical BRI3:1	Bundle was established from a call on this interface.
removed BAP group 4	When the bundle is removed, the associated BACP group (with its ID) is also removed.

debug ppp multilink fragments

To display information about individual multilink fragments and important multilink events, use the debug ppp multilink fragments command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug ppp multilink fragments

no debug ppp multilink fragments

Syntax Description

This command has no arguments or keywords.

Command Modes

Privileged EXEC

Usage Guidelines

---

Caution The debug ppp multilink fragments command has some memory overhead and should not be used when memory is scarce or in very high traffic situations.

---

Examples

The following is sample output from the debug ppp multilink fragments command when used with the ping EXEC command. The debug output indicates that a multilink PPP packet on interface BRI 0 (on the B channel) is an input (I) or output (O) packet. The output also identifies the sequence number of the packet and the size of the fragment.

Router# debug ppp multilink fragments

Router# ping 7.1.1.7

Type escape sequence to abort.

Sending 5, 100-byte ICMP Echos to 7.1.1.7, timeout is 2 seconds:

!!!!!

Success rate is 100 percent (5/5), round-trip min/avg/max = 32/34/36 ms

Router#

2:00:28: MLP BRI0: B-Channel 1: O seq 80000000: size 58

2:00:28: MLP BRI0: B-Channel 2: O seq 40000001: size 59

2:00:28: MLP BRI0: B-Channel 2: I seq 40000001: size 59

2:00:28: MLP BRI0: B-Channel 1: I seq 80000000: size 58

2:00:28: MLP BRI0: B-Channel 1: O seq 80000002: size 58

2:00:28: MLP BRI0: B-Channel 2: O seq 40000003: size 59

2:00:28: MLP BRI0: B-Channel 2: I seq 40000003: size 59

2:00:28: MLP BRI0: B-Channel 1: I seq 80000002: size 58

2:00:28: MLP BRI0: B-Channel 1: O seq 80000004: size 58

2:00:28: MLP BRI0: B-Channel 2: O seq 40000005: size 59

2:00:28: MLP BRI0: B-Channel 2: I seq 40000005: size 59

2:00:28: MLP BRI0: B-Channel 1: I seq 80000004: size 58

2:00:28: MLP BRI0: B-Channel 1: O seq 80000006: size 58

2:00:28: MLP BRI0: B-Channel 2: O seq 40000007: size 59

2:00:28: MLP BRI0: B-Channel 2: I seq 40000007: size 59

2:00:28: MLP BRI0: B-Channel 1: I seq 80000006: size 58

2:00:28: MLP BRI0: B-Channel 1: O seq 80000008: size 58

2:00:28: MLP BRI0: B-Channel 2: O seq 40000009: size 59

2:00:28: MLP BRI0: B-Channel 2: I seq 40000009: size 59

2:00:28: MLP BRI0: B-Channel 1: I seq 80000008: size 58

debug ppp multilink negotiation

---

Note Effective with release 11.3, the debug ppp multilink negotiation command is not available in Cisco IOS software.

---

To display information about events affecting multilink groups established controlled by Bandwidth Allocation Control Protocol (BACP), use the debug ppp multilink negotiation command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug ppp multilink negotiation

no debug ppp multilink negotiation

Syntax Description

This command has no arguments or keywords.

Command Modes

Privileged EXEC

Command History

Release	Modification
11.3	This command was removed and is not available in Cisco IOS software.
12.2SX	This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.

Usage Guidelines

---

Caution Do not use this command when memory is scarce or in very high traffic situations.

---

Examples

The following sample output shows Link Control Protocol (LCP) and Network Control Program (NCP) messages that might appear in debug ppp multilink negotiation command. These messages show information about PPP negotiations between the multilink peers.

Router# debug ppp multilink negotiation

ppp: sending CONFREQ, type = 23 (CI_LINK_DISCRIMINATOR), value = 0xF

PPP BRI3:1: received config for type = 23 (LINK_DISCRIMINATOR) value = 0xA acked

Router# debug ppp multilink negotiation

ppp: sending CONFREQ, type = 1 (CI_FAVORED_PEER), value = 0x647BD090

PPP Virtual-Access1: received CONFREQ, type 1, value = 0x382BBF5 (ACK)

PPP Virtual-Access1: BACP returning CONFACK

ppp: config ACK received, type = 1 (CI_FAVORED_PEER), value = 0x647BD090

PPP Virtual-Access1: BACP up

Table 290 describes the significant fields shown in the display.

Table 290 debug ppp multilink negotiation Field Descriptions

Field	Description
sending CONFREQ, type = 23 (CI_LINK_DISCRIMINATOR), value = 0xF	Sending a configuration request and the value of the link discriminator. Each peer assigns a discriminator value to identify a specific link. The values are significant to each peer individually but do not have to be shared.
PPP BRI3:1:	Physical interface being used.
CI_FAVORED_PEER	When the PPP NCP negotiation occurs over the first link in a bundle, the BACP peers use a Magic Number akin to that used by LCP to determine which peer should be favored when both implementations send a request at the same time. The peer that negotiated the higher number is deemed to be favored. That peer should issue a negative acknowledgment to its unfavored peer, which in turn should issue a positive acknowledgment, if applicable according to other link considerations.
PPP Virtual-Access1: BACP returning CONFACK	Returning acknowledgment that BACP is configured.
PPP Virtual-Access1: BACP up	Indicating that the BACP NCP is open.

debug ppp redundancy

To debug PPP synchronization on the networking device, use the debug ppp redundancy command in privileged EXEC mode. To disable the display of debugging output, use the no form of this command.

debug ppp redundancy [detailed | event]

no debug ppp redundancy [detailed | event]

Syntax Description

detailed	(Optional) Displays detailed debug messages related to specified PPP redundancy events.
event	(Optional) Displays information about protocol actions and transitions between action states (pending, waiting, idle) on the link.

Command Modes

Privileged EXEC

Command History

Release	Modification
12.0(22)S	This command was introduced on the Cisco 7500, 10000, and 12000 series Internet routers.
12.2(18)S	This command was integrated into Cisco IOS Release 12.2(18)S on Cisco 7500 series routers.
12.2(20)S	Support was added for the Cisco 7304 router. The Cisco 7500 series router is not supported in Cisco IOS Release 12.2(20)S.
12.2(28)SB	This command was integrated into Cisco IOS Release 12.2(28)SB.
12.2(33)SRA	This command was integrated into Cisco IOS Release 12.2(33)SRA.
12.2SX	This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.

Examples

The following example displays detailed debug messages related to specified PPP redundancy events:

Router# debug ppp redundancy detailed

debug pppatm

To enable debug reports for PPP over ATM (PPPoA) events, errors, and states, either globally or conditionally, on an interface or virtual circuit (VC), use the debug pppatm command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug pppatm {event | error | state} [interface atm interface-number [subinterface-number]] vc {[vpi/vci]vci | virtual-circuit-name}

no debug pppatm {event | error | state} [interface atm interface-number [subinterface-number] vc {[vpi/]vci | virtual-circuit-name}

Syntax Description

event	PPPoA events.
error	PPPoA errors.
state	PPPoA state.
interface atm interface-number [subinterface-number]	(Optional) Specifies a particular ATM interface by interface number and optionally a subinterface number separated by a period.
vc [vpi/]vci virtual-circuit-name	(Optional) Virtual circuit (VC) keyword followed by a virtual path identifier (VPI), virtual channel identifier (VCI), and VC name. A slash mark is required after the VPI.

Defaults

No default behavior or values

Command Modes

Privileged EXEC

Command History

Release	Modification
12.2(13)T	This command was introduced.
12.2(28)SB	This command was integrated into Cisco IOS Release 12.2(28)SB.
12.2SX	This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.

Usage Guidelines

Each specific PPPoA debug report must be requested on a separate command line; see the "Examples" section.

Examples

The following is example output of a PPPoA session with event, error, and state debug reports enabled on ATM interface 1/0.10:

Router# debug pppatm event interface atm1/0.10

Router# debug pppatm error interface atm1/0.10

Router# debug pppatm state interface atm1/0.10

00:03:08: PPPATM: ATM1/0.10 0/101 [1], Event = Clear Session

00:03:08: PPPATM: ATM1/0.10 0/101 [1], Event = Disconnecting

00:03:08: PPPATM: ATM1/0.10 0/101 [1], Event = AAA gets dynamic attrs

00:03:08: PPPATM: ATM1/0.10 0/101 [1], Event = AAA gets dynamic attrs

00:03:08: PPPATM: ATM1/0.10 0/101 [1], Event = SSS Cleanup

00:03:08: PPPATM: ATM1/0.10 0/101 [0], State = DOWN

00:03:08: PPPATM: ATM1/0.10 0/101 [0], Event = Up Pending

00:03:16: PPPATM: ATM1/0.10 0/101 [0], Event = Up Dequeued

00:03:16: PPPATM: ATM1/0.10 0/101 [0], Event = Processing Up

00:03:16: PPPATM: ATM1/0.10 0/101 [2], Event = Access IE allocated

00:03:16: PPPATM: ATM1/0.10 0/101 [2], Event = Set Pkts to SSS

00:03:16: PPPATM: ATM1/0.10 0/101 [2], Event = AAA gets retrived attrs

00:03:16: PPPATM: ATM1/0.10 0/101 [2], Event = AAA gets nas port details

00:03:16: PPPATM: ATM1/0.10 0/101 [2], Event = AAA gets dynamic attrs

00:03:16: PPPATM: ATM1/0.10 0/101 [2], Event = AAA gets dynamic attrs

00:03:16: PPPATM: ATM1/0.10 0/101 [2], Event = AAA unique id allocated

00:03:16: PPPATM: ATM1/0.10 0/101 [2], Event = No AAA method list set

00:03:16: PPPATM: ATM1/0.10 0/101 [2], Event = SSS Request

00:03:16: PPPATM: ATM1/0.10 0/101 [2], State = NAS_PORT_POLICY_INQUIRY

00:03:16: PPPATM: ATM1/0.10 0/101 [2], Event = SSS Msg Received = 1

00:03:16: PPPATM: ATM1/0.10 0/101 [2], State = PPP_START

00:03:16: PPPATM: ATM1/0.10 0/101 [2], Event = PPP Msg Received = 1

00:03:16: PPPATM: ATM1/0.10 0/101 [2], State = LCP_NEGOTIATION

00:03:27: PPPATM: ATM1/0.10 0/101 [2], Event = PPP Msg Received = 4

00:03:27: PPPATM: ATM1/0.10 0/101 [2], Event = HW Switch support FORW = 0

00:03:27: PPPATM: ATM1/0.10 0/101 [2], Event = Access IE get nas port

00:03:27: PPPATM: ATM1/0.10 0/101 [2], Event = AAA gets dynamic attrs

00:03:27: PPPATM: ATM1/0.10 0/101 [2], Event = AAA gets dynamic attrs

00:03:27: PPPATM: ATM1/0.10 0/101 [2], Event = PPP Msg Received = 5

00:03:27: PPPATM: ATM1/0.10 0/101 [2], Event = Set Pkts to SSS

00:03:27: PPPATM: ATM1/0.10 0/101 [2], State = FORWARDED

Table 291 describes the significant fields shown in the display.

Table 291 debug pppatm Field Descriptions

Field	Description
Event	Reports PPPoA events for use by Cisco engineering technical assistance personnel.
State	Reports PPPoA states for use by Cisco engineering technical assistance personnel.

Related Commands

Command	Description
atm pppatm passive	Places an ATM subinterface into passive mode.
show pppatm summary	Displays PPPoA session counts.

debug pppatm redundancy

To debug PPP over ATM (PPPoA) redundancy events on a dual Route Processor High Availability (HA) system and display cluster control manager (CCM) events and messages, use the debug pppatm redundancy command in privileged EXEC mode. To disable the display of debugging output, use the no form of this command.

debug pppatm redundancy [interface atm interface-number [vc {vpi/vci | vci}]]

no debug pppatm redundancy [interface atm interface-number [vc {vpi/vci | vci}]]

Syntax Description

interface atm interface-number	(Optional) Specifies a particular ATM interface by interface number.
vc	(Optional) Specifies the virtual circuit (VC).
vpi/vci	(Optional) Virtual path identifier (VPI) and virtual channel identifier (VCI) value. The range is from 0 to 255.
vci	(Optional) VCI. The range is from 1 to 65535.

Command Modes

Privileged EXEC (#)

Command History

Release	Modification
12.2(31)SB2	This command was introduced.
12.2SX	This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.
Cisco IOS XE Release 3.3S	This command was modified. The interface atm interface-number keyword-argument pair, vc keyword, and vpi/vci and vci arguments were added.

Usage Guidelines

The CCM provides the capability to facilitate and synchronize session bring-up on the standby processor of a dual Route Processor HA system. Use the debug pppatm redundancy command to display CCM events and messages for PPPoA sessions on HA systems.

To create sessions on the standby processor with the same virtual-access (sub)interface as that on the active processor, base virtual-access interface creation on the standby processor is delayed until the first PPPoA session synchronizes to the standby processor. For each session, PPPoA synchronizes information elements such as virtual access (VAccess) descriptor, physical software for interface descriptor block (swidb) descriptor, switch handle, segment handle, and ATM virtual circuit's (VC) virtual path identifier (VPI) and virtual channel identifier (VCI) numbers to the standby processor. The interface atm keywords and interface-number argument specify a particular ATM interface by interface number and the vc keyword specifies the VC.

---

Note The debug pppatm redundancy command does not display output on the active processor during normal synchronization; that is, the command displays output on the active processor only during an error condition.

---

---

Note This command is used only by Cisco engineers for internal debugging of CCM processes.

---

Examples

The following is sample output from the debug pppatm redundancy command from a Cisco 10000 series router active processor, along with sample output from the show pppatm redundancy command from the standby processor. No field descriptions are provided because command output is used for Cisco internal debugging purposes only.

Router# debug pppatm redundancy

PPP over ATM redundancy debugging is on

Router-stby# show pppatm redundancy

0 : Session recreate requests from CCM

0 : Session up events invoked

0 : Sessions reaching PTA

0 : Sessions closed by CCM

0 : Session down events invoked

0 : Queued sessions waiting for base hwidb creation

0 : Sessions queued for VC up notification so far

0 : Sessions queued for VC encap change notification so far

0 : VC activation notifications received from ATM

0 : VC encap change notifications received from ATM

0 : Total queued sessions waiting for VC notification(Encap change+VC Activation)

Related Commands

Command	Description
debug pppatm	Enables debug reports for PPPoA events, errors, and states, either globally or conditionally, on an interface or VC.

d

debug pppoe

To display debugging information for PPP over Ethernet (PPPoE) sessions, use the debug pppoe command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug pppoe {{data | errors | events | packets} [rmac remote-mac-address | interface type number [vc {[vpi/]vci | vc-name}] [vlan vlan-id]] | elog}

no debug pppoe {{data | errors | events | packets} [rmac remote-mac-address | interface type number [vc {[vpi/]vci | vc-name}] [vlan vlan-id]] | elog}

Syntax Description

data	Displays data packets of PPPoE sessions.
errors	Displays PPPoE protocol errors that prevent a session from being established, or displays errors that cause an established session to be closed.
events	Displays PPPoE protocol messages about events that are part of normal session establishment or shutdown.
packets	Displays each PPPoE protocol packet that is exchanged.
rmac remote-mac-address	(Optional) Remote MAC address. Debugging information for PPPoE sessions sourced from this address will be displayed.
interface type number	(Optional) Interface for which PPPoE session debugging information will be displayed.
vc	(Optional) Displays debugging information for PPPoE sessions for a specific permanent virtual circuit (PVC).
vpi/	(Optional) ATM network virtual path identifier (VPI) for the PVC. The vpi value defaults to 0.
vci	(Optional) ATM network virtual channel identifier (VCI) for the PVC.
vc-name	(Optional) Name of the PVC.
vlan vlan-id	(Optional) IEEE 802.1Q VLAN identifier.
elog	Displays PPPoE error logs.

Command Modes

Privileged EXEC (#)

Command History

Release	Modification
12.2(13)T	This command was introduced. This command replaces the debug vpdn pppoe-data, debug vpdn pppoe-error, debug vpdn pppoe-events, and debug vpdn pppoe-packet commands available in previous Cisco IOS releases.
12.2(15)T	This command was modified to display debugging information on a per-MAC address, per-interface, and per-VC basis.
12.3(2)T	The vlan vlan-id keyword and argument were added.
12.3(7)XI3	This command was integrated into Cisco IOS Release 12.3(7)XI3.
12.2(33)SB	This command was integrated into Cisco IOS Release 12.2(33)SB
12.2(28)SB	This command was integrated into Cisco IOS Release 12.2(28)SB.
12.2SX	This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.
12.2(33)SRC	This command was integrated into Cisco IOS Release 12.2(33)SRC.
Cisco IOS XE Release 2.1	This command was implemented on Cisco ASR 1000 series routers.

Examples

The following examples show sample output from the debug pppoe command:

Router# debug pppoe events interface atm 1/0.10 vc 101

PPPoE protocol events debugging is on

Router#

00:41:55:PPPoE 0:I PADI  R:00b0.c2e9.c470 L:ffff.ffff.ffff 0/101 ATM1/0.10

00:41:55:PPPoE 0:O PADO, R:00b0.c2e9.c470 L:0001.c9f0.0c1c 0/101 ATM1/0.10

00:41:55:PPPoE 0:I PADR  R:00b0.c2e9.c470 L:0001.c9f0.0c1c 0/101 ATM1/0.10

00:41:55:PPPoE :encap string prepared

00:41:55:[3]PPPoE 3:Access IE handle allocated

00:41:55:[3]PPPoE 3:pppoe SSS switch updated

00:41:55:[3]PPPoE 3:AAA unique ID allocated

00:41:55:[3]PPPoE 3:No AAA accounting method list

00:41:55:[3]PPPoE 3:Service request sent to SSS

00:41:55:[3]PPPoE 3:Created  R:0001.c9f0.0c1c L:00b0.c2e9.c470 0/101 ATM1/0.10

00:41:55:[3]PPPoE 3:State REQ_NASPORT    Event MORE_KEYS

00:41:55:[3]PPPoE 3:O PADS  R:00b0.c2e9.c470 L:0001.c9f0.0c1c 0/101 ATM1/0.10

00:41:55:[3]PPPoE 3:State START_PPP    Event DYN_BIND

00:41:55:[3]PPPoE 3:data path set to PPP

00:41:57:[3]PPPoE 3:State LCP_NEGO    Event PPP_LOCAL

00:41:57:PPPoE 3/SB:Sent vtemplate request on base Vi2

00:41:57:[3]PPPoE 3:State CREATE_VA    Event VA_RESP

00:41:57:[3]PPPoE 3:Vi2.1 interface obtained

00:41:57:[3]PPPoE 3:State PTA_BIND    Event STAT_BIND

00:41:57:[3]PPPoE 3:data path set to Virtual Acess

00:41:57:[3]PPPoE 3:Connected PTA

Router# debug pppoe errors interface atm 1/0.10

PPPoE protocol errors debugging is on

Router#

00:44:30:PPPoE 0:Max session count(1) on mac(00b0.c2e9.c470) reached.

00:44:30:PPPoE 0:Over limit or Resource low. R:00b0.c2e9.c470 L:ffff.ffff.ffff 0/101
ATM1/0.10

Table 292 describes the significant fields shown in the displays.

Table 292 debug pppoe Field Descriptions

Field	Description
PPPoE	PPPoE debug message header.
0:	PPPoE session ID.
I PADI	Incoming PPPoE Active Discovery Initiation packet.
R:	Remote MAC address.
L:	Local MAC address.
0/101	VPI VCI of the PVC.
ATM1/0.10	Interface type and number.
O PADO	Outgoing PPPoE Active Discovery Offer packet.
I PADR	Incoming PPPoE Active Discovery Request packet.
[3]	Unique user session ID. The same ID is used for identifying sessions across different applications such as PPPoE, PPP, Layer 2 Tunneling Protocol (L2TP), and Subscriber Service Switch (SSS). The same session ID appears in the output for the show pppoe session, show sss session, and show vpdn session commands.
PPPoE 3	PPPoE session ID.
Created	PPPoE session is created.
O PADS	Outgoing PPPoE Active Discovery Session-confirmation packet.
Connected PTA	PPPoE session is established.
Max session count(1) on mac(00b0.c2e9.c470) reached	PPPoE session is rejected because of per-MAC session limit.

Related Commands

Command	Description
encapsulation aal5autoppp virtual-template	Enables PPPoA/PPPoE autosense.
pppoe enable	Enables PPPoE sessions on an Ethernet interface or subinterface.
protocol pppoe (ATM VC)	Enables PPPoE sessions to be established on PVCs.
show pppoe session	Displays information about active PPPoE sessions.
show sss session	Displays Subscriber Service Switch session status.
show vpdn session	Displays session information about L2TP, L2F protocol, and PPPoE tunnels in a VPDN.

debug pppoe redundancy

To debug PPP over Ethernet (PPPoE) redundancy events on a dual Route Processor High Availability (HA) system and display cluster control manager (CCM) events and messages, use the debug pppoe redundancy command in privileged EXEC mode. To disable the display of debugging output, use the no form of this command.

debug pppoe redundancy

no debug pppoe redundancy

Syntax Description

This command has no arguments or keywords.

Command Modes

Privileged EXEC (#)

Command History

Release	Modification
12.2(31)SB2	This command was introduced.
12.2SX	This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.
12.2(33)SRC	This command was integrated into Cisco IOS Release 12.2(33)SRC.
Cisco IOS XE Release 3.3S	This command was integrated into Cisco IOS XE Release 3.3S.

Usage Guidelines

The CCM provides the capability to facilitate and synchronize session initiation on the standby processor of a dual Route Processor HA system. Use the debug pppoe redundancy command to display CCM events and messages for PPPoE sessions.

---

Note This command is used only by Cisco engineers for internal debugging of CCM processes.

---

Examples

The following is sample output from the debug pppoe redundancy command from a Cisco 10000 series router active processor. No field descriptions are provided because command output is used for Cisco internal debugging purposes only.

Router# debug pppoe redundancy

Nov 22 17:21:11.327: PPPoE HA[0xBE000008] 9: Session ready to sync data

Nov 22 17:21:11.351: PPPoE HA[0xBE000008] 9: code = PADR, length = 58

Nov 22 17:21:11.351: PPPoE HA[0xBE000008] 9: code = SESSION ID, length = 2

Nov 22 17:21:11.351: PPPoE HA[0xBE000008] 9: code = SWITCH HDL, length = 4

Nov 22 17:21:11.351: PPPoE HA[0xBE000008] 9: code = SEGMENT HDL, length = 4

Nov 22 17:21:11.351: PPPoE HA[0xBE000008] 9: code = PHY SWIDB DESC, length = 20

Nov 22 17:21:11.351: PPPoE HA[0xBE000008] 9: code = VACCESS DESC, length = 28

Nov 22 17:21:11.351: PPPoE HA[0xBE000008] 9: Sync collection for ready events

Nov 22 17:21:11.351: PPPoE HA[0xBE000008] 9: code = PADR, length = 58

Nov 22 17:21:11.351: PPPoE HA[0xBE000008] 9: code = SESSION ID, length = 2

Nov 22 17:21:11.351: PPPoE HA[0xBE000008] 9: code = SWITCH HDL, length = 4

Nov 22 17:21:11.351: PPPoE HA[0xBE000008] 9: code = SEGMENT HDL, length = 4

Nov 22 17:21:11.351: PPPoE HA[0xBE000008] 9: code = PHY SWIDB DESC, length = 20

Nov 22 17:21:11.351: PPPoE HA[0xBE000008] 9: code = VACCESS DESC, length = 28

The following is sample output from the debug pppoe redundancy command from a Cisco 10000 series router standby processor:

Router# debug pppoe redundancy

Nov 22 17:21:11.448: PPPoE HA[0x82000008]: Recreating session: retrieving data

Nov 22 17:21:11.464: PPPoE HA[0x82000008] 9: Session ready to sync data

The following is sample output from the debug pppoe redundancy command from a Cisco 7600 series router active processor.

Router# debug pppoe redundancy

Dec 17 15:14:37.060: PPPoE HA[0x131B01B1] 28039: Session ready to sync data

Dec 17 15:14:37.076: PPPoE HA[0x131B01B1] 28039: code = PADR, length = 48

Dec 17 15:14:37.076: PPPoE HA[0x131B01B1] 28039: code = SESSION ID, length = 2

Dec 17 15:14:37.076: PPPoE HA[0x131B01B1] 28039: code = SWITCH HDL, length = 4

Dec 17 15:14:37.076: PPPoE HA[0x131B01B1] 28039: code = SEGMENT HDL, length = 4

Dec 17 15:14:37.076: PPPoE HA[0x131B01B1] 28039: code = PHY SWIDB DESC, length = 20

Dec 17 15:14:37.076: PPPoE HA[0x131B01B1] 28039: code = VACCESS DESC, length = 28

Dec 17 15:14:37.076: PPPoE HA[0x131B01B1] 28039: Sync collection for ready events

Dec 17 15:14:37.076: PPPoE HA[0x131B01B1] 28039: code = PADR, length = 48

Dec 17 15:14:37.076: PPPoE HA[0x131B01B1] 28039: code = SESSION ID, length = 2

Dec 17 15:14:37.076: PPPoE HA[0x131B01B1] 28039: code = SWITCH HDL, length = 4

Dec 17 15:14:37.076: PPPoE HA[0x131B01B1] 28039: code = SEGMENT HDL, length = 4

Dec 17 15:14:37.076: PPPoE HA[0x131B01B1] 28039: code = PHY SWIDB DESC, length = 20

Dec 17 15:14:37.076: PPPoE HA[0x131B01B1] 28039: code = VACCESS DESC, length = 28

The following is sample output from the debug pppoe redundancy command from a Cisco 7600 series router standby processor:

Router-stby# debug pppoe redundancy

Dec 17 15:14:37.180: STDBY: PPPoE HA[0xE41B019B]: Recreating session: retrieving data

Dec 17 15:14:37.204: STDBY: PPPoE HA[0xE41B019B] 28039: Session ready to sync data

debug presence

To display debugging information about the presence service, use the debug presence command in privileged EXEC mode. To disable debugging messages, use the no form of this command.

debug presence {all | asnl | errors | event | info | timer | trace | xml}

no debug presence {all | asnl | errors | event | info | timer | trace | xml}

Syntax Description

all	Displays all presence debugging messages.
asnl	Displays trace event logs in the Application Subscribe Notify Layer (ASNL).
errors	Displays presence error messages.
event	Displays presence event messages.
info	Displays general information about presence service.
timer	Displays presence timer information.
trace	Displays a trace of all presence activities.
xml	Displays messages related to the eXtensible Markup Language (XML) parser for presence service.

Command Modes

Privileged EXEC

Command History

Release	Modification
12.4(11)XJ	This command was introduced.
12.2SX	This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.
12.4(15)T	This command was integrated into Cisco IOS Release 12.4(15)T.

Examples

The following example shows output from the debug presence asnl command:

Router# debug presence asnl

*Sep  4 07:15:24.295: //PRESENCE:[17]:/presence_get_sccp_status: line is closed

*Sep  4 07:15:24.295: //PRESENCE:[17]:/presence_handle_line_update: line status changes,
send NOTIFY

*Sep  4 07:15:24.295: //PRESENCE:[17]:/presence_set_line_status: new line status [busy ]

*Sep  4 07:15:24.299: //PRESENCE:[17]:/presence_asnl_callback: type [5]

*Sep  4 07:15:24.299: //PRESENCE:[17]:/presence_asnl_callback: ASNL_RESP_NOTIFY_DONE

*Sep  4 07:15:24.299: //PRESENCE:[24]:/presence_get_sccp_status: line is closed

*Sep  4 07:15:24.299: //PRESENCE:[24]:/presence_handle_line_update: line status changes,
send NOTIFY

*Sep  4 07:15:24.299: //PRESENCE:[24]:/presence_set_line_status: new line status [busy ]

*Sep  4 07:15:24.299: //PRESENCE:[24]:/presence_asnl_callback: type [5]

*Sep  4 07:15:24.299: //PRESENCE:[24]:/presence_asnl_callback: ASNL_RESP_NOTIFY_DONE

*Sep  4 07:15:24.299: //PRESENCE:[240]:/presence_get_sccp_status: line is closed

*Sep  4 07:15:24.299: //PRESENCE:[240]:/presence_handle_line_update: line status changes,
send NOTIFY

*Sep  4 07:15:24.299: //PRESENCE:[240]:/presence_set_line_status: new line status [busy ]

*Sep  4 07:15:24.299: //PRESENCE:[766]:/presence_get_sccp_status: line is closed

*Sep  4 07:15:24.299: //PRESENCE:[766]:/presence_handle_line_update: line status changes,
send NOTIFY

*Sep  4 07:15:24.299: //PRESENCE:[766]:/presence_set_line_status: new line status [busy ]

*Sep  4 07:15:24.359: //PRESENCE:[766]:/presence_asnl_callback: type [5]

*Sep  4 07:15:24.359: //PRESENCE:[766]:/presence_asnl_callback: ASNL_RESP_NOTIFY_DONE

*Sep  4 07:15:24.811: //PRESENCE:[240]:/presence_asnl_callback: type [5]

*Sep  4 07:15:24.811: //PRESENCE:[240]:/presence_asnl_callback: ASNL_RESP_NOTIFY_DONE

*Sep  4 07:15:26.719: //PRESENCE:[17]:/presence_get_sccp_status: line is open

*Sep  4 07:15:26.719: //PRESENCE:[17]:/presence_handle_line_update: line status changes,
send NOTIFY

*Sep  4 07:15:26.719: //PRESENCE:[17]:/presence_set_line_status: new line status [idle ]

*Sep  4 07:15:26.719: //PRESENCE:[17]:/presence_asnl_callback: type [5]

*Sep  4 07:15:26.719: //PRESENCE:[17]:/presence_asnl_callback: ASNL_RESP_NOTIFY_DONE

*Sep  4 07:15:26.719: //PRESENCE:[24]:/presence_get_sccp_status: line is open

*Sep  4 07:15:26.719: //PRESENCE:[24]:/presence_handle_line_update: line status changes,
send NOTIFY

*Sep  4 07:15:26.719: //PRESENCE:[24]:/presence_set_line_status: new line status [idle ]

*Sep  4 07:15:26.723: //PRESENCE:[24]:/presence_asnl_callback: type [5]

*Sep  4 07:15:26.723: //PRESENCE:[24]:/presence_asnl_callback: ASNL_RESP_NOTIFY_DONE

The following example shows output from the debug presence event command:

Router# debug presence event

*Sep  4 07:16:02.715: //PRESENCE:[0]:/presence_sip_line_update: SIP nothing to update

*Sep  4 07:16:02.723: //PRESENCE:[17]:/presence_handle_notify_done: sip stack response
code [29]

*Sep  4 07:16:02.723: //PRESENCE:[24]:/presence_handle_notify_done: sip stack response
code [29]

*Sep  4 07:16:02.791: //PRESENCE:[240]:/presence_handle_notify_done: sip stack response
code [17]

*Sep  4 07:16:02.791: //PRESENCE:[766]:/presence_handle_notify_done: sip stack response
code [17]

*Sep  4 07:16:04.935: //PRESENCE:[0]:/presence_sip_line_update: SIP nothing to update

*Sep  4 07:16:04.943: //PRESENCE:[17]:/presence_handle_notify_done: sip stack response
code [29]

*Sep  4 07:16:04.943: //PRESENCE:[24]:/presence_handle_notify_done: sip stack response
code [29]

*Sep  4 07:16:04.995: //PRESENCE:[240]:/presence_handle_notify_done: sip stack response
code [17]

*Sep  4 07:16:04.999: //PRESENCE:[766]:/presence_handle_notify_done: sip stack response
code [17]

The following example shows output from the debug presence info command:

Router# debug presence info

*Sep  4 07:16:20.887: //PRESENCE:[17]:/presence_handle_line_update: get line status from
ccvdbPtr

*Sep  4 07:16:20.887: //PRESENCE:[17]:/presence_get_sccp_status: dn_tag 2

*Sep  4 07:16:20.887: //PRESENCE:[16]:/presence_start_element_handler: line 1: unknown
element <presence>

*Sep  4 07:16:20.887: //PRESENCE:[16]:/presence_start_element_handler: line 1: unknown
element <dm:person>

*Sep  4 07:16:20.887: //PRESENCE:[16]:/presence_start_element_handler: line 1: unknown
element <status>

*Sep  4 07:16:20.887: //PRESENCE:[16]:/presence_start_element_handler: line 1: unknown
element <e:activities>

*Sep  4 07:16:20.887: //PRESENCE:[16]:/presence_start_element_handler: line 1: unknown
element <tuple>

*Sep  4 07:16:20.887: //PRESENCE:[16]:/presence_start_element_handler: line 1: unknown
element <status>

*Sep  4 07:16:20.887: //PRESENCE:[16]:/presence_start_element_handler: line 1: unknown
element <e:activities>

*Sep  4 07:16:20.887: //PRESENCE:[0]:/presence_asnl_free_resp:

*Sep  4 07:16:20.887: //PRESENCE:[24]:/presence_handle_line_update: get line status from
ccvdbPtr

*Sep  4 07:16:20.887: //PRESENCE:[24]:/presence_get_sccp_status: dn_tag 2

*Sep  4 07:16:20.891: //PRESENCE:[23]:/presence_start_element_handler: line 1: unknown
element <presence>

The following example shows output from the debug presence timer command:

Router# debug presence timer

*Sep  4 07:16:41.271: //PRESENCE:[17]:/presence_asnl_notify_body_handler: expires time
3600

*Sep  4 07:16:41.271: //PRESENCE:[24]:/presence_asnl_notify_body_handler: expires time
3600

*Sep  4 07:16:41.271: //PRESENCE:[240]:/presence_asnl_notify_body_handler: expires time
607

*Sep  4 07:16:41.275: //PRESENCE:[766]:/presence_asnl_notify_body_handler: expires time
602

*Sep  4 07:16:43.331: //PRESENCE:[17]:/presence_asnl_notify_body_handler: expires time
3600

*Sep  4 07:16:43.331: //PRESENCE:[24]:/presence_asnl_notify_body_handler: expires time
3600

*Sep  4 07:16:43.331: //PRESENCE:[240]:/presence_asnl_notify_body_handler: expires time
605

*Sep  4 07:16:43.331: //PRESENCE:[766]:/presence_asnl_notify_body_handler: expires time
600

The following example shows output from the debug presence trace command:

Router# debug presence trace

*Sep  4 07:16:56.191: //PRESENCE:[17]:/presence_line_update:

*Sep  4 07:16:56.191: //PRESENCE:[24]:/presence_line_update:

*Sep  4 07:16:56.191: //PRESENCE:[240]:/presence_line_update:

*Sep  4 07:16:56.191: //PRESENCE:[766]:/presence_line_update:

*Sep  4 07:16:56.199: //PRESENCE:[17]:/presence_get_node_by_subid:

*Sep  4 07:16:56.199: //PRESENCE:[17]:/presence_handle_line_update:

*Sep  4 07:16:56.199: //PRESENCE:[17]:/presence_get_sccp_status:

*Sep  4 07:16:56.199: //PRESENCE:[17]:/presence_asnl_notify_body_handler:

*Sep  4 07:16:56.199: //PRESENCE:[24]:/presence_get_node_by_subid:

*Sep  4 07:16:56.199: //PRESENCE:[24]:/presence_handle_line_update:

*Sep  4 07:16:56.199: //PRESENCE:[24]:/presence_get_sccp_status:

*Sep  4 07:16:56.199: //PRESENCE:[24]:/presence_asnl_notify_body_handler:

*Sep  4 07:16:56.199: //PRESENCE:[240]:/presence_get_node_by_subid:

*Sep  4 07:16:56.199: //PRESENCE:[240]:/presence_handle_line_update:

*Sep  4 07:16:56.199: //PRESENCE:[240]:/presence_get_sccp_status:

*Sep  4 07:16:56.199: //PRESENCE:[240]:/presence_asnl_notify_body_handler:

*Sep  4 07:16:56.199: //PRESENCE:[766]:/presence_get_node_by_subid:

*Sep  4 07:16:56.203: //PRESENCE:[766]:/presence_handle_line_update:

*Sep  4 07:16:56.203: //PRESENCE:[766]:/presence_get_sccp_status:

*Sep  4 07:16:56.203: //PRESENCE:[766]:/presence_asnl_notify_body_handler:

*Sep  4 07:16:59.743: //PRESENCE:[17]:/presence_line_update:

*Sep  4 07:16:59.743: //PRESENCE:[24]:/presence_line_update:

*Sep  4 07:16:59.743: //PRESENCE:[240]:/presence_line_update:

*Sep  4 07:16:59.743: //PRESENCE:[766]:/presence_line_update:

The following example shows output from the debug presence trace command:

Router# debug presence trace

*Sep  4 07:17:17.351: //PRESENCE:[17]:/presence_xml_encode:

*Sep  4 07:17:17.355: //PRESENCE:[17]:/xml_encode_presence: keyword = presence

*Sep  4 07:17:17.355: //PRESENCE:[17]:/xml_encode_person: keyword = person

*Sep  4 07:17:17.355: //PRESENCE:[17]:/xml_encode_generic: keyword = Closed

*Sep  4 07:17:17.355: //PRESENCE:[17]:/xml_encode_activities: keyword = activities

*Sep  4 07:17:17.355: //PRESENCE:[17]:/xml_encode_otp: keyword = On-the-phone

*Sep  4 07:17:17.355: //PRESENCE:[17]:/xml_encode_tuple: keyword = tuple

*Sep  4 07:17:17.355: //PRESENCE:[17]:/xml_encode_status: keyword = status

*Sep  4 07:17:17.355: //PRESENCE:[17]:/xml_encode_generic: keyword = Closed

*Sep  4 07:17:17.355: //PRESENCE:[17]:/xml_encode_otp: keyword = On-the-phone

*Sep  4 07:17:17.355: <?xml version="1.0" encoding="UTF-8"?>

<presence xmlns="urn:ietf:params:xml:ns:pidf" entity="sip:6003@1.4.171.34"
xmlns:e="urn:ietf:params:xml:ns:pidf:status:rpid"
xmlns:dm="urn:ietf:params:xml:ns:pidf:data-model">

   <dm:person>

      <status>

         <basic>Closed</basic>

      </status>

      <e:activities>

         <e:on-the-phone/>

      </e:activities>

   </dm:person>

   <tuple id="cisco-cme">

      <status>

         <basic>Closed</basic>

         <e:activities>

            <e:on-the-phone/>

         </e:activities>

      </status>

   </tuple>

</presence>

Related Commands

Command	Description
presence	Enables presence service on the router and enters presence configuration mode.
presence enable	Allows the router to accept incoming presence requests.
show presence global	Displays configuration information about the presence service.
show presence subscription	Displays information about active presence subscriptions.

debug priority

To display priority queueing output, use the debug priority command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug priority

no debug priority

Syntax Description

This command has no arguments or keywords.

Command Modes

Privileged EXEC

Examples

The following example shows how to enable priority queueing output:

Router# debug priority

Priority output queueing debugging is on

The following is sample output from the debug priority command when the Frame Relay PVC Interface Priority Queueing (FR PIPQ) feature is configured on serial interface 0:

Router# debug priority

00:49:05:PQ:Serial0 dlci 100 -> high

00:49:05:PQ:Serial0 output (Pk size/Q 24/0)

00:49:05:PQ:Serial0 dlci 100 -> high

00:49:05:PQ:Serial0 output (Pk size/Q 24/0)

00:49:05:PQ:Serial0 dlci 100 -> high

00:49:05:PQ:Serial0 output (Pk size/Q 24/0)

00:49:05:PQ:Serial0 dlci 200 -> medium

00:49:05:PQ:Serial0 output (Pk size/Q 24/1)

00:49:05:PQ:Serial0 dlci 300 -> normal

00:49:05:PQ:Serial0 output (Pk size/Q 24/2)

00:49:05:PQ:Serial0 dlci 400 -> low

00:49:05:PQ:Serial0 output (Pk size/Q 24/3)

Related Commands

Command	Description
debug custom-queue	Displays custom queueing output.

debug private-hosts

To enable debug messages for the Private Hosts feature, use the debug private-hosts command in privileged EXEC mode.

debug private-hosts {all | events | acl | api}

Syntax Description

all	Enable debug messages for all Private Hosts errors and events.
events	Enable debug messages for issues related to Private Hosts events.
acl	Enable debug messages for issues and events related to ACLs.
api	Enable debug messages for issues related to the application programming interface.

Defaults

This command has no default settings.

Command Modes

Privileged EXEC

Command History

Release	Modification
12.2(33)SRB	This command was introduced.
12.2SX	This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.

Examples

The following example shows sample command output:

Router# debug private-hosts all

private-hosts events debugging is on

private-hosts api debugging is on

private-hosts acl debugging is on

Router#

Related Commands

Command	Description
debug fm private-hosts	Enables debug messages for the Private Hosts feature manager.

debug proxy h323 statistics

To enable proxy RTP statistics, use the debug proxy h323 statistics command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug proxy h323 statistics

no debug proxy h323 statistics

Syntax Description

This command has no arguments or keywords.

Command Modes

Privileged EXEC

Command History

Release	Modification
11.3(2)NA	This command was introduced.
12.2SX	This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.

Usage Guidelines

Enter the show proxy h323 detail-call EXEC command to see the statistics.

debug pvcd

To display the permanent virtual circuit (PVC) Discovery events and Interim Local Management Interface (ILMI) MIB traffic used when discovering PVCs, use the debug pvcd command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug pvcd

no debug pvcd

Syntax Description

This command has no arguments or keywords.

Command Modes

Privileged EXEC

Usage Guidelines

This command is primarily used by Cisco technical support representatives.

Examples

The following is sample output from the debug pvcd command:

Router# debug pvcd

PVCD: PVCD enabled w/ Subif

PVCD(2/0): clearing event queue

PVCD: 2/0 Forgetting discovered PVCs...

PVCD: Removing all dynamic PVCs on 2/0

PVCD: Restoring MIXED PVCs w/ default parms on 2/0

PVCD: Marking static PVCs as UNKNWN on 2/0

PVCD: Marking static PVC 0/50 as UNKNWN on 2/0 ...

PVCD: Trying to discover PVCs on 2/0...

PVCD: pvcd_discoverPVCs

PVCD: pvcd_ping

PVCD: fPortEntry.5.0 = 2

PVCD: pvcd_getPeerVccTableSize

PVCD: fLayerEntry.5.0 = 13

PVCD:end allocating VccTable size 13

PVCD:  pvcd_getPeerVccTable

PVCD:******* 2/0: getNext on fVccEntry = NULL TYPE/VALUE numFileds = 19 numVccs = 13

PVCD: Creating Dynamic PVC 0/33 on 2/0

PVCD(2/0): Before _update_inheritance() and _create_pvc() VC 0/33: DYNAMIC

PVCD: After _create_pvc() VC 0/33: DYNAMIC0/33 on 2/0 :  UBR PCR = -1

PVCD: Creating Dynamic PVC 0/34 on 2/0

PVCD(2/0): Before _update_inheritance() and _create_pvc() VC 0/34: DYNAMIC

PVCD: After _create_pvc() VC 0/34: DYNAMIC0/34 on 2/0 :  UBR PCR -1

PVCD: Creating Dynamic PVC 0/44 on 2/0

PVCD(2/0): Before _update_inheritance() and _create_pvc() VC 0/44: DYNAMIC

PVCD: After _create_pvc() VC 0/44: DYNAMIC0/44 on 2/0 :  UBR PCR = -1

PVCD: PVC 0/50 with INHERITED_QOSTYPE

PVCD: _oi_state_change ( 0/50, 1 = ILMI_VC_UP )

PVCD: Creating Dynamic PVC 0/60 on 2/0

PVCD(2/0): Before _update_inheritance() and _create_pvc() VC 0/60: DYNAMIC

PVCD: After _create_pvc() VC 0/60: DYNAMIC0/60 on 2/0 :  UBR PCR = -1

PVCD: Creating Dynamic PVC 0/80 on 2/0

PVCD(2/0): Before _update_inheritance() and _create_pvc() VC 0/80: DYNAMIC

PVCD: After _create_pvc() VC 0/80: DYNAMIC0/80 on 2/0 :  UBR PCR = -1

PVCD: Creating Dynamic PVC 0/99 on 2/0

debug pvdm2dm

To view contents of packets flowing through PVDMII-xxDM digital modem devices, use the debug pvdm2dm command in privileged EXEC mode. To disable debug activity, use the no form of this command.

debug pvdm2dm packet modem | pvdm slot/port | pvdm slot

no debug pvdm2dm

Syntax Description

packet	Debugs packets
modem	Debugs modem packets
pvdm	Debugs PVDM packets
slot	Router slot for pvdms/modems
port	Modem number
pvdm slot	PVDM number

Command Default

Disabled

Command Modes

Privileged EXEC (#)

Command History

Release	Modification
12.4(9)T	This command was introduced.
12.2SX	This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.

Usage Guidelines

To debug the contents of modem packets for a specific modem, use the following command:

•debug pvdm2dm packet modem slot/port

By removing the specific modem number at the end, one can enable packet debugging for all the modems available on the router:

•debug pvdm2dm packet modem

The following command enables packet debugging for all packets flowing through a particular PVDMII-xxDM device:

•debug pvdm2dm packet pvdm slot/pvdm slot

The following command enables debugging of packets flowing through any PVDMII-xxDM device:

•debug pvdm2dm packet pvdm

The following command enables debugging of packets flowing through any PVDMII-xxDM device and any PVDMII-xxDM-based modem channel:

•debug pvdm2dm packet

To see what debug flags are set, and to view the contents of debugged packets, use the show debugging command.

Examples

The following example sets debugging for a specific modem. The following show debugging command displays the debug flag that is set, and gives a typical printout for one debugged packet:

Router# debug pvdm2dm packet modem 0/322

Router# show debugging

PVDM2 DM:

  Modem 0/322 packet debugging is on

Router#

May 24 17:35:16.318: pvdm2_dm_tx_dsp_pak_common: bay 0, dsp 0 May 24 17:35:16.318:
pvdm2_dm_dump_pak_hex: pak: 43E1F6FC size 8 May 24 17:35:16.318: 00 08 00 00 00 1C 00 00
May 24 17:35:16.322:

The following example sets debugging for all PVDMII-xxDM modems available on the router.

Router# debug pvdm2dm packet

Router# show debugging

PVDM2 DM:

  Modem 0/322 packet debugging is on

  Modem 0/323 packet debugging is on

  Modem 0/324 packet debugging is on

  .

  .

  .

  Modem 0/355 packet debugging is on

  Modem 0/356 packet debugging is on

  Modem 0/357 packet debugging is on

Router#

The following example sets debugging for a particular PVDMII-xxDM device.

Router# debug pvdm2dm packet pvdm 0/0

Router# show debugging

PVDM2 DM:

  PVDM2 0/0 packet debugging is on

Router#

The following example sets debugging for all PVDMII-xxDM devices in the router.

Router# debug pvdm2dm packet pvdm

Router# show debugging

PVDM2 DM:

  PVDM2 0/0 packet debugging is on

  PVDM2 0/1 packet debugging is on

  PVDM2 0/2 packet debugging is on

Router#

In all of these examples, the output describing the debugged packets is similar to that of the first example, except that the packet contents will vary.

Related Commands

Command	Description
show debugging	Displays information about the type of debugging enabled for your router.

debug pw-udp

To debug pseudowire User Datagram Protocol (UDP) virtual circuits (VCs), use the debug pw-udp command in privileged EXEC mode.

debug pw-udp {errors | events | fsm}

Syntax Description

errors	Specifies pseudowire UDP errors.
events	Specifies pseudowire UDP events.
fsm	Specifies pseudowire UDP finite state machine (FSM).

Command Default

Debugging for pseudowire UDP VCs is not enabled.

Command Modes

Privileged EXEC (#)

Command History

Release	Modification
15.1(2)S	This command was introduced.

Usage Guidelines

To debug pseudowire UDP VCs, you must configure the debug pw-udp command in conjunction with the following set of debug commands before configuring Circuit Emulation Service over UDP (CESoUDP):

On both active and standby route processors (RPs):

•debug xconnect event

•debug xconnect error

•debug acircuit event

•debug acircuit error

•debug acircuit checkpoint

•debug pw-udp checkpoint

•debug ssm cm events

•debug ssm cm errors

•debug ssm sm errors

•debug ssm sm events

•debug sss error

•debug sss event

•debug sss fsm

•debug cem ac event

•debug cem ac error

•debug cem ha event

•debug cem ha error

On the Circuit Emulation over Packet (CeOP) line card:

•debug ssm cm events

•debug ssm cm errors

•debug ssm sm errors

•debug ssm sm events

For more information about each of these debug commands, see the Cisco IOS Debug Command Reference Guide.

Examples

The following example shows how to debug pseudowire UDP VCs on the active RP:

Router# debug xconnect event

Xconnect author event debugging is on

Router# debug xconnect error

Xconnect author errors debugging is on

Router# debug acircuit event

Attachment Circuit events debugging is on

Router# debug acircuit error

Attachment Circuit errors debugging is on

Router# debug cem ac event

CEM AC Events debugging is on

Router# debug cem ac error

CEM AC Error debugging is on

Router# debug cem ha event

CEM redundancy events debugging is on

Router# debug cem ha error

CEM redundancy error debugging is on

Router# debug pw-udp event

PW UDP events debugging is on

Router# debug pw-udp error

PW UDP errors debugging is on

Router# debug pw-udp fsm

PW UDP fsm debugging is on

Router# debug ssm cm events

SSM Connection Manager events debugging is on

Router# debug ssm cm errors

SSM Connection Manager errors debugging is on

Router# debug ssm sm errors

SSM Segment Handler Manager errors debugging is on

Router# debug ssm sm events

SSM Segment Handler Manager events debugging is on

Router# debug sss error

SSS Manager errors debugging is on

Router# debug sss event

SSS Manager events debugging is on

Router# debug sss fsm

SSS Manager fsm debugging is on

Router#

00:05:01: STDBY: CEMHA RF: CID 116, Seq 219, Event RF_EVENT_CLIENT_PROGRESSION, Op 7,
State STANDBY COLD-BULK, Peer ACTIVE

00:05:01: STDBY: CEMHA CF: CF client 182, entity 0 received msg

00:05:01: STDBY: CEMHA CF: CF client 182, entity 0 received msg

00:05:01: STDBY: CEMHA CF: CF client 182, entity 0 received msg

00:05:01: STDBY: CEMHA CF: CF client 182, entity 0 received msg

00:05:01: STDBY: CEMHA CF: CF client 182, entity 0 received msg

00:05:01: STDBY: CEMHA CF: CF client 182, entity 0 recei

00:05:01: STDBY: CEMHA CF Received Interface Update event=0x10

00:05:01: STDBY: AC CESP[CE4/2/0]: Activated CEM group 0

00:05:01: STDBY: AC CESP[CE4/2/0]: Setup switching of ckt 0

00:05:01: STDBY: AC CESP ERROR[CE4/2/0]: (CEM4/2/0): Setup Switching 0 cannot proceed
sw/seg: 0/0, Flag 10, SSM 0

00:05:01: STDBY: AC CESP ERROR[CE4/2/0]: CEM 0 Data switching setup failed

00:05:01: STDBY: CEMHA CF Received T1/E1 Update event=0x20

00:05:01: STDBY: CEMHA CF Received Interface Update event=0x10

00:05:01: STDBY: AC CESP[CE4/2/1]: Activated CEM group 0

00:05:01: STDBY: AC CESP[CE4/2/1]: Setup switching of ckt 0

00:05:01: STDBY: AC CESP ERROR[CE4/2/1]: (CEM4/2/1): Setup Switching 0 cannot proceed
sw/seg: 0/0, Flag 10, SSM 0

00:05:01: STDBY: AC CESP ERROR[CE4/2/1]: CEM 0 Data switching setup failed

00:05:01: STDBY: CEMHA CF Received T1/E1 Update event=0x20

00:05:01: STDBY: CEMHA(CEM4/2/1):Decode received VC AC for evtype 8 cem_id = 0,

 pw_state = 1, seg 3007, switch 2002, ac_wait_flags = 10 ,is_standby = NO, red_seg 0,
red_switch 0

00:05:01: STDBY: CEMHA: cem_id0, before decode sw/segment: 0/0, seg_state = 2, red
sw/segment: 0/0

00:05:01: STDBY: SSM SM ID LOCK: [CEM HA:id_lock_util_init:0] locker <ALL>: instance
created for <SSM SM ID LOCK>

00:05:01: STDBY: SSM CM[12295]: reserve ID: Locking SSM ID

00:05:01: STDBY: SSM SM ID LOCK: [CEM HA:id_lock:12295] locker <SIP>: count 0 --> 1

00:05:01: STDBY: CEMHA CF Received Interface Update event=0x10

00:05:01: STDBY: AC CESP[CE4/2/1]: Activated CEM group 0

00:05:01: STDBY: CEMHA CF Received T1/E1 Update event=0x20

00:05:01: STDBY: CEMHA CF Received Interface Update event=0x10

00:05:01: STDBY: AC CESP[CE4/2/1]: Activated CEM group 0

00:05:01: STDBY: CEMHA CF Received T1/E1 Update event=0x20

00:05:01: STDBY: CEMHA CF: Received bulk sync complete - sending ack

00:05:01: STDBY: CEMHA: Create CEM Circuit verification Background process...

00:05:01: STDBY: SSM CM: reserve seg(12295) sw(8194) IDs

00:05:01: STDBY: CEMHA : CEM HA Background Process

00:05:02: STDBY: CEMHA: CF sync successfully completed

00:05:03: STDBY: XCL2 CID 119 Seq 224 Event RF_EVENT_CLIENT_PROGRESSION Op 7 State STANDBY
COLD-BULK Peer ACTIVE

00:05:03: STDBY: PW UDP HA: HA Coexistence. Skip ISSU Negotiation on standby RP

00:05:06: STDBY: CEM HA: (CEM4/2/0) CEM 0x0 Platform chkpt data has

                      arrived for cktid=0

00:05:06: STDBY: CEM PW: Remove from WaitQ, ckt_type 19

00:05:06: STDBY: CEM HA: (CEM4/2/1) CEM 0x0 Platform chkpt data has

                      arrived for cktid=0

00:05:06: STDBY: CEM PW: Remove from WaitQ, ckt_type 19

00:05:06: STDBY: AC CESP[CE4/2/1]: Setup switching of ckt 0

00:05:06: STDBY: AC: [CE4/2/1, 0]: Setup switching

00:05:06: STDBY: AC: [CE4/2/1, 0]: Our AIE EF000002 Peer's AIE 2B000004 Peer's peer
00000000

00:05:06: STDBY: AC: [CE4/2/1, 0]: Using switch hdl 8194

00:05:06: STDBY: SSM CM[12295]: provision segment: standby RP received existing id from
active RP

00:05:06: STDBY: AC: [CE4/2/1, 0]: Successfully setup switching API

00:05:06: STDBY: AC: [CE4/2/1, 0]: Allocated segment hdl 12295

00:05:06: STDBY: AC CESP[CE4/2/1]: CKT UP ID: 0

00:05:06: STDBY: AC CESP[CE4/2/1]: Send ACMGR NOTIF, ckt_type 19, ckt_id 0 UP

00:05:06: STDBY: AC: Update seg 12295 plane with circuit Up status

00:05:06: STDBY: SSM SH[12295]: X: alloc sbase 0x500386A0 hdl 3007

00:05:06: STDBY: SSM CM[12295]: [CESoPSN Basic] provision first allocated base now,
reserved earlier

00:05:06: STDBY: SSM CM[12295]: CM FSM: st Idle, ev Prov seg->Down

00:05:06: STDBY: SSM SH[12295]: init segment base

00:05:06: STDBY: SSM SH[ADJ:CESoPSN Basic:12295]: init segment class

00:05:06: STDBY: SSM CM[ADJ:CESoPSN Basic:12295]: provision segment 1

00:05:06: STDBY: SSM SM[ADJ:CESoPSN Basic:12295]: Provision segment: Idle -> Prov

00:05:06: STDBY: SSM SM[ADJ:CESoPSN Basic:12295]: provision segment

00:05:06: STDBY: SSM CM[12295]: segment status update Up

00:05:06: STDBY: SSM CM[12295]: CM FSM: st Down, ev Upd seg->Down

00:05:06: STDBY: SSM CM[ADJ:CESoPSN Basic:12295]: update segment status

00:05:06: STDBY: SSM SM[ADJ:CESoPSN Basic:12295]: Update segment: no state change, Prov

00:05:06: STDBY: SSM ADJ[ADJ:CESoPSN Basic:CE4/2/1: Type L:12295]: update segment status:
Up

00:05:06: STDBY: SSM ADJ[ADJ:CESoPSN Basic:CE4/2/1: Type L:12295]: ATM Async is supported

00:05:06: STDBY: SSM ADJ[ADJ:CESoPSN Basic:CE4/2/1: Type L:12295]: Platform requesting not
to send unready: 1

00:05:06: STDBY: SSM ADJ[ADJ:CESoPSN Basic:CE4/2/1: Type L:12295]: circuit Up event

00:05:06: STDBY: SSM ADJ[ADJ:CESoPSN Basic:CE4/2/1: Type L:12295]: send segment ready

00:05:06: STDBY: SSM CM[12295]: [ADJ] shQ request send ready event

00:05:06: STDBY: ACMGR [CE4/2/1]: Receive <Circuit Status> msg

00:05:06: STDBY: ACMGR [CE4/2/1]: circuit up event, FSP state chg sip up to both up,
action is peer p2p up, circuit remote up

00:05:06: STDBY: SSS MGR [uid:4]: Handling peer-to-peer event

00:05:06: STDBY: PW UDP MGR [10.1.1.153, 200]: receive p2p msg type: circuit status

00:05:06: STDBY: PW UDP MGR [10.1.1.153, 200]: Success to obtain circuit type 19 from AC
Access IE

00:05:06: STDBY: PW UDP MGR [10.1.1.153, 200]: event local ac up, state changed from
provisioned to activating, action local_ac_up

00:05:06: STDBY: PW UDP MGR [10.1.1.153, 200]: Waiting for vc checkpoint data

00:05:06: STDBY: PW UDP MGR [10.1.1.153, 200]: Success to obtain circuit type 19 from AC
Access IE

00:05:06: STDBY: PW UDP MGR [10.1.1.153, 200]: event need checkpoint, state changed from
activating to checkpoint wait, action clean_up_checkpoint_resource

00:05:06: STDBY: PW UDP MGR [10.1.1.153, 200]: Cleanup Checkpoint Resources

00:05:06: STDBY: PW UDP MGR [10.1.1.153, 200]: local ac status is changed from none to UP

00:05:06: STDBY: SSM CM[12295]: SM msg event send ready event

00:05:06: STDBY: SSM SM[ADJ:CESoPSN Basic:12295]: segment ready

00:05:06: STDBY: SSM SM[ADJ:CESoPSN Basic:12295]: Found segment data: Prov -> Ready

00:05:07: STDBY: CEMHA RF: CID 116, Seq 219, Event RF_EVENT_CLIENT_PROGRESSION, Op 8,
State STANDBY HOT, Peer ACTIVE

00:05:07: STDBY: XCL2 CID 119 Seq 224 Event RF_EVENT_CLIENT_PROGRESSION Op 8 State STANDBY
HOT Peer ACTIVE

00:05:07: STDBY: PW UDP HA: HA Coexistence. Skip ISSU Negotiation on standby RP

Related Commands

Command	Description
encapsulation (pseudowire)	Specifies an encapsulation type for tunneling Layer 2 traffic over a pseudowire.
udp port	Configures the UDP port information on the xconnect class.
show pw-udp vc	Displays information about pseudowire UDP VCs.

debug pxf atom

To display debug messages relating to Parallel eXpress Forwarding (PXF) Any Transport over MPLS (AToM), use the debug pxf atom command in privileged EXEC mode. To disable the debugging, use the no form of this command.

debug pxf atom [ac | mpls]

no debug pxf atom [ac | mpls]

Syntax Description

ac	(Optional) Displays AToM information related to attachment circuit (AC) events.
mpls	(Optional) Displays AToM information related to MPLS Forwarding Infrastructure (MFI) events.

Command Default

Disabled (debugging is not enabled).

Command Modes

Privileged EXEC

Command History

Release	Modification
12.2S	This command was introduced.
12.2SX	This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.

Examples

The following example shows how to display PXF AToM AC events debug messages:

Router# debug pxf atom ac

PXF ATOM AC debugging is on

Related Commands

Command	Description
show mpls l2transport	Displays information about AToM virtual circuits (VCs) that have been enabled to route Layer 2 packets on a router, including platform-independent AToM status and capabilities of a particular interface.
show mpls l2transport vc	Displays information about AToM VCs that are enabled to route Layer 2 packets on a router.
show pxf cpu atom	Displays PXF AToM information for an interface or VCCI.
show pxf cpu mpls label	Displays PXF forwarding information for a label.
show pxf cpu statistics atom	Displays PXF CPU AToM statistics.

debug pxf backwalks

To display debug messages relating to Parallel eXpress Forwarding (PXF) backwalk requests, use the debug pxf backwalks command in privileged EXEC mode. To disable the debugging, use the no form of this command.

debug pxf backwalks

no debug pxf backwalks

Syntax Description

This command has no arguments or keywords.

Command Default

Disabled (debugging is not enabled).

Command Modes

Privileged EXEC

Command History

Release	Modification
12.2S	This command was introduced.
12.2SX	This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.

Examples

The following example shows how to display PXF backwalk requests debug messages:

Router# debug pxf backwalks

PXF BACKWALK debugging is on

Related Commands

Command	Description
show pxf cpu statistics backwalk	Displays PXF CPU backwalk requests statistics.

debug pxf bba

To display debug messages relating to Parallel eXpress Forwarding (PXF) Broadband Access Aggregation (BBA) features, use the debug pxf bba command in privileged EXEC mode. To disable the debugging, use the no form of this command.

debug pxf bba [ac sh_counter | ac sh_error | ac sh event | elog | l2f startstop debug | l2x fh error | l2x fh event | l2x sh counter | l2x sh error | l2x sh event | lt sh error | lt sh event]

no debug pxf bba [ac sh_counter | ac sh_error | ac sh event | elog | l2f startstop debug | l2x fh error | l2x fh event | l2x sh counter | l2x sh error | l2x sh event | lt sh error | lt sh event]

Syntax Description

ac_sh_counter	(Optional) Displays attachment circuit (AC) segment counters.
ac_sh_error	(Optional) Displays AC segment errors.
ac_sh_event	(Optional) Displays AC segment events.
elog	(Optional) Displays event logging messages.
l2f_startstop_debug	(Optional) Displays Layer 2 Forwarding (L2F) tunneling events.
l2x_fh_error	(Optional) Displays L2F/L2TP (L2x) feature errors.
l2x_fh_event	(Optional) Displays L2x feature events.
l2x_sh_counter	(Optional) Displays L2x segment counters.
l2x_sh_error	(Optional) Displays L2x segment errors.
l2x_sh_event	(Optional) Displays L2x segment events.
lt_sh_error	(Optional) Displays LT segment errors.
lt_sh_event	(Optional) Displays LT segment events.

Command Default

Disabled (debugging is not enabled).

Command Modes

Privileged EXEC

Command History

Release	Modification
12.2S	This command was introduced.
12.2SX	This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.

Examples

The following example shows how to display AC segment counters debug messages:

Router# debug pxf bba ac_sh_counter

AC segment counters debugging is on

*Jan 19 13:18:26.698: c10k_get_ac_segment_counters: pppox vcci 2709 rx pkts = 0

rx byte = 0 tx pkts = 0 tx bytes = 0

*Jan 19 13:18:26.698: c10k_get_ac_segment_counters: pppox vcci 2709 tx drop pkts

 = 0 tx drop bytes = 0

*Jan 19 13:18:26.698: c10k_get_ac_segment_counters: pppox vcci 2710 rx pkts = 0

rx byte = 0 tx pkts = 0 tx bytes = 0

*Jan 19 13:18:26.698: c10k_get_ac_segment_counters: pppox vcci 2710 tx drop pkts

 = 0 tx drop bytes = 0

*Jan 19 13:18:36.698: c10k_get_ac_segment_counters: pppox vcci 2709 rx pkts = 0

rx byte = 0 tx pkts = 0 tx bytes = 0

*Jan 19 13:18:36.698: c10k_get_ac_segment_counters: pppox vcci 2709 tx drop pkts

 = 0 tx drop bytes = 0

*Jan 19 13:18:36.698: c10k_get_ac_segment_counters: pppox vcci 2710 rx pkts = 0

rx byte = 0 tx pkts = 0 tx bytes = 0

.

.

.

The following example shows how to display L2F tunneling debug messages:

Router# debug pxf bba l2f_startstop_debug

L2F feature debugging is on

*Jan 20 12:04:18.976: hwcnts.rx_pkts :0 hwcnts.rx_bytes :0

hwcnts.tx_pkts :0 hwcnts.tx_bytes: 0

hwcnts.tx_drop_pkts :0 hwcnts.tx_drop_bytes: 0

pcntrs->rx_pkts: 0 pcntrs->rx_bytes: 0

pcntrs->tx_pkts: 0 pcntrs->tx_bytes: 0

pcntrs->tx_drop_pkts: 0 pcntrs->tx_drop_bytes: 0

*Jan 20 12:04:18.976: hwcnts.rx_pkts :0 hwcnts.rx_bytes :0

hwcnts.tx_pkts :0 hwcnts.tx_bytes: 0

hwcnts.tx_drop_pkts :0 hwcnts.tx_drop_bytes: 0

pcntrs->rx_pkts: 0 pcntrs->rx_bytes: 0

pcntrs->tx_pkts: 0 pcntrs->tx_bytes: 0

pcntrs->tx_drop_pkts: 0 pcntrs->tx_drop_bytes: 0

.

.

.

Related Commands

Command	Description
show pxf cpu bba	Displays PXF CPU (RP) BBA information.

debug pxf cef

To display debug messages relating to Parallel eXpress Forwarding (PXF) Cisco Express Forwarding (CEF), use the debug pxf cef command in privileged EXEC mode. To disable the debugging, use the no form of this command.

debug pxf cef [fibroot | rpf]

no debug pxf cef [fibroot | rpf]

Syntax Description

fibroot	Displays PXF CEF Forwarding Information Base (FIB) root information.
rpf	Displays PXF CEF Reverse Path Forwarding (RPF) information.

Command Default

Disabled (debugging is not enabled).

Command Modes

Privileged EXEC

Command History

Release	Modification
12.2S	This command was introduced.
12.2SX	This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.

Examples

The following example shows how to display PXF CEF debug messages:

Router# debug pxf cef

PXF CEF debugging is on

Related Commands

Command	Description
show ip cef	Displays summary information about the FIB entries.
show pxf cpu cef	Displays PXF CPU memory usage, CEF, and External Column Memory (XCM) information.

debug pxf dma

To display debug messages relating to Parallel eXpress Forwarding (PXF) direct memory access (DMA) operations, use the debug pxf dma command in privileged EXEC mode. To disable the debugging, use the no form of this command.

debug pxf dma

no debug pxf dma

Syntax Description

This command has no arguments or keywords.

Command Default

Disabled (debugging is not enabled).

Command Modes

Privileged EXEC

Command History

Release	Modification
12.3(7)XI	This command was introduced.
12.2(31)SB	This command was integrated into Cisco IOS Release 12.2(31)SB.
12.2SX	This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.

Examples

The following example shows how to display PXF DMA ASIC debug messages:

Router# debug pxf dma

PXF DMA ASIC debugging is on

*Jan  4 08:05:06.314: get ftbb reg: slot 3, subslot 1

*Jan  4 08:05:06.814: get ftbb reg: slot 3, subslot 1

*Jan  4 08:05:07.314: get ftbb reg: slot 3, subslot 1

*Jan  4 08:05:07.814: get ftbb reg: slot 3, subslot 1

*Jan  4 08:05:08.314: get ftbb reg: slot 3, subslot 1

*Jan  4 08:05:08.814: get ftbb reg: slot 3, subslot 1

*Jan  4 08:05:09.314: get ftbb reg: slot 3, subslot 1

*Jan  4 08:05:09.814: get ftbb reg: slot 3, subslot 1

*Jan  4 08:05:10.314: get ftbb reg: slot 3, subslot 1

*Jan  4 08:05:10.814: get ftbb reg: slot 3, subslot 1

*Jan  4 08:05:11.314: get ftbb reg: slot 3, subslot 1

*Jan  4 08:05:11.814: get ftbb reg: slot 3, subslot 1

*Jan  4 08:05:12.314: get ftbb reg: slot 3, subslot 1

*Jan  4 08:05:12.814: get ftbb reg: slot 3, subslot 1

*Jan  4 08:05:13.314: get ftbb reg: slot 3, subslot 1

*Jan  4 08:05:13.814: get ftbb reg: slot 3, subslot 1

*Jan  4 08:05:14.314: get ftbb reg: slot 3, subslot 1

*Jan  4 08:05:14.814: get ftbb reg: slot 3, subslot 1

*Jan  4 08:05:14.982: Entering c10k_cobalt_send.

*Jan  4 08:05:14.982:   Packet decode: datagramstart 0x0A0301BE length 76

*Jan  4 08:05:14.982:   Header decode: Chan 0, VCCI 2515

*Jan  4 08:05:14.982:   Header decode: flags 0x0001

*Jan  4 08:05:14.982:   c10k_cobalt_send: Checked the idb state.

*Jan  4 08:05:14.982:   c10k_cobalt_send: Checked the FromRP Q count.

.

.

.

Related Commands

Command	Description
show pxf dma	Displays the current state of the DMA buffers, error counters, and registers on the PXF.

debug pxf iedge

To display debug messages relating to Parallel eXpress Forwarding (PXF) Intelligent Edge (iEdge) operations, use the debug pxf iedge command in privileged EXEC mode. To disable the debugging, use the no form of this command.

debug pxf iedge [stats]

no debug pxf iedge [stats]

Syntax Description

stats

(Optional) Includes PXF iEdge statistics in the output.

Command Default

Disabled (debugging is not enabled).

Command Modes

Privileged EXEC

Command History

Release	Modification
12.2S	This command was introduced.
12.2SX	This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.

Examples

The following example shows how to display PXF iEdge debug messages:

Router# debug pxf iedge

iEdge Feature Debug debugging is on

Related Commands

Command	Description
show pxf cpu iedge	Displays PXF iEdge information for an interface or policy.

debug pxf ipv6

To display debug messages relating to Parallel eXpress Forwarding (PXF) IPv6 provisioning, use the debug pxf ipv6 command in privileged EXEC mode. To disable the debugging, use the no form of this command.

debug pxf ipv6 [acl | fib | hash]

no debug pxf ipv6 [acl | fib | hash]

Syntax Description

acl	(Optional) Displays PXF IPv6 access control list (ACL) information.
fib	(Optional) Displays PXF Forwarding Information Base (FIB) information.
hash	(Optional) Displays PXF IPv6 hash information.

Command Default

Disabled (debugging is not enabled).

Command Modes

Privileged EXEC

Command History

Release	Modification
12.2S	This command was introduced.
12.2SX	This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.

Examples

The following example shows how to display PXF IPv6 ACL debug messages:

Router# debug pxf ipv6 acl

PXF IPV6 ACL debugging is on

Related Commands

Command	Description
show ipv6 interface	Displays IPv6 interface settings.
show ipv6 route	Displays IPv6 routing table contents.
show pxf cpu ipv6	Displays PXF CPU IPv6 statistics.

debug pxf l2less-error

To display debug messages relating to Parallel eXpress Forwarding (PXF) Layer 2 Less (L2less) drop packet errors, use the debug pxf l2less-error command in privileged EXEC mode. To disable the debugging, use the no form of this command.

debug pxf l2less-error

no debug pxf l2less-error

Syntax Description

This command has no arguments or keywords.

Command Default

Disabled (debugging is not enabled).

Command Modes

Privileged EXEC

Command History

Release	Modification
12.3(7)XI	This command was introduced.
12.2SX	This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.

Usage Guidelines

The Route Processor (RP) uses the L2less packet handler to handle tunneling encapsulated packets that do not have the original IP and Layer 2 information associated with them. The L2less handler takes the packet with a specific header, updates the statistics (interface packet and byte counts), and enqueues the packet to the IP input queue.

Examples

The following example shows how to display PXF L2less drop packet errors debug messages:

Router# debug pxf l2less-error

PXF l2less-error debugging is on

Related Commands

Command	Description
show pxf statistics	Displays chassis-wide, summary PXF statistics.

debug pxf microcode

To display debug message relating to Parallel eXpress Forwarding (PXF) microcode operations, use the debug pxf microcode command in privileged EXEC mode. To disable the debugging, use the no form of this command.

debug pxf microcode

no debug pxf microcode

Syntax Description

This command has no arguments or keywords.

Command Default

Disabled (debugging is not enabled).

Command Modes

Privileged EXEC

Command History

Release	Modification
12.3(7)XI	This command was introduced.
12.2SX	This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.

Examples

The following example shows how to display PXF microcode debug messages:

Router# debug pxf microcode

PXF microcode debugging is on

Related Commands

Command	Description
microcode reload	Reloads the Cisco IOS image from a line card on a Cisco router.
show pxf microcode	Displays identifying information for the microcode currently loaded on the PXF.

debug pxf mnode

To display debug messages relating to Parallel eXpress Forwarding (PXF) multiway node (mnode) operations, use the debug pxf mnode command in privileged EXEC mode. To disable the debugging, use the no form of this command.

debug pxf mnode

no debug pxf mnode

Syntax Description

This command has no arguments or keywords.

Command Default

Disabled (debugging is not enabled).

Command Modes

Privileged EXEC

Command History

Release	Modification
12.2S	This command was introduced.
12.2SX	This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.

Usage Guidelines

The mnodes are used in the multiway tree (Mtrie) library. Each mnode has a number of buckets that point to lower level mnodes or to multiway leaves (mleaves). The mleaves can be null leaves which indicate empty buckets.

Examples

The following example shows how to display PXF mnode debug messages:

Router# debug pxf mnode

PXF MNODE debugging is on

Related Commands

Command	Description
show pxf cpu cef	Displays PXF CPU memory usage, Cisco Express Forwarding, and XCM information.

debug pxf mpls

To display debug messages relating to Parallel eXpress Forwarding (PXF) Multiprotocol Label Switching (MPLS) operations, use the debug pxf mpls command in privileged EXEC mode. To disable the debugging, use the no form of this command.

debug pxf mpls [csc {event | stats} | lspv]

no debug pxf mpls [csc {event | stats} | lspv]

Syntax Description

csc {event | stats}	(Optional) Displays PXF Cisco Signaling Controller (CSC) events and statistics.
lspv	Displays Link State Path Vector (LSPV) debug messages from the PXF MPLS Label Switched Path (LSP) Ping/Traceroute feature.

Command Default

Disabled (debugging is not enabled).

Command Modes

Privileged EXEC

Command History

Release	Modification
12.2S	This command was introduced.
12.2SX	This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.

Examples

The following example shows how to display PXF MPLS CSC statistics debug messages:

Router# debug pxf mpls csc stats

PXF MPLS CSC STATS debugging is on

Related Commands

Command	Description
ping mpls	Checks MPLS LSP connectivity.
show mpls interfaces	Displays information about the interfaces that have been configured for label switching.
show pxf cpu mpls	Displays PXF MPLS (FIB) entry information.
trace mpls	Discovers MPLS LSP routes that packets will take when traveling to their destinations.

debug pxf mroute

To display debug messages relating to Parallel eXpress Forwarding (PXF) multicast route (mroute) operations, use the debug pxf mroute command in privileged EXEC mode. To disable the debugging, use the no form of this command.

debug pxf mroute [mdb | mdt | midb | punt]

no debug pxf mroute [mdb | mdt | midb | punt]

Syntax Description

mdb	(Optional) Displays PXF multicast descriptor block (MDB) event messages.
mdt	(Optional) Displays PXF multicast distribution tree (MDT) messages.
midb	(Optional) Displays PXF multicast interface descriptor block (MIDB) messages.
punt	(Optional) Displays PXF multicast punted packets information.

Command Default

Disabled (debugging is not enabled).

Command Modes

Privileged EXEC

Command History

Release	Modification
12.2S	This command was introduced.
12.2SX	This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.

Examples

The following example shows how to display PXF multicast distribution tree (MDT) debug messages:

Router# debug pxf mroute mdt

PXF mroute mdt creation debugging is on

Related Commands

Command	Description
clear ip mroute	Deletes entries from the IP multicast routing table.
show ip mroute	Displays the contents of the IP multicast routing table.
show pxf cpu mroute	Displays PXF multicast routing information for a particular group or range of groups.

debug pxf multilink

To display debug messages relating to Parallel eXpress Forwarding (PXF) multilink operations, use the debug pxf multilink command in privileged EXEC mode. To disable the debugging, use the no form of this command.

debug pxf multilink [all | atm | frame-relay | frfl2 | lfi | ppp | queue | rates]

no debug pxf multilink [all | atm | frame-relay | frfl2 | lfi | ppp | queue | rates]

Syntax Description

all	(Optional) Displays all PXF multilink messages.
atm	(Optional) Displays PXF multilink ATM messages.
frame-relay	(Optional) Displays PXF multilink Frame Relay messages.
frf12	(Optional) Displays PXF Frame Relay Forum FRF.12-based fragmentation information on Frame Relay permanent virtual circuits (PVCs).
lfi	(Optional) Displays PXF Link Fragmentation and Interleaving (LFI) messages.
ppp	(Optional) Displays PXF multilink PPP messages.
queue	(Optional) Displays PXF multilink queue messages.
rates	(Optional) Displays PXF multilink queue rate messages.

Command Default

Disabled (debugging is not enabled).

Command Modes

Privileged EXEC

Command History

Release	Modification
12.2S	This command was introduced.
12.2SX	This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.

Examples

The following example shows how to display PXF multilink ATM debug messages:

Router# debug pxf multilink atm

Router#

Related Commands

Command	Description
frame-relay fragment	Enables fragmentation of Frame Relay frames on a Frame Relay map class.
show ppp multilink	Displays bundle information for the MLP bundles.
show pxf statistics	Displays chassis-wide, summary PXF statistics.

debug pxf netflow

To enable debugging of NetFlow Parallel eXpress Forwarding (PXF )operations, use the debug pxf netflow command in privileged EXEC mode. To disable the debugging, use the no form of this command.

debug pxf netflow {records | time}

no debug pxf netflow {records | time}

Syntax Description

records	Displays NetFlow PXF records information.
time	Displays NetFlow PXF time synchronization information.

Command Default

Disabled (debugging is not enabled).

Command Modes

Privileged EXEC

Command History

Release	Modification
12.3(7)XI	This command was introduced.
12.2SX	This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.

Examples

The following example enables NetFlow PXF records debugging:

Router# debug pxf netflow records

PXF netflow records debugging is on

Router#

Related Commands

Command	Description
show pxf netflow	Displays NetFlow PXF counters information.

debug pxf pbr

To display debug messages relating to Parallel eXpress Forwarding (PXF) policy-based routing (PBR), use the debug pxf pbr command in privileged EXEC mode. To disable the debugging, use the no form of this command.

debug pxf pbr [sacl | trace]

no debug pxf pbr [sacl | trace]

Syntax Description

sacl	(Optional) Displays PXF PBR super access control list (ACL) messages.
trace	(Optional) Displays PXF PBR trace information.

Command Default

Disabled (debugging is not enabled).

Command Modes

Privileged EXEC

Command History

Release	Modification
12.2S	This command was introduced.
12.2SX	This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.

Examples

The following example shows how to display PXF PBR trace debug messages:

Router# debug pxf pbr trace

PXF PBR Trace debugging is on

Related Commands

Command	Description
show pxf cpu pbr action	Displays the PBR actions configured on the PXF for all PBR route maps.

debug pxf qos

To display debug messages relating to Parallel eXpress Forwarding (PXF) quality of service (QoS) operations, use the debug pxf qos command in privileged EXEC mode. To disable the debugging, use the no form of this command.

debug pxf qos [ipc | trace]

no debug pxf qos [ipc | trace]

Syntax Description

ipc	(Optional) Displays PXF QoS interprocess communication (IPC) information.
trace	(Optional) Displays PXF QoS trace information

Command Default

Disabled (debugging is not enabled).

Command Modes

Privileged EXEC

Command History

Release	Modification
12.2S	This command was introduced.
12.2SX	This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.

Examples

The following example shows how to display PXF QoS IPC debug messages:

Router# debug pxf qos trace

PXF QoS IPC Events debugging is on

Router#

*Apr 30 23:23:44:  c10k_bandwidth_notification_handler: cmdtype=4 event=0x30 acA

*Apr 30 23:23:44:  c10k_priority_notification_handler: cmdtype=4 event=0x30 actA

*Apr 30 23:23:44:  c10k_bandwidth_notification_handler: cmdtype=4 event=0x30 acA

*Apr 30 23:23:44:  c10k_bandwidth_notification_handler: cmdtype=4 event=0x30 acA

*Apr 30 23:23:44:  c10k_priority_notification_handler: cmdtype=4 event=0x30 actA

*Apr 30 23:23:44:  c10k_bandwidth_notification_handler: cmdtype=4 event=0x30 acA

.

.

.

Related Commandss

Command	Description
show pxf cpu qos	Displays External Column Memory (XCM) contents related to a particular policy.
show pxf statistics	Displays chassis-wide, summary PXF statistics.

debug pxf stats

To display debug messages relating to Parallel eXpress Forwarding (PXF) statistics collector events, use the debug pxf stats command in privileged EXEC mode. To disable the debugging, use the no form of this command.

debug pxf stats

no debug pxf stats

Syntax Description

This command has no arguments or keywords.

Command Default

Disabled (debugging is not enabled).

Command Modes

Privileged EXEC

Command History

Release	Modification
12.3(7)XI	This command was introduced.
12.2SX	This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.

Examples

The following example shows how to display PXF statistics debug messages:

Router# debug pxf stats

PXF hardware statistics debugging is on

Related Commands

Command	Description
clear pxf	Clears PXF counters and statistics.
show pxf cpu statistics	Displays PXF CPU statistics.
show pxf statistics	Displays chassis-wide, summary PXF statistics.

debug pxf subblocks

To display debug messages relating to Parallel eXpress Forwarding (PXF) bridged subinterfaces (encapsulation types), use the debug pxf subblocks command in privileged EXEC mode. To disable the debugging, use the no form of this command.

debug pxf subblocks

no debug pxf subblocks

Syntax Description

This command has no arguments or keywords.

Command Default

Disabled (debugging is not enabled).

Command Modes

Privileged EXEC

Command History

Release	Modification
12.3(7)XI	This command was introduced.
12.2SX	This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.

Examples

The following example shows how to display PXF bridged subinterfaces (encapsulation type) debug messages:

Router# debug pxf subblocks

PXF hardware subblock debugging is on

Related Commands

Command	Description
show pxf cpu statistics	Displays PXF CPU statistics.
show pxf cpu subblocks	Displays PXF CPU statistics for bridged subinterfaces (encapsulation types).

debug pxf tbridge

To enable debugging of Parallel eXpress Forwarding (PXF) transparent bridging, use the debug pxf tbridge command in privileged EXEC mode. To disable debugging for the PXF transparent bridge, use the no form of this command.

debug pxf tbridge

no debug pxf tbridge

Syntax Description

This command has no arguments or keywords.

Command Default

Debugging is not enabled.

Command Modes

Privileged EXEC

Command History

Release	Modification
12.3(14)T	This command was introduced.
12.2(31)SB	This command was integrated into Cisco IOS Release 12.2(31)SB and implemented on the Cisco 10000 series router.
12.2SX	This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.

Examples

The following sample output from the debug pxf tbridge command shows that the Bridge Group Virtual Interface (BVI) 100 has been removed from the Software Mac-address Filter (SMF) table:

Router# debug pxf tbridge

*Feb  8 18:39:04.710: rpmxf_tbridge_add_remove_bvi_from_smf: Deleting BVI entry 100 from
SMF table.

*Feb  8 18:39:04.710: rpmxf_tbridge_add_remove_bvi_from_smf: BVI 100 ICM programming

*Feb  8 18:39:04.710: rpmxf_tbridge_add_remove_bvi_from_smf: Successfully removed SMF
entry for bvi 100

*Feb  8 18:39:04.710: rpmxf_tbridge_add_remove_bvi_from_smf: Deleting BVI entry 100 from
SMF table.

*Feb  8 18:39:04.710: rpmxf_tbridge_add_remove_bvi_from_smf: BVI 100 ICM programming

*Feb  8 18:39:04.710: rpmxf_tbridge_add_remove_bvi_from_smf: Successfully removed SMF
entry for bvi 100

*Feb  8 18:39:05.178: %SYS-5-CONFIG_I: Configured from console by vty0

(CROI_MASTER_000A004B)

*Feb  8 18:39:06.710: %LINK-5-CHANGED: Interface BVI100, changed state to administratively
down

*Feb  8 18:39:07.710:%LINEPROTO-5-UPDOWN: Line protocol on Interface BVI100, changed state
to down

The following sample output from the debug pxf tbridge command shows that BVI is configured and that the SMF entry has been updated:

Router# debug pxf tbridge

*Feb  8 18:39:16.398:

Note: A random mac address of 0000.0ceb.c0f8 has been chosen for BVI in bridge group  100
since there is no mac address associated with the selected interface.

*Feb  8 18:39:16.398: Ensure that this address is unique.

*Feb  8 18:39:16.398: rpmxf_tbridge_smf_update: SMF update for Switch1.1: BVI 100 Mac
Address 0000.0ceb.c0f8

*Feb  8 18:39:16.398: rpmxf_tbridge_smf_update: BVI 100 ICM programming

*Feb  8 18:39:16.398: rpmxf_tbridge_smf_update: Successfully updated SMF entry for bvi 100

*Feb  8 18:39:16.398: rpmxf_tbridge_smf_update: SMF update for Switch1.1:

BVI 100 Mac Address 0000.0ceb.c0f8

*Feb  8 18:39:16.398: rpmxf_tbridge_smf_update: BVI 100 ICM programming

*Feb  8 18:39:16.398: rpmxf_tbridge_smf_update: Successfully updated SMF entry for bvi 100

*Feb  8 18:39:16.886: %SYS-5-CONFIG_I: Configured from console by vty0

(CROI_MASTER_000A004B)

*Feb  8 18:39:18.394: %LINK-3-UPDOWN: Interface BVI100, changed state to up

*Feb  8 18:39:19.394: %LINEPROTO-5-UPDOWN: Line protocol on Interface BVI100, changed
state to up

Related Commands

Command	Description
show pxf cpu statistics	Displays PXF CPU statistics for a configured router.
show pxf cpu subblock	Displays PXF CPU subblocks for a bridged subinterface.
show pxf cpu tbridge	Displays PXF CPU statistics for transparent bridging.
show pxf statistics	Displays chassis-wide, summary PXF statistics.
